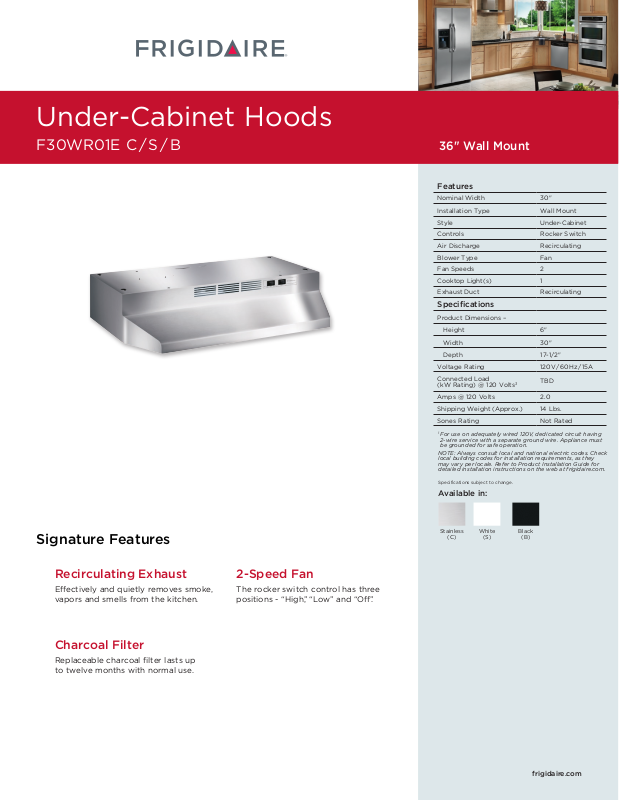

Frigidaire F30WR01E User Manual
Drop-In Cooktop
Under-Cabinet Hoods
FPEC3085K S
F30WR01E C / S / B
30" Electric
36" Wall Mount
Features
Nominal Width 30"
Installation Type Wall Mount
Style Under-Cabinet
Controls Rocker Switch
Air Discharge Recirculating
Blower Type Fan
Fan Speeds 2
Cooktop Light(s) 1
Exhaust Duct Recirculating
Specifications
Product Dimensions –
Height 6"
Width 30"
Depth 17-1/2"
Voltage Rating 120V / 60Hz / 15A
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts 2.0
Shipping Weight (Approx.) 14 Lbs.
Sones Rating Not Rated
1
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.
NOTE: Always consult local and national electric codes. Check
local building codes for installation requirements, as they
may vary per locale. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Specifications subject to change.
TBD
3
Available in:
Signature Features
Recirculating Exhaust
Effectively and quietly removes smoke,
vapors and smells from the kitchen.
Charcoal Filter
Replaceable charcoal filter lasts up
to twelve months with normal use.
2-Speed Fan
The rocker switch control has three
positions - “High”, “Low” and “Off”.
Stainless
(C)
White
(S)
Black
(B)
frigidaire.com
Under-Cabinet Hoods
Under-Cabinet Vent Hood (recirculating model ONLY)
F30WR01E
Frigidaire Baseline
30"
13"
max.
cabinet
depth
Minimum 18"-24"
allowed from cooking surface
to bottom of hood
6"
17
1
/2"
Top or rear power
supply locations
30"
12"
Exhaust
Vent hood exhaust is recirculated inside
with no ducting required.
For detailed preparation and installation
specifications, refer to installation
instructions on web.
Cabinet Front
7
1
/2"
Electrical
access hole
(in wall)
3
/4"
3
/8"
Wood filler
strips
Cabinet Bottom
Wood filler strips (recessed cabinet bottoms only)
7
1
/2"
9
7
/8"
9"
Electrical access hole (in cabinet bottom)
1
1
/2"
9"
1
1
/2"
13
15
/16"13 15/16"

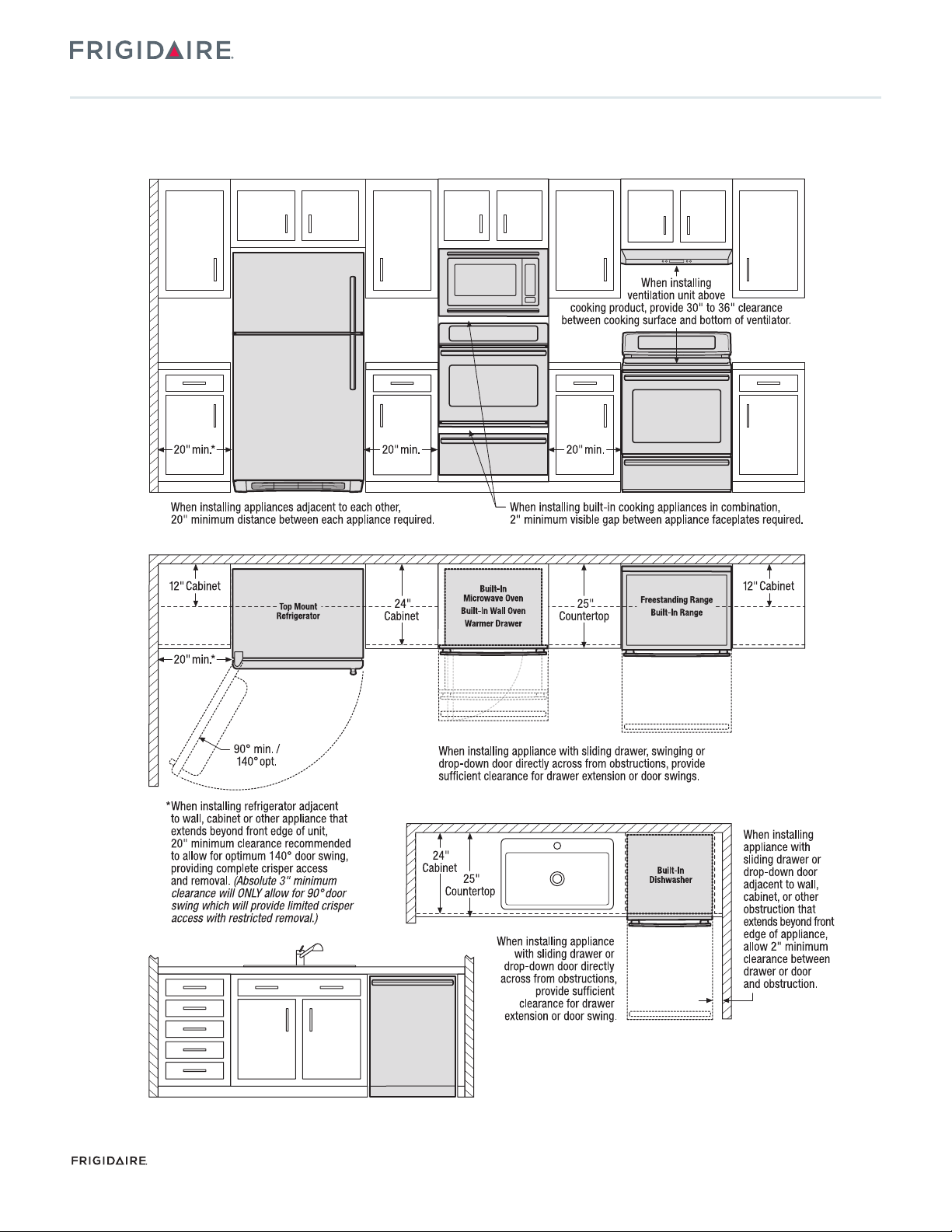

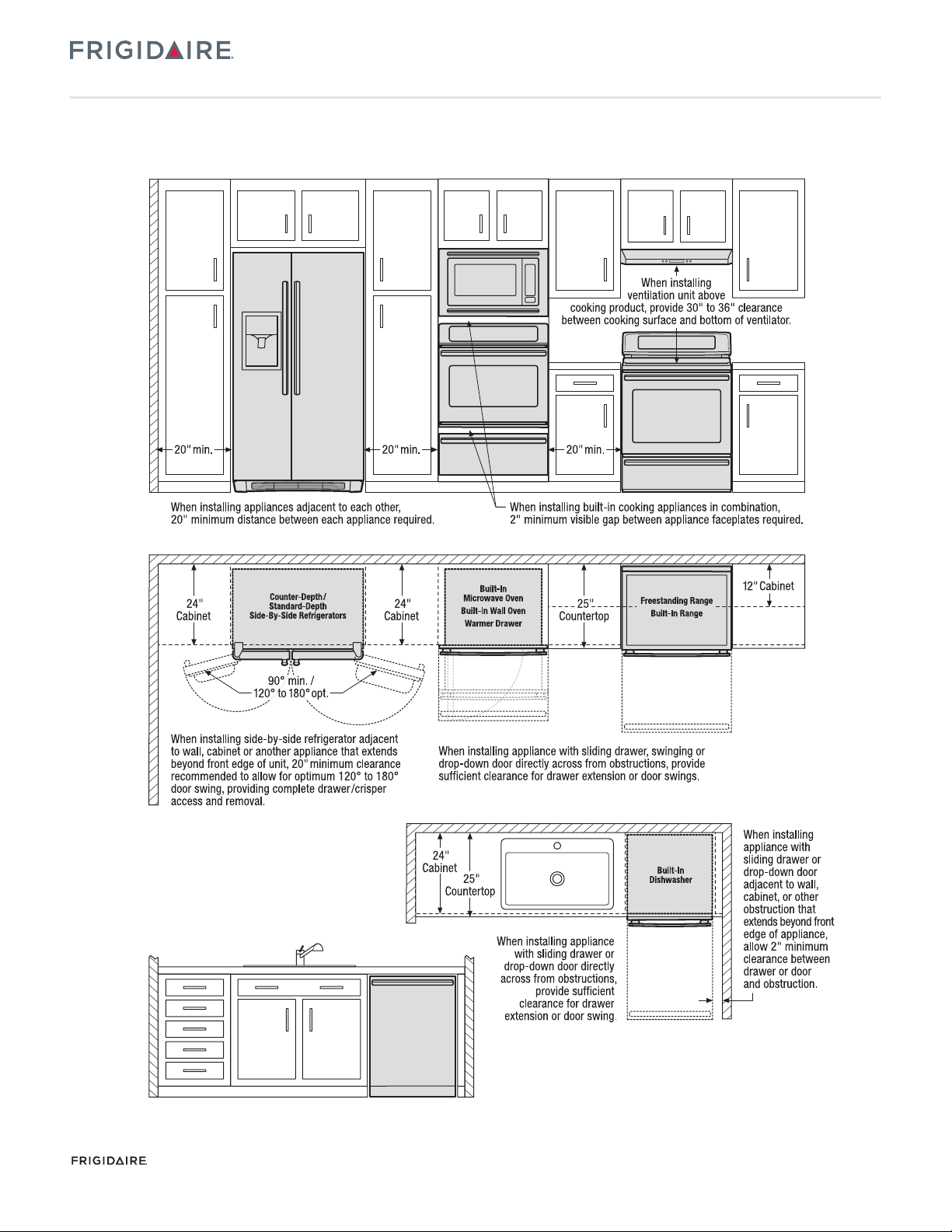

Installation
F30WR01E C / S/ B 30" Wall Mount
Under-Cabinet Hood Specifications
•
Product Shipping Weight (Approx.) – 14 Lbs.
•
Wall-Mount Installation
•
Ventilation system recirculates air inside with no ducting system
required.
•
Sones Rating – Not Rated
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = TBD
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 2.0 Amps
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Connect vent hood with copper wire only.
•
Minimum installation height allowed from bottom of hood to cooking
surface is 18" - 24".
•
Installation on recessed-bottom cabinets requires attachment of two
wood filler strips at each side of recessed area under cabinet.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
F30WR01E 01/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
