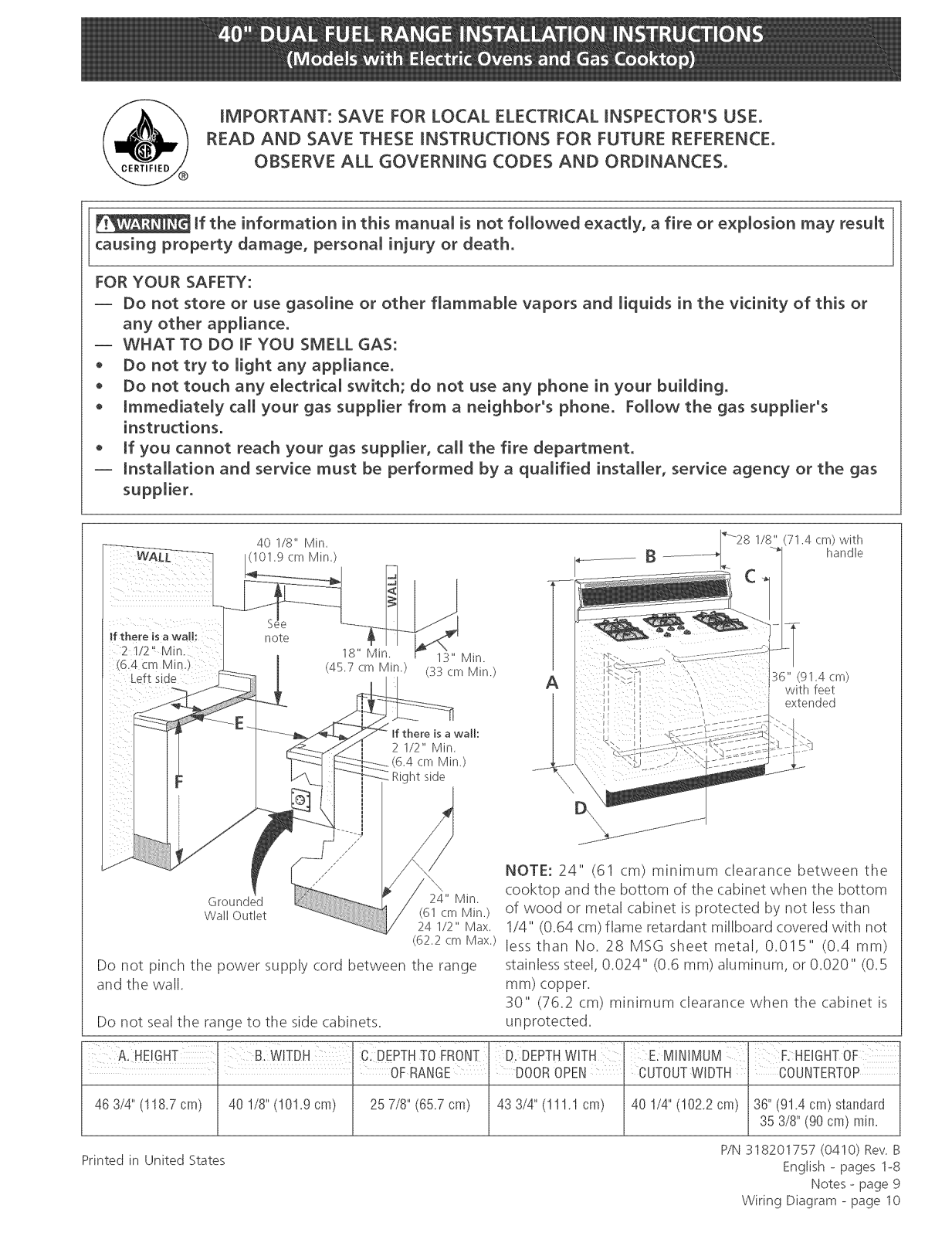

Frigidaire CPLCF489DC2, CPLCF489DC3, CPLCF489DC4 Installation Guide

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE,

OBSERVE ALL GOVERNING CODES AND ORDINANCES.

mfthe information in this manual is not followed e×actly, a fire or e×plosion may result

causing property damage, personal iniury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.

-- WHAT TO DO mFYOU SMELL GAS:

• Do not try to light any appliance.
® Do not touch any electrical switch; do not use any phone in your building.

mmmediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.

If you cannot reach your gas supplier, call the fire department.

-- Installation and service must be performed by a qualified installer, service agency or the gas

40 I/8" Min,

(6.4 cm Min,) (4B,7 cm Min.) (33 cm Min.)

Left Side A

is a wall:

2 I/2" Min,

Min)

ght side

Grounded 24" Min.

Wall Outlet (61 cm Min.)

\,

24 1/2" Max,

(62,2 cm Max,)

Do not pinch the power supply cord between the range
and the wall.

Do not seal the range to tile side cabinets,

C:DEPTHTo FRONT D.DEPTHWITH' E.MINIMUM

, , OFRANGE _ DOOROPEN CUTOUTWIDTH COUNTERTOP

46 3/#' (118.7crn) 40 1/8"(101.9cm)

25 7/8" (65.7 cm) 433/4"(111.1cm) 40 1/4"(!02.2 cm) 36" (91.4cm) standard

NOTE: 24" (61 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom

of wood or metal cabinet is protected by not lessthan

1/4" (0.64 cm)flame retardant millboard covered with not
less than No. 28 MSG sheet metal, 0.015" (0.4 ram)
stainless steel, 0.024" (0.6 ram) aluminum, or 0.020" (0.5

ram) copper.
30" (76.2 cm) minimum clearance when tile cabinet is

un protected.

35 3/8"(90cm)mils.

Printed in United States

P/N 318201757 (04!0) Rev

English - pages I-8

Notes - page 9

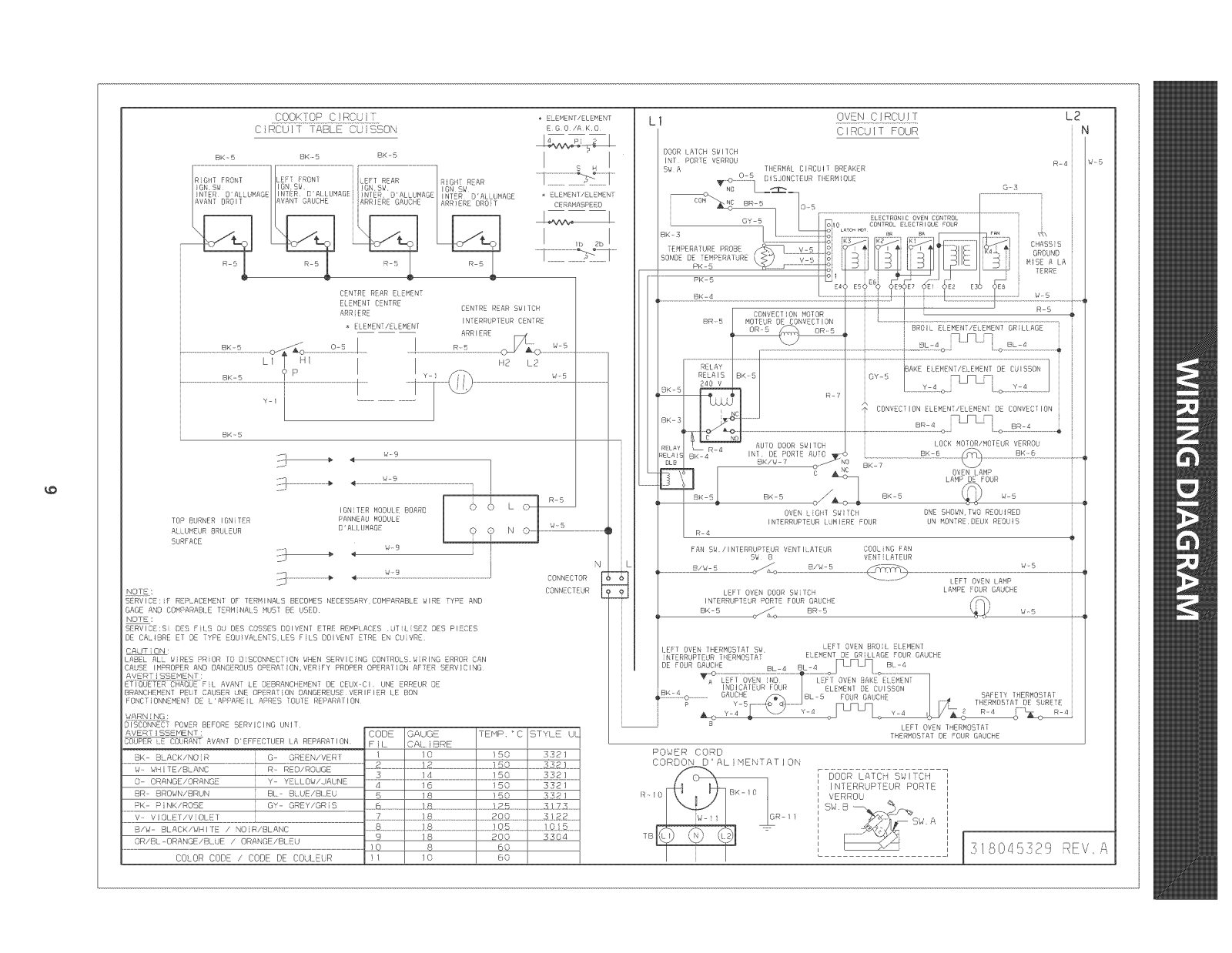

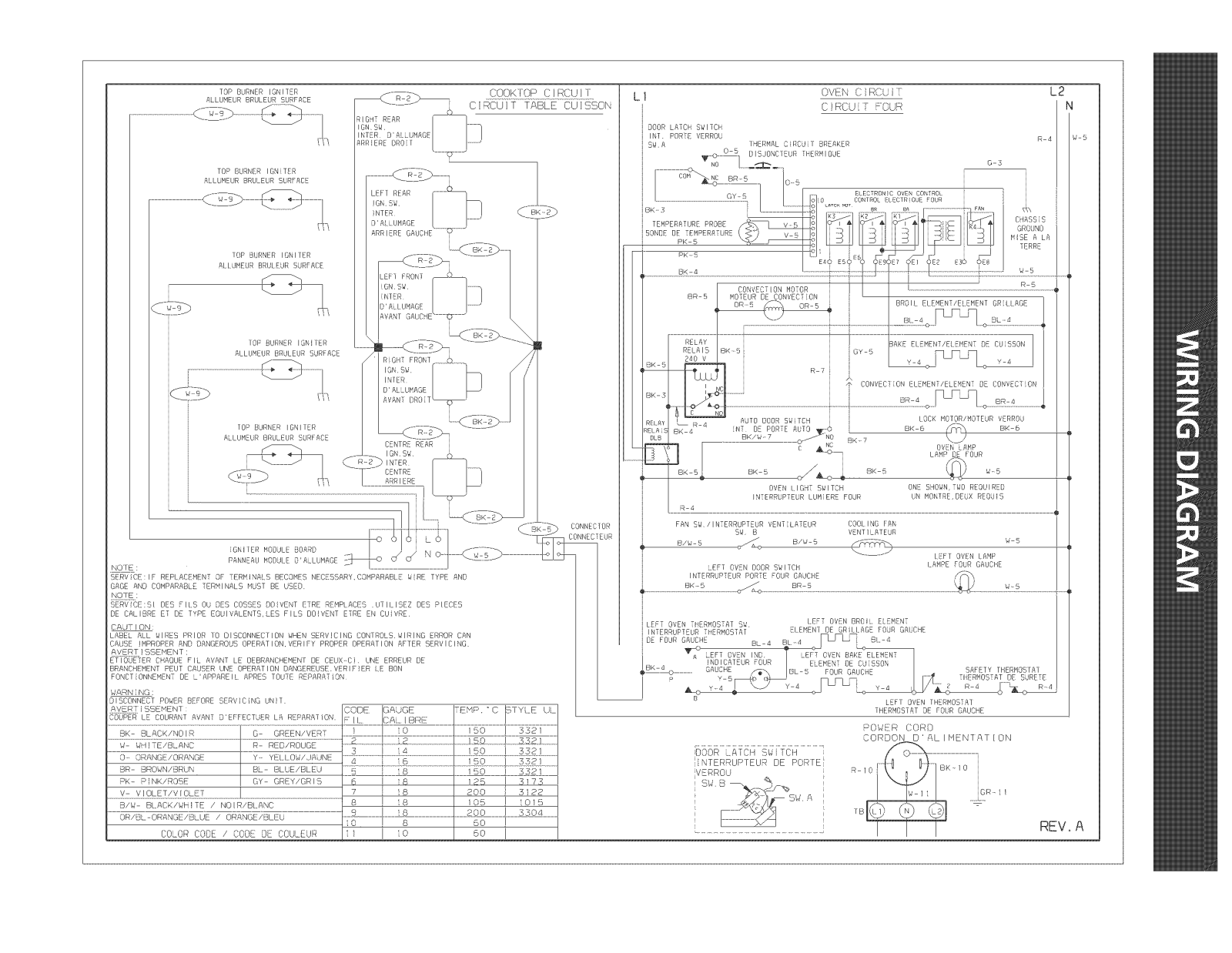

Wiring Diagram - page 10

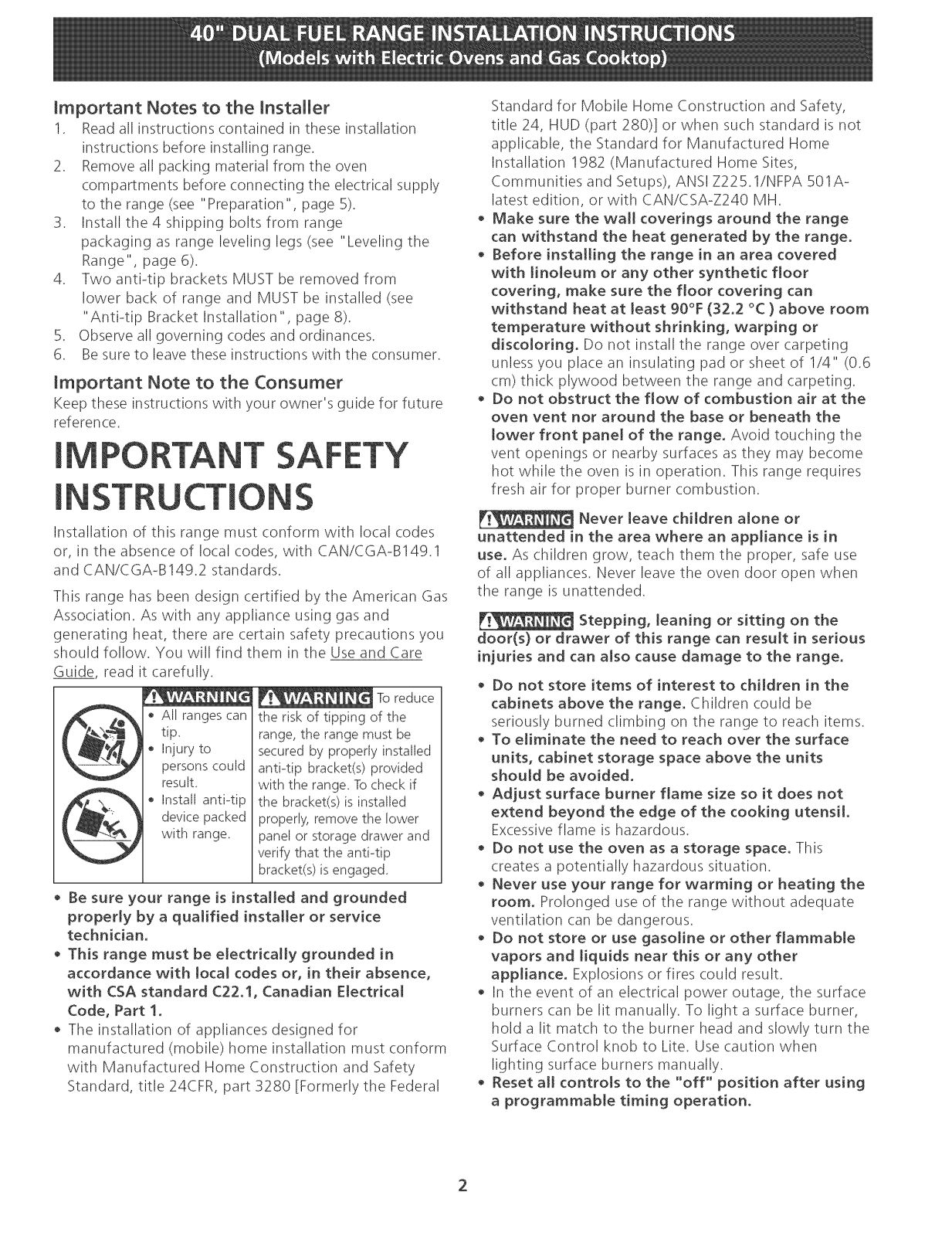

Important Notes to the Installer

1. Read all instructions contained in these installation
instructions before installing range.

2. Remove all packing material from the oven
compartments before connecting the electrical supply
to tile range (see "Preparation ", page 5).

3. Install the 4 shipping bolts from range
packaging as range leveling legs (see "Leveling the
Range", page 6).

4. Two antPtip brackets MUST be removed from
lower back of range and MUST be installed (see

"AntPtip Bracket Installation", page 8).

5. Observe all governing (:odes and ordinances.

6. Be sure to leave these instructions with the consumer.

Important Note to the Consumer
Keep these instructions with your owner's guide for future

reference.

IMPORTANT SAFETY
INSTRUCT!

Installation of this range must conform with local codes
or, in the absence of local codes, with CAN/CGA-B149.1

and CAN/CGA-B149.2 standards.
This range has been design certified by the American Gas

Association. As with any appliance using gas and
generating heat, there are certain safety precautions you

should follow. You will find them in the Useand Care
Guide, read it carefully.

reduce

All ranges can
tip_

Injury to
persons could

result
Install anti-tip

device packed
with range.

Be sure your range is installed and grounded

properly by a qualified installer or service
technidan.

• This range must be electrically grounded in

accordance with local codes or, in theft absence,
with CSA standard C22.1, Canadian Electrical
Code, Part 1.

The installation of appliances designed for
manufactured (mobile) home installation must conform
with Manufactured Home Construction and Safety
Standard, title 24CFR, part 3280 [Formerly the Federal

the risk of tipping of the

range, the range must be
secured by properly installed

anti-tip bracket(s) provided

with the range_ To check if
the bracket(s)is installed

properly, remove the lower
aane[ or storage drawer and

verify that the antPtip

bracket(s) is engaged

Standard for Mobile Home Construction and Safety,
title 24, HUD (part 280)] or when such standard is not
applicable, the Standard for Manufactured Home
Installation 1982 (Manufactured Home Sites,
Communities and Setups), ANSI Z225.1/NFPA 501A-
latest edition, or with CAN/CSA-Z240 MH.

• Make sure the wall coverings around the range
can withstand the heat generated by the range.

• Before installing the range in an area covered
with linoleum or any other synthetic floor

covering, make sure the floor covering can
withstand heat at least 9B°F (32.2 °C ) above room

temperature without shrinking, warping or
discoloring. Do not install the range over carpeting

unless you place an insulating pad or sheet of I/4" (0.6
cm) thick plywood between the range and carpeting.

• Do not obstruct the flow of combustion air at the
oven vent nor around the base or beneath the

tower front panel of the range. Avoid touching the
vent openings or nearby surfaces asthey may become

hot while the oven is in operation. This range requires
fresh air for proper burner combustion.

Never leave children alone or
unattended in the area where an appliance is in
use. As children grow, teach them the proper, safe use

of all appliances. Never leave the oven door open when
the range is unattended.

Stepping, leaning or sitting on the
door(s) or drawer of this range can result in serious

injuries and can also cause damage to the range.

• Do not store items of interest to children in the

cabinets above the range. Children could be
seriously burned climbing on the range to reach items.

• To eliminate the need to reach over the surface

units, cabinet storage space above the units
shouId be avoided.

• Adjust surface burner flame size so it does not

extend beyond the edge of the cooking utensil.
Excessiveflame is hazardous.

Do not use the oven as a storage space. This

creates a potentially hazardous situation.

• Never use your range for warming or heating the

room. Prolonged use of the range without adequate
ventilation can be dangerous.

• Do not store or use gasoline or other flammable

vapors and liquids near this or any other
appliance. Explosions or fires could result.

• In the event of an electrical power outage, the surface

burners can be lit manually. To light a surface burner,
hold a lit match to the burner head and slowly turn the

Surface Control knob to Lite. Use caution when
lighting surface burners manually.

• Reset all controls to the "off" position after using

a programmable timing operation.

2

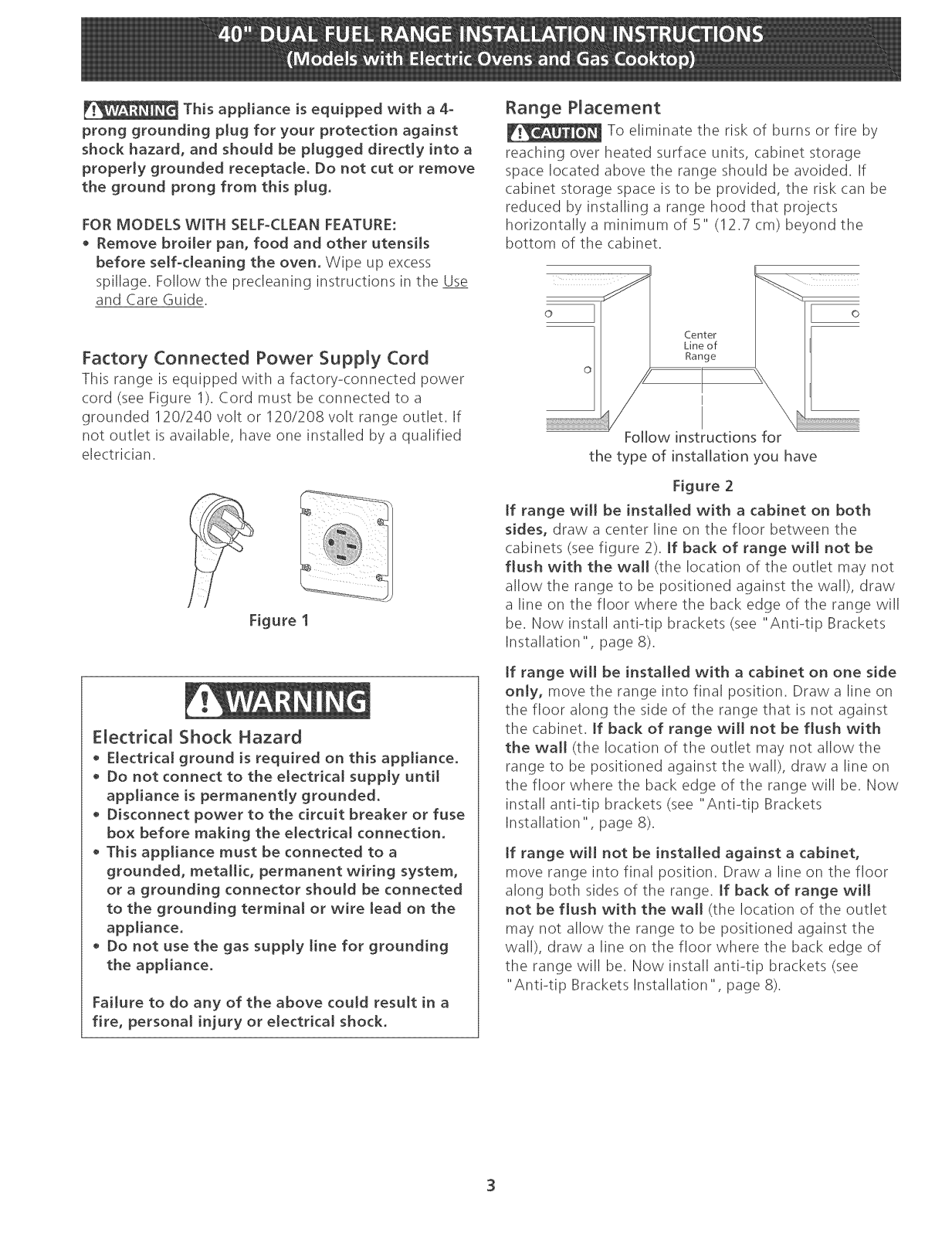

This appJiance is equipped with a 4-

prong grounding plug for your protection against
shock hazard, and should be plugged directly into a
properly grounded receptacle. Do not cut or remove
the ground prong from this plug.

FOR MODELS WITH SELF-CLEAN FEATURE:

Remove broiler pan, food and other utensils
before self-cleaning the oven. Wipe up excess
spillage. Follow the precleaning instructions in the Use

and Care Guide.

Factory Connected Power Supply Cord

This range is equipped with a factory-connected power
cord (see Figure 1). Cord must be connected to a

grounded 120/240 volt or 120/208 volt range outlet. If
not outlet is available, have one installed by a qualified
electrician.

Figure 1

Range Placement

To eliminate the risk of burns or fire by

reaching over heated surface units, cabinet storage
space located above the range should be avoided. If

cabinet storage space is to be provided, the risk can be
reduced by installing a range hood that projects

horizontally a minimum of 5" (12.7 cm) beyond the
bottom of the cabinet.

Center
Line of

Range

Follow instructions for

the type of installation you have

Figure 2

tf range will be installed with a cabinet on both
sides, draw a center line on tile floor between the
cabinets (see figure 2). If back of range will not be
flush with the wall (the location of the outlet may not
allow the range to be positioned against the wall), draw
a line on tile floor where the back edge of the range will
be. Now install anti-tip brackets (see "Anti-tip Brackets
Installation ", page 8).

Electrical Shock Hazard

• Electrical ground is required on this appliance.

• Do not connect to the electrical supply untit
appJiance is permanentJy grounded.

• Disconnect power to the circuit breaker or fuse
box before making the eJectricat connection.

• This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector shouJd be connected
to the grounding terminat or wire lead on the
appliance.

• Do not use the gas suppty line for grounding
the appliance.

Failure to do any of the above could resutt in a
fire, personal injury or electrical shock.

tf range will be installed with a cabinet on one side
only, move the range into final position. Draw a line on
the floor along the side of tile range that is not against
tile cabinet. If back of range wilt not be flush with
the wall (the location of the outlet may not allow tile
range to be positioned against the wall), draw a line on
the floor where the back edge of the range will be. Now
install anti-tip brackets (see "Anti-tip Brackets
Installation ", page 8).

tf range will not be installed against a cabinet,
move range into final position. Draw a line on the floor

along both sides of the range. If back of range will
not be flush with the walt (the location of the outlet

may not allow the range to be positioned against the
wall), draw a line on the floor where the back edge of

the range will be. Now install anti-tip brackets (see

"Anti-tip Brackets Installation ", page 8).
