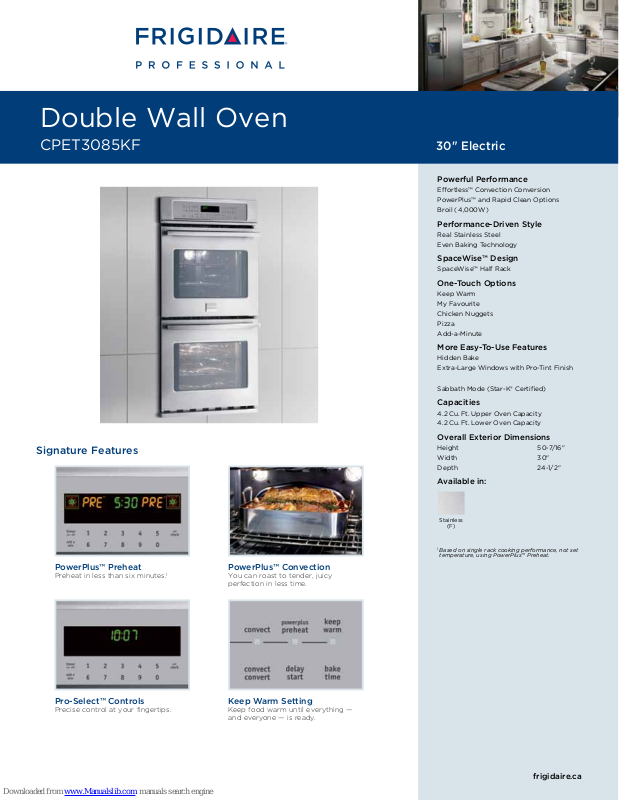

Double Wall Oven
CPET3085KF
Signature Features
30" Electric
Powerful Performance
Eortless™ Convection Conversion
PowerPlus™ and Rapid Clean Options
Broil ( 4,000W )
Performance-Driven Style
Real Stainless Steel
Even Baking Technology
SpaceWise™ Design
SpaceWise™ Half Rack
One-Touch Options
Keep Warm
My Favourite
Chicken Nuggets
Pizza
Add-a-Minute
More Easy-To-Use Features
Hidden Bake
Extra-Large Windows with Pro-Tint Finish
Sabbath Mode (Star-K® Certified)
Capacities
4.2 Cu. Ft. Upper Oven Capacity
4.2 Cu. Ft. Lower Oven Capacity
Overall Exterior Dimensions
Height 50-7/16"
Width 30"
Depth 24-1/2"
Available in:
PowerPlus™ Preheat
Preheat in less than six minutes.
1
Pro-Select™ Controls
Precise control at your fingertips.
PowerPlus™ Convection
You can roast to tender, juicy
perfection in less time.
Keep Warm Setting
Keep food warm until everything —
and everyone — is ready.
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using PowerPlus™ Preheat.
frigidaire.ca
Page 2
30" Double Electric Wall Oven
Professional
Double Wall Oven
CPET3085KF 30" Electric
u
Double Wall Oven Specifications
•
Product Shipping Weight (approx.) – 300 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 10.0 / 7.6 kW
•
Amps @ 240 / 208 Volts = 42.0 / 36.0 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
To adapt oven to fit cutout height greater than 49-1/2", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
FRIGIDAIRE®
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
CPET3085K 01/11 © 2011 Electrolux Major Appliances
•
To adapt oven to fit cutout height greater than 49-7/8", optional
3"-High Bottom Trim available.
•
Full oven base of solid plywood or similar material required,
capable of supporting 375 Lbs.
•
Base must be level and cabinet front must be square.
•
Double Wall Oven is NOT approved to be used in stackable or
side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.ca for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – PN # 318258707.
Specifications
subject to change.
