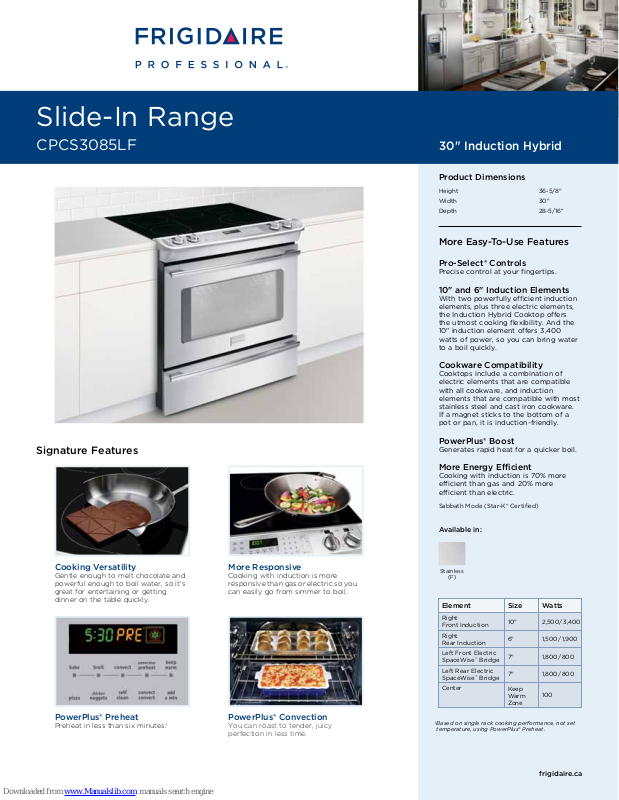

Page 1
Slide-In Range
CPCS3085LF
30" Induction Hybrid
Product Dimensions
Height 36-5/8"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
Pro-Select® Controls
Precise control at your fingertips.
10" and 6" Induction Elements
With two powerfully efficient induction
elements, plus three electric elements,
the Induction Hybrid Cooktop offers
the utmost cooking flexibility. And the
10" induction element offers 3,400
watts of power, so you can bring water
to a boil quickly.
Cookware Compatibility
Cooktops include a combination of
electric elements that are compatible
with all cookware, and induction
elements that are compatible with most
stainless steel and cast iron cookware.
If a magnet sticks to the bottom of a
pot or pan, it is induction-friendly.
Signature Features
Cooking Versatility
Gentle enough to melt chocolate and
powerful enough to boil water, so it's
great for entertaining or getting
dinner on the table quickly.
PowerPlus® Preheat
Preheat in less than six minutes.
PowerPlus® Boost
Generates rapid heat for a quicker boil.
More Energy Efficient
Cooking with induction is 70% more
efficient than gas and 20% more
efficient than electric.
Sabbath Mode (Star-K® Certified)
Available in:
More Responsive
Cooking with induction is more
responsive than gas or electric so you
can easily go from simmer to boil.
1
PowerPlus® Convection
You can roast to tender, juicy
perfection in less time.
Stainless
(F)
Element
Right
Front Induction
Right
Rear Induction
Left Front Electric
SpaceWise
Left Rear Electric
SpaceWise
Center
1
Based on single rack cooking performance, not set
temperature, using PowerPlus® Preheat.
™
™
Bridge
Bridge
Size
10"
6"
7"
7"
Keep
Warm
Zone
Watts
2,500 / 3,400
1,500 / 1,900
1,800 / 800
1,800 / 800
100
frigidaire.ca
Page 2
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish
Convection System
Eortless™ Convection Conversion
Cleaning System
Drawer Functionality
Oven Controls
Bake
PowerPlus® Broil
Add-a-Minute
Delay Bake
Delay Start
Self Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shuto
Cooktop Features
Right Front Induction Element (Watts)
Right Rear Induction Element (Watts)
Left Front Electric SpaceWise®
Bridge Element (Watts)
Left Rear Electric SpaceWise®
Bridge Element (Watts)
Keep Warm Zone (Watts)
Hot Surface Indicator Light
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
Certifications
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Pro-Select® Controls
Black Ceramic Glass
Extra-Large
Stainless Steel
Stainless Steel
Black
PowerPlus® Convection
Yes
Self Clean
Warmer
Yes
Yes
Yes
Yes
Yes
Yes
6 Hours
10" – 2,500 / 3,400
6" – 1,500 / 1,900
7" – 1,800 / 800
7" – 1,800 / 800
100
Yes
4.2
Yes
Yes
2 Handle Racks
Yes
PowerPlus®
2,500 / 4,000
Yes
16-1/2" x 24-1/8" x 18-1/32"
Left Bottom Rear
240V / 208V / 60 Hz
13.2 / 9.9
55.0 /48.0
50
270 Lbs.
Slide-In Range
CPCS3085LF 30" Induction Hybrid
C
A
B
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.ca.
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
36-5/8"
30"
28-5/16"
45-1/2"
Cutout Dimensions
Height
Width
Depth
*Cutout and countertop cutout width should match.
**24" with optional backguard installed.
Extreme
protrusion
35-7/8" min.
36-5/8" max.
30-1/16" max.*
21-3/4" min
22-1/8" max.**
•
CANADA
CPCS3085L 06/11 © 2011 Electrolux Major Appliances, NA Printed in Canada
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Specifications subject to change.
Page 3
Slide-In Electric Ranges
Frigidaire Baseline
Slide-In Range
CPCS3085LF 30" Induction Hybrid
C
A
Slide-In Range Specifications
•
Product Shipping Weight (approx.) – 245 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•
Connected Load (kW Rating) @ 240 / 208 Volts = 14.3 / 11.7 kW
•
Amps @ 240 / 208 Volts = 59.6 / 56.3 Amps
•
Recommended Circuit Breaker – 50 Amps (40 Amps minimum)
•
Always consult local and national electric codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MGS
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Extreme
protrusion
B
Countertop Preparation
For detailed preparation instructions, refer to installation guide
on the web.
•
Flat square-finish (flat) countertop requires no preparation since
rangetop flange lays directly on countertop edge.
•
Formed front-edged countertops require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•
Tile countertops may need cut back 3/4" from each front corner
of opening and /or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension or for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.ca for detailed instructions.
Optional Accessories
•
Rear Filler Kit: Black – (PN # 901193-9010).
•
Side Panel Kit: Black – (PN # 903074-9010).
•
Backguard Kit: Black – (PN # 903046-9010).
•
Side Trim Kit: Black – (PN # 903075-9010).
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
CPCS3085L 06/11 © 2011 Electrolux Major Appliances, NA Printed in Canada
Accessories information available
on the web at frigidaire.ca
Specifications subject to change.
