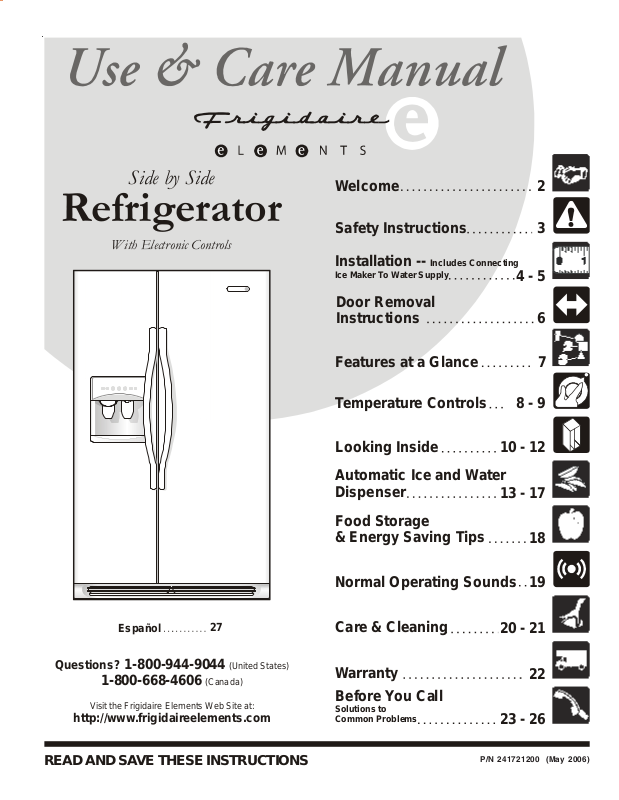

Frigidaire Compact Refrigerator User Manual

Side by Side

Refrigerator

With Electronic Controls

Welcome 2

Installation --

Ice Maker To Water Supply

Includes Connecting

4 - 5

Door Removal Instructions

3Safety Instructions

Español

Features at a Glance

Looking Inside Automatic Ice and Water

Dispenser Food Storage

& Energy Saving Tips

Care & Cleaning

8 - 9Temperature Controls

10 - 12

13 - 17

19Normal Operating Sounds

20 - 21

Questions?

Visit the Frigidaire Elements Web Site at:

http://www.frigidaireelements.com

READ AND SAVE THESE INSTRUCTIONS

1-800-944-9044

1-800-668-4606

(Canada)

(United States)

Warranty Before You Call

Solutions to Common Problems

23 - 26

P/N 241721200 (May 2006)

Welcome & Congratulations

Congratulations on your purchase of a new refrigerator! We here at Electrolux Home Products are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new refrigerator.

We know you’ll enjoy your new refrigerator and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your refrigerator only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference. This information is found on the serial plate located inside the refrigerator compartment.

NOTE: Use only soap and water to clean serial plate.

Model Number:

Extend Your Warranty Protection

With An

Extended Service Contract

CALL 1-800-944-9044

To Enjoy These Benefits:

• Total freedom from repair bills so

unexpected repairs won’t upset your budget.

• Fast, convenient toll-free service is just a phone call away.

• Top-quality repairs by factory-trained experts.

• Quick access to genuine replacement parts so you can rest assured your

refrigerator is repaired with the proper components.

Serial Number:

Purchase Date:

Please complete and mail in the

Registration Card

included with your

refrigerator.

Please attach sales receipt

here for future reference.

Product

Important Safety Instructions

Please Read All Instructions Before Using This Refrigerator.

FOR YOUR SAFETY

• Do not store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

• Do not operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

CHILD SAFETY

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play with. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

These Guidelines Must Be Followed To Ensure That Safety Mechanisms In This Refrigerator Will Operate Properly.

PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator/ freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualified service technician.

ELECTRICAL INFORMATION

• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., AC only electric outlet.

The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by the manufacturer, service technician or a qualified person to prevent any risk.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

• Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

• Avoid connecting refrigerator to a Ground Fault Interruptor (GFI) circuit.

IMPORTANT: Pressing the On/Off button on the control panel (at the top of the fresh food compartment) disables your refrigerator’s cooling system but does not disconnect power to lights and other electrical components. To turn off power to your refrigerator you must unplug the power cord from the wall outlet.

Installation

This Owner’s Guide provides specific operating instructions for your model. Use the refrigerator only as instructed in this Use & Care Manual. Before starting the refrigerator, follow

these important first steps.

LOCATION

• Choose a place that is near a grounded electrical outlet. Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher or other heat sources.

• The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

INSTALLATION

Do Not install the refrigerator where

the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator.

Installation Clearances

• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top --------------- 3/8” Back ------------------------ 1”

DOOR OPENING

NOTE: If your refrigerator is placed with the door hinge

side against a wall, you may have to allow additional space so the door can be opened wider.

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened.

TOE GRILLE INSTALLATION / REMOVAL

To Remove Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Working from left side of toe grille, slip your fingers between top of toe grille and cabinet. Gently pull forward until first set of tabs are free. Slide your hand down past the free tabs and pull forward again until the second set of tabs are free. Continue this process until all tabs are free and the toe grille can be removed. (See graphic at top of page in right column.)

To Install Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Line up toe grille at base of refrigerator, making sure the four bottom tabs are resting through holes at base of cabinet.

3. Starting from left side of toe grille, press in on first top tab using your thumb and push toe grille forward until it snaps in place. Continue this process until all tabs aresnapped in place and toe grille is secured to refrigerator.

LEVELING

All four corners of your refrigerator must rest firmly on a solid floor. Your refrigerator is equipped with adjustable front rollers to help level your unit. To ensure proper door seal and assist door closing, the refrigerator should be tilted 1/4” (6 mm), front to back.

To Level Your Refrigerator:

1. Remove toe grille. (See

2. Use flat-blade screwdriver or 3/8” socket wrench to adjust

front rollers.

NOTE: The refrigerator doors are designed to shut by themselves within a 20 degree opening.

3. Check both doors to be sure seals touch cabinet on all four sides.

“To Remove Toe Grille”

Installation

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator

from electrical power before connecting a water supply line to the refrigerator.

To Avoid Property Damage:

• Copper tubing is recommended for the water supply line. Water supply tubing made of ¼” plastic is not recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible for any damage if plastic tubing is used for supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need

• Basic Tools: adjustable wrench, flat-blade screwdriver, and PhillipsTM screwdriver

• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

- Connecting Ice Maker To Water Supply

NOTE: Water line kit number 5303917950, available from your appliance dealer at additional cost, contains 25 feet (7.6

meters) of ¼ inch OD copper tubing, a saddle type shutoff valve (nonpiercing), (2) ¼ inch brass compression nuts, (2) ferrules/sleeves, and instructions for installing a water supply line.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shut off valve.

3. Unscrew plastic cap from water valve inlet and discard cap.

4. Slide brass compression nut, then ferrule (sleeve) onto water supply line, as shown.

5. Push water supply line into water valve inlet as far as it will go (¼ inch). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to rear panel of refrigerator as shown.

7. Coil excess water supply line (about 2½ turns) behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any connections that leak.

9. Reconnect refrigerator to electrical power source.

10. Make sure ice maker power switch is turned On (See page 14 for location of power switch).

IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing ice. Air in new plumbing lines may cause ice maker to cycle two or three times before making a full tray of ice. New plumbing may cause ice to be discolored or have poor flavor. Discard ice made during the first 24 hours.

Cover

Screws

Door Removal Instructions

DOOR REMOVAL INSTRUCTIONS:

Before you start:

1 Make sure the electrical power cord is unplugged from the wall outlet. 2 Remove any food from the door shelves. 3 Close the doors.

Hinge Cover

To remove the hinge cover:

1 Remove the three screws from the cover over the top door hinges. 2 Pull the cover forward about a half inch and lift it off.

To remove the refrigerator door:

1 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier. 2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it

aside.

3 Remove the three bottom hinge screws and hinge, if necessary.

To remove the freezer door:

1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides of

the connector firmly and pull apart.

2 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier. 3 Detach the water tube from the connector located below

the freezer door. The connector releases when you press its outer sleeve inward.

4 Remove the screws from the top hinge and pull the

multi-wire cable through it.

5 Lift the door off of the bottom hinge. Lay the door on its

side to avoid damage to the Remove the three bottom hinge screws and hinge, if necessary.

To reinstall the refrigerator and freezer doors, reverse the above steps.

Features At A Glance

Features may vary according to model

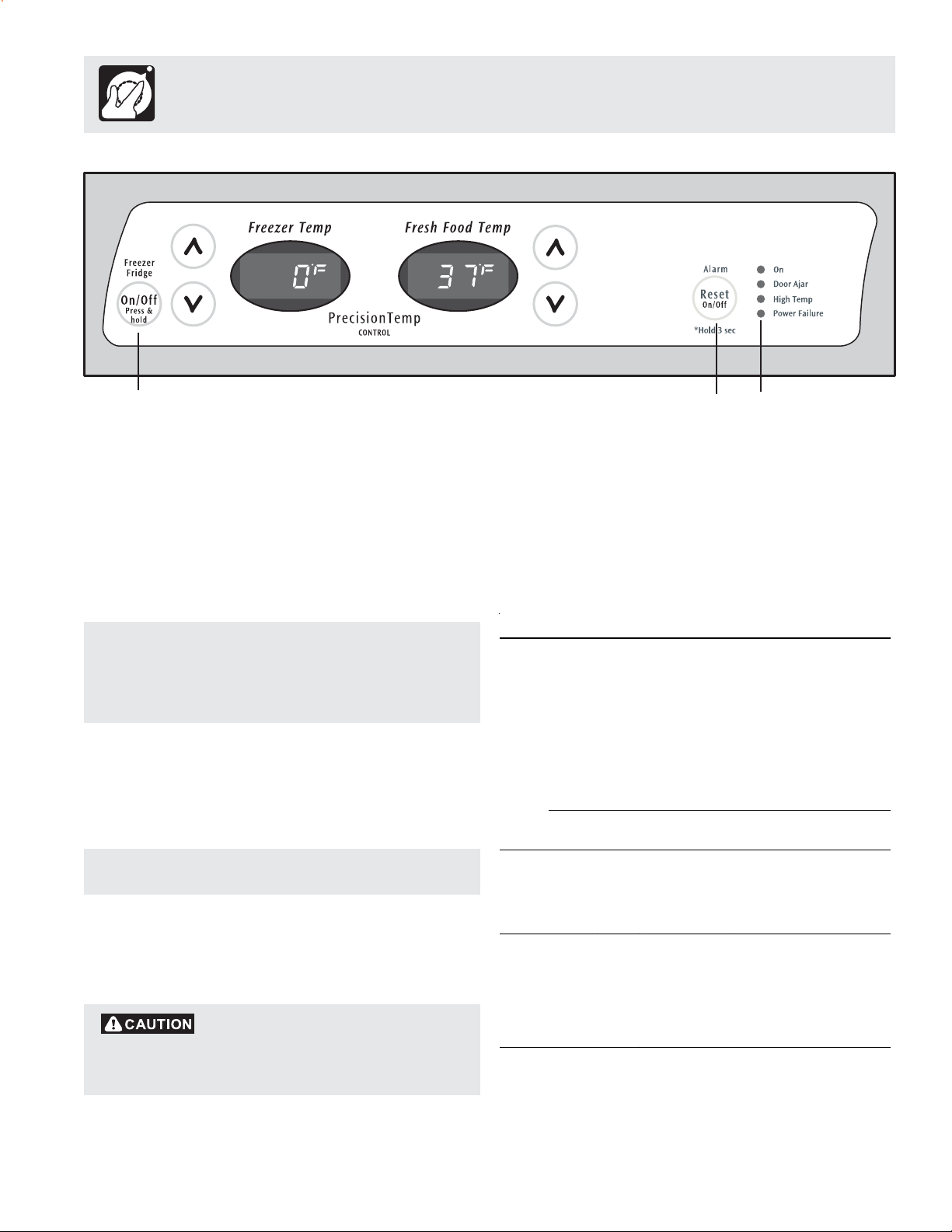

Temperature Controls

COOL DOWN PERIOD

To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 6 hours before loading it with food.

REFRIGERATOR & FREEZER CONTROLS

NOTE: When changing control settings, wait 24 hours before making additional adjustments.

Temperature Control Range

Freezer Fresh Food

Warmer

Factory Setting

Colder

Warmest

Midpoint

Coldest

Fahrenheit Centigrade Fahrenheit Centigrade

6° -14°

0° -18°

-6° -21°

47° 8°

37° 3°

33° 1°

TEMPERATURE ADJUSTMENT

After 24 hours, adjust the controls as needed. Make your adjustments small and gradual; allowing time for temperatures to change and stabilize. Refer to the adjacent guidelines for temperature settings.

To adjust the temperature to a higher or lower setting, press the Up or Down button closest to the display. The first time you press the button, the display shows the last setting you entered. Each press of the button after that increments the setting by one degree.

Temperature Adjustment Guide

If Fresh Food compartment is too warm

If Fresh Food compartment is too cold

If Freezer compartment is too warm

If Freezer compartment is too cold

Adjust Fresh Food control one degree colder by pressing Down Arrow button.

Adjust Fresh Food control one degree warmer by pressing the Up Arrow button.

Adjust Freezer control one degree colder by pressing Down Arrow button.

Adjust Freezer control one degree warmer by pressing the Up Arrow button.

The display shows your new setting momentarily, then changes back to the current temperature.

IF TEMPERATURE DISPLAYS FLASH...

If ever you see both temperature displays continously flashing, it may indicate that the control system has detetcted a performance problem. Call your Frigidaire service representative, who can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items.

+ 18 hidden pages
