Frigidaire CRG3490LSE, CRG3490LSF, CRG3490LWD, CRG3490LWE, CGGF3054MFC Installation Guide

...

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER. iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE. READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

• ALL RANGES CAN TiP

• INJURYTO PERSONS COULD RESULT

• iNSTALL ANTI-TIP

DEVICE PACKED WiTH RANGE

• SEE iNSTALLATiON INSTRUCTIONS

if the information in this

manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

FOR YOUR SAFETY:

m Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

= WHAT TO DO iF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier

from a neighbor's phone. Follow the gas supplier's instructions.

• if you cannot reach your gas

supplier, call the fire department.

= Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Provide proper fuel type

Before proceeding: Your range is factory preset to operate on natural gas. If L.P. conversion is needed, contact your local L.P. Gas provider for assistance.

The L.P. conversion kit may be located on the lower rear back panel of the range. If no L.P. kit is provided, contact your product dealer to obtain the correct L.P. conversion kit.

for applicable agency

__ Refer to your serial plate

certifications

Important notes to the installer

• Read all instructions contained in these installation instructions before installing range.

• Remove all packing material from the oven compartments before connecting the gas and electrical supply to the range.

• Observe all governing codes and ordinances.

• Be sure to leave these instructions with the consumer.

Important notes to the consumer

• Keep these instructions with your Use & Care Guide

for future reference.

• Be sure your range is installed and grounded properly by a qualified installer or service technician.

Special instructions for ap__pliancesinstalled in the State of Massachusetts:

This appliance can only be installed in the State of Massachusetts by a Massachusetts licensed plumber or gas fitter. When using a flexible gas connector, it must not exceed 3 feet (36 inches) in length. A "T" handle type manual gas valve must be installed in the gas supply line to this appliance.

IMPORTANT SAFETY INSTRUCTIONS

Installation of this range must conform with local codes or, in the absence of local codes, with the National Fuel Gas

Code ANSI Z223. l--latest edition when installed in the United States.

When installed in a manufactured (mobile) home, installation must conform with the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280)] or, when such standard is not applicable, the Standard for

Manufactured Home Installations,ANSI/NCSBCSA225.1, or with local codes.

This range has been design certified by CSA International.

As with any appliance using gas and generating heat, there

are certain safety precautions you should follow. You will

find them in the Use & Care Guide, read it carefully.

p/n 316903001 (1005)

iMPORTANT SAFETY iNSTRUCTiONS

Be sure your range is installed and grounded properly by a qualified installer or service

technician.

• This range must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA

No .70--latest edition when installed in the United States. See Grounding Instructions on page 8.

• Before installing the range in an area covered with linoleum or any other synthetic floor covering, make sure the floor covering can withstand heat at least 90°F above room temperature without shrinking, warping or discoloring. Do not installthe range over carpeting unless you place an insulating pad or sheet of 1/4-inch thick plywood between the range and carpeting.

• Make sure the wall coverings around the range can withstand the heat generated by the range.

• Do not obstruct the flow of combustion air at the oven vent nor around the base or beneath the

lower front panel of the range. Avoid touching the vent openings or nearby surfaces as they may

become hot while the oven is in operation. This range requires fresh air for proper burner combustion.

• Air curtain or other overhead range hoods, which operate by blowing a downward air flow on to a range, shall not be used in conjunction with gas ranges other than when the hood and range have been designed, tested and listed by an independent test laboratory for

use in combination with each other.

DO NOT MAKE ANY ATTEMPT TO

OPERATE THE ELECTRIC IGNITION OVEN DURING AN

ELECTRICAL POWER FAILURE. RESET ALL OVEN CONTROLS TO "OFF" IN THE EVENT OF A POWER FAILURE.

The electric ignitor will automatically re-ignite the oven burner when power resumes if the oven thermostat control

was left in the "ON" position. When an electrical power failure occurs during use, the

surface burners will continue to operate. During a power outage, the surface burners can be lit with

a match. Hold a lighted match to the burner, then slowly turn the knob to the LITE position. Use extreme caution when lighting burners this way.

Never leave children alone or

unattended in the area where an appliance is in use. Teach children the proper, safe use of all appliances. Never leave the oven door open when the range is unattended.

Stepping, leaning or sitting on the doors

or drawers of this range can result in serious injuries and can also cause damage to the range.

• Do not store items of interest to children in the cabinets above the range. Children could be

seriously burned climbing on the range to reach items.

• To eliminate the need to reach over the surface burners, cabinet storage space above the burners

should be avoided.

• Adjust surface burner flame size so it does not extend beyond the edge of the cooking utensil.

Excessive flame is hazardous.

• Do not use the oven as a storage space. This creates a potentially hazardous situation.

• Never use your range for warming or heating the room. Prolonged use of the range without adequate ventilation can be dangerous.

• Do not store or use gasoline or other flammable vapors and liquids near this or any other

appliance. Explosions or fires could result.

• Reset all controls to the "OFF" position after using a programmable timing operation.

• Unlike some gas ranges, the cooktop is not removable. Do not attempt to remove the cooktop.

Tools you will need

(Wear safety glasses when using tools):

For leveling legs and Anti-Tip Bracket:

• Adjustable wrench or channel lock pliers (Fig. a)

• 5/16" Nutdriver or flat head screwdriver (Fig. b)

• Electric drill & 1/8" drill bit (3/16" Masonry drill bit if installing in concrete) (Fig. c)

• Level (Fig. d)

For gas supply connection:

• Adjustable wrench and pipe wrench (Figs. a & e)

For burner flame adjustment:

• Phillips head and small flat-blade screwdrivers (Figs. f

&g)

Materials you will need:

• Pipe joint sealant that resists action of LP/Propane gas (Fig. h)

• Gas line manual shut-off valve (Fig. i)

• A new flexible metal appliance conduit (1/2" NPT x 3/4" or 1/2" I.D.) must be design certified by CSA International. Because solid pipe restricts moving the range, we recommend using a new flexible conduit (4 to 5 foot length) for each new installation and additional reinstallations. (Fig. j)

• Use new flare union adapters (1/2" NPT x 3/4" or 1/2" I.D.) (Fig. k)

Materials supplied with appliance:

• Anti-Tip Template (Fig. I)

• Anti-Tip bracket; includes 2 mounting screws (Fig. m)

Tools

Materials

Fig. a

Fig. c

Fig. h

Fig. i

Fig. e

Fig. f

Fig. g

Fig. d

Fig. k

Fig. j

Materials supplied with appliance

Fig. I Fig. m

Installation with cabinets

Check location where the range will

be installed for proper electric and

gas supply, and stability of the floor. The dimensions shown here must

be used and are minimal unless

otherwise stated. These

measurements do not allow for any clearance below the cooking top or at the rear of the range.

Contact surface must be solid and

level. Things to remember:

• Do not seal the range to side

cabinets.

• Do not pinch the power supply

cord between the range and

rear wall. If cabinet depth is greater than Std.

25", the oven front frame must | extend beyond cabinet front by

1/2" minimum (See Fig. 1).

All openings in the wall or floor where the range is to be

installed must be sealed.

Installation beside wall

If installing beside a wall, the minimum distance to combustible

wall on either side of range above 36" height should be according to the BTU of the largest burner (See Fig 2).

36"

18" I 13"_ Min. height from I

Min. to cabinets on

either side of range

Recommended area for thru

the floor connection of gas

pipe stub and shut-off valve.

_Ma×. cooktop to cabinets

1'| ...............

30"

--q-___ _

30- /

"15"

* Models without self-clean feature may have an additional 7 inches

clearance from the floor.

Fig. 1

25"

Recommended area for 120V

outlet on rear of wall and area for

thru the wall connection of pipe

stub and shut-off valve.

* 9500 BTU or less 2" h

10,000 - 16,999 BTU 3" |

Fig. 2

36+1/8"

(Adjustable)

29-1/4"

_l_max

door

closed

Fig. 3

Install anti-tip bracket

IMPORTANT SAFETY WARNING !

To reduce the risk of tipping of the range, the range must be secured to the floor by properly installed anti= tip bracket and screws packed with the range. Failure to install the anti=tip bracket will allow the range to tip

over if excessive weight is placed on an open door or if a child climbs upon it. Serious injury might result from spilled hot liquids or from the range itself.

if range is ever moved to a different location, the anti=

tip bracket must also be moved and installed with the range.

instructions are provided for installation in wood or cement fastened to either the floor or wall. When

installed to the wall, make sure that screws completely penetrate dry wall and are secured in wood or metal.

When fastening to the floor or wall, be sure that screws do not penetrate electrical wiring or plumbing.

Anti-tip bracket installation instructions

Locate the bracket using the template - (Bracket may be positioned on either the left or right side of the range. Refer to Figs. 4, 5, & 7 to position the bracket if template is not available).

Mark the floor or wall where left or right side of the range will be located. If rear of range is against wall or no further than 1-1/4" from wall when installed, you may use the wall or floor mount method. If molding is

installed and does not allow the bracket to fit flush against wall, remove molding or mount bracket to

floor. For wall mount (Fig. 4), locate the bracket by placing

the back edge of the template against rear wall and the side edge of template on the mark made referencing the side of the range. Place bracket on top of template and mark location of the screw holes in wall. If rear of range is further than 1-1/4" from wall when installed, attach bracket to the floor (See Fig. 5).

FASTEN BRACKET (FLOORMOUNTINGONLY)

Leveling Leg -- 1=1/4"

Floor Mount

-_1 _-- More Than

p Bracket

Fig. 5

For floor mount, locate the bracket by placing back edge of the template where the rear of the range will

be located. Mark the location of the screw holes shown in template.

b. Drill pilot holes & fasten bracket - Drill 1/8" pilot hole

where screws are to be located (Fig. 6). If bracket is to be mounted to the wall, drill pilot hole at an approximate 20° downward angle. If

bracket is to be mounted to masonry or ceramic floors,

drill 3/16" pilot hole 1-3/4" deep. The screws provided may be used in wood or

concrete material. Use 5/16' nut-driver or flat head screwdriver to secure the bracket in place. Fig. 6

c. Level & position range - Level range by adjusting the

(4) leveling legs with a wrench.

Note: A min. clearance of 118"is required between bottom

of range and leveling legs to allow room for bracket.

Slide range back into position (Fig. 7). Remove lower panel or storage drawer to visually check that rear leveling leg is inserted into and fully secured by the

bracket. For models with a warmer drawer or broiler compartment, grasp the top rear edge of the range

and carefully attempt to tilt it forward.

FASTEN BRACKET (WALL OR FLOOR MOUNTING)

Leveling Leg -- _,

---_1 14-=-1=1/4''Max.

: i

Fig. 4

Fig. 7

Provide an adequate gas supply. Connect range to gas supply.

Please note: Operation at elevations above 2000 ft., appliance rating shall be reduced at the rate of 4 percent

for each 1000 ft. above sea level. This appliance is pre-set to operate on 4" natural gas

manifold pressure. A convertible pressure regulator is connected to the manifold and MUST be connected in

series with the gas supply line. If the LP/Propane conversion kit has been used, follow instructions provided with the kit for converting the pressure regulator to LP! Propane use.

Care must be taken during installation of range not to obstruct the flow of combustion and ventilation air.

For proper operation, the maximum inlet pressure to the regulator should be no more than 14 inches of water column pressure. The inlet pressure to the regulator must be at least 1 inch greater than regulator manifold pressure.

Example: If regulator is set for natural gas 4 inch manifold pressure, inlet pressure must be at least 5 inches; if regulator has been converted for LP/Propane gas 10 inch manifold pressure, inlet pressure must be at least 11

inches. Leak testing of the appliance shall be conducted according

to the instructions in step 4g. The gas supply line should be 112"or 314" I.D.

Seal wall openings.

Note: To prevent leaks use pipe joint sealant on all male

(outside) pipe threads. Do not allow gas pressure regulator to turn on pipe when tightening fittings.

a. Install an external manual gas shut-off valve to gas

supply line in an accessible location outside of range. Be sure you know where and how to shut off the gas supply to the range (See Fig. 8).

b. Install 112"flare union adapter to gas pressure

regulator using no more than 15ft./Ibs. of torque (Refer to Fig. 8).

: back of ,

Pressure

regulator _ Flexible appliance

/ conduit

J _ ] Flare ................ P r shut-off

_]-I-- union / valve

adaptor _

Seal any openings in the wall behind the range and in the floor under the range after gas supply line is installed.

Fig. 8 - gas supply connections OFF

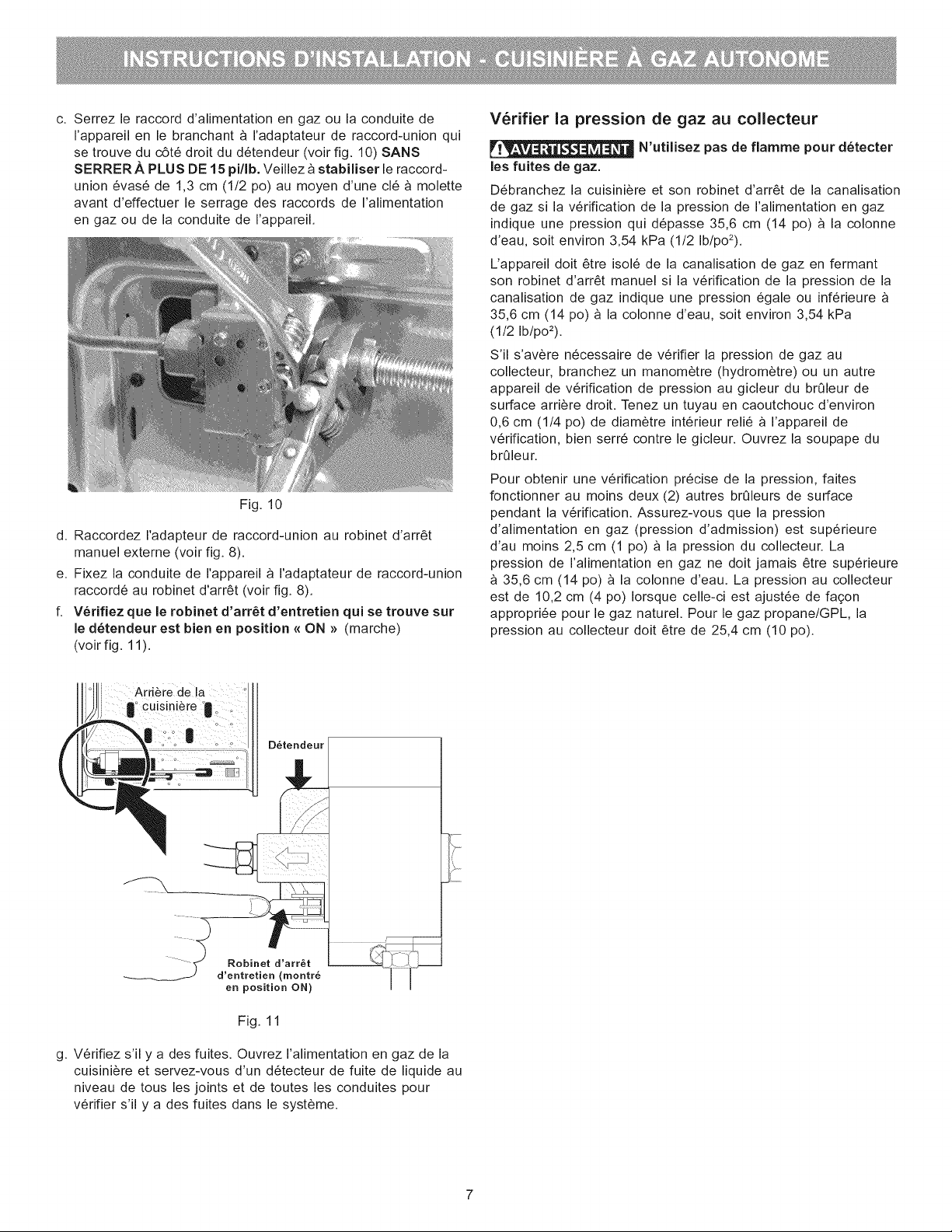

Be sure to stabilize the left side of the gas pressure regulator before tightening ANY fittings to the pressure regulator. Do not allow pressure regulator to turn on pipe when tightening fittings (Refer to Fig. 9).

Fig. 9
