TABLE OF CONTENTS

Important Safety Instructions ...........................3-5

Features at a Glance .......................................... 6

Before Setting Oven Controls ..............................7

Before Setting Surface Controls ........................8-9

Setting Surface Controls (Ceramic cook top) .. 10-12

Oven Control Functions (300) ............................13

Setting Oven Controls .................................. 13-19

Self-Cleaning ............................................... 19-20

Care & Cleaning .......................................... 21-24

Before You Call ........................................... 25-26

Major Appliance Warranty .................................27

316902309 Rev C (June 2016)

PRODUCT RECORD AND REGISTRATION

Contents

Product Registration ......................................................2

Important Safety Instructions ............................ 3-5

Features at a Glance ............................................... 6

Before Setting Oven Controls .................................. 7

Removing, replacing & arranging the oven racks ..........7

Before Setting Surface Controls ...........................8-9

About the ceramic cooktop & radiant elements ............. 8

Cookware material types .............................................9

Setting Surface Controls ..................................10-12

Setting single radiant surface elements ...................... 10

Setting dual radiant surface elements ........................ 11

Home canning ......................................................... 12

Oven Controls Functions .......................................13

Setting Oven Controls ......................................13-19

Setting the clock ...................................................... 13

Changing oven temperature display (F° or C°) ........... 13

Setting silent control feature ..................................... 14

Setting minute timer ................................................. 14

Changing between continuous bake or 12-Hour

Energy Saving features ........................................ 14

Setting bake ............................................................ 15

Setting bake time ..................................................... 15

Setting bake time and start time ............................... 16

Setting broil ............................................................. 17

Adjusting oven temperature ...................................... 18

Setting oven lockout feature ..................................... 18

Operating oven light ................................................. 18

Self-Cleaning ....................................................19-20

Care & Cleaning ................................................21-24

Cleaning recommendation table ................................ 21

Cooktop maintenance & cleaning.......................... 22-23

Cautions for aluminum use ....................................... 23

Replacing the oven light ........................................... 23

Removing & replacing oven door ............................... 24

Before You Call

Solutions to common problems ............................ 25-26

Appliance Warranty ............................................... 27

Thank you for choosing Frigidare.

This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Need help??

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can do to help us serve your better.

Read this Use & Care manual.

It contains instructions to help you use and maintain your range properly.

If you received a damaged range ...

immediately contact the dealer (or builder) that sold you the range.

Save time and money.

Check the section titled “Before you call”. This section helps step you through some common problems that might occur. If you do need service, help is only a phone call away. Call Frigidaire Customer Services at 1-800-

944-9044.

Product Registration

Registering your product with Frigidaire enhances our ability to serve you. You can register online at www. frigidaire.com or by dropping your Product Registration Card in the mail.

Serial plate location

Serial plate location: open storage drawer (some models) or remove lower front panel (some models).

Record model & serial numbers here

Purchase date

Model number

Serial number

Read all instructions before using this appliance.

WARNING

CAUTION

WARNING

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

IMPORTANT SAFETY INSTRUCTIONS

Tip Over Hazard

Denitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation, maintenance or valuable information that is not hazard related.

Important Safety Instructions

• Remove all tape and packaging before using

the range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

• Proper installation—Be sure your appliance is properly installed and grounded by a qualied

technician in accordance with the National Electrical Code ANSI/NFPA No. 70 latest edition and local electrical code requirements. Install only

per installation instructions provided in the literature package for this range.

• User servicing—Do not repair or replace any part of the appliance unless specically recommended

in the manuals. All other servicing should be done only

by a qualied technician. This may reduce the risk of

personal injury and damage to the range.

Ask your dealer to recommend a qualied technician and

an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

• A child or adult can tip the range and be killed.

• Verify the anti-tip device has been installed to oor or wall.

• Ensure the anti-tip device is re-engaged when the range is moved to oor or wall.

• Do not operate the range without the anti-tip

device in place and engaged.

• Failure to follow these instructions can result

in death or serious burns to children and adults.

Range leveling leg

Anti-Tip bracket

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

• Never modify or alter the construction of a range

by removing the leveling legs, panels, wire covers,

anti-tip brackets/screws, or any other part of the

range.

• Remove the oven door from any unused range if

it is to be stored or discarded.

Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance. DO NOT

allow children to climb or play around the range. The weight of a child on an open oven door may cause the range to tip, resulting in serious burns or other injury.

Never use your appliance for warming or heating the room.

Do not use the oven, warmer drawer or lower oven (if equipped) for storage.

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

WARNING

• Storage in or on appliance—ammable

materials should not be stored in an oven, warmer drawer, near surface units or in the storage drawer. This includes paper, plastic and

cloth items, such as cookbooks, plasticware and

towels, as well as ammable liquids. Do not store

explosives, such as aerosol cans, on or near the range.

• DO NOT LEAVE CHILDREN ALONE —children

should not be left alone or unattended in the area where appliance is in use. They should

never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer or lower double oven.

• Do not store items of interest to children in the cabinets above a range or on the backguard of

the range. Children climbing on the range to reach items could be seriously injured.

• Do not touch surface heating units or surface cooking elements, areas near these units or

elements, or interior surface of the oven. Both surface heating and oven heating elements may be hot even though they are dark in color. Areas near surface cooking units may become hot enough to cause burns. During and after use, do not touch, or

let clothing or other ammable materials touch these areas until they have had sufcient time to cool.

Among these areas are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings, oven door and oven door window.

• Wear proper apparel—loose-tting or hanging

garments should never be worn while using the appliance. Do not let clothing or other

ammable materials contact hot surfaces.

IMPORTANT

Do not attempt to operate the range during a power failure. If the power fails, always turn off the

range. If the range is not turned off and the power resumes, the range will begin to operate again. Once the power resumes, reset the clock and oven function.

• Do not use water or our on grease res— smother the re with a pan lid, or use baking

soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat

or grease may catch re if allowed to become too hot.

• Use dry potholders - moist or damp potholders

on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

• Do not heat unopened food containers - buildup

of pressure may cause container to burst and result in injury.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use care when opening oven door , lower oven

door or warmer drawer (if equipped)—Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• Keep oven vent ducts unobstructed. The oven vent is located under the left rear surface element if your model is equipped with coil elements. The oven vent is located below the backguard for models equipped with ceramic-glass cook tops. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

• Placement of interior oven racks. Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The broiler pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler. Do

not cover the broiler insert with aluminum foil. Exposed fat and grease could ignite.

• Protective liners—Do not use aluminum foil to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may

result in risk of electric shock, or re.

IMPORTANT SAFETY INSTRUCTIONS

SELF-CLEANING OVENS

• Clean in the self-cleaning cycle only the parts

listed in this Use & Care Manual. Before self-cleaning the oven, remove the broiler pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners—No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Do Not Clean Door Gasket—The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Clean the range regularly to keep all parts free of

grease that could catch re. Pay particular attention

to the area around each surface element. Do not allow grease to accumulate.

• Kitchen cleaners and aerosols—Always follow the

manufacturer’s recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

• Clean ventilating hoods frequently—Grease

should not be allowed to accumulate on the hood

or lter. Follow the manufacturer’s instructions for cleaning hoods.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do not cook on broken cook top—If cook top should

break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock.

Contact a qualied technician immediately.

• Clean cook top with caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface heating

unit. Place a pan of food on the unit before turning it on, and turn the unit off before removing the pan.

• Use proper pan size—This appliance is equipped with one or more surface units of different sizes. Select

utensils having at bottoms large enough to cover the

surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to element will also

improve efciency.

• Utensil handles should be turned inward and not

extend over adjacent surface elements—To reduce

the risk of burns, ignition of ammable materials, and

spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

• Never leave surface elements unattended at high

heat settings—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Do not immerse or soak removable heating elements—Heating elements should never be

immersed in water. Heating elements clean themselves during normal operation.

• Glazed cooking utensils—Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cook top use.

• When aming foods under a ventilating hood,

turn the fan on.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

FEATURES AT A GLANCE

4 5

NOTE

The features shown for your appliance may vary according to model type & color.

Your electric range features include:

1. Electronic oven control with kitchen timer.

2. Interior oven light switch (some models).

3. Left front single (some models) or dual (some models) radiant element control.

4. Left rear single (some models or dual (some models) radiant element control.

5. Right rear single (some models) or dual (some models) radiant element control.

6. Right front single (some models), dual (some models) radiant element control.

7. Element ON indicator light(s).

8. HOT SURFACE indicator light(s).

9. Oven interior light with removable cover.

10. Automatic oven door light switch (some models).

11. Self-cleaning oven interior.

12. Self-clean door latch.

13. Adjustable interior oven rack(s).

14. Large 1-piece oven door handle.

15. Full width oven door with window.

16. Storage drawer (some models) or lower cover panel (some models).

17. Easy to clean upswept cooktop.

18. Ceramic smoothtop (elements, styles and color will vary by model).

19. 6” single radiant element (some models).

20. 5-7” dual radiant element (some models).

21. 9” single radiant element (some models).

22. 6-9” dual radiant element (some models).

23. 12” single radiant element (some models).

24. Broil pan (some models).

25. Broil pan insert (some models).

26. Leveling legs and anti-tip bracket (included).

19 19

Be sure to visit us online at

www.frigidaire.com

for a complete line of accessories.

BEFORE SETTING OVEN CONTROLS

oven vent location

CAUTION

Oven vent location

The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm

air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results.

Do not block the oven vent.

oven vent location

Fig. 1

Removing, replacing & arranging racks

To remove - pull the rack forward until it stops. Lift up front of rack and slide out.

To replace - t the rack onto the guides on the oven

walls. Tilt the front of the rack upward and slide the rack back into place. Arranging - always arrange the oven racks when the oven is cool (prior to operating the oven).

Always use oven mitts when using the oven. When using the appliance, oven racks and cooktop will become very hot which can cause burns.

Types of oven racks

Your range may be equipped with one or more of the oven rack styles shown.

at handle

oven rack

at

oven rack

offset oven rack

The at oven rack or at handle oven rack (some models) may be used for most cooking needs.

The offset oven rack (some models) is designed to place the base of the rack about 1/2 of a rack position lower than normal. This rack design provides several additional possible locations between the standard positions.

Air circulation in the oven

For best baking results allow 2-4” (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. Hot air must be able to circulate around the pans and cookware in the oven for even heat to reach around the food.

Recommended rack positions by food type

Food type Position

Broiling meats See broil

Cookies, cakes, pies, biscuits & mufns 3 or 4

Frozen pies, angel food cake, yeast, bread and casseroles 2 or 3 Small cuts of meat or poultry 2 or 3 Turkey, roast or ham 2

some

models

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 (See Fig. 1). For

best results when using a single oven at rack, place

cookware on rack position 5 (See Fig. 2).

Fig. 2

Fig. 1 Fig. 2

BEFORE SETTING SURFACE CONTROLS

About the ceramic glass cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop and only

at-bottomed cookware should be used.

The type and size of cookware, the number of surface elements in use and their settings are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

element ON indicator light

Fig. 1

About the radiant surface elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting the element will cycle ON and OFF. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle.

For efcient cooking, turn OFF the element several

minutes before cooking is complete. This will allow residual heat to complete the cooking process.

Element on & hot surface indicator lights

Your appliance is equipped with two different types of radiant surface control indicator lights that will glow on the control panel — the on indicator and the hot surface indicator lights.

The element on indicator light will glow when any surface element is turned ON. A quick glance at this indicator light after cooking is an easy check to be sure the surface controls are turned OFF (See Fig. 1).

The hot surface indicator light will glow when any surface cooking area heats up and will remain on until the glass cooktop has cooled to a MODERATE level (See Fig. 2).

hot surface indicator light

Fig. 2

NOTES

Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic smoothtop. Cycling at the HI setting is normal and will occur more often if the cookware is too small for the radiant element or if

the cookware bottom is not at.

Be sure to read the detailed instructions for ceramic glass cooktop cleaning in the Care & Cleaning and Before You Call checklist sections of this Use & Care Manual.

BEFORE SETTING SURFACE CONTROLS

Types of cooktop elements

The ceramic glass cooktop has radiant surface elements located below the surface of the glass. The patterns on the ceramic glass will outline the size and type of element available. The single radiant element will have one round outline pattern shown. The dual radiant element is exible because you may set just the smaller inner portion as a single element or both inner and outer portions can be set to heat together (See Fig. 1).

Dual radiant

surface control

(some models)

Fig. 1

Single radiant

surface control

Cookware material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

Using proper cookware

The size and type of cookware used will inuence the

setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in Figs. 2 & 3.

Cookware should have at bottoms that make good

contact with the entire surface heating element (See

Fig. 2). Check for atness by rotating a ruler across the

bottom of the cookware (See Fig. 3). For more information about the ceramic cooktop see “Cooktop cleaning & maintenance” in the Care & Cleaning section.

Aluminum - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting). If aluminum pans slide across the ceramic cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

Copper - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum).

Stainless - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal - Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

Glass - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Fig. 2

Fig. 3

SETTING SURFACE CONTROLS

CAUTION

Single radiant surface elements (all models)

To operate the single radiant element:

1. Place correctly sized cookware on single radiant surface element.

2. Push in and turn the surface control knob in either direction (Fig. 2) to the desired setting (Refer to the

Suggested radiant surface element settings table Fig. 1). Start most cooking operations on a

higher setting and then turn to a lower setting to nish

cooking. The surface control knobs do not have to be set exactly on a particular spot. Use the graphics provided as a guide and adjust the control knob as needed (See Fig. 2). Each surface element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

3. When cooking is complete, turn the radiant surface element OFF before removing the cookware.

Suggested radiant surface element settings

The suggested settings found in Fig.1 below are based when cooking with medium-weight aluminum pans with lids. Settings may vary when using other types of pans.

Suggested settings for single and dual radiant elements table

Settings Type of cooking

High (HI - 9) Start most foods, bring water to a

boil, pan broiling

Medium high (7 - 8) Continue a rapid boil, fry, deep fat

fry

Fig. 2

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may still be hot and burns may occur if the glass

surface is touched before it has cooled sufciently.

Do not place ammable items such as plastic salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden

spoons could catch re if placed too close to the surface

elements.

IMPORTANT

Do not allow aluminum foil, or ANY material that

can melt to make contact with the ceramic glass cooktop. If these items melt on the cooktop they will

damage the ceramic cooktop.

Medium (5 - 6) Maintain a slow boil, thicken sauces

and gravies or

steam vegetables

Medium Low (2 - 4) Keep foods cooking, poach, stew

Low (LO - 1) Keep warm, melt, simmer

Fig. 1

NOTES

The size and type of utensil used, and the amount and

type of food being cooked will inuence the setting

needed for best cooking results.

The on indicator light will glow when one or more elements are turned ON. A quick glance at this indicator

light when cooking is nished is an easy check to be

sure all control knobs are turned OFF. The hot surface indicator light will continue to glow AFTER the control knob is turned to the “OFF” position and will glow until

the heating surface area has cooled sufciently.

CAUTION

Dual radiant surface elements (some models)

Symbols on the backguard are used to indicate which coil of the dual radiant element will heat. The symbol indicates the inner coil only. The symbol indicates both inner and outer coils will heat.

To operate a dual radiant element:

1. Place correctly sized cookware on dual radiant surface element.

2. Push in and turn the surface control knob clockwise to begin heating both the inner and outer portions of the dual element. If only the inner heating portion is needed like for smaller cookware, push in and turn the knob counter-clockwise to start.

3. When cooking is complete, turn the dual radiant surface element OFF before removing the cookware.

Start most cooking operations on a higher setting and

then turn to a lower setting to nish cooking. The surface

control knobs do not have to be set exactly on a particular mark. Use the marks as a guide and adjust the control knob as needed. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

You may switch from either coil setting at any time during cooking. See Suggested radiant surface element settings table on previous page.

SETTING SURFACE CONTROLS

Heating with inner (small)

element only

Areas that heat are shown darkened.

Fig. 1

NOTES

Heating with both

elements

Fig. 2

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may still be hot and burns may occur if the glass

surface is touched before it has cooled sufciently.

spoons could catch re if placed too close to the surface

elements.

IMPORTANT

Do not allow aluminum foil, or ANY material that

can melt to make contact with the ceramic glass cooktop. If these items melt on the cooktop they will

damage the ceramic cooktop.

The size and type of utensil used, and the amount and

type of food being cooked will inuence the setting

needed for best cooking results.

The on indicator light will glow when one or more elements are turned ON. A quick glance at this indicator

light when cooking is nished is an easy check to be

sure all control knobs are turned OFF. The hot surface indicator light will continue to glow AFTER the control knob is turned to the “OFF” position and will glow until

the heating surface area has cooled sufciently.

SETTING SURFACE CONTROLS

CAUTION

Home Canning

Be sure to read and observe all the following points when home canning with your appliance. Check with the USDA (United States Department of Agriculture) website and be sure to read all the information they have available as well as follow their recommendations for home canning procedures.

• Use only quality at bottom canners when home

canning. Use a straight-edge to check canner bottom (see “Cookware material types” in the Before setting surface controls section).

• Use only a completely at bottom canner with no

ridges that radiate from the bottom center when home canning using a ceramic cooktop.

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may still be hot and burns may occur if the glass

surface is touched before it has cooled sufciently.

spoons could catch re if placed too close to the surface

elements.

• Make sure the diameter of the canner does

not exceed 1 inch beyond the surface element

markings or burner. It is recommended to use smaller diameter canners on electric coil and ceramic glass cooktops.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat seating when rst bringing the

water to a boil. Once boiling is achieved, reduce heat to lowest possible setting to maintain that boil.

IMPORTANT

NEVER place or straddle a cooking utensil over 2 differ-

ent surface cooking areas at the same time. This may cause the ceramic cooktop to fracture.

IMPORTANT

Do not allow aluminum foil, or ANY material that

can melt to make contact with the ceramic glass cooktop. If these items melt on the cooktop they will

damage the ceramic cooktop.

For satisfactory use of your oven, become familiar with the various pad features and functions of the oven

Feature indicator lights— These indicator

lights show which feature is active.

Clock pad— Use to set the time of day.

OVEN CONTROL FUNCTIONS

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

as described below.

Bake time pad— Use to enter the length of baking time desired.

Up and down arrow pads— Use with the feature or function pads to set oven temperature, bake time, start time, clean time (when programming an automatic start time), setting or adjusting the clock and minute timer.

Bake pad—Use to select the bake feature.

Broil pad— Use to select the variable broil feature.

Timer on-off pad— Use to set or cancel the minute timer. The minute timer does not start or stop cooking. Timer on-off pad is used to set the continuous bake function.

Start time pad— Use to set the desired start time for baking & SelfClean. May be used with bake time to program a delayed timed bake.

Oven, preheat & door locked lights* — The “oven” light will glow each time the oven turns on to maintain the set oven temperature. The “preheat” light will glow when the oven is rst set to operate, or if the desired temperature is reset higher than the actual oven temperature. The “door locked” light will ash when the oven door locks and unlocks, the oven door lockout is active or when the self-clean cycle feature is active.

Setting the clock

When the appliance is rst plugged in or when the

power supply to the appliance has been interrupted, the

display will ash “12:00”. It is recommended to always

set the clock for the correct time of day before using the appliance.

To set the clock:

1. Press clock once (do not hold key pad down).

2. Within 5 seconds, press and hold the

or until

Clean pad— Use to set a

Self-Clean cycle.

Clear off pad— Use to clear any feature previously entered except the time of day and minute timer. Press clear off to stop cooking. Also use clear off to activate oven lockout feature.

SETTING OVEN CONTROLS

Changing temperature display (°F or °C)

The electronic oven control is set to display °F (Fahrenheit) when shipped from the factory. The oven may be programmed for any temperature from 170°F to 550°F (77°C to 287°C).

NOTE

The temperature display feature cannot be changed when the oven is set for cooking or clean is active.

the correct time of day appears in the display.

NOTE

The clock cannot be changed when the oven is set for

cooking or clean is active.

To change the temperature to display °C (Celsius) or from °C to °F:

1. Press broil. “— —” appears in the display.

2. Press and hold the until “HI” appears in the display.

3. Press and hold broil until °F or °C appears in the display.

4. Press the or to change °F to °C or °C to °F.

5. Press any control pad to return to normal operating mode.

SETTING OVEN CONTROLS

Setting a silent control panel

When choosing a function, a tone will be heard each time a keypad is pressed. If desired, the control can be programmed for silent operation.

To block the controls from sounding when any keypad is pressed in the future, press and hold start time keypad for 6 seconds. The control will beep once then release the keypad.

To return the tones, press and hold start time again for 6 seconds until the control beeps once.

Setting the minute timer

1. Press timer on-off.

2. Press the to increase the time in one minute

increments. Press and hold the to increase the time in 10 minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

NOTES

• The indicator light located above the timer on-off pad will glow while the minute timer is active.

• The minute timer will display hours and minutes until 1 hour remains on the timer. Once less than 1 hour remains, the display will count down in minutes and seconds. Once the timer has less than 1 minute remaining only seconds will display.

• The minute timer will not start or stop the cooking process. It serves as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or while using any of the other oven features. If another feature is active when the minute timer is active, the minute timer will show in the display. To view information about other active features, press the pad for that feature.

Note: If the pad is pressed rst, the timer will

advance to 11 hours and 59 minutes.

3. When the set time has run out, the timer will beep 3 times and will continue to beep 3 times every 60 seconds until timer on-off is pressed.

To change the timer while it is in use

While the timer is active and shows in the display, press

and hold the

remaining.

To cancel the minute timer before the set time has run out

Press timer on-off once .

or to increase or decrease the time

Changing between continuous bake setting

or 12-Hour Energy Saving feature

The oven control has a built-in 12-Hour Energy Saving feature that will shut off the oven if the oven is left on for more than 12 hours. The oven control can be programmed to override this feature for continuous baking.

Changing to continuous bake setting:

1. Press and hold timer on-off down for 6 seconds until a tone sounds. “ — — hr” will appear in display for continuous cooking. The current time of day will return to the display.

2. To cancel the continuous bake setting, press timer on-off and hold for 6 seconds until a tone sounds. “12hr” will appear in display indicating that the control has returned to the 12-Hour Energy Saving feature.

IMPORTANT

This feature does not change how the cooktop controls operate.

SETTING OVEN CONTROLS

CAUTION

WARNING

Setting bake

The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). The factory preset automatic bake temperature is 350°F (177°C).

To set bake

1. Press bake. “— — —” appears in the display.

2. Within 5 seconds, press the or . The display will show “350°F (177°C).” By pressing and holding

the or , the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).

3. As soon as the or pad is released, the oven will begin heating to the selected temperature. When the displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will beep 3 times.

To change the oven temperature after bake has

started

1. Press bake. Visually check the bake temperature and that it needs to be changed.

2. Press the or pad to increase or decrease the set temperature to the desired new oven temperature.

Setting bake time

The bake time pad sets the amount of time needed for baking. The oven will turn on immediately and stop automatically after the set bake time ends.

FOOD POISONING HAZARD. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

Use caution with the timed bake and delayed timed bake features. Foods that can easily spoil such as milk,

eggs, sh, meat or poultry, should be chilled in the refrigerator rst. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking

is nished.

To program the oven to begin baking immediately and to shut off automatically (timed bake)

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

NOTES

• The oven indicator light on the electronic display will turn ON and OFF when using the Bake feature and during preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature.

• When the preheat indicator light turns OFF, your oven is ready.

• To cancel baking at any time, press clear off.

IMPORTANT

Dark or dull pans absorb more heat than shiny bakeware resulting in dark or overbrowning of foods. It may be necessary to reduce the oven temperature or cook time to prevent overbrowning of some foods. Dark pans are recommended for pies. Shiny pans are recom-

mended for cakes, cookies and mufns.

3. Press bake. “ — — — ° “ appears in the display.

4. Within 5 seconds, press the or . The display

will show “350°F (177°C).” By holding the or

, the temperature can then be adjusted in 5°F

increments (1°C if the control is set to display Celsius).

5. Press bake time. “:00” will appear in the display.

6. Press the or until the desired baking time appears in the display.

7. The oven will turn ON and begin heating.

NOTES

• Bake time will not operate when using the broil feature.

• To cancel baking at any time, press clear off.

SETTING OVEN CONTROLS

WARNING

CAUTION

Setting bake time and start time

The bake time and start time pads may be used to set the length of baking time and to delay the starting time (delayed timed bake). The oven will turn on at a later time and stop automatically after the set bake time ends.

To program oven for a delayed start time and to shut-off automatically

1. Be sure that the clock displays the correct time of day.

FOOD POISONING HAZARD. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

2. Place food in the oven.

3. Press bake. “ — — — ° “ appears in the display.

4. Within 5 seconds, press the or . The display

will show “350°F (177°C).” By holding the or

, the temperature can then be adjusted in 5°F

increments (1°C if the control is set to display Celsius).

5. Press bake time. “:00” will appear in the display.

6. Press the or until the desired baking time appears.

7. Press start time. The time of day will appear in the display.

8. Press the or until the desired start time appears in the display.

9. Once the controls are set, the control calculates the time when baking will stop.

10. The oven will turn ON at the delayed start time and begin heating. The oven will turn OFF after the set bake time ends.

Use caution with the timed bake and delayed timed bake features. Foods that can easily spoil such as milk,

eggs, sh, meat or poultry, should be chilled in the refrigerator rst. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

IMPORTANT

mended for cakes, cookies and mufns.

NOTE

During a delayed timed bake the preheat indicator light will not function until the set time to start cooking is reached.

When the set bake time runs out

1. “End” will appear in the display window and the oven will shut-off automatically.

2. The control will beep 3 times every 60 seconds as a reminder until clear off is pressed.

To change the oven temperature or bake time after baking has started

1. Press the function pad you want to change.

2. Press the or to adjust the setting.

Setting broil

CAUTION

WARNING

Use the broil feature to cook meats that require direct exposure to radiant heat for optimum browning results. When broiling always remember to arrange the oven racks while oven is still cool. Position the rack as suggested in the broil settings table (See Figs. 1 & 3).

To set Broil

1. Arrange the oven rack while oven is still cool.

2. Press broil. “ — — “will appear in display.

SETTING OVEN CONTROLS

Insert

Broil pan

3. Press and hold the or until the desired broil

setting level appears in the display. Press the

for HI broil or the for LO broil. Most foods may be broiled at the HI broil setting. Select the LO broil setting to avoid excess browning or drying of foods that should be cooked to the well-done stage.

4. For optimum results, preheat oven for 5

minutes before adding food.

5. Place the insert on the broil pan (if equipped), then place the food on the broil pan insert (if equipped).

6. Place the broiler pan and insert on the oven rack (See Figs. 1 & 2).

7. Open the oven door to the broil stop position when broiling.

8. Broil on one side until food is browned. Turn and broil food on 2nd side.

9. When broiling is nished press clear off.

NOTE

Always pull the oven rack out to the stop position before turning or removing the food.

Fig. 2

Fig. 1

Should an oven re occur, close the oven door and turn the oven OFF. If the re continues, use a re

extinguisher. DO NOT put water or our on the re. Flour may be explosive.

• The broiler pan and the insert (some models) allows grease to drain and be kept away from the high heat of the broiler. DO NOT use the pan without the insert. DO NOT cover the insert with aluminum foil; the exposed grease could ignite.

• To insure proper results when broiling use ONLY Electrolux Home Products, Inc. approved broil pan & insert.

Food Rack position Setting Cook time in minutes

1st side 2nd side Doneness

Steak 1” thick 6th or 7th* Hi 6 4 Medium Steak 1” thick 6th or 7th* Hi 7 5 Medium-well Steak 1” thick 6th or 7th* Hi 8 7 Well Pork chops 3/4” thick 6th Hi 8 6 Well Chicken-bone in 5th Lo 20 10 Well Chicken-boneless 6th Lo 8 6 Well Fish 6th Hi 13 n/a Well Shrimp 5th Hi 5 n/a Well Hamburger 1” thick 7th* Hi 9 7 Medium Hamburger 1” thick 6th Hi 10 8 Well

*Use the off-set rack if you choose to use oven rack position 7.

Suggested broil settings table (electric oven)

Fig. 3

SETTING OVEN CONTROLS

Adjusting the oven temperature

Your appliance has been factory calibrated and tested

to ensure an accurate baking temperature. For the rst

few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you can adjust the control so the oven cooks hotter or cooler than the temperature displayed.

To adjust oven temperature:

1. Press bake.

2. Set the temperature to 550°F (287°C) by pressing and

holding the .

3. Within 2 seconds, press and hold bake until numeric digit(s) appear. Release bake keypad. The display now indicates the amount of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control has the original factory calibration, the display will read “0.”

4. The temperature can now be adjusted up or down 35°F (19°C), in 5°F increments by pressing and

holding the or . Adjust until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of degrees.

5. When you have made the desired adjustment, press clear off to go back to the time of day display.

Setting oven lockout

The control can be programmed to lock the oven door and lockout the oven control pads.

To set the oven lockout feature

1. Press clear off and hold for 3 seconds. “Loc” will appear in display, the “Door Locked” indicator light will

ash and the motor driven door lock will begin to close

automatically. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in the display.

2. To cancel the Oven Lockout feature, press clear off and hold for 3 seconds. The control will unlock the oven door and resume normal operation.

NOTES

DO NOT open the oven door while the indicator light

is ashing. Allow about 15 seconds for the oven door to

lock. Once the oven door is locked, the current time of day will appear in the display.

If any control pad is pressed with the oven lockout feature active, “Loc” will appear in the display until the control pad is released.

Operating oven light (some models)

The interior oven light will automatically turn ON when the oven door is opened. Press the oven light switch located on the upper left backguard panel to turn the interior oven light ON and OFF whenever the oven door is closed (Fig. 1).

NOTES

Oven temperature adjustments made will not affect the broil or self-cleaning feature temperatures.

If the display is set for Celsius, adjustments made will be

in 1°C increments each press of the or keys.

DO NOT USE oven thermometers such as those found in grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40 degrees from actual temperatures.

To change the interior oven light, see “Changing the oven light” in the Care & cleaning section.

Circuit protection (some models)

For protection against surcharge, a 15 amp, 120 volt circuit breaker reset is provided near the electric outlet located on top of backguard panel (See Fig. 1). If needed, press circuit breaker switch to reset.

circuit

breaker

switch

electric

outlet

backguard

panel

oven

light

switch

Fig. 1

Self-Cleaning

CAUTION

SELF-CLEANING

A self-cleaning oven cleans itself with high temperatures (well above normal cooking temperatures) which eliminate

soils completely or reduces them to a ne powdered ash

you can wipe away with a damp cloth.

IMPORTANT

Adhere to the following self-clean precautions:

• DO NOT use oven cleaners or oven protective coatings in or around any part of the oven interior.

• DO NOT clean the oven door gasket (See Fig. 1). The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage.

• Remove the broiler pan and insert, all utensils and ANY ALUMINUM FOIL. These items

cannot withstand high cleaning temperatures and will melt.

During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance.

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution when opening the door after the self-cleaning cycle is complete. The oven may still be VERY HOT.

• Completely remove ALL OVEN RACKS and ANY ACCESSORIES. If the oven racks are not

removed they will lose their special coating properties and no longer slide in and out of the oven cavity easily.

• Remove any excessive spillovers. Any spills on the oven bottom should be wiped-up and removed before starting the self-cleaning cycle. To clean, use hot, soapy water and a cloth. Large spillovers

can cause heavy smoke or re when subjected to

high temperatures. DO NOT allow food spills with a high sugar or acid content (such as milk, tomatoes,

sauerkraut, fruit juices or pie lling) to remain on

the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas

heat sufciently to burn soil on. Clean with soap

and water. These areas are shown in white (See Fig 1).

Fig. 1

The oven bake and broil elements may appear to have cooled after they have been turned OFF. The elements may still be hot and burns may occur if these elements are touched before they have cooled

sufciently.

IMPORTANT

For models that have a visible lower bake element ONLY - This bake element was designed to

be tilted up using your hand from the front of the bake element for cleaning purposes. Remove the bottom oven rack before raising the element. Do not to raise the element more than 4 or 5 inches from the resting position.

SELF-CLEANING

CAUTION

Setting a self-clean cycle or a delayed start self-clean cycle

IMPORTANT

To start a self-clean cycle immediately without a delay, skip steps 2 & 3 in the instructions provided below.

Setting a self-clean cycle

1. Be sure the clock displays the correct time of day.

2. Press start time. The “ : “ in the time of day will

ash.

3. Press and hold the pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when

the desired time is displayed.

4. Press clean. “---” appears in the display.

5. Press the or pad once. “3:00” will appear in the display indicating that a 3 hour self-clean time is

set. To change to a 2 hour self-clean time press once (2:00 appears in the display).

(Some models) For a 4 hour self-clean time press

until (4:00 appears in display).

6. “CLn” will appear in the display during the self-clean cycle and the “LOCK” light will glow until the selfcleaning cycle is complete or cancelled and the oven temperature has cooled.

When the self-clean cycle has completed:

1. The time of day will appear in the display window and the “Clean” and “LOCK” light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the “LOCK” light has gone out, the oven door can be opened.

Stopping or interrupting a self-clean cycle

If it becomes necessary to stop or interrupt a selfcleaning cycle once it has been activated:

1. Press clear off.

2. Once the oven has cooled down for about 1 HOUR and the “LOCK” light has turned off, the oven door can be opened.

3. Restart the self-clean cycle once all conditions have been corrected.

To avoid possible burns use care when opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid possible burns when opening the door after the self-cleaning cycle has completed. The oven may still be VERY HOT.

NOTE

As soon as the controls are set, the motor driven lock will begin to close automatically and the “LOCK”

indicator light will ash. DO NOT open the oven door while the light is ashing (allow about 15 seconds for

the oven door to lock).

NOTES

Whenever the self-clean feature is active you may check the amount of time remaining in the self-clean cycle by pressing the clean pad. Remember the range door cannot be opened until the range has cooled

sufciently. You will need to add about 1 hour to the time displayed before you can use the range for

cooking.

When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

Cleaning recommendation table

Surface type Recommendation

CARE & CLEANING

• Control knobs

• Painted body parts

• Painted decorative trim

• Aluminum, plastic or vinyl trim pieces

• Control panel

• Decorative trim (some models)

• Stainless steel (some models)

• Porcelain enamel broiler pan and broiler

pan insert (if equipped)

• Door liner & body parts

• Oven racks

Use hot, soapy water and a cloth. Dry with a clean cloth.

For general cleaning, use hot, soapy water and a cloth. For more

difcult soils and built-up grease, apply a liquid detergent directly

onto the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any of these materials; they can scratch. To remove control knobs, turn to the

OFF position; grasp rmly and pull straight off the shaft. To replace knobs after cleaning, line up the at sides of both the knob and the

shaft; then push the knob into place.

Before cleaning the control panel, turn all controls OFF and if needed remove any knobs from the panel. Clean using hot, soapy water and a dishcloth. Be sure to squeeze excess water from the dishcloth before wiping the control panel; especially when wiping around the controls area. Excess water in or around the controls may cause damage to the appliance. When rinsing, use clean water and a dishcloth and be sure to squeeze excess water from dishcloth before wiping the control panel.

Clean heavier soils with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not use cleaners with high concen- trations of chlorides or chlorine. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as bluish stains may occur during heating that cannot be removed.

Gentle scouring with a soapy non-abrasive scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If

necessary, cover difcult spots with an ammonia-soaked paper towel

for 30 to 40 minutes. Rinse with clean water and a damp cloth, and

then scrub with a soap-lled non-abrasive scouring pad. Rinse and

wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating.

Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner following manufacturer’s instructions. Rinse with clean water and dry.

• Oven door

• Ceramic cooktop

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. Do not immerse the door in water. Do not

spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders or any harsh

abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. On self-cleaning models the oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage or remove this gasket.

Do not use spray oven cleaners on the cooktop. See cooktop cleaning and maintenance in the Care & Cleaning section.

CAUTION

CARE & CLEANING

Cooktop maintenance

IMPORTANT

Consistent and proper cleaning is essential to

maintaining your ceramic glass cooktop.

Prior to using your cooktop for the rst time, apply

a ceramic cooktop cleaning cream (available in most hardware, grocery and department stores) to the ceramic surface. Clean and buff with a clean paper towel. This will make cleaning easier when soiled from cooking. Cooktop

cleaning creams leave a protective nish on the glass to

help prevent scratches and abrasions.

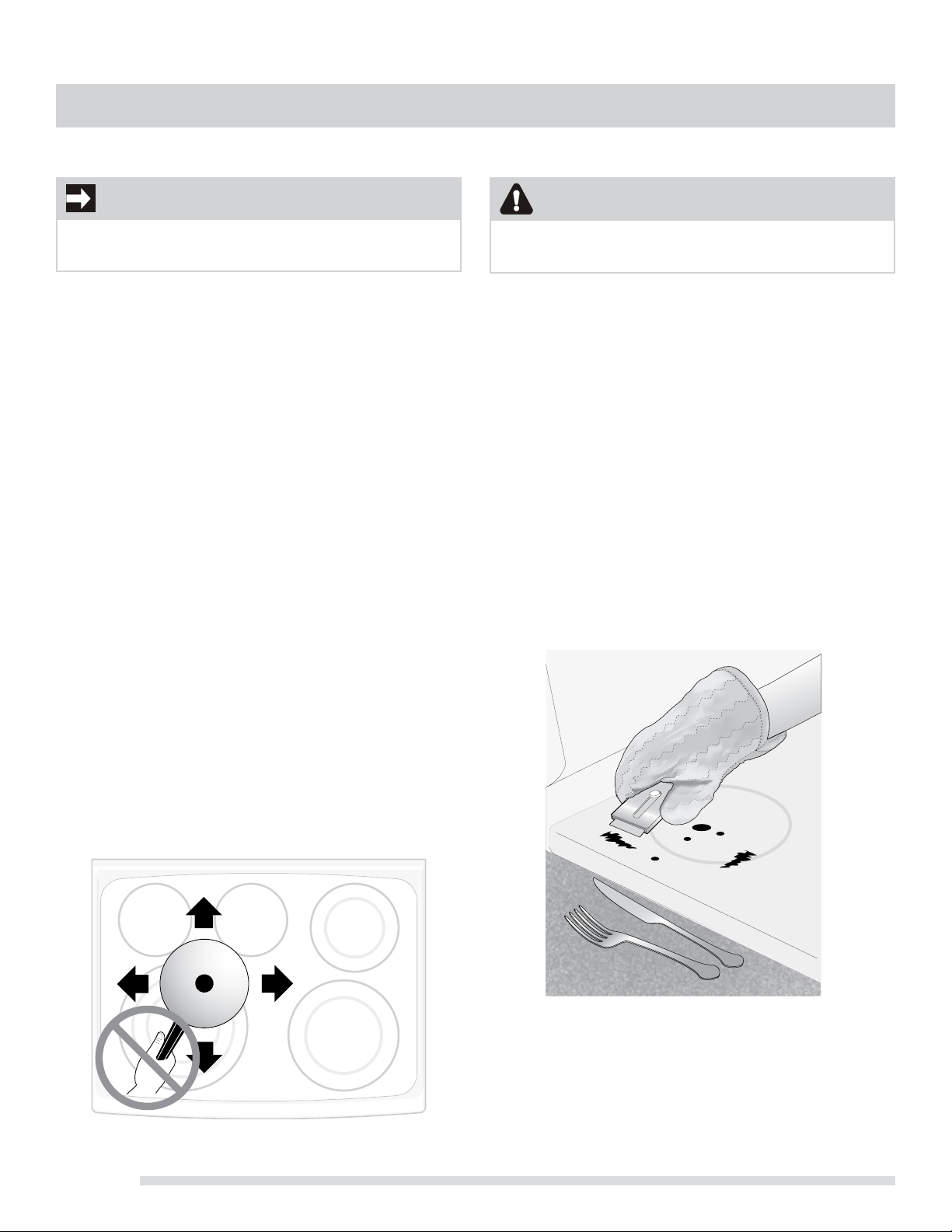

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough or dirty bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop.

Cooktop cleaning

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

For light to moderate soil:

Apply a few drops of cooktop cleaning cream directly to the cooktop. Use a clean paper towel to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue. Do not use the towel you use to clean the cooktop for any other purpose.

For heavy, burned on soil:

Apply a few drops of glass-ceramic cooktop cleaner directly to the soiled area. Rub the soiled area using a non-abrasive plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean.

• Use cookware with dirt or dirt build up on bottom;

replace with clean cookware before using.

• Use your cooktop as a cutting board or work surface in

the kitchen.

• Cook foods directly on the cooktop surface without a

pan.

• Drop heavy or hard objects on the ceramic glass

cooktop, they may cause it to crack.

Cooktop cleaning (cont’d)

WARNING

CAUTION

CARE & CLEANING

Plastic or foods with a high sugar content: These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately.

After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

DO NOT use a cooktop cleaner on a hot cooktop.

The fumes can be hazardous to your health and can chemically damage the ceramic glass surface.

Do not use the following on the cooktop:

• Do not use abrasive cleaners and scouring pads, such

as metal and some nylon pads. They may scratch the

cooktop, making it more difcult to clean.

• Do not use harsh cleaners, such as chlorine bleach,

ammonia or oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as

they can leave soil or lint on the cooktop which can burn and cause discoloration.

IMPORTANT

Damage to the ceramic glass cooktop may occur if you use an abrasive type cleaning pad. Only use cleaning

products that have been specically designed for

ceramic glass cooktops.

Caution for aluminum use on the cooktop

• Aluminum Foil - Use of aluminum foil on a hot

cooktop will damage the ceramic cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to touch the ceramic cooktop under ANY circumstances.

• Aluminum utensils - The melting point of aluminum

is much lower than that of other metals. Care must be taken when aluminum pots or pans are used on the cooktop. If aluminum pans are allowed to boil dry when using the cooktop, not only will the utensil be damaged or destroyed, but it may fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.

Replacing the oven light

The light bulb is located at the rear of the oven and is covered with a glass shield held by a wire holder. The glass shield must be in place whenever the oven is in use.

To replace the oven light bulb:

1. Turn electrical power off at the main source or unplug the range.

2. Press wire holder to one side to release the glass shield.

3. Replace bulb with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder into place.

5. Turn power back on again at the main source (or plug the range back in).

6. The clock will then need to be reset. To reset, see Setting the clock and minute timer in this Use & Care Guide.

Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leather-faced glove for protection against possible broken glass.

about

10°

hinge

oven door

CAUTION

Oven door hinge locations

CARE & CLEANING

Removing and replacing the lift-off oven door

The door is heavy. For safe, temporary storage, lay the

door at with the inside of the door facing down.

To remove oven door:

1. Open oven door completely (horizontal with oor - See

Fig. 1).

2. Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards

the oven door (See Fig. 2). A tool such as a small at-

blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Fig. 3).

4. Close the door to the broil stop position (the oven door will stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the oven door hinge arms over the roller pins located on each side of the oven frame (See Fig. 4).

Fig. 1

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Fig. 3).

2. Holding the oven door at the same angle as the removal position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (See Fig. 4). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door (horizontal with oor - See

Fig. 1).

4. Push the door hinge locks up towards and into the oven frame on both left and right oven door hinges (See Fig. 2) to the locked position.

5. Close the oven door.

Special door care instructions - Most oven doors

contain glass that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

Fig. 2

Fig. 3

roller

hinge

arm

Fig. 4

Problem Solution

Solutions to common problems • BEFORE YOU CALL

Poor baking results.

Appliance is not level.

Cannot move appliance easily. Appliance must be accessible for service.

Surface element too hot or not hot enough.

Surface element does not heat.

• Many factors affect baking results. Make sure the proper oven rack

position is used. Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe’s recommended temperature or baking time. If you feel the oven is too hot or cool, see “Adjusting Oven Temperature” section in this Use & Care Guide.

• Be sure oor is level, strong & stable enough to adequately support

range.

• If oor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the

oven rack. Adjust leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square & have sufcient room for appliance clearance.

• Cabinets not square or are built in too tightly. Contact builder or installer to

make appliance accessible.

• Carpet interferes with appliance. Provide sufcient space so appliance can

be lifted over carpet.

• Incorrect control setting. Be sure the correct control is ON for the element

that you are attempting to use.

• Lightweight or warped pans used. Use only at, evenly balanced, medium

or heavyweight cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy & medium-weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

Entire appliance does not operate.

Oven portion of appliance does not operate.

Oven light does not work.

Self-clean cycle does not work.

• The time of day is not set. The time of day must rst be set in order to

operate the oven. See “Setting the clock” in the Setting oven controls section.

• Make sure cord/plug is plugged correctly into outlet.

• Service wiring is not complete. Contact your dealer, installing agent or

authorized service agent.

• Electrical power outage. Check house lights to be sure. Call your local

electric company for service.

• Be sure the oven controls are set properly for the desired cooking feature.

See Setting Oven Controls in this manual or read the instructions “Entire appliance does not operate” in this checklist.

• Be sure the light is secure in the socket. Also see “Changing & replacing the

oven light” section.

• Oven control not set properly. Follow instructions under Self-clean.

• Self-clean cycle was interrupted. Follow steps under “Stopping or

Interrupting a Self-cleaning cycle” under Self-clean.

BEFORE YOU CALL • Solutions to common problems

Problem Solution

Soil not completely removed after selfcleaning cycle.

Oven smokes excessively during broiling.

Flames inside oven or smoking from oven vent.

• Failure to clean bottom, front top of oven, frame of oven or door area

outside oven seal. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

• Incorrect setting. Follow broiling instructions in Setting Oven Controls.

• Make sure oven door is opened to broil stop position.

• Meat too close to the broil element. Reposition the broil rack to provide

proper clearance between the meat & the element. Preheat the broil element for searing.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining

fatty edges to prevent curling, but do not cut into lean.

• Broiler pan and insert wrong side up and grease not draining. Always

place grid on the broiler pan with ribs up & slots down to allow grease to drip into pan (some models).

• Grease has built up on oven surfaces. Regular cleaning is necessary when

broiling frequently. Old grease or food spatters cause excessive smoking.

• Excessive spillovers in oven. For example this will happen for pie

spillovers or large amounts of grease left on the oven bottom. Wipe up

excessive spillovers before starting oven. If ames or excessive smoke

are present see “About broiling” in the Setting Oven Controls section.

Oven control panel beeps & displays any F code error (for example F10, F11, F13, F14, F15, F30, F31 or F90).

Scratches or abrasions on cooktop surface.

Metal marks on the cooktop.

Brown streaks or specks on cooktop surface.

Areas of discoloration with metallic sheen on cooktop surface.

• Oven control has detected a fault or error condition. Press clear off to clear the display & stop beeping. Try the bake or broil feature again. If the F code error repeats, remove power from appliance, wait 5 minutes and then repower appliance and set clock for the time of day. Try the bake or broil feature again. If the fault recurs, record fault and call for service.

• Coarse particles such as salt or sand between cooktop and utensils

can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.

• Cleaning materials not recommended for ceramic-glass cooktop have been

used. See “Cooktop cleaning and maintenance” in the Care & Cleaning section of this Use & Care Guide.

• Cookware with rough bottom has been used. Use smooth, at-bottomed

cookware.

• Sliding or scraping of metal utensils on cooktop surface. Do not slide

metal utensils on cooktop surface. Use a ceramic-glass cooktop cleaner to remove the marks. See “Cooktop cleaning and maintenance” in the Care & Cleaning section.

• Boilovers are cooked onto surface. Use razor blade scraper to remove soil.

See “Cooktop Cleaning and Maintenance” in the Care & Cleaning section.

• Mineral deposits from water and food. Remove using a ceramic-glass cooktop

cleaner. Use cookware with clean, dry bottoms.

MAJOR APPLIANCE WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air lters, water lters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the nish of appliance or home incurred during installation, including but not limited to oors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than gen uine Electrolux parts or parts obtained from persons other than authorized service companies; or external

causes such as abuse, misuse, inadequate power supply, accidents, res, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specications as described

or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances North America 10200 David Taylor Drive Charlotte, NC 28262

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

Electrolux Canada Corp.

Mississauga, Ontario, Canada

1.800.668.4606

Canada

5855 Terry Fox Way

L5V 3E4

This page is left blank intentionally

Frigidaire BKEF3048LSB, BKEF3048LSE, CFEF3018LBA, CFEF3018LBB, CFEF3018LBC Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
