BASELINE Series
Use & Care Manual
44 pgs7.07 Mb0

Frigidaire BASELINE Series, GALLERY Series, PRO Series Use & Care Manual

TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use & Care
of your Refrigerator
A05947003 (March 2018)
Important Safety Instructions ......................2
Features At A Glance - Baseline Model .........4
Features At A Glance - Gallery Model ...........5
Features At A Glance - Pro Model ................6
Installation ................................................7

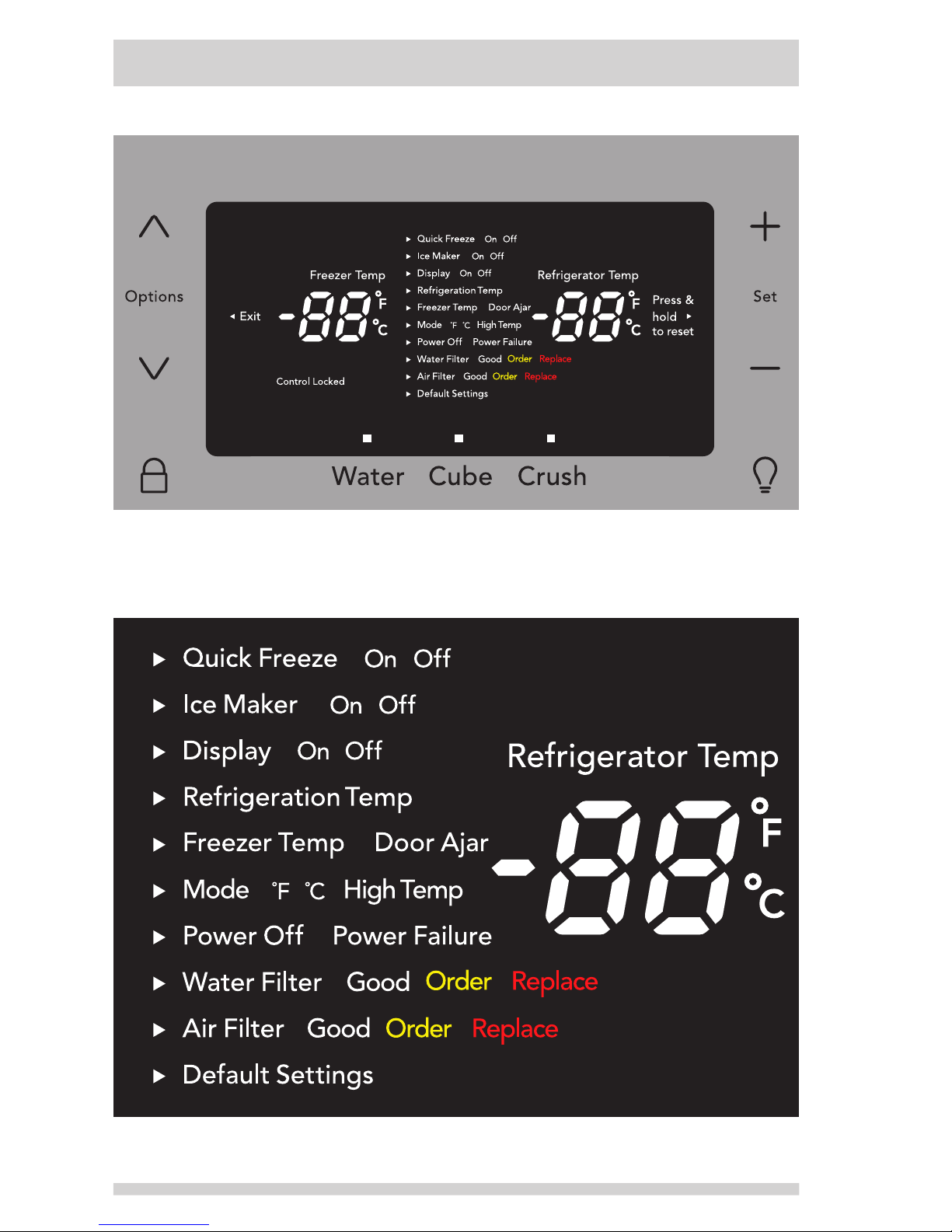

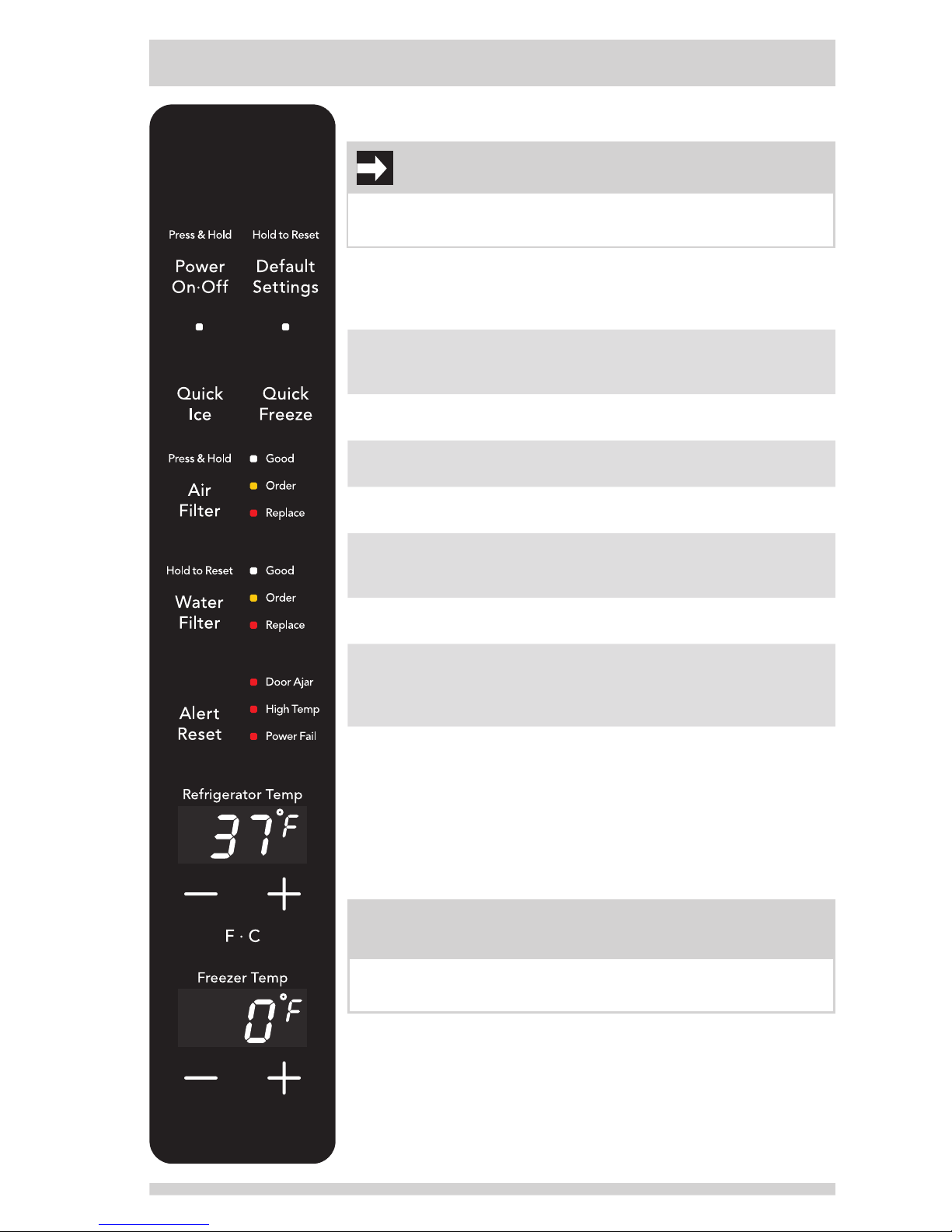

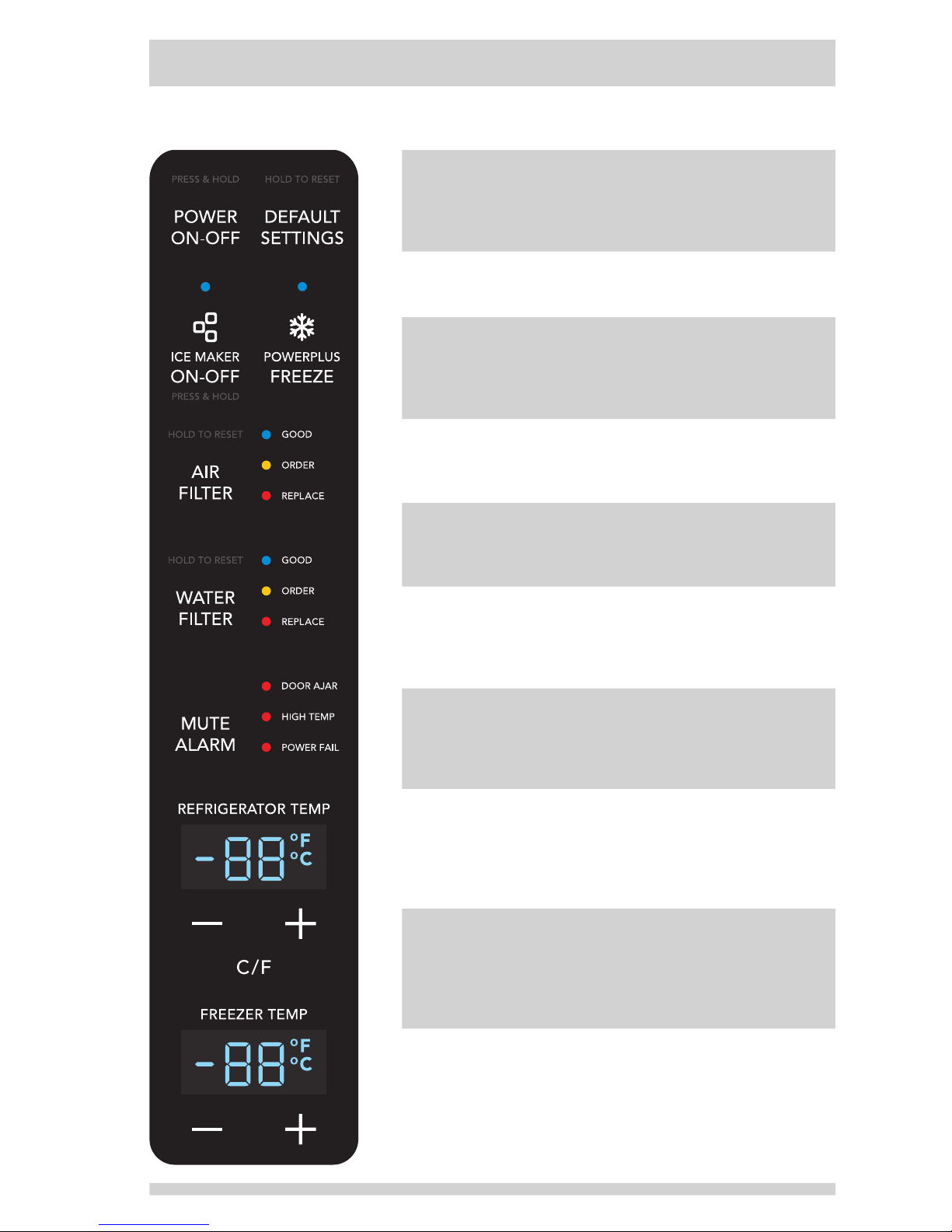

Controls - Frigidaire & Frigidaire
Automatic Ice Maker - Freezer
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, operation or maintenance information which is impor­tant but not hazard-related.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist with door and drawer closing (front should be higher than back)
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all connections
- recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Denitions
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
2
IMPORTANT SAFETY INSTRUCTIONS
For your Safety
• DO NOT store or use gasoline, or other
ammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding ammability and
other hazards.
• DO NOT operate the refrigerator in the presence of explosive fumes.
• Avoid contact with any moving parts of automatic ice maker.
• Remove all staples from the carton. Staples can cause severe cuts, and also
destroy nishes if they come in contact
with other appliances or furniture.
WARNING
Please read all instructions before using this refrigerator.
Child Safety
Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight
chambers, and can quickly cause suffocation.
Proper Disposal of your Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.
3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorouorocarbons or hydrochlorouorocarbons). CFCs and HCFCs
are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.
If you are throwing away your old refrigera­tor, make sure the refrigerant is removed for
proper disposal by a qualied technician. If
you intentionally release refrigerant, you may
be subject to nes and imprisonment under
provisions of environmental legislation.
Electrical information
• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of
the appliance is equipped with a three-
prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with local
codes and ordinances. Consult a qualied
electrician. Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.
• Never unplug the refrigerator by pulling on
the power cord. Always grip the plug rmly,
and pull straight out from the receptacle to prevent damaging the power cord.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.energystar.gov/recycle for more information on recycling your old refrigerator.
Before you throw away your old refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children may not easily climb inside.
• Have refrigerant removed by
a qualied
service technician.
IMPORTANT
Pressing and holding the On/Off button for three seconds, located on the temperature control panel, will disable your refrigerator’s cooling system but does not disconnect the power to the light bulb and other electri­cal components. To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.
Grounding type wall receptacle
Power cord with 3-prong grounded plug
Do not, under any circumstances, cut, remove, or bypass the grounding prong.
CAUTION
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.
• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10% or more. Operating the
refrigerator with insufcient power can
damage the compressor. Such damage is not covered under your warranty.
• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.
IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044.
Deli
Drawer
Water
Filter
*Removable Ice Bin
*Freezer Ice Maker
Adjustable Hinges
Freezer Baskets
Toe Grille
Door Bin
Glass Shelves
Flipper Mullion
Flipper Guide
*Fresh Food
Ice Maker
*Ice Bin
Crisper Drawer
Glass Shelves
Glass
Shelves
4
FEATURES AT A GLANCE - BASELINE MODEL
*Features may vary according to model
Flip Shelf
Deli
Drawer
Water
Filter
*Removable
Ice Bin
*Freezer Ice
Maker
Adjustable Hinges
Freezer Baskets
Toe Grille
Door Bin
Glass Shelves
Flipper Mullion
Air Filter
Flipper Guide
*Fresh Food
Ice Maker
*Ice Bin
Crisper Drawer
Glass Shelves
IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044.
5
FEATURES AT A GLANCE - GALLERY MODEL
*Features may vary according to model
Flip Shelf
Deli
Drawer
Water
Filter
*Removable
Ice Bin
*Freezer Ice
Maker
Adjustable Hinges
Freezer Baskets
Toe Grille
Door Bin
Flipper Mullion
Flipper Guide
*Fresh Food
Ice Maker
*Ice Bin
Crisper Drawer
Dairy
Compartment
Spillsafe
®
Shelves
Can
Dispenser
Air Filter
Slide-Under Shelf
IMPORTANT
Features not purchased with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044.
*Features may vary according to model
6
FEATURES AT A GLANCE - PRO MODEL
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to allow additional space so the door can be opened wider.
7
INSTALLATION
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
of your refrigerator. Sufcient air circulation
is essential for the proper operation of your refrigerator.
This Use & Care Guide provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your refrigerator. Use the refrigerator only as instructed in this Use & Care Guide. Before
starting the refrigerator, follow these
important rst steps.
Location
• Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.
• The refrigerator must be installed on a
oor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker.
Installation
Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:
Sides & Top ⅜ inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.
Top Hinge Cover Front Screw
Top Hinge Cover Rear Screw
Lower
Hinge
Screw
Top Hinge Screw
Components Provided:
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
CAUTION
Do Not loosen or remove these 3 hex screws.
8
INSTALLATION
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(2) Retaining Clips
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides and that cabinet is stable.
4 After unit is leveled, lower anti-tip leg
using a 3/8 inch socket wrench until it
rmly contacts the oor.
5 Install the toe grille by tting into place.
Cabinet Leveling & Refrigerator Door Alignment (if necessary)
Guidelines for nal positioning of your refrigerator:
• All four corners of the cabinet must rest
rmly on the oor.
• The front should be slightly elevated to ensure that doors close and seal properly.
• Doors should align with each other and be level.
Most of these conditions can be met by raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer if the toe grill
is installed. Lift the toe grille and gently pull forward.
2 Make initial cabinet adjustments by using
the front roller height adjusting screws. Use a 3/8 inch socket wrench to turn the adjustment screws (1 per side).
DO NOT
Loosen
or Remove These 3
Hex
Screws
Raise
Lower
Anti-tip Leg
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
9
Raise
To make nal door height adjustments:
Flipper Mullion
Screw
Flipper Mullion Hinge
Adjusting Flipper Mullion Screw
2 Adjust ipper mullion height. For proper
connection with the ipper mullion guide,
there should be a separation about the thickness of a coin (0.060 inches, or
1.5 mm) between the guide and ipper
mullion.
3 Re-tighten screw.
To adjust the ipper mullion:
1 Loosen the screw located on the ipper
mullion hinge.
Flipper Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
INSTALLATION
1. Open freezer drawer to make lower hinge visible.
2. Insert 6mm Allen wrench into the shaft of the lower hinge.
3. Adjust the height by turning clockwise or counterclockwise. Turning clockwise will lower the door. Turning counterclockwise will raise the door. Default setting is to the lowest height when you receive your appliance.
Door
Door
WARNING
Make sure the electrical power cord is unplugged from the wall outlet.
10
DOOR REMOVAL INSTRUCTIONS
NOTE
DO NOT remove the ground screw from hinge.
2 Disconnect the harness by grasping both
sides of the connector rmly, depress the
latch and pull apart.
Getting through narrow spaces
If your refrigerator will not t through an
entrance area, you can remove the doors.
Check rst by measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open the freezer drawer and remove the
toe grille (see Installation section).
3 Remove any food from the door shelves
and close the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift inside edge of hinge cover and tilt
back.
Rear Cover Screw
Ground Screw
Top Hinge
Top Hinge Cover
Hinge
Screws
Multi-wire
Cables
Leave Hinge With Door
Front
Cover Screw
Water Line
Left Door
Rear Cover Screw
Top Hinge
Ground Screw
Front
Cover Screw
Top Hinge Cover
Hinge Screws
Leave Hinge With Door
Right Door
To remove the refrigerator doors
1 Remove top hinge covers. Trace lightly
around the door’s top hinges with a pencil. This makes reinstallation easier.
IMPORTANT
Open the refrigerator doors to a 90 degree angle before lifting the doors off the bottom hinges and setting them aside.
CAUTION
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.
11
DOOR REMOVAL INSTRUCTIONS
NOTE
You will be pulling approximately ve feet of
water tube from the back of the refrigerator.
NOTE
Use care while pulling the water tube from the unit to be sure that you do not kink the tube.
4 Open the refrigerator doors to a 90 degree
angle and remove the two screws from the top hinge. Lift and remove door from lower hinge.
5 Unscrew the three lower hinge screws and
remove the hinge.
Lower Hinge Removal
Water
Line
Water
Line
Press
Press
3 Detach the water tube from the connector
located behind the refrigerator, the connector releases when you press inward on the connector’s outer sleeve. Pull the water tube out toward the front of the unit.
90˚
Top View
Cabinet
Left Door
Right Door
Top View
of
Cabinet
IMPORTANT
When replacing the doors on the lower hinge, they must be installed at a 90 degree angle.
NOTE
When reinserting the water tube and replac­ing the top hinge cover, use care to be sure you do not kink the tube.
NOTE
Upon replacement, the tube needs to be fully inserted up to the marking line.
12
DOOR REMOVAL INSTRUCTIONS
To reinstall the refrigerator doors:
Water
Line
Water
Line
Insert tube up to the marking line
Press
Press
Bottom of the Doors
For
RIGHT DOOR,
turn pin 90˚
counter-
clockwise
For
LEFT DOOR,
turn pin 90˚
clockwise
1 Replace the lower hinge screws.
2 Holding the door at a 90 degree angle,
drop the pin down into the center hinge opening. Rotate it slightly in either direction until the door falls down into place.
5 Reconnect the harnesses.
6 Replace the top hinge covers.
7 Reconnect electrical power cord to the
wall outlet.
To reset door pin:
If doors are removed at less than a 40 degree angle, the pin returns to the home position. It can be reset by turning the door upside and using a 5/32” Allen wrench to rotate the left hand pin 90 degrees clockwise and the right hand pin 90 degrees counterclockwise.
Pin Mechanism
Bottom
Hinge
Opening
Doors at 90º
(Door Bottom)
3 Reinstall top hinge.
4 Insert the water line in the top left tunnel
pushing from the front to the back of the unit.
Once the door pins are reset, follow the steps “To reinstall the refrigerator doors”.
CAUTION
Drawer is heavy. Use caution when lifting.
NOTE
To locate the pin, look inside the drawer and the pin is next to the door liner and the slides. Not all parts are shown in the illustration.
13
DOOR REMOVAL INSTRUCTIONS
Removing Freezer Drawer
Remove
Hex Head
Drawer Screw
DO NOT
Remove
Other
Screws
DO NOT
Loosen
or Remove These 3
Hex
Screws
Replacing Freezer Drawer
1 Extend the Freezer slides from the unit.
2 Carefully align support pin with hooks
on end of freezer slides and then lower freezer door onto slides.
3 Replace the 4 hex head screws that secure
the slides to the door (2 on each side) and tighten.
1 Remove 4 hex head drawer screws.
2 Lift up drawer to remove.
Pin
Hook
14

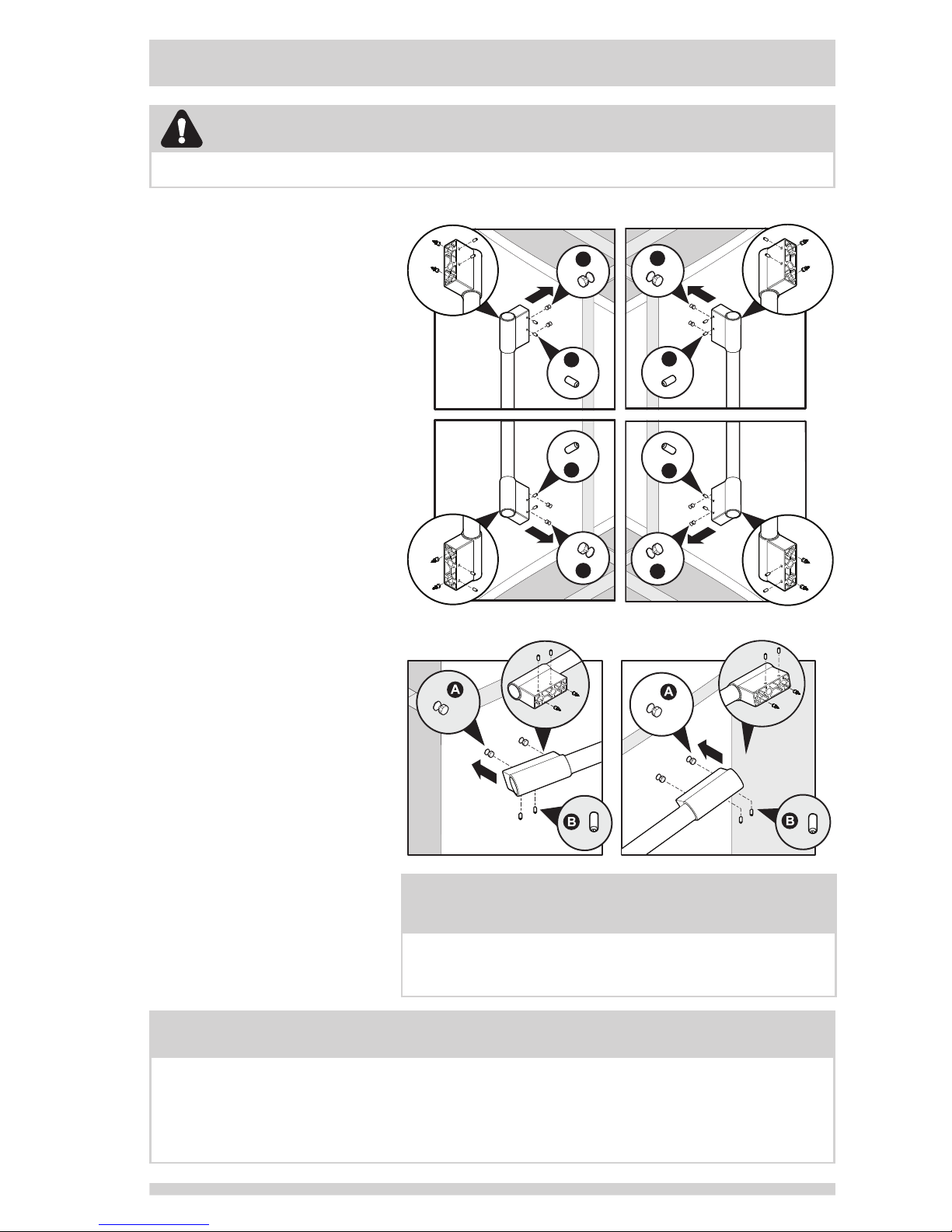

INSTALLING DOOR HANDLES
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.
Door Handle Mounting Instructions for Frigidaire & Frigidaire Gallery
1 Remove handles from carton
and any other protective packaging.
2 Position fresh food handle
end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.
3 While holding handle rmly
against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to
install opposite handle. Ensure the holes for the set screws are facing towards the
rst door.
5 Position freezer handle end
caps over left and right pre­installed shoulder bolts (A) that are fastened to the door, ensuring the holes for the set screws are facing down.
6 While holding handle rmly
against door, loosely tighten right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.
7 Still holding the handle rmly
to the door, rmly tighten
left Allen set screw (B) with supplied Allen wrench.
8 Return to the right Allen set
screw (B) and rmly tighten
with supplied Allen wrench.
Mounting Freezer Handle
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it is imperative that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.
Loading...
+ 30 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
