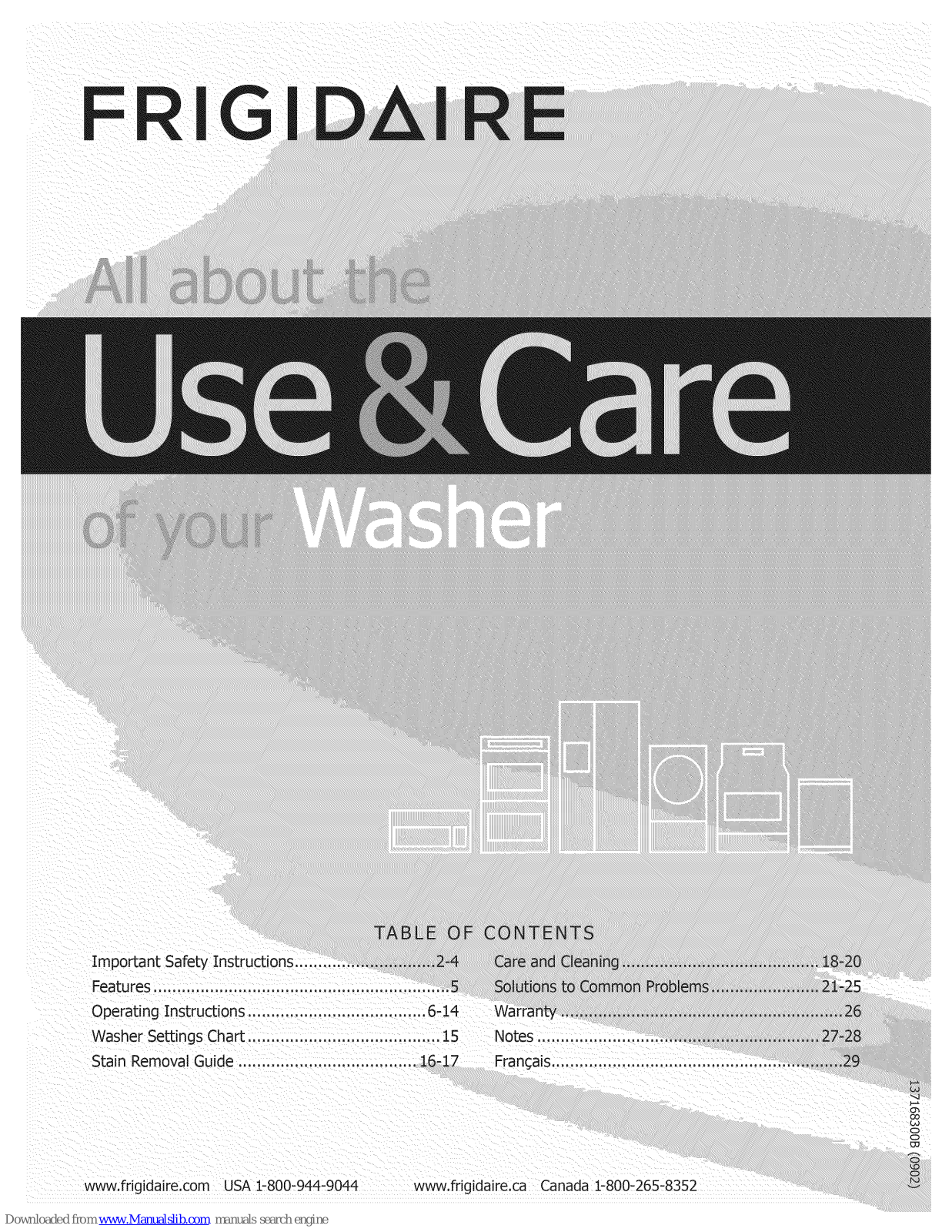

Frigidaire FAFW3517KR1, FAFW3577KB1, FAFW3574KN0, FAFW3574KR0, FAFW3577KB0 Use & Care Manual

Important Safety Instructions .............................. 2-4 Ca_eand Cleaning ....................., 18_20

Features ............................................................... 5 SOlUtionsto Co_on P_oble_s,,, !21-25

Washer Settings Chart ......................................... 15 Notes ....................................... 27-28

Operating Instructions ...................................... 6-14 Warran_ ....................................... ] 26

Stain Remova! Guide ...................................... 16-17 Francj:ais...................................................... i!i2_

www.frigidaire.com USA1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

TABLE OF CONTENTS

Go

oo

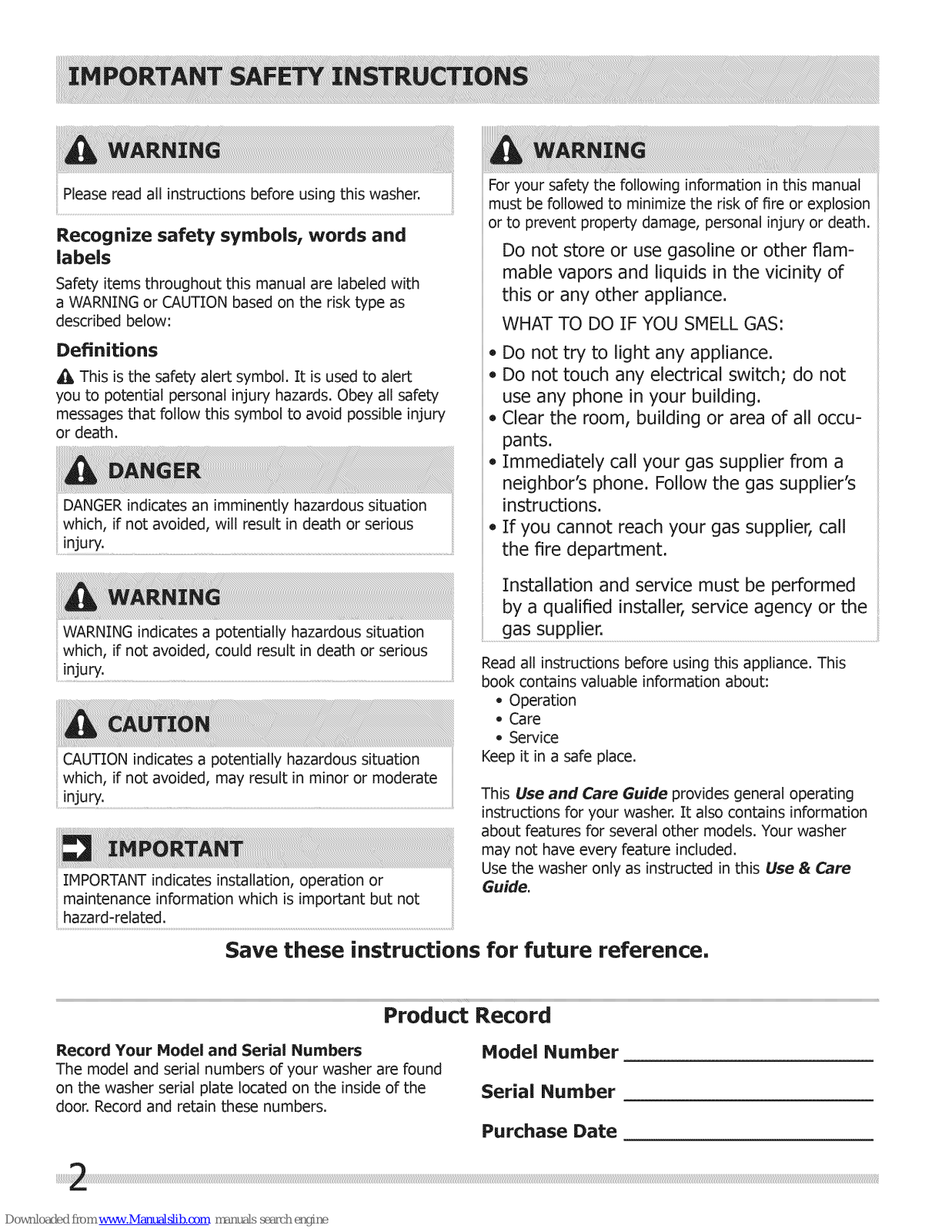

Pleasereadallinstructionsbeforeusingthiswasher.

Recognize safety symbols, words and
labels

Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury

or death.

DANGER indicatesan imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate

IMPORTANT indicates installation, operation or
maintenance information which is important but not

hazard-related.

For your safety the following information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or death.

Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

, Do not try to light any appliance.
, Do not touch any electrical switch; do not

use any phone in your building.

, Clear the room, building or area of all occu-

pants.

, Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

, If you cannot reach your gas supplier, call

the fire department.
Installation and service must be performed

by a qualified installer, service agency or the
gas supplier.

Read all instructions before using this appliance. This
book contains valuable information about:

- Operation

- Care

- Service

Keep it in a safe place.

This Use and Care Guide provides general operating

instructionsfor your washer. It also contains information

about features for several other models. Your washer

may not have every feature included.
Use the washer only as instructed in this Use & Care

Guide.

Save these instructions for future reference.

Record Your Model and Serial Numbers
The model and serial numbers of your washer are found

on the washer serial plate located on the inside of the
door. Record and retain these numbers.

Product Record

Hodel Number
Serial Number

Purchase Date

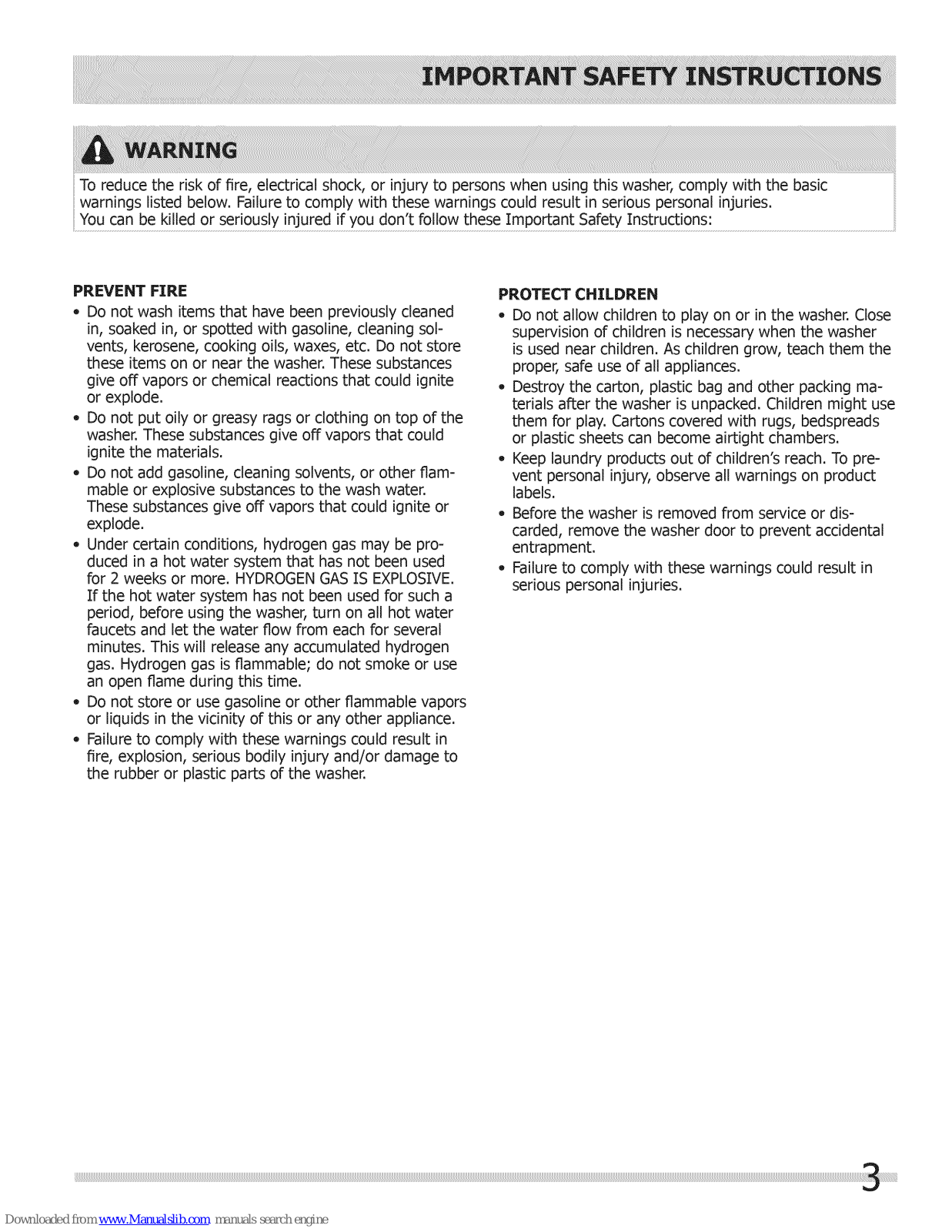

To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic
warnings listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

o Do not wash items that have been previously cleaned

in, soaked in, or spotted with gasoline, cleaning sol-

vents, kerosene, cooking oils, waxes, etc. Do not store
these items on or near the washer. These substances

give off vapors or chemica! reactions that could ignite
or explode.

Do not put oily or greasy rags or clothing on top of the
washer. These substances give off vapors that could
ignite the materials.

Do not add gasoline, cleaning solvents, or other flam-
mable or explosive substances to the wash water.

These substances give off vapors that could ignite or

explode.
Under certain conditions, hydrogen gas may be pro-

duced in a hot water system that has not been used

for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water system has not been used for such a
period, before using the washer, turn on all hot water

faucets and let the water flow from each for several

minutes. This will release any accumulated hydrogen
gas. Hydrogen gas is flammable; do not smoke or use
an open flame during this time.

Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.

Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the washer.

PROTECT CHILDREN

o Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer

is used near children. As children grow, teach them the
proper, safe use of all appliances.

Destroy the carton, plastic bag and other packing ma-
terials after the washer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To pre-
vent personal injury, observe all warnings on product

labels.

Before the washer is removed from service or dis-
carded, remove the washer door to prevent accidental

entrapment.

Failure to comply with these warnings could result in
serious personal injuries.

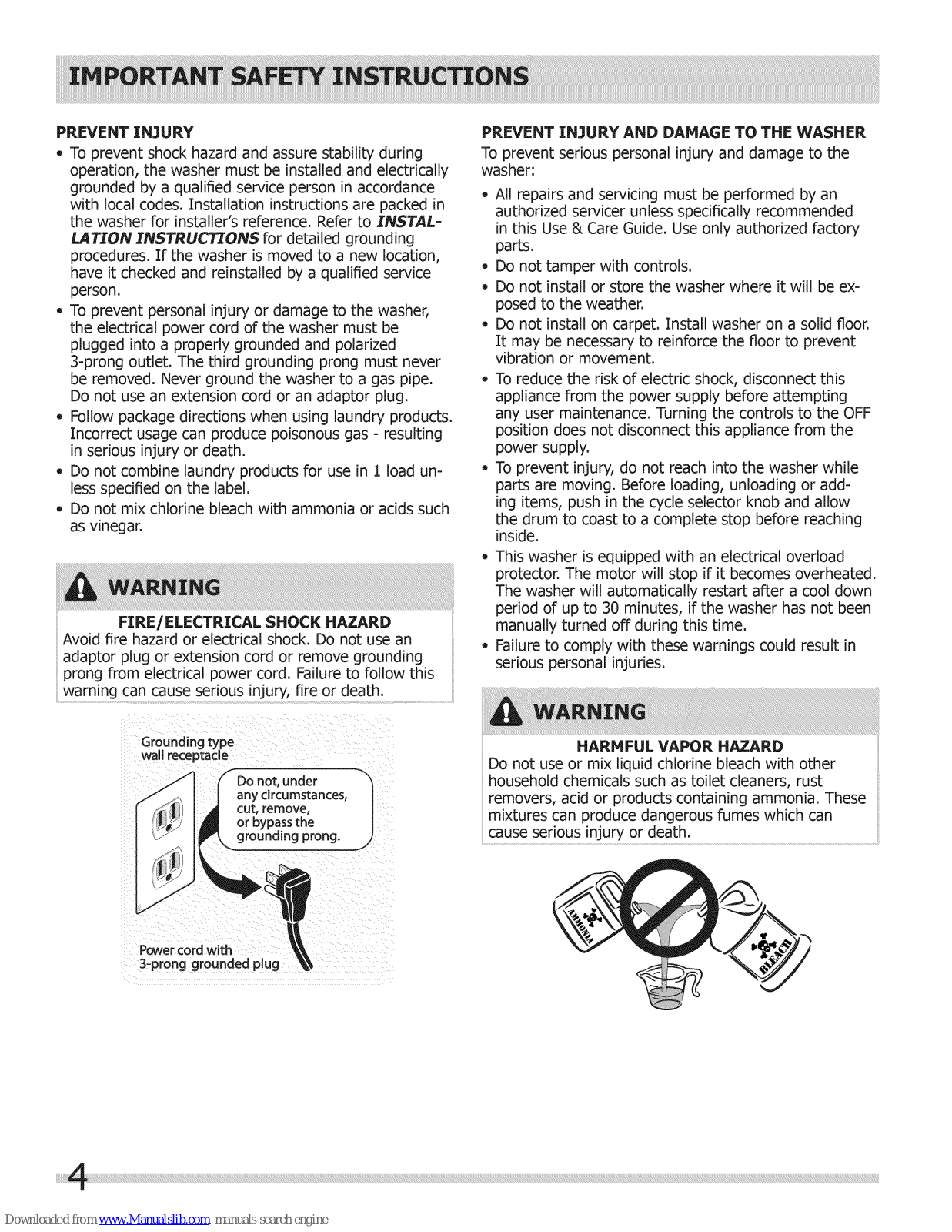

PREVENT TNJURY

- To prevent shock hazard and assure stability during
operation, the washer must be installed and electrically
grounded by a qualified service person in accordance
with local codes, Installation instructions are packed in

the washer for installer's reference. Refer to INSTAL-
LATION INSTRUCTIONS for detailed grounding

procedures. If the washer is moved to a new location,
have it checked and reinstalled by a qualified service
person.

To prevent personal injury or damage to the washer,
the electrical power cord of the washer must be
plugged into a properly grounded and polarized
3-prong outlet. The third grounding prong must never
be removed. Never ground the washer to a gas pipe.
Do not use an extension cord or an adaptor plug.

Follow package directions when using laundry products.
Incorrect usage can produce poisonous gas - resulting
in serious injury or death.

Do not combine laundry products for use in 1 load un-
less specified on the label.

Do not mix chlorine bleach with ammonia or acids such
as vinegar.

FIRE/ELECTRICAL SHOCK HAZARD

Avoid fire hazard or electrical shock. Do not use an

adaptor plug or extension cord or remove grounding

prong from electrical power cord. Failure to follow this

warning can cause serious injury, fire or death. ........................

PREVENT TNJURY AND DAMAGE TO THE WASHER

To prevent serious personal injury and damage to the
washer:

- All repairs and servicing must be performed by an
authorized servicer unless specifically recommended

in this Use & Care Guide. Use only authorized factory
parts.

- Do not tamper with controls.

- Do not install or store the washer where it will be ex-

posed to the weather.

- Do not install on carpet. Install washer on a solid floor.

It may be necessary to reinforce the floor to prevent

vibration or movement.

- To reduce the risk of electric shock, disconnect this
appliance from the power supply before attempting
any user maintenance. Turning the controls to the OFF

position does not disconnect this appliance from the
power supply.

- To prevent injury, do not reach into the washer while

parts are moving. Before loading, unloading or add-
ing items, push in the cycle selector knob and allow

the drum to coast to a complete stop before reaching

inside.

• This washer is equipped with an electrical overload

protector, The motor will stop if it becomes overheated.

The washer will automatically restart after a cool down

period of up to 30 minutes, if the washer has not been
manually turned off during this time.

Failure to comply with these warnings could result in

serious personal injuries.

Grounding type

wall receptacle

Do not, under
any circumstances,
cut, remove,
or bypass the

grounding prong.

Powercordwith

3-prong grounded plug

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust

removers, acid or products containing ammonia, These
mixtures can produce dangerous fumes which can

cause serious injury or death,

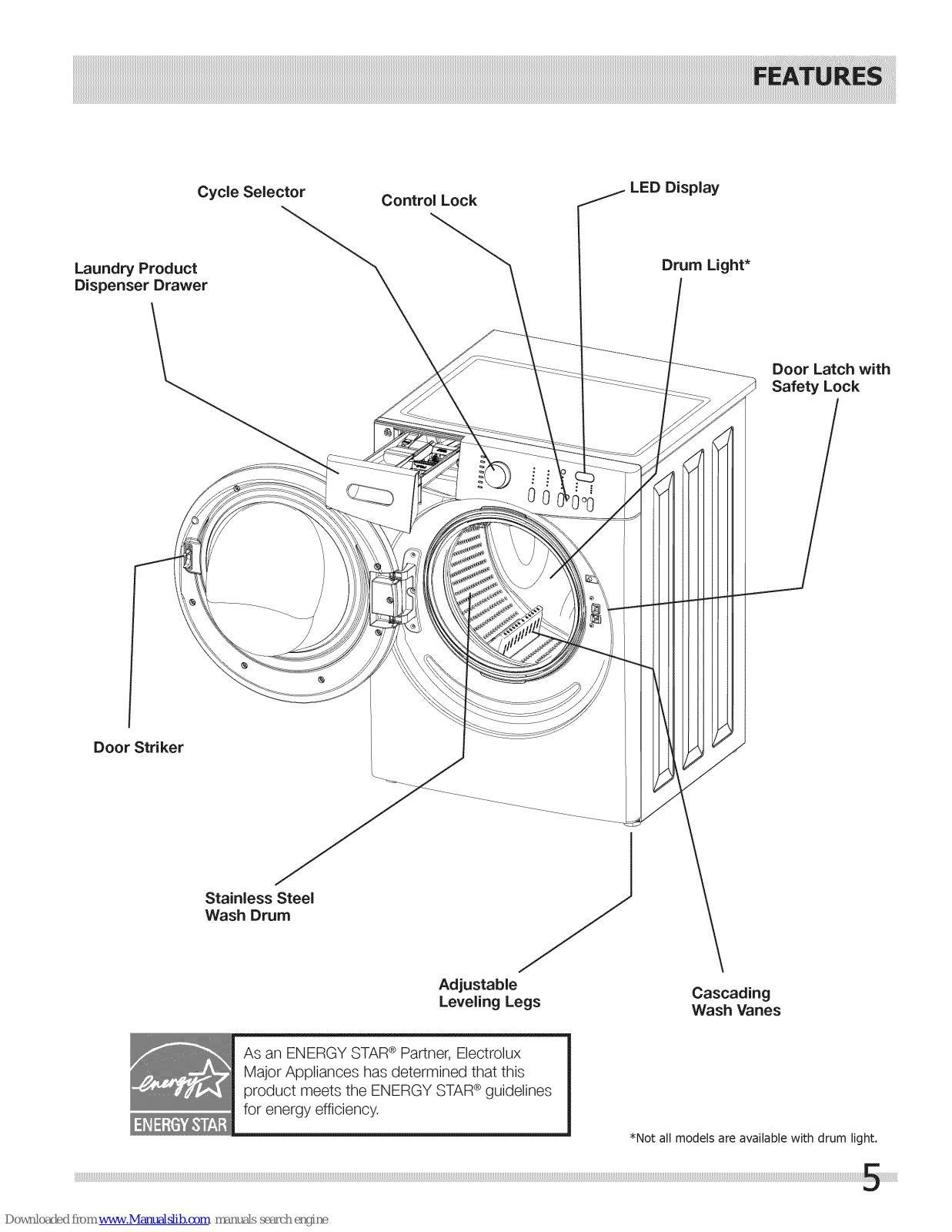

Cycle Selector

Control Lock

LED Display

Laundry Product
Dispenser Drawer

Drum Light*

Door Latch with

Safety Lock

Door Striker

Stainless Steel
Wash Drum

Adjustable
Leveling Legs

As an ENERGY STAR®Partner, Electrolux

Major Appliances has determined that this
product meets the ENERGY STAR®guidelines

for energy efficiency.

Cascading

Wash Vanes

*Not all models are available with drum light.

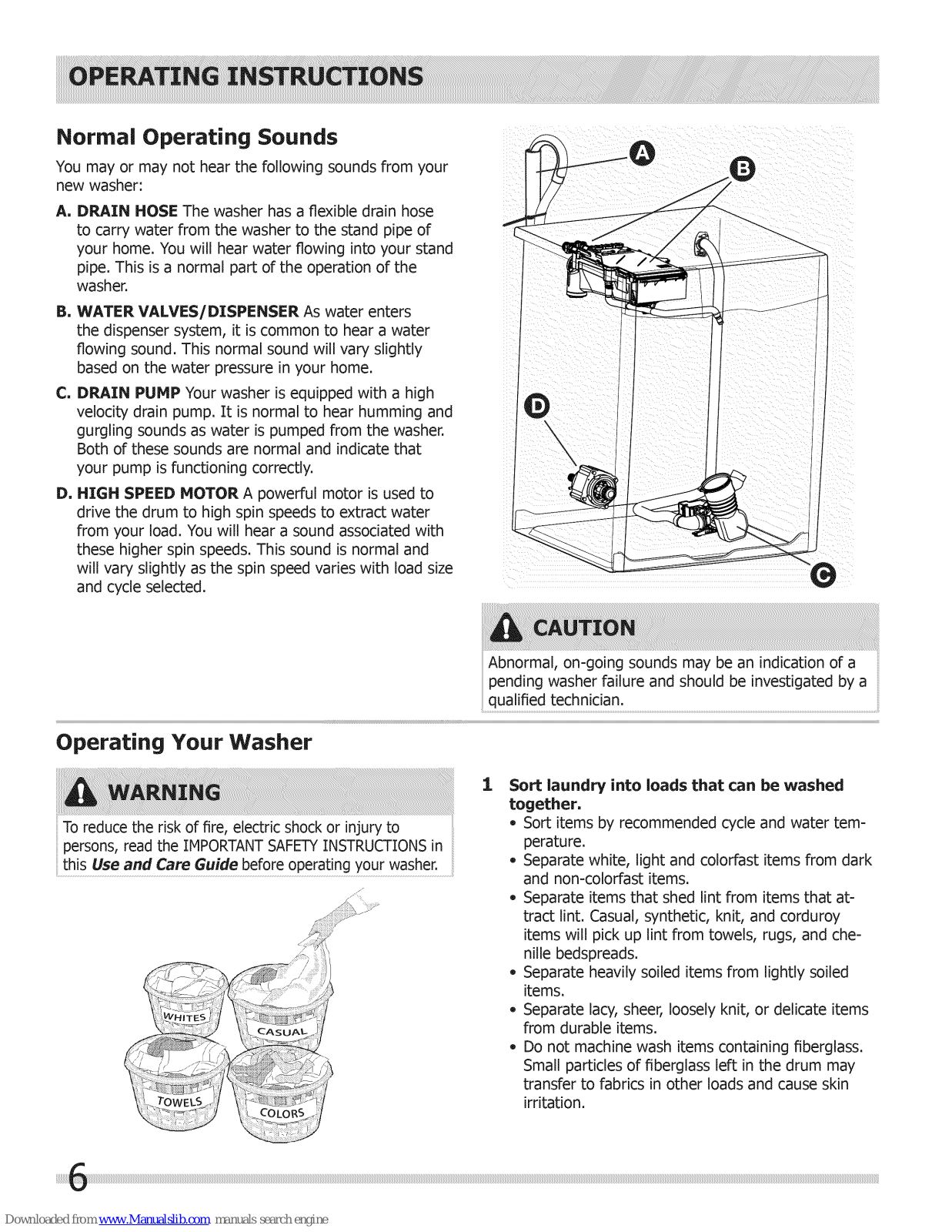

Normal Operating Sounds

You may or may not hear the following sounds from your
new washer:

A, DRAIN HOSE The washer has a flexible drain hose

to carry water from the washer to the stand pipe of
your home. You will hear water flowing into your stand

pipe. This isa normal part of the operation of the

washer.

B, WATER VALVES/DISPENSER As water enters

the dispenser system, it iscommon to hear a water
flowing sound. This normal sound will vary slightly

based on the water pressure in your home.

I::. DRAIN PUMP Your washer isequipped with a high

velocity drain pump. It is normal to hear humming and
gurgling sounds as water is pumped from the washer.

Both of these sounds are normal and indicate that

your pump is functioning correctly.

D, HIGH SPEED MOTOR A powerful motor is used to

drive the drum to high spin speeds to extract water
from your load. You will hear a sound associated with
these higher spin speeds. This sound is normal and
will vary slightly as the spin speed varies with load size
and cycle selected.

Operating Your Washer

To reduce the risk of fire, electric shock or injury to

persons, read the IMPORTANTSAFETYINSTRUCTIONSin

this Use and Care Guide before operating your washer.

/i

]fill'

,_i]i!ilijii;

Abnormal, on=going sounds may be an indication of a
pending washer failure and should be investigated by a
qualified technician.

1

Sort laundry into loads that can be washed
together,

= Sort items by recommended cycle and water tem-

perature.

o Separate white, light and colorfast items from dark

and non-colorfast items.
Separate items that shed lint from items that at-

tract lint. Casual, synthetic, knit, and corduroy

items will pick up lint from towels, rugs, and che-
nille bedspreads.

Separate heavily soiled items from lightly soiled

items.

Separate lacy, sheer, loosely knit, or delicate items
from durable items.

Do not machine wash items containing fiberglass.

Small particles of fiberglass left in the drum may
transfer to fabrics in other loads and cause skin

irritation.

Operating Your Washer, continued

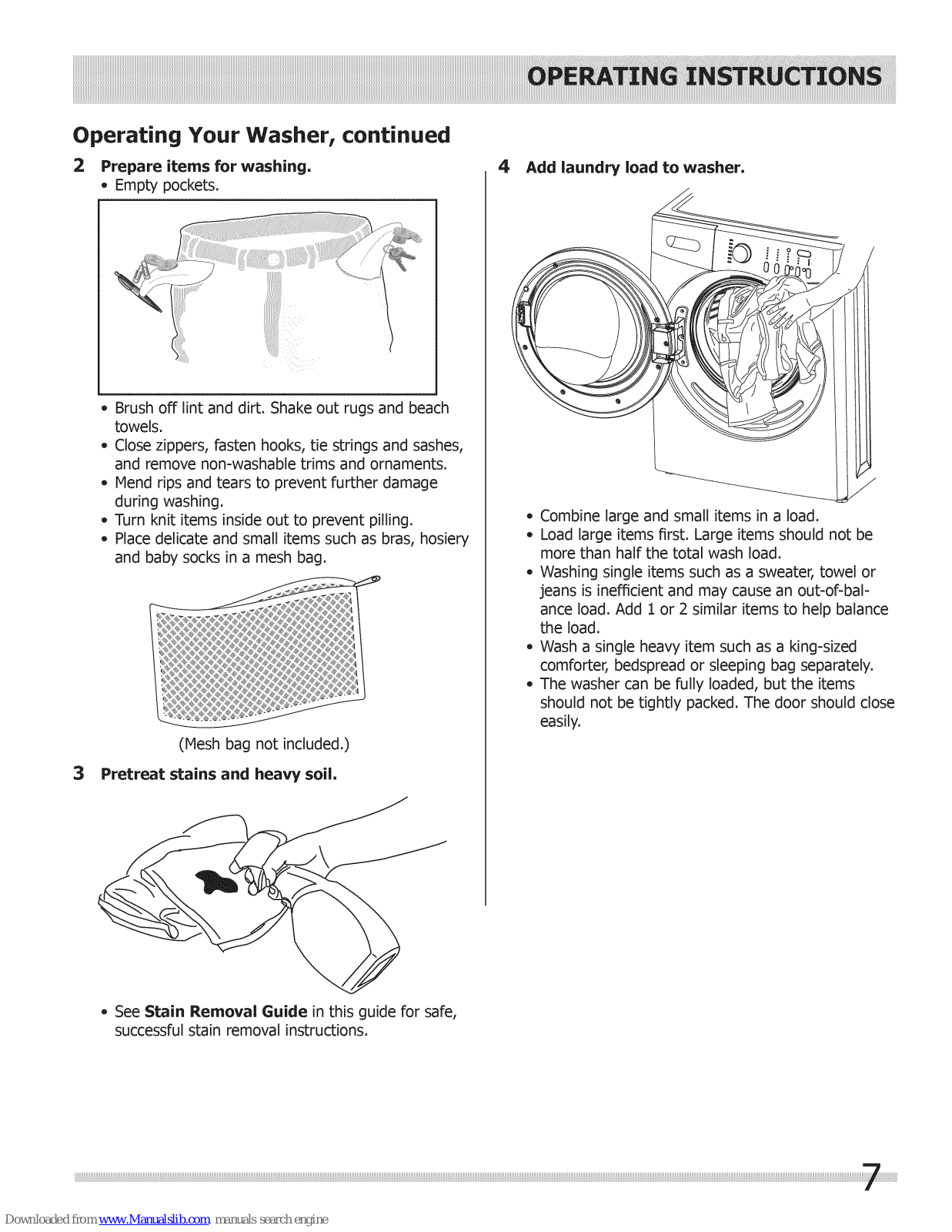

2 Prepare items for washing.

- Empty pockets.

Brush off lint and dirt. Shake out rugs and beach

towels.

o Close zippers, fasten hooks, tie strings and sashes,

and remove non-washable trims and ornaments.
Mend rips and tears to prevent further damage

during washing.

Turn knit items insideout to prevent pilling.

Place delicate and small items such as bras, hosiery
and baby socks in a mesh bag.

(Mesh bag not included.)

4 Add laundry load to washer,

Combine large and small items in a load.

Load large items first. Large items should not be
more than half the total wash load.

Washing single items such as a sweater, towel or
jeans is inefficient and may cause an out-of-ba!-
ance load. Add 1 or 2 similar items to help balance

the load.
Wash a single heavy item such as a king-sized

comforter, bedspread or sleeping bag separately.
The washer can be fully loaded, but the items
should not be tightly packed. The door should close
easily.

3 Pretreat stains and heavy soil.

See Stain Removal Guide in this guide for safe,
successfu! stain removal instructions.

Operating Your Washer, continued

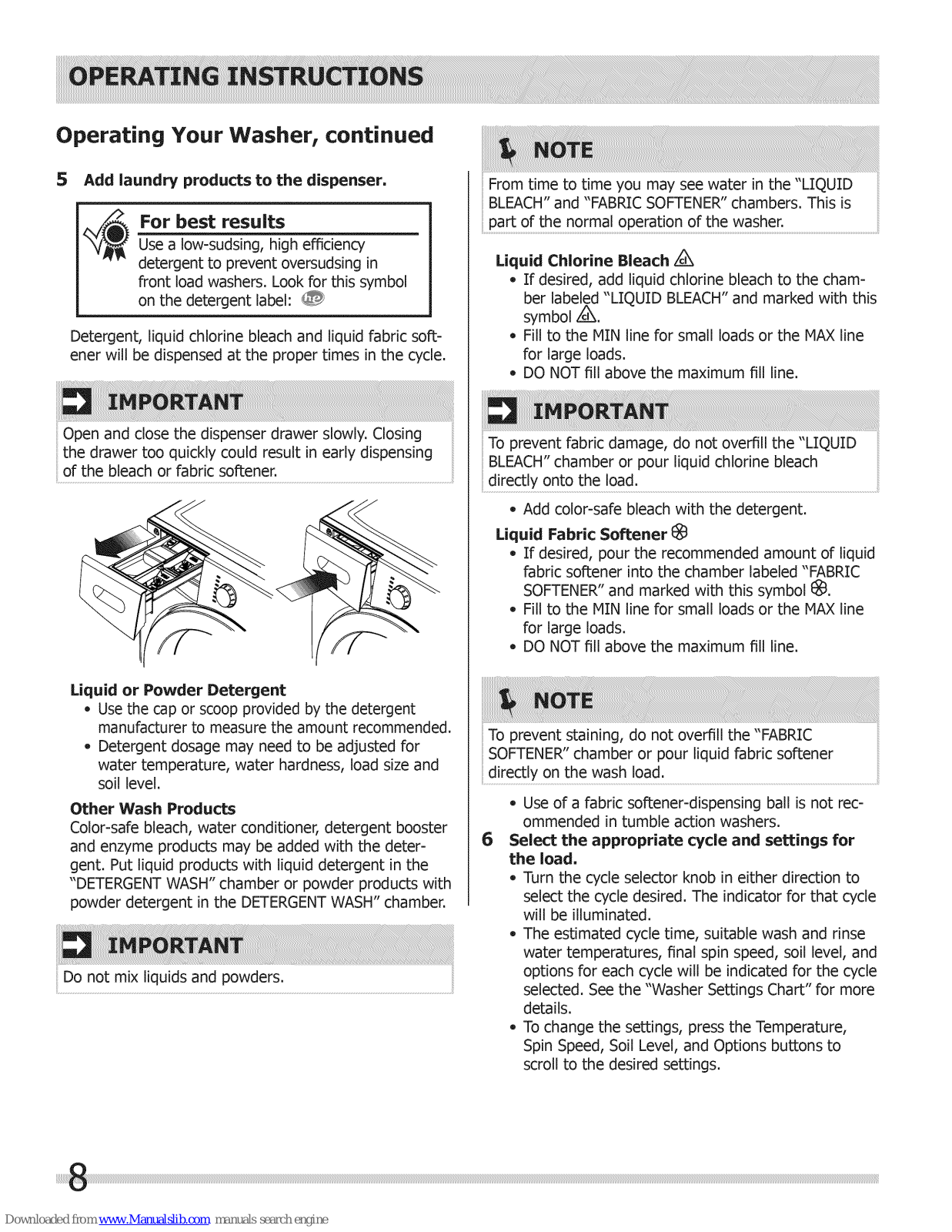

5 Add laundry products to the dispenser,

For best results

Use a low-sudsing, high efficiency
detergent to prevent oversudsing in
front load washers. Look for this symbol

on the detergent label: @

Detergent, liquid chlorine bleach and liquid fabric soft-
ener will be dispensed at the proper times in the cycle.

Open and close the dispenser drawer slowly. Closing
the drawer too quickly could result in early dispensing

of the bleach or fabric softener. ....

From time to time you may see water in the "LIQUID
BLEACH" and "FABRIC SOFTENER" chambers. This is

part of the norma! operation of the washer........................................................................................

Liquid Chlorine Bleach z_

* If desired, add liquid chlorine bleach to the cham-

ber labeled "LIQUID BLEACH" and marked with this

symbol z_.

* Fillto the MIN line for small loads or the MAX line

for large loads.

DO NOT fill above the maximum fill line.

To prevent fabric damage, do not overfill the
BLEACH" chamber or pour liquid chlorine bleach
directly onto the load.

Add color-safe bleach with the detergent.

Liquid Fabric Softener

* If desired, pour the recommended amount of liquid

fabric softener into the chamber labeled "FABRIC
SOFTENER" and marked with this symbol _.

Fill to the MIN line for small loads or the MAX line

for large loads.

DO NOT fill above the maximum fill line.

"LIQUID

Liquid or Powder Detergent

* Use the cap or scoop provided by the detergent

manufacturer to measure the amount recommended.

* Detergent dosage may need to be adjusted for

water temperature, water hardness, load size and
soil level.

Other Wash Products

Co!or-safe bleach, water conditioner, detergent booster
and enzyme products may be added with the deter-
gent. Put liquid products with liquid detergent in the

"DETERGENT WASH" chamber or powder products with

powder detergent in the DETERGENT WASH" chamber.

Do not mix liquids and powders.

To prevent staining, do not overfill the "FABRIC
SOFTENER" chamber or pour liquid fabric softener
directly on the wash load.

* Use of a fabric softener-dispensing ball is not rec-

ommended in tumble action washers.

6

Select the appropriate cycle and settings for
the load,

* Turn the cycle selector knob in either direction to

select the cycle desired. The indicator for that cycle
will be illuminated.

The estimated cycle time, suitable wash and rinse
water temperatures, final spin speed, soil level, and
options for each cycle will be indicated for the cycle
selected. See the "Washer Settings Chart" for more

details.
To change the settings, press the Temperature,

Spin Speed, Soil Level, and Options buttons to
scroll to the desired settings.

Operating Your Washer, continued

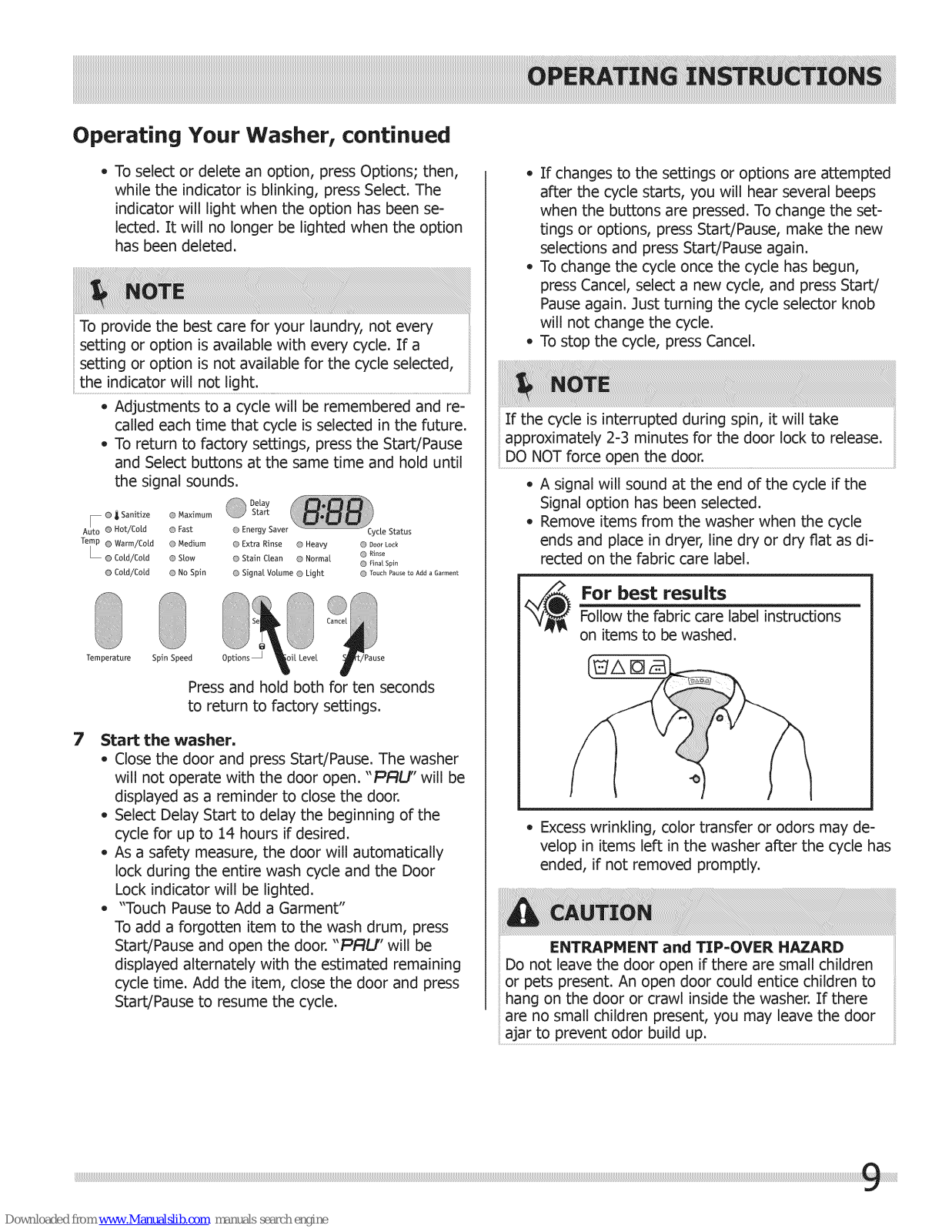

- To select or delete an option, press Options; then,
while the indicator is blinking, press Select. The
indicator will light when the option has been se-
lected. It will no longer be lighted when the option

has been deleted.

- If changes to the settings or options are attempted
after the cycle starts, you will hear several beeps
when the buttons are pressed. To change the set-
tings or options, press Start/Pause, make the new
selections and press Start/Pause again.

- To change the cycle once the cycle has begun,

press Cancel, select a new cycle, and press Start/
Pause again, lust turning the cycle selector knob

To provide the best care for your laundry, not every
selling or option is available with every cycle. If a

will not change the cycle.

- To stop the cycle, press Cancel.

setting or option is not available for the cycle selected,

the indicator will not light- .................................................................................................................................................................................

- Adjustments to a cycle will be remembered and re-
called each time that cycle is selected in the future.

- To return to factory settings, press the Start/Pause
and Select buttons at the same time and hold until

the signal sounds.

If the cycle is interrupted during spin, it will take
approximately 2-3 minutes for the door lock to release.
DO NOT force open the door.

- A signal will sound at the end of the cycle if the
Signal option has been selected.

• ® _ Sanitize @ Maximum

Auto @ Hot/Cold Fast @ Energy Saver

Temp @ Warm/Cold Medium Extra Rinse @ Heavy @ Door Lock

• @ Cold/Cold SLow @ Stain Clean @ Normal @ Finat Spin
@ Cold/Cold @ No Spin @ Signal Volume @ Light @ Touch Pause to Add a Garment

Q Rinse

- Remove items from the washer when the cycle
ends and place in dryer, line dry or dry fiat as di-

rected on the fabric care label.

For best results

Follow the fabric care label instructions
on items to be washed.

Temperature Spin Speed Options _ se

Press and hold both for ten seconds

to return to factory settings.

7 Start the washer,

- Close the door and press Start/Pause. The washer
will not operate with the door open. "PRU" will be
displayed as a reminder to close the door.

- Select Delay Start to delay the beginning of the
cycle for up to 14 hours if desired.

- As a safety measure, the door will automatically
lock during the entire wash cycle and the Door
Lock indicator will be lighted.

- "Touch Pause to Add a Garment"

To add a forgotten item to the wash drum, press

Start/Pause and open the door. "PRLI" will be
displayed alternately with the estimated remaining
cycle time. Add the item, close the door and press
Start/Pause to resume the cycle.

- Excess wrinkling, color transfer or odors may de-
velop in items left in the washer after the cycle has
ended, if not removed promptly.

ENTRAPMENT and TIP=OVER HAZARD

Do not leave the door open if there are small children
or pets present. An open door could entice children to

hang on the door or crawl inside the washer. If there
are no small children present, you may leave the door
ajar to prevent odor build up.

Deep Clean

Sa_ze

Heavy

Whitest Whites

NormaL/CasuaL

Quick

DeUeates/Hand Wash

Spin Only

• 0 _ Sanitize @ Maximum

Auto 0 Hot/CoM © Fast ® Energy Saver

Temp @ Warm/CoW 0 Medium @ Extra Rinse @ Heavy © Door Lock

• O CoLd/Cord @ Stow © Stain CLean @ Normal @ Final Spi_

@ Cold/Cord @ No Spin @ Signal VoLume @ Light © Touch Pause to Add a Gamlent

@ Rinse

Temperature Spin Speed

This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.

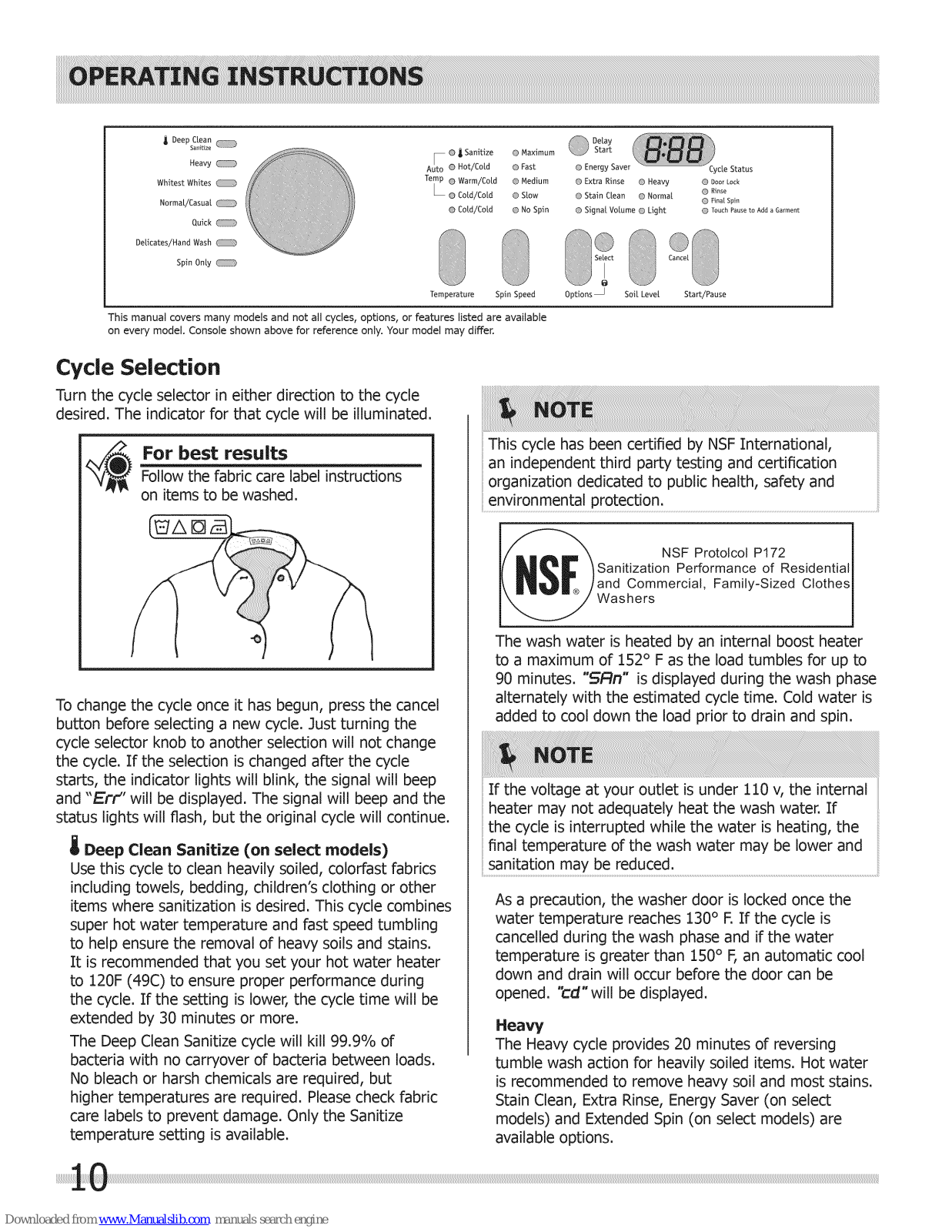

Cycle Selection

Turn the cycle selector in either direction to the cycle
desired. The indicator for that cycle will be illuminated.

Follow the fabric care label instructions

For best results

on itemsto be washed.

To change the cycle once it has begun, press the cancel
button before selecting a new cycle. ]ust turning the
cycle selector knob to another selection will not change
the cycle. If the selection is changed after the cycle
starts, the indicator lights will blink, the signal will beep
and "Erff' will be displayed. The signal will beep and the
status lights will flash, but the original cycle will continue.

Deep Clean Sanitize (on select models)

Use this cycle to clean heavily soiled, colorfast fabrics

including towels, bedding, children's clothing or other
items where sanitization is desired. This cycle combines

super hot water temperature and fast speed tumbling
to help ensure the removal of heavy soils and stains.
It is recommended that you set your hot water heater
to 120F (49C) to ensure proper performance during
the cycle. If the setting is lower, the cycle time will be
extended by 30 minutes or more.

The Deep Clean Sanitize cycle will kill 99.9% of
bacteria with no carryover of bacteria between loads.
No bleach or harsh chemicals are required, but
higher temperatures are required. Please check fabric
care labels to prevent damage. Only the Sanitize
temperature setting is available.

Options _ Soil Level Start/Pause

This cycle has been certified by NSF International,

an independent third party testing and certification
organization dedicated to public health, safety and

environmental protect!on- ..............................................................................................................................................................................................

[_ NSF Protolcol P172

/ _II_L /Sanitization Performance of Residential

\ II1_,_ _..../and Commercial, Family-Sized Clothes

\_ Washers

The wash water is heated by an internal boost heater
to a maximum of 152 ° F as the load tumbles for up to
90 minutes. "_Rn" is displayed during the wash phase
alternately with the estimated cycle time. Cold water is
added to cool down the load prior to drain and spin,

If the voltage at your outlet is under 110 v, the internal
heater may not adequately heat the wash water. If

the cycle is interrupted while the water is heating, the
final temperature of the wash water may be lower and

san!tat!on may be reduced: ........................................................................................................................................................................................

As a precaution, the washer door is locked once the
water temperature reaches 130° R If the cycle is
cancelled during the wash phase and if the water
temperature is greater than 150° F, an automatic cool

down and drain will occur before the door can be
opened. '_d" will be displayed.

I-lead/

The Heavy cycle provides 20 minutes of reversing
tumble wash action for heavily soiled items. Hot water

is recommended to remove heavy soil and most stains.

Stain Clean, Extra Rinse, Energy Saver (on select

models) and Extended Spin (on select models) are

available options.

_, Deep C[ean

Sanitize

Heavy

Whitest Whites

Normal/Casual

Quick

De[icates/Hand Wash

Spin Only @

• O _ Sanitize @ Maximum

Auto @ Hot/Cold @ Fast

Temp O Warm/CoW ® Medium

• O Cold/Cold Slow

O Cold/Cold @ NO Spin

@ Energy Saver
@ Extra Rinse @ Heavy

@ Stain Clean @ Normal

@ Signal Volume Light

@Do@fLock

@Rinse
@ _na[ Spin
@ Touch P_usetoAdd a Garment

This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.

Cycle Selection, continued

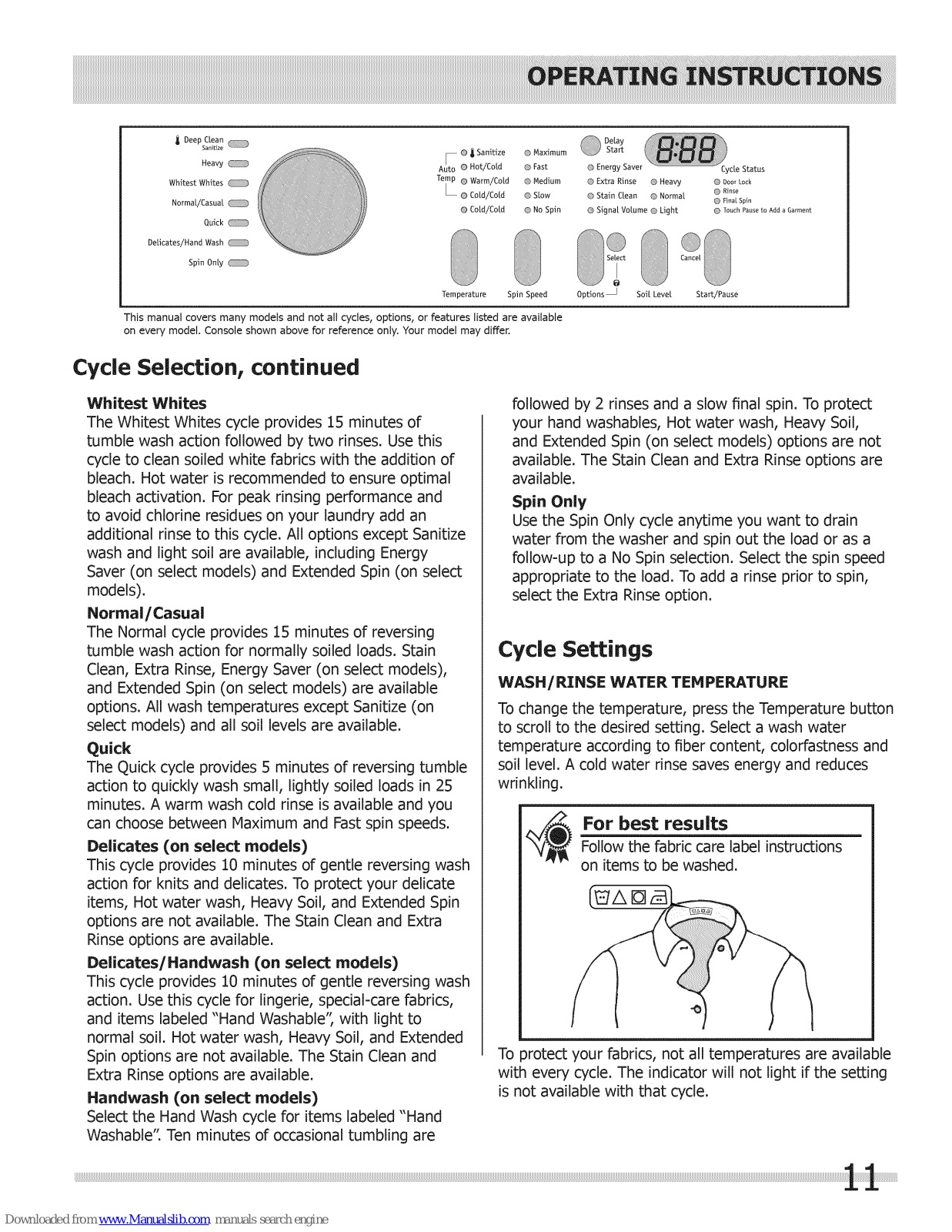

Whitest Whites

The Whitest Whites cycle provides 15 minutes of
tumble wash action followed by two rinses. Use this

cycle to clean soiled white fabrics with the addition of
bleach. Hot water is recommended to ensure optimal
bleach activation. For peak rinsing performance and

to avoid chlorine residues on your laundry add an

additional rinse to this cycle. All options except Sanitize
wash and light soil are available, including Energy
Saver (on select models) and Extended Spin (on select
models).

Normal/Casual

The Normal cycle provides 15 minutes of reversing
tumble wash action for normally soiled loads. Stain

Clean, Extra Rinse, Energy Saver (on select models),
and Extended Spin (on select models) are available
options. All wash temperatures except Sanitize (on
select models) and all soil levels are available.

Quick

The Quick cycle provides 5 minutes of reversing tumble

action to quickly wash small, lightly soiled loads in 25
minutes. A warm wash cold rinse isavailable and you
can choose between Maximum and Fastspin speeds.

Delicates (on select models)

This cycle provides 10 minutes of gentle reversing wash

action for knits and delicates. To protect your delicate
items, Hot water wash, Heavy Soil, and Extended Spin
options are not available. The Stain Clean and Extra
Rinse options are available.

Delicates/Handwash (on select models)

This cycle provides 10 minutes of gentle reversing wash

action. Use this cycle for lingerie, special-care fabrics,
and items labeled "Hand Washable'; with light to
normal soil. Hot water wash, Heavy Soil, and Extended
Spin options are not available. The Stain Clean and
Extra Rinse options are available.

Handwash (on select models)
Select the Hand Wash cycle for items labeled "Hand
Washable" Ten minutes of occasional tumbling are

Temperature Spin Speed

followed by 2 rinses and a slow final spin. To protect
your hand washables, Hot water wash, Heavy Soil,
and Extended Spin (on select models) options are not
available. The Stain Clean and Extra Rinse options are

available.
Spin Only

Use the Spin Only cycle anytime you want to drain
water from the washer and spin out the load or as a
follow-up to a No Spin selection. Select the spin speed
appropriate to the load. To add a rinse prior to spin,
select the Extra Rinse option.

Cycle Se ings

WASH / RINSE WATER TEM PERATU RE

To change the temperature, press the Temperature button
to scroll to the desired setting. Select a wash water
temperature according to fiber content, colorfastness and
soil level. A cold water rinse saves energy and reduces
wrinkling.

To protect your fabrics, not all temperatures are available
with every cycle. The indicator will not light if the setting
is not available with that cycle.

Options _ Soil Level

Start/Pause

For best results

Follow the fabric care label instructions

on items to be washed.

Deep Clean

Sa_ze

Heavy

Whitest Whites

NormaL/CasuaL

Quick

DeUeates/Hand Wash

Spin Only

• 0 _ Sanitize @ Maximum

Auto 0 Hot/CoM © Fast ® Energy Saver

Temp @ Warm/CoW 0 Medium @ Extra Rinse @ Heavy © Door Lock

• O CoLd/Cold @ Slow © Stain CLean @ Normal @ Final Spi_

@ Cold/Cold @ No Spin @ Signal VoLume @ Light © Touch Pause to Add a Gamlent

@ Rinse

Temperature Spin Speed

This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.

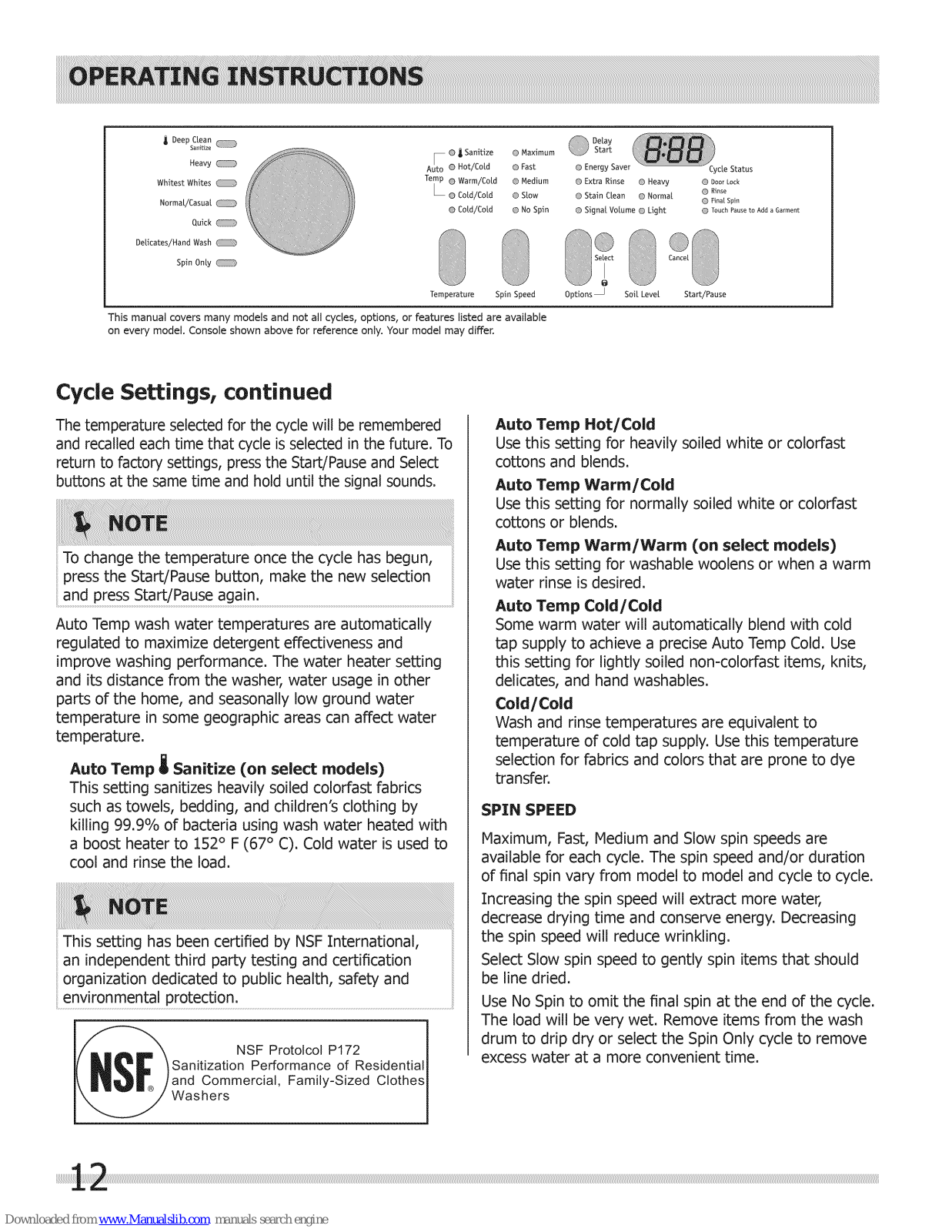

Cycle Settings, continued

The temperature selected for the cycle will be remembered
and recalled each time that cycle is selected in the future. To
return to factory settings, press the Start/Pause and Select
buttons at the same time and hold until the signal sounds.

To change the temperature once the cycle has begun,

press the Start/Pause button, make the new selection

Auto Temp wash water temperatures are automatically
regulated to maximize detergent effectiveness and
improve washing performance. The water heater setting
and its distance from the washer, water usage in other
parts of the home, and seasonally low ground water
temperature in some geographic areas can affect water
temperature.

Auto Temp _ Sanitize (on select models)

This setting sanitizes heavily soiled colorfast fabrics

such as towels, bedding, and children's clothing by
killing 99.9% of bacteria using wash water heated with
a boost heater to 152° F(67 ° C). Cold water is used to

cool and rinse the load.

This setting has been certified by NSF International,
an independent third party testing and certification

organization dedicated to public health, safety and
environmental protection.

Sanitization Performance of Residential
and Commercial, Family-Sized Clothes

i_ NSF Protolcol P172

Washers

Options _ Soil Level Start/Pause

Auto Temp Hot/Cold

Use this setting for heavily soiled white or colorfast

cottons and blends.

Auto Temp Warm/Cold

Use this setting for normally soiled white or colorfast

cottons or blends.
Auto Temp Warm/Warm (on select models)

Use this setting for washable woolens or when a warm

water rinse is desired.

Auto Temp Cold/Cold

Some warm water will automatically blend with cold
tap supply to achieve a precise Auto Temp Cold. Use
this setting for lightly soiled non-colorfast items, knits,
delicates, and hand washables.

ColdlCold

Wash and rinse temperatures are equivalent to
temperature of cold tap supply, Use this temperature
selection for fabrics and colors that are prone to dye

transfer.

SPIN SPEED

Maximum, Fast, Medium and Slow spin speeds are
available for each cycle. The spin speed and/or duration
of final spin vary from model to model and cycle to cycle.

Increasing the spin speed will extract more water,
decrease drying time and conserve energy. Decreasing
the spin speed will reduce wrinkling.

Select Slow spin speed to gently spin items that should

be line dried.

Use No Spin to omit the final spin at the end of the cycle.
The load will be very wet. Remove items from the wash
drum to drip dry or select the Spin Only cycle to remove

excess water at a more convenient time.

Deep Clean

Sa_ze

Heavy

Whitest Whites

Normal/Casual

Quick

DeUeatas/Hand Wash

Spin Only

• 0 _ Sanitize @ Maximum

Auto 0 Hot/Cold © Fast

Temp @ Warm/Cold 0 Medium

• 0 Cold/Cold @ SLow

@ Cold/Cold No Spin

Delay

Start

@ Energy Saver
@ Extra Rinse @ Heavy

© Stain Clean @ Normal

@ Signal Volume @ Light

O DoorLock
@Rinse

@ _na[ Spin

Touch Pause toAdd a Garment

Temperature Spin Speed

This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.

Cycle Settings, continued

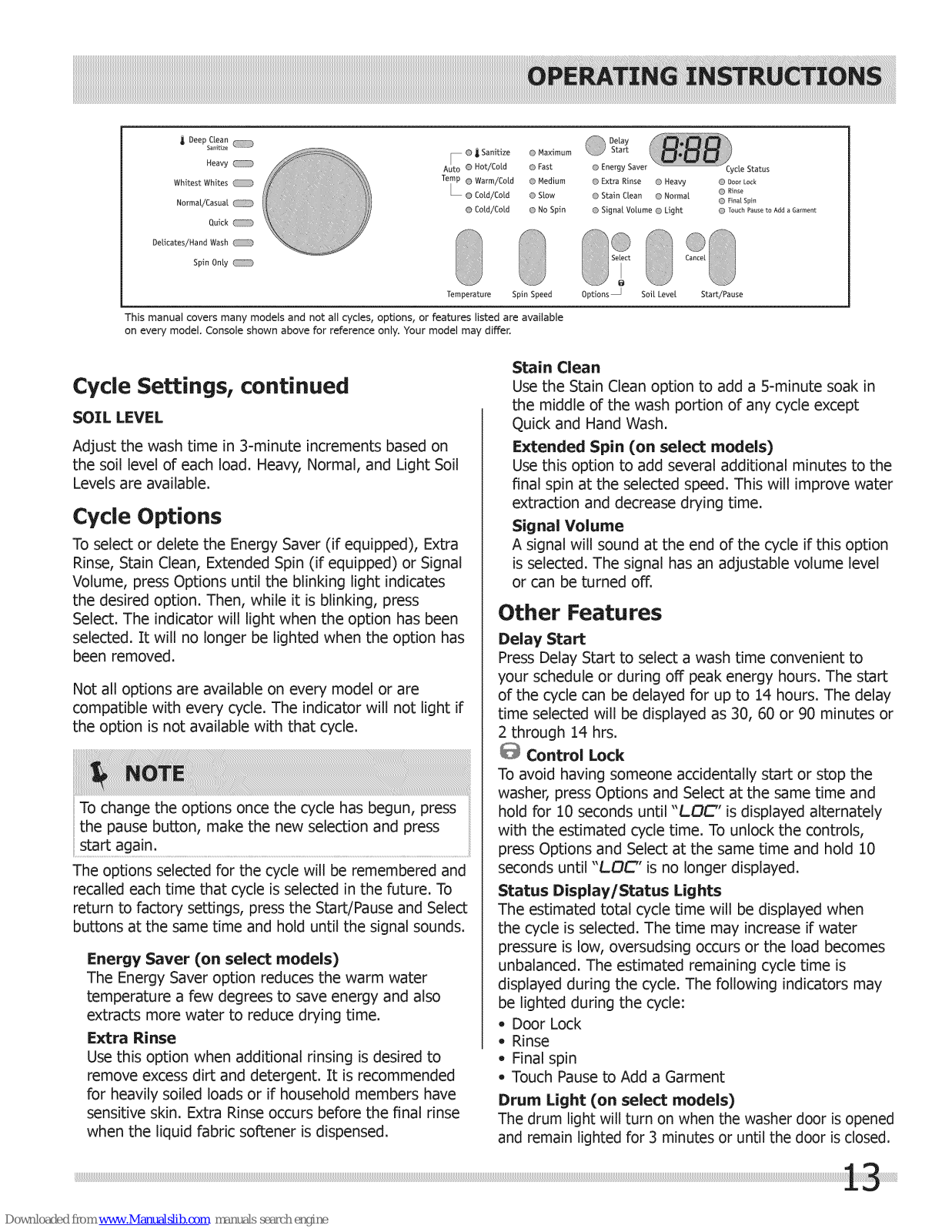

SOIL LEVEL

Adjust the wash time in 3-minute increments based on
the soil level of each load. Heavy, Normal, and Light Soil

Levels are available.

Cycle Options

To select or delete the Energy Saver (if equipped), Extra

Rinse, Stain Clean, Extended Spin (if equipped) or Signa!
Volume, press Options until the blinking light indicates
the desired option. Then, while it is blinking, press

Select. The indicator will light when the option has been

selected. It will no longer be lighted when the option has

been removed.

Not all options are available on every model or are

compatible with every cycle. The indicator will not light if
the option is not available with that cycle.

To change the options once the cycle has begun, press
the pause button, make the new selection and press

start again.

The options selected for the cycle will be remembered and

recalled each time that cycle is selected in the future. To

return to factory settings, press the Start/Pause and Select

buttons at the same time and hold until the signal sounds.

Energy Saver (on select models)
The Energy Saver option reduces the warm water
temperature a few degrees to save energy and also

extracts more water to reduce drying time.

Extra Rinse

Use this option when additional rinsing is desired to

remove excess dirt and detergent. It is recommended
for heavily soiled loads or if household members have

sensitive skin. Extra Rinse occurs before the final rinse

when the liquid fabric softener is dispensed.

Options _ Soil Level

Start/Pause

Stain Clean

Use the Stain Clean option to add a 5-minute soak in
the middle of the wash portion of any cycle except
Quick and Hand Wash.

Extended Spin (on select models)

Use this option to add several additional minutes to the
final spin at the selected speed. This will improve water
extraction and decrease drying time.

Signal Volume
A signal will sound at the end of the cycle if this option

is selected. The signal has an adjustable volume level
or can be turned off.

Other Features

Delay Start

Press Delay Start to select a wash time convenient to
your schedule or during off peak energy hours. The start
of the cycle can be delayed for up to 14 hours. The delay
time selected will be displayed as 30, 60 or 90 minutes or
2 through 14 hrs.

Q Control Lock
To avoid having someone accidentally start or stop the

washer, press Options and Select at the same time and

hold for 10 seconds until "L.OC' is displayed alternately
with the estimated cycle time. To unlock the controls,

press Options and Select at the same time and hold 10
seconds until "LOG" is no longer displayed.

Status Display/Status Lights

The estimated total cycle time will be displayed when
the cycle is selected. The time may increase if water

pressure is low, oversudsing occurs or the load becomes
unbalanced. The estimated remaining cycle time is
displayed during the cycle. The following indicators may

be lighted during the cycle:

- Door Lock

- Rinse

- Final spin

- Touch Pause to Add a Garment

Drum Light (on select models)
The drum light will turn on when the washer door is opened
and remain lighted for 3 minutes or until the door is closed.

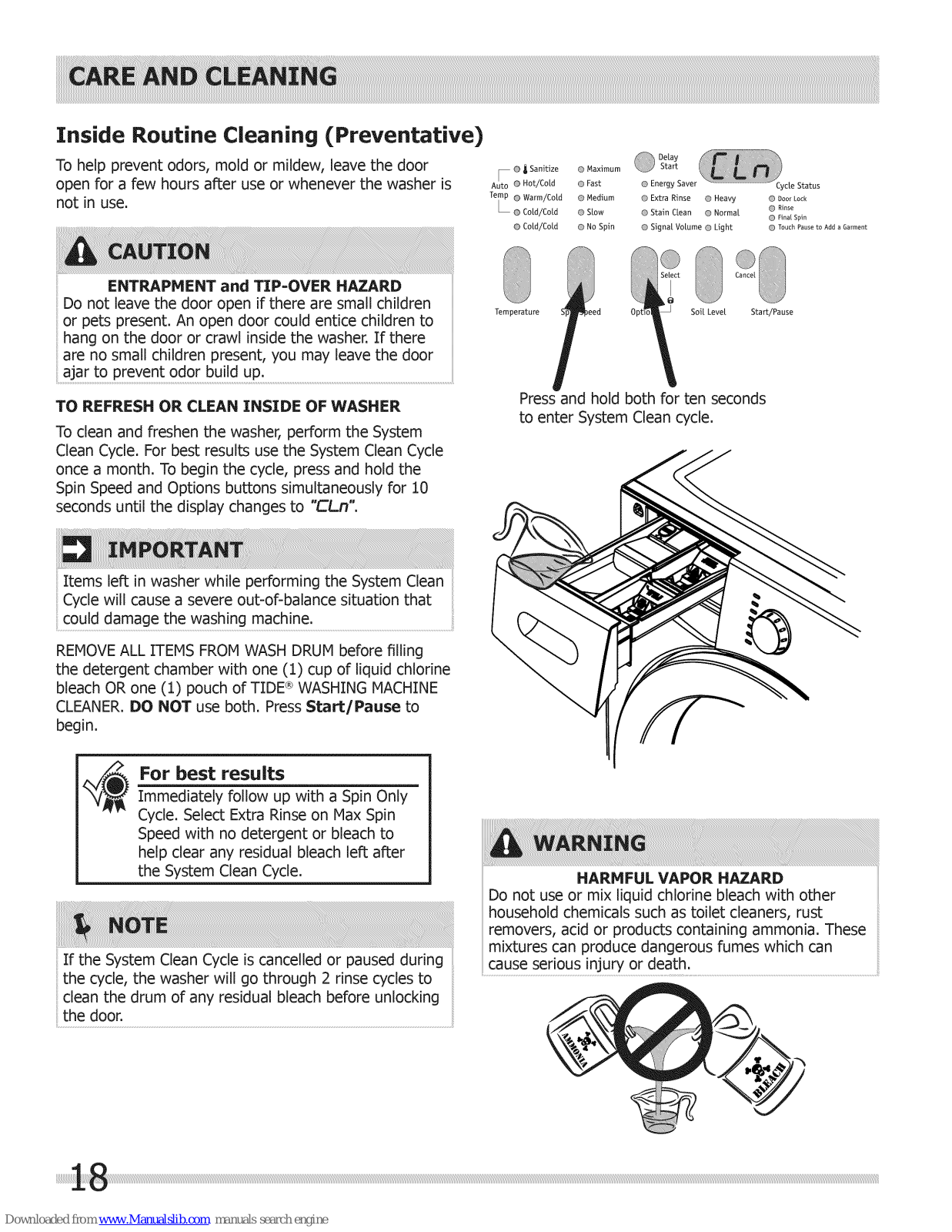

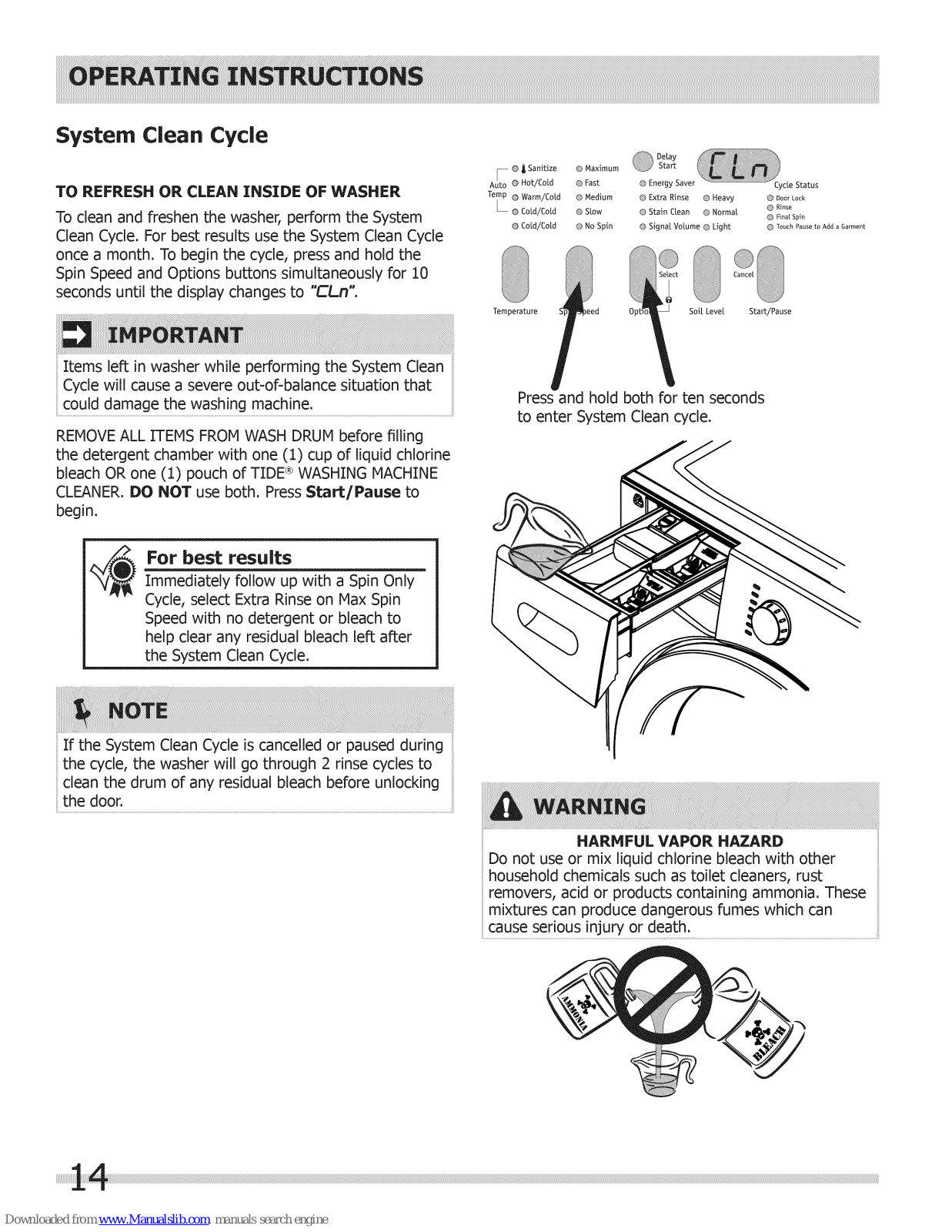

System Clean Cycle

TO REFRESH OR CLEAN INSIDE OF WASHER

To clean and freshen the washer, perform the System
Clean Cycle. For best results use the System Clean Cycle
once a month. To begin the cycle, press and hold the
Spin Speed and Options buttons simultaneously for 10
seconds until the display changes to "_'L.n".

Items left in washer while performing the System Clean
Cycle will cause a severe out-of-balance situation that
could damage the washing machine.

REMOVE ALL ITEMS FROM WASH DRUM before filling
the detergent chamber with one (1) cup of liquid chlorine
bleach OR one (1) pouch of TIDE® WASHING MACHINE
CLEANER. DO NOT use both. Press Start/Pause to
begin.

For best results

Immediately follow up with a Spin Only
Cycle, select Extra Rinse on Max Spin
Speed with no detergent or bleach to

help clear any residual bleach left after

the System Clean Cycle.

• @ _ Sanitize ® Maximum

Auto @ Hot/Cold ® Fast

Temp O Warm/Cold Medium Door Lock

• ® Cold/Cold Stow # Rinse

® Cold/Cold @ No Spin @ Touch Pauseto Add a Garment

Temperature

ed ...... i S°i[Level

DelayStart

@ Energy Saver
Q Extra Rinse Heavy

Stain Clean C, Normal

® Signal Volume @ Ught

@ Final Spin

Start/Pause

Press and hold both for ten seconds

to enter System Clean cycle.

If the System Clean Cycle is cancelled or paused during
the cycle, the washer will go through 2 rinse cycles to

clean the drum of any residual bleach before unlocking

the door. ....

HARMFUL VAPOR HAZARD
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust

removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can

cause serious injury or death: ..................................................................................................................................................................

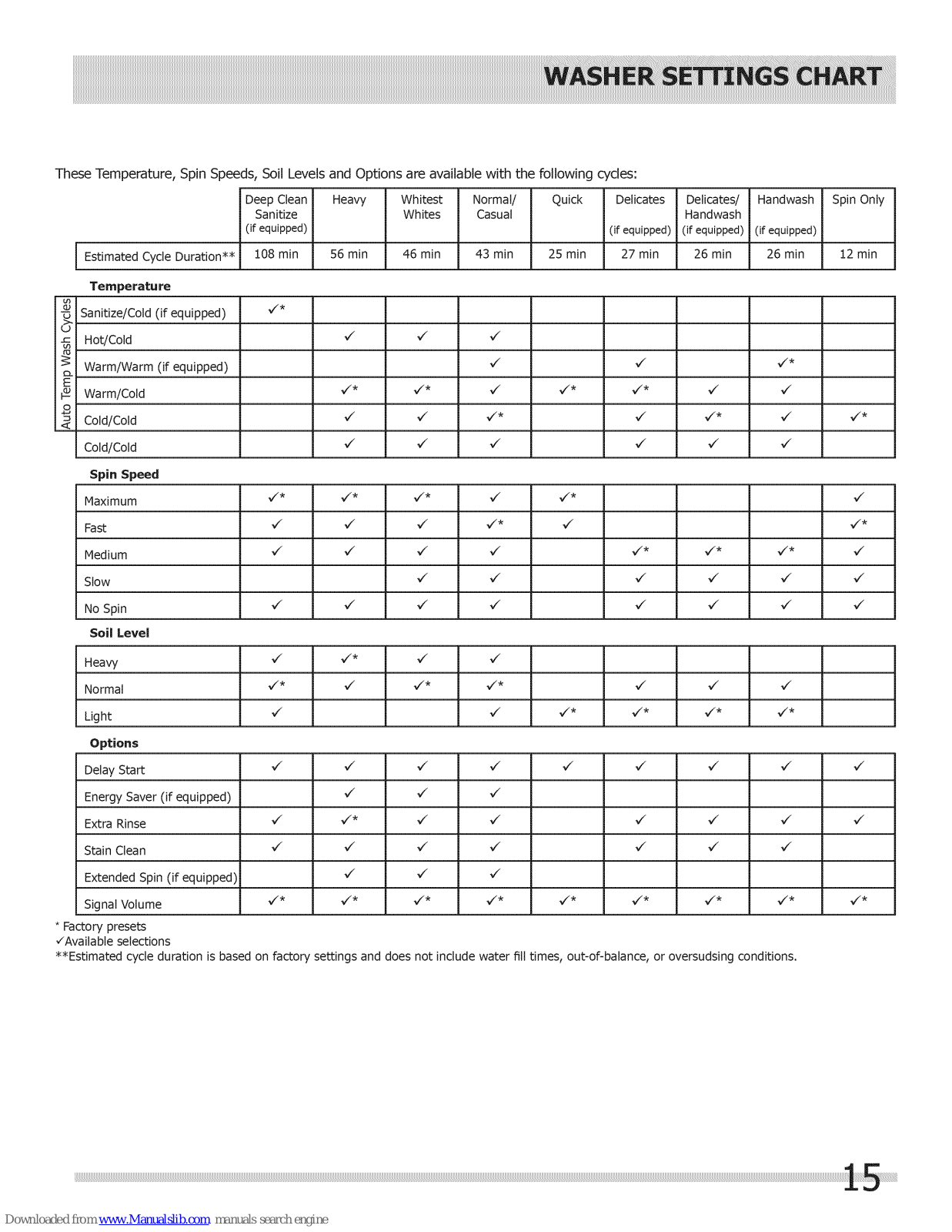

These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles:

Deep Clean Heavy Whitest Normal/ Quick Delicates Delicates/ Handwash Spin Only

Sanitize Whites Casual Handwash

(if equipped) (if equipped) (if equipped) (if equipped)

Estimated Cycle Duration** 108 min 56 min 46 min 43 min 25 min 27 min 26 min 26 min 12 min

Temperature

-o Sanitize/Cold (if equipped)

Hot/Cold '/ '/ '/
Warm/Warm (if equipped)

E

i_ Warm/Cold '/* '/* '/ '/* '/* '/ '/
o

Cold/Cold '/ '/ '/* '/ '/* '/ '/*
Cold/Cold '/ '/ '/ '/ '/ '/

Spin Speed

Maximum '/* '/* '/* '/ '/* '/

Fast '/ '/ '/ '/* '/ '/*
Medium '/ '/ '/ '/ '/* '/* '/* '/
Slow _/ _/ _/ _/ _/ _/

No Spin '/ '/ '/ '/ '/ '/ '/ '/

Soil Level

,/.

,/ ,/ ,/*

Heavy ¢" ¢'* ¢" ¢"
Normal ¢'* ¢" ¢'* ¢'* ¢" ¢" ¢"

Light '/ '/ '/* '/* '/* '/*

Options
Delay Start '/ '/ '/ '/ '/ '/ '/ '/ '/
Energy Saver (if equipped)

Extra Rinse

Stain Clean

Extended Spin (if equipped)
Signal Volume

* Factory presets

,_Available selections
**Estimated cycle duration is based on factory settings and does not include water fill times, out-of-balance, or oversudsing conditions.

,/ ,/ ,/ ,/ ,/ ,/ ,/

,/* ,/* ,/* ,/* ,/* ,/* ,/* ,/* ,/*

,/ ,/ ,/

,/ ,/ ,/

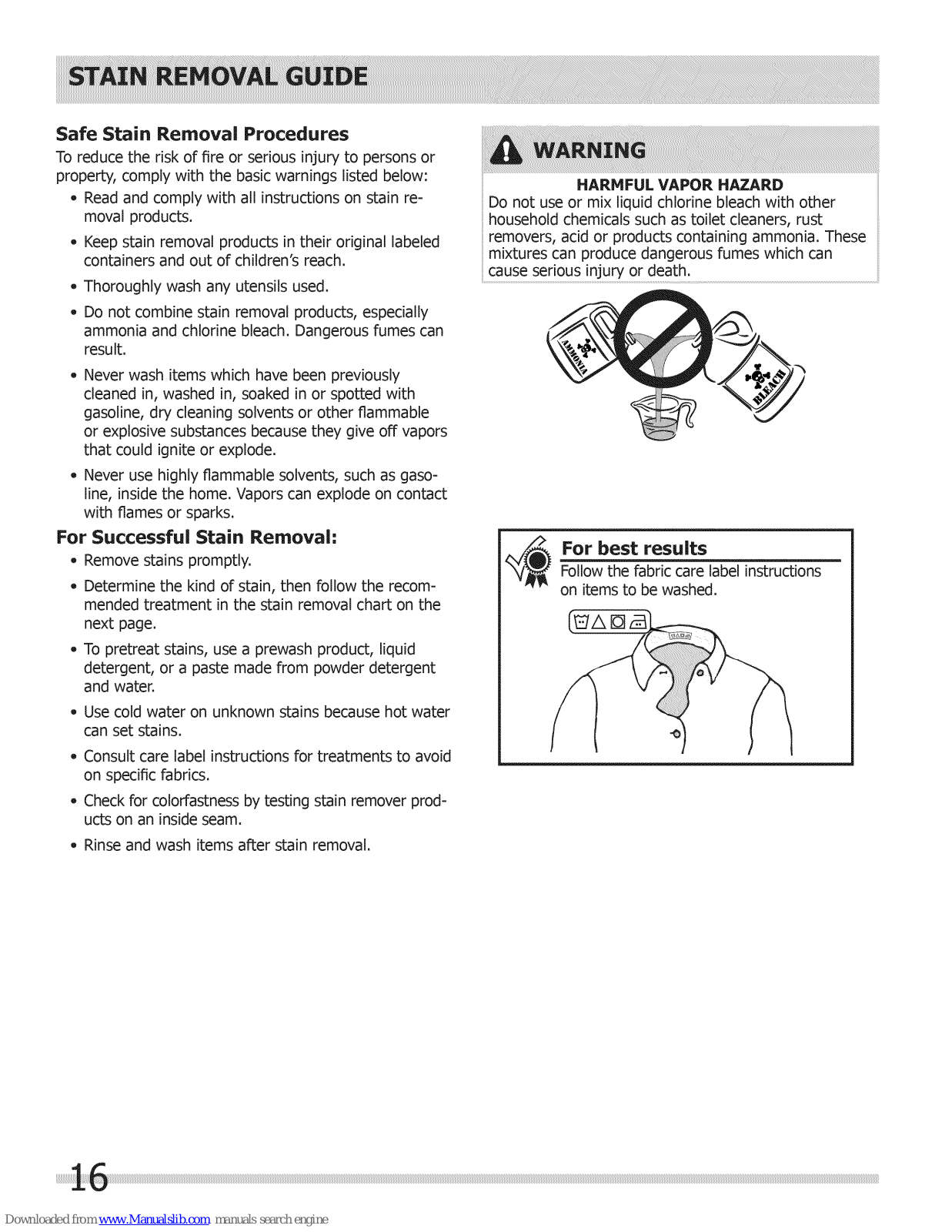

Safe Stain Removal Procedures

To reduce the risk of fire or serious injury to persons or
property, comply with the basic warnings listed below:

o Read and comply with all instructions on stain re-

moval products.
Keep stain removal products in their original labeled

containers and out of children's reach.
Thoroughly wash any utensils used.
Do not combine stain removal products, espeda[ly

ammonia and chlorine bleach. Dangerous fumes can
result.

Never wash items which have been previously
cleaned in, washed in, soaked in or spotted with
gasoline, dry cleaning solvents or other flammable
or explosive substances because they give off vapors
that could ignite or explode.

Never use highly flammable solvents, such as gaso-
line, inside the home. Vapors can explode on contact
with flames or sparks.

For Successful Stain Removal=

= Remove stains promptly.

Determine the kind of stain, then follow the recom-
mended treatment in the stain removal chart on the

next page.
To pretreat stains, use a prewash product, liquid

detergent, or a paste made from powder detergent
and water.

Use cold water on unknown stains because hot water
can set stains.

Consult care label instructions for treatments to avoid
on specific fabrics.

Check for colorfastness by testing stain remover prod-
ucts on an inside seam.

Rinse and wash items after stain removal.

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust

removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can

For best results

Follow the fabric care label instructions

on items to be washed.

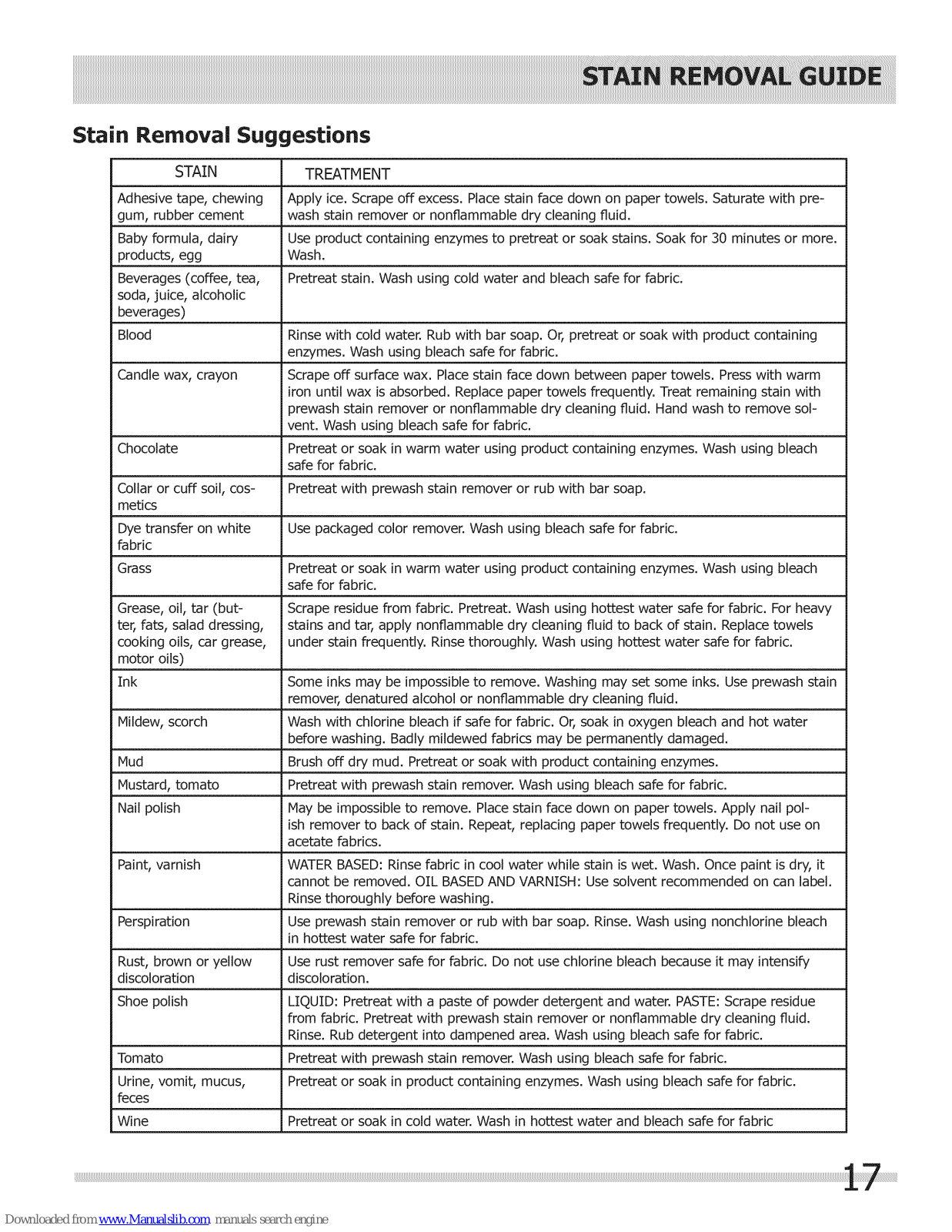

Stain Removal Suggestions

STAIN TREATM ENT

Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with pre-
gum, rubber cement wash stain remover or nonflammable dry cleaning fluid.

Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more.
products, egg Wash.

Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.

soda, juice, alcoholic

beverages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing

enzymes. Wash using bleach safe for fabric.

Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm

iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with
prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove sol-
vent. Wash using bleach safe for fabric.

Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach

Collar or cuff soil, cos- Pretreat with prewash stain remover or rub with bar soap.

metics
Dye transfer on white Use packaged color remover. Wash using bleach safe for fabric.

fabric
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach

Grease, oil, tar (but- Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
ter, fats, salad dressing, stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
cooking oils, car grease, under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.

motor oils)
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain

Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water

Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail pol-

Paint, varnish WATERBASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it

Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach

Rust, brown or yellow Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify

discoloration discoloration.
Shoe polish LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue

Tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.

Urine, vomit, mucus, Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.

feces
Wine Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric

safe for fabric.

safe for fabric.

remover, denatured alcohol or nonflammable dry cleaning fluid.

before washing. Badly mildewed fabrics may be permanently damaged.

ish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on
acetate fabrics.

cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can label.
Rinse thoroughly before washing.

in hottest water safe for fabric.

from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.

Inside Routine Cleaning (Preventative)

To help prevent odors, mold or mildew, leave the door
open for a few hours after use or whenever the washer is

not in use.

• @ _ SanLtize Maximum

Auto @ Hot/Cold @ Fast © Energy Save!

Temp @ Warm/Cold p Medium Extra Rinse Heavy

@ Cold/Cold @ SLow @ StaLn CLean @ Normal

@ Cold/Cold No Spin @ Signal Volume ® Light

@OoorLock
@ Rinse

_na[ Spin

@ Touch Pause to Add a Garment

ENTRAPMENT and TIP=OVER HAZARD

Do not leave the door open if there are small children

or pets present. An open door could entice children to

Temperature

!ed ........

Soil Level Start/Pause

hang on the door or crawl inside the washer. If there

are no small children present, you may leave the door

ajar to prevent 0dot build uP:..........................................................................................................................................................................

TO REFRESH OR CLEAN INSIDE OF WASHER

Press and hold both for ten seconds
to enter System Clean cycle.

To clean and freshen the washer, perform the System
Clean Cycle. For best results use the System Clean Cycle
once a month. To begin the cycle, press and hold the
Spin Speed and Options buttons simultaneously for l0
seconds until the display changes to "CLn".

Items left in washer while performing the System Clean
Cycle will cause a severe out-of-balance situation that
could damage the washing machine.

REMOVE ALL ITEMS FROM WASH DRUM before filling
the detergent chamber with one (1) cup of liquid chlorine
bleach OR one (1) pouch of TIDE® WASHING MACHINE
CLEANER. DO NOT use both. Press Start/Pause to
begin.

For best results

Immediately follow up with a Spin Only
Cycle. Select Extra Rinse on Max Spin
Speed with no detergent or bleach to
help clear any residual bleach left after

the System Clean Cycle.

clean the drum of any residual bleach before unlocking

If the System Clean Cycle is cancelled or paused during
the door.

ii

0o nse

HARMFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
cause serious injury or death.

Other Inside Routine Cleaning (Preventative)

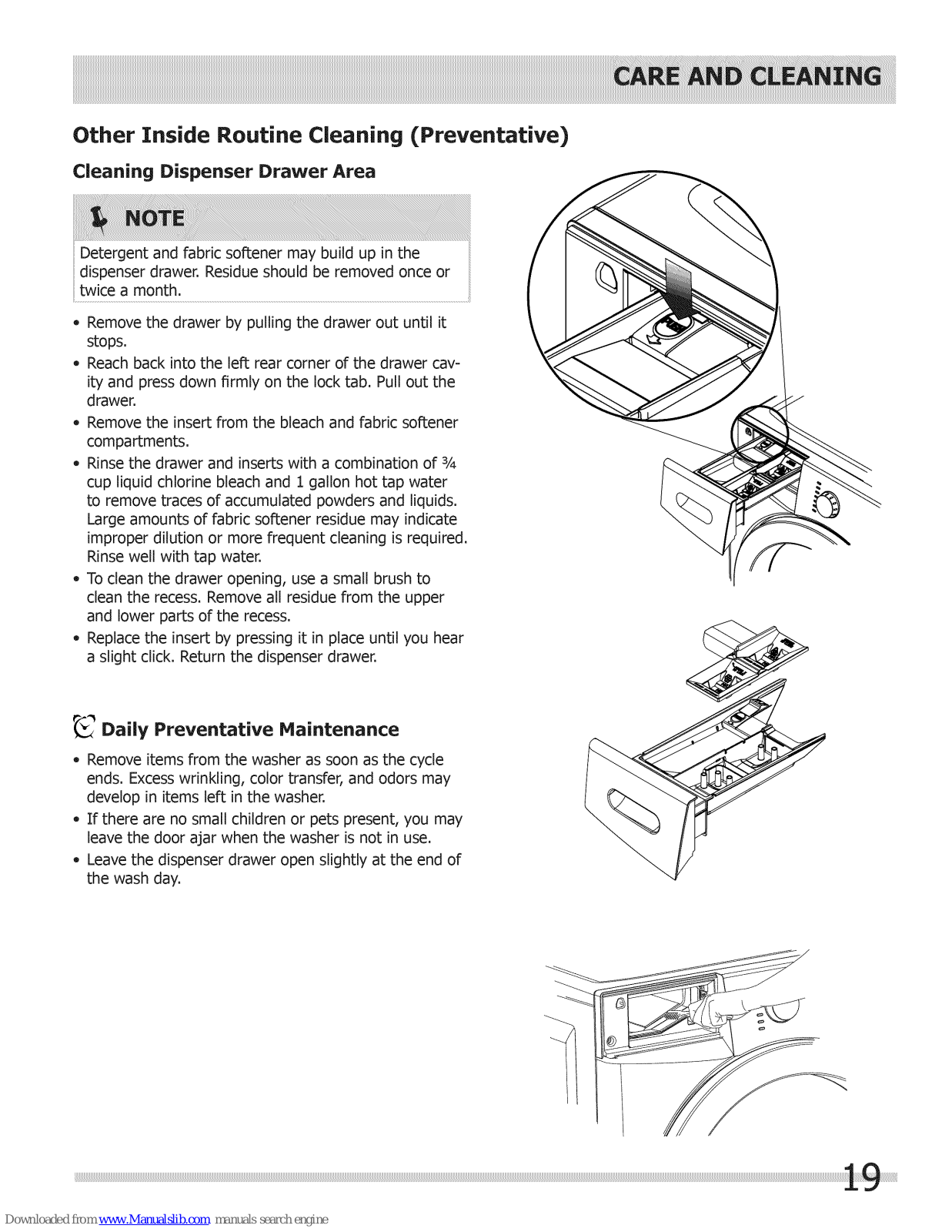

Cleaning Dispenser Drawer Area

Detergent and fabric softener may build up in the
dispenser drawer Residue should be removed once or
twice a month

- Remove the drawer by pulling the drawer out until it
stops

- Reach back into the left rear corner of the drawer cav
ity and press down firmly on the lock tab Pull out the

drawer

- Remove the insert from the bleach and fabric softener
compartments

- Rinse the drawer and inserts with a combination of 3/4
cup liquid chlorine bleach and 1 gallon hot tap water

to remove traces of accumulated powders and liquids

Large amounts of fabric softener residue may indicate
improper dilution or more frequent cleaning is required
Rinse well with tap water

- To clean the drawer opening, use a small brush to
clean the recess Remove all residue from the upper
and lower parts of the recess

- Replace the insert by pressing it in place until you hear
a slight click Return the dispenser drawer

Daily Preventative Maintenance

- Remove items from the washer as soon as the cycle
ends Excess wrinkling, color transfer, and odors may
develop in items left in the washer

- If there are no small children or pets present, you may
leave the door ajar when the washer is not in use

- Leave the dispenser drawer open slightly at the end of

the wash day

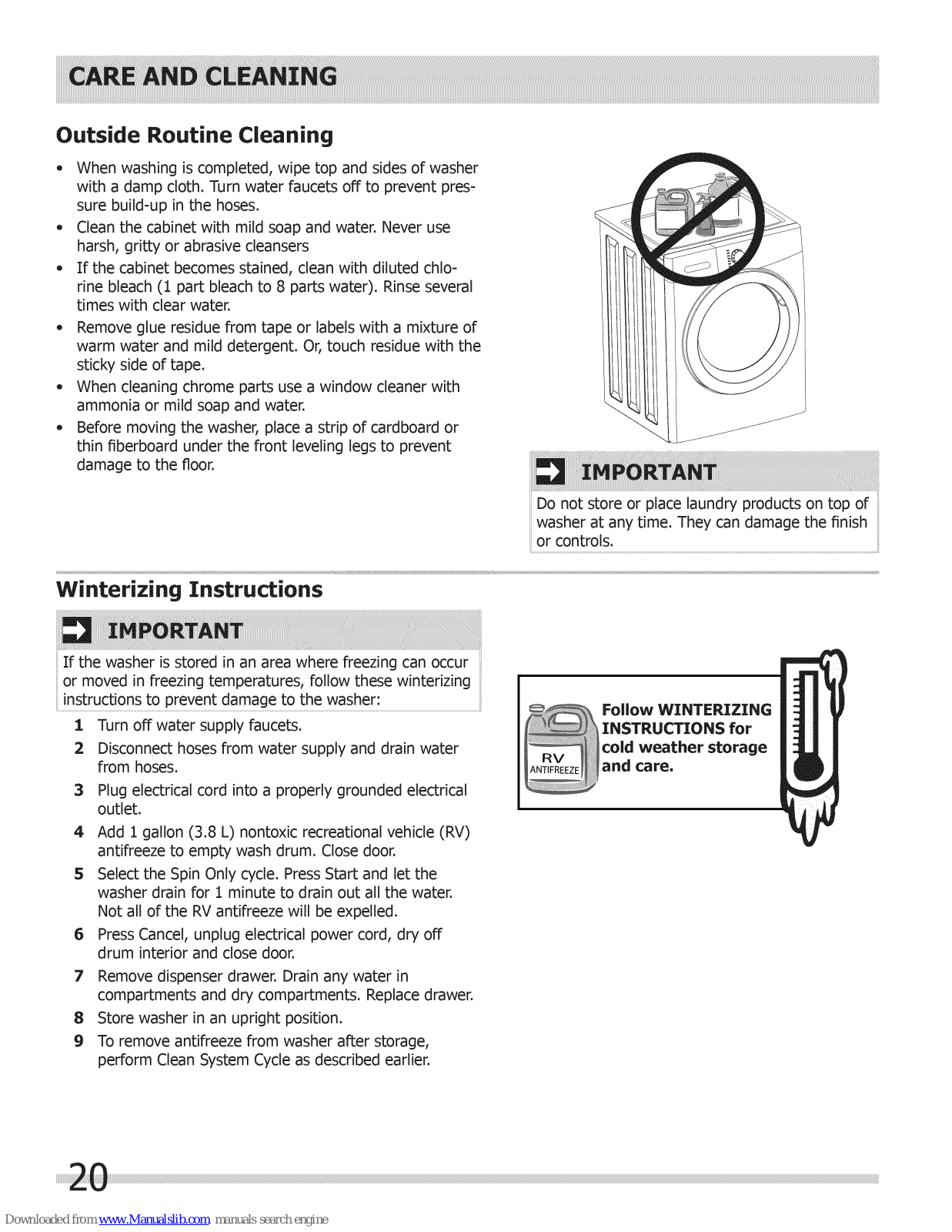

Outside Routine Cleaning

- When washing is completed, wipe top and sides of washer

with a damp cloth. Turn water faucets off to prevent pres-
sure build-up in the hoses.

- Clean the cabinet with mild soap and water. Never use
harsh, gritty or abrasive cleansers

- If the cabinet becomes stained, clean with diluted chlo-
rine bleach (1 part bleach to 8 parts water). Rinse several

times with clear water.

- Remove glue residue from tape or labels with a mixture of

warm water and mild detergent. Or, touch residue with the
sticky side of tape.

- When cleaning chrome parts use a window cleaner with

ammonia or mild soap and water.

- Before moving the washer, place a strip of cardboard or

thin fiberboard under the front leveling legs to prevent
damage to the floor.

Do not store or place laundry products on top of
washer at any time. They can damage the finish

or controls,

Winterizing Instructions

If the washer is stored in an area where freezing can occur

or moved in freezing temperatures, follow these winterizing

instructions to prevent damage to the washer:

1 Turn off water supply faucets.
2 Disconnect hoses from water supply and drain water

from hoses.

3 Plug electrical cord into a properly grounded electrica!

outlet.

4 Add 1 gallon (3.8 L) nontoxic recreational vehicle (RV)

antifreeze to empty wash drum. Close door.

5 Select the Spin Only cycle. Press Start and let the

washer drain for 1 minute to drain out all the water.
Not all of the RV antifreeze will be expelled.

6 Press Cancel, unplug electrical power cord, dry off

drum interior and close door.

7 Remove dispenser drawer. Drain any water in

compartments and dry compartments. Replace drawer.
8 Store washer in an upright position.
9 To remove antifreeze from washer after storage,

perform Clean System Cycle as described earlier.

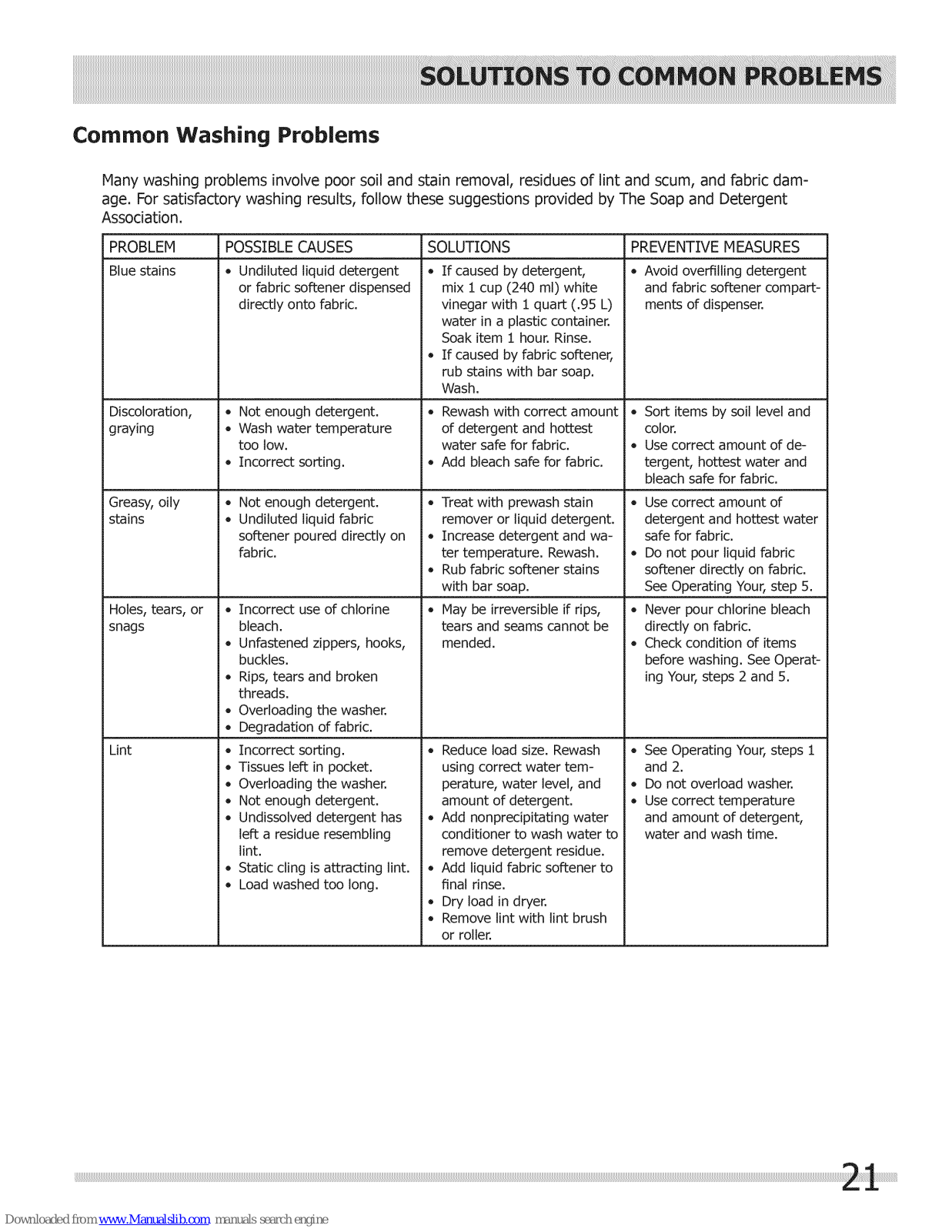

Common Washing Problems

Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric dam=

age. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent
Association.

PROBLEM SOLUTIONS PREVENTIVE MEASURES
Blue stains

POSSIBLECAUSES

• Undiluted liquid detergent

or fabric softener dispensed
directly onto fabric.

If caused by detergent,
mix 1 cup (240 ml) white
vinegar with 1 quart (.95 L)

* Avoid overfilling detergent

and fabric softener compart-

ments of dispenser.

water in a plastic container.
Soak item 1 hour. Rinse.

If caused by fabric softener,
rub stains with bar soap.

Wash.

Discoloration,
graying

• Not enough detergent.

• Wash water temperature
too low.

• Incorrect sorting.

• Rewash with correct amount
of detergent and hottest

water safe for fabric.

• Add bleach safe for fabric.

®

Sort items by soil level and
color.

®

Use correct amount of de-

tergent, hottest water and

bleach safe for fabric.

Greasy, oily
stains

Holes, tears, or
snags

Not enough detergent.
Undiluted liquid fabric

softener poured directly on
fabric.

• Incorrect use of chlorine
bleach.

• Unfastened zippers, hooks,
buckles.

• Rips, tears and broken

®

Treat with prewash stain •
remover or liquid detergent.

®

Increase detergent and wa-
ter temperature. Rewash. •

®

Rub fabric softener stains
with bar soap.

®

May be irreversible if rips, •
tears and seams cannot be

mended.

Use correct amount of

detergent and hottest water
safe for fabric.

Do not pour liquid fabric

softener directly on fabric.
See Operating Your, step 5.

Never pour chlorine bleach

directly on fabric.
Check condition of items

before washing. See Operat-
ing Your, steps 2 and 5.

threads.

• Overloading the washer.

• Degradation of fabric.

Lint

• Incorrect sorting.

• Tissues left in pocket.

• Overloading the washer.

• Not enough detergent.

• Undissolved detergent has
left a residue resembling

lint.

• Static cling is attracting lint.

• Load washed too long.

• Reduce load size. Rewash
using correct water tem-

perature, water level, and
amount of detergent.

• Add nonprecipitating water
conditioner to wash water to

remove detergent residue.

• Add liquid fabric softener to
final rinse.

• See Operating Your, steps 1
and 2.

• Do not overload washer.

• Use correct temperature
and amount of detergent,

water and wash time.

• Dry load in dryer.

• Remove lint with lint brush
or roller.

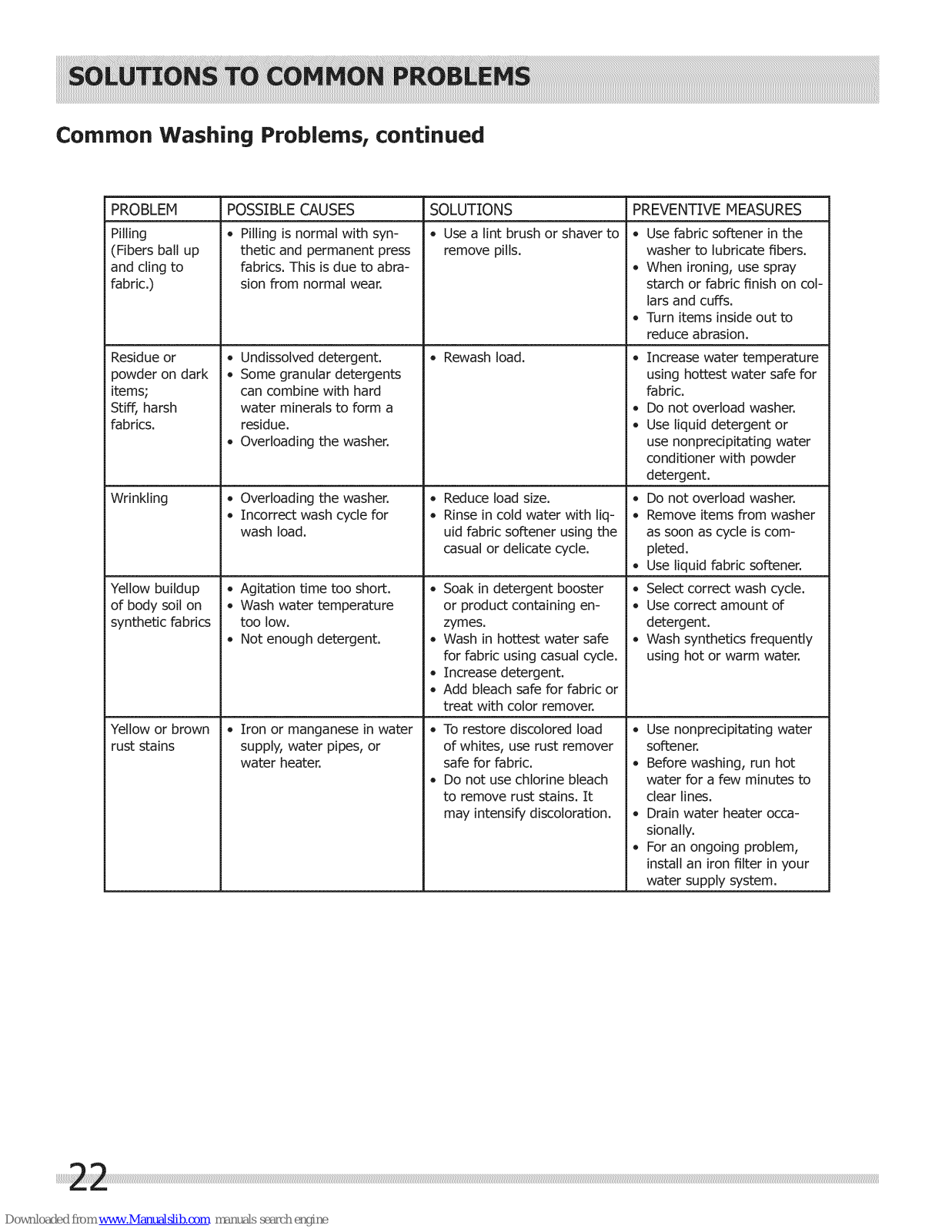

Common Washing Problems, continued

PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES

Pilling
(Fibers ball up
and cling to
fabric.)

Residue or
powder on dark

items;

Stiff, harsh
fabrics.

Wrinkling

Yellow buildup
of body soil on

synthetic fabrics

Yellow or brown
rust stains

®

Pilling is normal with syn- • Use a lint brush or shaver to •

thetic and permanent press remove pills.
fabrics. This is due to abra-

sion from normal wear.

• Undissolved detergent.

• Some granular detergents
can combine with hard

water minerals to form a
residue.

• Overloading the washer.

• Overloading the washer.

• Incorrect wash cycle for
wash load.

• Agitation time too short.

• Wash water temperature

too low.

• Not enough detergent.

• Iron or manganese in water
supply, water pipes, or

water heater.

Rewash load.

Reduce load size.

Rinse in cold water with liq-
uid fabric softener using the
casual or delicate cycle.

• Soak in detergent booster
or product containing en-

zymes.

• Wash in hottest water safe
for fabric using casual cycle.

• Increase detergent.

• Add bleach safe for fabric or
treat with color remover.

• To restore discolored load
of whites, use rust remover

safe for fabric.

• Do not use chlorine bleach
to remove rust stains. It

may intensify discoloration.

Use fabric softener in the
washer to lubricate fibers.

When ironing, use spray
starch or fabric finish on col-

lars and cuffs.

Turn items inside out to

reduce abrasion.

• Increase water temperature
using hottest water safe for

fabric.

• Do not overload washer.

• Use liquid detergent or
use nonprecipitating water
conditioner with powder
detergent.

• Do not overload washer.

• Remove items from washer
as soon as cycle is com-

pleted.

• Use liquid fabric softener.

• Select correct wash cycle.

• Use correct amount of
detergent.

• Wash synthetics frequently
using hot or warm water.

• Use nonprecipitating water
softener.

• Before washing, run hot
water for a few minutes to

clear lines.

• Drain water heater occa-
sionally.

• For an ongoing problem,
install an iron filter in your

water supply system.

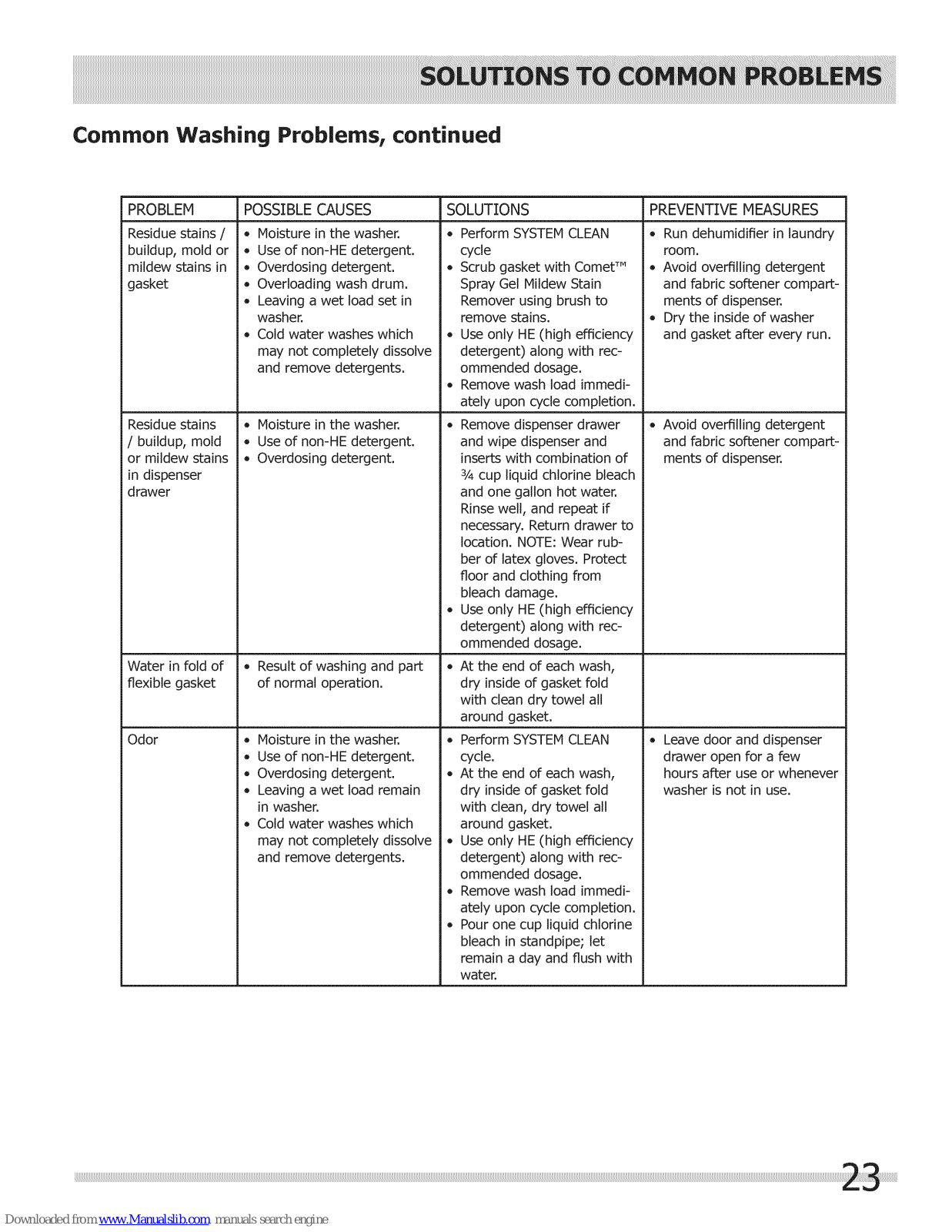

Common Washing Problems, continued

PROBLEM SOLUTIONS PREVENTIVE MEASURES

Residue stains /
buildup, mold or

mildew stains in
gasket

POSSIBLE CAUSES

®

Moisture in the washer.

®

Use of non-HE detergent.

®

Overdosing detergent.

®

Overloading wash drum.

®

Leaving a wet load set in

washer.
Cold water washes which

may not completely dissolve

and remove detergents.

• Perform SYSTEM CLEAN
cycle

• Scrub gasket with Comet TM
Spray Gel Mildew Stain
Remover using brush to

remove stains.

• Use only HE (high efficiency
detergent) along with rec-
ommended dosage.

• Run dehumidifier in laundry
room.

Avoid overfilling detergent
and fabric softener compart-

ments of dispenser.
Dry the inside of washer

and gasket after every run.

• Remove wash load immedi-
ately upon cycle completion.

Residue stains
/ buildup, mold

or mildew stains
in dispenser

drawer

• Moisture in the washer.

• Use of non-HE detergent.

• Overdosing detergent.

• Remove dispenser drawer
and wipe dispenser and

inserts with combination of
3/4cup liquid chlorine bleach

and one gallon hot water.

• Avoid overfilling detergent
and fabric softener compart-

ments of dispenser.

Rinse well, and repeat if
necessary. Return drawer to

location. NOTE: Wear rub-
ber of latex gloves. Protect

floor and clothing from
bleach damage.

• Use only HE (high efficiency
detergent) along with rec-
ommended dosage.

Water in fold of
flexible gasket

• Result of washing and part
of normal operation.

At the end of each wash,
dry inside of gasket fold

with clean dry towel all
around gasket.

Odor

• Moisture in the washer.

• Use of non-HE detergent.

• Overdosing detergent.

• Leaving a wet load remain

in washer.

• Cold water washes which

may not completely dissolve

and remove detergents.

Perform SYSTEM CLEAN
cycle.

At the end of each wash,
dry inside of gasket fold
with clean, dry towel all
around gasket.
Use only HE (high efficiency

detergent) along with rec-

• Leave door and dispenser
drawer open for a few

hours after use or whenever

washer is not in use.

ommended dosage.
Remove wash load immedi-

ately upon cycle completion.
Pour one cup liquid chlorine

bleach in standpipe, let
remain a day and flush with

water.

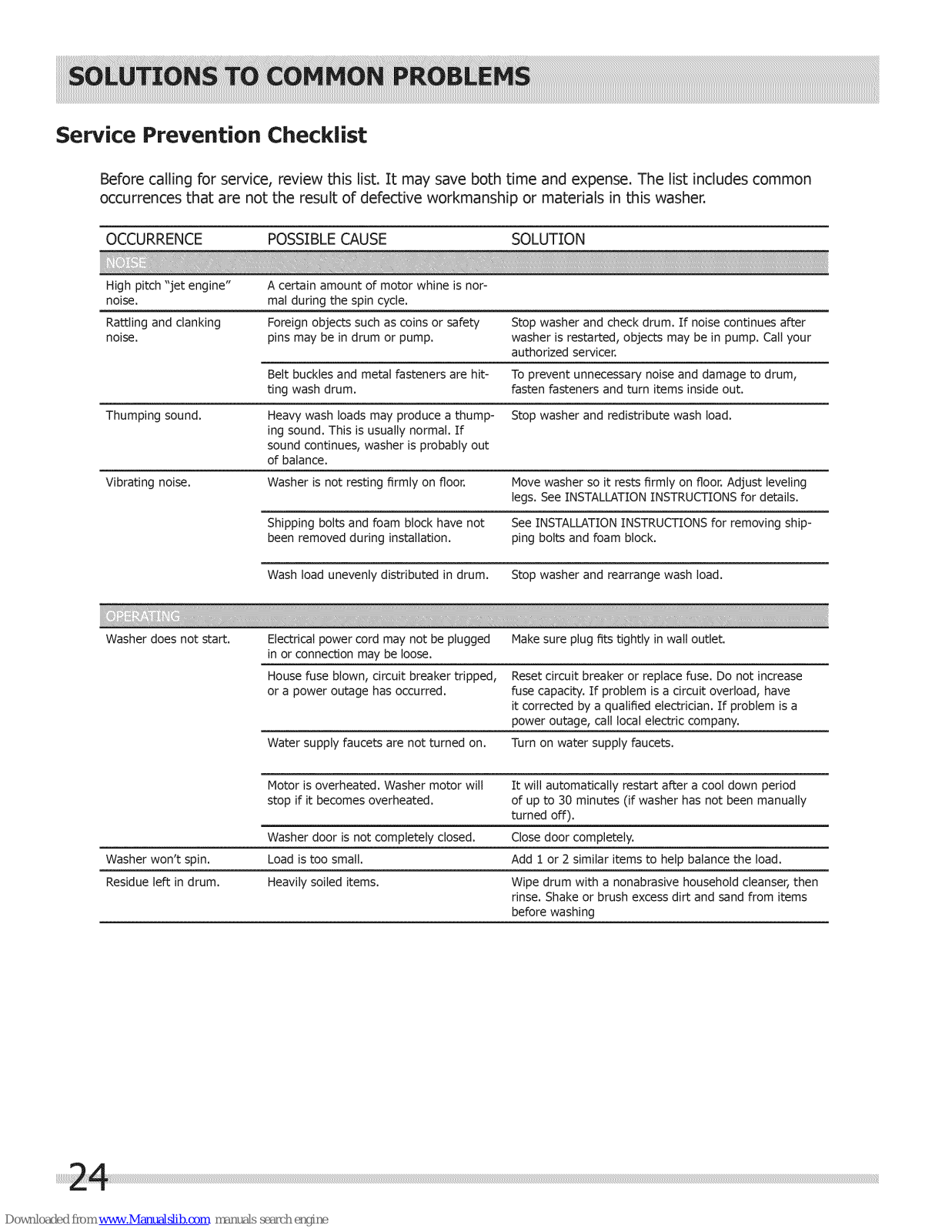

Service Prevention Checklist

Before cafling for service, review this list. It may save both time and expense. The list includes common

occurrences that are not the result of defective workmanship or materials in this washer.

OCCURRENCE POSSIBLE CAUSE SOLUTION

High pitch "jet engine" A certain amount of motor whine is nor-
noise, mal during the spin cycle.

Rattling and clanking Foreign objects such as coins or safety Stop washer and check drum. If noise continues after
noise, pins may be in drum or pump. washer is restarted, objects may be in pump. Call your

Belt buckles and metal fasteners are hit- To prevent unnecessary noise and damage to drum,
ting wash drum. fasten fasteners and turn items inside out.

Thumping sound. Heavy wash loads may produce a thump- Stop washer and redistribute wash load.

ing sound. This is usually normal. If
sound continues, washer is probably out
of balance.

Vibrating noise. Washer is not resting firmly on floor. Move washer so it rests firmly on floor. Adjust leveling

Shipping bolts and foam block have not See INSTALLATION INSTRUCTIONS for removing ship-
been removed during installation, ping bolts and foam block.

Wash load unevenly distributed in drum. Stop washer and rearrange wash load.

authorized servicer.

legs. See INSTALLATION INSTRUCTIONS for details.

Washer does not start. Electrical power cord may not be plugged Make sure plug fits tightly in wall outlet.

Washer won't spin. Load is too small. Add 1 or 2 similar items to help balance the load.
Residue left in drum. Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then

in or connection may be loose.
House fuse blown, circuit breaker tripped, Reset circuit breaker or replace fuse. Do not increase

or a power outage has occurred, fuse capacity. If problem is a circuit overload, have

it corrected by a qualified electrician. If problem is a
power outage, call local electric company.

Water supply faucets are not turned on. Turn on water supply faucets.

Motor is overheated. Washer motor will It will automatically restart after a cool down period
stop if it becomes overheated, of up to 30 minutes (if washer has not been manually

turned off).

Washer door is not completely closed. Close door completely.

rinse. Shake or brush excess dirt and sand from items
before washing

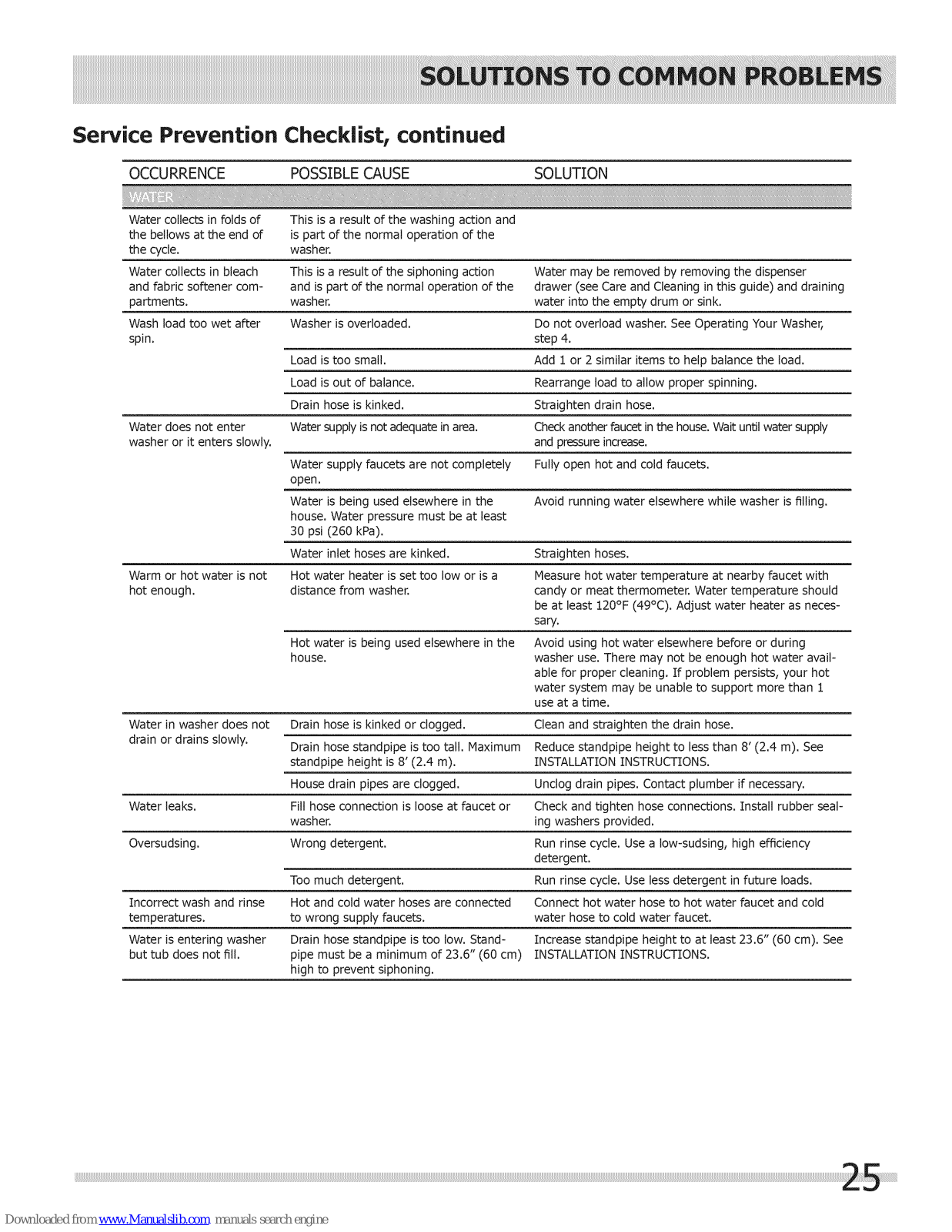

Service Prevention Checklist, continued

OCCURRENCE POSSIBLE CAUSE SOLUTION

Water collects in folds of
the bellows at the end of
the cycle.

Water collects in bleach This is a result of the siphoning action Water may be removed by removing the dispenser
and fabric softener com- and is part of the normal operation of the drawer (see Care and Cleaning in this guide) and draining

partments, washer, water into the empty drum or sink.
Wash load too wet after Washer is overloaded. Do not overload washer. See Operating Your Washer,

spin. step 4.

Water does not enter Water supply is not adequate in area. Check another faucet in the house. Wait until water supply
washer or it enters slowly, and pressure increase.

Warm or hot water is not Hot water heater is set too low or is a Measure hot water temperature at nearby faucet with
hot enough, distance from washer, candy or meat thermometer. Water temperature should

Water in washer does not Drain hose is kinked or clogged. Clean and straighten the drain hose.
drain or drains slowly. Drain hose standpipe is too tall. Maximum Reduce standpipe height to less than 8' (2.4 m). See

Water leaks. Fill hose connection is loose at faucet or Check and tighten hose connections. Install rubber seal-

Oversudsing. Wrong detergent. Run rinse cycle. Use a low-sudsing, high efficiency

Incorrect wash and rinse Hot and cold water hoses are connected Connect hot water hose to hot water faucet and cold
temperatures, to wrong supply faucets, water hose to cold water faucet.

Water is entering washer Drain hose standpipe is too low. Stand- Increase standpipe height to at least 23.6" (60 cm). See
but tub does not fill. pipe must be a minimum of 23.6" (60 cm) ]:NSTALLAT]:ON INSTRUCTIONS.

This is a result of the washing action and

is part of the normal operation of the

washer.

Load is too small. Add 1 or 2 similar items to help balance the load.
Load is out of balance. Rearrange load to allow proper spinning.

Drain hose is kinked. Straighten drain hose.

Water supply faucets are not completely Fully open hot and cold faucets.
open.

Water is being used elsewhere in the Avoid running water elsewhere while washer is filling.

house. Water pressure must be at least

30 psi (260 kPa).
Water inlet hoses are kinked. Straighten hoses.

be at least 120°F (49°C). Adjust water heater as neces-

sary.

Hot water is being used elsewhere in the Avoid using hot water elsewhere before or during
house, washer use. There may not be enough hot water avail-

able for proper cleaning. If problem persists, your hot
water system may be unable to support more than 1

use at a time.

standpipe height is 8' (2.4 m). INSTALLATION INSTRUCTIONS.

House drain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.

washer, ing washers provided.

detergent.

Too much detergent. Run rinse cycle. Use less detergent in future loads.

high to prevent siphoning.

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc.,which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIROR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRI-I-i-EN

LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATESAND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO

YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFICLEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATETO STATE.

If You Need

Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and

parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances
North America

P.O. Box 212378
Augusta, GA 30907

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.

Electrolux

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4
