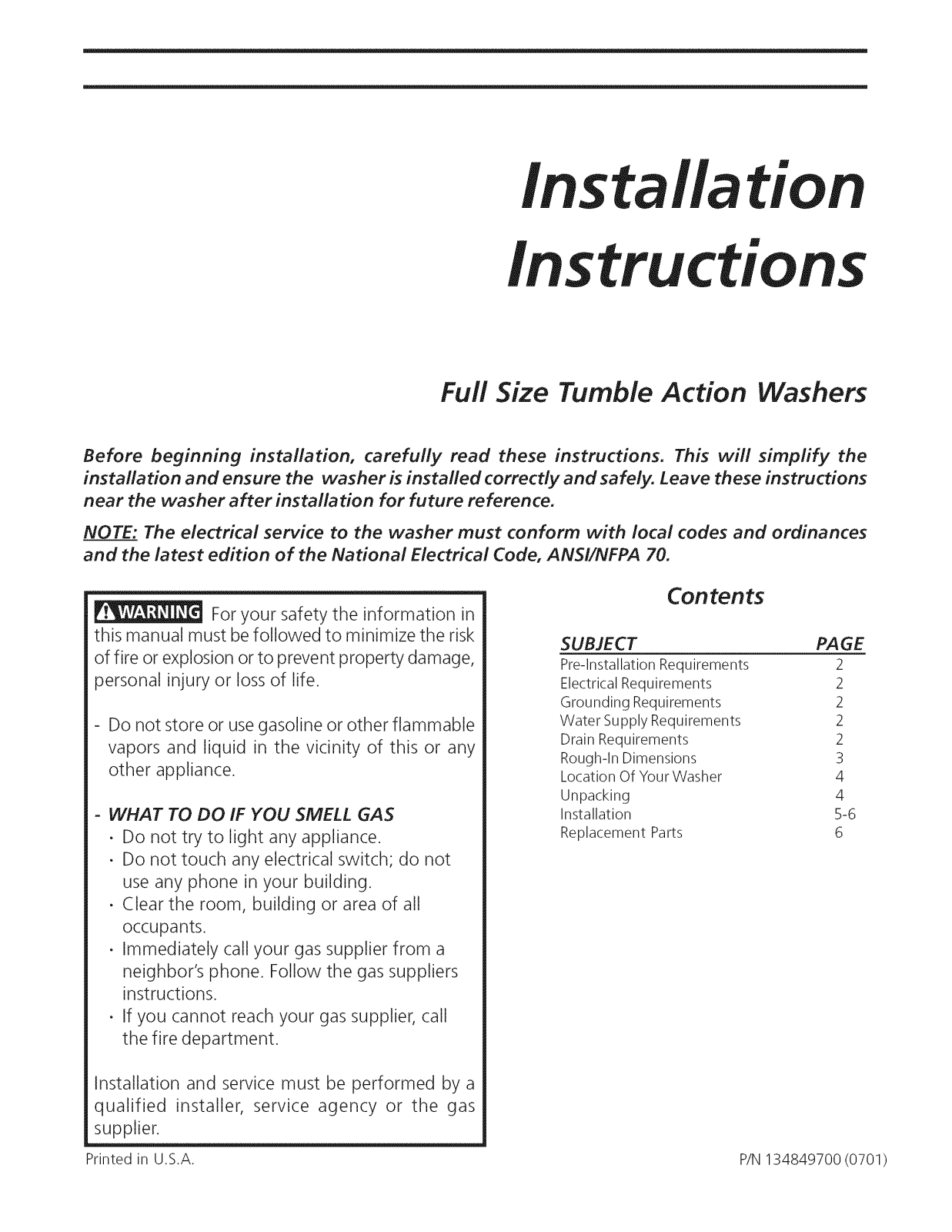

installation
instructions
Ful! Size Tumble Action Washers
Before beginning installation, carefully read these instructions. This will simpfify the
installation and ensure the washer is installed correctly and safely. Leave these instructions
near the washer after installation for future reference.
NOTE: The electrical service to the washer must conform with local codes and ordinances
and the latest edition of the National Electrical Code, ANS!/NFPA 70.
Contents
For your safety the information in
this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquid in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers
instructions.
• If you cannot reach your gas supplier, call
the fire department.
SUBJECT PAGE
Pre-lnstallation Requirements 2
Electrical Requirements 2
Grounding Requirements 2
Water Supply Requirements 2
Drain Requirements 2
Rough-In Dimensions 3
Location Of Your Washer 4
Unpacking 4
Installation 5-6
Replacement Parts 6
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Printed in U.S.A.
P/N 134849700 (0701)

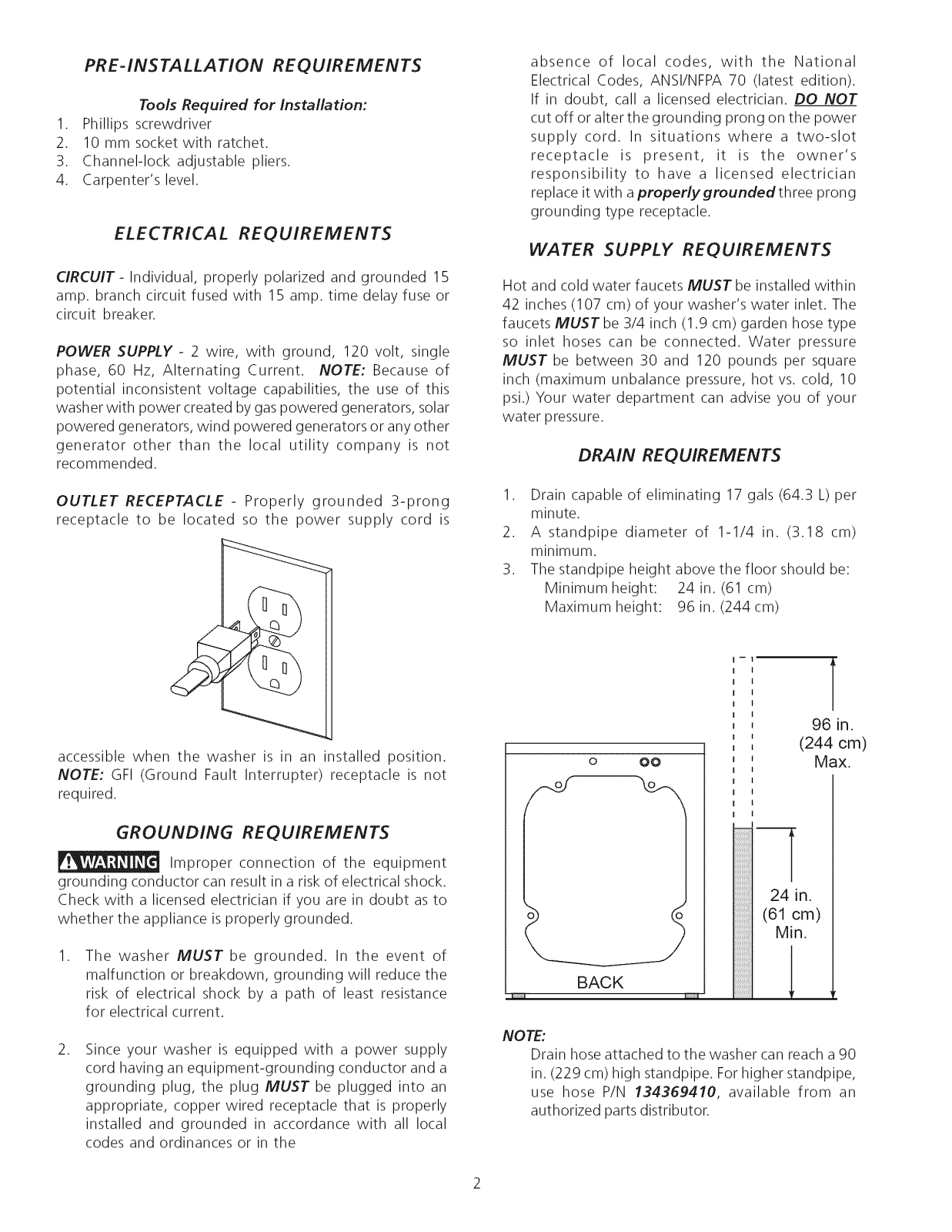

PRE-INSTALLATION REQUIREMENTS
Tools Required for Installation:
I. Phillips screwdriver
2. 10 mm socketwith ratchet.
3. Channel-lock adjustable pliers.
4. Carpenter's level.
ELECTRICAL REQUIREMENTS
absence of local codes, with the National
Electrical Codes, ANSI/NFPA 70 (latest edition).
If in doubt, call a licensed electrician. DO NOT
cut off or alter the grounding prong on the power
supply cord. In situations where a two-slot
receptacle is present, it is the owner's
responsibility to have a licensed electrician
replace it with a properly grounded three prong
grounding type receptacle.
WATER SUPPLY REQUIREMENTS
CIRCUIT-Individual, properly polarized and grounded 15
amp. branch circuit fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2 wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current. NOTE: Because of
potential inconsistent voltage capabilities, the use of this
washer with power created by gas powered generators, solar
powered generators, wind powered generators or any other
generator other than the local utility company is not
recommended.
OUTLET RECEPTACLE - Properly grounded 3-prong
receptacle to be located so the power supply cord is
accessible when the washer is in an installed position.
NOTE: GFI (Ground Fault Interrupter) receptacle is not
required.
Hot and cold water faucets MUST be installed within
42 inches (107 cm) of your washer's water inlet. The
faucets MUST be 3/4 inch (1.9 cm) garden hose type
so inlet hoses can be connected. Water pressure
MUST be between 30 and 120 pounds per square
inch (maximum unbalance pressure, hot vs. cold, 10
psi.) Your water department can advise you of your
water pressure.
DRAIN REQUIREMENTS
.
Drain capable of eliminating 7gals(64.3 L)per
minute.
2.
A standpipe diameter of I-1/4 in. (3.18 cm)
minimum.
3.
The standpipe height above the floor should be:
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244cm)
r
96 in.
(244 cm)
o OO
Max.
GROUNDING REQUIREMENTS
Improper connection of the equipment
grounding conductor can result in a risk of electrical shock.
Check with a licensed electrician if you are in doubt as to
whether the appliance is properly grounded.
.
The washer MUST be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electrical shock by a path of least resistance
for electrical current.
.
Since your washer is equipped with a power supply
cord having an equipment-grounding conductor and a
grounding plug, the plug MUST be plugged into an
appropriate, copper wired receptacle that is properly
installed and grounded in accordance with all local
codes and ordinances or in the
24 in.
(61 cm)
Min.
BACK
I I
NOTE:
Drain hose attached to the washer can reach a 90
in. (229 cm) high standpipe. For higher standpipe,
use hose P/N 134359410, available from an
authorized parts distributor.
T
l
23¾"
(60.33)

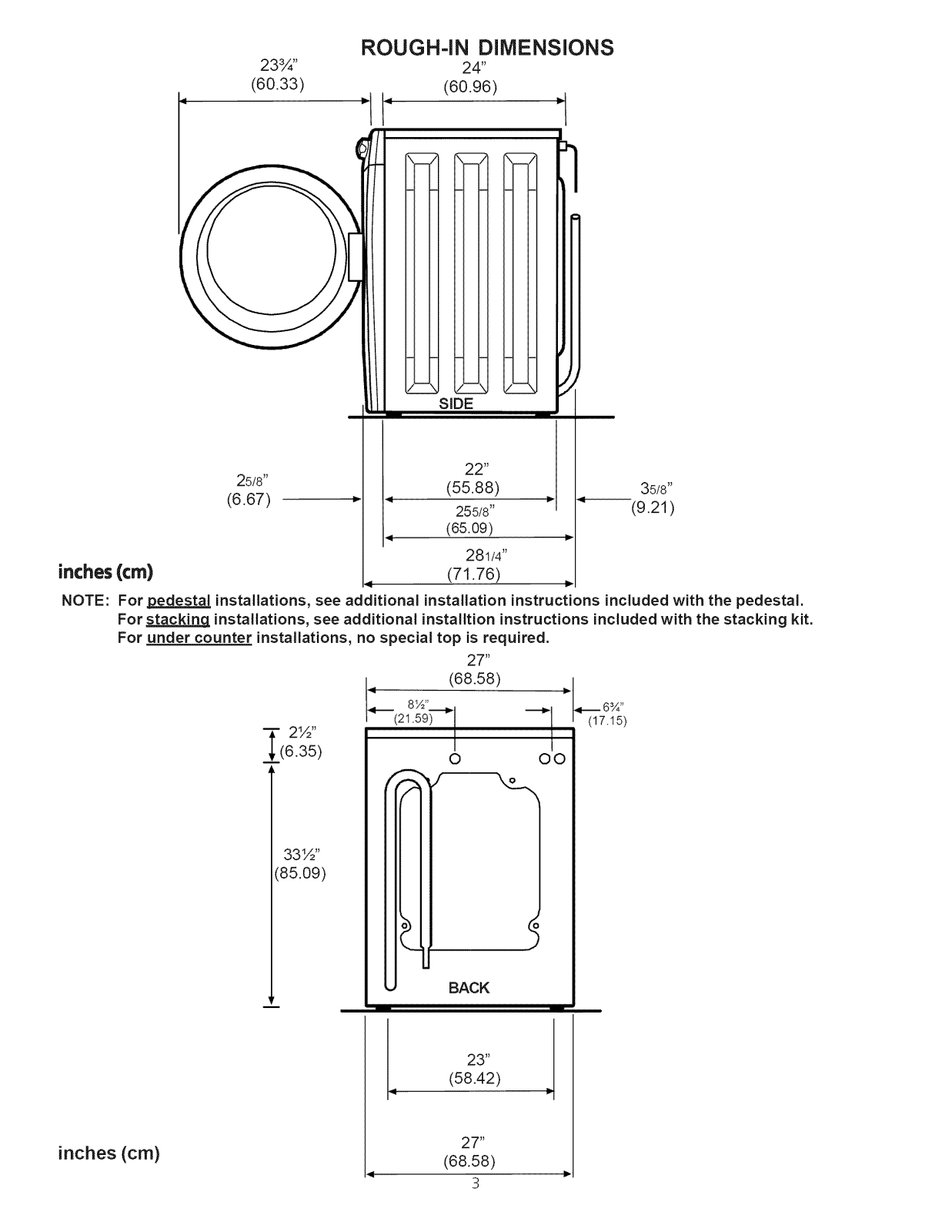

ROUGH=IN DIMENSIONS
24"
(60.96)
4 ID
m m m
i i i
i i i
- SLOE- -
25/8"
(6.67)
p _9
22"
(55.88)
255/8"
35/8"
(9.21)
(65.09)
281/4"
inches(cm)
q (71.76)
NOTE: For pedestal installations, see additional installation instructions included with the pedestal.
For stacking installations, see additional installtion instructions included with the stacking kit.
For under counter installations, no special top is required.
27"
4
___ (68.58)
-- 2½"
(6.35)
8½"
I(21.59)
0 O0
--6¾"
(17.15)
33½"
(85.09)
inches (cm)
BACK
23"
(58.42)
27"
(68.58)
3

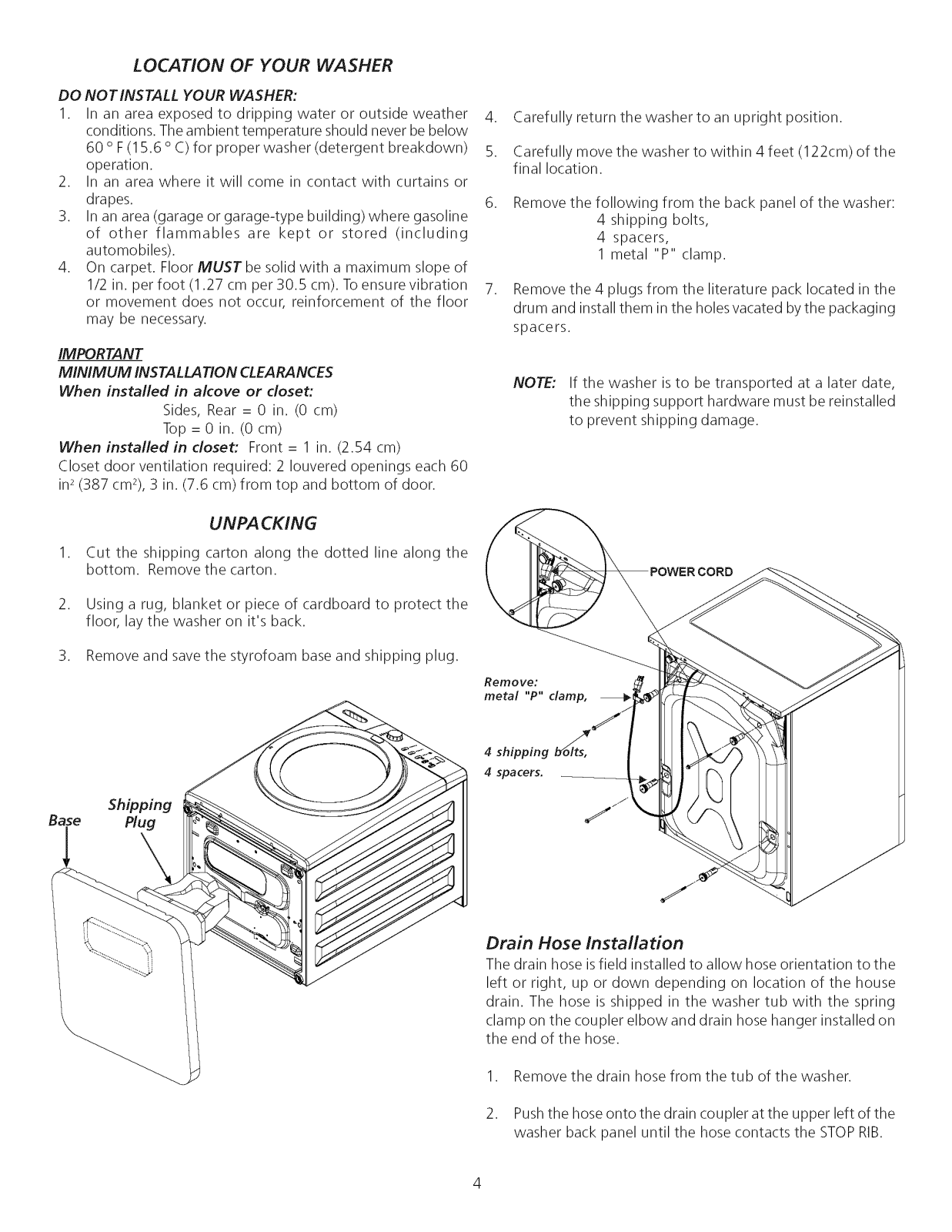

LOCATION OF YOUR WASHER
DO NOTINSTALL YOUR WASHER:
1. In an area exposed to dripping water or outside weather 4.
conditions. The ambient temperature should never be below
60 ° F(15.6 ° C) for proper washer (detergent breakdown) 5.
operation.
2. In an area where it will come in contact with curtains or
drapes. 6.
3. Inan area (garage or garage-type building) where gasoline
of other flammables are kept or stored (including
automobiles).
4. On carpet. Floor MUST be solid with a maximum slope of
1/2 in. per foot (I .27 cm per 30.5 cm). Toensure vibration 7.
or movement does not occur, reinforcement of the floor
may be necessary.
IMPORTANT
MINIMUM INSTALLATION CLEARANCES
When installed in alcove or closet:
Sides, Rear = 0 in. (0 cm)
Top = 0 in. (0 cm)
When installed in closet: Front = I in. (2.54 cm)
Closet door ventilation required: 2 Iouvered openings each 60
in2(387 cm2), 3 in. (7.6 cm) from top and bottom of door.
Carefully return the washer to an upright position.
Carefully move the washer to within 4 feet (122cm) of the
final location.
Remove the following from the back panel of the washer:
4 shipping bolts,
4 spacers,
1 metal "P" clamp.
Remove the 4 plugs from the literature pack located in the
drum and installthem in the holesvacated bythe packaging
spacers.
NOTE: If the washer is to be transported at a later date,
the shipping support hardware must be reinstalled
to prevent shipping damage.
UNPACKING
1. Cut the shipping carton along the dotted line along the
bottom. Remove the carton.
2. Using a rug, blanket or piece of cardboard to protect the
floor, lay the washer on it's back.
3. Remove and savethe styrofoam base and shipping plug.
Shoping
Base Plug
Remove:
metal "P" damp, _i
4 shipping
4 spacers.
Drain Hose Installation
The drain hose isfield installed to allow hose orientation to the
left or right, up or down depending on location of the house
drain. The hose is shipped in the washer tub with the spring
clamp on the coupler elbow and drain hose hanger installed on
the end of the hose.
1. Remove the drain hose from the tub of the washer.
2. Pushthe hose onto the drain coupler at the upper left of the
washer back panel until the hose contacts the STOPRIB.
STOP RIB-
PUSH HOSE ONTO
COUPLER TO STOP RIB
HOSE TABS
SPRING
CLAMP
PROVIDED
ON HOSE

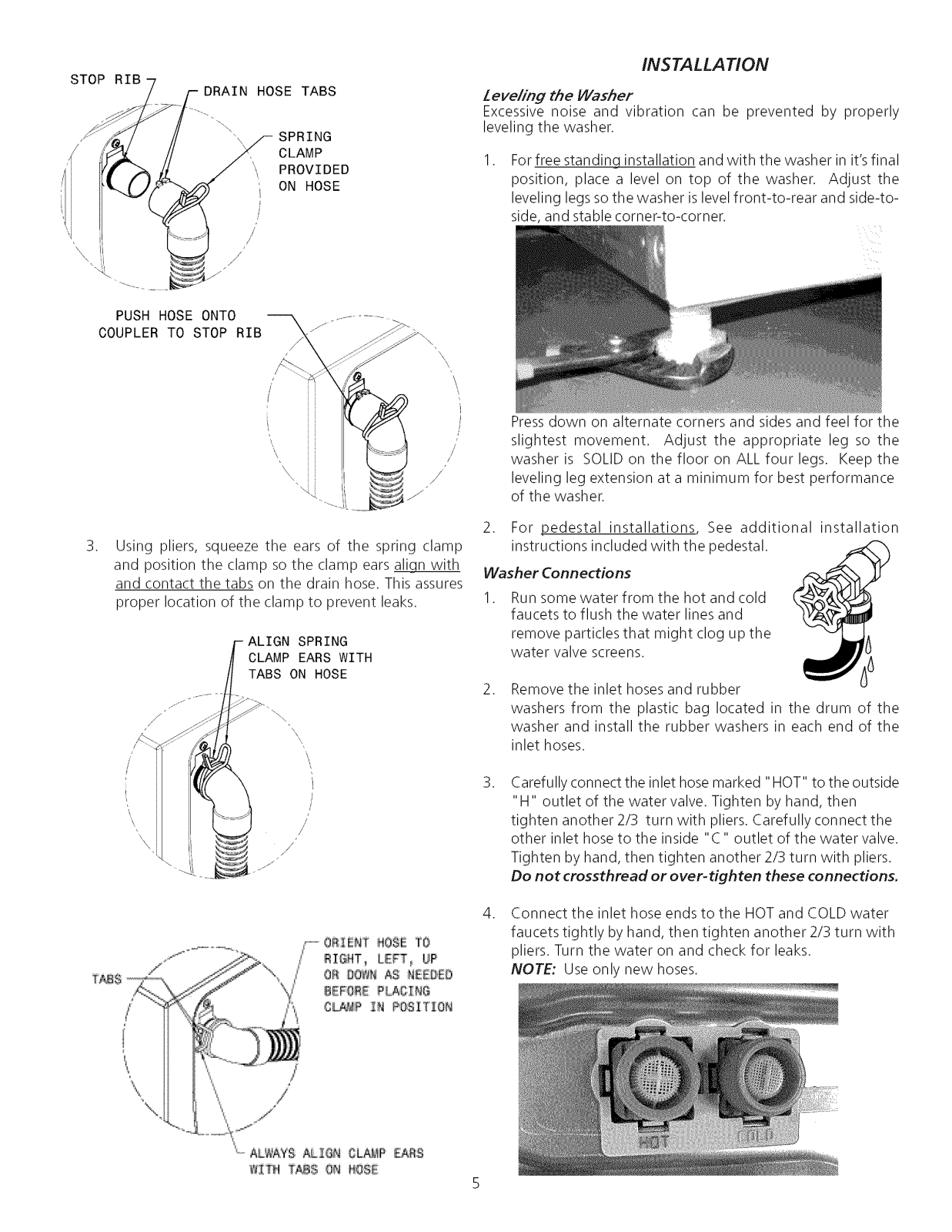

INSTALLATION
Leve/ing theWasher
Excessive noise and vibration can be prevented by properly
leveling the washer.
Forfree standina installation and with the washer in it's final
position, place a level on top of the washer. Adjust the
leveling legssothe washer is level front-to-rear and side-to-
side, and stable corner-to-corner.
Pressdown on alternate corners and sides and feel for the
slightest movement. Adjust the appropriate leg so the
washer is SOLID on the floor on ALL four legs. Keep the
leveling leg extension at a minimum for best performance
of the washer.
.
Using pliers, squeeze the ears of the spring clamp
and position the clamp so the clamp ears @ with
and contact the tabs on the drain hose. This assures
proper location of the clamp to prevent leaks.
ALIGN SPRING
CLAMP EARS WITH
TABS ON HOSE
\
i
!
J
/
\
/
/
/
/
2. For pedestal installations See additional installation
instructions included with the pedestal.
Washer Connections
I. Run sornewater frorn tile hot and cold
faucets to flush the water lines and
remove particles that might clog up the
water valve screens.
Remove the inlet hoses and rubber
washers from the plastic bag located in the drum of the
washer and install the rubber washers in each end of the
inlet hoses.
Carefully connect the inlet hosemarked "HOT" to the outside
"H" outlet of the water valve. Tighten by hand, then
tighten another 2/3 turn with pliers. Carefully connect the
other inlet hose to the inside "C" outlet of the water valve.
Tighten by hand, then tighten another 2/3 turn with pliers.
Do not crossthread or over-tighten these connections.
. Connect the inlet hose ends to the HOT and COLD water
faucets tightly by hand, then tighten another 2/3 turn with
pliers. Turn the water on and check for leaks.
NOTE: Use only new hoses.

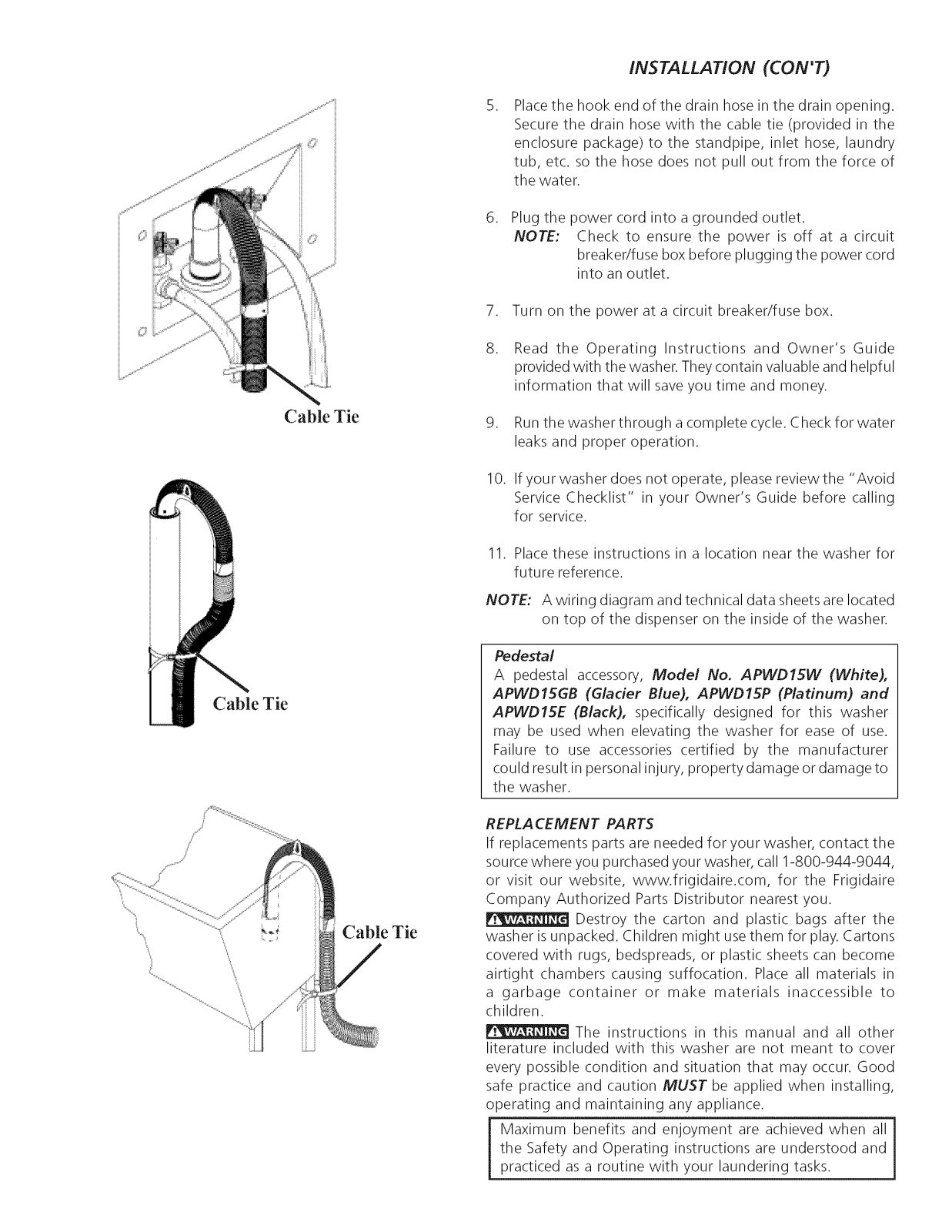

INSTALLATION (CON'T)
Placethe hook end of the drain hose in the drain opening.
Secure the drain hose with the cable tie (provided in the
enclosure package) to the standpipe, inlet hose, laundry
tub, etc. so the hose does not pull out from the force of
the water.
.
Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power is off at a circuit
breakedfuse box before plugging the power cord
into an outlet.
7. Turn on the power at a circuit breaker/fuse box.
8. Read the Operating Instructions and Owner's Guide
provided with the washer. They contain valuable and helpful
information that will save you time and money.
a
\
Cable Tie
Cable Tie
Cable Tie
9. Runthewasherthrough a complete cycle. Checkforwater
leaks and proper operation.
I 0. If you r washer does not operate, please review the "Avoid
Service Checklist" in your Owner's Guide before calling
for service.
11. Placethese instructions in a location near the washer for
future reference.
NOTE: A wiring diagram and technical data sheetsare located
on top of the dispenser on the inside of the washer.
Pedestal
A pedestal accessory, Model No. APWD15W (White),
APWD15GB (Glacier Blue), APWDlSP (Platinum) and
APWD15E (Black), specifically designed for this washer
may be used when elevating the washer for ease of use.
Failure to use accessories certified by the manufacturer
could result in personal injury, property damage or damage to
the washer.
REPLACEMENT PARTS
If replacements parts are needed for your washer, contact the
sourcewhere you purchased your washer, call 1-800-944-9044,
or visit our website, www.frigidaire.com, for the Frigidaire
Company Authorized Parts Distributor nearest you.
Destroy the carton and plastic bags after the
washer isunpacked. Children might use them for play. Cartons
covered with rugs, bedspreads, or plastic sheets can become
airtight chambers causing suffocation. Place all materials in
a garbage container or make materials inaccessible to
children.
The instructions in this manual and all other
literature included with this washer are not meant to cover
every possible condition and situation that may occur. Good
safe practice and caution MUST be applied when installing,
operating and maintaining any appliance.
Maximum benefits and enjoyment are achieved when all
the Safety and Operating instructions are understood and
practiced as a routine with your laundering tasks.
Loading...
