User
Manual
Washing
Machine
MODEL TYPES:
ATF705X
ATF706X
137486300A (1109)Manufactured by Electrolux Home Products, NA
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when
purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The
user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid damaging the
appliance.
General information and tips
Environmental information
Content
Safety information - - - - - - - - - - - - - - - - - - - - - - 3
Description of the appliance - - - - - - - - - - - - - - - - 4
Control panel and functions - - - - - - - - - - - - - - -5-6
Programme table - - - - - - - - - - - - - - - - - - - - - - 6-7
Washing Hints - - - - - - - - - - - - - - - - - - - - - - - 8-9
Before the fi rst use - - - - - - - - - - - - - - - - - - - - - - 9

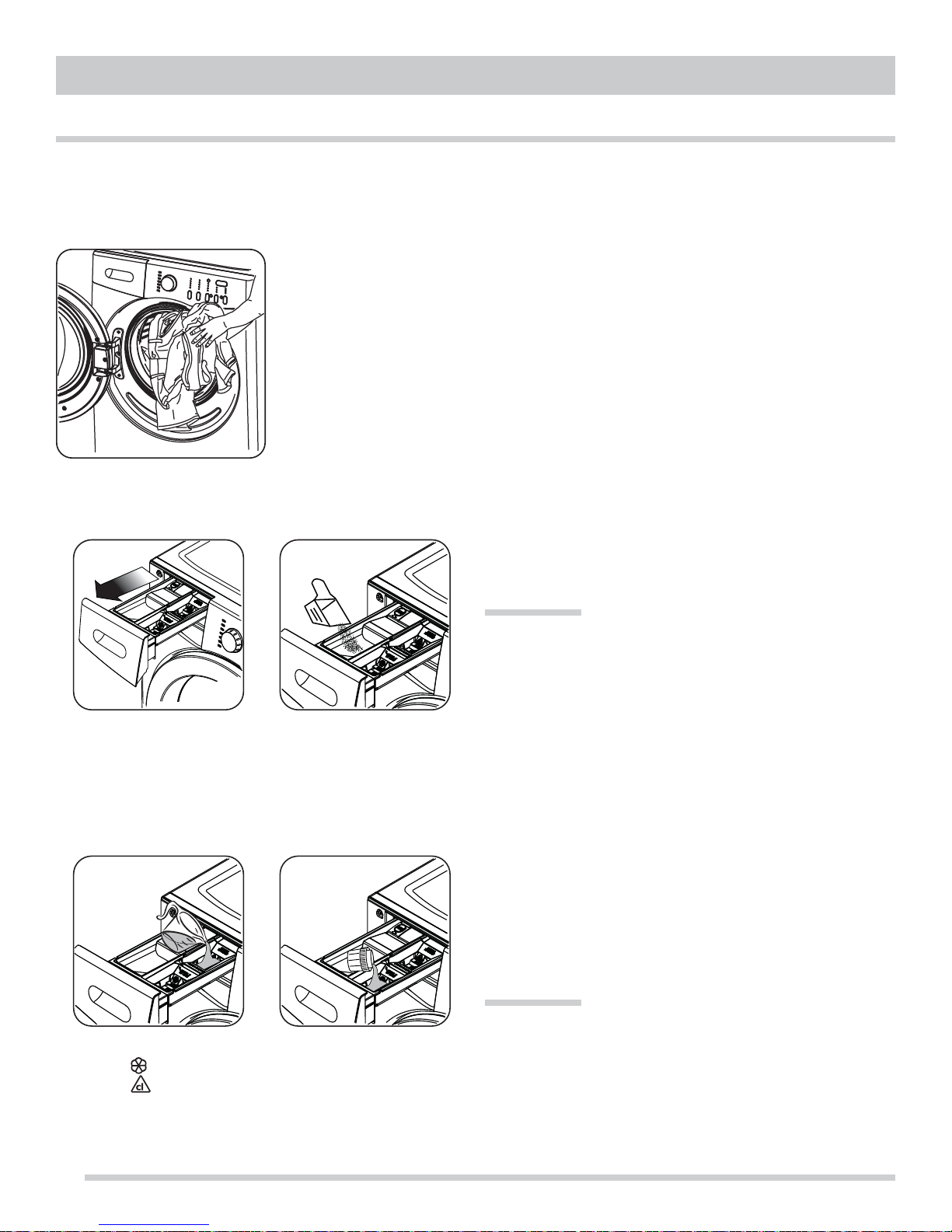

Operating Sequence - - - - - - - - - - - - - - - - - - 10-11
Care and cleaning - - - - - - - - - - - - - - - - - - - 11-12
What to do if... - - - - - - - - - - - - - - - - - - - - - - 13-14
Consumption Values - - - - - - - - - - - - - - - - - - - - 14
Installation instruction - - - - - - - - - - - - - - - - 15-16
Environmental concerns - - - - - - - - - - - - - - - - - 17
Notes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
2
Important Safety Information
In the interest of your safety and to ensure the correct use, before installing and fi rst using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on appliance use and safety.
General safety
• It is dangerous to alter the specifi cations or attempt to
modify this product in any way.
• During high temperature wash programmes the door glass
may get hot. Do not touch it!
• Make sure that small pets do not climb into the drum. To
avoid this, please check into the drum before using.
• Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Only use the advised quantities of fabric softener and
detergent. Damage to the fabric can ensue if you over-fi ll.
Refer to the manufacturer’s recommendations of quantities.
• Wash small items such as socks, laces, washable belts
etc. in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the inner
drum.
• Do not use your appliance to wash articles with whalebones, material without hems or torn material.
• To avoid damaging the appliance and personal injury, DO
NOT hang on or lean against the appliance door.
• Do not place detergent, bleach or fabric softener containers on top of the appliance. They can damage the fi nish or
controls.
• Always unplug the appliance and turn off the water supply
after use, clean and maintenance.
• This appliance is provided with a white drum light. It is
class 1, in accordance with IEC 60825-1:1993 + A1:1997
+ A2:2001 standard. Should the appliance drum light
need to be replaced, this must be carried out by a Service
Centre.
• Under no circumstances you should attempt to repair the
appliance yourself. Repairs carried out by inexperienced
people may cause injury or serious malfunctioning. Contact
your local Service Centre.
Installation
• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service
Centre.
• All packing and transit bolts must be removed before use.
Serious damage can occur to the product and to property
if this is not adhered to. See relevant section in the user
manual.
• After having installed the appliance, check that it is not
standing on the inlet and drain hose and the worktop is not
pressing the electrical supply cable against the wall.
• Do not install appliance on a carpeted fl oor.
• Always be sure, that there is no water leakage from hoses
and their connections after the installation.
• If the machine is installed in a location subject to frost,
please read the «dangers of freezing» chapter.
• Any plumbing work required to install this appliance should
be carried out by a qualifi ed plumber or competent person.
• Any electrical work required to install this appliance should
be carried out by a qualifi ed electrician or competent person.
Use
• This appliance is designed for domestic use. It must not be
used for different purposes.
• Only wash fabrics which are designed to be machine
washed. Follow the instructions on each garment label.
• Do not overload the appliance. See «Programme Table».
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn
articles and treat stains such as paint, ink, rust, and grass
before washing. Bras must NOT be machine washed.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile
cleaning fl uids are used, care should be taken to ensure
that the fl uid is removed from the garment before placing in
the appliance.
• Never pull the power supply cord to remove the plug from
the socket; always take hold of the plug itself.
• Never use the appliance if the power supply cord, the control panel, the working surface or the base are damaged so
that the inside of the appliance is accessible.
Child safety
• This appliance is not intended for use by people (including
children) with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do
not play with the appliance.
• The packaging components (e.g. plastic fi lm, polystyrene)
can be dangerous to children - danger of suffocation! Keep
them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
3

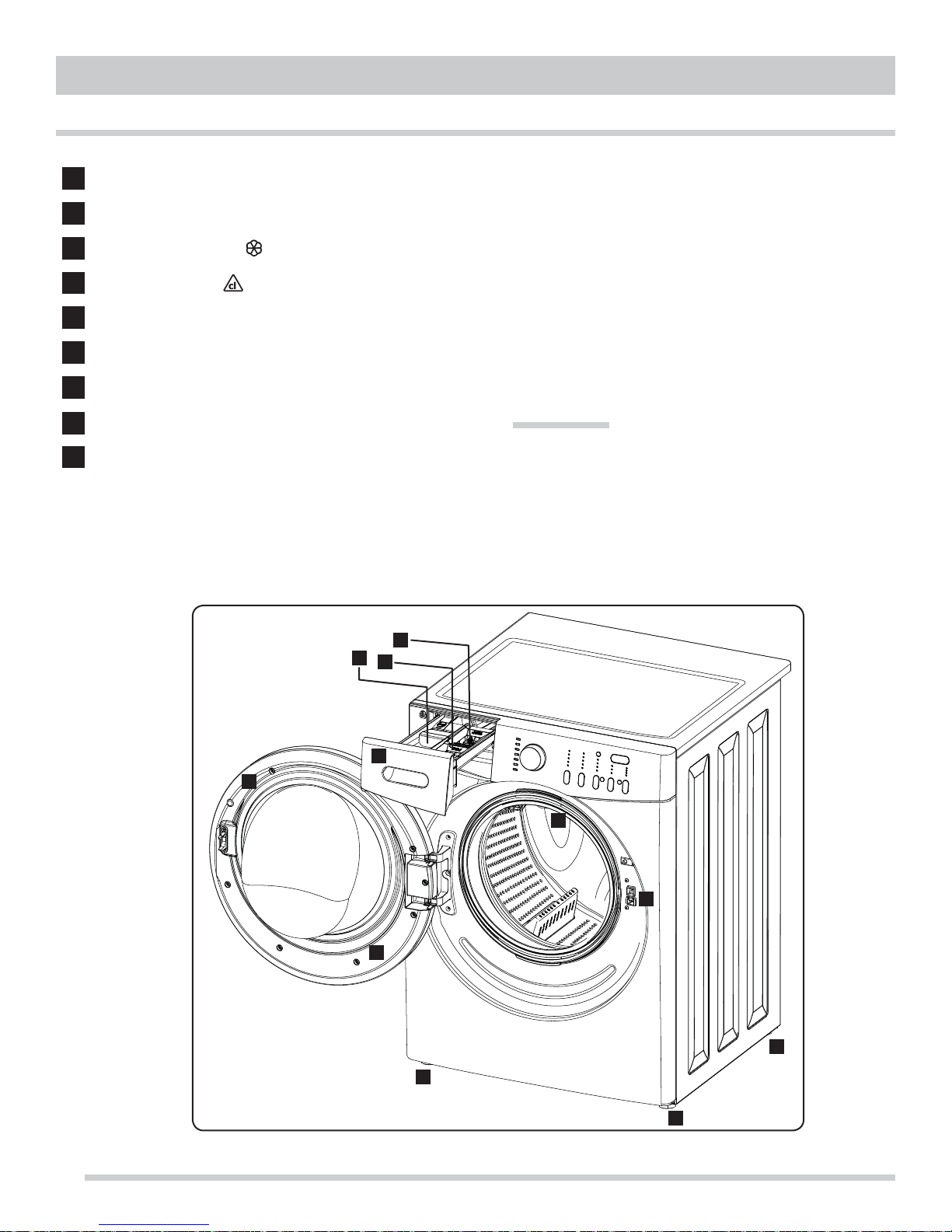

Description of the appliance
1
Detergent dispenser drawer
2
“DETERGENT WASH”: compartment for main wash
3
“FABRIC SOFTENER” : compartment for fabric softener
4
“LIQUID BLEACH” : compartment for bleaching agent
5
Drum lamp
6
Door opening handle
7
Door safety lock
Drum Lamp
The drum light will turn on when the appliance door is
opened and remain lighted for 3 minutes or until the door
is closed.
Serial number / Rating plate
8
9
Adjustable feet
IMPORTANT!
The bulb for the interior lighting must be changed by our
Customer Care Department.
4
2
3
1
6
5
4
7
8
9
9
9

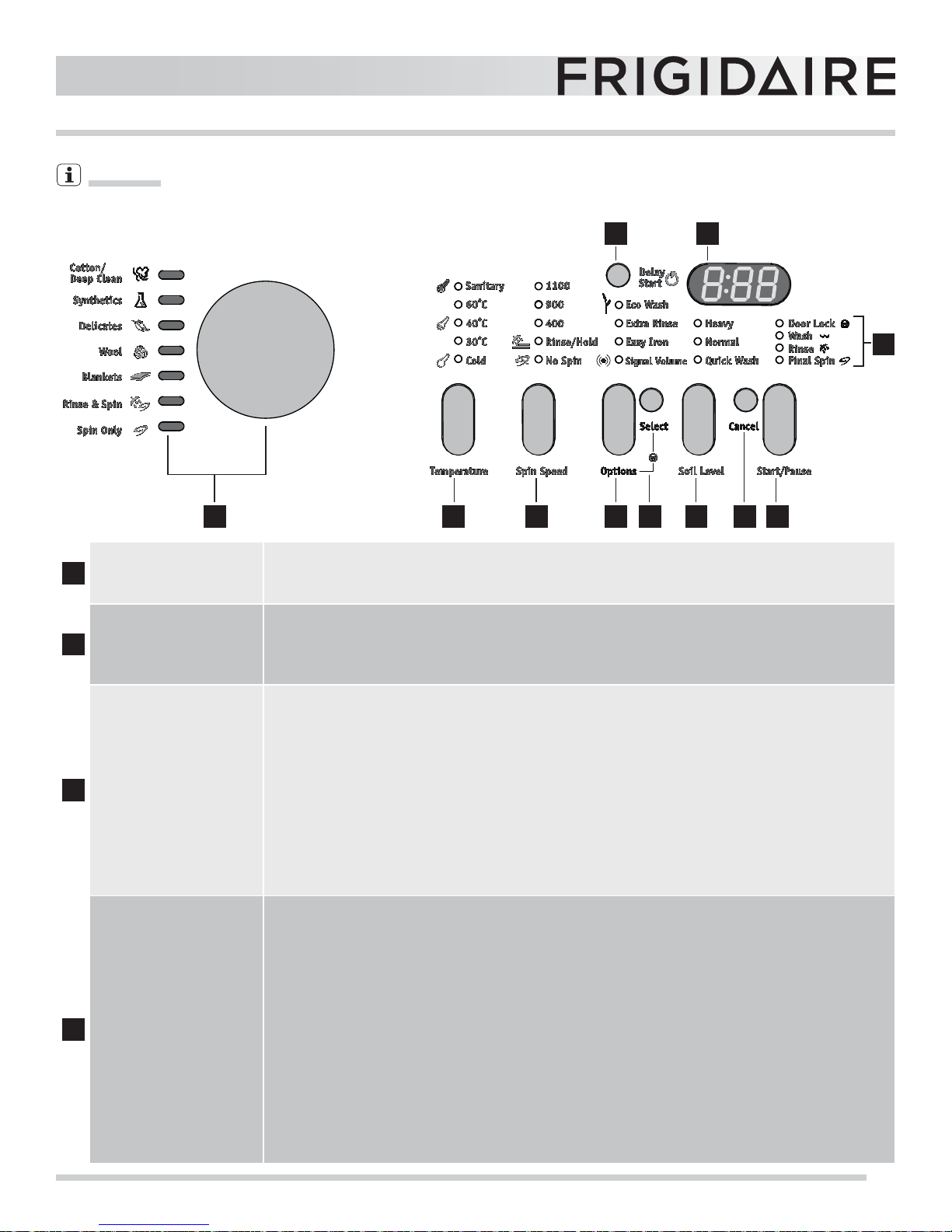

Control Panel
Information
Henceforth, the programme selector dial, the display, the different buttons and the door pilot light will be indicated in all the
book with the relevant numbers given in this picture.
1011
1 2 3 4 5 6 7 8
9
Programme Selector Dial
1
and Programme Indicator
Pilot Lights
2
Temperature Button
3
Spin Speed Button
4
Options Button
The programme selector dial allows to select a drying programme. It can be turned either
clockwise or anticlockwise. (See «Programme Table» for more details about the drying programmes).
This button allows to change the wash water temperature according to the kind of fabrics,
colorfasteness and soil level. (See «Washing hints» for more details).
Note:
Select a wash water temperature according to fi ber content, colorfastness and soil level.
For best results, follow the care label instructions and use the hottest water safe for the fabric.
Press this button repeatedly
• to change the spin speed, if you want your laundry to be spun at a speed different from
the one automatically proposed by the appliance or
• to select Rinse Hold or No Spin option.
The relevant light lights up.
Rinse Hold: By selecting this option the water of the last rinse is not emptied out to prevent
the fabrics from creasing. When the programme has fi nished, the door is locked to indicate
that the water must be emptied out. To empty out the water, please read the chapter «At the
end of the programme».
No Spin: This option eliminates all the spin phases and increases the number of rinses in
some programmes.
By pressing this button you can select one of the following options:
• Signal Volume: A signal will sound when setting a wash programme, in case of wrong
selection and in the event of operating problems and at the end of the programme. This
signal has a three level-adjustable volume or can be turned off. Choose the desired volume
level or turn it off by pressing button 5.
• Easy Iron: Selecting this option the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the appliance will perform some additional
rinses in some programmes.
• Extra Rinse: This appliance is designed for saving water. However, for people with a very
delicate skin (allergic to detergents) it may be necessary to rinse the laundry using an extra
quantity of water.
• Eco: Saving energy and consumption option. Only for cottons and synthetics items lightly
or normally soiled at a temperature of 40°C or higher. The washing time will be prolonged
and the washing temperature will be reduced.
5
Control Panel, continued
5
Select Button
6
Soil Level Button
7
Cancel/Reset Button
8
Start/Pause Button
Door Lock Pilot Light
9
and Programme
Phase Pilot Lights
10
Display
11
Delay Start Button
By pressing this button you can confi rm or delete the options selected by means of button 4.
By pressing this option you can select or delete one of the following soil level:
• Quick: By selecting this option the wash duration decreases. The display will show the
shorted washing time. To be used for lightly soiled laundry only. Recommended for smaller
loads (for more details see «Programme table»).
• Daily: By selecting this button the wash duration decreases. To be used for normally soiled
laundry.
• Heavy: By selecting this option the wash duration increases.
Press this button to stop the wash programme.
Press this button to start, pause or restart a wash programme.
Door Lock:
• Light on: The door cannot be opened.
• Light blinking: The door lock is releasing. The appliance has been probably set to pause.
• Light off: The door can be opened.
Note
Do not try to force the door open when Door Lock light is on.
The following pilot lights indicate which wash phase the appliance is carrying out:
Wash: During the wash phase.
Rinse: When the appliance is rinsing.
Final Spin: When the appliance is spinning.
The display shows the following information:
• The duration of the selected programme: After selecting a programme the duration of the
selected programme appears on the display.
• Select the delayed start by pressing the button 11. Press this button to select the required
delay. The selected delay time value will appear on the display for few seconds, then the
duration of the programme will appear again. You must select this option after you have
set the programme and before you press the button 8.
• Message “PAU” (PAUSE): It is displayed alternately with the estimated time remaining when
the cycle is paused.
• Message “LOC” (LOCK): It is displayed alternately with the estimated cycle time when you
lock the controls.
• If you try to start the programme and the door is open, the message “DR” (DOOR) is displayed.
• Message “PF” (POWER FAIL): It is displayed alternately with Message “PAU” to indicate that a
power supply break has occurred and the appliance is not operating. Press the button 8 to
restart the wash programme.
By means of this buttons, the wash programme can be delayed from 30 min - 60 min - 90
min, 2 hours and then by 1 hour up to a maximum of 14 hours.
6
Programme Table
Washing Programmes / Suitable Temperature / Spin Speed
Cycle Description / Load Capacity / Type of Laundry
COTTON/DEEP CLEAN
Sanitary - 60° - 40°C
Spin speed: 1100-900-400
Main wash - Rinses - Long spin
Maximum load: 10 Kg; *Reduced load: 5 Kg
White and Colour Fast: e.g. sheets, tableclothes, household linen, shirts, blouses, underwear.
COTTON/DEEP CLEAN
30° - Cold
Spin speed: 1100-900-400
Main wash - Rinses - Long spin
Maximum load: 10 Kg; *Reduced load: 5 Kg
Non-Colour Fast items: for example underwear, shirts, blouses.
SYNTHETICS
60° - 40° - 30° - Cold
Spin speed: 900-400
Main wash - Rinses - Short spin
Maximum load: 5 Kg; *Reduced load: 2,5 Kg
Synthetics or mixed fabrics: shirts, blouses, underwear, mixed fabrics.
DELICATES
40° - 30° - Cold
Spin speed: 900-400
Main wash - Rinses - Short spin
Maximum load: 4 Kg
Delicate items: acrylic, viscose, polyester items, curtains.
WOOL
40° - 30° - Cold
Spin speed: 900-400
Main wash - Rinses - Short spin
Maximum load: 3 Kg
Washing programme for machine washable wool
woollens and delicate fabrics with the “hand washing” care symbol
as well as for hand washable
.
BLANKETS
40° - 30° - Cold
Spin speed: 400
Main wash - Rinses - Short spin
Maximum load: 4 Kg
Short cycle for washable blanket or duvet.
RINSE & SPIN
Spin speed: 1100-900-400
Rinses - Long spin
Maximum load: 10 Kg
With this separate programme it is possible to rinse and spin cotton garments which have
been washed by hand. The appliance performs 3 rinses, followed by a fi nal spin at maximum speed. The spin speed can be reduced by pressing button 3.
SPIN ONLY
Spin speed: 1100-900-400
Long spin
Maximum load: 10 Kg
Separate spin for items washed by hand or at the end of a programme which stops
with water left in the tub (
Rinse Hold
option).
No Spin
or
According to the type of fabric, it is possible to reduce the spin speed by pressing button 3.
* If you select this programme with the
No Spin
option the appliance performs just a
DRAIN PHASE.
Available
Options
NO SPIN or RINSE HOLD
SIGNAL VOLUME
EASY IRON
EXTRA RINSE
ECO
QUICK or DAILY or HEAVY
DELAY START
NO SPIN or RINSE HOLD
SIGNAL VOLUME
EASY IRON
EXTRA RINSE
ECO
QUICK or DAILY or HEAVY
DELAY START
NO SPIN or RINSE HOLD
SIGNAL VOLUME
EASY IRON
EXTRA RINSE
ECO (ONLY 60°-40°)
QUICK or DAILY
DELAY START
NO SPIN or RINSE HOLD
SIGNAL VOLUME
EXTRA RINSE
DAILY
DELAY START
NO SPIN
RINSE HOLD
SIGNAL VOLUME
DELAY START
SIGNAL VOLUME
DELAY START
NO SPIN
RINSE HOLD
SIGNAL VOLUME
EASY IRON
EXTRA RINSE
DELAY START
NO SPIN*
SIGNAL VOLUME
DELAY START
Detergent
Compartment
Detergent Wash
Detergent Wash
Detergent Wash
Detergent Wash
Detergent Wash
Detergent Wash
7
Washing Hints
Sorting The Laundry
Follow the wash code symbols on each garment label and
the manufacturer’s washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics, delicates, woollens.
Temperatures
Sanitary
60°
Cold-30°-40°
for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths, sheets...)
for normally soiled, colour fast garments (e.g.
shirts, night dresses, pyjamas....) in linen,
cotton or synthetic fi bres and for lightly soiled
white cotton (e.g. underwear).
for delicate items (e.g. net curtains), mixed
laundry including synthetic fi bres and woollens bearing the label «pure new wool, machine washable, non-shrink».
Before loading the laundry
Never wash whites and coloureds together. Whites may lose
their «whiteness» in the wash.
New coloured items may run in the fi rst wash; they should
therefore be washed separately the fi rst time.
Make sure that no metal objects are left in the laundry (e.g. hair
clips, safety pins, pins). Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub particularly
soiled areas with a special detergent or detergent paste.
Treat curtains with special care. Remove hooks or tie them
up in a bag or net.
Maximum Loads
Recommended loads are indicated in the «Programme
Table».
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than one third full.
Washing a maximum load makes the most effi cient use of
water and energy. For heavily soiled laundry, reduce the load
size.
8
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
man’s underpants 100 g
Removing Stains
Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.
Blood: treat fresh stains with cold water. For dried stains, soak
overnight in water with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine stain remover, lay the
garment on a soft cloth and dab the stain; treat several times.
Dried grease stains: moisten with turpentine, lay the garment
on a soft surface and dab the stain with the fi ngertips and a
cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust removing
product used cold. Be careful with rust stains which are not
recent since the cellulose structure will already have been
damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites and fast
coloureds only).
Grass: soap lightly and treat with bleach (whites and fast
coloureds only).
Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat stains
with methylated spirits. Remove any residual marks from
white fabrics with bleach.
Red wine:
tic or citric acid, then rinse. Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric fi rst with
acetone (*), then with acetic acid; treat any residual marks on
white fabrics with bleach and then rinse thoroughly.
Tar stains: fi rst treat with stain remover, methylated spirits or
benzine, then rub with detergent paste.
(*) do not use acetone on artifi cial silk.
soak in water and detergent, rinse and treat with ace-
Washing Hints, continued
Detergents and Additives
Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and
protect the environment. Although biodegradable, detergents
contain substances which, in large quantities, can upset the
delicate balance of nature.
The choice of detergent will depend on the type of fabric
(delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.
All commonly available washing machine detergents may be
used in this appliance:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics (60°C max) and
woollens,
• liquid detergents, preferably for low temperature wash
programmes (60°C max) for all types of fabric, or special
for woollens only.
The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.
Pour liquid detergent into the dispenser drawer compartment
«Detergent Wash» just before starting the programme.
Any fabric softener must be poured into the compartment
marked («Fabric Softener») before starting the wash
programme. Do not exceed the «MAX» mark in the detergent
dispenser drawer. Overfi lling can cause early dispensing of the
fabric softener which could result in stained clothes.
Do not pour fabric softener directly on the wash load.
The bleaching agent (chlorine) can be used only for white
cotton and linen items. Pour it into the compartment marked
(«Liquid Bleach»). Do not exceed the «MAX» mark in the de-
tergent dispenser drawer. Overfi lling can cause early dispens-
ing of the bleach which could result in damaged clothes.
Do not pour undiluted liquid chlorine bleach directly onto the
load or into the drum. Fabric damage can occur.
Quantity of Detergent to be Used
The type and quantity of detergent will depend on the type of
fabric, load size, degree of soiling and hardness of the water
used. Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam form during washing.
Degrees of Water Hardness
Water hardness is classifi ed in so-called «degrees» of hardness. Information on hardness of the water in your area can
be obtained from the relevant water supply company, or from
your local authority.
Degrees
Level Characteristic
1 soft 0-7 0-15
2 medium 8-14 16-25
3 hard 15-21 26-37
4 very hard >21 >37
German
°dH
French
°T.H.
Before the First Use
WARNING!
Ensure that the electrical and water connections comply with
the installation instructions.
IMPORTANT!
Remove any material from the drum.
IMPORTANT!
We recommend you to run a Cotton/Deep Clean cycle Sanitary,
without any laundry in the appliance, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure
of detergent into the dispenser drawer and start the cycle.
Child Safety Lock
This device permits you to leave the appliance unattended
during its functionning, so avoiding that children might accidentally start the appliance or modify a running programme.
This function remains able also when the appliance is not
working.
To enable (disable) this option simoultaneously press for
about 10 seconds the buttons 4 and 5 until the message
«LOC» is displayed.
There are two different ways to set this option:
• before pressing the button 8:
it will be impossible to start the machine.
• after pressing the button 8:
it will be impossible to change any other programme or
option.
Before setting another programme, it is necessary to disable
this function.
9
Operating Sequence
1. Sort laundry into loads that can be washed together
See «Washing Hints» for more details.
2. Pretreat stains and heavy soil
See «Washing Hints» for more details.
3. Load the washer and close
the door.
Open the door by carefully pulling the door handle
outwards. Place the
laundry in the drum, one
item by one time, shaking them out as much as
possible. Close the door
gently. See «Washing
Hints» for more details.

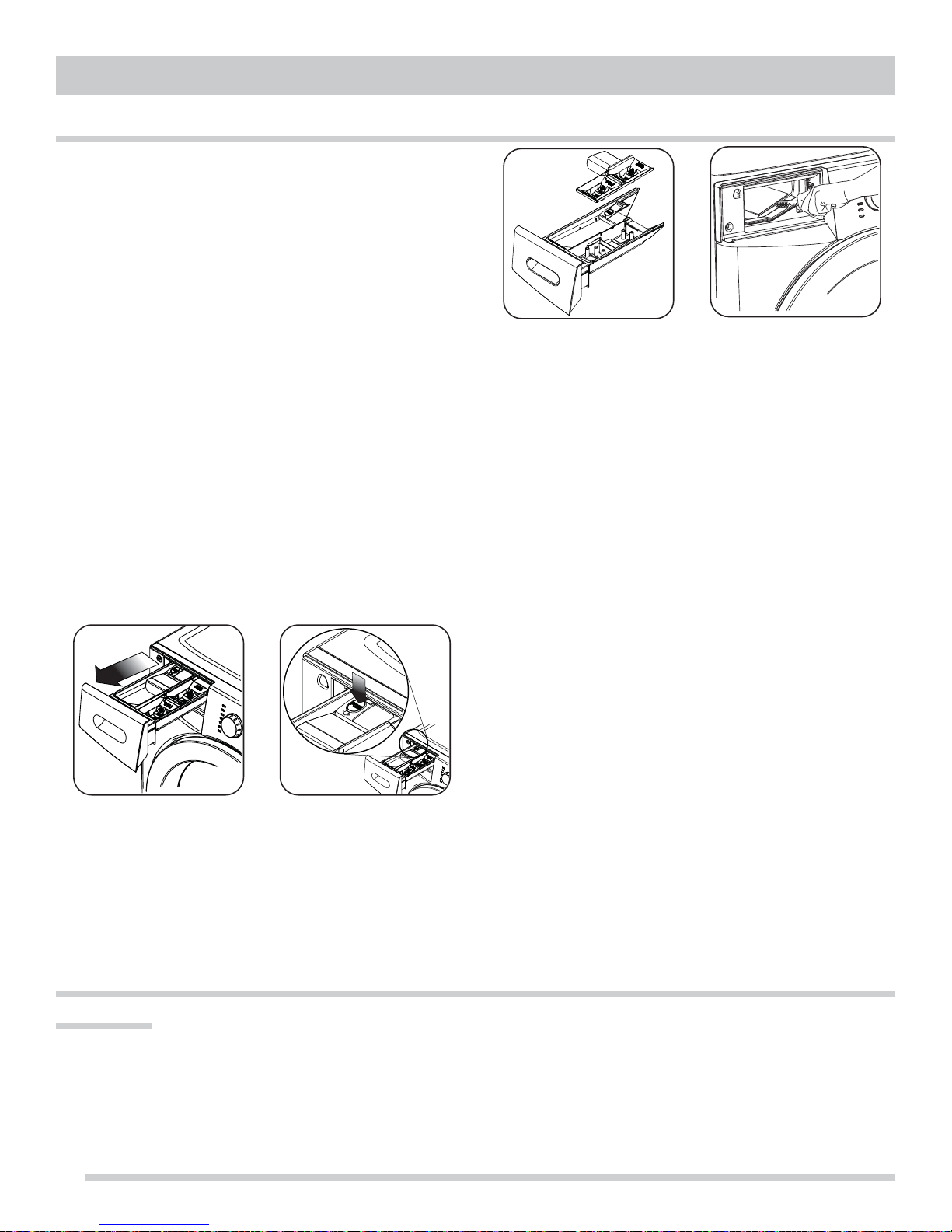

4. Measure out the detergent, and eventually the liquid chlorine
bleach and fabric softener and pour it into the proper dispenser drawer compartment
Figure 2
Figure 1
Pull out the dispenser drawer until it stops. Measure out the
amount of detergent required, pour it into the main wash
compartment «Detergent Wash». Detergent is fl ushed from
the dispenser at the beginning of the cycle. Either powdered or liquid detergent can be used. Note: Liquid detergent will drain into the washer drum as it is added.
Figure 3
Figure 4
5. Select the suitable wash programme by means of the programme selector dial (1)
It can be turned either clockwise or anticlockwise. The
relevant pilot light goes on. The estimated cycle duration
will be displayed. Suitable wash and rinse water temperatures, fi nal spin speed, options and soil level for each
cycle will automatically be displayed. See «Programme
Table» for more details on the compatibility among wash
programmes and different temperatures, spin speed, options and soil levels.
6. If required, change the wash programme settings by pressing
buttons 2, 3, 4 and 6
If the desired temperature, spin speed or soil level is suitable to the selected programme, the relevant pilot light will
light up.
By pressing the button 4, it’s possible to select more than
one of the available options. If the option pilot light starts
blinking, it means that the option is suitable to the programme and then you can press the button 5 to confi rm
your choice. The pilot light will light up.
Note: T
o provide the best care for your laundry, not every
setting or option is available with every programme. If a setting or option is not available, its pilot light will not light up.
IMPORTANT!
Adjustments to the programme will be remembered each
time that a programme is selected in the future. To return
to the factory settings, simoultaneously press the buttons
8 and 5 until an acoustic signal sounds.
7. Select the delayed start by pressing the button 10
Press this button to select the required delay. The selected delay time value will appear on the display for few
seconds, then the duration of the programme will appear
again.
You must select this option after you have set the programme and before you press the button 8.
You can cancel or change the delay time at any moment,
before you press the button 8. If you have already pressed
it, and you wish to cancel or change the delay time, proceed as follows:
• set the appliance to PAUSE by pressing the button 8;
• press the button 10 once until on the display will appear
the symbol «0» or the desired delay.
• press the button 8 again to start the programme.
If required, pour fabric softener into the compartment
marked , and the bleach agent into the compartment
marked ,
«MAX» mark in the drawer). Fill to the minimum fi ll line
(MIN.) for small loads. Fill to the maximum fi ll line (MAX.)
for large loads. Do not exceed the maximum fi ll line. Close
the drawer gently. See «Washing Hints» for more details.
(the amount used must not exceed the
10
IMPORTANT!
• The door will be locked throughout the delay time. If you
need to open the door, you must fi rst set the appliance
to PAUSE by pressing the button 8 and then you can
open the door. After you have closed the door, press
the button 8 again.
Operating Sequence, continued
8. Start the programme by pressing button 8
To start the selected programme, press this button. The
Door Lock pilot light will light up and the actual programme
phase pilot remains lit to indicate that the appliance starts
operating and the door is locked. The appliance will not
operate with the door open. The programme phase lights
will blink, the acoustic signal will beep and «DR» will be
displayed as a reminder to close the door.
9. Altering an option of a running programme
It is possible to change some options before the programme
carries it out. Before you make any change, you must pause
the washing appliance by pressing the button 8.
To carry on the programme, press the button 8 again.
The Signal Volume can be changed at any time.
10. Cancelling or changing a running programme
Press the button 7 to cancel a programme which is
running. The appliance is now switched off. To switch it
on again, just press any button or turn the programme
selector dial. The appliance will show the last selected
programme. Now you can select a new programme. The
washing water in the tub will not empty out. It’s not possible to change a running programme without cancelling it
and then setting a new programme.
11. Interrupting a programme and opening the door after the
programme has started
If you wish to add a forgotten item to the wash drum, fi rst
set the appliance to pause by pressing the button 8. The
message «PAU» is displayed alternately with the estimated
programme time.
If the pilot light
minutes goes off, the door can be opened. If it does not
switch off, this means that the appliance is already heating,
that the water level is above the bottom edge of the door.
In this cases the door cannot be opened. If you cannot
open the door but you need to open it, you have to switch
Door Lock
starts blinking and after some
the appliance off by pressing button 7. In case of water
high level and temperature, you must fi rst empty out the
water and then open the door (please read «At the end of
the programme»). If the appliance is spinning, once you set
it to pause, the door can be opened after some minutes.
After closing the door, it is necessary to select the programme again and to press the button 8.
12. At the end of the programme
The appliance stops automatically. The display and all the
pilot lights go off. The drum lamp lights up and the door
can be opened.
At the end of a programme with Rinse Hold option, the
door is locked to indicate that there is water in the tub.
To empty out the water follow the following instructions:
• turn the programme selector dial to Spin Only programme;
• reduce the spin speed, if needed, by means of the button 2;
• press button 8;
• at the end of programme, the display and all the pilot
lights go off and it will be possible to open the door,
or turn the programme selector dial to Spin Only programme, select the No Spin option and then press button 8: the water is just drained without spinning.
Remove the laundry from the drum and carefully check if
the drum is empty.
If you do not intend to carry out another wash, close the
water tap.
DO NOT leave the door open. An open door could entice
children to hang on the door or crawl inside the drum.
Note
If there are no small children present, leave the door open
to prevent the formation of mildew and unpleasant smells.
Care and Cleaning
Descaling
The water we use normally contains lime. It is a good idea to
periodically use a water softening powder in the appliance.
Do this separately from any laundry washing, and according
to the softening powder manufacturer’s instructions. This will
help to prevent the formation of lime deposits.
Maintenance Wash
With the use of low temperature washes it is possible to get
a build up of residues inside the drum.
We recommend that a maintenance wash be performed on
a regular basis. To run a maintenance wash add a 1/2 cup of
liquid bleach to the detergent compartment of the dispenser
drawer and fi ll the bleach dispenser compartment to the Max
Fill level and run WITHOUT a clothes load selecting the Cot-
ton/Deep Clean programme at Sanitary (90°C).
IMPORTANT!
Before cleaning the appliance interior, unplug the electrical
power cord to avoid electrical shock hazards.
11
Care and Cleaning, continued
For Other Inside Cleaning
• Dry around the appliance door opening, fl exible gasket,
and door glass. These areas should always be clean to
ensure a water tight seal.
• When extremely soiled items have been washed, a dirty
residue may remain on the drum. Remove this by wiping
the drum with a nonabrasive household cleanser. Rinse
thoroughly with water.
• Periodically, wipe dry the folds in the bottom of the fl exible
gasket to remove lint and other debris.
• The plastic drum vanes may become stained from fabric
dye. Clean these parts with a nonabrasive household
cleanser. This prevents dye transfer to future loads.
Cleaning The Dispenser Drawer
The washing powder and additive dispenser drawer should
be cleaned regularly:
• Remove the drawer by pulling the drawer out until it
stops. (Figure 1)
• Reach back into the left rear corner of the drawer cavity
and press down fi rmly on the lock tab (left rear portion of
the drawer). Pull out the drawer. (Figure 2). (Lock tab is
visible only after drawer has been pulled out).
Figure 3
• To clean the drawer opening, use a small brush to clean
the recess. Remove all residue from the upper and lower
parts of the recess. (Figure 4)
• Replace the insert pressing the “X” to lock it in place.
• Return the dispenser drawer.
Figure 4
External Cleaning
Clean the exterior cabinet of the appliance with soap and
water only, and then dry thoroughly.
Cleaning The Water Inlet Filter
If your water is very hard or contains traces of lime deposit,
the water inlet fi lter may become clogged. It is therefore a
good idea to clean it from time to time.
Turn off the water tap. Unscrew the water inlet hose. Clean
the fi lter using a hard bristle brush.
Tighten up the inlet hose.
The dangers of freezing
If the appliance is exposed to temperatures below 0°C, certain precautions should be taken.
• Pull out the plug from the power socket;
• Turn off the water tap.
Figure 1
• Remove the insert from the bleach and fabric softener
compartments. (Figure 3)
• Rinse the drawer and inserts with hot tap water to remove traces of accumulated powders and liquids. Large
amounts of fabric softener residue may indicate improper
dilution or more frequent cleaning is required.
Figure 2
• Unscrew the inlet hose.
• Place the end of the inlet hose in a bowl placed on the
fl oor and let water drain out.
• Screw the water inlet hose back on again.
• When you intend to start the appliance up again, make
sure that the room temperature is above 0°C.
What to do if...
IMPORTANT!
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
During appliance operation it is possible that few acoustic signals sound to indicate that the appliance is not working.
Once the problem has been eliminated, press the button 8 to restart the programme. If after all checks, the problem persists,
contact your local Service Centre.
12
What to do if..., continued
Malfunction Possible Cause / Solution
The appliance does not start:
The appliance does not fi ll:
The appliance fi lls then empties immediately:
The appliance does not empty and/or does not
spin:
There is water on the fl oor:
Unsatisfactory washing results:
The door will not open:
The appliance vibrates or is noisy:
The door has not been closed. (Message «DR»)
• Close fi rmly the door.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
• Replace the fuse.
The button 8 has not been pressed.
• Press the button 8.
The CHILD SAFETY LOCK has been activated.
• Deactivate this device.
The button 11 has been selected.
• If the laundry are to be washed immediately, cancel the delay start.
The water tap is closed.
• Open the water taps.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The door is not properly closed. (Message «DR»)
• Close fi rmly the door.
The end of the drain hose is too low.
• Refer to relevant paragraph in «water drainage» section.
The drain hose is squashed or kinked.
• Check the drain hose connection.
The option Rinse Hold or No Spin programme has been selected.
• Select the Spin Only programme.
• Select the Spin Only programme and the No Spin option together (drain action).
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Too much detergent or unsuitable detergent (creates too much foam) has been used.
• Reduce the detergent quantity or use another one.
Check whether there are any leaks from one of the inlet hose fi ttings. It is not always
easy to see this as the water runs down the hose; check to see if it is damp.
• Check the water inlet hose connection.
The inlet hose is damaged.
• Change it with new one.
Too little detergent or unsuitable detergent has been used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to washing.
• Use commercial products to treat the stubborn stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Introduce into the drum less laundry.
The programme is still running.
• Wait the end of the wash cycle.
The door lock has not been released.
• Wait until the pilot light Door Lock has gone out.
There is water in the drum.
• Select the spinning programme to empty out the water.
The transit bolts and packing have not been removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted.
• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry manually.
Maybe there is very little laundry in the drum.
• Load more laundry.
13
What to do if..., continued
Malfunction Possible Cause / Solution
Spinning starts late or the appliance does not spin:
No water is visible in the drum:
The drum light doesn’t work:
The message «PF» is displayed:
If you are unable to identify or solve the problem, contact our service centre.
Before telephoning, make a note of the model, serial number and purchase date of your appliance: the Service Centre will
require this information.
The electronic unbalance detection device has cut in because the laundry is not evenly
distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This
may happen several times before the unbalance disappears and normal spinning can
resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the
appliance will not spin. In this case, redistribute the load manually and select the spin
programme.
• Redistribute the laundry.
Appliances based on modern technology operate very economically using very little
water without affecting performance.
Please contact your local Service Centre.
A power supply break has probably occurred.
• Restart the appliance by pressing the button 8.
Technical data
Electrical connection
Water supply pressure
Maximum Load Cotton 10 kg
Information on the electrical connection is given on the rating plate on the inner side of the appliance door
Minimum
Maximum
0,05 MPa
0,8 MPa
Spin Speed Maximum 1100 rpm
Consumption values
Only cold water loading
Programme Water consumption
(in litres)
Cotton/Deep Clean Sanitary 98 3.8
Cotton/Deep Clean 60°C 90 2.2
Cotton/Deep Clean 60° + Eco (*) 89 1.9
Cotton/Deep Clean 40°C 90 1.2
Synthetics 60°C 75 1.6
Synthetics 40°C 67 0.85
Delicates 40°C 75 0.8
Wool 40°C 75 0.7
Information: The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the
quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
(*) The «Cotton/Deep Clean 60°+ Eco» with a load of 10 kg is the reference programme for the data entered in the energy label.
Energy consumption
(in kWh)
Programme
duration
on the control panel
please refer to the display
For the duration of the programmes,
14

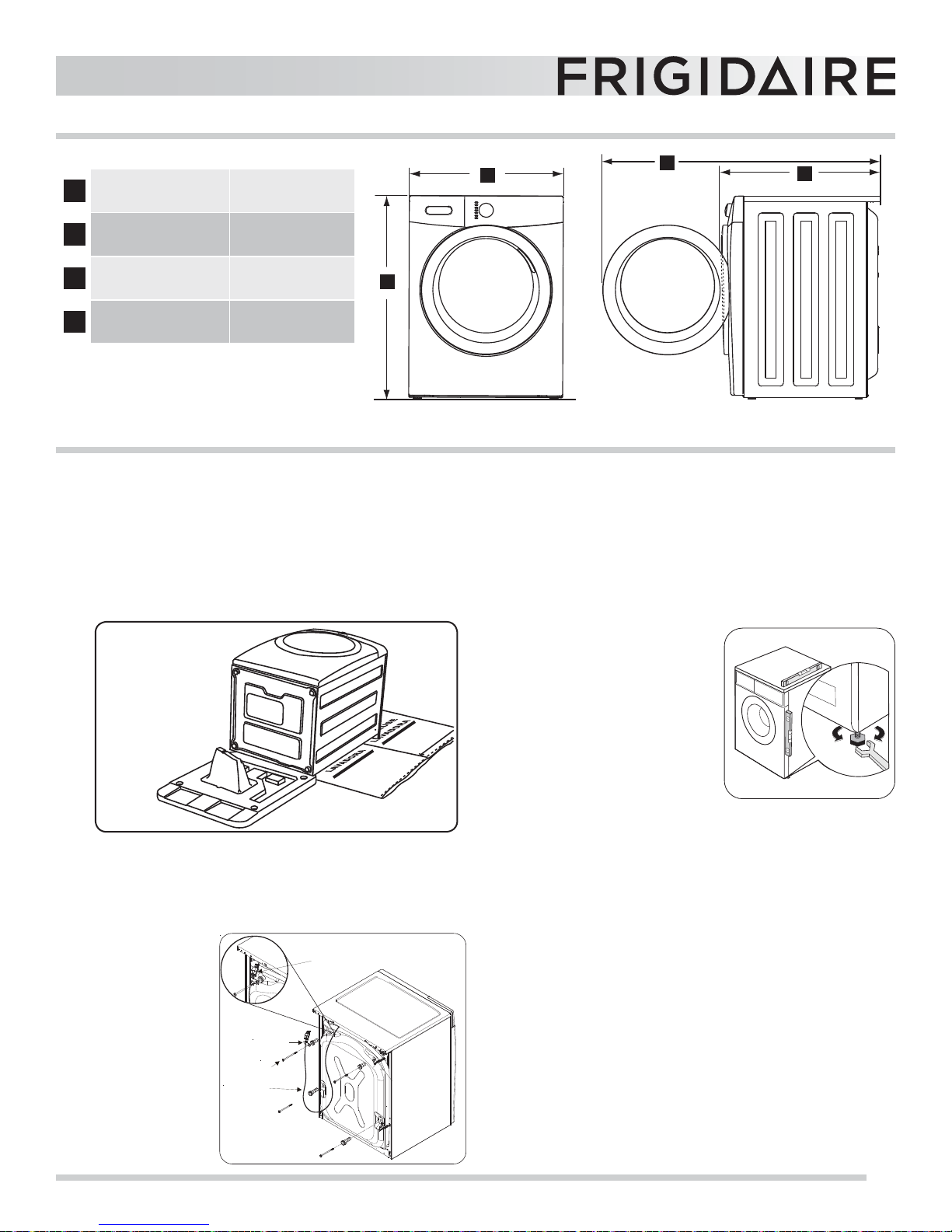

Dimensions
4 shipping
bolts,
4 spacers
Remove:
POWER CORD
3 plastic"P"
clamps
1
washer width
2
washer height
washer depth with
3
loading door open
washer depth with
4
loading door closed
68.5 cm (27”)
91.5 cm (36”)
124.5 cm (49”)
71 cm (28”)
2
Installation Instruction
Unpacking
All transit bolts and packing must be removed before using
the appliance. You are advised to keep all transit devices
so that they can be refi tted if the appliance ever has to be
transported again.
1. After removing all the packaging, carefully lay the appliance
on its back. Use a rug, blanket or piece of cardboard to
protect the fl oor.
2. Remove the polystyrene base from the bottom and the
shipping plug.
3. Carefully return the appliance to an upright position.
4. With a suitable spanner unscrew and remove the following
from the rear of the appliance:
• 4 shipping bolts
• 4 spacers
• 3 plastic “P” clamps
1
3
4
5. Remove the power supply cable, the draining hose and the
inlet hose from the hose clips on the rear of the appliance.
6. Remove the 4 plugs from the literature pack located in the
drum and install them in the holes vacated by the packaging spacers.
Positioning
Install the appliance on a fl at hard fl oor. Make sure that air
circulation around the appliance is not impeded by carpets,
rugs etc. Check that the appliance does not touch the wall
or other kitchen units. Level the
appliance by raising or lowering
the feet. The feet may be tight to
adjust as they incorporate a self
locking nut, but the appliance
MUST be level and stable. Any
necessary adjustment can be
made with a spanner.
Accurate levelling prevents vibration, noise and displacement
of the appliance during operation. Never place cardboard,
wood or similar materials under the appliance to compensate
for any unevenness in the fl oor.
If necessary, check the setting with a spirit level. Improper
installation could cause an increase of vibration and noise,
especially during spinning phases.
15

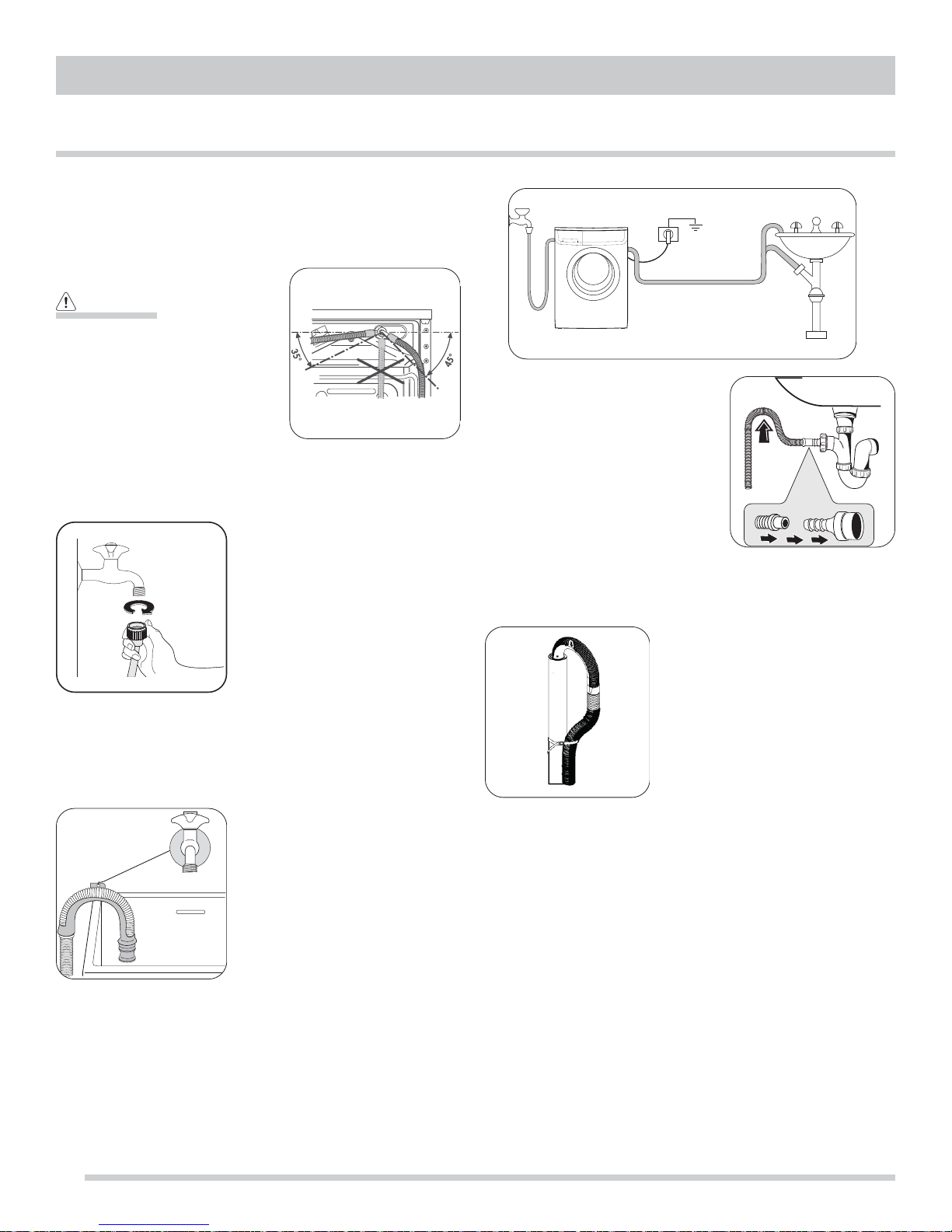

Installation
Water inlet
Do not use the hose from your previous appliance to connect to
the water supply.
WARNING!
Do not place the inlet hose downwards. Angle the hose to the left
or right depending on the position
of your water tap.
1. Set the hose correctly by loosening the ring nut. After
positioning the inlet hose, be sure to tighten the ring nut
again to prevent water leaks.
2. Connect the hose to a tap with
a 3/4” thread. Always use the
hose supplied with the appliance. The inlet hose must
not be lengthened. If it is too
short and you do not wish to
move the tap, you will have to
purchase a new, longer hose
specially designed for this type
of use.
Water drainage
The end of the drain hose can be positioned in three ways:
In a sink drain pipe branch. This
branch must be above the trap
so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less than 60 cm
and not more than 90 cm. The end of the drain hose must
always be ventilated, i.e. the inside
diameter of the drain pipe must be
larger than the outside diameter of
the drain hose.
The drain hose must not be kinked.
Hooked over the edge of a sink using the plastic hose guide supplied
with the appliance. In this case,
make sure the end cannot come
unhooked when the machine is
emptying. This could be done by
tying it to the tap with a piece of
string or attaching it to the wall.
16
Environmental concerns
Packaging materials
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them
properly in appropriate collection containers.
Old appliance
Use authorised disposal sites for your old appliance. Help to
keep your country tidy!
The symbol
that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by in
appropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council, your household waste disposal service or
the shop where you purchased the product.
on the product or on its packaging indicates
Ecological tips
To save water, energy and to help protect the environment,
we recommend that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the
environment is protected too!).
• The appliance works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soiling
can be removed; the laundry can then be washed at a
lower temperature.
• Measure out detergent according to the water hardness,
the degree of soiling and the quantity of laundry being
washed.
17
Notes
18
Loading...
