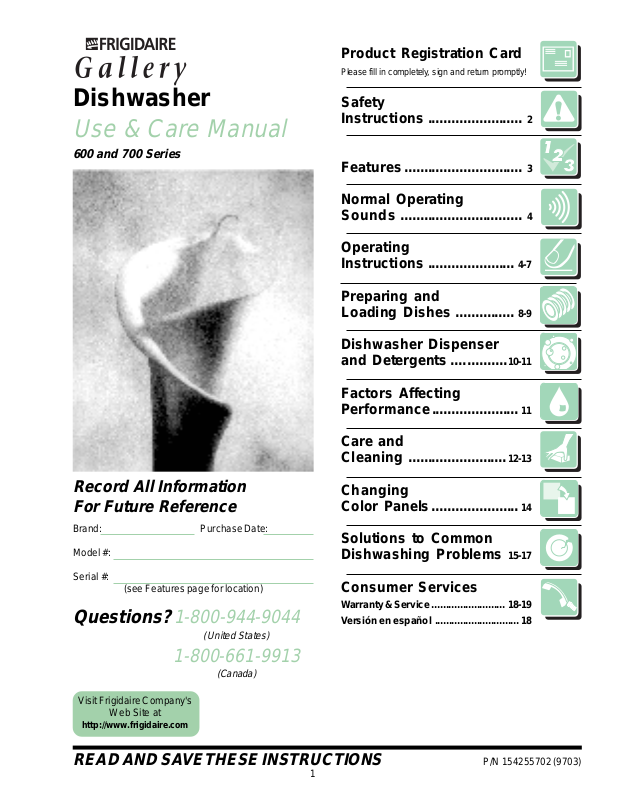

Product Registration Card

Please fill in completely, sign and return promptly!

Dishwasher

Use & Care Manual

600 and 700 Series

Safety

Instructions ........................ 2

Features.............................. 3

Normal Operating

Sounds ............................... 4

Operating

Instructions ...................... 4-7

Preparing and

Loading Dishes ............... 8-9

Dishwasher Dispenser

and Detergents ..............10-11

Factors Affecting

Performance...................... 11

Record All Information For Future Reference

Brand: Purchase Date: Model #: Serial #:

(see Features page for location)

Questions?1-800-944-9044

(United States)

1-800-661-9913

(Canada)

Visit Frigidaire Company's

Web Site at

http://www.frigidaire.com

Care and

Cleaning ......................... 12-13

Changing

Color Panels ...................... 14

Solutions to Common Dishwashing Problems 15-17

Consumer Services

Warranty & Service.......................... 18-19

Versión en español .............................. 1 8

READ AND SA VE THESE INSTR UCTIONS

P/N 154255702 (9703)

Important Safety Instructions

• Use only detergents and rinse agents recommended for use in a dishwasher.

This symbol will help alert you to such dangers as personal injury , b urns, fire and electrical shock.

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow basic precautions including the following:

• Read all instructions before using your dishwasher.

• Use your dishwasher only as instructed in this Use and Care Manual.

• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.

• DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instructions for details.

• This dishwasher is designed to operate on regular house current (120 V, 60 Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker . Use a 20 ampere fuse if dishwasher is connected with a food waste disposer.

• Do not operate dishwasher unless all enclosure panels are in their proper place.

• Dispose of discarded appliance and shipping or packing material properly .

• To a void entrapment and/or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.

• Keep young children and infants away from dishwasher when it is operating.

• Store dishwasher detergent and rinse agents out of the reach of children.

• Do not wash plastic items unless marked "dishwasher safe" or the equivalent. Check with manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire hazard.

• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher .

• Disconnect electrical power to dishwasher before servicing.

• Repairs should be done by a qualified technician.

• Do not tamper with controls.

• Do not touch the heating element during or immediately after use.

• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. HYDROGEN GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.

• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• Do not let children abuse, sit, stand or play on door or racks of a dishw asher.

SA VE THESE

INSTRUCTIONS

Printed in U.S.A.

Dishwasher Features

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spra y arms. Soil particles go down the drain as the water is pumped out and replaced with clean w ater. The number of water fills will vary with the cycle being used.

Tub Gasket

page 12

Middle Spray Arm

pages 8,9,15

Lower Spray Arm

pages 9,15

Overfill Protector

page 12

Prewash Detergent Cup

page 10

Detergent Dispenser

page 10

Funnel

pages 8,15

Nozzle and Upper Spray

Top Rack

page 8

Serial Label

(located on right side of tub)

Bottom Rack

page 9

Glass Trap

page 12

Self-Cleaning Filter

page 12

Heating Element

page 12

Rinse Aid Dispenser

page 11

Vent

pages 4,5, 6,7,16

Operating Instructions

Vent

Latch

V ery Important Information—Read Before

Operating Your Dishwasher!

Normal Operating Sounds

This dishwasher does not sound like most dishwashers—IT'S QUIETER.

The new Precision Wash System™ uses energy efficient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may–or may not–hear the drain motor .

The next sound you will hear is the splashing water as it enters the tub . Then the lower arm rotates and circulates water . This is followed by a pause and a slightly different sound as the middle arm sprays water . If you listen closely, you will hear the change in sound as the wash action switches from one arm to the other.

Model FDB636

Getting Started

1. Load dishwasher (See Preparing and Loading Dishes).

2. Add detergent (See Dishwasher Dispenser & Detergents).

3. Add rinse aid, if needed (See Rinse Aid).

4. Turn dial clockwise to select cycle (See Wash Cycle Selections) or number of hours for delay start.

5. Select desired energy OPTIONS (See Energy Options). The indicator will show red when selected.

6. If using DELAY START, go to step number 8.

7. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

8. To start, close door to latch.

W ash Cycle Selections

Note: Cycle times are approximate and will

vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the timer will be delayed for automatic water heating in the main wash of all cycles. This happens even though HI-TEMP WASH ON option has not been selected. When HI-TEMP WASH ON is selected, an even higher temperature will be quaranteed to

handle heavier soil loads.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear!

Pots & Pans

(81 minutes) (2 washes, 4 rinses, dry) (7.2 gallons) (6.0 imp. gallons) (27.3 liters) For pots, pans, casseroles and dinnerware with dried-on or baked-on soils:

• Turn dial to POTS & PANS/HEAVY WASH.

• Select HI-TEMP WASH ON option.

• Select other desired OPTIONS.

Operating Instructions (continued)

Heavy Wash

(81 minutes) (2 washes, 4 rinses, dry) (7.2 gallons) (6.0 imp. gallons) (27.3 liters) For heavily soiled dishes and silverware:

• Turn dial to POTS & PANS/HEAVY WASH.

• Select desired OPTIONS.

Normal Wash

(75 minutes) (2 washes, 3 rinses, dry) (6.0 gallons) (5.0 imp. gallons) (22.7 liters) For regularly soiled dishes and silverware:

• Turn dial to NORMAL WASH.

• Select desired OPTIONS.

Short Wash

(67 minutes) (1 wash, 3 rinses, dry) (4.8 gallons) (4.0 imp. gallons) (18.2 liters) For lightly soiled or pre-rinsed dishes and silverware:

• Turn dial to SHORT WASH.

• Select desired OPTIONS.

Rinse/Hold

(4 minutes) (1 rinse) (1.2 gallons) (1.0 imp. gallons) (4.5 liters) For rinsing dishes that will be washed later:

• DO NOT USE detergent.

• Turn dial to RINSE/HOLD.

Delay Start

Allows you to delay starting the POTS & PANS cycle up to 6 hours.

• Turn dial to select number of hours .

• Select HI-TEMP WASH ON option and other desired options.

• Close door to latch. The DELAY START light will come on.

Energy Options

Hi-Temp Wash Option

When HI-TEMP WASH ON option is selected, the dishwasher heats water in main wash to approximately 140°F (60°C). Wash action will continue but timer will not advance until proper temperature is reached. The hotter w ater provided by this option helps activate dishwasher detergent to clean food grease and soil from dishes. HI-TEMP WASH ON option

can be used with any cycle except RINSE/ HOLD.

To turn off option, select HI-TEMP W ASH OFF.

Hi-Temp Rinse Option

When HI-TEMP RINSE ON option is selected, the dishwasher heats water in final rinse to approximately 140°F (60°C). This will speed drying and reduce spotting. HI-TEMP RINSE ON option can be used with any cycle except RINSE/HOLD.

To turn off option, select HI-TEMP RINSE OFF.

Heat Dry Option

HEAT DRY ON option provides faster drying since the heating element is on during the drying portion of cycle .

HEAT DRY OFF option saves electricity since the heating element is off during drying portion of cycle. With either option, a fan circulates air inside the dishwasher to speed drying. You may wish to open the door slightly after the cycle is complete since some water droplets may remain on door and tub and in areas where dishes touch silverware basket and rack.

You may see water vapor coming from vent during drying portion of cycle. The vent is closed during washing to hold moisture and sound inside and then opens for drying.

The drying option may be changed at any time during the cycle and affects only the drying period.

Status Indicator Lights

When DELAY START option is selected, the Delay Start light will glow as timer counts down to begin cycle.

The HEATING DELAY light means the cycle is being extended to heat water to proper temperature in the main wash or final rinse, based on options selected.

CLEAN light comes on when a cycle is complete. To turn it off, turn dial slightly until light goes off.

Operating Instructions (continued)

Vent

Latch

Please Read Normal Operating Sounds on page 4!

Getting Started

1. Load dishwasher (See Preparing and Loading Dishes).

2. Add detergent (See Dishwasher Dispenser & Detergents).

3. Add rinse aid, if needed (See Rinse Aid).

4. Close door to latch.

5. Turn Selector Knob to cycle desired. (See Wash Cycle Selections).

6. Press desired OPTIONS pads. (See Options Selections).

7. If using DELAY START, go to step number 9.

8. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

9. To start, press START/CANCEL pad.

W ash Cycle Selections

Note: Cycle times are approximate and will

vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the timer will be delayed for automatic water heating in the main wash of all cycles. This happens even though HI-TEMP WASH option has not been selected. When HITEMP WASH is selected, an even higher temperature will be guaranteed to handle

heavier soil loads.

Model FDB736

Pots & Pans

(115 minutes) (2 washes, 5 rinses, dry) (8.4 gallons) (7.0 imp. gallons) (31.8 liters) For pots, pans, casseroles and dinnerware with dried-on or baked-on soils:

• Turn Selector Knob to PO TS & PANS.

• Press HI-TEMP WASH and other desired OPTIONS pads.

Normal Wash

(95 minutes) (2 washes, 3 rinses, dry) (6.0 gallons) (5.0 imp. gallons) (22.7 liters) For regularly soiled dishes and silverware:

• Turn Selector Knob to NORMAL WASH.

• Press desired OPTIONS pad.

Short Wash

(78 minutes) (1 wash, 3 rinses, dry) (4.8 gallons) (4.0 imp. gallons) (18.2 liters) For lightly soiled or pre-rinsed dishes and silverware:

• Turn Selector Knob to SHORT W ASH.

• Press desired OPTIONS pad.

Rinse & Hold

(18 minutes) (2 rinses) (2.4 gallons) (2.0 imp. gallons) (9.1 liters) For rinsing dishes that will be washed later:

• DO NOT USE detergent.

• Turn Selector Knob to RINSE & HOLD.

• Press NO HEAT DRY pad.

To Cancel a Cycle

You can cancel a cycle anytime during the cycle. Press START/CANCEL pad and the dishwasher will start a 90 second drain. At the end of the drain, select the desired cycle.
