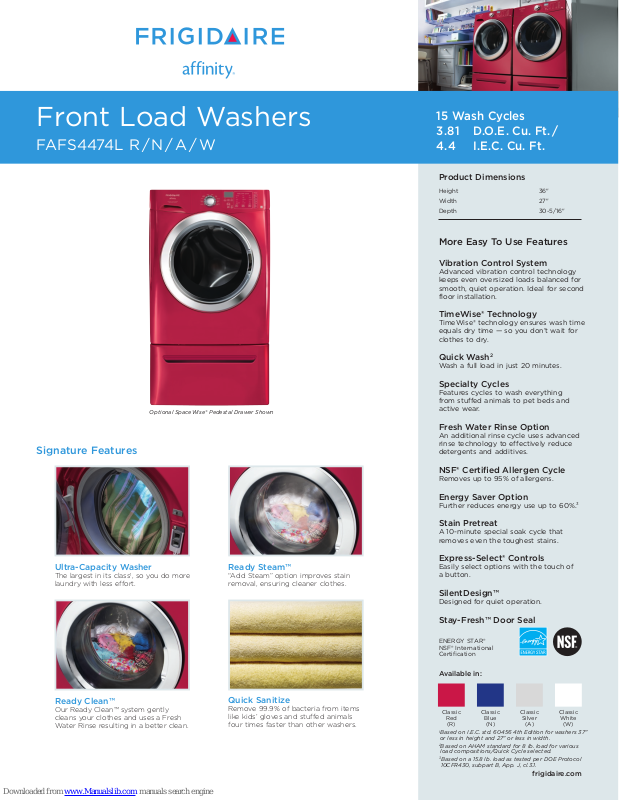

Front Load Washers
FAFS4474L R / N / A / W
Optional SpaceWise® Pedestal Drawer Shown
Signature Features
15 Wash Cycles
3.8 1 D.O.E. Cu. Ft. /
4.4 I.E.C. Cu. Ft.
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Vibration Control System
Advanced vibration control technology
keeps even oversized loads balanced for
smooth, quiet operation. Ideal for second
floor installation.
TimeWise® Technology
TimeWise® technology ensures wash time
equals dry time — so you don’t wait for
clothes to dry.
Quick Wash
Wash a full load in just 20 minutes.
Specialty Cycles
Features cycles to wash everything
from stuffed animals to pet beds and
active wear.
Fresh Water Rinse Option
An additional rinse cycle uses advanced
rinse technology to effectively reduce
detergents and additives.
2
Ultra-Capacity Washer
The largest in its class1, so you do more
laundry with less effort.
Ready Clean™
Our Ready Clean™ system gently
cleans your clothes and uses a Fresh
Water Rinse resulting in a better clean.
Ready Steam™
“Add Steam” option improves stain
removal, ensuring cleaner clothes.
Quick Sanitize
Remove 99.9% of bacteria from items
like kids’ gloves and stuffed animals
four times faster than other washers.
NSF® Certified Allergen Cycle
Removes up to 95% of allergens.
Energy Saver Option
Further reduces energy use up to 60%.
3
Stain Pretreat
A 10-minute special soak cycle that
removes even the toughest stains.
Express-Select® Controls
Easily select options with the touch of
a button.
SilentDesign™
Designed for quiet operation.
Stay-Fresh™ Door Seal
ENERGY STAR®
NSF® International
Certification
Available in:
Classic
Red
(R)
1
Based on I.E.C. std. 60456 4th Edition for washers 37"
or less in height and 27" or less in width.
2
Based on AHAM standard for 8 lb. load for various
load compositions/Quick Cycle selected.
3
Based on a 15.8 lb. load as tested per DOE Protocol
10CFR430, subpart B, App. J, cl.3.1.
Classic
Blue
(N)
Classic
Silver
(A)
frigidaire.com
Classic
White
(W)
B
C
A
B
A
C
Features
Total Capacity D.O.E. / I.E.C. (Cu. Ft.)
Controls
Washer Drum Interior
Interior Light / Door Trim
Vibration Control System
Wash System
Advanced Rinse Technology
TimeWise® Technology
Ready Clean™ / Ready Steam™
Fresh Water Rinse Option
Stay-Fresh™ Door Seal
Automatic Temperature Control
Automatic Water Level Adjustments
Auto Prewash Detergent Dispenser
Auto Bleach Dispenser
Auto Detergent Dispenser
Auto Fabric Softener Dispenser
Time Remaining Indicator
Cycle Status Lights
Cycle Signal / Cycle Signal “On/O ”
Cycle Signal Volume Control
Door Lock Indicator Light
Control Lock / Stay-Put Door
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Integral Water Heater
Tumble Speed (RPM)
Spin Speed (Maximum RPM)
Sound Package
Adjustable Leveling Legs
3.81 / 4.4
Express-Select®
Stainless Steel
Yes, LED / Chrome
Yes
Tumble Action
Yes
Yes
Yes / Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Chime / Yes
Yes
Yes
Yes / Yes
Yes
Yes
1 to 20 Hours
Yes, 1000 Watts
33 / 47
1300
SilentDesign™
Yes
Cycles
Wash Cycles / Specialty Cycles
15 / 6
Options
Water Temperature Selections
Water Levels
Spin Speed / Soil Level Selections
Allergen
5
Automatic / Max Fill
5 / 5
Yes
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Blue (N)
Classic Silver (A)
Classic Black (B)
Classic White (W)
Mobile Home Installation Kit
Drain Hose Extension Kit
Certifications
ENERGY STAR®
NSF® Certified Sanitize / Allergen
PN # STACKIT4X
(R) PN # CFPWD15R
(N) PN # CFPWD15N
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # 137098000
Yes
Yes / Yes
Specifications
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Watts @ 120 Volts / Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
Right Top Rear
Left Top Rear
120V / 60Hz / 15A
1
1.4
1,000 / 8
20
222 Lbs.
Front Load Washers
FAFS4474L R / N / A / W 3.81 D.O.E. Cu. Ft. / 4.4 I.E.C. Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FAFS4474L 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Front Load Laundry - Washer
Frigidaire Affinity (All L Models excluding FAFW4221L)
Front Load Washers
FAFS4474L R / N / A / W 3.81 D.O.E. Cu. Ft. / 4.4 I.E.C. Cu. Ft.
Front Load Washer Specifications
•
Product Shipping Weight (approx.) – 222 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70) and
local codes & ordinances. (Do not use same circuit as dryer.)
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Amps @ 120 Volts = 8 Amps
•
Equipped with 120V 3-wire power supply cord, approx. 60" long.
•
Always consult local and national electric & plumbing codes.
•
To maximize detergent effectiveness, ambient temperature should
never be below 60° F.
•
Can be installed alone, with or without optional 15" Drawer Pedestal,
or stacked below matching Frigidaire® Affinity Dryer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
•
Can be built in with matching Frigidaire® Affinity Dryer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•
Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•
Do NOT install in area exposed to dripping water or outdoor
weather conditions, or where gasoline or other flammables, including
automobiles, are kept or stored.
•
Floor MUST be solid with 1" maximum slope. To minimize vibration or
movement, reinforcement of floor may be necessary. Do NOT install
on carpeted surface.
•
Leveling legs supplied to level washer properly and reduce excessive
noise and vibration.
•
H/C water faucets MUST be installed within 42" of washer’s water
inlet and MUST be 3/4" to connect to 43" inlet hoses.
•
Water pressure MUST be between 30 and 120 psi with NOT more
than 10 psi pressure difference between hot and cold.
•
Drain required with standpipe diameter of 1-1/4" min. and height of
24" min. / 96" max. above floor, capable of eliminating 17 gallons per
minute. Attached 52" drain hose can reach 74"-high standpipe. For
higher standpipe, optional Drain Hose Extension Kit available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Dryer Stacking Kit – (PN # STACKIT4X).
•
15" Classic Red Drawer Pedestal – (PN # CFPWD15R).
•
15" Classic Blue Drawer Pedestal – (PN # CFPWD15N).
•
15" Classic Silver Drawer Pedestal – (PN # CFPWD15A).
•
15" Classic White Drawer Pedestal – (PN # CFPWD15W).
•
Mobile Home Installation Kit – (PN # 137067200).
•
Drain Hose Extension Kit – (PN # 137098000).
•
USA
10200 David Taylor Drive
•
CANADA
FAFS4474L 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
