Frigidaire AEQ6000ES, AEQ6000E Factory Parts Catalog
Product No. AEQ6000ES0
Series Frigidaire
Market North America
Color white
Volts 240

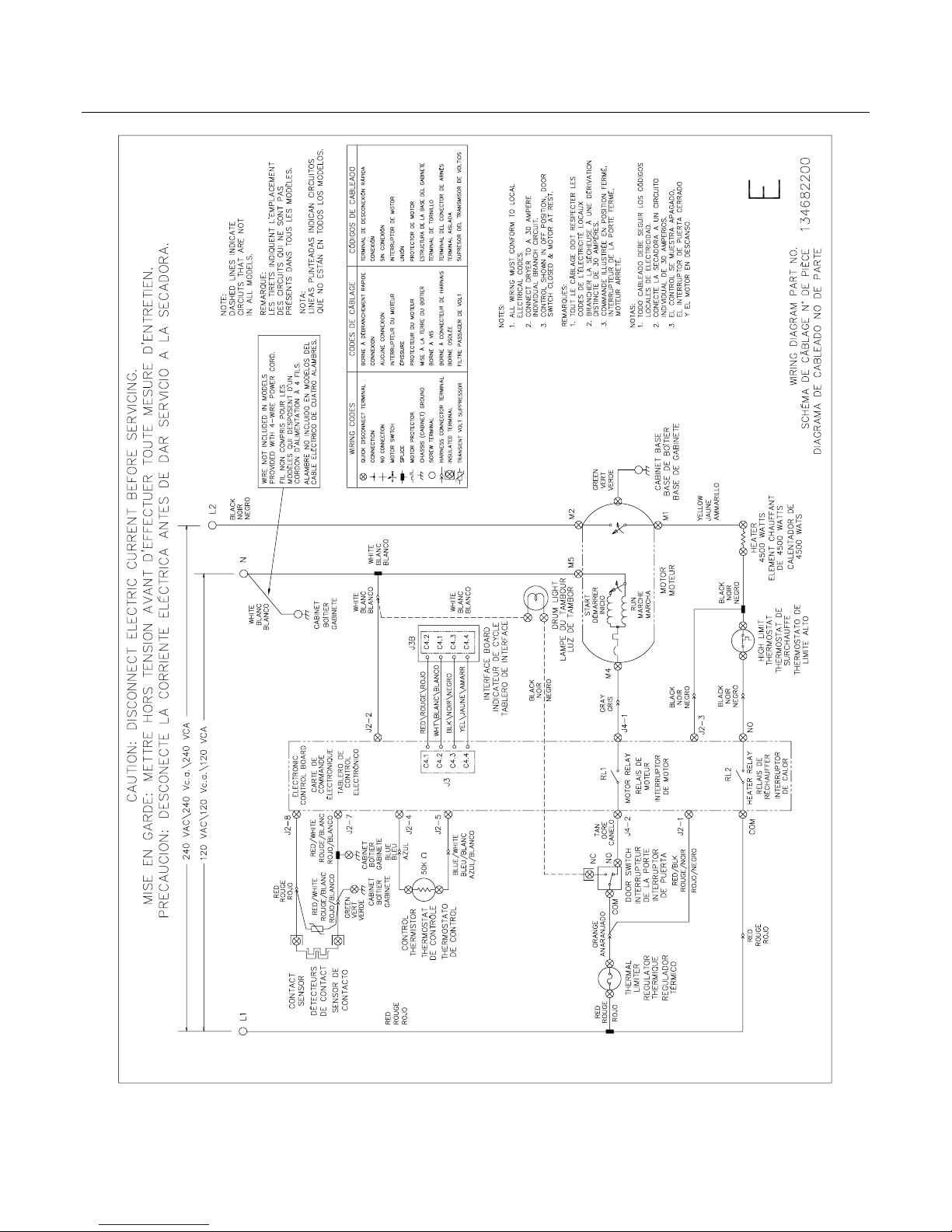

Wiring Diagram 134682200
Owner's Guide 134609100
Installation Instructions 134721800
Operating Instructions 134609300

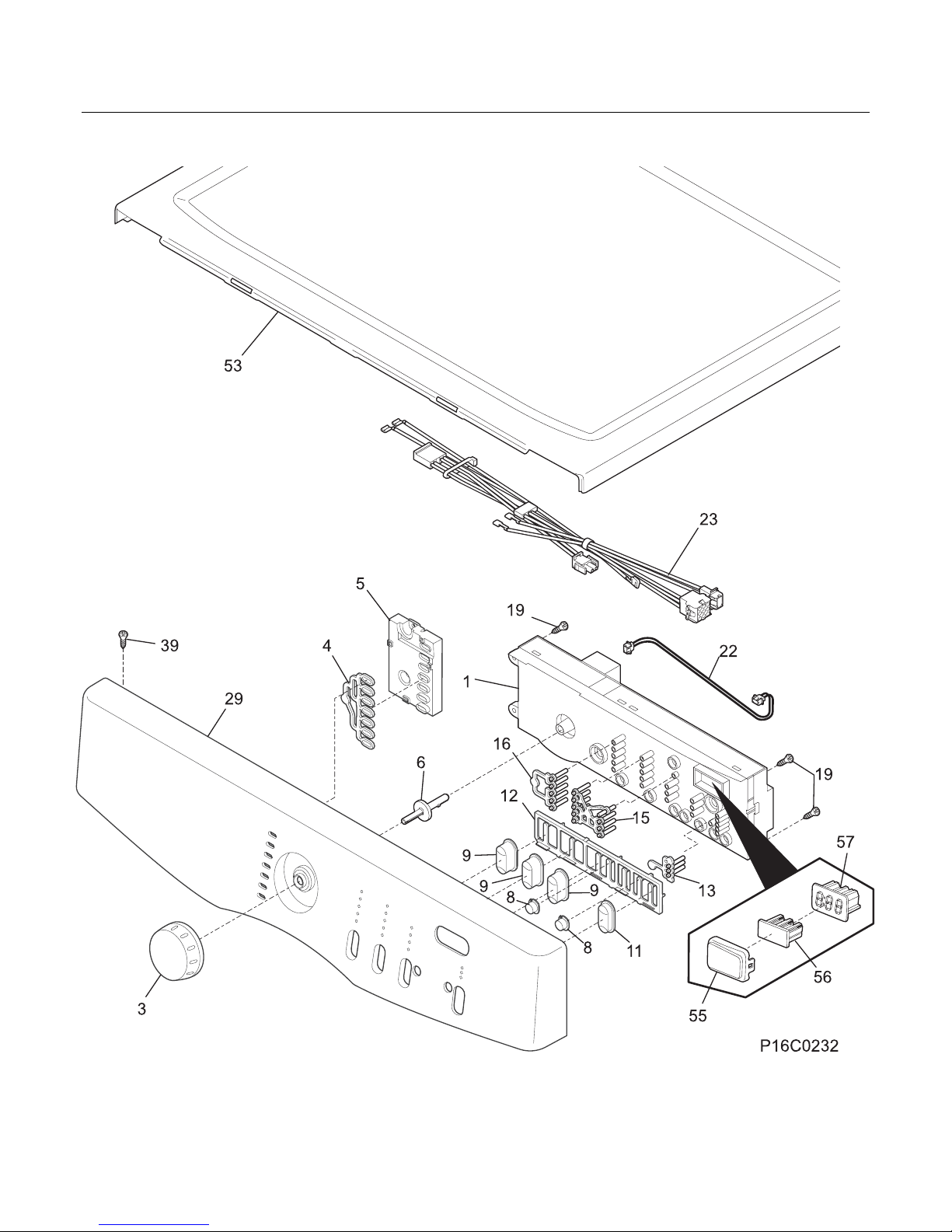

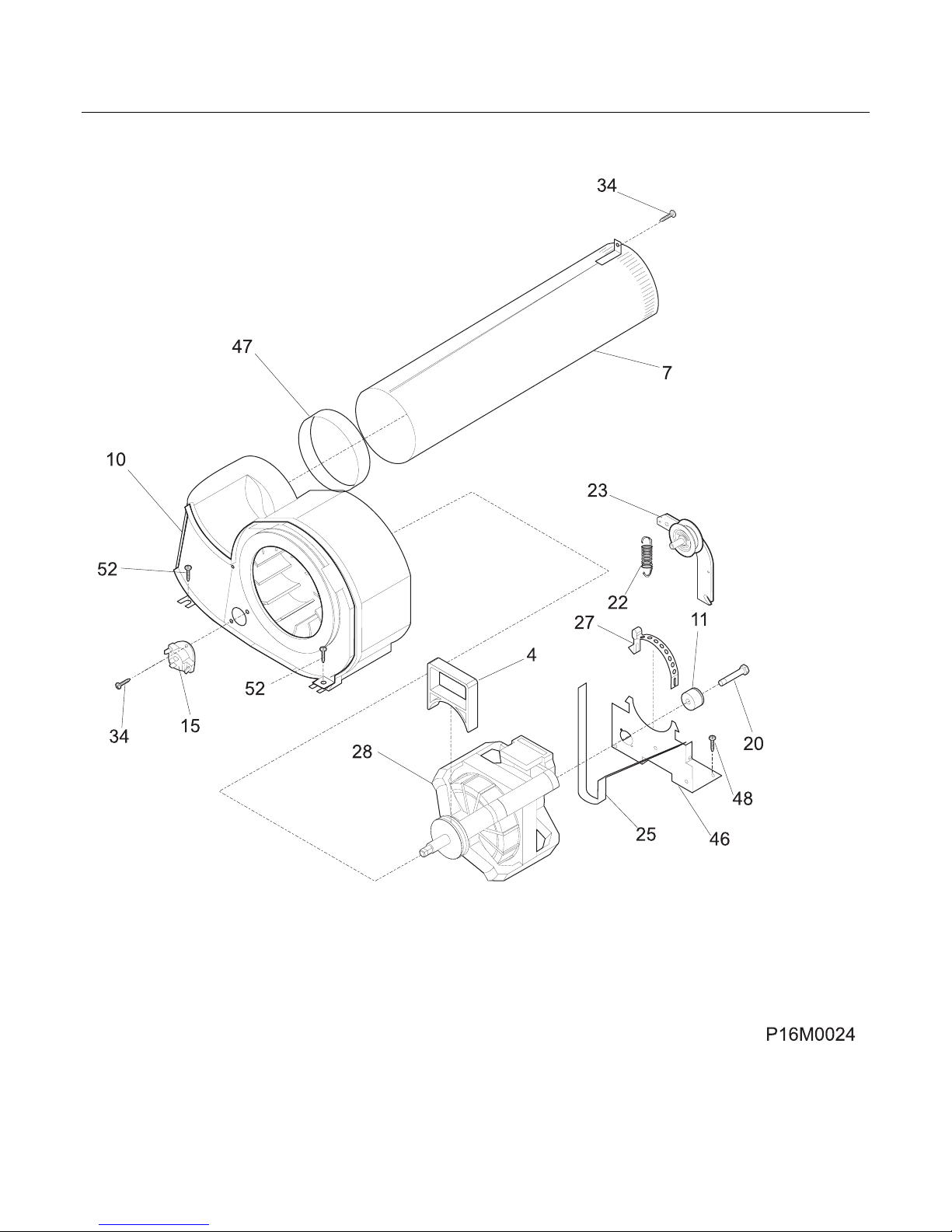

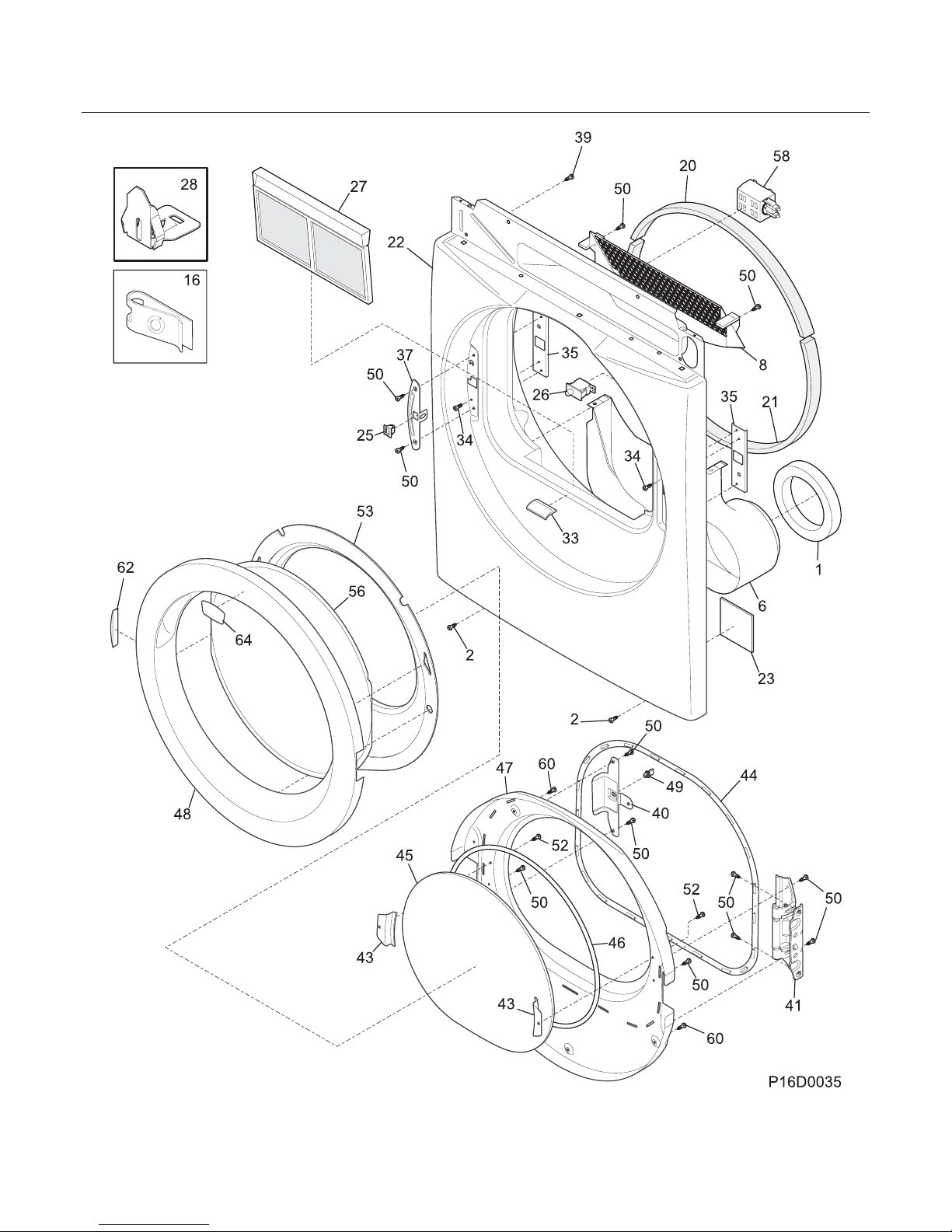

P16L0043.eps P16V0078.eps P16d0035.eps P16C0232.eps P16M0024.eps
134682200e.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995460481
06/02/08
(EN/SERVICE/KC)
361
ELECTRIC DRYER
Model No.
AEQ6000E
Copyright © 2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995460481 AEQ6000ES0
CABINET/DRUM
25
32
29
13
6
11
25
12
36
35
4
5
2
14
52
2
2
34
2
20
7
15
42
17
34
13
9
30
18
18
32
12
34
34
24
33
64
21
24
44
52A
51
P16V0078
02/06 2
AEQ6000ES0 Publication No: 5995460481
CABINET/DRUM
POS. NO PART NO. DESCRIPTION
2 131168200 Screw, pan head, 8-18B x 0.31
4 131785200 Bracket, elec power cord, knock out
5 5303281019 Ball, grounding
6 5303281020 Clip, ball, steel, flat nut
7 134121200 Rack, drying
9 131793200 Panel, service access, rear
11 5303211428 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131553900 Heater Assy, w/housin g/felt
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
20 134166500 Bracket, top panel mtg., rear
21 134122592 Drum, dryer, stnls stl back, painted wrap, service kit
24 131963900 Glide, drum
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
32 131777700 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 3204267 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134344900 Leveling Leg, screw
51 131472100 Insulator, heater housing
52 # 134101400 Terminal Block, main
* # 134394200 Wiring Harness, main
52A# 3202786 Terminal Block, heater housing
64 134360100 Bracket, svce panel mtg.
* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32
* 134608000 Stacking Kit, dryer/washer
# Functional Parts
3 02/06
* Non-Illustrated Parts
