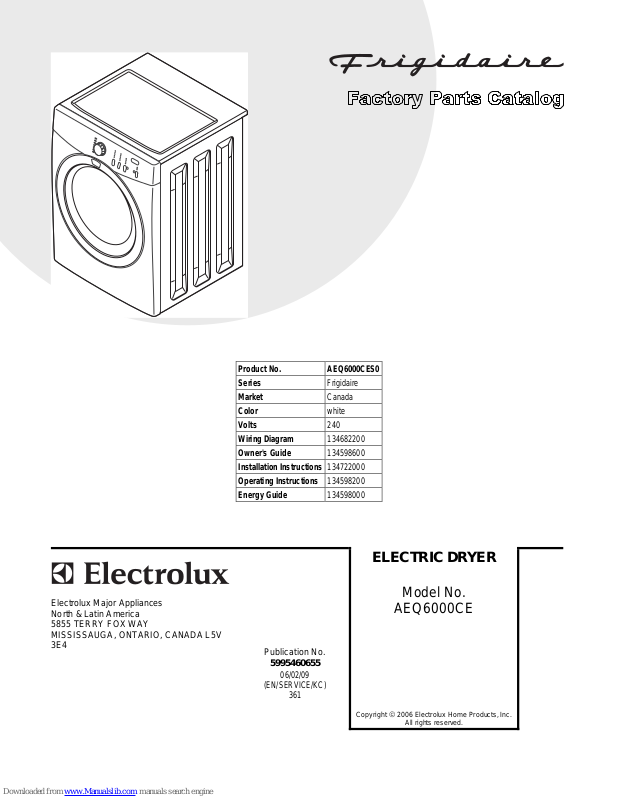

Frigidaire AEQ6000CE Factory Parts Catalog

Product No. AEQ6000CES0
Series Frigidaire
Market Canada
Color white
Volts 240

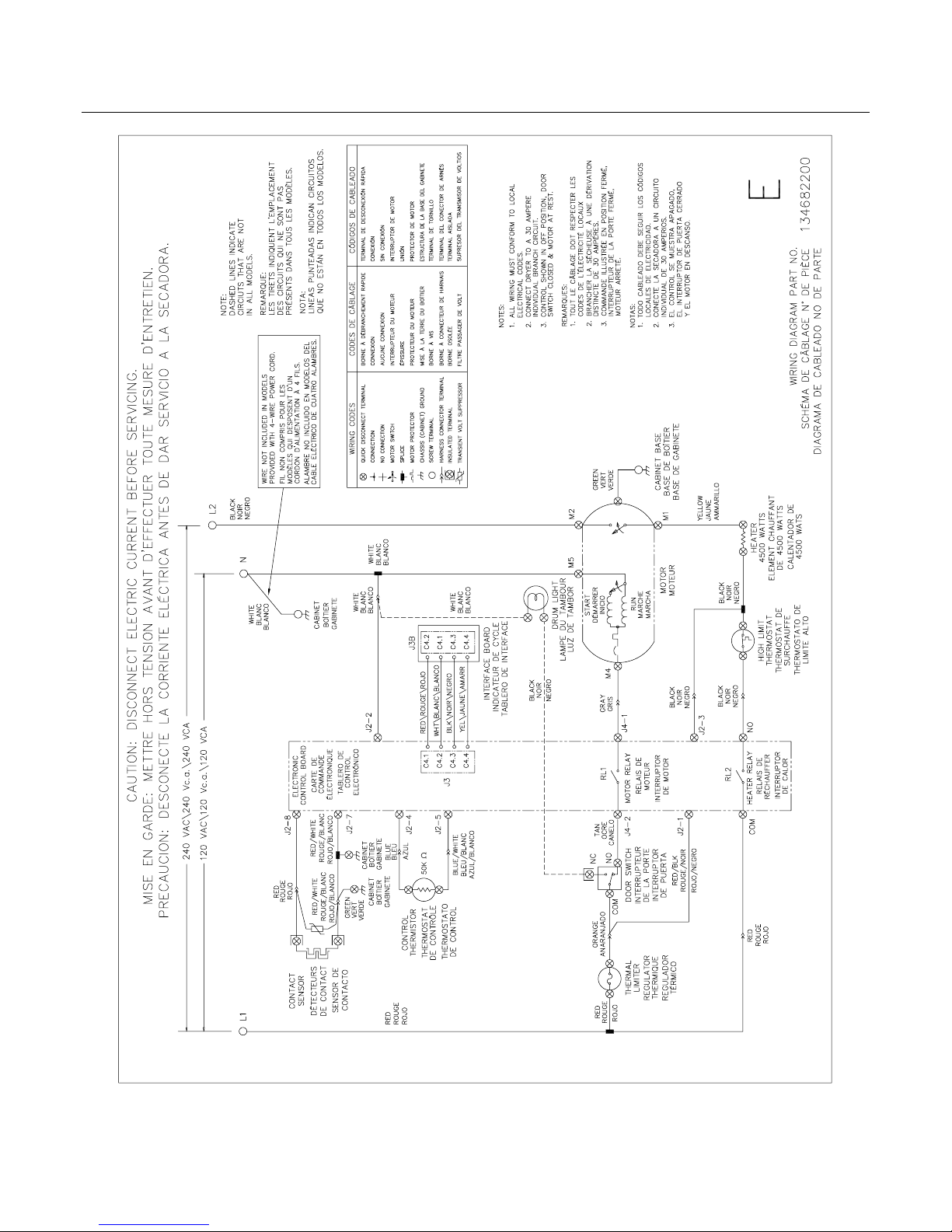

Wiring Diagram 134682200
Owner's Guide 134598600
Installation Instructions 134722000
Operating Instructions 134598200
Energy Guide 134598000

P16L0043.eps P16V0081.eps P16d0035.eps P16C0232.eps P16M0024.eps
134682200e.eps

Electrolux Major Appliances
North & Latin America
5855 TERRY FOX WAY
MISSISSAUGA, ONTARIO, CANADA L5V
3E4

Publication No.

5995460655

06/02/09

(EN/SERVICE/KC)

361

ELECTRIC DRYER

Model No.

AEQ6000CE

Copyright © 2006 Electrolux Home Products, Inc.

All rights reserved.

Publication No: 5995460655 AEQ6000CES0

CABINET/DRUM

25

32

29

13

6

11

25

12

36

35

4

5

2

14

52

2

2

31

34

2

20

7

15

42

17

34

13

9

30

18

18

32

12

34

34

24

33

64

21

24

44

52A

51

P16V0081

02/06 2

AEQ6000CES0 Publication No: 5995460655

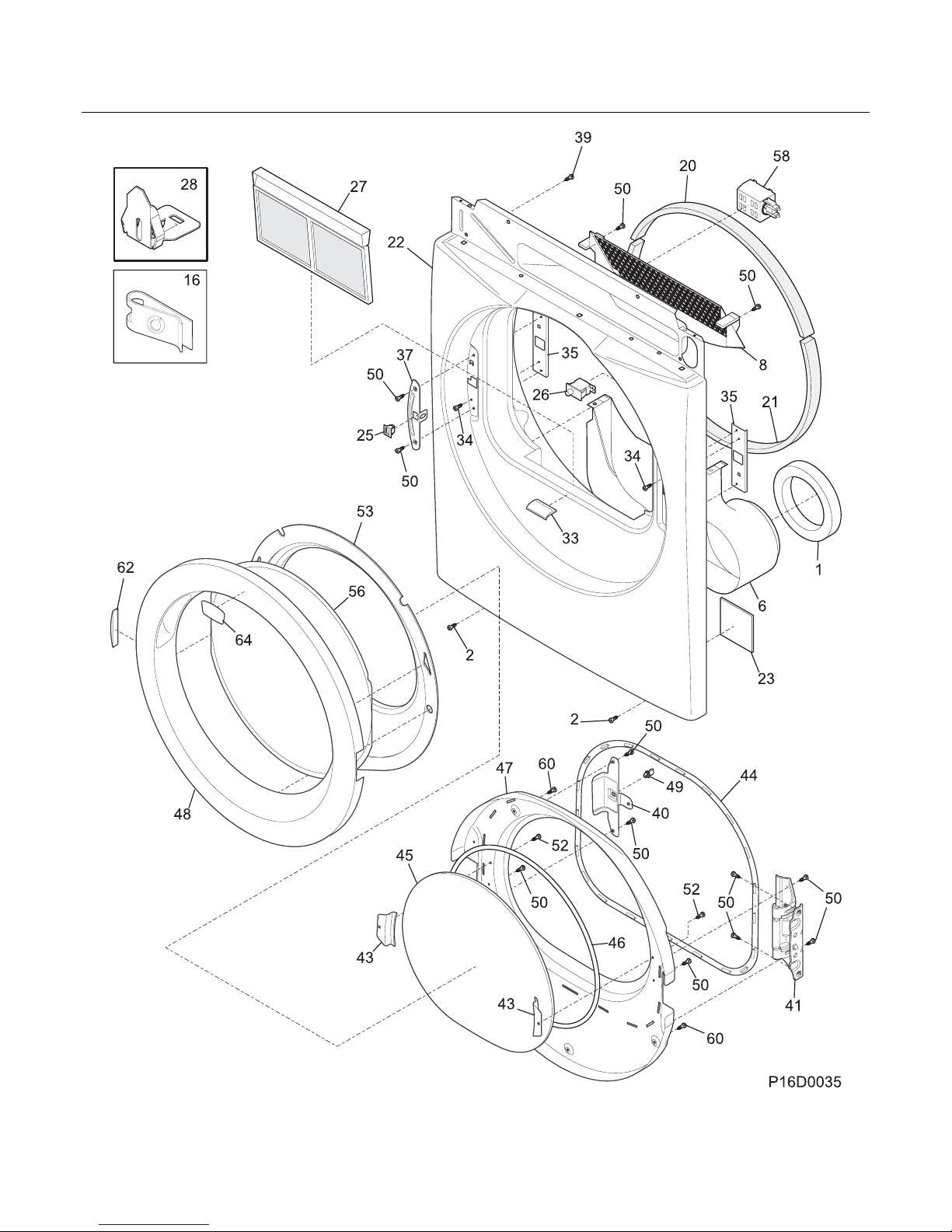

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31
4 131785200 Bracket, elec power cord, knock out
5 5303281019 Ball, grounding
6 5303281020 Clip, ball, steel, flat nut
7 134121200 Rack, drying
9 131793200 Panel, service access, rear
11 5303211428 Cover, terminal block
12 131825900 Bearing, drum support
13 131724300 Bracket, bearing support
14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # 131553900 Heater Assy, w/housin g/felt
17 3204254 Baffle, heater shield
18 131477000 Screw, 10-16AB x 0.375
20 134166500 Bracket, top panel mtg., rear
21 134122592 Drum, dryer, stnls stl back, painted wrap, service kit
24 131963900 Glide, drum
25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point
29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special
30 5303201200 Vane, straight
31 # 134502300 Power Cord, electric svce, 4-wire Canada
* 5303297892 Clamp, strain relief, power cord
32 131777700 Shaft, drum support, ballhitch
32* 5303307893 Lubricant, high temp
33 # 3204267 Thermostat, safety
34 131243700 Screw, pan head, 8-18AB x 0.375
35 131892100 Screw, 6-20B x 0.230
36 # 134120900 Thermal Limiter
42 134154100 Screw, hex washer head, 10-32 x 0.375, ground
44 134344900 Leveling Leg, screw
51 131472 10 0 Insulat or, hea ter housing
52 # 134101400 Terminal Block, main
* # 134394200 Wiring Harness, main
52A# 3202786 Terminal Block, heater housing
64 134360100 Bracket, svce panel mtg.

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32
* 134608000 Stacking Kit, dryer/washer

# Functional Parts

3 02/06

* Non-Illustrated Parts
