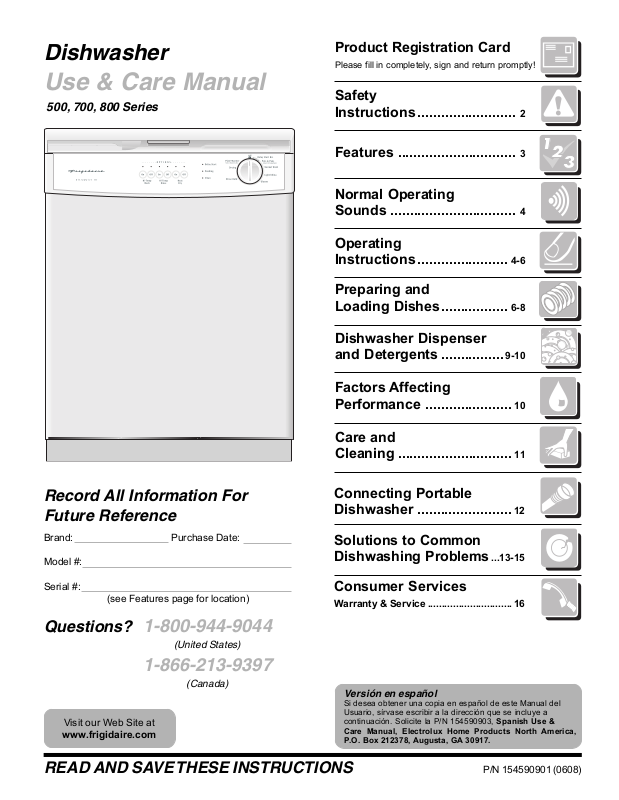

Frigidaire 800 User Manual

Dishwasher

Use & Care Manual

500, 700, 800 Series

Product Registration Card

Please fill in completely, sign and return promptly!

Safety

Instructions .........................

Features .............................. 3

Normal Operating

Sounds ................................ 4

Operating

Instructions .......................

4-6

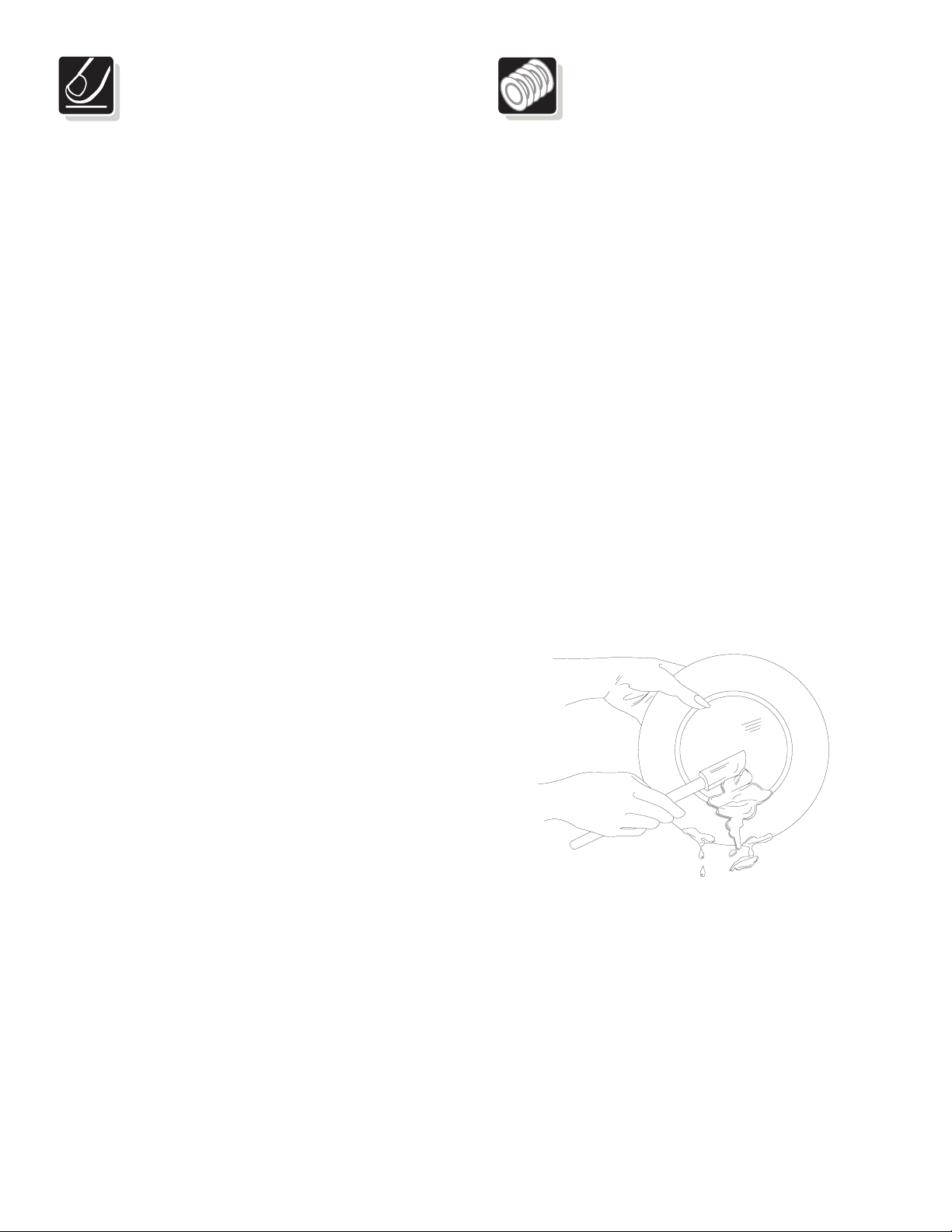

Preparing and

Loading Dishes................. 6-8

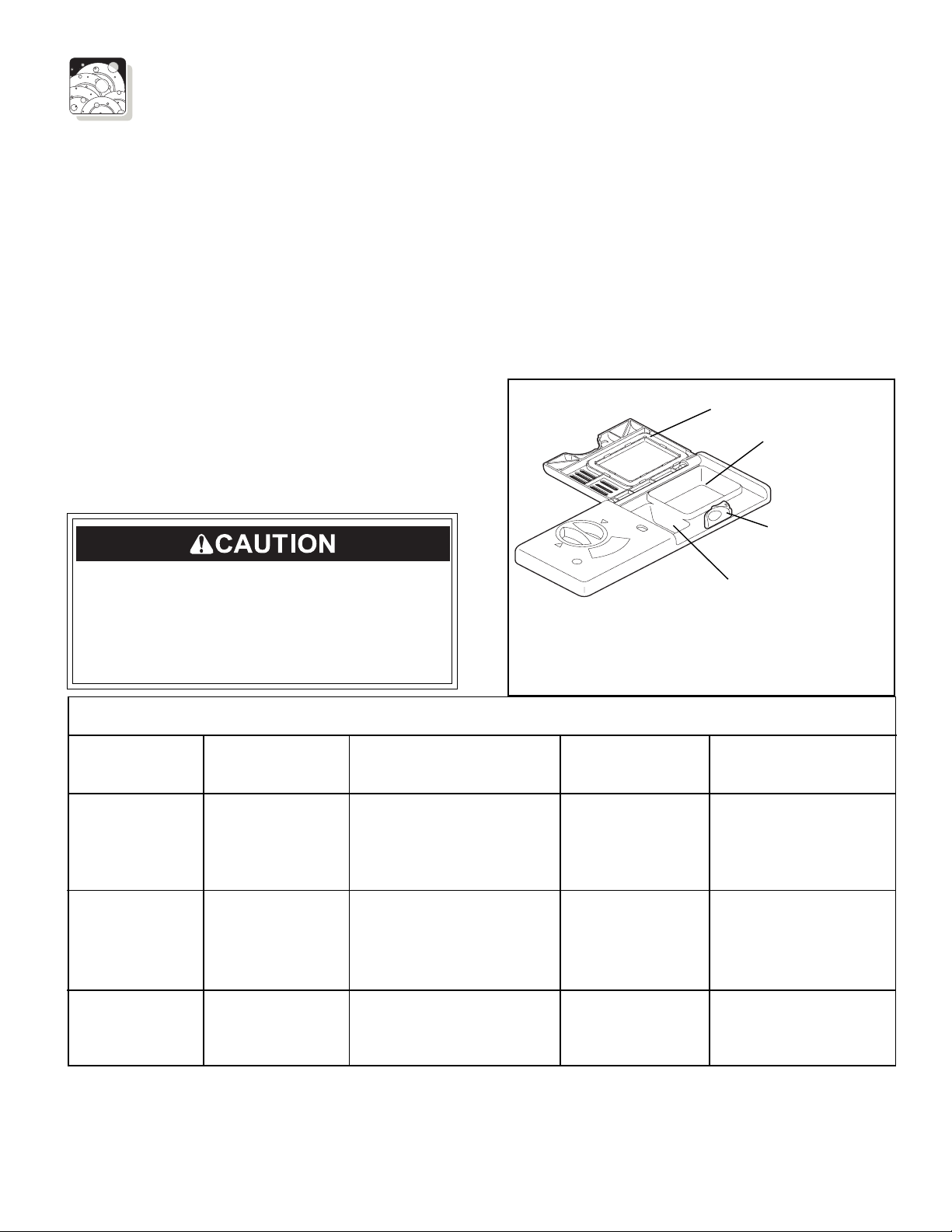

Dishwasher Dispenser

and Detergents ................

9-10

Record All Information For Future Reference

Brand: Purchase Date:

Model #:

Serial #:

(see Features page for location)

Questions? 1-800-944-9044

(United States)

1-866-213-9397

(Canada)

Visit our Web Site at

www.frigidaire.com

Factors Affecting

Performance ...................... 10

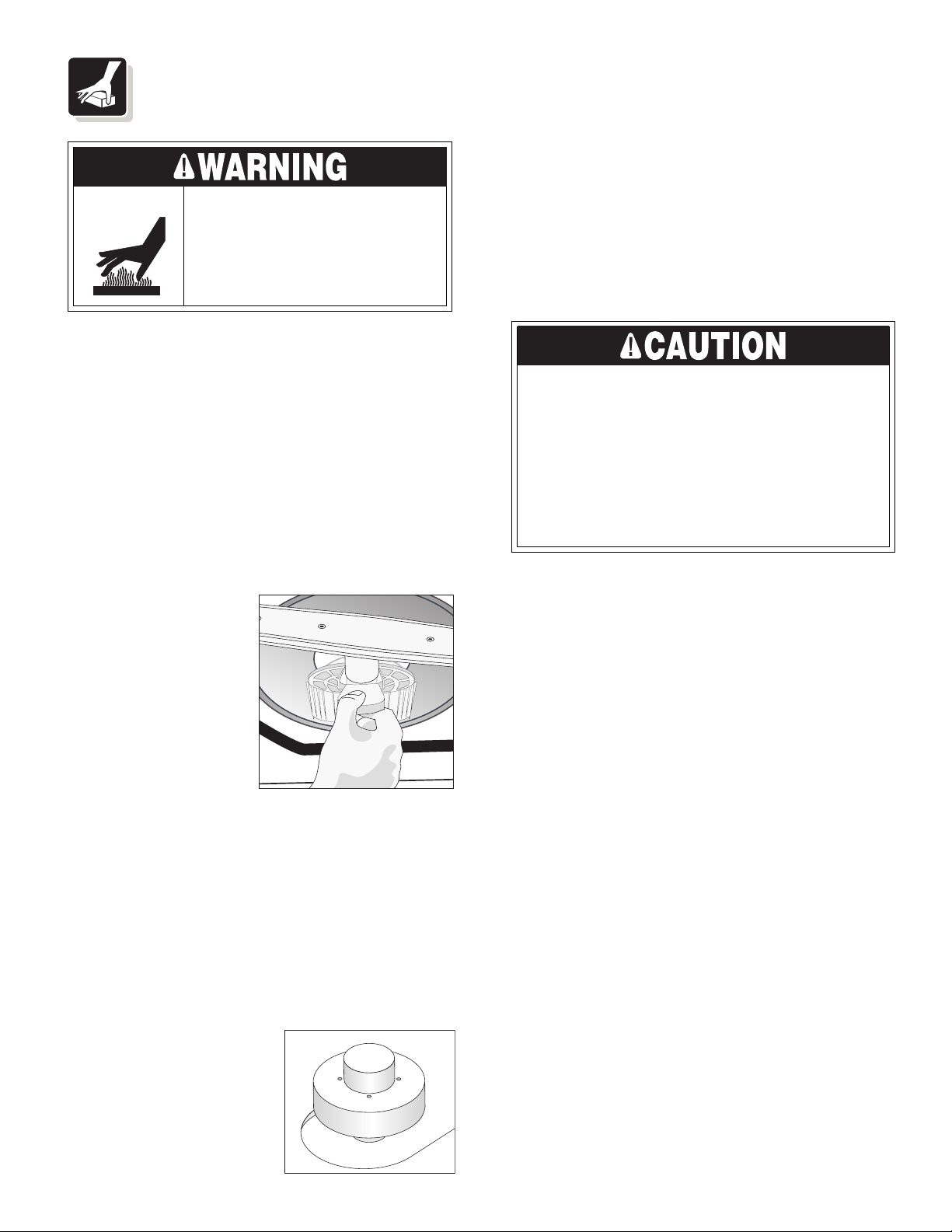

Care and

Cleaning ............................. 11

Connecting Portable

Dishwasher ........................ 12

Solutions to Common Dishwashing Problems ...13-15

Consumer Services

Warranty & Service .............................. 16

Versión en español

Si desea obtener una copia en español de este Manual del Usuario, sírvase escribir a la dirección que se incluye a continuación. Solicite la P/N 154590903, Spanish Use &

Care Manual, Electrolux Home Products North America, P.O. Box 212378, Augusta, GA 30917.

READ AND SAVE THESE INSTRUCTIONS

P/N 154590901 (0608)

Important Safety Instructions

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow basic precautions including the following:

• Read all instructions before using your dishwasher.

• Use your dishwasher only as instructed in this Use and Care Manual.

• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.

• DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instructions for details.

• This dishwasher is designed to operate on regular house current (120 V, 60 Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food waste disposer.

• Do not operate dishwasher unless all enclosure panels are in their proper place.

• To avoid entrapment and/or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.

• Keep young children and infants away from dishwasher when it is operating.

• Do not let children abuse, sit, stand or play on door or racks of a dishwasher.

• Use only detergents and rinse agents recommended for use in a dishwasher.

• Store dishwasher detergent and rinse agents out of the reach of children.

• Do not wash plastic items unless marked “dishwasher safe” or the equivalent. Check with manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire hazard.

• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

• Disconnect electrical power to dishwasher before servicing.

• Repairs should be done by a qualified technician.

• Do not tamper with controls.

• Do not touch the heating element during or immediately after use.

• When loading items to be washed:

- Locate sharp items and knives so that

they are not likely to damage the door seal or tub.

- Load sharp items and knives with the

handles up to reduce the risk of cut-type injuries.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. HYDROGEN GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.

• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

SAVE THESE

INSTRUCTIONS

Printed in U.S.A.

Dishwasher Features

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.

Tub Gasket

page 11

Middle Spray Arm

pages 7,13

Lower Spray Arm

pages 8,13

Overfill Protector

page 11

Prewash Detergent Cup

page 9

Detergent Dispenser

page 9

Funnel

pages 7,13

Nozzle and Upper Spray

(some models)

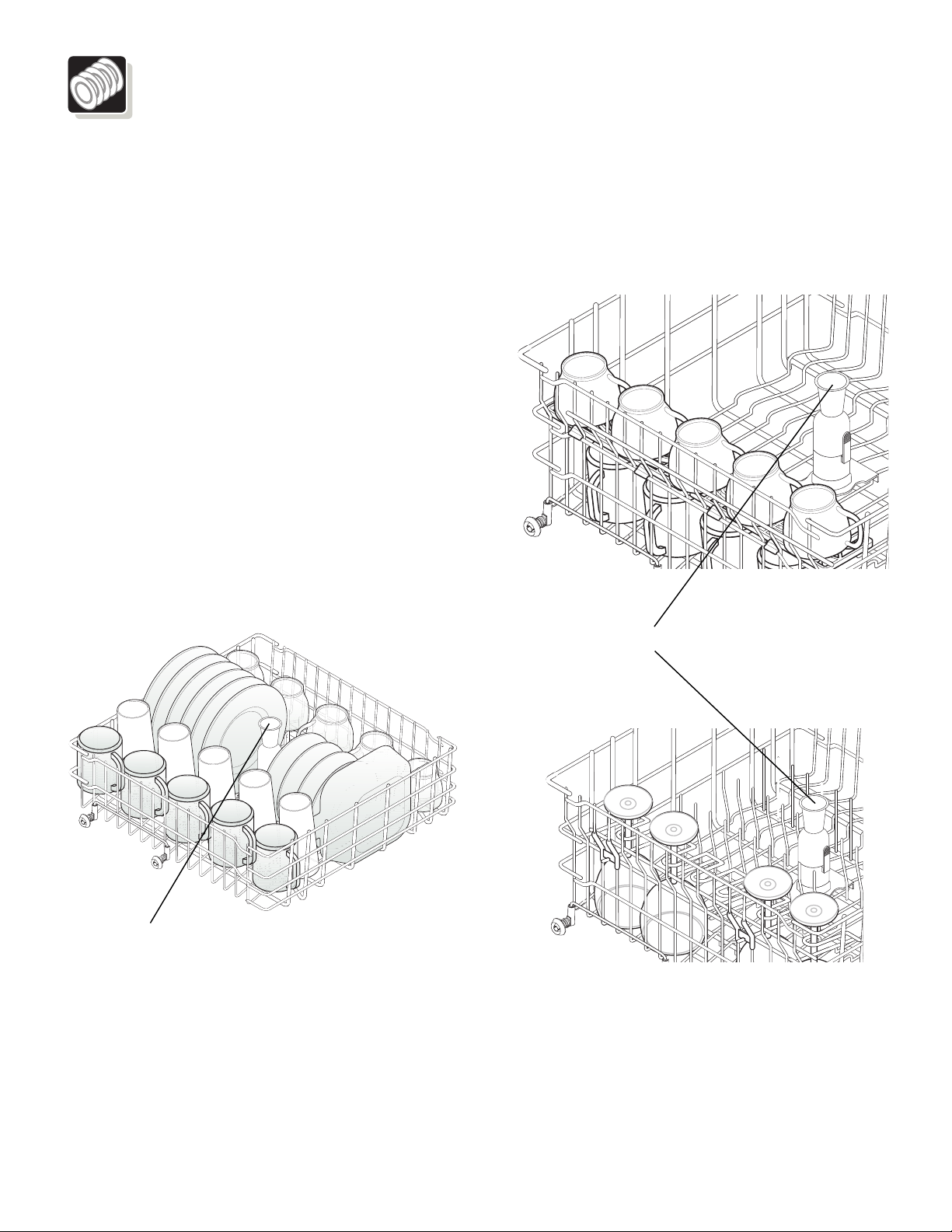

Top Rack

page 7

Serial Label

(located on right side of tub)

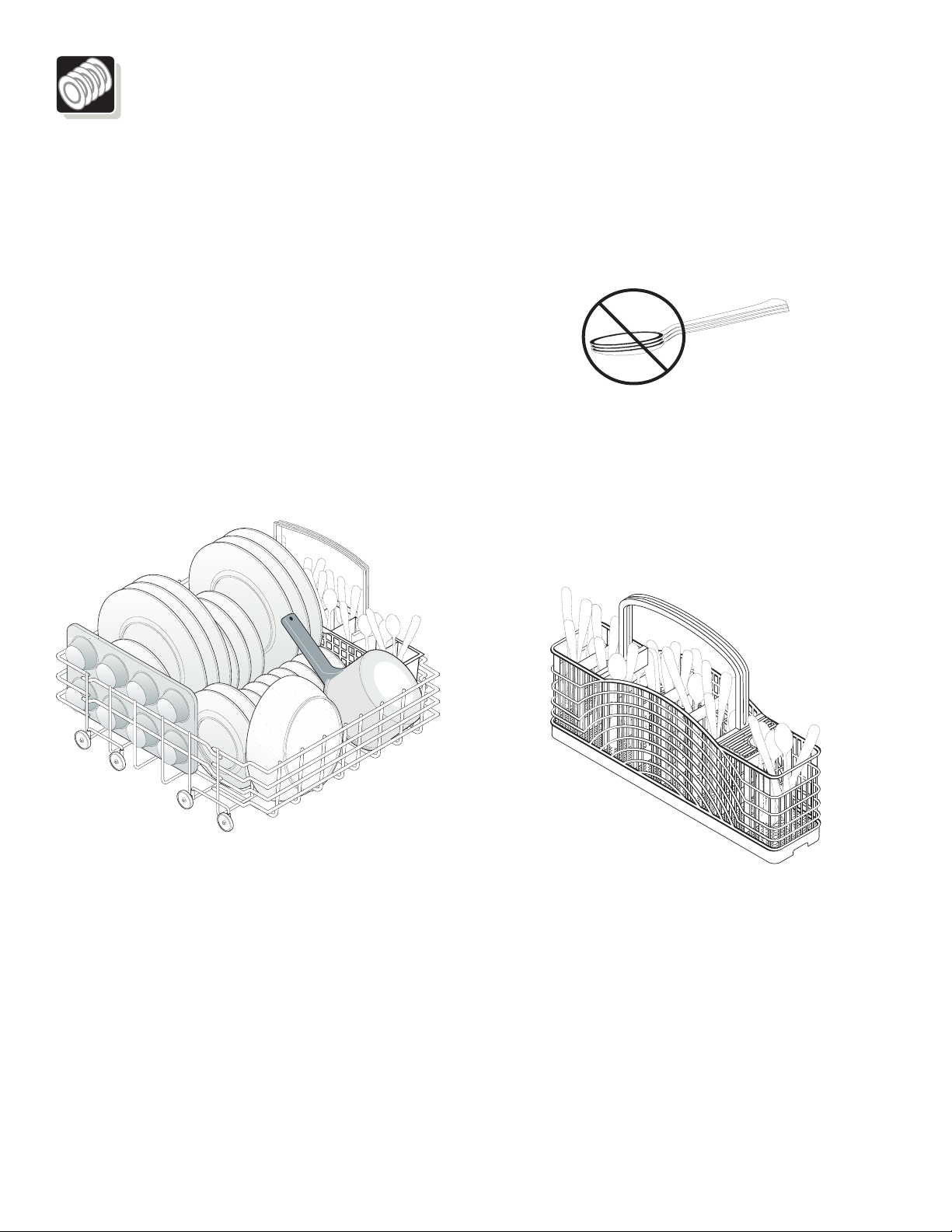

Bottom Rack

page 8

Glass Trap

page 11

Self-Cleaning Filter

page 11

Heating Element

page 11

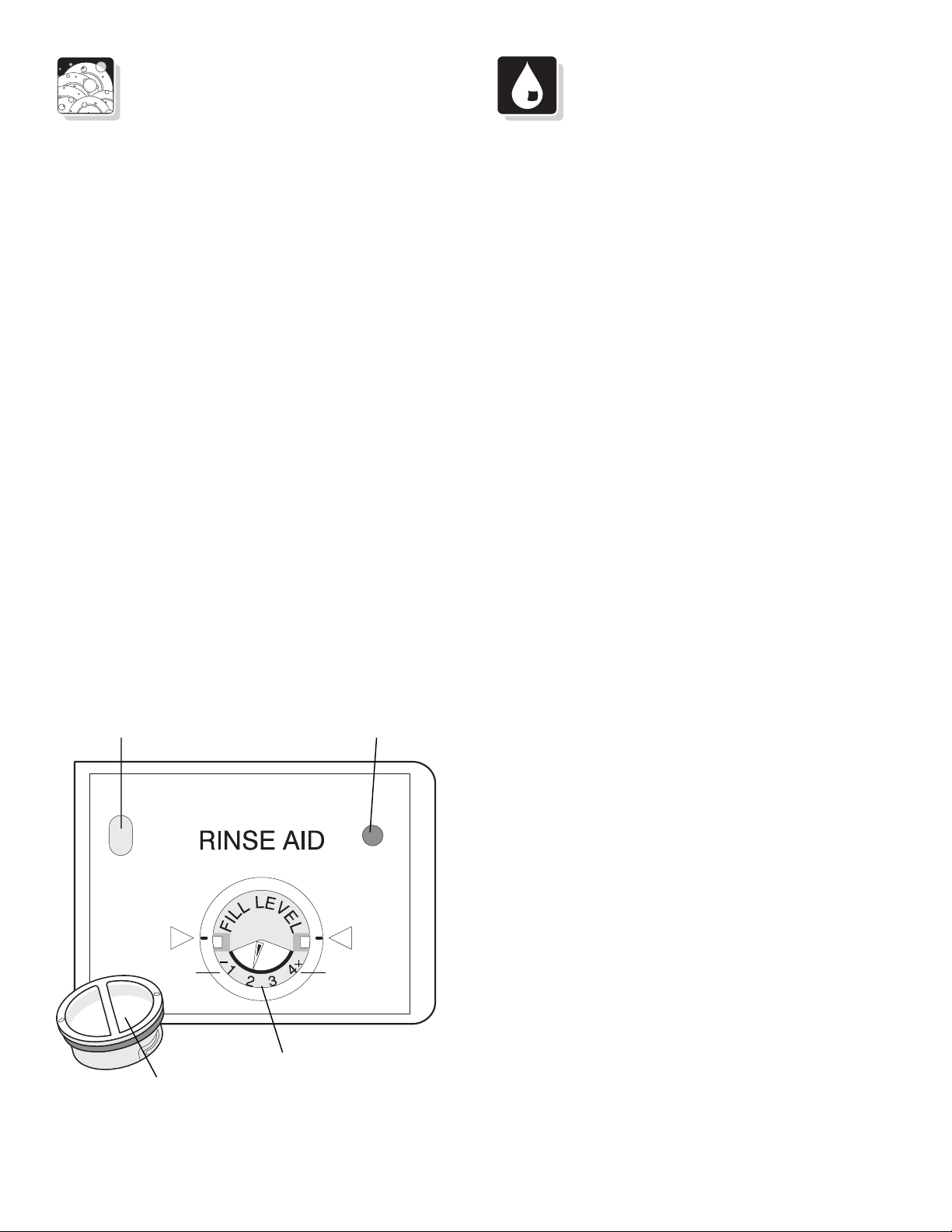

Rinse Aid Dispenser

page 10

Vent

pages 4,6,14

Operating Instructions

Vent

Latch

Very Important Information—

Operating Your Dishwasher!

Read Before

Normal Operating Sounds

This dishwasher does not sound like most dishwashers—IT’S QUIETER.

Your Precision Wash System® dishwasher uses energy efficient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may–or may not– hear the drain motor.

The next sound you will hear is the splashing water as it enters the tub. Then the lower arm rotates and circulates water. This is followed by a pause and a slightly different sound as the middle arm sprays water. If you listen closely, you will hear the change in sound as the wash action switches from one arm to the other.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON’T hear!

Getting Started

1. Load dishwasher (See Preparing and Loading Dishes).

Appearance may vary from your model.

2. Add detergent (See Dishwasher Dispenser & Detergents).

3. Add rinse aid, if needed (See Rinse Aid).

4. Turn dial clockwise to select cycle (See Cycle Chart) or number of hours for delay start.

5. Select desired energy OPTIONS (See Energy Options). The indicator will show red when selected.

6. If using DELAY START, see "Delay Start."

7. For instructions on connecting the portable dishwasher, see “Connecting and Disconnecting the Portable/Convertible Dishwasher.”

8. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

9. To start, close door to latch.

Delay Start (available select

models)

Allows you to delay starting the POTS & PANS cycle.

• Turn dial to select number of hours.

• Select HI-TEMP WASH ON option and other desired options.

• Close door to latch. The DELAY START light (available select models) will come on.

Plate Warmer (available select

models)

For warming dishes and serving plates before serving hot foods:

• Load clean plates and dishes to be warmed.

• Turn dial to PLATE WARMER.

• Select HEAT DRY ON option.

Operating Instructions (continued)

Wash Cycle Selections

Note: Cycle times are approximate and will vary with options selected. Not all cycles available on all models.

Cycle Chart

Pots & Pans

Heavy Wash

Description Time*

For pots, pans, casseroles, and dinnerware with dried-on or baked-on soils.

For heavily soiled dishes and silverware.

To Select CycleCycle

• Press MAIN CYCLES pad.

• Select HI-TEMP WASH ON option.

• Select other desired options.

• Turn dial to POTS & PANS.

• Turn dial to POTS & PANS/HEAVY WASH.

• Select desired OPTIONS.

Water

(approx.)

gal. imp. gal.

6.0 liters

27.3

6.0

27.3

gal. imp. gal. liters

(approx.)

84 min.7.2

82 min.7.2

Washes/ Rinses

2 washes 4 rinses

Normal Wash

Light

China

Glasses

Rinse Hold

For regularly soiled dishes and silverware.

For lightly soiled or prerinsed dishes and silverware.

For lightly soiled china and crystal.

For glasses and other lightly soiled items.

For rinsing dishes that will be washed later.

• Press MAIN CYCLES pad.

• Select desired options.

• Turn dial to NORMAL WASH.

• Press MAIN CYCLES pad.

• Select desired options.

• Turn dial to LIGHT/CHINA.

• Press CHINA ONLY pad.

• Select drying option.

• Turn dial to LIGHT/CHINA.

Note: HI-TEMP WASH option is not recommended for use with this cycle.

• Press MAIN CYCLES pad.

• Select desired options.

• Turn dial to GLASSES.

• DO NOT USE detergent.

• Turn dial to RINSE HOLD.

• Select HEAT DRY OFF.

Energy Options

Hi-Temp Wash Option (available select models)

When HI-TEMP WASH ON option is selected, the dishwasher heats the water in the main wash to approximately 140°F (60°C). Wash action will continue but timer will not advance until proper temperature is reached. The hotter water provided by this option helps activate dishwasher detergent to clean food grease and soil from dishes. HITEMP WASH ON option can be used with any cycle except RINSE HOLD and is not recommended for use with CHINA.

To turn off option, select HI-TEMP WASH OFF.

5.0

22.7

4.0

18.2

4.0

18.2

3.0

13.6

1.2

1.0

4.5

gal. imp. gal. liters

78 min.6.0

71 min.4.8

63 min.3.6

* Includes dry time.

2 washes 3 rinses

1 wash 3 rinses

1 wash 2 rinses

1 rinse12 min.

Hi-Temp Rinse Option (available select models)

When HI-TEMP RINSE ON option is selected, the dishwasher heats the water in the final rinse to approximately 140°F (60°C). This will speed drying and reduce spotting. HI-TEMP RINSE ON option can be used with any cycle except RINSE HOLD.

To turn off option, select HI-TEMP RINSE OFF.
