Gas & Electric
Dryer
Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the dryer
is installed correctly and safely. Leave these instructions near the Dryer after installation for future reference.
NOTE: The electrical service to the Dryer must conform with local codes and ordinances and the latest edition of the
Nationa! Electrical Code, ANSI/NFPA 70 or in Canada, CSA C22.1 Canadian Electrica! Code Part 1.
NOTE: The gas service to the Dryer must conform with local codes and ordinances and the latest edition of the
National Fuel Gas Code ANSI Z223.1 or in Canada, CAN/CGA B 149.12.
NO TE: The Dryer is designed under ANSI Z21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 (latest editions) for HOME USE only.
This Dryer is not recommended for commercial applications such as restaurants or beauty salons, etc.
Contents
For your safety the information in
this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquid in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
. Do not try to light any appliance.
. Do not touch any electrical switch; do not
use any phone in your building.
. Clear the room, building or area of all
occupants.
, Ummediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
, If you cannot reach your gas supplier, call
the fire department.
SUBJECT
Pre-lnstallation Requirements
Electrical Requirements
Exhaust System Requirements
GasSupply Requirements
Location of Your Dryer
Mobile Home Installation
Rough-In Dimensions
Unpacking
Reversing Door Swing
Electrical Installation
Grounding Requirements
ElectricalConnections--3-wire
ElectricalConnections--4-wire
Installation
Replacement Parts
PAGE
2-3
34
2
2
3
4
5
5
5
6
6
7
7
8
8
UnstalIation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Printed in U.S.A.
P/N 131697700 (9706)
PRE-INSTALLATION REQUIREMENTS
Tools and Materials Required for Installation:
1. Phillips head screwdriver.
2. Channelqock adjustable pliers.
3. Carpenter's level.
4. Flat or straight blade screwdriver.
5. Duct tape.
6. Rigid or flexible metal 4 inch (10.2 cm) duct.
7. Vent hood.
8. Pipe thread sealer (Gas).
9. Plastic knife.
10. I/2 inch open end wrench.
ELECTRICAL REQUIREMENTS
ELECTR/CDryer ]
CIRCUIT- Individual 30 amp. branch circuit fused with 30 amp.
minimum time delay fuses or circuit breakers.
POWER SUPPLY- 3 wire, 240 volt, single phase, 60 Hz,
Alternating Current. (Canada - 240 volt, single phase, 60 Hz,
Alternating Current.)
POWER SUPPLY CORD KIT - Tile dryer MUST employ a 3-
conductor power supply cord NEMA 10-30 type SRDTrated at
240 volt AC minimum, 30 amp., with 3 open end spade lug
connectors with upturned ends or closed loop connectors and
marked for use with clothes dryers. If being installed in a
manufactured (raobile) horse, the dryer MUST employ a 4-
conductor power supply cord NEMA !4-30 type SRDTor ST(as
required) rated at 240 volt AC minimum, 30 amp., with 4 open
end spade lug connectors with upturned ends or closed loop
connectors and marked for use with clothes dryers. See
ELECTRICALCONNECTIONSFORA 4-WIRE SYSTEM.
(Canada - 4-wire power supply cord isinstalled on dryer.)
OUTLETRECEPTACLE- NEMA 10-30R receptacle to be located
so the power supply cord is accessiblewhen the dryer is in the
installed position. (Canada - NEMA 14-30R receptacle.)
POWER SUPPLY
OUTLET
RECEPTACLE
(COPPER)
SUBJECTTO LOCAL REGULATIONS
NEMA 1O-3OR(COPPER)
I GASDd/ef 1
CIRCUIT - Individual 15 amp. branch circuit fused with a 15
amp. maximum time delay fuse or circuit breaker.
POWER SUPPLY - 3 wire, 120 volt single phase, 60 Hz,
Alternating Current.
NOTE: Do not under
any d_:umstances
remove grounding
prong from plug.
POWER SUPPLYCORD - The dryer is equipped with a 120 volt
3-wire power cord.
EXHAUST SYSTEM REQUIREMENTS
Useonly 4 inch (10.2 cm) diameter (minimum) rigid or flexible
metal duct and approved vent hood which has a swing-out
damper(s) that open when the dryer is in operation. When the
dryer stops, the dampers automatically close to prevent drafts
and the entrance of insects and rodents. Toavoid restricting the
outlet, maintain a minimum of 12 inches (30.5 cm) clearance
between the vent hood and tile ground or anyother obstruction.
The following are specific requirements for
proper and safe operation of your dryer Failure to follow
these instructions can create excessive drying times and
fire hazards.
Do not use plastic flexible duct to exhaust the dr,e/_£_.
Excessivelint can build up inside exhaust system and create a
fire hazard and restrict air flow. Restricted air flow will increase
dryer times. If your present system ismade up of plastic duct or
metal foil duct, _)lace it with a rigid or flexible metal duct.
Ensure the present duct is free of any lint prior to instal/ing
dryer duct.
If the dryer isnot exhausted outdoors some fine lint will be
expelled into the laundry area. An accumulation of lint in any
area of the home (:an create a health and fire hazard. The
dryer exhaust system MUST be exhausted to the outside
of the dwel/ing r.
Do not allow combustible materials (for example: clothing_
draperies/curtains, paper) to come in contact with exhaust
s_stem. Tile dryer MUSTNOT be exhausted into a chimney, a
wall, a ceiling, or any concealed space of a building which can
accumulate lint, resulting in a fire hazard.
Do not exceed tile length of duct F£)eor number of elbows
allowed in the "MAXIMUM LENGTH" charts. Lint can
accumulate in the exhaust system, plugging the system and
creating a fire hazard, as well as increasing drying times.
_Do not screen the exhaust ends of the vent system, nor use
any screws or rivets to assemble the exhaust system. Lint can
become caught in the screen, on the screws or rivets, clogging
the duct work and creating a fire hazard as well as increasing
drying times. Usean approved vent hood to terminate the duct
outdoors, and seal all joints with duct tape. All male duct pipe
fittings MUST be installed downstream with tile flow of air.
Exp/osion hazard. Do not install the dryer
where gasoline or other flammables are kept or stored. Ifthe
dryer is installed in a garage, it must be a minimum of 18inches
(45.7 cm) above the floor. Failure to do so can result in death,
explosion, fire or burns.
M_mMuM LENGTH
of4" {10o2era)DiaoFle×ibleMeal Tubing
VENT HOOD TYPE
(Preferr_)
NumbGr 4" {1&2 era} LouvGred
90°
Turns ._(b _
O 30_. (9.14 m) 18ft. (5.49 m)
1 22_. (6.71 m) 14ft. (4.27 m;
2 t4 _° (&27 m) 10ft. (3°05 rnl
M_mMuM LENGTH
of 4" (10,2era)DiaoRigidMetalDuct
VENT HOOD TYPE
(P_ferred)
4" (10=2¢_) Louwred
90o
0 48_, {I&63 m) 40 ft. (12.19 mI
1 40_. {12,'19 m) 32 _. (9o75 m)
2 32 ft. {9.75 rn) 24 ft. {7°32 m)
GAS SUPPLY REQUIREMENTS
Replace copper connecting p@e that is not
p/astic-coated_ Stain/ess stee/orp/astic-coated brass MUST
be used.
1. Installation MUSTconform with localcodes,or in the absence
of local (:odes,with the National FuelGasCode, ANSIZ223.1
(latest edition) or in Canada, the current CAN/CGA B149.
2. The gas supply line should be of 1/2 inch (1.27 cm) pipe.
3. If codesallow, flexible metal tubing may be usedto connect
your dryer to the gas supply line. The tubing MUST be
constructed of stainless steel or plastic-coated brass.
4. The gas supply lineMUSThave an individual shutoff valve.
5. A 1/8 inch (0.32 cm) N.P.T.plugged tapping, accessible for
test gauge connection, MUST be installed immediately
upstream of the gas supply connection to the dryer.
6. The dryerMUSTbe disconnected from the gassupply piping
system during any pressure testing of the gassupply piping
system at test pressures in excess of 1/2 psig (3.45 kPa).
7. The dryer MUST be isolated from the gas supply piping
system during any pressure testing of the gassupply piping
system at test pressures equal to or lessthan 1/2 psig (3.45
kPa).
LOCATION OF YOUR DRYER
INSTALL MALE FITTINGSINCORRECTDIRECTION
1. The exhaust system back pressure MUST not exceed 0.6
inches(I. 52 cm) of water column, measured with an inclined
manometer at the point the exhaust connects to the dryer.
2. The exhaust system should be inspected and (:leaned a
minimum of every two years with normal usage. The more
the dryer is used, the more often you should check the
exhaust system and vent hood for proper operation.
EXHAUST DIRECTION
All dryersshipped from the factory are set up for rear exhausting.
However, on electric dryers, exhausting can be to the right or
left sideof the cabinet or the bottom of the dryer.On gasdryers,
exhausting can be to the right side of the cabinet or the bottom
of the dryer. Directional exhausting can be accomplished by
installing Exhaust Kit, P/N 131456800, available through your
parts distributor. Follow the instructions supplied with the kit.
EXHAUST DUCT LOCATING DIMENSIONS
SAME AS OTHER SiDE
/ 5o718,
DO NO TINSTALL YOURDRYER:
1. In an area exposed to dripping water or outside weather
conditions.
2. In an area where it will come in contact with curtains, drapes,
or anything that will obstruct the flow of combustion and
ventilation air.
3. On carpet. FloorMUSTbe solid with a maximum slope of 1
inch (2.54 cm).
INSTALLATION IN RECESSORCLOSET
1. A dryer installed in a bedroom, bathroom, recess or closet,
MUST be exhausted outdoors.
2. No other fuel burning appliance shall be installed inthe same
closet as the Gas dryer.
3. Your dryer needs the space around it for proper ventilation.
DO NOT INSTALL YOUR DRYER IN A CLOSET WITH A
SOLID DOOR.
4. A minimum of 120 square inches (774.2 square cm) of
opening, equally divided at the top and bottom of the door,
is required. Air openings are required to be unobstructed
when a door is installed. A Iouvered door with equivalent air
openings for the full length of the door is acceptable.
MINIMUM INSTALLATION CLEARANCES (Inches)
FRONT SIDES REAR TOP
Alcove or
Under counter 0 (0 cm) 0(0 cm)0 (0 cm)15(38.1 cm)
Closet 1(2.54 cm) 0 (0 cm) 0 (0 cm) 15 (38.1 cm)
Closet door ventilation required; 2 Iouvered openings each 60
square inches (387 square centimeters) -- 3 inches (7.6 cm)
from bottom and top of door.
I9.5cm)
THISDRYERMUSTBEEXHAUSTEDOUTDOORS.
5.Thefollowingillustrationsshowminimumclearance
dimensionsforproperoperationinarecessorcloset
installation.
J_
16@sO,IN,
i(387.1sO.cM}
T
k
gO SQoIN.
(387.1SQ.CM)
N
MOBILE HOME INSTALLATION
1. Dryer MUST be exhausted outside (outdoors, not beneath
the mobile home) using metal ducting that will not support
combustion. Metal ducting must be 4 inches (10.16 cm) in
diameter with no obstructions. Rigid metal duct ispreferred.
2. If dryer isexhausted through the floor and area beneath the
mobile home isenclosed,the exhaustsystem MUSTterminate
outside the enclosure with the termination securelyfastened
to the mobile home structure.
3. When installing a gas dryer into a mobile home, a provision
must be made for outside make up air. This provision is to
be not lessthan twice the area of the dryer exhaust outlet.
4. This dryer MUST be fastened to the floor. Mobile Home
Installation Kit No. 169840 isavailable from your dealer.
5. Refer to pages 2 and 3 for other important venting
requirements.
6. Installation MUSTconform to current Manufactured Home
Construction & Safety Standard (which is a Federal
Regulation Title 24 CFR-Part32-80) or when such standard
isnot applicable, with American National Standardfor Mobile
Homes. In Canada, the CSA Z240 is applicable.
The dryer is designed under ANSI Z 21.5.1 for
HOME USEonly.
_"_ O"(0 ¢m)
0
CORRECT
COI_RECT INCORRECT
DON'T
--...
NOTE:
Under counter and stack models - 0 incises (0 cm) for
sides, rear, and top.
INCONNECT INCORRECT
33/4 _
(9°S cm)

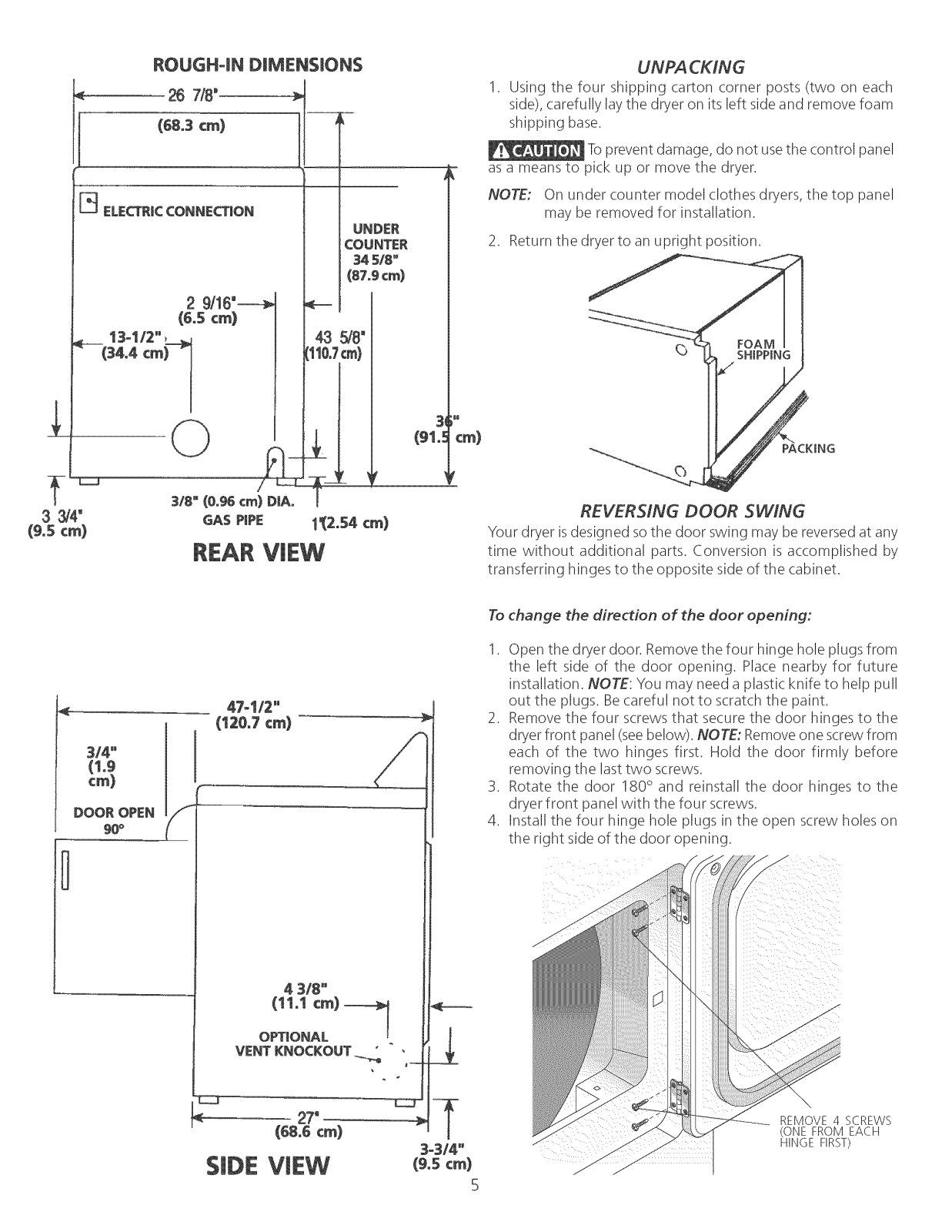

ROUGH-IN DIMENSIONS
= __
43 518'
r_ _0.7 era)
©
L (91.5
A
3/8_(0.96 era) DtA.
GAS PiPE
REAR VIEW
1_(2,54¢m)
UNDER
COUNTER
34 5/0"
(87.9era)
3_
UNPACKING
1. Using the four shipping carton corner posts (two on each
side),carefully lay the dryer on its left side and remove foam
shipping base.
Toprevent damage, do not usethe control panel
as a means to pick up or move the dryer.
J
NOTE: On under counter model clothes dryers, the top panel
may be removed for installation.
2. Return the dryer to an upright position.
cm)
REVERSING DOOR $WING
Your dryer is designed so the door swing may be reversedat any
time without additional parts. Conversion is accomplished by
transferring hinges to the opposite side of the cabinet.
PACKING
3/4"
(1.9
era)
DOOR OPEN
90°
4 3/8"
(11ol ¢m) --_
OPTIONAL
To
change the direction of the door opening:
1.
Open the dryer door. Remove the four hinge hole plugs from
the left side of the door opening. Place nearby for future
installation. NOTE; You may need a plastic knife to help pull
out the plugs. Becareful not to scratch the paint.
.
Remove the four screws that secure the door hinges to the
dryer front panel (seebelow). NOTE: Removeone screw from
each of the two hinges first. Hold the door firmly before
removing the last two screws.
.
Rotate the door 180° and reinstall the door hinges to tile
dryer front panel with the four screws.
4.
Install tile four hinge hole plugs in the open screw holes on
the right side of the door opening.
c22r
(68,6 ¢m)
SIDE VIEW
27'
3-3/4"
(9.5 ¢m)
\
REMOVE 4 SCREWS
(ONE FROM EACH
HINGE FIRST)
5
ELECTRICAL iNSTALLATiON
The following are specific requirements for
proper and safe electrical installation of your dryer. Failure
to follow these instructions can create electrical shock
and/or a fire hazard.
Fora permanently connected dryer:
1. The dryer MUST be connected to a grounded metal,
permanent wiring system; or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
Thisappliance MUSTbe properl_Lgrounded. Electricalshock
can result if the dryer is not properly grounded. Follow the
instructions in this manual for proper grounding.
_1_ Donot useanextension cord with this dr,e__r.Someextension
cords are not designed to withstand the amounts of electrical
current this dryer utilizes and can melt, creating electrical shock
and/or fire hazard. Locatetile dryerwith inreachof the receptacle
for the length power cord to be purchased, allowing some slack
in the cord. Refer to the preqnstallation requirements in this
manual for the proper power cord to be purchased.
A U.L approved strain relief must be installed onto power
cord. If the strain relief is not attached, the cord can be pulled
out of the dryer and can be cut by any movement of the cord,
resulting in electrical shock.
Do not use an aluminum wired receptacle with a cop_.r
wired power cord and plug (orvice versa}.A chemical reaction
occurs between (opper and aluminum and (:ancause electrical
shorts. The proper wiring and receptacle is acopper wired
po wer cord with a copper wired receptacle.
NOTE: Dryers operating on 208 volt power supply will have
longer drying times than operating on 240 volt power supply.
i
_'__ Improper connection of the equipment
grounding conductor can result in a risk of electrical shock.
Check with a licensedelectrician ifyou are indoubt asto whether
the appliance isproperly grounded.
Foragrounded, cord-connected dryer:
1. The dryer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by a path of least resistance for electrical current.
.
Sinceyour dryer isequipped with a power supplycord having
an equipment-grounding conductor and a grounding plug,
the plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances. If in doubt, call a licensed electrician.
your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle. Do
not cut or remove the grounding prong from this plug.
Canadian ELECTR/CDryer
I
GROUNDING REQUIREMENTS
ELECTR/CDryer ]Non-Canadian
Improper connection of the equipment
grounding conductor can result in a risk of electrical shock.
Check with a licensedelectrician ifyou are in doubt asto whether
the appliance isproperly grounded.
Foragrounded, cord-connected dryer:
1. The dryer MUSTbe grounded. Inthe event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by a path of least resistance for electrical current.
2. If your dryer isequipped with a power supply cord having an
equipment-grounding conductor and a grounding plug, the
plug MUST be plugged into an appropriate, copper wired
receptacle that is properly installed and grounded in
accordance with all local codes and ordinances. If in doubt,
call a licensed electrician.
|
GREEN
GROUND_
SCREW
GREEN
NEUTRAL
GROUND
WIRE
NUT
TRGHTENNUT
TO THESE
THREADS
STRAIN
REUEF
MOUNTING
BRACKET POWER CORD
GREEN POWER CORD
CORD
ELECTRICAL CONNECTIONS
FOR 4- WIRE SYSTEM
ELECTRICAL CONNECTIONS
FOR 3- WIRE SYSTEM
Non-Canadian ELECTR/CDryer
1. Remove the screwssecuring the terminal block access(:over
and the strain relief mounting bracket located on the back
of the dryer upper corner.
2. Install a U.L approved strain relief into the power cord entry
hole of the mounting bracket. Finger tighten the nut only at
this time.
3. Thread a U.L approved 30 amp. power cord, NEMA 10-30
Type SRDT,through the strain relief.
4. Attach the power cord neutral (center wire) conductor to
the silver colored (:enter terminal on the terminal block.
Tighten the screw securely.
5. Attach the remaining two power cord outer conductors to
the outer brass colored terminals on the terminal block.
Tighten both screwssecurely.
Do not make a sharp bend or crimp wiring/
conductor at connections.
6. Reattach the strain relief mounting bracket to the back of
the dryer with two screws. Tighten screws securely.
7. Tighten the screws securing the cord restraint firmly against
the power cord.
8. Tighten the strain relief nut securely sothat the strain relief
does not turn.
9. Reinstall the terminal block cover.
[
Non-Canadian ELECTR/CDryer
1. Removethe screws securingthe terminal block accesscover
and the strain relief mounting bracket located ontile back
of the dryer upper corner.
2. Install a U.L approved strain relief in the entry hole of the
mounting bracket. Finger tighten the nut only at this time.
3. Remove the green neutral ground wire from the green
ground screw located above the terminal block.
TYPICAL4
CONDUCTOR
RECEPTACLE
30 AMP NEMA 14o30 TYPE SRDT OR ST
BLACK 240V
4. Thread a U.L approved 30 amp power cord, NEMA 14-30
type STor SRDTthrough the strain relief.
5. Attach the green power cord ground wire to the cabinet
with the green ground screw.
6. Attach the white (neutral) power cord conductor from the
power cord and the green ground wire from the dryer
harnessto the silver-coloredcenter terminal onthe terminal
block. Tighten tile screw securely.
7. Attach the red and black power cord conductors to the
outer brass-colored terminals on tile terminal block.
Do not make a sharp bend orcrimp wiring/
conductor at the connections.
8. Tighten tile screwssecuring tile cord restraint firmly against
tile power cord.
9. Tighten the strain relief nut securely so the strain relief
does not turn.
10. Reinstall the terminal block access cover.

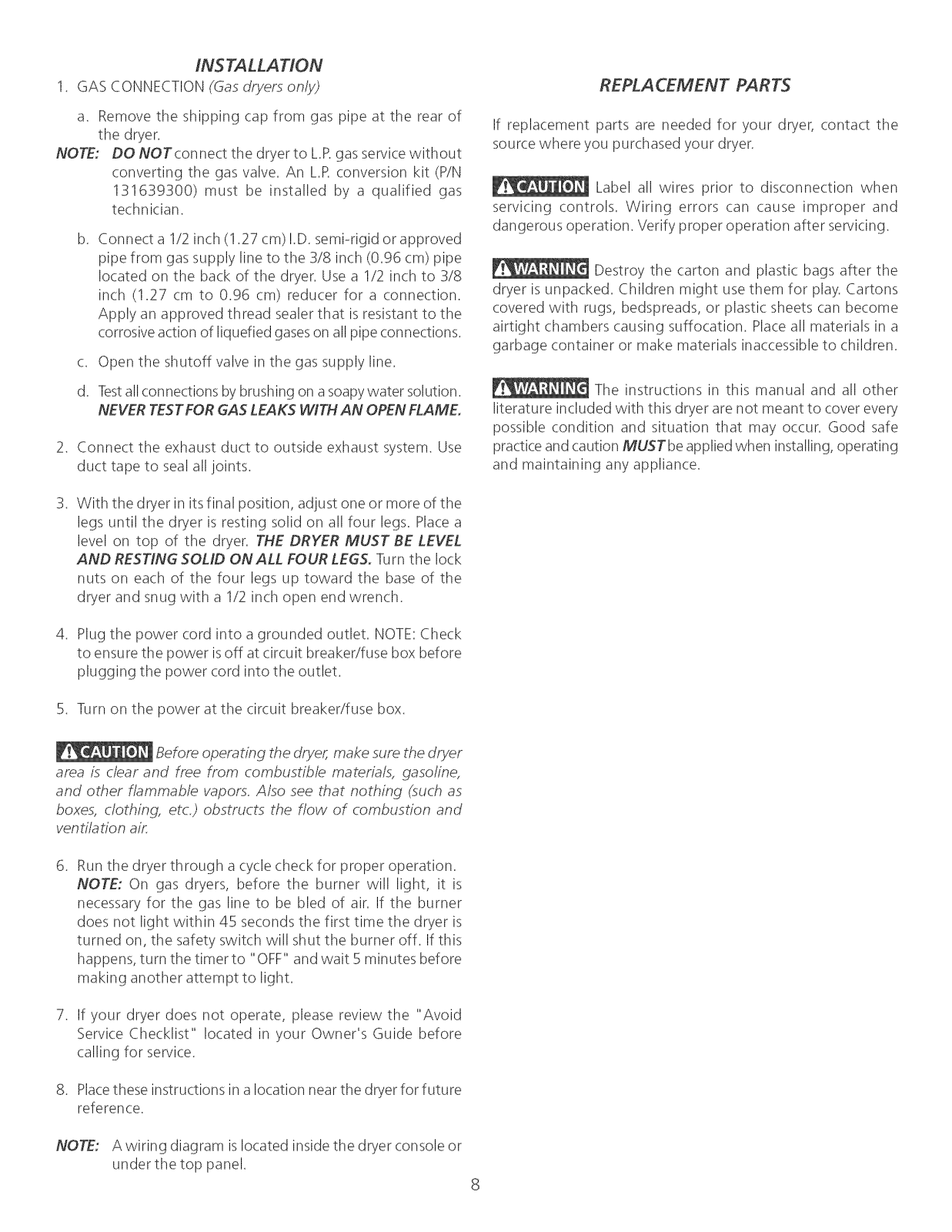

INSTALLATION
1. GAS CONNECTION (Gas dryers on(y)
REPLACEMENT PARTS
a. Remove the shipping cap from gas pipe at the rear of
the dryer.
NOTE: DO NOTconnect the dryer to L.P.gasservice without
converting the gas valve. An L.P.conversion kit (P/N
131639300) must be installed by a qualified gas
technician.
b. Connect a 1/2 inch (I .27 cm)!.D, semi-rigid or approved
pipe from gas supply line to the 3/8 inch (0.96 cm) pipe
located on the back of the dryer. Use a 1/2 inch to 3/8
inch (1.27 cm to 0.96 cm) reducer for a connection.
Apply an approved thread sealer that is resistant to the
corrosiveaction of liquefied gaseson all pipe connections.
c. Open tile shutoff valve in the gas supply line.
d. Testall connections bybrushing on a soapywater solution.
NEVER TESTFOR GAS LEAKS WITH AN OPENFLAME.
2. Connect the exhaust duct to outside exhaust system. Use
duct tape to seal alljoints.
3. With the dryer in itsfinal position, adjust one or more of the
legs until the dryer is resting solid on all four legs. Placea
level on top of the dryer. THE DRYER MUST BE LEVEL
AND RESTING SOLID ONALL FOUR LEGS. Turn the lock
nuts on each of tile four legs up toward the base of tile
dryer and snug with a 1/2 inch open end wrench.
If replacement parts are needed for your dryer, contact the
source where you purchased your dryer.
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
Destroy the carton and plastic bags after the
dryer is unpacked. Children might use them for play.Cartons
covered with rugs, bedspreads, or plastic sheets (:an become
airtight chambers causing suffocation. Placeall materials in a
garbage container or make materials inaccessible to children.
The instructions in this manual and all other
literature included with this dryer are not meant to cover every
possible condition and situation that may occur. Good safe
practice and caution MUSTbe applied when installing, operating
and maintaining any appliance.
4. Plug the power cord into a grounded outlet. NOTE: Check
to ensure the power isoff at circuit breaker/fuse box before
plugging the power cord into tile outlet.
5. Turn on tile power at the circuit breaker/fuse box.
Before operating the dt_yer,make sure the ddyer
area Lsclear and free from combustible materials, gasoline,
and other flammable vapors. A/so see that nothing (such as
boxes, clothing, etc.) obstructs the flow of combustion and
ventilation ai_
6. Run the dryer through a cycle check for proper operation.
NOTE; On gas dryers, before the burner will light, it is
necessary for the gas line to be bled of air. If the burner
does not light within 45 seconds the first time the dryer is
turned on, the safety switch will shut the burner off. If this
happens, turn the timer to "OFF" and wait 5 minutes before
making another attempt to light.
7. If your dryer does not operate, please review the "Avoid
Service Checklist" located in your Owner's Guide before
calling for service.
8. Placethese instructions in alocation nearthe dryer for future
reference.
NOTE: A wiring diagram islocated inside the dryer console or
under the top panel.
8
Loading...
