Frigidaire FFGF3023LW, 316901213, FFGF3023LB, FFGF3021LW, FFGF3053LS User Manual

All about the

Use & Care

of your

Important Safety Instructions ........................... 3-6

Features at a Glance ......................................... 7

Before Setting Oven Controls .............................. 8

Before Setting Surface Controls .......................... 9

Setting Surface Controls................................... 10

Oven Control Functions (300)............................ 11

Gas Range

TABLE OF CONTENTS

Setting Oven Controls ..................................11-16

Self-Cleaning ..............................................17-18

Care & Cleaning ..........................................19-21

Before Y ou Call ............................................22-23

Major Appliance Warranty ................................ 24

316901213 Rev A (Feb 2010)

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

PRODUCT RECORD AND REGISTRATION

Contents

Product Registration...................................................... 2

Important Safety Instructions ............................ 3-6

Features at a Glance .............................................. 7

Before Setting Oven Controls .................................. 8

Removing, replacing & arranging the oven racks........... 8

Before Setting Surface Controls .............................. 9

Cookware material types ............................................ 9

Setting Surface Controls ....................................... 10

Setting surface burners ............................................ 10

Home canning ......................................................... 10

Oven Controls Functions ........................................ 11

Setting Oven Controls ...................................... 11-16

Setting the clock...................................................... 11

Changing temperature display (F° or C°).................... 11

Setting silent control feature..................................... 12

Setting minute timer ................................................ 12

Changing between continuous bake or 12-Hour

Energy Saving features ....................................... 12

Setting bake ........................................................... 13

Setting bake time .................................................... 13

Setting bake time and start time ............................... 14

Setting broil ............................................................ 15

Adjusting oven temperature ..................................... 16

Setting oven lockout feature ..................................... 16

Operating oven light................................................. 16

Self-Cleaning .................................................... 17-18

Care & Cleaning ............................................... 19-21

Cleaning recommendations table............................... 19

Cleaning the cooktop and surface burners .................. 20

Replacing oven light ................................................. 21

Removing & replacing oven door ............................... 21

Before You Call - Solutions to common problems... 22-23

Appliance Warranty .............................................. 24

Thank you for choosing Frigidare.
This Use & Care Guide is part of our commitment to customer

satisfaction and product quality throughout the service life of
your new appliance. We view your purchase as the beginning
of a relationship. T o ensure our ability to continue serving you,
please use this page to record important product information.

Need help??

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can
do to help us serve your better.

Read this Use & Care manual.

It contains instructions to help you use and maintain your
range properly .

If you received a damaged range ...

immediately contact the dealer (or builder) that sold you the
range.

Save time and money.

Check the section titled “Before you call”. This section helps
step you through some common problems that might occur.
If you do need service, help is only a phone call away . Call
Frigidaire Customer Services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our ability
to serve you. Y ou can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.

Serial plate location

2

©2009 Electrolux Home Products, Inc.

Serial plate location:
open storage drawer (some models) or
remove lower front panel (some models).

Record model & serial numbers here

Purchase date

Model number

Serial number

All rights reserved. Printed in the USA

Read all instructions before using this appliance.

Do not attempt to install or operate your appliance until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.

Definitions

IMPORTANT SAFETY INSTRUCTIONS

WARNING

If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.

This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.

WARNING

WARNING indicates a potentially hazardous
situation which, if not avoided, may result in death
or serious injury.

CAUTION

CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.

IMPORTANT

IMPORT ANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.

Important Safety Instructions

•Remove all tape and packaging before using the

range. Destroy the carton and plastic bags after

unpacking the range. Never allow children to play with
packaging material.

•Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel Gas
Code ANSI Z223.- latest edition, or in Canada CAN/
CGA B149.1, and CAN/CGA B149.2, and the National
Electrical Code ANSI/NFPA No.70-latest edition, or
in Canada CSA Standard C22.1, Canadian Electrical

Code, Part 1, and local code requirements. Install

only per installation instructions provided in the literature
package for this range. Ask your dealer to recommend a
qualified technician and an authorized repair service.
Know how to disconnect the power to the range at the
circuit breaker or fuse box in case of an emergency.

FOR YOUR SAFETY:

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of
this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not
use any phone in your building.

• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.

• If you cannot reach your gas supplier, call
the fire department.

— Installation and service must be performed

by a qualified installer, servicer or the gas
supplier.

WARNING

• All ranges can tip.

• Injury to persons could result.

• Install anti-tip device packed
with range.

• See Installation Instructions.

To reduce the risk of tipping, the
range must be secured by properly
installed anti-tip bracket provided with
the range. To check if the bracket is
installed properly, visually check that
rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower front panel or storage
drawer from the range.

For models equipped with a warmer drawer or lower
oven, grasp the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti- tip bracket installation.

•Never modify or alter the construction of a range
by removing the leveling legs, panels, wire covers,
anti-tip brackets/screws, or any other part of the
range.

Save these instructions for future reference.

3

IMPORTANT SAFETY INSTRUCTIONS

WARNING

NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning.

NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may trap heat,
causing a fire hazard.

Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries

and also cause damage to the appliance. DO NOT

allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.

Storage in or on appliance—flammable materials
should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or

lower oven. This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the range.

DO NOT LEAVE CHILDREN ALONE —children should
not be left alone or unattended in the area where

appliance is in use. They should never be allowed to sit

or stand on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer drawer or
lower double oven.

IMPORTANT

For electric ignition models only: Do not attempt to

operate the range during a power failure. If the

power fails, always turn off the range. If the range is not
turned off and the power resumes, the range will begin
to operate again. Once the power resumes, reset the
clock and oven function.

CAUTION

• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN BURNERS OR INTERIOR

SURFACES OF THE OVEN. Both surface and oven

burners may be hot even though flames are not
visible. Areas near surface burners may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time
to cool. Among these areas are the cook top,
surfaces facing the cook top, the oven vent openings
and surfaces near these openings, oven door and
window.

• Wear proper apparel—loose-fitting or hanging
garments should never be worn while using the

appliance. Do not let clothing or other flammable

materials contact hot surfaces.

• Do not use water or flour on grease fires—
smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat

or grease may catch fire if allowed to become too hot.

CAUTION

Do not store items of interest to children in the
cabinets above a range or on the backguard of

the range. Children climbing on the range to reach

items could be seriously injured.

• Remove the oven door from any unused range if it
is to be stored or discarded.

•User servicing—Do not repair or replace any part of

the appliance unless specifically recommended in

the manuals. All other servicing should be done only by a

qualified technician, This may reduce the risk of personal
injury and damage to the range.

4

• Use dry potholders - moist or damp potholders
on hot surfaces may result in burns from steam.

Do not let potholders touch hot heating elements. Do
not use a towel or other bulky cloth instead of a
potholder.

• Do not heat unopened food containers - buildup
of pressure may cause container to burst and
result in injury.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP

WARNING

Use Proper Flame Size—Adjust flame size so it does
not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner
flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.

• Know which knob controls each surface burner.

Place a pan of food on the burner before turning it on,
and turn the burner off before removing the pan.

• Always turn knob to the full LITE position when

igniting top burners. Visually check that burner has lit.

Then adjust the flame so it does not extend beyond the
edge of the utensil.

• Utensil handles should be turned inward and not

extend over adjacent surface burners—To reduce

the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent
surface burners.

• Never leave surface burners unattended at high

heat settings—Boilovers cause smoking and greasy

spillovers that may ignite, or a pan that has boiled dry
may melt.

• Glazed cooking utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.

• When flaming foods under a ventilating hood, turn
the fan on.

• Air curtain or other overhead range hoods, which

operate by blowing a downward air flow on to a range,
shall not be used in conjunction with gas ranges other
than when the hood and range have been designed,
tested and listed by an independent test laboratory for
use in combination with each other.

IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN

• Use care when opening oven door , warmer

drawer or lower oven door—Stand to the side of the

range when opening the door of a hot oven. Let hot air or
steam escape before you remove or replace food in the
oven.

• Keep Oven Vent Ducts Unobstructed. The oven vent
is located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.

• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.

• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.

• Protective liners—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.

SELF-CLEANING OVENS

• Clean in the self-cleaning cycle only the parts

listed in this Use & Care Manual. Before self-cleaning

the oven, remove the broiler pan and any utensils or
foods from the oven.

• Do Not Use Oven Cleaners—No commercial oven

cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.

• Do Not Clean Door Gasket—The door gasket is

essential for a good seal. Care should be taken not to
rub, damage or move the gasket.

• The health of some birds is extremely sensitive to the

fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.

5

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE

• Clean the range regularly to keep all parts free of

grease that could catch fire. Pay particular attention

to the area around each surface burner. Do not allow
grease to accumulate.

• Kitchen cleaners and aerosols—Always follow the
manufacturer’s recommended directions for use.

Be aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.

• Clean ventilating hoods frequently—Grease should
not be allowed to accumulate on the hood or filter.

Follow the manufacturer’s instructions for cleaning hoods.

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such
substances.

Grounding Instructions

See the INSTALLATION INSTRUCTIONS packaged with this
range for complete installation and grounding instructions.

Grounding type
wall receptacle

Do not under any
circumstance, cut,
remove, or bypass
the grounding prong.

Power supply cord
with 3-prong
grounding plug.

Conversion to Liquefied Petroleum Gas

WARNING

Personal injury or death from electrical shock may occur
if the range is not installed by a qualified installer or
electrician.

Any additions, changes or conversions required in order
for this appliance to satisfactorily meet the application
needs must be made by a qualified technician.

WARNING

Avoid fire hazard or electrical shock. Do not use an
adapter plug, an extension cord, or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.

This appliance is equipped with a 3-prong grounding
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong
from this plug.

For personal safety, the range must be properly
grounded. For maximum safety, the power cord must
be plugged into an electrical outlet that is correctly
polarized and properly grounded.

If a 2-prong wall receptacle is the only available outlet,
it is the personal responsibility of the consumer to have
it replaced with a properly grounded 3-prong wall
receptacle installed by a qualified electrician.

If your gas range model is designed to allow for L.P.
conversion, the L.P. conversion kit may be obtained from
your local appliance dealer and should be installed by a
qualified service technician. Before installing the kit be sure
to follow the L.P. Installation Instructions carefully.

6

2

Your gas range features include:

NOTE

The features shown may vary from your
appliance according to model type & color.

FEATURES AT A GLANCE

1

16

7

7

1. Electronic oven control with kitchen timer.

2. Oven light switch (some models).

3. Left front burner valve and control knob.

4. Left rear burner valve and control knob.

5. Right front burner valve and control knob.

6. Right rear burner valve and control knob.

7. Burner grates (colors and styles vary with model).

8. Interior oven light with removable cover.

9. Automatic oven door light switch (some models).

10. Self-cleaning oven interior.

11 . Self-clean door latch.
12 . Adjustable interior oven rack(s).
13 . Large 1-piece oven door handle.

14. Full width oven door with window.

15. Storage drawer with integrated handle (some models) or

lower cover panel (some models).

16. Easy to clean upswept cooktop.

17 . 5,000 BTU simmer burner (some models).

18. 9,500 BTU standard burner (some models).

19. 12,000 BTU burner (some models).

20. 14,000 BTU burner (some models).

21. 17,000 BTU burner (some models).

22 . Broil pan (some models).
23 . Broil pan insert (some models).
24 . Leveling legs and anti-tip bracket (included).

Be sure to visit us online at

www.frigidaire.com

22

for a complete line of accessories.

23

24

14

3

9

4

5 6

11

10

8

12

13

15

18
19
20

17
18

21

18
19

18

20
21

7

BEFORE SETTING OVEN CONTROLS

The oven vent is located below the control panel (See
Fig. 1). When the oven is on, warm air passes through this
vent. This venting is necessary for proper air circulation in
the oven and good baking results. Do not block the oven

vent.

oven vent location

Types of oven racksOven vent location

flat handle

oven rack

flat
oven rack

Fig. 1

Removing, replacing & arranging racks

To remove - pull the rack forward until it stops. Lift up

front of rack and slide out.
To replace - fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into
place.
Arranging - always arrange the oven racks when the oven
is cool (prior to operating the oven).

CAUTION

Always use oven mitts when using the oven. When
using the appliance, oven racks and cooktop will become
very hot which can cause burns.

6
5
4

3

offset
oven rack

The flat oven rack or flat handle oven rack (some
models) may be used for most cooking needs.

The offset oven rack (some models) is designed to place
the base of the rack about 1/2 of a rack position lower than
normal. This rack design provides several additional
possible positions between the standard positions.

Air circulation in the oven

For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 oven racks,
place cookware on rack positions 2 & 5 (See Figs. 2 & 3).
For best results when using a single oven flat rack, place
cookware on rack positions 2, 3 or 4 (See Figs. 2 & 4).

2

1

Fig. 2

Recommended rack positions by food type

Food type Position

Broiling meats See broil
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread

and casseroles 1 or 2
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1

8

Fig. 3 Fig. 4

BEFORE SETTING SURFACE CONTROLS

Using proper cookware

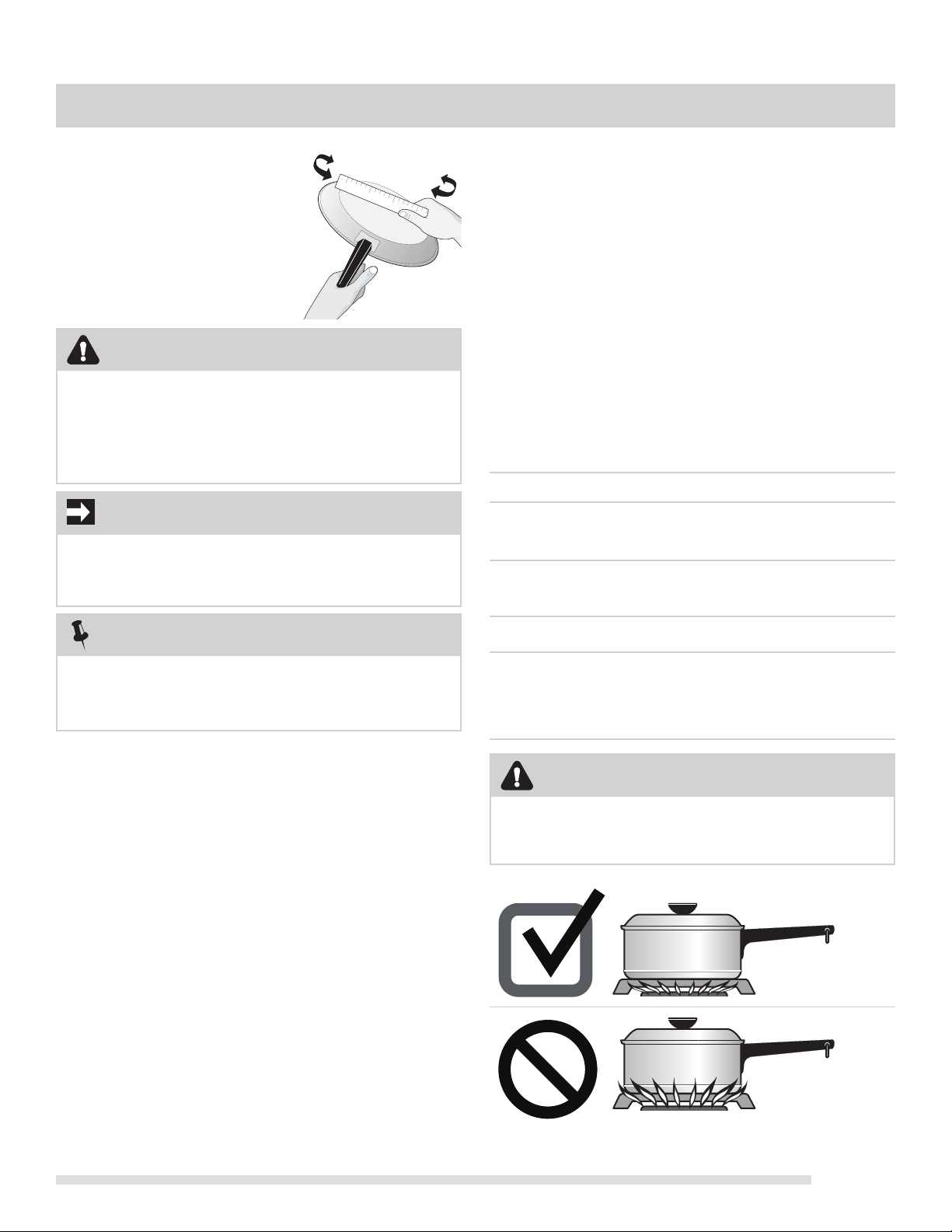

For best cooking results,
cookware should have flat
bottoms that rests level on the
burner grate. Before using
cookware, check for flatness by
rotating a ruler across the
bottom of the cookware (Fig. 1).

Fig. 1

CAUTION

Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the range cooktop.

IMPORTANT

Do not place aluminum foil, or ANY material that

can melt on the range cooktop. If these items melt

they may damage the cooktop.

Set proper burner flame size

The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust
or clean burner if flame is yellow-orange.

For most cooking; start on the highest setting and then
turn to a lower setting to complete the process. Use the
recommendations below as a guide for determining proper
flame size for various types of cooking (Fig. 2)

For deep fat frying; use a thermometer and adjust the
surface knob accordingly. If the fat is too cool, the food will
absorb the fat and be greasy. If the fat is too hot, the food
will brown so quickly that the center will be under cooked.
Do not attempt to deep fat fry too much food at once as the
food will neither brown or cook properly.

Flame size* Type of co oking

High flame Start most foods; bring water to a boil;

pan broiling.

Medium flame Maintain a slow boil; thicken sauces,

gravies; steaming.

NOTE

The size and type of utensil used, and the amount and
type of food being cooked will influence the setting
needed for best cooking results.

Cookware material types

The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food

will cause it to darken (Anodized aluminum cookware
resists staining & pitting).

Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking

results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat

very well. Cooks evenly once cooking temperature is
reached.

Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.

Glass - Slow heat conductor.

Low flame Keep foods cooking; poach; stewing.
* These settings are based for medium-weight metal or

aluminum pans with lids. Settings may vary when using
other types of pans.

Fig. 2

CAUTION

Never extend the flame beyond the outer edge of the
cooking utensil. A higher flame wastes energy, and
increases your risk of being burned by the flame (Fig. 3).

Correct flame
setting

Incorrect
flame setting

Fig. 3

9

SETTING SURFACE CONTROLS

Setting surface controls

Your gas appliance may be equipped with different sized
surface burners. The ability to heat food quicker and in
larger volumes increases as the burner size increases. It is
important to select cookware that is suitable for the amount
and type of food being prepared.

The smaller simmer burner (some models) is best suited
for simmering delicate sauces, etc.

The standard size (9,500 BTU) burners may be used for
most surface cooking needs.

The larger (Quick Boil - some models) burner or burners
are best used for bringing large quantities of liquid to
temperature and when preparing larger quantities of food.

Setting surface burners

1. Place cooking utensil on center of surface burner grate.

Make sure the utensil is centered and stable on the
grate.

2. Push the desired surface control knob in and turn

counterclockwise out of the OFF position (Fig. 1).

3. Release the knob and rotate to the LITE position.

Visually check that the gas burner has lit.

4. Push the control knob in and turn counterclockwise to

the desired flame size. Use the control knob markings
and adjust the flame as needed.

CAUTION

Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the range cooktop.

NOTES

DO NOT cook with the surface control knob left in the

LITE position. The electronic ignitor will continue to spark
if the control knob is left in the LITE position.

When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.

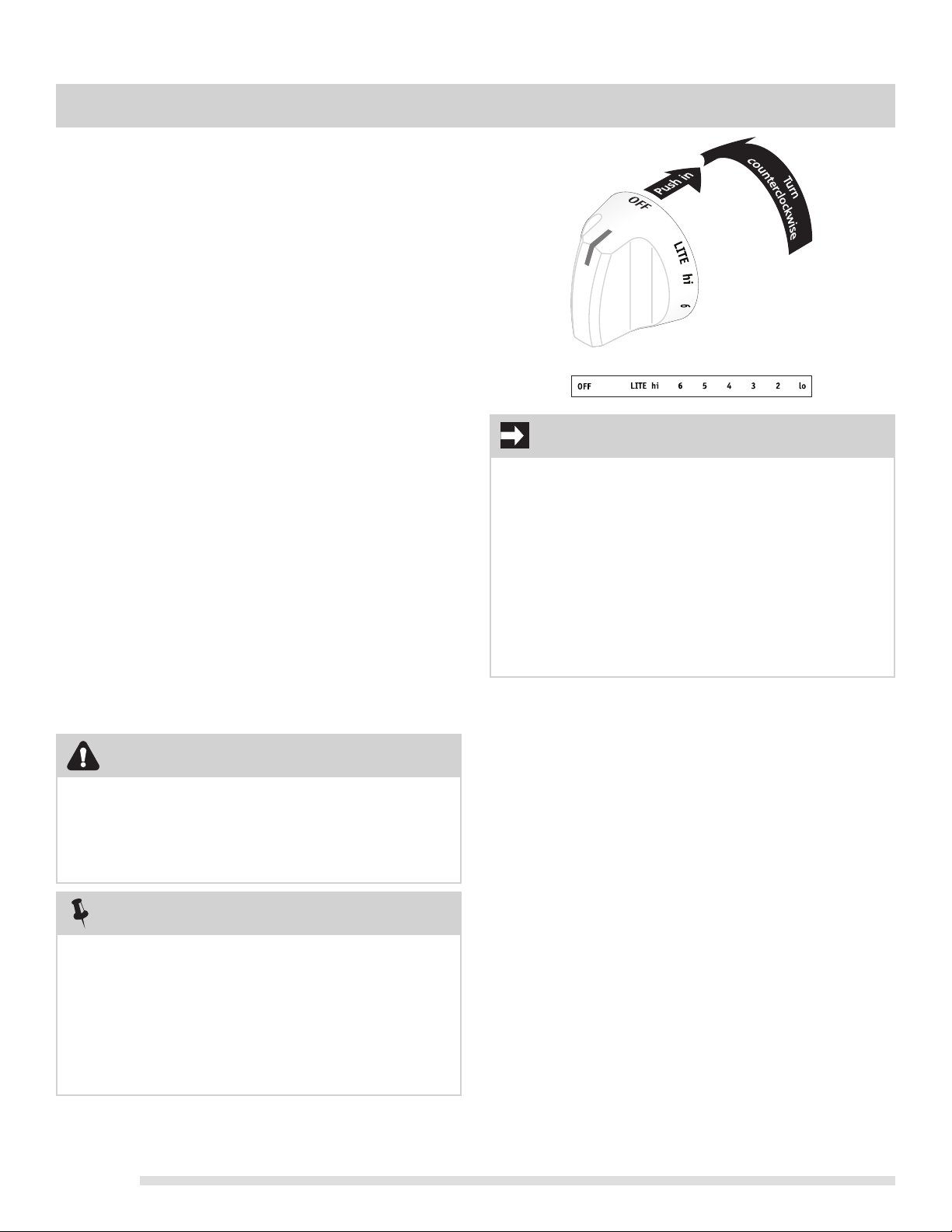

Fig. 1

IMPORTANT

• NEVER place or straddle a cooking utensil over 2 different

surface cooking areas at the same time.

• Do not place aluminum foil, or ANY material that

can melt on the range cooktop. If these items melt

they may permanently damage the cooktop surface.

• In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner,
hold a lit match to the burner head, then slowly turn
the surface control knob to LITE. After burner lights
push in and turn knob to desired setting.

Home Canning

Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for home canning
procedures.

• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.

• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner. It is
recommended to use smaller diameter canners on electric
coil and ceramic glass cooktops.

• Start with hot tap water to bring water to boil more
quickly.

• Use the highest heat seating when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.

10

OVEN CONTROL FUNCTIONS

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

For satisfactory use of your oven, become familiar with the various pad features and functions of the oven as described below.

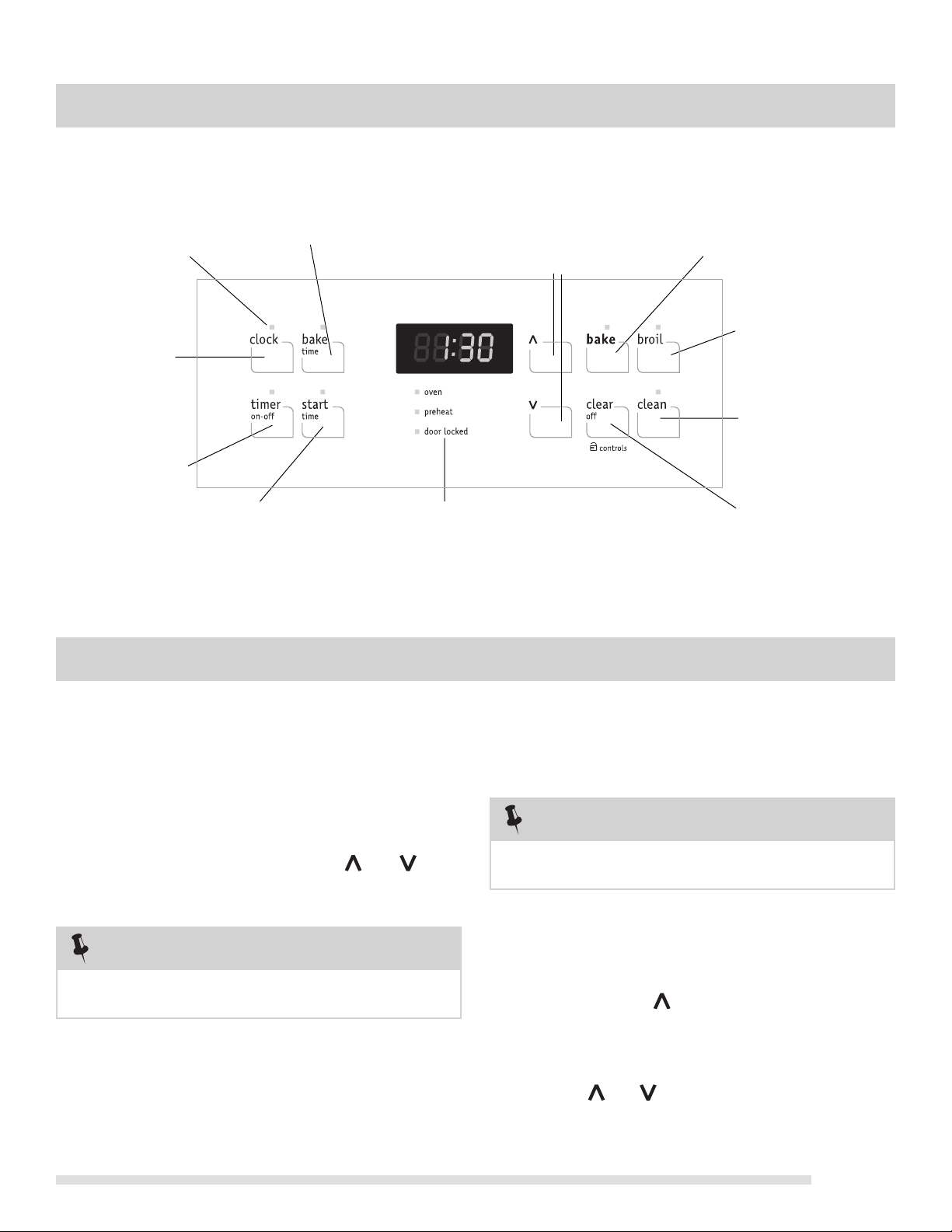

Feature indicator
lights— These

indicator lights show
which feature is active.

Clock pad— Use to
set the time of day.

Timer on-off pad—
Use to set or cancel
the minute timer. The
minute timer does not
start or stop cooking.
Timer on-off pad is
used to set the
continuous bake
function.

Bake time pad— Use
to enter the length of
baking time desired.

Start time pad—
Use to set the
desired start time
for baking & Self­Clean. May be used
with bake time to
program a delayed
timed bake.

Up and down arrow pads— Use with the
feature or function pads to set oven
temperature, bake time, start time, clean time
(when programming an automatic start time),
setting or adjusting the clock and minute timer.

Oven, preheat & door locked lights* — The "oven" light
will glow each time the oven turns on to maintain the set oven
temperature. The "preheat" light will glow when the oven is
first set to operate, or if the desired temperature is reset higher
than the actual oven temperature. The "door locked" light will
flash when the oven door locks and unlocks, the oven door
lockout is active or when the self-clean cycle feature is active.

Bake pad—Use
to select the bake
feature.

Broil pad— Use to select
the variable broil feature.

Clean pad— Use to set a
Self-Clean cycle.

Clear off pad— Use to
clear any feature
previously entered except
the time of day and
minute timer. Press clear
off to stop cooking.
Also use clear off to
activate oven lockout
feature.

Setting the clock

When the appliance is first plugged in or when the power
supply to the appliance has been interrupted, the display
will flash "12:00". It is recommended to always set the
clock for the correct time of day before using the appliance.

To set the clock

1. Press clock once (do not hold key pad down).

2. Within 5 seconds, press and hold the or until
the correct time of day appears in the display.

NOTE

The clock cannot be changed when the oven is set or
clean is active.

SETTING OVEN CONTROLS

Changing the temperature display mode
(°F or °C)

The display may be changed to show or Fahrenheit or
Celsius oven temperatures.The oven control is set to display
°F (Fahrenheit) when shipped from the factory.

NOTE

The temperature display mode cannot be changed when

the oven is set or clean is active.

To change the temperature display mode from °F to
°C (Celsius) or from °C to °F (Fahrenheit)

1. Press broil. "— —" appears in the display.

2. Press and hold the until "HI" appears in the
display.

3. Press and hold broil until °F or °C appears in the
display.

4. Press the or to change °F to °C or °C to °F.

5. Press any control pad to return to normal operating
mode.

11

SETTING OVEN CONTROLS

Setting a silent control panel

When choosing a function, a tone will be heard each time a
keypad is pressed. If desired, the control can be
programmed for silent operation.

To block the controls from sounding when any keypad is
pressed in the future, press and hold start time keypad for
6 seconds. The control will beep once then release the
keypad.

To return the tones, press and hold start time again for 6
seconds until the control beeps once.

NOTES

• The indicator light located above the timer on-off pad

will glow while the minute timer is active.

• The minute timer will display hours and minutes until 1
hour remains on the timer. Once less than 1 hour
remains, the display will count down in minutes and
seconds. Once the timer has less than 1 minute
remaining only seconds will display.

Setting the minute timer

1. Press timer on-off.

2. Press the
increments. Press and hold the to increase the

time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.

Note: If the pad is pressed first, the timer will
advance to 11 hours and 59 minutes.

3. When the set time has run out, the timer will beep 3
times and will continue to beep 3 times every 60
seconds until timer on-off is pressed.

To change the timer while it is in use

While the timer is active and shows in the display, press
and hold the or to increase or decrease the time
remaining.

To cancel the minute timer before the set time has
run out

Press timer on-off once .

to increase the time in one minute

• The minute timer will not start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using any of the other
oven features. If another feature is active when the
minute timer is active, the minute timer will show in the
display. To view information about other active
features, press the pad for that feature.

Changing between continuous bake
setting or 12-Hour Energy Saving feature

The oven control has a built-in 12-Hour Energy Saving
feature that will shut off the oven if the oven is left on for
more than 12 hours. The oven control can be programmed
to override this feature for continuous baking.

Changing to continuous bake setting:

1. Press and hold timer on-off down for 6 seconds until
a tone sounds. " — — hr" will appear in display for
continuous cooking. The current time of day will return
to the display.

2. To cancel the continuous bake setting, press timer
on-off and hold for 6 seconds until a tone sounds.
"12hr" will appear in display indicating that the control
has returned to the 12-Hour Energy Saving feature.

IMPORTANT

12

This feature does not change how the cooktop controls
operate.

SETTING OVEN CONTROLS

Setting bake

The oven can be programmed to bake at any temperature
from 170°F to 550°F (77°C to 287°C). The factory preset
automatic bake temperature is 350°F (177°C).

To set bake

1. Press bake. "— — —" appears in the display.

2. Within 5 seconds, press the
will show "350°F (177°C)." By pressing and holding

the or , the temperature can then be adjusted
in 5°F increments (1°C if the control is set to display

Celsius).

3. As soon as the or pad is released, the oven
will begin heating to the selected temperature. When

the displayed temperature reaches the desired baking
temperature, the preheat indicator light will turn OFF
and the control will beep 3 times.

To change the oven temperature after bake has
started

1. Press bake. Visually check the bake temperature and
that it needs to be changed.

or . The display

Setting bake time

The bake time pad sets the amount of time needed for
baking. The oven will turn on immediately and stop
automatically after the set bake time ends.

WARNING

FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.

CAUTION

Use caution with the timed bake and delayed timed bake
features. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator
first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and
should be removed promptly when cooking is finished.

To program the oven to begin baking immediately
and to shut off automatically (timed bake)

1. Be sure that the clock displays the correct time of day.

2. Press the or pad to increase or decrease the
set temperature to the desired new oven temperature.

NOTES

• The oven indicator light on the electronic display will

turn ON and OFF when using the Bake feature and
during preheat. This is normal and indicates that the
oven is cycling to maintain the selected baking
temperature.

• When the preheat indicator light turns OFF, your oven
is ready.

• To cancel baking at any time, press clear off.

IMPORTANT

Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time
to prevent overbrowning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended
for cakes, cookies and muffins.

2. Place the food in the oven.

3. Press bake. " — — — ° " appears in the display.

4. Within 5 seconds, press the or . The display will
show "350°F (177°C)." By holding the or , the

temperature can be adjusted in 5°F increments (1°C if
the control is set to display Celsius).

5. Press bake time. ":00" will appear in the display.

6. Press the or until the desired baking time
appears in the display.

7. The oven will turn ON and begin heating.

NOTES

• Bake time will not operate when using the broil feature.

• To cancel baking at any time, press clear off.

13

SETTING OVEN CONTROLS

Setting bake time and start time

The bake time and start time pads may be used to set
the length of baking time and to delay the starting time
(delayed timed bake). The oven will turn on at a later time
and stop automatically after the set bake time ends.

To program oven for a delayed start time and to
shut-off automatically

1. Be sure that the clock displays the correct time of day.

2. Place food in the oven.

3. Press bake. " — — — ° " appears in the display.

4. Within 5 seconds, press the or . The display will
show "350°F (177°C)." By holding the or , the

temperature can then be adjusted in 5°F increments
(1°C if the control is set to display Celsius).

5. Press bake time. ":00" will appear in the display.

WARNING

FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.

CAUTION

Use caution with the timed bake and delayed timed bake
features. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator
first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and
should be removed promptly when cooking is completed.

IMPORTANT

6. Press the or until the desired baking time
appears.

7. Press start time. The time of day will appear in the
display.

8. Press the or until the desired start time appears
in the display.

9. Once the controls are set, the control calculates the
time when baking will stop.

10. The oven will turn ON at the delayed start time and
begin heating. The oven will turn OFF after the set bake
time ends.

When the set bake time runs out

1. "End" will appear in the display window and the oven
will shut-off automatically.

2. The control will beep 3 times every 60 seconds as a
reminder until clear off is pressed.

To change the oven temperature or bake time after
baking has started

1. Press the function pad you want to change.

Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time
to prevent overbrowning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended
for cakes, cookies and muffins.

NOTE

During a delayed timed bake the preheat indicator light
will not function until the set time to start cooking is
reached.

2. Press the or to adjust the setting.

14

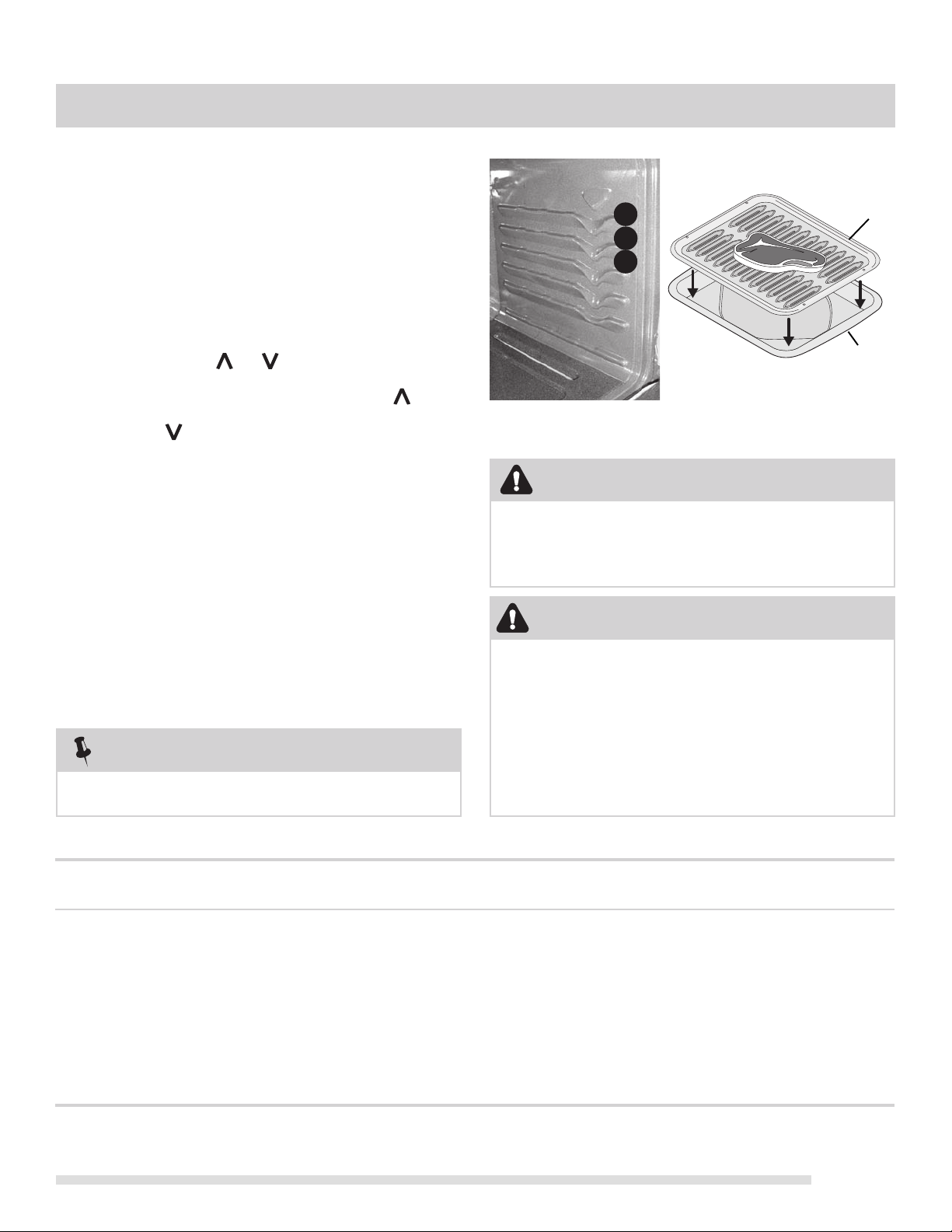

Setting broil

Use the broil feature to cook meats that require direct
exposure to flame heat for optimum browning results.
When broiling always remember to arrange the oven
racks while oven is still cool. Position the oven rack as
suggested in the broil settings table (See Fig. 3).

To set broil

1. Arrange the oven rack while oven is still cool.

2. Press broil. " — — "will appear in display.

3. Press and hold the

or until the desired broil

SETTING OVEN CONTROLS

6
5
4

Insert

Broil pan

setting level appears in the display. Press the
broil or the for LO broil. Most foods may be broiled

at the HI broil setting. Select the LO broil setting to
avoid excess browning or drying of foods that should be
cooked to the well-done stage.

4. For optimum browning, preheat the oven for 5

minutes before adding food.

5. Place the insert on the broil pan (if equipped), then
place the food on the broil pan insert (if equipped).

6. Place the broiler pan and insert on the oven rack (if
equipped-See Figs. 1 & 2).

7. Close the oven door.

8. Broil on one side until food is browned. Turn and broil
food on 2nd side. For recommended broil settings and
times refer to Fig. 3.

9. When broiling is finished press clear off.

for HI

NOTE

Always pull the oven rack out to the stop position before
turning or removing the food.

Suggested broil settings table (gas oven)

Fig. 1 Fig. 2

WARNING

Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.

CAUTION

• The broiler pan and the insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert. DO
NOT cover the insert with aluminum foil; the exposed
grease could ignite.

• To insure proper results when broiling use ONLY
Electrolux Home Products, Inc. approved broil pan &
insert.

Food Rack position Setting Cook time in minutes

1st side 2nd side Doneness

Steak 1” thick 5th or 6th* H i 8 6 Medium
Steak 1” thick 5th or 6th* H i 10 8 Medium-well
Steak 1” thick 5th or 6th* H i 11 10 Well
Pork chops 3/4” thick 5t h H i 12 8 Well
Chicken-bone in 4t h Lo 25 15 Well
Chicken-boneless 5th Lo 10 8 Well
Fish 5t h H i - as directed - Well
Shrimp 4t h H i - as directed - Well
Hamburger 1” thick 6th* H i 12 10 Medium
Hamburger 1” thick 5th Hi 14 12 Well

*Use the off-set rack if you choose to use oven rack position 6 (if equipped).

Fig. 3

15

SETTING OVEN CONTROLS

Adjusting the oven temperature

Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you can adjust the
control so the oven cooks hotter or cooler than the
temperature displayed.

To adjust oven temperature:

1. Press bake.

2. Set the temperature to 550°F (287°C) by pressing and
holding the

3. Within 2 seconds, press and hold bake until numeric
digit(s) appear. Release bake keypad. The display now
indicates the amount of degrees offset between the
original factory temperature setting and the current
temperature setting. If the oven control has the original
factory calibration, the display will read "0."

4. The temperature can now be adjusted up or down 35°F
(19°C), in 5°F increments by pressing and holding the

or . Adjust until the desired amount of offset

appears in the display. When lowering the oven
temperature, a minus sign (-) will appear before the
number to indicate that the oven will be cooler by the
displayed amount of degrees.

5. When you have made the desired adjustment, press
clear off to go back to the time of day display.

.

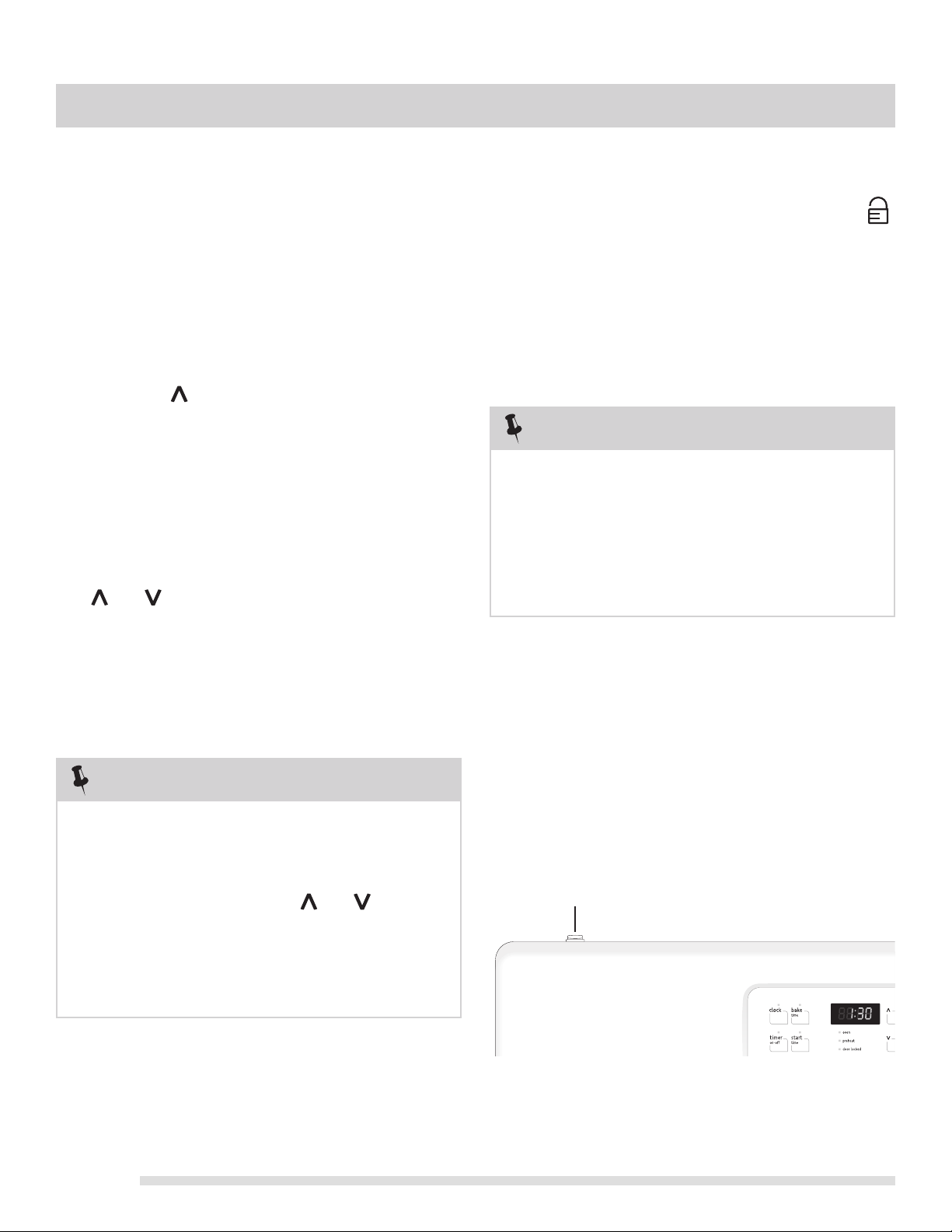

Setting oven lockout

The control can be programmed to lock the oven door and
lockout the oven control pads.

To set the oven lockout feature

1. Press clear off and hold for 3 seconds. “Loc” will
appear in display, the “Door Locked” indicator light will
flash and the motor driven door lock will begin to close
automatically. Allow about 15 seconds for the oven
door to lock. Once the oven door is locked, the current
time of day will appear in the display.

2. To cancel the Oven Lockout feature, press clear off
and hold for 3 seconds. The control will unlock the oven
door and resume normal operation.

NOTES

DO NOT open the oven door while the indicator light

is flashing. Allow about 15 seconds for the oven door to
lock. Once the oven door is locked, the current time of
day will appear in the display.

If any control pad is pressed with the oven lockout
feature active, “Loc” will appear in the display until the
control pad is released.

Operating oven light (some models)

The interior oven light will automatically turn ON when the
oven door is opened. Press the oven light switch located on
the upper left control panel to turn the interior oven light ON
and OFF whenever the oven door is closed.

NOTES

Oven temperature adjustments made will not affect the
broil or self-cleaning feature temperatures.

If the display is set for Celsius, adjustments made will be in
1°C increments each press of the or keys.

DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20 to
40 degrees from actual temperatures.

16

The interior oven light is located at the upper left rear wall
of the oven interior and is covered with a glass shield held
by a wire holder. The glass shield must be in place
whenever the oven is in use. To change the interior oven
light, see "Changing the oven light" in the Care & Cleaning
section.

oven light switch

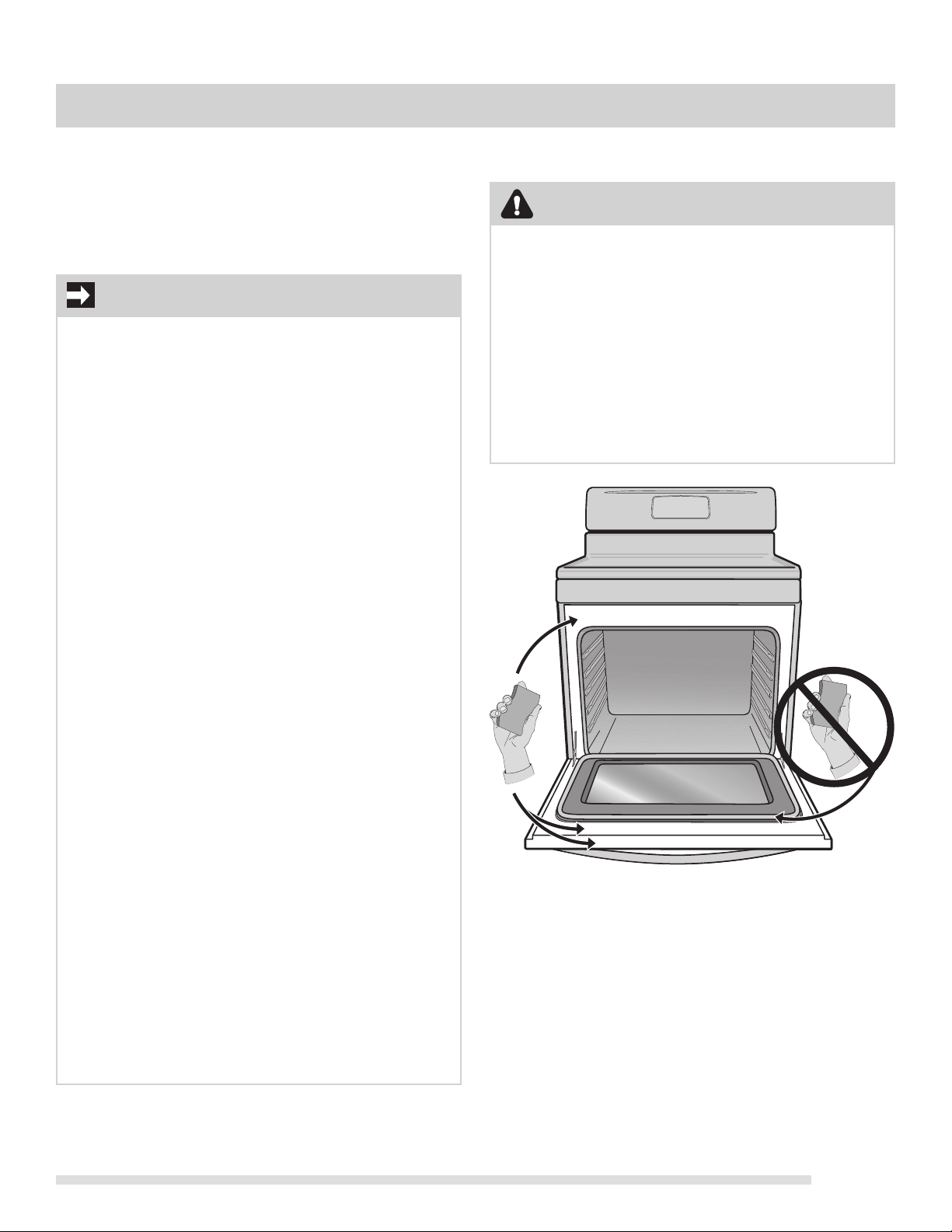

Self-cleaning

A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which eliminate
soils completely or reduces them to a fine powdered ash
you can wipe away with a damp cloth.

IMPORTANT

Adhere to the following self-clean precautions:

SELF-CLEANING

CAUTION

During the self-cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave small
children unattended near the appliance.

The health of some birds is extremely sensitive to the
fumes given off during the Self-cleaning cycle of any
range. Move birds to another well-ventilated room.

• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.

• DO NOT clean the oven door gasket (See Fig. 1). The
woven material of the oven door gasket is essential
for a good seal. Care should be taken not to rub,
damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage.

• Remove the broiler pan and insert, all utensils
and ANY ALUMINUM FOIL. These items cannot
withstand high cleaning temperatures and will
melt.

• Completely remove ALL OVEN RACKS and ANY
ACCESSORIES. If the oven racks are not
removed they will lose their special coating
properties and no longer slide in and out of the
oven cavity easily.

• Remove any excessive spillovers. Any spills on

the oven bottom should be wiped-up and removed
before starting the self-cleaning cycle. To clean,
use hot, soapy water and a cloth. Large spillovers
can cause heavy smoke or fire when subjected to
high temperatures. DO NOT allow food spills with a
high sugar or acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on the
surface as they may leave a dull spot even after
cleaning.

DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when
opening the door after the self-cleaning cycle is finished.
The oven may still be VERY HOT.

Fig. 1

• Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom. These areas
heat sufficiently to burn soil on. Clean with soap and
water. These areas are shown in white (See Fig. 1).

17

SELF-CLEANING

Setting a self-clean cycle or a delayed
start self-clean cycle

IMPORTANT

To start a self-clean cycle immediately without a delay,
skip steps 2 & 3 in the instructions provided below.

Setting self-clean cycle

1. Be sure the clock displays the correct time of day.

2. Press start time. The " : " in the time of day will flash.

3. Press and hold the
the delayed self-clean cycle. Release the pad when the

desired time is displayed.

4. Press clean. “---” appears in the display.

5. Press the
the display indicating that a 3 hour self-clean time is

set. To change to a 2 hour self-clean time press

once (2:00 appears in the display).

(Some models) For a 4 hour self-clean time press

until (4:00 appears in display).

or pad once. “3:00” will appear in

pad to scroll to the time to start

When the self-clean cycle has completed:

1. The time of day will appear in the display window and
the “Clean” and "LOCK" light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and
the "LOCK" light has gone out, the oven door can be
opened.

Stopping or interrupting a self-clean cycle

If it becomes necessary to stop or interrupt a self­cleaning cycle once it has been activated

1. Press clear off.

2. Once the oven has cooled down for about 1 HOUR and
the "LOCK" light has turned off, the oven door can be
opened.

3. Restart self-clean cycle once all conditions have been
corrected.

CAUTION

To avoid possible burns use care when opening the oven
door after the self-cleaning cycle. Stand to the side of
the oven when opening the door to allow hot air or
steam to escape.

6. "CLn" will appear in the display during the self-clean
cycle and the "LOCK" light will glow until the self­cleaning cycle is complete or cancelled and the oven
temperature has cooled.

NOTE

As soon as the controls are set, the motor driven lock
will begin to close automatically and the “LOCK” indicator
light will flash. DO NOT open the oven door while the
light is flashing (allow about 15 seconds for the oven
door to lock).

DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution and avoid
possible burns when opening the door after the self­cleaning cycle has completed. The oven may still be

VERY HOT.

NOTES

Whenever the self-clean feature is active you may check
the amount of time remaining by pressing the clean pad.
Remember the range door cannot be opened until the
range has cooled sufficiently. You will need to add
about 1 hour to the time displayed before you can
use the range for cooking.

When the oven is cool, wipe away any residue or
powdered ash with a damp cloth or paper towel.

18

Cleaning recommendation table

Surface type Recommendation

CARE & CLEANING

• Control knobs

• Painted body parts

• Painted decorative trim

• Aluminum, plastic or vinyl trim pieces

• Control panel

• Decorative trim (some models)

• Stainless Steel (some models)

Use hot, soapy water and a cloth. Dry with a clean cloth.

For general cleaning
difficult soils and built-up grease

the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp cloth
and dry. Do not use abrasive cleaners on any of these materials; they
can scratch. To remove control knobs, turn to the OFF position; grasp
firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the
knob into place.

Before cleaning the control panel,

remove any knobs from the panel. Clean using hot, soapy water and a
dishcloth. Be sure to squeeze excess water from the dishcloth
before wiping the control panel; especially when wiping around the
controls area. Excess water in or around the controls may cause
damage to the appliance. When rinsing, use clean water and a
dishcloth and be sure to squeeze excess water from dishcloth before
wiping the control panel.

Clean heavier soils with hot, soapy water and a dishcloth. Rinse with
clean water and a cloth. Do not use cleaners with high
concentrations of chlorides or chlorine. Do not use harsh scrubbing
cleaners. Only use kitchen cleaners that are especially made for cleaning
stainless steel. Always be sure to wipe the cleaners off from the surface
as bluish stains may occur during heating that cannot be removed.

, use hot, soapy water and a cloth.

, apply a liquid detergent directly onto

turn all controls OFF and if needed

For more

• Porcelain enamel broiler pan and broiler
pan insert (if equipped)

• Door liner & body parts

• Oven racks

• Oven door

• Cooktop surface and contoured well

areas, surface burner heads and caps

Gentle scouring with a soapy non-abrasive scouring pad will remove
most spots. Rinse with a 1:1 solution of clear water and ammonia.

necessary

for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled non-abrasive scouring pad. Rinse and
wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating.

Oven racks must be removed from oven before starting self-

clean cycle. Clean by using a mild, abrasive cleaner following

manufacturer's instructions. Rinse with clean water and dry.
Use soap & water to thoroughly clean the top, sides and front of the

oven door. Rinse well. You may use a glass cleaner on the outside
glass of the oven door. Do not immerse the door in water. Do not

spray or allow water or the glass cleaner to enter the door

vents. Do not use oven cleaners, cleaning powders or any harsh

abrasive cleaning materials on the outside of the oven door.
Do not clean the oven door gasket. On self-cleaning models the oven

door gasket is made of a woven material which is essential for a good
seal. Care should be taken not to rub, damage or remove this gasket.

Do not use spray oven cleaners on the cooktop. See Cleaning the
cooktop and surface burner instructions provided in the Care &
Cleaning section.

, cover difficult spots with an ammonia-soaked paper towel

If

19

CARE & CLEANING

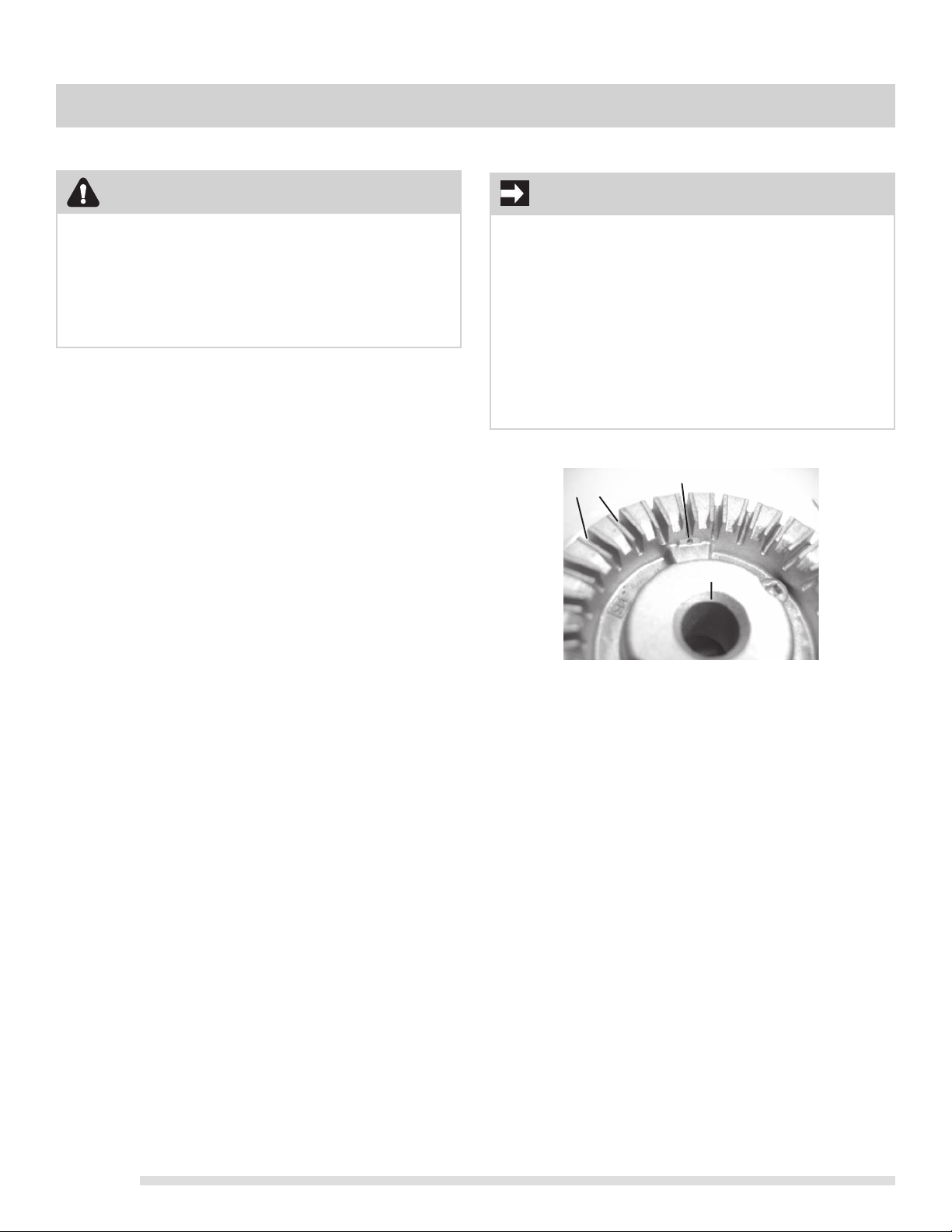

Cleaning the cooktop and surface burners

CAUTION

• To avoid possible burns DO NOT attempt any of the
cleaning instructions provided below before turning OFF
all of the surface burners and allow them to cool.

• Any additions, changes or conversions required in order
for this appliance to satisfactorily meet the application
needs must be made by an authorized qualified Agency.

Routinely clean the cooktop. Wipe with a clean, damp cloth
and wipe dry to avoid scratches.

Keeping the surface burner head ports and slots clean will
prevent improper ignition and an uneven flame. See the
following sections for more instructions.

To clean recessed and contoured areas of cooktop

If a spill occurs on or in the recessed or contoured areas,
blot up spill with an absorbent cloth. Rinse with a clean,
damp cloth and wipe dry.

To clean burner grates

•Clean when the grates are cool.

IMPORTANT

• Always keep the surface burner caps in place

whenever a surface burner is in use.

• When replacing the burner caps, be sure the burner
caps are seated firmly on top of the burner heads.

• The surface burner heads are secured to the cooktop

and must be cleaned in place on the cooktop.

• For proper flow of gas and ignition of burners — DO NOT

allow spills, food, cleaning agents or any other
material to enter the gas orifice opening.

ignition port

slots

orifice port

•Use nonabrasive plastic scrubbing pad and mild abrasive
cleanser.

•Food soils containing acids may affect the finish. Clean
immediately after the grates are cool.

•Thoroughly dry grates immediately following cleaning.

To clean burner caps

•Remove caps from burner heads after they have cooled.

•Clean heavy soils with a plastic scrubbing pad and
absorbent cloth.

•Thoroughly dry burner caps immediately following
cleaning including the bottom and inside of cap.

•Do not use abrasive cleaners. They can scratch porcelain.

•Do not clean burner caps in the dishwasher.

•Do not operate surface burners without burner caps
properly in place. See IMPORTANT notes.

Fig. 1 - Cooktop burner head

To clean the surface burner heads

For proper gas flow it may be necessary to clean the burner
head and slots. To clean, first use a clean DAMP cloth to soak
up any spills. Remove any food from between the burner slots
using a small nonabrasive brush like a toothbrush and
afterwards wipe up using a damp cloth. For stubborn soils
located in the slots, use a small-gauge wire or needle to clean.

Any spill on or around the electrode must be carefully
cleaned. Take care not to hit the electrode with any thing
hard or it could be damaged.

To clean the burner head ignition ports

Each burner head has a small ignition port located as
illustrated. Should you experience ignition problems it may be
that this port hole is partially blocked with soil. With the burner
head in place, use a small wire gauge needle or the end of a
paper clip to clear the ignition port (See Fig. 1 - center burner
not shown).

20

Replacing oven light

CARE & CLEANING

CAUTION

Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection
against possible broken glass.

The light bulb is located at the rear of the oven cavity and is
covered with a glass shield held by a wire holder. The glass
shield must be in place whenever the oven is in use.

To replace the oven light bulb:

1. Turn electrical power off at the main source or unplug

the range.

2. Press wire holder to one side to release the glass shield

that covers the light bulb.

3. Replace bulb with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder back

into place.

5. Turn power back on again at the main source (or plug

the appliance back in).

6. The clock will then need to be reset. To reset, see

“Setting the clock” in this Use & Care Guide.

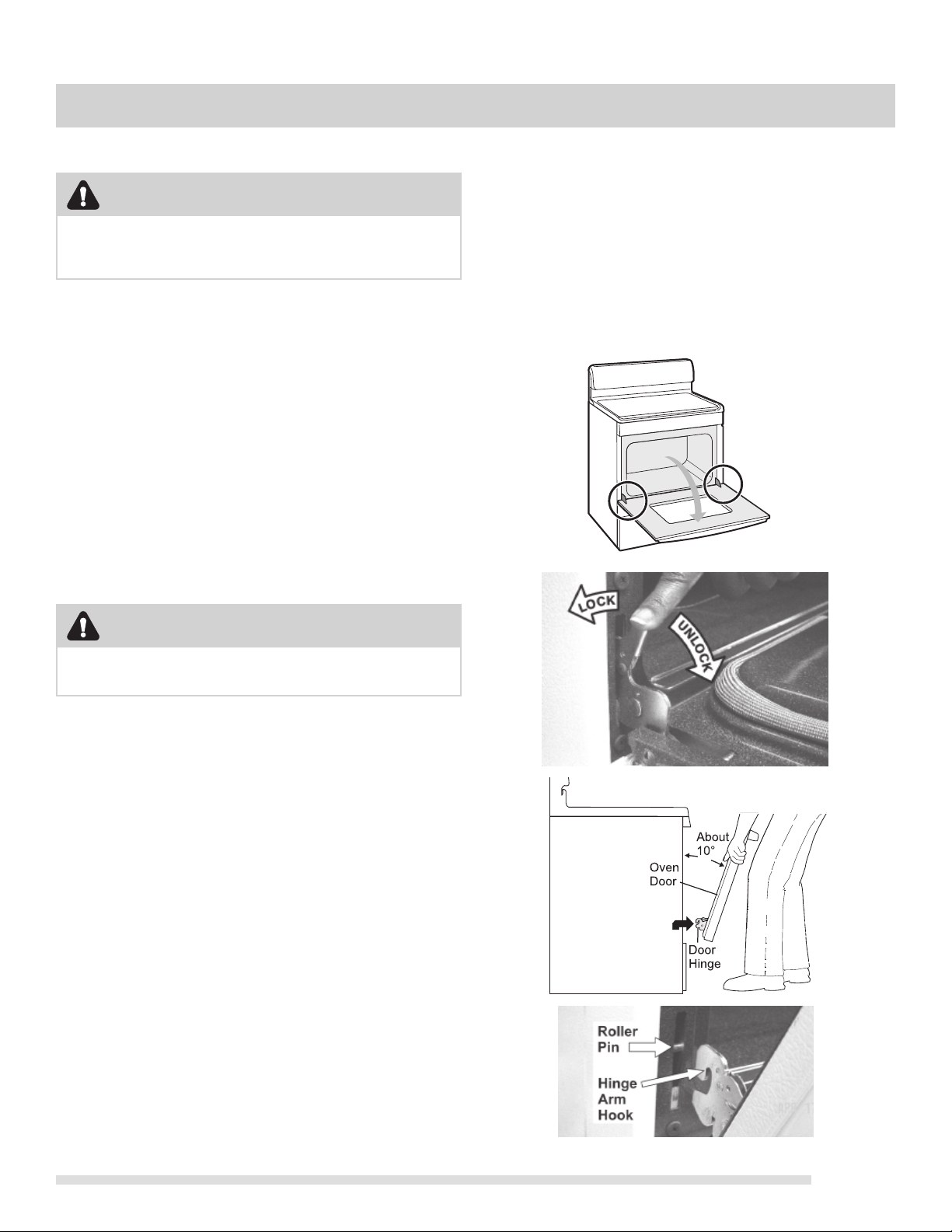

Removing and replacing the lift-off oven door

CAUTION

Special door care instructions - Most oven doors
contain glass that can break. Read the following
recommendations:

• Do not close the oven door until all the oven racks are fully

in place.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring or stressing the glass may

weaken its structure causing an increased risk of breakage
at a later time.

Oven door
hinge
locations
with oven door
fully open.

Fig. 1

The oven door is heavy. For safe, temporary storage, lay the
oven door flat with the inside of the door facing down.

To remove oven door:

1. Open oven door completely (horizontal with floor - Fig.1).

2. Pull the door hinge locks on both left and right door

hinges down from the oven frame completely towards
the oven door (Fig. 2). A tool such as a small flat-blade
screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Fig. 3).

4. Close the door to the broil stop position (the oven door

will stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the

oven door hinge arms over the roller pins located on each
side of the oven frame (Fig. 4).

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Fig. 3).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller
pins located on each side of the oven door frame (Fig. 4).
The hook of the hinge arms must be fully seated onto
the roller pins.

3. Fully open the oven door (horizontal with floor - Fig. 1).

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges (Fig. 2) to
the locked position; then close the oven door.

Fig. 2

Fig. 3

Fig. 4

21

BEFORE YOU CALL • Solutions to common problems

Problem Solution

Poor baking results. • Many factors affect baking results. Make sure the proper oven rack position is

used. Center food in the oven and space pans to allow air to circulate. Allow
the oven to preheat to the set temperature before placing food in the oven. Try
adjusting the recipe's recommended temperature or baking time. If you feel
the oven is too hot or cool, see “Adjusting the oven temperature” section in this
Use & Care Guide.

Entire appliance does not operate.

Oven portion of appliance does not
operate.

Surface burners do not ignite.

• The time of day is not set. The time of day must first be set in order to
operate the oven. See “Setting the clock” in the Setting Oven Controls
section.

• Make sure cord/plug is plugged correctly into outlet.

• Service wiring not complete. Contact your dealer, installing agent or
authorized service agent.

• Electrical power outage. Check house lights to be sure. Call your local
electric company for service.

• Be sure the oven controls are set properly for the desired cooking feature.
See Setting Oven Controls in this manual or see “Entire appliance does
not operate” in this checklist.

• Surface control knob was not completely turned to LITE. Push in & turn the
surface control knob to LITE until burner ignites and then turn control knob
to desired flame size.

• Burner ports are clogged. With the burner OFF, use a small-gauge wire or
needle to burner head slots and ignition ports. See “Cleaning the cooktop
and surface burners” in the Care & Cleaning section for additional
cleaning instructions.

• Range power cord is disconnected from outlet (electric ignition models
only). Be sure power cord is securely plugged into the power outlet.

• Electrical power outage (electric ignition models only). Burners can be lit
manually. See section on Setting Surface Controls.

Surface burner flame only part way
around burner cap.

Surface burner flame is orange.

Self-cleaning cycle does not work.

22

• Burner slots or ports are clogged. With the surface burner OFF, clean ports
with a small-gauge wire or needle.

• Moisture is present after cleaning. Lightly fan the flame & allow burner to
operate until flame is full. Dry the surface burners thoroughly following the
instructions under “Cleaning the cooktop and surface burners” provided in
the Care & Cleaning section.

• Dust particles in main gas line. Allow the burner to operate a few minutes
until flame turns blue. In coastal areas, a slightly orange flame is
unavoidable due to salt air.

• Oven control not set properly. Follow instructions under Self-Cleaning.

• Self-cleaning cycle was interrupted. Follow steps under "Stopping or
interrupting a self-cleaning cycle" under Self-Cleaning.

Problem Solution

Solutions to common problems • BEFORE YOU CALL

Soil not completely removed after self­cleaning cycle.

Oven smokes excessively during broiling.

Flames inside oven or smoking from
oven vent.

• Failure to clean bottom, front top of oven, frame of oven or door area
outside oven seal. These areas are not in the self-cleaning area, but get hot
enough to burn on residue. Clean these areas before the self-cleaning cycle
is started. Burned-on residue can be cleaned with a stiff nylon brush and
water or a nylon scrubber. Be careful not to damage the oven gasket.

• Incorrect setting. Follow broiling instructions in Setting Oven Controls.

• Make sure oven door closed.

• Meat too close to upper burner. Reposition oven rack to provide proper
clearance between the meat & the burner. Preheat the oven.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.

• Broiler pan and insert wrong side up and grease not draining. Always
place insert on the broiler pan with ribs up & slots down to allow grease
to drip into pan (some models).

• Grease has built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.

• Excessive spillovers in oven. For example this will happen for pie
spillovers or large amounts of grease left on the oven bottom. Wipe up
excessive spillovers before starting oven. If flames or excessive smoke
are present see “Broiling” in the Setting Oven Controls section.

Oven control panel beeps & displays any
F code error (for example F10, F11,
F13, F14, F15, F30, F31 or F90).

Oven light does not work.

Appliance is not level.

Cannot move appliance easily. Appliance
must be accessible for service.

• Oven control has detected a fault or error condition. Press clear off to
clear the display & stop beeping. Try the bake or broil feature again. If the
F code error repeats, remove power from appliance, wait 5 minutes and
then repower appliance and set clock for the time of day. Try the bake or
broil feature again. If the fault recurs, record fault and call for service.

• Be sure the light is secure in the socket. Also see “Replacing oven light” in the
Care & Cleaning section.

• Be sure floor is level, strong & stable enough to adequately support range.

• If floor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the
oven rack. Adjust leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sufficient room for appliance clearance.

• Cabinets not square or are built in too tightly. Contact builder or installer to
make appliance accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be
lifted over carpet.

23

MAJOR APPLIANCE WARRANTY

Y our appliance is covered by a one year limited warr anty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.

3. Rust on the interior or exterior of the unit.

4. Pr oducts purchased “as-is” are not cover ed by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appl iance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.

11. Surcharges including, but not limited to , any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANT ABILITY OR FITNES S FOR A PARTICUL AR PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED BY L AW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT
BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPER TY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STA TES AND PROVINCES DO NOT ALL OW THE EXCLUSION OR LIMITA TION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITA TIONS ON THE DURA TION OF IMPLIED W ARRANTIES, SO THESE
LIMITA TIONS OR EXCLUSIONS MAY NO T APPL Y T O YOU. THIS WRIT TEN WARRANT Y GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HA VE OTHER RIGHTS THA T V ARY FROM ST ATE TO STATE.

If You Need
Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or speci fications as described
or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

24

Canada

L5V 3E4
