Frigidaire 316135921 User Manual

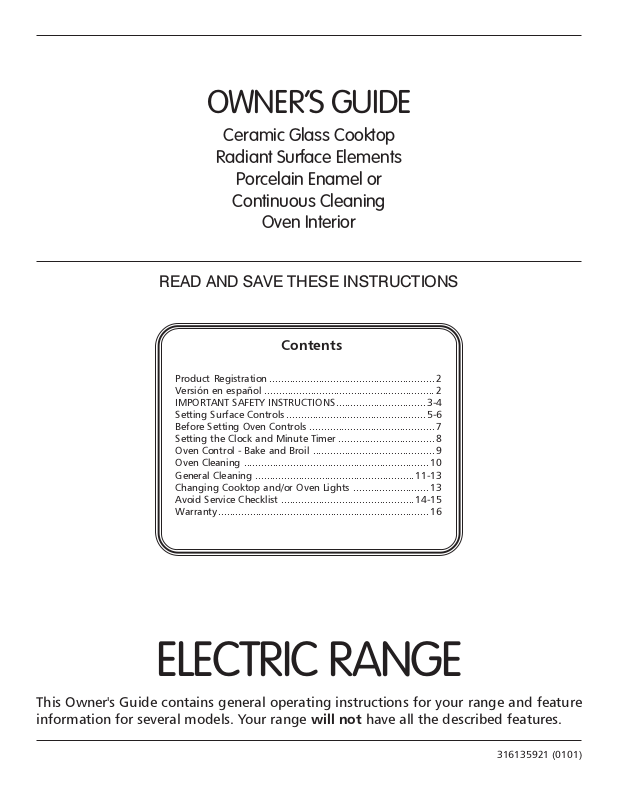

OWNERS GUIDE
Ceramic Glass Cooktop
Radiant Surface Elements
Porcelain Enamel or
Continuous Cleaning
Oven Interior
READ AND SAVE THESE INSTRUCTIONS
Contents
Product Registration ......................................................... 2
Versión en español ........................................................... 2
IMPORTANT SAFETY INSTRUCTIONS...............................3-4

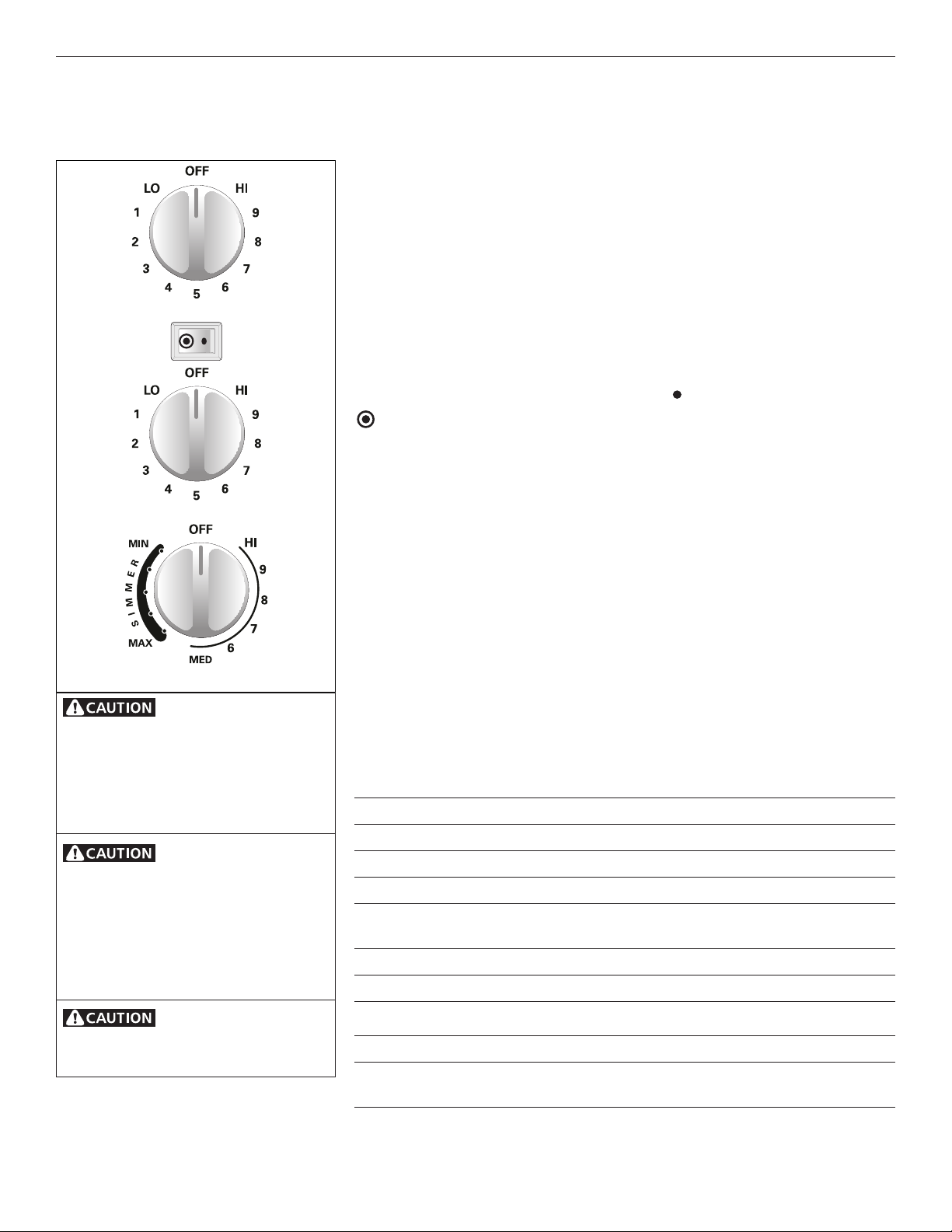

Setting Surface Controls ................................................5-6
Before Setting Oven Controls ........................................... 7

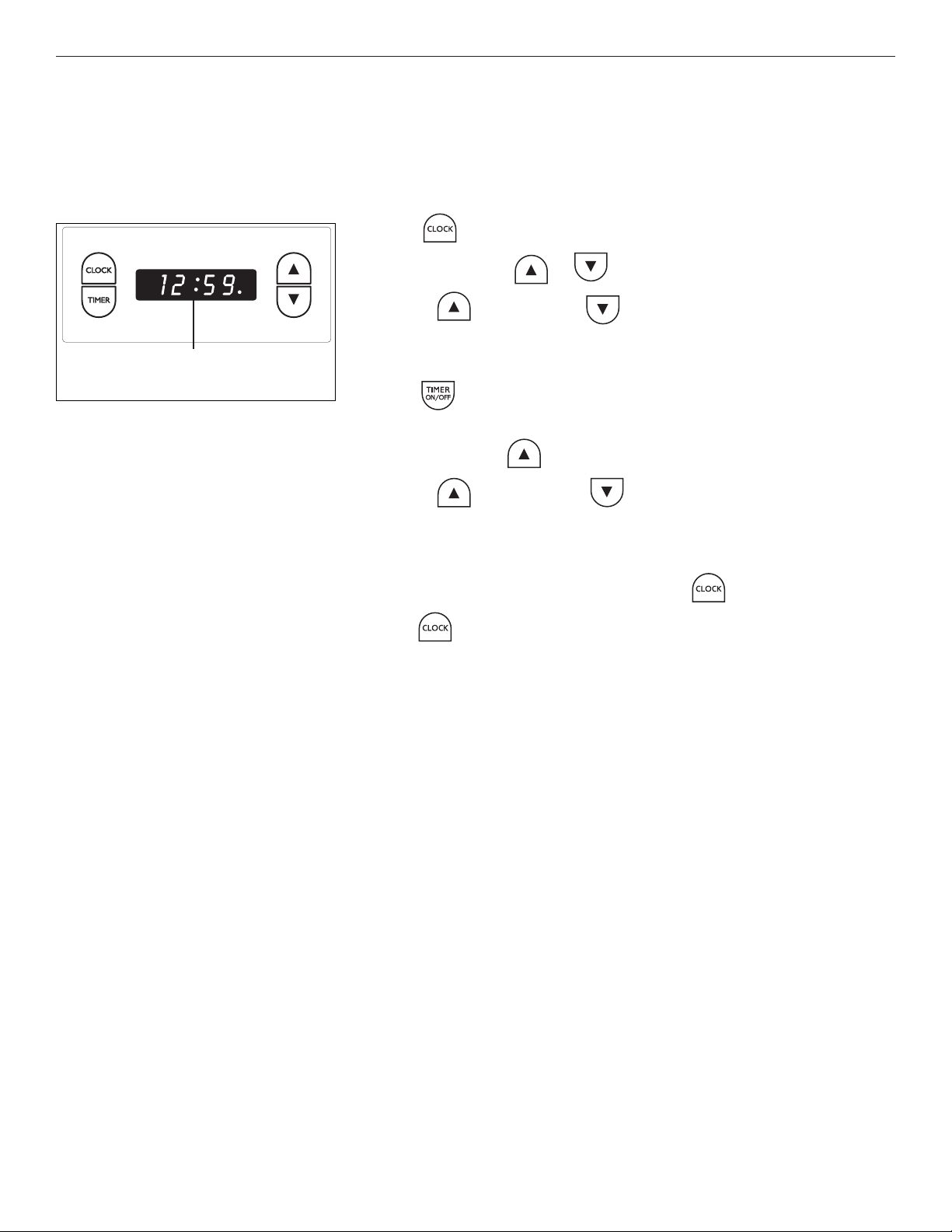

Setting the Clock and Minute Timer ................................. 8

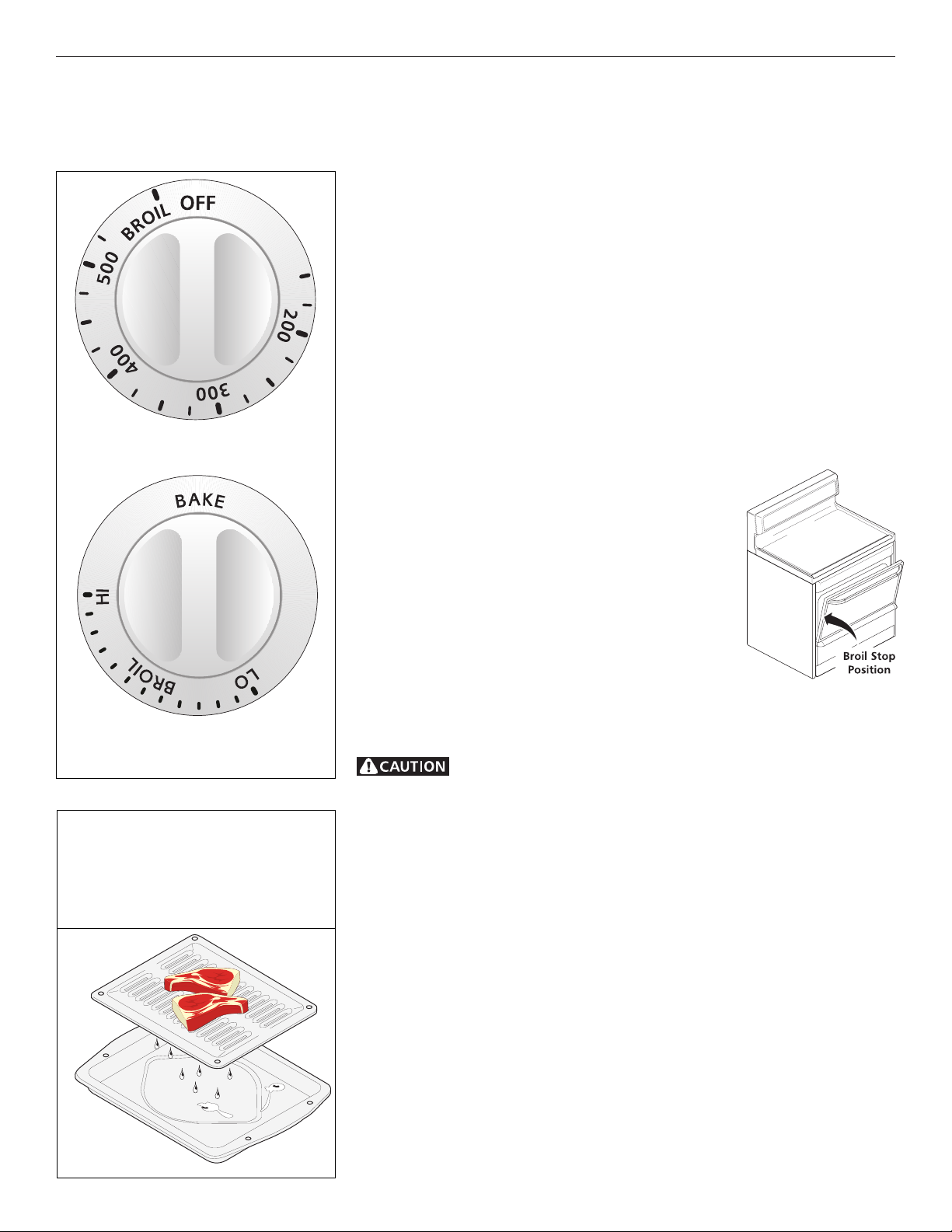

Oven Control - Bake and Broil .......................................... 9
Oven Cleaning ................................................................ 10

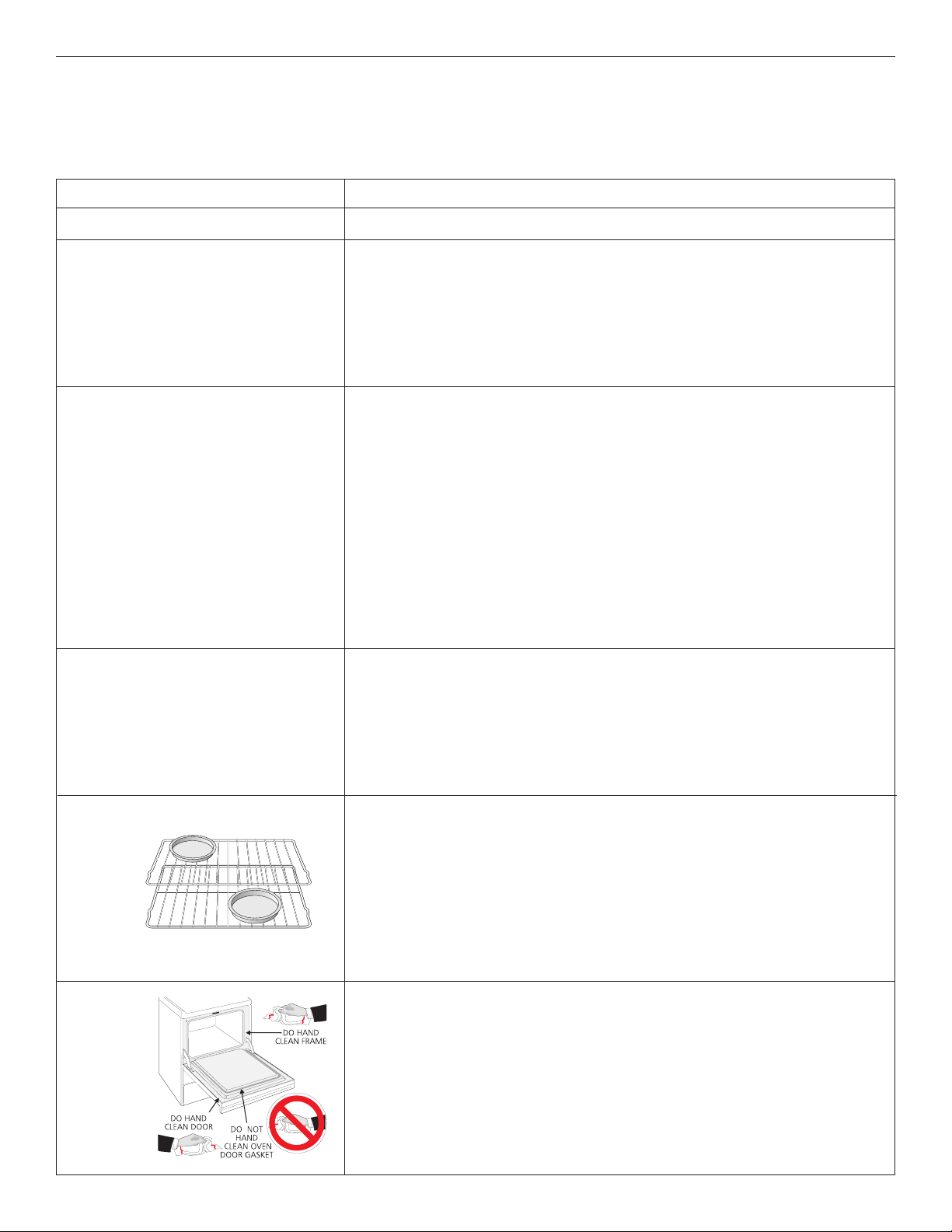

General Cleaning ....................................................... 11-13

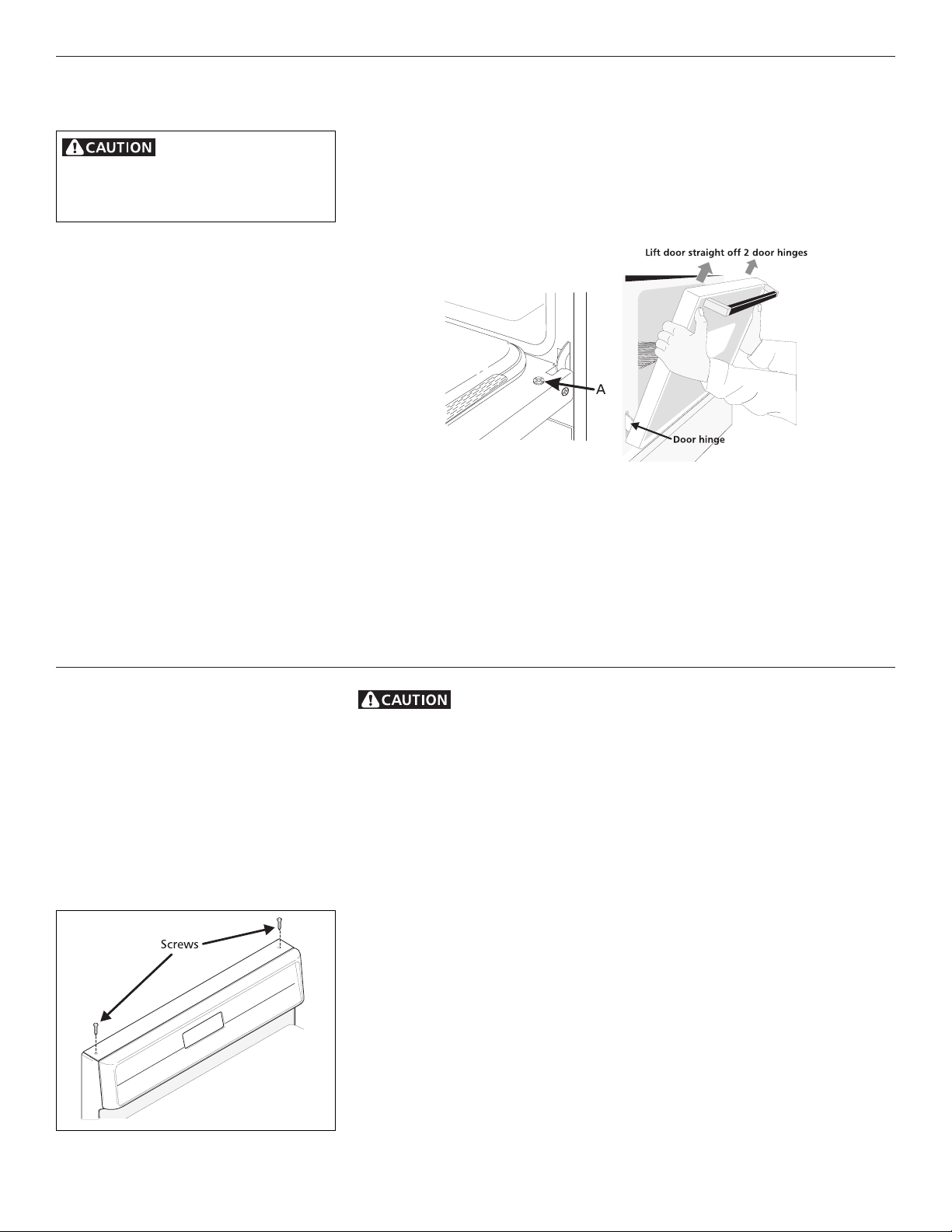

Changing Cooktop and/or Oven Lights .......................... 13
Avoid Service Checklist .............................................. 14-15
Warranty......................................................................... 16
ELECTRIC RANGE
This Owner's Guide contains general operating instructions for your range and feature
information for several models. Your range will not have all the described features.
316135921 (0101)
Product Registration
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Frigidaire Home Products.
Versión en español
Si desea obtener una copia en español
de este Manual del Usuario, sírvase
escribir a la dirección que se incluye a
continuación. Solicite la P/N
316080290E.
Spanish Owner's Guides
Frigidaire Home Products
P. O. Box 360797
Strongsville, OH 44136
Thank you for choosing this range. The information contained within this
Owner's Guide will instruct you on how to properly operate and care for your
range. Please read through the information contained in your literature pack
to learn more about your new range.
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. The serial
number is found on the right side of the oven front frame for models equipped
with a ceramic-glass cook top.
Model Number: ____________________________________________________
Serial Number: _____________________________________________________
Date of Purchase: __________________________________________________
This Owner's Guide contains general operating instructions for your range and
feature information for several models. Your range may not have all the
described features. The graphics shown are representational. The graphics on
your range may not look exactly like those shown.
© 2000 White Consolidated Industries
All rights reserved
Note: The instructions appearing in this Owner's Guide are not meant to cover
every possible condition and situation that may occur. Common sense and
caution must be practiced when installing, operating and maintaining any
appliance.
2
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This guide contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
Here is a brief explanation of the use of these symbols.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
Proper InstallationBe sure your appliance is properly
installed and grounded by a qualified technician in accordance
with the National Electrical Code ANSI/NFPA No. 70 latest
edition and local electrical code requirements. Install only per
installation instructions provided in the literature package for
this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
User servicingDo not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician,
This may reduce the risk of personal injury and damage to the
range.
Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws, or
any other part of the product.
All ranges can tip.
Injury to persons could result.
Install anti-tip device packed with range.
See Installation Instructions.
To reduce the risk of tipping,
the range must be secured by properly installed
anti-tip bracket provided with the range. To
check if the bracket is installed properly, visually
check that rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower panel or storage drawer. Refer
to the Installation Instructions for proper antitip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.
Do not use the oven for storage.
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured.
Heating the Room.
Storage in or on ApplianceFlammable materials should not
be stored in an oven, near surface units or in the storage
drawer. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable liquids.
Do not store explosives, such as aerosol cans, on or near the
range.
Do Not Leave Children AloneChildren should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Both surface units and oven heating elements may be hot even
though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven
vent openings and surfaces near these openings, oven door and
window.
Wear Proper ApparelLoose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
Do Not Use Water or Flour on Grease FiresSmother the fire
with a pan lid, or use baking soda, a dry chemical or foamtype extinguisher.
When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
Use Only Dry PotholdersMoist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky
cloth instead of a potholder.
Do Not Heat Unopened Food ContainersBuildup of pressure
may cause container to burst and result in injury.
Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANTDo not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the clock
and oven function.
Do not store items of interest to children in the
Never Use Your Appliance for Warming or
3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOK TOP
Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit
off before removing the pan.
Use Proper Pan SizeThis appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface UnitsTo reduce the risk of burns,
ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface units.
Never Leave Surface Units Unattended at High Heat Settings
Boilovers cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
Do Not Immerse or Soak Removable Heating Elements
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
Glazed Cooking UtensilsOnly certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturers
recommendations for cook top use.
When flaming foods under a ventilating hood, turn the fan
on.
FOR CERAMIC-GLASS COOK TOP MODELS
Do Not Cook on Broken Cook TopIf cook top should break,
cleaning solutions and spillovers may penetrate the broken cook
top and create a risk of electric shock. Contact a qualified
technician immediately.

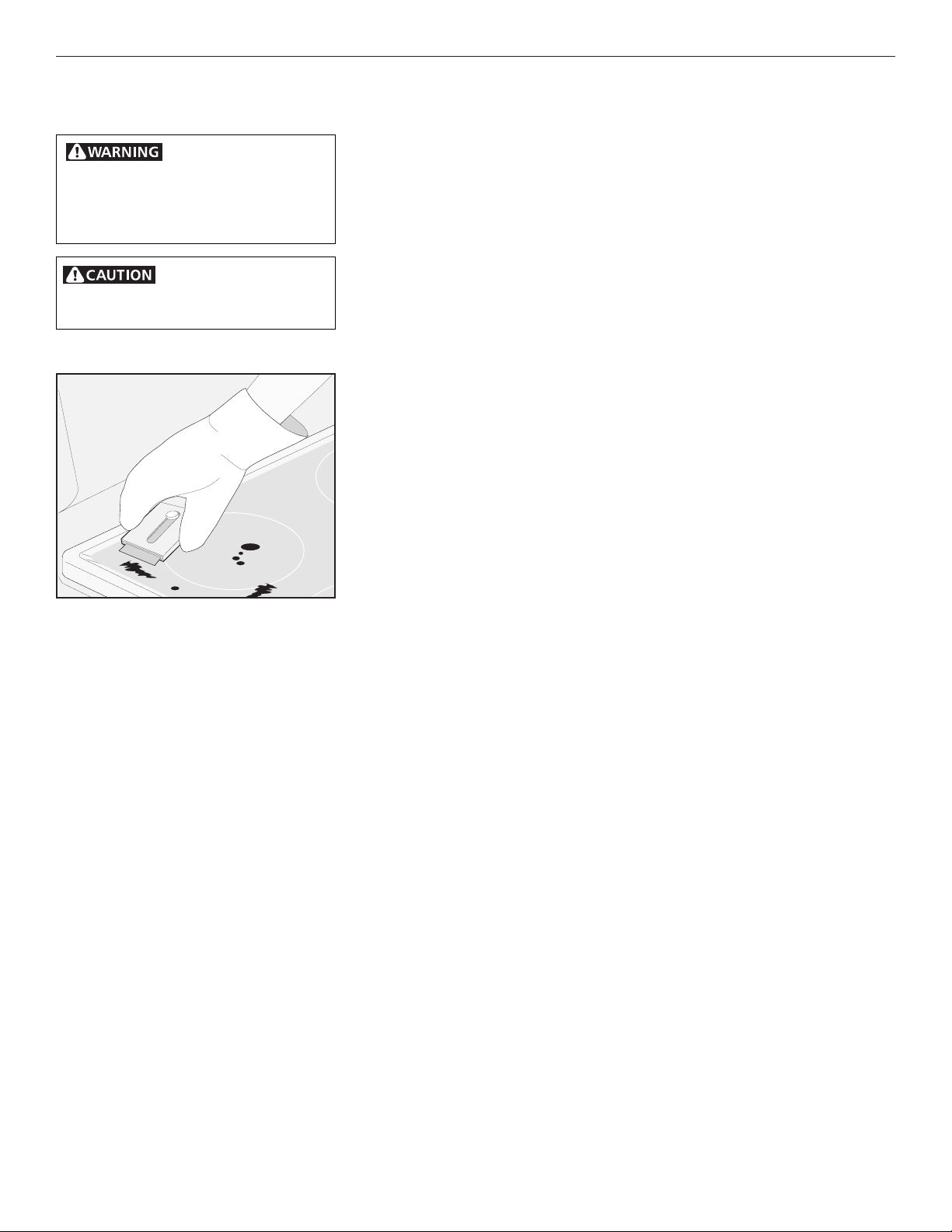

Clean Cook Top with CautionIf a wet sponge or cloth is used
to wipe spills on a hot cooking area, be careful to avoid a steam
burn. Some cleaners can produce noxious fumes if applied to a
hot surface.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
Use Care When Opening Oven Door Stand to the side of the
range when opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.

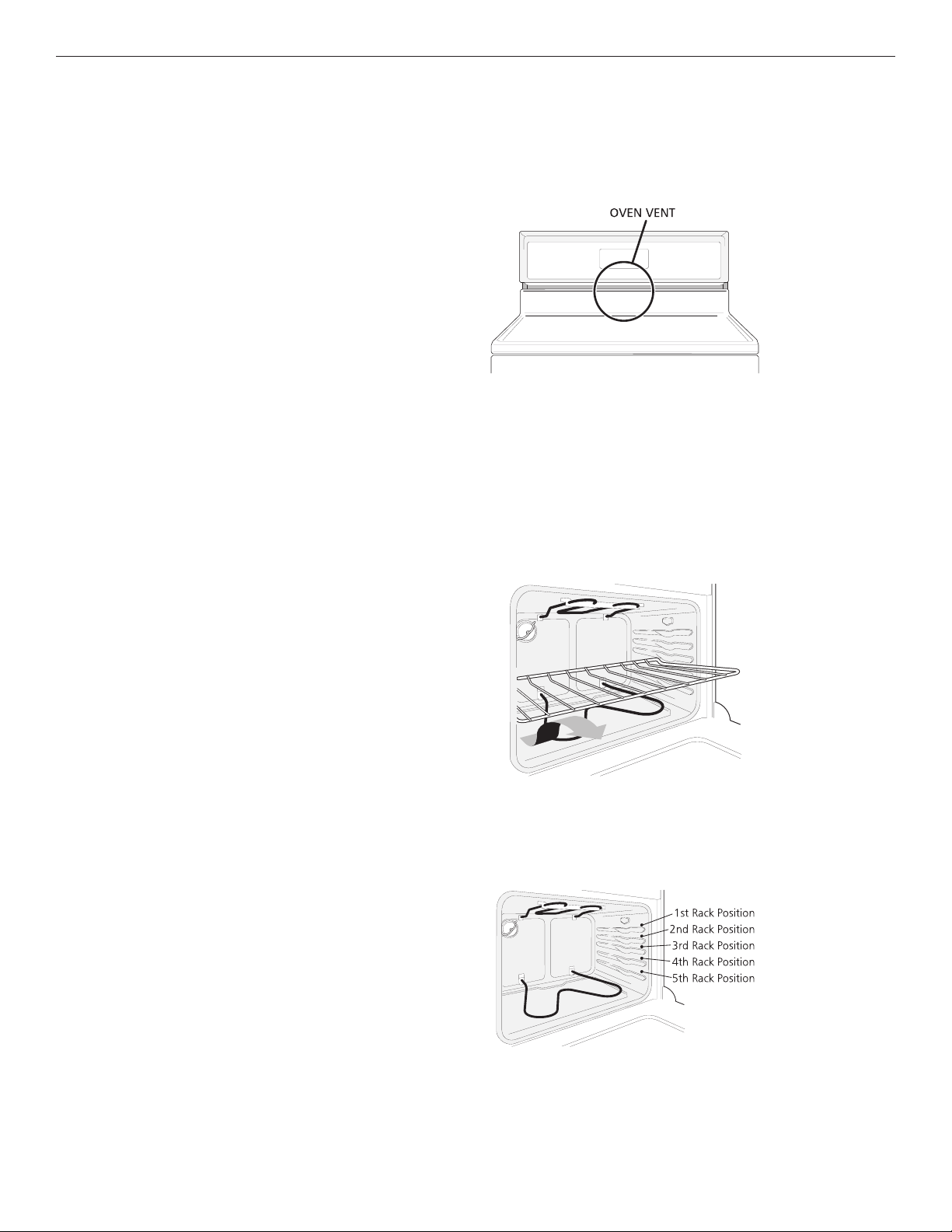

Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped
with coil elements. The oven vent is located below the backguard
for models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or ignite.
Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
Protective LinersDo not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire. Improper installation of these liners may result in
risk of electric shock, or fire.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR
RANGE
Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate.
Kitchen cleaners and aerosolsAlways follow the
manufacturers recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
Clean Ventilating Hoods FrequentlyGrease should not be
allowed to accumulate on the hood or filter. Follow
manufacturers instructions for cleaning.
CONTINUOUS CLEANING OVENS
Do Not Use Oven Cleaners on the oven liner or any of the
continuous cleaning surfaces. Continuous cleaning surfaces
can be identified by their rough surface finish.
4
Surface Cooking for
Models with a CeramicGlass Cook Top
NOTE: Please read detailed instructions
for Ceramic-Glass Cooktop Cleaning in
the General Cleaning and Avoid
Service Checklist sections of this Use
and Care Guide.
NOTE: Radiant elements have a limiter
that allows the element to cycle on and
off, even at the HI setting. This helps to
prevent damage to the glasstop. Cycling
at the HI setting is normal and can
occur if the pan is too small for the
element or if the pan bottom is not flat.
Ceramic-Glass Cooktop
The ceramic-glass cooktop has electric heating coils located below the surface
of the glass. The design of the glass cooktop outlines the area of the surface
unit below. Most importantly, make sure the diameter of the pan matches the
diameter of the unit. Heat is transferred up through the surface of the cooktop
to the cooking utensil. Only flat-bottomed pans should be used. The type and
size of the cookware, number of surface units in use and the settings of the
units are factors that will affect the amount of heat that will spread to areas
surrounding the surface units. The areas surrounding the units may become
hot enough to cause burns.
The cooktop should not be used as a cutting board or work surface in the
kitchen. Dropping heavy or hard objects on the cooktop may crack it. Pans with
rough bottoms may scratch the cooktop surface. Do not place foods directly
on the smoothtop surface (without cooking utensils) damage to glass or
difficulty in cleaning will result.
Radiant Surface Units
The Radiant Surface Unit is a group of heating coils enclosed in a ceramic fixture
below the glass cooktop. The unit temperature rises gradually and evenly. As
the temperature rises, the unit will glow red. To maintain the selected setting,
the unit will cycle on and off. The heating unit retains enough heat to provide
a uniform and consistent heat during the off cycle. The ceramic fixture
thermally insulates the heating unit, concentrating heat in the heating zone.
For efficient cooking, turn off the unit several minutes before cooking is
complete. This will allow residual heat to complete the cooking process. The
amount of residual heat depends on the type and quality of cooking utensil,
the quantity of food being cooked and the selected heat setting.
Dual Radiant Surface Units (If equipped)
The dual radiant surface unit is made up of an inner and outer coil within the
same surface unit. A control knob and rocker switch is used for operating the
different coils. The smaller unit or inner coil has a lower wattage and can be
used to prepare smaller quantities of food in smaller pans. The larger unit or
both inner and outer coils has a higher wattage and can be used to prepare
larger quantities of food in larger pans. When using the outer coil, both inner
and outer coils operate.
Indicator Light(s)
There are 2 different surface control lights that will glow on your rangea
surface indicator and a hot cooktop surface indicator.
The surface indicator, located on the control panel, glows when any surface
unit is turned on. A quick glance at the light after cooking is an easy check to
be sure all surface controls are turned off.
The hot cooktop surface indicator, located under the glass cooktop or on the
control panel, will come on as the surface cooking area heats up and will
continue to glow until the glass cooktop has cooled down to a moderate level.
5
Loading...
