Page 1
USE & CARE MANUAL
ELECTRONIC CONTROL
AIR CONDITIONER
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM1
READ AND SAVE THESE INSTRUCTIONS
P/N 220201d052
Page 2
ROOM AIR CONDITIONER WARRANTY
Your product is protected by this warranty
Your appliance is warranted by Electrolux. Electrolux has authorized Frigidaire Consumer Services and their authorized servicers to perform service under this
warranty. Electrolux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service and parts under this
warranty must be performed by Frigidaire Consumer Services or an authorized Frigidaire servicer.
FULL ONE-YEAR
WARRANTY
LIMITED 2-5 YEAR
WARRANTY (Sealed
System)
LIMITED WARRANTY
(Applicable to the State
of Alaska)
* NORMAL
RESPONSIBILITIES OF
THE CONSUMER
WARRANTY
PERIOD
One year from original
purchase date.
Second through fifth
years from original
purchase date.
Time periods listed
above.
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below.
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance
with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections
or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are
not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
FRIGIDAIRE, THROUGH ITS
AUTHORIZED SERVICERS, WILL:
Pay all costs for repairing or replacing parts
of this appliance which prove to be defective
in materials or workmanship.
Repair or replace any parts in the Sealed
Refrigeration System (compressor,
condenser, evaporator and tubing) proves to
be defective in materials or workmanship.
All of the provisions of the full and limited
warranties above and the exclusions listed
below apply.
THE CONSUMER WILL BE RESPONSIBLE
FOR:
Costs of service calls that are listed under
NORMAL RESPONSIBILITIES OF THE
CONSUMER.*
Diagnostic costs and any removal,
transportation and reinstallation costs which
are required because of service. Costs for
labor, parts and transportation other than with
respect to the Sealed Refrigeration System.
Costs of the technician’s travel to the home
and any costs for pick up and delivery of the
appliance required because of service.
EXCLUSIONS
IF YOU NEED SERVICE
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow
the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers; use of parts other than
Frigidaire Genuine Renewal Parts; obtained from persons other than such servicers; or external causes such as abuse,
misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact Frigidaire Consumer Services or an authorized Frigidaire servicer.
2. If there is a question as to where to obtain service, contact our Consumer Relations Department at:
Frigidaire
P.O. Box 212378
Augusta, GA 30917
800-444-4944
CANADA
Electrolux Canada Group
6150 McLaughlin Road
Mississauga, Ontario L5R 4C2
1-866-213-9397
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by
Electrolux.
This warranty applies only in the 50 states of the U.S.A., Puerto Rico and Canada.
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM2
FOR SERVICE CALL 1-800-444-4944.
2
Page 3
Product Registration
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. On all models, the serial
plate is located on the outside of the cabinet.
Model No.
Serial No.
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in completely, signed
and returned to the Frigidaire Company.
Contents
NOTE: This Owner’s Guide provides
specific operating instructions for your
model. Use the room air conditioner only
as instructed in this Owner’s Guide. These
instructions are not meant to cover every
possible condition and situation that may
occur. Common sense and caution must be
practiced when installing, operating, and
maintaining any appliance.
Normal Sounds
2 Warranty
3 Product Registration
3 Normal Sounds
4 Important Safety Instructions
5-10 Using Air Conditioner
5-10 Air Conditioner Features

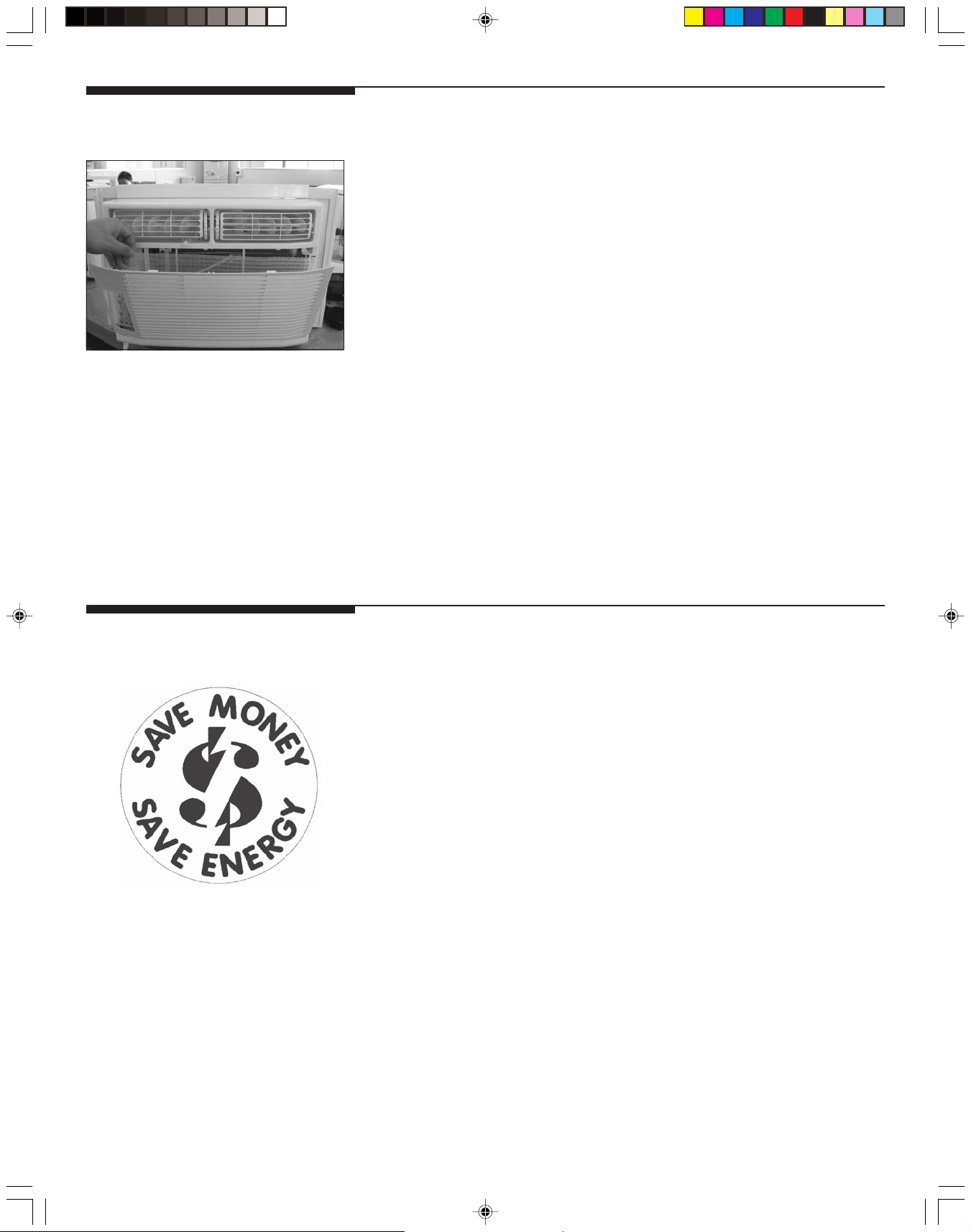

11 Care and Cleaning
11 Energy Saving Ideas
12 Avoid Service Checklist
High Pitched Chatter
Today’s high efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan.
Gurgle/Hiss
“Gurgling or hissing” noise may be heard
due to refrigerant passing through
evaporator during normal operation.
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM3
Pinging or Swishing
Droplets of water hitting
condenser during normal
operation may cause “pinging
or swishing” sounds.
3
Page 4
Important Safety
Read all instructions before using this air conditioner.
Instructions
The power supply cord with
this air conditioner contains a current
detection device designed to reduce the risk
of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired it must be
replaced with a cord from the Product
Manufacturer.
Avoid fire hazard or electric
shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from
the power cord.
Grounding type wall
receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
Power supply cord
with 3-prong grounding
plug and current
detection device
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. Read product labels for flammability and other warnings.
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,
follow basic precautions, including the following:
• Be sure the electrical service is adequate for the model you have chosen. This information
can be found on the serial plate, which is located on the side of the cabinet and behind the
grille.
• If the air conditioner is to be installed in a window, you will probably want to clean both
sides of the glass first. If the window is a triple-track type with a screen panel included,
remove the screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to the
separate installation instructions provided with this manual. Save this manual and the
installation instructions for possible future use in removing or reinstalling this unit.
• When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front
and rear coils.
Electrical Information
The complete electrical rating of your new room air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical requirements.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards,
proper grounding is important. The power cord is equipped with a three-prong grounding
plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker, have a qualified electrician install the proper receptacle.
• Do not run air conditioner with outside protective cover in place. This could result in
mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter plug.
READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.
Operation of Current
Device
Plug in &
press RESET
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM4
The power supply cord contains a current device that senses damage to the power cord. To
test your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button.
You will notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is
also indicated by a light on the plug head).
NOTES:
• Do not use this device to turn the unit on or off.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply cord must be replaced if it fails to reset when either the TEST button is
pushed, or it cannot be reset. A new one can be obtained from the product manufacturer.
• If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one
obtained from the product manufacturer.
4
Page 5
Air Conditioner Features
Fig. “A”
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panel and remote as shown
below and all its functions, then follow the symbol for the functions you desire. The unit can
be controlled by the touch pad alone or with the remote.
Fig. “B”
TOUCH PAD
5
Page 6

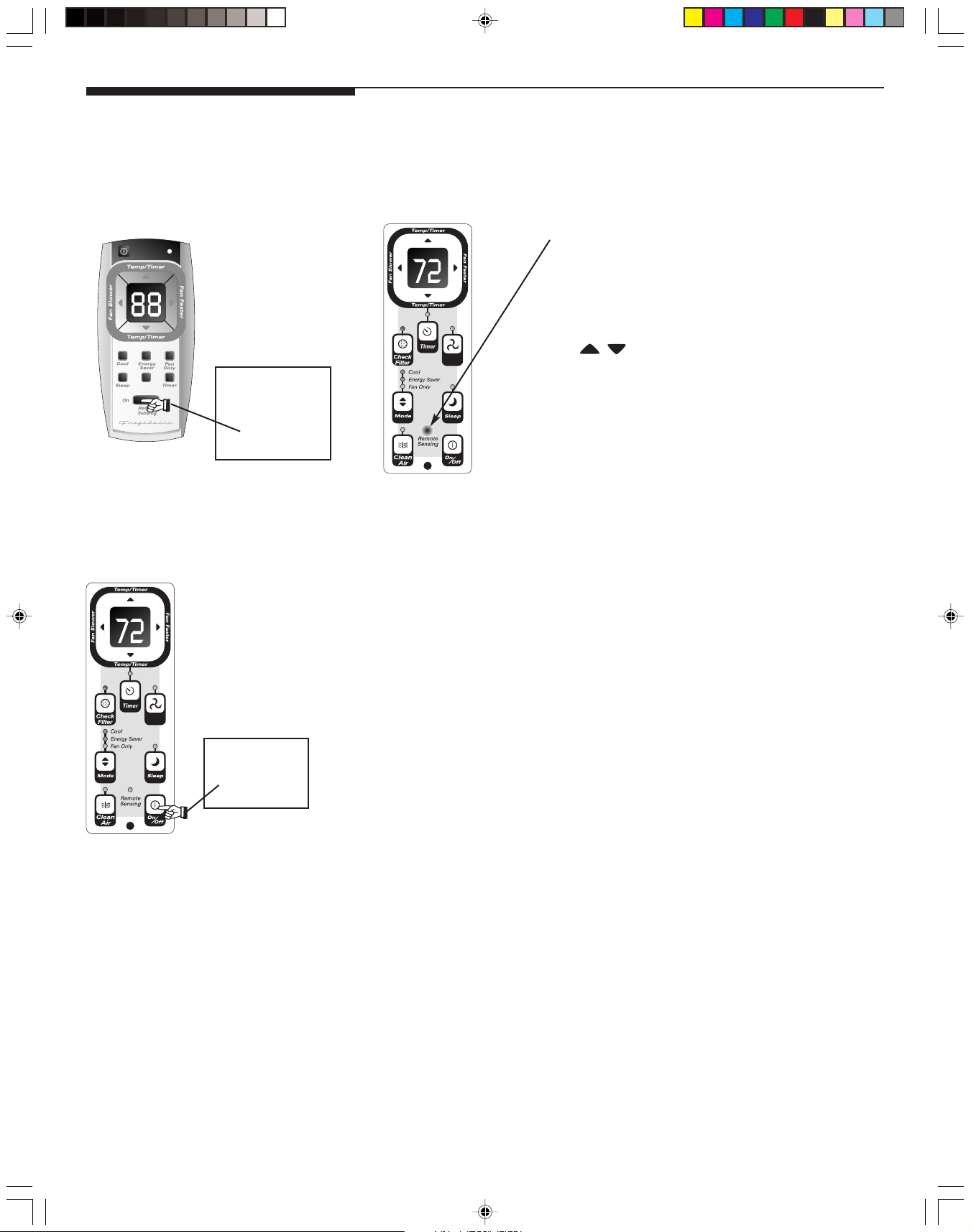

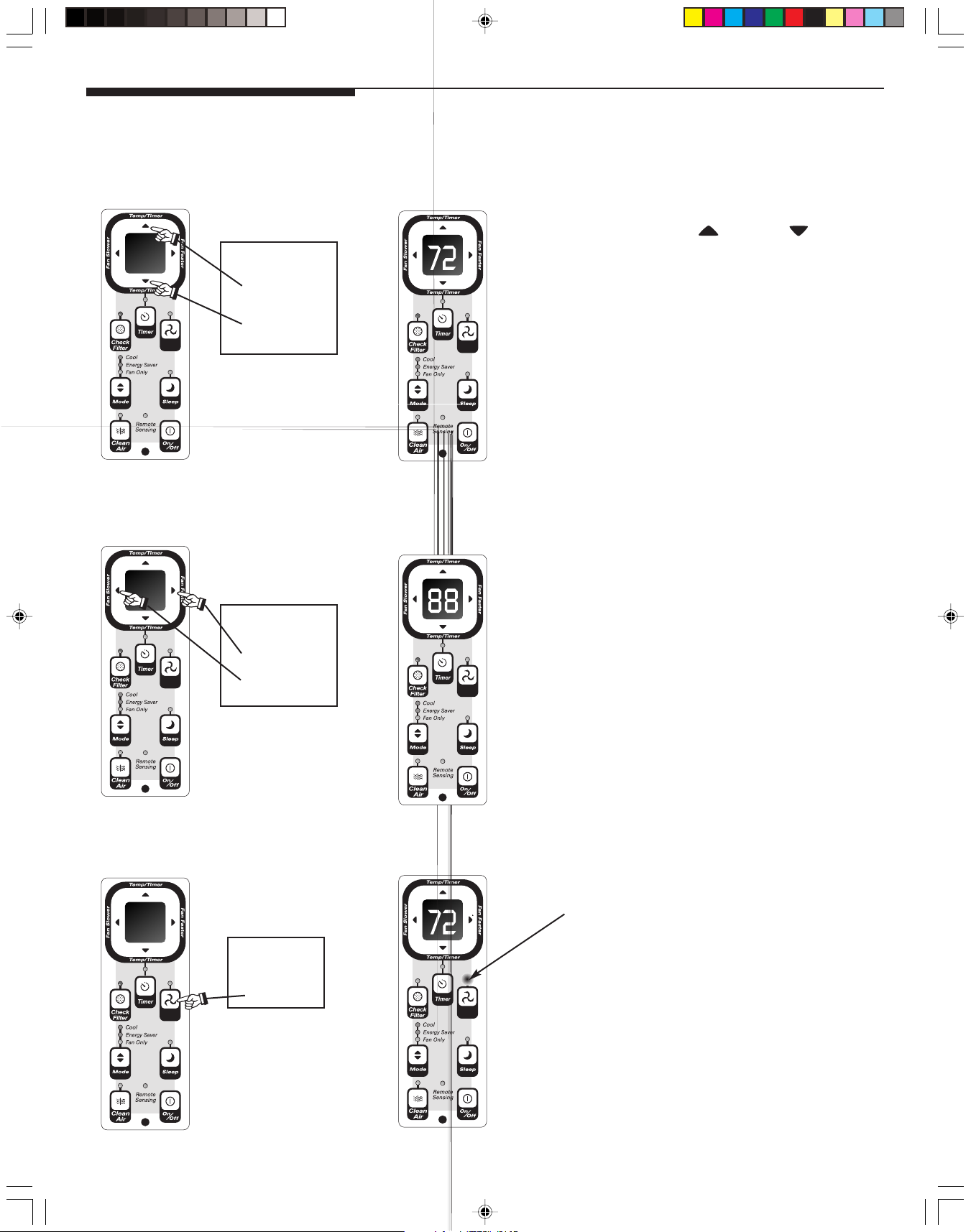

Air Conditioner Features
(continued)
TO CHANGE TEMPERATURE
SETTING:
YOU WILL SEE:
DO THIS:
PRESS TO
RAISE
PRESS TO
Auto
Temp
LOWER
Auto
Temp
TO ADJUST FAN SPEEDS: YOU WILL SEE:
DO THIS:
PRESS TO
Auto
Temp
SELECT:
FASTER
SLOWER
Auto
Temp
Note: Tap or hold either up(
) or down( ) button until
the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 60˚F
(16˚C) and 90˚F (32˚C). If you want the display to read the
actual room temperature. See “To Operate on Fan Only” section on Page 7.
A 2 Digit Display is used to indicate the Fan Speed setting,
from 10 through 99. When the “SLOWER” button is pressed
the motor speed will slow down at multiple intervals (90 distinct
settings), to a minimum setting of 10. To speed the motor up,
press the “FASTER” button. The speed will increase at multiple
intervals to a maximum setting of 99. After 5 seconds the control
will automatically change back to displaying the set temperature.
TO USE AUTO TEMP FEATURE: YOU WILL SEE:
DO THIS:
PRESS AUTO
TEMP
Auto
Temp
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM6
Auto
Temp
LIGHT On
Note: Fan starts at High Speed and adjusts to a slower speed
as the room temperature dictates. For example if the room
doesn’t get too warm, it will stay at the slowest speed. If the
room temperature rises quickly, such as a door being opened,
it will automatically go to the highest speed. The fan speeds
will re-adjust back to the slowest speed as the room returns to
the original set temperature. Press either the fan slower or fan
faster button to adjust the fan speed manually.
6
Page 7
Auto
Temp
Auto
Temp
7
Page 8
8
Page 9
Air Conditioner Features
(continued)
REMOTE SENSING FEATURE
(on some models):
Auto
Temp
TO TURN UNIT OFF:
DO THIS:
PRESS REMOTE
SENSING
BUTTON ON
YOU WILL SEE:
Auto
Temp
LIGHT pulsing On & Off intermittently.
Note: This feature can be activated from the remote control
ONLY, the unit must be in a cooling mode.
To activate the remote sensing feature, point the remote control
towards the unit and press the remote sensing button. Next,
use the
remote. (Note that the set temperature will only be displayed
on the unit itself). The LIGHT on the unit control will pulse to
indicate it received the signal. The LIGHT on the remote control
will pulse each time it sends a signal. It will continue to send
this signal until the feature is deactivated by pressing the remote
sensing button. If the unit does not receive the remote sensing
signal during any 3 minute interval, the unit will beep to indicate
the remote sensing mode has ended. The display on the remote
control indicates the temperature at the remote ONLY.
buttons to set the desired temperature at the
Auto
Temp
DO THIS:
PRESS ON/
OFF BUTTON
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM9
9
Page 10
Air Conditioner Features
(continued)
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.
• The “Cool “ circuit has an automatic 3 minute time delayed start if the unit is turned off and on
quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The
fan will continue to run during this time.
• The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and back,
press and hold the “TEMP/TIMER” Up (
) and Down ( ) buttons together for 3 seconds.
Fresh Air Vent Control (On some models)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Vent Open (see Fig. 2)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust
Open (see Fig. 3)
Figure 1 (VENT CLOSED)
Figure 2 (VENT OPEN) Figure 3 (VENT & EXHAUST OPEN)
Air Directional Louvers
Air directional louvers control air flow direction. Your air conditioner has the louver type
described below.
Auger Type
(8-WAY)
AUGER WHEELS
The louvers will allow you to direct the air flow Up or Down and Left or Right throughout
the room as needed. Rotate the Auger Wheels until the desired Left/Right direction is
obtained. Pivot horizontal louvers until the desired Up/Down direction is obtained.
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM10
10
Page 11
Care and Cleaning
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once a month to see if cleaning is necessary.
Trapped particles in the filter can build up and cause an accumulation of frost on the
cooling coils.
• Push the vent handle to the Vent Closed position (where applicable).
• Open the front panel.
• Grasp the filter by the center and pull up and out.
• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter
thoroughly. Gently shake excess water from the filter. Be sure filter is thoroughly dry
before replacing.
• Or, instead of washing you may vacuum the filter clean.
Cabinet Cleaning
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and
front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution
of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess
water in or around the controls may cause damage to the air conditioner.
• Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from the
window according to the installation instructions. Cover it with plastic or return it to the
original carton.
Energy Saving Ideas
• Do not block air flow inside with blinds, curtains or furniture; or outside with shrubs,
enclosures, or other buildings.
• The capacity of the room air conditioner must fit the room size for efficient and satisfactory
operation.
• Install the room air conditioner on the shady side of your home. A window that faces north
is best because it is shaded most of the day.
• Close the fireplace damper, floor and wall registers so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows closed during the sunniest part of the day.
• Clean the air filter as recommended in the section “Care and Cleaning.”
• Proper insulation and water stripping in your home will help keep warm air out and cool air
in.
• External house shading with trees, plants or awnings will help reduce the air conditioner’s
work load.
• Operate heat producing appliances such as ranges, washers, dryers and dishwashers
during the coolest part of the day.
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM11
11
Page 12
Avoid Service Checklist
OCCURRENCE SOLUTION
Before calling for service, review this list. It may save you time and expense. This list
includes common occurrences that are not the result of defective workman-ship or
materials in this appliance.
Air conditioner will not operate.
Air from unit does not feel cold
enough.
Air conditioner cooling, but room is
too warm - ice forming on cooling
coil behind decorative front.
Air conditioner cooling, but room is
too warm - NO ice forming on
cooling coil behind decorative front.
Wall plug disconnected. Push plug firmly into wall outlet.
Plug Current Device Tripped. Press the RESET button.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Control is OFF. Turn Control ON and set to desired setting.
Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C).
Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil.
Reset to a Lower temperature.
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart
when set in the COOL mode.
Outdoor temperature below 60°F (18°C). To defrost the coil, set FAN ONLY Mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY Mode.
Temperature is set too Low for night-time cooling. To defrost the coil, set to FAN ONLY Mode. Then, set Temperature to a Higher setting.
Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High. Set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
Doors, windows, registers, etc. open - cold air escapes. Close doors, windows, registers, etc.
Unit recently turned on in hot room. Allow additional time to remove “stored heat” from walls, ceiling, floor and
furniture.
Air conditioner turns on and off
rapidly.
Noise when unit is cooling.
Water dripping INSIDE when unit is
cooling.
Water dripping OUTSIDE when unit
Dirty air filter - air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a faster setting to bring air past cooling coils more
frequently.
Air movement sound. This is normal. If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation
instructions - check with installer.
Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
is cooling.
Remote Sensing Deactivating
Prematurely (Some Models).
Room Too Cold.
• Remote control not located within range. Place remote control within 20 feet & 180°, radius of the front of the
unit.
• Remote control signal obstructed. Remove obstruction.
• Set temperature too low. Increase set temperature.
• Remote Sensing activated (on some models) and remote control located in Hot Spot - Relocate remote
control or deactivate remote sensing.
If These Solutions Fail, Call 1-800-444-4944 For Frigidaire Service.
SZ000705(En)-YaoKong 09/2/2005, 2:20 PM12
12
Loading...
