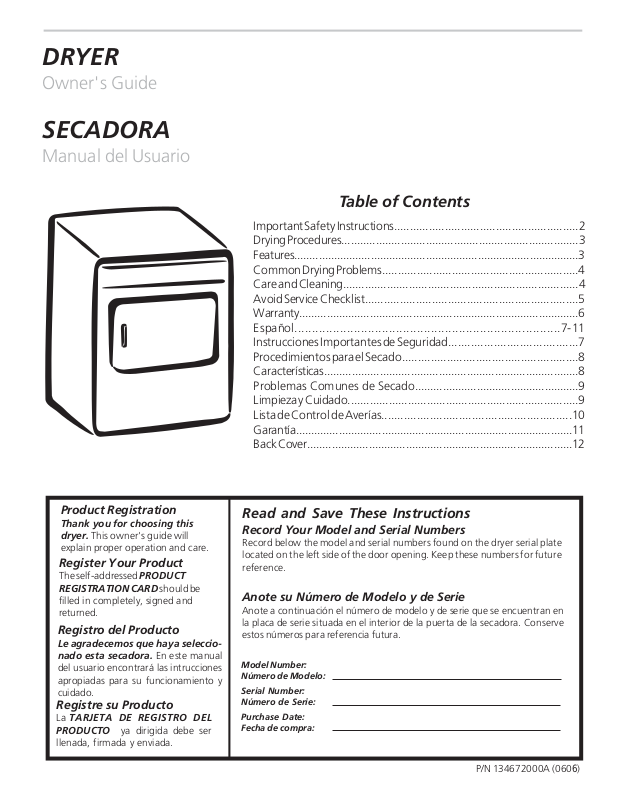

DRYER
Owner's Guide
SECADORA
Manual del Usuario
Table of Contents
Important Safety Instructions..........................................................2
Drying Procedures............................................................................3
Features.............................................................................................3
Common Drying Problems..............................................................4
Care and Cleaning...........................................................................4
Avoid Service Checklist...................................................................5
Warranty...........................................................................................6
Español............................................................................7-11
Instrucciones Importantes de Seguridad........................................7
Procedimientos para el Secado.......................................................8
Características..................................................................................8
Problemas Comunes de Secado.....................................................9
Limpieza y Cuidado.........................................................................9
Lista de Control de Averías...........................................................10
Garantía..........................................................................................11
Back Cover......................................................................................12
Product Registration
Thank you for choosing this
dryer. This owner's guide will
explain proper operation and care.
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be
filled in completely, signed and
returned.
Registro del Producto
Le agradecemos que haya seleccionado esta secadora. En este manual
del usuario encontrará las intrucciones
apropiadas para su funcionamiento y
cuidado.
Registre su Producto
La TARJETA DE REGISTRO DEL
PRODUCTO ya dirigida debe ser
llenada, firmada y enviada.
Read and Save These Instructions
Record Your Model and Serial Numbers
Record below the model and serial numbers found on the dryer serial plate
located on the left side of the door opening. Keep these numbers for future
reference.
Anote su Número de Modelo y de Serie
Anote a continuación el número de modelo y de serie que se encuentran en
la placa de serie situada en el interior de la puerta de la secadora. Conserve
estos números para referencia futura.
Model Number:
Número de Modelo:
Serial Number:
Número de Serie:
Purchase Date:
Fecha de compra:
P/N 134672000A (0606)
or to prevent property damage, personal injury or loss of life.
Grounding type
w
grounding plug
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Installation and service must be performed by a qualified installer, service agency or the gas supplier
or electrical shock. Do not use an
adaptor plug or extension cord or
remove grounding prong from
electrical power cord. Failure to
follow this warning can cause
serious injury, fire or death.
14-30R
FUSED 30 AMP
120/240 V OR
120/208 V
WALL
RECEPTACLE
Note: The instructions appearing
in this Owner's Guide are not meant
to cover every possible condition
and situation that may occur.
Common sense and caution must
be practiced when installing,
operating and maintaining any
appliance.
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
.
Avoid fire hazard
ELECTRICELECTRIC
ELECTRIC
ELECTRICELECTRIC
CORRECCORREC
CORREC
CORRECCORREC
Use this way ONLYUse this way ONLY
Use this way ONLY
Use this way ONLYUse this way ONLY
GASGAS
DRYERS: DRYERS:
GAS
DRYERS:
GASGAS
DRYERS: DRYERS:
all receptacle
Do not under
any circumstances
cut, remove,
or bypass
the grounding prong
from this plug.
Power supply
cord with 3-prong
CORRECTCORRECT
CORRECT
CORRECTCORRECT
Use this way ONLYUse this way ONLY
Use this way ONLY
Use this way ONLYUse this way ONLY
DRYERS: DRYERS:
DRYERS:
DRYERS: DRYERS:
DRYER
DRYER
SERVICE CORD
Important Safety Instructions
Read all instructions before using this dryer.
To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with
the basic warnings listed below.
Failure to comply with these warnings could result in serious personal injuries.
Prevent Fire
Do not dry items that have been previously cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, waxes, etc. Do not store these items on or near the dryer. These substances give
off vapors that could ignite or explode.
Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath
mats, rugs, bibs, baby pants, plastic bags and pillows that may melt or burn. Some rubber materials, when
heated, can under certain circumstances produce fire by spontaneous combustion.
Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and
exhaust duct should be cleaned approximately every 18 months by qualified service personnel. An excessive
amount of lint build-up in these areas could result in inefficient drying and possible fire. See Care and Cleaning.
Do not operate the dryer if the lint screen is blocked, damaged or missing. Fire hazard,
overheating and damage to fabrics can occur. If your dryer has a drying rack, always replace the lint screen
when finished using the drying rack.
- Risk of Fire - A clothes dryer produces combustible lint. The dryer must be connected to
an exhaust outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint
around the outdoor exhaust opening and in the surrounding area.
Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against
the front or back of the dryer.
Do not spray any type of aerosol into, on or near dryer at any time.
Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the dryer.
Protect Children
Do not allow children to play on or in the dryer. Close supervision of children is necessary when
the dryer is used near children. As children grow, teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Children
might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings
on product labels.
Before the dryer is removed from service or discarded, remove the dryer door to prevent
accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
Prevent Injury
To prevent shock hazard and assure stability during operation, the dryer must be installed and
electrically grounded by a qualified service person in accordance with local codes. Installation instructions are
packed in the dryer for the installer's reference. Refer to INSTALLATION INSTRUCTIONS for detailed grounding
procedures. If the dryer is moved to a new location, have it checked and reinstalled by a qualified service person.
To prevent personal injury or damage to the dryer, the electrical power cord of a gas dryer must
be plugged into a properly grounded and polarized 3-prong outlet. The third grounding prong must never
be removed. Never ground the dryer to a gas pipe. Do not use an extension cord or an adaptor plug.
ALWAYS disconnect the dryer from the electrical supply before attempting any service or
cleaning. Failure to do so can result in electrical shock or injury.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical
shock could occur.
To prevent injury, do not reach into the dryer if the drum is moving. Wait until the dryer has stopped
completely before reaching into the drum.
To prevent injury and damage to the dryer:
• All repairs and servicing must be performed by an authorized servicer unless specifically recommended
in this Owner's Guide. Use only authorized factory parts.
• Do not tamper with controls.
• Do not install or store the dryer where it will be exposed to the weather.
A thermal limiter switch automatically turns off the motor in the unlikely event of an overheated situation
(electric dryers only). A service technician must replace the thermal limiter switch after correcting the fault.
Failure to comply with these warnings could result in serious personal injuries.
2
This Owner's Guide provides
general operating instructions for
your dryer. It also contains
information about features for
several other models. Your dryer
may not have every feature
included.
Use the dryer only as instructed in
this Owner's Guide and the
Operating Instructions card
included with your dryer.
SAVE THESE INSTRUCTIONS
Printed in U.S.A.
