Friedrich YS12M33, YS10M10, YM18M34, YL24M35, ES15M33 User Manual

Room Air Conditioners

AUTO

°F°C
AUTO
CONTINUOUS

AUTO

SYSTEM FAN MODE

SCHEDULE FAN SPEED

Installation and Operation Manual

Standard Chassis Models

115-Volt:

208-230-Volt:

115-Volt:

208-230-Volt:

920-198-00 (11-09)

SS08M10, SS10M10, SS12M10, SS14M10
SS12M30, SS15M30, SM18M30, SM21M30

SL2 5M30, SL28M30, SL 36M30

YS10M10
ES12M33, ES15M33, YS12M33, EM18M34,

YM18M34, EL25M35, EL36M35, YL24M35

wwwwww.sylvane.com 1 [phone]

920-198-00

Congratulations!

Thank you for your decision to purchase the Friedrich High Effi ciency Air Conditioner. Your new Friedrich has been carefully engineered and manufactured to

give you many years of dependable, effi cient operation, maintaining a comfortable temperature and humidity level. Many extra features have been built into
your unit to assure quiet operation, the greatest circulation of cool, dry air, and the most economic operation.

THANK YOU, on behalf of our entire company,

for making such a wise purchase.

AIR CONDITIONING CO.
SAN ANTONIO, TEXAS
ASSEMBLED IN MEXICO

Register your air conditioner

Model information can be found on the name
plate behind the front cover.

Please complete and mail the owner
registration card furnished with this product,
or register online at www.friedrich.com (USA
only). For your future con ve nience, record the
model information here.

MODEL NUMBER

SERIAL NUMBER

PURCHASE DATE

COOLING

VOLTS 115

MODEL NUMBER

HEATING

REFRIGERANT

XXXXXXXXX

XXXXXXXXXX

FUSE PROTECTED

U

600 PSIG HS

XXXXXXXXX

CIRCUITS USE 15A

300 PSIG LS

XXXXXXXXXX

TIME DELAY FUSE

XXXXXXXXXX

L

X XX
XXXXX
XXXXXXXXXX

AIR CONDITIONING CO.

SAN ANTONIO, TEXAS

ASSEMBLED IN MEXICO

MODEL NUMBER
YS10M10A
SERIAL NUMBER
LICY00008

BTH/HR 6500

60 HZ / 1 PH

YS10M10A

BTH/HR 6500

30.1 OZ R410A

EER 12.0

VOLTS MIN 108

SERIAL NUMBER

EER 10.4

AMPS 8.0

LICY00008

AMPS 7.0

2

wwwwww.sylvane.com 1 [phone]

920-198-00

Table of Contents

Safety Precautions ................................................................................................................................................................................................................... 4

Unpacking Instructions............................................................................................................................................................................................................. 5

WARNING: Before Operating Your Unit ..................................................................................................................................................................................6

Standard Filter Cleaning / Installation Instructions .................................................................................................................................................................. 7

Premium Carbon Filter Installation Instructions ....................................................................................................................................................................... 8

Control Panel Operation ........................................................................................................................................................................................................ 10

Add a Remote Thermostat ..................................................................................................................................................................................................... 14

Remote Thermostat Selection ............................................................................................................................................................................................... 14

Remote Control Operation ..................................................................................................................................................................................................... 15

Remote Effectiveness ............................................................................................................................................................................................................ 15

Airfl ow Selection and Adjustment .......................................................................................................................................................................................... 17

Installation Instructions .......................................................................................................................................................................................................... 18

Standard Window Installation ................................................................................................................................................................................................ 20

Cord Routing Change ............................................................................................................................................................................................................ 30

Through-the-Wall Installation ................................................................................................................................................................................................. 32

Programmable Thermostat ....................................................................................................................................................................................................36

Final Inspection & Start-up Checklist..................................................................................................................................................................................... 38

Routine Maintenance ............................................................................................................................................................................................................. 39

Service and Assistance ......................................................................................................................................................................................................... 39

Available Accessories ............................................................................................................................................................................................................ 39

Troubleshooting Tips .............................................................................................................................................................................................................. 40

Addendum 1 ........................................................................................................................................................................................................................... 42

wwwwww.sylvane.com 1 [phone]

3

Safety Precautions

We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.

WARNING

CAUTION

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what will happen if the instructions are not followed.

920-198-00

Your safety and the safety of others are very important.

This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:

Indicates a hazard which, if not avoided, can result in severe personal injury or
death and damage to product or other property.

Indicates a hazard which, if not avoided, can result in personal injury and
damage to product or other property.

NOTICE

Indicates property damage can occur if instructions are not followed.

WARNING

Refrigeration system

under high pressure

Do not puncture, heat, expose to flame or
incinerate.

Only certified refrigeration technicians should
service this equipment.

R410A systems operate at higher pressures
than R22 equipment. Appropriate safe
service and handling practices must be used.

Only use gauge sets designed for use with
R410A. Do not use standard R22 gauge sets.

4

wwwwww.sylvane.com 1 [phone]

920-198-00

'5$:1

&+(&.('

4$

0)*

$33529('

HKHUQDQGH]



7,

6

67(3

67(3

67(3

67(3

67(3

67(3

67(3

Unpacking Instructions

STEP 1. Cut all 4 packing straps.

STEP 2. Remove wooden shipping bar dividers.

STEP 3. Remove top foam pads.

STEP 4. Slowly remove outer box, careful not to loosen decorative front.

STEP 5. Slide the foam front support forward

STEP 6. Carefully lift decorative front box from foam front support

STEP 7. Remove decorative front and set safely aside

wwwwww.sylvane.com 1 [phone]

5

920-198-00

WARNING: Before Operating Your Unit

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.

Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.

Always plug into a grounded 3 prong oulet.
Failure to follow these instructions can result in
death, fire, or electrical shock.

Make sure the wiring is adequate for your unit.

If you hav e fus es, t hey sho uld b e of the t ime d ela y typ e. B efor e you ins tall
or relocate this unit, be sure that the amperage rating of the circuit breaker
or time delay fuse does not exceed the amp rating listed in Table 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the

unit; an extension cord may not.

Make sure that the receptacle is compatible with
the air conditioner cord plug provided.

Proper grounding must be maintained at all times. Two prong receptacles
must be replaced with a grounded receptacle by a certifi ed electrician.

The grounded receptacle should meet all national and local codes and

ordinances. You must use the three prong plug furnished with the air
conditioner. Under no circumstances should you remove the ground
prong from the plug.

Test the power cord

All Friedrich room air conditioners are shipped from the factory with a
Leakage Current Detection Interrupter (LCDI) equipped power cord. The
LCDI device on the end of the cord meets the UL and NEC requirements
for cord connected air conditioners.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET (See Figure 1).

3. Press TEST, listen for click; the RESET button trips and pops out.

4. Press and release RESET (Listen for click; RESET button latches

and remains in). The power cord is ready for use.

NOTICE

Do not use the LCDI device as an ON/OFF switch.

Failure to adhere to this precaution may cause
premature equipment malfunction.

Once plugged in, the unit will operate normally without the need to reset
th e LC DI de vic e. If the LCD I dev ice f ail s to t rip w hen t est ed o r if t he po wer
su pply cord is da mag ed, i t mu st be repl aced with a ne w pow er s uppl y cor d
from the manufacturer. Contact our Technical Assistance Line at (800)
541-6645. To expedite service, please have your model number available.

Tabl e 1.

MODEL

SS08M10, SS10M10,
SS12M10, SS14M10,
YS10M10

SS12M30, SS15M30,
SM18M30, SM21M30

SL25M30, SL28M30,
ES12M33, ES15M33,
YS12M33

SL36M30, EM18M34,
EL25M35, EL36M35,
YM18M34, YL24M35

Figure 1

RESET

WARNING

TEST BEFORE EACH USE

1. PRESS RESET BUTTON

2. PLUG LCDI INTO POWER
RECEPTACLE

3. PRESS TEST BUTTON,
RESET BUTTON SHOULD
POP UP

4. PRESS TEST BUTTON,
FOR USE
DO NOT USE IF ABOVE TEST
FAILS

WHEN GREEN LIGHT IS ON
IT IS WORKING PROPERLY

CIRCUIT RATING

OR TIME DELAY

AMP VOLT

15 125 5-15R

15 250 6-15R

20 250 6-20R

30 250 6-30R

TEST

FUSE

TEST BEFORE EACH USE

1. PRESS RESET BUTTON

2. PLUG LCDI INTO POWER
RECEPTACLE

3. PRESS TEST BUTTON,
RESET BUTTON SHOULD
POP UP

4. PRESS TEST BUTTON,
FOR USE
DO NOT USE IF ABOVE TEST
FAILS

WHEN GREEN LIGHT IS ON
IT IS WORKING PROPERLY

REQUIRED

WALL

RECEPTACLE

NEMA

NO.

TEST

RESET

WARNING

15/20A LCDI Device 30A LCDI Device

FRR001

6

wwwwww.sylvane.com 1 [phone]

920-198-00

Standard Filter Cleaning / Installation Instructions

STEP 1. Swing the door open and remove the fi lter by grasping the

fi lter grip and pushing the fi lter holder upward and outward.

Figure 2

STEP 2. Slide the fi lter grip out from the fi lter as shown in Figure 4.

NOTE: Make sure the front frame with the mesh fi lter is facing you.

Figure 4

FILTER

FILTER
GRIP

Figure 3

FILTER
GRIP

FRR071

HANDLE

FRR052

FRR047

STEP 3. Swing the front frame open. Clean the front frame by washing

the dirt from the fi lter. Use a mild soap solution if necessary.
Allow fi lter to dry.

Figure 5

A

TOP TAB

FRONT
FRAME WITH
STANDARD
MESH FILTER

FRR048

STEP 4. Install the fi lter grip back into the fi lter by sliding it into the fi lter.

NOTE: The fi lter handle slides into the frame in only one direction. If

the tab in the frame stops the handle from sliding in, slide the
handle from the other direction. Do not force the handle into

the frame.

STEP 5. Install the fi lter back into the unit. Follow the Instructions on

the inside of the front door.

wwwwww.sylvane.com 1 [phone]

7

920-198-00

Premium Carbon Filter Installation Instructions

STEP 1. Remove the fi lter from the unit as per the instructions on the

inside of the fi lter door.

STEP 2. Hold the fi lter at the top and slide the fi lter grip out as shown

in Figure 4.

STEP 3. If you already have a carbon fi lter installed remove the dirty

fi lter by laying the fi lter down and swinging open the front frame

as shown in Figure 6.

NOTE: Make sure the frame with the mesh is facing towards you.

STEP 4. Place the new carbon fi lter on the top of the back fi lter frame.

The carbon fi lter has been cut to the correct dimension and

should fi t within the frame as shown in fi gure 7

NOTE: The carbon fi lter is not a re -usable fi lter, and needs to be replaced

every three months for optimum effi ciency.

STEP 5. Slide the fi lter handle back on to hold the frames together

and slide the assembly into the unit as per the instructions

on the door.

NOTE: The fi lter handle slides into the frame in only one direction. If

the tab in the frame stops the handle from sliding in, slide the
handle from the other direction. Do not force the handle into

the frame.

Figure 6

Figure 7

FRONT FRAME WITH
MESH FILTER

FRR051FRR050

8

wwwwww.sylvane.com 1 [phone]

920-198-00

THIS PAGE INTENTIONALLY LEFT BLANK

wwwwww.sylvane.com 1 [phone]

9

920-198-00

Control Panel Operation

Let’s check out how to control your air conditioner. On the control panel,
ju st t o the lef t o f th e POW ER
control panel function buttons and mode icons can be viewed in Figure 8.

Power On – Press the
power button will illuminate to indicate the power is on. The backlight on
the power switch will automatically dim to 20% intensity after 15 seconds
of inactivity. The remote control can also be used to turn power ON / OFF
(See Remote Control).

Display – The display is a high effi ciency LCD with a built-in white back
light. The back light has an automatic two (2) step dim function. After 15
seconds of inactivity, the display dims to 20% intensity. After an additional
120 seconds, the display switches off. Touching buttons will automatically
bring the display to full brightness.

There are four control push buttons on each side of the display.

SYSTEM Button – Allows the user to sequentially select,

, HEAT , and FAN ONLY operation. Press the
the display advances to the next mode. A new icon appears. At the same
time, the mode displays for two (2) seconds, then returns the display to
the temperature set point for modes other than FAN. Note that when the
heating function is not available, the system will automatically skip the
HEAT

and

AUTO

modes.

FAN MODE Button – Selects between automatic
operation. In the

AUTO

compressor operates or the heat function is enabled.

In the FAN ONLY Mode,

CONTINUOUS

. In the

selection on the

CONTINUOUS

FAN

SPEED

button.

Figure 8

AUTO
MODE

COOL

MODE

, is a liquid crystal display (LCD). All of the

button to turn on the air conditioner. The

AUTO

Cool

button and

CONTINUOUS

AUTO

SYSTEM

or

mode, the fan only turns on and off when the

AUTO

is not available. The display indicates

mode, fans speed is determined by your

HEAT

MODE

FAN
ONLY
MODE

MAINTENANCE

REQUIRED

FAN SPEED Button – Used to sequentially select between fan speeds.
Depending on your model, you can select between LOW, MED, HIGH,
and MAX and AUTO. Max setting not on SL or Kühl + models). When

FAN

the

button is pressed, the fan speed is temporarily displayed in the

SPEED

display window, plus a fan speed icon (triangle) changes to indicate the
new speed level when auto is selected. Fan speed automatically varies
depending on the set temperature on the control panel and the actual
room temperature. Let me explain. Say for example you’re working in
your garage and you need to open the big door for several minutes. The
air conditioner will sense a wide difference between the set temperature
and the actual room temperature when this occurs the system fan speed
increases to MAX. The fan speed decreases (in step) as the temperature
difference decreases. When the set point temperature is reached the FAN
speed returns to the original setting.

SCHEDULE Button – The
and off. The current day of the week is indicated as a dot underneath
the day symbol. Pressing the

SCHEDULE

button turns the schedule function on

SCHEDULE

button a second time turns the
schedule function off. The schedule function comes preprogrammed with
recommended energy savings values (Addendum 1). The values may
be changed through the schedule program function (See Programmable
Thermostat).

UP and DOWN arrows – Pressing either

(UP) or (DOWN) button
changes the desired room temperature. The factory preset lower and
upper limits are 60° F (16° C) and 99° F (37° C). These buttons are also
used to navigate between function options when using the User Menu or
Maintenance Mode.

BACK Button – This button is used after a menu item has been selected.
It takes the user back to the previous menu level.

DISPLAY/ENTER Button – This button is used in conjunction with User
Menu and Maintenance Mode operation to select items.

Alerts – The control system has fi ve (5) customer alerts.

FRONT
PAN EL
LOCK

FILTER
MAINTENANCE

WAIT

10

SYSTEM

FAN

MODE

FAN

AUTO

AUTO

CONTINUOUS

AUTO

OUTDOOR TEMP

% RH

CHECK
FILTERONOFF

HEAT ->

SPEED

M

SCHEDULE

BUTTONS BUTTONS

SCHEDULE

ON/OFF

TW

TFS

S

WAKE

AWAY

SCHEDULE

RETURN NIGHT

PERIODS

EXIT
RESET

<- COOLROOM TEMP SET POINT

F

A

M

P

M

C

BACK

DISPLAY

ENTER

POWER

FRR002

wwwwww.sylvane.com 1 [phone]

920-198-00

CHECK FILTER – When the fi lter needs to be checked, an icon
appears on screen. The word “

CHECK

The

alert is issued when the fan run time is greater than 500 hours.

FILTER

RESET

” appears next to the

BACK

CHECK
FILTER

button.

This alert may be reset by the user (Refer to Special Functions, Filter Reset).

Maintenance Required – When maintenance is required, a service icon

appears on screen. This icon will not be dismissed until maintenance

has been performed. If the service icon

fl ashes, maintenance is
re quir ed an d mu st on ly be perfo rm ed b y qu alifi ed ser vice personnel. When
the icon

is on standby the system has sensed an abnormal condition.
For example: The air in/out louvres may be blocked. Once proper air fl ow
is established the service icon

Wait – The WAIT icon

illuminates when the compressor lockout is active.

goes away.

Whenever the compressor shuts off, system pressures must be allowed
to equalize. At this time, an internal timer begins a count-down from up to
240 seconds. If a demand for heat or cool occurs during this count-down
the WAIT icon

displays letting you know that the compressor will not
operate until the count-down has completed. This timer prevents damage
to the unit if it tries to start too quickly after it stops running. Normally the
WAIT icon

is off. Once the timer has cleared, the air conditioner will
he at o r coo l ba sed o n th e te mper atu re s etti ng. Ele ctric hea t is not affe cted
by this timer.

Protection Alert (Freeze) – If the room freeze protection is active, the
display indicates this by showing Room Freeze Protection "FRZ". Once
the condition is satisfi ed, the “FRZ” display is removed. If the room
temperature is less than 40° F (4° C), and the air conditioner is equipped with
electric heat, the room freeze protection will activate. The air conditioner
will run high fan and electric heat until the room temperature reaches
46° F (8° C). Pressing the

BACK

button delays the freeze protection function

for fi ve (5) minutes.

Low Battery – When the battery is low a warning display

will be

inserted before other messages such as “COOL”. If the Low Battery

alert is on, the battery in the control unit must be changed. Refer
to the changing the battery procedure. Once the battery is changed, the
alert message will go off. Refer to Troubleshooting Tips. Under normal
conditions the battery life should be greater than 7 years.

Special Functions

Panel Lock
inadvertent operation. To lock the front panel, press and hold the

DISPLAY

ENTER

buttons for three (3) seconds. A double beep indicates your mode
change was successful and a
the display, press and hold the
The

Filter Reset – If the
and holding the

CHECK

system timer was reset and the

FILTER

no longer be visible.

User Menu Functions – The User Menu Functions allows you to change
the following selections: Set TIME, 12/24 Hour Clock Format, BEEP ON /
OF F, DI M O N / O FF, E mer ge ncy He at ( EMHT ) O N / O FF, A uto BA ND Ad just ,
F/ C Select, FRZ ON / OFF and Temp Offset.

To enter the User Menu, press and hold
selection appears. Use the
through the User Menu. Press the
function. If left inactive for 15 seconds the User Menu display will no longer
be visible and it returns to normal operation mode display. To manually
exit the User Menu, press the

– The front panel push buttons can be locked to prevent

icon appears on the display. To unlock

DISPLAY

SCHEDULE

+

buttons for three (3) seconds.

ENTER

icon will no longer be visible.

CHECK
FILTER

icon displays, the timer may be reset by pressing

button for three (3) seconds. A beep indicates the

BACK

CHECK

icon and the word "

FILTER

DISPLAY

ENTER

for 3 seconds, the TIME

(UP) or (DOWN) buttons to scroll

DISPLAY

ENTER

button to enter the displayed

BACK

button.

RESET

SCHEDULE

+

" will

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

EXIT

DISPLAY

ENTER

The hour digits flash first. The user presses the or
to change the hours. To change AM-PM, the hours must be
advanced 12 hours. Press the key to change to the
minutes. To exit the selection process, user presses the

DISPLAY

ENTER

BACK

key which will go to the time screen.

The minutes digits flash. The user presses the or
to change the minutes. Press the key to change the days.
To exit the selection process, the user presses the key

DISPLAY

ENTER

BACK

which will go to the time screen.

The dot underneath the days of the week begins to blink to
indicate which day it is. If the user has not set the date before
the dot starts on Monday. If the user is making a correction to
previously set information the dot appears under whichever
day the unit thinks it is. The user can press or to move
the dot left or right (respectively) along the week. The user
presses to loop back to the hours setting. To exit the
selection process, the user presses the key which will go

DISPLAY

ENTER

BACK

to the time screen.

Tuesday has been selected. The user presses to loop

DISPLAY

ENTER

back to the hours setting. To exit the selection process and
accept the changes, the user presses the key which will go

BACK

to the time screen.

FRR062

Time Setting – When in the User Menu, on the Control Panel, use the

(UP) and

fl ashes. Use the

DISPLAY

ENTER

. The minutes segment and AM or PM fl ashes. Use the (UP) and

(D OWN) to s elect TIM E. Pus h

(UP) and

(DOWN) to set the hour, then push

(DOWN) to set the minutes, then push

NOTE: If the AM or PM indicator is incorrect, push

segment fl ashes, use the

(UP) or
the hour segment 12 hours, then push
displays. Use the
day. Press the

(UP) or

BACK

key to go back to the TIME screen. Press

DISPLAY

, the hours segment

ENTER

DISPLAY

.

ENTER

DISPLAY

until the hours

ENTER

(DOWN) to advance

DISPLAY

. The day of the week

ENTER

(DOW N) to selec t the c urrent

(UP) to go to the next menu 1224.

NOTE: Pressing the

BACK

button again will exit the user menu function
mode. Or simply leave the control inactive for 15 seconds and
the control will return back to normal operation.

wwwwww.sylvane.com 1 [phone]

11

920-198-00

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

EXIT

DISPLAY

ENTER

User presses or to toggle the format between 12HR and
24HR display. To exit the selection process and accept the
change, press the key.

Clock Type – You may select between a 12 hr and 24 hr clock. When
1224 is displayed press the

BACK

DISPLAY

key then press (UP) or

ENTER

FRR063

(DOWN)

to toggle between 12 hr and 24 hr clock. To accept the change, press the

BACK

key to return to the 1224 screen. Press the (UP) to go to the

next menu BEEP.

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

User presses or to toggle between Beep On and Beep
Off. Press the key to accept the change and exit the

BACK

selection process.

EXIT

DISPLAY

ENTER

FRR064

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

EXIT

DISPLAY

ENTER

The menu allows the user to adjust the minimum spread
between the Auto Cool set point and the Auto Heat set point.
Press the or key to adjust. The adjust range is 3 to 10.

FRR066

Auto Changeover ‘Dead Band’ – For Kühl+ models with the auto
changeover feature you can select the temperature band between heating
and cooling. From the factory the band is set at 3° F (-16° C). The band is
adjustable from 3° F (-16° C) to 10° F (-12° C). When BAND is displayed
press the
3 and 10. To accept the change, press the

DISPLAY

key then press

ENTER

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

(UP) or

(DOWN) to toggle between

BACK

key to return to the BAND

BACK

EXIT

DISPLAY

ENTER

User presses or to select between AUTO, DM 20, OFF.
Press the key to accept the change and exit the

BACK

selection process.

Audible Alerts – You can select to have the control beep when buttons
are pushed at the unit control or when a signal is received from the remote
control. When BEEP is displayed press the
or

(DOWN) to toggle between ON and OFF. To accept the change,

press the

BACK

key to return to the BEEP screen. Press the (U P) to go

DISPLAY

key then press

ENTER

(UP)

to the next menu EMHT on Kühl+ models or F C for Kühl models.

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

EXIT

DISPLAY

ENTER

User presses or to toggle between Emergency Heat On
and Emergency Heat Off. Press the key to accept the

BACK

change and exit the selection process.

FRR065

Emergency Heat – The Kühl+ heat pump models (YS, YM, YL) have
a special feature that is designed to bring the temperature of the space
up quickly when the unit is fi rst cycled into the heating mode. With the
emergency heat feature enabled the electric heat will be used to bring the
temperature up to the setpoint initially, then utilize the energy saving heat
pump mode to maintain the temperature. If the emergency heat feature
is not selected the unit may take more time initially to reach the setpoint
at the initial selection of heat. When EMHT is displayed press the
key then press

(UP) or
To accept the change, press the
Press the

12

(UP) to go to the next menu BAND.

(DOWN) to toggle between ON and OFF.

BACK

key to return to the EMHT screen.

DISPLAY

ENTER

The Dim Auto automatically dims the display and then turns it
off after a period of time. The Dim 20 setting behavior is similar
to AUTO, but prevents the display from turning off. Minimum
brightness is 20%. The Dim Off setting forces the display to run
at full brightness.

FRR067

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

EXIT

DISPLAY

ENTER

User presses or at the same time to toggle between
Fahrenheit or Celsius as their temperature unit of choice.
Press the key to accept the change and exit the selection

BACK

process.

FRR068

screen. Press the

Fahrenheit / Celsius Selection – You may select between displaying
temperature in F or C. When F C is displayed press the
press

(UP) or (DOWN) to toggle bet ween F and C. To accept the

change, press the

(UP) to go to the next menu F C.

DISPLAY

ENTER

key to return to the F C screen. Press the

BACK

key then

wwwwww.sylvane.com 1 [phone]

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

920-198-00

BACK

EXIT

DISPLAY

ENTER

User presses or to select between Freeze Protection On
& Freeze Protection Off. Press the key to accept the

BACK

change and exit the selection process.

FRR069

(UP) to go to the next menu FRZ.

Freeze Protection – The Kühl+ models have a special feature that is
designed to keep the interior space above freezing by energizing the
electric heater anytime the indoor room temperature falls to 40° F (4° C).
With the freeze protection feature turned on, when the unit senses the
indoor temperature fall to 40° F (4° C) the unit will run the heater and high
fan until the space reaches 46° F (8° C) When FRZ is displayed press

DISPLAY

the

key then press (UP) or

ENTER

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

User presses or to increment/decrement the temperature
offset (TO) for the room temperature sensor. (Maximum offset
= +/- 8 degrees F). Press the key to accept the change
and exit the selection process

(DOWN) to toggle between ON

BACK

EXIT

DISPLAY

ENTER

BACK

FRR070

BACK

and OFF. To accept the change, press the
screen. Press the

(UP) to go to the next menu TO.

key to return to the FRZ

Temperature Offset – In some cases the built in thermostat on the unit
may not display the temperature as it is felt in the room. This can be caused
by many things including the size of the unit, the heat load on the room or
other factors. Friedrich allows you to select the appropriate temperature
offset to make the temperature readout as accurate as possible for your
application. In many cases the factory 0° F (-18° C) offset will provide
an accurate temperature readout. To change the offset follow these
instructions. When TO is displayed press the
(UP) or

(DOWN) to toggle between 0° F (-18° C) and 8° F (-13° C).

DISPLAY

key then press

ENTER

In most instances an offset from 0° F (-18° C) to 2° F (-17° C) is all that is
necessary. To accept the change, press the
screen. Press the

(UP) to go to the next menu TIME.

You may cycle through the menus using the

BACK

key to return to the TO

(UP) or (DO WN) k eys

wwwwww.sylvane.com 1 [phone]

13

920-198-00

to access any of the menus.

Add a Remote Thermostat

Remote Thermostat – An external thermostat may be added to the air
conditioner to provide remote temperature sensing and control. The
thermostat interface connector is located on the panel behind the front
grille. To enable the remote thermostat operation, remove the jumper

Figure 9

FP

THERMOSTAT CONNECTOR

F2

D2

F1

GH

CD1

GL

B

Y

4. Changing modes on the remote thermostat will not illuminate the
Control Panel LCD.

Remote Thermostat Selection

Friedrich recommends the use of either the RT4 or RT5. The RT4 is a
digital display thermostat with single speed fan control. The RT5 features
a digital display, two fan speed selection, battery backup and backlight.

W

R

POWER
CORD

TO REMOTE THERMOSTAT

Tab l e 2

Terminal Code Wire Connection Function

Interface Defi nitions

C Common Ground Terminal

GH Call for Heating

GL Call for Compressor

B

Y Call for low fan

W Call for high fan

R

THERMOSTAT WIRE ROUTING USE #18
AWG COLORED THERMOSTAT WIRE

24V Power from Electronic
Control to Wall Thermostat

Call for heat pump reversing
valve

between terminals 11 & 12 on the terminal block. Connect the thermostat
using Figure 9 and Table 2 as a guide.

If you connect an external thermostat, all Control Panel buttons will be
disabled with the following exception:

1. Maintenance commands (double button press & single button
extended press).

DISPLAY

2. The

ENTER

button for Freeze protection.

3. First Button pushed, illuminate the LCD.

FRR004

Other the rmostats may be used as l ong as they are confi g ured correctly fo r the unit.
For cooling models a sin gle stage cooling t hermostat with C, R, G , Y terminals must
be used. For ele ctric heat ‘E’ mode ls a single stage heating a nd cooling thermo stat
with C, R, G, Y, W terminals must be used. For heat pump ‘Y’ models a single
stage heating and cooling thermostat with C, R, G, Y, W, B terminals must be used.

CAUTION

It is the installer’s responsibility to
ensure that all control wiring
connections are made in accordance
with the installation instructions.

Improper connection of the thermostat
control wiring and/or tampering with
the unit’s internal wiring can void the
equipment warranty.

Failure to follow these instructions can
result in personal injury and damage to
product or other property.

14

wwwwww.sylvane.com 1 [phone]

920-198-00

Remote Control Operation

Remote Control – Refer to Figures 11 and 12 during operation description.

Getting Started – Install two (2) AA A batteries in the battery compartment

located on the back of the unit.

Operation – The remote control should be within 25 feet of the air
conditioner for operation (Refer to Figure 10 for effectiveness). Press the

button to turn the remote on. The remote will automatically power off
after 15 seconds if the buttons are not being pressed. The remote must
be on to control the unit.

POWER Button – Turns remote and unit on and off.

SYSTEM Button – Allows the user to sequentially select,

HEAT

, and FAN ONLY

operation. When the button is pressed, the
display indicates which mode has been selected via a display message.
Note that when the heating function is not available, the system will
automatically skip the HEAT and AUTO modes.

FAN MODE Button – Selects between automatic (
operation. In the AUTO mode, the fan only turns on and off when the
compressor operates or the heat function is enabled.

NOTE: AUTO is not available in the FAN ONLY Mode, the display

indicates

CONTINUOUS

. In the

determined by your selection on the

CONTINUOUS

FAN

SPEED

Figure 10

AUTO

Cool ,

AUTO

) or

CONTINUOUS

mode, fan speed is

button.

FAN SPEED Button – Used to sequentially select new fan speed, plus
AUTO operation. When the

FAN

button is pressed, the fan speed is

SPEED

temporarily displayed in the display window, plus a fan speed icon (triangle)
changes to indicate the new speed level. Fan speed automatically varies
depending on the set temperature on the control panel and the actual
room temperature. Let me explain. Say for example you’re working in
your garage and you need to open the big door for several minutes. Since
there is a big difference between your set temperature and the actual room
temperature the system fan speed increases to MAX. It remains at this
speed until the room temperature matches the set temperature.

SCHEDULE Button – The
off. Pressing the

SCHEDULE

off. Only the schedule icon

UP and DOWN Arrows – Pressing either the

SCHEDULE

button turns the schedule function on and

button a second time turns the schedule function

will be displayed.

(UP) or (DOWN)
button changes the desired room temperature. The factory preset lower
and upper limits are 60° F (16° C) and 99° F (37° C). These buttons are
also used to navigate between function options when using the User Menu
or Maintenance Mode.

Remote Effectiveness

Hand Held Remote – Has an operating range of up to 25 ft. The infrared
remote control signal must have a clear path to transmit the command to
the air conditioning unit. The remote signal has some ability to "bounce"
off of walls and furniture similar to a television remote control. The diagram
below shows the typical operating range of the control in a standard room
with 8 ft high ceilings.

TOP VIEW

SIDE VIEW

7.5ft

60°

60°

25ft

25ft

30°

45°

25ft

45°

30°

8ft

25ft

25ft

25ft

4ft

8ft

60°

60°

45°

45°

30°

30°

25ft

6ft

16ft

25ft

FRR046

wwwwww.sylvane.com 1 [phone]

15

Figure 11

920-198-00

DISPLAY

Figure 12

SYSTEM

TEMPERATURE

UP

SCHEDULE

AUTO

ICON

COOL

ICON

HEAT

ICON

FAN MODE

POWER

TEMPERATURE
DOWN

FAN SPEED

FRR005

FAN ONLY

ICON

16

SYSTEM

MODE

FAN

MODE

FAN

SPEED

SCHEDULE

ICON

°F / °C
ICONs

2 X 16 SEGMENT

DISPLAY

FRR006

wwwwww.sylvane.com 1 [phone]

920-198-00

Airflow Selection and Adjustment

Air flow direction adjustment

The airfl ow path may be adjusted to distribute air independently from the
left or right side of the discharge opening. Each of the banks of louvers
can be d irec ted l eft, righ t, up or d own i n or der t o ac hiev e th e mos t op timu m
airfl ow positioning.

To a djus t ai rfl ow direction grab the lever in the center of the louver bank and
move it in the direction that you would like the air to be directed. Please
note that it is normal that airfl ow may be stronger out of one side of the
louvers than the other.

TO BRING IN FRESH AIR – Move the lever to the Fresh Air
which allows outside air to enter the room. This is useful in fall and spring as
a means of bringing in fresh outside air when using FAN ONLY . It can also
be used in the summer with the com pres sor in the Cool ing Mode if you wish.

Fresh air and exhaust control

Your air con di tion er has the ability to bring fresh air into the room or ex haust
stale air out of the room. The con trol slide is found on the upper part of
the unit (See Fig ure 13).

TO EXHAUST INDOOR AIR – Move the lever to the Exhaust
position. This will allow stale air to be expelled to the outside of the dwelling.
This is es pe cial ly handy in the spring or fall when indoor air tends to get
stale, or after a social gathering involving smokers, or to re move cooking
odors.

BEST PERFORMANCE – Move the lever to the Re -Circulate Position

. This is the most effi cient mode for cooling and heating.

position

Figure 13

FRR008

wwwwww.sylvane.com 1 [phone]

17

920-198-00

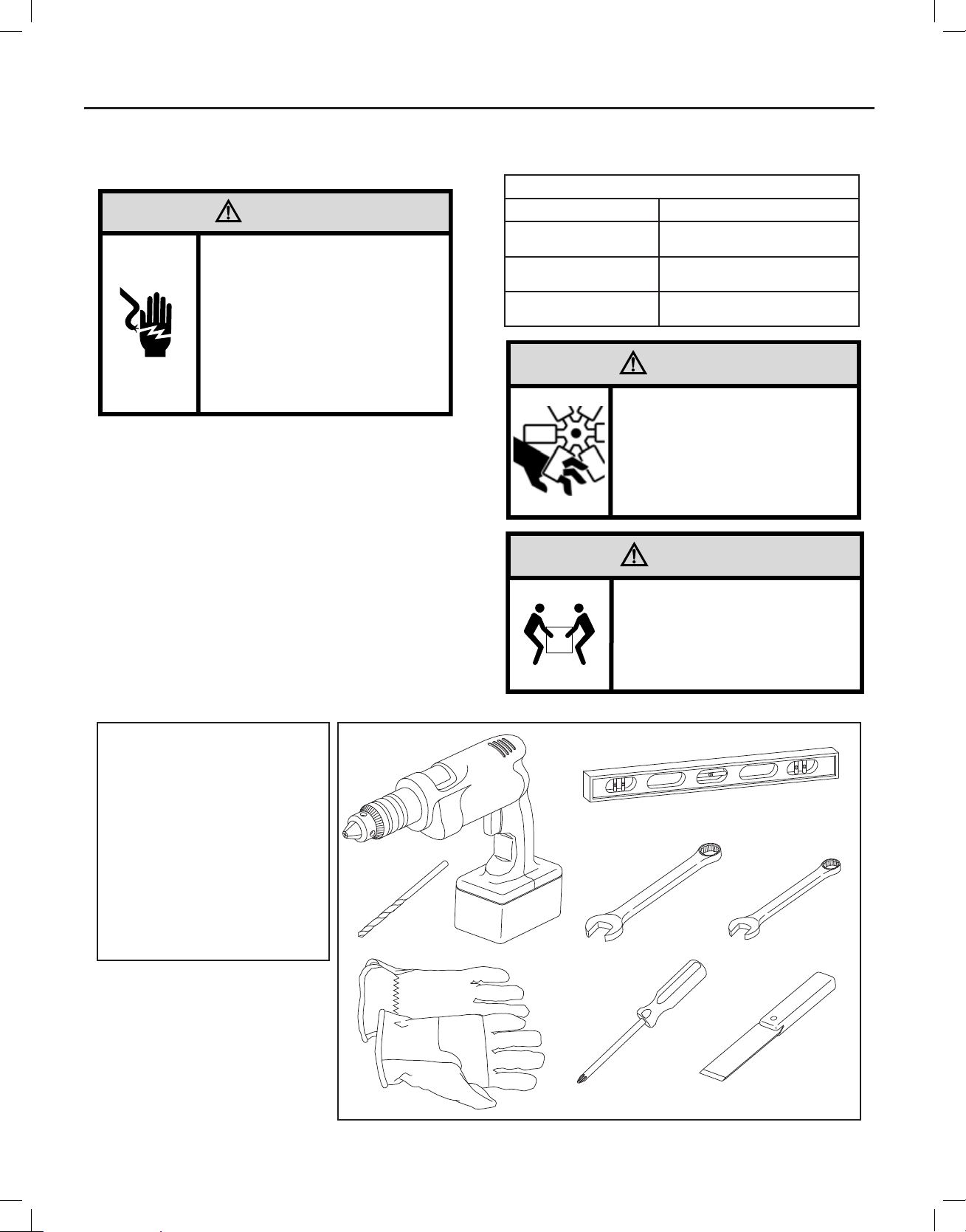

Installation Instructions

READ THIS FIRST! Electrical Requirements

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.

Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.

Always plug into a grounded 3 prong oulet.
Failure to follow these instructions can result in
death, fire, or electrical shock.

IMPORTANT: Before you begin the actual installation of your air
conditioner, check local electrical codes and the information below.
Your air conditioner must be connected to a power source with the same
alternating current (A.C.) voltage and amperage as marked on the name
plate located on the chassis. Only A.C. can be used. Direct Current (D.C.)
cannot be used.

CIRCUIT PROTECTION – Use on single outlet circuit only. An overloaded
circuit will invariably cause malfunction or failure of an air conditioner,
therefore, it is necessary that the electrical protection is adequate. Due
to momentary high current demand when the air conditioner starts, use a
"TIME DELAY" fuse or a HACR type circuit breaker. Consult your dealer
or power company if in doubt.

Refer to the electrical name plate located on the air conditioner chassis
(See page 2) to determine the correct fuse or circuit breaker amperage
for your model (See Table 1 on Page 6 for electrical receptacle types).

The power cord has a plug with a grounding prong and a matching
receptacle is required.

The following instructions are for standard chassis model groups
distinguished by the fi rst two letters of the model designations and cabinet
sizes listed in Table 3.

Tabl e 3

MODEL DESIGNATION CABINET SIZE (H x W x D)

SMALL CHASSIS - SS,
ES, YS

MEDIUM CHASSIS - SM,
EM, YM

LARGE CHASSIS - SL,
EL, YL

15

15

⁄16" x 25 15⁄16" x 29" (405 mm x

660 mm x 737 mm)

15

⁄16" x 25 15⁄16" x 29" (455 mm x

17
660 mm x 737 mm)

3

20

⁄16" x 28" x 35 1⁄2" (513 mm x 711

mm x 851 mm)

WARNING

MOVING PARTS HAZARDS

* Do not operate unit out of sleeve

or with front grille removed.

* Do not place hands in blower or

fan blade areas.
Failure to do so can result in
serious injury.

CAUTION

Excessive Weight Hazard

Use two or more people when
installing your air conditioner.

Failure to do so can result in
back or other injury.

Recommended Tools

1. Power Drill

2. 5/32" Drill Bit

3. Gloves

4. Carpenters Level

5. 5/16" Wrench

6. 1/4" Wrench

7. #2 Phillips Screw Driver

8. Putty Knife or (wood stir stick)

18

4

1

5/16

2

3

ITEMS NOT TO SCALE

5/16

1/4

1/4

65

87

wwwwww.sylvane.com 1 [phone]

920-198-00

INSTALLATION HARDWARE AND ACCESSORY DETAIL

ITEM 10

ITEMS NOT TO SCALE

ITEM 1

ITEM 4

ITEM 7

ITEM 11

ITEM 12

ITEM 8

ITEM 2

ITEM 5 ITEM 6

ITEM 9

ITEM 13

ITEM 3

ITEM 14

FRR009

ITEM

DE SCRIP TION QTY.

NO

SHELL MOUNT ING PARTS
1 SUPPORT BRACKET 2
2 SCREW, 10-24 x 1" HEX HEAD 4
3 10-24 FLAT WELD NUT 4
4 SCREW, SHEET METAL #12 x 2" 7

WINGBOARD ANGLE MOUNTING
5 WINGBOARD ANGLE, TOP 1
6 WINGBOARD ANGLE, SIDE 2
7 SCREW, SHEET METAL #8 x 3⁄8" 2

NOTE: Kühl + models do not come with window mounting

components. When mounting a cooling and heating model
a window installation kit must be purchased separately.

KWIKS – For all ES and YS models.

KWIKM – For all EM and YM models.

KWIKL – For all EL and YL models.

ITEM

DE SCRIP TION QTY.

NO

WINGBOARD MOUNT ING PARTS
8 WINGBOARD (MASONITE) 1
9 "J" TYPE SPEED NUT 4
10 WINGBOARD CLIP (SPRING STEEL) 4
11 SCREW, #8 x ½" PHILLIPS TRUSS HD. 4

WINDOW SEALING
12 SEALING GASKET (VINYL) 1
13 WINDOW SEAL GASKET (DARK FOAM) 1
14 CHASSIS SEAL GASKET (LIGHT FOAM) 1

19

wwwwww.sylvane.com 1 [phone]

920-198-00

Standard Window Installation

NOTE: Hardware and accessories used during installation are shown

STEP 1. Remove the chassis Entrygard retainer by removing the far

STEP 2. Hold the cabinet stationary, then use the hand grips on both

STEP 3. Remove the large white foam blocks used to restrain the

on page 18. Each part will be referred as Item No.

right screw (See Figure 14), save this screw to reattach the
chassis retainer after installation (Step 12). Also, remove and
discard the two retainer screws and washers located at the
rear of the unit (See Figure 14).

CAUTION

Handle Use

Use handle on both sides to

eldnaH esU

pull unit from sleeve.

snoit

acoL

]sedis htob[

Do not push, pull or lift from
center of support.

ends of the control unit support bracket to pull the chassis out
of the cabinet (See Figure 15).

compressor during shipment (See Figure 16). Inspect base
pan for dislodged white foam blocks and remove. Do not
remove any other foam parts.

Figure 15

CONTROL UNIT

SUPPORT BRACKET

FRR012

STEP 4. Anchor the side angles (Item 6) by engaging the tabs of the

lower sill plate (See Figure 17, Detail B-2) with the loops of the
side angle. Engage the tabs of the top angle (Item 5) with the
top loops of the side angle (See Figure 17, Detail B-1). Install
two (2) screws (Item 7) to secure the top angle tabs and the
side angle to the cabinet (See Figure 17, Detail B-1).

Figure 14

RETAINER SCREWS
AND WASHERS

ENTRYGARD
RETAINER
WIRE

FAR RIGHT

SCREW

20

FRR011

wwwwww.sylvane.com 1 [phone]

920-198-00

CAUTION

Remove Shipping Blocks

Prior to operating the unit remove
the foam shipping blocks.

Failure to do so may result in
damage to the unit which is not
covered by the manufacturer’s
warranty!

STEP 5. Check the window sill and frame to be sure they are in good

STEP 6. CABINET MOUNTING – Raise the lower window 1/4" more

STEP 7. OUTSIDE SUPPORT MOUNTING – Refer to Figures 19 and

Figure 16

condition and fi r ml y an chor ed t o the wal l. Re pai r if n eces sary.

than the height of the cabinet. Carefully slide the cabinet
through the opening until the lower sill plate channel rests
behind the window sill and the top angle rests against the
window (See Figure 18). Center the cabinet within the
opening. Drill three (3) 5/32" diameter pilot holes into window
sill using the holes in the cabinet sill plate as a guide. Install

three (3) #12 x 2" long screws (Item 4) (See Figure 18).

20. Assemble the support brackets (Item 1) to the bottom of
the cabinet with four (4) 10-24 1” long screws (Item 2) and four
10-24 fl at nuts (Item 3). Adjust the support brackets, using a
combination of the elongated holes of the bracket and different
hole locations in the cabinet, to bring t he bottom support bracket
pads in contact with the wall. A 1" x 4" or 2" x 4" SPACER
SHOULD BE USED BETWEEN THE WALL AND SUPPORT
THE BRACKETS WHEN INSTALLED ON ALUMINUM OR
VINYL SIDING. Drill 5/32" diameter pilot holes and secure
the brackets to the wall with two (2) 12A x 2" long screws
(Item 4).

TOP VIEW OF UNIT

NOTE: DO NOT LEVEL the cabinet from front to back. Make sure there

is approximately 3/8” to 1/2” slope (1/8 to 1/4 bubble on level)
toward the outside of the house.

Adjust the support brackets to provide an inside -to-outside slope for excess
condensation drainage (Refer to Standard Window Installation, Figures 19
through 23). Tighten all screws.

Alternate support method A: If you have a wide window sill which prevents
you from mounting the brackets as shown in Figure 22, try the following:
Using the elongated holes and different hole locations in the cabinet,
set the placement of the bracket to support the unit’s weight (Figure 22).
Tighten all screws.

Alternate support method B: If the window ledge gap is narrow, try the
following. Bend the bracket end tab fl at. Cut the bracket in two (2) places
as shown in Figure 23. Bend the short piece so it will be vertical when
installed. Adjust the placement as required. Tighten all screws.

STEP 8. Measure and cut the wingboard panels (fi t with about 1/8”

cl eara nc e) fro m the sup plie d Mas onit e (I tem 8) t o fi t the space
between the window side channels and cabinet. (Figure 24).
Make sure you include the depth of the window channel.

NOTICE

For YOUR security and safety, YOU must
provide a means of preventing the upper
part of the window from opening.

STEP 9. To assemble the wingboard panels, push on the "J" type speed

nuts (Item 9) and spring steel clips (Item 10) (See Figures 25)
on page 26. Secure each panel with two (2) screws (Item 11).

REMOVE AND DISCARD
SCREWS

LEFT SIDE

REMOVE AND DISCARD

FOAM BLOCKS

COMPRESSOR

BACK

FAN MOTOR

EVAPORATOR COIL

FRONT

RIGHT SIDE

REMOVE AND SAVE
SCREW FOR
RE-INSTALLATION

FRR045

21

wwwwww.sylvane.com 1 [phone]

920-198-00

Figure 17

CABINET

#8 x 3/8” LONG SCREW
(ITEM 7) 2 REQUIRED

TOP ANGLE (ITEM 5)

TAB

DETAIL B-2

SIDE ANGLE
(ITEM 6)
2 REQUIRED

TAB

LOOP

SILL PLATE

TAB

Figure 18

DRILL (3) 5/32” DIA.

PILOT HOLES AND

INSTALL (3) #12 x 2”

LONG SCREWS

CENTER

CABINET

IN WINDOW

SIDE TO SIDE

(ITEM 4)

WINDOW SILL

DETAIL B-1

FRR013

TOP ANGLE
(ITEM 5)

PULL WINDOW
SASH DOWN
BEHIND TOP
ANGLE

SIDE ANGLE
(ITEM 6)

22

LOCATE SILL PLATE GUIDE CHANNEL

JUST BACK OF WINDOW SILL

FRR014

wwwwww.sylvane.com 1 [phone]

Figure 19

920-198-00

3/8” SLOPE DOWN

#10-24 x 1” HEX HD.
SCREW (ITEM 2)

SUPPORT BRACKET
(ITEM 1)

SPACER SHOULD BE USED BETWEEN
WALL AND BRACKET WHEN INSTALLED
ON ALUMINUM OR VINYL SIDING.

Figure 20

#12 x 2” SCREW

(ITEM 4)

SUPPORT
BRACKET
(ITEM 1)

10-24 x FLAT WELD
NUT (ITEM 3)

FRR015

3/8” SLOPE DOWN

CONDENSER
AIR OUTLET

#10-24 SCREW
#10-24 FLAT WELD NUT

#12 x 2” SHEET METAL
SCREW (ITEM 4)

SPACER SHOULD BE USED BETWEEN
WALL AND BRACKET WHEN INSTALLED
ON ALUMINUM OR VINYL SIDING.

wwwwww.sylvane.com 1 [phone]

CONDENSER
AIR INLETS

FRR016

23

Figure 21

920-198-00

3/8” SLOPE DOWN

CONDENSER
AIR INLETS

#10-24 SCREW

#10-24 FLAT WELD NUT

STONE LEDGE

Figure 22

#12 x 2” SHEET METAL
SCREW (ITEM 4)

SPACER

FRR017

3/8” SLOPE DOWN

#10-24 SCREW

STRAIGHTEN TAB TO LAY FLAT
ALONG THE BOTTOM RAIL OF
THE SHELL

#10-24 FLAT WELD NUT

24

SECURE THE LONGEST SIDE OF
THE BRACKET TO THE SHELL

ADJUST IN OR OUT TO REST
ON THE LEDGE

STONE LEDGE

FRR018

wwwwww.sylvane.com 1 [phone]

Figure 23

920-198-00

3/8” SLOPE DOWN

Figure 24

#10-24 SCREW

#10-24 FLAT WELD NUT

STONE LEDGE

OUTSIDE WALL

DIMENSION “A”

CUT
HERE

CUT TO FIT DIMENSION “A”
AND BEND DOWN TO FORM
A VERTICAL LEG.

A

DISCARD
SHADED AREA

MEASURE DISTANCE “B” TO INSIDE OF THE
CHANNEL ON EACH SIDE.

FRR019

B

CUT HERE AND DISCARD CENTER WASTE
MATERIAL.

B

WINGBOARD

B

B

wwwwww.sylvane.com 1 [phone]

SUBTRACT 1/8” FROM DIMENSION “B” AND
MEASURE FROM THE EDGE OF THE WING­BOARD (ITEM 8), MARK, SCORE AND CUT
WITH APPROPRIATE CUTTING TOOL.

FRR020

25

920-198-00

STEP 10. INSTALL THE WINDOW SEALING GASKETS – Measure

and cut the vinyl window seal gasket (grey color, Item 12) to
fi t the width of the window, and install as shown in Figure 29.
Pull the window sash down behind the gasket. Measure and
cut the dark foam window seal gasket (Item 13) and install it
between the upper glass panel and the top part of the lower
window sash (Figure 29).

CAUTION

Excessive Weight Hazard

Use two or more people when
installing your air conditioner.

Failure to do so can result in
back or other injury.

CAUTION

Cut/Sever

Although great care has been
taken to minimize sharp edges
in the construction of your unit,
use gloves or other hand
protection when handling unit

Failure to do so can result in minor
to moderate personal injury.

STEP 11. Carefully team lift the chassis and set it into the cabinet. Slide

the chassis stopping approximately 3" from full insertion. Inser t
the chassis seal gasket (Item 14) one inch deep between the
chassis and the cabinet (See Figure 29) as shown on page 28.
A paint stir stick or ruler might be helpful here. Begin inserting
the gasket at either bottom corner and go up the side, across
the top, and down the opposite side. Then push the chassis
all the way into the cabinet.

NOTE: If the chassis seal gasket is not installed or installed improperly,

the operation of the unit will be negatively af fected. Operational
noise and outside noise will also be amplifi ed.

STEP 12. Reattach the entry guard chassis entry guard retainer wire with

the same screw retained in Step 1 (See Figure 14).

Figure 25

“J” TYPE SPEED NUT
(ITEM #9) 2 REQUIRED

CUT

WINGBOARD

PAN EL

CENTER THE HOLE IN THE
SPEED NUT OVER THE SLOT
IN THE WINGBOARD PANEL

SPRING STEEL
CLIP (ITEM 10)
2 REQUIRED

3"

CUT EDGE

3"

SLIDE CLIP OVER CUT EDGE
OF WINGBOARD PANEL

ROTATED 90°

FRR021

26

wwwwww.sylvane.com 1 [phone]

TOP OF CABINET

920-198-00

Figure 27Figure 26

PLACE WINGBOARD PANEL IN WINDOW JAM
TO COMPRESS THE SPRINGS INSIDE THE
RUNNERS, AND SWING THE WINGBOARD
PANELS INTO PLACE AS INDICATED BY THE
DASHED LINES.

WINDOW JAM

CLIP (ITEM 10)

SECTION A-A

INSERT VINYL WINDOW SEAL

GASKET OVER TOP ANGLE
TO WINGBOARD (ITEM 12)

B

B

LOWER WINDOW SASH

INSERT FOAM WINDOW
SEAL GASKET (ITEM 13)

A

SECURE THE SIDE WINGBOARD PANELS TO
THE SIDE ANGLES WITH FOUR (4) #8 x 1/2” LONG
SCREWS (ITEM 11), TWO ON EACH SIDE.

A

FRR022

VINYL

WINDOW

GASKET

TOP WINGBOARD ANGLE

SECTION B-B

FRR023

wwwwww.sylvane.com 1 [phone]

27

920-198-00

OPTIONAL: The factory assembles the supply cord so that it exits the left

side of the unit at the bottom. At the consumer’s discretion,
the supply cord can be routed to exit the right side of the unit.
To do this, route the supply cord to the right side. Pull the
supply cord taunt through the loops (Refer to Cord Routing
Change, Figure 37) and route the cord down.

STEP 13. To attach and prevent damage to the front grille align the cord

notch over the cord and c enter the fresh air lever, then align and
tighten the four (4) captive screws as indicated by the arrows in
Figure 28. Before closing the front panel, be sure the fi lter is
in place. Make sure cur tains do n ot block the side air intakes.

STEP 14. You are now ready to control the comfort level of the room.

Figure 29

Use Tool Provided

Please use the provided tool to attach the decorative front to the chassis.

Figure 28

USE HAND TOOLS

DO NOT OVER TIGHTEN

B

LOCATION OF GRILLE
REMOVAL TOOL

FRR053

28

POWER CORD

CLIP

NOTE: WHEN INSTALLING THE CHASSIS
SEAL GASKET; BEGIN AT EITHER BOTTOM
CORNER AND GO UP THE SIDE & ACROSS
THE TOP & DOWN THE OPPOSITE SIDE.

CHASSIS SEAL

GASKET (ITEM 14)

FRR024

www.sylvane.com 1 [phone]

920-198-00

THIS PAGE INTENTIONALLY LEFT BLANK

www.sylvane.com 1 [phone]

29

920-198-00

Cord Routing Change

Unplug unit.

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.

Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.

Always plug into a grounded 3 prong oulet.
Failure to follow these instructions can result in
death, fire, or electrical shock.

For convenience and optimum appearance the direction that the power cord
exits the unit may be changed from left to right by following the procedure
below. Select the exit location on the left or right based on proximity to
the power outlet.

Figure 30

ELECTRICAL
CONTROL PANEL

STEP 15. Carefully pull out electrical control panel 1", but not all the way.

Figure 32

1 INCH

FRR056

STEP 16. Pull electrical c ord strain relief downward until free and rotate

90 degrees to the right.

Figure 33

NOTE:

DECORATIVE FRONT REMOVED USE TOOL PROVIDED.
(SEE FIGURE 28 FOR LOCATION OF TOOL).

FRR054

Remove 3 screws as shown from the electrical control panel. Save to
reinstall later.

Figure 31

ELECTRICAL CONTROL
PANEL SCREWS (3)

FRR055

90°

ELECTRICAL CORD
STRAIN RELIEF

FRR057

STEP 17. P ush elec tr ical cord stra in re lief bac k upw ard into the el ect ri cal

control panel.

Figure 34

ENSURE THE ELECTRICAL CORD STRAIN RELIEF IS
FLUSH WITH THE TOP OF ELECTRICAL CONTROL PANEL

FRR058

30

www.sylvane.com 1 [phone]

920-198-00

STEP 18. Carefully push electrical control panel back into chassis.

Figure 35

ELECTRICAL
CONTROL PANEL

FRR059

STEP 19. Reinstall the 3 screws removed earlier to secure electrical

control panel.

Figure 36

STEP 20. If running power cord to the right of the unit install the cord

into the cord retainer clips along the bottom front of the unit.

Figure 37

CORD RETAINER

CLIPS

POWER
CORD

ELECTRICAL CONTROL PANEL SCREWS (3)
(RETAINED FROM STEP 1)

FRR060

FRONT
GRILLE

FRR061

www.sylvane.com 1 [phone]

31

Through-the-Wall Installation

The following instructions apply to wood, masonr y, brick, concrete or cinder
block wall construction.

920-198-00

STEP 1. Follow steps 1, 2, 3, and 4 of the "STANDARD WINDOW

INSTALLATION" instructions beginning on page 20.

STEP 2. CABINET PREPARATION – Remove the sill plate from the

cabinet by removing two (4) nuts and screws (Figure 38).
Note that the chassis retainer is secured by a right side nut
and screw (Detail A, Figure 38). Bend the tabs of the sill plate
down into its channel at both ends of the plate or cut them off
(Detail B, Figure 38) Rotate the sill plate 180° (end-to-end,
Detail B, Figure 38) and reinstall. Reverse the orientation of
the nuts and screws, so that the head of the screws are on the
underside of cabinet facing up and the nuts are on top (Detail
C, Figure 38). Ensure that the chassis retainer is reinstalled
as shown in the detail.

NOTICE

The outside cabinet condenser air intake louvers
MUST NOT BE BLOCKED by extra thick walls.

STEP 3. WA LL PREPAR ATI ON – The maximum wall thickness

permissible without special construction is determined by
the model size to be installed. Observe the maximum wall
thickness shown in Figure 39. Walls exceeding the maximum
thickness shown in the chart, should be altered as shown in
Figure 39.

A

B

Tabl e 4

FINISHED

DIMENSION

A 16

B 26

SMALL

CHASSIS

3

⁄16" 18 3⁄16" 20 3⁄8"

3

⁄16" 26 3⁄16" 28 1⁄4"

MEDIUM

CHASSIS

LARGE

CHASSIS

Note: These dimensions are for fi nished opening

size.

STEP 4. CHECKING WIRING AND PLUMBING – Check for wiring and

STEP 5. OPENING CONSTRUCTION – Depending upon size of unit

pl umbing i nside an d outs ide of th e wall to be sure n one wi ll be
damaged when the cabinet framework is being constructed.

to be installed, lay out the hole dimensions per Table 4. Cut
and frame-in the opening to fi nished dimensions. If the wall
construction is typical frame or 2” x 4” studding with brick or
stone veneers, locate the opening next to one of the studs.
For masonry, concrete or cinder block walls, locate opening

for your convenience (See Figures 40, 41, and 42).

32

www.sylvane.com 1 [phone]

Figure 38

CABINET

920-198-00

BEFORE AFTER

SCREW
(4 REQUIRED)

CABINET

SILL PLATE

TURN SILL PLATE
END TO END

Figure 39

A

MAXIMUM WALL THICKNESS

CONDENSER AIR
INTAKE LOUVERS

NOTE: HOLES IN SILL
PLATE MOVED TO
BACK SIDE

DETAIL A

NUT
(4 REQUIRED)

DETAIL B

BEND TABS DOWN

NOTE: SCREW AND NUT
ORIENTATION NOW REVERSED.

TOP VIEW

NUT
(4 REQUIRED)

DETAIL C

SCREW
(4 REQUIRED)

FRR026

CONDITIONED
ROOM SIDE AIR

MODEL A

SMALL CHASSIS 7-3/8”

MEDIUM CHASSIS 7-3/8”

LARGE CHASSIS 15-1/8”

TOP VIEW SHOWING
BEVELED SIDES FOR
AIR INTAKE.
WALL BELOW UNIT MUST
BE BEVELED ALSO.

NOTE: CONDENSER AIR INLETS AND OUTLETS
MUST BE UNOBSTRUCTED TO AVOID THE
RECIRCULATION OF REJECTED HEATED AIR.

2" MINIMUM
BOTH SIDES

CONDENSER AIR
INTAKE LOUVERS

CONDENSER AIR

OUTLET / REJECTED

HEATED AIR

FRR027

33

www.sylvane.com 1 [phone]

920-198-00

Figure 40

CABINET

CAULK ALL SIDES
INSIDE AND OUTSIDE

SHIM TO FILL IN VOID AT THE
TOP AND SIDES WITH WOOD
AS REQUIRED.

Figure 41

CAULK ALL SIDES
INSIDE AND OUTSIDE

CABINET

SHIM TO FILL IN VOID AT THE
TOP AND SIDES WITH WOOD
AS REQUIRED.

ELECTRICAL RECEPTACLE
(SEE FIG. 42 FOR LOCATION NOTE)

Figure 42

CAULK ALL SIDES
INSIDE AND OUTSIDE

CABINET

MORTAR

FRR028

POINT “Y”

ELECTRICAL RECEPTACLE
(SEE FIG. 42 FOR LOCATION NOTE)

From Point "X"

From Point "Y"

Small/Medium Large

115 V

230V

115 V

230V

69” N/A

45” 45”

Small/Medium Large

45” N/A

21” 20”

FRR029

34

POINT “X”

ELECTRICAL
RECEPTACLE

FRR030

www.sylvane.com 1 [phone]

920-198-00

STEP 6. Slide the cabinet into the hole far enough to allow the

guide-channel of the sill plate to contact the inside wall sur face
(Figure 20).

STEP 7. Drill three (3) 5/32” diameter pilot holes (use the sill-plate holes

as a guide) into the frame and install three (3) #12 x 2" long
screws (Item 4) (Figure 20).

NOTE: Alternate fasteners are required when securing the sill plate or

support brackets to material other than wood (cinder block, brick,
masonry or concrete). These items can be purchased at your
local hardware store.

EXPANSION ANCHOR BOLT

MOLLY OR TOGGLE BOLT

Figure 43

TRIM MOULDING

NOTE: DO NOT LEVEL the cabinet from front to back. Make sure there

is appr oxi mate ly 3 /8 ” to 1/2 ” slo pe (1/ 8 to 1/4 bu bbl e on t he le vel )
toward the outside of the house.

STEP 8. Drill two (2) 5/32" diameter pilot holes in each cabinet side

at the locations shown (Figure 20) and install four (4) #12 x
2" screws (Item 4). Provided that Step 5 (hole construction)
provides a sturdy mount with solid vertical studs, support
brackets may not be required. The installation must support
the weight of the unit plus an additional weight of 400 pounds
on the rear of the cabinet. If support brackets (Item 1) are
available, they can be installed as shown in Figure 20.

STEP 9. Complete the installation by following steps 12 through 15

of “STANDARD WINDOW INSTALLATION” instructions,
page 20.

CAULK ALL SIDES WEATHER TIGHT
INSIDE AND OUTSIDE

3/8" SLOPE DOWN

4"

SCREW #12 x 2"
LONG (USE 3)
(ITEM 4)

SILL PLATE GUIDE CHANNEL

INSIDE WALL SURFACE

3"

NOTE: SUPPORT BRACKET MAY BE
OMITTED FROM THROUGH-THE-WALL
INSTALLATIONS IF THE CABINET IS
SECURED AS FOLLOWS. DRILL TWO
HOLES IN EACH SIDE AND INSTALL 4
FASTENERS (2 EACH SIDE). USE #12 x 2"
SCREWS, (ITEM 4).
TOGGLE BOLTS OR EXPANSION BOLTS
MAY BE REQUIRED.

CABINET

SUPPORT BRACKETS

SCREW #12 x 2" LONG
DRILL 5/32" DIA. PILOT HOLES.

FRR031

www.sylvane.com 1 [phone]

35

920-198-00

Programmable Thermostat

Your unit features an advanced 7 day programmable thermostat feature that
can be used to turn the unit on or off or even change modes and maintain
temperatures throughout the day.

Factory settings are shown in addendum 1 (Schedule Table with Energy
Saving Values). These values can be changed by following the procedures
in the preceding paragraphs. Basic options are: Four (4) day groups.

1. Monday through Friday.

2. Saturday and Sunday only.

3. Monday through Sunday.

4. Individual days (Mon thru Sun).

Each of the day groups have four (4) time periods: WAKE (06:00), AWAY
(08:00), RETURN (18:00), and NIGHT (22:00).

The start time for each of the time periods can be changed. In addition,
each time period can have its own temperature and fan mode.

For example, let’s say you are in a cool climate region. You leave for work
at 08:00 and return home around 18:30. You can set the temperature lower
while you are away from your home. At 18:00, you set the temperature
higher for the RETURN period so the room is nice and comfortable when
you arrive.

Set Schedule Sequence – 1 Wake Period

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

Press and hold

AUTO

AUTO

SCHEDULE

for three (3) seconds to enter the schedule setting

<- COOLSET P OIN T

mode. If left inactive for fi ve (5) minutes, the unit exits the schedule setting
mode and returns to normal display without saving any settings that might
have been changed. To exit and save the changes, press and hold
for three (3) seconds. All changed parameters will be saved. The
key allows the user to back up through the menus.

SYSTEM

FAN

MODE

FAN

SPEED

M

TFS

S

SCHEDULE

TW

WAKE

When the schedule setting mode is entered, a confi rmation sound plays and
the schedule icon blinks. The display begins with all weekday (MTWTF)
dots lit. Changes made will be global to all weekdays.

BACK

F

DISPLAY

ENTER

FRR032

SCHEDULE

BACK

BACK

A
M

DISPLAY

ENTER

FRR033

SYSTEM

FAN

MODE

FAN

SPEED

M

TFS

SCHEDULE

TW

S

WAKE

The user can select a different day group by pressing
continues to press

SCHEDULE

, the system will cycle through all the day groups

SCHEDULE

BACK

A
M

DISPLAY

ENTER

FRR034

. If the user

in the following order: MTWTFSS, Monday thru Sunday, M, T, W, Th,
F, Sat, Sun. Note the last day group is each individual day. In other
words, the user can adjust each of the four (4) time period start times per
day. This is a real helpful feature if you have an adjustable work shift.
Each day group begins showing the start time for the wake time period.

SYSTEM

FAN

MODE

FAN

SPEED

M

TFS

SCHEDULE

TW

To change the time, press (UP) or

S

WAKE

(DOWN) to increment/decrement

the time by 15 minute jumps. Once the correct time is set, press

BACK

A
M

DISPLAY

ENTER

FRR035

DISPLAY

to

ENTER

advance to the next step.

Set Schedule Sequence – 2 Wake Period

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

CONTINUOUS

M

TW

TFS

S

WAKE

Now you can adjust the settings for SYSTEM, FAN MODE, FAN SPEED
and TEMPERATURE.

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

Press
(UP) or

CONTINUOUS

M

TFS

S

WAKE

FAN

SPEED

to change the perspective option. Use the

SYSTEM

TW

FAN

MODE

,

, or

(DOWN) to adjust the cool setpoint.

<- COOLSET POINT

BACK

F

DISPLAY

ENTER

FRR036

BACK

F

DISPLAY

ENTER

FRR037

36

www.sylvane.com 1 [phone]

920-198-00

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

AUTO

CONTINUOUS

M

TW

TFS

SET P OIN T

HEAT ->

S

WAKE

BACK

F

DISPLAY

ENTER

FRR038

If the s yst em m od e is set to A UTO (Hea t- Cool Unit onl y), a 2n d te mper atur e
labeled “Heat  Set Point” displays. Use

(UP) or

(DOWN) arrows
to increment/decrement the heat temperature. The other parameters
(SYSTEM, FAN SPEED, FAN MODE) cannot be changed on this screen.
The temperature range for AUTO mode must remain a minimum of 3
degrees apart at all times. If the high or low temperature is adjusted too
close to its counterpart, that temperature not being directly changed will
increase/decrease as needed to maintain the 3 degree spread. The user
presses

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

DISPLAY

to advance to the next time period.

ENTER

CONTINUOUS

AUTO

M

TFS

TW

S

WAKE

BACK

DISPLAY

ENTER

FRR039

If the user selects FAN-Only mode, the temperature display is replaced by
the word FAN. Options for FAN-Only mode are: CONTINUOUS, adjust
the FAN SPEED; AUTO, fan speed varies depending on system needs.

Set Schedule – Away, Return, Night Periods

SYSTEM

FAN

MODE

FAN

SPEED

M

TFS

SCHEDULE

TW

S

AWAY

Each of the additional periods (Away, Return, Night) are programmed
identical to the programming for the Wake period. The appropriate
period identifi er (Away, Return, Night) displays during each programming
sequence.

Once the user has programmed all four (4) time periods, the program goes
to the next day or day group. For example, if individual days are being
programmed, the program will go from Mon to Tues leading the user through
4 periods for Tues until it reaches the end of the week.

NOTE: Day group sequence is as follows: Monday through Friday

(weekday), Saturday – Sunday (weekend), Monday through
Sunday (7-day), and individual days Mon Tue Wed Thru
Fri Sat Sun.

Note that the process follows a continuous loop until the user decides to exit.

When the user has completed setting start times and options (or at any
point in the process) they can press
days), or they can press and hold

SCHEDULE

to toggle to the next day (or set of

SCHEDULE

for 3 seconds to save their changes

and exit the set schedule mode.

SYSTEM

BACK

A

M

DISPLAY

ENTER

FRR042

BACK

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

M

TFS

TW

S

WAKE

BACK

DISPLAY

ENTER

FRR040

If the user wants the air conditioner to power down for a period of time,

SYSTEM

pressing

a fi fth time will set the unit options to OFF and put the unit into
hibernation until the next scheduled period. This feature is available during
schedule setup only. In on-the -fl y use, the us er just presses the power button.

SYSTEM

FAN

MODE

FAN

SPEED

SCHEDULE

M

TFS

TW

S

WAKE

BACK

DISPLAY

ENTER

FRR041

If the user should decide they don’t want to use all four time periods for the
da y, the y ca n set any per io d to be s kipp ed by pre ssin g

SYSTEM

. T his w ill blan k
out the options and display the word SKIP. This can be undone by either
pressing
The display defaults to the setting immediately prior to the user advancing
to SKIP. Press

SYSTEM

again or pressing the (UP) or

DISPLAY

, to continue on to the next time period.

ENTER

(DOWN) arrows.

FAN

MODE

FAN

SPEED

SCHEDULE

AUTO

AUTO

Schedule Mode Completed.

<- COOLROOM TEMP SET POINT

F

DISPLAY

ENTER

FRR043

37

www.sylvane.com 1 [phone]

920-198-00

Final Inspection & Start-up Checklist

 Inspect and ensure that all components and accessories have been

installed properly and that they have not been damaged during the
installation progress.

 Check the condensate water drain(s) to ensure that they are adequate

for the removal of condensate water, and that they meet the approval
of the end user.

 Ensure that all installation instructions concerning clearances around

the unit have been adhered to. Check to ensure that the unit air fi lter,
indoor coil, and outdoor coil are free from any obstructions.

 Ensure that the circuit breaker(s) or fuse(s) and supply circuit wire

size have been sized correctly. If the unit was supplied with a power
supply cord, insure that it is stored properly.

 Ensure that the entire installation is in compliance with all applicable

national and local codes and ordinances having jurisdiction.

 Secure components and accessories, such as a decorative front

cover.

 Start the unit and check for proper operation of all components in

each mode of operation.

 Instruct the owner or operator of the units operation, and the

manufacturer's Routine Maintenance.

NOTE: A log for recording the dates of maintenance and/or service is

recommended.

 Present the owner or operator of the equipment with the Installation

& Operation Manual, all accessory installation instructions, and the
name, address and telephone number of the Authorized Friedrich
Warranty Service Company in the area for future reference if
necessary.

Heat pumps operate differently

If your unit is a "Y", or heat pump model, there are some things that you
will want to be aware of. Some functions of a heat pump differ from your
unit when it is used for heating:

1. It is normal for ice to form on the outdoor coil of the heat pump.
Moisture in the outside air, passing over the coil when very cold,
will form ice.

2. If the outdoor temperature drops below 37° F (3° C), your heat
pump will automatically turn on the electric resistance heat. When
the temperature rises to 40° F (4° C), the compressor will resume
the heat pump operation. If your unit is a 115 volt model (YS10),
it is designed for use in warmer climates and does not have an
electrical heat feature, and will not provide adequate heat below
37° F (2.8° C).

Control Panel Battery Change Procedure

Re mov e the gril le, by l oose nin g fou r (4) c apt ive s crew s (S ee F igur e 44). In
the upper left corner, remove one (1) screw on the battery retaining door
(See Figure 45). Remove and replace the battery (CR2450). Reinstall
the battery retaining door. Align the grille guide pins then tighten the four
(4) captive screws. Before closing the grille panel door, check the fi lter.
Clean or replace it as necessary.

Figure 44

This is a warm weather appliance

Your air conditioner is designed to cool in warm weather when the outside
temperature is above 60° F (15.6° C) and below 115° F (46.1° C), so it won't
cool a room if it is already cool outside. If you want to cool a room in the
spring or fall, select the FAN ONLY
air control to Fresh Air. This will bring in a supply of cooler outside air.

mode and set the Fresh Air/Exhaust

Condensation is normal

Air cond itio ners actu ally pum p the hea t and hum idit y f rom you r roo m to t he
outside. Humidity becomes water, and your air conditioner will use most
of the water to keep the outside coil cool. If there is excessive humidity,
ther e may be excess wa ter t hat w ill d rip outsid e. Th is is normal ope ration.

Frosting

This usually occurs because of insuffi cient airfl ow across the coils, a dirty
fi lter, cool damp weather, or all of these. Set the SYSTEM mode to FAN

ONLY
will probably prevent the frosting from recurring.

and the frost will disappear. Setting the thermostat a little warmer

Noises

All air conditioners make some noise. Friedrich units are designed to
operate as quietly as possible. An air conditioner mounted in a wall is
quieter than one mounted in a window. It is important to ensure that the
chassis seal gasket (Item 14) is properly installed (refer to installation
instructions).

USE HAND TOOLS

DO NOT OVER TIGHTEN

1. USE HAND TOOLS WHEN INSTALLING AND
REMOVING FRONT PANEL.

DO NOT OVERTIGHTEN SCREWS.

2. DISCONNECT POWER AND FOLLOW ALL
LABELED WARNINGS WHEN FRONT PANEL
IS REMOVED.

Figure 45

FRR010

38

www.sylvane.com 1 [phone]

920-198-00

Routine Maintenance

To ensure proper unit operation, the air fi lters should be cleaned at least
mo nthl y, a nd m ore f requ ent ly if c ondi ti ons war ra nt. The u nit must be t ur ned
off before the fi lters are cleaned.

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the
same configuration as your air conditioner’s
plug. If different, consult a Licensed Electrician.

Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.

Always plug into a grounded 3 prong oulet.
Failure to follow these instructions can result in
death, fire, or electrical shock.

To Remove, Wash and Replace Filter

Lower front panel (See Figure 2). Use handle on fi lter to fl ex fi lter up and
out of retainer. Remove fi lter from unit (See Fi gure 3). Clean fi lter monthly
or more frequently if needed. Refer to accessories section for fi lter options.

Coils & Chassis

NOTE: Do not use a caustic coil cleaning agent on coils or base pan.

The indoor coil and outdoor coils and base pan should be inspected
periodically (annually or semi-annually) and cleaned of all debris (lint, dirt,
leaves, paper, etc.) as necessary. Under extreme conditions, more frequent
cleaning may be required. Clean the coils and base pan with a soft brush
and compressed air or vacuum. A pressure washer may also be used,
however, you must be careful not to bend the aluminum fi n pack. Use a
sweeping up and down motion in the direction of the vertical aluminum fi n
pack when pressure cleaning coils.

NOTE: It is extremely important to insure that none of the electrical

Decorative Front

Use a damp (not wet) cloth when cleaning the control area to prevent
water from entering the unit, and possibly damaging the electronic control.

The decorative front and the cabinet can be cleaned with warm water
and a mild liquid detergent. Do NOT use solvents or hydrocarbon based
cleaners such as acetone, naphtha, gasoline, benzene, etc.

The indoor coil can be vacuumed with a dusting attachment if it appears
to be dirty. DO NOT BEND FINS. The outdoor coil can be gently
sprayed with a hose if you can get to it. If not, you might call your dealer
for a more thorough cleaning when needed.

The air fi lter should be inspected weekly and cleaned if needed by
vacuuming with a dust attachment or by cleaning in the sink using warm
water and a mild dishwashing detergent. Dry the fi lter thoroughly before
reinstalling. Use caution the coil surface can be sharp.

Fan Motor & Compressor

The fan motor & compressor are permanently lubricated, and require no
additional lubrication.

Use a biodegradable cleaning agent and degreaser. The use
of harsh cleaning materials may lead to deterioration of the
aluminum fi ns or the coil end plates.

and/or electronic parts of the unit get wet. Be sure to cover all
electrical components to protect them from water or spray.

Wall Sleeve

Inspect the inside of the wall sleeve and drain system periodically (annually
or semi-annually) and clean as required. Under extreme conditions, more
frequent cleaning may be necessary. Clean both of these areas with an
antibacterial and antifungal cleaner. Rinse both items thoroughly with
water and ensure that the drain outlets are operating correctly. Check the
sealant around the sleeve and reseal areas as needed.

Service and Assistance

Before calling for service, please check the “Troubleshooting Tips” section
on pages 40 and 41. This may help you to fi nd the answer to your problem,
avoid unnecessary service calls, and save you the cost of a service call
if the problem is not due to the product itself. If you have checked the
“Basic Troubleshooting” section and still need help, it is available as follows:

You can fi n d the nam e of y our loca l Aut hori zed S er vic e Pro vide r by vis itin g
our web site at www.friedrich.com.

If you require further assistance

You can call the Customer Support Call Center at 1-800-541-6645.

Before calling, please make sure that you have the complete model and
serial number, and date of purchase of your equipment available. By
providing us with this information, we will be better able to assist you.

Our specialists are able to assist you with:

 Specifi cations and Features of our equipment.

 Referrals to dealers, and distributors.

 Use and Care Information.

 Recommended maintenance procedures.

 Installation information.

 Referrals to Authorized Service Providers and Parts depots.

Available Accessories

DC-2 Drain Kit – Part No. 01900235

In some inst alla tion s, exces s c ond ensa te w ater caus ed by ext re mel y hum id
conditions, may result in an undesirable water drip such as on a patio or
over an entryway. MODEL DC-2 DRAIN KIT (Part No. 01900-235) can be
installed to drain excess condensation to an alternate location.

Carbon Filter Kits

The kits vary depending on the chassis size (small, medium, large). Each
kit contains three (3) fi lters.

WCFS – Carbon fi lter kit for small chassis models.

WCFM – Carbon fi lter kit for medium chassis models.

WCFL – Carbon fi lter kit for large chassis models.

Remote Wall Thermostats

RT4 – Digital wall thermostat hard wired with single speed fan.

RT5 – Digital wall thermostat hard wired with two fan speed selection,

battery backup and backlight display.

Window Installation Kits (Standard in Kühl
Models without Heat)

KWIKS – For all ES and YS models.

KWIKM – For all EM and YM models.

KWIKL – For all EL and YL models.

See www.friedrich.com for additional accessories for your unit.

39

www.sylvane.com 1 [phone]

Troubleshooting Tips

COMPLAINT CAUSE SOLUTION

Unit does not operate.

Unit Trips Circuit Breaker or
Blows Fuses.

LCDI Power Cord Trips (Reset
Button Pops Out).

NOTE: A damaged power supply cord must be replaced with a new power supply cord

Unit Does Not Cool/Heat
Room Suffi ciently, Or Cycles
On And Off Too Frequently.

920-198-00

● The unit is turned to the off position,
or the thermostat is satisfi ed.

● The LCDI power cord is unplugged. ● Plug into a properly grounded 3 prong

● The LCDI power cord has tripped
(Reset button has popped out).

● The circuit breaker has tripped or
the supply circuit fuse has blown.

● There has been a local power
failure.

● Other appliances are being used on
the same circuit.

● An extension cord is being used. ● Do NOT use an extension cord with this or any

● The circuit breaker or time-delay
fuse is not of the proper rating.

● The LCDI power cord can trip
(Reset button pops out) due to
disturbances on your power supply
line.

● Electrical overload, overheating, or
cord pinching can trip (Reset button
pops out) the LCDI power cord.

obtained from the product manufacturer and must not be repaired.

● The return/discharge air grille is
blocked.

Windows or doors to the outside are

●
open.

● The temperature is not set at a cool
enough/warm enough setting.

● The fi lter is dirty or obstructed. ● Clean the fi lter, (See Routine Maintenance), or

● The indoor coil or outdoor coil is
dirty or obstructed.

● There is excessive heat or moisture
(cooking, showers, etc.) in the room.

● The temperature of the room you
are trying to cool is extremely hot.

● Turn the unit to the on position and raise or
lower temperature setting (as appropriate) to
call for operation.

receptacle. See “Electrical Rating Tables” on
pg. 6 for the proper receptacle type for your
unit.

● Press and release RESET (listen for click;
Reset button latches and remains in) to resume
operation.

● Reset the circuit breaker, or replace the fuse as
applicable. If the problem continues, contact a
licensed electrician.

● The unit will resume normal operation once
power has been restored.

● The unit requires a dedicated outlet circuit, not
shared with other appliances.

other air conditioner.

● Replace with a circuit breaker or time-delay
fuse of the proper rating. See “Electrical
Rating Tables” on pg. 6 for the proper circuit
breaker/fuse rating for your unit. If the problem
continues, contact a licensed electrician.

● Press and release RESET (listen for click;
Reset button latches and remains in) to resume
normal operation.

● Once the problem has been determined and
corrected, press and release RESET (listen for
click; Reset button latches and remains in) to
resume normal operation.

● Ensure that the return and/or discharge air
paths are not blocked by curtains, blinds,
furniture, etc.

● Ensure that all windows and doors are closed.

● Adjust the Temperature control to a cooler or
warmer setting as necessary.

remove obstruction.

● Clean the coils, (See Routine Maintenance), or
remove obstruction.

● Be sure to use exhaust vent fans while cooking
or bathing and, if possible, try not to use heat
producing appliances during the hottest part of
the day.

● Allow additional time for the air conditioner to
cool off a very hot room.

Figure 44

40

www.sylvane.com 1 [phone]

920-198-00

Troubleshooting Tips (continued)

COMPLAINT CAUSE SOLUTION

Unit Does Not Cool/Heat
Room Suffi ciently, Or Cycles
On And Off Too Frequently
(continued).

Unit Runs Too Much.

● The outside temperature is below
60° F (16° C).

● The digital control is set to fan
cycling mode.

● The air conditioner has insuffi cient
cooling capacity to match the heat
gain of the room.

● The air conditioner has insuffi cient
heating capacity to match the heat
loss of the room.

● This may be due to an excessive
heat load in the room.

● It may also be due to an improperly
sized unit.

● This may be normal for higher
effi ciency (EER) air conditioners.

● You may notice that the discharge
air temperature of your new air
conditioner may not seem as cold
as you may be accustomed to from
older units. This does not, however,
indicate a reduction in the cooling
capacity of the unit.

● Do not try to operate your air conditioner in the
cooling mode when the outside temperature
is below 60° F (16° C). The unit will not cool
properly, and the unit may be damaged.

● Since the fan does not circulate the room
air continuously at this setting, the room air
does not mix as well and hot (or cold) spots
may result. Using the continuous fan setting
is recommended to obtain optimum comfort
levels.

● Check the cooling capacity of your unit to
ensure it is properly sized for the room in which
it is installed. Room air conditioners are not
designed to cool multiple rooms.

● Check the heating capacity of your unit. Air
conditioners are sized to meet the cooling load,
and heater size is then selected to meet the
heating load. In extreme northern climates,
room air conditioners may not be able to be
used as a primary source of heat.

● If there are heat producing appliances in use
in the room, or if the room is heavily occupied,
the unit will need to run longer to remove the
additional heat.

● Be sure to use exhaust vent fans while cooking
or bathing and, if possible, try not to use heat
producing appliances during the hottest part of
the day.

● The use of higher effi ciency components in
your new air conditioner may result in the
unit running longer than you feel it should.
This may be more apparent, if it replaced an
older, less effi cient, model. The actual energy
usage, however, will be signifi cantly less when
compared to older models.

● The energy effi ciency ratio (EER) and cooling
capacity rating (Btu/h) listed on the unit’s rating
plate are both agency certifi ed.

www.sylvane.com 1 [phone]

41

920-198-00

Addendum 1

Schedule Table with Energy Saving Values

Cool, Heat, Auto, Fan Only, Skip, OFF

Auto

Auto

Set

Set

Poin t

He at

(SSPH)

Set

Poin t

He at

(SSPH)

Set

Poin t

He at

(SSPH)

Se t
Poin t
Cool

(SASPC)

Auto

Se t
Poin t
Cool

(SASPC)

Auto

Se t
Poin t
Cool

(SASPC)

Poin t

He at

(SASPH) Tim e

Auto

Set

Poin t

He at

(SASPH) Tim e

Auto

Set

Poin t

He at

(SASPH) Tim e

De fau lt

Fron t

De fau lt

De fau lt

Day o f We ek

Day o f We ek

Tues day Wake ON Of f Cool A uto L ow 78 70 78 70 6:00 AM

Tuesday Return ON Of f Cool A uto Lo w 85 62 85 62 8:00 AM

Tue sda y A w ay ON Of f Co ol A uto Lo w 78 7 0 78 70 6 :00PM

Tuesday Nig ht ON Off Coo l Auto Low 82 62 82 6 2 10:00PM

Day o f We ek

Wednesday Wake ON Off Cool A uto Low 78 70 78 70 6:00A M

Wednesday Retur n ON Off Cool Auto Low 85 62 85 62 8:00 A M

Wednesday Aw ay ON Off Cool Auto Low 78 70 78 70 6 :00PM

Wednesday Night ON Off Cool A uto Low 82 62 82 62 10: 00PM

Sche dule

Monday Wake ON Off Cool Auto Low 78 70 78 70 6:00A M

Monday Return ON Of f Cool Auto Low 85 62 85 62 8:00 A M

Monday A w ay ON Off Coo l Auto Low 78 70 78 7 0 6:00PM

Monday Night ON Off Cool Auto Low 82 62 82 62 10:00PM

Pe riod

Return

Sche dule

Pe riod

Return

Sche dule

Pe riod

Return

Away

Away

Away

Panel

De fau lt

Fron t
Panel

De fau lt

Fron t
Panel

Wallstat

De fau lt

Wallstat

De fau lt

Wallstat

Mode

De fau lt

Mode

De fau lt

Mode

Fan

Mode

Fan

Mode

Fan

Mode

Fan

Spe ed

Fan

Spe ed

Fan

Spe ed

Set

Poin t

Cool)

(SSPC)

Set

Poin t

Cool)

(SSPC)

Set

Poin t

Cool)

(SSPC)

Set

Poin t

He at

(SSPH)

Set

Poin t

He at

(SSPH)

Set

Poin t

He at

(SSPH)

Set

Poin t

He at

(SSPH)

Se t
Poin t
Cool

(SASPC)

Auto

Se t
Poin t
Cool

(SASPC)

Auto

Se t
Poin t
Cool

(SASPC)

Auto

Se t
Poin t
Cool

(SASPC )

Set

Poin t

He at

(SASPH) Tim e

Auto

Set

Poin t

He at

(SASPH) Tim e

Auto

Set

Poin t

He at

(SASPH) Tim e

Auto

Set

Poin t

He at

(SASPH) Tim e

Set

Pe riod

Away

Return

Pe riod

Away

Return

Pe riod

Away

Return

Pe riod

Away

Return

De fau lt

Fron t
Panel

De fau lt

Fron t
Panel

De fau lt

Fron t
Panel

De fau lt

Fron t
Panel

De fau lt

Wallstat

De fau lt

Wallstat

De fau lt

Wallstat

De fau lt

Wallstat

De fau lt

Mode

De fau lt

Mode

De fau lt

Mode

De fau lt

Mode

Fan

Mode

Fan

Mode

Fan

Mode

Fan

Mode

Day o f We ek

Thursday Wake ON Of f Cool A uto Low 78 70 78 7 0 6:0 0AM

Thursday Return ON Off Cool Auto Low 85 62 85 62 8:00 A M

Thursday Aw ay ON Of f Cool Auto Low 78 70 78 70 6:00 PM

Thursday Night ON Off Cool A uto Low 82 62 82 62 10:00PM

Day o f We ek

Day o f We ek

Saturday Wake ON Off Coo l Auto Low 78 70 78 70 6:00A M

Saturday Return ON Off Cool A uto Low 85 62 85 62 8:00 A M

Saturday A way ON Of f Cool A uto Low 78 70 78 7 0 6:00PM

Sat ur day Nig ht ON Of f Cool A uto L ow 82 6 2 82 6 2 10 :00PM

Day o f We ek

Sche dule

Sche dule

Friday Wake ON Of f Cool A uto Low 78 70 78 7 0 6:0 0AM

Friday Return ON Of f Cool A uto Low 85 62 85 62 8: 00 AM

Friday A w ay ON Of f Cool A uto Lo w 78 70 78 70 6:00PM

Friday Night ON Off Cool Auto Low 82 62 82 62 10:00PM

Sche dule

Sche dule

Sunday Wake ON Of f Cool A uto Low 78 70 78 7 0 6:00AM

Sunday Return ON Of f Cool A uto Low 85 62 85 62 8:00 A M

Sunday A w ay ON Of f Cool A uto Lo w 78 70 78 70 6:00PM

Sunday Nig ht ON Of f Cool A uto Lo w 82 62 82 6 2 10:00PM

Fan

Spe ed

Fan

Spe ed

Fan

Spe ed

Fan

Spe ed

Poin t

Cool)

(SSPC)

Set

Poin t

Cool)

(SSPC)

Set

Poin t

Cool)

(SSPC)

Set

Poin t

Cool)

(SSPC)

Auto

Auto

42

www.sylvane.com 1 [phone]

920-198-00

Friedrich Air Conditioning Company

P.O. Box 1540

San Antonio, TX 78295

210.357.4400

www.friedrich.com

ROOM AIR CONDITIONERS

LIMITED WARRANTY

FIRST YEAR

ANY PART: If any part supplied by FRIEDRICH fails because of a defect in workmanship or material within twelve months from date of original

purchase, FRIEDRICH will repair the product at no charge, provided room air conditioner is reasonably accessible for service. Any additional labor
cost for removing inaccessible units and/or charges for mileage related to travel by a Service Agency that exceeds 25 miles one way will be the
re sp ons ibili ty of t he ow ner. Th is re me dy i s ex pressl y agr eed t o be t he exclus ive r emed y wit hin twe lve m onth s from the d ate o f the original purchase.

SECOND THROUGH FIFTH YEAR

SEALED REFRIGERANT SYSTEM: If the Sealed Ref rigeration System (defi ned for this purpose as the compressor, condenser coil, evaporator

coil, reversing valve, check valve, capillary, fi lter drier, and all interconnecting tubing) supplied by FRIEDRICH in your Room Air Conditioner fails
because of a defect in workmanship or material within sixty months from date of purchase, FRIEDRICH will pay a labor allowance and parts
necessary to repair the Sealed Refrigeration System; PROVIDED FRIEDRICH will not pay the cost of diagnosis of the problem, removal, freight
charges, and transportation of the air conditioner to and from the Service Agency, and the reinstallation charges associated with repair of the
Se ale d R efr ige rat ion Sys tem . A ll s uch cost wi ll b e t he s ole res pon sib ili ty o f th e ow ner. Thi s re med y is ex pre ssl y agre ed to b e the exclusive remedy
within sixty months from the date of the original purchase.

APPLICABILITY AND LIMITATIONS: This war ra nty is applicable only to units retained within t he Fif ty St ates of the U.S.A., Di strict of Columbia,
and Canada. This warranty is not applicable to:

1. Air fi lters or fuses.

2. Products on which the model and serial numbers have been removed.

3. Products which have defects or damage which results from improper installation, wiring, electrical current characteristics, or
maintenance; or caused by accident, misuse or abuse, fi re, fl ood, alterations and/or misapplication of the product and/or units
installed in a corrosive atmosphere, default or delay in performance caused by war, government restrictions or restraints, strikes,
material shortages beyond the control of FRIEDRICH, or acts of God.

OBTAINING WARRANTY PERFORMANCE: Service will be provided by the FRIEDRICH Authorized Dealer or Service Organization in your
area. They are listed in the Yellow Pages. If assistance is required in obtaining warranty performance, write to: Room Air Conditioner Service
Manager, Friedrich Air Conditioning Co., P.O. Box 1540, San Antonio, TX 78295-1540.

LIMITATIONS: THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES. Anything in the warranty notwithstanding, ANY
IMPLIED WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE AND/OR MERCHANTABILITY SHALL BE LIMITED TO THE DURATION
OF THIS EXPRESS WARRANT Y. MANUFACTURER EXPRESSLY DISCLAIMS AND EXCLUDES ANY LIABILITY FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGE FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY.

Performance of Friedrich’s Warranty obligation is limited to one of the following methods:

1. Repair of the unit

2. A refund to the customer for the prorated value of the unit based upon the remaining warranty period of the unit.

3. Providing a replacement unit of equal value

The method of fulfi llment of the warranty obligation is at the sole discretion of Friedrich Air Conditioning.

NOTE: Some states do not allow limitations on how long an implied warranty lasts, or do not allow the limitation or exclusion of consequential or

incidental damages, so the foregoing exclusions and limitations may not apply to you.

OTHER: This warranty gives you specifi c legal rights, and you may also have other rights which var y from state to state.

PROOF OF PURCHASE: Owner must provide proof of purchase in order to receive any warranty related ser vices.

All service calls for explaining the operation of this product will be the sole responsibility of the consumer.
All warra nt y ser vi ce mus t be p rovid ed by a n Authorized FRIEDRICH Service Agency, unl es s au th orize d by FRIED RI CH prior to repairs being made.

(10 - 08)

43

www.sylvane.com 1 [phone]

Friedrich Air Conditioning Co.
Post Office Box 1540 • San Antonio, Texas 78295-1540
4200 N. Pan Am Expressway • San Antonio, Texas 78218-5212
[phone] • FAX [phone]
www.friedrich.com

Printed in the U.S.A.

www.sylvane.com 1 [phone]
