Page 1

Thru-the-wall Air Conditioners

NEW WallMaster

Perfect  t in 27” sleeves

Redesigned WallMaster is ideal for replacement

of old inef cient units. Fits competitor’s 27”

sleeves, including Fedders A and B.

THE EXPERTS IN ROOM AIR CONDITIONING

Page 2

NEW WallMaster®

COMMERCIAL GRADE

THRU-THE-WALL AIR CONDITIONERS

A perfect t in Friedrich and Fedders A & B 27” sleeves

FITS SLEEVES

Comfort & Convenience

• New design makes controls more

accessible

• Remote control

• 24-hour timer

• Smart Fan auto-adjusts fan speed to maintain desired temperature

• Check lter reminder

• 3-speed fan

• Auto restart

• Electronic defrost control

• Individually adjustable louvers direct

air ow where you need it

• Washable, antimicrobial lter

16 3/4" HIGH X 27" WIDE

Select MODE, FAN SPEED, MONEY SAVER TEMPERATURE and set the TIMER.

, adjust

Energy Management

• Money Saver® setting cycles the fan

with the compressor

• ENERGY STAR® qualied models

• R-410A refrigerant

Durability & Quality

• Rotary compressor provides quiet,

dependable performance

• Premium aluminum exterior grille

• Dense blower insulation blocks outdoor noise

• Ried copper tubing

• Impact resistant front cover

• High tech ns with sine wave lanced louvers increase energy efciency by increasing surface area for heat exchange

Installation Features

• Mounts ush with the exterior wall

for a neat appearance

• Ideal for thicker wall installations, where side ns don’t t

• Firm grip handles on the chassis for

easy installation and removal from

wall sleeve

• Direct air ow where you need it

• A direct replacement for 27” sleeves including Fedders A and B*. Sleeve measures 27” W x 16 3/4” H

Safety & Security

• EntryGard™ anti-intrusion protection secures chassis to sleeve to deter ‘kick-in’ intrusion

• Power cord current leakage protected

• Insect barrier

Optional Accessories

• AG architectural grille for use with WSE

sleeve

• Bafe adapter kit for use with deep sleeve installations ( Fedders B sleeves )

• Drain kit for condensate disposal

• Internal drain kit for new construction applications where condensate drain system is built-in

• WSE sleeve ships with inside and outside weather panel and standard

grille

ADJUSTABLE LOUVERS

*Installation in Fedders B sleeve requires a bafe adapter kit-BAK.

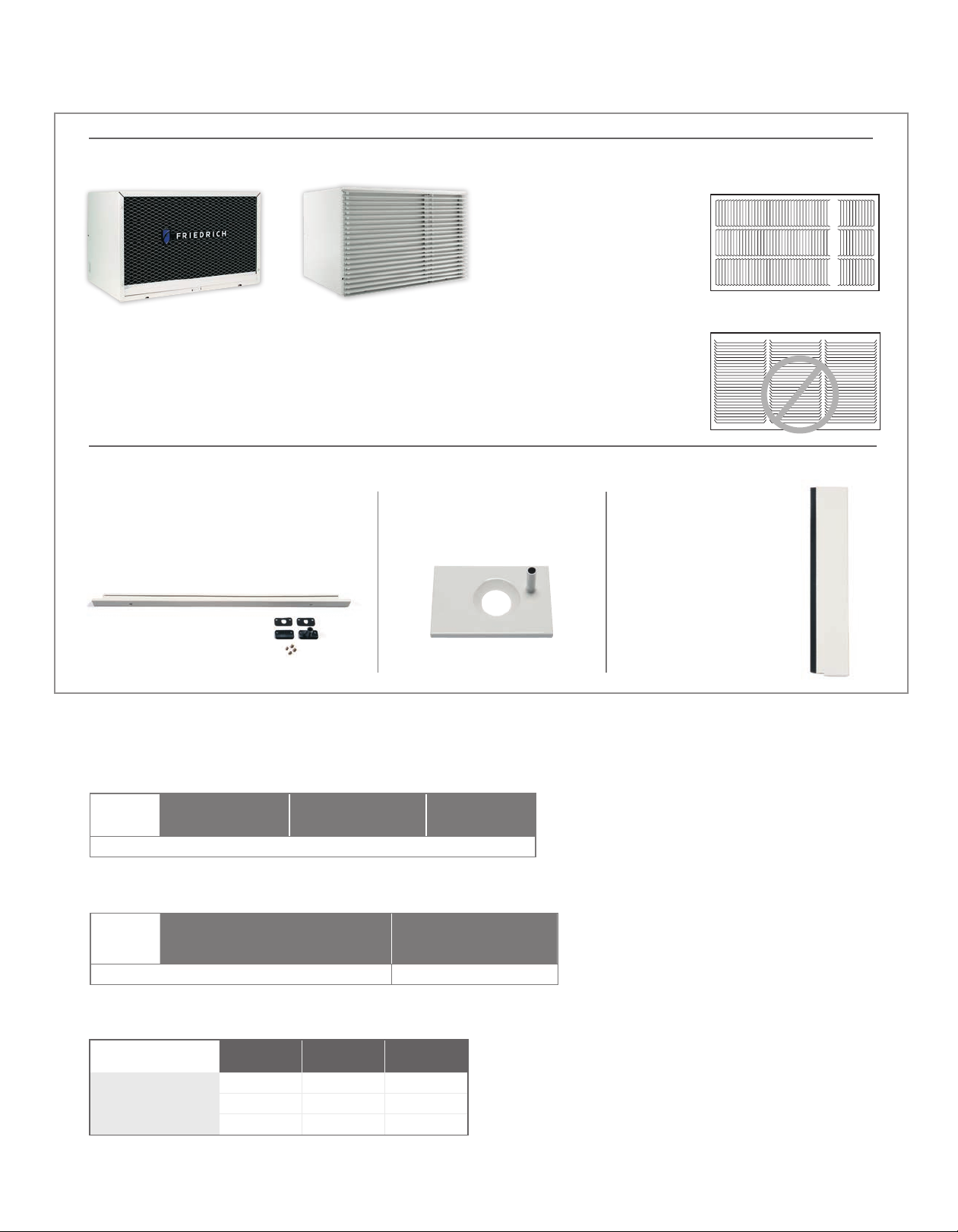

Page 3

Optional Accessories

Height Widt h Depth

Height

of Fron t

Widt h of

Front

Depth

with

Front

Minimum

Ext ension In to Room

with Fr ont

Chassis 15 3/4" 26 1/2" 21" 17 1/4" 27 1/2" 23 1/4" 7 1/2"

Model

Height Wi d t h Depth

Depth

with

Front

Minimum

Extension

Outside

Thru-the-wall

Finished Hole

Height Width Max. Depth

WSE Sleeve 16 3/4" 27" 16 3/4" 24 1/4" 9/16" 17 1/4" 27 1/4" 15 5/16"

WallMaster® WSE Sleeve Exterior Grilles

Standard Grille Premium, stamped steel grille with powder coat paint. Ships with WSE sleeve. Galvanized steel inner and outer weather panels also ship with sleeve.

Installation Accessories

Optional Architectural Grille- AG Premium brushed aluminum grille.

IMPORTANT:

Operating the air conditioner with incorrect rear grille or without Baf e Adapter Kit (on 19 3/4” deep sleeve) will recirculate discharge air and cause compressor overload to trip.

This will cause the unit to shut down temporarily and may lead to premature compressor failure.

CORRECT Vertical Louvers

INCORRECT Horizontal Louvers

DK / Drain Kit Installed at the back of the unit and allows for attachment to condensate disposal system, if necessary or desired.

CHASSIS DIMENSIONS

WSE SLEEVE DIMENSIONS

IDK / Internal Drain Kit New construction applications where a condensate drain system has been built into the wall interior.

BAK / Baf e Adapter Kit Necessary when installing in a sleeve deeper than 16 3/4" deep, such as Fedders B sleeve (19 3/4" deep).

FITS EXISTING FEDDERS SLEEVES.

Sleeve Dimensions

Height (inches) 16 3/4 16 3/4 16 3/4

Width (inches) 27 27 27

Depth (inches) 16 3/4 16 3/4 19 3/4

Friedrich

WSE Sleeve

Chassis requires WSE sleeve (sold and shipped separately)

Fedders A Sleeve

Fedders B Sleeve

Page 4

SPECIFICATIONS

ENERGY STAR® models



Model Cooling Btu Heating Btu

Volts

Rated

Cooling

Amps

Cooling

Watts

Heating

Watts

Heating

Amps EER CEER

Estimated

Yearly

Energy

Cost COP

Moisture

Removal

Pints per

Hr.

Model

CFM

Net Wt

Lbs

Cooling only

WS08D10 8000 NA 115 6.4 769 NA NA 10.4 10.2 $69 — 1.8 250 93 97



WS10D10 9700 NA 115 8.0 990 NA NA 9.8 9.7 $89 — 2.4 260 103 107



WS10D30 10000/9800 NA 230/208 4.5/4.9 1020/1000 NA NA 9.8/9.8 9.7/9.7 $92 — 1.5 260 101 105



WS12D10 12000 NA 115 10.8 1224 NA NA 9.8 9.7 $110 — 3.5 295 112 116



WS12D30 12000/11700 NA 230/208 5.5/5.8 1224/1194 NA NA 9.8/9.8 9.7/9.7 $110 — 3.5 290 109 113



WS15D30 14500/14000 NA 230/208 7.0/7.6 1559/1505 NA NA 9.3/9.3 9.3/9.3 $140 — 4.8 290 119 123

Heat pumps

WY09D33 8700/8500 6500/6400 230/208 4.6/4.6 936/914 812/780 4.3/4.4 9.3/9.3 9.3/9.3 $84 2.30/2.40 2.6 260 103 107

WY12D33 11300/11000 8900/8700 230/208 5.5/5.6 1215/1183 1119/1082 5.0/5.3 9.3/9.3 9.3/9.3 $109 2.30/2.30 3.4 275 111 115

Cooling with electric heat

WE10D33 10000/9800 11000/9100 230/208 4.5/4.9 1020/1000 3550/2950 16.0/14.7 9.8/9.8 9.7/9.7 $92 — 1.5 260 104 108

WE12D33 12000/11700 11000/9100 230/208 5.5/5.8 1224/1194 3550/2950 16.0/14.7 9.8/9.8 9.7/9.7 $110 — 3.5 290 107 111

WE15D33 14500/14000 11000/9100 230/208 7.0/7.6 1559/1505 3550/2950 16.0/14.7 9.3/9.3 9.3/9.3 $140 — 4.8 290 119 123

Heat Pump heating information (shown in red) indicates heat pump heating performance. Electric Heat heating information (shown in red) indicates electric heat strip performance. For Heat Pump electric heating performance refer to corresponding Electric Heat model.

HEATING PERFORMANCE : Change-over from heat pump operation to resistance operation on models indicated is automatic at a preset o utside ambient tem perature of approximately 35°F.

Calcul a te the heat loss of th e space to be heated . As long as the heat l oss does not exceed t h e re s is t an c e h e at in g c a p ac i t y r at i ng o f t he u ni t , t he h e at in g p erformance will be satisfact ory.

Note: all mo del s wil l pro du ce c on den sate. I f co nd ens ate di spo sal i s de sir ed, an optional drain kit is available.

DEFROST CONTROL: Initiated at 30°F (outdoor coil temperature) and terminated at 43°F (outdoor coil temperature). During defrost, the compressor stops and the electric heat starts, then operates with the fan to maintain indoor comfort. Below 43°F, the unit remains in electric heat mode.

DEFROST D RAIN: Drai n a ut o m atically open s a t ap p r ox i m a te l y 50°F to prevent condensate from freezing inside drain pan.

Ship Wt

Lbs

PLUG FACE/CIRCUIT RATING

Circuit

WallMaster

Model Number

WS0 8D10, WS10D10 and WS12D10.

WS10D3 0, WS12D3 0 and WS15D30.

WE10D 33, W E12D33 and WE15D33. WY09D33 and WY12D33.

Power cords are located on front left of WallMaster models.

Due to continuing research in new energy-saving technology, specications are subject to change without notice.

As an models meet the

Your energy costs will depend on your utility rates and use. The estimated energy cost is based on a national average electricity cost of $.12 per kWh. For more information, visit www.ftc.gov/energy.

ENERGY STAR

partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR®

guidelines for energy efciency.

Rating

Breaker

or T-D Fuse

125V - 15A 5 - 15P 6

250V - 15A 6 - 15P 6

250V - 20A 6 - 20P 6

Plug Face

(NEMA#)

Power

Cord

Length

(ft.)

Wall

Outlet

Appearance

Model

WallMaster

WSE Sleeve 18" 27 1/4" 18"

Chassis 19 3/ 8" 30 5/8" 27 1/2"

Carton Dimensions

INCHES

Height Width Depth

Friedrich Air Conditioning Co. l 10001 Reunion Place, Suite 500 l San Antonio, TX 78216 l 877.599.5665 l www.friedrich.com

WallMaster Thru-the-wall Air Conditioners Brochure_2015 (3-15) Printed in USA
