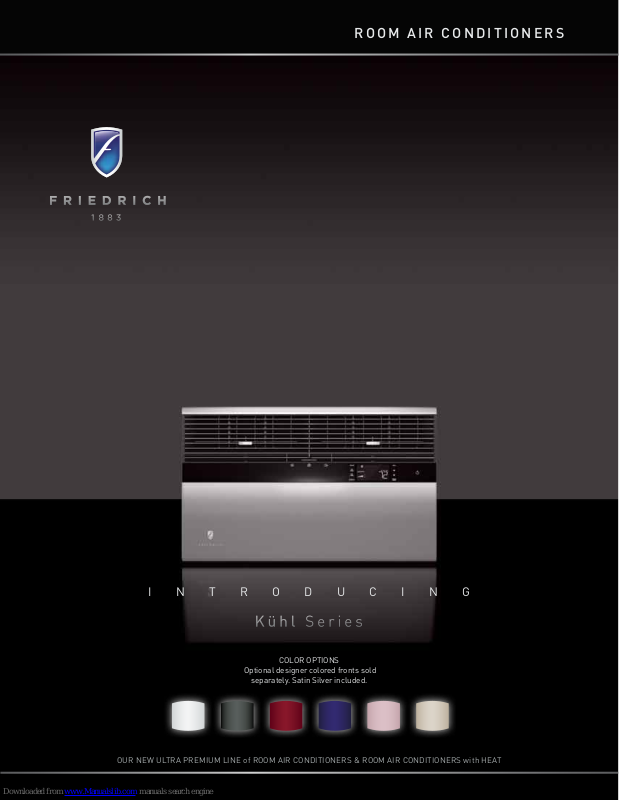

R O O M A I R C O N D I T I O N E R S
I N T R O D U C I N G
OUR NEW ULTRA PREMIUM LINE of ROOM AIR CONDITIONERS & ROOM AIR CONDITIONERS with HEAT
COLOR OPTIONS
Optional designer colored fronts sold
separately. Satin Silver included.
Page 2
Which Friedrich is right for you?
ULTR A PREM IU M LI NE PR EM IUM LI NE DE LU XE L IN E
Kühl Kühl+ XStar® XStar® + heat CP
Top shelf design and
features. Programma-
bility to rival central
Description
OVERVIEW
Room size (sq. ft.) 300-2700 350-2700 100-450 300-350 100-1500
Functions
Applications
Electronic controls Y Y Y N Y
Programmable timer
Remote control LCD LCD Y N
Wall thermostat capability Y Y N N N
Auto restart w/setting retention Y Y Y NA Y
Auto temp/ fan speed adjustment Y Y Y N N
Comfortwatch technology Y Y Y N N
COMFORT & CONVENIENCE
Air ow directions 8 8 8 8 4
Auto swing louvers N N N N All except CP05
Optional color fronts Y Y N N N
Steel inner wall and extra dense
insulation
systems. Trusted
Friedrich durability.
Designer colors.
COOL
AT HOME OR
COMMERCIAL USE
7-day with up to 4
settings per day
Y Y Y Y N
All the elegance,
performance and
durability of Kühl,
plus heating. Choose
efcient heat pump or
toasty electric heat.
HEAT/COOL COOL HEAT/COOL COOL
AT HOME OR
COMMERCIAL USE
7-day with up to 4
settings per day
Small and powerful.
Programmable
controls. Easier
to self-install and
store.
AT HOME OR
COMMERCIAL USE
24 hr N
Year ‘round
use. Heavy duty
construction for
serious durability.
Simple knob
controls.
AT HOME OR
COMMERCIAL USE
Good value.
Available in a
large range
capacities.
Programmable
AT HOME OR LIGHT
COMMERCIAL USE
CP05, CP06,
CP08, CP10 and
CP12 have 12 hr.
CP15, CP18, and
CP24 have 24 hr.
LCD except CP15,
CP18, CP24
of cooling
timer.
Vibration isolating design and
components
TECHNOLOGY
Superior airflow design Y Y N N N
SOUND REDUCTION
Energy Star models Y Y Y N Y
Environmentally friendly R-410A Y Y Y Y Y
Energy saver switch Y Y Y N Y
EARTH FRIENDLY
RoHS compliant Y Y N N N
Washable, antimicrobial air lter Y Y Y Y Y
Optional carbon lter Y Y N N N
Electronic maintenance indicator
including check lter reminder
HEALTH
Superior fresh air intake/stale air
exhaust
EntryGard anti-intrustion protection Y Y Y Y Y
Insect barrier Y Y Y Y N
SAFETY
Slide-out chassis Y Y Y Y All except CP05
Power cord direction Left or right Left or right Left or right Left or right Left or right
Thru-the-wall installation option Y Y Y Y All except CP05
INSTALLATION
Window installation hardware Heavy duty
Y Y Y Y N
Y Y N N N
Y Y N N
Heavy duty,
available as accessory
Heavy duty
Heavy duty,
available as accessory
Stale air exhaust
only, all except
CP05
Standard
2
Page 3
Our continuous testing ensures your Friedrich air conditioner
will perform up to our expectations— and beyond yours.
At the heart of each Kühl
unit, you’ll find the durable
components and heavy duty
construction that define the
Friedrich brand: Heavy gauge
steel, rifled copper tubing, high
tech aluminum fins with sine
wave technology, aluminum end
plates that reduce corrosion,
totally-enclosed commercial
grade motors, high efficiency
compressors, vibration absorbing
technology and insulated air
plenums.
Friedrich conducts rigorous
performance tests to ensure
customer satisfaction and safety.
Run tests are performed- for
up to 120 continuous daysunder typical, and extreme,
temperature and humidity
conditions. Air flow systems
are tested for powerful and
precise air distribution, while
sound levels are measured to
ensure ultraquiet performance.
Premium air filters are tested
for adsorption capacities
and efficiencies. The unit’s
control software is tested
for constant and reliable
operation. Packaging exceeds
ISTA (International Safe Transit
Association) standards in order
to withstand transportation
hazards.
Friedrich conducts rigorous performance tests and incorporates advanced design techniques
to build the very best air conditioners.
PERFO RM A N C E T E S T I N G
Unit Performance Product tested for capacity and energy efciency (EER) pursuant to
Air Handling system Airow systems designed utilizing state-of-the-art Computational
Air Discharge system Air discharge louver and directional system aerodynamic design
Premium Air Filter Filter capture efciency (MERV 6 rating) as per ASHRAE Standard
Premium Carbon Air
Filter
Acoustics Tested in accordance with ARI 350 – Sound Performance Rating
Electronic Controls
Software
Electronic Controls
Hardware
RELIABILITY
Refrigeration and
Mechanical systems
Compressor Stress tested to ensure compressor reliability throughout product’s
Air discharge louvers Louvers cycle tested robotically to ensure product life cycle
Packaging Shake, Drop, Crush and transit testing to ensure the packaging
Field testing Consumer feedback from actual installations
User Interface Handle Finite Element Analysis (FEA) and load testing to ensure the handle
AHAM RAC-1 test standard and DOE requirements.
Fluid Dynamics (CFD) and validated with empirical testing, infrared
thermography, and smoke trace analysis.
maximizes airow throw distance and directivity, improving room
air distribution effectiveness.
52.2
VOC removal from air using premium carbon lter tested per IBR
TM P300 Gas Phase Capacity Test
of Non-Ducted Indoor Air Conditioning Equipment to ensure quiet
operation
Electronic Control software rigorously tested using regression
testing methodology to assure logic and control states are achieved
as designed.
Electronic control hardware systems receive extreme short
circuit, over / under voltage, high temp, radiated emissions,
electromagnetic pulse / spike susceptibility and other tests to
assure durability.
Accelerated life tests at extreme environmental conditions and at
abnormal cycle rates to ensure product reliability
life cycle
durability
design is durable and robust enough to prevent damage to the unit
design is capable of withstanding high stress
Quality components. Advanced
design technology. Extensive
product testing. It’s what you can
expect from Friedrich.
SAFETY
Unit Units are tested to the requirements of UL 485 -Standard for Safety
of Room Air Conditioners to ensure safe operation. Tests include
electric heater overload, rain penetration, high pressure and
numerous other tests to assure a safe a reliable product
3
Page 4
Innovative technology. Intuitive controls.
LCD PANEL AUTO DIMS WHEN
NOT IN USE
NIGHTLIGHT MODE
TEMPERATURE AND FAN
ADJUSTMENT MAINTAINS
YOUR CHOSEN COMFORT
LEVEL
BACK UP SYSTEM SAVES
SETTINGS IF POWER IS
INTERRUPTED
BUILT-IN, 7 DAY
PROGRAMMABLE
THERMOSTAT
24 HOUR TIMER
AUDIO FEEDBACK OPTION
Choose from 4 operating options:
1. SIMPLE OPERATION
Turn the unit on, select
‘MODE’ and make simple
up/down temperature
adjustments either at
the control panel or with
included remote. Unit
operates until turned off.
2. 7 DAY DEFAULT PROGRAM
Turn the unit on and press
‘SCHEDULE’ to utilize
default settings. (En Ergy
Star® recommended
settings for optimum
energy efciency for a
typical work week where
the home is unoccupied
during the day Monday
through Friday).
ELECTRONIC MAINTENANCE
INDICATOR
SURFACE KEYPAD LOCKOUT
PROTECTS SETTINGS
CHECK FILTER REMINDER
ALTERNATELY DISPLAYS:
SET TEMPERATURE — ROOM TEMPERATURE —
OUTDOOR TEMPERATURE — OR DIGITAL CLOCK
AT THE TOUCH OF A BUTTON
3. 7 DAY CUSTOM PROGRAM
Turn the unit on and
program for your preferred
comfort levels and to
maximize energy savings
according to your schedule.
Up to 4 settings per day, 7
days a week.
4. REMOTE THERMOSTAT
OPERATION
Wire the unit to a wall
thermostat to operate the
unit remotely and override
the control panel. Wall
thermostats are available
from Friedrich and are sold
separately.
Rugged, LCD remote control
FULL LCD DISPLAY SHOWS
MODE, FAN SPEED, SET
TEMPERATURE, SCHEDULE
ADJUST TEMPERATURE
AND FAN SPEEDS
SET AUTO MODE
TURN THE SCHEDULE ON
OR OFF
4
Page 5
U L T R A P R E M I U M L I N E
Comfort has a bold new look.
A bold, satin silver front with black accenting and illuminated soft-touch
controls places Friedrich Kühl Series at the forefront of room air design.
Advanced digital controls intuitively provide comfort, convenience and
ease of use, and allow for a range of programmability previously only
associated with high-end central air systems.
And an exciting palette of colors
that complement your home and
the way you live.
Q U A L I T Y
Technology this advanced couldn’t be limited to a single color. Kühl
and Kühl + room air conditioners are available in optional designer
colors that boldly stand out or blend in.
Satin Silver
( S T A N D A R D )
O P T I O N A L
D E S I G N E R C O L O R S
Deep Red Cobalt Blue
Pink Diamond Designer White
Classic Beige Black Onyx
Ask your sa les person
or visit www.fri ed ri ch.com
for o rdering information.
5
Page 6
Choose the perfect color,
the right cooling capacity
and simply relax.

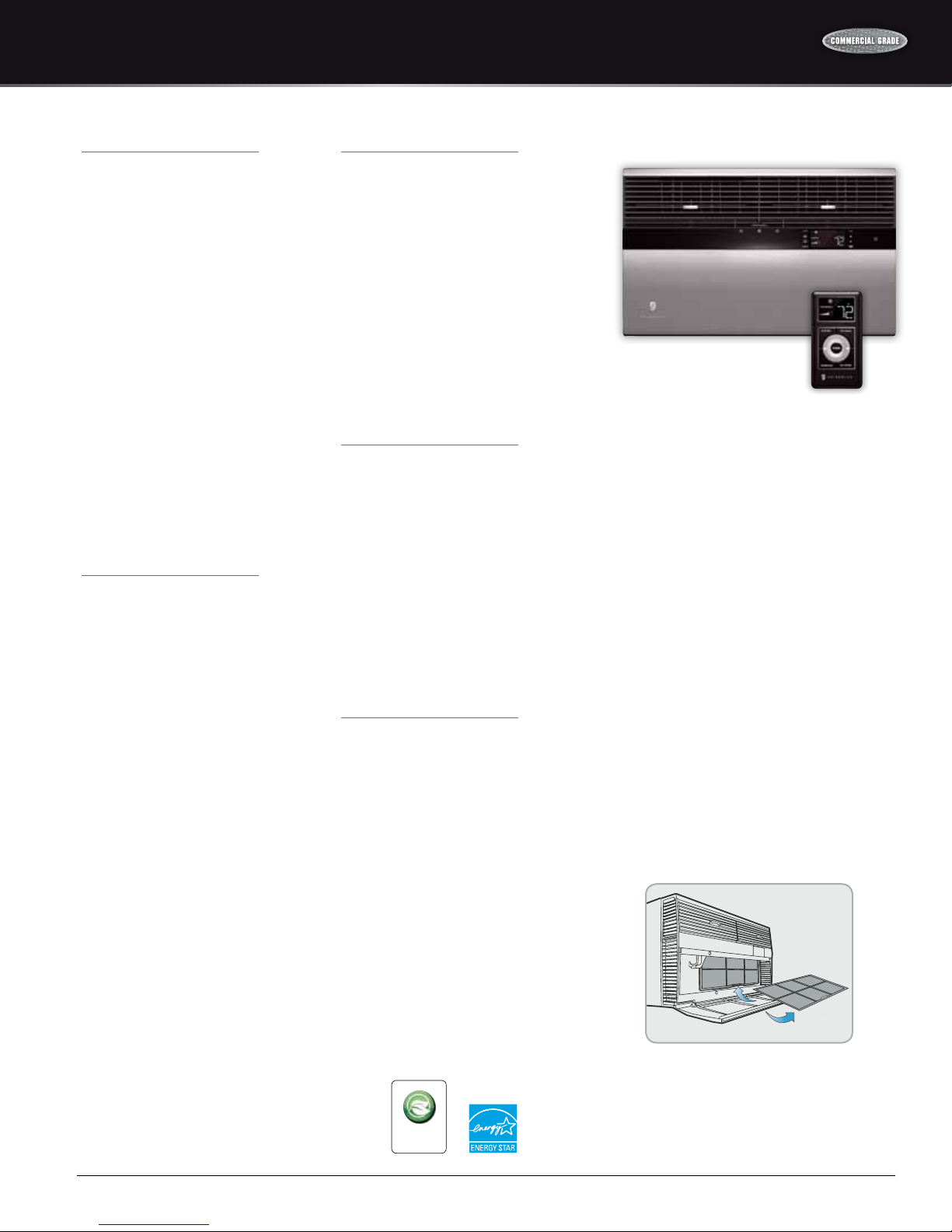

Distinctive LCD remote with mountable holster.
Comfort &
Convenience
• Commercial grade durability
• Optional wired wall thermostat
• Built-in programmable
7 day thermostat
• 24 hour timer
• 4 cooling and 4 fan-only
speeds on select models*
• Automatic fan speed
adjustment
• Comfortwatch technology
samples the air to more
accurately maintain the set
temperature
• 8-way air ow control
• Auto-changeover from
cool to heat, or heat to
cool, to maintain desired
temperature (Kühl + models)
• Temperature readout
can alternately display
set temperature, room
temperature and outdoor
temperature, or digital clock
as selected
• Control panel lockout (ON/
OFF)
• Scratch resistant cabinet
• LCD panel auto dims if not in
use
• Nightlight mode
• 7 yr. battery provides back up
system that saves settings if
power is interrupted
*Kühl 8,000 BTUh-23,500 BTU/h models only. All SL models have 3 cooling and 3 fan-only
speeds. Kühl + models have 3 cooling, heating and fan-only speeds
6
Superior Sound
Reduction
Technology
• Steel inner wall and extra
dense insulation materials
block outdoor noise
• Vibration isolating design
and components diminish
traditional operating noise
• Precision engineering
maximizes air ow while
delivering ultraquiet
operation
Page 7
U L T R A P R E M I U M L I N E
Q U A L I T Y
Superior filtration
• Superior fresh air intake
and stale air exhaust vent
• Washable, antimicrobial
air lter
• Check lter reminder
• Optional premium lter
when used in conjunction
with standard lter
provides superior air
ltration with ratings as
high as MERV 6, while
also adsorbing odors and
reducing ozone and VOCs
• Hinged door for easy
lter access for easier
maintenance
• Electronic maintenance
indicators with error code
storage
Installation
Features
• Install in a window or thruthe-wall
• Slide-out chassis for more
permanent installation
and easier access for
maintenance
• Includes heavy duty
window installation
hardware (optional
accessory on Kühl+
models)
• Rugged hardboard
side panels for a more
permanent installation
• Power cord can run either
left or right
• Firm grip handles for
easier chassis installation
and removal
• Front cover attaches easily
and securely. Nut driver
included.
Earth Friendly
• Auto Fan mode saves
money by conserving
energy
EnErgy Star® qualied
• 12
models, including all four
heat pumps
• Environmentally-friendly
R-410A refrigerant used in
all models
• Recyclable packaging
• RoHS compliant
Safety & Security
Features
• EntryGard anti-intrusion
protection- steel retaining
wire secures the chassis to
the sleeve to deter ‘kick-in’
intrusion
• Powercord leakage current
protected
• Insect barrier
• Protective rear grille
Accessories (sold
separately)
• Optional designer colored
front covers
• 3 pack of premium carbon
lters
• (Kuhl +) window
installation kits
• Wall thermostat
Kühl
7900-36000 BTU/h
Up to 11.7 EER
Kühl +
Electric Heat
COOLING ELECTRIC HEAT
11700-36000 BTU/h 10700-17300 BTU/h
Up to 11.4 EER
Kühl +
Heat Pump
COOLING HEATING
9500-24000 BTU/h 7500-23500 BTU/h
Up to 11.7 EER
Heat Pumps reverse the air conditioning
cycle to provide heated air in winter.
In temperatures above 39° F, heat pumps
are approximately 33% more energy
efcient than electric heat.
R-410A
All models use
environmentally
friendly R-410A
refrigerant.
HINGED FILTER ACCESS DOOR
FLIPS OPEN AND FILTER
SLIDES OUT
OPTIONAL CARBON FILTER
REMOVES ODORS AND VOCs
7
Page 8
XStar® Models
XQ. Programmable,
commercial grade quality
models with exceptional
energy efficiency.
EQ. Our compact heat/cool model
with mechanical controls.
The X Star® line is our compact, premium line of commercial
grade room air conditioners.
XQ is programmable and includes a remote. Features include
a 24 hour timer, auto-adjusting Smart Fan and a Money
®
Saver
setting that reduces energy usage and saves money.
EQ is ideal for supplemental heating and cooling.
8
Page 9
P R E M I U M L I N E
Q U A L I T Y
Comfort
& Convenience
• 24 hour timer lets you
program on/off times*
• 3 cooling speeds, plus fanonly setting**
• Smart Fan adjusts fan
speed to maintain desired
temperature*
• Comfortwatch technology
samples the air to more
accurately maintain the set
temperature*
®
• Money Saver
saves money by conserving
energy*
• Ultraquiet operation
• 8-way air ow control
• Auto restart saves settings
if power is interrupted*
setting
Health
• Washable antimicrobial
lter for protection against
fungal and bacterial
growth
Installation
• Slide-out chassis
• Install in window or thruthe-wall
• Heavy duty installation
hardware
• Heavy duty side curtains
reduce exterior noise/light
• Power cord can run either
left or right out of the side
of the unit front
• The industry’s smallest
BTU/h slide-out chassis
(model XQ05)
XQ
COOLING
5500-9500 BTU/h
Up to 12.0 EER
Safety Features
• EntryGard anti-intrusion
protection
• Insect barrier
EQ
COOLING ELECTRIC HEAT
7500 BTU/h 4000 BTU/h
10.7 EER
* Feature not available on EQ.
**EQ has 2 cooling speeds, 2 heating speeds and
fan-only setting
9
Page 10
CP Line
Programmable models
with high efficiency and
outstanding value.
The CP line is our highly-rated, deluxe line of room air
conditioners with programmable controls for convenient
operation. Sizes from a compact 5,500 btu bedroom air
conditioner to a 2-ton model powerful enough to cool a large
living area or multiple adjoining rooms.
Programmable features including 12 or 24 hour timers, auto
®
air sweep*, and a Money Saver
usage and saves money.
setting that reduces energy
10
*Excludes CP 05
Page 11
D E L U X E L I N E
Comfort
& Convenience
• 12 hour timer lets you
program on/off times
• 3 cooling speeds, plus 3
fan-only settings
®
• Money Saver
saves money by conserving
energy
• Ultraquiet operation
• 4-way air ow control
• Auto restart saves settings
if power is interrupted
setting
Health
• One-touch, lift-out,
washable antimicrobial
lter for protection against
fungal & bacterial growth
Installation
• Fixed chassis
• Standard installation
hardware
• Expandable side curtains
• Power cord can run either
left or right out of the side
of the unit front
Safety Features
• EntryGard anti-intrusion
protection
CP05
COOLING
5500 BTU/h
10.7 EER
Comfort
& Convenience
• 12 hour timer lets you
program on/off times
• Auto Air Sweep swing
louvers provide more even
air distribution
• 3 cooling speeds, plus 3
fan-only settings
®
• Money Saver
saves money by conserving
energy
• Ultraquiet operation
• 4-way air ow control
• Auto restart saves settings
if power is interrupted
setting
Health
• One-touch, lift-out,
washable antimicrobial
lter for protection against
fungal & bacterial growth
• Stale air exhaust
Installation
• Slide-out chassis
• Standard installation
hardware
• Expandable side curtains
• Power cord can run either
left or right out of the side
of the unit front
Safety Features
• EntryGard anti-intrusion
protection
CP06 CP08
COOLING COOLING
6000 BTU/h 7800 BTU/h
10.7 EER 10.8 EER
11
Page 12
CP Line
Comfort
& Convenience
• 12 hour timer lets you
program on/off times
• Auto Air Sweep swing
louvers provide even air
distribution
• 3 cooling speeds, plus 3
fan-only settings
®
• Money Saver
saves money by conserving
energy
• Ultraquiet operation
• 4-way air ow control
• Auto restart saves settings
if power is interrupted
setting
Health
• One-touch, lift-out,
washable antimicrobial
lter for protection against
fungal and bacterial growth
• Stale air exhaust
Installation
• Slide-out chassis
• Standard installation
hardware
• Expandable side curtains
• Power cord can run either
left or right out of the side
of the unit front
Safety Features
• EntryGard anti-intrusion
protection
5,500 to 11,700 BTU/h EERs up to 11.5
CP10 CP12
COOLING COOLING
10000 BTU/h 12000 BTU/h
10.8 EER 10.8 EER
Comfort
& Convenience
• 24 hour timer lets you
program on/off times
• Auto Air Sweep swing
louvers provide even air
distribution
• 3 cooling speeds, plus 3
fan-only settings
®
• Money Saver
saves money by conserving
energy
• Ultraquiet operation
• 4-way air ow control
• Auto restart saves settings
if power is interrupted
setting
Health
• One-touch, lift-out,
washable antimicrobial
lter for protection against
fungal and bacterial growth
• Stale air exhaust
Installation
• Slide-out chassis
• Standard installation
hardware
• Expandable side curtains
• Power cord can run either
left or right out of the side
of the unit front
Safety Features
• EntryGard anti-intrusion
protection
CP15 CP18 CP24
COOLING COOLING COOLING
14700 BTU/h 18000 BTU/h 24000 BTU/h
10.7 EER 10.7 EER 9.4 EER
12
Page 13
Sizing your air conditioner correctly is vital.
Sizing Guide
The following guide is based on normal room insulation, average number of sun-exposed windows and two-person occupancy.
2
FT
100-150 5,000
150-250 6,000
250-300 7,000
300-350 8,000
350-400 9,000
400-450 10,000
450-550 12,000
550-700 14,000
700-1,000 18,000
1,000-1,200 21,000
1,200-1,400 23,000
1,400-1,600 25,000
1,600-1,900 28,000
1,900-2,700 36,000
Btu/h
Due to variations in room design, climate zone and occupancy, larger areas may require the use
of multiple units to provide the optimal cooling solution. Please consult your retail sales person.

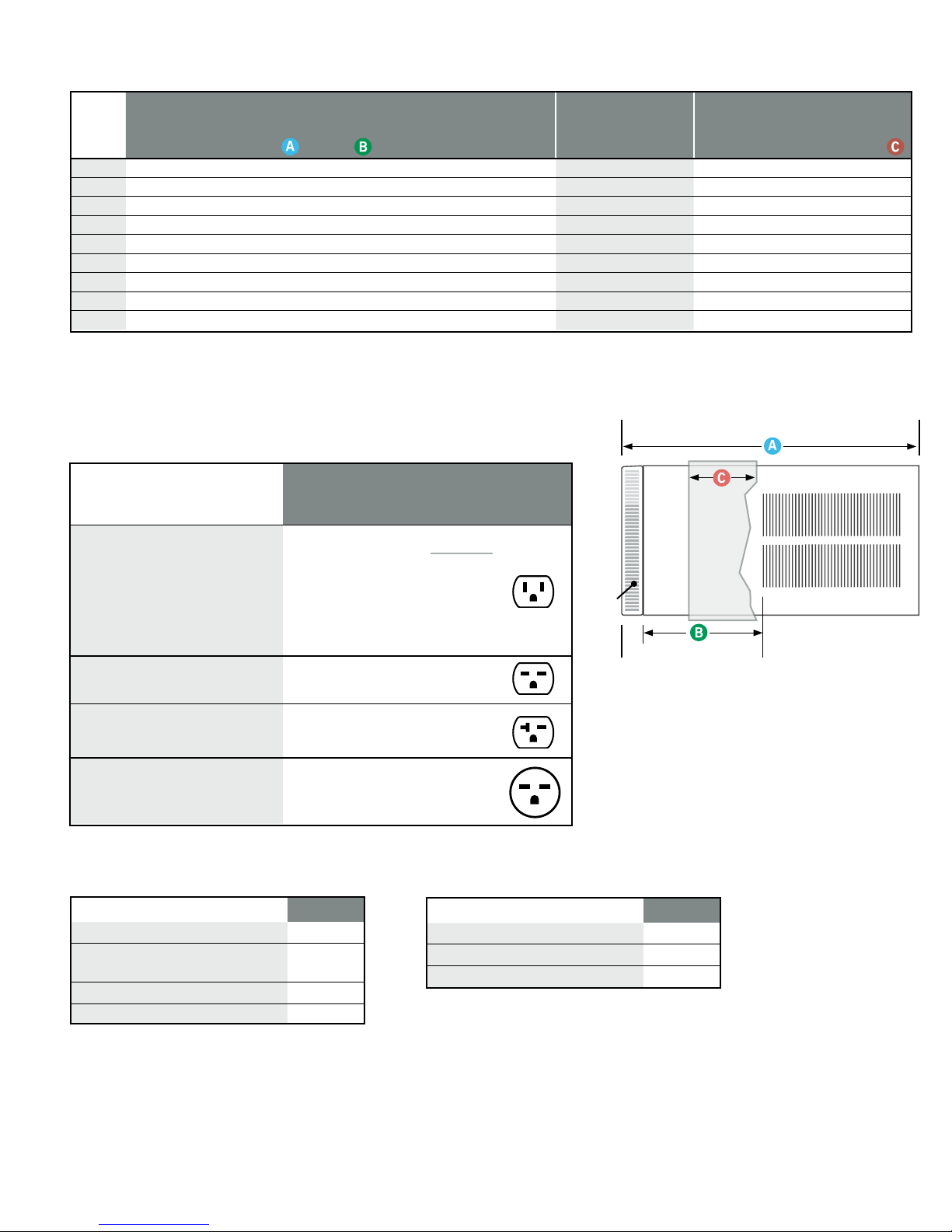

Room Air Conditioner Model Identication Guide
S L 28 M 3 0 A
FUNCTION
S–Straight Cool C–Straight Cool
X–Straight Cool Y–Heat Pump
E–Electric Heat
CHASSIS
Q–Portable P–Programmable
S–Small Chassis M–Medium Chassis
L–Large Chassis
MODEL SERIES
APPROXIMATE
BTUs (000) Cooling
Letter at end of model number indicates
a modification to an existing model.
0 – Straight Cool and
115V Heat Pump Models
1 – 1 KW heat strip, Nominal
3 – 3 KW heat strip, Nominal
4 – 4 KW heat strip, Nominal
5 – 5 KW heat strip, Nominal
VOLTAGE
1–115 Volts 3–230/208 Volts
13
Page 14
Specications
Model
Cooling
Capacity Btu
Heating
Capacity Btu
Volts
Rated
Cooling
Amps
Cooling
Watts
Heating
Amps
Heating
Watts COP
H EnErgy Star® qualied
Energy
Efciency
Ratio
EER
Estimated
Yearly
Operating
Cost
Moisture
Removal
Pints/HR
Room Side
Air
Circulation
CFM Sleeve
Kü hl
H
SS08M10 7900 — 115 6.1 677 — — — 11.7 $54 1.0 265 S 99
SS10M10 9500 — 115 7.7 848 — — — 11.2 $68 2.0 260 S 106
H
SS12M10 12000 — 115 10.0 1071 — — — 11.2 $86 3.0 300 S 112
H
SS14M10 14000 — 115 12.0 1444 — — — 9.7 $115 3.5 325 S 116
SS12M30 11700/11200 — 230/208 4.8/4.9 1026/982 — — — 11.4/11.4 $82 2.8 275 S 112
H
SS15M30 14500/14300 — 230/208 6.4/6.8 1405/1385 — — — 10.3/10.3 $112 3.5 360 S 116
SM18M30 17500/17200 — 230/208 7.4/8.0 1635/1617 — — — 10.7/10.7 $131 4.6 350 M 140
H
SM21M30 20800/20700 — 230/208 9.4/10.3 2080/2070 — — — 10.0/10.0 $166 6.0 425 M 132
H
SM24M30 23500/23300 — 230/208 11.2/11.9 2500/2479 — — — 9.4/9.4 $200 10.0 390 M 152
H
SL28M30 27800/27000 — 230/208 13.5/14.4 2865/2812 — — — 9.7/9.6 $229 8.5 600 L 193
H
SL36M30 36000/35700 — 230/208 19.0/20.5 4235/4200 — — — 8.5/8.5 $338 12.0 725 L 212
Kü hl +
Heat Pump
H
YS10M10* 9500 7500 115 7.8 812 7.6 743 3.0 11.7 $65 1.9 285 S 109
YS12M33 12100/12100 9400/9000 230/208 5.2/5.4 1120/1120 5.6/5.8 1132/1139 2.4 10.8/10.8 $89 3.0 265 S 115
H
YM18M34 18200/17800 15500/15400 230/208 8.5/8.9 1838/1798 8.5/8.7 1833/1761 2.6 9.9/9.9 $147 5.4 370 M 141
H
YL24M35 24000/23600 23500/23200 230/208 11.1/12.0 2474/2433 12.2/14.3 2610/2575 2.6 9.7/9.7 $198 7.0 600 L 197
H
Kü hl +
Electric Heat
ES12M33 11700/11200 10700/8900 230/208 4.8/4.9 1026/982 16.0/14.7 3500/2900 — 11.4/11.4 $82 2.8 275 S 113
ES15M33 14500/14300 10700/8900 230/208 6.4/6.8 1405/1385 16.0/14.7 3500/2900 — 10.3/10.3 $112 3.5 360 S 117
EM18M34 17500/17200 13000/10600 230/208 7.4/8.0 1635/1617 19.5/17.0 4200/3500 — 10.7/10.7 $131 4.6 350 M 141
EM24M34 23500/23300 13000/10600 230/208 11.2/11.9 2500/2479 19.5/17.0 4200/3500 — 9.4/9.4 $200 10.0 390 M 153
EL36M35 36000/35700 17300/14300 230/208 19.0/20.5 4235/4200 24.0/22.4 5500/4650 — 8.5/8.5 $338 12.0 725 L 213
XStar®
XQ05M10 5500 — 115 4.5 491 — — — 11.2 $39 1.0 170 Q 72
H
XQ06M10 6000 — 115 4.9 500 — — — 12.0 $40 1.0 175 Q 72
H
XQ08M10 7500 — 115 6.9 701 — — — 10.7 $56 1.7 175 Q 71
H
XQ10M10 9500 — 115 9.0
XStar®
Electric Heat
EQ08M11 7500 4000 115 6.9 701 11.2 1290 — 10.7 $56 1.9 175 Q 72
970 — — — 9.8 $77 2.5 180 Q 71
CP
CP05N10A 5500 — 115 4.8 510 — — — 10.7 $41 1.3 135 P1 46
H
CP06F10 6000 — 115 5.1 560 — — — 10.7 $45 1.8 210 P6 51
H
CP08F10 7800 — 115 6.8 720 — — — 10.8 $58 2.3 250 P6 54
H
CP10F10 10000 — 115 8.5 920 — — — 10.8 $74 3.0 270 P7 73
H
CP12F10 12000 — 115 10.2 1110 — — — 10.8 $89 3.3 310 P7 73
H
CP15F10 14700 — 115 12.0 1370 — — — 10.7 $110 3.5 470 P4 121
H
CP18F30 18000/17600 — 230/208 8.1/8.8 1680/1640 — — — 10.7 $135 4.6 570 P5 141
H
CP24F30 24230/23540 — 230/208 10.9/11.8 2580/2500 — — — 9.4 $206 7.0 590 P5 165
H
Net
Weight
Lbs
* Operates on 115 volt and is not equipped with supplemental heat. Will not provide heat at temperatures below 40°F.
Friedrich room air conditioners are designed to operate in outdoor temperatures from 60°
Due to continuing research in new energy-saving technology, specications are subject to change without notice.
®
As an ENERGY STAR
meet the ENERGY STAR
The consumer- through the AHAM Room Air Conditioner Certication Program- can be certain that the AHAM Certication Seal
accurately states the unit’s cooling and heating capacity rating, the amperes and the energy efciency ratio.
Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a 2007 national average
electricit y cost of 10.65¢ per kWh.
partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR® (H) models
®
guidelines for energy efciency.
14
F to 115° F.
R-410A
All models use
environmentally
friendly R-410A
refrigerant.
Page 15
Installation Information / Sleeve Dimensions
Sleeve
Height Width
Depth
with Front
Shell Depth to
Louvers
Minimum
Extension
Into Room*
Minimum
Extension
Outside*
Window Width
Thru-the-wall Installation
Finished Hole
Minimum** Maximum Height Width Max. Depth
Q 14"
19
¾
"
21
3
/8
"
8
½"
5
½"
10
¾"
22" 42" 14 ¼" 20" 8 ½”
P1† 12"
18
½"
15" 5"
3
½"
10
¾"
20
1
/8
” 36" NOT FOR THRU-WALL
P4
17
½"
26" 27
5
/8
" 8
7
/8
"
5
½"
16
5
/8
"
26
½
"
42" 17 ¾" 26 ¼" 8
3
/8
"
P5
17
½"
26"
29
¾"
8
7
/8
”
5
½"
19
½"
26 ½"
42" 17 ¾" 26 ¼" 8
3
/8
"
P6 14" 18
3
/8
” 20
7
/8
” 8
1
/8
”
4
½"
11" 20
1
/8
” 36" 14
1
/4
” 18 ¾" 7 ½"
P7 15" 23
5
/8
" 22
1
/4
”
8
¾"
4
½"
12” 25 ¼” 39" 15 ¼" 23
7
/8
” 8"
S 15
15
/16
" 25
15
/16
" 29"
8
¾"
5
¾”
16
15
/16
” 27
3
/8
" 42" 16
3
/16”
26
3
/16”
7
3
/8
"
M 17
15
/16
" 25
15
/16
" 29"
8
¾"
5 ¾”
16
15
/16
” 27
3
/8
" 42" 18
3
/16”
26
3
/16”
7
3
/8
”
L 20
3
/16"
28" 35 ½”
16
½"
5
3
/8
” 18
15
/16
” 29
7
/8
” 42" 20
3
/8
" 28 ¼" 15
1
/8
”
* Minimum ex tensions when mounted in a window.
** Minimum widths achieved using one side curtain assembly as opposed to both in a standard installation.
† Sleeve P1 does not have thru-the-wall hole dimensions, as these units are xed chassis and should not be installed thru-the-wall.
NOTE: S,M and L sleeves may be installed in window with no side kits if properly installed.
Circuit Rating/ Breaker
Circuit Rating
Breaker or
Model
T-D Fuse
CP05 7
CP06, CP08, CP10, CP12 and CP15.
All XQ MODELS.
SS08M10, SS10M10, SS12M10 and
125V - 15A 5 - 15P 6
SS14M10. EQ08M11. YS10M10.
CP18. SS12M30, SS15M30,
SM18M30 and SM21M30.
CP24. SM24M30 and SL28M30.
ES12M33 and ES15M33. YS12M33.
SL36M30. EM18M34, EM24M34
and EL36M35. YM18M34 and
250V - 15A 6 - 15P 4
250V - 20A 6 - 20P 4
250V - 30A 6 - 30P 4
YL24M35.
Window Mounting Kits
Heat/Cool Models Kit No.
EQ08M11 WIKQ
ES12M33, ES15M33, YS10M10 and
YS12M33.
EM18M34, EM24M34, YM18M34. KWIKM
EL36M35 and YL24M35. KWIKL
Friedrich heat/cool models include accessories for thruthe-wall installation only. Window mounting requires use
of optional accessory kit as listed above.
Custom color fronts
For other custom color fronts not pictured in this brochure, visit ww w.friedr ich.com
KWIKS
(NEMA#)
Plug
Face
Power C ord
Length (ft.)
Wall Outlet
Appearance
Premium Carbon Filters
Model Kit No.
All SS, ES and YS Models KWCFS
All SM, EM and YM Models K WCFM
All SL, EL and YL Models. KWCFL
Each kit contains 3 replacement carbon lters
(C)
Front
(B)
SIDE VIEW
15
Page 16

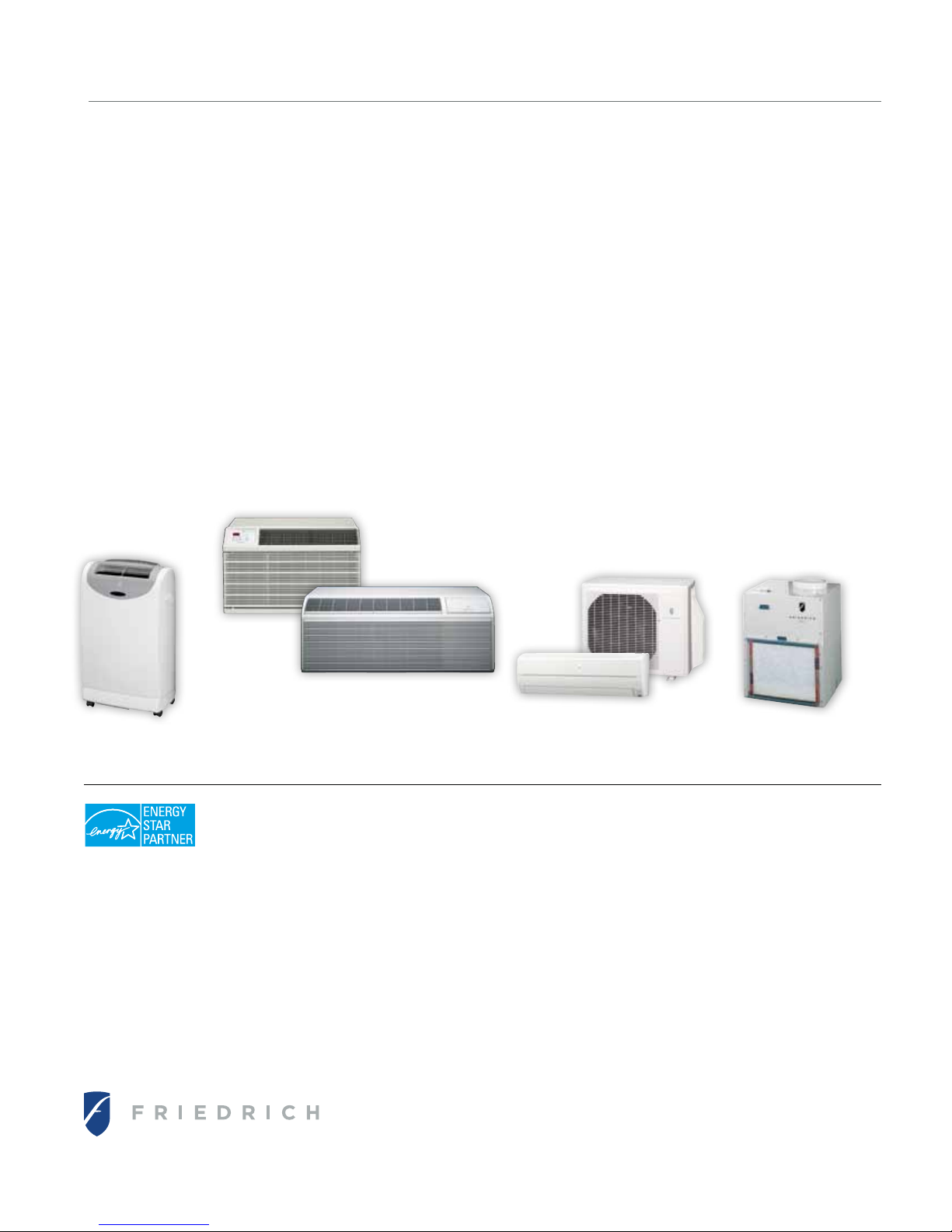

A full line of air conditioning solutions
PORTABLE AIR
CONDITIONERS
Great for fast backup or supplemental
cooling. Plug into
a standard 115 volt
outlet. They can be
quickly vented through
a window or wall
opening. Full display
electronic controls and
remote control.
IDEAL FOR:
Workshops, garages,
home ofces, dorm
rooms, sunrooms,
bedrooms, attics and
basements.
THRU-THE-WALL AIR
CONDITIONERS
Residential and
commercial
applications. 26 and
27 inch wall sleeve
models. A high
efciency replacement
for older units.
IDEAL FOR: Deep
exterior walls
and year-’round
installations. Can be
installed ush with
exterior wall and oor
level.
PACKAGED
TERMINAL AIR
CONDITIONERS
Energy efcient and
extremely quiet.
Friedrich PTACs
offer programmable
electronics with a
large LED display
that provides precise
temperature control
and energy savings.
Installs thru-the-wall.
IDEAL FOR:
Lodging, healthcare,
dormitories and any
application where
a thru-the-wall
installation is desired.
DUCTLESS SPLIT
SYSTEMS
Sleek, absolutely quiet
and incredibly energy
efcient, with SEERs
up to 20.0! Twenty total
system congurations
including nine dual,
tri-zone and quadzone wall-mounted
congurations. Floor
and ceiling models
also available.
IDEAL FOR: Zone
cooling or locations
where no ductwork
exists, or is impossible
or too costly to install.
Any area where
security is a concern.
VERTICAL SINGLE
PACKAGE UNITS
Self contained unit
installs in a small
utility closet. A
simpler way to
condition multiple
rooms. VERT-I-PAK
installs as easily
as a PTAC and the
concealed installation
creates a more
homelike feel in a
guest room or suite.
IDEAL FOR:
Suites, extended
stay properties,
apartments and
dorms; or any
application where
lower sound levels are
desired.
Friedrich is a par tner in the Energy Star®
program which promotes the conservation
of energy and the protection of the
environment through the purchase of high
eciency appliances.
Friedrich Air Conditioning Co. l P.O. Box 1540 l San Antonio, TX 78295-1540 l 800.541.6645 l fax 210.357.4480
www.friedrich.com
RAC-10 (6-10) Printed in USA
See the full line of Friedrich products @ www.friedrich.com
Loading...
