loaded with over
40
standard features
it’s like getting a free upgrade
over a standard ptac.
one touch comfort with remote control
premium standard features
Electronic temperature limiting
Owners and operators will appreciate the
flexibility to set separate heat and cool
range limits.
Constant comfort room monitoring
The Smart Center will automatically run the
fan to briefly sample the room temperature
every nine minutes to ensure desired
conditions are maintained.
Desk control ready
Allows hotel owners to effortlessly control
unit from a central location.
Auxiliary fan ready
Allows multiple rooms to share one unit.
Remote thermostat operation
Control Friedrich units using either a wallmounted thermostat, remote control or
built-in controls.
“Instant Heat” heat pump mode
Instant heat quickly heats a room to the
desired temperature for increased comfort.
Remote control operation
New remote control lets user operate
with more convenience (remote control
is an optional accessory).
Even heat monitoring
Checks room temperature and automatically adds heat boost if necessary.
Random compressor restart
Protects electrical systems from
overload when power is restored.
High efficiency
Reduces your operating costs.
Room freeze protection
Heat initiated if temperature falls to
40°F in an unoccupied room, raising
temperature to 46°F.
Filtered fresh air intake
Ideal for applications where indoor air
quality is important.
Fan cycle control
Select fan cycling or continuous fan
operation for more comfort options.
Electronic defrost control
Ensures more run time in the
efficient heat pump mode.
Ships individually palletized
Whether you order 1 or 100 units,
each unit is individually palletized to
reduce the risk of shipping damage.
easy serviceability
Single motor design
Fewer parts to maintain.
Service error code storage
Error code memory facilitates
improved unit diagnostics.
Top-mounted antimicrobial
air filters
Quick and easy access. Easy to
clean. Protection from fungal and
bacterial growth.
Emergency heat override
Ensures heat mode operation even
in the unlikely event of compressor
failure.
42"
16"
new remote control
now more convenience
than ever before
fits other ptac sleeves without a baffle kit.
IMPORTANT NOTE: Sleeves are sold and shipped separately to
accommodate new construction and replacement requirements.
Page 3
standard on all models
rated quietest
in a guest survey
and a full 15% better in sound
quality over four major brands.
5 YEAR WARRANTY
On the sealed refrigeration system.
Limitations apply.
Refer to warranty documentation for details.
designed for a
longer product life
Durable design
Tamper-resistant grille, enclosed clamshell motor and dual thumbscrews are
just some of the features that Friedrich
engineers added for a longer product life.
Powder coat paint process
Durable, powder coat paint finish.
Aluminum endplates
Corrosion-resistant construction
for longer life.
Indoor coil frost sensor
Protects the compressor to lengthen
the life of the unit.
Diamonblue technology
This advanced corrosion protection
treatment protects against deterioration
and extends the life of the unit.
guests rated Friedrich digital ptac
the quietest. here’s why–
Quiet start/stop fan delay
We developed a soft start/stop feature that reduces
transitional noise that is usually associated with
compressor start-up.
Quiet, efficient rotary compressor
Mounted with vibration isolators to keep the com-
pressor running smoothly and quietly.
Ultraquiet air system
Our new air system moves the air very quietly and
efficiently. Low/sleep setting is noticeably quieter
than other popular brands.
SURVEY DETAILS- In a blind survey, travelers rated
Friedrich PTAC the QUIETEST among five top com-
petitive models and a full 15% better than the next
best unit on SOUND QUALITY. Friedrich also received
twice as many votes for BEST APPEARANCE than the
next best scoring unit.
super quiet
do not disturb
technology
Page 4
“quiet... quality... easy to maintain”
just some of the comments from Friedrich ptac owners.
“This is the first time we are building our OWN
project. In the past we have always built for some-
one else… I spend more time doing research on AC
than most people do because it’s that important
to me. I’m all about customer satisfaction. I want
99% of the people back… I researched 4 brands
– Carrier, GE, Friedrich and Amana. A major factor
was quietness. THE REVIEWS FOR (FRIEDRICH)
QUIETNESS WERE KEY TO ME. Also, the unit has
some control of the fan that isn’t there on Amana.”
DOUG WRIGHT,
LA QUINTA
RIFFLE, COLORADO
“I haven’t had any complaints about noise or vi-
bration... We are a suburban hotel with mostly
business travelers who are very demanding…
I think it’s a GOOD QUALITY unit for the price.
Maintenance is pretty easy. I have never had to go
back to them (PTAC units) since they were put in.”
DAN BOWMAN,
HILTON GARDEN INN
LOVELAND, OHIO
“Service has been fine. [Low] noise level probably
helped me make my decision and the econom-
ics of operation. Price was an item too. Others out
there are over touted.”
TED GODWIN,
LA QUINTA
BILLINGS, MONTANA
“Several years ago, we started experiencing an
unusual amount of guest complaints about the
noise and efficiency of our PTAC units, which were
between 10 and 20 years old.
We made a decision to start replacing our PTAC
units at the rate of 25% per year. We purchased
six different Brand Name units for an internal
evaluation, both from a management opinion
as well as guest opinions.
Without a doubt, THE FRIEDRICH UNIT WON
HANDS DOWN ON ALL COUNTS.
From a management point of view, the unit is EASY
TO INSTALL, EASY TO MAINTAIN and clean and op-
erates Q U I ET LY an d EFFICIENTLY. From a guest point
of view, the unit is QUIET, COMFORTABLE and EASY
TO USE. From a financial point of view, the Friedrich
PTAC unit is highly competitive.
As we enter the 3rd phase of PTAC replacement, I
am happy to report that our maintenance cost on
the Friedrich units has been minimal, freeing up
our maintenance staff for other projects.
I highly recommend the Friedrich PTAC unit.”
ROBERT K LEIN CHA, GENER AL MANAGER
HOLIDAY INN NATIONAL AIRPORT
ARLINGTON, VIRGINIA
DIGITAL SMART CENTER
Large, easy-to-read LED display
for precise temperature control
and energy savings.
ANTIMICROBIAL AIR FILTERS
Top-mounted for quick access.
Easy to clean. Antimicrobial
protection against fungal and
bacterial growth.
Page 5

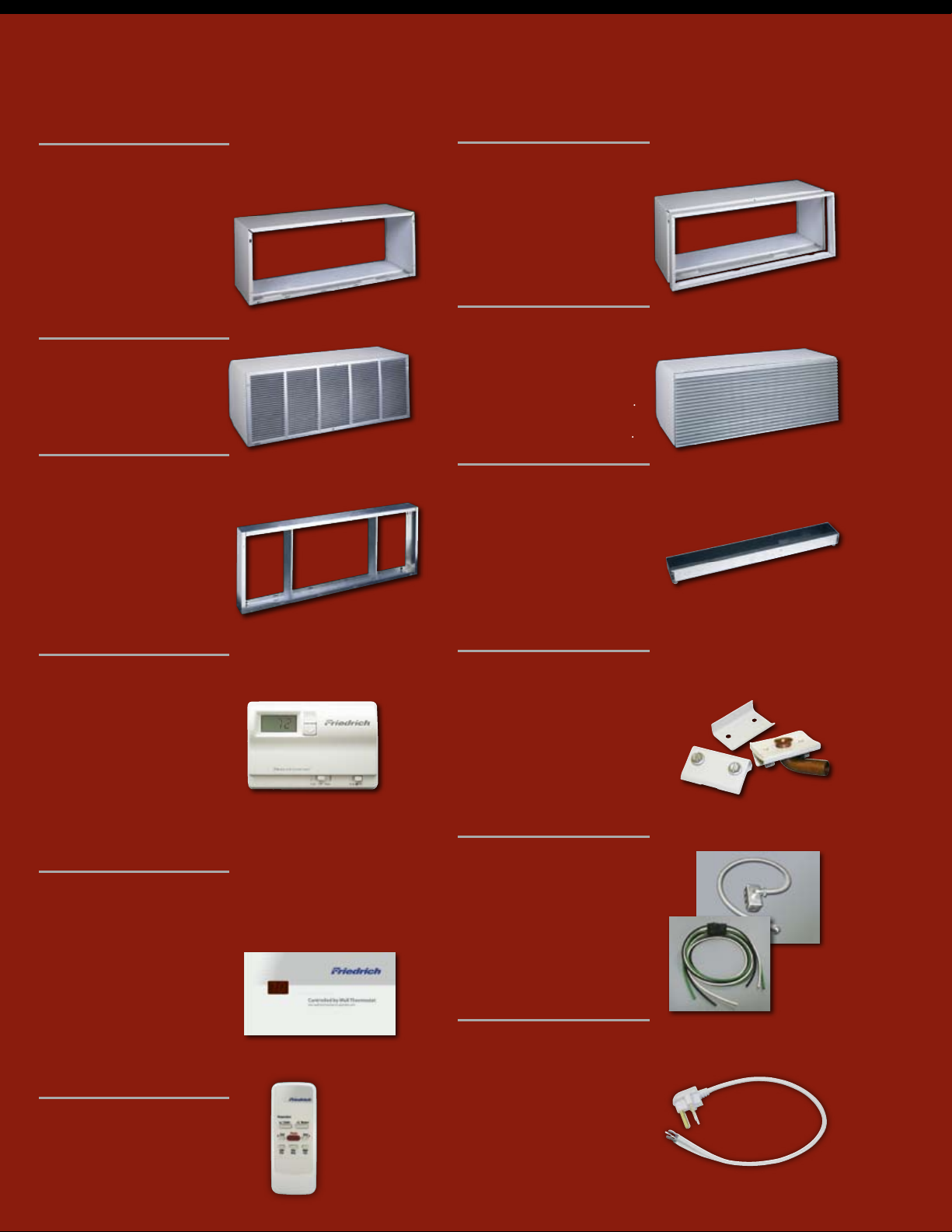

ptac optional accessories
WALL SLEEVE
PDXWS
Galvanized steel is prepared in a
state-of-the-art, multistep process
for stronger paint adhesion, then
powder coated with a polyester
finish and cured in an oven for
exceptional durability. The wall
sleeve is insulated for thermal
efficiency. 16" x 42" x 13 ¾"
STANDARD GRILLE
PXGA
Standard, stamped, anodized
aluminum to resist chalking
and oxidation.
DEEP WALL SLEEVE
EXTENSION
PXWE
A four-inch deep, anodized
aluminum extension that attaches
to the outside of the wall sleeve
when the wall is greater than
13 ¼ inches thick (11 ¾" when a
subbase is used, and 12 ¼" when
a lateral duct is used).
SLEEVE EXTENSION
RETROFIT KIT
PXSE
2 ¼" sleeve extension attached
to the room side of the sleeve
to allow for the installation of a
PD-series Friedrich PTAC in a 11 ½"
deep T-series sleeve.
ARCHITECTURAL GRILLES
Architectural grilles that consist of heavy gauge 6063-T5
aluminum alloy
PXAA Clear extruded aluminum.
PXBG Beige acrylic enamel.
PXSC Available in custom colors.
PXAA
DECORATIVE SUBBASE
PXSB
Provides unit support for walls
less than six inches thick. Includes
leveling legs, side filler panels
and mounting brackets for electrical accessories. Accepts circuit
breaker, power disconnect switch
and conduit kit.
DIGITAL REMOTE
THERMOSTATS
RT4
Digital, single stage thermostat.
Hard wired with single speed fan.
RT5 Digital, single stage thermo-
stat features high/low fan speed
switch. Thermostat is hard wired
and can be battery powered or unit
powered. Features backlit display
and multiple configuration modes.
Mounts to wall for control of unit.
REMOTE THERMOSTAT
ESCUTCHEON KIT
PDXRT
Kit contains ten escutcheons that
can be placed over the factory
control buttons when a remote
wall mounted thermostat is
used. The escutcheon directs the
guest to the wall thermostat for
operation and retains the LED
window to display error codes and
diagnostic information.
REMOTE CONTROL
PDXRC
One hand-held remote for control of
PTAC unit. 2008 models only.
CONDENSATE DRAIN KIT
PXD R10
Attaches to the bottom of the
wall sleeve for internal draining
of condensate or to the rear wall
sleeve flange for external draining. Recommended for all units
to remove excess condensate.
Packaged in quantities of ten.
CONDUIT KIT WITH
JUNCTION BOX
PXCJ
Hard wire conduit kit with junction
box for 208/230V and 265V units
(subbase not required). Kit includes
a means of quick disconnect for
easy removal of the chassis.
*Required for 265V installations.
POWER CORD RETROFIT
PXPC 15/20/30
Replaces LCDI power cord on 230V
models when unit is used with
a subbase. PXPC15 is used with
15 amp (0 kW and 2.5 kW) units.
PXPC20 is used with 20 amp (0 kW
and 3.4 kW) units. PXPC30 is used
with 30 amp (5.0 kW) units.
Page 6
PDE Series Air Conditioner with ELECTRIC HEAT— COOLING PERFORMANCE
Cooling Electrical Characteristics Energy Moisture Shipping
Model BTU/Hr. Volts Amps Watts Ratio Pints /H r. CFM CFM Lbs.
PDE07K 7500/7300 230/208 2.9 615 12.2 2.1 250 60 123
PDE07R 7500 265 2.7 615 12.2 2.1 250 60 123
PDE09K 9200/9000 230/208 3.7 814 11.3 2.7 250 60 130
PDE09R 9200 265 3.5 814 11.3 2.7 250 60 130
PDE12K 12200/12000 230/208 5.1 1140 10.7 3.8 325 70 138
PDE12R 12200 265 4.7 1140 10.7 3.8 325 70 138
PDE15K 15000/14800 230/208 6.8 1579 9.5 5.5 350 70 143
PDE15R 15000 265 6.8 1579 9.5 5.5 350 70 143
Capacity (60 Hertz) Efficiency Removal Indoor Vent Weight
PDH Series Heat Pump — HEATING/COOLING PERFORMANCE
EER Chassis
Cooling Heating Electrical Characteristics Energy Moisture Shipping
Capacity Capacity (60 Hertz) Efficiency Removal Indoor Vent Weight
Model BTU/Hr. BTU/Hr. Volts Amps Watts Ratio C .O .P. Pints /H r. CFM CFM Lbs.
PDH07K 7200/7000 6400/6200 230/208 3.0 595 12.1 3.3 2.1 250 60 123
PDH07R 7200 6400 265 2.7 595 12.1 3.3 2.1 250 60 123
PDH09K 9100/8900 8100/7900 230/208 3.9 805 11.3 3.0 2.7 250 60 130
PDH09R 9100 8100 265 3.4 805 11.3 3.0 2.7 250 60 130
PDH12K 12200/11800 10600/10400 230/208 5.1 1165 10.3 3.0 3.8 325 70 138
PDH12R 12000 10600 265 4.8 1165 10.3 3.0 3.8 325 70 138
PDH15K 14700/14300 13300/13100 230/208 6.8 1581 9.3 2.9 5.5 350 70 143
PDH15R 14700 13300 265 6.0 1581 9.3 2.9 5.5 350 70 143
EER Chassis
PDE/PDH Series — ELECTRIC HEATING DATA
Heating Heating Minimum Branch
Capacity Heater Current Circuit Circuit Fuse
Model BTU/Hr. Watts Voltage Amps Ampacity Amps
PDE/PDH07K 8500/7000 2500/2050
PDE/PDH09 K 11600/9500 3400/2780 15.3/13.9 19.0 20
PDE/PDH07R 8500 2500
PDE/PDH09 R 11600 3400 13.2 16.4 20
8500/7000 2500/2050
PDE/PDH12K
PDE/PDH12R
PDE/PDH15K
PDE/PDH15R
PDE09KO – –
PDE12KO – – – 7.6 15
PDE15KO – – – 8.5 15
11600/9500 3400/278 0 15.3/13.9 19.0 20
17000/13900 5000/4090 22.3/20.3 27.8 30
8500 2500
11600 3400 13.2 16.4 20
17000 5000 19.5 24.2 30
11600/9500 3400/278 0
17000/13900 5000/4090 22.3/20.3 27.8 30
11600 3400
17000 5000 19.5 24.2 30
230/208
265
230/208
265
230/208
265
230/208
11.4/10.4 14.1 15
9.8 12.2 15
11.4/10.4 14.1 15
9.8 12.2 15
15.3/13.9 19.0 20
13.2 16.4 20
– 6.0 15
Friedrich Air Conditioning Co. | P.O. Box 1540 | San Antonio, TX 78295-1540 | (800) 541-6645 | fax (210) 357-4480 | www.friedrich.com
PTAC-08 (3-08) Five-year warranty limited to installations in the United States, Puerto Rico, Mexico and Canada only. See warranty documentation for full details.
Loading...
