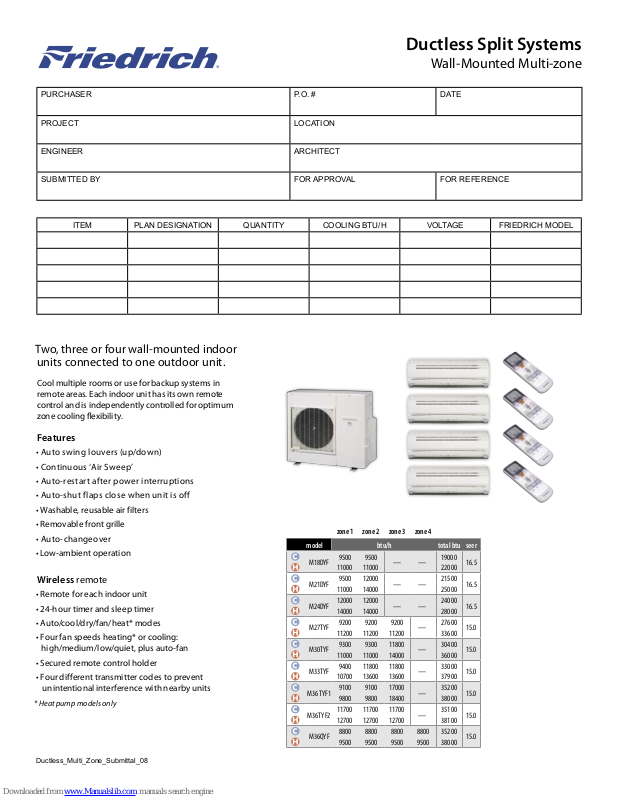

Ductless Split Systems
Wall-Mounted Multi-zone
PURCHASER P.O. # DATE
PROJECT LOCATION
ENGINEER ARCHITECT
SUBMITTED BY FOR APPROVAL FOR REFERENCE
ITEM PLAN DESIGNATION QUANTITY COOLING BTU/H VOLTAGE FRIEDRICH MODEL
Two, three or four wall-mounted indoor
units connected to one outdoor unit.
Cool multiple rooms or use for backup systems in
remote areas. Each indoor unit has its own remote
control and is independently controlled for optimum
zone cooling flexibility.
Features
• Auto swing louvers (up/down)
• Continuous ‘Air Sweep’
• Auto-restart after power interruptions
• Auto-shut f laps close when unit is off
• Washable, reusable air filters
• Removable front grille
• Auto-changeover
• Low-ambient operation
Wireless remote
• Remote for each indoor unit
• 24-hour timer and sleep timer
• Auto/cool/dry/fan/heat* modes
• Four fan speeds heating* or cooling:
high/medium/low/quiet, plus auto-fan
• Secured remote control holder
• Four different transmitter codes to prevent
unintentional interference with nearby units
* Heat pump models only
zone 1 zone 2 zone 3 zone 4
model btu/h total btu seer
9500 9500
M18DYF
11000 11000 22000
9500 12000
M21DYF
11000 14000 25000
12000 12000
M24DYF
14000 14000 28000
9200 9200 9200
M27TYF
11200 11200 11200 33600
9300 9300 11800
M30TYF
11000 11000 14000 36000
9400 11800 11800
M33TYF
10700 13600 13600 37900
M36TYF1
M36TYF2
9100 9100 17000
9800 9800 18400 38000
11700 11700 11700
12700 12700 12700 38100
8800 8800 8800 8800 35200
M36QYF
9500 9500 9500 9500 38000
— —
— —
— —
19000
16.5
21500
16.5
24000
16.5
27600
—
—
—
—
—
30400
33000
35200
35100
15.0
15.0
15.0
15.0
15.0
15.0
Ductless_Multi_Zone_Submittal_08
Page 2
PERFORMANCE RATINGS
SYSTEM MODEL NO.
M27TYF M30TYF M33TYF M36TYF1 M36TYF2
INDOOR MODEL
3 x MW09Y3FM 2 x MW09Y3FM MW12Y3FM MW09Y3FM 2 x MW12Y3FM 2 x MW09Y3FM MW18Y3FM 3 x MW12Y3FM
OUTDOOR MODEL
MR36TQY3F MR36TQY3F MR36TQY3F MR36TQY3F MR36TQY3F
Capacity Cooling BTU/h
9200 ea. 9300 ea. 11800 9400 11800 ea. 9100 ea. 17000 11700 ea.
Capacity Heating @ 47°F BTU/h
11200 ea. 11000 ea. 14000 10700 13600 ea. 9800 ea. 18400 12700 ea.
Capacity Heating @ 17°F BTU/h
8300 ea. 7700 ea. 9800 7200 9200 ea. 6700 ea. 12500 8600 ea.
HSPF
9.0 9.0 9.0 9.0 9.0
SEER
15.0 15.0 15.0 15.0 15.0
Moisture Removal Pts/h
2.9 ea. 2.9 ea. 3.7 2.9 3.7 ea. 2.9 ea. 5.7 3.7 ea.
Airflow (Quiet, Low, Med, High) CFM
185/220/260/295 185/220/260/295 215/250/305/355 185/220/260/295 215/250/305/355 185/220/260/295 240/290/355/415 215/250/305/355
Sound Rating - Indoor dB-A
27/29/33/37 27/29/33/37 30/34/39/42 27/29/33/37 30/34/39/42 27/29/33/37 33/39/42/46 30/34/39/42
Sound Rating - Outdoor dB-A
52 52 52 52 52
Operating Range COOL (HEAT) °F
0 - 115 (14-75) 0 - 115 (14-75) 0 - 115 (14-75) 0 - 115 (14-75) 0 - 115 (14-75)
ELECTRICAL DATA (all indoor units receive power from outdoor unit; values listed are total)
Power Source
230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
Min. Ampacity A
22.5 22.5 22.5 22.5 22.5
Cooling Watts W
2710 3180 3710 4000 3980
Max. TD Fuse/Breaker A
30 30 30 30 30
REFRIGERATION SYSTEM
Refrigerant
R410A R410A R410A R410A R410A
Compressor Type
Inverter Inverter Inver ter Inverter Inver ter
Connections
Flare Flare Flare Flare Flare
Liquid Line O.D. in
1/4 1/4 1/4 1/4 1/4 1/4
Suction Line O.D. in
3/8 3/8 3/8 3/8 1/2 3/8
Factory Precharge ft
165 165 165 165 165
Max. Line Length ft
Each unit:82 Total:230 Each unit:82 Total:230 Each unit:82 Total:230 Each unit:82 Total:230 Each unit:82 Total:230
Max. Height Difference ft
49 49 49 49 49
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in
31 1/8 x 10 7/8 x 8 1/2 ea. 31 1/8 x 10 7/8 x 8 1/2 ea. 31 1/8 x 10 7/8 x 8 1/2 31 1/8 x 10 7/8 x 8 1/2 31 1/8 x 10 7/8 x 8 1/2 31 1/8 x 10 7/8 x 8 1/2
Net Weight lbs
21 ea. 21 ea. 21 21 21 ea. 21 ea. 21 21 ea.
Shipping Weight lbs
26 ea. 26 ea. 26 26 26 ea. 26 ea. 26 26 ea.
OUTDOOR UNIT
W x H x D in
35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13
Net Weight lbs
159 159 159 159 159
Shipping Weight lbs
172 172 172 172 172
PERFORMANCE RATINGS
SYSTEM MODEL NO. M18DYF M21DYF M24DYF M36QYF
INDOOR MODEL 2 x MW09Y3FM MW09Y3FM MW12Y3FM 2 x MW12Y3FM 4 x MW09Y3FM
OUTDOOR MODEL MR24DY3F MR24DY3F MR24DY3F MR36TQY3F
Capacity Cooling BTU/h 9500 ea. 9500 ea. 12000 12000 ea. 8800 ea.
Capacity Heating @ 47°F BTU/h 11000 ea. 11000 ea. 14000 14000 ea. 9500 ea.
Capacity Heating @ 17°F BTU/h 9500 ea. 9500 ea. 11000 10500 ea. 6600 ea.
HSPF 9.0 9.0 9.0 9.0
SEER 16.5 16.5 16.5 15.0
Moisture Removal Pts/h 2.9 ea. 2.9 ea 3.7 ea. 3.7 ea. 2.9 ea.
Airflow (Quiet, Low, Med, High) CFM 185/220/260/295 185/220/260/295 215/250/305/355 215/250/305/355 185/220/260/295
Sound Rating - Indoor dB-A 27/29/33/37 27/29/33/37 30/34/39/42 30/34/39/42 27/29/33/37
Sound Rating - Outdoor dB-A 52 52 52 52
Operating Range COOL (HEAT) °F 0 - 115 (14-75) 0 - 115 (14-75) 0 - 115 (14-75) 0 - 115 (14-75)
ELECTRICAL DATA (all indoor units receive power from outdoor unit; values listed are total)
Power Source 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1
Min. Ampacity A 15 15 15 22.5
Cooling Watts W 1600 1900 2300 3900
Max. TD Fuse/Breaker A 20 20 20 30
REFRIGERATION SYSTEM
Refrigerant R410A R410A R410A R410A
Compressor Type Inverter Inver ter Inver ter Inverter
Connections Flare Flare Flare Flare
Liquid Line O.D. in 1/4 1/4 1/4 1/4 1/4
Suction Line O.D. in 3/8 3/8 3/8 3/8 3/8
Factory Precharge ft 98 98 98 165
Max. Line Length ft Each unit:82 Total:98 Each unit:82 Total:98 Each unit:82 Total:98 Each unit:82 Total:230
Max. Height Difference ft 33 33 33 49
DIMENSIONS & WEIGHT
INDOOR UNIT
W x H x D in 31
1
/8 x 10 7/8 x 8 1/2 ea. 31 1/8 x 10 7/8 x 8 1/2 ea. 31 1/8 x 10 7/8 x 8 1/2 ea. 31 1/8 x 10 7/8 x 8 1/2 ea.
Net Weight lbs 21 ea. 21 21 21 ea. 21 ea.
Shipping Weight lbs 26 ea. 26 26 26 ea. 26 ea.
OUTDOOR UNIT
W x H x D in 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13 35 3/8 x 32 5/8 x 13
Net Weight lbs 151 151 151 159
Shipping Weight lbs 164 164 164 172
dual-zone heat pumps quad-zone heat pumps
inverter model
tri-zone heat pumps
