Friedrich H)A12K, H)A18K, H)A24K, H)A09K User Manual

VERT-I-PAK®

VERTICAL SINGLE PACKAGE AIR CONDITIONERS

ELECTRIC HEAT | HEAT PUMP

give your property a more homelike appearance

a better system

inside and out.

ideal for extended stay properties,
suites, assisted living facilities
and student housing

heat pump | electric heat | 9,500-24,000 btu/h

A simpler way to condition multiple rooms

A single VERT-I-PAK unit may be ducted for exible zone
cooling in multiple rooms.

Concealed installation

Guests will appreciate the homelike feel of a guest room

or suite with a hidden cooling system. And, everyone
enjoys the benets and comfort of individual in-room
temperature control.

Quieter than exposed cooling options

Because the VERT-I-PAK installs in a typical mechanical
closet, units are quieter than other in-room air
conditioning options. Even quieter operating sound

levels may be achieved by insulating the closet.

Added value

VERT-I-PAK is less expensive to install and maintain than

multiple units for multiple rooms. And energy ecient

operation means lower operating costs.

Heat/cool larger areas and common spaces

Available in capacities from 9,000 - 23,500 BTU/h,
VERT-I-PAK units can easily cool larger suites and
common areas.

Installs as easily as a PTAC

All units are pre-wired, charged and piped, so only

electrical hook up is needed to be up and running.

100% run tested prior to shipment

Every unit is tested in every operating mode before
it ships for optimal performance and reliability.

the compact
chassis installs
unobtrusively
into a small
mechanical
closet.

QU AL I T Y

inside give your
property a homelike
appearance

VERT-I-PAK ts neatly into
a typical mechanical closet,
so you can create indoor
living spaces that are
more versatile. Guests and
tenants will enjoy a quieter
and more visually dynamic
living environment.

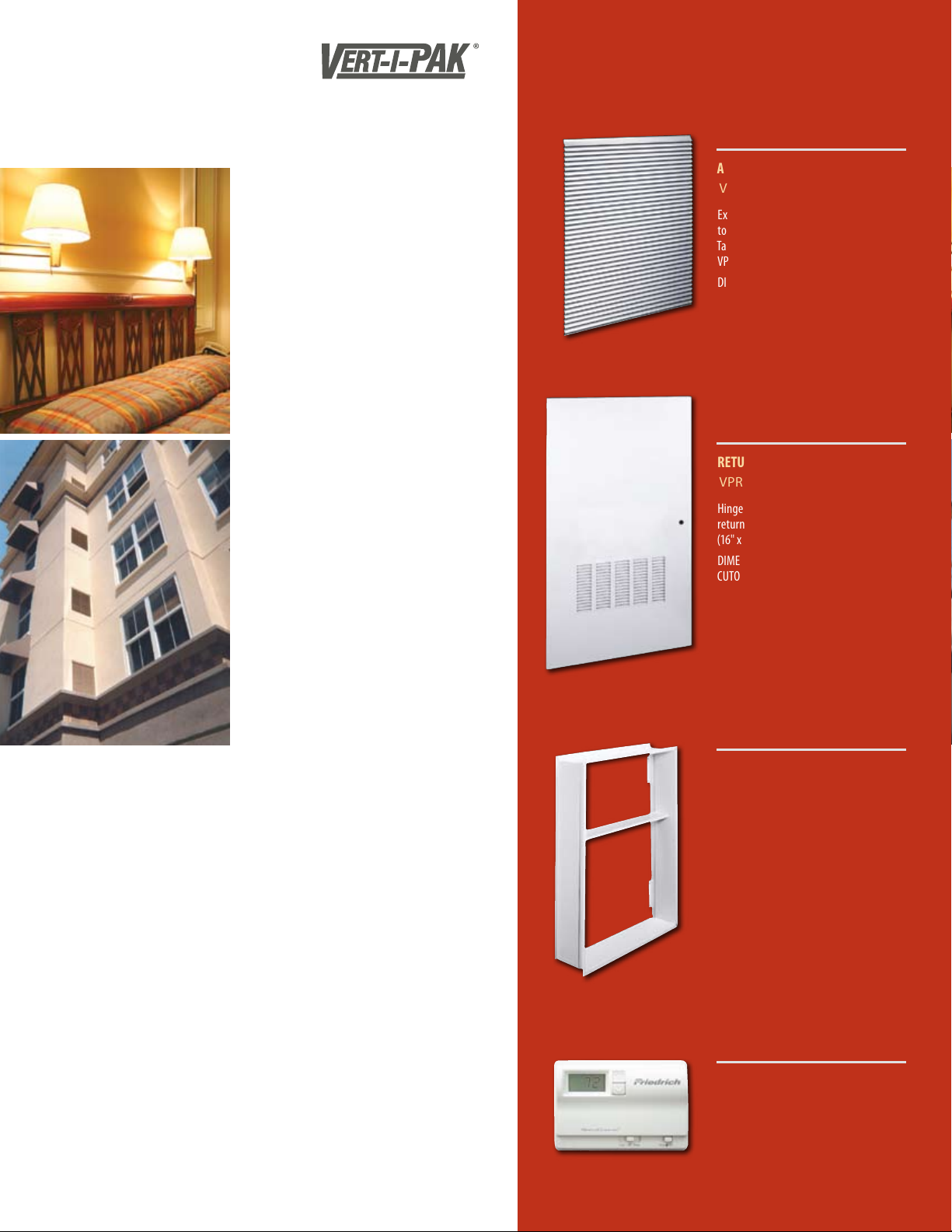

optional accessories

ARCHITECTURAL LOUVER

VPAL2 and VPSC2

Extr uded aluminum grille that at taches
to the outdoor s ection of the wall plenum.
Takes in fresh air and returns condense d air.
VPSC2 can be ordered in custom colors.

DIMENSIONS: 25 9/16" W x 31 1/16" H

RETURN AIR GRILLE/ACCESS PANEL

VPRG4

outside no outdoor
condensing units...
no noise and clutter

The building exterior can be
utilized for attractive patios,
balconies and amenities.
Vandalism and theft of
outdoor units is eliminated.

premium features and advantages

Completely self-contained

Ultraquiet operation

Unique free-floating chassis

Eliminates the clutter of split

systems and the need for

multiple PTACs

No refrigerant lines running
from floor to floor

Easy installation; does not
require an HVAC technician

All units are shipped with

return air filter installed

24-volt remote thermostat

ready

10" crimped and beaded duct­collar ready to attach flex duct

Easy-to-connect, right or left

drain connection

Installs easily on an outside wall

Corrosion resistant interior

Hinged panel allows access to unit and
return air lter. A eld-supplied lter
(16" x 20") is mounted inside the grille.

DIMENSIONS: 29" W x 58" H
CUTOUT DIMENSIONS: 27" W x 55 3/4" H

WALL PLENUM

VPAWP1-8, VPAWP1-14

Two-part sleeve that telescopes in and out.
Sits inside the exterior wall penetration.

VPAWP1-8 telescopes from 5 1/2"–8"
VPAWP1-14 telescopes from 8"–14"

DIMENSIONS: 24 1/8" W x 30 3/8" H
CUTOUT DIMENSIONS: 24 5/8" W x 30 7/8" H

Standard safety power

disconnect

Electronic control panel on
unit for easy diagnostics and

servicing

Easy-to-install front, left, or right
hand into closet

Compact and lightweight,

weighs as little as 125 lbs.

SINGLE STAGE THERMOSTAT

RT4

Single stage, wall-mounted digital thermo­stat for control of Friedrich VERT-I-PAK.

vertical single package air conditioners

Specications

MODEL V(E,H)A09K V(E,H)A12K V(E,H)A18K V(E,H)A24K

PERFORMANCE DATA

Cooling Capacity (Btu/h) 9,500 11,8 00 1 7,5 00 24,000/23,500
Max Heating Capacity (Btu/h) 11,6 00 17,000 17,000 34,000
EER 10.8 /10.5 10.8 /10.5 9.3/9.3 9.5/9.5
Cooling SHR 0.74 0.72 0.70 0.70
Heater Size (KW) 2.5/3.4/5.0 2.5/3.4/5.0 2.5/3.4/5.0 3.4/5.0/7. 5/10.0

HEAT PUMP DATA

Heating Capacity (Btu/h) 8,500 10,600 17,000 22,500
COP @ 47˚F 3.0 3.2 3.0 3.0

ELECTRICAL DATA

Voltage (V) 230/208 230/208 230/208 230/208
Power Connection Hard Wire Hard Wire Hard Wire Hard Wire

PHYSICAL DATA

Unit Width (in) 23 1/8 23 1/8 23 1/8 23 1/8
Unit Depth (in) 23 1/8 23 1/8 23 1/8 23 1/8
Unit Height (in) 32 1/4 32 1/4 32 1/4 47 1/4
Shipping Weight (lbs) 125 135 155 220

AIR FLOW DATA

Indoor CFM
Fresh Air CFM 60 60 60 60
Indoor MAX ESP .30 .30 .30 .40

*

300 350 550 750

NOTES:
Cooling Standards:

95°F DB/75°F WB outdoor, 80°F
DB/67°F WB indoor

Heating Standards:

47°F DB/43°F WB outdoor, 70°F
DB/60°F WB indoor

Due to continuing research in
new energy-saving technology,
specifications are subject to
change without notice.

*

Normal Value Wet Coil @ .1" ESP.

5 YEAR WARRANTY

On the sealed refrigeration system.
Limitations apply.

Refer to warranty documentation for details.

Thru-the-wall
Air Conditioners

Residential and
commercial applications.

WallMaster is the most
energy ecient solid-side
air conditioner and is an
exact t for Fedders A and B
sleeves. Uni-Fit is adaptable to
t a variety of sleeve sizes.

WALLMASTER

Packaged Terminal Air Conditioners

Energy ecient and extremely
quiet. NEW remote control
for added convenience.
Programmable electronics
with large LED display that
provides precise temperature
control. Installs thru-the-wall.

See the full line of Friedrich products @ www.friedrich.com

Ductless Split Systems

UNI-FIT

Sleek, absolutely quiet and
incredibly energy ecient, with
SEERs up to 19.0! There’s never
been a better time to upgrade
to ductless air conditioning.
Over 20 wall-mounted system
congurations for up to four
individual zones. Floor and
ceiling models also available.

Portable Air Conditioners

Great for fast back-up or supplemental
cooling. Can be quickly vented through
a window or wall opening. Full display
electronic controls and remote control.

IDEAL FOR: garages, workshops,
uncooled dorm rooms, bedrooms, attic s,
basements and many other locations.

Friedrich Air Conditioning Co. | P.O. Box 1540 | San Antonio, TX 78295-1540 | [phone] | fax [phone] | www.friedrich.com

VERT-I-PAK-08 Printed in USA
