Dimensions
0,9
IHC
160
147
77
169
ø8
Wallbracket
Positioning
35
25,5
17,5
60
11 524
Installation height
1,8–2,5 m
2–3 m
Fig.1: The heaters should heat from at least two
directions for even heating
3

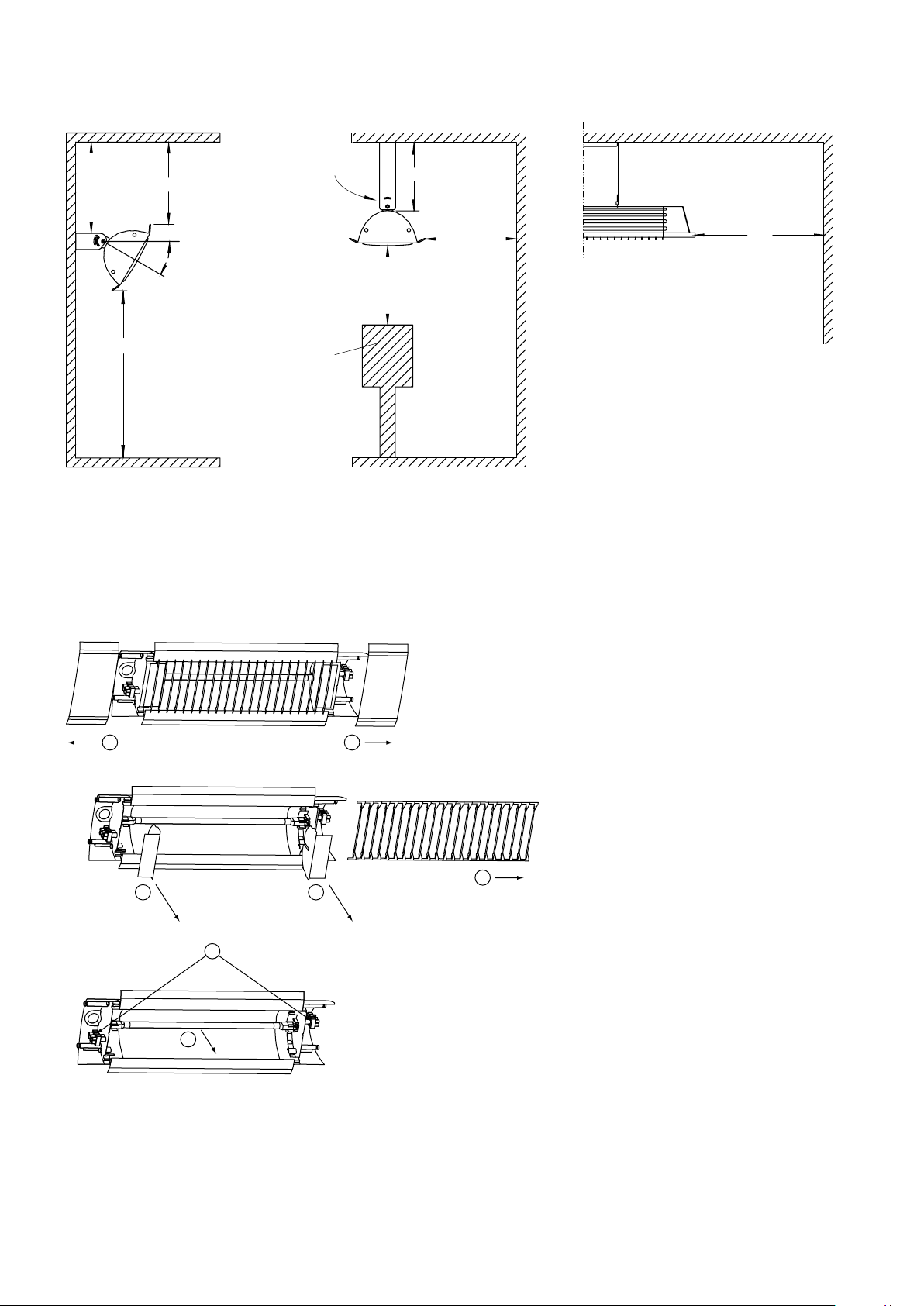

Minimum mounting distance
IHE
ceiling
200
180
bracket
IHC
160
min 30°
1800
Replacing the lamp
Flammable
material
1000
300
500
1
33
4
5
1
2
4

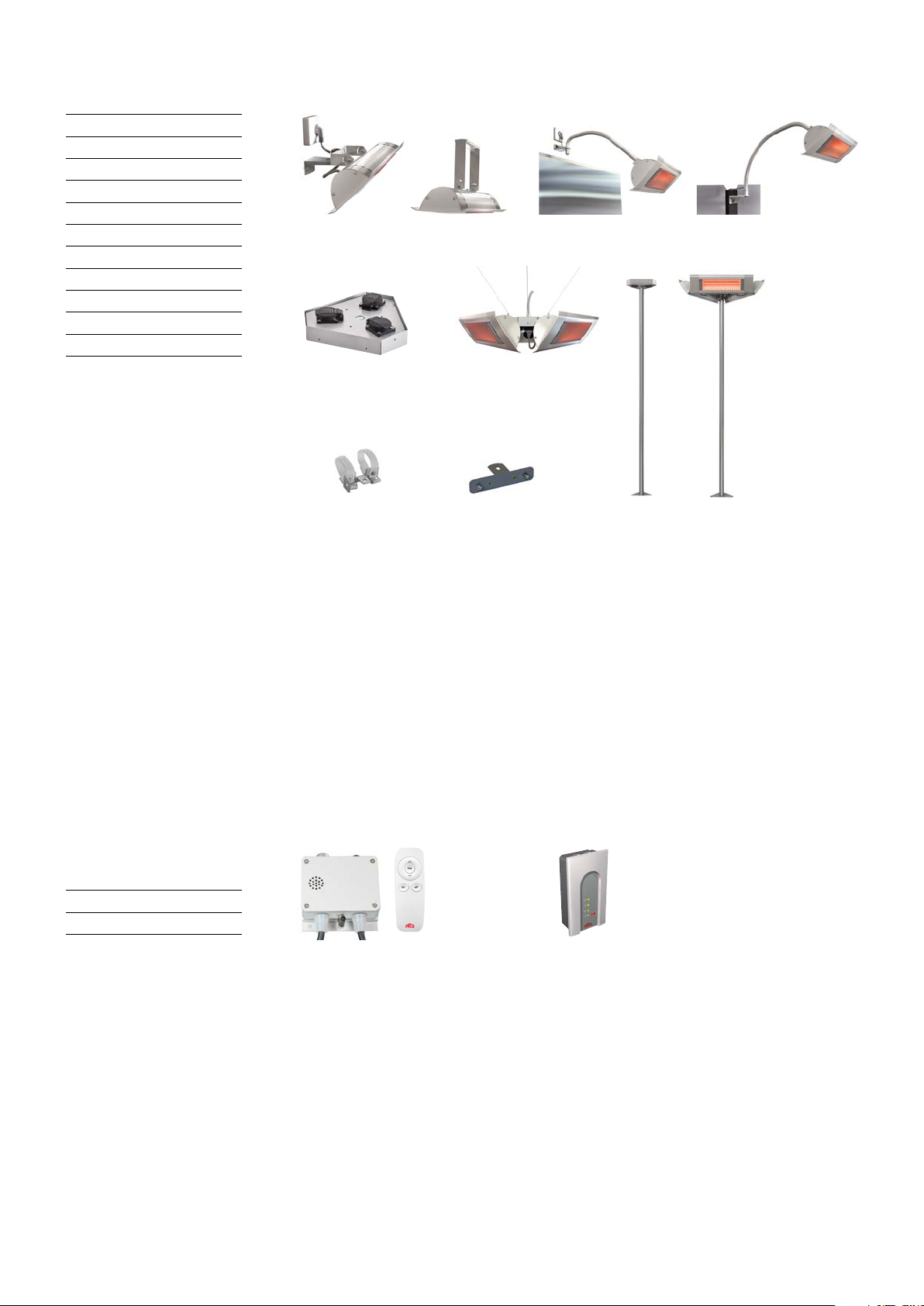

Accessories
11884 IHUB*
18050 IHE
16975 IHXH*
16976 IHXL*
11887 IHT*
16974 IHTW*
16970 IHP*
92865 KLS1KS
93272 IHAF
220648 IHC1200
220649 IHC1800
*) See separate manual.
IHC
IHUB IHXH IHXL
IHT
IHE
IHT+IHTW
Controls
92867 IHBD3*
10740 CBT
*) See separate manual.
KLS1KS
IHBD3
IHAF
IHP IHP+IHT
CBT
5
IHC
CBT
230V~
400V3~
Technical specifications
Carbon infrared heater IHC (IP44)
Item
number
19603 IHC12 11 5 0 230V~ 5,0 1200 500 1,9
19604 IHC18 1750 230V~ 7, 6 1200 676 2,5

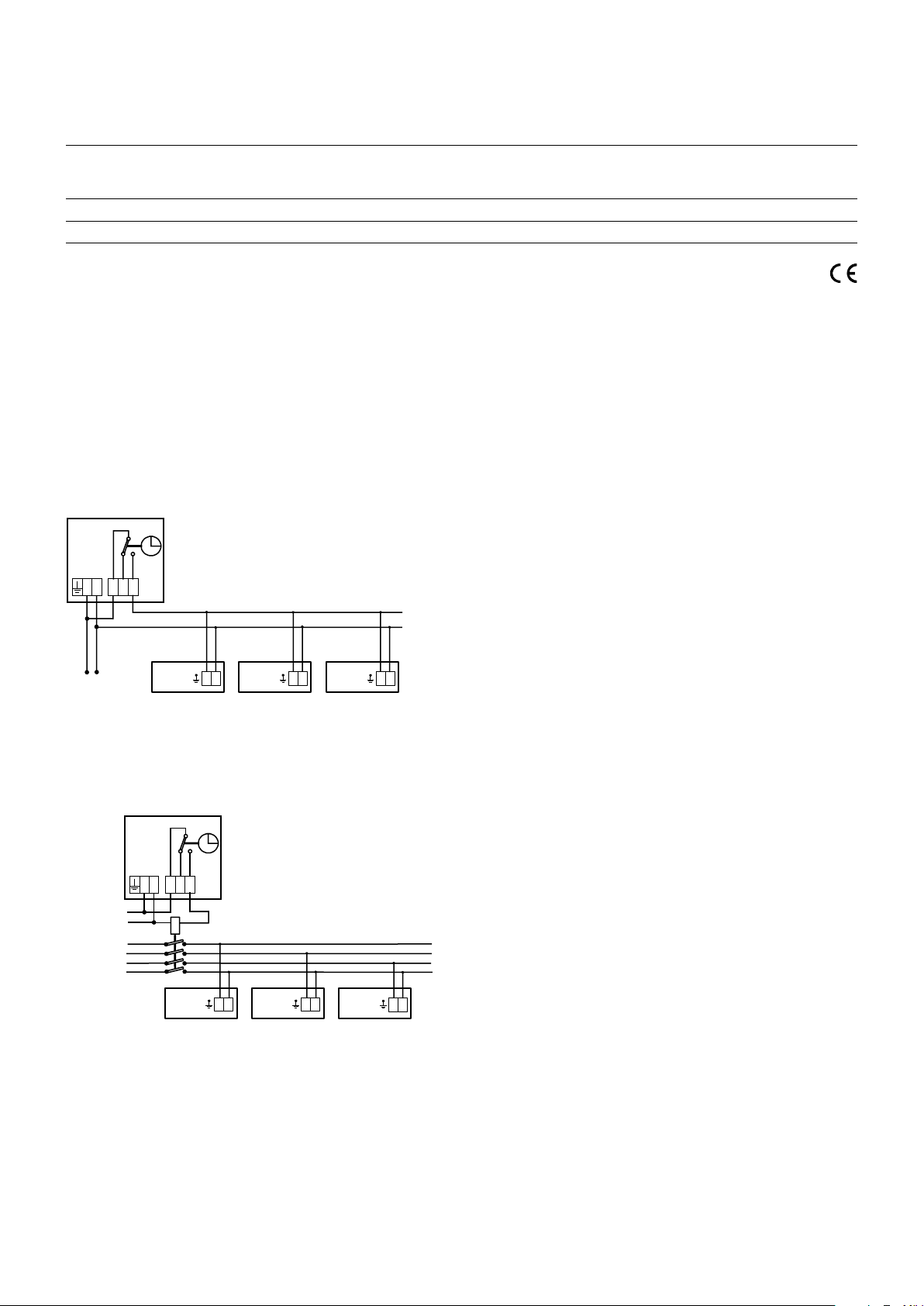

Wiring diagrams
Timer control
Type Heat
output
[W]
Voltage
[V]
Amperage
[A]
Max. filament
temperature
[°C]
Length
[mm]
Weight
[kg]
CBT
123
LN
230V~
IH/IHC
Max load 3500W
IH/IHC
N
L
N
L
Timer control with contactor
123
LN
L
N
L1
L2
L3
N
IH/IHC
IH/IHC
N
L
L
N
IH/IHC
IH/IHC
N
L
N
L
6
IHC
Installation and operating instructions
EN
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application
Carbon infrared heater IHC produces a
gentle and direct heat which together with
the soft glow, is ideal for outdoor restaurants
where design is important. IHC has a heat
distribution best suited for close and slightly
higher installations. Protection class: IP44.
Positioning
The heaters must be placed so that they
cover the area to be heated, see fig. 1. The
normal mounting height is 2–3 metres above
the ground/floor. A rule of thumb for infrared
heaters is that 600–800 W/m² increases the
experienced temperature by about 10 °C. The
output demand can be reduced if the area to
be heated is protected. If the area only has a
roof, at least 800 W/m² should be installed.
600 W/m² is sufficient if the area has three
walls. For enclosed areas, the output demand
must be calculated. Optimum comfort is
achieved if the heat is distributed from at
least two directions.
Mounting
IHC is installed horizontally on walls with
supplied bracket. The heater can be angled
up to 45°. The heater can also be mounted
on e.g. a parasol or a post, a suitable U-bolt
(not included) is used for this together with
the supplied console. For ceiling installation
use ceiling bracket IHE (accessory). For other
mounting alternatives, see accessories.
For minimum distance, see diagrams on
introductory pages.
1. Secure the bracket on the wall with at least
2 screws. If the keyhole slots are used, an
addition screw is needed to fix the bracket.
See the introduction pages.
2. Remove the screws fixed to the unit's back
on delivery.
3. Hook the unit on the bracket.
4. Lock in position with the screws.
Connection
IHC is equipped with a 0.9 metre cord with
plug for connection to an earthed outlet
socket.
The connection cord must not rest against
the unit as the surface becomes hot or can
be hit by thermal radiation. Contact an
electrician if the cord needs to be changed.
Note that due to the high temperatures in the
heater, a cord of the type H05 RN-F 3G1 mm²
or the like should be used.
In the event of uncertainty contact an
electrician.
Start-up
When the unit is used for the first time or
after a long period of disuse, smoke or odour
may result from dust or dirt that has collected
on the element. This is completely normal
and disappears after a short time.
Replacing the lamp
The heat lamp is of the highest quality and
unless it is subjected to mechanical strains in
the form of vibrations and impact it will last for
a long time. The service life is dependent on
the ambient temperature and how the heater
is installed. When the heater is installed freely
and outdoors the temperature will be low and
the life of the lamp can be expected to be in the
region of 3000 hours.
The lamp must be replaced by an installer or
other skilled person.
1. Disconnect the power supply.
2. Wait until the unit is cold.
3. Remove the covers at both ends (four
screws).
4. Pull the grille to one side.
5. Remove both reflector ends (two screws).
6. Loosen the connections on the terminal
block.
7. Pull the lamp out of the lamp holders.
8. Check that the replacement lamp has the
correct output and voltage.
9. Fit the new lamp. Note do not touch the lamp
with your fingers, wear gloves or the like.
7
EN
IHC
10. The protective tube must be refitted to the
cables, so that the cables are not damaged
when the grille is fitted.
11. Reassemble the unit again.
See the introduction pages.
Maintenance
The power supply to the unit must be
disconnected during all service, repair and
maintenance work.
The unit has no moving parts so the
maintenance requirement is small, but it
must be kept clean and free from dust and
dirt. If the reflector is not clean the thermal
radiation from the unit will decrease and the
heater will become hotter. A large amount of
dirt can cause overheating.
The surface of the reflector is sensitive and
must be cleaned with care. If the reflector
is dirty it must be cleaned or replaced by a
specialist.
Residual current circuit breaker
When the installation is protected by means
of a residual current circuit breaker, which
trips when the appliance is connected,
this may be due to moisture in the heating
element. When an appliance containing a
heater element has not been used for a long
period or stored in a damp environment,
moisture can enter the element.
This should not be seen as a fault, but is
simply rectified by connecting the appliance
to the main supply via a socket without a
safety cut-out, so that the moisture can be
eliminated from the element. The drying
time can vary from a few hours to a few days.
As a preventive measure, the unit should
occasionally be run for a short time when it is
not being used for extended periods of time.
Packaging
Packaging materials are chosen with
consideration to environment and are
therefore recyclable.
Handling of product at end of working life
This product may contain substances
necessary for functionality of product but
potentially dangerous for the environment.
The product should not be disposed
mixed with general household waste but
delivered to a designated collection point for
environmental recycling. Please contact local
authority for further details of your nearest
designated collection point.
Safety
• For all installations of electrically heated
products should a residual current circuit
breaker 300 mA for fire protection be used.
• The unit must not be fully or partially
covered as overheating can result in a fire
risk!
• The unit must not be placed directly under
fixed wall sockets!
• The unit must not be used if the unit or the
cord is damaged. Risk of injury!
• The heater is equipped with a protective
grille to prevent contact or to prevent
large objects from touching the hot lamp.
The unit must not be used without this
protective grille.
• The cable and plug must not be placed
inside the hot radiant area.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
• Children of less than 3 years should be kept
away unless continuously supervised.
• Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved.
• Children aged from 3 years and less than 8
years shall not plug in, regulate and clean
the appliance or perform user maintenance.
CAUTION — Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
8
