Page 1
Elektra C
.... 9 .... 11GB .... 13NO
SE
DE .... 22PL
.... 19
IT .... 29ES .... 26NL
.... 32
FR
FI .... 17RU
.... 15
.... 24
Page 2
min 500 mm
min 300 mm
min
300 mm
9
16
50
300/240
445/336
9
28
c-c 350/274
445
375
430
ELC331
380
300
375
ELC623, ELC633, ELC923, ELC933, ELC1533
Elektra C
Fig. 1
Fig. 2
2
Page 3
Elektra C
405/465
390/545
3
10
405/525
425/485
Fig. 3
Fig. 4
Technical specifications
Type Output
[kW]
ELC331 3
ELC623 6
ELC633 6
ELC923 9
ELC933 9
ELC1533 15
1
) Distance to fan: 5 metres.
2
) ∆t = Temperature rise of passing air at maximum heat output.
Output
steps
[kW]
/2/3
0/
/3/6
0/
/3/6
0/
/4.5/9
0/
0/
/4.5/9
0/
/7.5/15
Voltage
[V]
Amperage
[A]
230V~ 9.1/13.5 400 48 21 13
230V3~ 7.8/15.4 1000 55 17 20
400V3~ 4.5/8.9 1000 55 17 20
230V3~ 11.6/22.9 1000 55 25 20
400V3~ 6.7/13.2 1000 55 25 20
400V3~ 11.2/22 1300 62 32 20
Airflow
[m3/h]
Sound
level*1
[dB(A)]
∆t
[°C]
*2
Weight
[kg]
3
Page 4
Elektra C 230V~
ELC331
ELC331
Elektra C
ELSRT
Element/Værmeelement/Element/Elementii/Element/Heizelement/
1
Verwarmingselement
Fläktmotor/Ventilator/Viftemotor/Puhallinmoottori/ Fan motor/
2
Gebläse motor/Moteur de ventilateur/Ventilatornotor
Brytare/Afbryder/Bryter/Katkaisin/Switch/Schalter/Interrupteur/
3
Schakelaar
Termostat/Termostat/Termostat/Termostaatti/Thermostat/Thermost/Thermostat/
4
Thermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
5
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
6
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Effektmotstånd/Effektmodstand/Effektmotstand/Vastus/Power resistor/Heiz Element/
7
Résistance Chutrice/Vermogensweestand
4

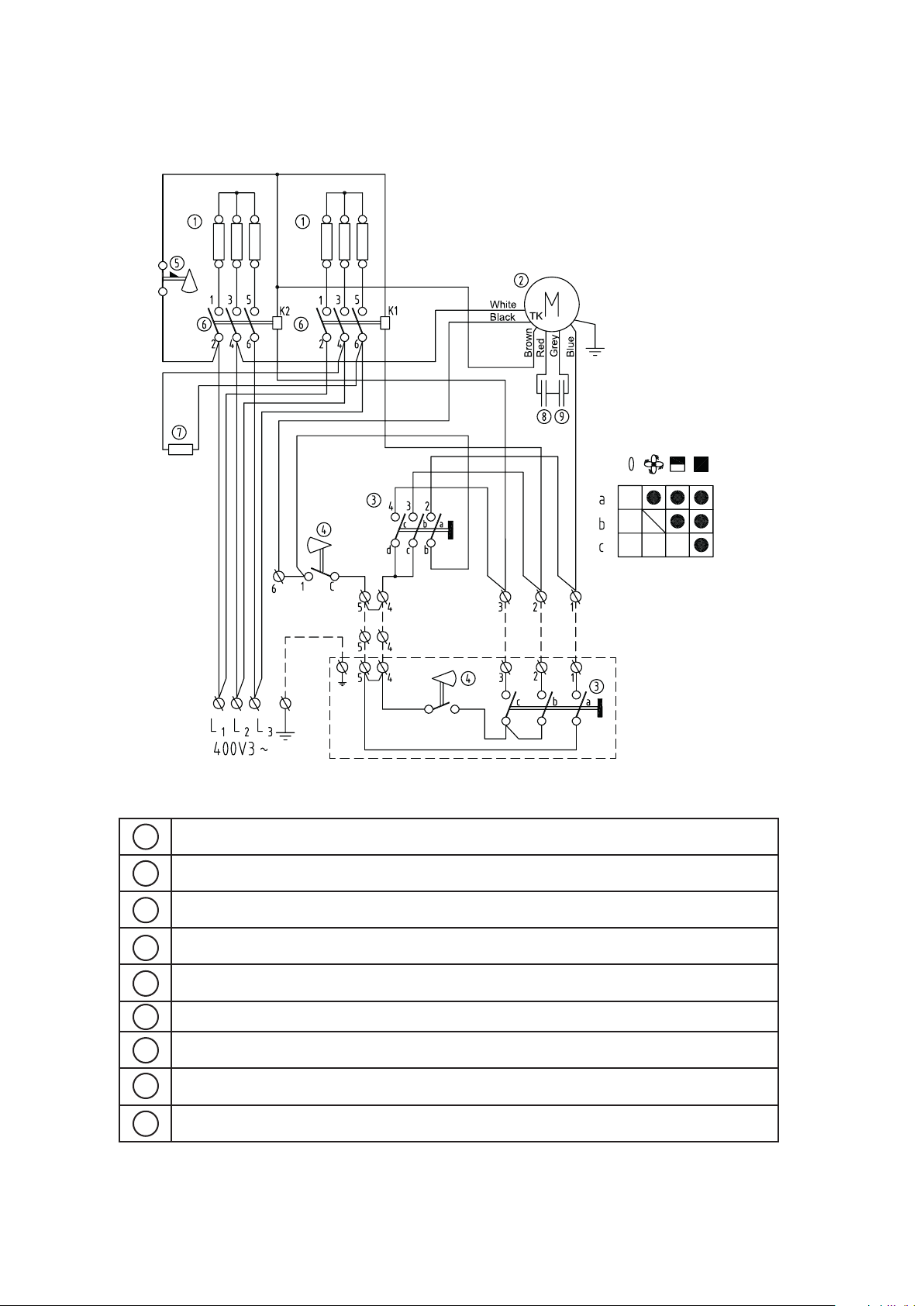

Page 5
Elektra C 400V3~
ELC633, ELC933
ELC633, ELC933
Elektra C
Element/Værmeelement/Element/Elementii/Element/Heizelement/
1
Verwarmingselement
Fläktmotor/Ventilator/Viftemotor/Puhallinmoottori/ Fan motor/
2
Gebläse motor/Moteur de ventilateur/Ventilatornotor
Brytare/Afbryder/Bryter/Katkaisin/Switch/Schalter/Interrupteur/
3
Schakelaar
Termostat/Termostat/Termostat/Termostaatti/Thermostat/Thermost/Thermostat/
4
Thermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
5
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Kontaktor/Kontaktor/Kontaktor/Kontaktori/Contactor/Schutz/Contacteur/Relais
6
Effektmotstånd/Effektmodstand/Effektmotstand/Vastus/Power resistor/Heiz Element/
7
Résistance Chutrice/Vermogensweestand
Kondensator/Kondensator/Kondensator/Kondensaattori/Capacitor/Kondensator/
8
Condensator 3µF
Kondensator/Kondensator/Kondensator/Kondensaattori/Capacitor/Kondensator/
9
Condensator 4µF
ELSRT
5

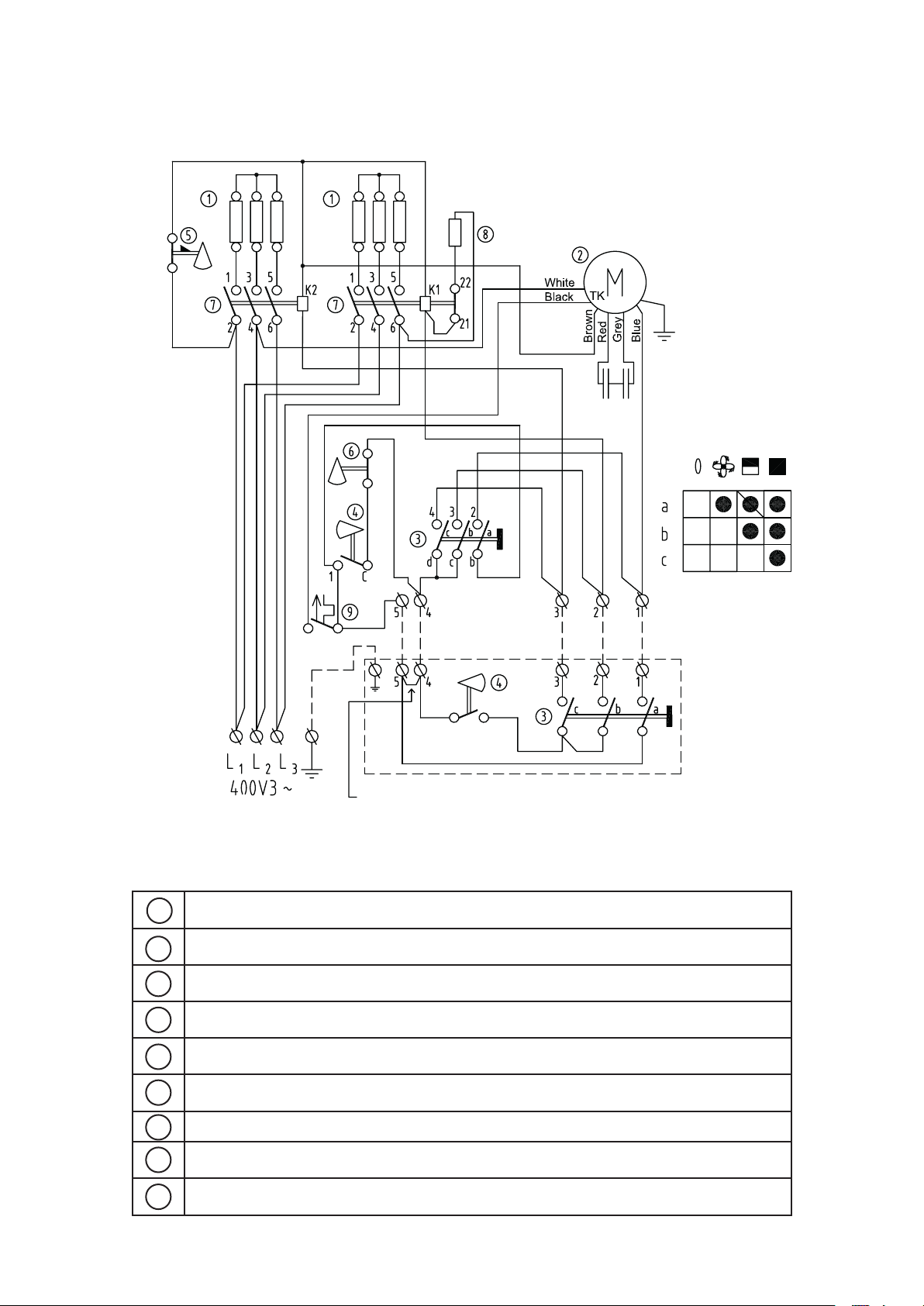

Page 6
Elektra C 400V3~
ELC1533
ELC1533
Elektra C
ELSRT
Remove the bridge*
* Ta bort bygel. / Fjern klemmen. / Poista siltaus. / Die Überbrückung entfernen. / Retirer le shunt. / Retire el
puente. / Verwijder de brug. / Удалите перемычку. / Usuń zworkę.
Element/Værmeelement/Element/Elementii/Element/Heizelement/
1
Verwarmingselement
Fläktmotor/Ventilator/Viftemotor/Puhallinmoottori/ Fan motor/
2
Gebläse motor/Moteur de ventilateur/Ventilatornotor
Brytare/Afbryder/Bryter/Katkaisin/Switch/Schalter/Interrupteur/
3
Schakelaar
Termostat/Termostat/Termostat/Termostaatti/Thermostat/Thermost/Thermostat/
4
Thermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
5
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
6
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Kontaktor/Kontaktor/Kontaktor/Kontaktori/Contactor/Schutz/Contacteur/Relais
7
Effektmotstånd/Effektmodstand/Effektmotstand/Vastus/Power resistor/Heiz Element/
8
Résistance Chutrice/Vermogensweestand
Dvärgbrytare/Automatsikring/Automatsikring/Sulakeautomatttti/Miniature circuit breaker/
9
Leitungsschutzschalter/Coupe-circuit miniature/Miniatuuronderbreker
6

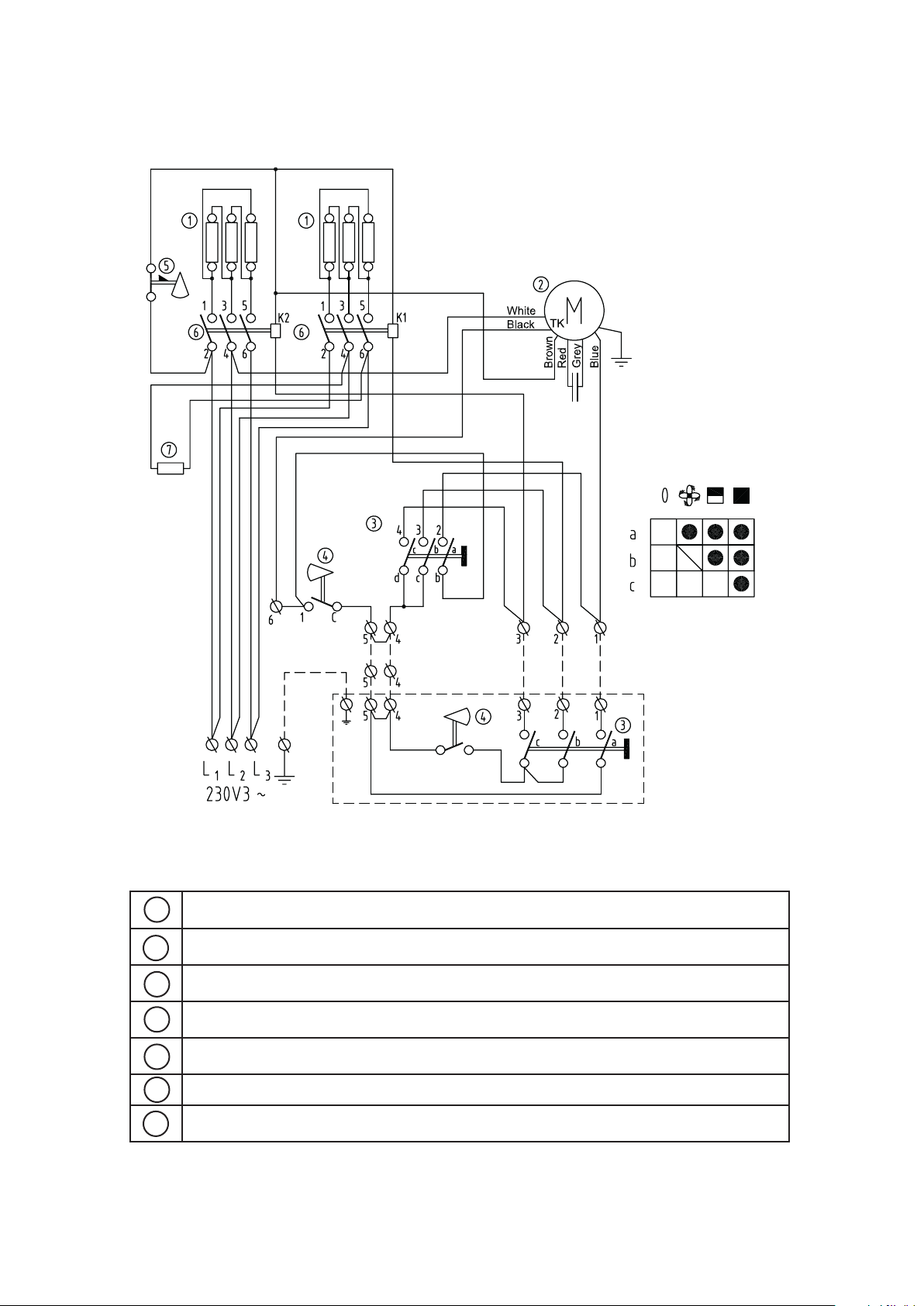

Page 7
Elektra C 230V3~
ELC623, ELC923
ELC623, ELC923
Elektra C
ELSRT
Element/Værmeelement/Element/Elementii/Element/Heizelement/
1
Verwarmingselement
Fläktmotor/Ventilator/Viftemotor/Puhallinmoottori/ Fan motor/
2
Gebläse motor/Moteur de ventilateur/Ventilatornotor
Brytare/Afbryder/Bryter/Katkaisin/Switch/Schalter/Interrupteur/
3
Schakelaar
Termostat/Termostat/Termostat/Termostaatti/Thermostat/Thermost/Thermostat/
4
Thermostaat
Överhettningsskydd/Overophedningsbeskytter/Overhetingsvern/Ylikuumenemissuoja/
5
Overheating cut-out/Überhitzungschutz/Protection contre la surchauffe/ Oververhittningsthermostaat
Kontaktor/Kontaktor/Kontaktor/Kontaktori/Contactor/Schutz/Contacteur/Relais
6
Effektmotstånd/Effektmodstand/Effektmotstand/Vastus/Power resistor/Heiz Element/
7
Résistance Chutrice/Vermogensweestand
7

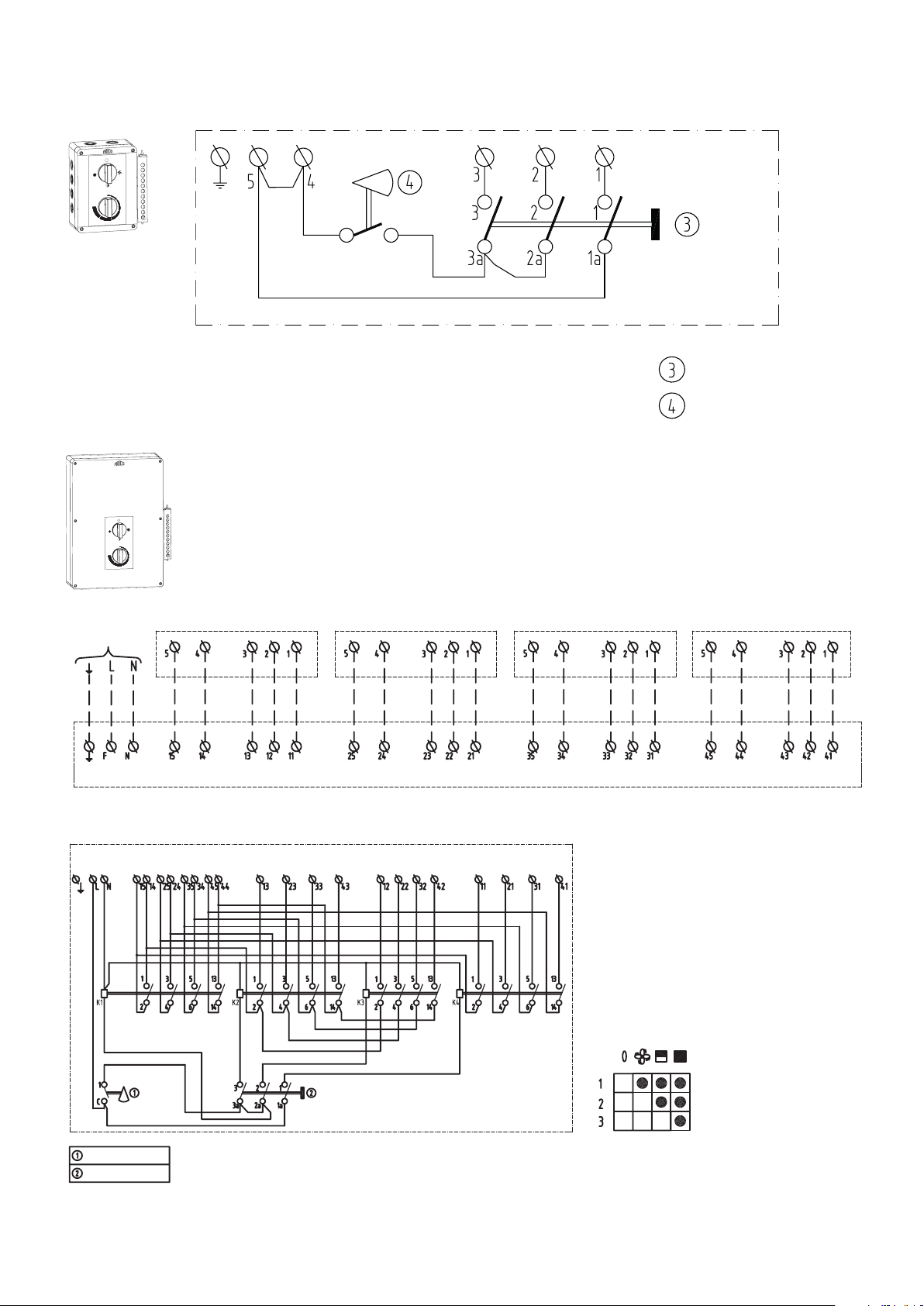

Page 8
ELSRT
Switch
Thermostat
ELC/V 3-9 kW ELC/V 3-9 kW
ELC/V 3-9 kW
ELC/V 3-9 kW
ELSRT4
Elektra C
ELSRT
Switch
Thermostat
230V~
ELSRT4
ELSRT4
Thermostat
Switch
8
Page 9
Elektra C
Mounting and assembly instruction
GB
Application area
The fan heater is approved for damp and
wet conditions and can be used in corrosive
environments, like car washes and other tough
conditions. For both fixed installation and
portable use.
The fan heater should be installed for easy
maintenance and inspection. For portable use,
mount a suitable terminal with appropriate
protection class. The fan heater is tested and
approved according to the EMC- and SEMKO
regulations and is CE compliant.
Protection class: IP65.
The casing is made of acid resistant stainless
steel SS2348, heating rods in stainless steel
SS2320, brackets and front grille in powder coated
stainless steel.
Operation
The fan is running constantly unless the output
selector is set in 0 position. The heat output is
controlled by the built in thermostat (0 – 35°C) or
with an external thermostat (KRT1900).
The on/off mode, and half or full heat output
can be controlled with the output selector on the
unit or with an external control panel (ELSRT/
ELSRT4) mounted on the wall for easy access.
External control box or thermostat are ordered
separately.
Off
Only fan
Fan + half output
Fan + full output
Mounting
Elektra C can be mounted permanently on the
wall or be used as a portable fan heater.
Wall mounting
The fan heater must not be placed immediately or
directly below or in front of a wall socket. Remove
the plastic feet on the brackets.
1. Drill four holes in the wall with a c-c distance
according to fig. 2 on page 2. Fit the screws in
the upper two holes.
2. Attach the brackets on to the fan heater
according to fig. 3 on page 3 with three screws
on each side.
3. Hang the heater by using the keyholes in the
bracket and lock with the two lower screws.
Note! The minimum distances according to fig. 1
on page 2.
Portable use
Mount the enclosed brackets according fig. 4 on
page 3.
Electrical installation
The electrical installation should be carried out
by a qualified electrician in conformity with
prevailing regulations. The appliance should be
preceded by an omnipolar switch with at least
3 mm breaking gap.
Use the knock-outs on the back of the appliance
for installation of the external devices. Cableglands used must guarantee the protection class
requirements.
Overheating
Note! Opening the heater cover should only be
done by a qualified installer.
The heater is equipped with an overheat
protection with manual reset. If it is released due
to overheating, reset as follows:
• Disconnect the power supply with the omnipolar
switch.
• Investigate the matter and repair the fault.
• Reset cut-out by opening the lid and pressing
the red button until a click is heard.
• Put on the lid and make sure that the
screws are tightened to ensure full protection.
If the fault continues, please contact a qualified
technician.
Care and maintenance
Elektra C should only be switched off using
the output selector on the unit or the external
control panel ELSRT/ELSRT4. A heating element
is placed inside the junction box and prevents
dampness even when the appliance is switched
off. See wiring diagrams, component 7.
Note! Opening the heater cover should only be
done by a qualified installer. Always disconnect
the power supply before opening the cover or
doing any maintenance work.
The appliance should be cleaned regularly both
inside and outside, to prevent overheating and
risk of fire but also to guarantee long life of the
heater.
Note! To keep the protection class it is very
important to tighten the screws properly when
the lid is put back again after installation or
maintenance. When the screw has reached the
rubber gasket, continue another 2 1/2 turns.
11
Page 10
GB
Elektra C
Packaging
Packaging materials are chosen with consideration
to environment and are therefore recyclable.
Handling of product at end of working life
Tthis product may contain substances necessary
for functionality of product but potentially
dangerous for the environment. The product
should not be disposed mixed with general
household waste but delivered to a designated
collection point for environmental recycling.
Please contact local authority for further details of
your nearest designated collection point.
Safety instructions
Incorrect installation and/or incorrect usage of the
fan heater can be hazardous.
Warning!
• Always disconnect the fan heater berfore
opening the cover or doing any electrical
work.
• Incorrect installation can lead to personal
injury.
• Opening the heater cover etc should only be
done by a qualified installer
• This fan heater must not be used next to a
shower, bath or swimming pool.
• Place the fan heater away from flammable
materials
• Ensure that the area around the intake and
exhaust grille is kept free from material
which could obstruct the air flow through
the unit!
• The unit must not be covered fully or
partially with clothes, or similar materials,
as overheating can result in a fire risk!
• The fan heater is fitted with a cable that, in
the event of damage, must be changed by a
qualified installer.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
• Children of less than 3 years should be kept
away unless continuously supervised.
• Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved.
• Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
CAUTION — Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
Important!
When using the heater as a portable, the brackets
must be turned in order to use them as a
floor stand (see fig 4 on page 3).
The guarantee is only valid if the units are used in
the manner intended by the manufacturer and in
accordance with the installation and maintenance
instructions.
Accessories
For fixed installation the heater can be controlled
by an external control panel with a built in
thermostat 0 – +35°C. It is also possible to use
only an external thermostat to control the heat
outputThe ELSRT can only control one unit. For
parallel connection of up to 4 units the ELSRT4
can be used. When ELSRT is being used, the builtin thermostat must be set to max and the output
selector on the unit to Off
See table below.
.
Type Description HxWxD
[mm]
ELSRT Control panel and thermostat, controls one fan heater, IP65 175x150x100
ELSRT4 Control panel and thermostat (not ELC1533), controls 4 fan heaters, IP65 255x360x110
12
Page 11
Main offi ce
Frico AB Tel: +46 31 336 86 00
Industrivägen 41
SE-433 61 Sävedalen [email protected]
Sweden www.frico.net
For latest updated information and information
about your local contact: www.frico.net.
2020-02-13 HH/CH
Loading...
