Original instructions
Page 2
Fig. 1
Minimum distance in a permanent assembly
C
10°
A
B
A
[mm]B [mm]C [mm]
C3 335 255 276
C5 335 255 276
C9 405 315 335
min 1,8 m
min
300 mm
min 30
0 mm
104 104
Ø7
94
94
C3 - C5
127 127
Ø7
121
121
C9
C3 - C5
C9
295 170
400
295295
Ø6.5
200
135
165
195
160
195
Fig 2. Mixing cabinet (accessory)
2
CAT
Page 3
CBTTK10ST10S EV300
CBT
1h
2
1
2h
4h
20
25
30
15
10
5
CMB35 + Cat
Ty p E-nr
(SE)
RSK-nr
(SE)
EL-nr
(NO)
NRF-nr
(NO)
HxBxD
[mm]
T10S 85 809 33 672 84 99 54 911 12 85 024 49 80x80x31
TK10S 85 809 34 672 85 00 54 911 13 85 024 51 80x80x31
EV300 87 513 93 54 910 57 100x80x90
CBT 87 511 87 54 312 02 85 021 79 155x87x43
CMB35 87 112 20 49 306 10 400x295x170
TP3/5 49 306 90
TP9 49 306 10
Accessories
3
CAT
Page 4
Technical data
Type E-nr (SE) EL-nr (NO) Output
steps
[kW]
Airflow
[m³/h]
Sound
level
*1
[dB(A)]
∆t*
2
[°C]
Voltage
[V]
Amperage
[A]
HxWxD
[mm]
Weight
[kg]
C3 87 111 03 49 306 13 0/1.5/3 280 41 32 230V~/400V3N~*
3
13.2/4.4 255x335x276 6.3
C5 87 111 05 49 306 15 0/2.5/5 480 40 31 400V3N~ 7. 3 255x335x276 6.7
C9 87 111 09 49 306 19 0/4.5/9 720 44 37 400V3N~ 13.1 315x405x335 10.2
*
1
) Conditions: Distance to the unit: 3 metres. Directional factor: 2. Equivalent absorption area: 200 m2.
*
2
) ∆t = temperature rise of passing air at maximum heat output.
*
3
) C3 can be connected for 230V~ and 400V3N~. Other models should not be connected for single phase, 230V~.
Protection class Cat: (IP44), splash-proof design.
CE compliant.
°C
2
1
M
~
°C
2
1
NLLL
123
654321789
°C
230V3~/400V3N~
400V3N~
230V3~
230V~
N
LLL
123
LN
3kW
657
89
31
89
CAT 3 / 5 / 9 kW 230V3~/400V 3N~
CBT EV300
15
62
N
LLL
123
LN
4
2
44
2
7
6
A/B
>t°C
Sensor
Sen-
sor
4
3
7
T10S/TK10S
4
CAT
Page 5
°C
°C
°C
CAT
7
GB
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application area
Cat is a range of compact and quiet fan
heaters for stationary use. It is ideally suited
for small stockrooms, in a garage, workshop
or shop.
The mixing cabinet (accessory) allows heating
and ventilation to be combined, through
mixing the return air and outdoor air.
Protection class: IP44
Electrical Installation
The installation should be permanent
and carried out by a qualified technician
according to applicable directives. The
installation should be preceded by a fully
isolating switch with at least a 3 mm gap and
preferably fitted with a status lamp.
The Cat fan heater is intended for permanent
installation. The knockouts at the rear of the
unit are used to connect accessories. C3 can
also be connected to single phase (230V~).
On the back of the appliance there are knockouts. Cable-glands used must guarantee the
protection class requirements!
The heaters can be connected for either
230V3~ and 400V3N~. Note! Other
models cannot be connected for single phase.
Start-up (E)
When the unit is used for the first time or
after a long period of disuse, smoke or odour
may result from dust or dirt that has collected
on the element. This is completely normal
and disappears after a short time.
Assembly
The Cat fan heater is mounted on a wall and
has a fixed tilt angle, 10° downwards, which
gives balanced and good heat distribution
• Note that the minimum distances as sat out
in the figure on page 2 must be maintained.
• The unit must be installed with the
connection area to the left, as seen from the
front.
• Mark out and drill the holes for the screws
as set out in the diagram on page 2.
• Screw in the screws for the keyholes so that
approximately 10 mm remains.
• Hang-up the unit and tighten the screws.
• Screw in the last screw.
Installation with mixing cabinet
Mixing cabinet CMB35 fits C3 and C5. The
mixing cabinet is available as an accessory
and consists of an outer wall grille, a wallingin frame and a hand controller. The wallingin frame and outer wall grille are built or
screwed to the wall. The mixing cabinet and
the unit are then fitted. See diagram 2. The
control lever consists of a fixture arm, a wall
fixture, a ball and two adherent joints. A pullrod is used between the joints (not included).
Function

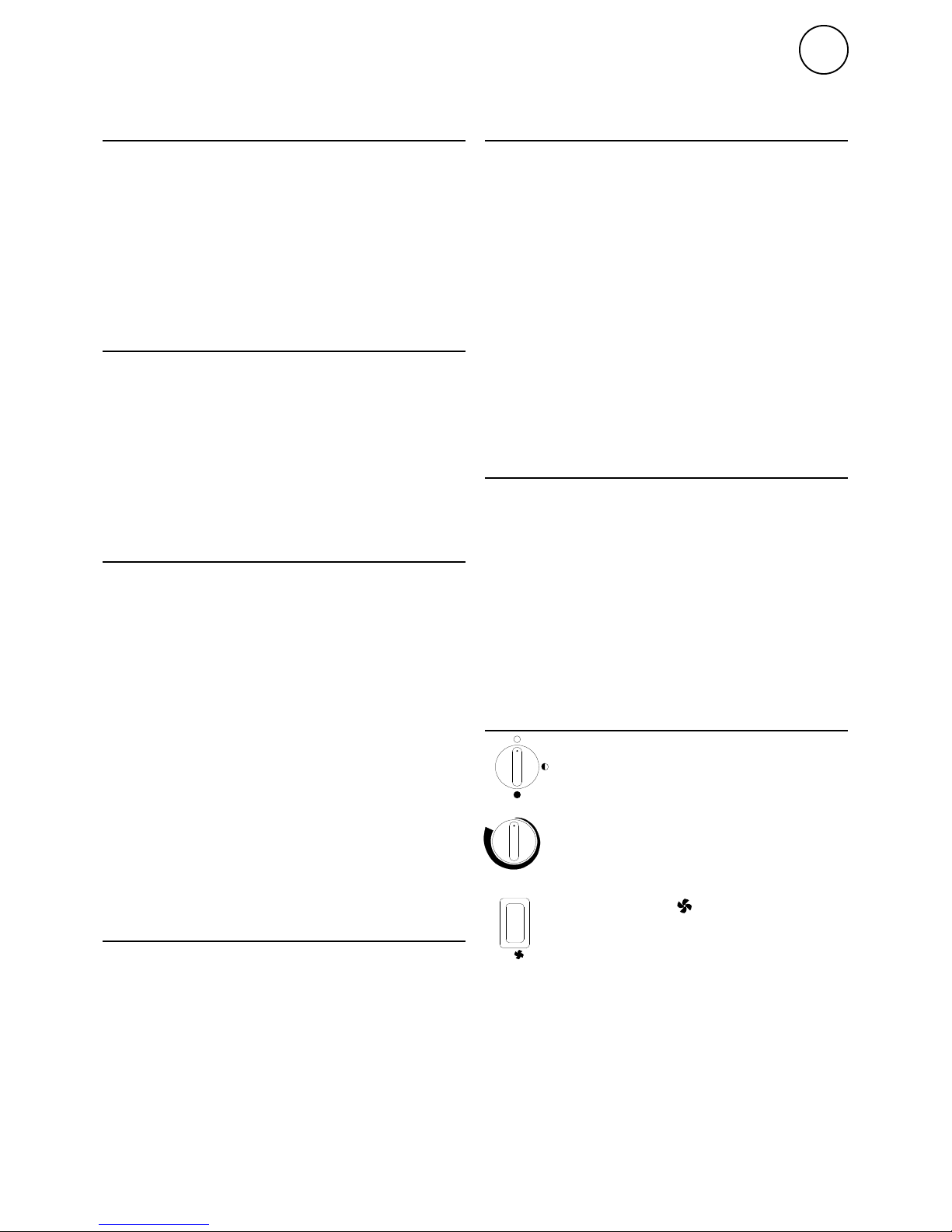

Position of the output selector, see
Technical data.
Toggle switch in position °C means
the thermostat only controls the output,
the fan runs continuously.
In position °C the fan is controlled by
a special thermostat, which only switches
on the fan when the heat is on.
It is possible that the temperature limiter
may have tripped during transport, if the unit
does not function the first time it’s switched
on. Rectify as set out in the description under
“Overheating”. (Fig. 1)
Assembly and operating instructions
Page 6
CAT
8
GB
Overheating
If the unit overheats the integrated
temperature limiter will trip. Reset the
temperature limiter after the unit has cooled
and the fault rectified. (Fig. 1)
NOTE! All work inside the unit’s connection
area should be carried out by an authorized
technical and the unit must be dead.
The temperature limiter is reset by
removing the cover and pressing the button
on the temperature limiter. (Fig. 1)
Care
The heater fans do not normally need any
maintenance Nevertheless, dirt and dust can
cause overheating and represent a fire risk.
Accordingly, the unit should be cleaned
regularly.
Residual current circuit breaker (E)
When the installation is protected by
means of a residual current circuit breaker,
which trips when the appliance is connected,
this may be due to moisture in the heating
element. When an appliance containing a
heater element has not been used for a long
period or stored in a damp environment,
moisture can enter the element.
This should not be seen as a fault, but is
simply rectified by connecting the appliance
to the mains supply via a socket without a
safety cut-out, so that the moisture can be
eliminated from the element. The drying
time can vary from a few hours to a few days.
As a preventive measure, the unit should
occasionally be run for a short time when it is
not being used for extended periods of time.
Safety
• For all installations of electrically heated
products should a residual current circuit
breaker 300 mA for fire protection be used.
• The unit has hot surfaces when running!
• The unit must not be positioned so that
inflammable material can ignite!
• The unit must not be covered fully or
partially with clothes or similar material,
as overheating can result in a fire risk!
• The unit must not be placed directly under
fixed wall sockets!
• This appliance is not intended for use by
persons (including children) with reduced
physical or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
Page 7
Page 8
Page 9
Page 10
