FRIAMAT BASIC ECO

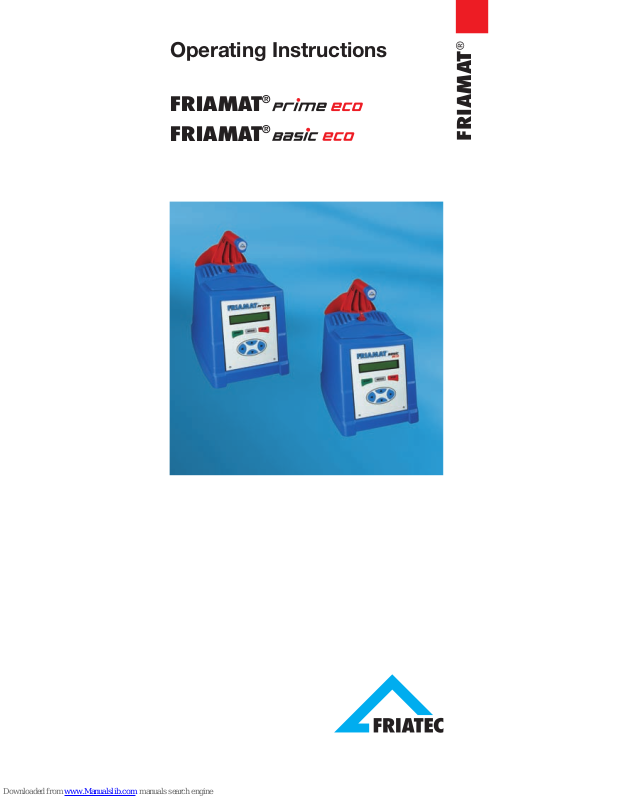

FRIATEC FRIAMAT PRIME ECO, FRIAMAT BASIC ECO Operating Instructions Manual

Download
Operating Instructions
FRIAMAT
®
FRIAMAT
®
FRIAMAT
®
1.1 Dangers 4
1.2 Safety hints and tips 4
1.3 Designated equipment use 5
1.4 Sources of danger 6
1.5 Authorised users 6
1.6 Dangers from electric power 6
1.7 Emissions 8
1.8 Safety precautions on site 8
1.9 Signal equipment 8
1.10 Emergencies 8
2. Basic Data 8
2.1 Design/parts 8
2.2 Operating principle 9
2.3 Technical data 10
2.4 Transport/storage/dispatch 12
2.5 Setting up/connecting 12
2.6 Operating 12
3. Basic “Fusion” Procedure 13
3.1 Preparation 13
3.2 Enter barcode 14
3.3 Starting fusion process 15
4. FRIAMAT
®
basic eco 16
4.1 Description of function buttons 16
4.2 Menu Layout 17
4.3 Menu “Basic settings” 17
4.4 Menu “Info” 18
4.5 Menu “Emergency input” 18
5. FRIAMAT
®
prime eco 19
5.1 Description of function buttons 19
5.2 Menu Layout 20
5.3 Menu “Basic settings” 22
5.3.1 Documentation 22
5.3.2 Time 22
5.3.3 Date 22
5.3.4 Language 22
5.3.5 Volume 23
5.4 Menu “Fusion sequence” 23
5.4.1 Commission number 23
5.4.2 Operator pass 24
5.4.3 Info text 25
2
5.4.4 Comment 1 25
5.4.5 Comment 2 25
5.4.6 Subcontractor 25
5.4.7 Traceability 25
5.4.8 Pipe number 25
5.4.9 Pipe length 25
5.4.10 GPS data 26
5.4.11 Seam number 26
5.4.12 Scraper tool 26
5.5 Menu „Data“ 26
5.5.1 Transfer 26
5.5.2 Delete 27
5.6 Menu “Info” 28
5.7 Menu “Emergency input” 28
5.8 Menu “Formatting” 29
5.9 Fusion Options 29
5.9.1 ID Data 29
5.9.1.1 Commission number 30
5.9.1.2 Operator pass 30
5.9.1.3 Continuous number and Seam number 31
5.9.1.4 GPS 1 - 3 31
5.9.2 Traceability barcodes/ Pipe number/Pipe length 31
5.9.3 Info text, Comment 1, Comment 2, Subcontractor 33
5.9.4 Scraper tool 33
6. Warranty/Maintenance/ Taking out of service 34
6.1 Warranty 34
6.2 Service and maintenance 34
6.3 Taking out of service 34
7. Operating faults 35
7.1 Errors when reading in the barcode 35
7.2 Overheating 35
7.3 Fusion interruption 35
7.4 Error messages/
Warning messages/Info 35
8.1 Recommended accessories 39
8.2 Authorised service stations 40
8.3 Operating instructions updates 40
3
4
1. Safety
1.1 Dangers
FRIAMAT
®
fusion units have been designed using state of the art technology and are designed accor­ding to recognised safety regulations and fitted with appropriate protective equipment. In addition FRIAMAT
®
fusion units have been submitted to extensive tests in line with the German law for equipment safety. Functionality and safety of FRIAMAT
®
fusion units are tested before they are supplied to the customer. However, incorrect use or abuse of the equipment will lead to dangers with regard to:
- the health of the user,
- your FRIAMAT
®
-model or other material goods of
the operator,
- the efficient operation of your FRIAMAT
®
-model.
Everybody involved with operating, servicing and maintaining your FRIAMAT
®
-model must:
-be qualified accordingly, and
- carefully observe these instructions.
This is about YOUR safety!
1.2 Safety hints and tips
DANGER!
Warns of impending danger!
Non-compliance with this instruction can result in severe material damage or personal injury.
W
ARNING!
Warns of a dangerous situation!
Non-compliance with this instruction can result in moderate material damage or personal injury.
5
IMPOR
TANT!
Indicates user advice and other useful informa­tion.
1.3 Designated equipment use
FRIAMAT
®
fusion units serve exclusively for the
fusion of
- FRIALEN
®
-safety fittings with HDPE pressure
pipes (SDR 17-7), and
- FRIAFIT®-sewage fittings with HDPE sewage pipes (SDR17-32).
Your FRIAMAT
®
-model can also be used to process fittings by other manufactures as long as these are provided by the manufacturer with a barcode 2/5 interleaved according to ANSI HM 10.8M-1983 and to ISO CD 13950/08.94.
The designated use also includes observation of:
- all the advice in these operating instructions, as
well as
- the guidelines by DVGW Standards, DVS, UVV
and local directives.
IMPOR
TANT!
Any other use is not in line with designated use!
FRIATEC AG does not accept liability for damage caused by adverse use:
- Modifications and alterations are not permitted
for safety reasons.
- FRIAMAT
®
fusion units may be opened only by
electrical specialists.
- When carrying out fusions using FRIAMAT
®
fusion units with broken lead seals will result in all claims for warranty and liability being null and void.
Examples of adverse use:
- Use as battery charger.
- Use as power supply for heaters of any type.
6
1.4 Sources of danger
- Replace damaged mains connection cables and extension cables immediately.
- Do not remove or disable safety devices.
- Rectify known faults immediately.
- Do not leave your FRIAMAT
®
-model unattended.
- Keep away from flammable liquids/gases.
- Do not operate in EX environment.
1.5 Authorised users
Only trained personnel may work using your FRIAMAT
®
-model. The user is responsible for third
parties in the work area. The user must:
- Make accessible the operating instructions to the operator and
- Ensure that he or she has read and understood them.
1.6 Dangers from electric power
- Do not use any damaged connecting cables.
- Check connection cable for any damage.
- Pull out the plug prior to any maintenance or service tasks.
- Allow any service and repairs to be carried out only at authorised service stations.
- Connect fusion units of the FRIAMAT
®
range only
to supply voltage as given on type plate.
DANGER!
Distribution points on the construction site: observe regulation on Fi-circuit breakers!
Outdoors (on construction sites) receptacles must be fitted with fault current Fi-circuit breakers. When using generators, the DVGW worksheet GW308 and the VDE 0100 Part 728 need to be observed. The required generator nominal output depends on the output required by the largest fitting to be used, on connection conditions, ambient conditions and the actual generator type (its control characteristics). As the generators from different model ranges often
7
When in doubt (e.g. when purchasing brand new) contact an authorised service station or call the FRIATEC service hotline +49 (0) 621 486 1533.
Only use generators working with frequencies within the 44-66 Hz range.
Start up the generator and leave it running for half a minute. If necessary adjust off-load voltage and limit to voltage indicated by the technical data. Genera­tor (power) safety fuse at least 16 A (slow acting).
W
ARNING!
Check input voltage of your FRIAMAT®-model before starting the fusion process. Your FRIAMAT
®
-model has been designed for input
voltage of 190-250 volt.
When using an extension cable, please ensure sufficient cross section:
- 2.5 mm
2
up to 50 m
-4 mm2up to 100 m length.
DANGER!
Danger to life! Never open your FRIAMAT®-model whilst connected to power supply! FRIAMAT
®
fusion units may be opened only by specialist personnel at an authorised service station! Re­placement of damaged mains connection must be carried out by authorised service station only.
8
1.7 Emissions
The (equivalent) continuous sound pressure level of all FRIAMAT
®
fusion units is less than 70 db(A). When working in a quiet environment, the signal when set to “loud” comes across as very loud. For this reason it is possible to adjust the signal (loud/quiet).
1.8 Safety precautions on site
W
ARNING!
FRIAMAT®fusion units are splash water proofed. They may however not be immersed in water.
1.9 Signal equipment
FRIAMAT
®
fusion units confirm certain operating procedures using a signal (1, 2, 3 or 5 signal sounds). The signals signify the following:
1 signal: reading in of barcode confirmed. 2 signals: fusion process completed. 3 signals: supply voltage too low / too high. 5 signals: warning: error, refer to display!
1.10 Emergencies
In case of an emergency switch off main switch immediately to the “OFF” position and disconnect your FRIAMAT
®
-model from the power supply.
FRIAMAT
®
fusion units can be shut off by:
- activation of main switch or pulling out the power
supply plug.
2. Basic Data
2.1 Design/parts
All electronic parts of your FRIAMAT
®
-model are kept in a splash water proofed casing. A receptacle for the fusion and mains cable is situated at the back. At the top there is an accessory box; at the right side is the interface box.
FRIAMAT
®
fusion units are designed for a maximum fusion voltage of 48 V. A safety transformer sepa­rates supply and fusion voltage.
9
2.2 Operating principle
Only electrical fusion fittings with a barcode can be fused using FRIAMAT
®
fusion units: a sticker with a barcode is allocated to each fitting. It contains information for the correct fusion process. Your FRIAMAT
®
-model boasts a PC supported command
system which:
- controls and adjusts energy supply fully auto-
matically, and
- determines the length of the fusion process,
taking into account ambient temperature. The temperature sensor inside the fusion cable continuously measures the ambient temperature.
W
ARNING!
The temperature sensor for determining the ambient temperature is attached to the fusion cable at the reader wand cable near the reader wand pouch (silver metal sleeve). As the deter­mination of the ambient temperature in the fusion zone is part of a correct fusion process, the temperature sensor must be protected from damage at all cost. In addition you need to make sure that both the temperature sensor as well as the fitting to be fused are exposed to identical ambient temperatures, i.e. processing situations where e.g. the temperature sensor is exposed to bright sunlight and the fitting is in the shade must
be avoided.
10
Input voltage range
Frequency range
Current consumption
Output
Safety fuse
Casing
Connection cable
Fusion cable
Weight
Barcode type
Operating temperature range**
Fusion current monitoring
Printer interface
Service interface
Maxi-Display
Connection Plug 4.0 mm
Hand scraper/replacement blades
Manual emergency programming
Remote operating pass
Operator pass
Supervisor pass
FRIATRACE (from version 5.1)
FRIATEC Memory-Stick
FRIATEC Memory-Box
Documentation of fusion
and traceability data
Data storage in unit
Data storage by Memory Card
Language options
Quality control certification
Transport box
2.3 Technical data*
*: Technical alterations subject to change without notice.
11
AC 190...250 V AC 190...250 V
45...66Hz 45...66Hz
AC 16 A max. AC 16 A max.
AC 3,6 kVA AC 3,6 kVA
20 slow acting (inside) 20 slow acting (inside)
Type IP 54 Type IP 54
protection grade II protection grade II
5m including Euro plug 5m including Euro plug
4 m 4 m
19 kg 19 kg
Code 2/5 (interleaved) Code 2/5 (interleaved)
Code 128
-20 °C ... +50 °C -20 °C ... +50 °C
Short Circuit and Short Circuit and
Cut-Off Cut-Off
USB no
serial serial
no no
yes yes
optional optional
yes yes
optional optional
optional no
no no
optional no
yes no
no no
yes no
500 no
no no
23 23
CE-sign CE-sign
yes yes
FRIAMAT
®
FRIAMAT
®
prime eco basic eco
**: When fusing fittings by other manufacturers it is
vital to observe indications regarding operating temperature range!
12
2.4 Transport/storage/dispatch
Your FRIAMAT
®
-model is delivered in an aluminium transport box. Unpacking requires no specific skills, nor does storage in the transport box. The tempe-
rature range during storage is -20°C.....+70°C.
W
ARNING!
Always transport/store inside aluminium trans­port box.
2.5 Setting up/connecting
Your FRIAMAT
®
-model can be set up and operated outdoors if protected from rain and wet.
- Set up your FRIAMAT®-model on level ground
(preferably horizontal).
- Ensure that generator is fused with a 16 A mini-
mum (slow acting) fuse.
- Plug unit connection cable into power socket.
- Use extension cable if necessary, ensure suffi-
cient cross section (see also Section 2.3).
- Observe operating instructions of generator if
used.
W
ARNING!
Always roll out all cables before use!
2.6 Operating
W
ARNING!
Charring! Dirty contacts may char the plug.
Contact surfaces of fitting and fusion plug must be clean at all times:
13
- Thoroughly remove any existing deposits.
- Protect plug from contamination, replace if necessary.
- Check fusion plug and contact sockets of the fitting for dirt before connecting.
3. Basic “Fusion” Procedure
3.1 Preparation
The appropriate assembly instructions need to be observed for the correct processing of FRIALEN
®
safety fittings and FRIAFIT®sewage system. The same applies for fittings by other manufacturers.
IMPOR
TANT!
Roll out cables completely!
This applies to power cable, fusion cable, and extension cable if required. The contact sur­faces
of the fitting and the fusion plugs must be clean; dirty contacts can cause overheating and charring of the plug. If necessary carefully re­move any existing deposits.
Always protect plugs from contamination. If there is evidence of a deposit which cannot be completely removed, the fusion plugs must be replaced.
-Prepare fitting and pipes for fusion in accordance
with assembly instructions.
- Ensure that the contact pins on the fitting are
accessible for connection of fusion plugs.
- Connect to power supply (mains or generator).
- If using a generator, start it first and leave to warm
up for 30 seconds.
- Switch on unit by the main switch.
- Connect fusion plug with contact pins of the
fitting.
14
3.2 Enter barcode
W
ARNING!
Take reader wand out of reader wand pouch by opening the pouch, grasping the reader wand at its end/anti-kink sleeve (black) and taking it out.
It is not permitted to read in the barcode of a different type of fitting. On completion of the reading in process the reader wand must be returned to its pouch immediately in order to avoid damage and contamination of the reader wand tip.
IMPOR
TANT!
The fusion plugs of your FRIAMAT®-model must be connected with the contact plugs of the fitting as a resistance check is carried out immediately on reading in the barcode. An error message will appear if there is “non contact”. Please also ensure that the fusion plugs of your FRIAMAT
®
­model are attached to the contact pins on the fit­ting across the entire internal contact width.
Once the barcode label has been attached to the fitting, this is the only one to use. If the barcode label of the fitting to be fused is not legible due to damage, a fitting with a legible barcode label built in the same way by the same manufacturer must be used.
Hold the reader wand slightly slanted and slightly inclined (like a pencil) and place it on the fitting in front of the barcode. Now move the reader wand quickly across the whole label and a little way beyond. The reading can be done from right to left or the other way around. If this has been done correctly, the unit will confirm the reading with a signal. If reading in is not successful straight away, try again, if necessary at a different angle or speed.
15
3.3 Starting fusion process
W
ARNING!
If there is a malfunction in the fusion process hot molten PE may be expelled on rare occasions.
Therefore:
Maintain a safety distance of at least 1 m from the fusion area during fusion! Do not connect any additional equipment during fusion.
The fusion process can be cancelled at any time by pressing the STOP button. When the fused area has cooled down (and the source of the fault eliminated where necessary) the fusion process can be repea­ted (depending on the fitting manufacturer, please observe operating instructions by the appropriate fitting manufacturer).
Operating steps:
1. Display shows “PIPE PREPARED?”, confirm if correct.
2. Press the START button to start the fusion process. Now an automatic check of the ambient temperature and resistance check of the con­nected fitting follow. Fusion starts. The display will tell you the duration of the fusion (it will show total time of fusion and count it up in seconds till the fusion ends).
3. Display “END OF FUSION” means that the fusion process has been completed and the unit is ready for the next fusion. Displays “t” and “tc:” show reference and actual fusion time and must be identical.
4. Mark fusion parameters on pipe/fitting. This will make sure no second fusion is accidentally carried out.
16
4. FRIAMAT®basic eco
4.1 Description of function buttons
The FRIAMAT
®
basic eco has 7 function buttons.
MENU:
The MENU button is grey. It calls up the main menus with its submenus (see also Section 4.2 “Menu Layout”). In addition pressing the MENU but­ton will clarify an error following an error message. START: The START button is green. It starts up the fusion process, selects submenus or individual menus and saves settings. In addition this button is used to confirm error messages/warning messages/ hints and tips in the display.
STOP:
The STOP button is red. It cancels the fusion process, is used to close submenus or individual menus and stop the entering process (without saving data). If you keep the STOP button pressed for a longer period, regardless in which submenu you are navigating, you will return to the main screen “ CODE”.
Arr
ow buttons: The arrow buttons are blue. The
arrow buttons (up/down) are used to “browse” through sub or individual menus. The arrow buttons (left/right) are used to move the curser from left to right and back when entering alphanumeric symbols (e.g. emergency input, date). Use the arrow buttons (up/down) to select the required symbol (letter, number, special symbol) at the appropriate place.
IMPOR
TANT!
There are some areas of the submenu where it is not possible to see all the information in the display at once. You will notice the „“-symbol in the bottom display line. The blue arrow buttons (up/down) will allow you to move about within this menu areas and call up further information into the display.
4.2 Menu Layout
4.3 Menu “Basic settings”
Pressing the MENU button will take you to the main menu. Once there use the arrow buttons to take you to the submenu “Basic settings” and select this by pressing the START button. The submenu “Basic settings” has the following individual menus:
• Time
• Date
• Language
• Volume
Use the arrow buttons to take you to the required individual menu and select this using the START button. Within the individual menus you can make the desired changes using arrow buttons and save these by pressing the START button or exit using the STOP button without saving the changes.
17
Time Date/Time
Date Voltage/Frequency
*Language* Temperature
Volume Unit number
Software version
Service date
Basic settings Info
Emergency
input
18
IMPOR
TANT!
The language setting menu displays two aste­risks right and left in the top line. These serve to identify the language setting menu if the langua­ge has been accidentally changed.
4.4 Menu “Info”
Pressing the MENU button will take you to the main menu. Use the arrow buttons to take you to the sub­menu “Info” and select this by pressing the START button. The submenu “Info” is divided into the fol­lowing individual menus:
• date/time
• voltage/frequency
• temperature (ambient temperature)
• device number
• software version
• maintenance date
Use the arrow buttons to select the required indivi­dual menu and select this using the START button. Within this individual menu you can access the information you requested and leave each menu by pressing either the START or the STOP button.
4.5 Menu “Emergency input”
By pressing the MENU button you will access the main menu. From there find the submenu “Emergency input” using the arrow buttons and select it by pressing the START button.
Now “Code:” is displayed and 24 digits with the first one flashing (when accessing this for the first time all the digits will be set to “0”, afterwards the most recently manually entered barcode is displayed). Enter the digits displayed on the barcode of the fitting to be fused. Once the digits have been entered using the arrow buttons, you must confirm this by pressing the START button; if you press the STOP button the process will be stopped (without saving data).
19
5. FRIAMAT®prime eco
5.1 Description of function buttons
The FRIAMAT
®
prime eco has 7 function buttons.
MENU:
The MENU button is grey. It calls up the
main menus with its submenus (see also section 5.2 “Menu Layout”). In addition pressing the MENU button will clarify an error following an error message.
ST
ART: The START button is green. It starts up the
STOP:
The STOP button is red. The STOP button is used to cancel the fusion process, to leave the sub menus or individual menus and to terminate an inputting process (without saving it). If you keep the STOP button pressed for a longer period, regardless in which submenu you are navigating, you will return to the main screen “ CODE”.
Arr
ow buttons: The arrow buttons are blue. The
arrow buttons (up/down) are used to “browse” through sub or individual menus. The arrow buttons (left/right) are used to move the cursor from left to right and back when entering alphanumeric symbols (e.g. emergency input, date). Use the arrow buttons (up/down) to select the required symbol (letter, number, special symbol) at the appropriate place.
IMPOR
TANT!
There are some areas of the submenu where it is not possible to see all the information in the display at once. You will notice the „“-symbol in the bottom display line. The blue arrow buttons (up/down) will allow you to move about within this menu areas and call up further information into the display.
20
ID-Data
1
Basic setting
Fusion process
2
Data
4
Info Date/Time
Emergency input Voltage/Frequency
Formatting Temperature
Unit number
Software version
Service date
5.2 Menu Layout
1 = appears only if traceability is
switched on and/or there is data
2 = appears only if documentation
is switched on
3 = appears only if operator pass
has been programmed in
4 = appears only if documentation is
switched on and there is data
21
Documentation
Commission number Time
Operator pass
3
DateTransmit
Info text *Language*
Volume
All
Comment 1Selection
Comment 2Delete
SubcontractorAll
TraceabilitySelection
Pipe number
1
Pipe length
1
GPS data
Seam number
Scraper tool
22
5.3 Menu “Basic settings”
5.3.1 Documentation
Your FRIAMAT
®
-model is supplied with the docu­mentation function switched off. The function “Documentation” serves to save fusion parameters. These may be allocated either to a commission number and/or an operator pass. Via the guide button “MENU” you will access the menu “Basic settings” with its submenu “Documentation”. By activating the appropriate guide buttons it is possible in this menu to switch documentation on or off.
5.3.2 Time
The guide button “MENU” will take you to the menu “Basic settings” with its submenu “Time”. Here you will be able to change the time.
5.3.3 Date
The guide button “MENU” will take you to the menu “Basic settings” with its submenu “Date”. Here you will be able to change the date.
5.3.4 Language
Via the guide button “MENU” and the submenu “Basic settings” you will access in “Language”. Here you will be able to select the required language.
IMPOR
TANT!
Setting the language refers only to the language used in the display. The language of the documentation (report) will always be English.
23
IMPOR
TANT!
The menu “Language” is marked with two aste­risks (one star in front of the term “Language”, one star after). These serve to identify the language setting menu when for example the language has been accidentally changed.
5.3.5 Volume
Use the guide button “MENU” to get to the menu “Basic settings” with its submenu “Volume”. By activating the appropriate guide buttons you can set the volume in this menu to either “loud” or “quiet”.
5.4 Menu “Fusion sequence”
IMPOR
T
ANT!
The menu “Fusion sequence” is activated (and thus visible to you) when the documentation has been switched on. All submenus are not activated on delivery (factory setting) as a point of principle.
5.4.1 Commission number
The menu “Fusion sequence” is reached via the guide button “MENU”. There you will find the sub­menu “Commission number”. By activating the appropriate guide buttons you will be able to switch on or off working with commission numbers. On selecting “Commission number” the commission number “########################” will appear in the main screen in the top line next to“➔ CODE”.
24
5.4.2 Operator pass
IMPOR
TANT!
The menu “Operator pass” is activated (and thus visible to you) only once an operator pass has been read in – with the documentation switched on. You can order operator passes from FRIATEC. Once an operator pass has been read in, all fusion processes carried out will be saved under the code of this operator pass. By reading in a different operator pass your FRIAMAT
®
-
model will be switched over accordingly.
IMPOR
TANT!
Once you have read in the operator pass you will automatically be taken to submenu „ID Data“ (see also Section 5.9.1). By moving the blue arrow buttons (up/down) you will be given an overview of the settings that have been selected on your FRIAMAT
®
-model. Press the STOP but-
ton to exit this submenu.
IMPOR
TANT!
By means of the operator pass your FRIAMAT®­model can be blocked to prevent it from unautho­rised use. After repeated reading in of the current operator pass the question will be posed “BLOCK UNIT?”. By pressing the appropriate button you can confirm this or cancel the action. Your FRIAMAT
®
-model will be blocked automatically when the code of an operator pass is on file and there has been a change of date, i.e. your FRIAMAT®-model is blocked the next day. In both cases (manual or automatic blocking) the follow­ing message appears in the display “OPERATOR “ CODE”. By reading in an operator pass your FRIAMAT
®
-model is once again cleared for use.
25
5.4.3 Info text
Press the MENU button and then submenu „Fusion process“ to access „Info text“. Activating/switching on this menu will allow you to include additional text information to a fusion process.
5.4.4 Comment 1
Press the MENU button and then submenu „Basic setting“ to access „Comment 1“. Activating/switch­ing on this menu will allow you to include additional text information to a fusion process.
5.4.5 Comment 2
Press the MENU button and then submenu „Fusion process“ to access „Comment 2“. Activating/ switching on this menu will allow you to include additional text information to a fusion process.
5.4.6 Subcontractor
Press the MENU button and then submenu „Fusion process“ to access „Subcontractor“. Activating/ switching on this menu will allow you to include additional text information to a fusion process.
5.4.7 Traceability
The guide button “Menu” will take you to the menu “Fusion sequence”. The submenu “Traceability” can be found there. By activating the appropriate guide buttons you will be able to release in this menu your FRIAMAT
®
prime eco for reading in, processing and saving of traceability barcodes. In addition subme­nus “Pipe number” and “Pipe length” are activated when this menu is accessed.
5.4.8 Pipe number
Press the MENU button and then submenu „Fusion process“ to access „Pipe number“. Activating/ switching on this menu will allow you to allocate an individual pipe number to the pipes to be fused.
5.4.9 Pipe length
Press the MENU button and then submenu „Fusion process“ to access „Pipe length“. Activating/ switching on this menu will allow you to add the length of the pipes to be fused.
26
5.4.10 GPS data
Press the MENU button and then submenu „Fusion Process“ to access „GPS data“. Activating/ switching on this menu will allow you to enter coor­dinates/position of your fusion fitting. To determine the GPS data you will need an appropriate device.
5.4.11 Seam number
The menu “Fusion sequence” is reached via the guide button “MENU”. There you will find the submenu “Seam number”. By activating the appro­priate guide buttons you will be able to switch on or off seam numbers entry.
5.4.12 Scraper tool
Press the MENU key and then submenu „Fusion process“ to access „Scraper tool“. Activating/ switching on this menu will allow you to enter data (e.g. unit number) of the scraper tool used for the preparation of the fusion. For this facility the scraper tool must have an appropriate barcode.
5.5 Menu „Data“
IMPOR
T
ANT!
The menu “Data” is activated (and thus made visible to you) only once documentation is swit­ched on and an initial set of data has been saved.
5.5.1 Transfer
The guide button “MENU” will take you to the menu “Data” with its submenu “Transfer”. Your FRIAMAT
®
prime eco will recognise automatically whether a PC/Laptop (with FRIATRACE database software, version 5.1 onwards), a FRIATEC Memory­Stick or a printer is connected.
27
IMPOR
TANT!
The device receiving the data (PC/Laptop/ FRIATEC Memory-Stick, printer) must be con­nected before you access submenu „Transfer“.
IMPOR
TANT!
FRIATEC does not accept any liability for the use of standard USB memory-sticks. Please use the FRIATEC Memory-Stick.
If the data transfer has been prepared correctly, you will be able, after pressing the START button, to select either „ALL“ or „SELECTION“ in the submenu „Transfer“. If you select „ALL“ using the START but­ton, all the data from your fusion unit will be trans­ferred. If you confirm „SELECTION“ using the START button, you will be able to select from indivi­dual commission numbers. During the data transfer the fusion unit will display the text „TRANSFERRING PLEASE WAIT!“ and once transfer has been suc­cessfully completed „TRANSFER COMPLETE“.
IMPOR
TANT!
Do not switch off your FRIAMAT®prime during data transfer.
5.5.2 Delete
The submenu “Data” will take you to “Delete”. In submenu “Delete” you will be able, after pressing the START button, to select either „ALL“ or „SELECTION“. If you choose „ALL“ using the START button, all data in your fusion unit will be deleted. If you confirm „SELECTION“ using the START button, you will be able to select from indivi­dual commission numbers and delete them one at a time.
28
IMPOR
TANT!
Do not switch off your FRIAMAT®prime eco during deletion and consequent data reallo­cation as this could lead to loss of data.
IMPOR
TANT!
Once you have deleted data, it has been lost irrevocably. The unit has an automatic back up function which may allow authorised FRIATEC service personnel to retrieve deleted data. Please contact your local service station (see section 8.2).
5.6 Menu “Info”
®
prime eco: date/time, voltage/frequency, temperature (ambient temperature), unit number, software version and date of next service. Make sure you have this information with you when you approach an authorised FRIATEC service station with questions or problems.
5.7 Menu “Emergency input”
The term „Code:“ and 24 digits will appear, with the first digit flashing (on first use all digits will be set to „0“. From then on the barcode last entered manual­ly will be displayed). Digits to be entered must be read from the barcode of the fitting to be fused. Once barcode digits have been entered using the arrow button, they need to be confirmed by pressing the START button; the process is terminated by pressing the STOP button (without data being saved).
29
5.8 Menu “Formatting”
Basically the FRIATEC Memory-Stick can be used for the transfer of data. The FRIATEC Memory-Stick can be purchased from FRIATEC.
If you have not used the FRIATEC Memory-Stick on the FRIAMAT
®
prime eco and the correct format has therefore not been set, or you decide to go for a standard USB memory-stick, please note that it must be formatted to FAT 12 or FAT 16. A USB memory-stick formatted to FAT 32 or a partitioned USB memory-stick (Master Boot Record) will produce the error message „ERROR 91“ on your FRIAMAT
®
.
IMPOR
TANT!
Please note that all data is deleted from the memory-stick during formatting!
IMPOR
TANT!
FRIATEC accepts no liability for the use of standard USB memory-sticks. Please use the FRIATEC Memory-Stick.
5.9 Fusion Options
5.9.1 ID Data
IMPOR
TANT!
The “ID-Data” option is activated and visible to you only once documentation or traceability has been switched on.
30
The term “ID data” includes data which you can allocate to your imminent fusion process: commis­sion number, operator pass, continuous number seam number and GPS data (1-3). The following sections describe this additional information.
IMPOR
TANT!
Entering commission numbers and seam num­bers is possible only when documentation and the function “Commission number” and/or “Seam number” are switched on.
5.9.1.1 Commission number
Press the MENU button to access submenu „ID Data“. Press the START button to bring up „Com­mission Number“ in the top line of the display. On entering an commission number for the first time the following appears „########################“. The first digit flashes. By moving the arrow buttons you will be able to enter your commission number. Use the START button to save this number and the STOP button to exit the submenu.
If you have already entered one or several commis­sion numbers, you will be able to choose in „ID Data“ in submenu „Commission number“ between „CHANGE“ (changing of last entered commission number), „NEW“ (entering a new commission num­ber), and „SELECTION“ (selecting an commission number from the last 20 commission numbers entered) by pressing the START button and using the arrow buttons (up/down). Data entry, saving and exiting this submenu takes place as described above.
5.9.1.2 Operator pass
Use the MENU button to access submenu „ID Data“. Press the START button and use the arrow buttons (up/down) to access the display informing you whether and which fusion operator has been entered (if no operator pass has been activated, there is no display in this screen). The fusion opera­tor cannot be changed manually, i.e. by using but­tons; if you wish to enter a new fusion operator you will need an appropriate operator pass (see section
5.4.2).
31
5.9.1.3 Continuous number and Seam number
Use the MENU button to access submenu „ID data“. Press the START button and use the arrow buttons (up/down) to access the display which gives the continuous number of the fusion processes car­ried out by you. This number is allocated automati­cally by the unit and cannot be changed. The conti­nuous number is allocated to the appropriate activated commission number.
Pressing the START button allows you to allocate a number chosen by you („Seam number“) to your fusion process. Symbols are chosen by using the arrow buttons. Use the START button to save this number and the STOP button to exit the submenu.
5.9.1.4 GPS 1 - 3
Use the MENU button to access submenu „ID Data“. Press the START button and use the arrow buttons (up/down) to access the screen where you are able to enter the coordinates of the fusion processes carried out by you (GPS 1, GPS 2 and GPS 3). Symbols are chosen by using the arrow but­tons. Use the START button to save this number and the STOP button to exit the submenu. You will need an appropriate device for calculating the GPS data.
5.9.2 Traceability barcodes/
Pipe number/Pipe length
IMPOR
TANT!
It is possible to enter traceability data only when documentation and “Traceability” function and/ or “Pipe number and/or “Pipe length” are switched on.
Reading in of traceability barcodes is activated after the fusion barcode of the fitting to be fused has been entered. A request to enter the traceability barcode of the fitting appears in the display („FITTING: T-CODE“). Once you have entered this you will be requested to enter the traceability barcode of Component 1 („COMPONENT 1:
32
T-CODE“). If you have activated the programming of pipe number and/or pipe length these will then also be displayed and can be entered accordingly (select symbols by pressing the MENU button and using the arrow buttons and save data by pressing the START button). You will then be asked to enter the traceability barcode of Component 2. Programming of pipe number and/or pipe length takes place as described above. If you have not activated any addi­tional text (see Section 5.9.3) you will once again be reminded of the significance of scraping the pipe by the question „PIPE PREPARED?“. Confirm by pressing the START button (i.e. the pipe has been prepared appropriately; see also Section 5.9.4). You will access the start mode (the upper line in the display will show the connected fitting to be fused, the lower line will ask „START?“).
IMPORTANT!
At this point you will be able to use the blue arrow button (up/down) to skip to the menu „ID Data“ once again to ascertain that all relevant data has been entered or to make last minute changes. Press the STOP button to exit this sub­menu.
Start the fusion process by pressing the START but­ton.
IMPOR
TANT!
Programming of traceability data is automatic, i.e. once programming is complete the display will show the next step until you reach the start of the fusion. If you have to/would like to disrupt this process (e.g. because you wish to check your entry data once again) use the blue arrow buttons (right/left) back and forth in the pro­gramming process to access individually en­tered data/information.
33
5.9.3 Info text, Comment 1, Comment 2,
Subcontractor
, i.e. no additional text is displayed (e.g. the text last entered). Use the START button to save your entry and press it again to continue preparing for your fusion.
IMPOR
T
ANT!
The additional text must be newly entered for each fusion process, as no text will appear in the report otherwise. If the START button is activated immediately after reading in the fitting barcode, no additional text is added to the fusion.
5.9.4 Scraper tool
As part of the process of entering data to start the fusion the request „SCRAPER TOOL: CODE“ – if selected by you (see Section 5.4.12) – appears after the prompt „PIPE PREPARED?“. If the scraper tool which you used for the scraping of the pipe has the appropriate barcode you will now be able to enter this – this data will then be allocated to your fusion in the report.
34
6. Warranty/Maintenance/ Taking out of service
6.1 Warranty
The warranty period for FRIAMAT
®
fusion units is
24 months.
6.2 Service and maintenance
According to DVS 2208 part 1 and BGV A2 (VBG 4) “Electrical Plants and Devices” a maintenance of moveable electrical devices should be carried out once a year (see list of authorised service stations in section 8.2). Please include all connecting adapters for service checks.
WHAT? WHEN? WHO?
Cleaning the reader wand and checking for damage daily User
Checking function weekly User
Cleaning contacts weekly User
Factory service annually Authorised
service sta­tions (see section 8.2)
6.3 Taking out of service
IMPOR
TANT!
FRIAMAT®fusion units contain different compo­nents which make specialist disposal necessary. Your FRIAMAT
®
-model can be disposed of in the factory or at one of the authorised service sta­tions.
35
7. Operating faults
7.1 Errors when reading in the barcode
7.2 Overheating
It is possible for your FRIAMAT
®
-model to overheat if used for extreme lengths of time. In order to avoid damage to the unit, a temperature monitor has been installed which causes your FRIAMAT
®
-model to calculate before fusion whether the temperature increase to be expected during fusion is permitted. If the calculated temperature is not in the permitted range, the display will show the message “Let the unit cool down”. As the power consumption of different electrofusion fittings will vary, there may be the option of fusing a different fitting.
7.3 Fusion interruption
If the fusion is interrupted, because e.g. the power supply was disrupted during a fusion process, the fusion can be repeated once the source of the fault has been removed and the fitting has cooled down completely (depending on manufacturer, please observe operating instructions by the appropriate fitting manufacturer).
7.4 Error messages/Warning messages/
Info
If irregularities occur during the fusion process, your FRIAMAT
®
-model will display the appropriate error
messages.
IMPOR
TANT!
In the event that your FRIAMAT®-model displays an error message or warning message not described below and this cannot be clarified or rectified based on the description in the display, please contact our service hotline +49 (0) 621 486
1533.
Error messages:
No Text in Signifi- Remedy
Display cance/
Causes
02 Temperature Ambient Set up tent
outside range temperature if necessary.
outside permitted range.
03 Resistance Electrical Check contact
outside resistance for firm tolerance of fitting seating/dirt.
outside Maybe clean tolerance. contacts, if
necessary replace fitting.
04 Fitting winding Short circuit Replace
short circuit in the wire fitting,
winding of send in fitting. for checks.
05 Fitting winding Current flow Check
open circuit interrupted. connection of
fusion plug on fitting. If okay replace the fitting and send in for checks.
06 Voltage Non Contact
outside permitted authorized tolerance deviation of service station.
fusion voltage.
08 Mains voltage Power Extension
outside range voltage cable too long
outside or cross permitted section too range during small. Check fusion. voltage and
connections of generator.
09 Frequency Frequency Check
outside range outside frequency
permitted of generator range during voltage. fusion.
36
Further error messages:
No Text in Signifi- Remedy
Display cance/
Causes
13 Mains failure Supply Check
voltage connentions. interrupted (e.g. power cut during fusion) or too low.
15 Mains rating Power con- Please contact
exceeded sumption FRIATEC
of fitting service hotline: exceeds +49 (0) 621 rating of the 486 1533 FRIAMAT®.
23 Generator- Generator Please contact
failure maybe not FRIATEC
suited for service hotline: fusion work. +49 (0) 621
486 1533
xy* System error Please contact
FRIATEC service hotline: +49 (0) 621 486 1533
*: error messages with numbers not displayed in
above table.
37
38
W
arning messages/Info:
Text in Display Instruction/Remedy
Attention: Second If a fitting is to be fused fusion process twice, the contact plugs
on the fusion unit of the fitting must be pulled out after the first fusion, and the fitting must be allowed to cool down (see processing instructions by fitting manufacturers).
Please read in Only with prime eco: fusion code first this appears when the
traceability barcode of a fitting was accidentally read in first.
Please read in Only with prime eco: valid traceability if e.g. the fusion barcode barcode first of the fitting was
accidentally read in.
Please read in Only with prime eco: valid operator pass this appears when the
operator pass needs to be read in (e.g. when a unit is blocked) and/or a different (wrong) barcode is read in.
Please read in Only with prime eco: valid commission this appears when the number commission number needs
to be read in (e.g. when the unit is set to reading in before each fusion) and/or a faulty input takes place or a different (wrong) barcode is read in.
Printer not ready Only with prime eco:
check if output unit (PC/Laptop with FRIATRACE from version 5.1, FRIATEC Memory-Stick, printer) is properly connected. If an error message cannot be resolved please contact the FRIATEC Service Hotline: +49 (0) 621 486 1533.
39
W
arning messages/Info:
Text in Display Instruction/Remedy
Faulty / Use new barcode of fitting incorrect barcode built in the same way or
correct the entered code manually.
Let the unit Protective function cool down designed to prevent over-
heating of unit. Switch unit off and leave to cool down until warning no longer appears when switching it on again.
Fusion interruption Fusion interrupted by
pressing STOP button.
End of fusion Fusion completed.
Voltage ...V; Readjust generator and Frequency ... Hz confirm by pressing STOP
button.
Memory empty Only with prime eco:
printing out not possible if memory is empty.
Memory full Only with prime eco:
print out report.
Maintenance date Contact authorized service exceeded station. Arrange for unit to
be serviced.
8. Appendix
8.1 Recommended accessories
- FRIATEC Memory-Stick (USB) to transfer fusion
data from fusion unit to PC/Laptop (only with FRIAMAT
®
prime eco)
- FRIATRACE from version 5.1 for the electronic
processing of fusion data (only FRIAMAT®prime eco, optional)
- Operator pass (only FRIAMAT
®
prime eco,
optional)
- Remote control pass (optional)
40
8.2 Authorised service stations
Please contact our service hotline +49 (0) 621 486 1533 for details of service stations world wide.
8.3 Operating instructions updates
These technical statements are checked regularly in
terms of up-to dateness. The date of the recent
revision is specified on the document.
41
42
43
FRIATEC Aktiengesellschaft Technical Plastics Division P.O.Box 71 02 61 D-68222 Mannheim Phone: +49 621 486-1533 Fax: +49 621 479196 www.friatools.de info-friatools@friatec.de
2377e · 1 · II. 07 · wdw Stand 27.10.06
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
