PRODUCT ASSEMBLY
Hardware List
A
6*35mm
B
15*10mm
C
6*30mm
D
3*12mm
E
F
3*14mm
4*30mm
G
4*40mm
Parts List
1
Top Panel
28 pcs
28 pcs
20 pcs
52 pcs
6 pcs
4 pcs
6 pcs
H
J
K
L
M
N
3 pcs
14
6 pcs
34 pcs
8 pcs
2 pcs
2 pcs
4 pcs
Bottom Panel
I
2.5*12mm
4*25mm
1 pc
O
P
Q
R
S
6*50mm
4*16mm
2 pcs
4 pcs
16 pcs
4 pcs
4 pcs
1 pc
2
3
4
5
6
7
8
9
Upper Left Panel
Upper Right Panel
Upper Back Connect Bar
Upper Front Connect Bar
Upper Door
Divide Panel
Lower Left Panel
Lower Right Panel
1 pc
1 pc
1 pc
1 pc
2 pcs
1 pc
1 pc
1 pc
15
16
17
18
19
20
21
22
Adjustable Shelf
Drawer Left Panel
Drawer Right Panel
Drawer Back Panel
Drawer Front Panel
Drawer Bottom Panel
Drawer Connect Bar
Upper Back Panel
4 pcs
1 pc
1 pc
1 pc
1 pc
1 pc
2 pcs
2 pcs
10
11
12
13
1/12
Lower Top Connect Bar
Lower Middle Connect Bar
Lower Left Door
Lower Right Door
1 pc
1 pc
1 pc
1 pc
23
24
25
Lower Back Panel
Upper Back Conn
Lower Back Connect Bar
ect Bar
2 pcs
1 pc
1 pc
PRODUCT ASSEMBLY

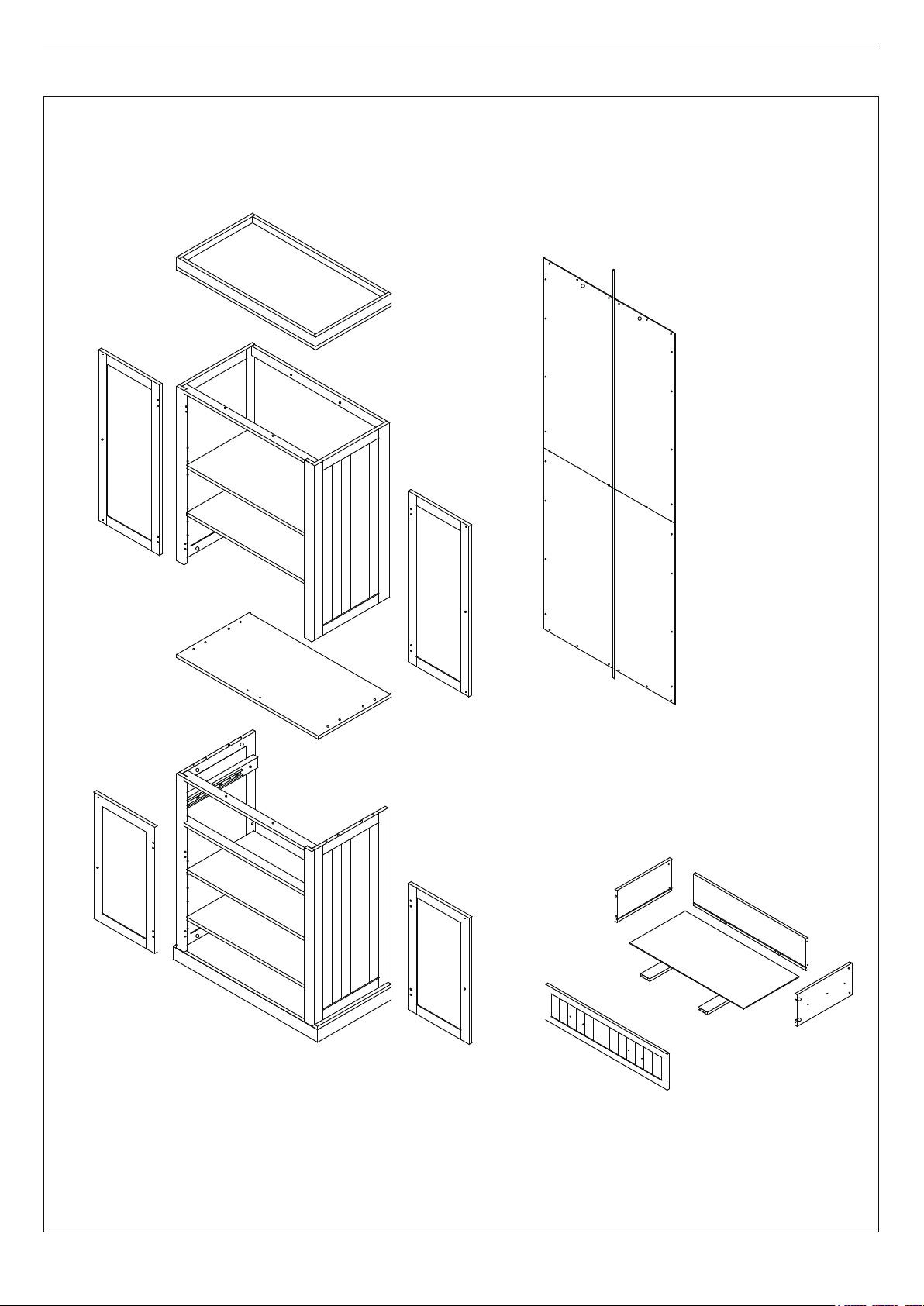

Part List Assembly Overview
1
24
6
8
2
15
15
7
10
5
3
4
22
22
23
23
6
25
12
2/12
14
11
15
15
9
13
19
16
21
18
20
17
21
PRODUCT ASSEMBLY
Step 1
A
1 14
A
A
7
A
19
18
A
A
28 pcs
A
9
8
A
A
3
A
2
1) Lay Top Panel (1), Upper Left Panel (2), Upper Right Panel (3), Divide Panel (7), Lower Left
Panel (8), Lower Right Paenl (9), Bottom Panel (14), Drawer Back Panel (18) and Drawer
Front Panel (19) as shown on a material that does not scratch the surface of each part.
2) Screw in Cam-bolt (A) into the designated holes on each in clockwise direction.
3/12
PRODUCT ASSEMBLY
L
Step 2
L2
L2
Trigger Disconnect Lever
To install Drawer Glide (L), the Glide Runner (L1) needs to be detached or separated from the
Glide Track (L2).
Detach Glide Runner (L1) from Glide Track (L2) by sliding out (L1) from (L2) until the Trigger
Disconnect Lever is visible on (L1) as shown above. Next, depress the Trigger Disconnect
Lever and at the same time slide out (L1) from (L2).
L
L1
L1
X 2
2 pcs
Step 3
E
H
11
11
E
H
7
E
H
E
H
5
E
5
H
7
E
E
H
H
6 pcs
3 pcs
Attach Magnetic Catch (H) to the designated hole on Upper Front Connect Bar (5), Divide Panel
(7) and Lower Middle Connect Bar (11) with Screw (E) as shown.
4/12
PRODUCT ASSEMBLY
Step 4
D
I
K
K
D
I
13
K
D
D
D
I
D
6
I
D
K
12
D
X2
Attach Hinge (K) and Magnetic Bar (I) to Upper Door (6), Lower Left Door (12) and Lower Right
Door (13) with Screw (D) as shown.
22 pcs
6 pcs
8 pcs
D
K
Step 5
8
D
L2
9
D
L2
4 pcs
2 pcs
Attach Drawer Glide (L2) to Lower Left Panel (8) and Lower Right Panel (9) with Screw (D) as shown.
5/12
PRODUCT ASSEMBLY
Step 6
21
17
B
19
1) Attach Drawer Left Panel (16),
Drawer Right Panel (17) and
Drawer Connect Bar (21) to
Drawer Front Panel (19) via
Wood Dowel (C) and Cam-bolts
on (19).
2) Insert Cam-lock (B) and turn it in
clockwise direction to lock onto Cam-bolts.
4) Attach Drawer Back Panel (18) via Wood Dowel (C) and Cam-bolts on (18).
5) Insert Screw (F) and tighten it.
6) Insert Cam-lock (B) and turn it in clockwise direction to lock onto Cam-bolts.
21
C
16
F
B
18
C
20
3) Insert Drawer Bottom
Panel (20).
B
C
F
8 pcs
4 pcs
4 pcs
Step 7
19
D
M
17
L1
D
16
D
L1
M
10 pcs
2 pcs
2 pcs
1) Attach Drawer Glide (L1) to Drawer Left and Right Panel (16 & 17) with Screw (D) as shown.
2) Attach Handle (M) to Drawer Front Panel (19) with Screw (D).
6/12
PRODUCT ASSEMBLY
Step 8
B
2 pcs
B
2 pcs
Step 9
C
2 pcs
C
8
B
11
9
11
c
c
10
B
10
c
2 pcs
1) Attach Lower Top Connect Bar (10) and Lower
Middle Connect Bar (11) to Lower Left Panel
(8) via Wood Dowel (C) and Cam-bolts on (8).
2) Insert Cam-lock (B) and turn it in clockwise
direction to lock onto Cam-bolts.
Step 10
8
1) Attach Lower Right Panel (9) to Connect Bar
(10 & 11) via Wood Dowel (C) and Cam-bolts
on (9).
2) Insert Cam-lock (B) and turn it in clockwise
direction to lock ont
o Cam-bolts.
B
C
C
14
B
9
4 pcs
4 pcs
1) Attach Bottom Panel (14) to Lower Left Panel (8) and Right Panel (9) via Wood Dowel (C) and
Cam-bolts on (14).
2) Insert Cam-lock (B) and turn it in clockwise direction to lock onto Cam-bolts.
7/12
PRODUCT ASSEMBLY
Step 11
C
B
2
4
5
B
C
2 pcs
B
2 pcs
Step 12
2 pcs 2 pcs
B
4
C
5
C
3
1) Attach Upper Back Connect Bar (4) and Upper
Front Connect Bar (5) to Upper Left Panel
(2) via Wood Dowel (C) and Cam-bolts on (2).
2) Insert Cam-lock (B) and turn it in clockwise
direction to lock onto Cam-bolts.
Step 13
2
B
C
N
5
1
1) Attach Upper Right Panel (3) to Connect Bar
(4 & 5) via Wood Dowel (C) and Cam-bolts
on (3).
2) Insert Cam-lock (B) and turn it in clockwise
direction to lock onto Ca
G
7
m-bolts.
B
C
G
N
3
1) Attach Top Panel (1) to Upper Left Panel (2)
and Right Panel (3) via Wood Dowel (C) and
Cam-bolts on (1).
4 pcs
4 pcs
4 pcs
2 pcs
2) Insert Cam-lock (B) and turn it in clockwise direction to lock onto Cam-bolts.
3) Fix Connect Bar (5) to (1) with Screw (N).
4) Attach Divide Panel (7) to (2 & 3) with Screw (G).
8/12
PRODUCT ASSEMBLY
Step 14
2
7
3
B
N
P
4 pcs
2 pcs
4 pcs
P
10
B
N
8
9
1) Attach the unit from STEP 13 to the unit From STEP 10 via Wood Dowel (P) and Cam-bolts on (7).
2) Insert Cam-lock (B) to (8 & 9) and turn it in clockwise direction to lock onto Cam-bolts.
3) Fix Connect Bar (10) to (7) with Screw (N).
9/12
PRODUCT ASSEMBLY
Step 15
1) Attach Upper Back Panel (22) and Lower Back
Panel (23) with Screw (J).
2) Insert Upper Back Connect Bar (24) to (22).
3) Insert Lower Back Connect Bar (25) to (23).
J
17 pcs
J
22
24
23
25
Step 16
22
23
24
25
22
23
J
17 pcs
J
22
23
1) Slide Upper Back Panel (22) and Lower Back
Panel (23) as per the groove on Back Connect Bar
(24 & 25).
2) Fix the Back Panel (22 & 23) with Screw (J).
10/12
PRODUCT ASSEMBLY
Step 17
D
6
1) Attach Upper Door (6) to Upper Left and
Right Panel (2 & 3) with Screw (D).
2) Attach Lower Left and Right Door (12 &
13) to Lower Left and Right Panel (8 & 9)
with Screw (D).
3) Attach Knob (S) to Door with Knob Bolt
(R).
R
6
12
S
D
2
8
6
13
3
9
D
R
S
16 pcs
4 pcs
4 pcs
Step 18
G
WALL
O
G
O
1) Drill two holes in the dry wall per the
length and diameter of Plastic Anchor
(O).
Noted: The distance between the 2
holes should be the same as the
distance between the 2 holes on Upper
Back Connect Bar (4).
2) Press Plastic Wall Anchor (O) into
drilled hole. Ensure that the anchor fits
securely in the wall.
3) Fix the Cabinet to the wall with Screw
(G).
2 pcs
2 pcs
11/12
PRODUCT ASSEMBLY
Step 19
Insert Shelf Pin (Q) and place
Adjustable Shelf (15) on it.
Q
Q
16 pcs
Step 20
Insert Drawer.
L1
15
L2
x4
12/12
