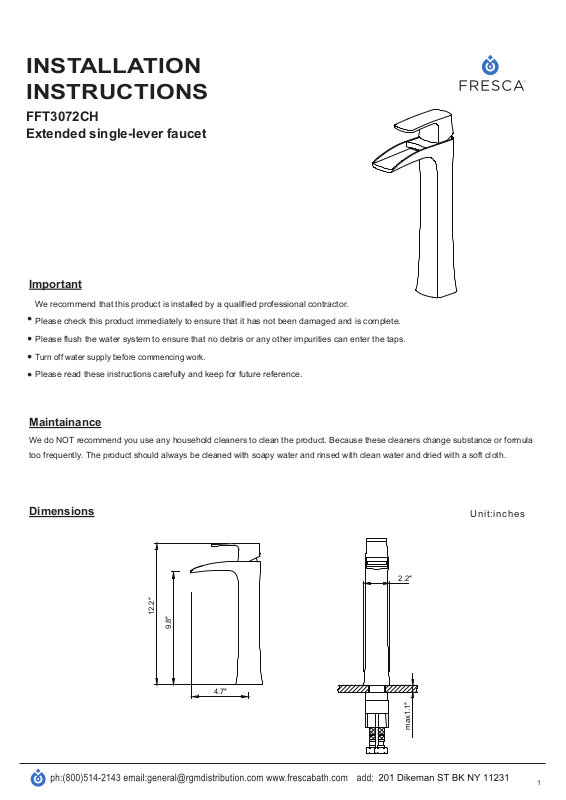

Fresca FFT3072CH Installation Manual

INSTALLATION
INSTRUCTIONS

FFT3072CH
Extended single-lever faucet

Important

We recommend that this product is installed by a qualified professional contractor.

●

Please check this product immediately to ensure that it has not been damaged and is complete.

●

Please flush the water system to ensure that no debris or any other impurities can enter the taps.

●

Turn off water supply before commencing work

● Please read these instructions carefully and keep for future reference.

.

Maintainance

We do NOT recommend you use any household cleaners to clean the product. Because these cleaners change substance or formula

too frequently. The product should always be cleaned with soapy water and rinsed with clean water and dried with a soft cloth.

Dimensions

2.2″

12.2″

9.8″

Unit:inches

4.7″

max1.1″

1

Installation

HANDLE

CARTRIDGE
COVER

RETAINING
NUT

GRUB
SCREW

ALLEN
KEY

CAP

Faucet

Thread Pipe

Supply Lines

Washer

CARTRIDGE

FAUCET

To remove the cartridge.

First shut off the water supply to the tap.

1: Pull out the cap from the handle.

Fixing Nut

2: Loosen the grub screw in handle, but do not remove it.
3: Take off the handle, unscrew the cartridge cover.
4: Unscrew the retaining nut.

5: Pull the cartridge and wash it with clean running water.
6: Dry and lightly grease the seals (only use silicone grease)

1: Twist supply lines into the faucet.Put washer into the groove of faucet.
2: Pass supply lines and thread pipe through the countertop hole,and twist the fixing nut to the thread pipe. Adjust the faucet and tighten

firmly.
