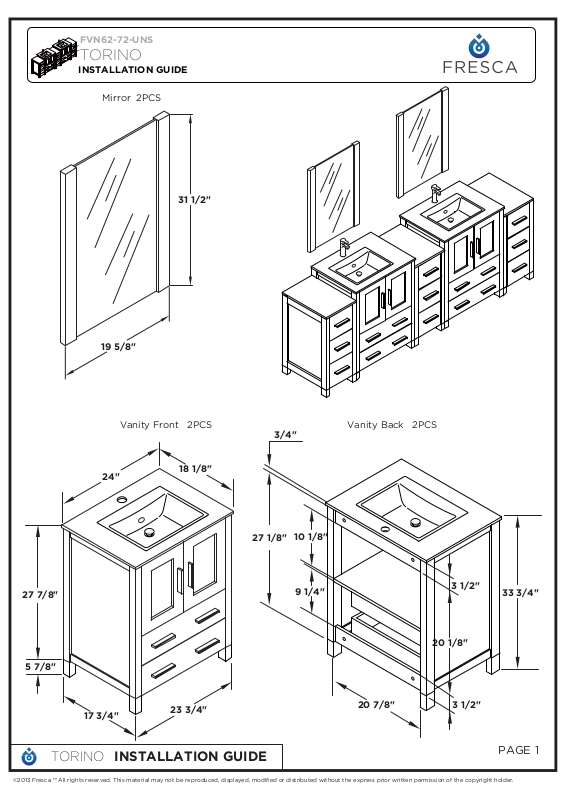

Page 1
FVN62-72-UNS
TORINO
INSTALLATION GUIDE
Mirror 2PCS
31 1/2"
27 7/8"
19 5/8"
Vanity Front 2PCS Vanity Back 2PCS
3/4"
24"
18 1/8"
27 1/8"
10 1/8"
9 1/4"
3 1/2"
33 3/4"
20 1/8"
5 7/8"
20 7/8"
17 3/4"
23 3/4"
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
3 1/2"
PAGE 1
Page 2
TOOLS FOR ASSEMBLY
#2
Side Cabinet Front 3PCS Side Cabinet Back 3PCS
1/8" Drill bit
12"
3/4"
24 3/4"
5 7/8"
MIRROR INSTALLATION
17 3/4"
3 1/2"
31 5/8"
16 1/4"
4 1/4"
9 1/4"
wall
wall
TORINO INSTALLATION GUIDE
wall
wall
PAGE 2
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 3
DRAWER REMOVAL & INSTALLATION
REMOVAL INSTALLATION
1
2
3
1
2
1 Install leg
3
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 3
Page 4
Remove drawer
2
Install cabinet
3
IMPORTANT:
Consult an expert for the proper
screws/bolts to use when attaching
to various wall constructions.
Screws provided do not attach to all
wall construction types.
Install top panel
4
5 Install side cabinet top panel
6
Remove side cabinet drawer
Install side cabinet
7
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 4
Page 5
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 5
Page 6

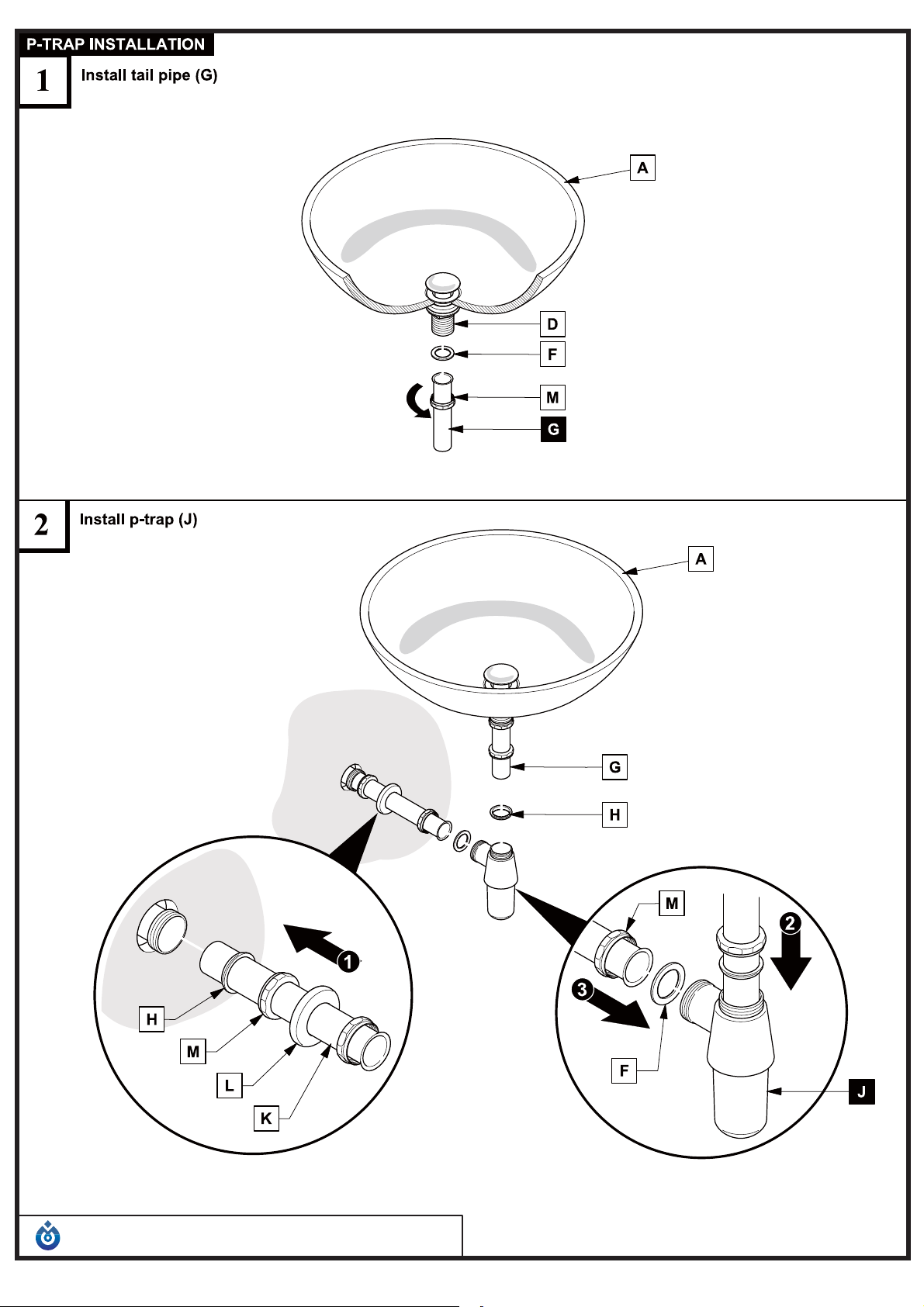

Mounting
Ring
Ring
Drain Pipe
Sink
Pop-up
Silicon
Washer
Silicon
Washer
Brass
Nut
Rubber
Washer
Tail
Pipe
Rubber
Washer
Rubber
Washer
P-Trap
FOR SINKS WITHOUT OVERFLOW FOR SINKS WITH OVERFLOW
PAGE 6
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 7
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 7
