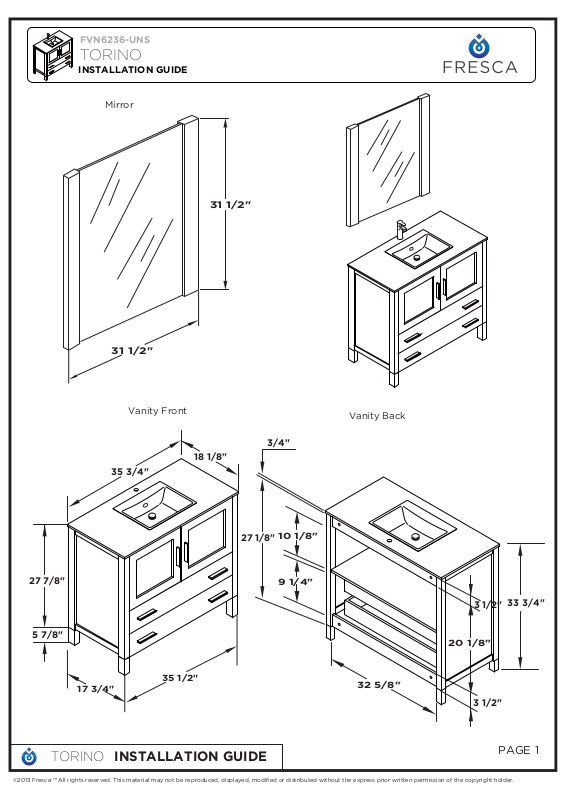

Page 1
FVN6236-UNS
TORINO
INSTALLATION GUIDE
Mirror
31 1/2"
27 7/8"
31 1/2"
Vanity Front
35 3/4"
18 1/8"
3/4"
27 1/8"
10 1/8"
9 1/4"
Vanity Back
3 1/2"
33 3/4"
5 7/8"
35 1/2"
17 3/4"
32 5/8"
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
20 1/8"
3 1/2"
PAGE 1
Page 2
TOOLS FOR ASSEMBLY
#2
MIRROR INSTALLATION
1/8" Drill bit
wall
wall
wall
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
wall
PAGE 2
Page 3
DRAWER REMOVAL & INSTALLATION
REMOVAL INSTALLATION
1
2
3
1
2
3
Remove drawer
Install leg1
2
Install cabinet
3
3
IMPORTANT:
Consult an expert for the proper
screws/bolts to use when attaching
to various wall constructions.
Screws provided do not attach to all
wall construction types.
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 3
Page 4
4
Install top panel
SILICONE
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 4
Page 5
Mounting
Ring
Ring
Drain Pipe
Sink
Pop-up
Silicon
Washer
Silicon
Washer
Brass
Nut
Rubber
Washer
Tail
Pipe
Rubber
Washer
Rubber
Washer
P-Trap
FOR SINKS WITHOUT OVERFLOW FOR SINKS WITH OVERFLOW
PAGE 5
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.

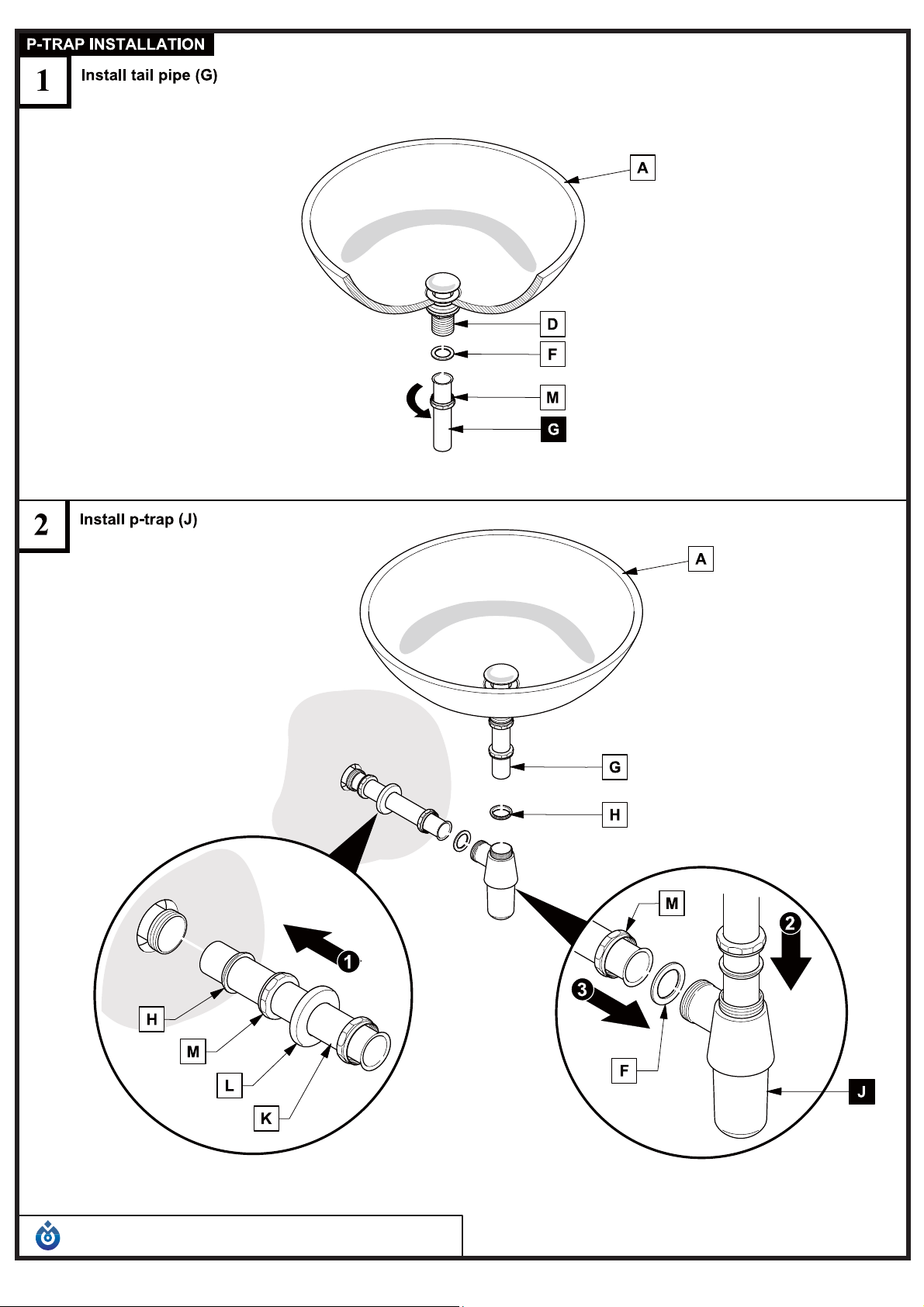

Page 6
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 6
