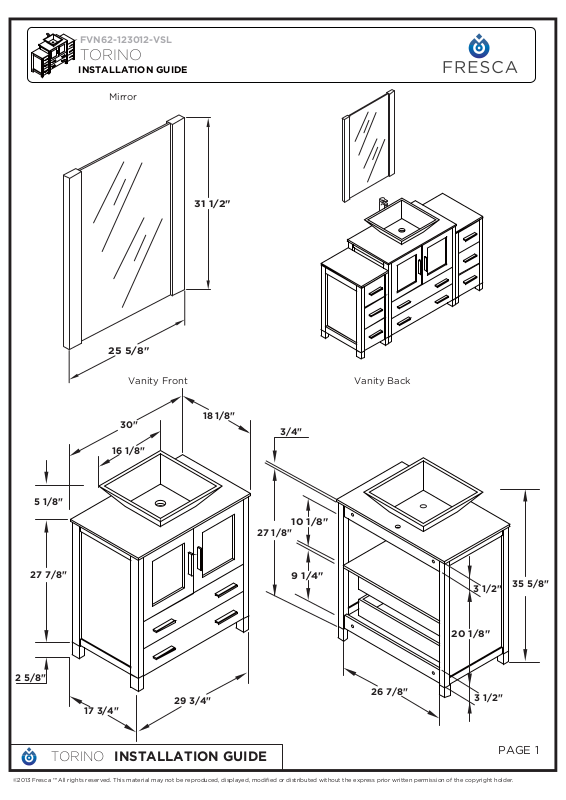

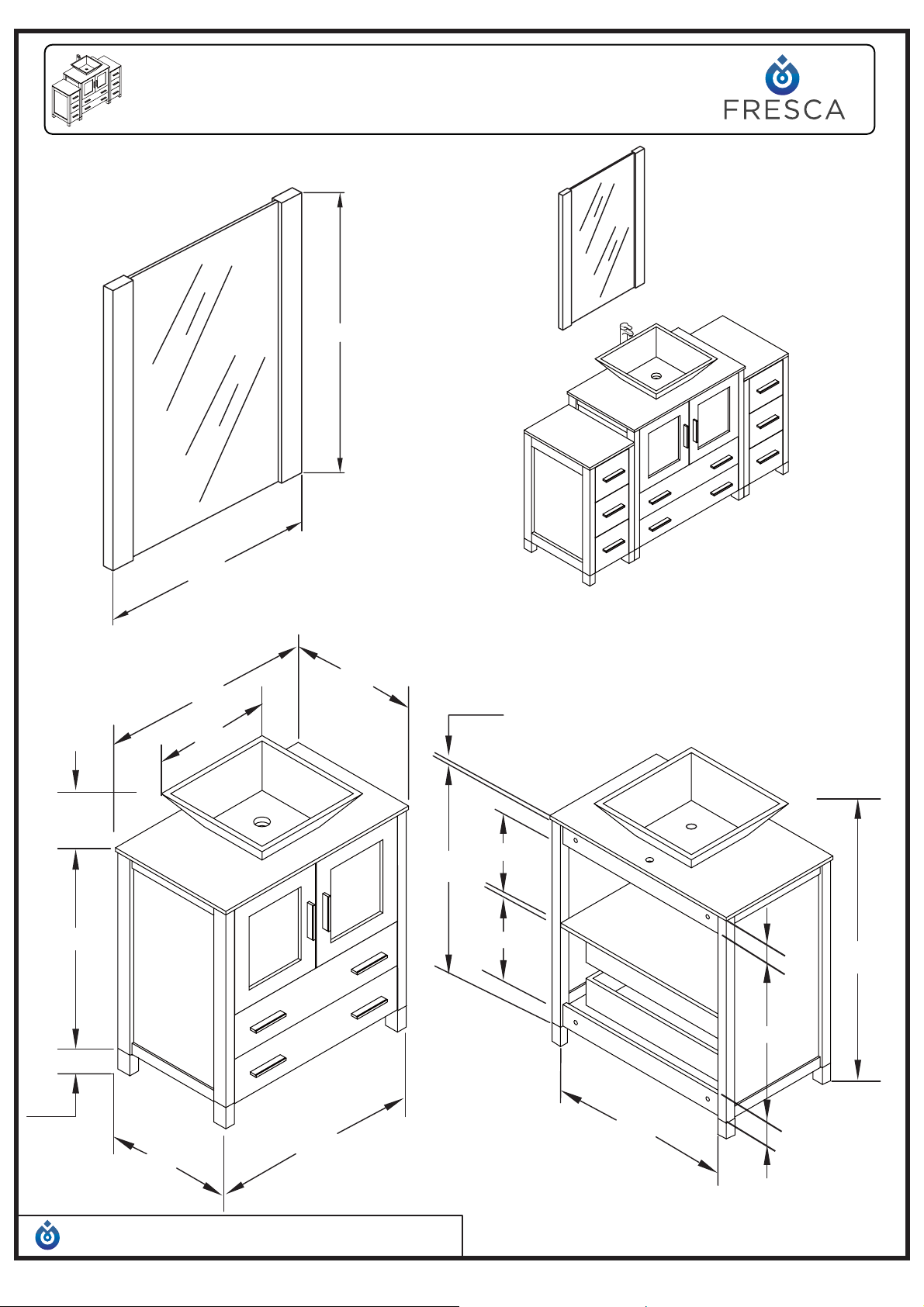

Page 1
FVN62-123012-VSL
TORINO
INSTALLATION GUIDE
Mirror
31 1/2"
5 1/8"
27 7/8"
25 5/8"
Vanity Front Vanity Back
30"
16 1/8"
18 1/8"
3/4"
10 1/8"
27 1/8"
9 1/4"
3 1/2"
35 5/8"
20 1/8"
2 5/8"
26 7/8"
29 3/4"
17 3/4"
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
3 1/2"
PAGE 1
Page 2

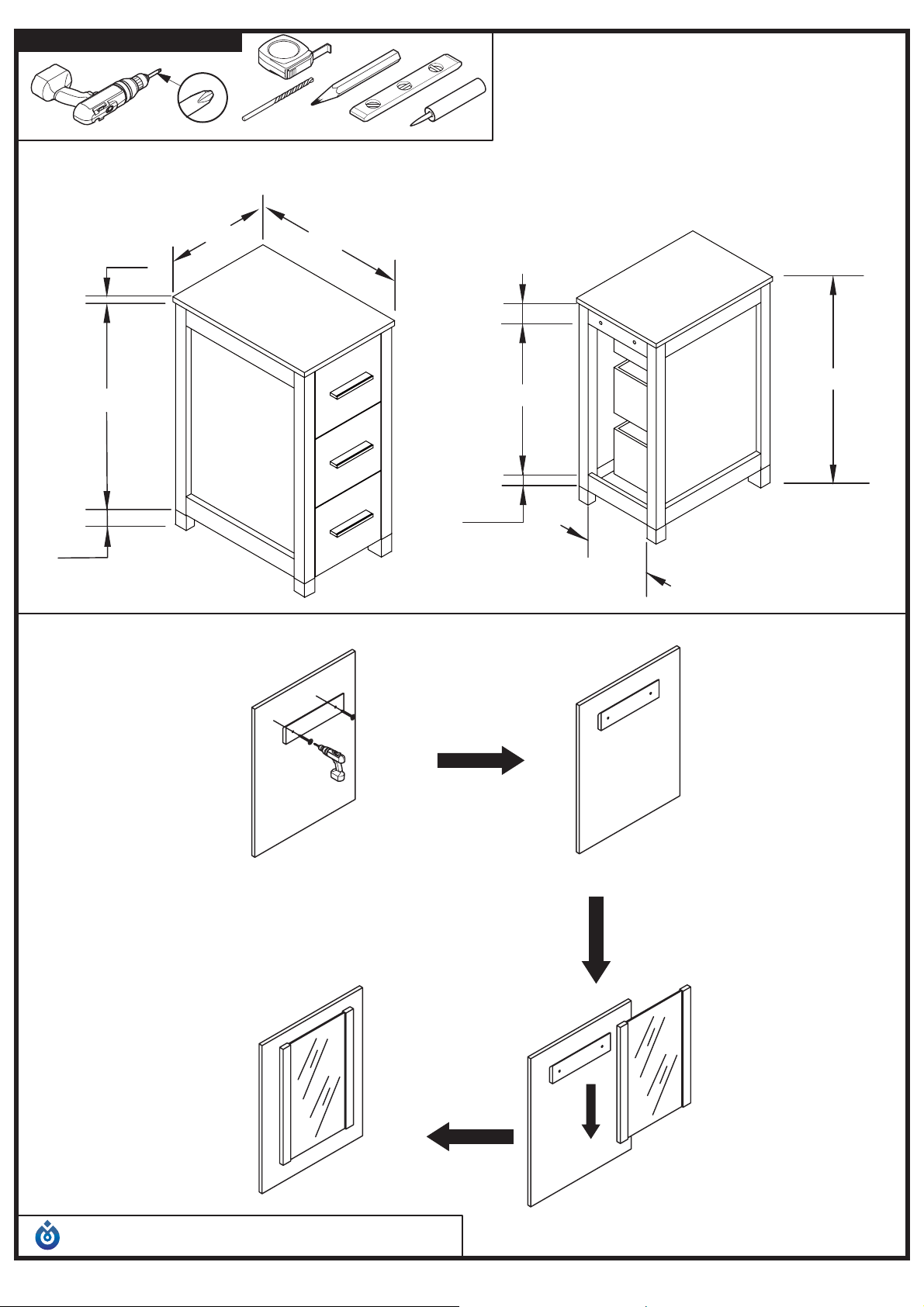

TOOLS FOR ASSEMBLY
#2
Side Cabinet Front 2PCS Side Cabinet Back 2PCS
1/8" Drill bit
12"
3/4"
24 3/4"
2 5/8"
MIRROR INSTALLATION
17 3/4"
3 1/2"
28 1/8"
16 1/4"
4 1/4"
9 1/4"
wall
wall
TORINO INSTALLATION GUIDE
wall
wall
PAGE 2
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 3

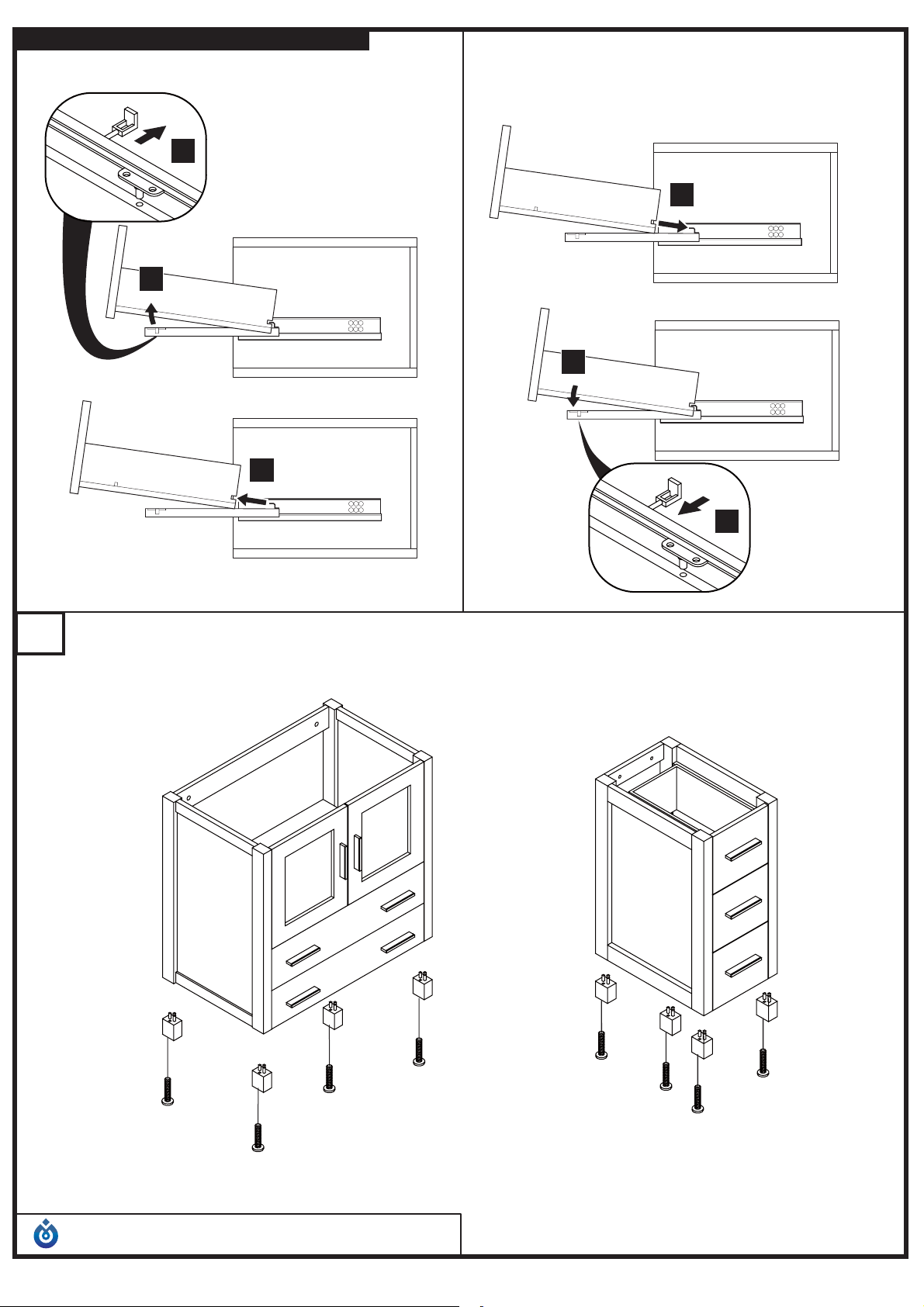

DRAWER REMOVAL & INSTALLATION
REMOVAL INSTALLATION
1
2
3
1
2
3
Install leg1
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 3
Page 4

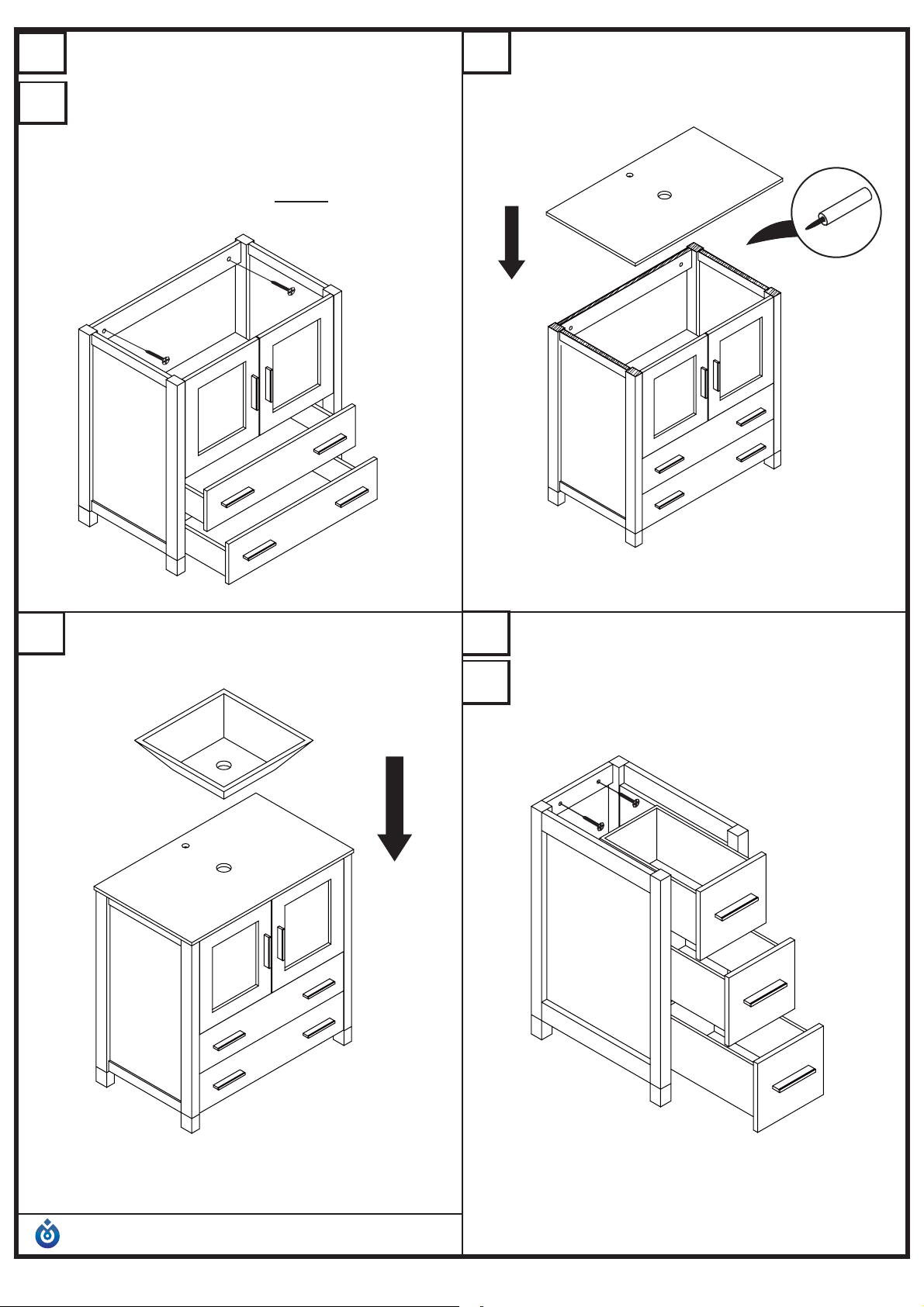

Remove drawer
2
Install cabinet
3
Install top panel
4
IMPORTANT:
Consult an expert for the proper
screws/bolts to use when attaching
to various wall constructions.
Screws provided do not attach to all
wall construction types.
SILICONE
5
Install sink
6
7
Remove side cabinet drawer
Install side cabinet
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 4
Page 5

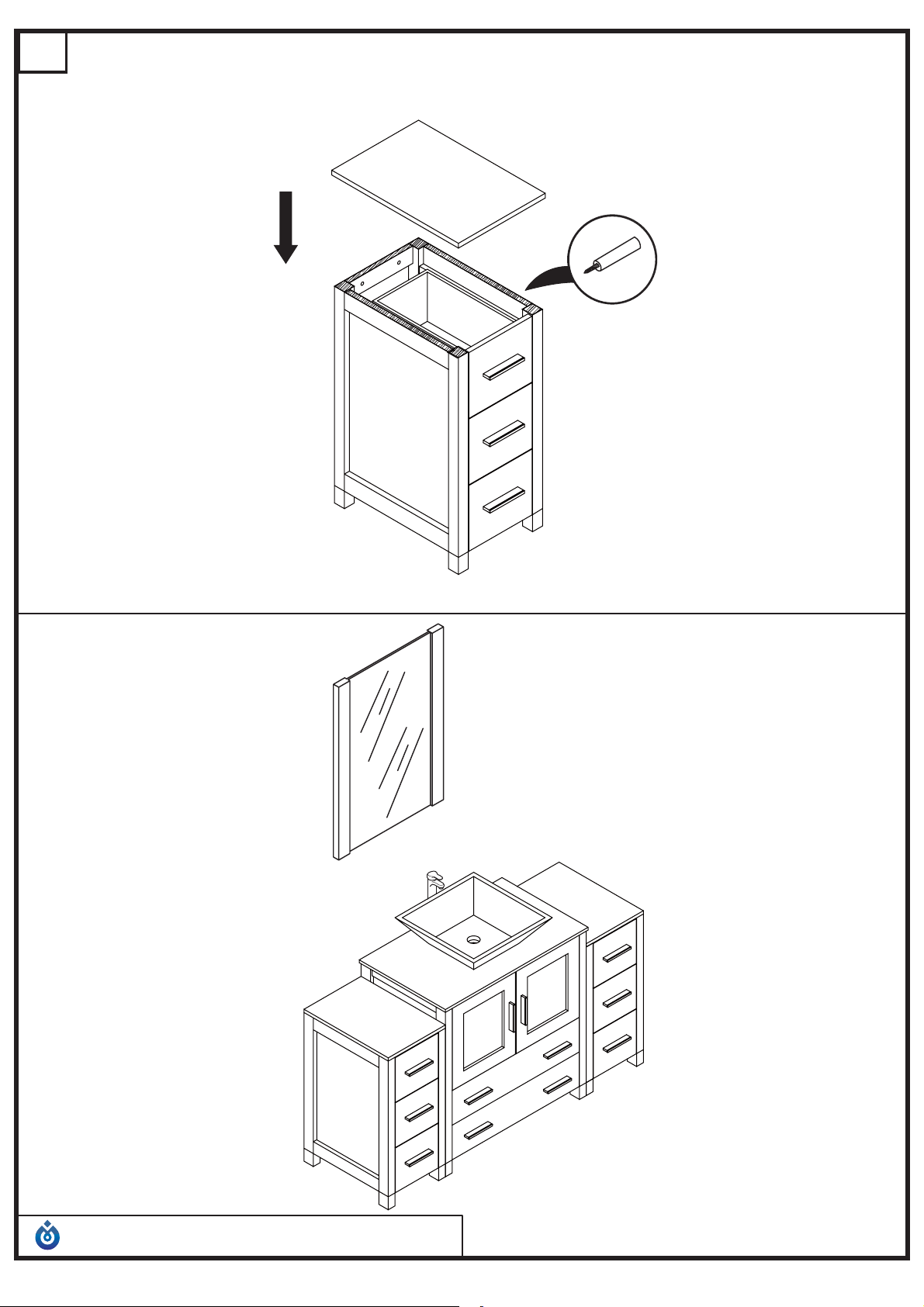

8
Install side cabinet top panel
SILICONE
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 5
Page 6

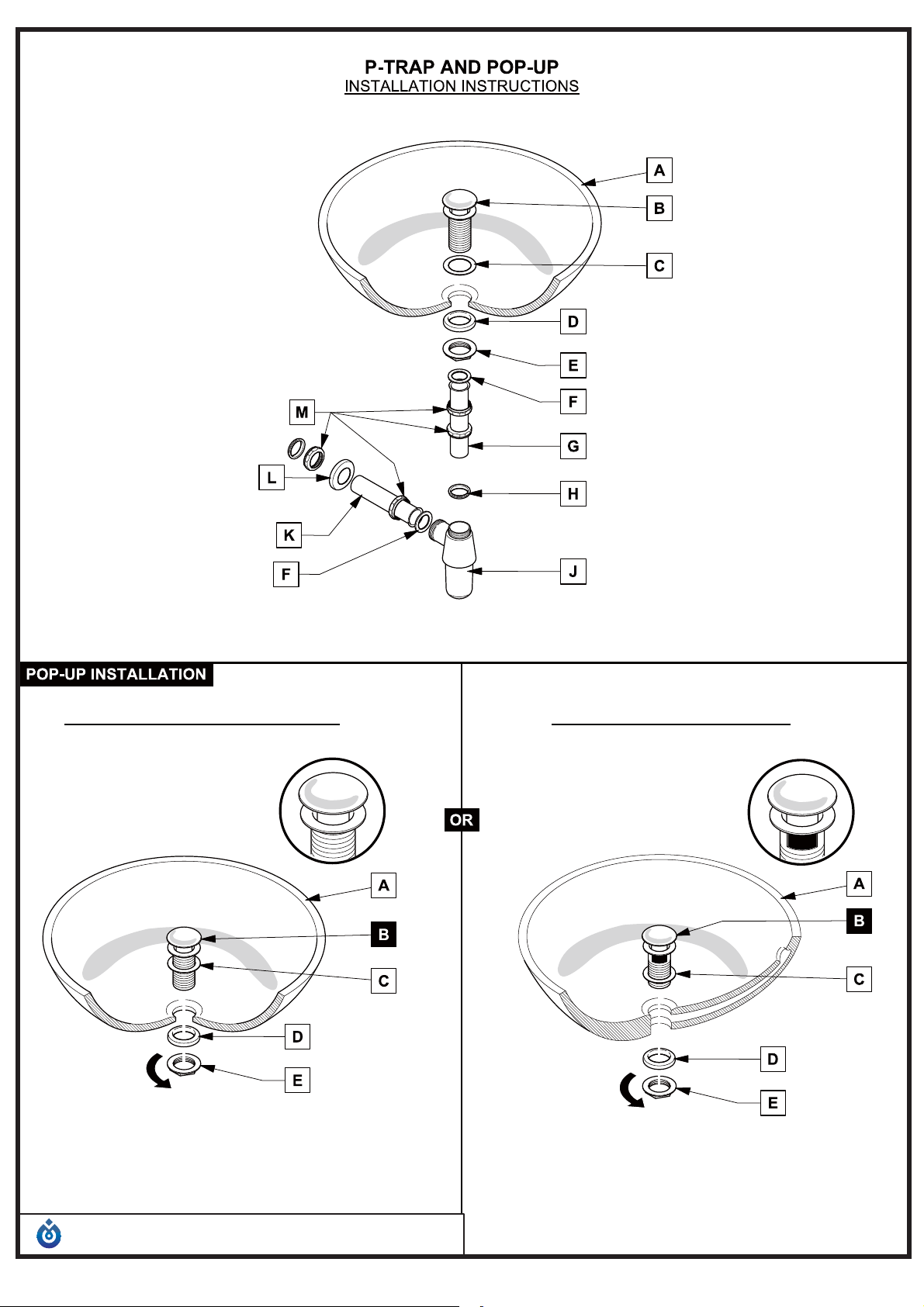

Mounting
Ring
Ring
Drain Pipe
Sink
Pop-up
Silicon
Washer
Silicon
Washer
Brass
Nut
Rubber
Washer
Tail
Pipe
Rubber
Washer
Rubber
Washer
P-Trap
FOR SINKS WITHOUT OVERFLOW FOR SINKS WITH OVERFLOW
PAGE 6
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.

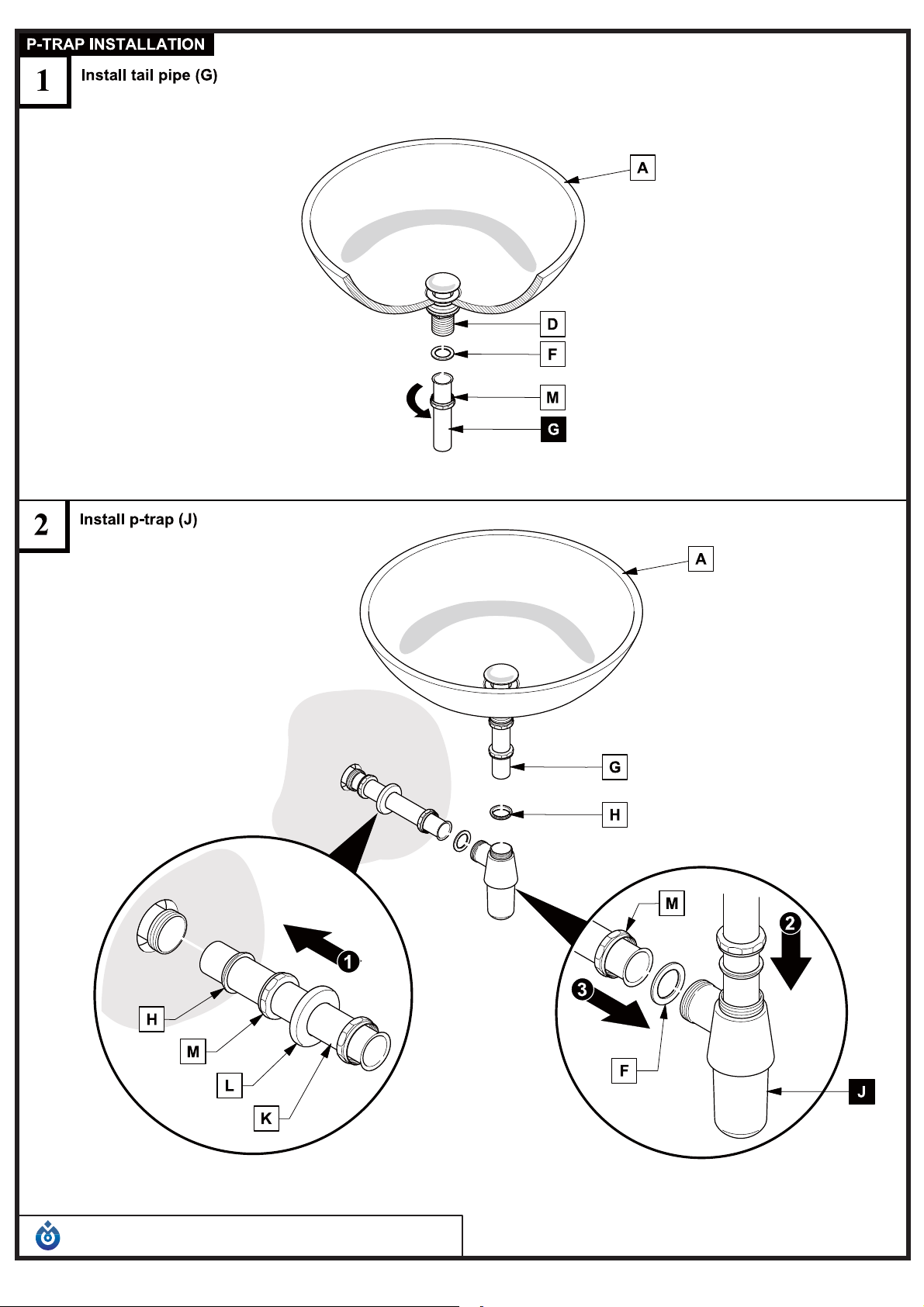

Page 7
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 7
