FVN62-301230-UNS

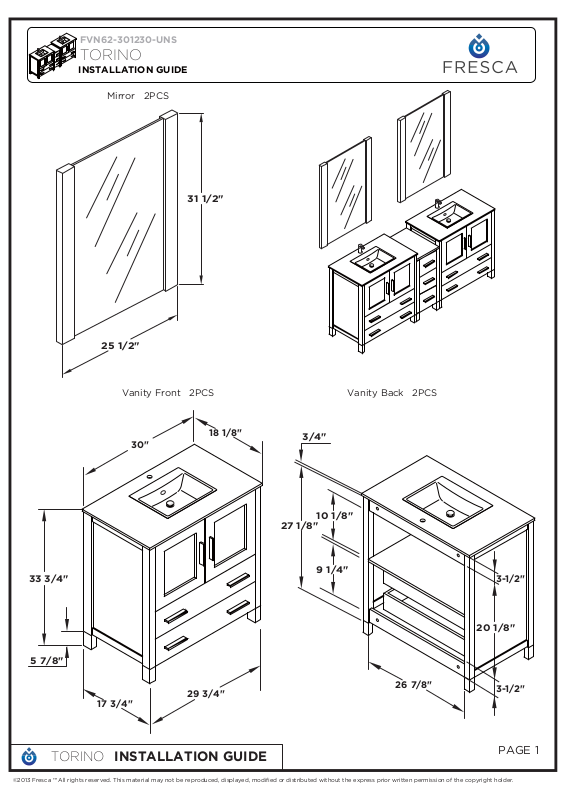

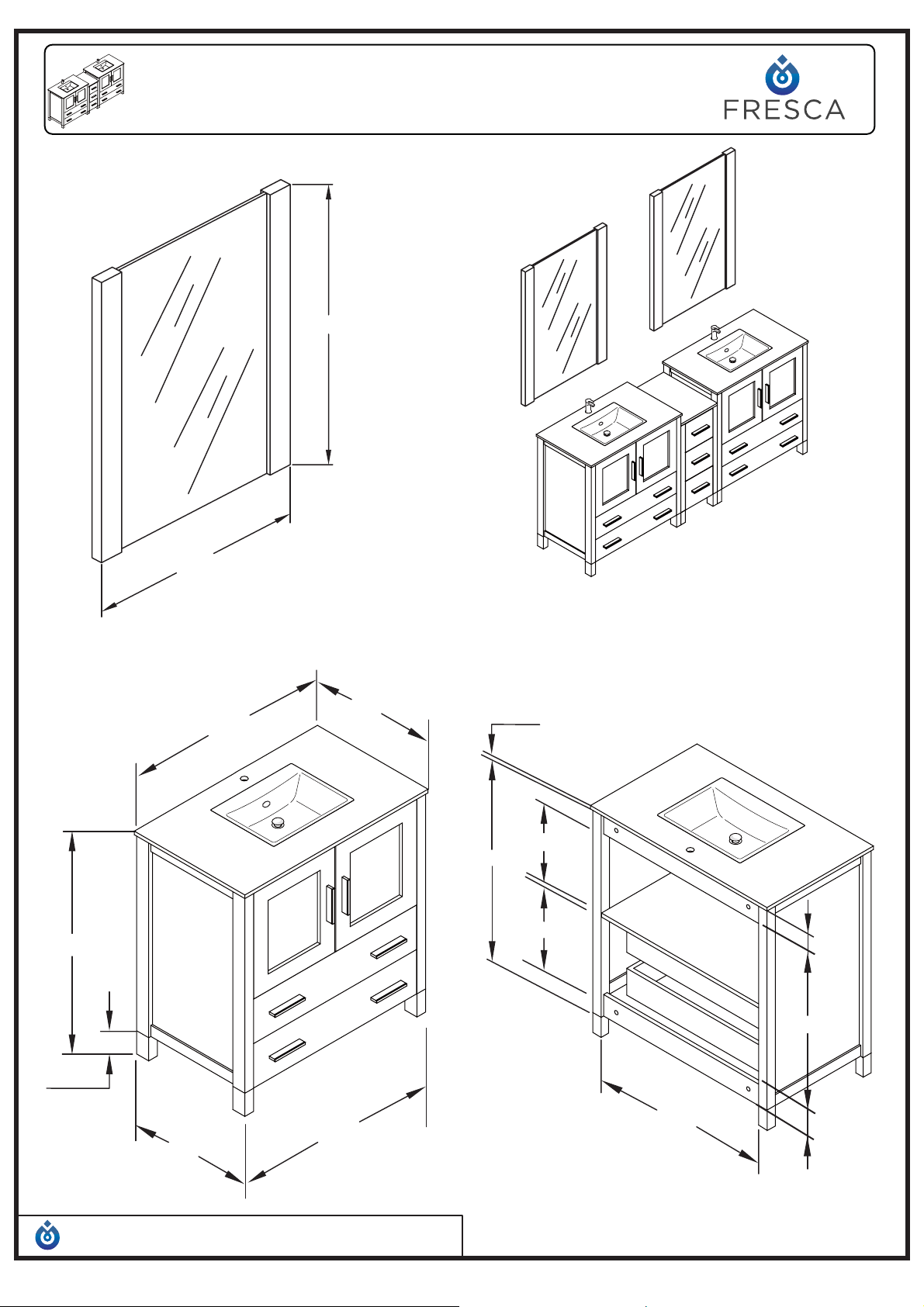

TORINO
INSTALLATION GUIDE
Mirror 2PCS
31 1/2"
33 3/4"
25 1/2"
Vanity Front 2PCS Vanity Back 2PCS
18 1/8"
30"
3/4"
10 1/8"
27 1/8"
9 1/4"
3-1/2"
20 1/8"
5 7/8"
29 3/4"
26 7/8"
17 3/4"
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
3-1/2"
PAGE 1
Page 2
TOOLS FOR ASSEMBLY
#2
Side Cabinet Front Side Cabinet Back
1/8" Drill bit
3/4"
24 3/4"
5 7/8"

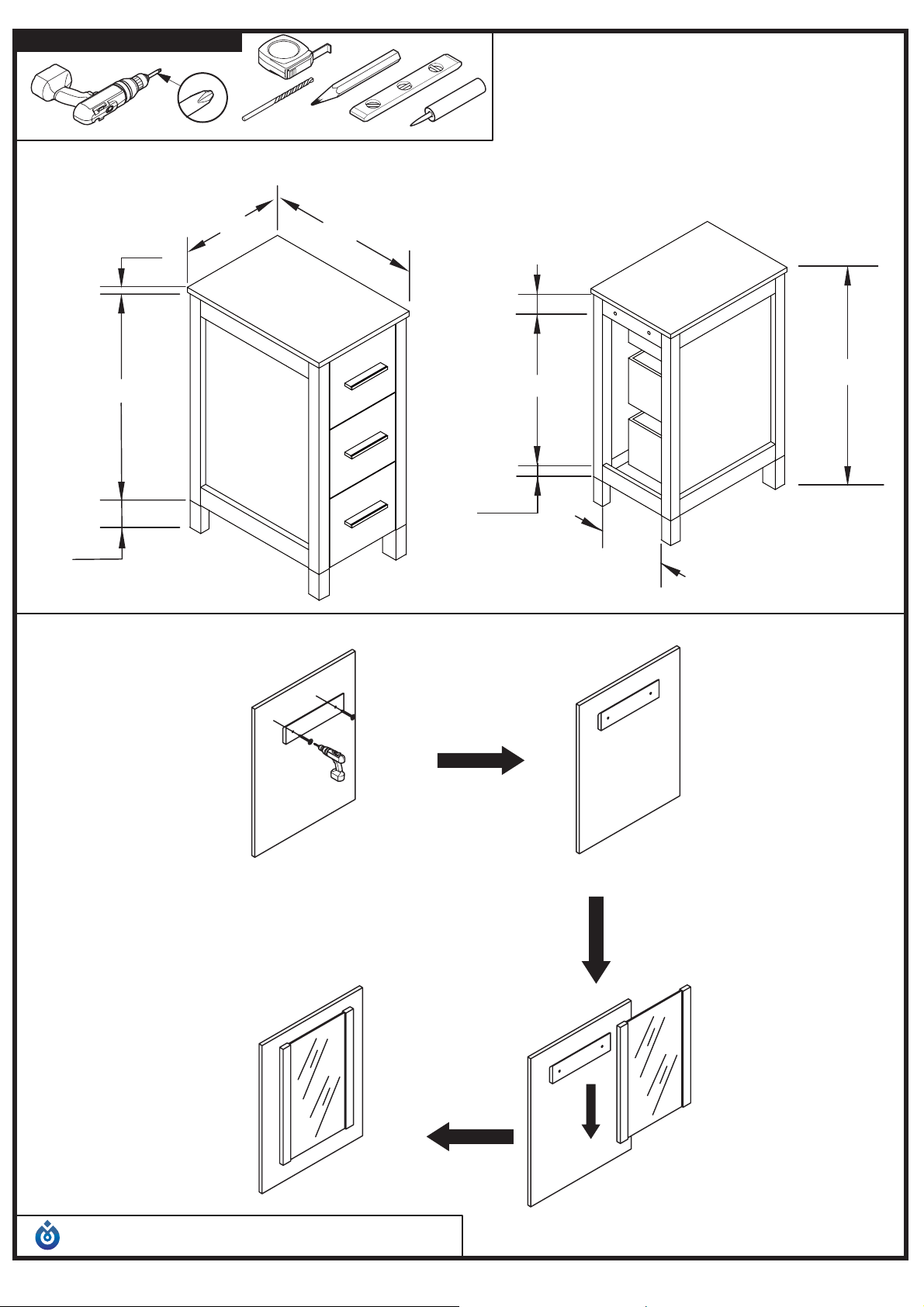

MIRROR INSTALLATION
12"
17 3/4"
3 1/2"
31 5/8"
16 1/4"
4 1/4"
9 1/4"
wall
wall
TORINO INSTALLATION GUIDE
wall
wall
PAGE 2
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 3

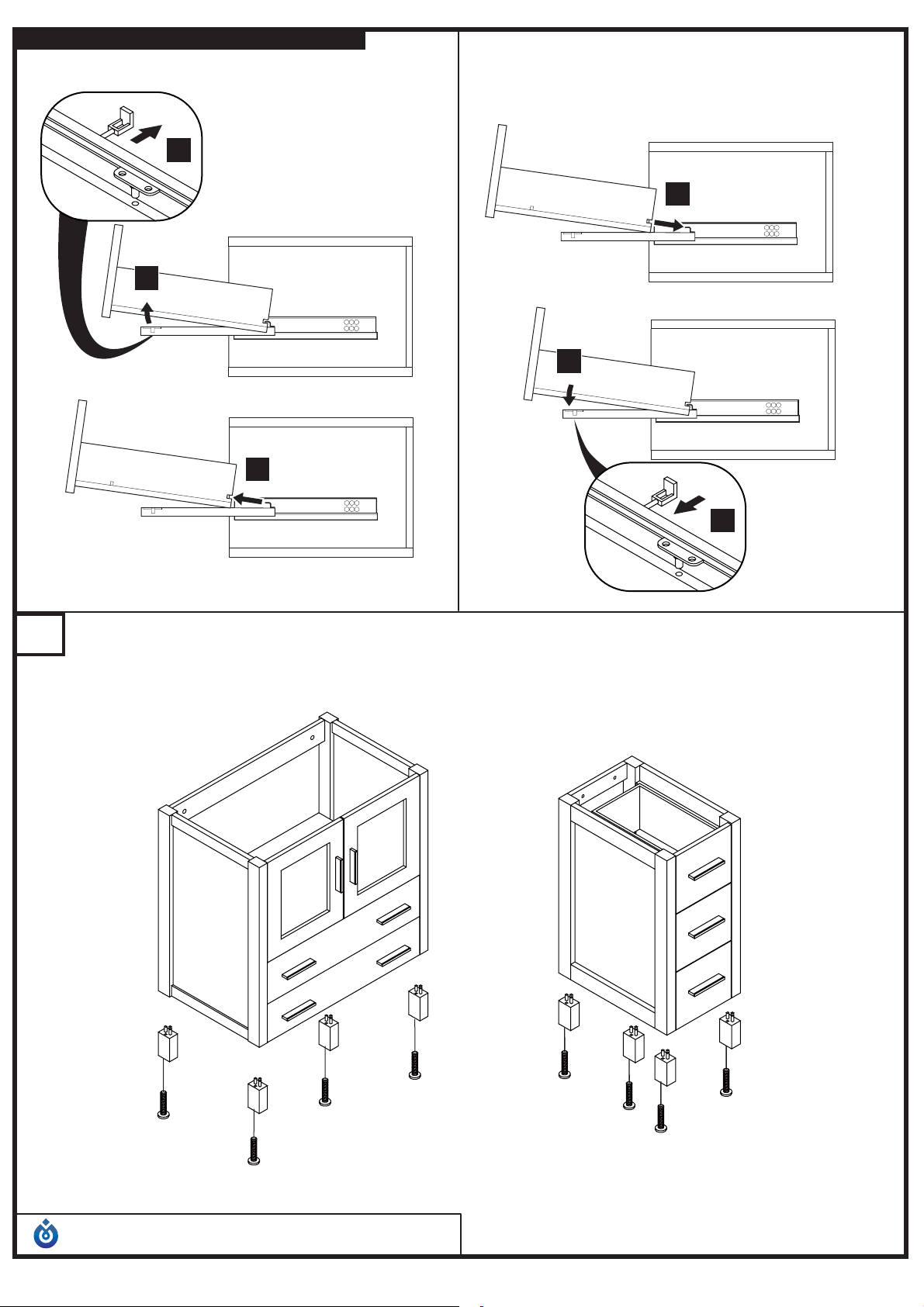

DRAWER REMOVAL & INSTALLATION
DRAWER REMOVAL & INSTALLATION
REMOVAL INSTALLATION
1
2
3
1
2
3
Install leg1
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 3
Page 4

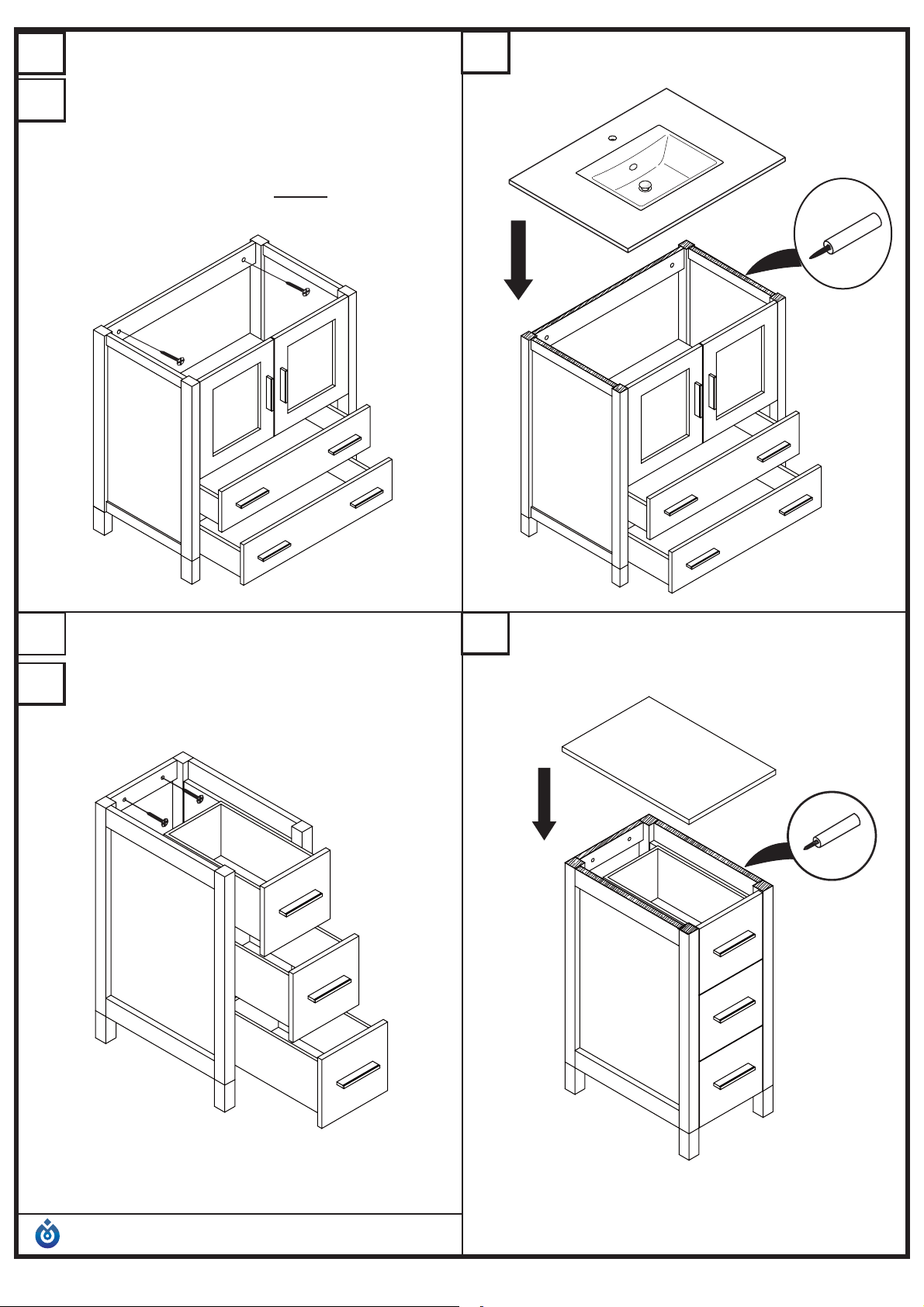

Remove drawer
2
Install cabinet
3
4
Install top panel
IMPORTANT:
Consult an expert for the proper
screws/bolts to use when attaching
to various wall constructions.
Screws provided do not attach to all
wall construction types.
SILICONE
5
6
Remove side cabinet drawer
Install side cabinet
7
Install side cabinet top panel
SILICONE
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 4

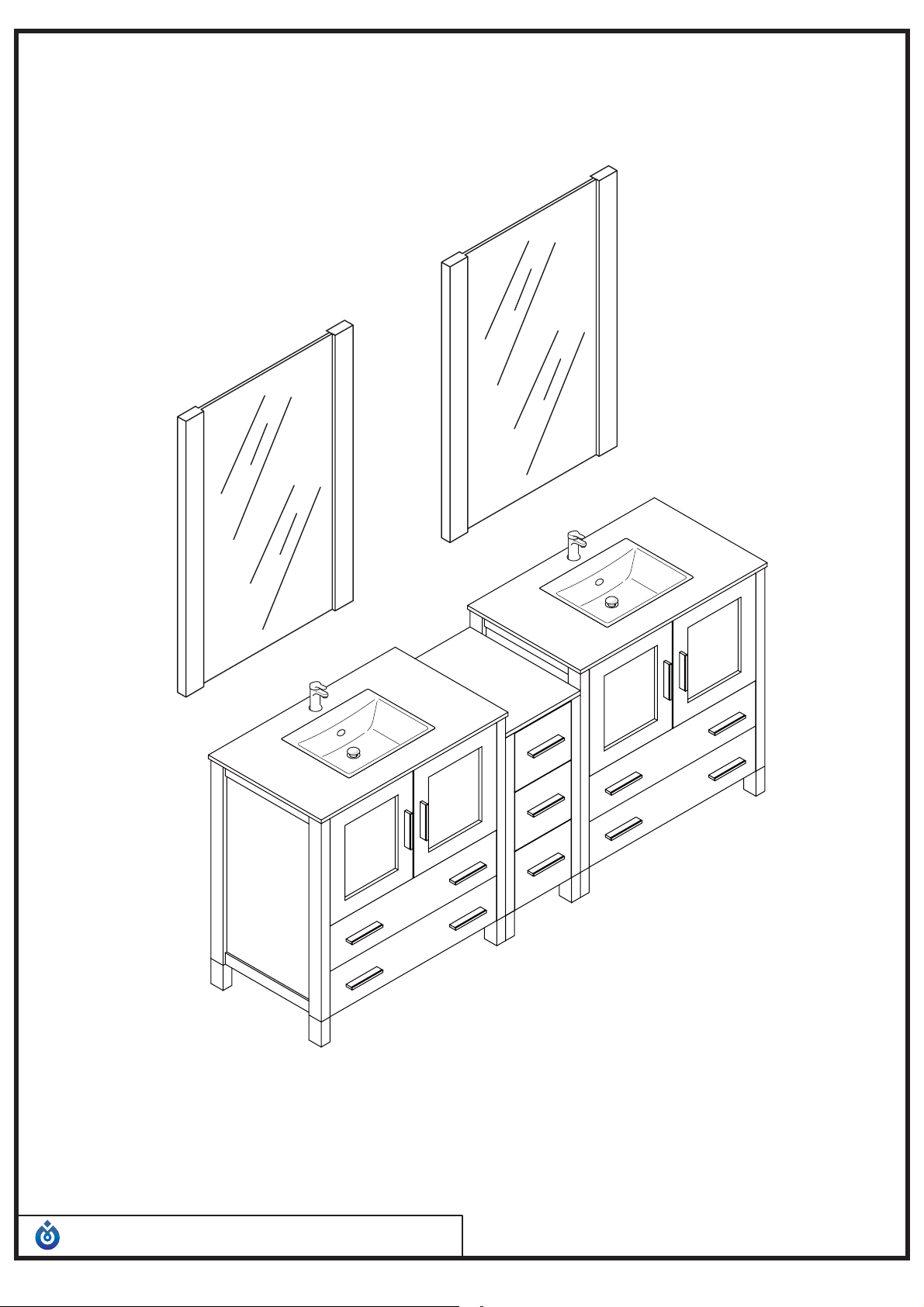

Page 5
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 5
Page 6

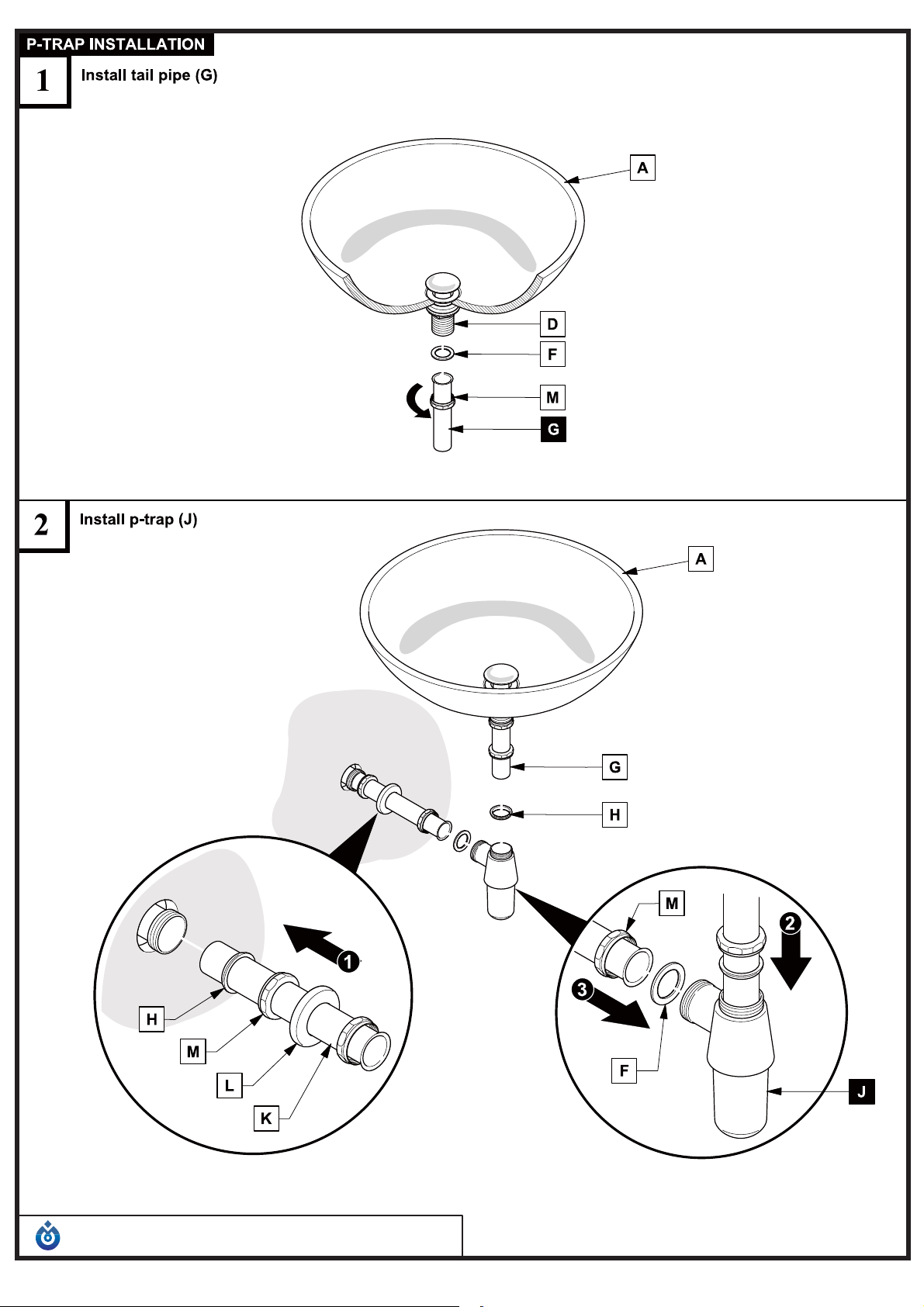

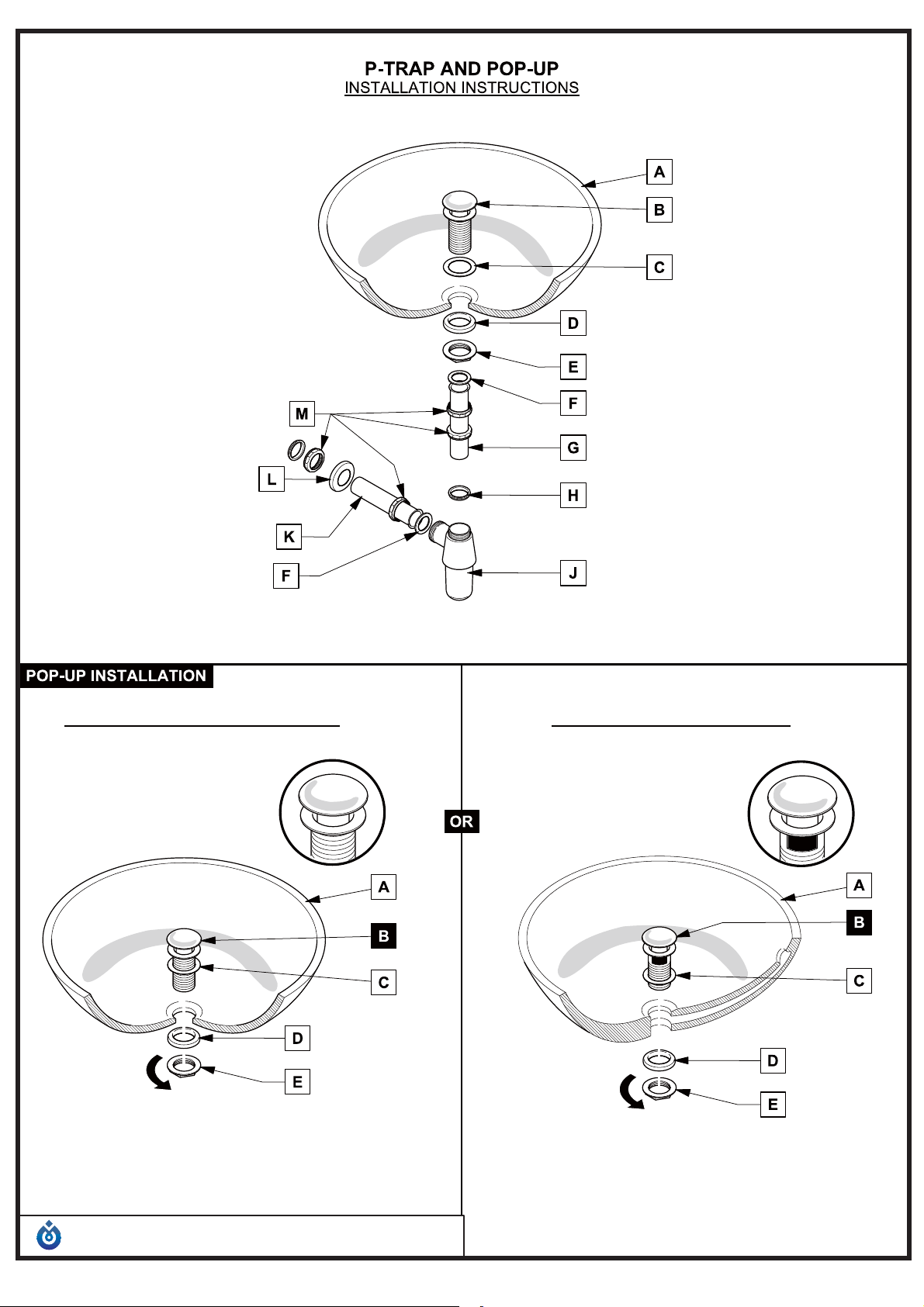

Mounting
Ring
Ring
Drain Pipe
Sink
Pop-up
Silicon
Washer
Silicon
Washer
Brass
Nut
Rubber
Washer
Tail
Pipe
Rubber
Washer
Rubber
Washer
P-Trap
FOR SINKS WITHOUT OVERFLOW FOR SINKS WITH OVERFLOW
PAGE 6
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Page 7
TORINO INSTALLATION GUIDE
©2013 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
PAGE 7
