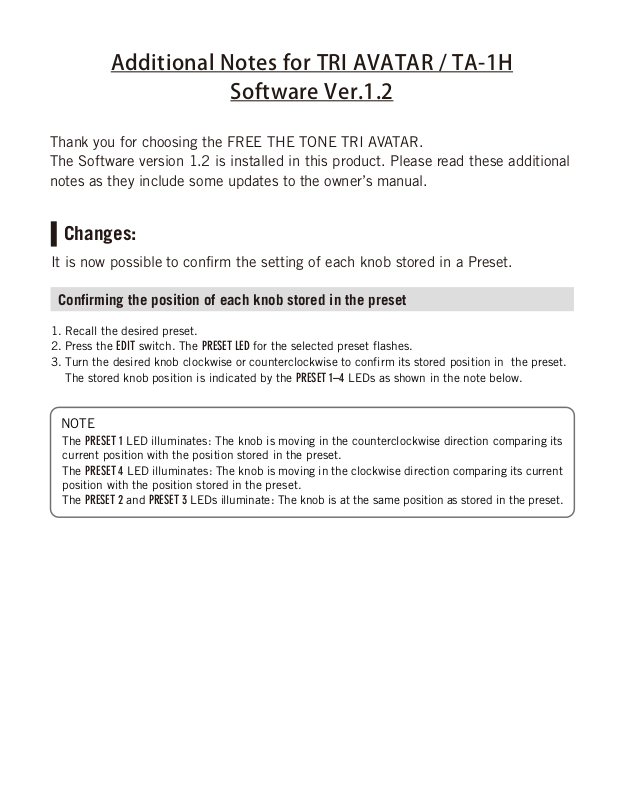

AdditionalNotesforTRIAVATAR/TA-1H
SoftwareVer.1.2
Thank you for choosing the FREE THE TONE TRI AVATAR.
The Software version 1.2 is installed in this product. Please read these additional
notes as they include some updates to the owner’s manual.
Changes:
It is now possible to confirm the setting of each knob stored in a Preset.
Confirming the position of each knob stored in the preset
1. Recall the desired preset.
2. Press the
3. Turn the desired knob clockwise or counterclockwise to confirm its stored position in the preset.
The stored knob position is indicated by the
NOTE
The PRESET 1 LED illuminates: The knob is moving in the counterclockwise direction comparing its
current position with the position stored in the preset.
The
position with the position stored in the preset.
The
EDIT switch. The PRESET LED for the selected preset flashes.
PRESET 1–4 LEDs as shown in the note below.
PRESET 4 LED illuminates: The knob is moving in the clockwise direction comparing its current
PRESET 2 and PRESET 3 LEDs illuminate: The knob is at the same position as stored in the preset.
