Page 1
P8F152
MOTHER BOARD
USER’S MANUAL
Page 2
Copyright Notice
©
Copyright 2002
The information contained in this user’s manualand all accompanying documentation is copyrighted and all rights are reserved.
This publication may not, in whole or in part, be reproduced,
transcribed, stored in a retrieval system, translated into any
language or computer language, or transmitted in any form
whatsoever without the prior written consent from the manufacturer, except for copies retained by the purchasers for their
personal archival purposes.
The manufacturer reserves the right to revise this user’s manual
and all accompanying documentation and to make changes in the
content without obligation to notify any person or organization of
the revision or change.
IN NO EVENT WILL THE VENDOR BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR,
THE VENDOR SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
All trademarks mentioned in this document are acknowledged.
The specifications in this manual are subject to change without
notice.
Page 3
Using This Manual
This manual is designed to help you build a reliable Personal Computer
based on the P8F152 platform.
Chapter 1 - Quick Reference
This chapter is for advanced users who want to quickly assemble a system.
The mainboard layout along with jumper and switch settings, and memory
configuration are provided.
Chapter 2 - Introduction
This chapter includes an introduction, a checklist of the items that ship
with this mainboard, and a summary of the principal features and components.
Chapter 3 - Hardware Installation
This chapter explains how to prepare your mainboard for use and how to
make the various connections to other computer components and peripheral items.
Chapter 4 - BIOS Configuration
This chapter explains how to use the system setup utility that is stored in
the mainboard’s firmware.
Chapter 5 - Driver and Utility
This chapter briefly describes the drivers and utility programs that are
packaged with the mainboard.
ii
Page 4
Table of Contents
1. P8F152 QUICK REFERENCE ................................................ 1
1.1. Mainboard Layout ........................................................... 1
1.2. I/O Ports......................................................................... 2
1.3. Front Panel Connector ................................................... 2
1.4. Jumpers ......................................................................... 3
1.5. PCI and AGP Frequency Settings................................... 3
1.6. Memory Installation......................................................... 3
1.7. Connectors .................................................................... 4
2. INTRODUCTION .................................................................... 5
2.1. Overview........................................................................ 5
2.2. Mainboard Specifications and Features.......................... 6
2.2.1. Hardware ............................................................................ 6
2.2.2. Software ............................................................................. 8
2.3. Mainboard Layout ........................................................... 9
2.4. Microprocessor .............................................................11
2.5. CPU Packaging.............................................................11
2.6. AC97 Codec..................................................................11
2.7. Chipset......................................................................... 12
2.8. RAID (Optional)............................................................ 13
3. HARDWARE INSTALLATION ............................................ 14
3.1. Unpacking .................................................................... 14
3.2. Installation .................................................................... 15
3.3. Safety Measures .......................................................... 15
3.4. Connector/Jumper Location ......................................... 16
3.5. Attaching Connectors................................................... 17
3.5.1. Front Panel Connectors (JP1) ........................................... 17
iii
Page 5
3.5.2. Infrared (IR) Connectors (J1) ............................................ 18
3.5.3. LAN/Modem Wake up Connectors (WOL1) .................... 18
3.5.4. Front USB Header (USB2, USB3)...................................... 19
3.5.5. Audio CD-IN Connector (CD1)......................................... 19
3.5.6. Audio AUX-IN Connector (AUX1) .................................. 20
3.5.7. Floppy Drive Connector (FLOPPY) .................................. 20

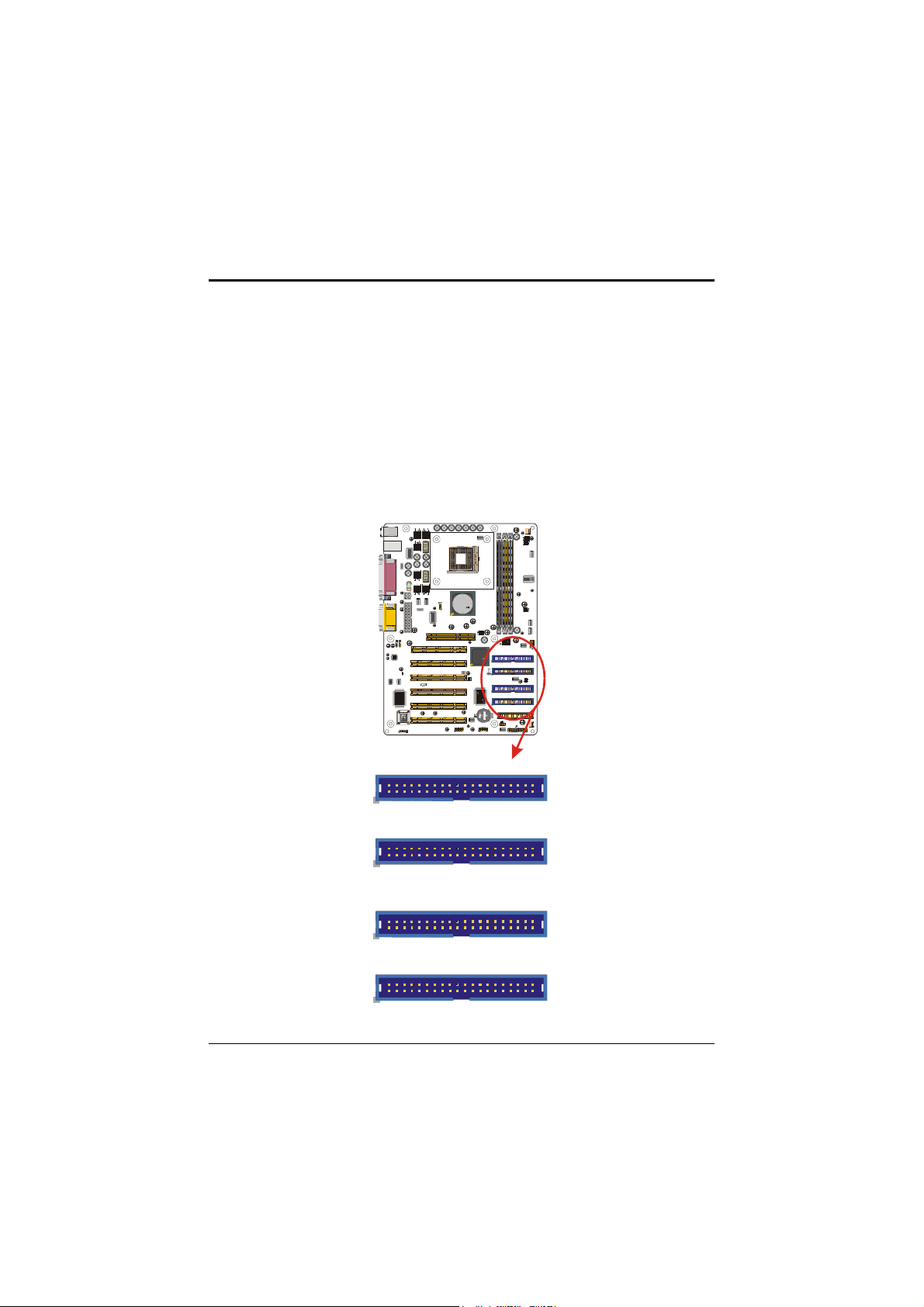

3.5.8. IDE Connectors (IDE1, IDE2, IDE3, IDE4) ........................ 21
3.5.9. Back Panel Connectors..................................................... 22
3.5.10. Power Supply Connector (PW2)....................................... 25
3.5.11. CPU/AGP/System FAN Power Supplies (FAN1/FAN2) .... 26
3.5.12. PCI Connector (PCI1~PCI6).............................................. 27

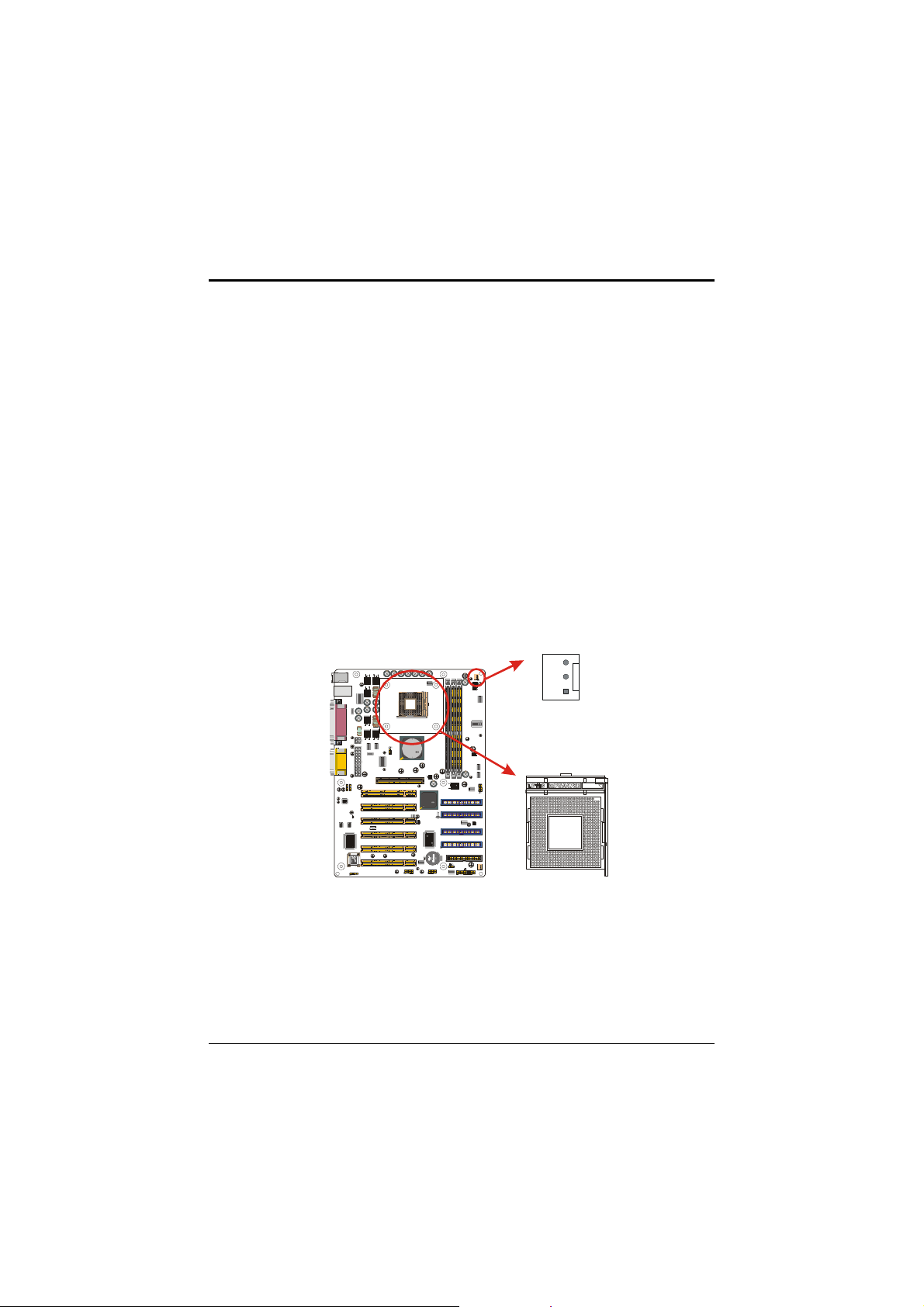

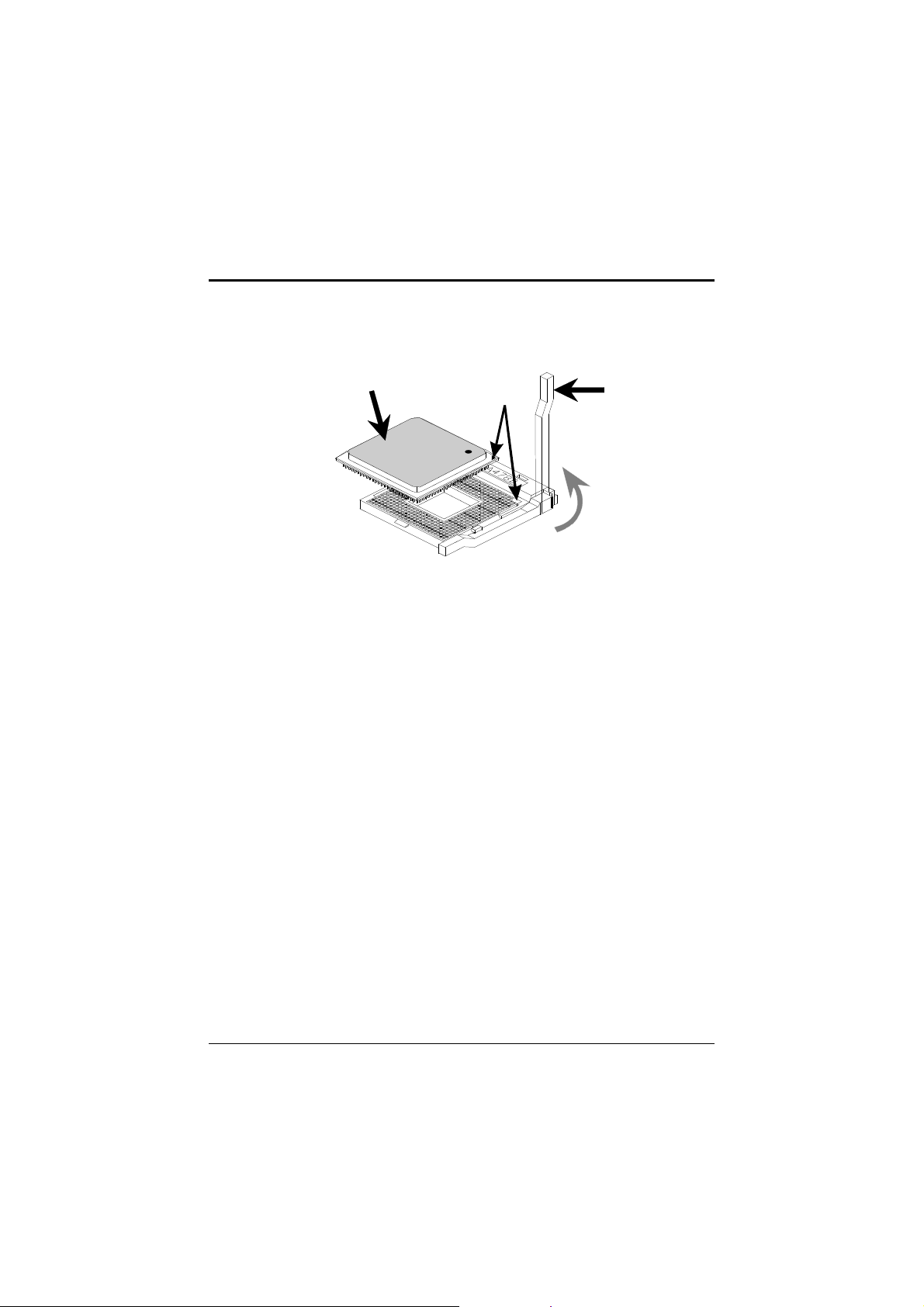

3.6. Installing the CPU......................................................... 28
3.6.1. Before You Begin.............................................................. 28
3.6.2. Installation Procedure....................................................... 28
3.6.3. Removing the Processor................................................... 29
3.7. Installing System Memory............................................. 30
3.8. Setting Jumpers ........................................................... 31
3.8.1. Clear CMOS Jumper (JBAT1)............................................ 31
3.8.2. CPU FSB Jumper (JCK1)................................................... 32
3.8.3. DIMM Voltage Jumper (JV1)............................................. 32
3.9. Auto Power On............................................................. 33
4. BIOS CONFIGURATION ..................................................... 34
4.1. Entering Setup ............................................................. 35
4.2. Standard CMOS Features............................................ 37

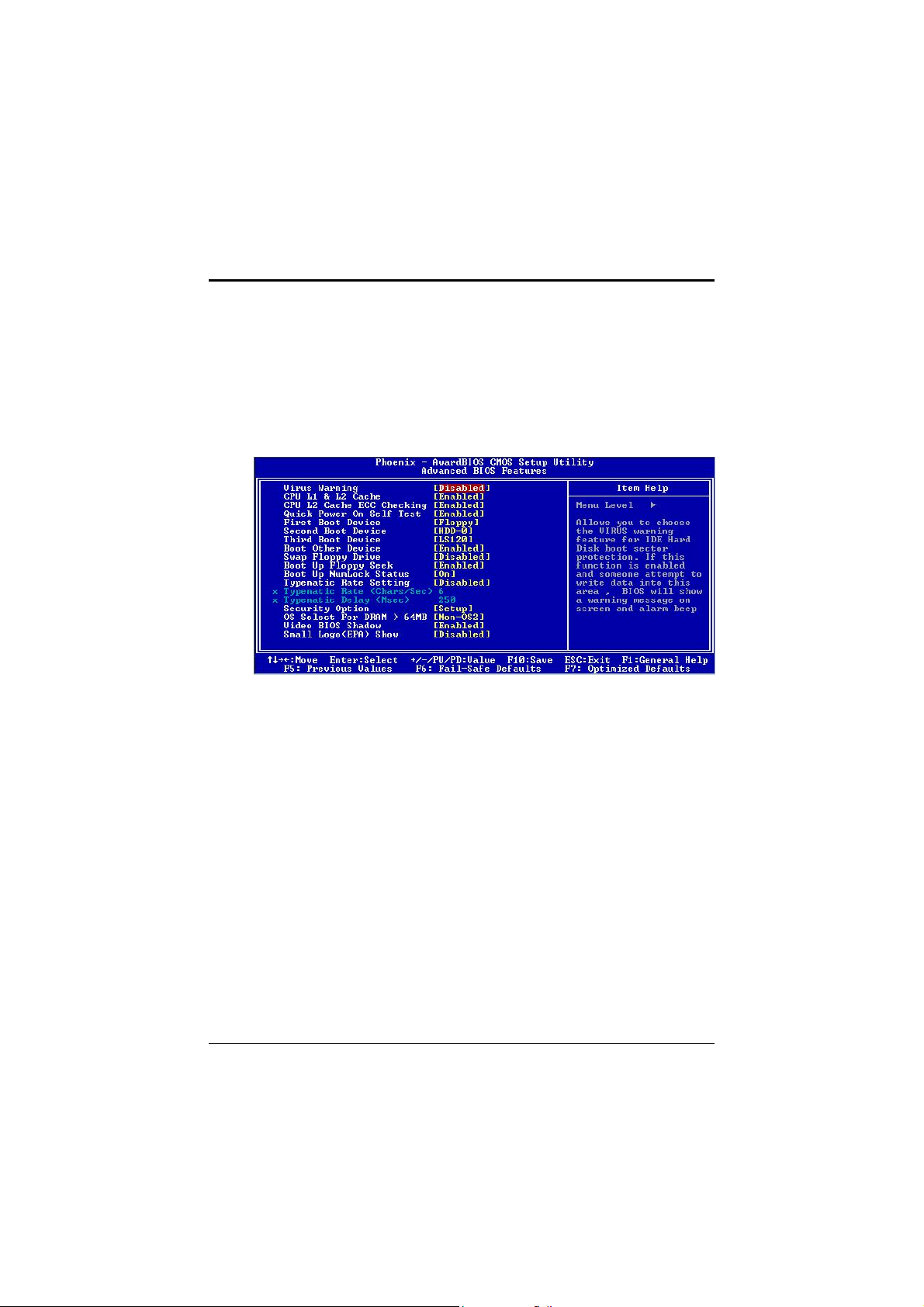

4.3. Advanced BIOS Features............................................. 40

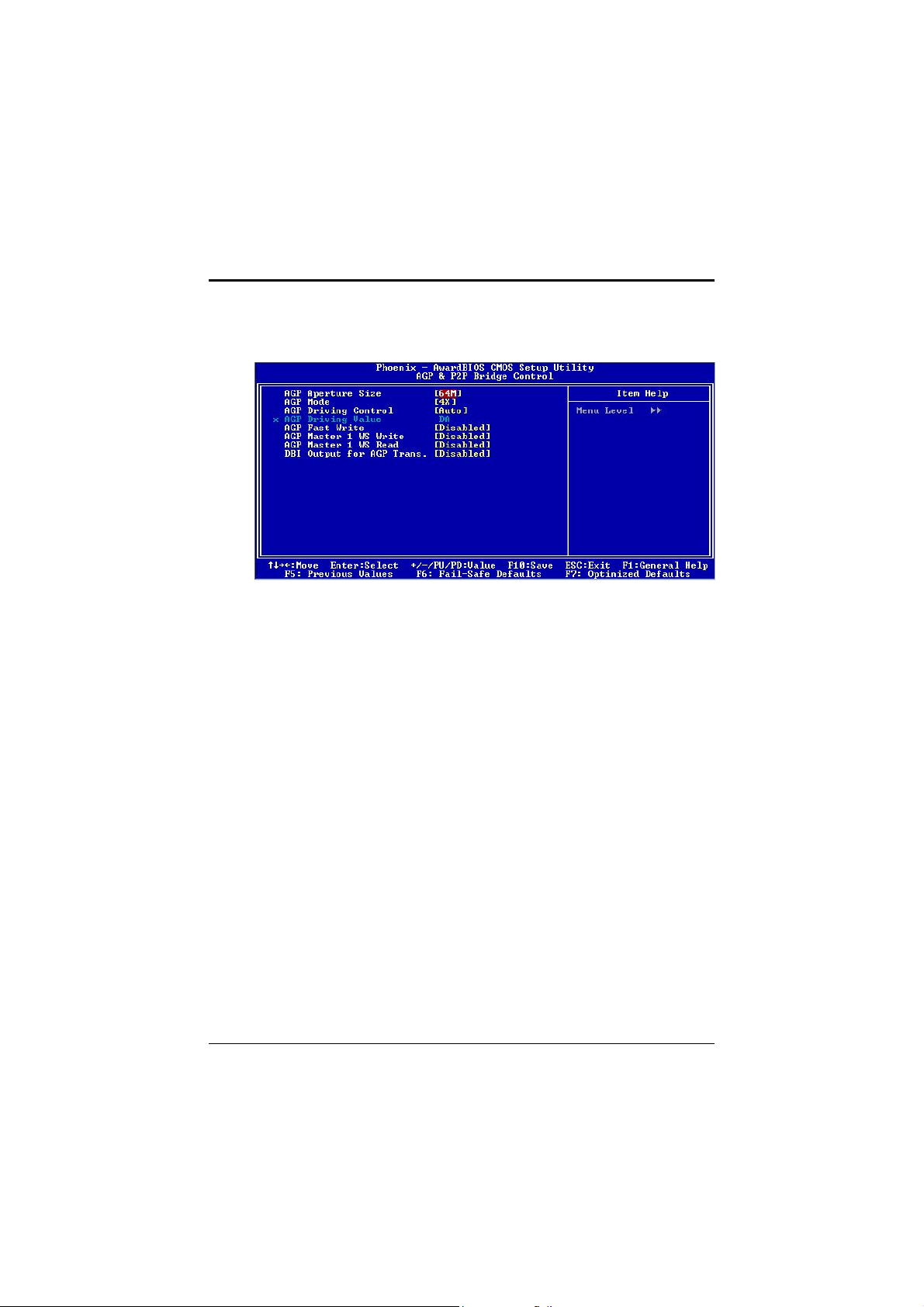

4.4. Advanced Chipset Features ......................................... 43

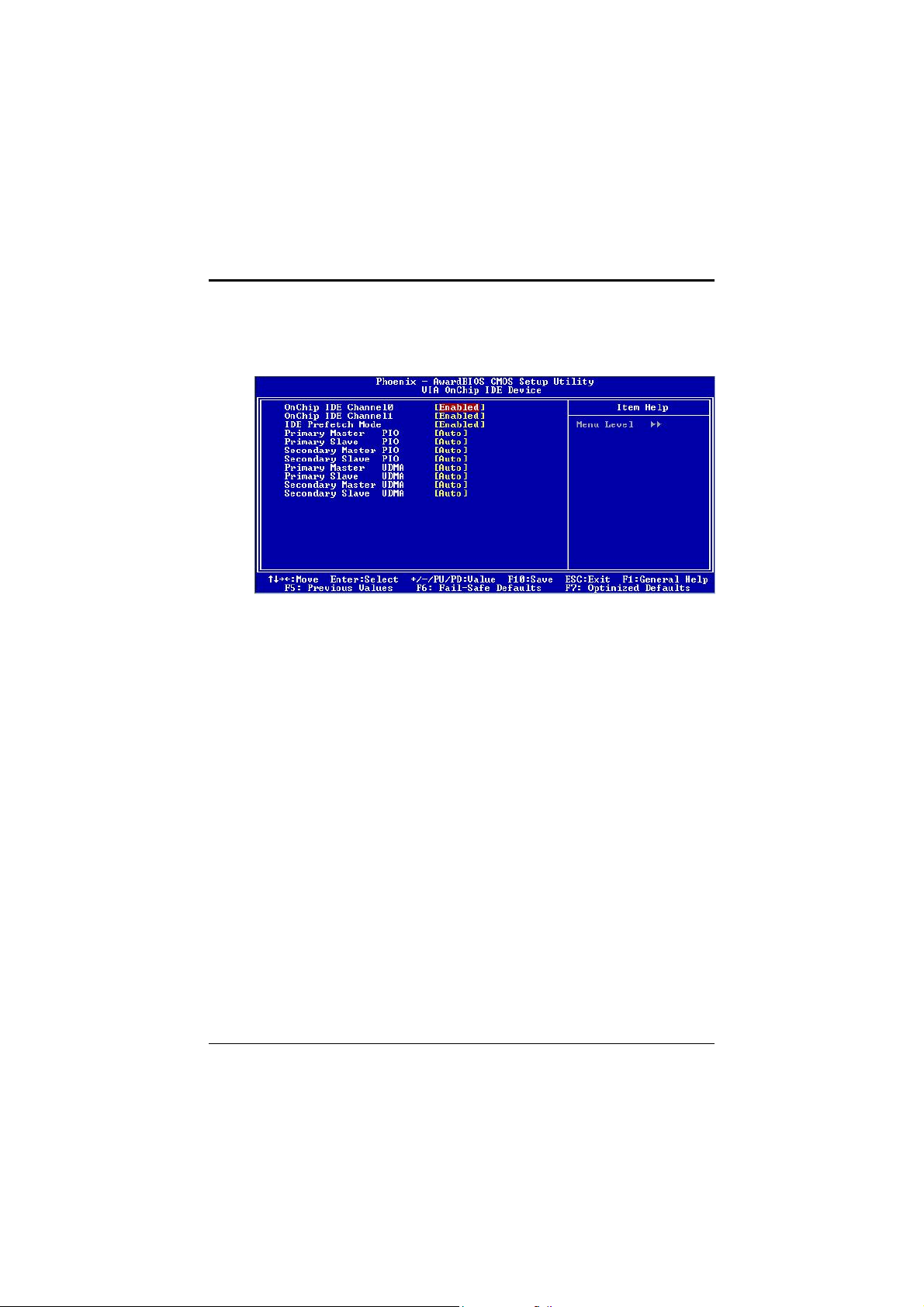

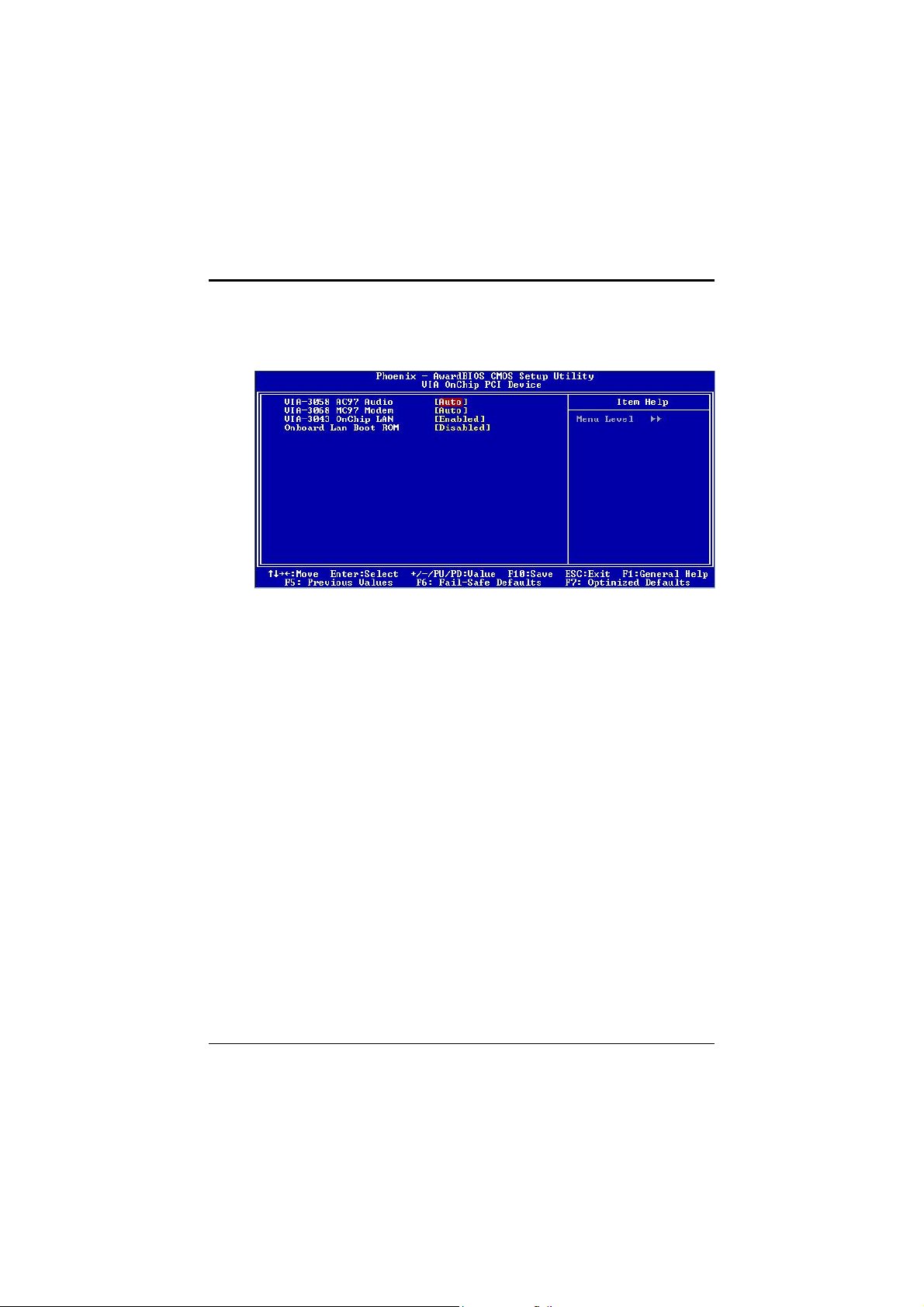

4.5. Integrated Peripherals .................................................. 50

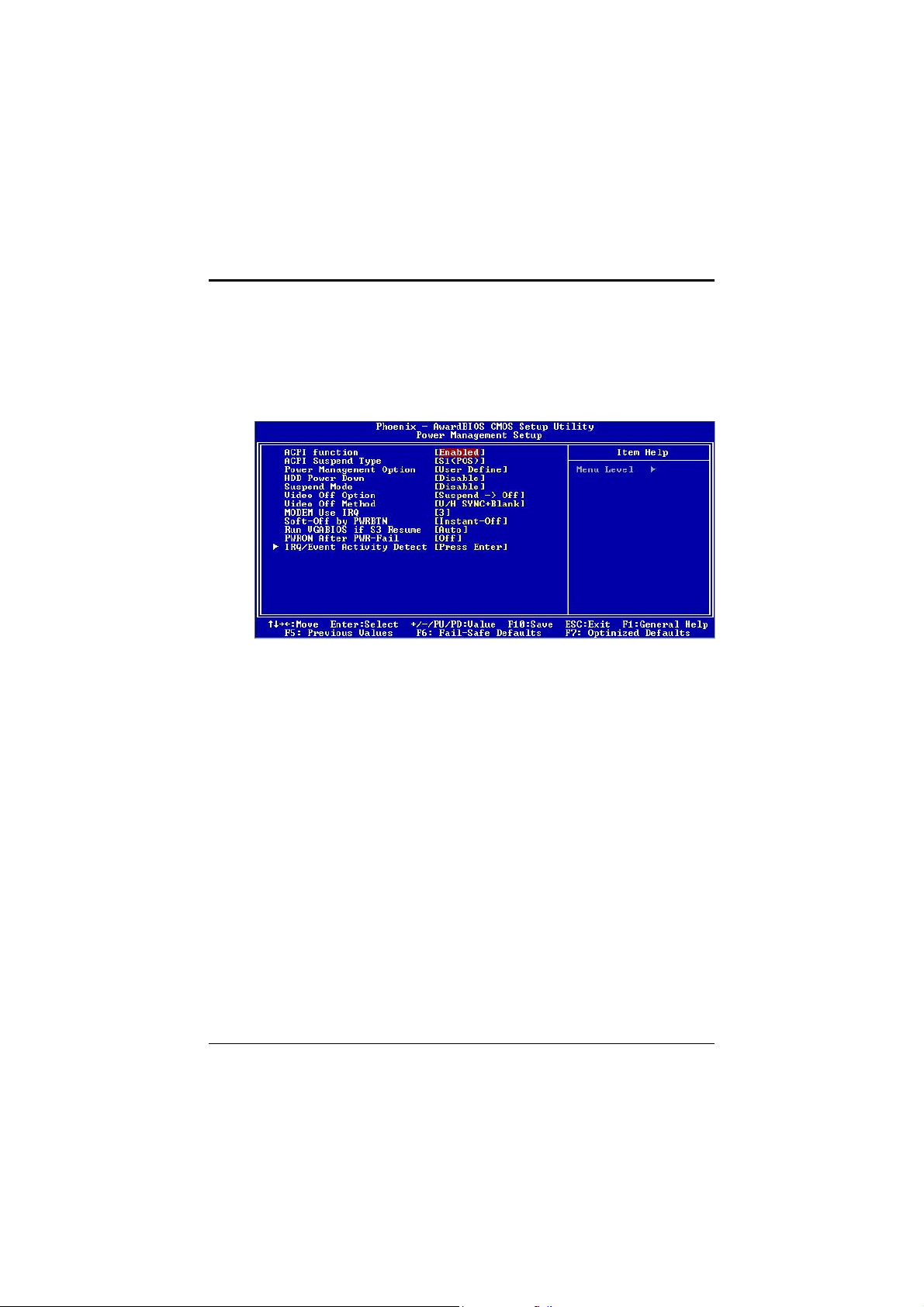

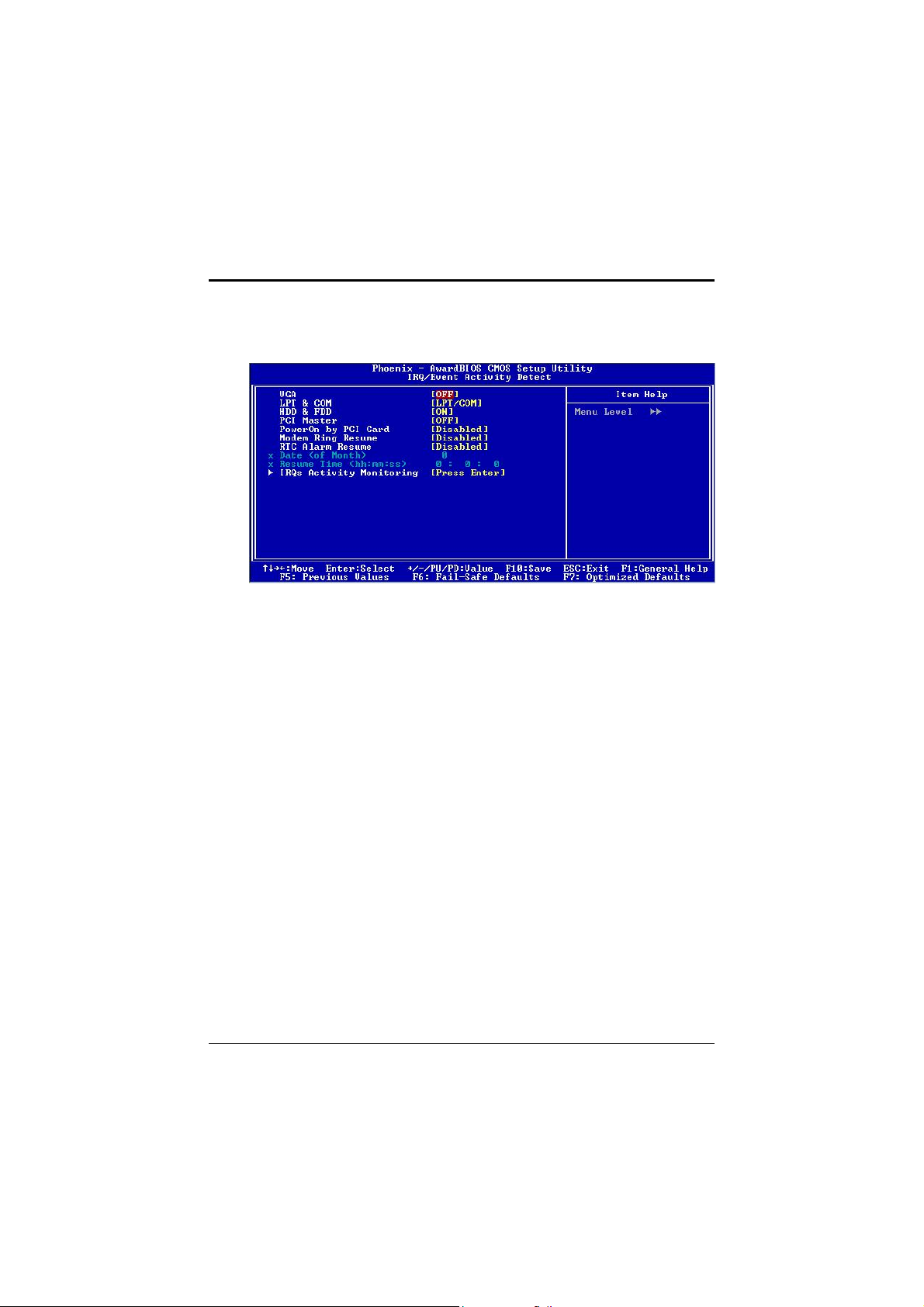

4.6. Power Management Setup ........................................... 57
4.7. PnP/PCI Configurations................................................ 63
iv
Page 6
4.8. PC Health Status Option .............................................. 65

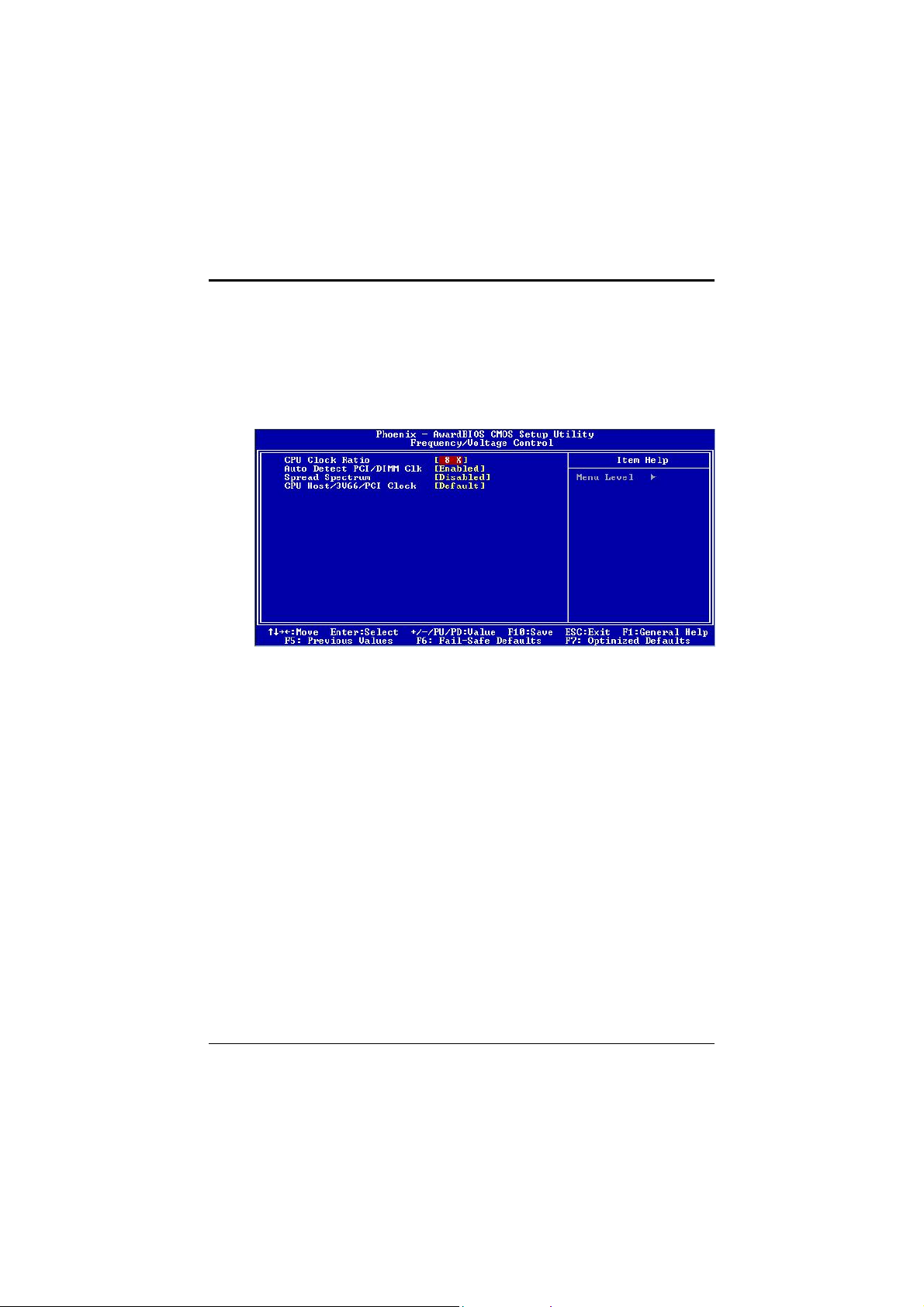

4.9. Frequency/Voltage Control ........................................... 67
4.10. Load Fail-Safe Defaults Option..................................... 68
4.11. Load Optimized Defaults Option................................... 68

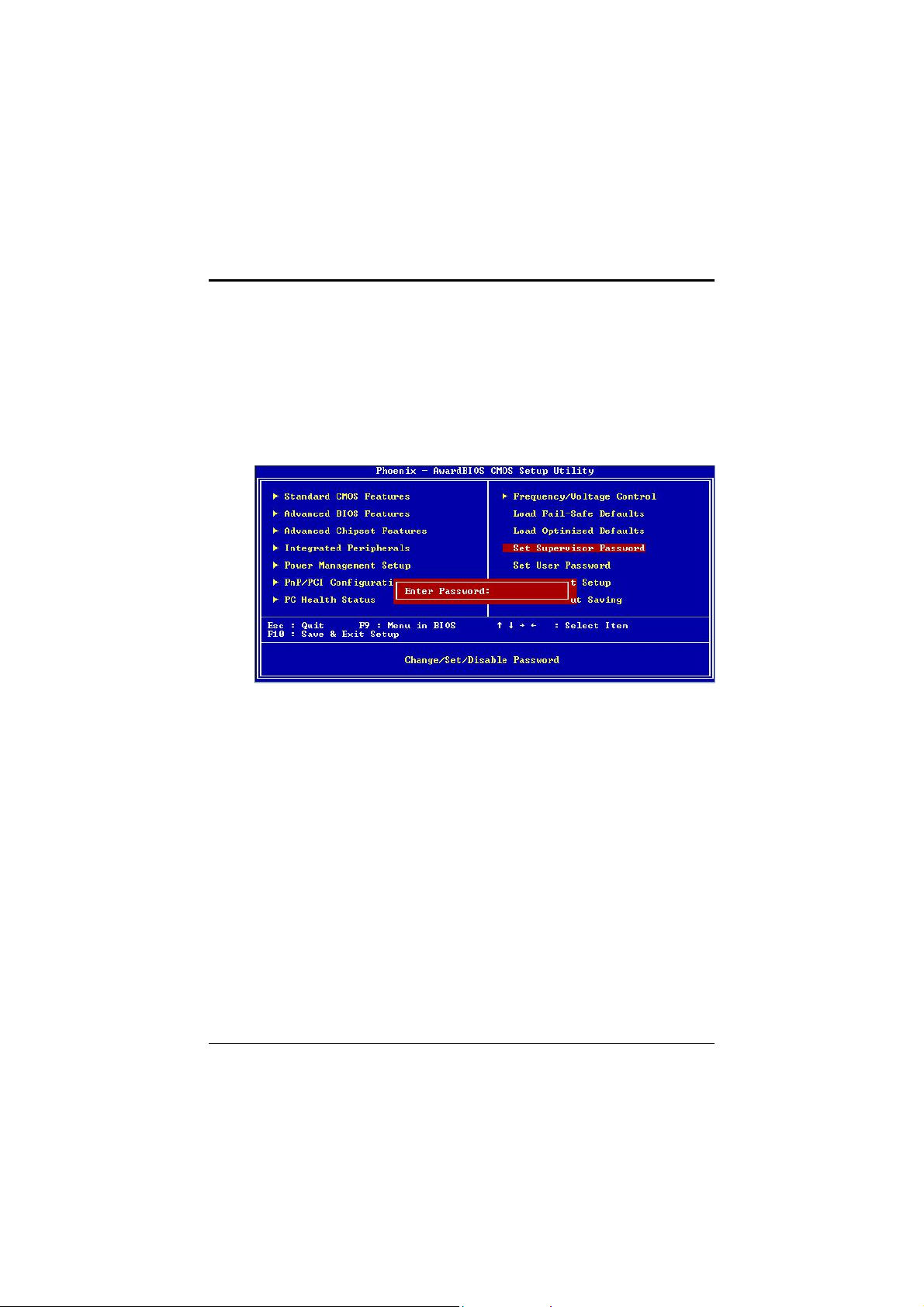

4.12. Set Supervisor/User Password .................................... 69
4.13. Save & Exit Setup ........................................................ 70
4.14. Exit Without Saving ...................................................... 70
5. DRIVER AND UTILITY ....................................................... 71
5.1. Flash Utility................................................................... 71
5.2 CD Driver Overview ..................................................... 72
5.2.1. Intel Chipset 845 INF Driver ............................................. 73
5.2.2. Intel Chipset 845 Busmater IDE Driver.............................. 73
5.2.3. AD1881 Audio Driver....................................................... 74
5.3. Online Services............................................................ 75
v
Page 7
1. P8F152 Quick Reference
S
E
R
I
A
L
&
This section is for users to get started using the mainboard straight away.

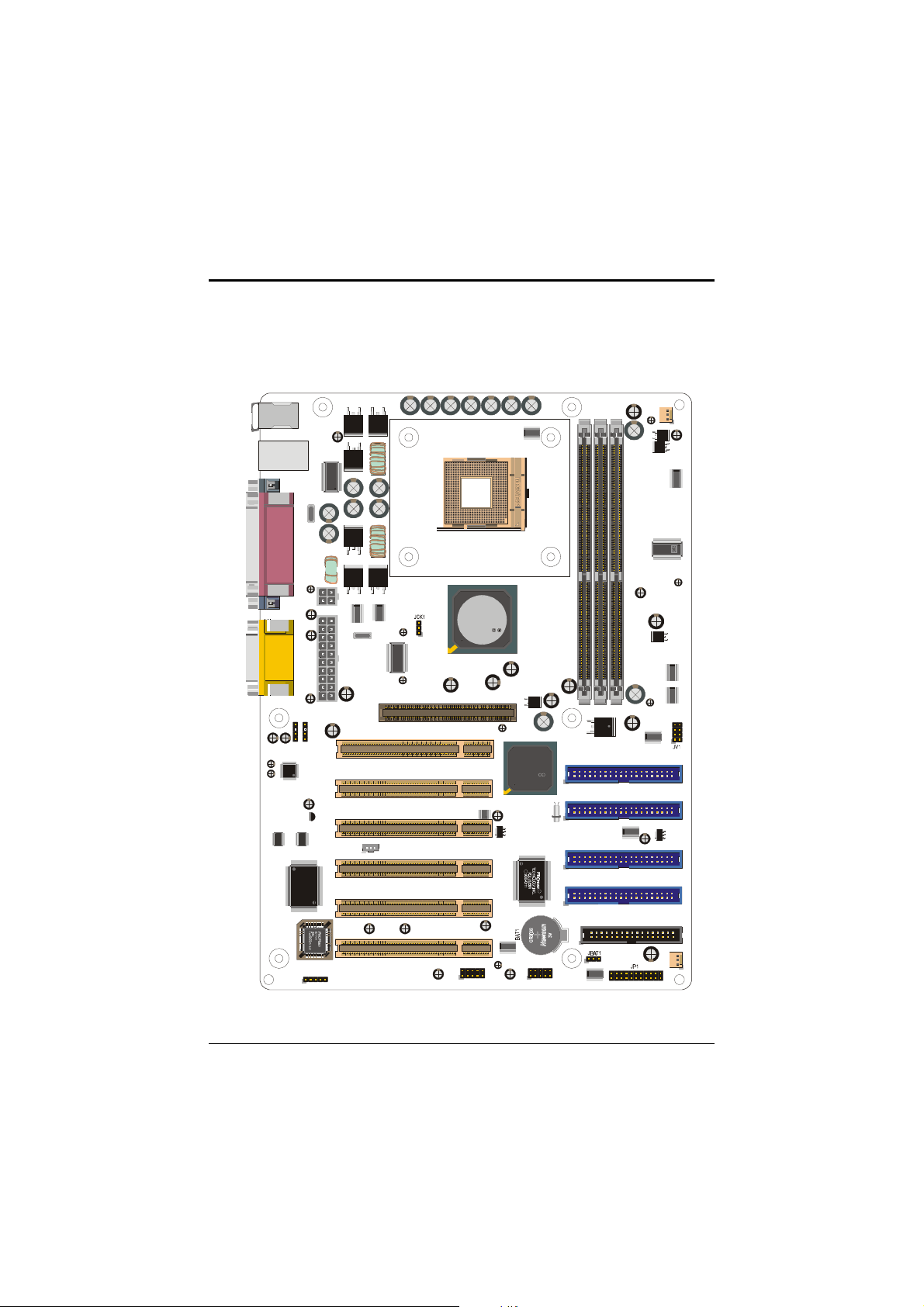

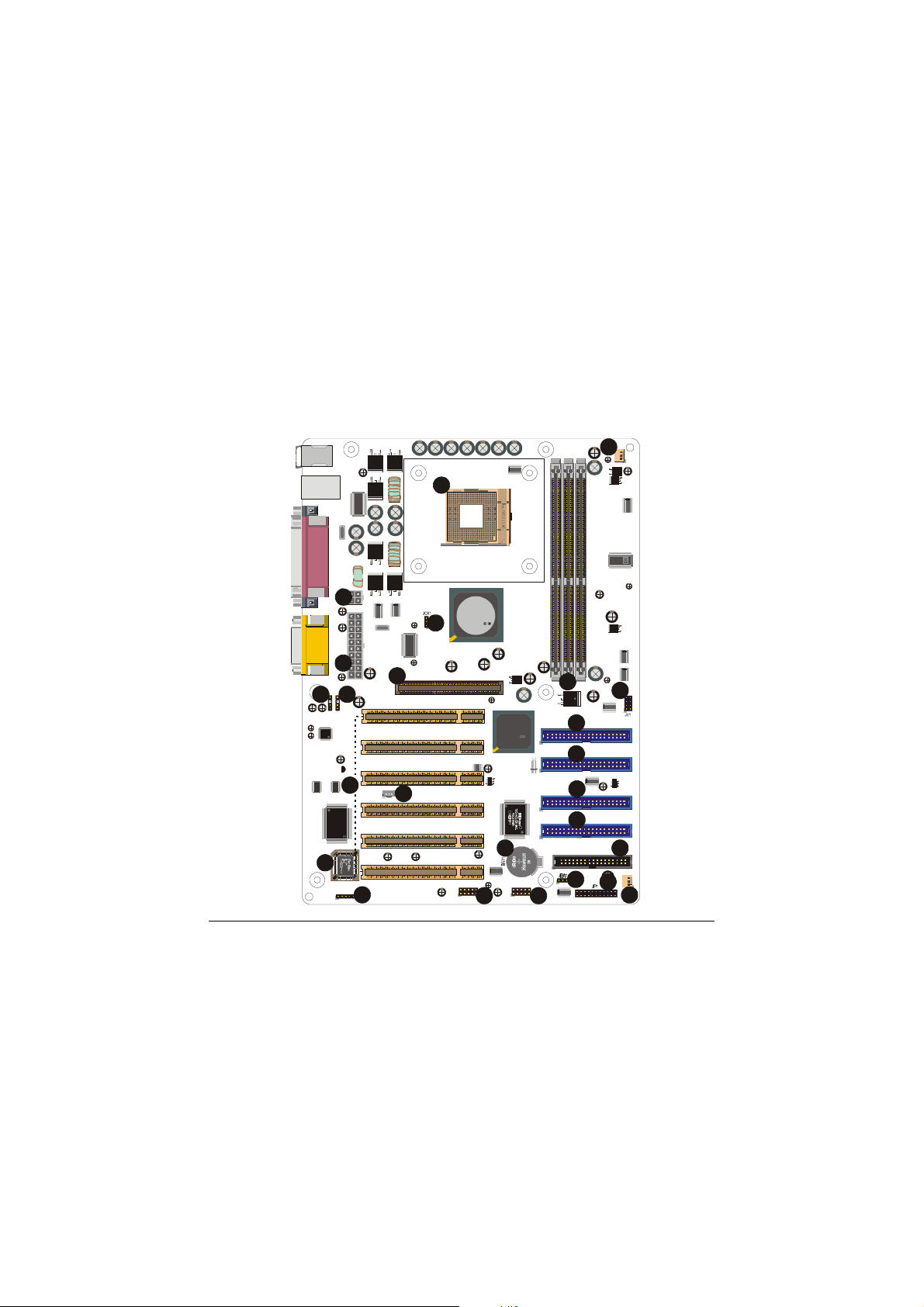

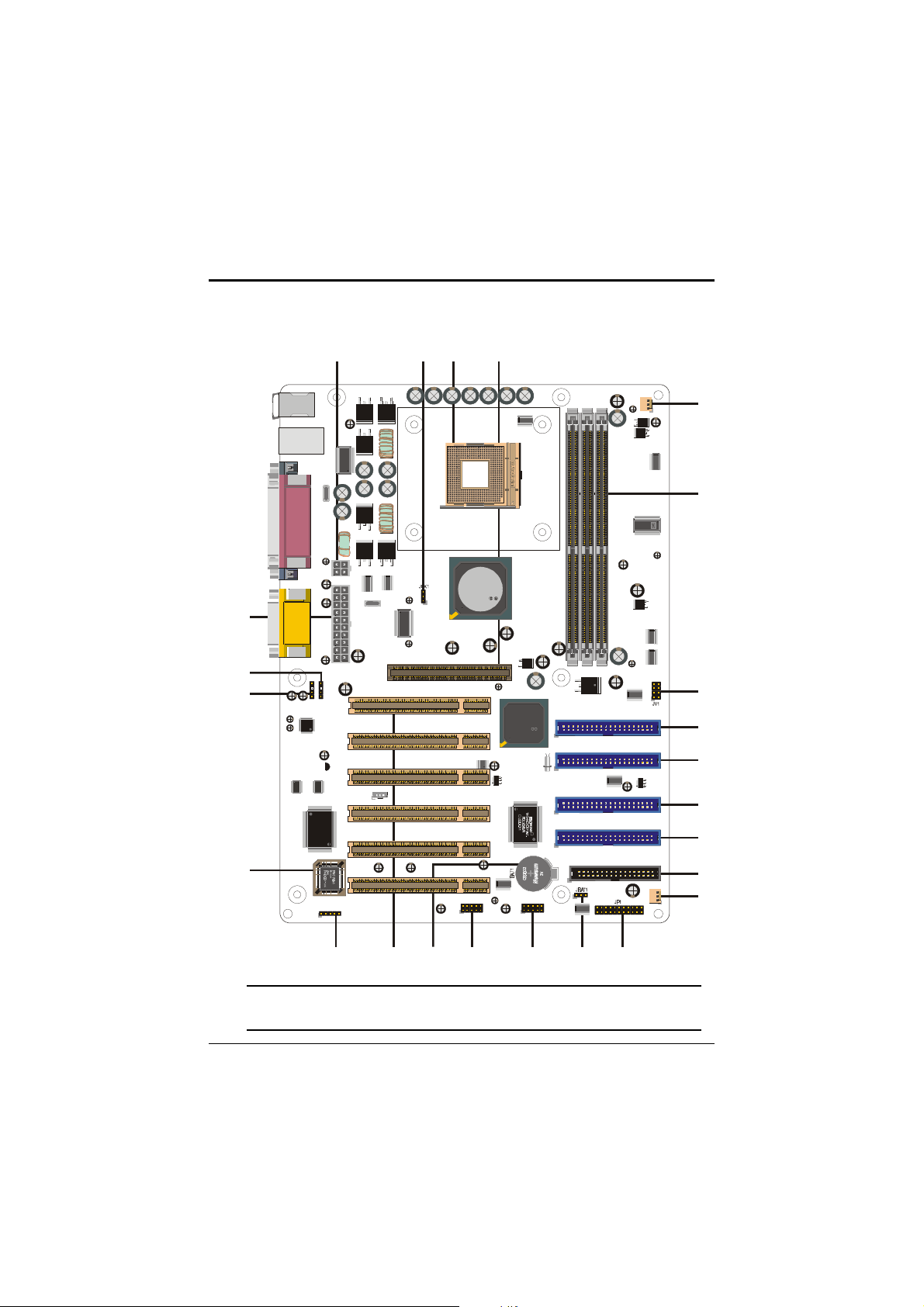

1.1. Mainboard Layout
S
T
R
O
P
D
R
&
A
E
O
KB1
S
B
U
Y
O
E
M
K
2
2
/
/
S
S
P
P
USB1
S
T
R
O
P
B
S
U
COM1
S
T
R
O
P
L
E
L
L
A
R
A
P
COM2
&
N
I
S
C
I
T
M
R
,
O
T
P
U
I
O
D
-
I
E
M
/
N
I
E
L
M
,
A
N
I
-
G
E
N
I
L
AUD1
16 17
AUDIO CODEC
21
3
PW1
2
PW2
1
1
X
D
U
C
A
6
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
2
H
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
PCI 6
13
1
19
VIA
P4X400
0217CD TAIWAN
2IA2003622
L
O
T
E
S
5
AGP
VIA
VT8235
0217CD TAIWAN
23A1009406
MC
IDE1
WOL1
15
USB2
RAID CHIPSET
C
R
20
USB3
IDE2
IDE3
IDE4
1111
DIM3
DIM2DIM1
4
C
C
E
B
E
6
0
T
3
0
L
7
7
8
8
FDD1
12
FRONT PANEL CONNECTOR
18
10
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
14
9
F
A
N
2
18
1. mPGA478 CPU socket (mPGA478)
2. ATX power connector (PW2)
3. ATX 12V power connector (PW1)
4. 184-pin DIMM DDR module sockets (DIM1~3)
5. Accelerated Graphics Port slot (AGP)
6. PCI expansion connector (PCI 1 ~ PCI 6)
7. IDE connector (IDE1 ~ 2)
8. RAID connector (IDE3 ~ 4)
9. Floppy drive connector (FDD1)
10. Front Panel connectors (JP1)
11. Front USB ports connectors (USB2/USB3)
12. Clear CMOS (JBAT1)
13. IR connector (IR)
14. DIMM voltage selector(JV1)
15. Wake on LAN connector (WOL1)
16. Audio connectors(CD1)
17. Audio connectors(AUX1)
18. FAN connectors (FAN1/FAN2)
19. CPU FSB(JCK1)
20. RTC battery (BAT1)
21. Flash BIOS
1Mainboard Layout
Page 8
Mainboard User’s Manual
Parallel port
MIDI/GAME port
Pin 1

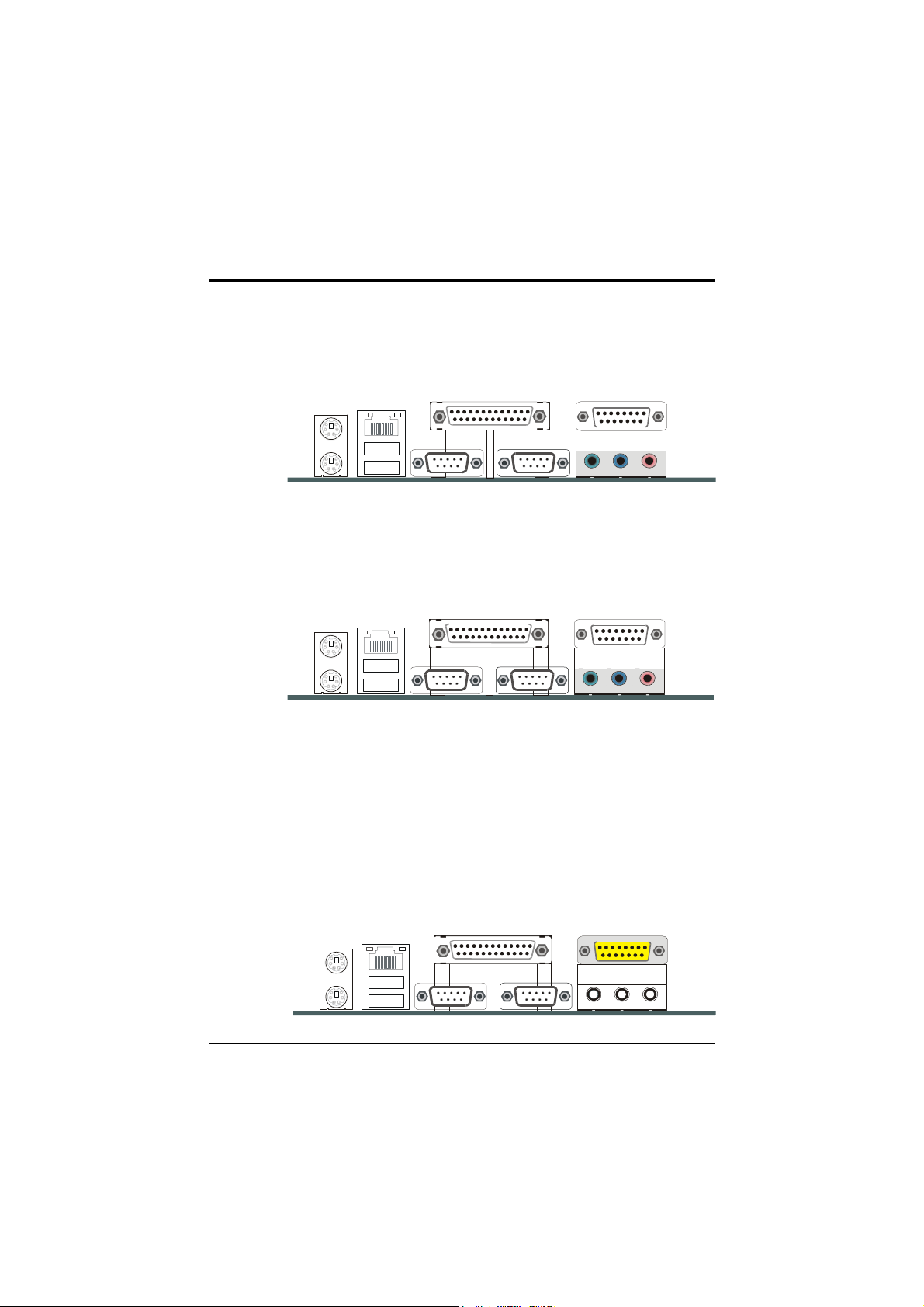

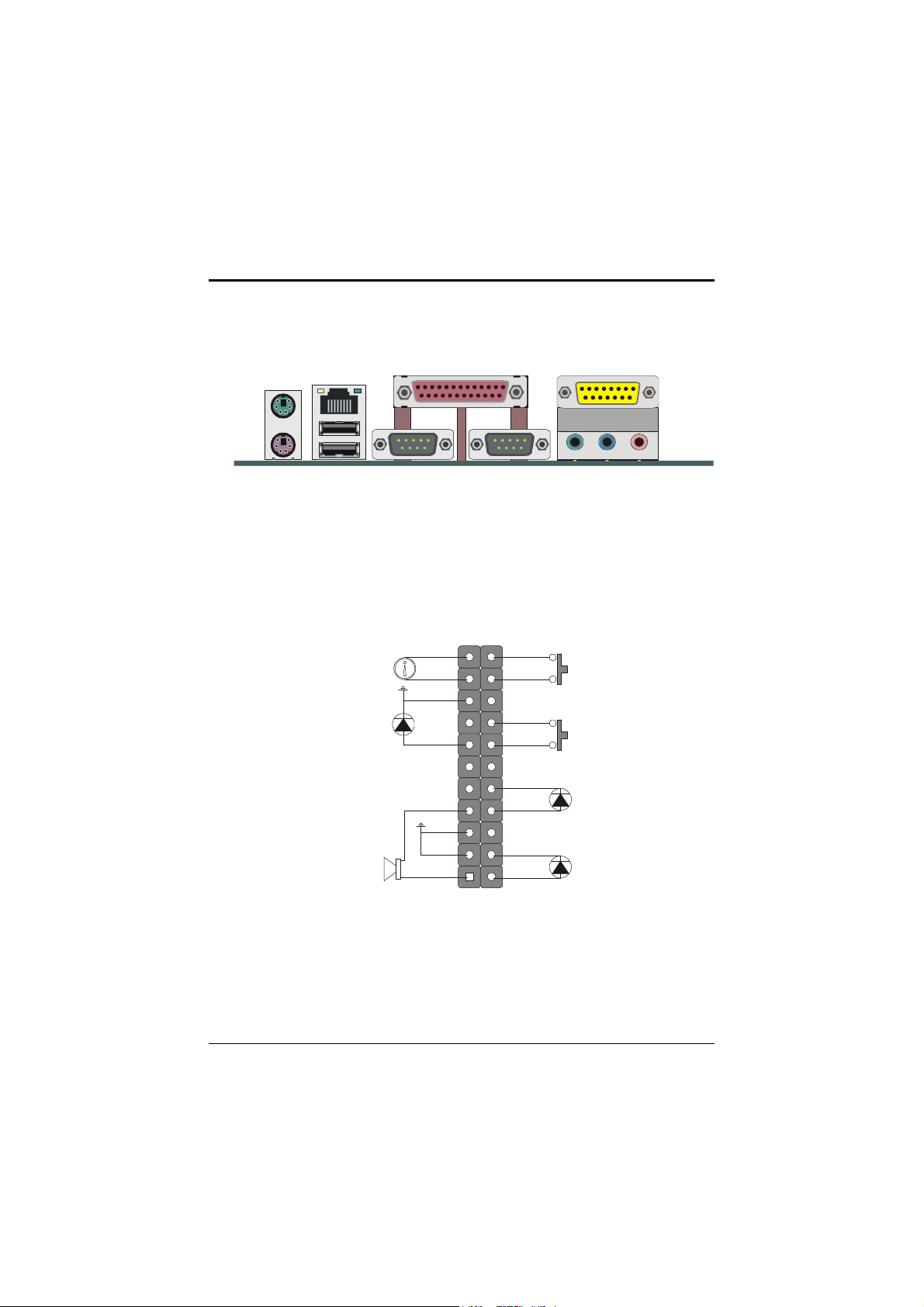

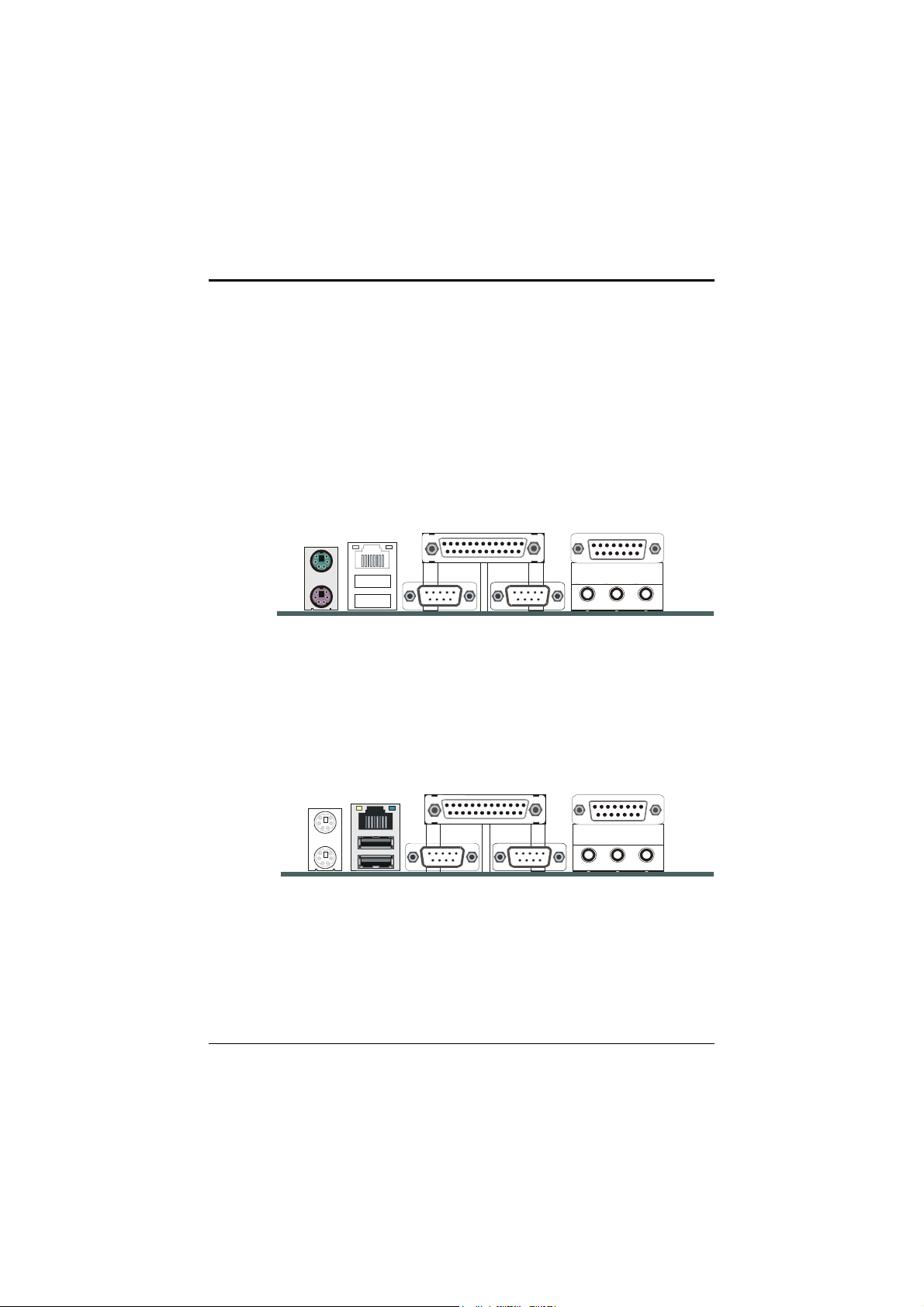

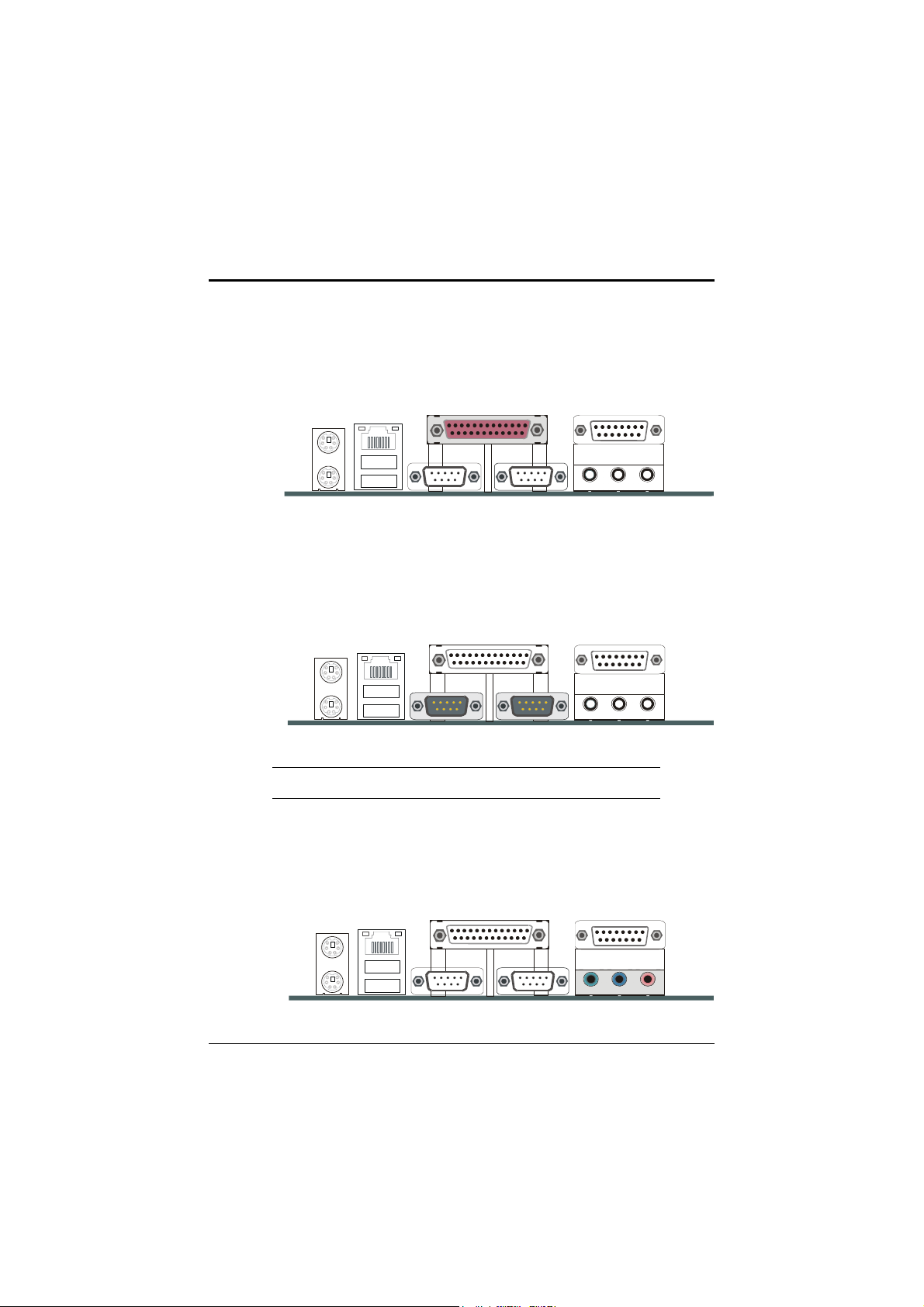

1.2. I/O Ports
PS/2 Mouse port
PS/2 Keyboard port
LAN port
USB ports
COM1 port
COM2 port
Line-Out / Line-In / Mic-In ports
1.3. Front Panel Connector
The following illustration shows the front panel connector pin assignments:
(PWR LED & keylock)
POWER LED
& KEYLOCK
SPEAKER
Ground
Keyboard
LED cathode
Non
LED anode
+5V
Ground
Ground
Speaker-out
Ground
Power on/off
Ground
Reset Single
LED cathode
LED anode
LED cathode
LED anode
(PW SW)
POWER SWITCH
(RST SW)
RESET SWITCH
(SBLLED)
STANDBY LED
(HLED)
HDD LED
2
I/O Ports
Page 9
1.4 Jumpers
P8F152 Quick Reference
JBAT1
JCK1
JV1
1-2
2-3
1-2
2-3
1-2
3-4
5-6
7-8
Normal Mode
Clear CMOS
Auto
133MHz
2.5V
2.6V
2.7V
2.8V
1.5. PCI and AGP Frequency Setting
The PCI and AGP frequency settings are automatically set by the system.

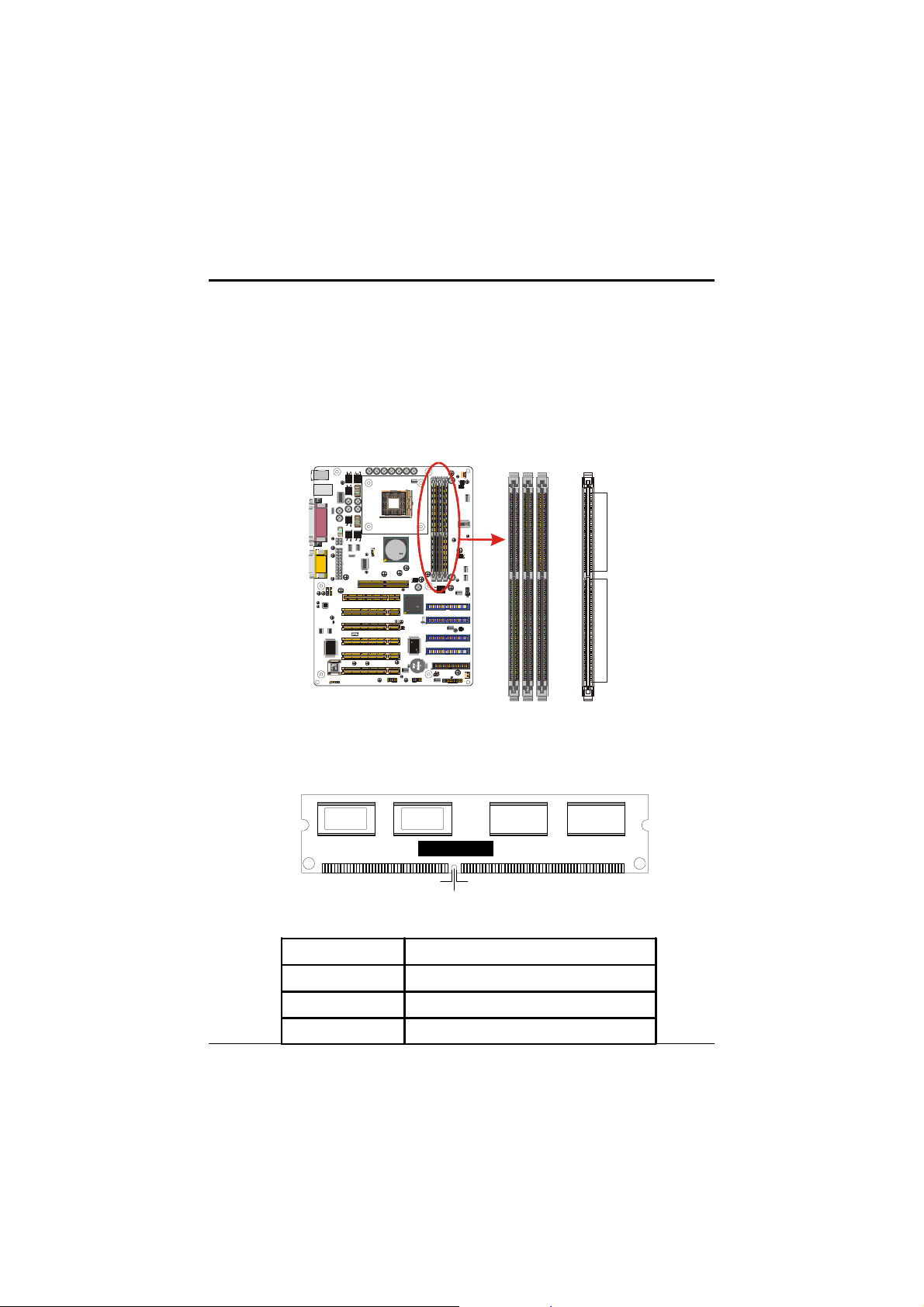

1.6. Memory Installation
Note: The VT8754 chipset family used in this mainboard allows zero wait
state bursting between the DRAM and the data buffers at 133/100MHz.
184-Pin DIMM DDR SDRAM Memory Configuration.
Each 184-pin DIMM bank can install from 64MB up to 1GB
of PC1600/PC2100/PC2700 compliant 2.5V single or double side
unbuffered with or without ECC DDR SDRAM modules.
Bank 0 (DIMM1)
Bank 1 (DIMM2)
Bank 2 (DIMM3)
Total
Jumper
64MB, 128MB, 256MB, 512MB, 1GB
64MB, 128MB, 256MB, 512MB, 1GB
64MB, 128MB, 256MB, 512MB, 1GB
64MB to 3GB
3
Page 10
Mainboard User’s Manual

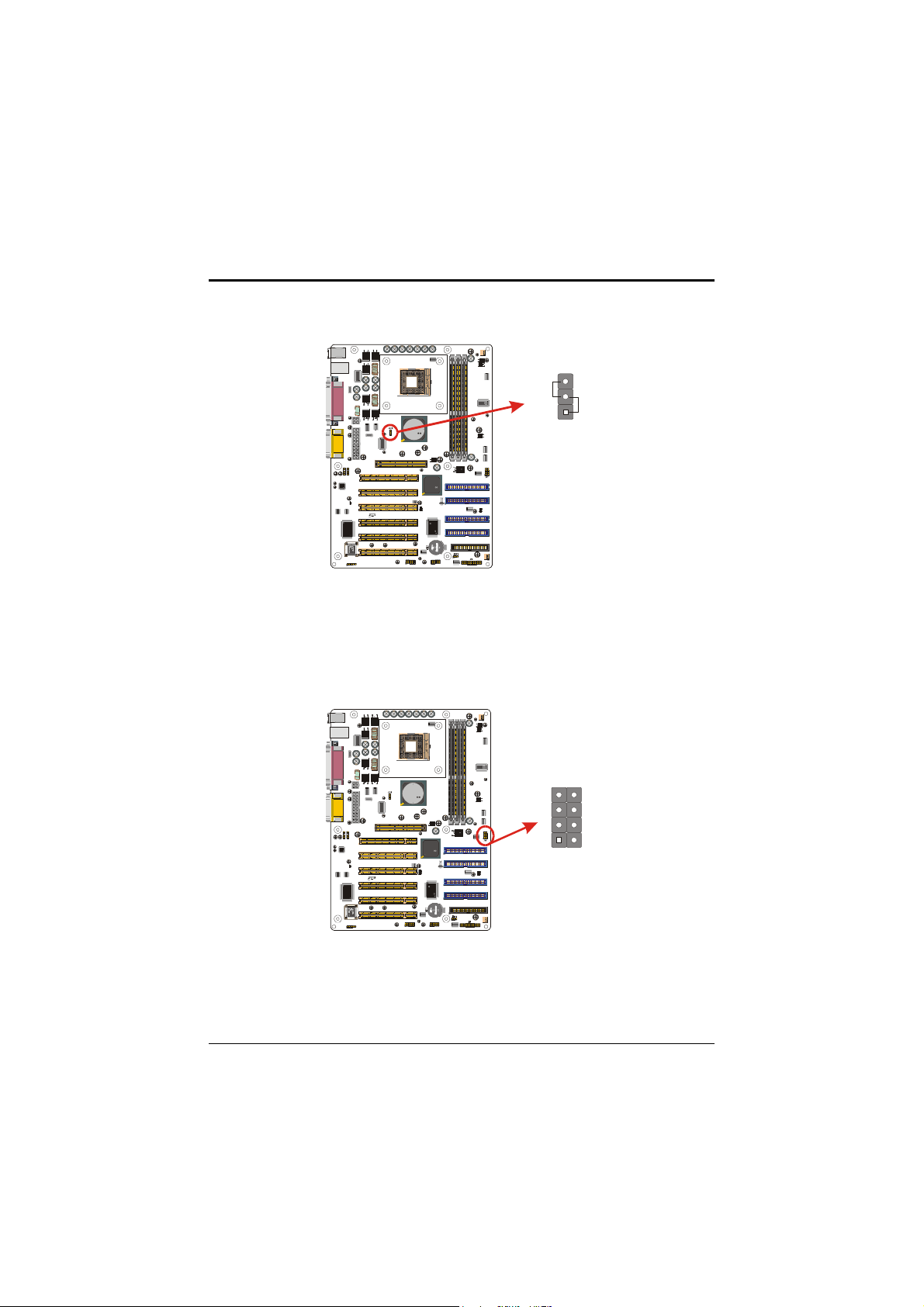

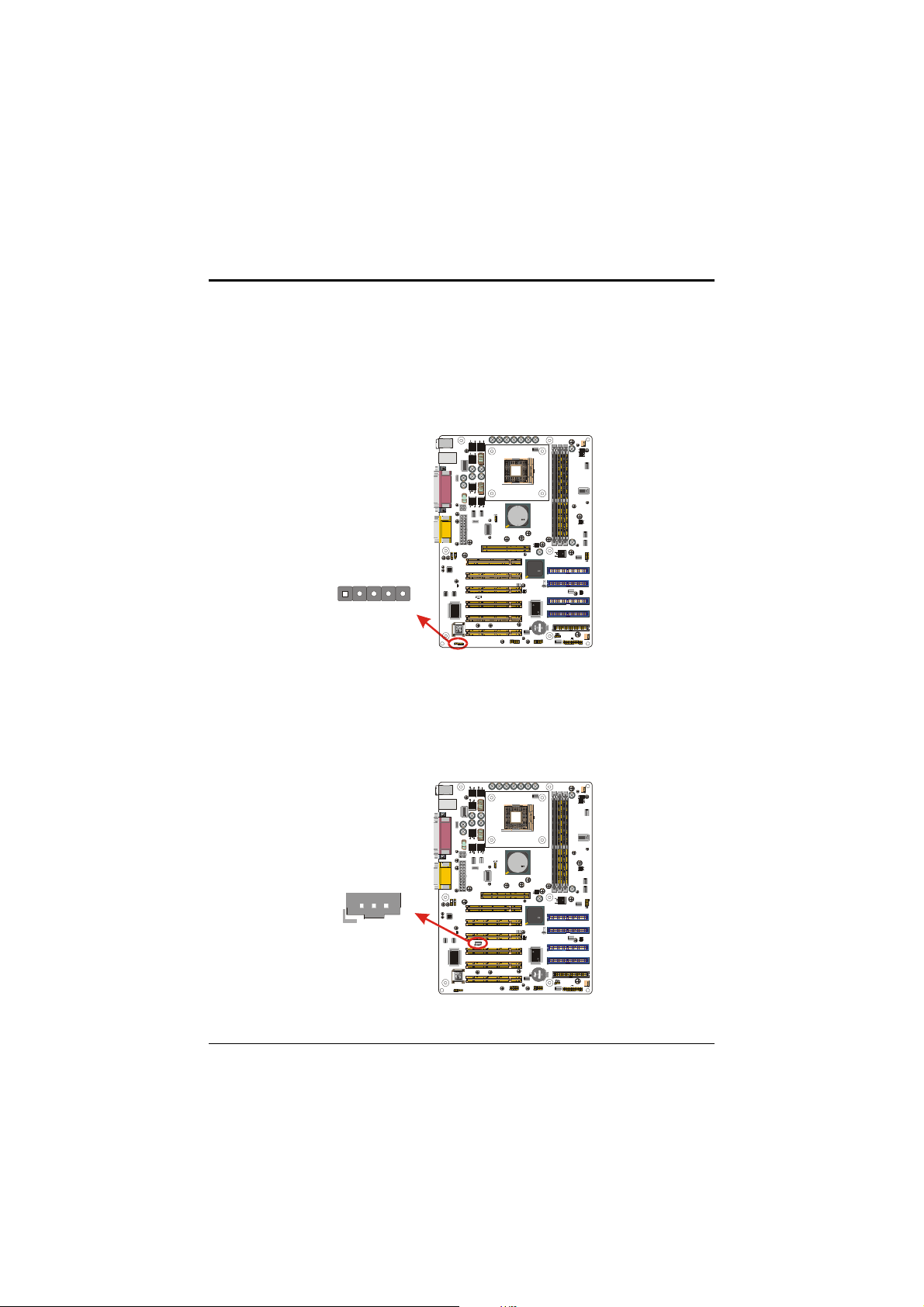

1.7. Connectors
FAN1
FAN2
USB2/3
IR
WOL1
PW2
PW1
CD1
AUX1

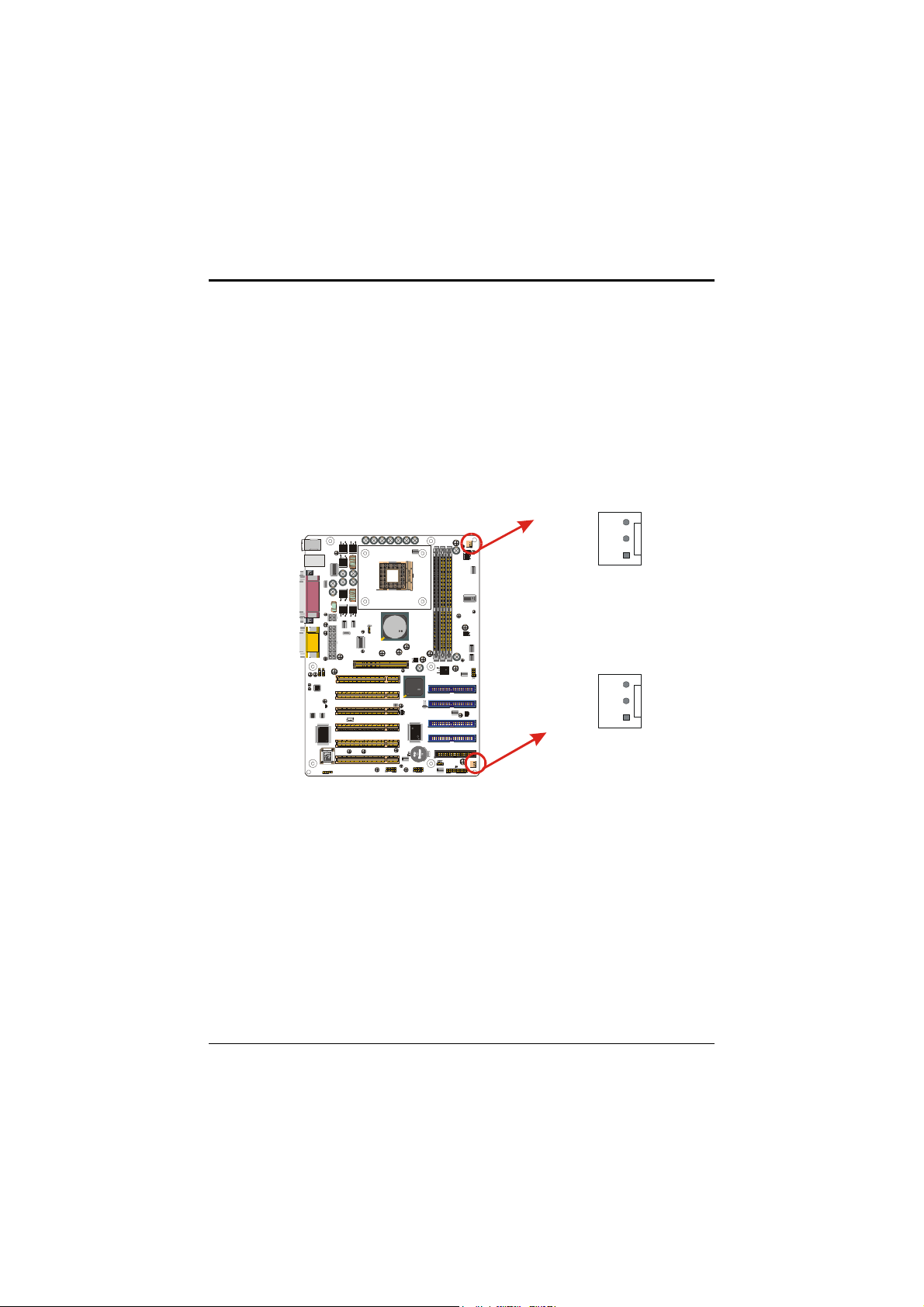

CPU/Chipset FAN Connector: This 3-pin header is used
for connecting a CPU chipset fan.
System Fan Connector: This 3-pin header is for
connecting the case fan that keeps the system cool.

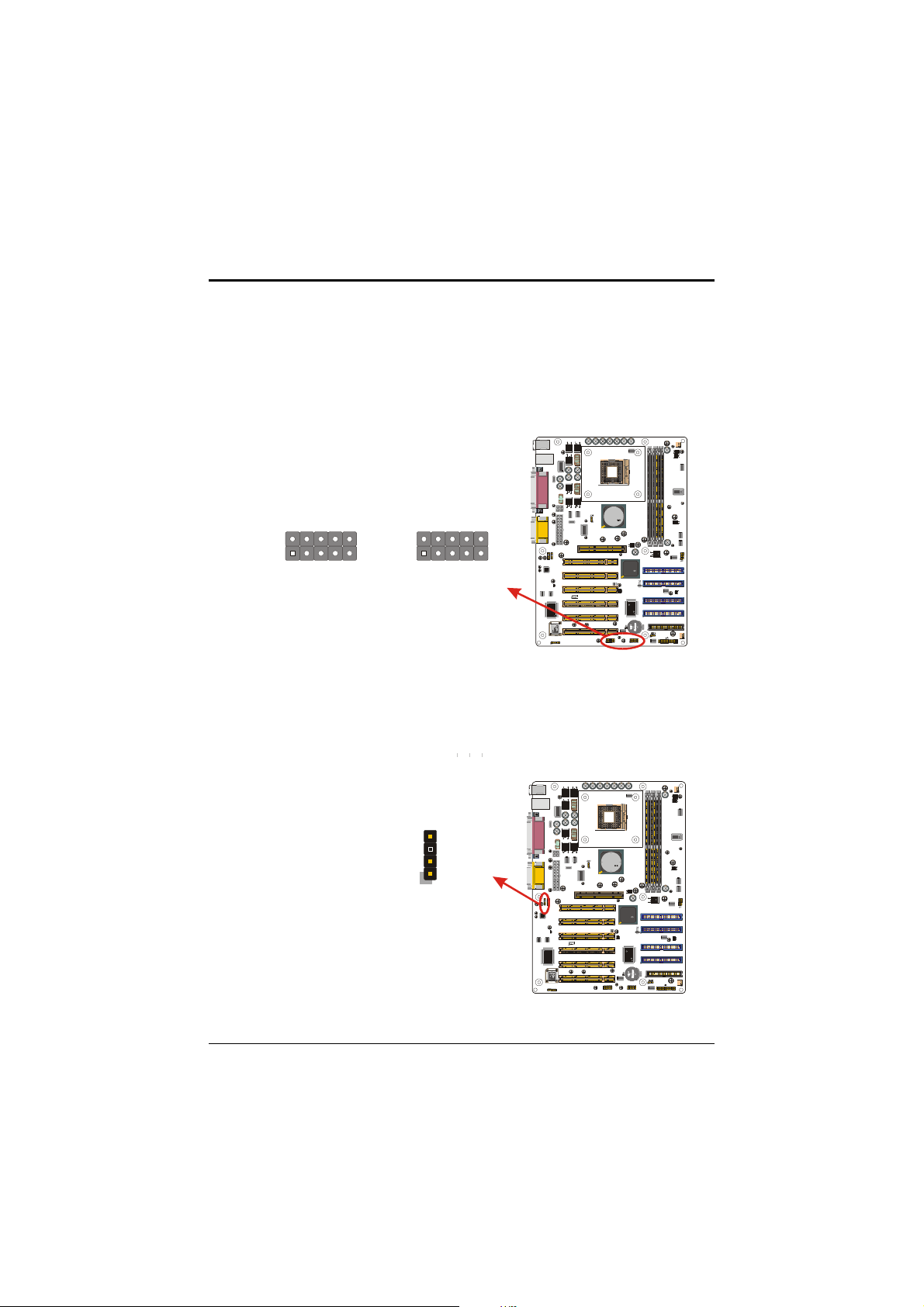

Front USB Connector: This 10-pin headers is used for
connecting front panel USB ports 3 and 4 or 5 and 6.
IR Connector:
port for use of IR device.
Wake On LAN Connector: This 3-pin header is used for
remote wake up ot the computer through a network card.
ATX Power Connector: This 20-pin header is connect the
power supply plug to ATX power connector to provide
Pentium 4 standard power for devices.
ATX 12V Power Connector: This 4-pin header is connect
the power supply 12V plug to ATX power connector to
provide 12V power for devices.
CD-IN Connector: This 4-pin header is used for
connecting the CD-ROM audio input to the sound card.
Auxiliary-IN Connector: This 4-pin header is an auxiliary
input connector.
This 5-pin header is used to connect an IR
4
Connectors
Page 11
2. Introduction
2.1. Overview
The high quality P8F152 is a high performance, enhanced function
mainboard that supports Socket 478 Intel Pentium 4 processors that
support a 533MHz front side bus (FSB). The P8F152 is based on the VIA
P4X400 chipset. Intel delivers superior high performance with all the
innovative features and proven reliability of the VIA P4X400 chipset
family. Pin-to-pin compatible with the VIA VT8235 chipset.
The mainboard delivers workstation level performance with an integrated
AGP (Accelerated Graphics Port), bus mastering EIDE (Enhanced IDE)
controller, and concurrent PCI bus. The mainboard accommodates DDR
SDRAM (Synchronous DRAM) memory and supports ATA33/66/100/133.
The mainboard achieves the highest reliability by supporting ECC (Error
Checking and Correction) memory protection, enabling the mainboard to
achieve superior data integrity and fault-tolerance with respect to memory
errors while running applications.
In addition to superior hardware capabilities, provided with this platform are
these features:
u Supports Intel® Pentium® 4 processors in a 478-pin package
u Supports a 66/100/133 memory bus
u Support for 8x/4x AGP
u Supports up to 3 GB of PC1600/PC2100/PC2700 DDR SDRAM
u Bus mastering EIDE driver
u Supports six USB ports accommodating Plug and Play devices
u Soft-off APM (Advanced Power Management)
u ACPI (Advanced Configuration and Power Interface)
u Keyboard power on
u External modem ring on
u LAN wake up
u BIOS upgradability
5Overview
Page 12
Mainboard User’s Manual
2.2. Mainboard Specifications and Features
2.2.1. Hardware
CPU
VRM
Coprocessor
Speed
Chipset
DRAM
EIDE
Controller
Intel® Pentium® 4 processors in a 478-pin
package, compatible Auto-detection CPU
Onboard Voltage Regulator Module
Provides 1.05V to 1.825V operating voltage
CPU has built-in floating point unit
System bus clock 100/133 MHz
AGP 8X
PCI bus clock 33 MHz
VIA P4X400 chipset supporting:
8x/4x AGP Bus Plus Advanced ECC
Memory controller
PC2700/PC2100/PC1600 DDR SDREAM
Support ATA133
Three 184-pin DIMM sockets, up to 3GB
Supports 64 MB to 1GB DDR SDRAM memory
types
Supports eight IDE devices in four channels
Supports PIO mode 0 through mode 4 drives
Supports Bus Mastering DMA mode 2 drives
Supports two Bus Mastering Ultra ATA 66/100/133
drives
Supports Iomega ZIP or LS-120 removable drives
6
Sound Chip
Chip integrated direct Sound AC97
ALC-201A (2 Channels, optional)
ALC-650 (5.1 Channel)
Mainboard Specification and Features
Page 13
Introduction
Enhanced I/O
I/O Options
Mouse
Keyboard
Expansion
Slots
Power
Management
One floppy disk controller
One Standard/EPP/ECP parallel port connector
Two 16550 compatible serial port connectors
Two USB (Universal Serial Bus) ports
One audio port connectors, include line-out, line-
in, mic-in, and midi/game ports
Two connector for front panel USB ports 3/4, 5/6
One IrDA compatible infrared (IR) connector
PS/2 mouse connector
PS/2 keyboard connector
One 32-bit 8xAGP (3.0) slot
Six 32-bit PCI slots
Compliant with EPA, APM 1.2 and ACPI
ATX soft-off power control
Power on by keyboard and PS/2 mouse
Power on by external modem ring
Power on by alarm
Power on by LAN wake up
Fan off in sleep mode
System
Management
Voltage
Regulator
Form Factor
Board Size
Mainboard Specification and Features
CPU temperature warning and system temperature detection
CPU and system voltage detection
CPU and secondary fan RPM detection
Switching regulator
CPU voltage auto-detection
ATX form factor
23 cm x 305 cm (9.1 x 12-inch)
7
Page 14
Mainboard User’s Manual
2.2.2. Software
BIOS
Driver and
Utility
Operating
System
AWARD AGP/PCI BIOS
2M-bit Flash BIOS with ESCD (Extended System
Configuration Data) block
Supports APM, Plug and Play, Multi-Boot, DMI
and EIDE devices
Supports ACPI
Supports high-capacity LS-120 and ZIP remov-
able media drive
IDE Bus mastering Ultra DMA driver
AC97 codec audio driver
Flash utility for BIOS upgrade
System Environment Monitoring Utility
Operates with MS_DOS, Windows 3.x/9x/ME/XP/
2000/NT, OS/2, Novell NetWare/UnixWare, and
SCO Unix
8
Mainboard Specification and Features
Page 15
2.3. Mainboard Layout
1220
1013121214
15
21
11
S
T
R
O
P
D
R
&
A
E
O
KB1
S
B
U
Y
O
E
M
K
2
2
/
/
S
S
P
P
USB1
S
T
R
O
P
B
S
U
COM1
L
O
T
E
S
Introduction
N
A
F
DIM3
DIM2DIM1
S
3
Y
S
FAN1
19
18
17
16
S
T
R
O
&
P
L
L
A
I
E
R
L
E
L
S
A
R
A
P
COM2
&
N
I
S
C
I
T
M
R
,
O
T
P
U
I
O
D
-
I
E
M
/
N
I
E
L
M
,
A
N
I
-
G
E
N
I
L
AUD1
AUDIO CODEC
1
1
X
D
U
C
A
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
2
H
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
PW1
PW2
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
VIA
VT8235
0217CD TAIWAN
23A1009406
RAID CHIPSET
C
USB2 USB3
MC
R
IDE1
IDE2
IDE3
IDE4
C
C
E
B
E
6
0
T
3
0
L
FDD1
FRONT PANEL CONNECTOR
950202C
F
014
9
UM77004
5
4
5
6
6
7
7
F
A
N
2
9
Note: Because of optional items and design changes, your mainboard
may not be identical to the one shown in the illustration.
Mainboard Layout
9
Page 16
Mainboard User’s Manual
Key to Mainboard Components
No. Name Function
1 mPGA478
2 AGP
3 FAN1
4 DIMM1~3
5 JV1
6 IDE1~2
7 IDE3~4
8 FDD1
9 FAN2
10 JP1
11 JBAT1
12 USB2~3
13 BAT1
14 PCI1~6
15 IR
16 U5
17 CD1
18 AUX1
19 PW2
20 PW1
21 JCK1
CPU socket
Accelerated Graphics Port (AGP) slot
CPU fan connector
DDR SDRAM Memory module slots
DIMM voltage jumper
IDE 1~2 connector
RAID 3~4 connector
Floppy drive connector
System fan connector
Front Panel connector
Clear CMOS
Front USB port
RTC battery
32-bit PCI slots
IrDA compliant Infrared (IR) connector
Flash BIOS
CD-in connector
Auxiliary connector
ATX Pentium 4 standard power connector
ATX 12V power connector
CPU FSB jumper
10
Mainboard Layout
Page 17
2.4. Microprocessor
The mainboard is designed to operate with the following processor:
Processor Type Speed FSB
Intel Pentium 4 1.4~2.4GHz+ 400/ 533MHz
An onboard switching voltage regulator provides the required 1.05 to
1.825 volts for the processor. The processor sends five VID (Voltage
Identification) signals to the switching voltage regulator. The switching regulator generates the correct voltage for the processor.
2.5. CPU Packaging
The mainboard’s CPU socket is a surface mount, mPGA478B type ZIF
(Zero Insertion Force) socket. The socket has 478 pins with 50 mil pin
pitch.
Note: ZIF sockets are sockets designed for easy insertion of pin grid
array (PGA) chips. The chip is dropped into the socket,
and a lever is used to secure the chip in place.
Introduction
2.6. AC 97 Codec
u 18-bit ADC and 20-bit DAC resolution
u Compliant with AC’97 2.2 specifications
u 18-bit stereo full-duplex CODEC with independent and variable sampling
rate
u 3D Stereo enhancement
u No external crystal/clock required
u Power supply: digital: 3.3V; analog: 5V/3.3V
u Standard 48-pin LQFP package
Microprocessor
11
Page 18
Mainboard User’s Manual
2.7. Chipset
The P8F152 supports the VIA P4X400 chipset. The VIA VT8235 chipset is
designed for desktops and workstations that provide internal or external
graphics, and provides ATA-133 and DDR SDRAM support.
The P4X400 I/O controller hub makes a direct connection between the
graphics system, the IDE controller, and the PCI bus. It uses accelerated
hub architecture to effectively double the bandwidth between these
components enabling more lifelike audio and video. The P4X400 I/O
controller hub includes an integrated audio codec controller that lets the
processor more effectively d ecode sound generated by the integrated
audio system.
In addition to future application support, the 845 chipset was designed
with the following features:
u Defines Highly Integrated Solutions for Performance PC Desktop
Designs.
u High Performance CPU Interface.
u Full Featured Accelerated Graphics Port (AGP) Controller.
u Advancd High-Performance DDR DRAM Controller.
u High Band width 533MB/Sec 8-bit V-Link Host Controller.
u Advanced System Power Mangement Support.
u Inter-operable with VIA Host-to-V-Link Host Controller.
u High Bandwidth 533 MB/s 8-bit V-Link Client Controller.
u Integrated Peripheral Controllers.
u Integrated Legacy Functions.
u Concurrent PCI Bus Controller.
u Fast Ethernet Controller.
u Ultra DMA-133/100/66/33 Master Mode EIDE Controller.
u Direct Sound Ready AC97 Digital Audio Controller.
u System Management Bus Interface.
u Universal Serial Bus Controller.
u Sophisticated PC2001-Compatible Mobile Power Management.
u Plug and Play Controller.
12
Chipset
Page 19
2.8. RAID (Optional)
Bus mastering design allows utilization of a RAID (Redundant Array of
Independent Disks). A RAID is a set of two or more hard disks and a
specialized disk controller, which controls the RAID function. Using a
RAID, the user can write and read to more than one disk at the same time,
that is, complete data duplication can be achieved, or, excess data can ve
transferred to another disk. the problems of disk failure are minimized with
the use of a RAID.
This concludes Chapter 2. Chapter 3 covers hardware installation.
Introduction
RAID
13
Page 20
Mainboard User’s Manual
3. Hardware Installation
This chapter explains how to use your mainboard to build a powerful
computer system. At a minimum, you will need the following components
in order to build a fully functioning system.
r Computer case with P4 standard ATX power supply
r mPGA478B Processor
r One DDR SDRAM memory module
r One floppy disk drive
r One UDMA-66/100 IDE hard disk drive
r One CD-ROM drive
r One display monitor
r One mouse
r One PS/2 keyboard
r One set of loudspeakers
Of course, you can use the system I/O ports and expansion slots to add
many more features and components to your system than the items listed
above.
3.1. Unpacking
The P8F152 mainboard package contains the following items:
u One mainboard
u One IDE 66/100 40-pin ribbon cable
u One floppy 34-pin ribbon cable

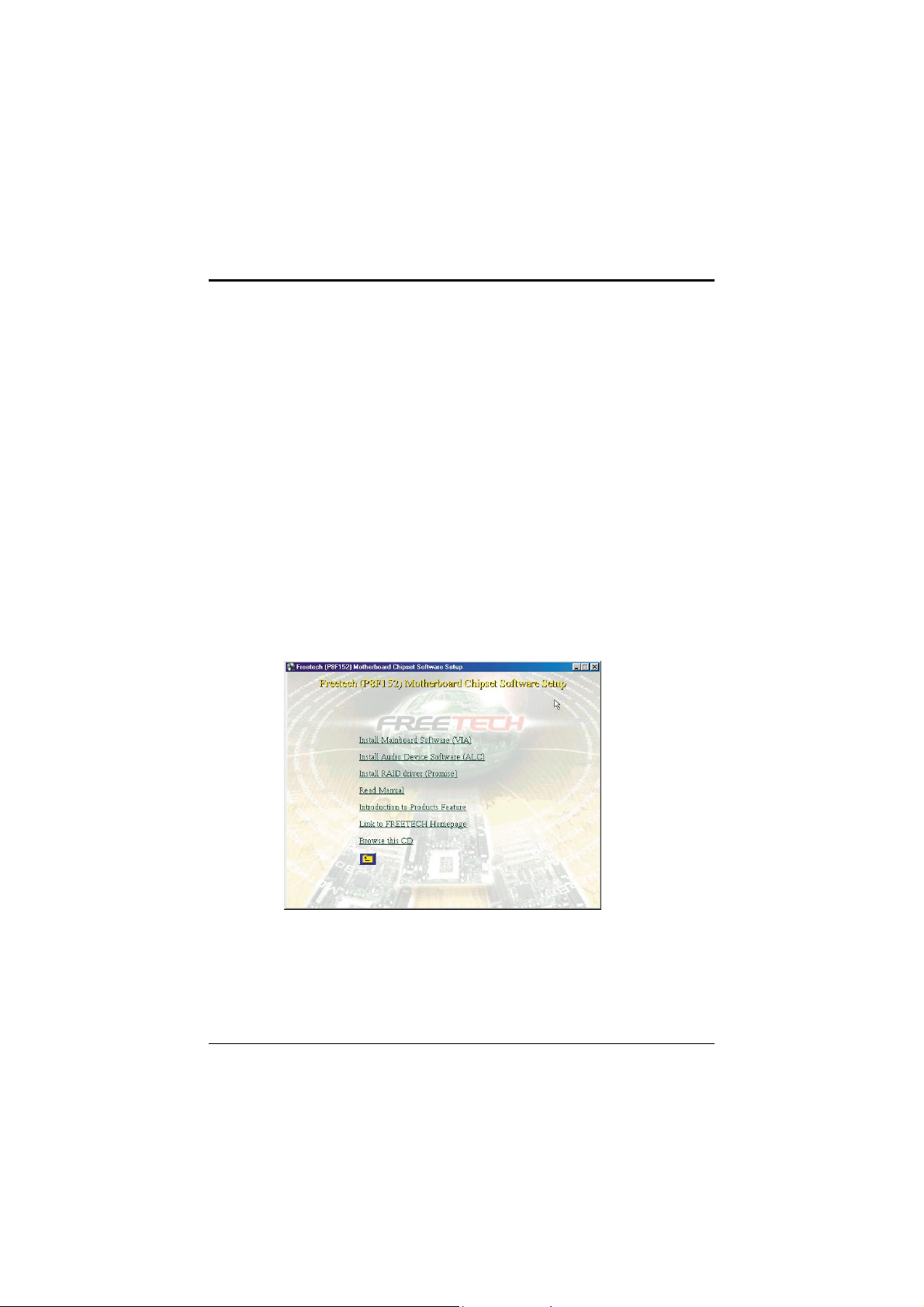

u Driver and utility CD
u User’s manual reference
After removing the mainboard from its anti-static bag, place it on a
grounded or antistatic surface (component side up). Inspect the mainboard
and contact your vendor immediately if it is damaged.
14
Unpacking
Page 21
Hardware Installation
3.2. Installation
The P8F152 is designed to fit into a standard ATX form factor chassis.
The pattern of the mounting holes and the position of the back panel
connectors meet the ATX system board specification. The chassis comes
with various mounting fasteners, which are made of metal or plastic. It is
highly recommended to use as many metal fasteners as possible to mount
the mainboard in the chassis for better grounding.
To install the mainboard you need to install the CPU and DIMM memory
modules, attach the connectors, and set the correct CPU speed in the
CMOS setup.
3.3. Safety Measures
Computer components and electronic circuit boards can be damaged by
discharges of static electricity. Working on computers that are still
connected to a power supply can be extremely dangerous. Follow the
simple guidelines below to avoid damaging your computer:
u Always disconnect the mainboard from the ATX power supply, and
disconnect the computer from the power outlet whenever you are
working inside the computer case.
Installation
u If possible, wear a grounded wrist strap when you are installing
the mainboard or working inside the computer case. Alternatively,
discharge any static electricity by touching the bare metal chassis
of the computer case, or the bare metal body of any other grounded
appliance.
u Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Do not
flex or stress the circuit board.
u Leave each component inside the static-proof packaging that it
ships with until you are ready to use the component for the
installation.
15
Page 22
S
E
R
I
A
L
&
Mainboard User’s Manual
3.4. Connector/Jumper Location
S
T
R
O
P
D
R
&
A
E
O
KB1
S
B
U
Y
O
E
M
K
2
2
/
/
S
S
P
P
USB1
S
T
R
O
P
B
S
U
COM1
S
T
R
O
P
L
E
L
L
A
R
A
P
COM2
&
N
I
S
C
I
T
M
R
,
O
T
P
U
I
O
D
-
I
E
M
/
N
I
E
L
M
,
A
N
I
-
G
E
N
I
L
AUD1
AUDIO CODEC
1
1
X
D
U
C
A
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
2
H
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
PW1
PW2
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
P4X400
0217CD TAIWAN
2IA2003622
USB2
VIA
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406
RAID CHIPSET
C
R
USB3
N
A
F
DIM3
DIM2DIM1
C
C
E
B
E
6
0
T
3
0
L
MC
IDE1
IDE2
IDE3
IDE4
FDD1
FRONT PANEL CONNECTOR
FAN1
950202C
F
014
9
UM77004
5
S
Y
S
F
A
N
2
16
Connector/Jumper Location
Page 23
Hardware Installation
3.5. Attaching Connectors

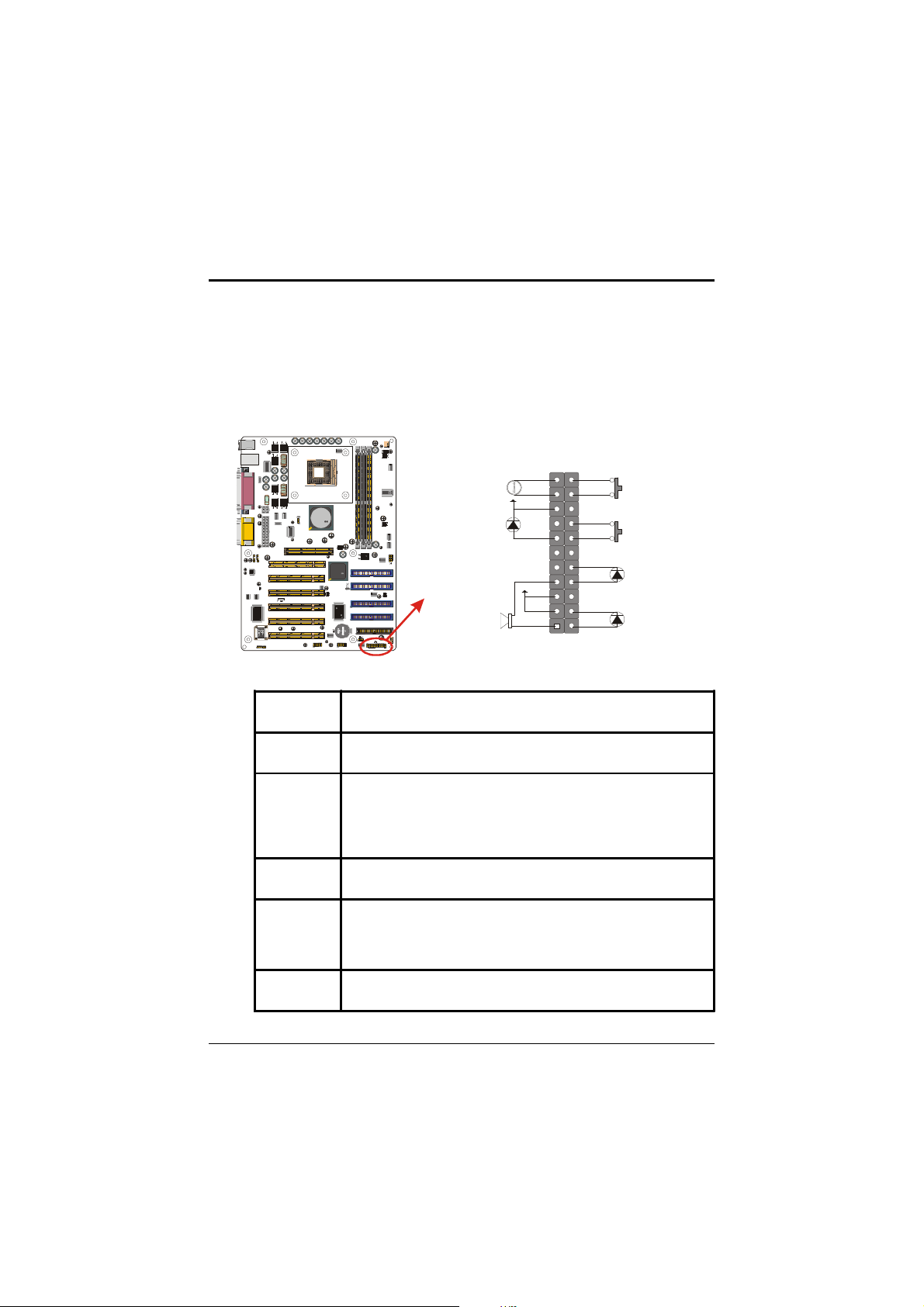

3.5.1. Front Panel Connectors (JP1)
There are seven connectors on the mainboard for speaker, switches, and
indicator lights on the system’s front panel.
KB1
USB1
COM1
R
E
W
O
P
V
2
1
PW1
X
T
COM2
A
T014.318
R
E
W
O
P
X
T
A
AUD1
PW2
AGP
PCI 1
1
1
X
D
C
U
A
PCI 2
AUDIO CODEC
PCI 3
WOL1
PCI 4
I/O CHIPSET
2
0
9
d
1
8
n
8
1
o
F
1
H
2
b
7
F
9
5
n
6
i
W
3
8
3
PCI 5
0
W
W
2
PCI 6
2M FLASH EPROM
IR
PWSW
RESET
STBLED
HDDLED
N
A
F
DIM3DIM2DIM1
S
Y
S
C
C
E
B
E
6
0
3
T
0
L
IDE1
IDE2
T
E
C
P
P
H
D
R
N
IDE3
O
C
O
2
L
M
0
O
2
I
G
6
S
5
Y
E
R
,
I
N
R
C
.
IDE4
FDD1
USB3
FRONT PANEL CONNECTOR
FAN1
950202C
F
014
9
UM77004
5
(PWR LED & keylock)
POWER LED
& KEYLOCK
F
A
N
2
SPEAKER
Ground
Keyboard
LED cathode
LED anode
Ground
Ground
Speaker-out
Ground
Power on/off
Non
Ground
Reset Single
LED cathode
+5V
LED anode
LED cathode
LED anode
Pin 1
P4X400
0217CD TAIWAN
2IA2003622
VIA
USB2
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
RAID CHIPSET
C
2
0
0
0
0
1
1
1
This 2-pin connector connects to the case-mounted
Power button.
This 2-pin connector connects to the case-mounted
reset switch and is used to reboot the system.
This 2-pin connector connects to the case-mounted
Standby LED to indicate a standby status. The LED
remains lit even when the system is off to indicate
that AC power is available. When the system enters
standby mode, the LED starts blinking.
This 2-pin connector connects to the case-mounted
HDD LED to indicate hard disk activity.
(PW SW)
POWER SWITCH
(RST SW)
RESET SWITCH
(SBLLED)
STANDBY LED
(HLED)
HDD LED
PWRLED
& keylock
SPEAKER
Attaching Connectors
This 5-pin connector connects to the case-mounted
keylock switch and the power LED. The keylock
switch is used to lock the keyboard for security
purposes.
This 4-pin connector connects to the case-mounted
speaker.
17
Page 24
Mainboard User’s Manual
3.5.2. Infrared (IR) Connector (J1)
This 5-pin headers connects to an optional wireless transmitting and
receiving infrared module via a cable and a bracket. Configure BIOS to
enable the IrDA port if you attach an infrared module to this connector.

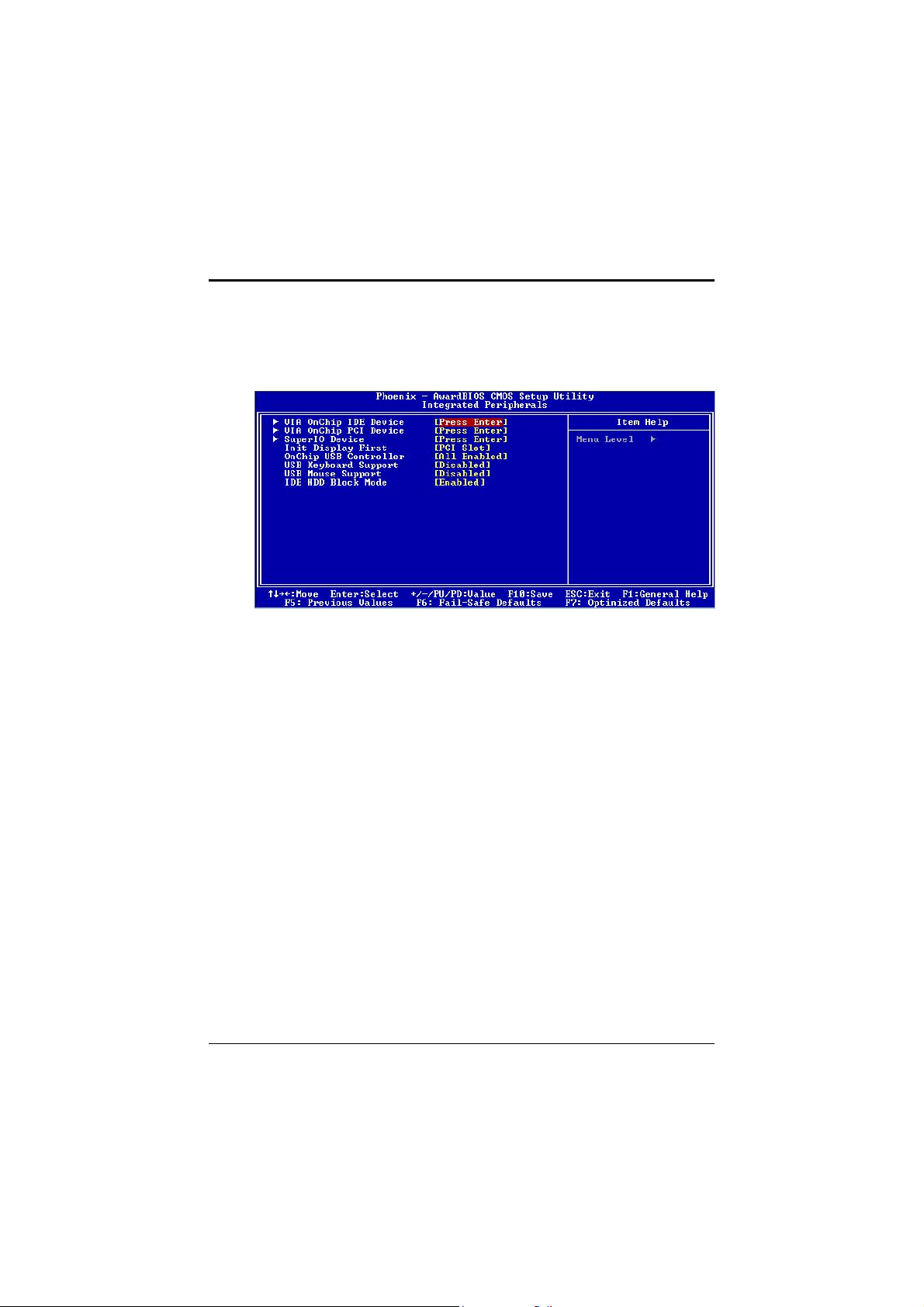

Refer to Integrated Peripherals in Chapter 4 for details.
T
E
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
C
AUDIO CODEC
Pin 1
R
E
V
A
I/O CHIPSET
W
W
2M FLASH EPROM
IR
VIA
A
P4X400
0217CD TAIWAN
2IA2003622
T014.318
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
USB2 USB3
DIM3DIM2DIM1
L
C
VIA
VT8235
0217CD TAIWAN
23A1009406
MC
IDE1
IDE2
RAID CHIPSET
T
C
P
IDE3
R
IDE4
FRONT PANEL CONNECTOR
S
FAN1
9
5
0
2
2
0
C
F
0
1
4
9
U
M
7
7
0
0
4
5
FDD1
F

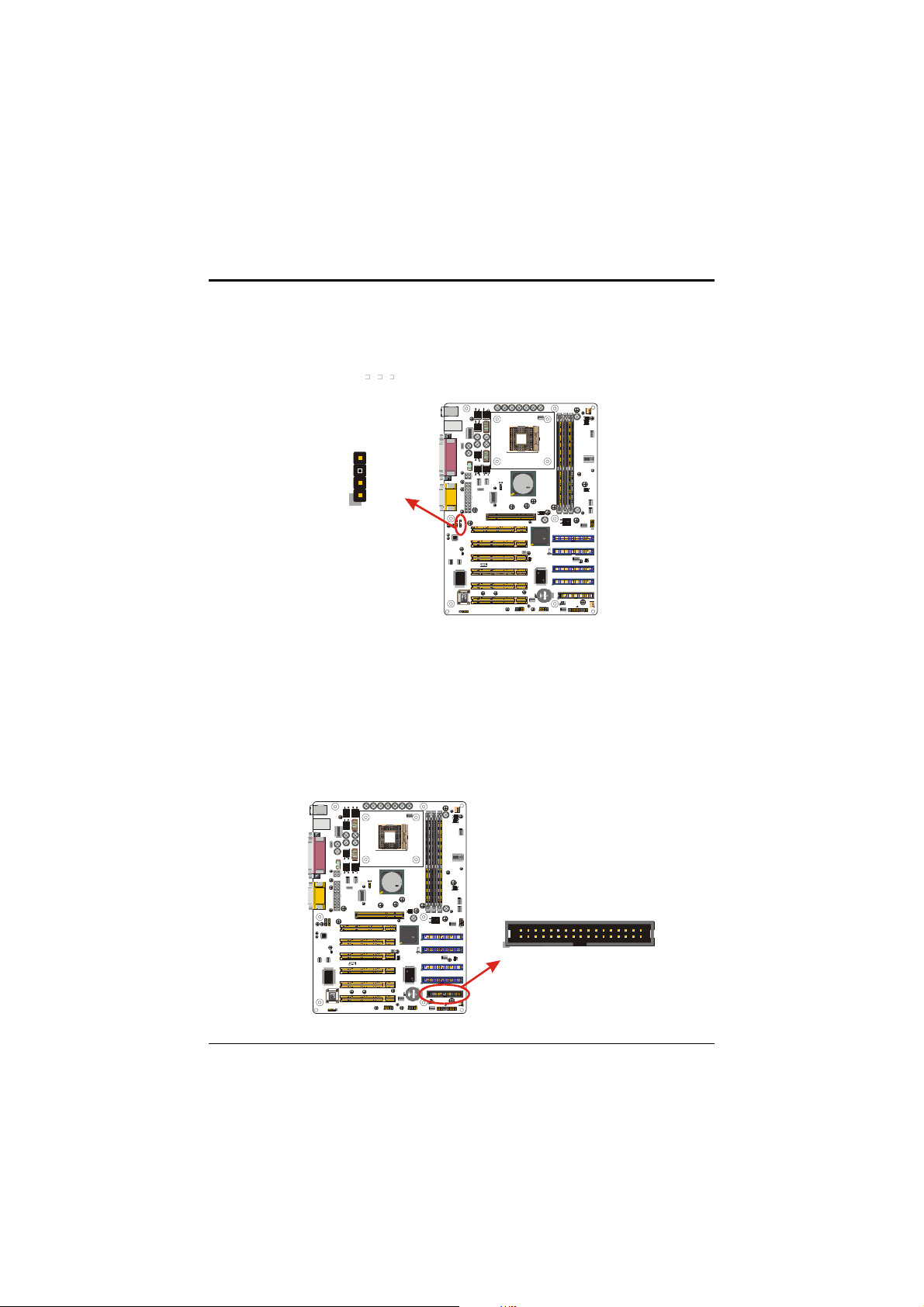

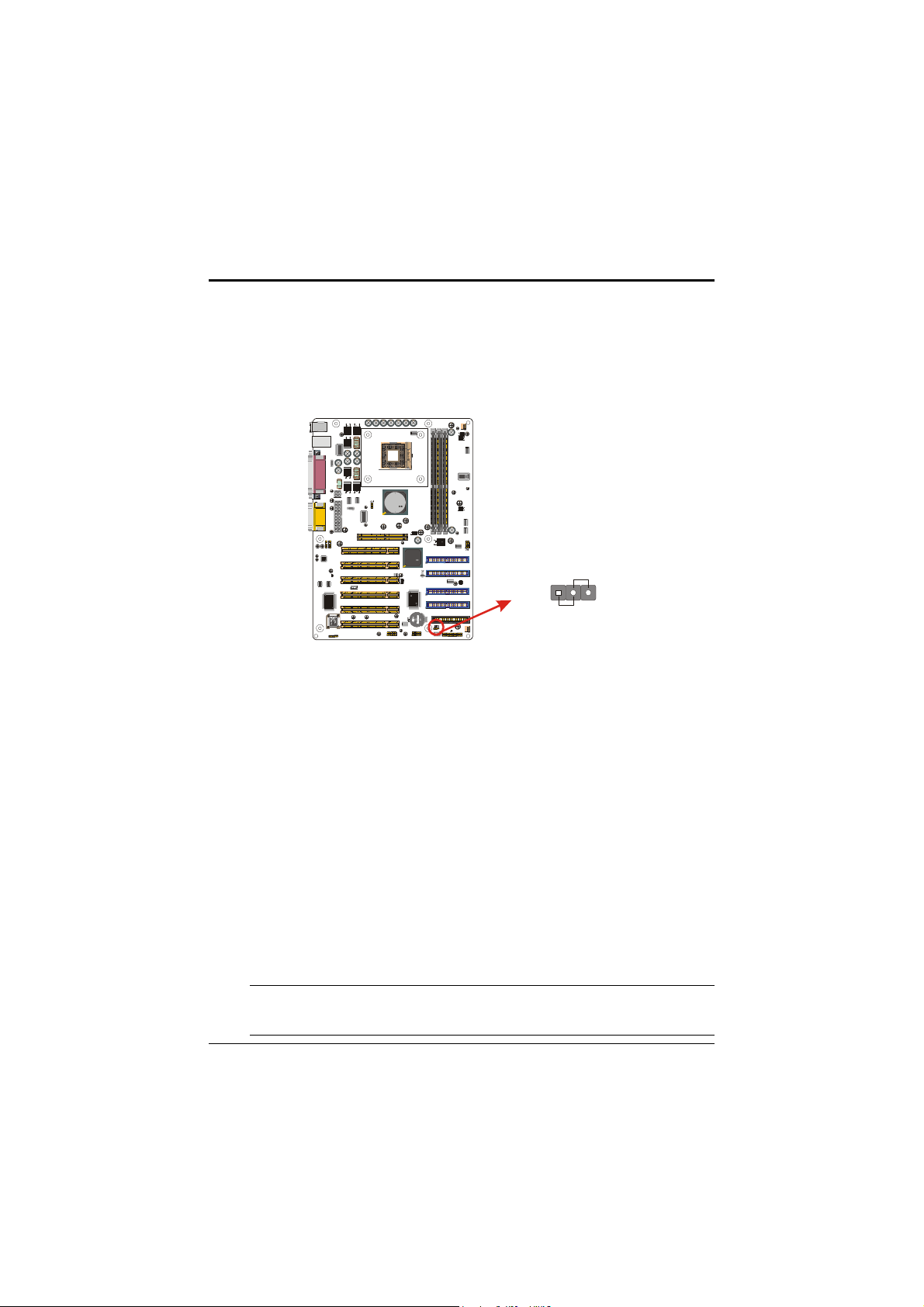

3.5.3. LAN/Modem Wake up Connector (WOL1)
The 3-pin header is used for remote wake up of the computer through a
network or modem signal.
KB1
USB1
COM1
PW1
COM2
E
+
Pin 1
WOL1
E
R
A
AUD1
PW2
C
AUDIO CODEC
I/O CHIPSET
W
W
2M FLASH EPROM
IR
VIA
A
P4X400
0217CD TAIWAN
2IA2003622
T014.318
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
USB2 USB3
DIM3DIM2DIM1
L
C
VIA
VT8235
0217CD TAIWAN
MC
23A1009406
IDE1
IDE2
RAID CHIPSET
T
C
P
IDE3
R
IDE4
FRONT PANEL CONNECTOR
S
FAN1
9
0
5
2
0
C
2
F
0
4
1
9
U
M
7
7
0
0
4
5
FDD1
F
18
Attaching Connectors
Page 25
Hardware Installation
3.5.4. Front USB Header (USB2,USB3)
The mainboard provides oen onboard 10-pin of dual USB port (port 3 and
port 4; USB5 and USB6) headers. The headers on the same signal with USB
port 1 and port 2 on the back panel.
USB Port 4 USB Port 6
D
D
C
+
-
N
N
G
Pin 1 Pin 1
C
C
V
C
G
D
D
V
USB2 USB3
-
+
D
D
D
N
N
D
G
G
USB Port 3 USB Port 5
D
N
G
C
C
V
KB1
USB1
COM1
R
E
W
O
P
V
2
1
D
C
+
-
N
C
G
D
D
V
-
+
D
D
D
N
N
D
G
G
PW1
COM2
AUD1
PW2
1
1
D
X
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
H
2
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406
MC
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
M
L
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
IDE1
IDE2
IDE3
IDE4
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
3.5.5. Audio CD-IN Connector (CD1)
This connector enables you to connect a CD-ROM to the mainboard and
receive stereo audio input.
Pin 1
CD1
Right Channel
GND
GND
Left Channel
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
CD1
AUX1
AUDIO CODEC
I/O CHIPSET
Winb on d
W83697HF
203W5F211881902
2M FLASH EPROM
IR
VIA
ATX 12V POWER
P4X400
0217CD TAIWAN
2IA2003622
T014.318
ATX POWER
AGP

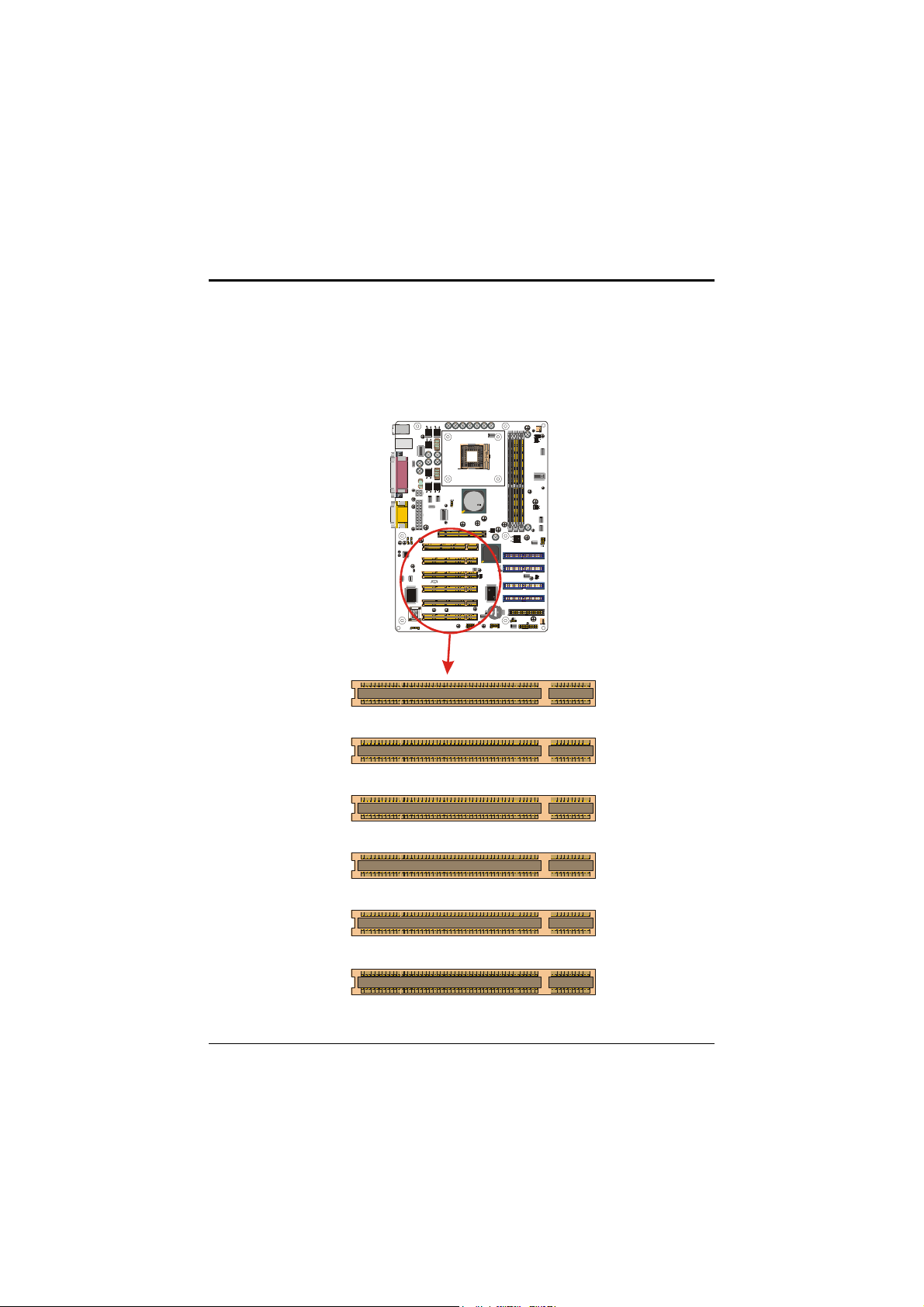

PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
USB2 USB3
DIM3DIM2DIM1
SYS FAN
LOTES
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
RAID CHIPSET
C
PDC20265R
2000-0111
FAN1
9502 02C F
0149
UM7 700 4 5
CEB6030L
CET
IDE1
IDE2
TECHNOLOGY,INC.
PROMISE
IDE3
R
IDE4
FDD1
FAN2
FRONT PANEL CONNECTOR
Attaching Connectors
19
Page 26
Mainboard User’s Manual
3.5.6. Audio AUX-IN Connector (AUX1)
This connector enable you to connect a stereo audio input from CD-ROM,
TV-tuner, or MPEG card.
Pin 1
AUX1
AUX-R
GND
GND
AUX-L
KB1
USB1
COM1
COM2
AUD1
1
D
C
AUDIO CODEC
I/O CHIPSET
d
n
o
F
H
b
7
9
n
6
i
3
8
W
W
2M FLASH EPROM
R
E
W
O
P
V
2
1
PW1
X
T
A
T014.318
R
E
W
O
P
X
T
A
PW2
AGP
PCI 1
1
X
U
A
PCI 2
PCI 3
WOL1
PCI 4
2
0
9
1
8
8
1
1
2
F
5
W
3
PCI 5
0
2
PCI 6
IR
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406
MC
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
M
L
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
IDE1
IDE2
IDE3
IDE4
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
3.5 .7. Fl o p p y Drive Connector (FLOPPY)
A flopp y disk drive ribbon cable has two connectors to support two
floppy disk drives. The co nnector with twisted wires always connects to
drive A; the co nnector with untwisted wires connects to drive B. You
mu st orient the cable connector so that the pin 1 (color) edge of the cable
co rresponds with pin 1 of the I/O port connector.
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
1
1
D
X
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
H
2
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406
MC
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
M
L
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
IDE1
IDE2
IDE3
IDE4
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
FDD1PIN1
20
Attaching Connectors
Page 27
Pin 1
Hardware Installation
3.5.8. IDE Connectors (IDE1,IDE2,IDE3,IDE4)
An IDE drive ribbon cable has two connectors to support four IDE drives.
If a ribbon cable connects to two IDE drives at the same time, one of them
has to be configured as Master and the other has to be configured as
Slave by setting the drive select jumpers on the drive.
Consult the documentation that came with your IDE drive for details on
jumper locations and settings. You must orient the cable connector so that
the pin 1 (color) edge of the cable corresponds to pin 1 of the I/O port
connector.
Pin 1
Pin 1
Pin 1
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
CD1
AUX1
AUDIO CODEC
I/O CHIPSET
Winb on d
W83697HF
203W5F211881902
2M FLASH EPROM
IR
VIA
ATX 12V POWER
P4X333
0217CD TAIWAN
2IA2003622
T014.318
ATX POWER
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
USB2
DIM3DIM2DIM1
SYS FAN
LOTES
VIA
VT8235
0217CD TAIWAN
23A1009406
RAID CHIPSET
C
2000-0111
FAN1
950 202 C F
014 9
UM 770 045
CEB6030L
CET
MC
IDE1
IDE2
TECHNOLOGY,INC.
PROMISE
PDC20265R
IDE3
R
IDE4
FDD1
FRONT PANEL CONNECTOR
FAN2
USB3
IDE1
FAN2
IDE2
IDE3
Attaching Connectors
FAN2
IDE4
21
Page 28
Mainboard User’s Manual
PS/2 Mouse port
LAN port
3.5.9. Back Panel Connectors
The back panel provides external access to PS/2 style keyboard and
mouse connectors, two serial ports, one parallel port, dual USB ports, and
audio Line-out, Line-in, Mic-in, game/midi ports which are integrated on
the mainboard. The figures below show the location of the back panel I/O
connectors.
PS/2 Mouse and PS/2 Keyboard Ports
Connect a PS/2 mouse to the green 6-pin mini DIN connector. The system
will automatically assign IRQ 12 to the PS/2 mouse if one is connected.
PS/2 Keyboard port
Connect a PS/2 keyboard to the purple 6-pin mini DIN connector. If you
want to connect a standard AT size (large DIN) connector, you must use
an adapter.
Universal Serial Bus Ports
You can connect two USB devices or USB hubs to the USB ports.
USB ports
The USB ports provide a hardware interface for low-speed peripherals
such as the keyboard, mouse, joystick, scanner, printer and telephony
devices, and also support MPEG-1 and MPEG-2 digital video. The USB
ports have a maximum bandwidth of 480 Mbits/sec (equivalent to 60
Mbytes/sec), and up to 127 devices can be attached. Fast d evices can use
the full bandwidth, while lower-speed ones can transfer data using a 60
Mbytes/sec sub -channel.
22
Attaching Connectors
Page 29
Parallel port
Hardware Installation
Line-Out
Parallel Port
Connect a printer or other parallel device to the burgundy-colored 25-pin
parallel port. You can set the parallel port IRQ and parallel port mode in
BIOS. Refer to Integrated Peripherals in Chapter 4 for details.
Serial Port
Connect a serial device such as a mouse or modem to the turquoise 9-pin
serial port. You can set the serial port IRQs in BIOS. Refer to Integrated
Peripherals in Chapter 4 for details.
COM1 port
COM2 port
Note: Serial printers must be connected to the serial port.
Audio Line-Out Port
You can connect various audio devices to this audio jacks. Connect
headphones or powered speakers to the lime-colored lineout connector.
Attaching Connectors
23
Page 30
Mainboard User’s Manual
MIDI/GAME port
Line-In
Audio Line-In Port
You can connect a tape player or another audio source to the light blue
Line-in connector to record audio on your computer or to play audio
through your computer’s sound chip and speakers.
Audio Mic-In Port
You can connect a microphone to the pink microphone connector to
record audio to your computer.
Mic-In ports
You can also connect to the pink microphone, blue and green Line-out
connector to connect ALC-650 (optional) chip. The software by ALC in
driver controls Mic-in, Line-in or 5.1channel audio.
Audio MIDI/GAME Port
You can connect a joystick, game pad, or other game device to the
gold 15-pin game port. You can also connect a MIDI device for playing or
editing audio.
24
Attaching Connectors
Page 31
Hardware Installation

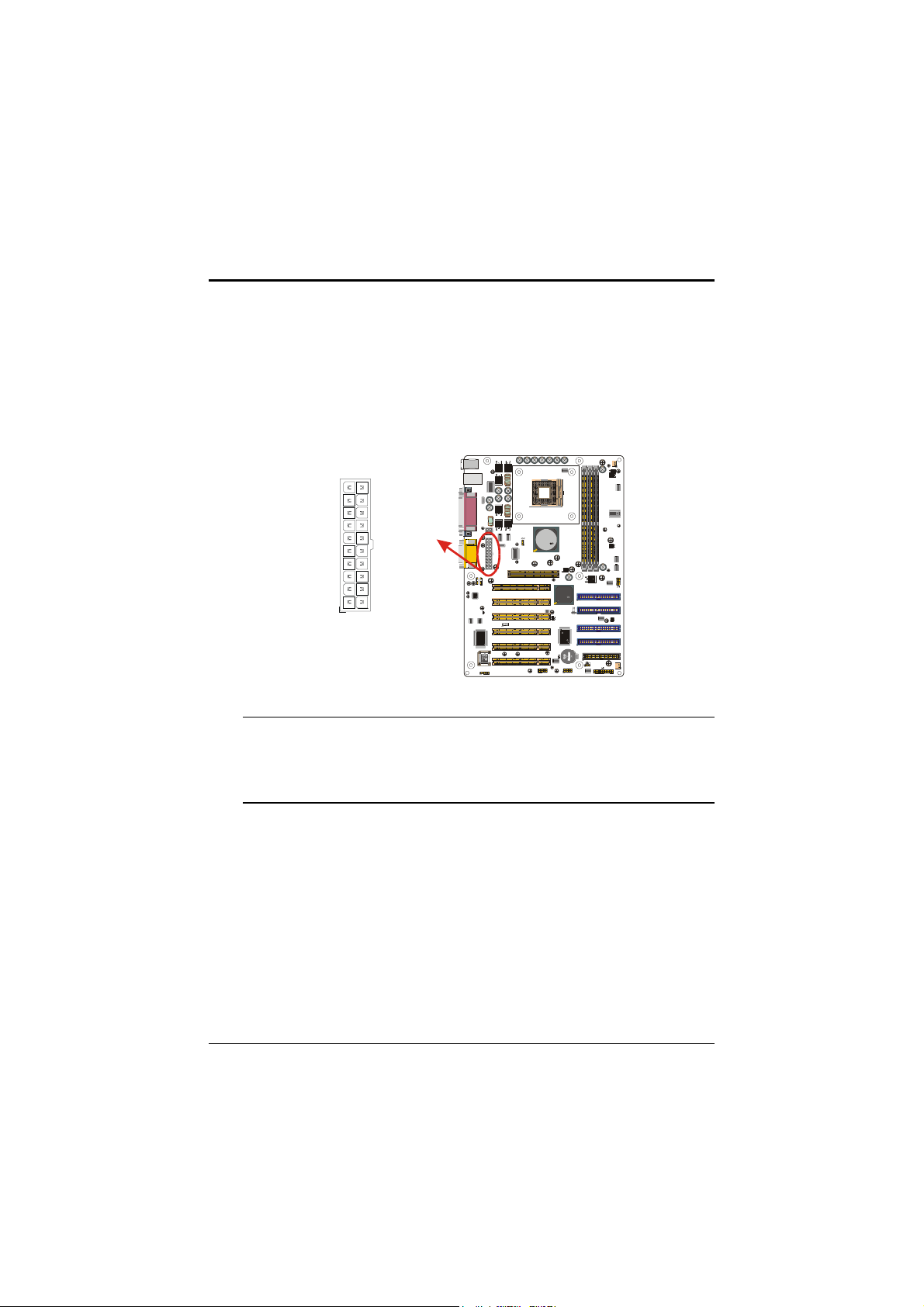

3.5.10. Pow e r Supply C o nnector (PW2)
The ATX po wer supply has a single lead connector with a clip on one side
of the plastic ho using. There is only one way to plug the lead into the ATX
po wer connector. Press the lead connector down until the clip snaps into
place an d secures the lead onto the connector.
+5V Standby
Power Good
+3.3V
+3.3V
- 12V
GND
+5V
GND
+5V
GND
Pin 1
+5V
+5V
NC
GND
GND
GND
Power Supply On
GND
- 12V
+3.3V
KB1
USB1
COM1
COM2
AUD1
1
1
D
X
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
H
2
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
PW1
X
T
A
T014.318
R
E
W
O
P
X
T
A
PW2
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
M
L
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
IDE1
IDE2
IDE3
IDE4
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
War nin g: Inco rrect installation of the power supply could result in
serio us damage to the mainboard and connected peripherals. Make sure
the power su pply is unplugged from the AC outlet before connecting the
leads fro m the power supply.
Attaching Connectors
25
Page 32
Mainboard User’s Manual
3.5. 11. CPU/Syst e m Fan Powe r Supplies
(FAN1/ FAN2)
There are three fan conn ectors on the mainboard for the cooling fans. The
connectors support fans of 12V DC/50 0mAMP (six watt) or less. When
th e system goes into sleep state, fans should be shut down to eliminate
audible n oise and reduce power consumption. You can monitor the fan
sp eed by way of the 82845E chip (providing the fan comes with a tachometer output).
CPU FAN (FAN1)
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
1
1
X
D
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
o
F
1
2
H
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
MC
23A1009406
IDE1
IDE2
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
IDE3
C
O
O
0
2
0
L
M
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
IDE4
DIM3DIM2DIM1
FAN1
C
C
E
B
E
6
0
T
3
0
L
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
950202C
F
014
9
UM77004
5
F
A
N
2
Speed/RPM
+12V
GND
System FAN (FAN2)
Speed/RPM
+12V
GND
Pin 1
Pin 1
26
Attaching Connectors
Page 33
Hardware Installation
3.5.12. PC I Co nnector (PCI 1~PCI 6)
PCI connecto r is one of equipment interfaces that connects pheripheral
equipment and moth erboard. Its transfer speed is faster than traditional
ISA. PCI is the main stream transfer interface for extra adopter.
PCI 1
PCI 2
PCI 3
PCI 4
Pin 1
Pin 1
Pin 1
Pin 1
KB1
USB1
COM1
COM2
AUD1
AUDIO CODEC
1
D
C
I/O CHIPSET
d
n
o
b
n
i
W
2M FLASH EPROM
R
E
W
O
P
V
2
1
PW1
X
T
A
T014.318
R
E
W
O
P
X
T
A
PW2
AGP
PCI 1
1
X
U
A
PCI 2
PCI 3
WOL1
PCI 4
2
0
9
1
8
8
1
F
1
H
2
7
F
9
5
6
W
3
8
3
0
PCI 5
W
2
PCI 6
IR
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
C
C
E
B
E
6
0
3
T
0
L
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
IDE1
IDE2
RAID CHIPSET
T
E
C
C
P
P
H
D
2
R
N
0
IDE3
C
O
O
0
2
0
L
M
0
O
2
0
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
IDE4
FRONT PANEL CONNECTOR
N
A
F
DIM3DIM2DIM1
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
FDD1
F
A
N
2
PCI 5
PCI 6
Attaching Connectors
Pin 1
Pin 1
27
Page 34
Mainboard User’s Manual
3.6. Instal ling the CPU
3.6 .1. Be f ore You Begin
1. Be sure th at your processor kit includes the following items:
u One p rocessor with the fan or heat sink attached
u One po wer cable (for CPU with cooling fan attached)
2. Place the main board on a workbench (not in a chassis). Be sure that
the mainboard is empty (that is, n o DIMMs, cables, or cards are
in stalled) and that the holes for the fan or heat sink support pegs are
empty.
3.6.2 . Installation Procedure
1. On the motherboard, identify the CPU Socket 478 and the cooling fan
power supp ly connector CPU FAN.
CPU FAN Power Supply
KB1
USB1
COM1
COM2
AUD1
AUDIO CODEC
PW1
PW2
1
1
D
X
U
C
A
I/O CHIPSET
2
0
9
d
1
8
n
8
1
o
F
1
H
2
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
MC
23A1009406
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
L
M
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
IDE1
IDE2
IDE3
IDE4
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
Pin 1
CPU SOCKET478
2. Pu sh the CPU socket lever slightly to the side and then raise it as far as
it can go.
3. Identify the pin-1 corner of the PGA478. The pin -1 corner is on the
same side as the locking lever, as sho wn in the illustration below.
4. Identify the pin-1 corner of the processor (th e pin-1 corner on the
pro cessor has a beveled edge).
5. Align th e pin-1 corners and drop the processor into the PGA478. The
28
Installing the CPU
Page 35
Hardware Installation
processor should drop in to place without any force. If it doesn’t seat
properly, check that you have the pin -1 corner in the correct position.
CPU Processor
pin 1
Socket Lever
Up to 90 degree
6. Swin g the locking lever down to lock the processor in place and latch
th e lever under the catch on the side of the socket.
7. Plug the cable from the heat sink/cooling fan assembly into the
processor cooling fan power supply CPU FAN.
8. Configuratio n of the processor is carried out using the system setup
utility as described in Chapter 4. Config ure the processor the first time
you turn on the assembled computer.
3.6.3 . R e moving the Proce s s or
First, remo ve the mainboard from the chassis. To remove the processor
from th e mainboard, follow these steps:
1. Disconnect the fan power cable from the mainboard.
2. Push th e CPU socket lever slightly to the side and then raise it as
far as it can go. You will feel a resistance as the processor is freed
from th e socket.
3. Remove the processo r.
Installing the CPU
29
Page 36
Mainboard User’s Manual
Lock
3.7 . In st all in g Syst em Me mo ry
Maximum system memory su pported by the mainboard is 3 GB.
The mainboard has two DIMM Sock ets. Memory can be installed using
184-pin DDR SDRAM DIMM memory modules. There are no jumper
settings required for the memory size or type, which is auto matically
detected by th e BIOS.
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
1
1
X
D
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
o
F
1
2
H
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
C
C
E
B
E
6
0
T
3
0
L
VIA
VT8235
0217CD TAIWAN
MC
23A1009406
IDE1
IDE2
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
IDE3
C
O
O
0
2
0
L
M
0
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
IDE4
DIM3DIM2DIM1
FAN1
F
5
FDD1
FRONT PANEL CONNECTOR
DIM 1 DIM 2 DIM 3
N
A
F
S
Y
S
950202C
014
9
UM77004
F
A
N
2
Lock
s
n
i
p
0
8
s
n
i
p
4
0
1
You must use 2.5V u nbuffered DIMMs in the mainboard. To determine the
DIMM type, check the notches o n the DIMMs.
184-pin DIMM
Voltage key position
5.0V Reserved
2.5V
In stall the 184-pin DDR SDRAM modules in any combination as follows:
30
Bank 0 (DIMM1)
Bank 1 (DIMM2)
Bank 2 (DIMM3)
Total
64MB, 128MB, 256MB, 512MB, 1GB
64MB, 128MB, 256MB, 512MB, 1GB
64MB, 128MB, 256MB, 512MB, 1GB
64MB to 3GB
Installing the System Memory
Page 37
Hardware Installation
JBAT 1
3.8. Setting Jumpers
Refer to the following illustration and instructions to set the jumpers on
your mainboard.
3.8.1. Clear CMOS Jumper (JBAT1)
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
1
1
D
X
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
o
1
H
2
b
7
F
9
5
n
6
i
W
3
3
8
0
W
W
2
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
RAID CHIPSET
T
E
C
C
P
P
H
2
R
D
N
0
C
O
O
0
2
0
M
L
0
-
O
0
2
I
1
G
6
S
1
5
Y
1
E
R
,
I
N
R
C
.
You may need to clear the CMOS if your system cannot boot up because
you forgot your password, the CPU clock setup is incorrect, or the CMOS
settings need to be reset to default values after the system BIOS has been
updated.
Refer to the following solutions to reset your CMOS setting:
IDE1
IDE2
IDE3
IDE4
DIM3DIM2DIM1
C
C
E
B
E
6
0
3
T
0
L
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
Clear CMOS Settings
C
l
e
a
r
C
M
O
S
Pin 1
N
o
r
m
a
l
Solution A
1. Power off the system and disconnect the power cable.
2. Place a shunt to short pin 2 and pin 3 of JBAT1 for five seconds.
3. Place the shunt back to pin 1 and pin 2 of JBAT1.
4. Power on the system.
Solution B
If the CPU clock setup is incorrect, you may not be able to boot up. In this
case, follow these instructions:
1. Turn the system off, then on again. The CPU will automatically
boot up using standard parameters.
2. As the system boots, enter BIOS and set up the CPU clock.
Note: If you are unable to enter BIOS setup, turn the system on and off a
few times.
Setting Jumpers
31
Page 38
Mainboard User’s Manual
3.8.2. CPU FSB Jumper (JCK1)
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
1
1
D
X
U
C
A
AUDIO CODEC
I/O CHIPSET
2
0
9
d
1
8
n
8
1
F
1
o
2
H
b
F
7
5
9
6
n
W
i
3
3
8
0
2
W
W
2M FLASH EPROM
IR
R
E
W
O
P
V
2
1
X
T
A
T014.318
R
E
W
O
P
X
T
A
AGP
PCI 1
PCI 2
PCI 3
WOL1
PCI 4
PCI 5
PCI 6
VIA
P4X400
0217CD TAIWAN
2IA2003622
USB2 USB3
L
O
T
E
S
VIA
VT8235
0217CD TAIWAN
23A1009406 MC
RAID CHIPSET
T
E
C
C
P
P
H
2
D
R
N
0
C
O
O
0
2
0
M
0
L
-
O
0
2
I
1
6
G
S
1
5
Y
1
E
R
,
I
N
R
C
.
IDE1
IDE2
IDE3
IDE4
DIM3DIM2DIM1
C
C
E
E
B
6
0
T
3
0
L
FDD1
FRONT PANEL CONNECTOR
N
A
F
S
Y
S
FAN1
950202C
F
014
9
UM77004
5
F
A
N
2
133MHz
CPU FSB
u Short pin 1 and pin 2 is setting “Auto”.
u Short pin 2 and pin 3 is setting “133MHz”.
3.8.3. DIMM Voltage Jumper (JV1)
KB1
USB1
COM1
PW1
COM2
AUD1
PW2
PCI 1
CD1
AUX1
PCI 2
AUDIO CODEC
PCI 3
PCI 4
I/O CHIPSET
PCI 5
Win bo nd
W83697HF
203W5F211881902
PCI 6
2M FLASH EPROM
IR
VIA
ATX 12V POWER
P4X400
0217CD TAIWAN
2IA2003622
T014.318
ATX POWER
AGP
WOL1
USB2 USB3
DIM3DIM2DIM1
SYS FAN
LOTES
VIA
VT8235
0217CD TAIWAN
23A1009406
RAID CHIPSET
TECHNOLOGY,INC.
C
PDC20265R
2000-0111
FAN1
95 0202 C F
01 49
UM 77 00 45
CEB6030L
CET
MC
IDE1
IDE2
PROMISE
IDE3
R
IDE4
FDD1
FRONT PANEL CONNECTOR
DIMM Voltage Jumper
FAN2
JCK1
Auto
Pin 1
JV1
Pin 1
u Short pin 1 and pin 2 is setting “2.5V”.
u Short pin 3 and pin 4 is setting “2.6V”.
u Short pin 5 and pin 6 is setting “2.7V”.
u Short pin 7 and pin 8 is setting “2.8V”.
32
Setting Jumpers
Page 39
Hardware Installation
3.9 . Auto Powe r On
After losing AC power, the system will not turn o n automatically when the
power comes back unless you set the options in BIOS.
Th is concludes Chapter 3. Chapter 4 covers the BIOS setup program.
Auto Power On
33
Page 40
Mainboard User’s Manual
4. BIOS Co nfi gura tio n
After the hardware configuration of the mainboard is finished, and the
system hardware has been assembled, th e system may be powered up. At
th is point, CMOS setup should be run to ensure that system information is
correct.
The mainbo ard employs the latest Award BIOS CMOS chip with support
for Windows Plug and Play. This CMOS chip contains the ROM Setup instruction s for configuring the mainboard’s BIOS. The BIOS (Basic Input
an d Output System) Setup program is a menu driven utility that enables you
to make changes to the system configuration and tailor your system to suit
your individual work needs. It is a ROM-based configuration utility that
displays the sy stem’s configuration status and provides you with a tool to
set system parameters. These p arameters are stored in non-volatile batteryback ed-up CMOS RAM that saves this information even when the power is
turned o ff. When the system is turned back on, the system is configured with
the values fou nd in CMOS.
Using easy-to-use p ull down menus, you can configure such items as:
r Hard drives, diskette drives, and peripherals
r Video display type and display options
r Password protection from unauthorized use
r Po wer management features
Th e settings made in the Setup program intimately affect how the compu ter performs. It is important, therefore, first to try to understand all the
Setup’s options, and second, to make settings appropriate fo r the way you
use the computer. This ch apter provides clear explanations for all Setup
options.
34
BIOS Configuration
Page 41
BIOS Configuration
This prog ram should be executed under the following conditions:
r Wh en changing the system configuration
r When a configuration error is detected by the system and you are
prompted to make ch anges to the Setup program
r Wh en resetting the system clock
r When setting the CPU clock speed so that it automatically runs
eith er fast or slow
r When redefining the communication ports to prevent any conflicts
r Wh en making changes to the Power Management configuration
r Wh en changing the password or making other changes to the
security setup
Normally, CMOS setup is n eeded when the system hardware is not
consistent with the information con tained in the CMOS RAM, whenever
the CMOS RAM has lo st power, or the system features need to be
changed.
4.1. Entering Setup
When the system is powered on, th e BIOS will enter the Power-On Self Test
(POST) routines. Th ese routines perform various diagnostic checks; if an
error is encou ntered, the error will be reported in one of two different ways:
1. If the error occurs before the display device is initialized , a series
of beeps will b e transmitted.
2. If the error occurs after the display device is initialized, the screen
will disp lay the error message.
After the POST routines are completed, the following message app ears:
Entering Setup
35
Page 42
Mainboard User’s Manual
“Press DEL to enter SETUP”
To access the AWARD BIOS SETUP program, press the <DEL> key to
display th e “CMOS SETUP UTILITY” screen:

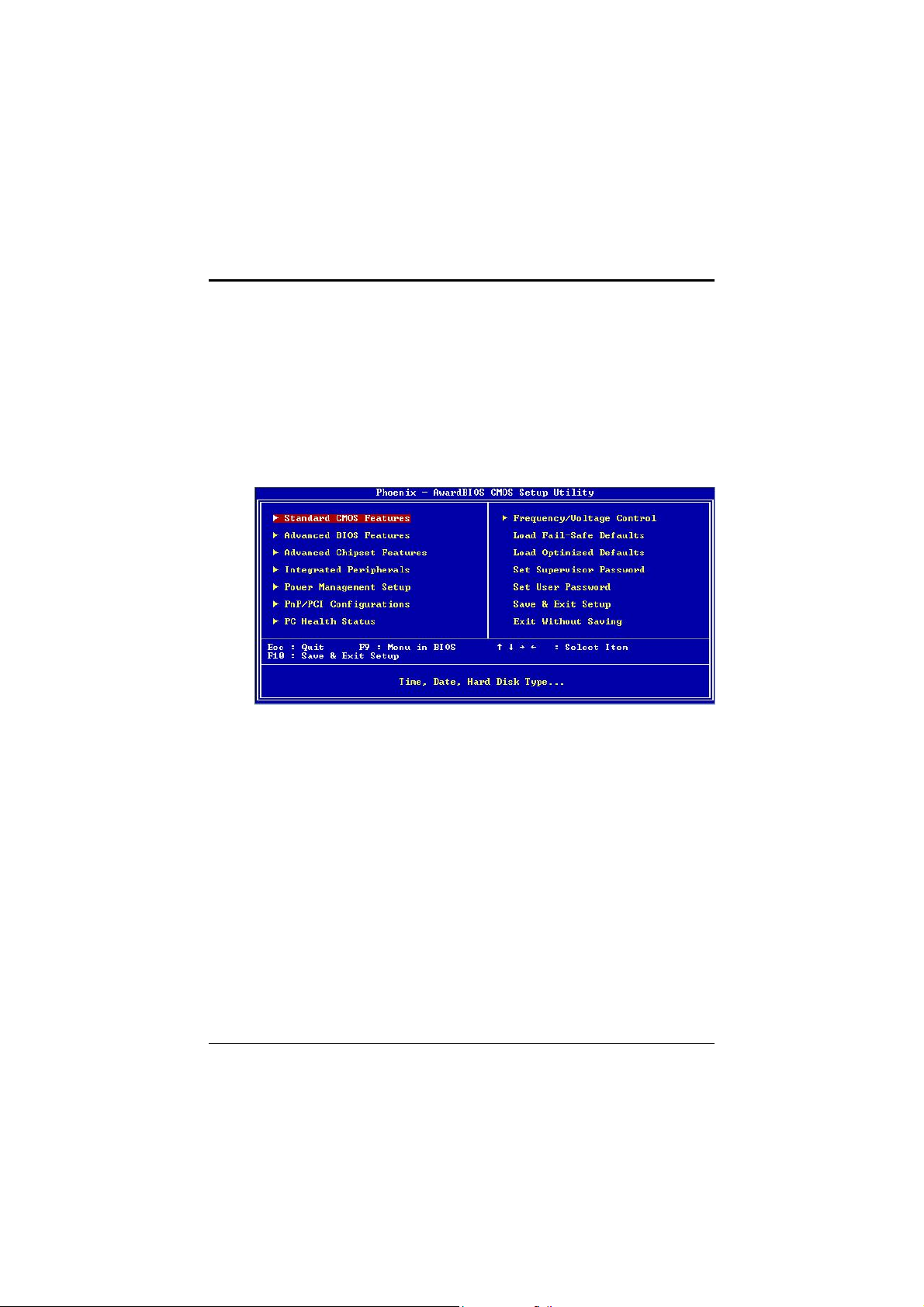

These screens provid e access to the utility’s various functions.
Listed b elow are explanations of the keys displayed at the bottom of the
screen :
Key Function
Esc Escape key: Exits th e current menu
higf Cursor keys: Scro ll through the items on a menu
+/-/PU/PD Plus, minus, Page Up and Page Down keys: Modify the
selected field’s values
F10 F10 key: Saves the current configu ration and exits setup
F1 F1 key: Display s a screen that explains all key functions
F5 F5 key: Loads previou sly saved values to CMOS
F6 F6 key: Loads a minimum con figuration for troubleshooting.
F7 F7 key: Loads optimum set of values for peak performance
36
Entering Setup
Page 43
BIOS Configuration
4.2 . St an da rd CMOS Feat ur es
Standard CMOS Featu res is the same for all three chipsets. Selecting
“Standard CMOS Features” on the main program screen displays the
fo llowing menu:

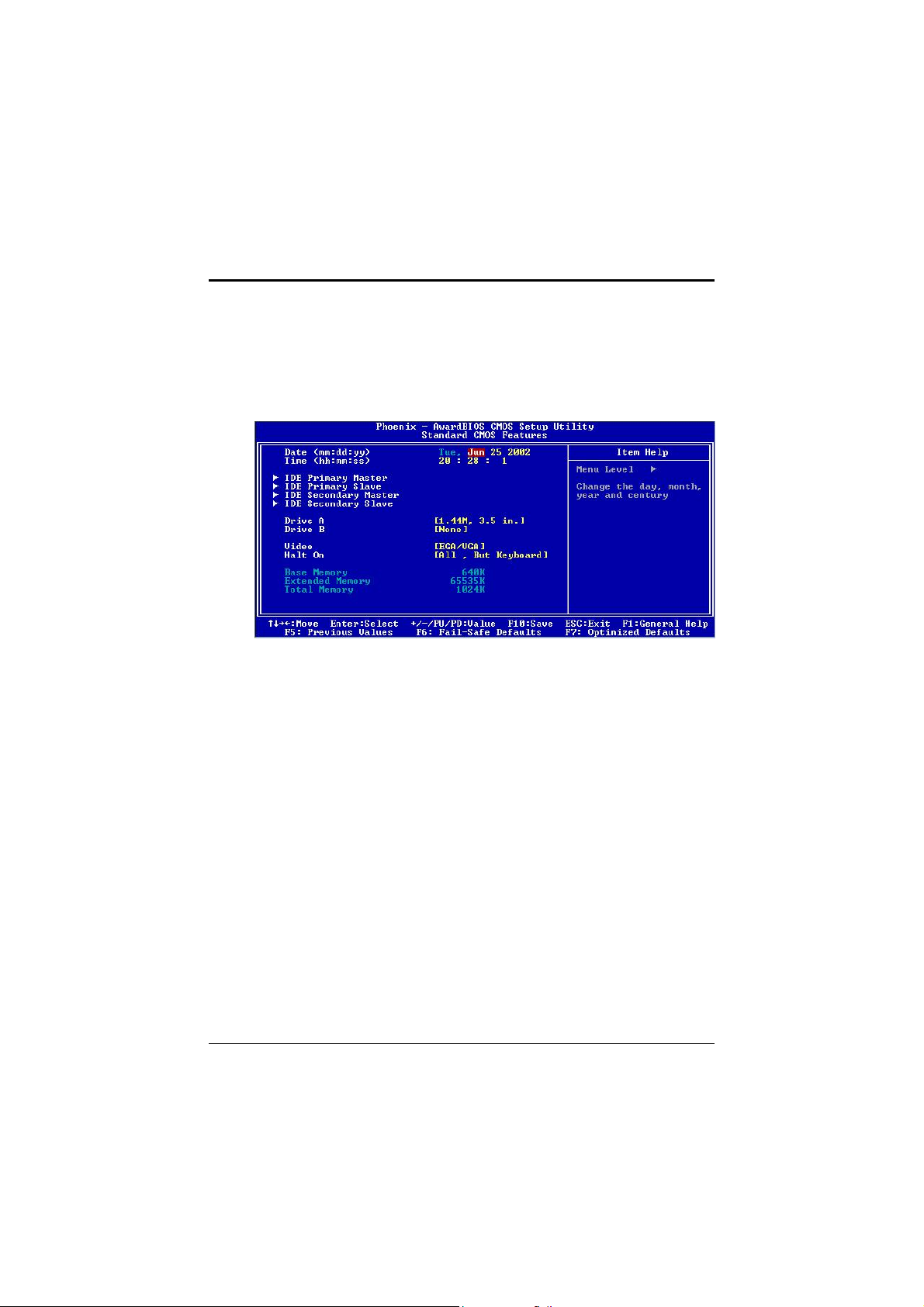

Th e Standard CMOS Setup utility is similar for all three chipsets and is
used to configure the following features:
Date: Month, Day, Year
Time: Hour, Minute, and Second. Use 24 Hour clock format (for PM
nu mbers, add 12 to the hour, you would enter 4:30 p.m. As 16:30).
IDE Devices:Your comp uter has two IDE channels (Primary and
Secondary) an d each channel can be installed with one or two devices
(Master and Slave). Use these items to configure each device on the IDE
channel. Press Enter to display the IDE sub -menu:
u IDE HDD Auto-Detection: Press <Enter> wh ile this item is high
ligh ted if you want the Setup Utility to automatically detect and
co nfigure a hard disk drive on the IDE channel.
If your system h as an IDE hard drive, you can use this utility to
detect its parameters and enter th em into the Standard CMOS
Setup automatically.
Standard CMOS Setup
37
Page 44
Mainboard User’s Manual
If th e auto-detected parameters displayed do not match the ones
that sho uld be used for your hard drive, do not accept them. Press
the <N> k ey to reject the values and enter the correct ones manually
in th e Standard CMOS Setup screen.
Note: If you are setting up a new hard disk drive that supports
LBA mode, more than one line will appear in the param
eter box. Choose the line that lists LBA for an LBA drive.
Do not choose “Large” or “Normal” if the hard disk drive is
already fu lly formatted when you installed it. Select the mode that
was used to format it.
u IDE Primary/Secondary Master/Slave: If you leave this item
at “Au to,” the system will automatically detect and configure
an y IDE devices it finds. If it fails to find a hard disk, change
th e value to “Manual” and then manually configure the drive
by entering the characteristics of the drive in the items below
(Capacity, Cylinder, Head, Precomp , etc.). Refer to your
driv e’s documentation or look on the drive if you need to
ob tain this information. If no device is installed, change the
value to “None.”
u Access Mode: This item defines some special ways that can be
used to access IDE hard disks such as LBA (Large Blo ck
Ad dressing). Leave this value at “Auto” and the system will
au tomatically decide the fastest way to access the hard disk
drive.
Press <Esc> to close the IDE device sub-menu and return to th e
Standard CMOS Features page.
Drive A and Drive B: Select the type of flo ppy disk drive installed in
your system. The options are:
u 3 60K, 5.25 in
u 1.2M, 5.25in
u 720 K, 3.5in
38
Standard CMOS Setup
Page 45
BIOS Configuration
u 1.44M, 3.5in (Driver A d efault)
u 2 .88M, 3.5in
u None (Not Installed) (Drive B defau lt).
The “Not In stalled” option could be used as an option for diskless
workstation s.
Video: Set this field to the ty pe of graphics card installed in your system.
If you are u sing a VGA or higher resolution card, choose the “EGA/VGA”
optio n. The options are:
u MONO
u CGA 40
u CGA 80
u EGA/VGA (defau lt).
Halt On: Th is setting determines which type of errors will cause the
system to halt du ring bootup. The options are:
u All Errors (defau lt)
u No Errors
u All, But Keyboard (d efault)
u All, But Diskette
u All, But Disk /Key.
Base/Extended/Total Memory: These items are automatically detected by
th e system at start up time. These are display only fields. You cannot make
changes to these fields.
After y ou have made your selections in the Standard CMOS Setup screen,
press <ESC> to go back to the main screen.
Standard CMOS Setup
39
Page 46
Mainboard User’s Manual
4. 3. Adv an ce d BI OS Fea tu re s
Selectin g “Advanced BIOS Features” on the main program screen
displays this menu , which allows you to define advanced information
ab out your system. You can make modifications to most of these items
with out introducing fatal errors to your system. Note that the page has a
scroll-bar to scro ll down to more items.
Th e following explains the options for each feature:
Virus Warning: Wh en enabled, any attempt to write to the boot sector or
partition table will halt the system and cause a warn ing message to appear.
If this happens, you can u se an anti-virus utility on a virus free, bootable
floppy d iskette to reboot and clean your system. The default setting is
“Disab led”.
CPU L1 & L2 Cache: These settin gs enable the CPU internal (L1) and
external (L2 ) cache. Enabling these items provides better performance.
Th e default setting is “Enabled”.
CPU L2 Cache ECC Checking: This item enables o r disables ECC (Error
Co rrection Code) error checking on the CPU cache memory. The default
setting is “Enabled” .
Quick Power On Self Test: This will skip so me diagnostic checks during
the Power On Self Test (POST) to speed up the booting process. The
default setting is “Enabled” .
40
Adv anced BIOS Features
Page 47
BIOS Configuration
First/Second/Third Boot Device: Use these th ree items to select the priority
and order o f the devices that your system searches for an operating system
at start-up time. The default settings are “Floppy ”, “HDD-0”, or “LS120”
respectively.
Boot Other Device: If yo u enable this item, the system will search all
other possible lo cations for an operating system if it fails to find one in the
devices specified under th e First, Second, and Third boot devices. The
default settin g is “Enabled”.
Swap Floppy Drive: If you have two flop py diskette drives in your
sy stem, this item allows you to swap the assigned drive letters so that
drive A becomes drive B, and drive B becomes drive A. The default
setting is “Disabled”.
Boot Up Floppy Seek: If this item is enabled, it checks the geometry of
th e floppy disk drives at start-up time. You don’t need to enable this item
un less you have an old diskette drive with 360K capacity. The default
setting is “Enabled” .
Boot Up Numlock Status: If set to “Off,” the cursor controls will
fu nction on the numeric keypad. The default setting is “On”.
Typematic Rate Setting: If set to “Enab led,” enables you to set the
Typematic Rate and Typematic Delay. The default setting is “Disabled ”.
u Typematic Rate (Chars/Sec): This setting co ntrols the speed at
which the system reg isters repeated keystrokes. The choices range
from 6 to 30 Chars/Sec. The default setting is “6 ” Chars/Sec.
u Typematic Delay (Msec): This setting controls the time between
the display of the first and second characters. There are four delay
choices: 2 50ms, 500ms, 750ms and 1000ms. The default setting is
“250” ms.
Security Option: This setting controls the passwo rd feature. The options
are “Setup” and “System”. Selecting “Setup” will protect the configuration
setting s from being tampered with. Select “System” if you want to use the
password feature every time the sy stem boots up. The default setting is
“Setup .” You can create your password by using the “SUPERVISOR/USER
PASSWORD” u tility in the main program screen.
Adv anced BIOS Features
41
Page 48
Mainboard User’s Manual
OS Select For DRAM > 64MB: Set to “OS2” if the system memory size is
greater than 64 MB and the op erating system is OS/2. The default setting
is “Non-OS2”.
Video BIOS Shadow: Determines whether video BIOS will be copied to
RAM. However, it is optional dep ending on chipset design. Video Shadow
will increase th e video speed. The default setting is “Enabled.”
Small Logo (EPA) Show: Enables and disables the EPA logo wh en
bo oting up. The default setting is “Disabled”.
After you have made yo ur selections in the Advanced BIOS Features
Setup screen, press <ESC> to go back to the main screen.
42
Adv anced BIOS Features
Page 49
BIOS Configuration
4. 4. Adv an ce d Ch ip se t Fe at ur es
Selecting “Advanced Chipset Features” on the main program screen
displays th is menu:
This screen controls the setting s for the board’s chipset. All entries
related to the DRAM timing on the screen are au tomatically configured.
Do not make any changes unless you are familiar with the chipset.
Adv anced Chipset Features
43
Page 50
Mainboard User’s Manual
DRAM Clock/Drive Control: Scro ll to this item and press <Enter> to view
the follo wing screen:

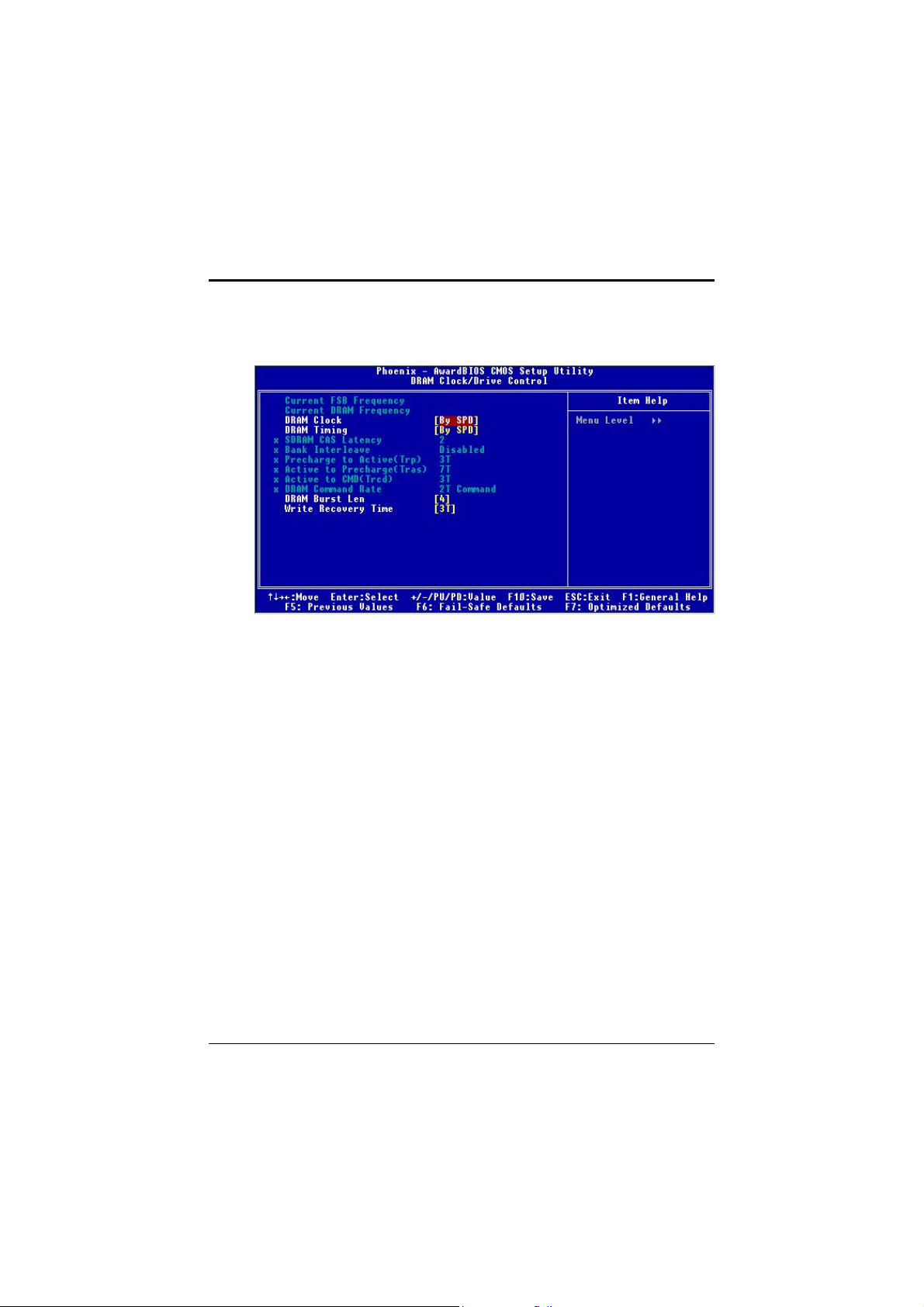

En ables you to set the DRAM timing manually, or automatically using
SPD (Serial Presence Detect). SPD is an EEPROM chip on the memory
module th at stores information about the memory chips it contains,
including size, speed , voltage, row and column addresses, and manufactu rer. We recommend setting this field to By SPD.
Current FSB Frequency: This item display the front sid e bus (FSB)
frequency. This is a display-only item. You cannot make changes to th is
field .
Current DRAM Frequency: This item display the front side bus (DRAM)
frequency. This is a display-only item. You cannot make changes to th is
field .
DRAM Clock: Set this By SPD to enabled the system to automatically set
the SDRAM timin g by SPD (Serial Presence Detect). SPD is an EEPROM
chip on the DIMM module th at stores information about the memory
ch ips it contains, including size, speed, voltage row and column addressed, an d manufacturer. If you disable this item, you can use the
fo llowing three items to manually set the timing parameters for the system
memo ry.
44
Adv anced Chipset Features
Page 51
BIOS Configuration
SDRAM CAS Latency: Enables you to select the CAS latency time
HCLKs of 2 o r 2.5. The value is set at the factory depending on the
DRAM in stalled. Do not change the values in this field unless you change
sp ecification of the installed DRAM or the installed CPU. The options are
“1.5” , “2”, “2.5”, “3”, “2” is default.
Bank Interleave: Enable this item to increase memory speed. When
enabled, separate memory bank s are set for odd and even addresses and
th e next byte of memory can be accessed while the current byte is being
refreshed.
Precharge to Active: This item is used to designate the minimum Row
Precharge time of the SDRAM dev ices on the module.
DRAM mu st continually be refreshed or it will lose its data. Normally,
DRAM is refresh ed entirely as the result of a single request. This option
allows you to determin e the number of CPU clocks allocated for the Row
Address Strobe (RAS) to accu mulate its charge before the DRAM is
refreshed. If insu fficient time is allowed, refresh may be incomplete and
data lo st.
Active to Precharge: Th is item specifies the number of clock cycles
needed after a bank active command befo re a precharge can occur.
Active to CMD: This item sp ecifies the minimum required delay between
activation of different rows.
DRAM Command Rate: This item enables you to specify the waiting time
fo r the CPU to issue the next command after issuing the command to the
DDR memory. We recommend that you leave this item at the default value.
DRAM Burst Len : Th is item describes which burst lengths are supported
by th e devices on the mainboard.
Write Recovery Time: These registers are normally set at system initialization time and not accessed after during normal system op eration.
After yo u have made your selections in the Advanced Chipset Features
Setup screen, press <ESC> to go back to the main screen.
Adv anced Chipset Features
45
Page 52
Mainboard User’s Manual
AGP & P2P Bridge Control: Scroll to this item and press <Enter> to view
the follo wing screen:
AGP Aperture Size (MB): This op tion determines the effective size of the
AGP Graph ic Aperture, where memory-mapped graphic data structures are
located. The d efault setting is “ 64”, and other options are “4”, “8”, “16”,
“32”, “ 128”, or “256”.
AGP Mode: This item allows yo u to enabled or disable the caching of
display data for th e processor video memory. Enabling AGP-4X Mode can
greatly improv e the display speed. Disable this item if your graphics
display card does not support this feature. The default setting is “4X”.
AGP Driving Control: Th is item is used to signal driving current on AGP
cards to auto or manual. Some AGP cards need stronger than normal
driving cu rrent in order to operate. We recommend that you set this item
to the default. The default setting is “Auto”.
AGP Driving Value: When AGP Driving Con trol is set to Manual, use this
item to set the AGP current driving value. The default setting is “DA”.
AGP Fast Write : This item lets yo u enable or disable the caching of
disp lay data for the video memory of the processor. Enabling this item can
greatly improve the display speed . Disable this item if your graphic
display card does not support this featu re. The default setting is “Disabled”.
46
Adv anced Chipset Features
Page 53
BIOS Configuration
AGP Master 1 WS Write: This implements a single delay when writing to
th e AGP Bus. By default, two-wait states are used by the system, providin g greater stability. The default setting is “Disabled”.
AGP Master 1 WS Read: This implemen ts a single delay when writing to
th e AGP Bus. By default, two-wait states are used by the system, allowing
greater stability. Th e default setting is “Disabled”.
DBI Output for AGP Trans.: AGP 8X transfer mod e only. The default
setting is “Disabled”.
After yo u have made your selections in the Advanced Chipset Features
Setup screen, press <ESC> to go back to the main screen.
Adv anced Chipset Features
47
Page 54
Mainboard User’s Manual
CPU & PCI Bus Control: Scroll to this item an d press <Enter> to view the
following screen:

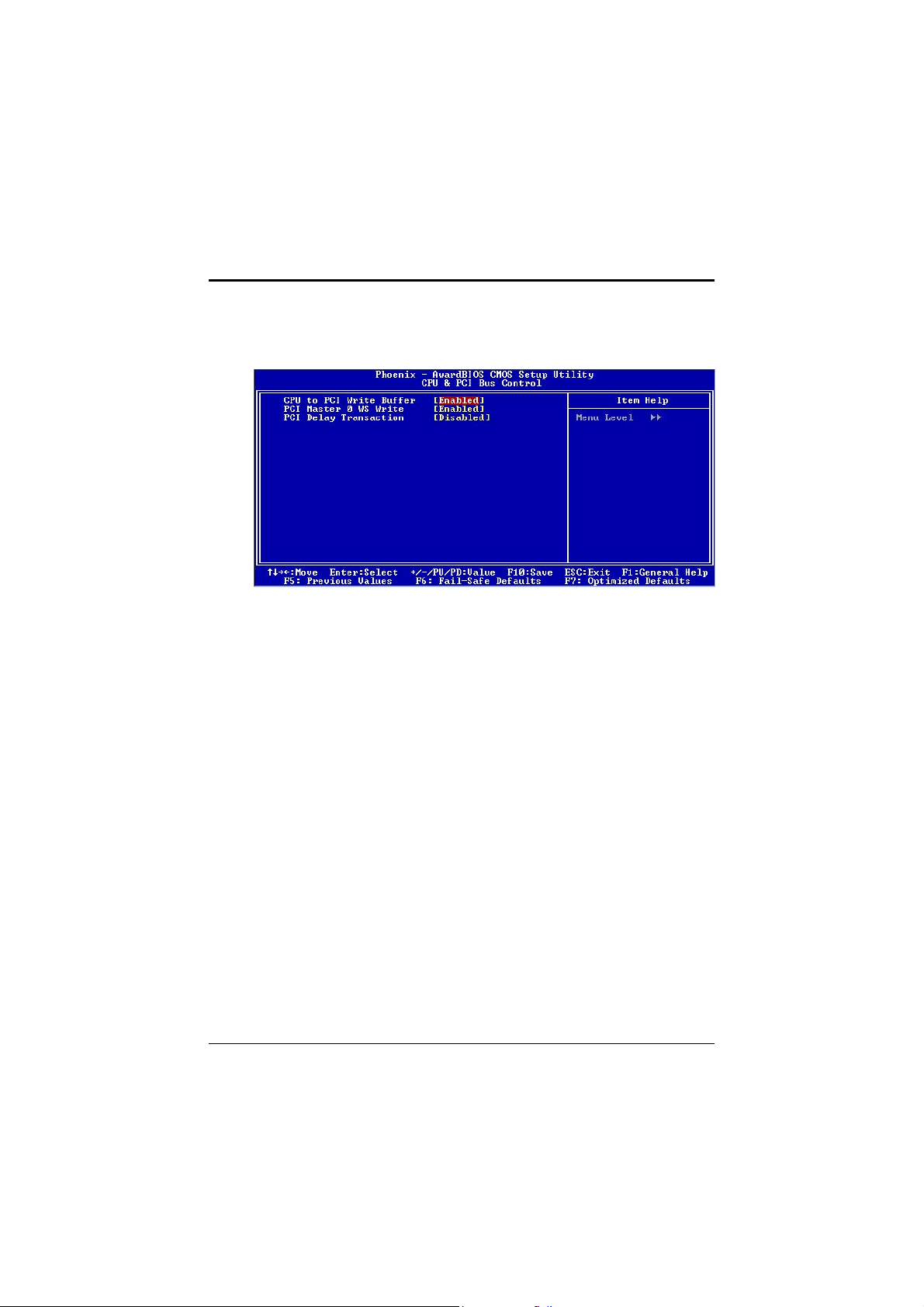

CPU to PCI Write Buffer: Wh en enabled, writes from the CPU to PCI bus
are buffered, to comp ensate for the speed differences between the CPU
an d PCI bus. When Disabled, the writes are not buffered and the CPU
mu st wait until the write is complete before starting another write cycle.
Th e default setting is “Enabled”.
PCI Masster 0 WS Write: When en abled, writes to the PCI bus are
ex ecuted with zero wait states. The default setting is “Enabled”.
PCI Delay Transaction: The main board’s chipset has an embedded 32-bit
post write buffer to support delay transactions. Select Enabled to support
co mpliance with PCI specification version 2.1. The default setting is
”Disabled”.
After yo u have made your selections in the Advanced Chipset Features
Setup screen, press <ESC> to go back to the main screen.
48
Adv anced Chipset Features
Page 55
BIOS Configuration
Memory Hole: If set to “ Enabled”, when the system memory size is equal
to or greater than 16M bytes, the physical memory address from 15M to
16M will be passed to PCI or ISA and there will b e a 1 MB hole in your
sy stem memory. This option is designed for some OS with special add-in
card s which need 15-16 MB memory space. The default setting is “Disabled”.
System BIOS Cacheable: Wh en set to “Enabled”, the System BIOS will
be cached for faster execution. The d efault setting is “Disabled”.
Video RAM Cacheable: Wh en set to “Enabled”, the Video RAM will be
cached for faster execu tion. The default setting is “Disabled”.
Delay Prior To Thermal: This item allows you to select the delay time to
en able the Pentium 4 CPU Thermal feature. Enable this feature when using
Win dows NT 4.0 to prevent the system from hanging. The default setting is
“ 16Min” , and other options are “4Min”, “8Min”, or “32Min”.
After yo u have made your selections in the Advanced Chipset Features
Setup screen, press <ESC> to go b ack to the main screen.
Adv anced Chipset Features
49
Page 56
Mainboard User’s Manual
4.5 . In te gra te d Pe rip he ra ls
Selectin g “Integrated Peripherals” on the main program screen displays
this menu:
Th is option displays a list of item that defines the operation of peripheral
compon ents on the system’s input/output ports.
50
Integrated Peripherals
Page 57
BIOS Configuration
VIA OnChip IDE Device: Scroll to th is item and press <Enter> to view the
following screen:
OnChip IDE Channel 0/1: This option enables or disables theonboard
IDE controller. The default setting is “Enabled”.
IDE Prefetch Mode: The onbo ard IDE drive interface supports IDE
prefetching, for faster d rive access. If you install a primary and secondary
ad d on IDE interface, set this field to Disabled if the interface does not
support prefetching . The default setting is “Enabled”.
Primary/Secondary Master/Slave PIO: When set to “ Auto” the BIOS will
au tomatically set the mode to match the transfer rate of the hard disk. If
th e system won’t boot up when set to “Auto” set it manually to a lower
mode, e.g., from Mode 3 to Mode 2. All IDE d rives should work with PIO
mode 0. There are six options: “Auto” (default), “Mode 0”, “Mode 1”, “
Mode 2”, “ Mode 3”, or “Mode 4”.
Primary/Secondary Master/Slave UDMA: Wh en set to “Auto” the BIOS
will automatically load th e Ultra DMA 33/66/100 driver to match the
transfer rate of IDE hard disk driv es that support Ultra DMA 33/66/100/133
mo de. The options are “Auto” (default) or “Disabled”.
After y ou have made your selections in the Integrated Peripherals Setup
screen, press <ESC> to go back to the main screen.
Integrated Peripherals
51
Page 58
Mainboard User’s Manual
VIA OnChip PCI Device: Scroll to this item and press <Enter> to view the
following screen:
VIA-3058 AC97 Audio: Auto an d disabled the onboard audio chip.
Disable this item if you are g oing to install a PCI audio add on card. The
op tions are “Auto” (default) or “Disabled”.
VIA-3068 MC97 Modem: Auto and disabled the onboard modem. Disable
this item if you are going to install an external modem. Th e options are
“Auto” (default) or “Disabled”.
VIA-3043 OnChip LAN: En abled and disabled the onboard LAN. Enable
th is item if you are going to install Onboard LAN Boot ROM. The default
setting is “Enabled” .
Onboard Lan Boot ROM: Enable this item if you are go ing to boot from
on board LAN, you should combine this function in BIOS. The default
setting is “Disabled”.
After y ou have made your selections in the Integrated Peripherals Setup
screen, press <ESC> to go back to the main screen.
52
Integrated Peripherals
Page 59
BIOS Configuration
Super IO Device: Scro ll to this item and press <Enter> to view the
following screen:
Onboard FDC Controller: This option enables th e onboard floppy disk
drive controller. The defau lt setting is “Enabled”.
Onboard Serial Port 1/2: These op tions are used to assign the I/O
ad dresses for the two onboard serial ports. The options are: “3F8/ IRQ4”
(Port 1 default), “2F8 / IRQ3” (Port 2 default), “3E8/ IRQ4 “, “2E8/ IRQ3”,
“Auto “, or “Disab led” (disables the onboard serial port).
UART Mode Select: Enables you to select the in frared communication
proto col - Normal (default), IrDA, or ASKIR. IrDA is Hewlett Packard’s
infrared commun ication protocol with a maximum baud rate up to 115.2K
bps. ASKIR is Sh arp’s infrared communication protocol with a maximum
baud rate up to 57.6K bps.
RxD, TxD Active: Defines the voltage lev el for Infrared module RxD
(receive) mode and TxD (transmit) mode. Th is setting has to match the
requirements of the infrared module used in the system. The o ptions are:
u Hi, Lo (default)
u Lo, Hi
u Lo, Lo
u Hi, Hi
Integrated Peripherals
53
Page 60
Mainboard User’s Manual
IR Transmission Delay: When set to “ Enabled”, utilizes the capability of
the mainboard to allow faster infrared transmission rates. The o ption are
“Enabled” (default), or “Disabled” .
UR2 Duplex Mode: This field is available wh en UART 2 Mode is set to
either ASKIR or SCR. Th is item enables you to determine the infrared (IR)
fu nction of the onboard infrared chip. Full-duplex means that you can
tran smit and send information simultaneously. Half duplex (default) is the
tran smission of data in both directions, but only one direction at a time.
Use IR Pins: Use this item to set the IR pins. The options are “IR-Rx2 Tx2”
(default) or “RxD2, TxD2”.
Onboard Parallel Port: This optio n is used to assign the I/O address for
the onboard parallel port. The options are:
u 37 8/IRQ7 (default)
u 27 8/IRQ5
u 3 BC/IRQ7
u Disabled (disables the onb oard parallel port)
Parallel Port Mode: There are five options—”SPP” (default), “EPP”
(Enhanced Parallel Po rt), “ECP” (Extended Capabilities Port), “ECP+EPP”
and Normal. Change th e mode from “SPP” to the enhanced mode only if
your peripheral device can suppo rt it.
EPP Mode Select: Sets the EPP specificatio n. The option are “EPP1.7” (default) or “ EPP1.9”.
ECP Mode Use DMA: When the onboard parallel port is set to ECP mode, the
parallel po rt has the option to use DMA “3” (default) or DMA “1.”
Game Port Address: This item enables yo u to set the I/O address for the
game po rt. The default setting is “201”.
Midi Port Address: This item enables yo u to set the I/O address for the
Midi port. Th e default setting is “330”.
54
Integrated Peripherals
Page 61
BIOS Configuration
Midi Port IRQ: Th is item enables you to set the I/O IRQ for the Midi port.
Th e default setting is “10”.
After y ou have made your selections in the Integrated Peripherals Setup
screen, press <ESC> to go back to the main screen.
Integrated Peripherals
55
Page 62
Mainboard User’s Manual
Init Display First: This item sets wh ether the PCI Slot or AGP is activated
first. The o ptions are “PCI Slot” (default) or “AGP”.
OnChip USB Controler: Enable this item if yo u plan to use the Universal
Serial Bus ports on this main board. The default setting is “All Enabled”.
USB Keyboard Support: Enables USB key board support for legacy
operating systems. The default setting is “Disabled”.
USB Mouse Support: Enables USB Mouse support fo r legacy operating
systems. The default setting is “Disabled”.
IDE HDD Block Mode: Enable this field if your IDE hard drive sup ports
block mode. Block mode enables BIOS to automatically detect the optimal
nu mber of block read and writes per sector that the drive can support. The
default setting is “Enabled” .
After y ou have made your selections in the Integrated Peripherals Setup
screen, press <ESC> to go back to the main screen.
56
Integrated Peripherals
Page 63
BIOS Configuration
4. 6. Po we r Man ag e me nt Se tu p
Power Man agement Setup controls the mainboard’s “Green” features.
Selectin g “Power Management Setup” on the main program screen
displays th is menu:
ACPI Function: When set to “Enabled”, tu rns on the ACPI Function. The
default setting is “Enabled” .
Note: ACPI (Advanced Configuratio n and Power Interface) is a power
management specification that makes hardware status informa-
tion av ailable to the operating system. ACPI enables a PC to turn
its perip herals on and off for improved power management. It
also allows the PC to be turned o n and off by external devices, so
that mo use or keyboard activity wakes up the computer.
ACPI Suspend Type: Use th is item to define how your system suspends.
If set to S1(POS) (default), the suspend mode is eq uivalent to a software
power down. If set to S3(STR), the susp end mode is a suspend to RAM
the system shuts down with the exception of a refresh current to the
system memory.
Power Management setup
57
Page 64
Mainboard User’s Manual
Power Management Option: This item acts like a master switch for th e
po wer-saving modes and hard disk timeouts. If this item is set to Max
Saving , power-saving modes occur after a short timeout. If this item is set
to Min Saving, power-saving modes occur after a longer time-out. If the
item is set to User Define, you can insert your own timeouts fo r the powersaving mo des. There are four options:
r User Defin e: allows you to customize all power saving timer features
r Max Saving: recommended setting for general use
r Min Saving : sets power saving at minimum values
HDD Power Down: Th e IDE hard drive will spin down if it is not accessed
within a specified length of time. Options are from “1 Min” to “15 Min”
an d “Disable”. The default setting is “Disabled”.
Suspend Mode: Enables you to set the idle time before th e system goes
into suspend mode. Options are from “Disabled, 1 Min, 2 Min, 4 Min, 8
Min , 12 Min, 20 Min, 30 Min, 40 Min, or 1 Hour”. The default is “Disabled”.
Video Off Option: This optio n define if the video is powered down when
th e system is put into suspend mode. The default setting is “Off”.
Video Off Method: This setting controls the video off method in power
saving mode. The “DPMS” option allows the BIOS to control the video
card if it has the DPMS (Display Power Management System) feature.
Other options are “ V/H SYNC+Blank” and “Blank Screen.” The “V/H
SYNC+Blank” (default) which disables V/H SYNC signals and blanks the
screen. The “Blank Screen” o ption is used when you do not have a
“Green” mon itor.
MODEM Use IRQ: If you wan t an incoming call on a modem to automatically resu me the system from a power-saving mode, use this item to
sp ecify the interrupt request line (IRQ) that is used by the modem. You
might have to connect the fax/mod em to a mainboard Wake On Modem
connector for this feature to work. Options are: “3” (default), “4”, “5”, “7”,
“9”, “10” , “11”, or “NA”.
58
Power Management setup
Page 65
BIOS Configuration
Soft-Off by PWRBTN: Wh en set to “Instant-Off” (default), pressing the
po wer button will turn off the system power. When set to “Delay 4 Sec.”
you hav e to press the power button and hold it for more than 4 seconds to
turn off the sy stem power. Otherwise, the system just goes into suspend
mode. The op tions are “Instant-Off” or “Delay 4 Sec.”
Run VGABIOS if S3 Resume: The o ption are “Auto” (default), “Yes”,
“No” .
PWRON After PWR-Fail: This item enables y ou computer to automatically restart from a power failure. The default settin g is “Off”.
Power Management setup
59
Page 66
Mainboard User’s Manual
IRQ/Event Activity Detect: Scroll to this item and press <Enter> to v iew
the follo wing screen:
This item open s a submenu that enables you to set events that will resume
the system from a p ower saving mode.
VGA: When set to “On”, the system po wer will resume the system from a
po wer saving mode if there is any VGA activity. The default setting is
“OFF”.
LPT & COM: When this item is enabled, the system will restart the po wer
savin g timeout counters when any activity is detected on the serial ports,
or the parallel po rt. The default setting is “LPT/COM”.
HDD & FDD: Wh en set to “On”, any activity from one of the listed
system perip heral devices wakes up the system. The default setting is
“ON”.
PCI Master: Wh en set to “Off”, any PCI device set as the Master will not
po wer on the system. The default setting is “OFF”.
PowerOn by PCI Card: Use th e item to enable PCI activity to wakeup the
sy stem from a power saving mode. The default setting is “Disabled”.
Modem Ring Resume: When set to “ Enabled”, any activity on the
Mo dem port will wake up the system from a power saving mode. The
default setting is “ Disabled”.
60
Power Management setup
Page 67
BIOS Configuration
RTC Alarm Resume: When set to “Enabled ”, the following two fields
become available an d you can set the date (day of the month), hour,
minute and seco nd to turn on your system. When set to 0 (zero) for the
day of th e month, the alarm will power on your system every day at the
sp ecified time. The default setting is “Disabled”.
Power Management setup
61
Page 68
Mainboard User’s Manual
IRQs Activity Monitoring: Scroll to this item and p ress <Enter> to view
the follo wing screen:

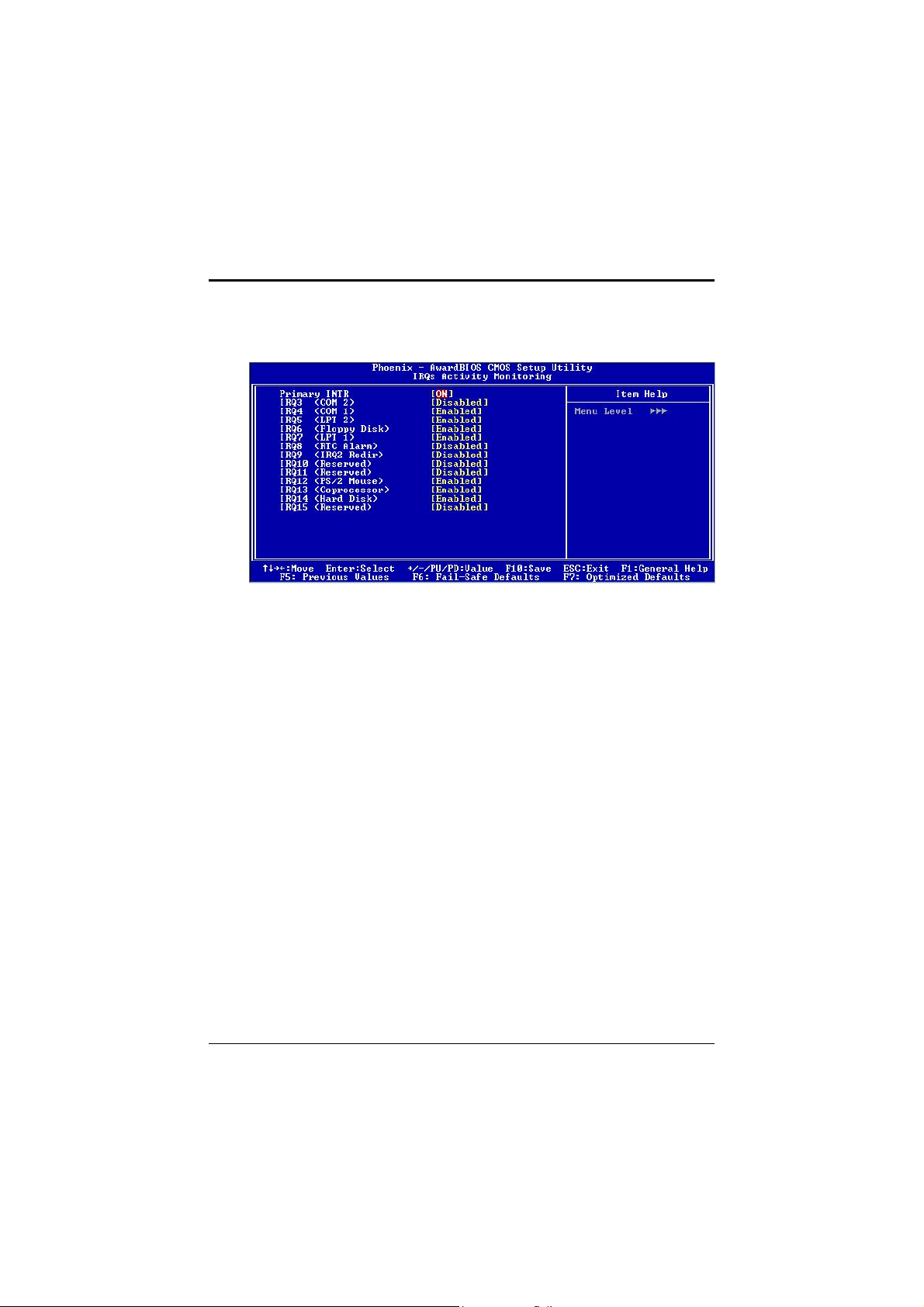

Th is screen enables you to set IRQs that will resume the system from a
power savin g mode.
Set any IRQ to Enab led to allow activity at the IRQ to wake up the system
from a power saving mod e.
Primary INTR: Press Enter to ON/OFF the wake up ability of a specified
IRQ.
IRQ3/4/5/7/9/10/11/12/14/15 assigned to: This item allows you to
determine the IRQ assig ned to the ISA bus and is not available to any
PCI slo t. Legacy ISA for devices is compliant with the original PC AT
bu s specification; PCI/ISA PnP (default) for devices is compliant with
the Plu g-and-Play standard whether designed for PCI or ISA bus
arch itecture.
After you have made yo ur selections in the Power Management Setup
screen, press <ESC> to go back to the main screen.
62
Power Management setup
Page 69
BIOS Configuration
4.7 . Pn P/ PC I Con fi gu rat io ns
Both th e ISA and PCI buses on the Mainboard use system IRQs (Interru pt ReQuests) and DMAs (Direct Memory Access). You must set up
the IRQ and DMA assig nments correctly through the PnP/PCI Configuration Setup utility; otherwise, th e mainboard will not work properly.
Selecting “PnP/PCI Configurations” o n the main program screen displays this menu :
PNP OS Installed: Setting this op tion to Yes allows the PnP OS (instead of
BIOS) to assign the system resources such as IRQ and I/O address to the
ISA PnP device. The d efault setting is “No”.
Reset Configuration Data: Th e system BIOS supports the Plug and Play
feature so the resources assig ned to each peripheral have to be recorded to
prevent them from conflictin g. The location to store the assigned resources
is called ESCD (Extended System Configuration Data) which is located in the
system flash EEPROM. If this o ption is set to “Disabled”, the ESCD will
update automatically when the n ew configuration varies from the last one. If
set to “Enable”, the ESCD will be cleared and u pdated and then this option
will au tomatically be set to “Disabled”.
Resources Controlled By: The setting is “Manual” which allows you to
co ntrol IRQs and DMAs individually. The other option is “Auto(ESCD)”
(default) which will detect th e system resources and automatically assign
th e relative IRQs and DMAs for each peripheral.
PnP/PCI Configurations
63
Page 70
Mainboard User’s Manual
IRQ Resources: Wh en resources are controlled manually, assign each
system interrupt a typ e, depending on the type of device using the
interrup t IRQ3 to IRQ15.
PCI/VGA Palette Snoop: This item is designed to overcome some
problems that can be caused by so me non-standard VGA cards. This
bo ard includes a built in VGA system that does not require palette
snoopin g so you must leave this item disabled. The default setting is
“Disabled”.
Assign IRQ For VGA/USB: Names the interrupt req uest (IRQ) line assigned
to the USB/VGA (if any) o n your system. Activity of hte selected IRQ
always awakens the system. The d efault setting is “Enabled”.
After y ou have made your selections in the PnP/PCI Configurations, press
the <ESC> key to go back to the main program screen.
64
PnP/PCI Configurations
Page 71
BIOS Configuration
4.8. PC Health Status
On mainboards that support hardware monitoring, this item lets you
monitor the parameters for critical voltages, critical temperatures, and fan
speeds. Selecting “PC Health Status” on the main program screen
displays this menu:
CPU Warning Temperature: This feature enables you to set the warning
temperature for CPU overheating. When the CPU temperature exceeds the
set temperature, the PC speaker will beep. The beep sound will not turn off
unless you power down the computer and allow your CPU to cool down.
The option are “Disabled” (default), “50oC/122oF”, “53oC/127oF”, “56oC/
133oF”, “60oC/140oF”, “63oC/145oF”, “66oC/151oF”, “70oC/158oF”.
System Component Characteristics: These fields provide you with
information about the systems current operating status. You cannot make
changes to these fields. The following information is displayed:
u Current System Temp.
u Current CPU Temperature
u Current CPUFAN Speed
u Current CHASSISFAN Speed
u Vcore (CPU Vcore Voltage)
PC Health Status
65
Page 72
Mainboard User’s Manual
u Vagp
u +5 V
u +12V (power supply’s +12 volt)
u -12V (power supply’s -12 volt)
u -5V
u VBAT(V) (CMOS Battery Voltage)
u 5VSB(V) (Standby 5V)
Shutdown Temperature: Enables you to set the maximum temperature the
system can reach before powering down. The default settings is “Disabled°”.
After you have made your selections in the PC Health Status Setup, press
the <ESC> key to go back to the main program screen.
66
PC Health Status
Page 73
BIOS Configuration
4.9 . Freq ue nc y/Vo lt ag e Con tr ol
This item enab les you to set the clock speed and system bus for your
system. The clock sp eed and system bus are determined by the kind of
processo r you have installed in your system.
CPU Clock Ratio: This item allows the u ser to adjust CPU Ratio. The
values for this field range from 8 to 50 .
Auto Detect PCI/DIMM Clk: Wh en set to “Enabled” (default), the system
will au tomatically turn off the PCI clock when not in use to reduce
electromagnetic interference.
Spread Spectrum: If you enable spread spectrum, it can significantly
reduce the EMI (Electro-Mag netic Interference) generated by the system.
The defau lt setting is “Disabled”.
CPU Host/3V66/PCI Clock: This item appears if you have set th e CPU
In ternal Core Speed to Manual. Use the CPU/PCI Clock to set the system
bus frequ ency for the installed processor. The default setting is “Disabled”.
After y ou have made your selections in the Frequency/Voltage Control
Setu p, press the <ESC> key to go back to the main program screen.
Frequency/Voltage Control
67
Page 74
Mainboard User’s Manual
4.10 . Lo ad Fai l-S afe Defa ults O ptio n
Th is option opens a dialog box that lets you load the BIOS default values
fo r the most stable, minimal performance system operations.
Press the <Y> key and then <Enter> to install the defaults.
Press the <N> key and th en <Enter> to not install the defaults.
Pleace no great demands on the system and are generally stable. If your
sy stem is not functioning correctly, try installing the fail-safe defaults as a
first step in getting your system working properly again. If you only want
to install fail-safe defaults for a specific option, select and display that
optio n, and then press <F6>.
4.11. Load O pti miz ed Defa ult s Op tio n
Th is option opens a dialog box that lets you install optimized defaults for
all app ropriate items in the whole Setup Utility.
Press the <Y> key and then <Enter> to install the defaults.
Press the <N> key and th en <Enter> to not install the defaults.
The optimized defaults p lace demands on the system that may be greater
than the performance level of the components, such as the CPU and the
memory. You can cause fatal errors or instability if you install the optimized
defaults wh en your hardware does not support them. If you only want to install setu p defaults for a specific option, select and display that option, and
then press the <F7> key.
68
Load Fail-Safe Defaults Option
Page 75
BIOS Configuration
4. 12 . Se t Sup er vi so r/ Us er Pa ss w or d
Th e “ Set Supervisor/User Password” utilities set the passwords.
The mainb oard is shipped with the password disabled. If you want to
chang e the password, you must first enter the current password, then at
the p rompt enter your new password. The password is case sensitive. You
can u se up to eight alphanumeric characters.
Press <Enter> after entering the password. At the next prompt, co nfirm
the new password by rety ping it and pressing <Enter> again.
To disable th e password, press <Enter> instead of entering a new
password when the “Enter Password” dialo g box appears. A message
appears confirming that the password has been disabled.
If you have set supervisor and user passwords, only the supervisor
password allo ws you to enter the BIOS Setup Program.
Note: If you forget yo ur password, the only way to solve this problem
is to discharg e the CMOS memory by turning power off and
placing a shunt on jumper JP12 to short pin 1 and pin 2 for five
seco nds, then putting the shunt back to pin 2 and pin 3 of JP12.
Set Supervisor/User Password
69
Page 76
Mainboard User’s Manual
4.13 . S ave & Exi t Setu p
Selecting this option and pressin g <Enter> will save the new setting
in formation in the CMOS memory and continue with the booting process.
4.14 . Ex it Wi thou t S aving
Selecting this option and pressing <Enter> will exit the Setup Utility
witho ut recording any new values or changing old ones.
Th is concludes Chapter 4. Chapter 5 describes the drivers and utility
programs that are packaged with th e mainboard.
70
Save & Exit Setup
Page 77
BIOS Configuration
5. Driver and Utility
5.1. Flash Utility
Th e BIOS of the P8F152 mainboard can be upgraded by using a Flash
utility. A new v ersion of the BIOS can be downloaded from the factory’s
BBS and Web site. The system BIOS is stored in a 2 M-bit Flash EEPROM
th at can be erased and reprogrammed by the Flash utility.
There are two files in the D:\DRIVER\FLASH directory:
r FLASH.EXE Flash utility for AWARD BIOS upg rade
r README.TXT Text file of instructio ns
Th e Flash utility will not work with any memory manager software
ru nning in the system. In order to make sure no memory manager software
is run ning, boot your system from a bootable floppy diskette which does
not contain CONFIG.SYS and AUTOEXEC.BAT files. If you are using
MS-DOS 6.x, you can press the <F5> function key when the “Starting
MS-DOS.” messag e appears on the screen to by pass the CONFIG.SYS
and AUTOEXEC.BAT.
Driv er and Utility
71
Page 78
Mainboard User’s Manual
5.2 . CD Dr ive r Over vie w
Th e mainboard has drivers and utilities designed for the P4X400 chipset.
You can install AGP, IRQ, ACPI an d IDE drivers together from the
manufacturer’s support CD. The support CD has an easy to use menu
that en ables you to automatically install the drivers and software that you
want.
To start yo ur mainboard CD disc, insert into your CD-ROM drive and the
CD AutoRu n screen should appear. If the AutoRun screen does not
appear, duble click or run D:\ Auto run.exe (assuming that your CD-ROM
drive is drive D:)
The P8 F152 CD include
1. In stall Mainboard Software (VIA)
2. In stall Audio Device Software (ALC)
3. Install RAID driv er (Promise)
4. Introd uction to Products Feature
Click the links to install th e listed software, read the online manual, read a
list of the mainboard’s features, or b rowse to the Freetech homepage.
You can also b rowse the CD and install the software manually from
Windows Explorer We recommen d that you install all of the supplied
software and drivers items for maximum performance.
72
CD Driver Overview
Page 79
Driver and Utility
5.2.1. VIA chipset P4X400 driver
Th is folder has chipset P4X400 drivers for Windows Millennium/2000/98/
95 /XP.
The Installatio n Steps:
1. In sert the manufacturer CD-ROM into your CD-ROM drive.
2. Click Driver Install.
3. Select the fold er Driver\Intel\Inf driver for WIN2000/9X/ME or
XP to start th e installation:
4. Follow the instructions on the screen to complete the installation.
After setup is co mpleted, you need to restart the computer.
5.2.2 . VIA chipset P4X400 Busmater IDE driver
Th is folder has chipset P4X400 Busmater IDE drivers for Windows
Millenn ium/2000/98/95/NT.
The Installatio n Steps:
1. Insert the manu facturer’s CD-ROM into your PC’s CD-ROM
drive.
2. Click Driver Install.
3. Select th e folder Driver\Intel\IAA\Disk1 driver for WIN2000/
9X/NT40/ME to start th e installation:
4. Follow th e instructions on the screen to complete the installation.
After setup is co mpleted, you need to restart the computer.
CD Driver Overview
73
Page 80
Mainboard User’s Manual
5.2.3. AC97 Audio Driver
Software an d drivers are provided for the ALC650 codec sound system
th at is integrated on this mainboard. The ALC650 codec allows the system
to generate optimal sound effects. Drivers are prov ided for Windows NT/
2000/98SE/ME/XP.
The manual Installation Steps:
1. Insert the manufactu rer’s CD-ROM into your PC’s CD-ROM drive.
2. Click Driver Install.
3. Select the folder Driver\Sound\ALC d river for WIN98SE,
WIN20 00/WINNT/WINME/WINXP to start the installation:
4. Follow th e instructions on the screen to complete the installation.
After setup is co mpleted, you need to restart the computer.
74
CD Driver Overview
Page 81
Driver and Utility
5.3. On line Services
Flexus Comp uter Technology, under the Freetech brand name, has consisten tly won recognition for excellence in the design and manufacturing of
high quality mainboards!
Our prod ucts are globally recognized among the leading cost-performance
main boards in the industry today and we are a certified ISO-9002 manufacturer!
Our customers are o ur partners! Flexus practices partnership service “not
customer service” ! Our attention to partnership service is aggressive and
proactive, b y using our global partnership service system. We create value
for ou r partners in the high-end market and we are always ready to see to our
partners’ requiremen ts, because at Flexus, we believe our partners’ success
is our success!
If you need technical support, information on products, or updated
versions of the BIOS, drivers and u tilities access the Internet and point
your browser to:
www.freetech.com
Online Services
75
Loading...
