Freespirit CROSSTRAINER 55, 831.300280 User Manual

Model No. 831.300280 Serial No.
If you are MISSING PARTS or
require INFORMATION on how
to operate this product, call
1-888-936-ICON
(1-888-936-4266).
To schedule REPAIR SERVICE
or to purchase parts,
call SEARS toll-free at:
1-800-4-MY-HOME
(1-800-469-4663)
24 hours a day, 7 days week.
USER’S MANUAL
®
CAUTION
Read all precautions and instruc tions in this manual before using this equipment. Keep this manual for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE RECUMBENT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
RECUMBENT
WEIGHT BENCH EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

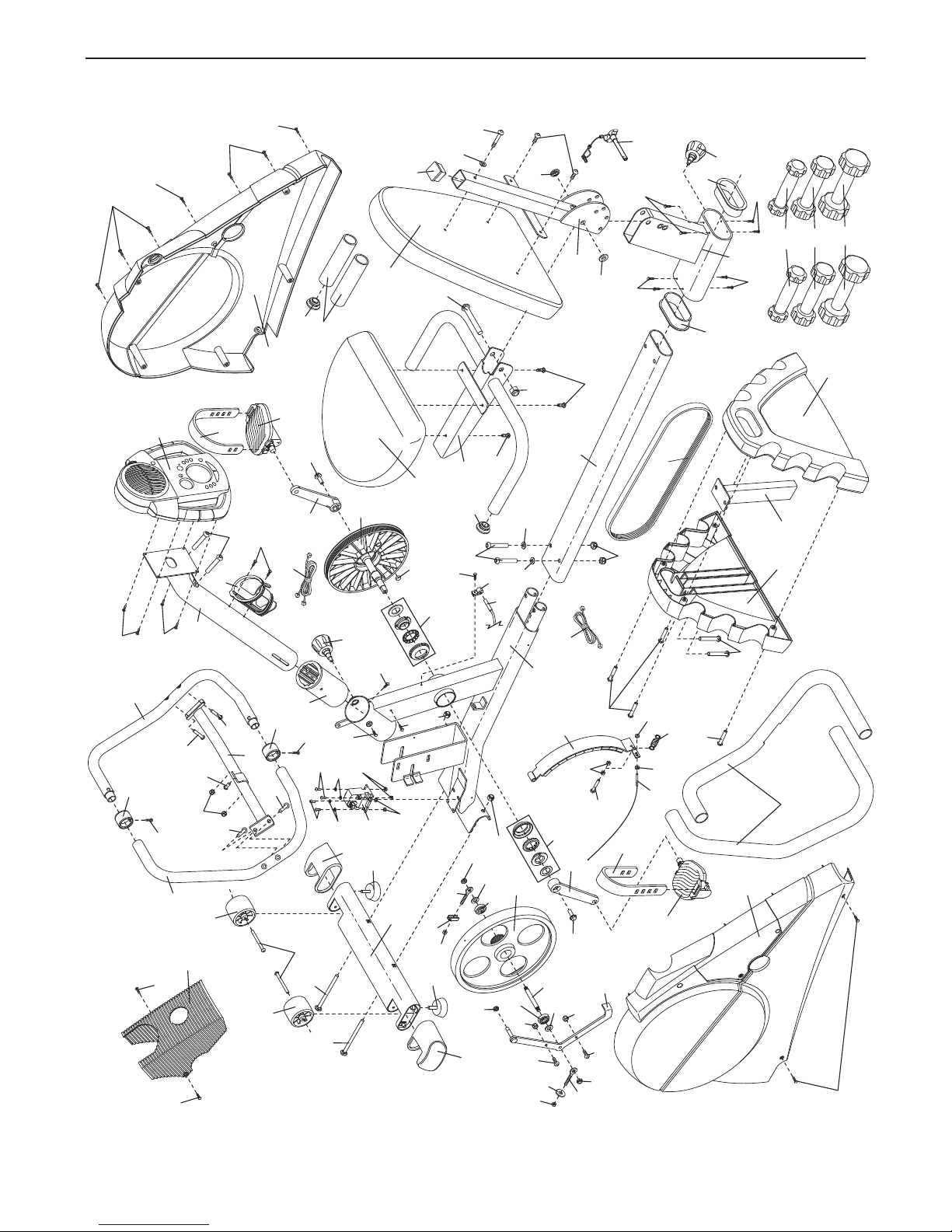

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
CYCLE EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the crosstrainer.
1. Read all instructions in this manual before using the crosstrainer.
2. It is the responsibility of the owner to ensure that all users of the crosstrainer are ade­quately informed of all precautions.
3. The crosstrainer is intended for home use only. Do not use the crosstrainer in a com­mercial, rental, or institutional setting.
4. Place the crosstrainer on a level surface, with a mat beneath it to protect the floor or carpet. Keep the crosstrainer indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away from the crosstrainer at all times.
7. The crosstrainer should not be used by per­sons weighing more than 115 kg (250 lbs.).
that could become caught on the crosstrain­er. Always wear shoes for foot protection.
9. Before using the weight bench, always adjust the seat to the farthest forward posi­tion. Never sit on the backrest or the head­rest; doing so could cause the crosstrainer to tip, resulting in injury.
10. Keep your back straight when using the crosstrainer; do not arch your back.
11. The crosstrainer includes three pairs of hand weights. Do not use other weights with the crosstrainer.
12. When you stop pedaling, allow the pedals to slowly come to a stop.
13. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
8. Wear appropriate exercise clothing when using the crosstrainer; do not wear clothing
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. SEARS assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
14. If you feel pain or dizziness while exercising, stop immediately and begin cooling down.
2
BEFORE YOU BEGIN
•Do not sit on seatback or headrest The machince could tip over, causing injury.
•Always position the seat adjustment in the full forward setting before using the bench.
•The bench should be used only with the weights provided.
CAUTION
Congratulations for selecting the new FREESPIRIT CROSSTRAINER 55. The unique FREESPIRIT
®
®
CROSSTRAINER 55 combines a comfortable recum­bent cycle with a convenient weight bench to let you enjoy both aerobic exercise and strength training exercise in the convenience of your home.
For your benefit, read this manual carefully before you use the crosstrainer. If you have questions after
reading this manual, please call our manufacture’s Customer Service Department toll-free at
Handlebar
Water Bottle Holder (no water bottle is included)
WARNING Decal
1-888-936-4266, Monday through Friday 8h00 until
18h30 eastern time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is 831.300280. The serial number can be found on a decal attached to the crosstrainer (see the front cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Fan
Console
Handgrip Pulse Sensor
Adjustment Knob
Backrest
CAUTION Decal
Seat
Adjustment Pin
Hand Weight
CAUTION: The decals shown at the right are found on the crosstrainer in the locations indicated above. If a decal is missing or illegible, our manufac­ture’s Customer Service Department toll-free at 1-888-936-4266 to order a free replacement decal. Apply the decal in the location shown. Note: The decals are
not shown actual size.
Wheel
Foot
Pedal/Strap
Adjustment Knob
3
ASSEMBLY
M10 x 112mm Carriage Bolt (65)–2
M10 Zinc Nylon
Locknut (66)–2
M10 Black Nylon
Locknut (63)–2
M10 Zinc Split
Washer (85)–2
1/2” Nylon
Locknut (52)–1
M4 x 16mm
Screw (73)–6
M6 Flat
Washer (71)–1
M6 x 25.4mm Button
Screw (79)–1
M8 Nylon
Locknut (61)–4
M6 x 16mm
Screw (64)–5
M6 x 50mm Screw (69)–1
M10 x 45mm Button
Screw (74)–2
M4 x 22mm
Screw (91)–2
M10 x 52mm Zinc Button
Bolt (68)–2
1/2” x 70mm Button Bolt (51)–1
M8 x 14mm Button
Screw (88)–1
M8 x 39mm Button
Bolt (76)–2
M8 x 12mm Button
Screw (94)–4
Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
allen wrenches, assembly requires a phillips screwdriver and a rubber mallet .
As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number refers to the quantity used in assembly.
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: Some small parts may have been pre-
, an adjustable wrench
4

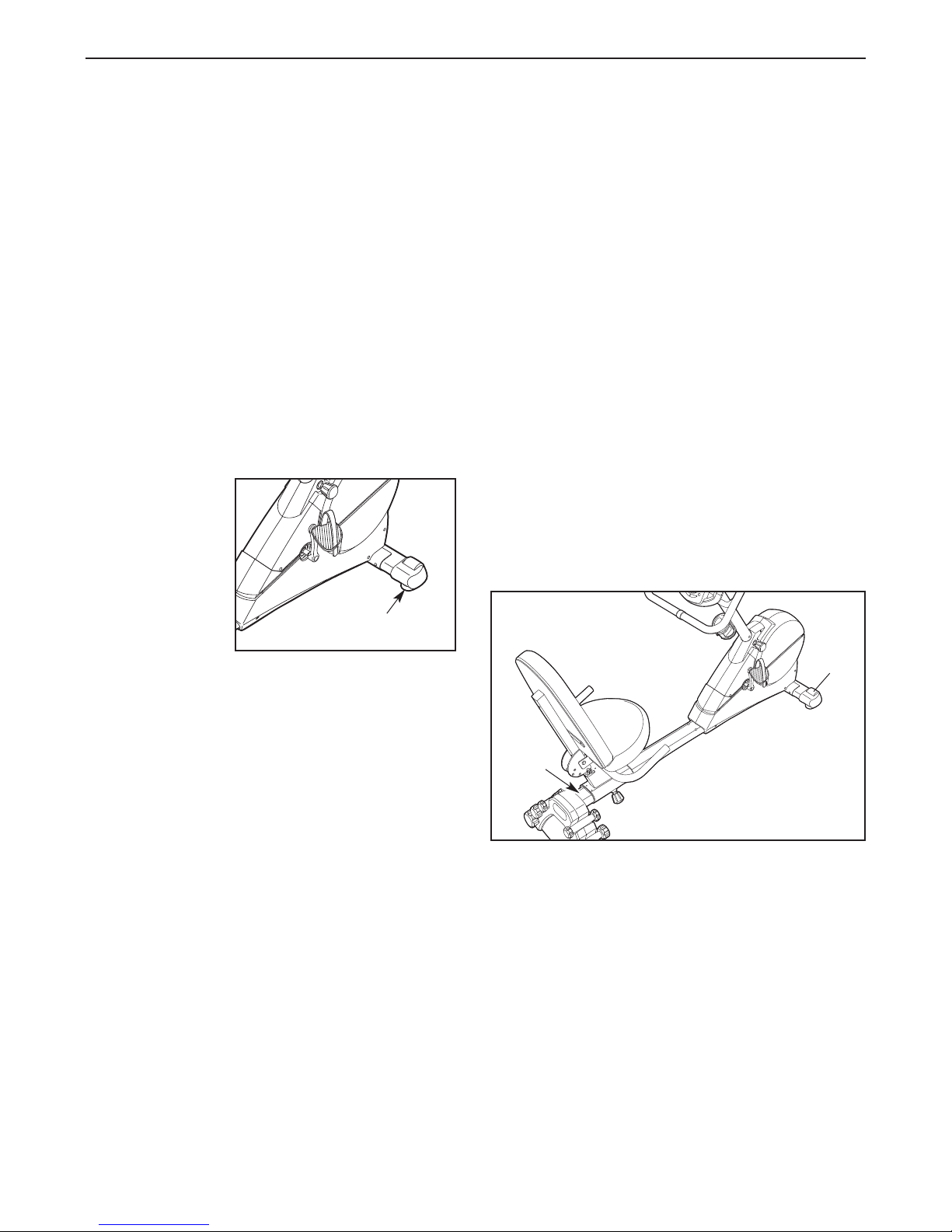

1. While another person lifts the front of the Frame (1), attach the Front Stabilizer (2) to the Frame with two M10 x 1 Nylon Locknuts (63).
Stabilizer is turned so the Wheels (30) are not touching the floor.
12mm Carriage Bolts (65) and two M10 Black
Make sure that the Front
1
30
65
30
2. Orient the Frame Rail (3) as shown, with the hexago-
nal holes in the indicated position. Insert the end of the Frame Rail into the Rear Stabilizer Covers (7, 8) as shown. Attach the Rear Stabilizer Covers with two M10 x 45mm Button Screws (74).
3. Locate the Knob (not shown) on the Seat Carriage (4). Turn the Knob counterclockwise two or three turns to loosen it. Next, pull the Knob, slide the Seat Carriage onto the Frame Rail (3), and then release the Knob. Make sure that the Seat Carriage is oriented as shown.
Move the Seat Carriage back and forth slightly until it locks into position. Then, tighten the Knob.
Slide the Frame Rail (3) onto the indicated round tubes on the Frame (1). Attach the Frame Rail with two M10 x 52mm Zinc Button Bolts (68), two M10 Zinc Split Washers (85), and two M10 Zinc Nylon Locknuts (66).
2
Hexagonal
Holes
3
1
68
2
66
3
85
1
63
74
7, 8
4
3
Knob
Set the six Hand Weights (not shown) on the Rear Stabilizer Covers (7, 8) as shown on page 3.
4. With the help of a second person, slide the Backrest
Frame (5) onto the top of the Seat Carriage (4). Next, slide the bracket on the Seat Frame (6) over the rounded brackets on the Backrest Frame. Align the indicated holes in the Seat Frame, the Backrest Frame, and the Seat Carriage, and insert the 1/2” x 70mm Button Bolt (51) into the holes. Then, tighten the 1/2” Nylon Locknut (52) onto the Bolt until there is no movement in the Seat Frame.
Pivot the Backrest Frame (5) up until it is nearly vertical. Insert the the rounded brackets on the Backrest Frame and through the corresponding hole in the Seat Carriage (4).
Adjustment Pin (29) into the lowest hole in
7, 8
4
52
6
Align these holes
51
5
29
4
5
5. Attach the Seat (12) to the Seat Frame (6) with three M6 x 16mm Screws (64).
5
12
6
64
64
6. Attach the Backrest (10) to the Backrest Frame (5) with two M6 x 16mm Screws (64), an M6 x 50mm Screw (69), and an M6 Flat Washer (71).
7. While another person holds the Upright (13) in the position shown, connect the Upper Wire Harness (35) to the Lower Wire Harness (36). Carefully pull the
upper end of the Upper Wire Harness to remove any slack from the Wire Harnesses.
Turn the Knob (not shown) on the right side of the Frame (1) counterclockwise two or three turns to loosen it. Next, pull the Knob, insert the Upright (13) into the Frame, and then release the Knob.
Upright up and down slightly until it locks into position. Harnesses (35, 36). Tighten the indicated M6 x
25.4mm Button Screw (79) into the slot in Upright.
Be careful to avoid pinching the Wire
Move the
6
10
7
13
Slot
1
79
5
71
69
64
35
36
Knob
8. While another person holds the Console (16) in the position shown, connect the wire harness on the Console to the Upper W excess wire harness into the Upright (13).
Attach the Console (16) to the Upright (13) with four M4 x 16mm Screws (73).
ing the wire harnesses.
Attach the Water Bottle Holder (89) to the Upright (13) with two M4 x 22mm Screws (91).
ire Harness (35). Insert the
Be careful to avoid pinch-
8
73
13
35
Wire
Harness
89
91
16
6
9. Slide the two Handlebar Collars (77) onto the Left
Handlebar (11). Insert the Right Handlebar (15) into the Left Handlebar the Left Handlebar, and the Right Handlebar with two M4 x 16mm Screws (73).
Attach the Handlebar Bracket (95) to the Left and Right Handlebars (11, 15) with four M8 x 12mm Button Screws (94).
Attach the Handlebar Bracket (95) to the Upright (13) with two M8 x 39mm Button Bolts (76), two M8 Nylon Locknuts (61), and an M8 x 14mm Button Screw (88).
The Console (16) requires four “D” batteries (not
10.
included); alkaline batteries are recommended. Remove the indicated screw from the battery drawer. Pull the battery drawer open and insert four batteries.
Make sure that the batteries are oriented as shown by the markings inside the battery drawer.
Close the battery drawer and reattach the screw. Note: When the batteries are installed correctly, the fan will turn on for a moment.
. Connect the Handlebar Collars,
9
10
11
73
94
61
94
73
13
77
88
15
94
95
94
77
76
16
Batteries
Screw
11. Identify the Left Pedal (24), which is marked with an
“L”. Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the Left Crank (42). Tighten the Right Pedal (not shown) clockwise into the Right Crank Arm (not shown) in the same way. Important: Tighten both Pedals as firmly as
possible. After using the crosstrainer for one week, retighten the Pedals. For the best perfor­mance, the Pedals must be kept properly tightened.
Adjust the Left Pedal Strap (25) to the desired position and press the end of the Strap onto the tab on the Left Pedal (24). Adjust the Right Pedal Strap (not shown) in the same way.
12. Make sure that all parts of the crosstrainer are properly tightened. Note: Some hardware may be left
o protect the floor or carpet from damage, place a mat under the
over after assembly is completed. crosstrainer
.
T
Arm
11
25
24 Ta b
Battery Drawer
42
7
HOW TO USE THE RECUMBENT CYCLE
The crosstrainer features a recumbent cycle for aerobic exercise, and a convenient weight bench for strength training exercise. To use the recumbent cycle, see pages 8 to 18. To use the weight bench, see page 19.

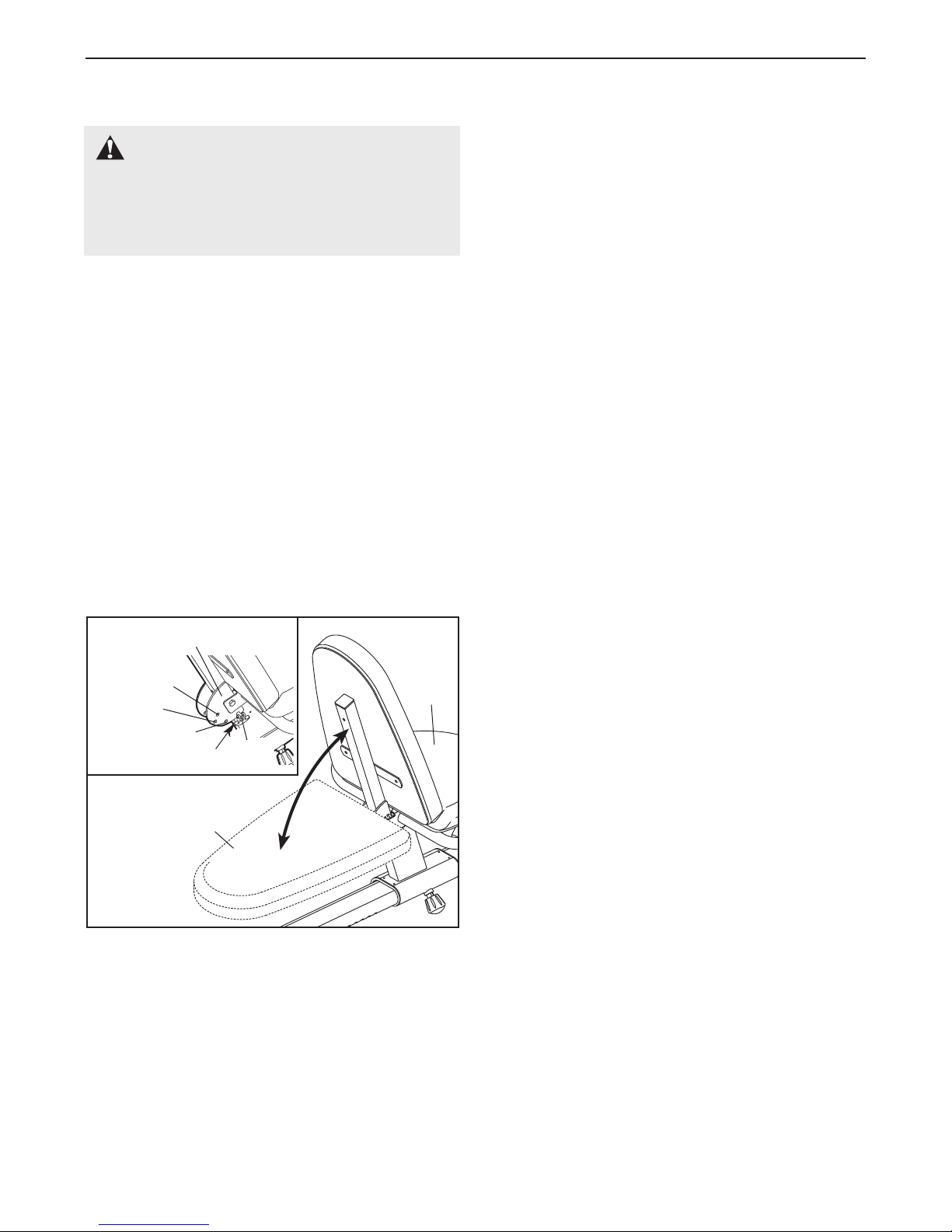

HOW TO ADJUST THE BACKREST
When the recum bent cycle is used, the backrest should be in the upright position. To adjust the backrest, first pull out the adjust­ment pin. Raise the backrest until it is nearly vertical, and then insert the adjustment pin into the indicated hole in the rounded brackets and the corresponding hole in the seat carriage.
HOW TO ADJUST THE SEAT
For effective exer­cise, the seat should be in the proper position. As you pedal, there should be a slight bend in your knees when the pedals are in the farthest position. To adjust the seat, first turn the indicated adjustment knob counterclockwise two or three turns to loosen it (if the knob is not loosened enough, it may scratch the rail). Next, pull the knob, slide the seat car riage to the desired position, and then release the knob.
Move the seat carriage back and forth slightly
until it locks into position. Then, turn the knob clock
wise until it is tight.
­Backrest
Brackets
Pin
Seat
Carriage
Rail
Knob
Seat
Carriage
HOW TO ADJUST THE UPRIGHT
The upright can be adjusted to the height that is the most comfortable for you. To adjust the upright, first turn the indicated adjust­ment knob counter­clockwise two or three turns to loosen it (if the knob is not loosened enough, it may scratch the upright). Next, pull the knob, slide the upright to the desired height, and then release the knob.
up and down slightly until it locks into position. Then, turn the knob clockwise until it is tight. IMPOR­TANT: After you adjust the upright, make sure that your knees will not touch the handgrip pulse sen­sor when you pedal.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, first pull the ends of the straps off the tabs on the pedals. Adjust the straps to the desired positions, and then press the ends of the straps back onto the tabs.
HOW T
The included hand weights can be used for a variety of
-
strength training exercises with the weight bench (see page 19). In addition, the hand weights can be used with the recumbent cycle. As you pedal, press the hand
-
weights over your head, raise the hand weights out to your sides until your hands are level with your shoul­ders, or do arm curls with the hand weights.
O USE THE HAND WEIGHTS
Knob
Move the upright
Tab
Upright
Strap
8
Display Buttons
Fan Button
On/Reset Button
Resistance Buttons

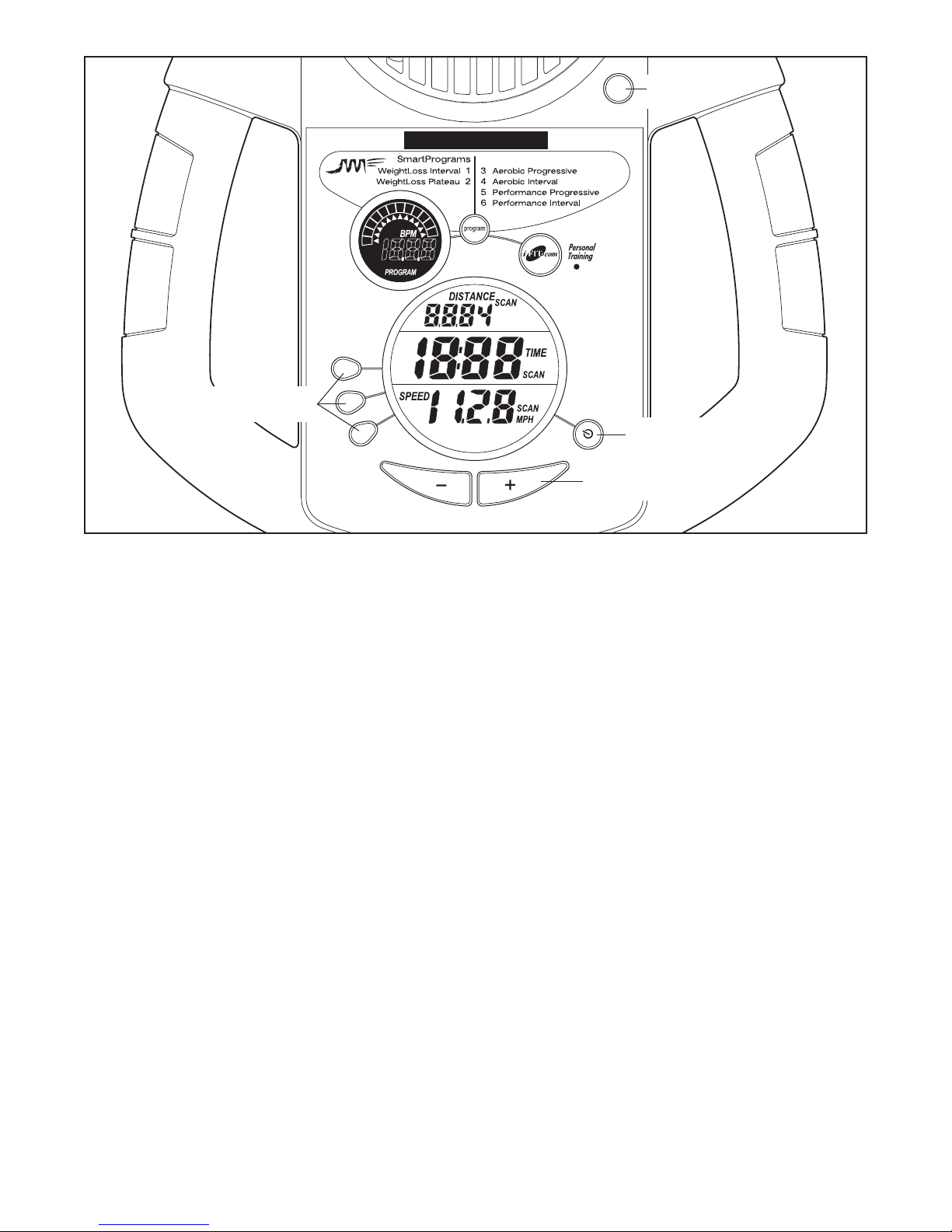

FEATURES OF THE CONSOLE
The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of a button. As you pedal, the console will provide continuous exercise feedback. You can even measure your heart rate using the built-in hand­grip pulse sensor.
In addition, the console offers six Smart programs. Each program automatically changes the resistance of the pedals and prompts you to increase or decrease your pace as it guides you through an effective workout.
The console also features iFIT
. Having iFIT

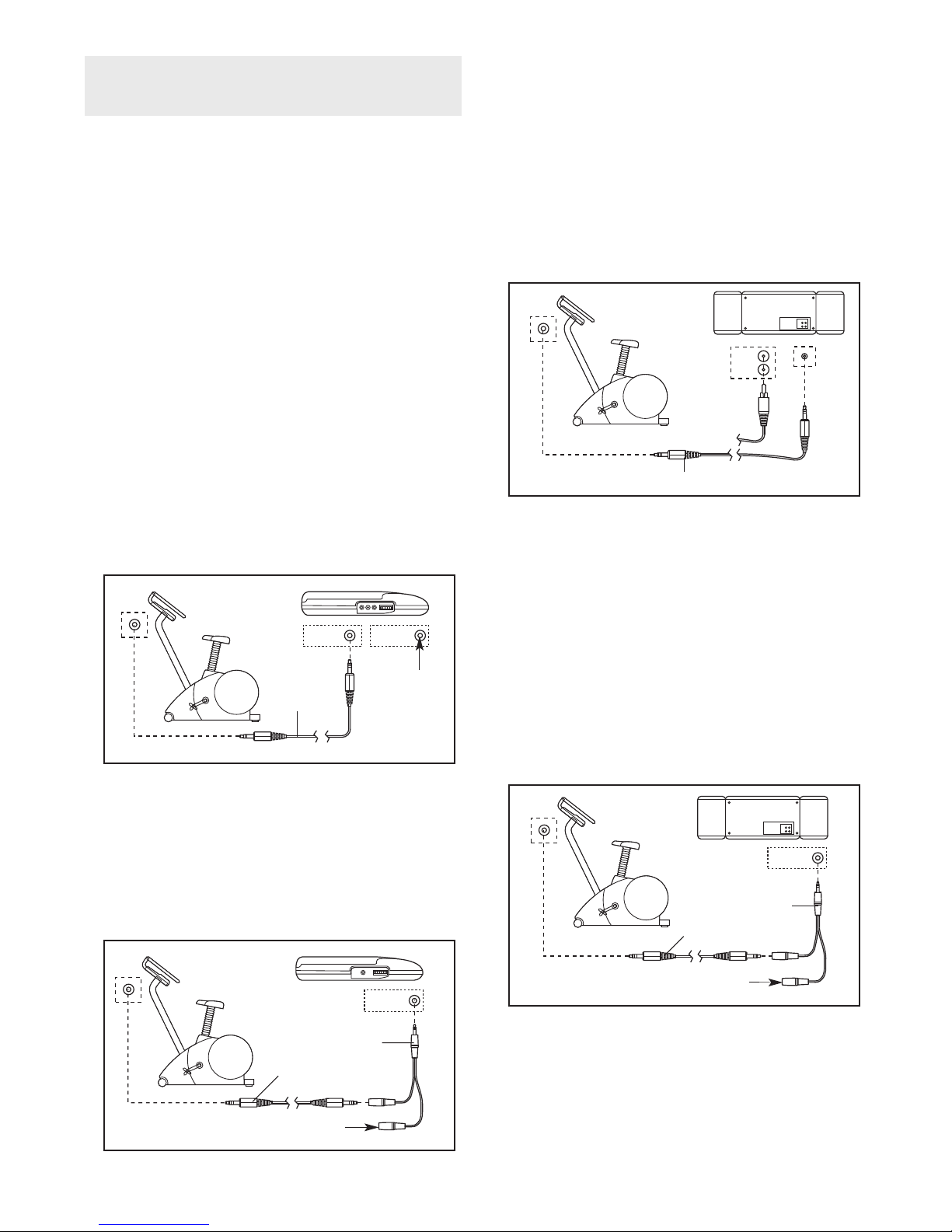

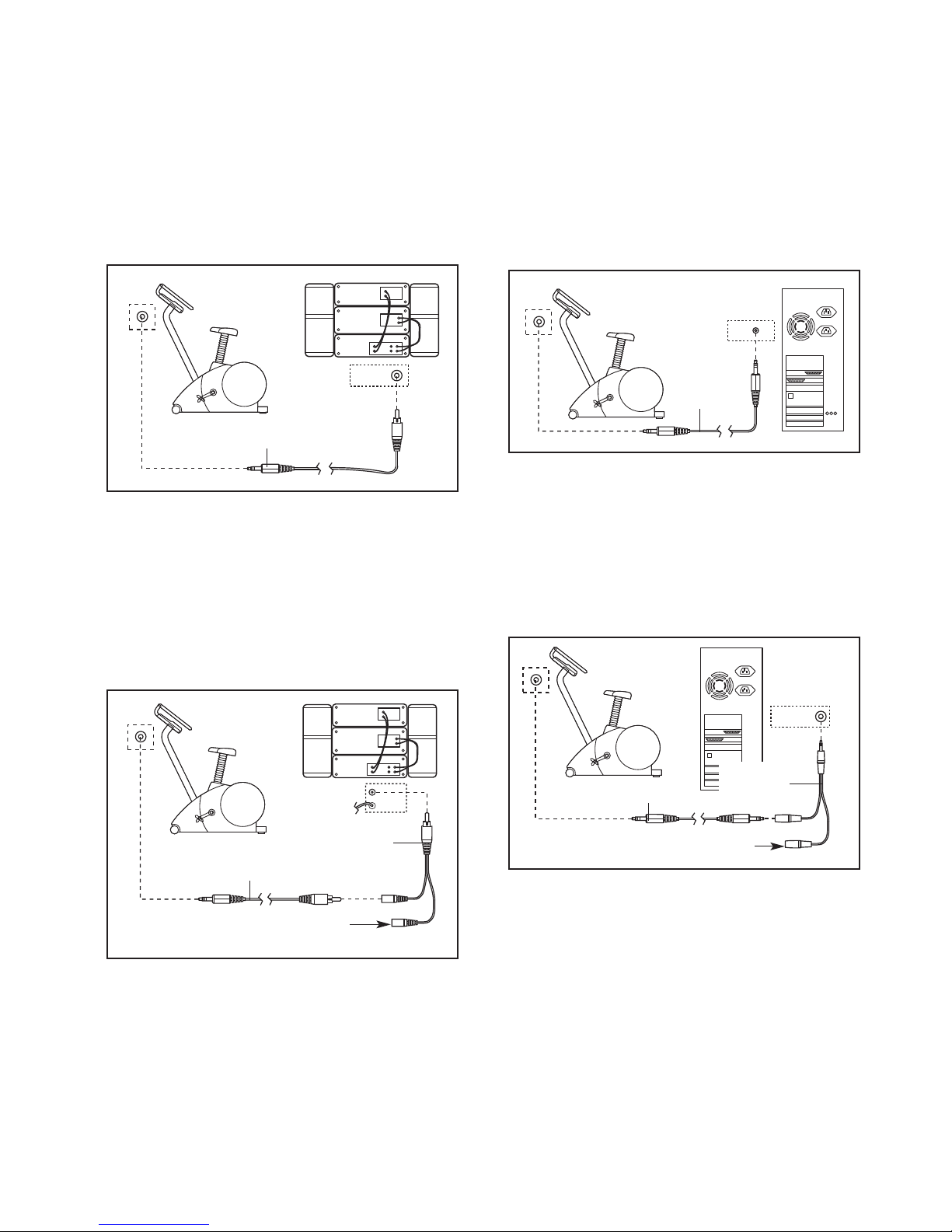

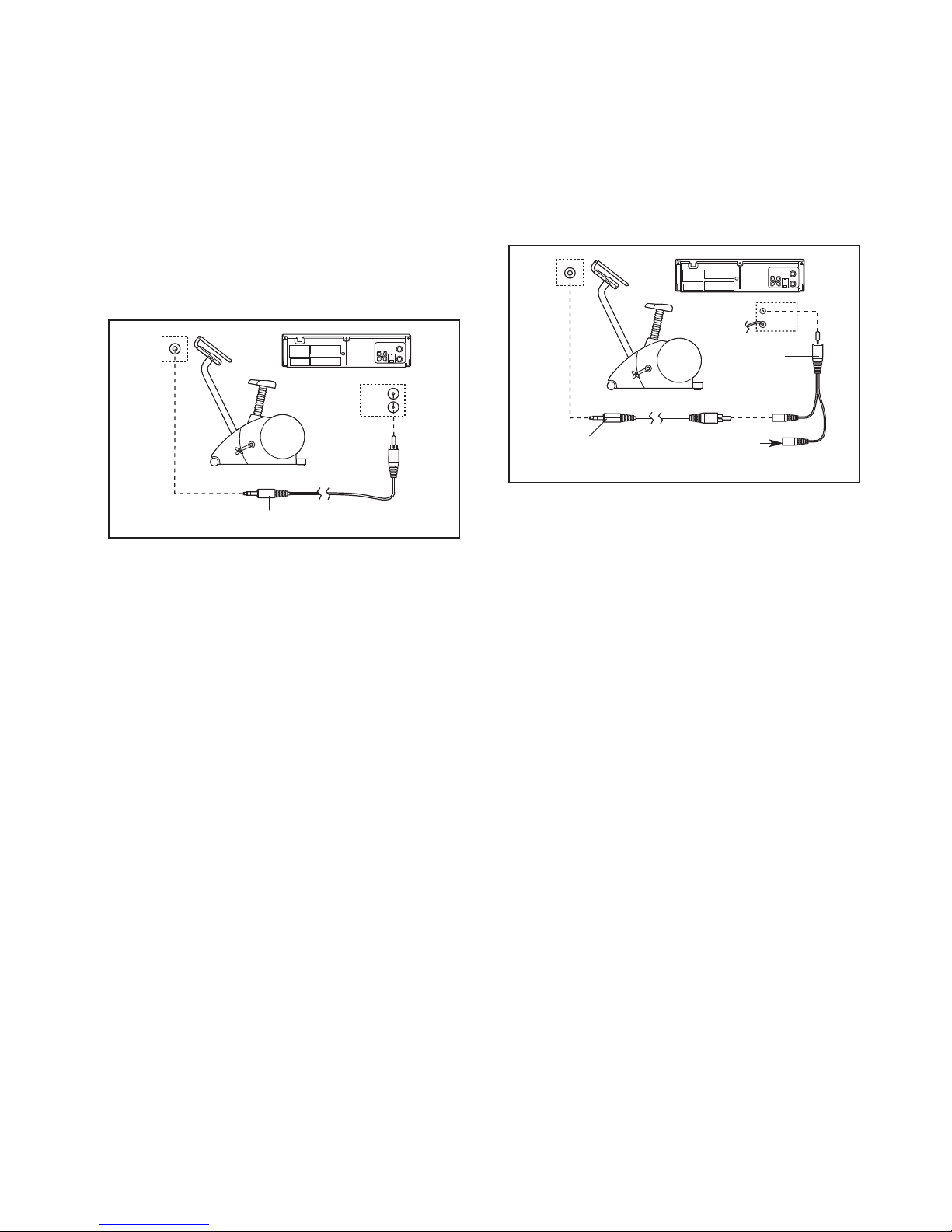

ogy ing a personal trainer in your home. Using a stereo audio cable (available at electronics stores), you can
.com interactive technology is like hav
.com interactive technol
connect the recumbent cycle to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the resis­tance of the pedals and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation.
cassettes, call toll-free 1-888-936-4266.
With the recumbent cycle connected to your computer, you can also go to our W access programs directly from the internet. Explore
www.iFIT.com for more information.
-
o use the manual mode of the console,
T
-
10. T
iFIT.com CD or videocassette, see page 16. To use a program directly from our Web site, see page 17.
To purchase iFIT.com CDs and video-
eb site at www.iFIT.com and
o use a Smart program,
see page 12. T
see page
o use an
9

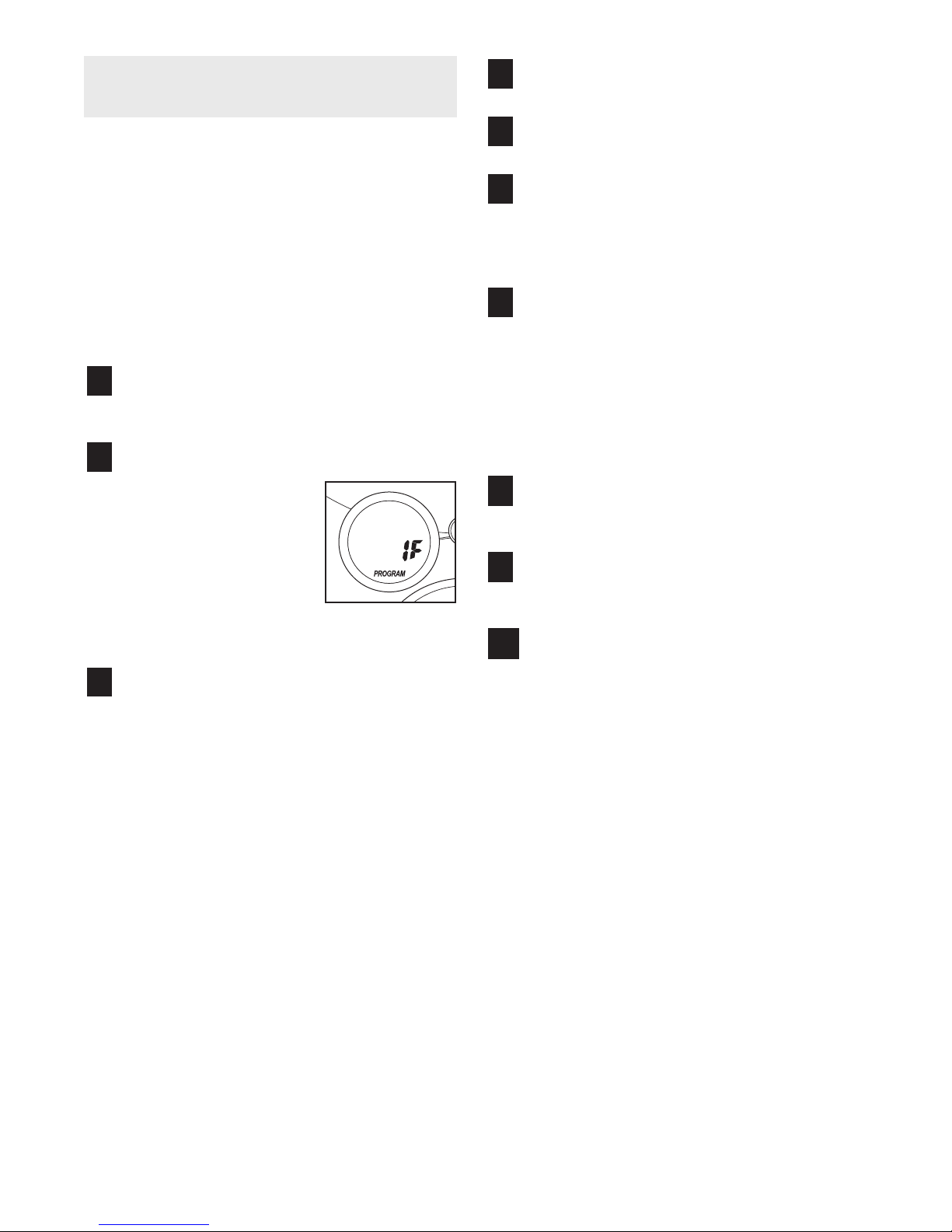

HOW T
O USE THE MANUAL MODE
seconds. If you use the handgrip pulse sensor, the display will also show your heart rate (see step 5 on page 1
1).
Turn on the console.
1
The console requires four 1.5V “D” batteries
Note: (see assembly step 10 on page 7).
To turn on the console, press the On/Reset button or begin pedaling. (See the drawing on page 9 to identify the On/Reset button.)

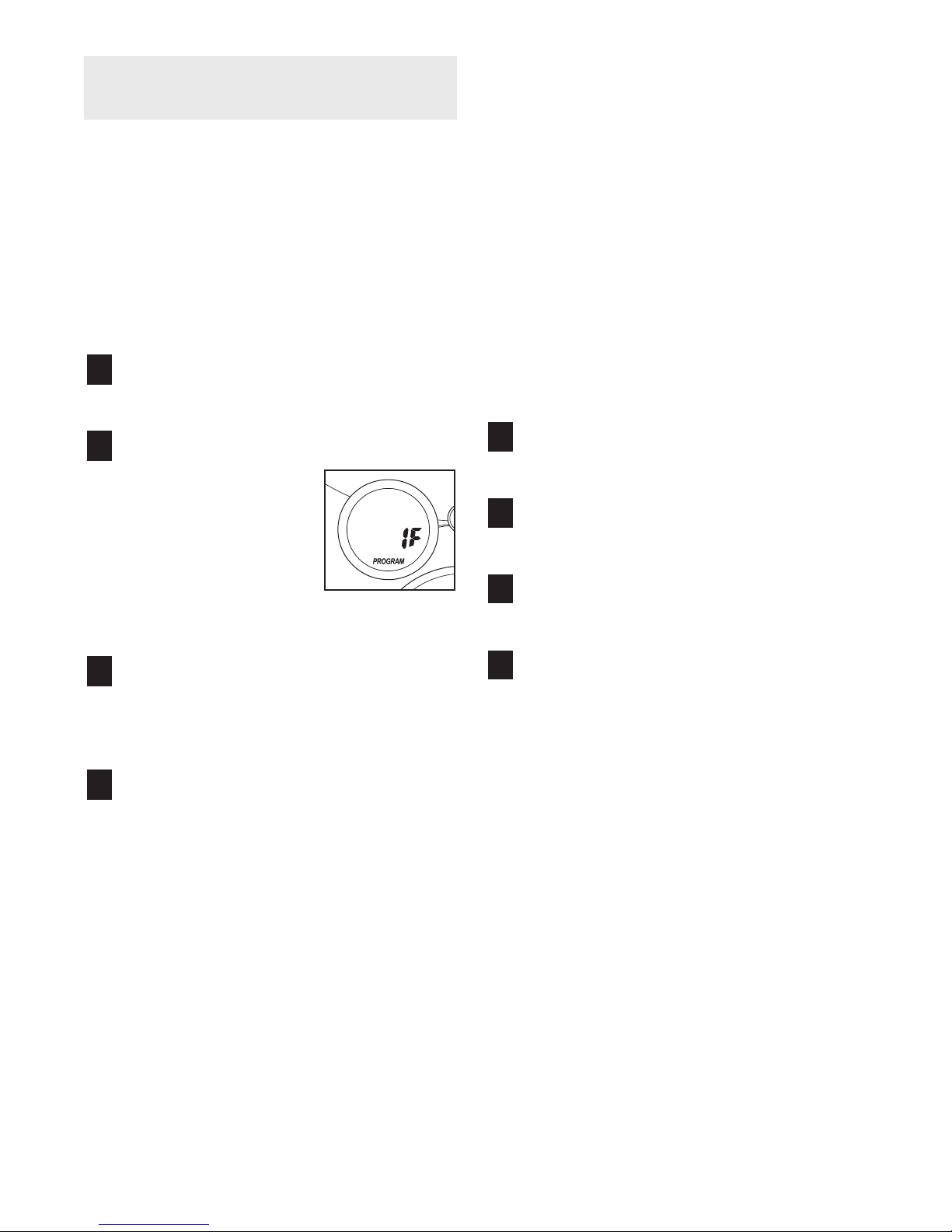

Select the manual mode.
2
Each time the console is turned on, the manual mode will be selected. If a program has been select­ed, select the manual mode by pressing the Program button repeated­ly until the letters RPM appear in the small display.
Begin pedaling and change the resistance of
3
the pedals as desired.
As you pedal, change the resistance of the ped­als by pressing the + and – buttons below the large display. There are ten resistance levels— level 10 is the most challenging. Note: After the buttons are pressed, it will take a few seconds for the resistance to reach the selected setting.

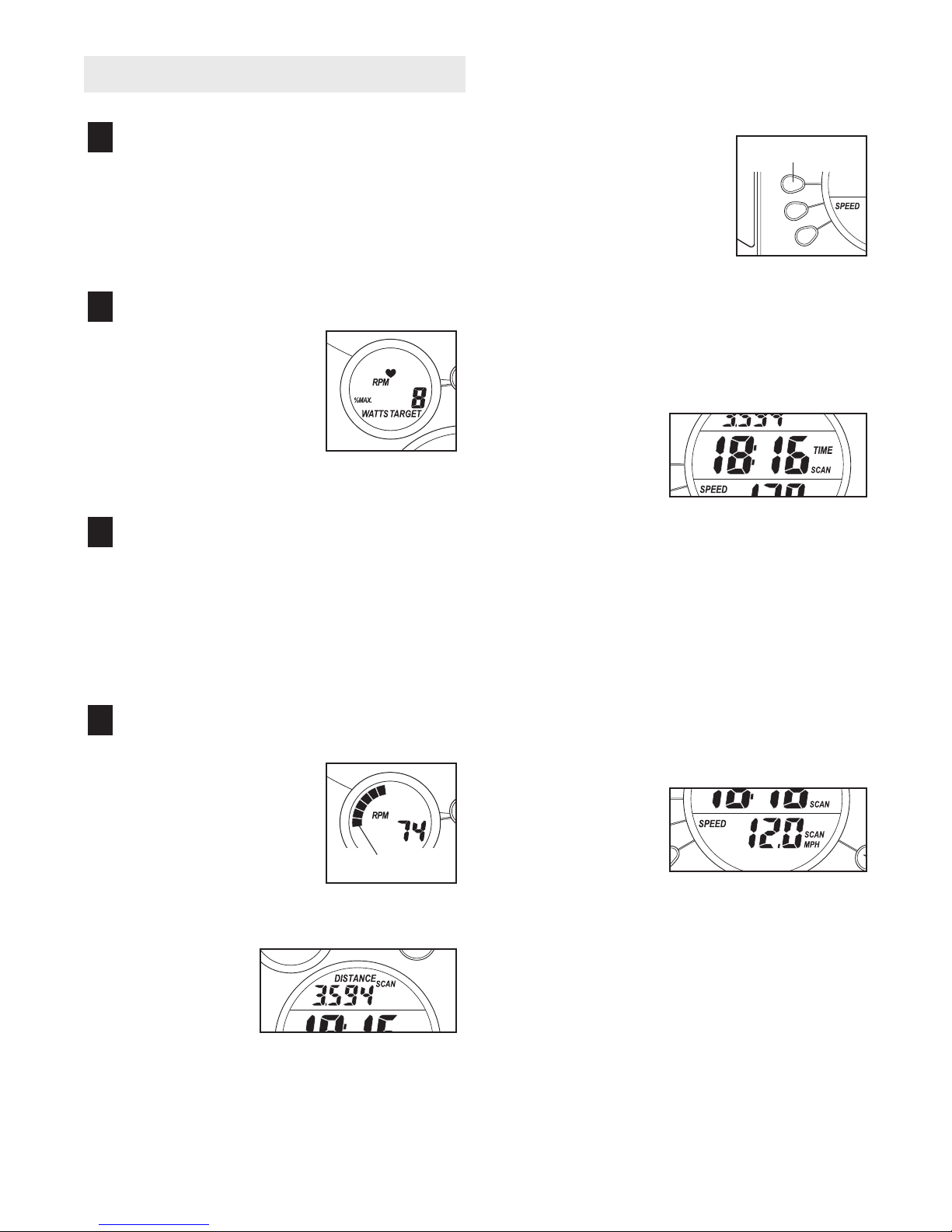

Follow your progress with the small display
4
and the large display.
The small display will
show your pedaling pace, in revolutions per minute (RPM). in the small display will increase or decrease in length as you increase or decrease your pedaling pace.
The indicator bar
Indicator Bar
o view only the distance
T you have pedaled or the number of calories or fat calories you have burned, press the upper button on the left side of the large display until only the word DISTANCE, CALORIES, or FAT CALORIES appears in the upper section of the large display. Make sure that the word SCAN does not appear. To again view the distance you have pedaled and the numbers of calories and fat calories you have burned, press the upper button until the word SCAN reappears.
The center of the large display
will show the elapsed time and your current pace (pace is shown in minutes per mile). The display will change from one number to the other every few seconds. Note: When a program is selected, the display will show the time remaining in the program instead of the elapsed time.
To view only the elapsed time or your pace, press the center button on the left side of the large dis­play until only the word TIME or PACE appears. Make sure that the word SCAN does not appear. To view both the elapsed time and your pace, press the center button until the word SCAN reappears.

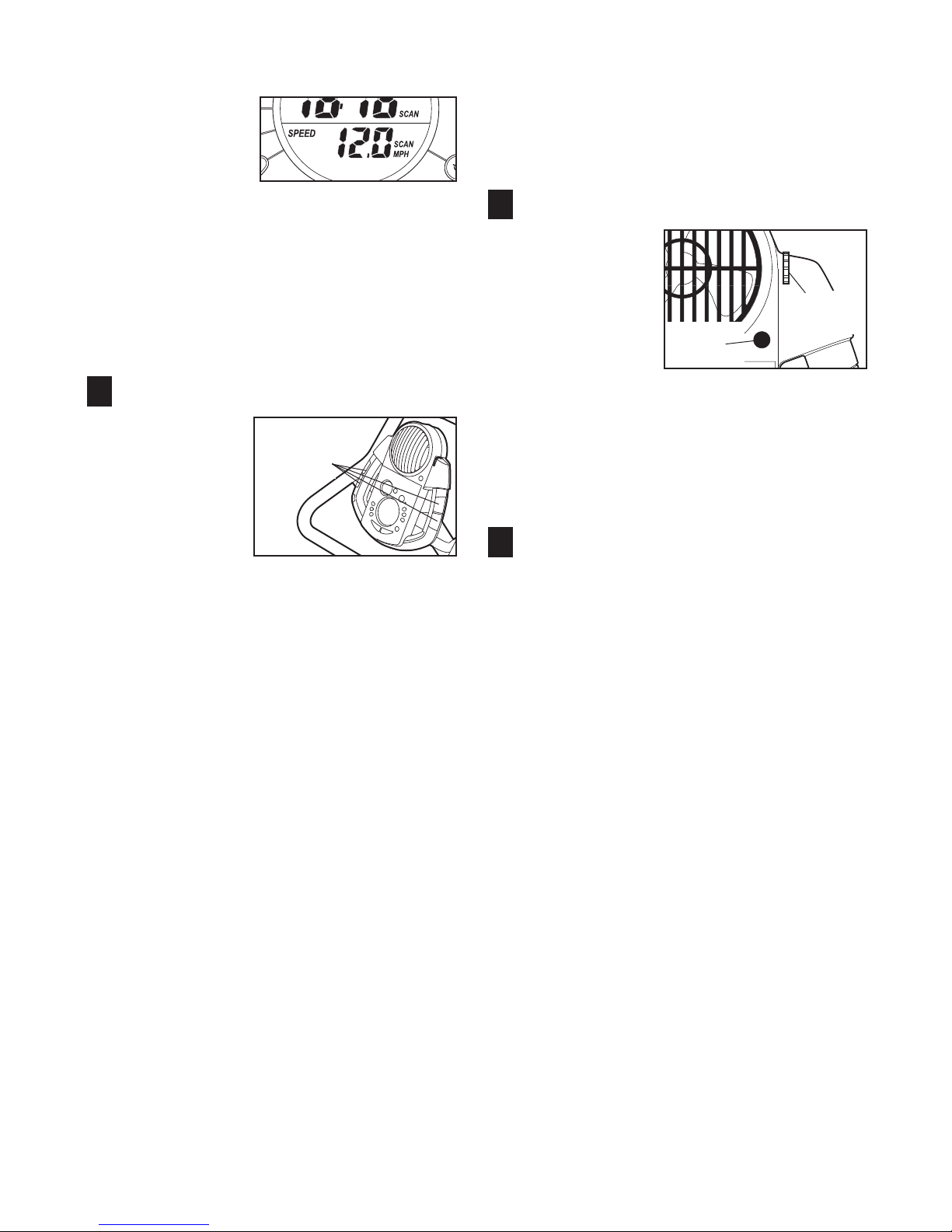

The lower sec tion of the large display will show
your pedaling speed and the resistance level. The display will change from one number to the other every few seconds.
-
Upper Button
The upper sec tion of the large display
will show the distance you have pedaled and the numbers of calories and fat calories you have burned (see F an explanation of fat calories). The display will change from one number to the next every few
-
BURNING on page 18 for
T
A
10
To view only your pedaling speed or the resis­tance level, press the lower button on the left side of the large display until only the word SPEED or RESISTANCE appears. Make sure that the word SCAN does not appear both your pedaling speed and the resistance level, press the lower button until the word SCAN reappears.
. To view
To reset the displays, press the On/Reset button.
Note: The con sole can show speed and dis tance in either miles or kilo­meters.
ters MPH or KM/H will appear in the lower section of the large display to show which system of mea­surement is selected. To change the system of measurement, hold down the On/Reset button for about six seconds. Note: When the button is held down, the fan will turn on for a moment. When the batteries are replaced, it may be necessary to res­elect the desired system of measurement.
Measure your heart rate if desired.
-
-
The let-
5
If there are thin sheets of plastic on the metal contacts on the hand­grips, peel off the plastic. To
use the hand­grip pulse sen­sor, hold the handgrips with your palms resting against the metal contacts. Avoid moving your hands. When your pulse is detected, the heart­shaped indicator in the large display will flash each time your heart beats. After a moment, two dashes (– –) will appear and then your heart rate will be shown.
Metal
Contacts
For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds. Note: When you first hold the handgrips, the large dis play will show your heart rate continuously for 30 seconds. rate along with other feedback modes.
Turn on the fan if desired.
The display will then show your heart
6
To turn on the fan at low speed, press the fan button. To turn on the fan at high speed, press the fan button a second time. To turn off the fan, press the fan button a third time. Note: If the pedals are not moved for about thirty seconds, the fan will automatically turn off.
Rotate the thumb wheel on the right side of the console to pivot the fan to the desired angle.
When you are finished exercising, the console
7
will automatically turn off.
If the pedals are not moved for a few seconds, the displays will pause and the time will flash in the large display.
If the pedals are not moved and the console but­tons are not pressed for a few minutes, the con­sole will turn off to conserve the batteries.
Fan
Button
Thumb
-
Wheel
11
HOW T

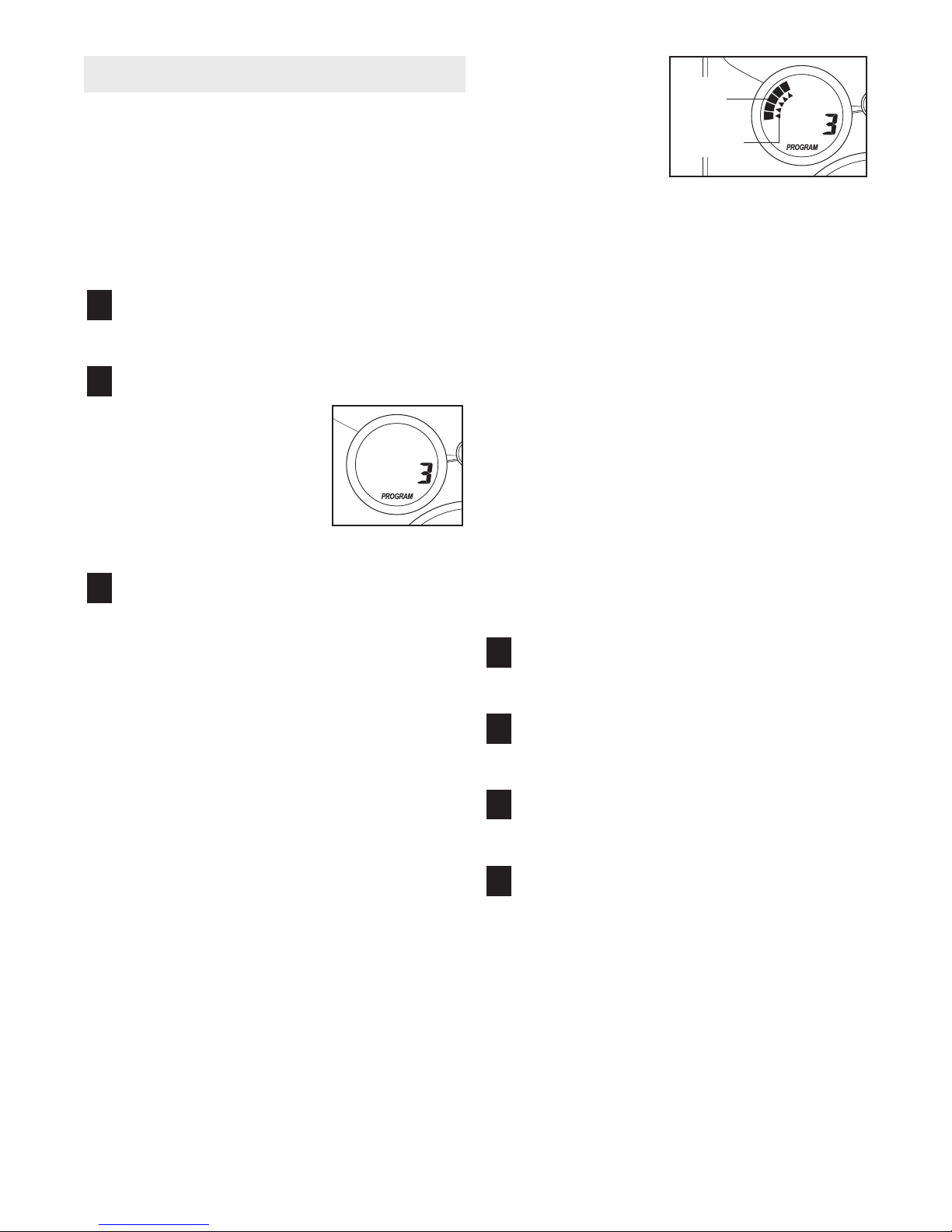

Each Smart program will automatically change the resistance of the pedals and prompt you to increase or decrease your pace as it guides you through an effec­tive workout. Programs 1 and 2 are weight loss pro­grams, programs 3 and 4 are aerobic programs, and programs 5 and 6 are high-performance programs.
Follow the steps below to use a Smart program.
O USE A SMART PROGRAM
Turn on the console.
1
See step 1 on page 10.
Select one of the Smart programs.
2
Each time the console is turned on, the manual mode will be selected. To select a Smart program, press the Program button repeatedly until the number 1, 2, 3, 4, 5, or 6 appears in the small display.
Begin pedaling to start the program.
3
To start the program, simply begin pedaling. Each Smart program consists of 20 or 30 one-minute periods. One resistance level and one target pace are programmed for each period. (The same resistance level and/or target pace may be pro­grammed for two or more consecutive periods.)
At the end of each period of the program, the resistance of the pedals will automatically change
ferent resistance level is programmed for
if a dif the next period. Note: If the resistance level is too high or too low, you can change it by pressing the + and – buttons below the large display. However, when the current period is completed, the resis­tance of the pedals will automatically change if a different resistance level is programmed for the next period.
The target pace for the current period will be shown by the arrows in the small display. To pedal at the target pace, simply increase or decrease your pace until there is one arrow pointing to each segment of the indicator bar (see the drawing above). At the end of each period, the number of arrows will change if a dif­ferent target pace is programmed for the next period. When the number of arrows changes, change your pace until there is again one arrow pointing to each segment of the indicator bar.
Important: The target pace is intended only to provide a goal. Your actual pace may be slow­er than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfort­able for you.
During the program, the center of the large dis­play will show the time remaining in the program. If you stop pedaling for a few seconds, the dis­plays will pause and the time will flash. If you continue pedaling after the program is completed, the displays will continue to show exercise feed­back.
Follow your progress with the large display.
Indicator
Bar
Arrows
4
See step 4 on page 10.
Measure your heart rate if desired.
5
See step 5 on page 11.
Turn on the fan if desired.
6
See step 6 on page 11.
When you are finished exercising, the console
7
will automatically turn off.
See step 7 on page 1
1.
12
HOW TO CONNECT YOUR CD PLAYER, VCR,
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
OR COMPUTER
o use iFIT.com CDs
T
, the recumbent cycle must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 13 and 14 for connecting instructions. To use iFIT.com videocassettes, the recumbent cycle must be con­nected to your VCR. See page 15 for connecting instructions. To use iFIT.com programs directly from our Web site, the recumbent cycle must be connected to your home computer. See page 14 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type
AUDIO OUT jack, see instruction A below. If your stereo has a 1/8” LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the AUDIO OUT jack on your stereo.
A/B
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
Audio
Cable
Head-
phones
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player
. Plug your headphones into the
other side of the Y-adapter.
Audio Cable
B. Refer to the drawing above. Plug one end of a 1/8”
to 1/8” stereo audio cable (available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
C
1/8”
Audio
-adapter
Y
Cable
B
Audio Cable
Headphones
1/8”
-adapter
Y
Headphones
13
HOW TO CONNECT YOUR HOME STEREO
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
PHONES
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
A
Audio Cable
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y­adapter into the LINE OUT jack on your stereo.
If your computer has a 1/8” LINE OUT jack,
Note: see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speak­ers into the other side of the Y-adapter.
B
B
1/8”
Y-adapter
Audio
RCA
-adapter
Y
Audio Cable
Headphones/Speakers
Cable
ire removed from
W
LINE OUT jack
14
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH 34
VIDEO
AUDIO
ANT. IN
RF OUT
IN
OUT
CH 3
4
Note: If your VCR has an unused
AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 14.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into an RCA Y-adapter (available at electron­ics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y­adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
A
RCA
Y-adapter
Audio Cable
Wire removed from
AUDIO OUT jack
Audio Cable
15
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the recum­bent cycle must be connected to your portable CD
, portable stereo, home stereo, computer with
player CD player CD PLAYER, VCR, OR COMPUTER on page 13.
purchase iFIT.com CDs and videocassettes, call toll-free 1-888-936-4266.
, or VCR. See HOW TO CONNECT YOUR
The program will function in almost the same way as a Smart program (see step 3 on page 12). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
Note: If the resistance of the pedals and/or the target pace does not change when a “chirp” is heard:
To
• Make sure that the indicator near the iFIT.com button is lit.
Follow the steps below to use an iFIT.com CD or video program.
Turn on the console.
1
See step 1 on page 10.
Select the iFIT
.com mode.
2
Each time the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator near the button will light and the letters IF will appear in the small display.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com video­cassette, insert the videocassette into your VCR.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected and that it is fully plugged in.
Follow your progress with the large display.
5
See step 4 on page 10.
Measure your heart rate if desired.
6
See step 5 on page 11.
Turn on the fan if desired.
7
See step 6 on page 11.
When you are finished exercising, the console
8
will automatically turn off.
See step 7 on page 11.
Press the play button on your CD player or
4
VCR.
moment after the play button is pressed, your
A personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions.
16
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
.com programs directly from the internet. To use
iFIT programs from our Web site, the recumbent cycle must be connected to your computer. See HOW TO CONNECT YOUR COMPUTER on page 14. In addi­tion, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Turn on the console.
1
See step 1 on page 10.
Select the iFIT.com mode.
2
Each time the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator near the button will light and the letters IF will appear in the small display.
Go to your computer and start an internet
3
connection.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
5
select a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count­down will begin.
Return to the recumbent cycle and begin
7
pedaling.
When the on-screen countdown ends, the pro­gram will begin. The program will function in almost the same way as a Smart program (see step 3 on page 12). However ing” sound will alert you when the resistance level and/or the target pace is about to change.
Follow your progress with the large display.
, an electronic “chirp-
8
See step 4 on page 10.
Measure your heart rate if desired.
9
See step 5 on page 11.
When you are finished exercising, the console
10
will automatically turn off.
See step 7 on page 11.
17

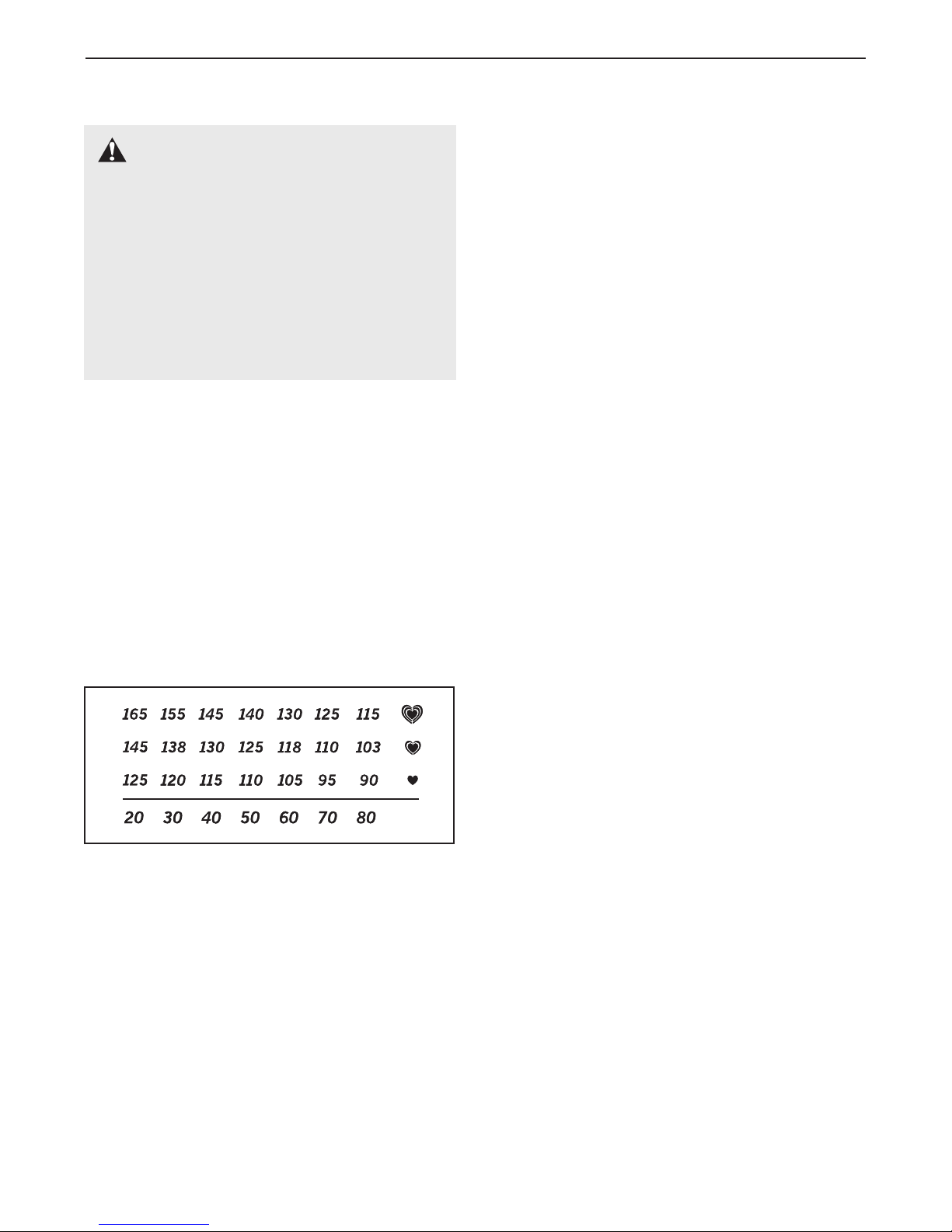

RECUMBENT CYCLE EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro­gram, consult your physician. This is espe cially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
The following guidelines will help you to plan your workouts using the recumbent cycle. Remember that proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
-
your body begin to use stored If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num­ber in your training zone as you exercise. For maxi­mum fat burning, adjust the intensity of your exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic”. Aerobic exer­cise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)
fat calories for energy.
To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone”. The lower two numbers are recommended heart rates for fat burning; the highest number is the recommend­ed heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative­ly low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener­gy. Only after the first few minutes of exercise does
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts on the recumbent cycle each week. After a few months of regular exercise, you may complete up to five workouts each week if desired. Note: You may wish to use the recumbent cycle and the weight bench on alternating days. For example, plan aerobic workouts on Monday plan weight training workouts on Tuesday, Thursday, and Saturday. Make sure to rest for at least one full day each week to give your body time to regenerate.
CAUTION it during the first few months of your exercise pro gram, and to progress at your own pace.
: It is very important to avoid overdoing
, Wednesday, and Friday, and
18
-
WEIGHT BENCH EXERCISE GUIDELINES
alternating days. For example, plan weight training
WARNING: Before beginning any
exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
workouts on Tuesday, Thursday, and Saturday, and plan aerobic workouts on Monday Friday. Make sure to rest for at least one full day each week to give your body time to regenerate. CAUTION:
It is very important to avoid overdoing it during the first few months of your exercise program, and to progress at your own pace.
, Wednesday, and
HOW TO ADJUST THE BACKREST
The backrest can be adjusted to any of four positions: the inclined (upright) position, the semi-inclined posi­tion, the flat position, and the declined position.
To adjust the backrest, first adjust the seat to the
farthest forward position
THE SEAT on page 8). Next, pull out the adjustment pin. Pivot the backrest to the desired position, and then insert the pin into one of the holes in the rounded brackets and the corresponding hole in the seat car­riage (see the inset drawing). Note: When the backrest is in the declined position, the seat will also be declined.
CAUTION: Never sit on the backrest or the head­rest; doing so could cause the crosstrainer to tip, resulting in injury.
Brackets
Decline
Flat
Semi-inclined
Inclined
(see HOW TO ADJUST
Seat
Pin
Begin each workout with five to eight minutes of stretching and light exercise to warm up. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
After warming up, perform a selection of weight train­ing exercises. The chart on the backrest shows four exercises that can be performed. Consult a reputable book to find other exercises that can be performed using hand weights and a weight bench. To give bal­ance to your workouts, vary the exercises from work­out to workout. Begin with 1 set of 12 repetitions for each exercise. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions performed without a pause.) As your fitness level increases, perform 2 or 3 sets for each exercise. Always rest for at least 1 minute after each set. When you can complete 3 sets of 12 repetitions without diffi­culty, you may choose to use heavier weights.
CAUTION: The crosstrainer includes three pairs of hand weights. Do not use other weights with the crosstrainer.
Finish each workout with five to eight minutes of stretching to cool down. This will increase your flexibility and will help to prevent soreness.
Backrest
STRENGTH TRAINING GUIDELINES
The weight bench can be used for a variety of exercis­es designed to trim, tone, and strengthen the body. Please read these guidelines before using the weight bench.
It is recommended that your strength training program include 3 workouts each week. Note: use the weight bench and the recumbent cycle on
You may wish to
EXERCISE FORM
For the best results, correct form is important. Maintaining proper form means moving through the full range of motion for each exercise, and moving only the appropriate parts of the body. Make sure to per­form each exercise with a smooth, steady motion. Exhale as you exert yourself, and inhale as you return to the starting position; never hold your breath.
TED
YING MOTIV
A
ST
For motivation, try listening to music or watching tele vision while you exercise. Use a calendar to keep a record of your workouts, and record key body mea surements at the end of every month. Remember, the key to lasting results is to make exercise a regular and enjoyable part of your daily life.
A
19
-
-

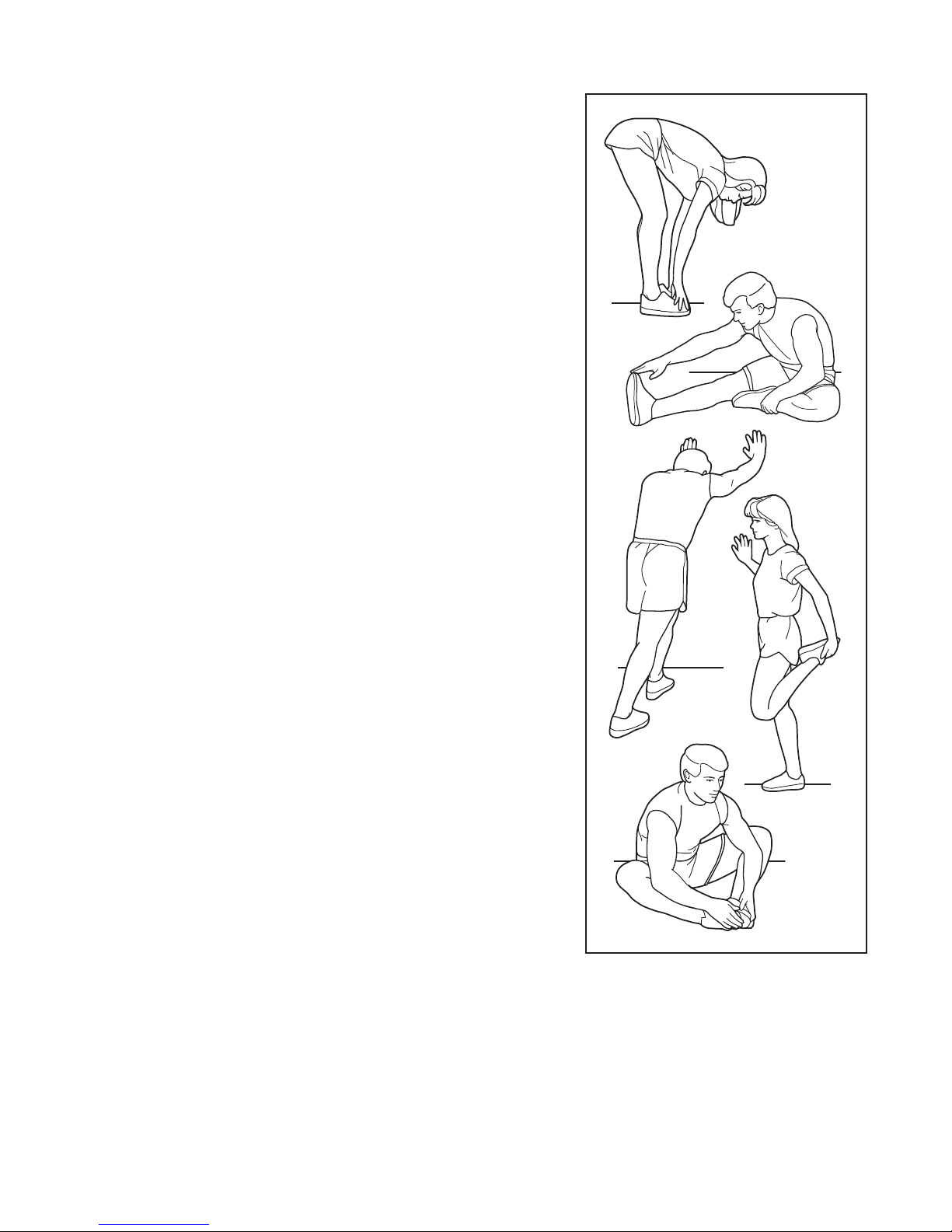

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
20
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the crosstrainer regu­larly. Replace any worn parts immediately.
To clean the crosstrainer, use a damp cloth and a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries should be replaced; most console problems are the result of low batteries. See assembly step 10 on page 7 for replacement instructions. Note: The console requires four “D” batteries.
HOW TO LEVEL THE CROSSTRAINER
After the crosstrainer has been moved to the location where it will be used, make sure that both ends of front stabilizer are touching the floor. If the crosstrainer rocks slightly dur­ing use, turn one or both of the feet under the front sta­bilizer until the rocking motion is eliminated.
Foot
• Do not hold the metal contacts too tightly; doing so may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the metal contacts for about 15 seconds.
• For optimal performance of the handgrip pulse sen­sor, keep the metal contacts clean. The contacts can be cleaned with a soft cloth—
hol, abrasives, or chemicals.
HOW TO MOVE THE CROSSTRAINER
Before moving the crosstrainer, remove the hand weights and adjust the seat to the position shown in the drawing below. Then, stand behind the crosstrain­er, hold the rail in the indicated location, and lift the rail until the crosstrainer can be moved on the front wheels. Carefully move the crosstrainer to the desired location and then lower it.
the possibility of injury, bend your legs and keep your back straight as you lift the rail and move the crosstrainer; make sure to lift with your legs rather than your back.
CAUTION: To decrease
never use alco-
Wheel
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip pulse sensor. Excessive movement may interfere with heart rate readings.
Lift
Here
21
PART LIST—Model No. 831.300280 R0204A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 2 1 Front Stabilizer 3 1 Frame Rail 4 5 1 Backrest Frame 6 1 Seat Frame 7 1 Rear Stabilizer Cover (Rear) 8 1 Rear Stabilizer Cover (Front) 9 1 Rear Stabilizer
10 1 Backrest
11 1 Left Handlebar 12 1 Seat 13 1 Upright 14 1 Upright Bushing 15 1 Right Handlebar 16 1 Console 17 1 Left Side Shield 18 1 Right Side Shield 19 1 Side Shield Cover 20 2 Seat Carriage Bushing 21 2 Small Hand Weight 22 2 Medium Hand Weight 23 2 Large Hand Weight 24 1 Left Pedal 25 1 Left Pedal Strap 26 1 Right Pedal 27 1 Right Pedal Strap 28 2 Adjustment Knob 29 1 Adjustment Pin 30 2 Wheel 31 1 Left Front Endcap 32 1 Right Front Endcap 33 2 Foot 34 1 Adjustment Motor 35 36 1 Lower Wire Harness 37 1 Flywheel 38 39 1 Flywheel Axle 40 2 Flywheel Bearing 41 42 1 Left Crank Arm 43 1 Reed Switch/Wire 44 1 Crank Bearing Assembly 45 46 1 Adjustment Cable 47 1 Return Spring 48 49 2 Seat Bushing
1 Seat Carriage
1
1
1 “C” Magnet
4
2 M6 Nylon Locknut
Upper W
Magnet
M5 Flat W
ire Harness
asher
50 1 Backrest Frame Endcap 51 1 1/2” x 70mm Button Bolt 52 1 1/2” Nylon Locknut 53 54 1 Pulley/Crank 55 1 M6 x 25mm Bolt 56 2 Flange Screw 57 1 Right Crank Arm 58 2 M6 Eyebolt 59 1 “U” Bracket 60 4 M6 Nut 61 5 M8 Nylon Locknut 62 2 Flywheel Washer 63 2 M10 Black Nylon Locknut 64 7 M6 x 16mm Screw 65 2 M10 x 112mm Carriage Bolt 66 2 M10 Zinc Nylon Locknut 67 1 “C” Magnet Bracket 68 2 M10 x 52mm Zinc Button Bolt 69 1 M6 x 50mm Screw 70 8 M5 x 7mm Screw 71 1 M6 Flat Washer 72 5 M4 x 25mm Screw 73 12 M4 x 16mm Screw 74 2 M10 x 45mm Button Screw 75 4 M4 x 38mm Round Head Screw 76 2 M8 x 39mm Button Bolt 77 2 Handlebar Collar 78 2 M5 Nut 79 1 M6 x 25.4mm Button Screw 80 2 M6 x 72mm Button Screw 81 4 M5 x 12mm Bolt 82 1 Reed Switch Clamp 83 4 M5 Nylon Locknut 84 85 2 M10 Zinc Split Washer 86 2 Foam Grip 87 88 1 M8 x 14mm Button Screw 89 1 Water Bottle Holder 90 91 2 M4 x 22mm Screw 92 1 M4 x 8mm Screw 93 2 Seat Frame Endcap 94 95 1 Handlebar Bracket
# 1 User’s Manual #
1 Belt
2
1
2 Handlebar Foam
4
3 Allen Wrench
M4 x 12mm Round Head Screw
M6 Large W
M8 x 12mm Button Screw
asher
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
22
EXPLODED DRAWING—Model No. 831.300280 R0204A
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
20
24
25
26
27
28
28
29
30
30
31
32
33
33
34
35
36
37
38
39
40
40
41
42
57
43
82
44
44
46
47
50
51
52
56
56
54
58
59
60
58
60
61
61
62
62
65
65
63
63
68
66
69
70
70
70
70
64
64
71
73
84
84
74
75
75
73
73
78
78
79
80
81
64
83
83
85
85
55
60
73
72
72
53
49
49
67
61
64
64
48
48
86
87
73
73
45
45
73
92
91
89
93
93
77
73
88
94
94
94
90
94
77
73
61
81
76
95
23
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at SEARS 1-800-4-MY-HOME (469-4663) or SEARS 1-877-LE-FOYER (533-6937), 24 hours a day following information:
• The MODEL NUMBER of the product (831.300280)
, 7 days a week. To help us assist you, please be prepared to give the
• The NAME of the product (FREESPIRIT
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 22)
®
CROSSTRAINER 55)
LIMITED WARRANTY, REPAIR PARTS AND SERVICE
WHAT DOES THIS WARRANTY COVER? This warranty covers your SEARS fitness product against defects in material and workmanship when used for the purpose intended, under normal conditions and provided it receives proper care.
HOW LONG DOES THE COVERAGE LAST? This warranty lasts for one year on all parts. The warranty is extended only to the original owner and is not transferable.
SEARS DO? SEARS will provide a replacement part at no charge for any part found defective
WILL
T
WHA in workmanship or materials during the warranty period.
DOES
T
WHA (1) used for commercial or other income producing purposes, or (2) subject to misuse, neglect, accident, or unauthorized repairs and alterations. Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
HOW DO YOU GET SERVICE? In order to obtain service as provided by this warranty, contact your near­est Sears Canada, Inc. store, service center or call 1-800-469-4663.
Part No. 210114 R0204A Printed in China © 2004 Sears Canada, Inc.
THIS W
ARRANTY NOT COVER? This warranty does not cover fitness products which are
Sears Canada, Inc. • T
oronto, Ontario M5B 2B8
Loading...
