TREADMILL U S E R ’ S GUIDE

30518

INTRODU CT ION

CONGRATULATIONS and THANK YOU for your purchase of this Freespirit treadmill!

Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Freespirit treadmill can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics and innovative features you need to get stronger and healthier, faster. Because we're committed to designing fitness equipment from the inside out, we use only the highest quality components. It's a commitment we back with one of the strongest frame-to-motor warranty packages in the industry.

INTRODUCTION

IMPORTANT

PRECAUTIONS

You want exercise equipment that offers the most comfort, the best reliability and the highest quality in its class.

Freespirit treadmills deliver.

TA BLE OF C ON T E NT S

Important Precautions

Assembly

Before You Begin

Treadmill Operation

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

Conditioning Guidelines

Troubleshooting & Maintenance

Limited Warranty

Parts List

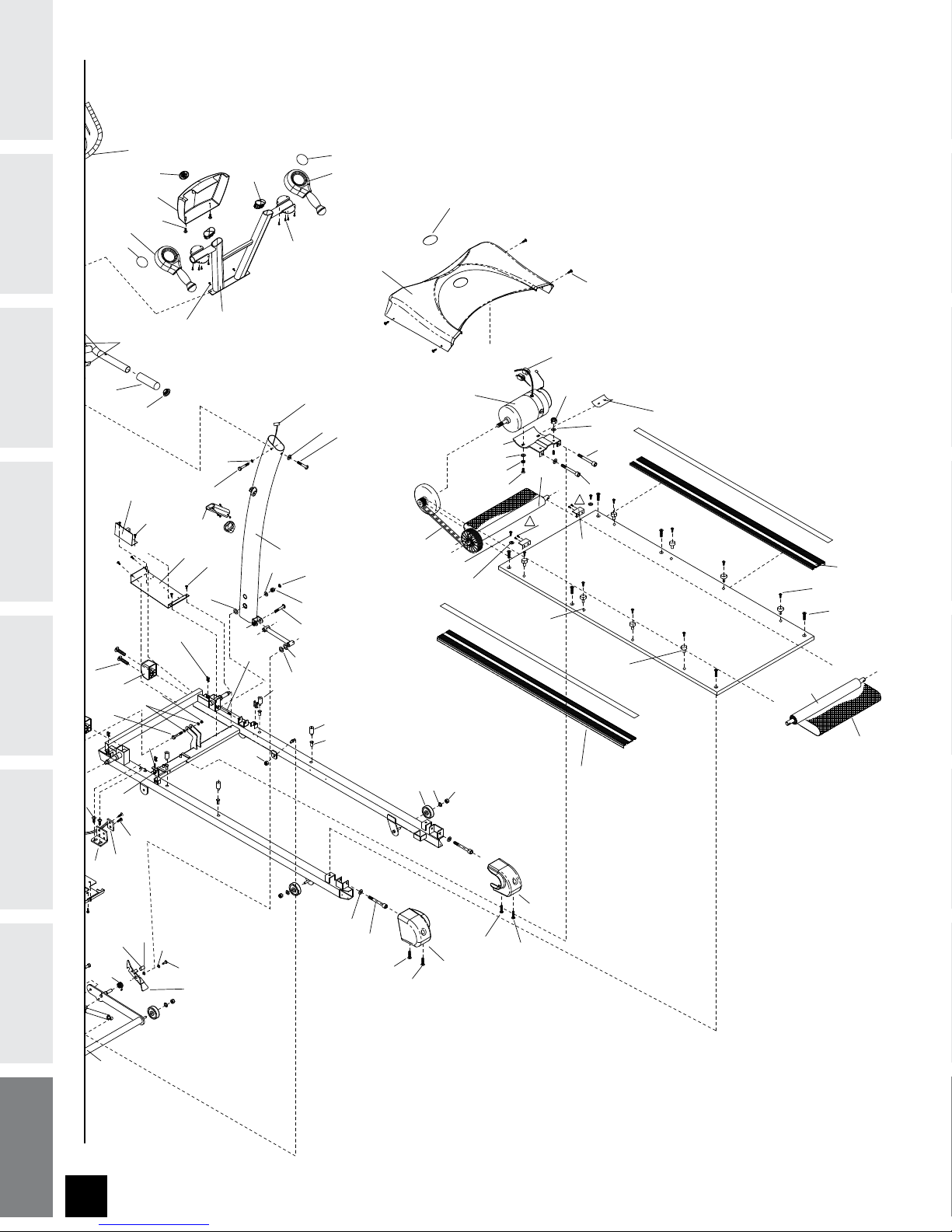

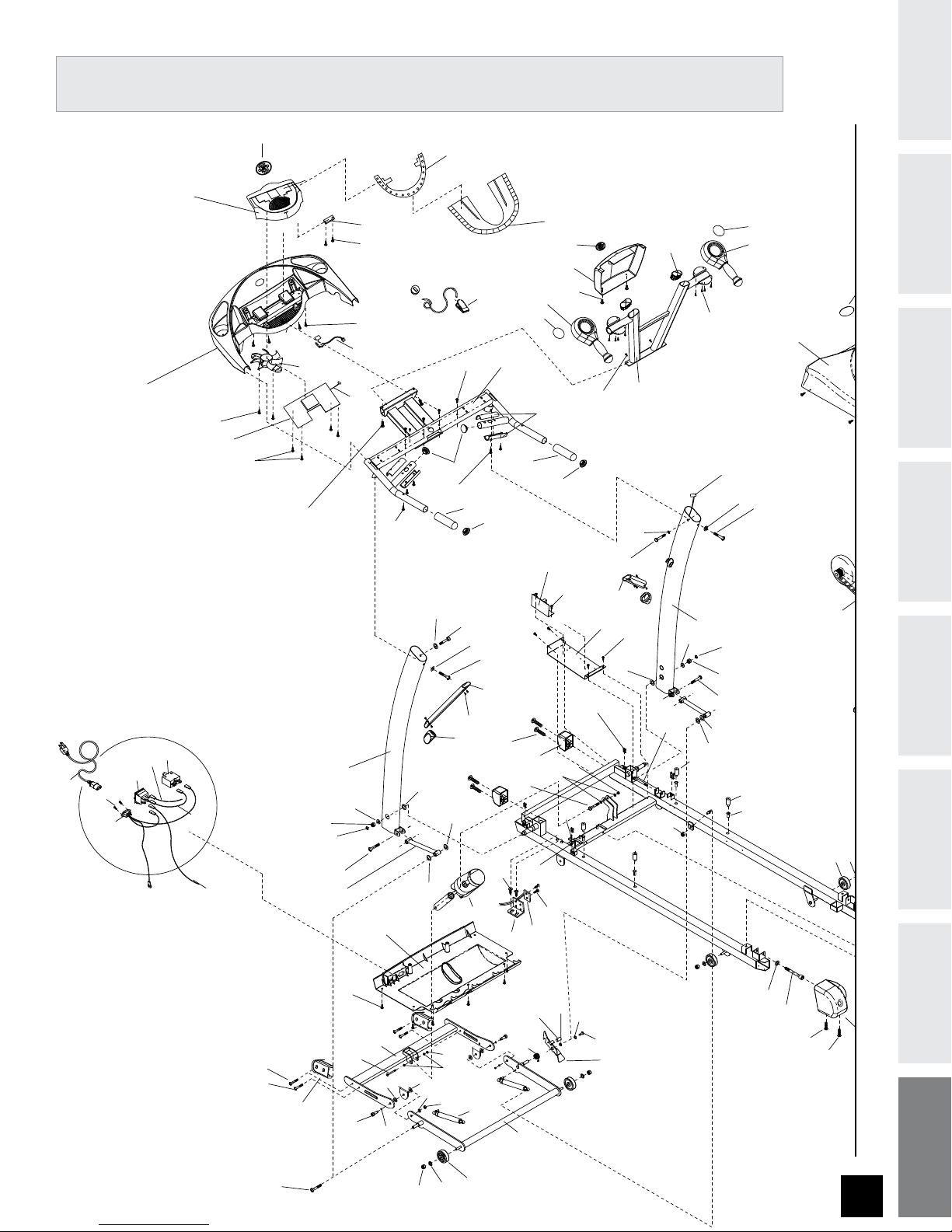

Exploded Drawing

CONTACT INFORMATION

Back Panel

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

WARNING

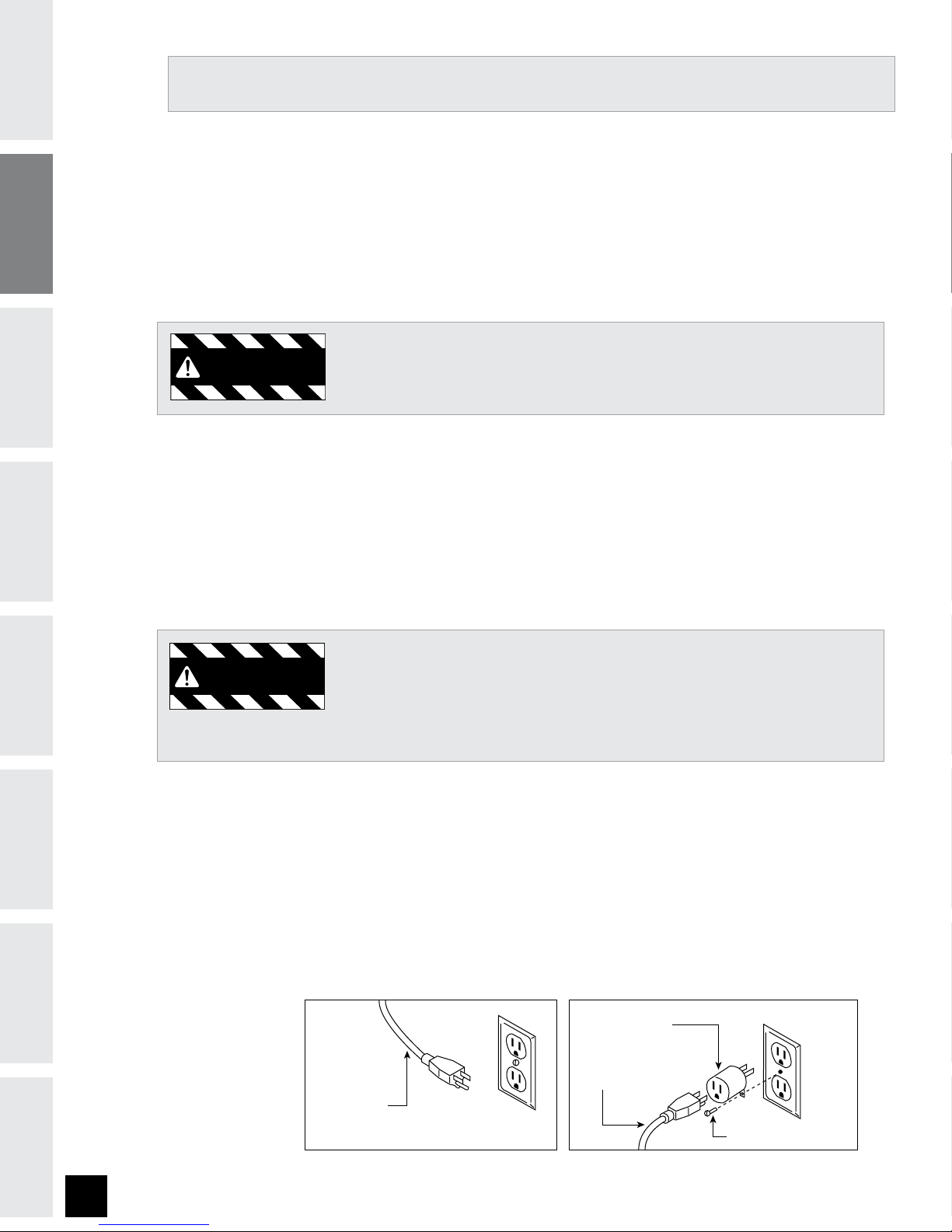

3- Pol e Grounded Out let 2- Pol e Outlet in Gr oun ded Box

METAL GROUNDING SCREW

ADAPTER

GROUNDED TREADMILL POWER CORD

IMPORTANT PREC AU TI ONS

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

SAVE THESE INSTRUCTIONS

Read all instructions before using this treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you have any questions after reading this manual, contact Sears at the number listed on the back panel of this manual.

Connect this exercise product to a properly grounded outlet only. See grounding instructions.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated below. A temporary adapter such as the one illustrated below may be used to connect this plug to a 2-pole receptacle as shown, if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

WARRANTY

LIMITED

To reduce the risk of burns, fire, electrical shock or injury to persons:

WARNING

• Never use the treadmill before securing the safety tether clip to your clothing.

• If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.

• Do not wear clothes that might catch on any part of the treadmill.

• Always wear athletic shoes while using this equipment.

• Do not jump on the treadmill.

• Keep power cord away from heated surfaces.

• Do not insert or drop any object into any opening.

• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)

• At no time should more than one person be on treadmill while in operation.

• The treadmill should not be used by persons weighing more than 275 pounds. Failure to comply will void the warranty.

• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

• Do not use treadmill in any location that is not temperature controlled, such as garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.

• Use the treadmill only as described in this manual.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet. At NO time should children under the age of 12 use the treadmill. Children over the age of 12 should not use the treadmill without adult supervision.

OTHER SAFETY TIPS FOR YOUR TREADMILL

OPERATION

To reduce the risk of damaging important components on your treadmill, it is strongly recommended that your treadmill is plugged into a dedicated 20 amp outlet, without the use of an additional extension cord and/or power strip.

IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.

It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

WARNING

PRECAUTIONS

IMPORTANT

ASSEMBLY

IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!

During the assembly process of the treadmill there are several areas that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play in the console masts or any forward and back play in the console assembly or handlebars. If there is any play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

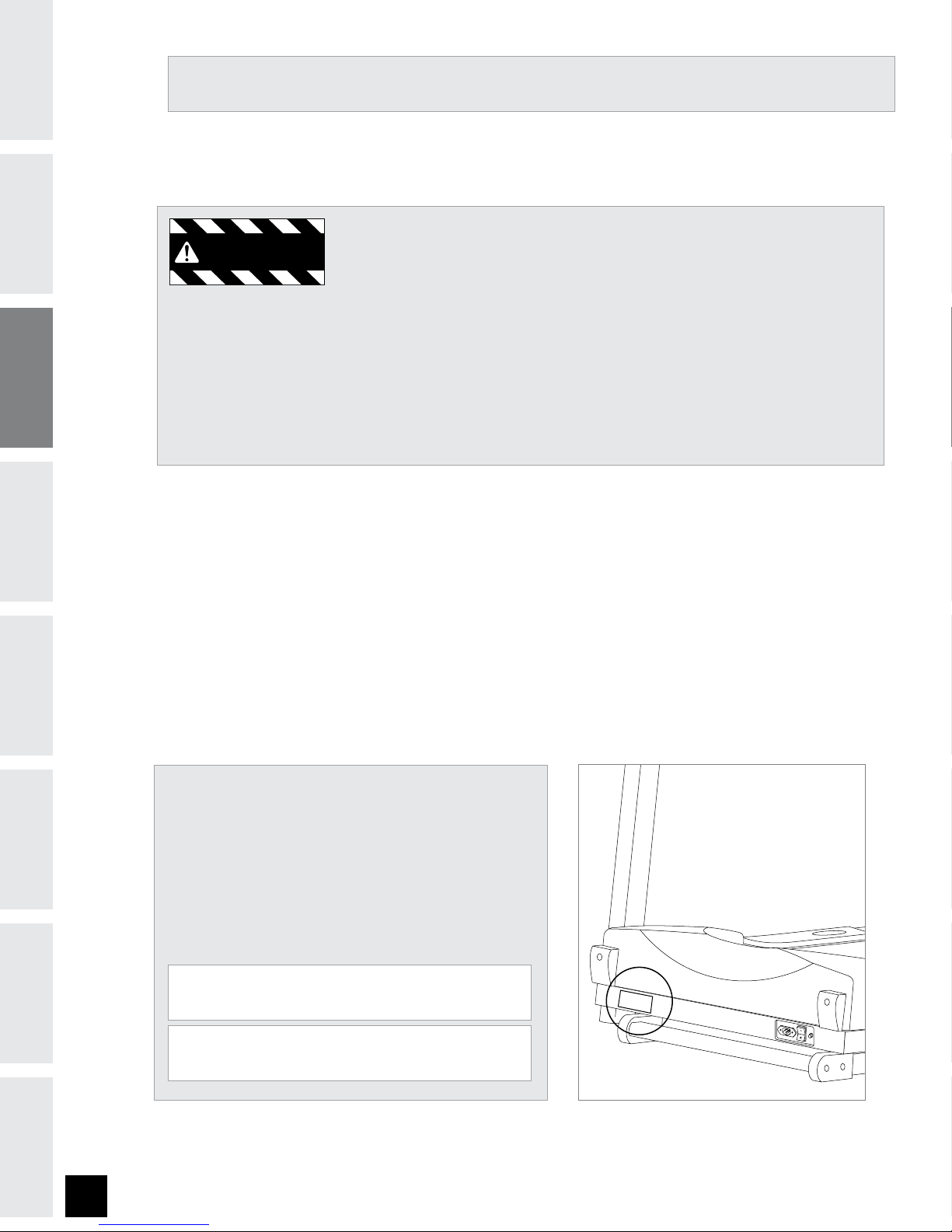

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

Before proceeding, find your treadmill’s serial number and model name located to the left of the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER :

MODEL NAME :

WARRANTY

LIMITED

* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

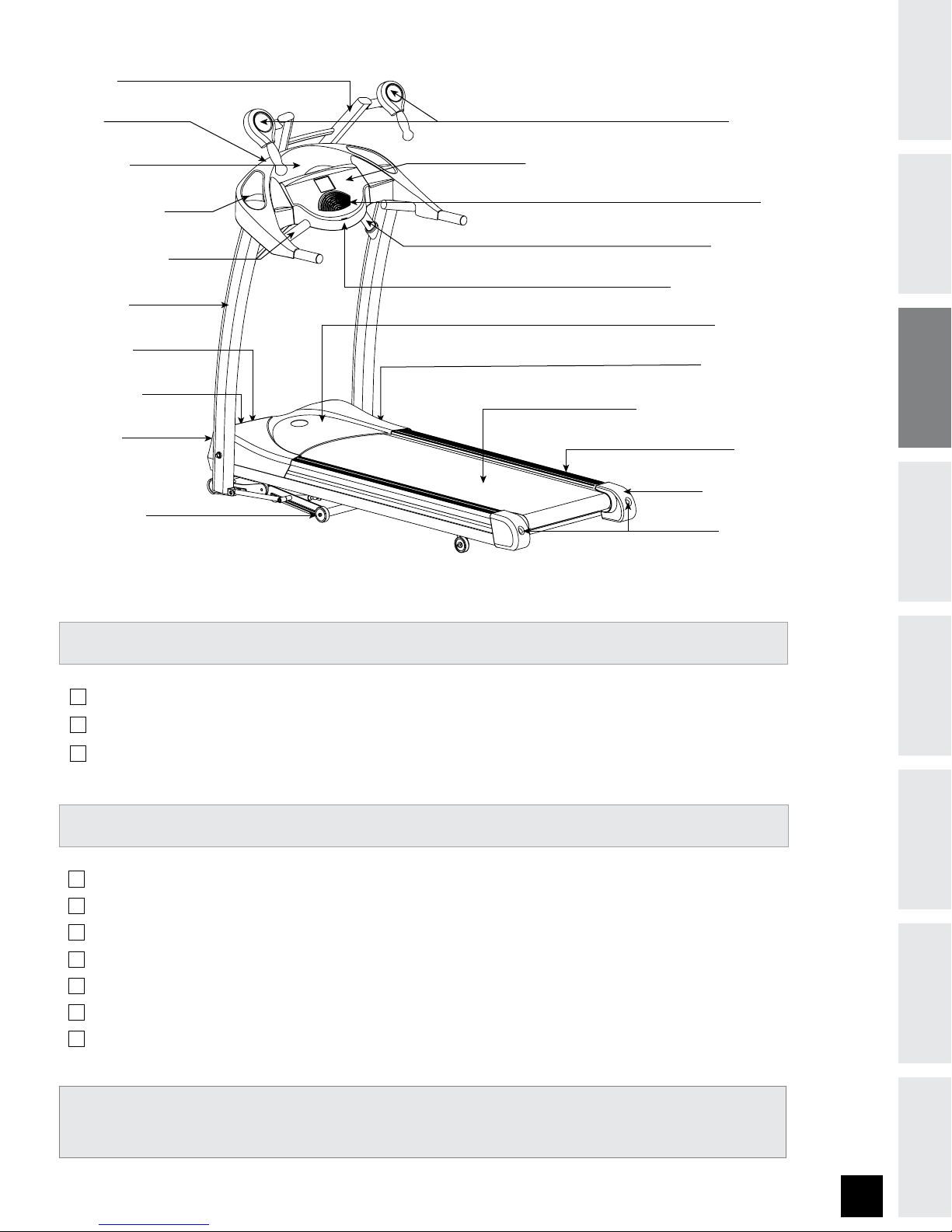

TOOLS INCLUDED

4 mm Allen Wrench

5 mm Allen Wrench

6 mm T-wrench

READING RACK

WATER BOTTLE HOLDER

GRIP PULSE HANDRAILS

ON/OFF SWITCH

CIRCUIT BREAKER

TRANSPORT WHEEL

POWER CORD

CONSOLE

TOUCH PAD PANEL WITH BLUE/GREEN BACK-LIT DISPLAY

CORE PODS

FAN

SUPPORT BARS

MOTOR COVER

SAFETY KEY PLACEMENT

RUNNING BELT / RUNNING DECK

SIDE RAIL

ROLLER END CAP

CONSOLE MAST

REAR ROLLER

ADJUSTMENT BOLTS

FOOT LOCK LATCH

V-BRACKET

PARTS INCLUDED

1 Safety Key 1 Console Assembly (located under treadmill deck) 1 Power Cord 1 V-Bracket 2 Core Pods 2 Support Bars/Boots 4 Hardware Bags

NOTE : If you have questions or if there are any missing parts, we will guarantee complete satisfaction. Sears customer assitance contact information is located on the back panel of this manual.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

WARNING

#0-5" NN 2UZ

LEFT CONSOLE MAST

LEFT SIDE LINKAGE ARM

BOLT A

PRECAUTIONS

IMPORTANT

PRE - A SS E M BLY

DO NOT CUT STRAPS UNTIL STEP 1-E!* Disassemble box and remove the

cardboard packaging that is not beneath the treadmill. Do not attempt to lift the treadmill at this time. Remove plastic wrap from console masts.

NOTE: It is recommended that you apply grease to the threads of each bolt as you assemble your treadmill, to

prevent loosening and noise. Also, during each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt.

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

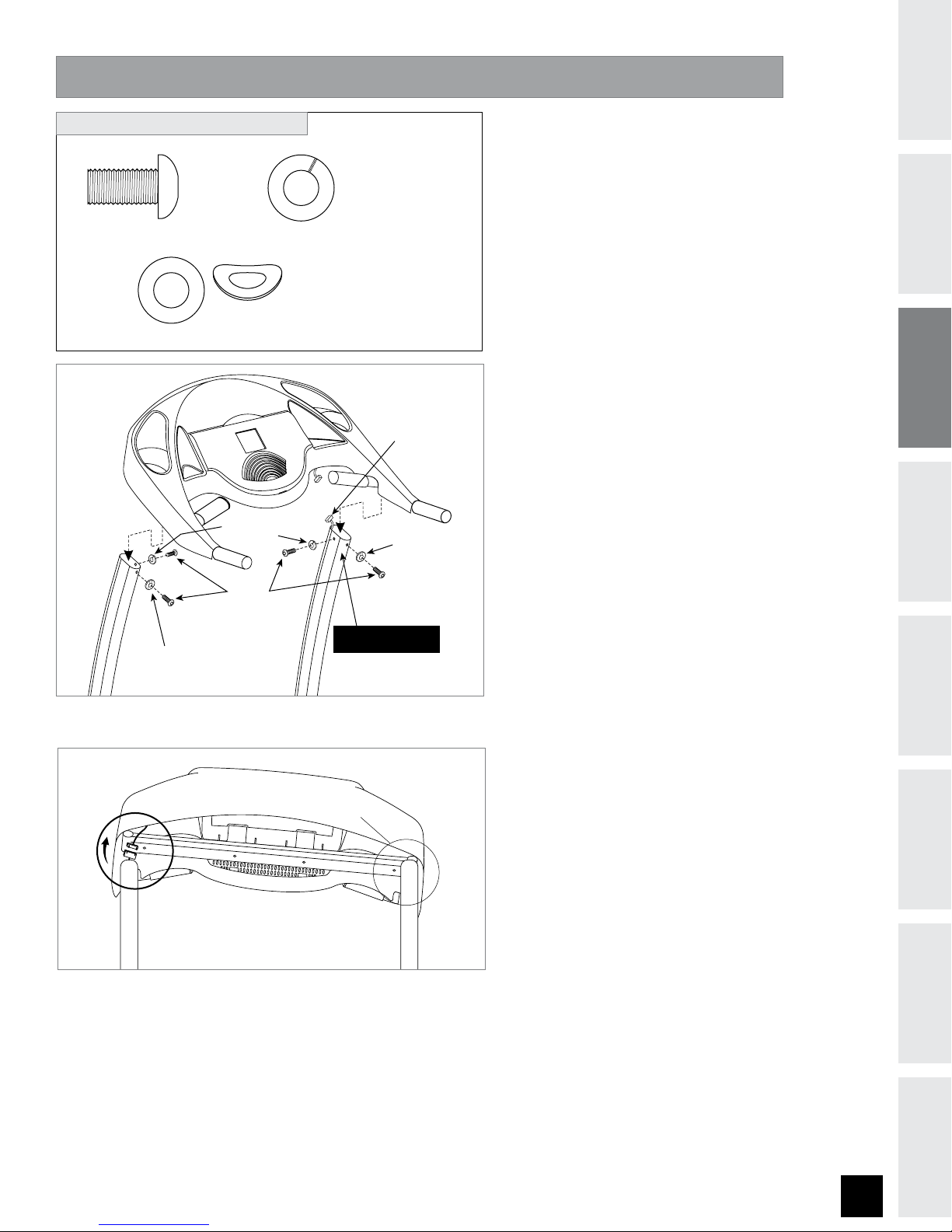

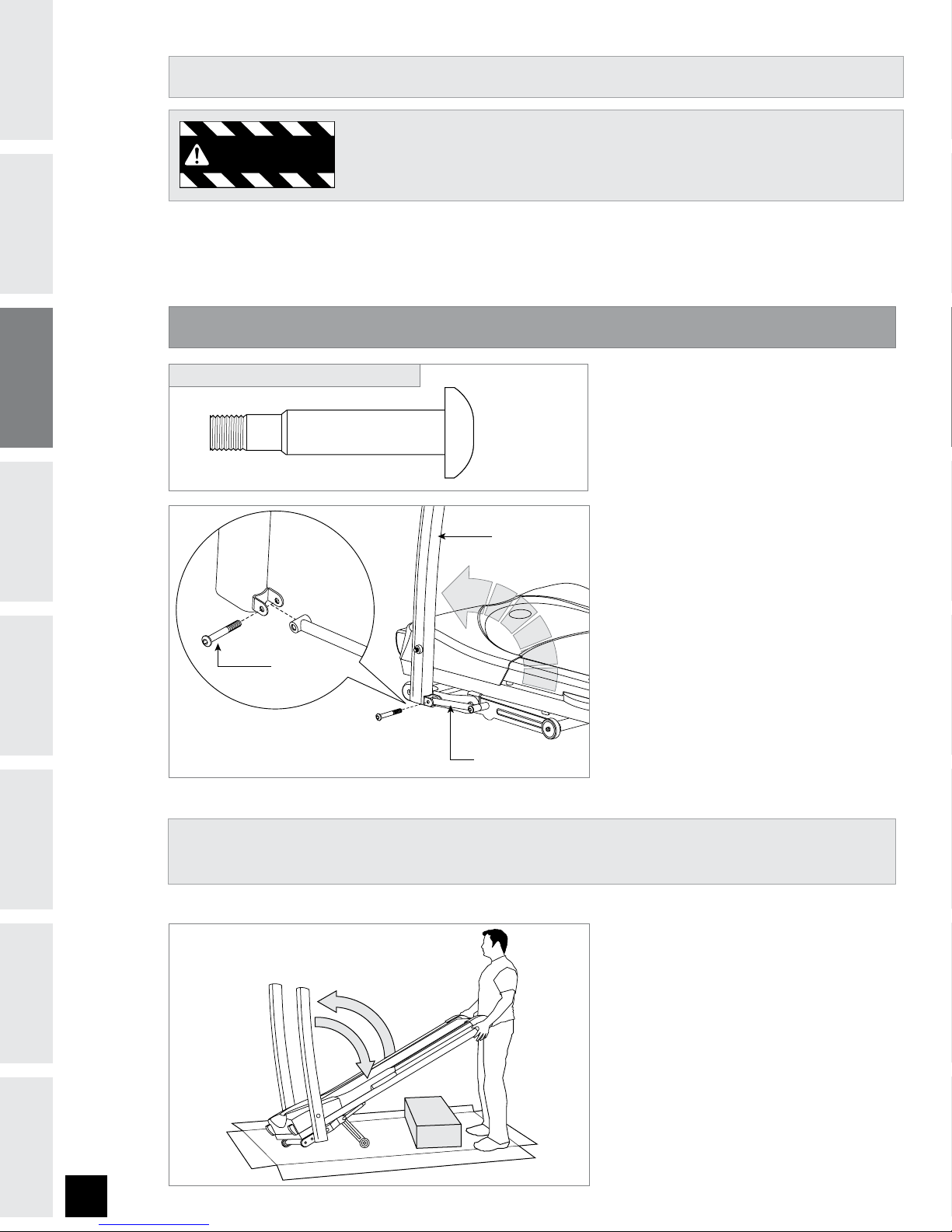

ASSEMBLY STEP 1

HARDWARE BAG FOR STEP 1 CONTENTS :

A Open HARDWARE BAG FOR STEP 1.

B Lift LEFT CONSOLE MAST into

upright position. Be sure to hold the console mast firmly, as it will not stay in the upright position on it’s own.

C Move LEFT SIDE LINKAGE ARM

into position. Insert BOLT (A) and tighten.

D Repeat on the right side.

E Now cut the banding straps and

remove remaining packaging material.*

* NOTE: If the straps have been removed before completing step 1-D and the linkage arms can not be aligned,

refer to the TROUBLESHOOTING section (page 28) in order to restore the treadmill to its proper position.

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

F Lift the RUNNING DECK until lock

latch on side of treadmill is fully engaged.

G Remove CONSOLE from box

and place out of the way.

H Lower the treadmill RUNNING

DECK from the folded position by

stepping on LOCK LATCH on lower right side.

ASSEMBLY STEP 2

BOLT (B)

LOCK WASHER (C)

ARC WASHER (D)

CONSOLE CABLE

DO NOT ATTACH THIS SIDE UNTIL STEP 2-F

ASSEMBLED IN STEP 2-D

#0-5# NN 2UZ

BOHMFWJFX

-0$,8"4)&3$ 2UZ

"3$8"4)&3% 2UZ

HARDWARE BAG FOR STEP 2 CONTENTS :

A Open HARDWARE BAG FOR

STEP 2.

B With running deck in lowered

position, place CONSOLE on upright masts. Slide the brackets that are underneath the console into the top holes of the upright masts.

C Place LOCK WASHER (C) and

BOLT (B) into flat side of LEFT upright MAST and lightly

tighten.

D Place ARC WASHER (D) and

BOLT (B) into curved side of LEFT upright MAST and lightly

tighten.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

* Be sure to tighten bolts after all are lined up.

E Gently lift RIGHT side of

the console to connect the

CONSOLE CABLE

. Carefully tuck wires in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.

F Repeat steps C-D above to

assemble the right side upright mast and console.

G Tighten all bolts completely.

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

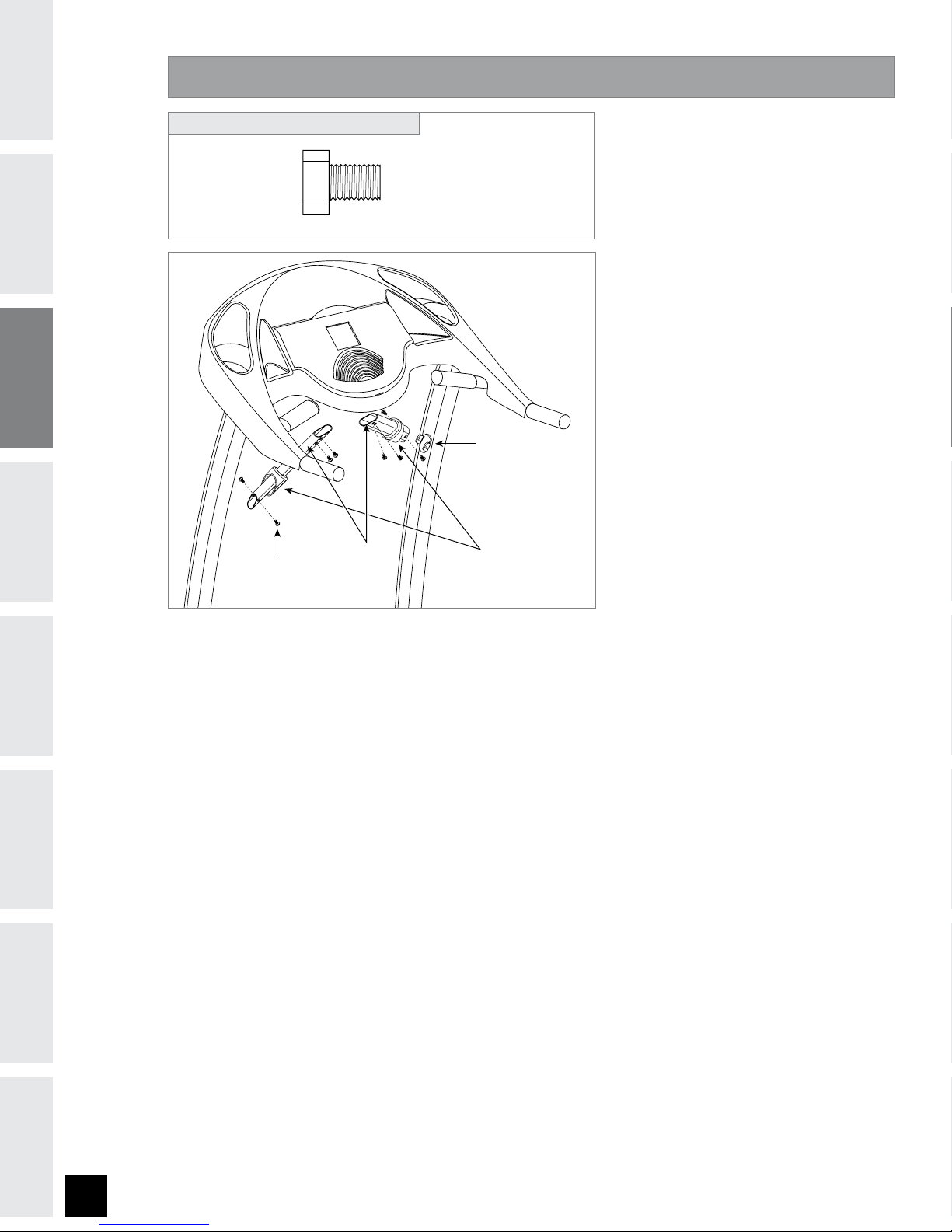

INTRODUCTION

SUPPORT BAR BOOTS

SUPPORT BARS

MOUNTING BRACKET

BOLT (E) (8 TOTAL)

#0-5& NN 2UZ

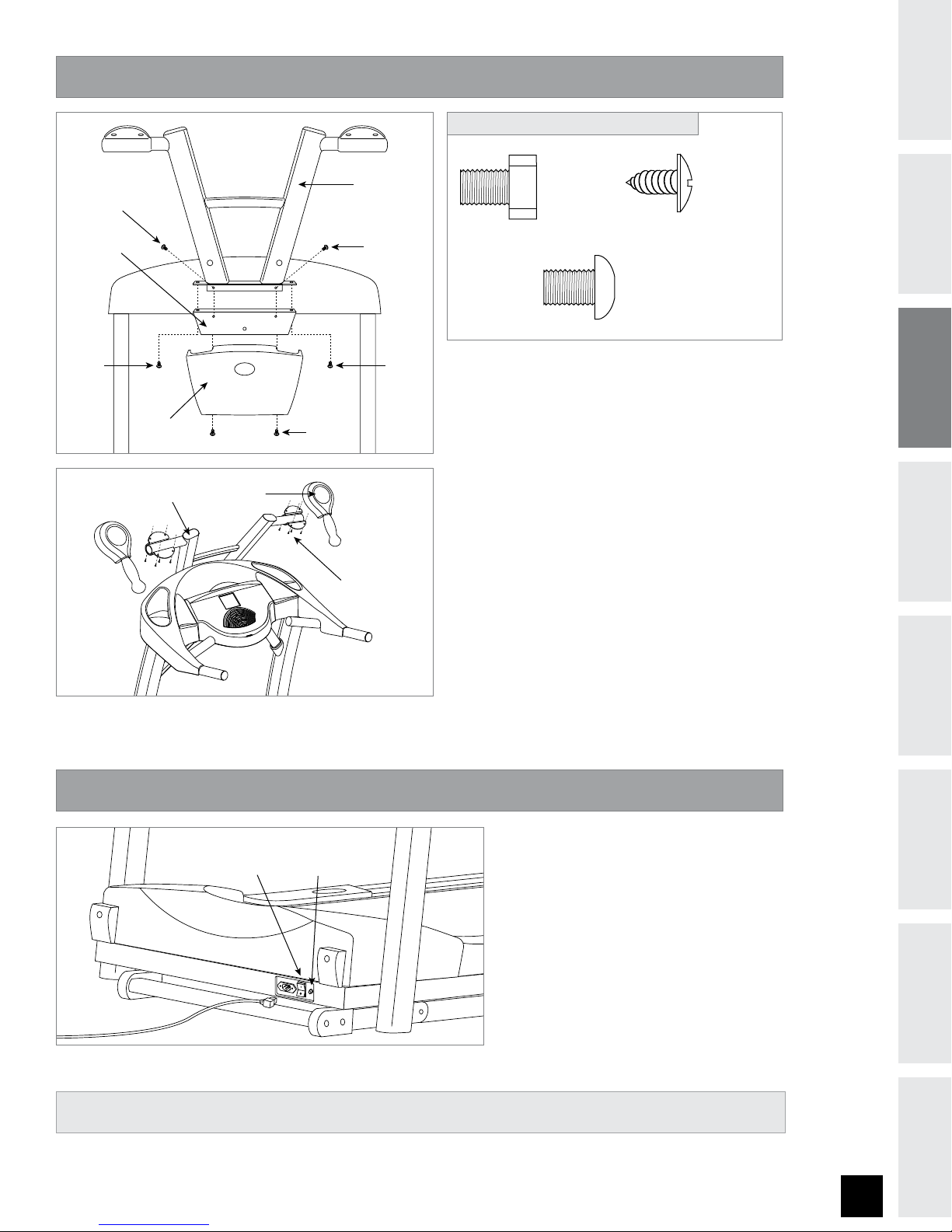

ASSEMBLY STEP 3

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

HARDWARE BAG FOR STEP 3 CONTENTS :

A Open HARDWARE BAG FOR

STEP 3.

B Slide SUPPORT BARS into side

MOUNTING BRACKETS and line up with top MOUNTING BRACKETS.

C Insert 2 BOLTS (E) into the

tops and 2 BOLTS (E) into the bottoms of each SUPPORT BAR.

D Slide SUPPORT BAR BOOTS

down to cover BOLTS (E).

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

ASSEMBLY STEP 4

POWER SWITCH

CIRCUIT BREAKER

#0-5'

#0-5)

7#3"$,&5

7#3"$,&5 $07&3

4$3&8(

$0/40-& #3"$,&5

4$3&8(

#0-5'

$03&10%

13&"55"$)&% 4$3&84

7#3"$,&5

4$3&8( NN 2UZ

#0-5' NN 2UZ

#0-5) NN 2UZ

HARDWARE BAG FOR STEP 4 CONTENTS :

A Open HARDWARE BAG FOR STEP 4.

B Attach V BRACKET to CONSOLE

BRACKET using 2 BOLTS (F) and 2 SCREWS (G).

C Attach V BRACKET COVER to V

BRACKET using 2 BOLTS (H).

D Attach CORE PODS to V BRACKET

using 8 PRE-ATTACHED SCREWS.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

ASSEMBLY STEP 5

YOU’RE FINISHED!

Connect power plug to the treadmill and connect the cord to a power outlet. The on/off switch is located next to the power cord. Flip this switch to the 'on' position, so that the switch is lit. You will hear a beep and the console will light up.

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

WARNING

3 feet

6 feet

3 feet

1 foot

WARNING

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

BEFORE Y OU BE GIN

CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and

sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.

HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:

• Weight Loss

• A Healthier Heart

• Improved Muscle Tone

• Increased Daily Energy Levels

The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your workout when you use your treadmill in the comfort of your home. This guide provides you with basic information for using and enjoying your new machine.

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

LOCATION OF THE TREADMILL

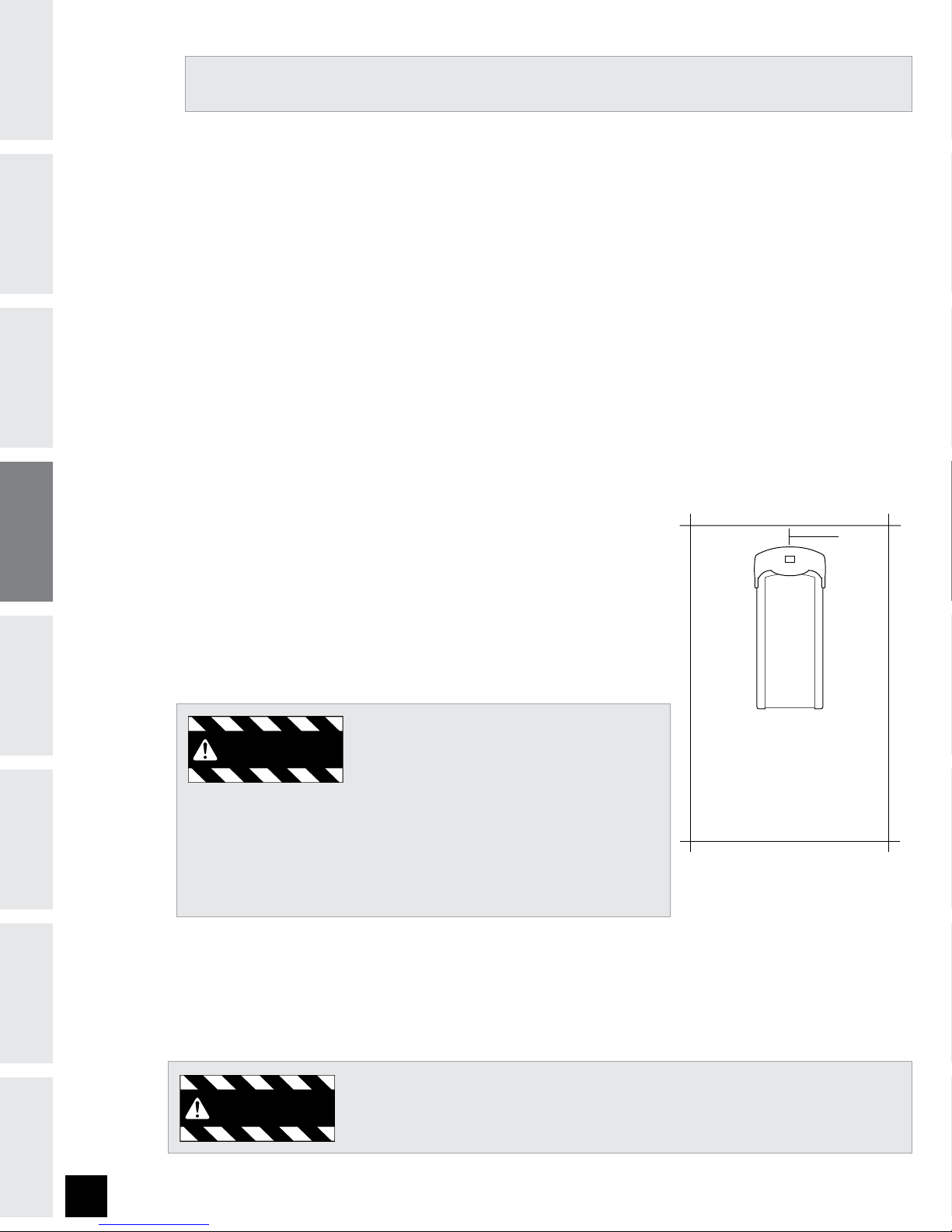

Place the treadmill on a level surface. There should be 6 feet of clearance behind the treadmill, 3 feet on each side and one foot in front for folding and the power cord. Do not place the treadmill in any area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio, near water or outdoors.

DO NOT STAND ON THE BELT

While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails before starting the treadmill. Start walking on the belt only after the belt has begun to move. Never start the treadmill at a fast running speed and attempt to jump on!

SAFETY KEY

Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation of the safety key every 2 weeks.

WARRANTY

LIMITED

NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.

PROPER USAGE

WARNING

Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow the MAINTENANCE schedule located on page 29 in this manual. Never step onto the treadmill when it is moving more than 0.5 mph. Keep your body and head facing forward. Do not attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you feel pain, faint, dizzy or are short of breath.

INTRODUCTION

IMPORTANT

PRECAUTIONS

Do not operate the treadmill if the power cord or plug is damaged. If the treadmill appears to not be working properly, do not use the treadmill.

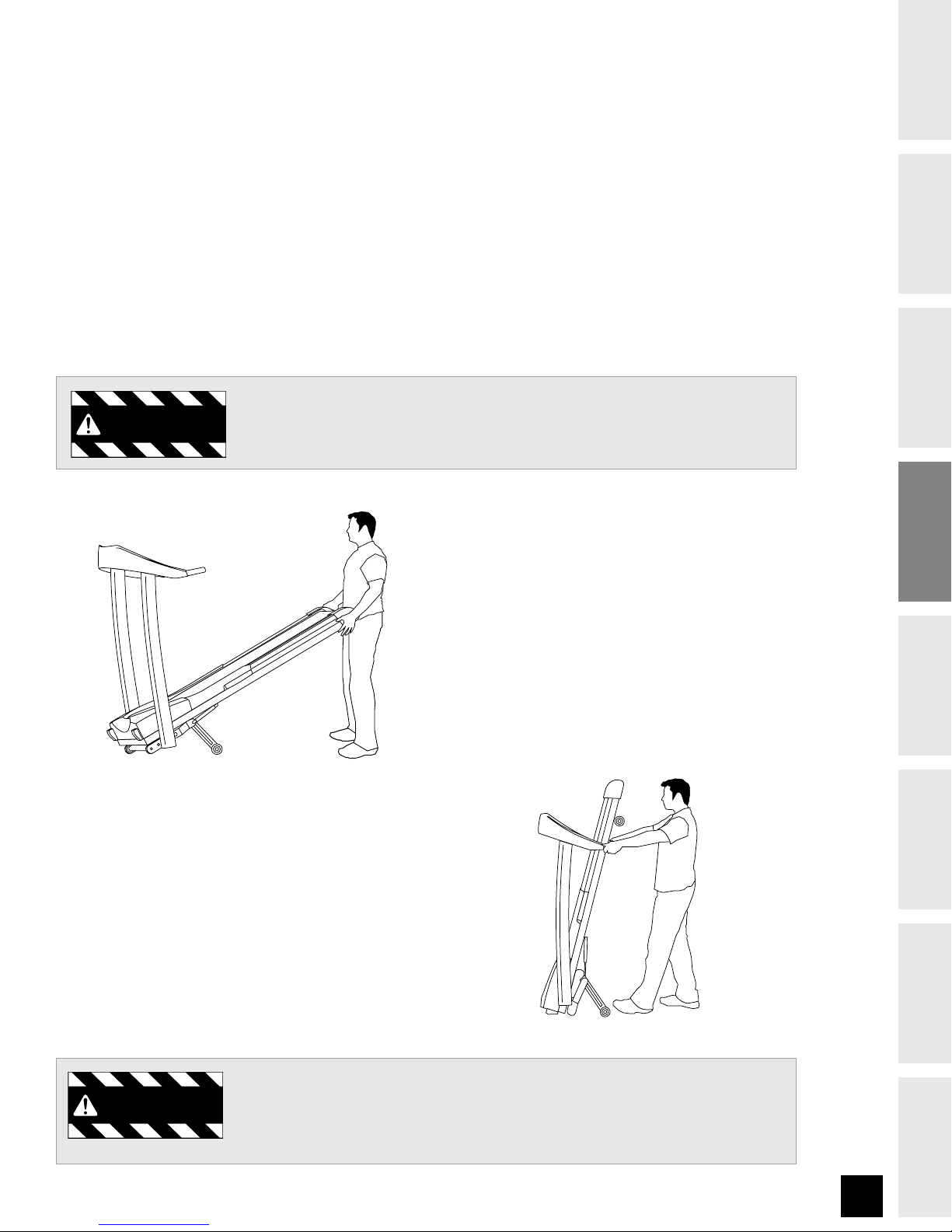

MOVING

Your treadmill has a pair of transport wheels built into the frame. To move, make sure the treadmill is folded and securely latched. Then firmly grasp the handlebars, tilt the treadmill back and roll.

FOLDING

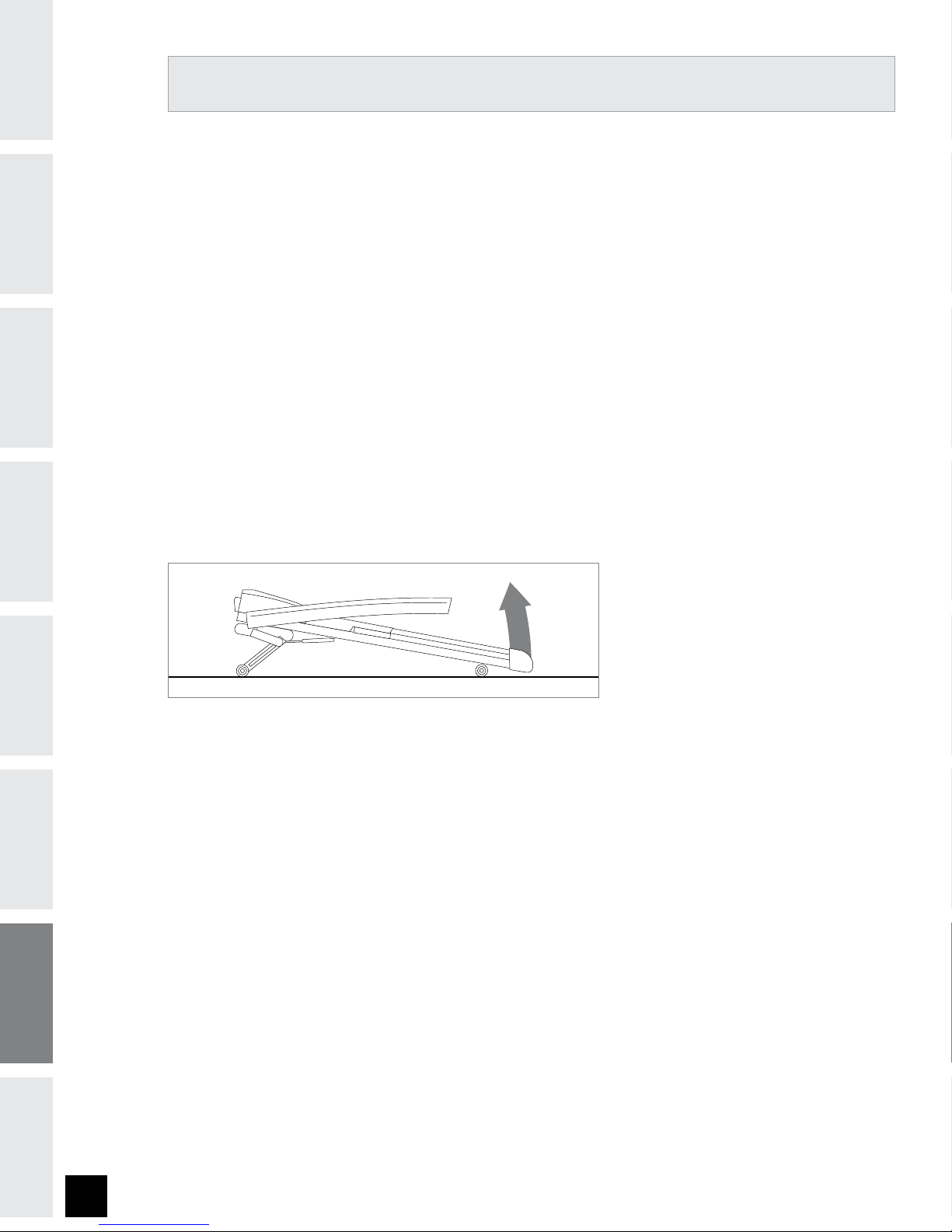

Firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill deck into the upright position until the foot lock latch engages and securely locks the deck into position. Make sure the deck is securely latched before letting go. To unfold, firmly grasp the back end of the treadmill. Gently press down on the foot lock latch with your foot until the lock latch disengages. Carefully lower the deck to the ground.

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

Our Treadmills are heavy, use care and additional help if necessary when moving. Do not attempt to move or transport treadmill unless it is in the upright, folded position with the lock latch secured. Failure to follow these instructions could result in injury.

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

TENSIONING THE RUNNING BELT

The running belt has been properly adjusted at the factory before it was shipped. At times the belt can move off-center during shipment.

CAUTION: Running belt should NOT be moving during tensioning. Over-tightening the running belt can cause excessive wear on the treadmill as well as its components. Never over-tighten the belt.

If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened. In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and common adjustment. To eliminate this slipping, turn the treadmill off and tension BOTH THE REAR ROLLER BOLTS using the supplied Allen wrench, turning them 1/4 TURN to the right as shown. Turn the treadmill on and check for slipping. Repeat if necessary, but NEVER TURN the roller bolts more than 1/4 turn at a time. Belt is properly tensioned when the slipping sensation is gone.

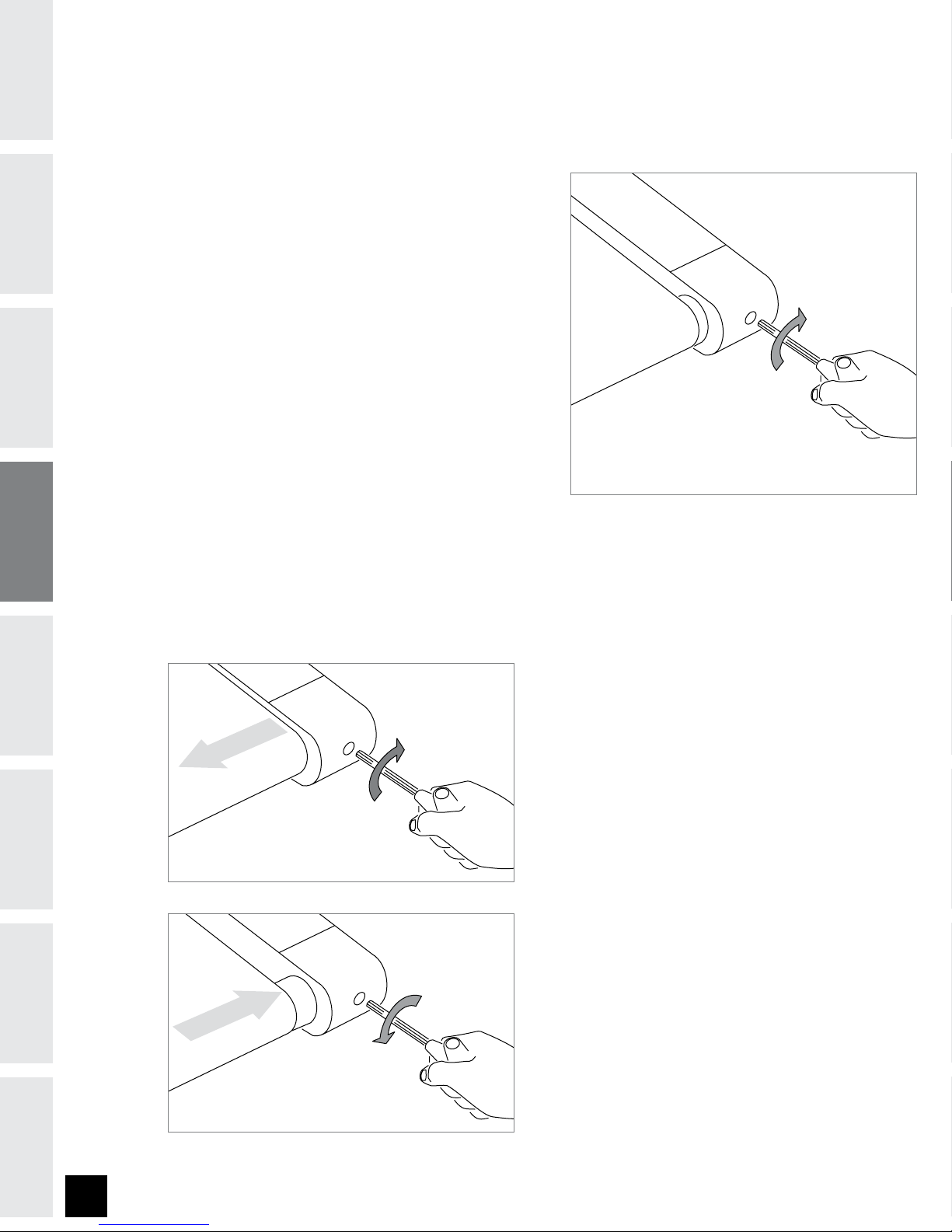

CENTERING THE RUNNING BELT

The running belt has been properly adjusted at the factory before it was shipped. At times the belt can move off-center during shipment. Before operating the treadmill, make sure the belt is centered and remains centered to maintain smooth operation.

CONDITIONING

GUIDELINES

Belt is too far to the right side

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

Belt is too far to the left side

CAUTION: Do not run belt faster than 1/2 mph while centering. Keep fingers, hair and clothing away from belt at all times.

If the running belt is too far to the right side:

With the treadmill running at 1/2 mph, turn the right adjustment bolt clockwise 1/4 TURN at a time (using the supplied Allen wrench). Check the belt alignment. Allow belt to run a full cycle to gauge if more adjustment is needed. Repeat if necessary, until the belt remains centered during use.

If the running belt is too far to the left side:

With the treadmill running at 1/2 mph, turn the right adjustment bolt counter-clockwise 1/4 TURN at a time (using the supplied Allen wrench). Check the belt alignment. Allow belt to run a full cycle to gauge if more adjustment is needed. Repeat if necessary, until the belt remains centered during use.

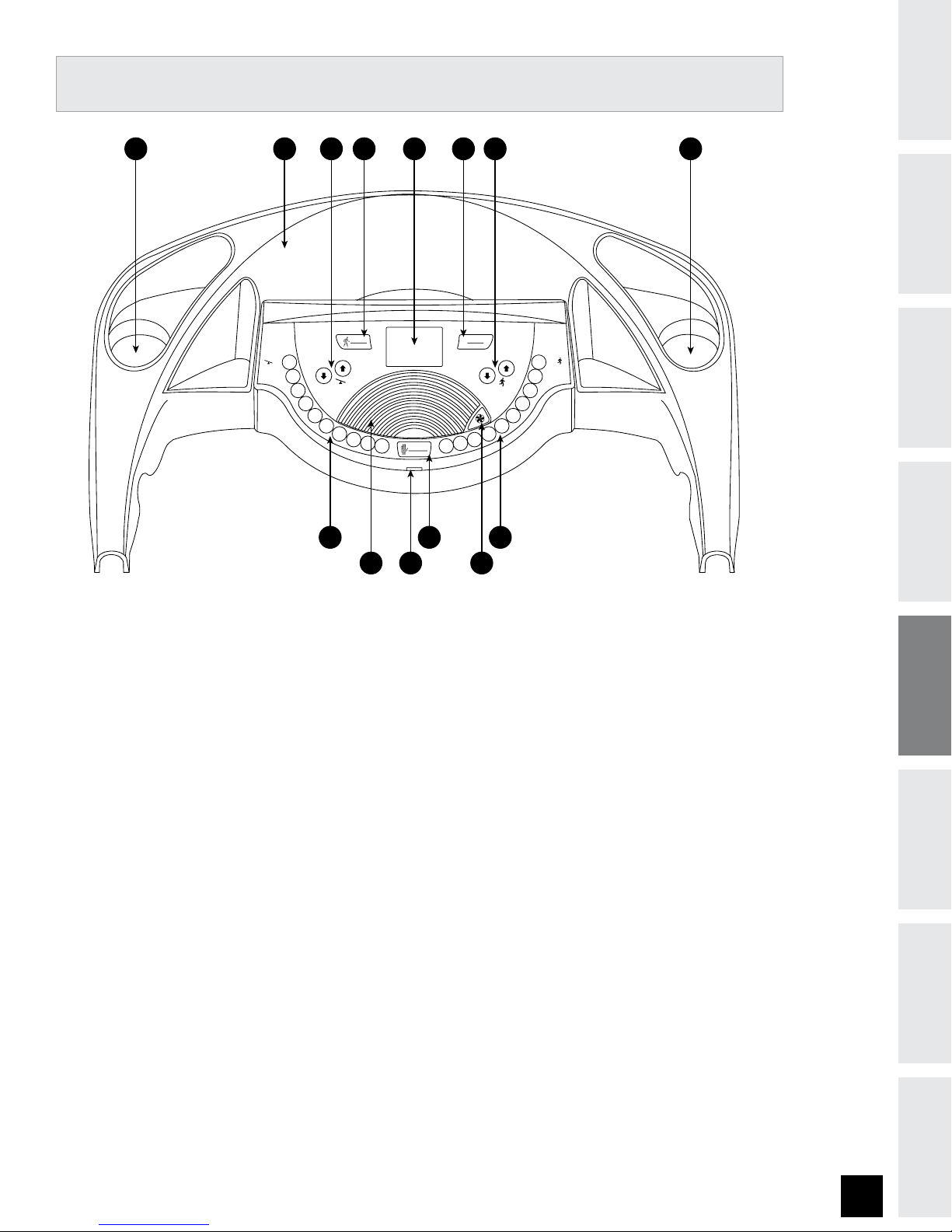

TREADMI LL OP ERATION

AG H LL M C

I KJ

ST OP

HO LD TO RES ET

EN TER

CHAN GE DIS PLA Y

STA RT

QUIC K S TAR T

ONE TOUCH

™

INCLIN E

ONE

TOUCH

SPEED

MPH

™

INC LI NE A DJU ST SPE ED A DJ UST

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.

A) COLOR-CHANGING MONITOR DISPLAY:

B) STOP:

C) START:

Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.

Simply press to begin exercising or starts your program.

Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.

D) ENTER: Used to select Program, Level and Time. Press to change display feedback during workout, Hold to scan.

E) ONE-TOUCH INCLINE KEYS:

F) ONE-TOUCH SPEED KEYS:

G) INCLINE ARROW KEYS:

H) SPEED ARROW KEYS:

I) SAFETY KEY POSITION:

J) FAN:

K) FAN BUTTON:

Personal workout fan.

Press the fan button ON / OFF.

L) WATER BOTTLE / CD / MP3 HOLDERS:

M) READING RACK:

Holds reading material. (Remove sales sticker before use)

Used to reach desired incline more quickly.

Used to reach desired speed more quickly.

Used to adjust incline in small increments (0.5% increments).

Used to adjust speed in small increments (0.1 mph increments).

Enables treadmill when safety key is inserted.

Holds personal workout equipment.

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

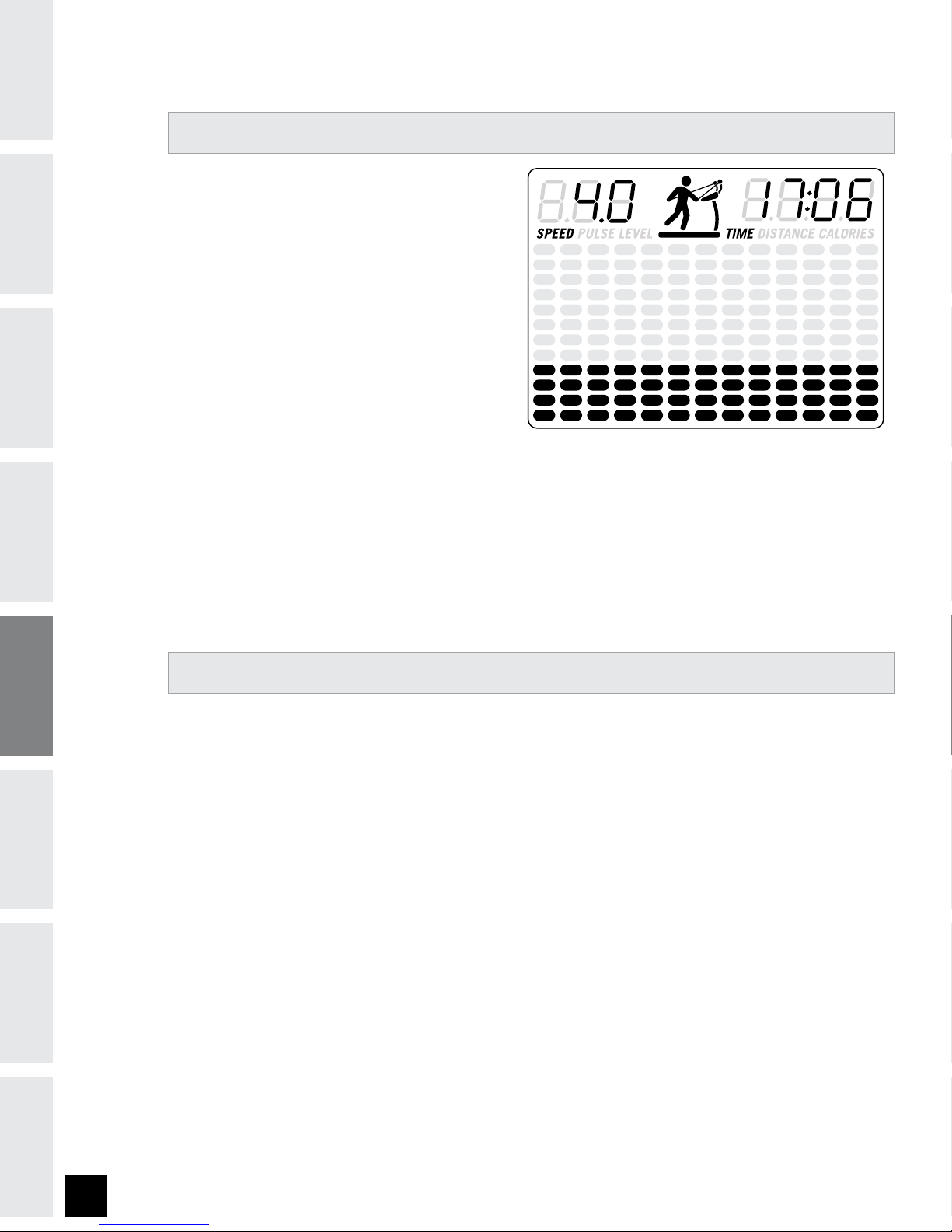

MON I T OR DI S PL AY

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

SPEED • Shown as MPH. Indicates how fast your

walking or running surface is moving.

TIME • Shown as Minutes:Seconds. View the time

remaining or the time elapsed in your workout.

PULSE • Shown as Beats Per Minute. Used to

monitor your heart rate (displayed when contact is made with both pulse grips).

DISTANCE • Shown as Miles. Indicates distance

traveled during your workout.

INCLINE • Shown as Percent. Indicates the incline of your walking or running surface.

CALORIES • Total Calories burned during your workout.

PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based

programs and incline during incline based programs).

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

HEA R T R AT E

HANDLEBARS

Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained. (See page 28).

WARRANTY

LIMITED

GET T I NG STA R T ED / SE L EC T I NG A PR OG R A M

Check to make sure nothing is on or will hinder the movement of the treadmill.

Plug in the power cord and turn the treadmill ON.

Stand on the side rails of the treadmill.

Attach the safety key clip to part of your clothing.

Insert the safety key into the safety keyhole in the console.

You have two options to start your workout:

QUICK START UP

Simply press the START key to begin working out. OR...

SELECT A PROGRAM

Select a PROGRAM using the SPEED ARROW keys. Once a PROGRAM has been chosen, press ENTER.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

SELECT A LEVEL

Select a PROGRAM LEVEL using the ARROW keys. Once a PROGRAM LEVEL has been chosen, press ENTER.

SELECT A TIME

Select a Time using the ARROW keys or use the default time. Once a TIME has been chosen, press START.

FINISHING YOUR WORKOUT

When your workout is complete, the MONITOR DISPLAY will flash and beep. Your workout information will stay displayed on the console for 30 seconds and then reset.

CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the STOP button for 4-5 seconds.

SCAN VIEWING SCREENS

To have the display screen continuously scan through functions (Speed and Time, Pulse and Distance, Incline and Calories), hold the ENTER button for 4-5 seconds.

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

PRECAUTIONS

IMPORTANT

ASSEMBLY

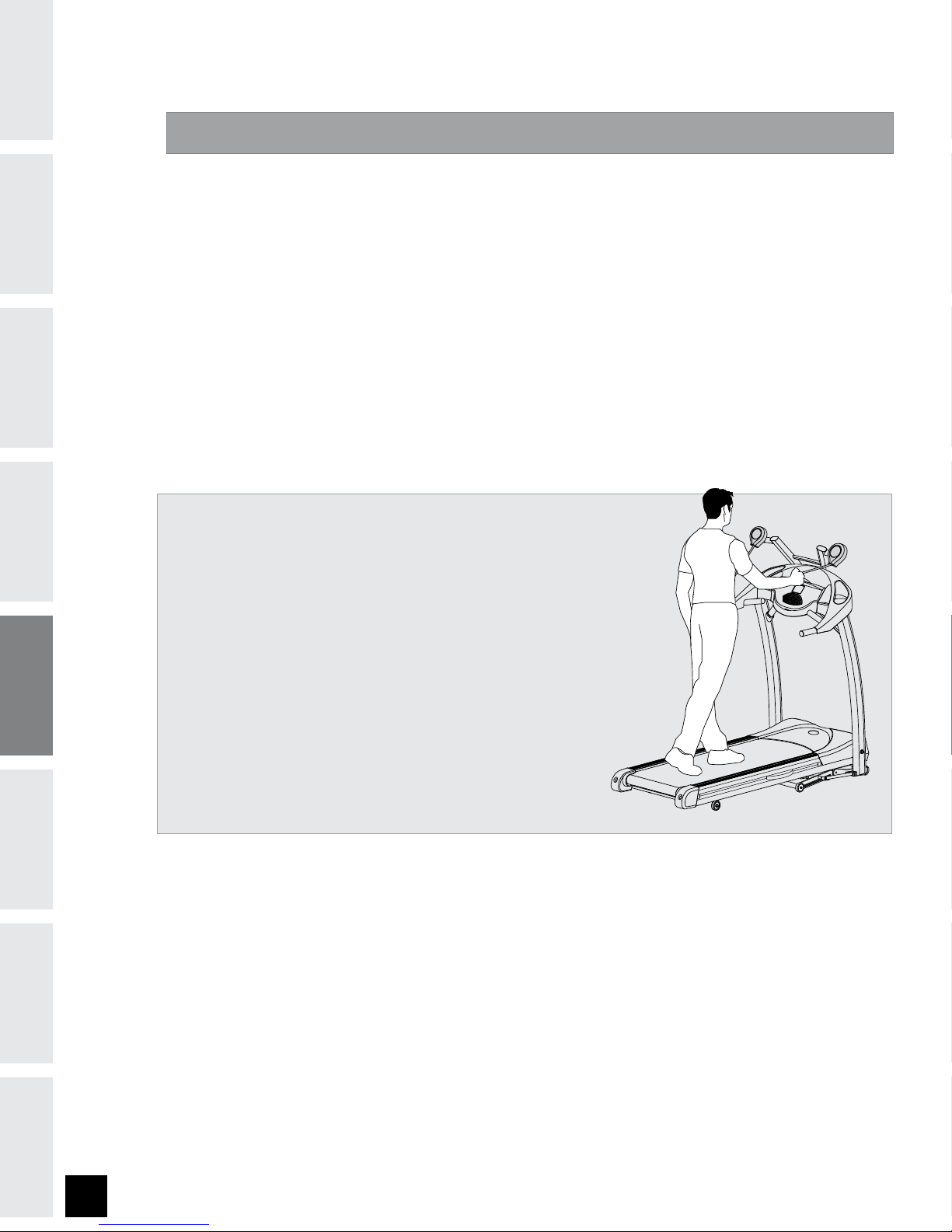

USI N G T HE CO RE PO D P R OGR A M S

1) After you have selected a program, a level, time and speed press START and begin walking.

2) After several minutes, the CORE POD ICON will start to flash in the middle of the screen

and ‘GET READY!’ will scroll across. NOTE: Time increments vary depending on program and level chosen.

3) Grab the HANDLES attached to each pod above the console.

4) The screen will change from blue to green. While the screen is GREEN, use the core pods.

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

5) While holding the core pod handles, continue to

walk as if the handles were not there. Slowly begin to exaggerate your arm swing.

With each stride, the hand of your forward-most arm should reach shoulder height, with only a slight bend in your elbow. Your back arm should also be slightly bent and should travel just past the trunk of your body. Concentrate on keeping your core firm and maintaining proper form. After two to three minutes of use, the motion will begin to feel natural and fluid.

6) After several minutes, the screen will turn BLUE again and ‘RELEASE’ will scroll across. NOTE: Time increments vary depending on program and level chosen.

7) Gently place the handles back and continue to walk until the treadmill prompts you to use the core pods again.

8) Steps 2 through 7 will repeat until the duration of the program is complete.

WARRANTY

LIMITED

MANUAL

INTERVALS

ROLLING

WEIGHT LOSS

GOLF COURSE

RACE

CUSTOM 1

CUSTOM 2

THR ZONE 1

THR ZONE 2

VALLEY

TOUR

CORE

PRO G R AM IN F O RM AT ION

MANUAL

INTERVALS

ROLLING

WEIGHT LOSS

GOLF COURSE

RACE

CUSTOM 1

CUSTOM 2

THR ZONE 1

THR ZONE 2

VALLEY

TOUR

CORE

PROGRAM 1: M A N UA L

INTRODUCTION

User defines SPEED and INCLINE changes. Time-based goal. 4 minute warm-up and 4 minute cool-down.

PROGRAM 2: C O R E BA S I C

Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal. Screen will cycle between green and blue every 60 seconds. User is advised to use core pods while the screen is green. 4 minute warm-up and 4 minute cool-down.

PROGRAM 3: C O R E AD VA NC E D 1

TIMED INTERVALS with INCLINE changes. Screen will cycle between green and blue at various intervals depending on level chosen by user. User is advised to use core pods while the screen is green. 4 minute warm-up and 4 minute cool-down.

WARM-UP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 COOL-DOWN

Level 1 0.0 0.5 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 0.5 0.0 0.5 0.0

Level 2 0.0 0.5 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 0.5 0.0 0.5 0.0

Level 3 0.5 1.0 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.0 0.5 1.0 0.5

Level 4 0.5 1.0 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.0 0.5 1.0 0.5

Level 5 1.0 1.5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 1.5 1.0 1.5 1.0

Level 6 1.0 1.5 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 1.5 1.0 1.5 1.0

Level 7 1.5 2.0 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.0 1.5 2.0 1.5

Level 8 1.5 2.0 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.0 1.5 2.0 1.5

Level 9 2.0 2.5 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 2.5 2.0 2.5 2.0

Level 10 2.0 2.5 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 2.5 2.0 2.5 2.0

CORE ADVANCED 1 PROGRAM SEGMENTS

WITH TIME INTERVALS (all segments last 60 seconds)

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)

Segments 1-14 repeated untile selected TIME is reached.

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

MANUAL

INTERVALS

ROLLING

WEIGHT LOSS

GOLF COURSE

RACE

CUSTOM 1

CUSTOM 2

THR ZONE 1

THR ZONE 2

VALLEY

TOUR

CORE

MANUAL

INTERVALS

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

PROGRAM 4: C O R E AD VA NC E D 2

DISTANCE BASED with INCLINE changes. Screen will cycle between green and blue at various intervals depending

on level chosen by user. User is advised to use core pods while the screen is green. 4 minute warm-up and 4 minute cool-down.

CORE ADVANCED 2 PROGRAM SEGMENTS

WITH DISTANCE INTERVALS (Segments equal 0.1 miles)

WARM-UP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 COOL-DOWN

Level 1 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 0.5 0.0

Level 2 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 0.5 0.0

Level 3 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.0 0.5

Level 4 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.0 0.5

Level 5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 1.5 1.0

Level 6 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 1.5 1.0

Level 7 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.0 1.5

Level 8 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.0 1.5

Level 9 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 2.5 2.0

Level 10 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 2.5 2.0

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

(WARM-UP and COOL-DOWN last 0.1 miles each and are included in program distance)

Segments 1-14 repeated untile selected DISTANCE is reached.

PROGRAM 5: I N T ER VA LS

User defines maximum and minimum SPEED. Program cycles between maximum and minimum SPEED during workouts. Time-based goal. 4 minute warm-up and 4 minute cool-down.

WARRANTY

LIMITED

PROGRAM 6: W E I GH T L O SS

MANUAL

INTERVALS

ROLLING

WEIGHT LOSS

TIMED INTERVALS with SPEED and INCLINE changes. Time-based goal with 10 difficulty levels to choose from. 4 minute warm-up and 4 minute cool-down.

INTRODUCTION

Level 1

Level 2

Level 3

Level 4

Level 5

Level 6

Level 7

Level 8

Level 9

Level 10

WEIGHT LOSS PROGRAM SEGMENTS (all segments last 30 seconds)

WARM-UP 1 2 3 4 5 6 7 8

Elevation 0.0 0.5 1.5 1.5 1.0 0.5 0.5 0.5 1.0 1.5 0.5 0.0

Speed 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5

Elevation 0.0 0.5 1.5 1.5 1.0 0.5 1.0 0.5 1.0 1.5 0.5 0.0

Speed 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8

Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5

Speed 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0

Elevation 0.5 1.0 2.0 2.0 1.5 1.0 1.0 1.0 1.5 2.0 1.0 0.5

Speed 1.8 2.6 3.5 4.5 4.5 5.0 5.5 5.0 4.5 4.5 3.4 2.3

Elevation 1.5 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0

Speed 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5

Elevation 1.5 1.5 2.5 2.5 2.0 1.5 1.5 1.5 2.0 2.5 1.5 1.0

Speed 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8

Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5

Speed 2.5 3.8 5.0 5.5 6.0 6.5 7.5 6.5 6.0 5.5 4.5 3.0

Elevation 1.5 2.0 3.0 3.0 2.5 2.0 2.0 2.0 2.5 3.0 2.0 1.5

Speed 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3

Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0

Speed 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5

Elevation 2.0 2.5 3.5 3.5 3.0 2.5 2.5 2.5 3.0 3.5 2.5 2.0

Speed 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.5 7.5 7.0 5.6 3.8

(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)

COOL-DOWN

SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

CONDIT I O N I NG GUID E L I N ES

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.

HOW OFTEN? (Frequency of Workouts)

The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!

HOW LONG? (Duration of Workouts)

For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session. But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

HOW HARD? (Intensity of Workouts)

How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using the grip pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by evaluating your perceived exertion level (this is simpler than it sounds!).

PERCEIVED EXERTION LEVEL

A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down. Always be aware of these warning signs of overexertion.

WARRANTY

LIMITED

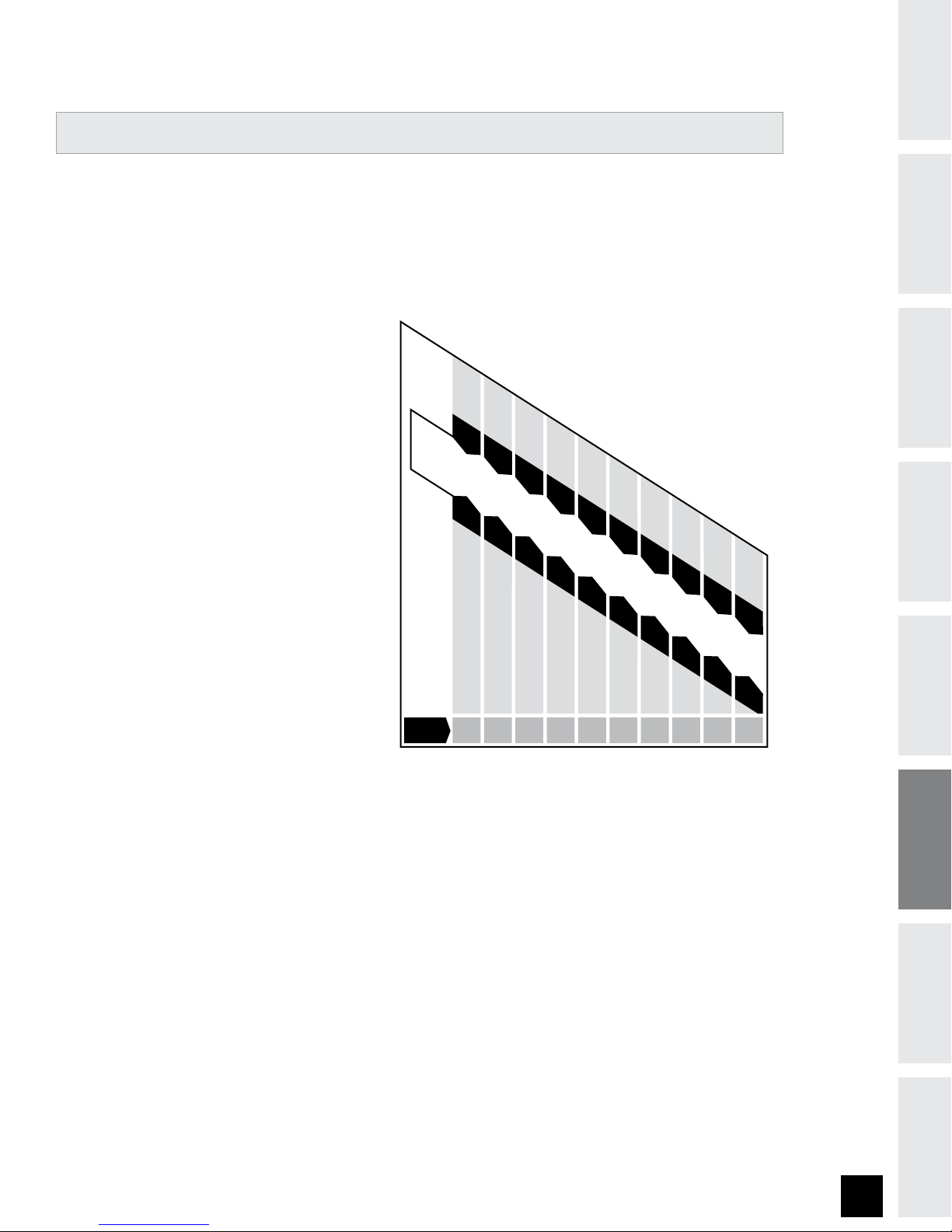

TA RGE T H E ART R ATE ZO N E C HAR T

100%

75%

60%

BE AT S P ER MI N U T E

20 25 30 35 40 45 50 55 60 65

AGE

A R G E T Z O N E

120

117

114

111

102

150

146

143

128

116

INTRODUCTION

What is Target Heart Rate Zone?

Target Heart Rate Zone tells you the number of times per minute your heart needs to beat to achieve a desired workout effect. It is represented as a percentage of the maximum number of times your heart can beat per minute. Target Zone will vary for each individual, depending on age, current level of conditioning, and personal fitness goals. The American Heart Association recommends working-out at a Target Heart Rate Zone of between 60% and 75% of your maximum heart rate. A beginner will want to workout in the 60% range while a more experienced exerciser will want to workout in the 70-75% range. See chart for reference.

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

EXAMPLE:

For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum Heart Rate = 135 Beat Per Minute.

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

STRETCHING

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

STRETCH FIRST

Before using your product, it is best to take a few minutes to do a few gentle stretching exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing

these stretches.

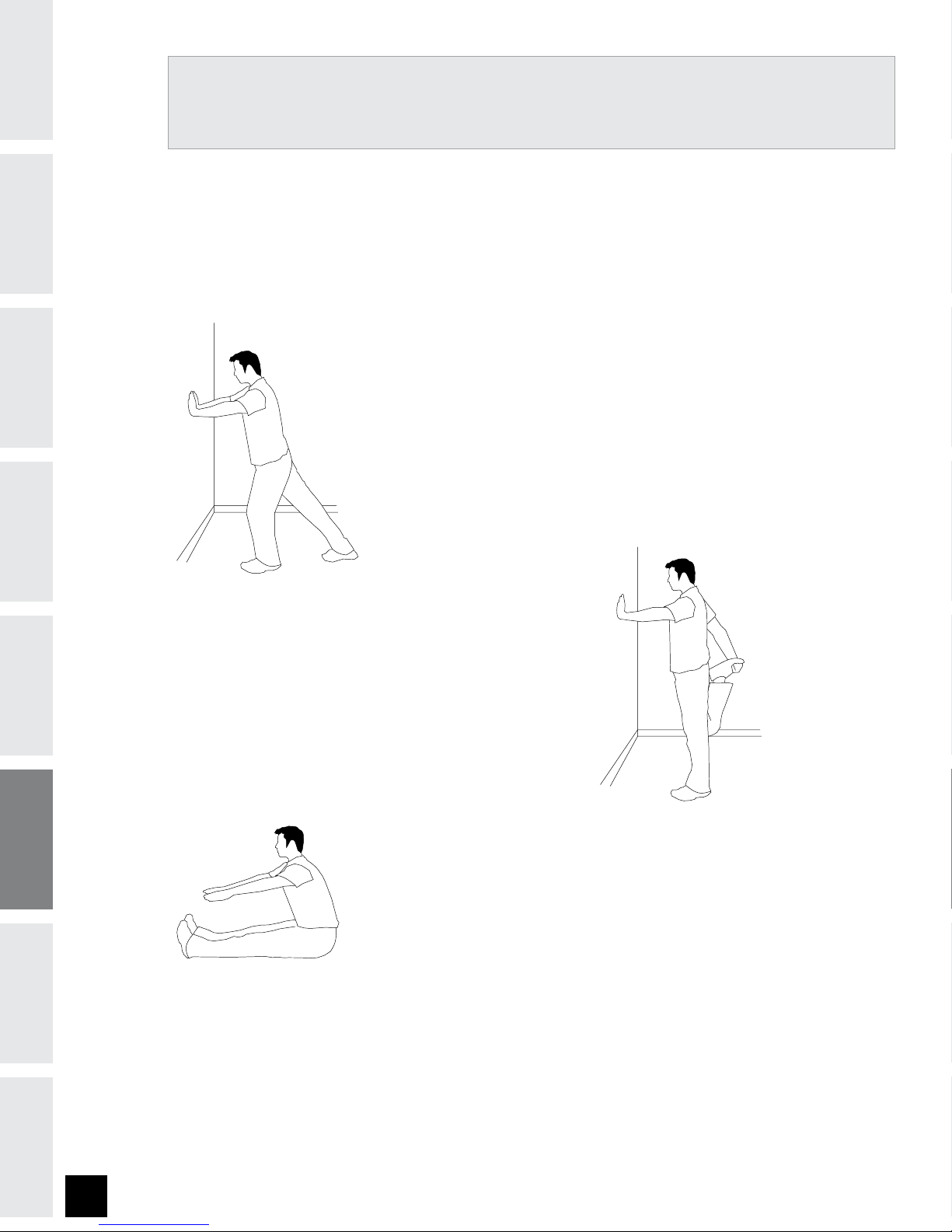

1. STANDING CALVE MUSCLE STRETCH

Stand near a wall with the toes of your left foot about 18" from the wall, and the right foot about 12" behind the other foot. Lean forward, pushing against the wall with your palms. Keep your heels flat and hold this position for a count of 15 seconds. Make sure that you do not bounce while stretching. Repeat on the other side.

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

2. STANDING QUADRICEPS STRETCH

Using a wall to provide balance, grasp your left ankle with your left hand and hold your foot against the back of your thigh for 15 seconds. Repeat with your right ankle and hand.

3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH

Sit on the floor with your legs together and straight out in front of you. Do not lock your knees. Extend your fingers towards your toes and hold for a count of 15 seconds. Make sure that you do not bounce while stretching. Sit upright again. Repeat one time.

WARRANTY

LIMITED

THE IMPORTANCE OF WARM UP & COOL DOWN

T I P S

WARM UP

The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.

COOL DOWN

Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your muscles.

ACHIEVING YOUR FITNESS GOALS

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

An important step in developing a long term fitness program is to determine your goals. Is your primary goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program. Below are some common exercise goals:

• Weight Loss - lower intensity, longer duration workouts

• Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities

• Increased Energy Level - more frequent daily workouts

• Improved Sports Performance - high intensity workouts

• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts

If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing. The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can be used to record your progress. You can track Distance, Calories or Time.

KEEPING AN EXERCISE DIARY

To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located on the following pages.

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

As your fitness improves, you can look back and see how far you’ve come!

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

W E E K # W E E K LY G O A L

W E E K LY T O T A L S :

D AY

S U N DAY

M O N DAY

T U E SDAY

W E D NESDAY

T H U RSDAY

F R I DAY

S AT UR D AY

D AT E DI S T A N C E C A L O R I E S T I M E C O M M E N T S

W E E K # W E E K LY G O A L

W E E K LY T O T A L S :

D AY

S U N DAY

M O N DAY

T U E SDAY

W E D NESDAY

T H U RSDAY

F R I DAY

S AT UR D AY

D AT E DI S T A N C E C A L O R I E S T I M E C O M M E N T S

W E E K # W E E K LY G O A L

W E E K LY T O T A L S :

D AY

S U N DAY

M O N DAY

T U E SDAY

W E D NESDAY

T H U RSDAY

F R I DAY

S AT UR D AY

D AT E DI S T A N C E C A L O R I E S T I M E C O M M E N T S

PRECAUTIONS

IMPORTANT

ASSEMBLY

WEEKLY L O G S H EETS

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

MONTHLY L O G S HEETS

M O N T H M O N T H LY G O A L

M O N T H LY T O T A L S :

W E E K # D I S TA N C E C A L O R I E S T I M E

M O N T H M O N T H LY G O A L

M O N T H LY T O T A L S :

W E E K # D I S TA N C E C A L O R I E S T I M E

M O N T H M O N T H LY G O A L

M O N T H LY T O T A L S :

W E E K # D I S TA N C E C A L O R I E S T I M E

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

LIFT

TROUBL E S H O OTING

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

COMMON PRODUCT QUESTIONS

ARE THE SOUNDS MY TREADMILL MAKES NORMAL?

All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will stretch, causing the belt to ride smoother over the rollers.

WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?

All fitness products seem quieter in a large store showroom because there is generally more background noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is placed close to a wall, there will be more reflected noise.

WHEN SHOULD I BE WORRIED ABOUT A NOISE?

As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is considered normal noise.

TROUBLESHOOTING - TREADMILL

Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the troubleshooting guide listed below.

PROBLEM: The banding straps were

removed before ASSEMBLY STEP 1 was complete and the machine has sprung open and cannot be assembled.

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

SOLUTION: The air shocks have been engaged prematurely. To correct this, tilt the machine on it’s nose by lifting

the deck (light end) upwards. Step on the foot latch and fold down the deck so that it is horizontal. You may now proceed with ASSEMBLY STEP 1.

PROBLEM: The console does not light up.

SOLUTION: Verify the following:

DOES THE RED LIGHT ON THE ON/OFF SWITCH LIGHT UP?

IF YES:

• Double check that all connections are secure, especially the console cable. Unplug and reconnect the console cable to verify.

• Make sure the console cable is not pinched or damaged in any way.

• Turn the power off and wait 60 seconds. Remove motor cover. Wait until all red LED lights have gone off on the motor control board before proceeding. Next, verify that no wires are loose or disconnected.

IF NO:

• Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped, it is on a dedicated 20-amp circuit, it is not on a GFCI equipped outlet, and it is not plugged into a surge protector or extension cord.

• The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.

• The power switch is turned to the ON position.

PROBLEM: The treadmill circuit breaker trips during a workout.

SOLUTION: Verify the following:

• Make sure the treadmill is plugged into a dedicated 20-amp circuit.

• Verify that you do not have the machine on an extension cord or surge protector.

• Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI-equipped outlet on it.

PROBLEM: The treadmill shuts off when elevating.

SOLUTION: Verify the following:

• Make sure there is enough slack in the power cord to reach to the wall during elevation

• Verify that the console cable is not pinched between the handlebars and console mast.

PROBLEM: The running belt does not stay centered during a workout.

SOLUTION: Verify the following:

• Make sure the treadmill is on a level surface.

• Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).

TROUBLESHOOTING - HEART RATE

Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home security systems or appliances containing large motors. These items may cause erratic heart rate readouts.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

You may experience an erratic readout under the following conditions:

• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.

• Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.

• When you are breathing heavily during a workout.

• When your hands are constricted by wearing a ring.

• When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.

• Anyone with heavy arrhythmia.

• Anyone with arteriosclerosis or peripheral circulation disorder.

• Anyone whose skin on the measuring palm is especially thick.

If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.

PLEASE CALL SEARS AT THE NUMBER ON THE BACK PANEL.

The following information may be asked of you when you call. Please have these items readily available:

Model Name

•

• Serial Number

• Date of Purchase (receipt or credit card statement)

In order for Sears to service your treadmill they may need to ask detailed questions about the symptoms that are occurring. Some troubleshooting questions that may be asked are:

• How long has this problem been occurring?

• Does this problem occur with every use? With every user?

• If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking, chirping etc.)?

• Has the machine been lubricated and maintained per the maintenance schedule?

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary to get you and your Freespirit treadmill running again!

LIMITED

WARRANTY

INTRODUCTION

MAINTE N A N C E

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.

AFTER EACH USE (DAILY)

Clean and inspect, following these steps:

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they can cause damage to the treadmill.

• Inspect the power cord. If the power cord is damaged, contact Sears.

• Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.

• Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other components on the treadmill by being misaligned.

EVERY WEEK

Clean underneath the treadmill, following these steps:

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Fold the treadmill into the upright position, making sure that the lock latch is secure.

• Move the treadmill to a remote location.

• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.

• Return the treadmill to its previous position.

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

EVERY MONTH - IMPORTANT!

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Inspect all assembly bolts of the machine for proper tightness.

• Turn off the treadmill and wait 60 seconds.

• Remove the motor cover. Wait until ALL LED lights turn off.

• Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to do so may result in premature failure of key electrical components.

EVERY 6 MONTHS

It may be necessary to lubricate your treadmill running deck every six months to maintain optimal performance of your treadmill. Only use lubricant provided by Sears! Please contact Sears with questions about applying lubricant to your treadmill.

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Loosen both the rear roller bolts. (For best results, place two removable marks on both sides of the frame and note roller position). Once the belt is loosened, take the bottle of lubricant and apply it to the entire top surface of the running deck. Tighten both rear roller bolts (matching up the marks for proper position) to original position. After you have applied lubricant, plug in the power cord, insert the safety key, start the treadmill and walk on the belt for two minutes to spread the lubricant.

• Lubricate the air shocks with teflon based spray.

LIMITE D H O M E -USE WARRA N T Y

FRAME • 10 YEARS

Sears warrants the frame against defects in workmanship and materials for a period of ten years from the date of purchase, so long as the device remains in the possession of the original owner.

DRIVE MOTOR/ELEVATION • 3 YEARS

Sears warrants the drive/elevation motors against defects in workmanship and materials for a period of three years from the date of purchase, so long as the device remains in the possession of the original owner.

ELECTRONICS & PARTS • 1 YEAR

Sears warrants the electronic components, finish and all original parts for a period of one year from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR • 1 YEAR

Sears shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ASSEMBLY

EXCLUSIONS AND LIMITATIONS

Who IS covered:

• The original owner and is not transferable.

What IS covered:

• Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

• Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

• Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by Sears.

• Incidental or consequential damages. Sears is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the equipment.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by Sears for coverage.

• Equipment owned or operated outside the US and Canada.

• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.

• Any attempt to repair this equipment creates a risk of injury. Sears is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and Sears shall have no liability for any injury to the person or property arising from such repairs.

SERVICE/RETURNS

• All returns must be pre-authorized by Sears.

• Sears’ obligation under this warranty is limited to replacing or repairing, at Sears’ option, the equipment at one of its authorized service centers.

• A Sears authorized service center must receive all equipment for which a warranty claim is made. This equipment must be received with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.

• Parts and electronic components reconditioned to As New Condition by Sears or its vendors may sometimes be supplied as warranty replacement parts and constitute fulfillment of warranty terms.

• This warranty gives you specific legal rights, and your rights may vary from province to province.

BEFORE

YOU BEGIN

TREADMILL

OPERATION

GUIDELINES

CONDITIONING

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

INTRODUCTION

AC1 SP0003081AB Support Tube - Left AC2 SP0004066AB Support Tube - Right AC3 SP0016004AB Crossbar AH1 SP0017009BF Incline Motor Frame AH2 SP0018022AE Fold Frame AH3 SP0022013AE Lower Link Arm AN1 SZTM189CNS Console Set AN2 SZTM153CNC Console Frame Set AR1 SM0907028B Front Roller Set AR2 SM0908016A Rear Roller Set AZ1 SM0039075A Hardware Kit B14 MZE0502025 Washer, Flat - Air Shock B18 MB0657003A Air Cell B25 MJ1017028C Bracket - Motor Control Board B27 MD0701078A Running Deck B36 MZE0105005 Bolt - Deck B39 MZE0121004 Screw, oval-tapping B42 ML0000092 Screw, oval-tapping - Deck B43 MZE0201010 Nut B52 MJ1040005C Bracket - Speed Sensor B56 ML0211057A Air Shock B57 MB0502016D Elastomer - Orange B58 MB0502017D Elastomer - Blue B59 ME0301014 Rivet B60 MZE0204006 Nut, Nylon - Air Shock B61 MZE0107010 Screw, oval-tapping - Speed Sensor B62 MB0502022A Elastomer C23 ME0204030 Nut, Nylon - Support Tube C24 MB0653004 Cap-Support tube C25 MZE0502045 Washer, Flat - Support Tube C26 ME0505062A Washer, Teﬂon G01 SZTM153HDB Handlebar w/ foam G04 MB0609018 Handlebar Endcap H05 MB0657002B Cover-Fold frame H14 MJ3022015B Bolt - Support Tube Base H19 MJ3022007B Bolt - Incline Support H20 MZE0502014 Washer, Flat - Lower Link Arm H21 MZE0503019A Washer, Flat - Incline Support H22 MZE0506020A Wave Washer - Foot Lock Latch H24 ME0505064A Washer, Teﬂon - Foot Lock Latch H25 MZE0502186A Washer, Flat - Foot Lock Latch H26 MZE0204005 Nut, Nylon - Fold Frame H27 MZE0505033 Washer, Teﬂon - Incline Support H30 MZE1117004D Spring - Foot Lock Latch H31 SP0027028AE Foot Lock Latch H42 MZE0112034 Bolt - Lower Link Arm H47 MZE0502054 Washer, Flat - Mobile Wheel H50 MZE0105009 Screw - Incline Support H51 ME0204025 Nut, Nylon - Mobile Wheel L05 MB0103040CA Mobile Wheel - Fold Frame L06 MB0103040CA Mobile Wheel - Rear Of Deck L07 MZE0502054 Washer, Flat - Mobile Wheel L08 ME0204025 Nut, Nylon - Mobile Wheel L10 MB0643001 Rail Lock L11 ME0103014B Screw, 15mm - Rail Lock M01 SZTM114MTR Drive Motor Set - Digital - 2.25HP M02 SCA302017 Incline Motor Set M03 SZTM113MCB Motor Control Board-Digital Drive-2.25HP M05 SP0026037A Drive Motor Bracket M06 MZE0104112 Bolt - Drive Motor Bracket M07 MB0607001B Rubber Pad - Drive Motor M08 MZE0204005 Nut, Nylon - Drive Motor Bracket M09 MZE0502025 Washer, Flat - Drive Motor Bracket M10 ME0106026B Screw - Incline Bracket M12 MZE0204013 Nut, Nylon - Incline Motor Bracket M13 MZE0502197A Washer, Flat - Incline Bracket M14 MZE0106018 Bolt - Incline Motor M17 MC0704005 Ferrite Core M19 MZE0107023 Screw - MCB M25 MZE0501007 Washer, Spring - Drive Motor Bracket M30 MZE0502033 Washer, Flat - Drive Motor Bracket M45 MZE0104073 Bolt - Drive Motor Bracket M46 ME0104164 Bolt - Drive Motor Bracket N01 MB0617081AB Console Case Only N02 MB0663031BB Overlay cover

N13 MC0403014A Reed Switch N15 MZE0107023 Screw N19 MZE0107021AB Screw, oval-tapping N21 MB1124011AA LCD Screen N26 MC0712021B Pulse Grip - Single N30 MB0609092AB End Cap - Pulse Grip N33 S140115001 Safety Key Set N37 SJED06003BB Heart Rate Receiver N55 MZE0112136 Bolt - Support Tube N58 MZE0107058A Screw - Handlebar N59 MZE0107049A Screw - Upper Control Board N60 SJED01193AA Upper Control Board N61 MC0601490A Overlay N62 MC0602237B Membrane Key N63 SM0017010A Receiver Set P02 MC0701002 Power Switch P04 MC0702011 Breaker P06 MC0501136A Console Cable - Upper Control Board P07 MC0504054A Power Cord P08 MC0503001B Connecting Cable - Socket, breaker P09 MC0525033B Power Cable - Control Board P10 MC0525034B Cable - Control Board P11 MC0703023 Power Socket P12 MB0716010AA Sleeve - Console Cable P13 MZE0103001 Screw - Power Socket P14 SSED080434BA Sensor - Digital Motor P16 ME0201001 Nut - Power Socket P17 ME0102042 Screw P18 MZE0504014 Washer P19 MZE0201010 Nut P20 MC0510031D Speed Sensor P30 MC0502060B Console Cable (1500 mm) - MCB Q01 MB0236062AC Motor Cover Only

- Order MG0215071A (V02) and MG0215160A (V06) separately Q02 MB0236039DC Bottom Cover-Motor Q03 SZTM153RAL-F Side Rail Set w/Decal,Front - L/R Q04 SZTM153RAL-H Side Rail Set w/Decal,Rear - L/R Q05 MB0238029BA Foot Pad - Side Rail Q06 MB0304067BA FootPad-Rubber Q07 MB0665019DB End Cap - Foot Rail-L Q08 MB0666019DB End Cap - Foot Rail-R Q09 MB0609124BB End Cap-Base Frame Q10 MB0608011BA Accessory Tray Q11 MZE0121003 Screw, oval-tapping - Motor Cover Q12 MZE0121006A Screw, oval-tapping - End Cap Q13 MZE0107040 Screw, oval-tapping - End Cap Q14 MZE0123011A Screw, oval-tapping - Foot Pad Q15 ME0902011 Tinnamen Nut Q20 MB0403059AA Foam Tape - Side Rail R02 MD0610071A Running Belt R03 MD0602022 Drive Belt R04 MZE0104203 Bolt - Belt Adjuster R06 MZE0502025 Washer, Flat R08 MZE0104029 Bolt - Front Roller R09 MZE0104168 Bolt - Front Roller R10 MZE0201038 Nut - Front Roller V02 MG0215071A Decal, Motor Cover Logo V03 MG0209009A Decal, Horizon Logo - Console V06 MG0215160A Decal - Motor Cover - POP Info V07 MG0272017A Decal, Console-POP Info V22 MG0256177A Decal, Programs V23 MG0256181A Decal, Instructions V35 MG0215159A Decal V43 MH0207223A Owner's Manual - English V48 MH0207224A Owner's Manual - French Z01 ME0503001 Arc Washer - Support Tube Z03 MTKI68112 Spring Washer - Support Tube Z10 MZE1007001 L-wrench Z12 MZE0112013 Screw - Crossbar Z13 ME0502079 Washer - Crossbar Z14 MZE0501029 Spring Washer - Crossbar Z15 SM0018005A Optical Disc - Drive Motor Z17 MZE0102008 Screw - Handlebar Z18 MZE0107023 Screw - Accessory Tray Z20 ME0112233A Screw Z21 SM0055001AA Pedometer

PRECAUTIONS

IMPORTANT

PARTS LI S T

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

M03

M12

Q32

H47

L05

H27

M14

H19

H05

H21

H27

Q30

AH1

H26

B56

H21

M12

AH2

H30

C26

H20

H14

Q02

C23

AC1

M02

H24

B52

R10

R08

M10

M13

N55

N16

N15

N26

AN2

L08

Q30

H31

Q30

Q07

R09

B58

L06

L07

B57

B59

Q08

Q30

Q03

M01

C23

H14

H25

Q17

B25

AC2

R03

N55

B27

AR1

M06

M25

M30

M05

M08

M17

Q01

V02

Q30

N01

N07

N13

P30

V03

N08

N02

N04

N15

N37

N59

N06

N33

B39

H49

R04

P14

B35

B60

Z03

C24

H50

H42

Z01

P06

N17

N27

N58

C25

C26

C25

M19

Q30

H51

M09

R06

Q33

Q31

AN3

AN5

Q35

Q34

Z12

C27

Q21

Z08

C28

N59

B39

B18

Q09

H24

N73

Z06

Z08

N15

AH3

V21

V18

H20

H42

H22

P11

P13

P07

P10

P08

P04

P02

P10

EXPLOD E D D R AW I N G

INTRODUCTION

IMPORTANT

ASSEMBLY

BEFORE

TREADMILL

CONDITIONING

PRECAUTIONS

YOU BEGIN

OPERATION

GUIDELINES

& MAINTENANCE

TROUBLESHOOTING

LIMITED

WARRANTY

M03

M12

AH2

H30

B52

R10

R08

M10

M13

N16

N26

AN2

L08

Q30

H31

Q30

Q07

R09

B58

L06

L07

B57

B59

Q08

Q30

Q03

R02

M01

C23

H14

H25

Q17

B25

AC2

R03

N55

B27

AR1

M06

M25

L10

M45

M30

M05

M09

M08

M17

M07

Q01

V02

Q30

Q03

B36

N04

B39

L11

H49

R04

P14

B35

B60

Z03

C24

Z01

P06

N27

C26

C25

M19

R06

Q33

Q31

M46

AN3

AN5

Q35

Q34

Z12

C28

AR2

B39

B18

Q09

H24

N73

Z06

V21

V18

H20

H42

H22

INTRODUCTION

PRECAUTIONS

IMPORTANT

ASSEMBLY

YOU BEGIN

BEFORE

OPERATION

TREADMILL

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

WARRANTY

LIMITED

Get it fixed, at your home or ours!

+VTU$BMM

.:)0.&



IPVSTBEBZEBZTBXFFL

'PSUIFSFQBJSPGNBKPSCSBOEBQQMJBODFTJOZPVSPXOIPNF

OPNBUUFSXIPNBEFJUOPNBUUFSXIPTPMEJU

'PSZPVSOFBSFTU4FBST1BSUT4FSWJDFMPDBUJPO

UPCSJOHJOQSPEVDUTMJLFWBDVVNTMBXOFRVJQNFOUBOEFMFDUSPOJDT

'PS4FBST1BSUT4FSWJDFUPPSEFSUIFSFQMBDFNFOUQBSUT

BDDFTTPSJFTBOEPXOFShTNBOVBMTUIBUZPVOFFEUPEPJUZPVSTFMG

XXXTFBSTDB

5PQVSDIBTFPSJORVJSFBCPVUB4FBST.BJOUFOBODF"HSFFNFOUDBMM



BNQN.PO'SJ&45BNQN4BU

1PVSTFSWJDFFOGSBODBJT

-&'0:&3



XXXTFBSTDB

)PNF$FOUSBM

5SBEFNBSLTPG4FBST3PFCVDLBOE$PVTFEVOEFSMJDFOTFCZ4FBST$BOBEB .BSRVFEFQPTÒF.BSRVFEF$PNNFSDFEF4FBST3PFCVDLBOE$PVUJMMJTÒFFOWFSUVEÓVOFMJDFODFEF4FBST$BOBEB

30518 Core Training Treadmill. Rev. 1.1 | Designed & Engineered in the U.S.A. | Made in China

Free Spirit 30518 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
