Freescale Semiconductor 56F8037 User Manual

56F8037

Evaluation Module User Manual

56F8000
16-bit Digital Signal Controllers

MC56F8037EVMUM
Rev. 0
09/2006

freescale.com

TABLE OF CONTENTS

Preface 1-vii

Chapter 1

Introduction

1.1 56F8037EVM Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 56F8037EVM Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.2.1 USB Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1.2.2 External +9.0V DC Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1.2.3 External +3.3V DC Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Chapter 2

Technical Summary

2.1 56F8037. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.2 USB Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.3 Debug LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.4 Debug Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.5 External Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.6 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.7 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.7.1 USB Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.7.2 External +9V DC Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.7.3 Daughter Card Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.8 Daughter Card Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.9 Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Appendix A

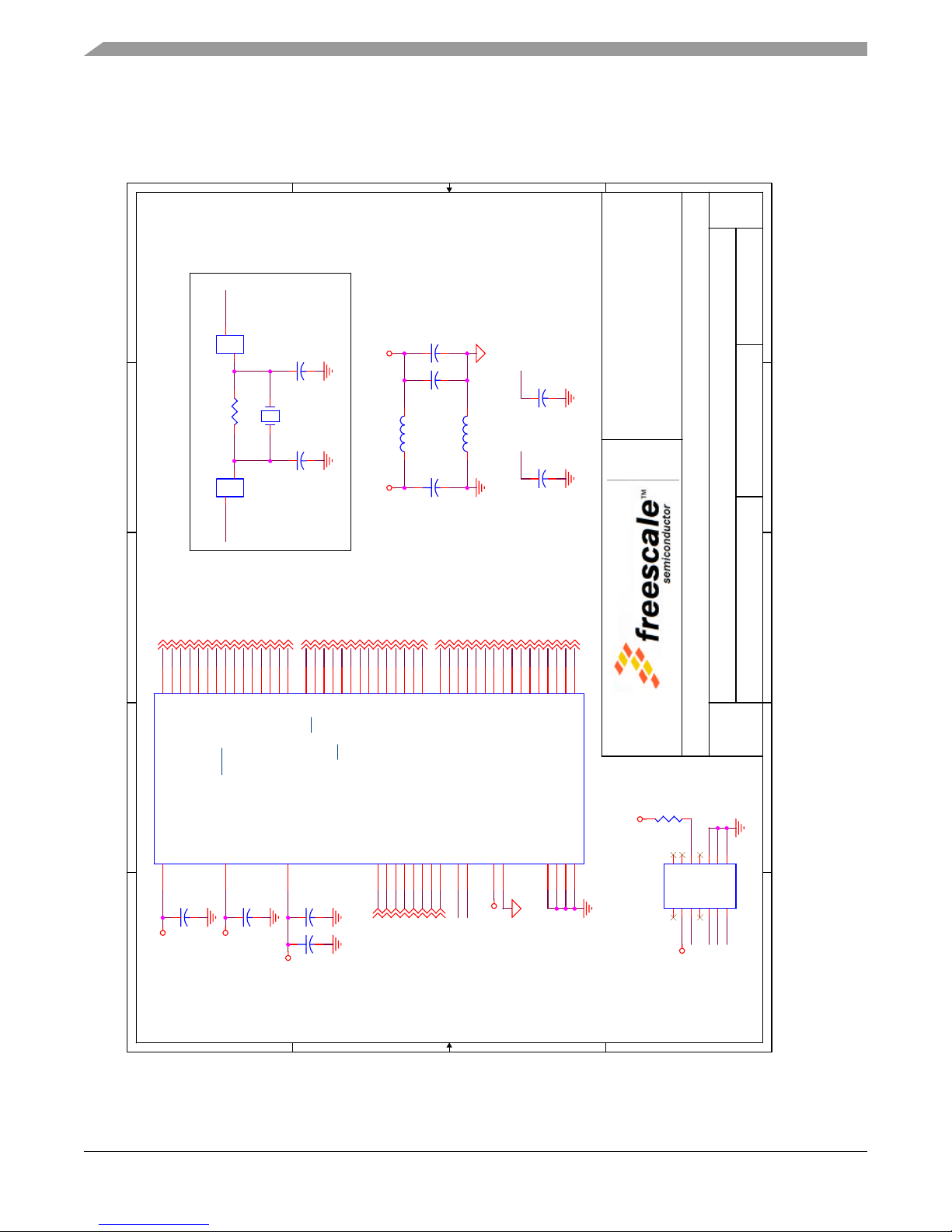

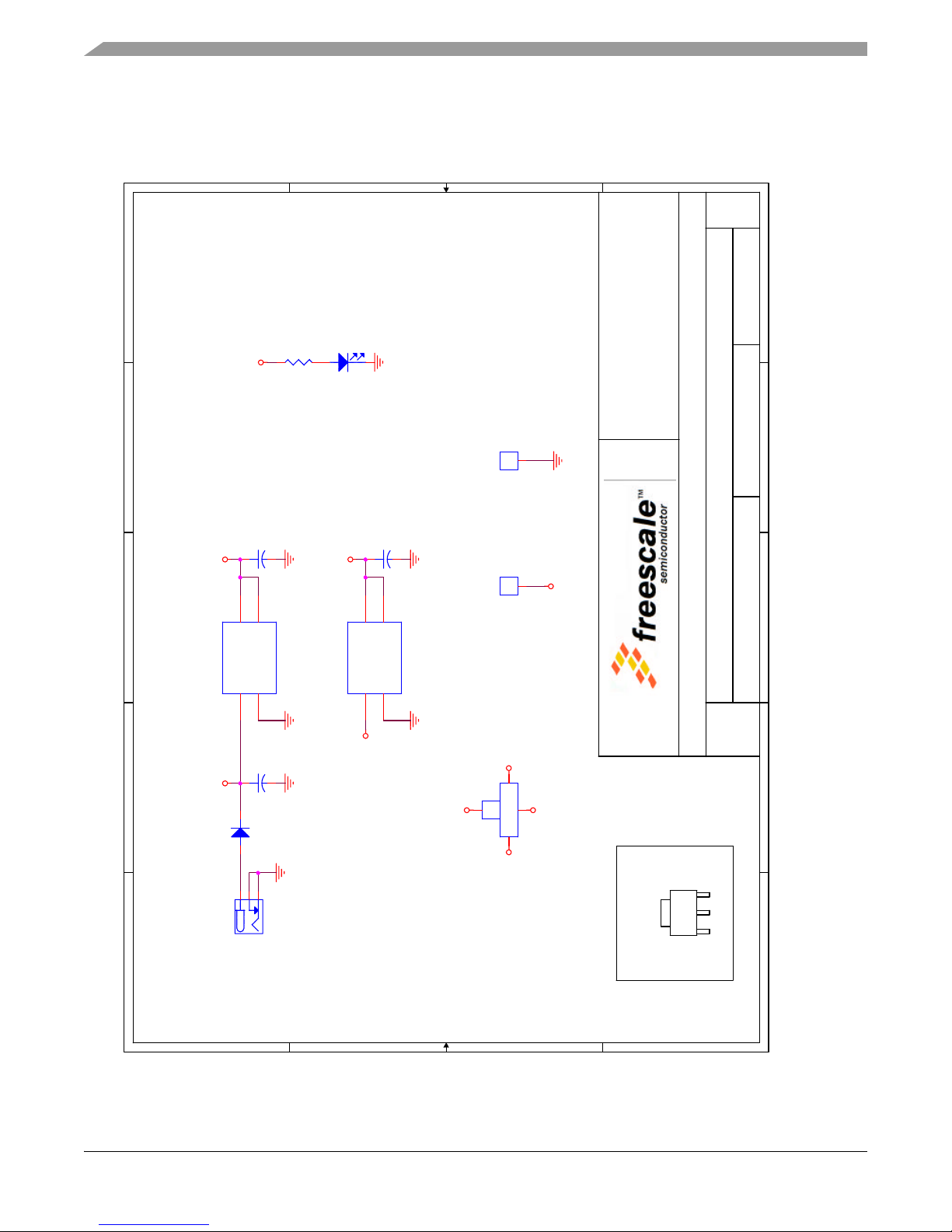

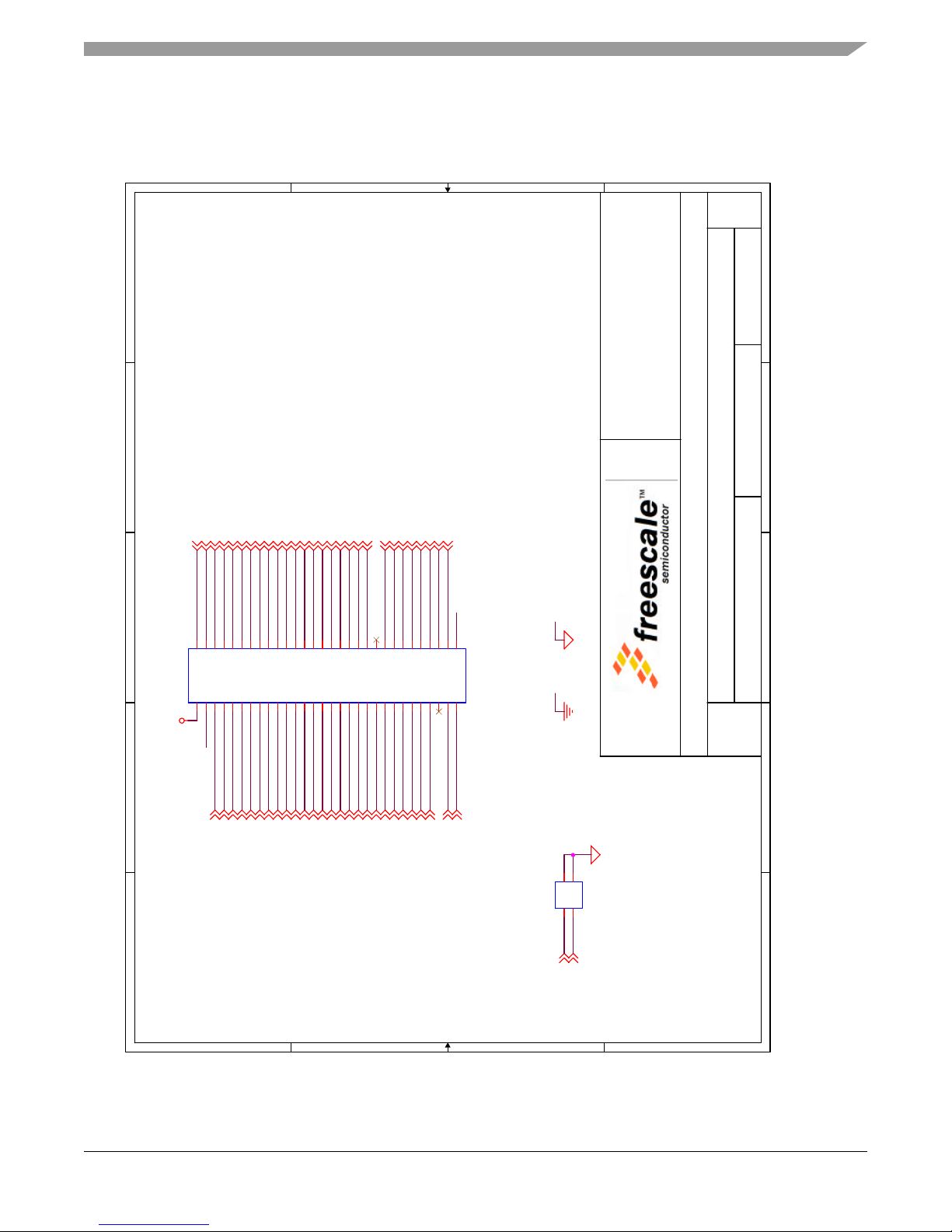

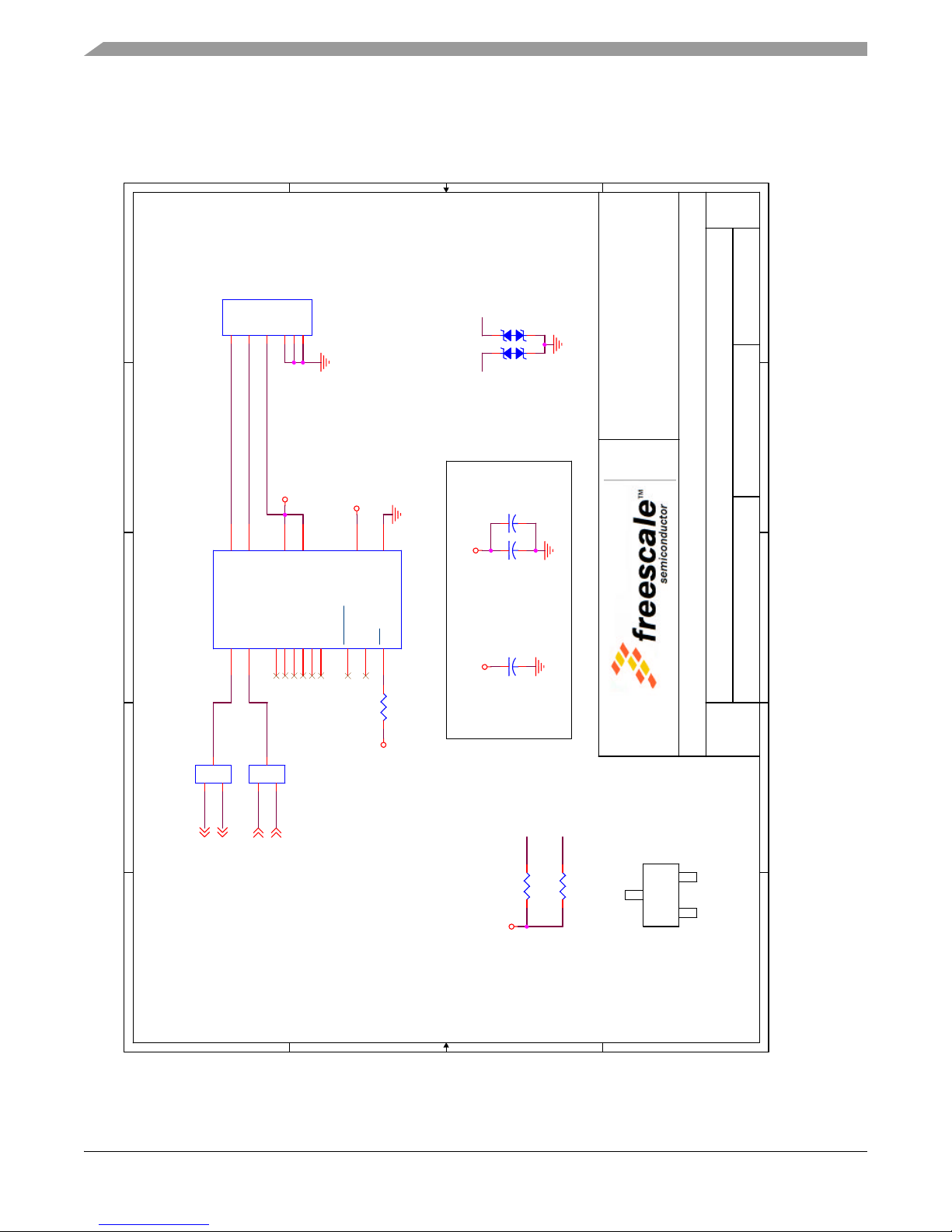

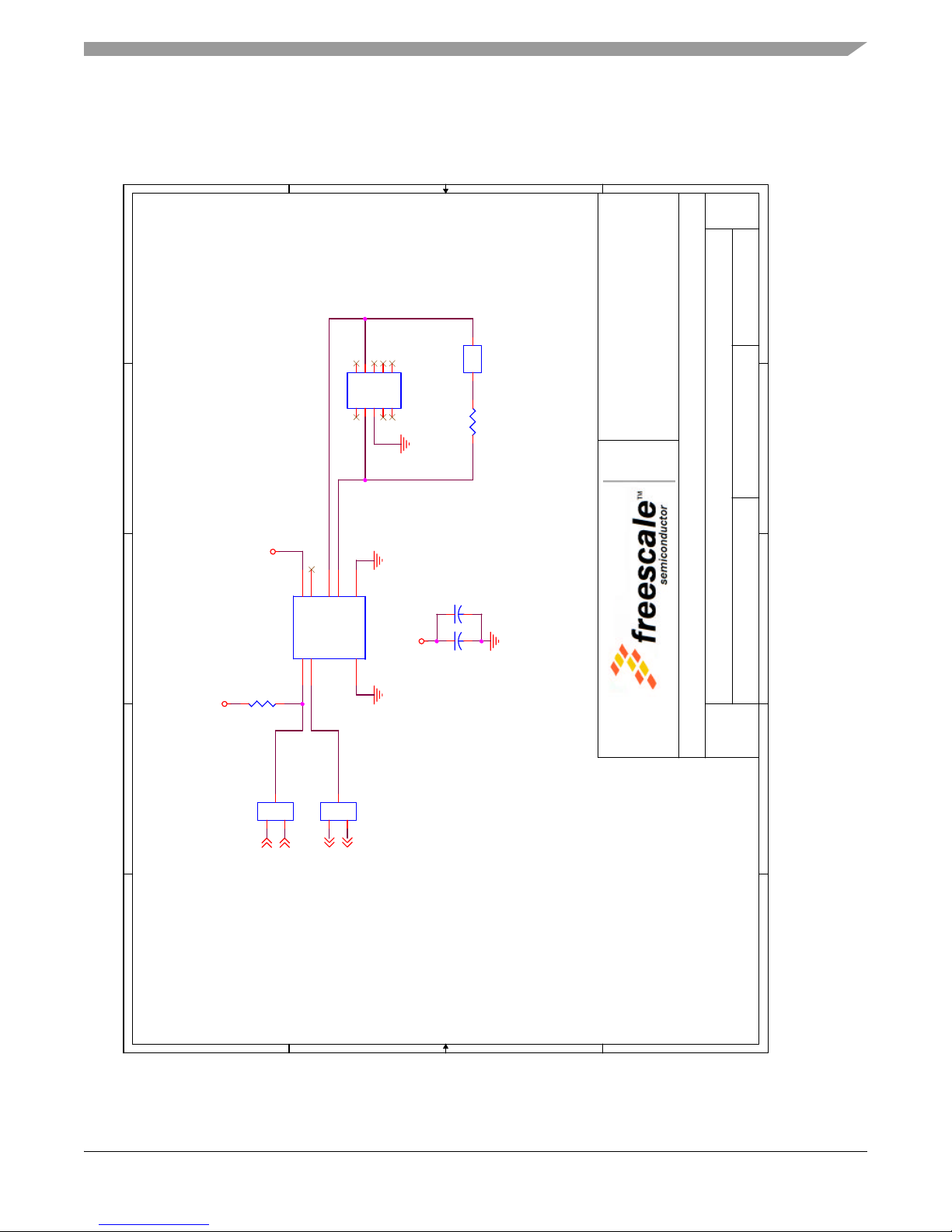

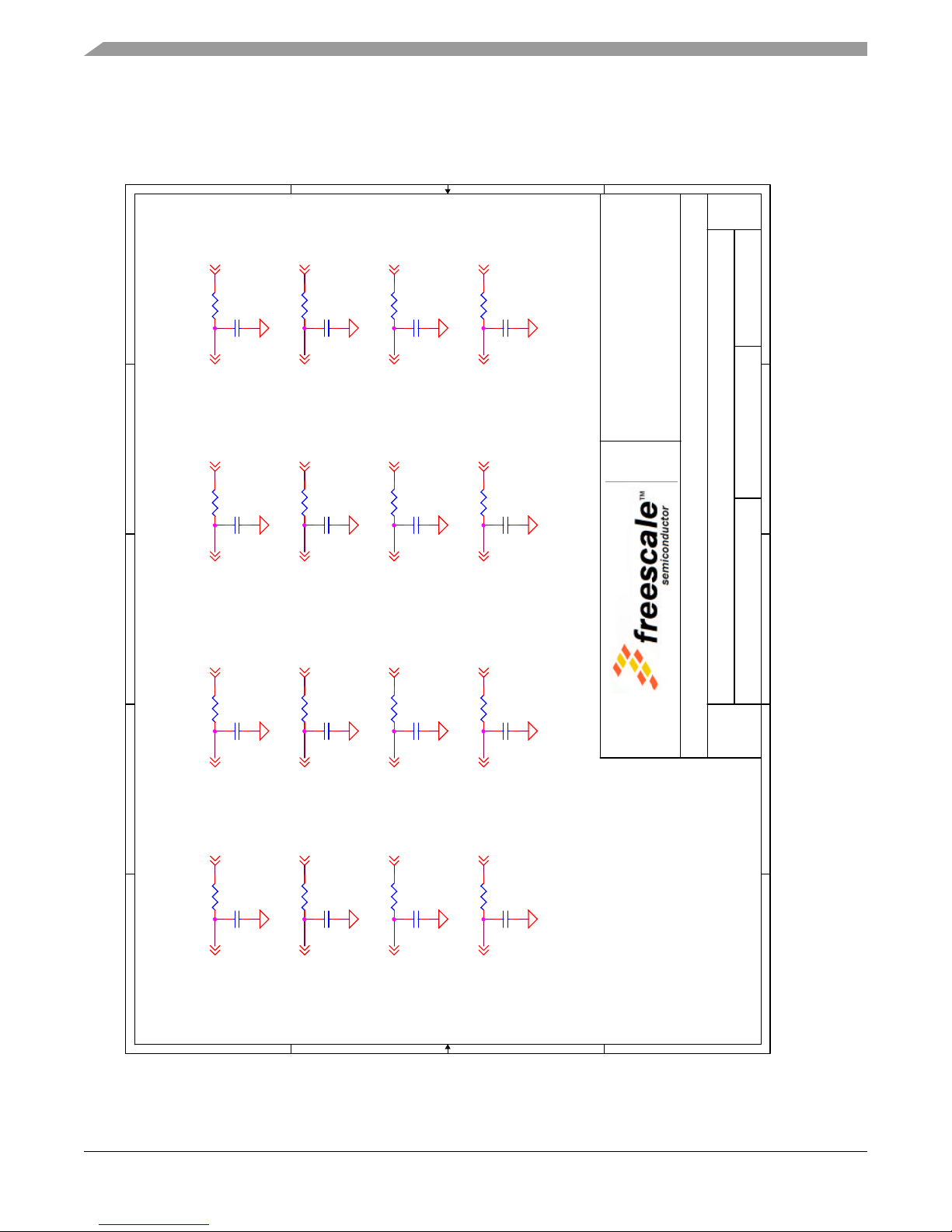

56F8037EVM Schematics

Appendix B

56F8037EVM

Bill of Material

Freescale Semiconductor i
Preliminary

Table of Contents, Rev. 0

ii Freescale Semiconductor

56F8037EVM User Manual, Rev. 0

Preliminary

LIST OF TABLES

2-1 SCI RxD Signal Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-2 SCI TxD Signal Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2-3 LED Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2-4 JTAG Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2-5 Power Source Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2-6 Daughter Card Connector Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Freescale Semiconductor iii
Preliminary

List of Tables, Rev. 0

iv Freescale Semiconductor

56F8037EVM User Manual, Rev. 0

Preliminary

LIST OF FIGURES

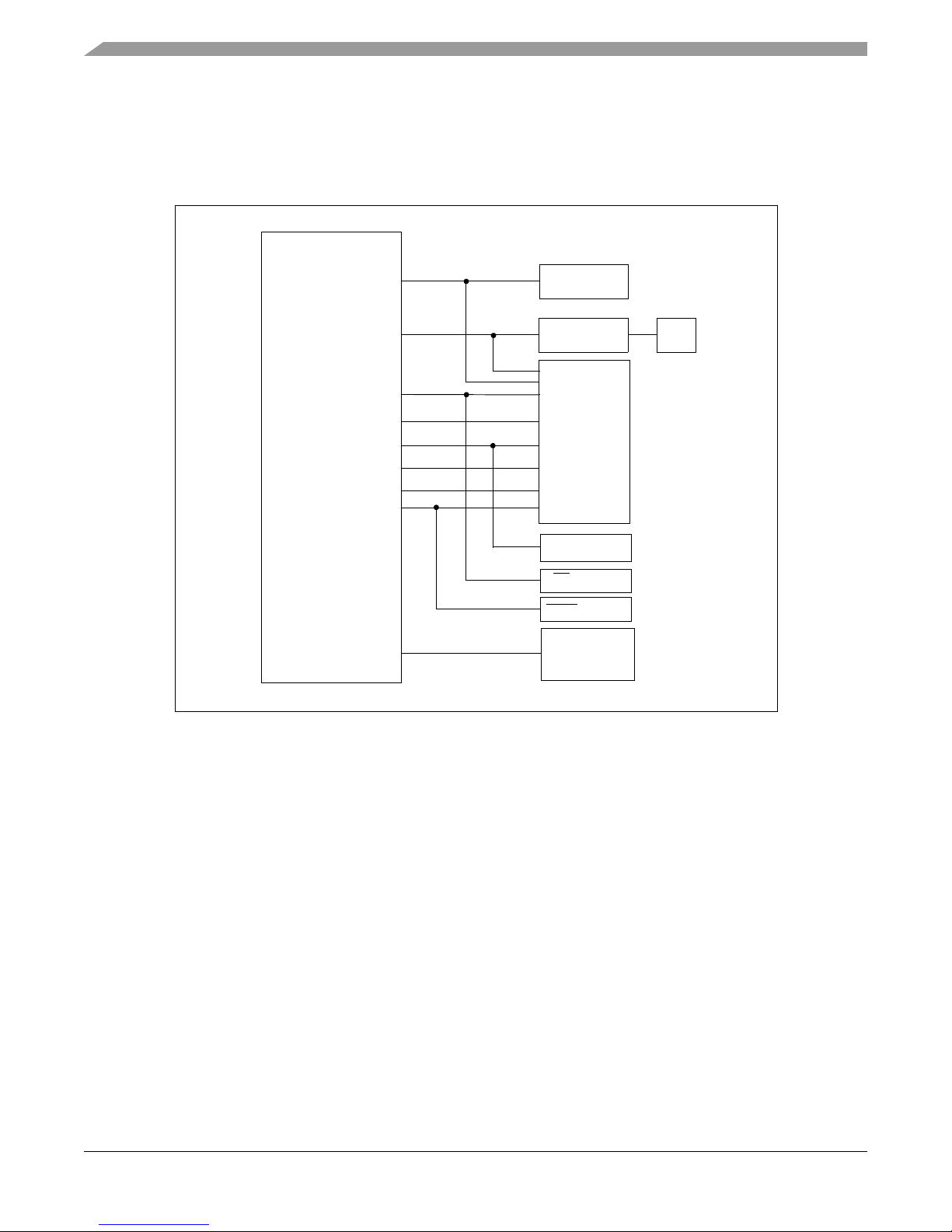

1-1 Block Diagram of the 56F8037EVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

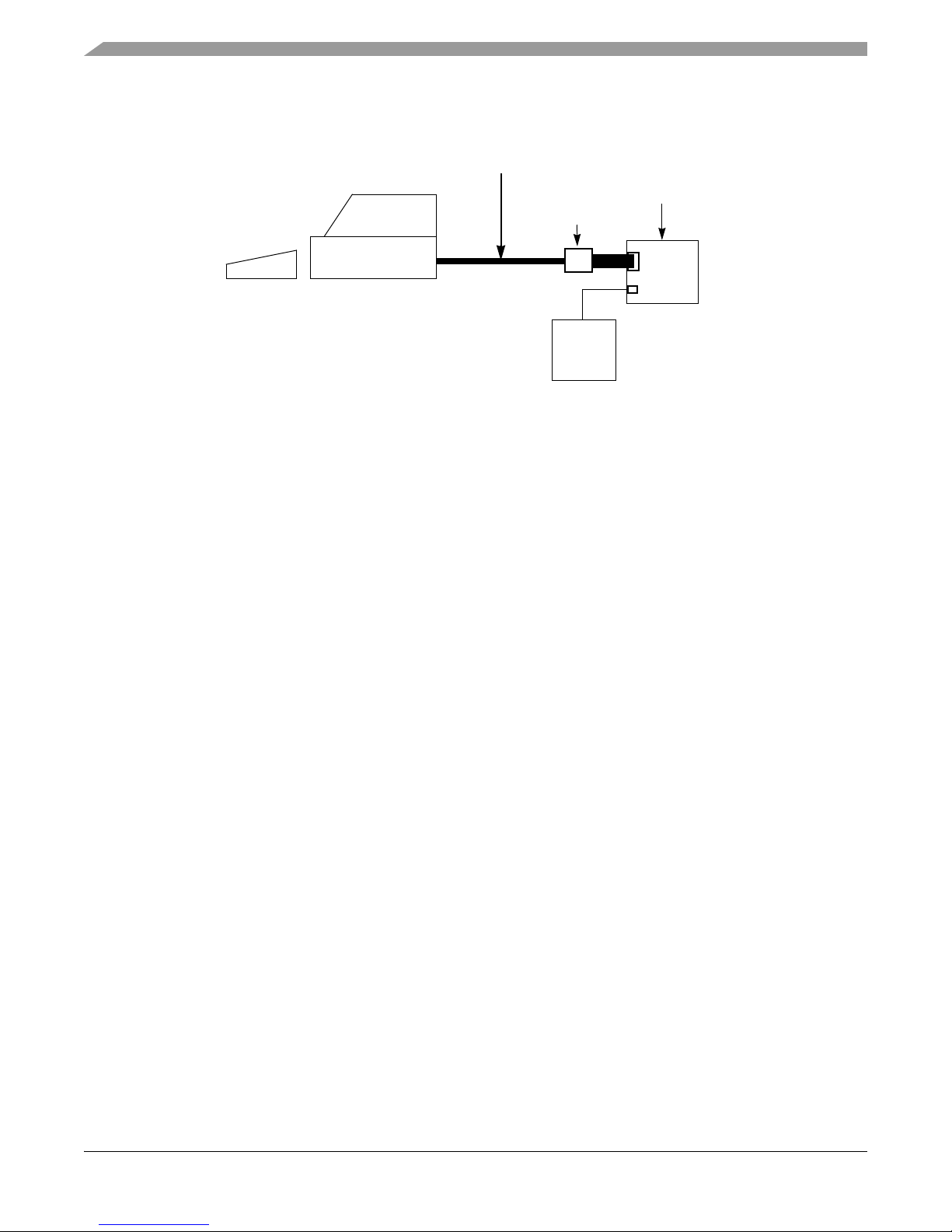

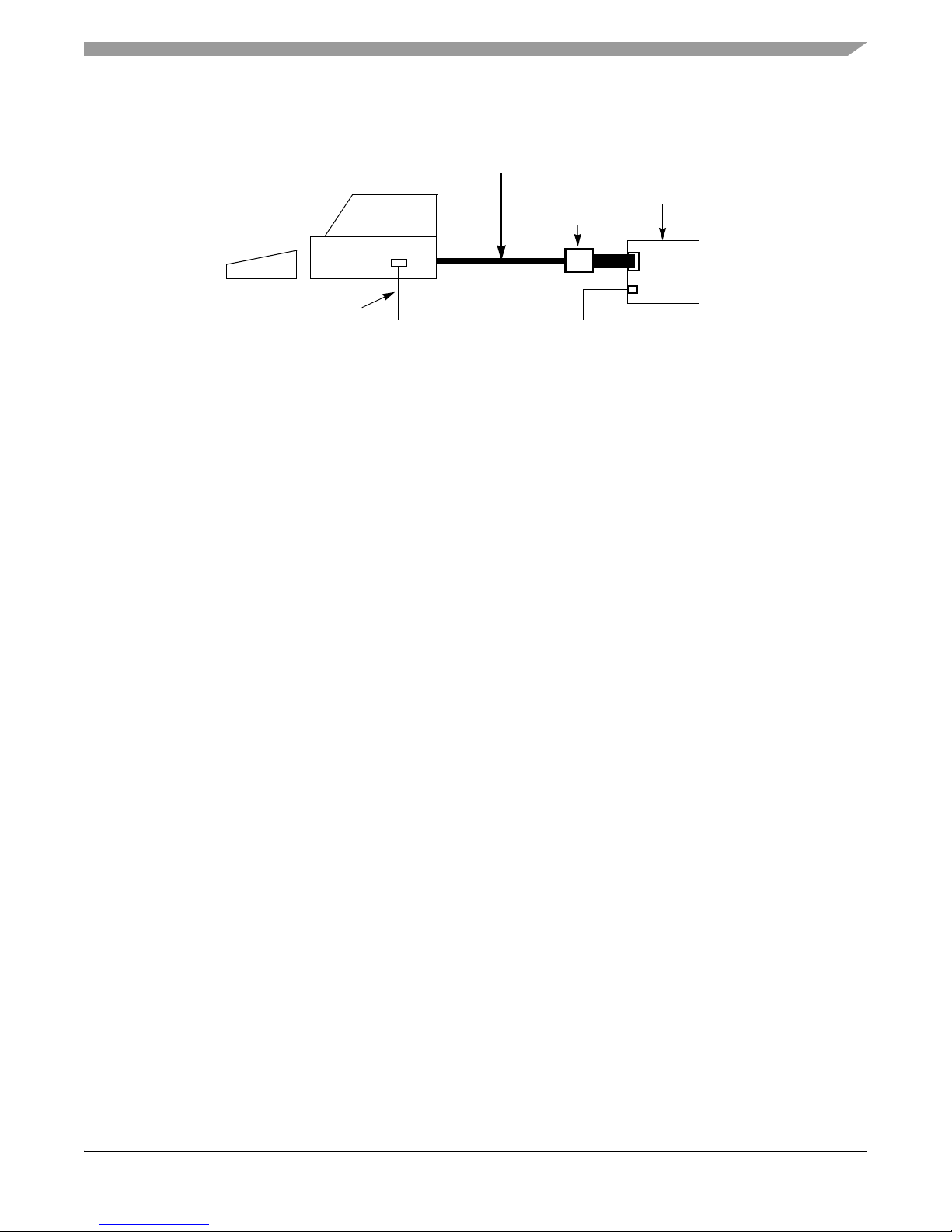

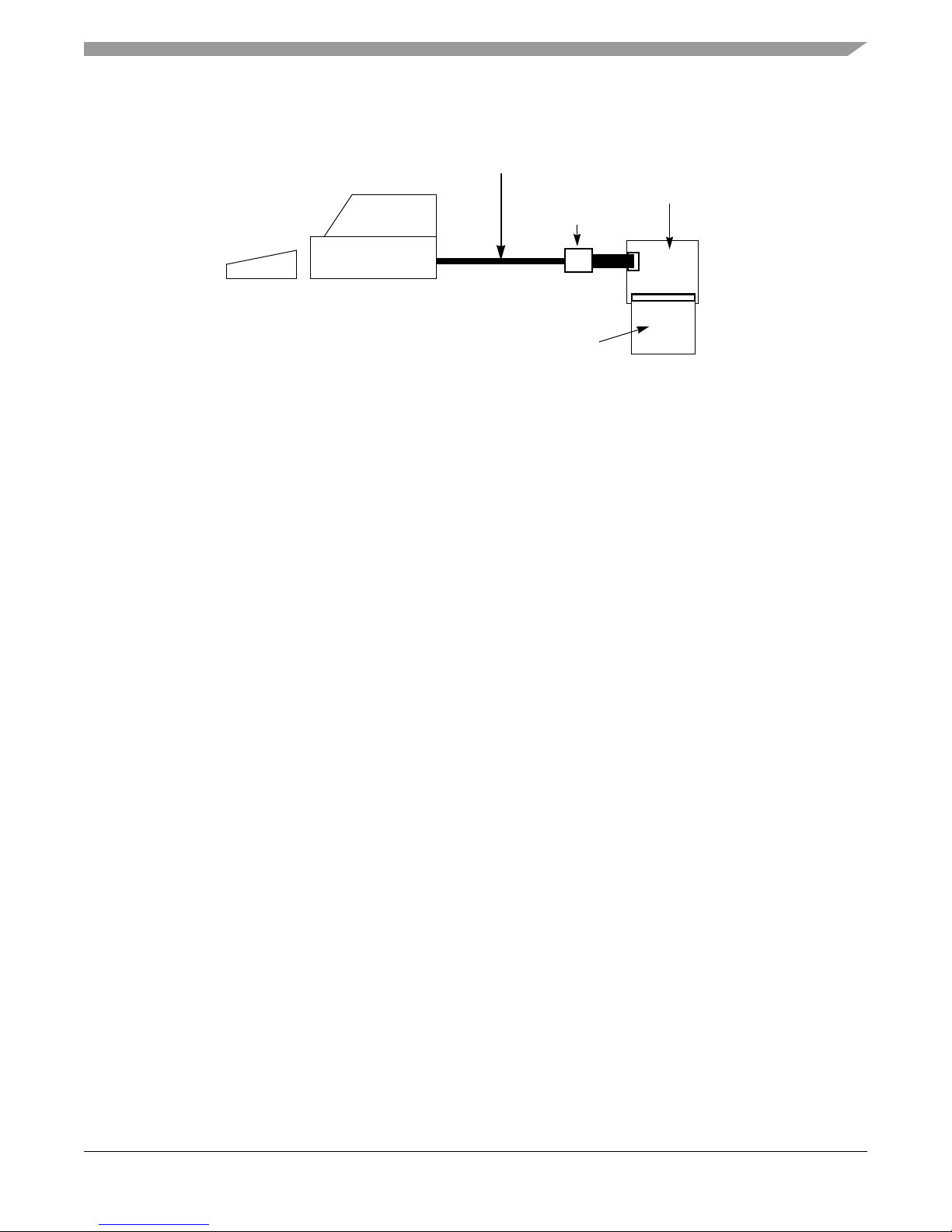

1-2 56F8037EVM Cabling for USB Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1-3 56F8037EVM Cabling for External +9V Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1-4 56F8037EVM Cabling for External +3.3V Power . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

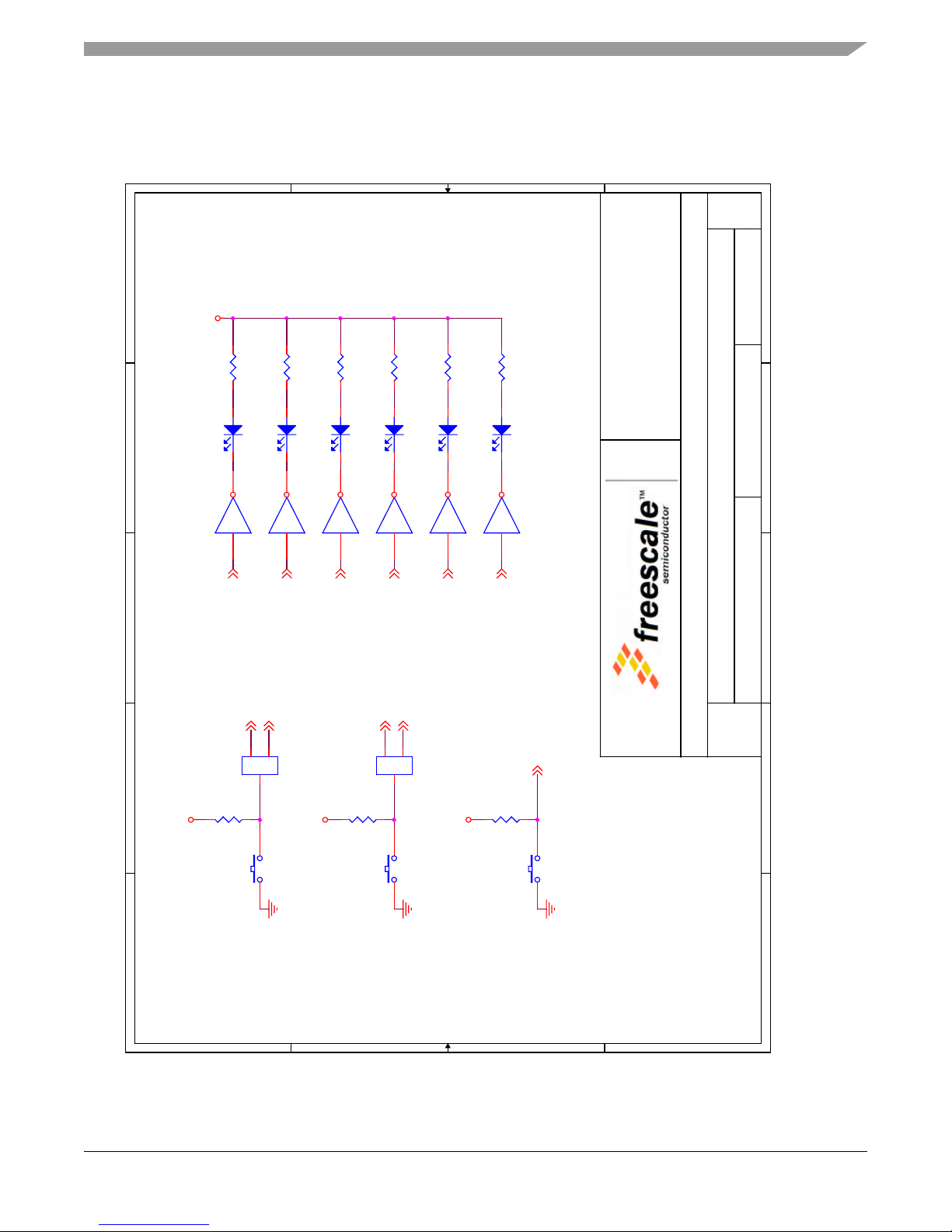

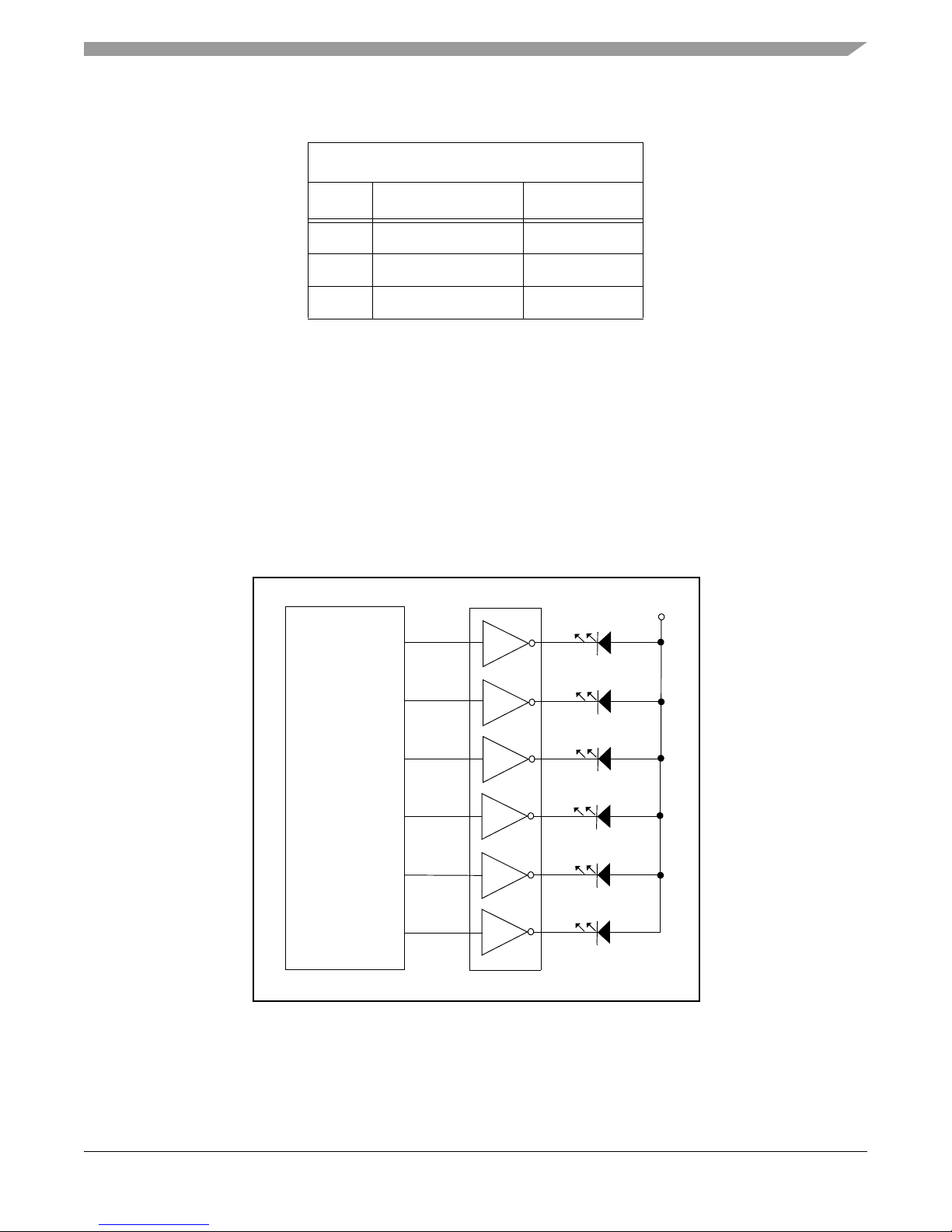

2-1 Diagram of the Debug LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

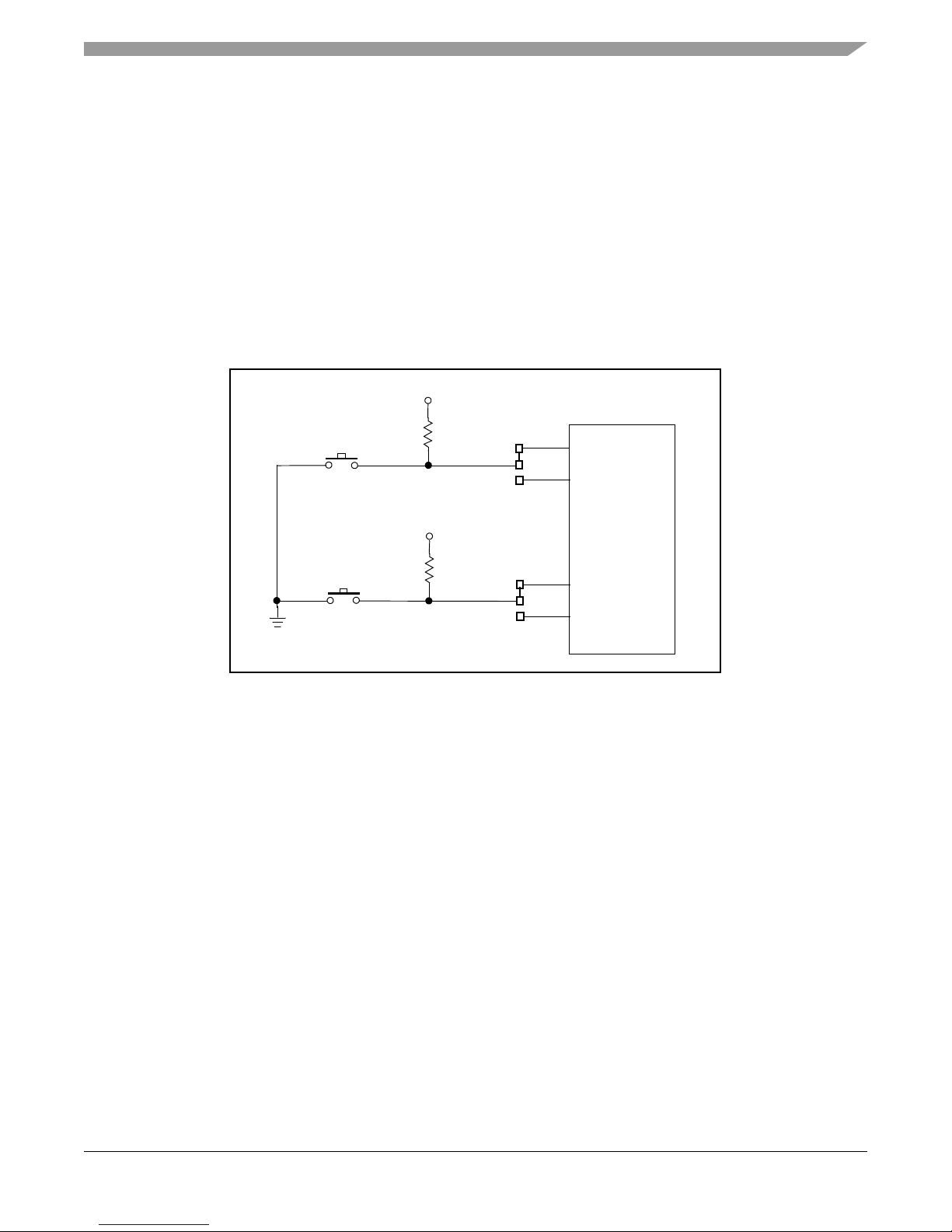

2-2 Schematic Diagram of the User Interrupt Interface. . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Freescale Semiconductor v
Preliminary

List of Figures, Rev. 0

vi Freescale Semiconductor

56F8037EVM User Manual, Rev. 0

Preliminary

Preface

This manual describes the hardware on the 56F8037EVM in detail.

Audience

This document is intended for application developers who are creating software for
devices using the Freescale 56F8037 part or a member of the 56F8000 family that is
compatible with this part.

Organization

This manual is organized into two chapters and two appendices.

• Chapter 1, Introduction, provides an overview of the Evaluation Module and its
features.

• Chapter 2, Technical Summary, describes the 56F8037EVM hardware in detail.

• Appendix A, 56F8037EVM Schematics, contains the schematics of the
56F8037EVM.

• Appendix B, 56F8037EVM Bill of Material, provides a list of the materials used on
the 56F8037EVM.

Suggested Reading

More documentation on the 56F8037EVM and the MC56F8037EVM kit may be found at
URL:

www. freescale.com

Preface, Rev. 0

Freescale Semiconductor vii
Preliminary

Notation Conventions

This manual uses the following notational conventions:

Term or Value Symbol Examples Exceptions

Active High
Signals
(Logic One)

Active Low
Signals
(Logic Zero)

Hexadecimal
Values

Decimal Values No special symbol

Binary Values Begin with the letter

Numbers Considered positive

Blue Text Linkable on-line ...refer to Chapter 7, License

Bold Reference sources,

No special symbol
attached to the
signal name

Noted with an
overbar in text and
in most figures

Begin with a “$”
symbol

attached to the
number

“b” attached to the
number

unless specifically
noted as a negative
value

paths, emphasis

A0

CLKO

WE

OE

$0FF0

$80

10
34

b1010

b0011

5

-10

...see:

http://www.freescale.com/

In schematic drawings,
Active Low Signals may be
noted by a backslash: /WE

Voltage is often shown as
positive: +3.3V

viii Freescale Semiconductor

56F8037EVM User Manual, Rev. 0

Preliminary

Definitions, Acronyms, and Abbreviations

Definitions, acronyms and abbreviations for terms used in this document are defined below for
reference.

56F8037

Digital signal controller with motor control peripherals

A/D Analog-to-Digital; a method of converting Analog signals to Digital values

ADC Analog-to-Digital Converter; a peripheral on the 56F8037 part

D/A

DAC

EOnCE

Digital-to-Analog; a method of converting Digital values to Analog signals

Digital-to-Analog Converter; a peripheral on the 56F8037 part

Enhanced On-Chip Emulation; a debug bus and port which enables a designer
to create a low-cost hardware interface for a professional-quality debug
environment

EVM

Evaluation Module; a hardware platform which allows a customer to evaluate
the silicon and develop his application

GPIO

General Purpose Input and Output port on Freescale’s family of digital signal
controllers; does not share pin functionality with any other peripheral on the
chip and can only be set as an input, an output, or a level-sensitive interrupt
input

IC

JTAG

Integrated Circuit

Joint Test Action Group; a bus protocol/interface used for test and debug

LED

LQFP

OnCE

PCB

PWM

SCI

SPI

TM

Light Emitting Diode

Low-profile Quad Flat Package

On-Chip Emulation, a debug bus and port created to allow a means for low-cost
hardware to provide a professional-quality debug environment

Printed Circuit Board

Pulse Width Modulation

Serial Communications Interface; a peripheral on Freescale’s family of digital
signal controllers

Serial Peripheral Interface; a peripheral on Freescale’s family of digital signal
controllers

Freescale Semiconductor ix
Preliminary

Preface, Rev. 0

References

The following sources were referenced to produce this manual:

[1] DSP56800E Reference Manual, DSP56800ERM, Freescale Semiconductor, Inc.

[2] 56F802X and 56F803X Peripheral Reference Manual, MC56F80XXRM,

Freescale Semiconductor, Inc.

[3] 56F8037 Technical Data, MC56F8037, Freescale Semiconductor, Inc.

x Freescale Semiconductor

56F8037EVM User Manual, Rev. 0

Preliminary

Chapter 1
Introduction

The 56F8037EVM is used to demonstrate the abilities of the 56F8037 digital signal controller
and to provide a hardware tool allowing the development of applications.

The 56F8037EVM is an evaluation module board that includes a 56F8037 part, USB interface,
user LEDs, user pushbutton switches and a daughter card connector. The daughter card
connector allows signal monitoring and expandability of user features.

The 56F8037EVM is designed for the following purposes:

• Allowing new users to become familiar with the features of the 56800E architecture. The
tools and examples provided with the 56F8037EVM facilitate evaluation of the feature set
and the benefits of the family.

• Serving as a platform for real-time software development. The tool suite enables the user
to develop and simulate routines, download the software to on-chip memory, run it, and
debug it using a debugger via the JTAG/Enhanced OnCE (EOnCE) port. The breakpoint
features of the EOnCE port enable the user to easily specify complex break conditions and
to execute user-developed software at full speed until the break conditions are satisfied.
The ability to examine and modify all user-accessible registers, memory and peripherals
through the EOnCE port greatly facilitates the task of the developer.

• Serving as a platform for hardware development. The hardware platform enables the user
to connect external hardware peripherals. The on-board peripherals can be disabled,
providing the user with the ability to reassign any and all of the processor's peripherals.
The EOnCE port's unobtrusive design means that all memory on the board and on the
processor is available to the user.

1.1 56F8037EVM Architecture

The 56F8037EVM facilitates the evaluation of various features present in the 56F8037 part. The
56F8037EVM can be used to develop real-time software and hardware products. The
56F8037EVM provides the features necessary for a user to write and debug software,

Freescale Semiconductor 1-1
Preliminary

Introduction, Rev. 0
