MC68HC705P6A

Advance Information Data Sheet

M68HC05 Microcontrollers

MC68HC705P6A Rev. 2.1 9/2005

freescale.com

This document contains certain information on a new product.Specifications and information herein are subject to change without notice.

Blank

MC68HC705P6A

Advance Information Data Sheet

To provide the most up-to-date information, the revision of our documents on the World Wide Web will be the most current. Your printed copy may be an earlier revision. To verify you have the latest information available, refer to:

http://www.freescale.com/

The following revision history table summarizes changes contained in this document. For your convenience, the page number designators have been linked to the appropriate location.

Revision History

Date

November,

2001

September,

2005

Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.

Revision

Level

Format update to current publication standards N/A

2.0

2.1 Updated to meet Freescale identity guidelines. Throughout

Figure 11-1. Mask Option Register (MOR) — Definition of bit 6 corrected.

Description

Page

Number(s)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 3

Revision History

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

4 Freescale Semiconductor

List of Chapters

Chapter 1 General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Chapter 2 Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Chapter 3 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Chapter 4 Resets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Chapter 5 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Chapter 6 Input/Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Chapter 7 Serial Input/Output Port (SIOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Chapter 8 Capture/Compare Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Chapter 9 Analog Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Chapter 10 EPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Chapter 11 Mask Option Register (MOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Chapter 12 Central Processor Unit (CPU) Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Chapter 13 Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Chapter 14 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Chapter 15 Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Chapter 16 Ordering Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 5

List of Chapters

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

6 Freescale Semiconductor

Table of Contents

Chapter 1

General Description

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.3 Functional Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.3.1 V

1.3.2 OSC1 and OSC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.3.2.1 Crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.2.2 Ceramic Resonator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.2.3 External Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.3 RESET

1.3.4 PA0–PA7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.5 PB5/SDO, PB6/SDI, and PB7/SCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.6 PC0-PC2, PC3/AD3, PC4/AD2, PC5/AD1, PC6/AD0, and PC7/V

1.3.7 PD5 and PD7/TCAP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3.8 TCMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.3.9 IRQ

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.2 User Mode Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.3 Bootloader Mode Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.4 Input/Output and Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.5 RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.6 EPROM/ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.7 Mask Option Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.8 Computer Operating Properly (COP) Clear Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

and VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

. . . . . . . . . . . . . . . . 16

REFH

/VPP (Maskable Interrupt Request) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 2

Memory

Chapter 3

Operating Modes

3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.2 User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.3 Bootloader Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.4 Low-Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4.1 STOP Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4.1.1 Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4.1.2 Halt Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.2 WAIT Instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.5 COP Watchdog Timer Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 7

Table of Contents

Chapter 4

Resets

4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.2 External Reset (RESET

4.3 Internal Resets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.1 Power-On Reset (POR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.2 Computer Operating Properly (COP) Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Chapter 5 Interrupts

5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.2 Interrupt Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.2.1 Reset Interrupt Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.2.2 Software Interrupt (SWI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.2.3 Hardware Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.2.3.1 External Interrupt (IRQ

5.2.3.2 Input Capture Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.2.3.3 Output Compare Interrupt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.2.3.4 Timer Overflow Interrupt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Chapter 6

Input/Output Ports

6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.2 Port A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.3 Port B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.4 Port C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6.5 Port D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.6 I/O Port Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 7

Serial Input/Output Port (SIOP)

7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.2 SIOP Signal Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.2.1 Serial Clock (SCK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.2.2 Serial Data Input (SDI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.2.3 Serial Data Output (SDO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.3 SIOP Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.3.1 SIOP Control Register (SCR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.3.2 SIOP Status Register (SSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.3.3 SIOP Data Register (SDR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

8 Freescale Semiconductor

Table of Contents

Chapter 8

Capture/Compare Timer

8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

8.2 Timer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

8.2.1 Input Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

8.2.2 Output Compare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

8.3 Timer I/O Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

8.3.1 Timer Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

8.3.2 Timer Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

8.3.3 Timer Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.3.4 Alternate Timer Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.3.5 Input Capture Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.3.6 Output Compare Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.4 Timer During Wait/Halt Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.5 Timer During Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Chapter 9

Analog Subsystem

9.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.2 Analog Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.2.1 Ratiometric Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.2.2 Reference Voltage (V

9.2.3 Accuracy and Precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.3 Conversion Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.4 Digital Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.4.1 Conversion Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.4.2 Internal versus External Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.4.3 Multi-Channel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.5 A/D Status and Control Register (ADSC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.6 A/D Conversion Data Register (ADC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.7 A/D Subsystem Operation during Halt/Wait Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.8 A/D Subsystem Operation during Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

REFH

Chapter 10

EPROM

10.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.2 EPROM Erasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.3 EPROM Programming Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.4 EPROM Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.5 EPROM Programming Register (EPROG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

10.6 EPROM Bootloader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

10.7 Programming from an External Memory Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 9

Table of Contents

Chapter 11

Mask Option Register (MOR)

11.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

11.2 Mask Option Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

11.3 MOR Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Chapter 12

Central Processor Unit (CPU) Core

12.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

12.2 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

12.2.1 Accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

12.2.2 Index Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.2.3 Stack Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.2.4 Program Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.2.5 Condition Code Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Chapter 13

Instruction Set

13.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

13.2 Addressing Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

13.2.1 Inherent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

13.2.2 Immediate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

13.2.3 Direct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

13.2.4 Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

13.2.5 Indexed, No Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

13.2.6 Indexed, 8-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

13.2.7 Indexed,16-Bit Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

13.2.8 Relative . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

13.3 Instruction Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

13.3.1 Register/Memory Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

13.3.2 Read-Modify-Write Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

13.3.3 Jump/Branch Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

13.3.4 Bit Manipulation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

13.3.5 Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

13.4 Instruction Set Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

13.5 Opcode Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Chapter 14

Electrical Specifications

14.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

14.2 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

14.3 Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

14.4 Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

14.5 5.0-Volt DC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

14.6 3.3-Volt DC Electrical Charactertistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

14.7 A/D Converter Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

10 Freescale Semiconductor

Table of Contents

14.8 EPROM Programming Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

14.9 SIOP Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

14.10 Control Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Chapter 15

Mechanical Specifications

15.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

15.2 Plastic Dual In-Line Package (Case 710) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

15.3 Small Outline Integrated Circuit Package (Case 751F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Chapter 16

Ordering Information

16.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

16.2 MC Order Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 11

Table of Contents

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

12 Freescale Semiconductor

Chapter 1 General Description

1.1 Introduction

The MC68HC705P6A is an EPROM version of the MC68HC05P6 microcontroller. It is a low-cost combination of an M68HC05 Family microprocessor with a 4-channel, 8-bit analog-to-digital (A/D) converter, a 16-bit timer with output compare and input capture, a serial communications port (SIOP), and a computer operating properly (COP) watchdog timer. The M68HC05 CPU core contains 176 bytes of RAM, 4672 bytes of user EPROM, 239 bytes of bootloader ROM, and 21 input/output (I/O) pins (20 bidirectional, 1 input-only). This device is available in either a 28-pin plastic dual in-line (PDIP) or a 28-pin small outline integrated circuit (SOIC) package.

A functional block diagram of the MC68HC705P6A is shown in Figure 1-1.

1.2 Features

Features of the MC68HC705P6A include:

• Low cost

• M68HC05 core

• 28-pin SOIC, PDIP, or windowed DIP package

• 4672 bytes of user EPROM (including 48 bytes of page zero EPROM and 16 bytes of user vectors)

• 239 bytes of bootloader ROM

• 176 bytes of on-chip RAM

• 4-channel 8-bit A/D converter

• SIOP serial communications port

• 16-bit timer with output compare and input capture

• 20 bidirectional I/O lines and 1 input-only line

• PC0 and PC1 high-current outputs

• Single-chip, bootloader, and test modes

• Power-saving stop, halt, and wait modes

• Static EPROM mask option register (MOR) selectable options: – COP watchdog timer enable or disable – Edge-sensitive or edge- and level-sensitive external interrupt – SIOP most significant bit (MSB) or least significant bit (LSB) first – SIOP clock rates: OSC divided by 8, 16, 32, or 64 – Stop instruction mode, STOP or HALT – EPROM security external lockout – Programmable keyscan (pullups/interrupts) on PA0–PA7

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 13

General Description

COP

INTERNAL

CPU CLOCK

÷2

OSC

OSC 1

OSC 2

RESET

IRQ/V

PB5/SDO

PB6/SDI

PB7/SCK

CPU CONTROL

M68HC05 CPU

CPU REGISTERS

0 0 0 STK PNTR1100000

PROGRAM COUNTER

COND CODE REG 1 1 1 I N Z CH

SRAM — 176 BYTES

USER EPROM — 4672 BYTES

BOOTLOADER ROM — 239 BYTES

PORT B AND

SIOP

REGISTERS

AND LOGIC

ALU

ACCUM

INDEX REG

÷4

16-BIT TIMER

1 INPUT CAPTURE

1 OUTPUT COMPARE

PORT D LOGIC

A/ D CONVERTER

PORT C

DATA DIRECTION REGISTER

DATA DIRECTION REG

MUX

PORT A

PD7/TCAP

TCMP

PD5

PC7/VR

EFH

PC6/AD0

PC5/AD1

PC4/AD2

PC3/AD3

PC2

PC1

PC0

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

Figure 1-1. MC68HC705P6A Block Diagram

NOTE

A line over a signal name indicates an active low signal. For example, RESET is active high and RESET

is active low.

Any reference to voltage, current, or frequency specified in the following sections will refer to the nominal values. The exact values and their tolerances or limits are specified in Chapter 14 Electrical Specifications.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

14 Freescale Semiconductor

Functional Pin Description

1.3 Functional Pin Description

The following paragraphs describe the functionality of each pin on the MC68HC705P6A package. Pins connected to subsystems described in other chapters provide a reference to the chapter instead of a detailed functional description.

1.3.1 VDD and V

Power is supplied to the MCU through VDD and VSS. VDD is connected to a regulated +5 volt supply and

is connected to ground.

Very fast signal transitions occur on the MCU pins. The short rise and fall times place very high short-duration current demands on the power supply. To prevent noise problems, take special care to provide good power supply bypassing at the MCU. Use bypass capacitors with good high-frequency characteristics and position them as close to the MCU as possible. Bypassing requirements vary, depending on how heavily the MCU pins are loaded.

1.3.2 OSC1 and OSC2

The OSC1 and OSC2 pins are the control connections for the on-chip oscillator. The OSC1 and OSC2 pins can accept the following:

1. A crystal as shown in Figure 1-2(a)

2. A ceramic resonator as shown in Figure 1-2(a)

3. An external clock signal as shown in Figure 1-2(b)

The frequency, f clock operating frequency, f is clear when a STOP instruction is executed.

, of the oscillator or external clock source is divided by two to produce the internal bus

osc

. The oscillator cannot be turned off by software unless the MOR bit, SWAIT,

OSC1 OSC2

4.7 MΩ

37 pF 37 pF

(a) Crystal or Ceramic

Resonator Connections

Figure 1-2. Oscillator Connections

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

MCU

To VDD (or STOP) To VDD (or STOP)

OSC1 OSC2

UNCONNECTED

EXTERNAL CLOCK

(b) External Clock Source

Connections

MCU

Freescale Semiconductor 15

General Description

1.3.2.1 Crystal

The circuit in Figure 1-2(a) shows a typical oscillator circuit for an AT-cut, parallel resonant crystal. Follow the crystal manufacturer’s recommendations, as the crystal parameters determine the external component values required to provide maximum stability and reliable startup. The load capacitance values used in the oscillator circuit design should include all stray capacitances. Mount the crystal and components as close as possible to the pins for startup stabilization and to minimize output distortion.

1.3.2.2 Ceramic Resonator

In cost-sensitive applications, use a ceramic resonator in place of a crystal. Use the circuit in Figure 1-2(a) for a ceramic resonator and follow the resonator manufacturer’s recommendations, as the resonator parameters determine the external component values required for maximum stability and reliable starting. The load capacitance values used in the oscillator circuit design should include all stray capacitances. Mount the resonator and components as close as possible to the pins for startup stabilization and to minimize output distortion.

1.3.2.3 External Clock

An external clock from another CMOS-compatible device can be connected to the OSC1 input, with the OSC2 input not connected, as shown in Figure 1-2(b).

1.3.3 RESET

Driving this input low will reset the MCU to a known startup state. The RESET pin contains an internal Schmitt trigger to improve its noise immunity. Refer to Chapter 4 Resets.

1.3.4 PA0–PA7

These eight I/O pins comprise port A. The state of any pin is software programmable and all port A lines are configured as inputs during power-on or reset. Port A has mask-option register enabled interrupt capability with internal pullup devices selectable for any pin. Refer to Chapter 6 Input/Output Ports.

1.3.5 PB5/SDO, PB6/SDI, and PB7/SCK

These three I/O pins comprise port B and are shared with the SIOP communications subsystem. The state of any pin is software programmable, and all port B lines are configured as inputs during power-on or reset. Refer to Chapter 6 Input/Output Ports and Chapter 7 Serial Input/Output Port (SIOP).

1.3.6 PC0-PC2, PC3/AD3, PC4/AD2, PC5/AD1, PC6/AD0, and PC7/V

REFH

These eight I/O pins comprise port C and are shared with the A/D converter subsystem. The state of any pin is software programmable and all port C lines are configured as inputs during power-on or reset. Refer to Chapter 6 Input/Output Ports and Chapter 9 Analog Subsystem.

1.3.7 PD5 and PD7/TCAP

These two I/O pins comprise port D and one of them is shared with the 16-bit timer subsystem. The state of PD5 is software programmable and is configured as an input during power-on or reset. PD7 is always an input. It may be read at any time, regardless of which mode of operation the 16-bit timer is in. Refer to

Chapter 6 Input/Output Ports and Chapter 8 Capture/Compare Timer.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

16 Freescale Semiconductor

Functional Pin Description

1.3.8 TCMP

This pin is the output from the 16-bit timer’s output compare function. It is low after reset. Refer to

Chapter 8 Capture/Compare Timer.

1.3.9 IRQ/VPP (Maskable Interrupt Request)

This input pin drives the asynchronous interrupt function of the MCU in user mode and provides the VPP programming voltage in bootloader mode. The MCU will complete the current instruction being executed before it responds to the IRQ internally to signify an interrupt has been requested. When the MCU completes its current instruction, the interrupt latch is tested. If the interrupt latch is set and the interrupt mask bit (I bit) in the condition code register is clear, the MCU will begin the interrupt sequence.

interrupt request. When the IRQ/VPP pin is driven low, the event is latched

Depending on the MOR LEVEL bit, the IRQ the IRQ be held low for at least one t set), the IRQ IRQ

/VPP pin and/or while the IRQ/VPP pin is held in the low state. In either case, the IRQ/VPP pin must

time period. If the edge- and level-sensitive mode is selected (LEVEL bit

ILIH

/VPP input pin requires an external resistor connected to VDD for wired-OR operation. If the

/VPP pin is not used, it must be tied to the VDD supply. The IRQ/VPP pin input circuitry contains an

/VPP pin will trigger an interrupt on either a negative edge at

internal Schmitt trigger to improve noise immunity. Refer to Chapter 5 Interrupts.

NOTE

If the voltage level applied to the IRQ

/VPP pin exceeds VDD, it may affect

the MCU’s mode of operation. See Chapter 3 Operating Modes.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 17

General Description

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

18 Freescale Semiconductor

Chapter 2 Memory

2.1 Introduction

The MC68HC705P6A utilizes 13 address lines to access an internal memory space covering 8 Kbytes. This memory space is divided into I/O, RAM, ROM, and EPROM areas.

2.2 User Mode Memory Map

When the MC68HC705P6A is in the user mode, the 32 bytes of I/O, 176 bytes of RAM, 4608 bytes of user EPROM, 48 bytes of user page zero EPROM, 239 bytes of bootloader ROM, and 16 bytes of user vectors EPROM are all active as shown in Figure 2-1.

2.3 Bootloader Mode Memory Map

Memory space is identical to the user mode. See Figure 2-1.

2.4 Input/Output and Control Registers

Figure 2-2 and Figure 2-3 briefly describe the I/O and control registers at locations $0000–$001F.

Reading unimplemented bits will return unknown states, and writing unimplemented bits will be ignored.

2.5 RAM

The user RAM consists of 176 bytes (including the stack) at locations $0050 through $00FF. The stack begins at address $00FF. The stack pointer can access 64 bytes of RAM from $00FF to $00C0.

NOTE

Using the stack area for data storage or temporary work locations requires care to prevent it from being overwritten due to stacking from an interrupt or subroutine call.

2.6 EPROM/ROM

There are 4608 bytes of user EPROM at locations $0100 through $12FF, plus 48 bytes in user page zero locations $0020 through $004F, and 16 additional bytes for user vectors at locations $1FF0 through $1FFF. The bootloader ROM and vectors are at locations $1F01 through $1FEF.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 19

Memory

$0000

$001F

$0020

$004F $0050

$00BF $00C0

$00FF 0255 $0100

$12FF $1300

$1EFE 7934 $1EFF $1F00 $1F01 7937

$1FEF $1FF0

$1FFF

MASK OPTION REGISTERS

AND VECTORS 239 BYTES

USER VECTORS EPROM

I/O

32 BYTES

USER EPROM

48 BYTES

INTERNAL RAM

176 BYTES

STACK

64 BYTES

USER EPROM

4608 BYTES

UNIMPLEMENTED

3071 BYTES

BOOTLOADER ROM

16 BYTES

0000

0031 0032

0079 0080

0191 0192

0256

4863 4864

7935 7936

8175 8176

8191

I/O REGISTERS

SEE Figure 2-2

COP CLEAR REGISTER

UNUSED

TIMER VECTOR (HIGH BYTE)

TIMER VECTOR (LOW BYTE)

IRQ VECTOR (HIGH BYTE)

IRQ VECTOR (LOW BYTE)

SWI VECTOR (HIGH BYTE)

SWI VECTOR (LOW BYTE)

RESET VECTOR (HIGH BYTE)

RESET VECTOR (LOW BYTE)

(1)

$0000

$001F

$1FF0

$1FF1

$1FF2

$1FF3

$1FF4

$1FF5

$1FF6

$1FF7

$1FF8

$1FF9

$1FFA

$1FFB

$1FFC

$1FFD

$1FFE

$1FFF

Note 1. Writing zero to bit 0 of $1FF0 clears the COP watchdog timer. Reading $1FF0 returns user EPROM data.

Figure 2-1. MC68HC705P6A User Mode Memory Map

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

20 Freescale Semiconductor

PORT A DATA REGISTER $0000

PORT B DATA REGISTER $0001

PORT C DATA REGISTER $0002

PORT D DATA REGISTER $0003

PORT A DATA DIRECTION REGISTER $0004

PORT B DATA DIRECTION REGISTER $0005

PORT C DATA DIRECTION REGISTER $0006

PORT D DATA DIRECTION REGISTER $0007

UNIMPLEMENTED $0008

UMIMPLEMENTED $0009

SIOP CONTROL REGISTER $000A

SIOP STATUS REGISTER $000B

SIOP DATA REGISTER $000C

RESERVED $000D

UNIMPLEMENTED $000E

EPROM/ROM

UNIMPLEMENTED $000F

UNIMPLEMENTED $0010

UNIMPLEMENTED $0011

TIMER CONTROL REGISTER $0012

TIMER STATUS REGISTER $0013

INPUT CAPTURE MSB $0015

INPUT CAPTURE LSB $0016

OUTPUT COMPARE MSB $0017

OUTPUT COMPARE LSB $0017

TIMER MSB $0018

TIMER LSB $0019

ALTERNATE COUNTER MSB $001A

ALTERNATE COUNTER LSB $001B

EPROM PROGRAMMING REGISTER $001C

A/D CONVERTER DATA REGISTER $001D

A/D CONVERTER CONTROL AND STATUS REGISTER $001E

RESERVED $001F

Figure 2-2. MC68HC705P6A I/O and Control

Registers Memory Map

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 21

Memory

Addr. Register Name Bit 7654321Bit 0

Port A Data Register

$0000

Port B Data Register

$0001

Port C Data Register

$0002

Port D Data Register

$0003

Port A Data Direction

$0004

Port B Data Direction

$0005

Port C Data Direction

$0006

Port D Data Direction

$0007

$0008 Unimplemented

(PORTA)

See page 37.

(PORTB)

See page 38.

(PORTC)

See page 38.

(PORTD)

See page 39.

See page 37.

See page 38.

See page 39.

Read:

Write:

Reset: Unaffected by reset

Read:

Write:

Reset: Unaffected by reset

Read:

Write:

Reset: Unaffected by reset

Read: PD7 0

Write:

Reset: Unaffected by reset

Read:

Write:

Reset:00000000

Read:

Write:

Reset:00000000

Read:

Write:

Reset:00000000

Write:

Reset:00000000

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0

PB7 PB6 PB5

PC7 PC6 PC5 PC4 PC3 PC2 PC1 PC0

PD5

DDRA7 DDRA6 DDRA5 DDRA4 DDRA3 DDRA2 DDRA1 DDRA0

DDRB7 DDRB6 DDRB5

DDRC7 DDRC6 DDRC5 DDRC4 DDRC3 DDRC2 DDRC1 DDRC0

DDRD5

00000

10000

11111

00000

$0009 Unimplemented

$000A

$000B

$000C

SIOP Control Register

(SCR)

See page 43.

SIOP Status Register

(SSR)

See page 44.

SIOP Data Register

(SDR)

See page 44.

Write:

Reset:00000000

Read:SPIFDCOL000000

Write:

Reset:00000000

Read:

Write:

Reset: Unaffected by reset

SDR7 SDR6 SDR5 SDR4 SDR3 SSDR2 SDR1 SDR0

SPE

= Unimplemented R = Reserved U = Undetermined

MSTR

0000

Figure 2-3. I/O and Control Register Summary (Sheet 1 of 3)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

22 Freescale Semiconductor

EPROM/ROM

Addr. Register Name Bit 7654321Bit 0

$000DReserved for Test RRRRRRRR

$000E Unimplemented

$000F Unimplemented

$0010 Unimplemented

$0011 Unimplemented

$0012

$0013

$0014

$0015

$0016

$0017

$0018

$0019

$001A

Timer Control Register

(TCR)

See page 47.

Timer Status Register

(TSR)

See page 48.

Input Capture Register

MSB (ICRH)

See page 50.

Input Capture Register

LSB (ICRL)

See page 50.

Output Compare

See page 50.

Output Compare

See page 50.

Timer Register MSB

(TRH)

See page 49.

Timer Register LSB (TRL)

See page 49.

Alternate Timer

See page 49.

Read:

Write:

Reset:000000U0

Read:ICFOCFTOF00000

Write:

Reset:UUU00000

Read: ICRH7 ICRH6 ICRH5 ICRH4 ICRH3 ICRH2 ICRH1 ICRH0

Write:

Reset: Unaffected by reset

Read: ICRL7 ICRL6 ICRL5 ICRL4 ICRL3 ICRL2 ICRL1 ICRL0

Write:

Reset: Unaffected by reset

Read:

Write:

Reset: Unaffected by reset

Read:

Write:

Reset: Unaffected by reset

Read: TRH7 TRH6 TRH5 TRH4 TRH3 TRH2 TRH1 TRH0

Write:

Reset:11111111

Read: TRL7 TRL6 TRL5 TRL4 TRL3 TRL2 TRL1 TRL0

Write:

Reset:11111100

Read: ACRH7 ACRH6 ACRH5 ACRH4 ACRH3 ACRH2 ACRH1 ACRH0

Write:

Reset:11111111

ICIE OCIE TOIE

OCRH7 OCRH6 OCRH5 OCRH4 OCRH3 OCRH2 OCRH1 OCRH0

OCRL7 OCRL6 OCRL5 OCRL4 OCRL3 OCRL2 OCRL1 OCRL0

= Unimplemented R = Reserved U = Undetermined

000

IEDG OLVL

Figure 2-3. I/O and Control Register Summary (Sheet 2 of 3)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 23

Memory

Addr. Register Name Bit 7654321Bit 0

Alternate Timer

$001B

$001C

$001D

$001E

$001FReserved for Test RRRRRRRR

See page 49.

EPROM Programming

See page 58.

A/D Conversion Value

Data Register (ADC)

See page 55.

A/D Status and Control

See page 54.

Read: ACRL7 ACRL6 ACRL5 ACRL4 ACRL3 ACRL2 ACRL1 ACRL0

Write:

Reset:11111100

Write:

Reset:00000000

Read: AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

Write:

Reset: Unaffected by reset

Read: CC

Write:

Reset:00000000

ADRC ADON

= Unimplemented R = Reserved U = Undetermined

ELAT

CH2 CH1 CH0

EPGM

Figure 2-3. I/O and Control Register Summary (Sheet 3 of 3)

2.7 Mask Option Register

The mask option register (MOR) is a pair of EPROM bytes located at $1EFF and $1F00. It controls the programmable options on the MC68HC705P6A. See Chapter 11 Mask Option Register (MOR) for additional information.

$1EFFBit 7654321Bit 0

Read:

Write:

Erased State:00000000

$1F00Bit 7654321Bit 0

Read:

Write:

Erased State:00000000

PA7PU PA6PU PA5PU PA4PU PA3PU PA2PU PA1PU PA0PU

SECURE SWAIT SPR1 SPR0 LSBF LEVEL COP

= Unimplemented

Figure 2-4. Mask Option Register (MOR)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

24 Freescale Semiconductor

Computer Operating Properly (COP) Clear Register

2.8 Computer Operating Properly (COP) Clear Register

The computer operating properly (COP) watchdog timer is located at address $1FF0. Writing a logical 0 to bit zero of this location will clear the COP watchdog counter as described in 4.3.2 Computer Operating

Properly (COP) Reset.

$1FF0Bit 7654321Bit 0

Write:

Reset:00000000

= Unimplemented

Figure 2-5. COP Watchdog Timer Location

COPR

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 25

Memory

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

26 Freescale Semiconductor

Chapter 3 Operating Modes

3.1 Introduction

The MC68HC705P6A has two modes of operation that affect the pinout and architecture of the MCU: user mode and bootloader mode. The user mode is normally used for the application and the bootloader mode is used for programming the EPROM. The conditions required to enter each mode are shown in

Table 3-1. The mode of operation is determined by the voltages on the IRQ

the rising edge of the external RESET

pin.

Table 3-1. Operating Mode Conditions After Reset

IRQ

to V

PD7/TCAP Mode

VSS to V

RESET Pin

/VPP and PD7/TCAP pins on

Single chip

Bootloader

The mode of operation is also determined whenever the internal computer operating properly (COP) watchdog timer resets the MCU. When the COP timer expires, the voltage applied to the IRQ

/VPP pin controls the mode of operation while the voltage applied to PD7/TCAP is ignored. The voltage applied to PD7/TCAP during the last rising edge on RESET

is stored in a latch and used to determine the mode of

operation when the COP watchdog timer resets the MCU.

3.2 User Mode

The user mode allows the MCU to function as a self-contained microcontroller, with maximum use of the pins for on-chip peripheral functions. All address and data activity occurs within the MCU and are not available externally. User mode is entered on the rising edge of RESET

if the IRQ/VPP pin is within the

normal operating voltage range. The pinout for the user mode is shown in Figure 3-1.

In the user mode, there is an 8-bit I/O port, a second 8-bit I/O port shared with the analog-to-digital (A/D) subsystem, one 3-bit I/O port shared with the serial input/output port (SIOP), and a 3-bit port shared with the 16-bit timer subsystem, which includes one general-purpose I/O pin.

3.3 Bootloader Mode

The bootloader mode provides a means to program the user EPROM from an external memory device or host computer. This mode is entered on the rising edge of RESET V

is applied to the PD7/TCAP pin. The user code in the external memory device must have data located

if VPP is applied to the IRQ/V

in the same address space it will occupy in the internal MCU EPROM, including the mask option register (MOR) at $1EFF and $1F00.

pin and

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 27

Operating Modes

RESET

IRQ/V

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

SDO/PB5

SDI/PB6

SCK/PB7

OSC1

OSC2

PD7/TCAP

TCMP

PD5

PC0

PC1

PC2

PC3/AD3

PC4/AD2

PC5/AD1

PC6/AD0

PC7/V

REFH

Figure 3-1. User Mode Pinout

3.4 Low-Power Modes

The MC68HC705P6A is capable of running in a low-power mode in each of its configurations. The WAIT and STOP instructions provide three modes that reduce the power required for the MCU by stopping various internal clocks and/or the on-chip oscillator. The SWAIT bit in the MOR is used to modify the behavior of the STOP instruction from stop mode to halt mode. The flow of the stop, halt, and wait modes is shown in Figure 3-2.

3.4.1 STOP Instruction

The STOP instruction can result in one of two modes of operation depending on the state of the SWAIT bit in the MOR. If the SWAIT bit is clear, the STOP instruction will behave like a normal STOP instruction in the M68HC05 Family and place the MCU in stop mode. If the SWAIT bit in the MOR is set, the STOP instruction will behave like a WAIT instruction (with the exception of a brief delay at startup) and place the MCU in halt mode.

3.4.1.1 Stop Mode

Execution of the STOP instruction when the SWAIT bit in the MOR is clear places the MCU in its lowest power consumption mode. In stop mode, the internal oscillator is turned off, halting all internal processing, including the COP watchdog timer. Execution of the STOP instruction automatically clears the I bit in the condition code register so that the IRQ remain unaltered. All input/output lines remain unchanged.

The MCU can be brought out of stop mode only by an IRQ RESET

. When exiting stop mode, the internal oscillator will resume after a 4064 internal clock cycle

oscillator stabilization delay.

Execution of the STOP instruction when the SWAIT bit in the MOR is clear will cause the oscillator to stop, and, therefore, disable the COP watchdog timer. To avoid turning off the COP watchdog timer, stop mode should be changed to halt mode by setting the SWAIT bit in the MOR. See 3.5 COP

Watchdog Timer Considerations for additional information.

external interrupt is enabled. All other registers and memory

external interrupt or an externally generated

NOTE

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

28 Freescale Semiconductor

Low-Power Modes

STOP

MOR

SWAIT

BIT SET?

STOP EXTERNAL OSCILLATOR, STOP INTERNAL TIMER CLOCK,

RESET STARTUP DELAY

STOP INTERNAL

PROCESSOR CLOCK,

CLEAR I BIT IN CCR

EXTERNAL

RESET

IRQ

EXTERNAL

INTERRUPT?

RESTART EXTERNAL OSCILLATOR,

START STABILIZATION DELAY

END

OF STABILIZATION

DELAY?

INTERNAL PROCESSOR CLOCK

RESTART

HALT

EXTERNAL OSCILLATOR ACTIVE

INTERNAL TIMER CLOCK ACTIVE

AND

STOP INTERNAL

PROCESSOR CLOCK,

CLEAR I BIT IN CCR

EXTERNAL

RESET

IRQ

EXTERNAL

INTERRUPT?

TIMER

INTERNAL

INTERRUPT?

COP

INTERNAL

RESET?

WAIT

EXTERNAL OSCILLATOR ACTIVE

INTERNAL TIMER CLOCK ACTIVE

AND

STOP INTERNAL

PROCESSOR CLOCK,

CLEAR I BIT IN CCR

EXTERNAL

RESET

IRQ

EXTERNAL

INTERRUPT?

TIMER

INTERNAL

INTERRUPT?

COP

INTERNAL

RESET?

1. FETCH RESET VECTOR

2. SERVICE INTERRUPT

A. STACK B. SET I BIT C. VECTOR TO INTERRUPT ROUTINE

Figure 3-2. STOP/WAIT Flowcharts

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 29

Operating Modes

3.4.1.2 Halt Mode

NOTE

Halt mode is NOT designed for intentional use. Halt mode is only provided to keep the COP watchdog timer active in the event a STOP instruction is executed inadvertently. This mode of operation is usually achieved by invoking wait mode.

Execution of the STOP instruction when the SWAIT bit in the MOR is set places the MCU in this low-power mode. Halt mode consumes the same amount of power as wait mode (both halt and wait modes consume more power than stop mode).

In halt mode, the internal clock is halted, suspending all processor and internal bus activity. Internal timer clocks remain active, permitting interrupts to be generated from the 16-bit timer or a reset to be generated from the COP watchdog timer. Execution of the STOP instruction automatically clears the I bit in the condition code register, enabling the IRQ

external interrupt. All other registers, memory, and input/output

lines remain in their previous states.

If the 16-bit timer interrupt is enabled, it will cause the processor to exit the halt mode and resume normal operation. The halt mode also can be exited when an IRQ

external interrupt or external RESET occurs. When exiting the halt mode, the internal clock will resume after a delay of one to 4064 internal clock cycles. This varied delay time is the result of the halt mode exit circuitry testing the oscillator stabilization delay timer (a feature of the stop mode), which has been free-running (a feature of the wait mode).

3.4.2 WAIT Instruction

The WAIT instruction places the MCU in a low-power mode which consumes more power than stop mode. In wait mode, the internal clock is halted, suspending all processor and internal bus activity. Internal timer clocks remain active, permitting interrupts to be generated from the 16-bit timer and reset to be generated from the COP watchdog timer. Execution of the WAIT instruction automatically clears the I bit in the condition code register, enabling the IRQ

external interrupt. All other registers, memory, and input/output

lines remain in their previous state.

If the 16-bit timer interrupt is enabled, it will cause the processor to exit wait mode and resume normal operation. The 16-bit timer may be used to generate a periodic exit from wait mode. Wait mode may also be exited when an IRQ

external interrupt or RESET occurs.

3.5 COP Watchdog Timer Considerations

The COP watchdog timer is active in user mode of operation when the COP bit in the MOR is set. Executing the STOP instruction when the SWAIT bit in the MOR is clear will cause the COP to be disabled. Therefore, it is recommended that the STOP instruction be modified to produce halt mode (set bit SWAIT in the MOR) if the COP watchdog timer is required to function at all times.

Furthermore, it is recommended that the COP watchdog timer be disabled for applications that will use the wait mode for time periods that will exceed the COP timeout period.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

30 Freescale Semiconductor

Chapter 4 Resets

4.1 Introduction

The MCU can be reset from three sources: one external input and two internal reset conditions. The RESET reset by the RST signal which is the logical OR of internal reset functions and is clocked by PH1.

pin is a Schmitt trigger input as shown in Figure 4-1. The CPU and all peripheral modules will be

RESET

OSC

DATA

ADDRESS

POWER-ON

RESET

(POR)

COP

WATCHDOG

(COPR)

RES

DFF

PH1

RST

TO CPU AND PERIPHERALS

Figure 4-1. Reset Block Diagram

4.2 External Reset (RESET)

The RESET input is the only external reset and is connected to an internal Schmitt trigger. The external reset occurs whenever the RESET RESET

pin rises above the upper threshold. The upper and lower thresholds are given in Chapter 14

input is driven below the lower threshold and remains in reset until the

Electrical Specifications.

4.3 Internal Resets

The two internally generated resets are the initial power-on reset (POR) function and the computer operating properly (COP) watchdog timer function.

4.3.1 Power-On Reset (POR)

The internal POR is generated at power-up to allow the clock oscillator to stabilize. The POR is strictly for power turn-on conditions and should not be used to detect a drop in the power supply voltage. There is a 4064 internal clock cycle oscillator stabilization delay after the oscillator becomes active.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 31

Resets

The POR will generate the RST signal and reset the MCU. If any other reset function is active at the end of this 4064 internal clock cycle delay, the RST signal will remain active until the other reset condition(s) end.

4.3.2 Computer Operating Properly (COP) Reset

When the COP watchdog timer is enabled (COP bit in the MOR is set), the internal COP reset is generated automatically by a timeout of the COP watchdog timer. This timer is implemented with an 18-stage ripple counter that provides a timeout period of 65.5 ms when a 4-MHz oscillator is used. The COP watchdog counter is cleared by writing a logical 0 to bit zero at location $1FF0.

The COP watchdog timer can be disabled by clearing the COP bit in the MOR or by applying 2 x V the IRQ operating voltage range (between V

/VPP pin (for example, during bootloader). When the IRQ/VPP pin is returned to its normal

SS–VDD

), the COP watchdog timer’s output will be restored if the COP

bit in the mask option register (MOR) is set.

The COP register is shared with the least significant byte (LSB) of an unused vector address as shown in Figure 4-2. Reading this location will return the programmed value of the unused user interrupt vector, usually 0. Writing to this location will clear the COP watchdog timer.

Address: $1FF0

Bit 7654321Bit 0

Write:

= Unimplemented

COPR

Figure 4-2. Unused Vector and COP Watchdog Timer

When the COP watchdog timer expires, it will generate the RST signal and reset the MCU. If any other reset function is active at the end of the COP reset signal, the RST signal will remain in the reset condition until the other reset condition(s) end. When the reset condition ends, the MCU’s operating mode will be selected (see Table 3-1. Operating Mode Conditions After Reset).

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

32 Freescale Semiconductor

Chapter 5 Interrupts

5.1 Introduction

The MCU can be interrupted six different ways:

1. Non-maskable software interrupt instruction (SWI)

2. External asynchronous interrupt (IRQ

3. Input capture interrupt (TIMER)

4. Output compare interrupt (TIMER)

5. Timer overflow interrupt (TIMER)

6. Port A interrupt (if selected via mask option register)

Interrupts cause the processor to save the register contents on the stack and to set the interrupt mask (I bit) to prevent additional interrupts. Unlike reset, hardware interrupts do not cause the current instruction execution to be halted, but are considered pending until the current instruction is completed.

When the current instruction is completed, the processor checks all pending hardware interrupts. If interrupts are not masked (I bit in the condition code register is clear) and the corresponding interrupt enable bit is set, the processor proceeds with interrupt processing. Otherwise, the next instruction is fetched and executed. The SWI is executed the same as any other instruction, regardless of the I-bit state.

)

When an interrupt is to be processed, the CPU puts the register contents on the stack, sets the I bit in the CCR, and fetches the address of the corresponding interrupt service routine from the vector table at locations $1FF8 through $1FFF. If more than one interrupt is pending when the interrupt vector is fetched, the interrupt with the highest vector location shown in Table 5-1 will be serviced first.

Table 5-1. Vector Addresses for Interrupts and Reset

N/A N/A Reset RESET $1FFE–$1FFF

N/A N/A Software SWI $1FFC–$1FFD

N/A N/A External Interrupt IRQ $1FFA–$1FFB

TSR ICF Timer Input Capture TIMER $1FF8–$1FF9

TSR OCF Timer Output Compare TIMER $1FF8–$1FF9

TSR TOF Timer Overflow TIMER $1FF8–$1FF9

Flag

Name

Interrupts

CPU

Interrupt

Vector

Address

An RTI instruction is used to signify when the interrupt software service routine is completed. The RTI instruction causes the CPU state to be recovered from the stack and normal processing to resume at the next instruction that was to be executed when the interrupt took place. Figure 5-1 shows the sequence of events that occurs during interrupt processing.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 33

Interrupts

FROM RESET

IS I BIT

SET?

IRQ

INTERRUPT?

TIMER

INTERRUPT?

FETCH NEXT

INSTRUCTION

CLEAR IRQ REQUEST

LATCH

STACK

PC, X, A, CC

SET

I BIT IN CCR

LOAD PC FROM:

SWI: $1FFC, $1FFD

IRQ

: $1FFA-$1FFB

TIMER: $1FF8-$1FF9

SWI

INSTRUCTION?

RTI

INSTRUCTION?

EXECUTE INSTRUCTION

Figure 5-1. Interrupt Processing Flowchart

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

RESTORE RESISTERS

FROM STACK

CC, A, X, PC

34 Freescale Semiconductor

Interrupt Types

5.2 Interrupt Types

The interrupts fall into three categories: reset, software, and hardware.

5.2.1 Reset Interrupt Sequence

The reset function is not in the strictest sense an interrupt; however, it is acted upon in a similar manner as shown in Figure 5-1. A low-level input on the RESET the program to vector to its starting address which is specified by the contents of memory locations $1FFE and $1FFF. The I bit in the condition code register is also set. The MCU is configured to a known state during this type of reset as previously described in Chapter 4 Resets.

5.2.2 Software Interrupt (SWI)

The SWI is an executable instruction. It is also a non-maskable interrupt since it is executed regardless of the state of the I bit in the CCR. As with any instruction, interrupts pending during the previous instruction will be serviced before the SWI opcode is fetched. The interrupt service routine address for the SWI instruction is specified by the contents of memory locations $1FFC and $1FFD.

5.2.3 Hardware Interrupts

All hardware interrupts are maskable by the I bit in the CCR. If the I bit is set, all hardware interrupts (internal and external) are disabled. Clearing the I bit enables the hardware interrupts. Four hardware interrupts are explained in the following subsections.

pin or internally generated RST signal causes

5.2.3.1 External Interrupt (IRQ

The IRQ falling edge of IRQ IRQ in the mask option register is clear (edge-sensitive only), the output of the internal edge detector flip-flop is sampled and the input level on the IRQ specified by the contents of memory locations $1FFA and $1FFB. If the port A interrupts are enabled by the MOR, they generate external interrupts identically to the IRQ

5.2.3.2 Input Capture Interrupt

The input capture interrupt is generated by the 16-bit timer as described in Chapter 8 Capture/Compare

Timer. The input capture interrupt flag is located in register TSR and its corresponding enable bit can be

found in register TCR. The I bit in the CCR must be clear for the input capture interrupt to be enabled. The interrupt service routine address is specified by the contents of memory locations $1FF8 and $1FF9.

/VPP pin drives an asynchronous interrupt to the CPU. An edge detector flip-flop is latched on the

/VPP. If either the output from the internal edge detector flip-flop or the level on the

/VPP pin is low, a request is synchronized to the CPU to generate the IRQ interrupt. If the LEVEL bit

The internal interrupt latch is cleared nine internal clock cycles after the interrupt is recognized (immediately after location $1FFA is read). Therefore, another external interrupt pulse could be latched during the IRQ service routine.

Another interrupt will be serviced if the IRQ the RTI in the service routine is executed.

)

/VPP pin is ignored. The interrupt service routine address is

/VPP pin.

NOTE

pin is still in a low state when

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 35

Interrupts

5.2.3.3 Output Compare Interrupt

The output compare interrupt is generated by a 16-bit timer as described in Chapter 8 Capture/Compare

Timer. The output compare interrupt flag is located in register TSR and its corresponding enable bit can

be found in register TCR. The I bit in the CCR must be clear for the output compare interrupt to be enabled. The interrupt service routine address is specified by the contents of memory locations $1FF8 and $1FF9.

5.2.3.4 Timer Overflow Interrupt

The timer overflow interrupt is generated by the 16-bit timer as described in Chapter 8 Capture/Compare

Timer. The timer overflow interrupt flag is located in register TSR and its corresponding enable bit can be

found in register TCR. The I bit in the CCR must be clear for the timer overflow interrupt to be enabled. This internal interrupt will vector to the interrupt service routine located at the address specified by the contents of memory locations $1FF8 and $1FF9.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

36 Freescale Semiconductor

Chapter 6 Input/Output Ports

6.1 Introduction

In the user mode, 20 bidirectional I/O lines are arranged as two 8-bit I/O ports (ports A and C), one 3-bit I/O port (port B), and one 1-bit I/O port (port D). These ports are programmable as either inputs or outputs under software control of the data direction registers (DDRs). Port D also contains one input-only pin.

6.2 Port A

Port A is an 8-bit bidirectional port, which does not share any of its pins with other subsystems (see

Figure 6-1). The port A data register is located at address $0000 and its data direction register (DDR) is

located at address $0004. The contents of the port A data register are indeterminate at initial power up and must be initialized by user software. Reset does not affect the data registers, but does clear the DDRs, thereby setting all of the port pins to input mode. Writing a 1 to a DDR bit sets the corresponding port pin to output mode. Port A has mask option register enabled interrupt capability with an internal pullup device

NOTE

The keyscan (pullup/interrupt) feature available on port A is NOT available in the ROM device, MC68HC05P6.

READ $0004

WRITE $0004

WRITE $0000

READ $0000

INTERNAL HC05

DATA BUS

PULLUP MASK

OPTION REGISTER

RESET

(RST)

DATA DIRECTION

DATA

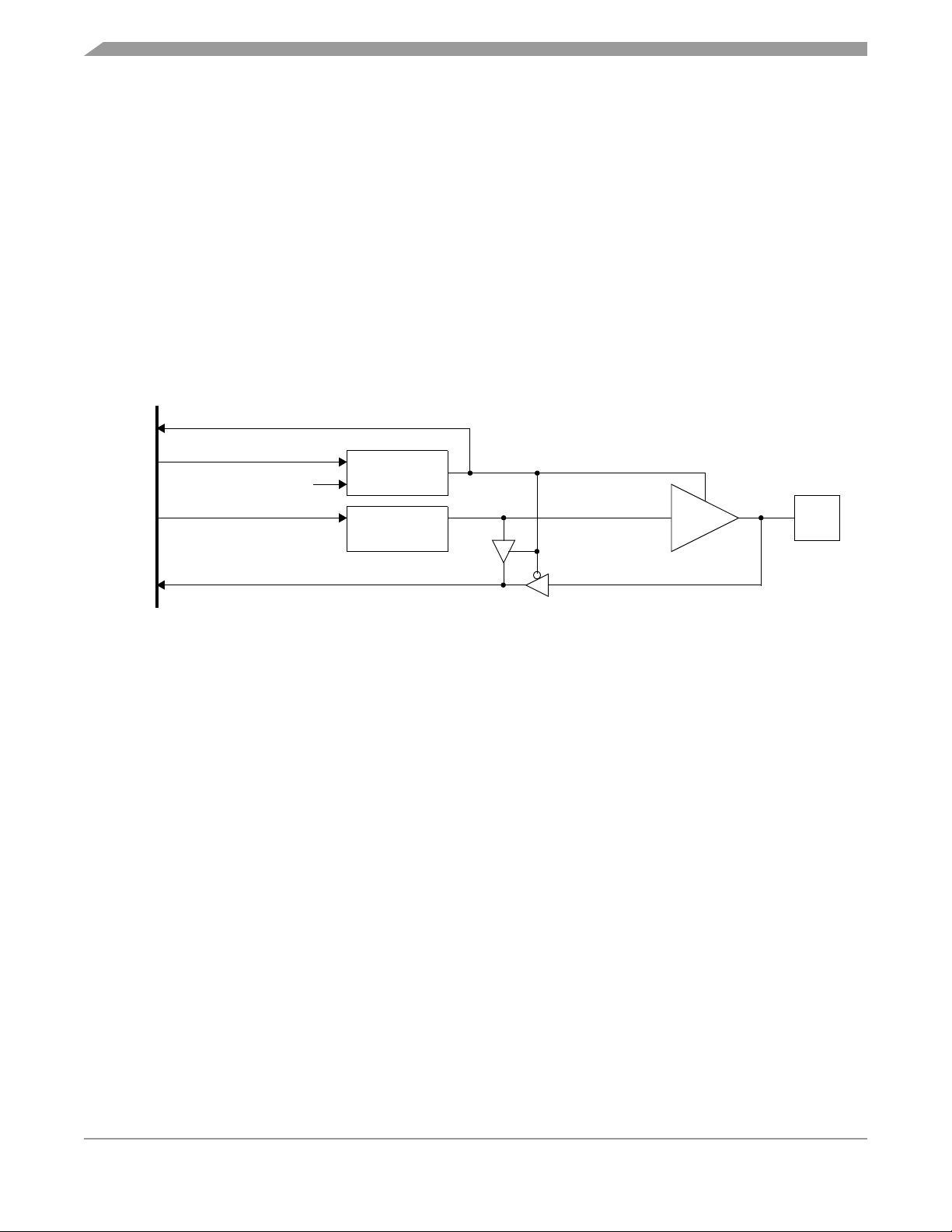

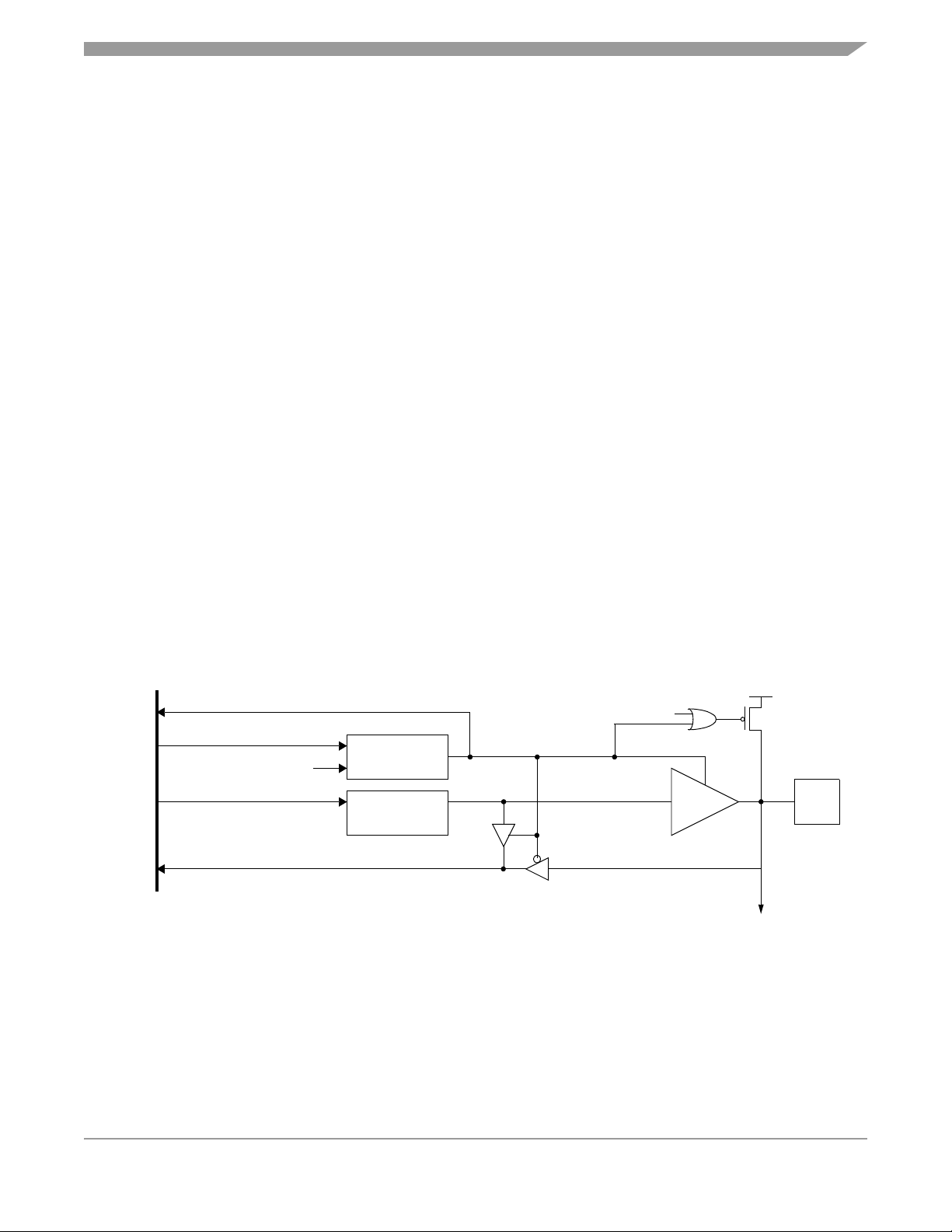

Figure 6-1. Port A I/O and Interrupt Circuitry

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

OUTPUT

INTERRUPT SYSTEM

TO IRQ

I/O

Freescale Semiconductor 37

Input/Output Ports

6.3 Port B

Port B is a 3-bit bidirectional port which can share pins PB5–PB7 with the SIOP communications subsystem. The port B data register is located at address $0001 and its data direction register (DDR) is located at address $0005. The contents of the port B data register are indeterminate at initial powerup and must be initialized by user software. Reset does not affect the data registers, but clears the DDRs, thereby setting all of the port pins to input mode. Writing a 1 to a DDR bit sets the corresponding port pin to output mode (see Figure 6-2).

Port B may be used for general I/O applications when the SIOP subsystem is disabled. The SPE bit in register SPCR is used to enable/disable the SIOP subsystem. When the SIOP subsystem is enabled, port B registers are still accessible to software. Writing to either of the port B registers while a data transfer is under way could corrupt the data. See Chapter 7 Serial Input/Output Port (SIOP) for a discussion of the SIOP subsystem.

READ $0005

WRITE $0005

RESET

(RST)

WRITE $0001

READ $0001

INTERNAL HC05

DATA BUS

DATA DIRECTION

DATA

OUTPUT

I/O

Figure 6-2. Port B I/O Circuitry

6.4 Port C

Port C is an 8-bit bidirectional port which can share pins PC3–PC7 with the A/D subsystem. The port C data register is located at address $0002 and its data direction register (DDR) is located at address $0006. The contents of the port C data register are indeterminate at initial powerup and must be initialized by user software. Reset does not affect the data registers, but clears the DDRs, thereby setting all of the port pins to input mode. Writing a 1 to a DDR bit sets the corresponding port pin to output mode (see

Figure 6-3).

Port C may be used for general I/O applications when the A/D subsystem is disabled. The ADON bit in register ADSC is used to enable/disable the A/D subsystem. Care must be exercised when using pins PC0–PC2 while the A/D subsystem is enabled. Accidental changes to bits that affect pins PC3–PC7 in the data or DDR registers will produce unpredictable results in the A/D subsystem. See Chapter 9 Analog

Subsystem.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

38 Freescale Semiconductor

READ $0006

Port D

WRITE $0006

RESET

(RST)

WRITE $0002

READ $0002

INTERNAL HC05

DATA BUS

DATA DIRECTION

DATA

OUTPUT

I/O

Figure 6-3. Port C I/O Circuitry

6.5 Port D

Port D is a 2-bit port with one bidirectional pin (PD5) and one input-only pin (PD7). Pin PD7 is shared with the 16-bit timer. The port D data register is located at address $0003 and its data direction register (DDR) is located at address $0007. The contents of the port D data register are indeterminate at initial powerup and must be initialized by user software. Reset does not affect the data registers, but clears the DDRs, thereby setting PD5 to input mode. Writing a 1 to DDR bit 5 sets PD5 to output mode (see Figure 6-4).

Port D may be used for general I/O applications regardless of the state of the 16-bit timer. Since PD7 is an input-only line, its state can be read from the port D data register at any time.

READ $0007

WRITE $0007

RESET

(RST)

WRITE $0003

READ $0003

INTERNAL HC05

DATA BUS

DATA DIRECTION

DATA

OUTPUT

I/O

Figure 6-4. Port D I/O Circuitry

6.6 I/O Port Programming

Each pin on port A through port D (except pin 7 of port D) can be programmed as an input or an output under software control as shown in Table 6-1, Table 6-2, Table 6-3, and Table 6-4. The direction of a pin is determined by the state of its corresponding bit in the associated port data direction register (DDR). A pin is configured as an output if its corresponding DDR bit is set to a logic 1. A pin is configured as an input if its corresponding DDR bit is cleared to a logic 0.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 39

Input/Output Ports

Table 6-1. Port A I/O Functions

Accesses to

DDRA I/O Pin Mode

0 IN, Hi-Z DDRA0–DDRA7 I/O Pin See Note

1 OUT DDRA0–DDRA7 PA0–PA7 PA0–PA7

Note: Does not affect input, but stored to data register

DDRA @ $0004

Read/Write Read Write

Accesses to Data Register @ $0000

Table 6-2. Port B I/O Functions

Accesses to

DDRB I/O Pin Mode

0 IN, Hi-Z DDRB5–DDRB7 I/O Pin See Note

1 OUT DDRB5–DDRB7 PB5–PB7 PB5–PB7

Note: Does not affect input, but stored to data register

DDRB @ $0005

Read/Write Read Write

Accesses to Data Register @ $0001

Table 6-3. Port C I/O Functions

Accesses to

DDRC I/O Pin Mode

0 IN, Hi-Z DDRC0–DDRC7 I/O Pin See Note

1 OUT DDRC0–DDRC7 PC0–PC7 PC0–PC7

Note: Does not affect input, but stored to data register

DDRC @ $0006

Read/Write Read Write

Accesses to Data Register @ $0002

Table 6-4. Port D I/O Functions

Accesses to

DDRD I/O Pin Mode

0 IN, Hi-Z DDRD5 I/O Pin See Note 1

1 OUT DDRD5 PD5 PD5

Notes:

1. Does not affect input, but stored to data register

2. PD7 is input only

DDRD @ $0007

Read/Write Read Write

Accesses to Data Register @ $0003

NOTE

To avoid generating a glitch on an I/O port pin, data should be written to the I/O port data register before writing a logic 1 to the corresponding data direction register.

At power-on or reset, all DDRs are cleared, which configures all port pins as inputs. The DDRs are capable of being written to or read by the processor. During the programmed output state, a read of the data register will actually read the value of the output data latch and not the level on the I/O port pin.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

40 Freescale Semiconductor

Chapter 7 Serial Input/Output Port (SIOP)

7.1 Introduction

The simple synchronous serial I/O port (SIOP) subsystem is designed to provide efficient serial communications between peripheral devices or other MCUs. The SIOP is implemented as a 3-wire master/slave system with serial clock (SCK), serial data input (SDI), and serial data output (SDO). A block diagram of the SIOP is shown in Figure 7-1. A mask programmable option determines whether the SIOP is MSB or LSB first.

The SIOP subsystem shares its input/output pins with port B. When the SIOP is enabled (SPE bit set in register SCR), port B DDR and data registers are modified by the SIOP. Although port B DDR and data registers can be altered by application software, these actions could affect the transmitted or received data.

HCO5 INTERNAL BUS

SPE

76543210

CONTROL

$0A

76543210

8-BIT

SHIFT

$0C

SDO

SDI

SCK

BAUD

RATE

GENERATOR

INTERNAL

CPU CLOCK

76543210

STATUS

$0B

Figure 7-1. SIOP Block Diagram

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

I/O

CONTROL

LOGIC

SDO/PB5

SDI/PB6

SCK/PB7

Freescale Semiconductor 41

Serial Input/Output Port (SIOP)

7.2 SIOP Signal Format

The SIOP subsystem is software configurable for master or slave operation. No external mode selection inputs are available (for instance, slave select pin).

7.2.1 Serial Clock (SCK)

The state of the SCK output normally remains a logic 1 during idle periods between data transfers. The first falling edge of SCK signals the beginning of a data transfer. At this time, the first bit of received data may be presented at the SDI pin and the first bit of transmitted data is presented at the SDO pin (see

Figure 7-2). Data is captured at the SDI pin on the rising edge of SCK. The transfer is terminated upon

the eighth rising edge of SCK.

The master and slave modes of operation differ only by the sourcing of SCK. In master mode, SCK is driven from an internal source within the MCU. In slave mode, SCK is driven from a source external to the MCU. The SCK frequency is dependent upon the SPR0 and SPR1 bits located in the mask option register. Refer to 11.2 Mask Option Register for a description of available SCK frequencies.

BIT 0 BIT 1 BIT 2 BIT 3 BIT 4 BIT 5 BIT 6 BIT 7

SDO

SCK

100 ns 100 ns

SDI

BIT 0 BIT 1 BIT 2 BIT 3 BIT 4 BIT 5 BIT 6 BIT 7

Figure 7-2. SIOP Timing Diagram

7.2.2 Serial Data Input (SDI)

The SDI pin becomes an input as soon as the SIOP subsystem is enabled. New data may be presented to the SDI pin on the falling edge of SCK.However, valid data must be present at least 100 nanoseconds before the rising edge of SCK and remain valid for 100 nanoseconds after the rising edge of SCK. See

Figure 7-2.

7.2.3 Serial Data Output (SDO)

The SDO pin becomes an output as soon as the SIOP subsystem is enabled. Prior to enabling the SIOP, PB5 can be initialized to determine the beginning state. While the SIOP is enabled, PB5 cannot be used as a standard output since that pin is connected to the last stage of the SIOP serial shift register. Mask option register bit LSBF permits data to be transmitted in either the MSB first format or the LSB first format. Refer to 11.2 Mask Option Register for MOR LSBF programming information.

On the first falling edge of SCK, the first data bit will be shifted out to the SDO pin. The remaining data bits will be shifted out to the SDO pin on subsequent falling edges of SCK. The SDO pin will present valid data at least 100 nanoseconds before the rising edge of the SCK and remain valid for 100 nanoseconds after the rising edge of SCK. See Figure 7-2.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

42 Freescale Semiconductor

SIOP Registers

7.3 SIOP Registers

The SIOP is programmed and controlled by the SIOP control register (SCR) located at address $000A, the SIOP status register (SSR) located at address $000B, and the SIOP data register (SDR) located at address $000C.

7.3.1 SIOP Control Register (SCR)

This register is located at address $000A and contains two bits. Figure 7-3 shows the position of each bit in the register and indicates the value of each bit after reset.

Address: $000A

Bit 7654321Bit 0

Write:

Reset:00000000

SPE

= Unimplemented

Figure 7-3. SIOP Control Register (SCR)

SPE — Serial Peripheral Enable

When set, the SPE bit enables the SIOP subsystem such that SDO/PB5 is the serial data output, SDI/PB6 is the serial data input, and SCK/PB7 is a serial clock input in the slave mode or a serial clock output in the master mode. Port B DDR and data registers can be manipulated as usual (except for PB5); however, these actions could affect the transmitted or received data.

The SPE bit is readable at any time. However, writing to the SIOP control register while a transmission is in progress will cause the SPIF and DCOL bits in the SIOP status register (see below) to operate incorrectly. Therefore, the SIOP control register should be written once to enable the SIOP and then not written to until the SIOP is to be disabled. Clearing the SPE bit while a transmission is in progress will 1) abort the transmission, 2) reset the serial bit counter, and 3) convert the port B/SIOP port to a general-purpose I/O port. Reset clears the SPE bit.

MSTR

0000

MSTR — Master Mode Select

When set, the MSTR bit configures the serial I/O port for master mode. A transfer is initiated by writing to the SDR. Also, the SCK pin becomes an output providing a synchronous data clock dependent upon the oscillator frequency. When the device is in slave mode, the SDO and SDI pins do not change function. These pins behave exactly the same in both the master and slave modes.

The MSTR bit is readable and writeable at any time regardless of the state of the SPE bit. Clearing the MSTR bit will abort any transfers that may have been in progress. Reset clears the MSTR bit as well as the SPE bit, disabling the SIOP subsystem.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 43

Serial Input/Output Port (SIOP)

7.3.2 SIOP Status Register (SSR)

This register is located at address $000B and contains two bits. Figure 7-4 shows the position of each bit in the register and indicates the value of each bit after reset.

Address: $000B

Bit 7654321Bit 0

Read:SPIFDCOL000000

Write:

Reset:00000000

= Unimplemented

Figure 7-4. SIOP Status Register (SSR)

SPIF — Serial Port Interface Flag

SPIF is a read-only status bit that is set on the last rising edge of SCK and indicates that a data transfer has been completed. It has no effect on any future data transfers and can be ignored. The SPIF bit is cleared by reading the SSR followed by a read or write of the SDR. If the SPIF is cleared before the last rising edge of SCK, it will be set again on the last rising edge of SCK. Reset clears the SPIF bit.

DCOL — Data Collision

DCOL is a read-only status bit which indicates that an illegal access of the SDR has occurred. The DCOL bit will be set when reading or writing the SDR after the first falling edge of SCK and before SPIF is set. Reading or writing the SDR during this time will result in invalid data being transmitted or received.

The DCOL bit is cleared by reading the SSR (when the SPIF bit is set) followed by a read or write of the SDR. If the last part of the clearing sequence is done after another transfer has started, the DCOL bit will be set again. Reset clears the DCOL bit.

7.3.3 SIOP Data Register (SDR)

This register is located at address $000C and serves as both the transmit and receive data register. Writing to this register will initiate a message transmission if the SIOP is in master mode. The SIOP subsystem is not double buffered and any write to this register will destroy the previous contents. The SDR can be read at any time; however, if a transfer is in progress, the results may be ambiguous and the DCOL bit will be set. Writing to the SDR while a transfer is in progress can cause invalid data to be transmitted and/or received. Figure 7-5 shows the position of each bit in the register. This register is not affected by reset.

Address: $000C

Bit 7654321Bit 0

Read:

Write:

Reset: Unaffected by reset

SD7 SD6 SD5 SD4 SD3 SD2 SD1 SD0

Figure 7-5. Serial Port Data Register (SDR)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

44 Freescale Semiconductor

Chapter 8 Capture/Compare Timer

8.1 Introduction

This section describes the operation of the 16-bit capture/compare timer. Figure 8-1 shows the structure of the capture/compare subsystem.

INTERNAL BUS

INTERNAL

PROCESSOR

CLOCK

³³³

÷4

HIGH BYTE

16-BIT FREE

RUNNING COUNTER

COUNTER

ALTERNATE

8-BIT BUFFER

LOW BYTE

$18 $19

$1A $1B

HIGH BYTE

LOW BYTE

INPUT

CAPTURE

$14 $15

$16 $17

HIGH BYTE

LOW BYTE

OUTPUT COMPARE REGISTER

TIMER

STATUS

REG.

OUTPUT

COMPARE

CIRCUIT

ICF OCF TOF

INTERRUPT

$13

CIRCUIT

OVERFLOW

DETECT CIRCUIT

ICIE IEDG OLVL

TOIEOCIE

EDGE DETECT CIRCUIT

OUTPUT

LEVEL

REG.

TIMER

CONTROL

REG.

$12

D CLK

RESET

Figure 8-1. Capture/Compare Timer Block Diagram

OUTPUT

LEVEL

(TCMP)

EDGE INPUT

(TCAP)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 45

Capture/Compare Timer

8.2 Timer Operation

The core of the capture/compare timer is a 16-bit free-running counter. The counter provides the timing reference for the input capture and output compare functions. The input capture and output compare functions provide a means to latch the times at which external events occur, to measure input waveforms, and to generate output waveforms and timing delays. Software can read the value in the 16-bit free-running counter at any time without affecting the counter sequence.

Because of the 16-bit timer architecture, the I/O registers for the input capture and output compare functions are pairs of 8-bit registers.

Because the counter is 16 bits long and preceded by a fixed divide-by-4 prescaler, the counter rolls over every 262,144 internal clock cycles. Timer resolution with a 4-MHz crystal is 2 µs.

8.2.1 Input Capture

The input capture function is a means to record the time at which an external event occurs. When the input capture circuitry detects an active edge on the TCAP pin, it latches the contents of the timer registers into the input capture registers. The polarity of the active edge is programmable.

Latching values into the input capture registers at successive edges of the same polarity measures the period of the input signal on the TCAP pin. Latching values into the input capture registers at successive edges of opposite polarity measures the pulse width of the signal.

8.2.2 Output Compare

The output compare function is a means of generating an output signal when the 16-bit counter reaches a selected value. Software writes the selected value into the output compare registers. On every fourth internal clock cycle the output compare circuitry compares the value of the counter to the value written in the output compare registers. When a match occurs, the timer transfers the programmable output level bit (OLVL) from the timer control register to the TCMP pin.

The programmer can use the output compare register to measure time periods, to generate timing delays, or to generate a pulse of specific duration or a pulse train of specific frequency and duty cycle on the TCMP pin.

8.3 Timer I/O Registers

The following I/O registers control and monitor timer operation:

• Timer control register (TCR)

• Timer status register (TSR)

• Timer registers (TRH and TRL)

• Alternate timer registers (ATRH and ATRL)

• Input capture registers (ICRH and ICRL)

• Output compare registers (OCRH and OCRL)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

46 Freescale Semiconductor

Timer I/O Registers

8.3.1 Timer Control Register

The timer control register (TCR), shown in Figure 8-2, performs these functions:

• Enables input capture interrupts

• Enables output compare interrupts

• Enables timer overflow interrupts

• Controls the active edge polarity of the TCAP signal

• Controls the active level of the TCMP output

Address: $0012

Bit 7654321Bit 0

Read:

Write:

Reset:000000U0

ICIE OCIE TOIE

= Unimplemented U = Undetermined

Figure 8-2. Timer Control Register (TCR)

ICIE — Input Capture Interrupt Enable

This read/write bit enables interrupts caused by an active signal on the TCAP pin. Resets clear the ICIE bit.

1 = Input capture interrupts enabled 0 = Input capture interrupts disabled

000

IEDG OLVL

OCIE — Output Compare Interrupt Enable

This read/write bit enables interrupts caused by an active signal on the TCMP pin. Resets clear the OCIE bit.

1 = Output compare interrupts enabled 0 = Output compare interrupts disabled

TOIE — Timer Overflow Interrupt Enable

This read/write bit enables interrupts caused by a timer overflow. Reset clear the TOIE bit.

1 = Timer overflow interrupts enabled 0 = Timer overflow interrupts disabled

IEDG — Input Edge

The state of this read/write bit determines whether a positive or negative transition on the TCAP pin triggers a transfer of the contents of the timer register to the input capture register. Resets have no effect on the IEDG bit.

1 = Positive edge (low to high transition) triggers input capture 0 = Negative edge (high to low transition) triggers input capture

OLVL — Output Level

The state of this read/write bit determines whether a logic 1 or logic 0 appears on the TCMP pin when a successful output compare occurs. Resets clear the OLVL bit.

1 = TCMP goes high on output compare 0 = TCMP goes low on output compare

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 47

Capture/Compare Timer

8.3.2 Timer Status Register

The timer status register (TSR), shown in Figure 8-3, contains flags to signal the following conditions:

• An active signal on the TCAP pin, transferring the contents of the timer registers to the input capture registers

• A match between the 16-bit counter and the output compare registers, transferring the OLVL bit to the TCMP pin

• A timer roll over from $FFFF to $0000

Address: $0013

Bit 7654321Bit 0

Read:ICFOCFTOF00000

Write:

Reset:UUU00000

= Unimplemented U = Undetermined

Figure 8-3. Timer Status Register (TSR)

ICF — Input Capture Flag

The ICF bit is set automatically when an edge of the selected polarity occurs on the TCAP pin. Clear the ICF bit by reading the timer status register with ICF set and then reading the low byte ($0015) of the input capture registers. Resets have no effect on ICF.

OCF — Output Compare Flag

The OCF bit is set automatically when the value of the timer registers matches the contents of the output compare registers. Clear the OCF bit by reading the timer status register with OCF set and then reading the low byte ($0017) of the output compare registers. Resets have no effect on OCF.

TOF — Timer Overflow Flag

The TOF bit is set automatically when the 16-bit counter rolls over from $FFFF to $0000. Clear the TOF bit by reading the timer status register with TOF set, and then reading the low byte ($0019) of the timer registers. Resets have no effect on TOF.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

48 Freescale Semiconductor

Timer I/O Registers

8.3.3 Timer Registers

The timer registers (TRH and TRL), shown in Figure 8-4, contains the current high and low bytes of the 16-bit counter. Reading TRH before reading TRL causes TRL to be latched until TRL is read. Reading TRL after reading the timer status register clears the timer overflow flag (TOF). Writing to the timer registers has no effect.

Address: TRH — $0018

Bit 7654321Bit 0

Read: TRH7 TRH6 TRH5 TRH4 TRH3 TRH2 TRH1 TRH0

Write

Reset:11111111

Address: TRL — $0019

Bit 7654321Bit 0

Write:

Reset:11111100

= Unimplemented

Figure 8-4. Timer Registers (TRH and TRL)

8.3.4 Alternate Timer Registers

The alternate timer registers (ATRH and ATRL), shown in Figure 8-5, contain the current high and low bytes of the 16-bit counter. Reading ATRH before reading ATRL causes ATRL to be latched until ATRL is read. Reading ATRL has no effect on the timer overflow flag (TOF). Writing to the alternate timer registers has no effect.

Address: ATRH — $001A

Bit 7654321Bit 0

Read: ACRH7 ACRH6 ACRH5 ACRH4 ACRH3 ACRH2 ACRH1 ACRH0

Write:

Reset:11111111

Address: ATRL — $001B

Bit 7654321Bit 0

Write:

Reset:11111100

= Unimplemented

Figure 8-5. Alternate Timer Registers (ATRH and ATRL)

NOTE

To prevent interrupts from occurring between readings of ATRH and ATRL, set the interrupt flag in the condition code register before reading ATRH, and clear the flag after reading ATRL.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 49

Capture/Compare Timer

8.3.5 Input Capture Registers

When a selected edge occurs on the TCAP pin, the current high and low bytes of the 16-bit counter are latched into the input capture registers. Reading ICRH before reading ICRL inhibits further capture until ICRL is read. Reading ICRL after reading the status register clears the input capture flag (ICF). Writing to the input capture registers has no effect.

Address: ICRH — $0014

Bit 7654321Bit 0

Read: ICRH7 ICRH6 ICRH5 ICRH4 ICRH3 ICRH2 ICRH1 ICRH0

Write:

Unaffected by reset

Address: ICRL — $0015

Bit 7654321Bit 0

Write:

Unaffected by reset

= Unimplemented

Figure 8-6. Input Capture Registers (ICRH and ICRL)

NOTE

To prevent interrupts from occurring between readings of ICRH and ICRL, set the interrupt flag in the condition code register before reading ICRH, and clear the flag after reading ICRL.

8.3.6 Output Compare Registers

When the value of the 16-bit counter matches the value in the output compare registers, the planned TCMP pin action takes place. Writing to OCRH before writing to OCRL inhibits timer compares until OCRL is written. Reading or writing to OCRL after the timer status register clears the output compare flag (OCF).

Address: OCRH — $0016

Bit 7654321Bit 0

Write:

Read:

Address: OCRL — $0017

Read:

OCRH7 OCRH6 OCRH5 OCRH4 OCRH3 OCRH2 OCRH1 OCRH0

Unaffected by reset

Bit 7654321Bit 0

Unaffected by reset

Figure 8-7. Output Compare Registers (OCRH and OCRL)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

50 Freescale Semiconductor

Timer During Wait/Halt Mode

To prevent OCF from being set between the time it is read and the time the output compare registers are updated, use this procedure:

1. Disable interrupts by setting the I bit in the condition code register.

2. Write to OCRH. Compares are now inhibited until OCRL is written.

3. Clear bit OCF by reading timer status register (TSR).

4. Enable the output compare function by writing to OCRL.

5. Enable interrupts by clearing the I bit in the condition code register.

8.4 Timer During Wait/Halt Mode

The CPU clock halts during the wait (or halt) mode, but the timer remains active. If interrupts are enabled, a timer interrupt will cause the processor to exit the wait mode.

8.5 Timer During Stop Mode

In the stop mode, the timer stops counting and holds the last count value if STOP is exited by an interrupt. If STOP is exited by RESET, the counters are forced to $FFFC. During STOP, if at least one valid input capture edge occurs at the TCAP pins, the input capture detect circuit is armed. This does not set any timer flags or wake up the MCU, but if an interrupt is used to exit stop mode, there is an active input capture flag and data from the first valid edge that occurred during the stop mode. If reset is used to exit stop mode, then no input capture flag or data remains, even if a valid input capture edge occurred.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 51

Capture/Compare Timer

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

52 Freescale Semiconductor

Chapter 9 Analog Subsystem

9.1 Introduction

The MC68HC705P6A includes a 4-channel, multiplexed input, 8-bit, successive approximation analog-to-digital (A/D) converter. The A/D subsystem shares its inputs with port C pins PC3–PC7.

9.2 Analog Section

The following paragraphs describe the operation and performance of analog modules within the analog subsystem.

9.2.1 Ratiometric Conversion

The A/D converter is ratiometric, with pin V voltage equal to V to V no overflow indication. For ratiometric conversions, V voltage being used by the analog signal being measured and referenced to V

produces a conversion result of $00. An input voltage greater than V

9.2.2 Reference Voltage (V

The reference supply for the A/D converter shares pin PC7 with port C. The low reference is tied to the

pin internally. V

conversions is tested and guaranteed only for V

produces a conversion result of $FF (full scale). Applying an input voltage equal

REFH

)

REFH

can be any voltage between VSS and VDD; however, the accuracy of

REFH

supplying the high reference voltage. Applying an input

REFH

will convert to $FF with

REFH

should be at the same potential as the supply

REFH

= VDD.

REFH

9.2.3 Accuracy and Precision

The 8-bit conversion result is accurate to within ±1 1/2 LSB, including quantization; however, the accuracy of conversions is tested and guaranteed only with external oscillator operation.

9.3 Conversion Process

The A/D reference inputs are applied to a precision digital-to-analog converter. Control logic drives the D/A and the analog output is successively compared to the selected analog input which was sampled at the beginning of the conversion cycle. The conversion process is monotonic and has no missing codes.

9.4 Digital Section

The following paragraphs describe the operation and performance of digital modules within the analog subsystem.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 53

Analog Subsystem

9.4.1 Conversion Times

Each input conversion requires 32 internal clock cycles, which must be at a frequency equal to or greater than 1 MHz.

9.4.2 Internal versus External Oscillator

If the internal clock is 1 MHz or greater (i.e., external oscillator 2 MHz or greater), the internal RC oscillator must be turned off and the external oscillator used as the conversion clock.

If the MCU internal clock frequency is less than 1 MHz (2 MHz external oscillator), the internal RC oscillator (approximately 1.5 MHz) must be used for the A/D converter clock. The internal RC clock is selected by setting the ADRC bit in the ADSC register.

When the internal RC oscillator is being used, these limitations apply:

1. Since the internal RC oscillator is running asynchronously with respect to the internal clock, the conversion complete bit (CC) in register ADSC must be used to determine when a conversion sequence has been completed.

2. Electrical noise will slightly degrade the accuracy of the A/D converter. The A/D converter is synchronized to read voltages during the quiet period of the clock driving it. Since the internal and external clocks are not synchronized, the A/D converter will occasionally measure an input when the external clock is making a transition.

9.4.3 Multi-Channel Operation

An input multiplexer allows the A/D converter to select from one of four external analog signals. Port C pins PC3 through PC6 are shared with the inputs to the multiplexer.

9.5 A/D Status and Control Register (ADSC)

The ADSC register reports the completion of A/D conversion and provides control over oscillator selection, analog subsystem power, and input channel selection. See Figure 9-1.

Address: $001E

Bit 7654321Bit 0

Read: CC

Write:

Reset:00000000

ADRC ADON

= Unimplemented

Figure 9-1. A/D Status and Control Register (ADSC)

CC — Conversion Complete

This read-only status bit is set when a conversion sequence has completed and data is ready to be read from the ADC register. CC is cleared when the ADSC is written to or when data is read from the ADC register. Once a conversion has been started, conversions of the selected channel will continue every 32 internal clock cycles until the ADSC register is written to again. During continuous conversion operation, the ADC register will be updated with new data, and the CC bit set every 32 internal clock cycles. Also, data from the previous conversion will be overwritten regardless of the state of the CC bit.

CH2 CH1 CH0

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

54 Freescale Semiconductor

A/D Conversion Data Register (ADC)

ADRC — RC Oscillator Control

When ADRC is set, the A/D subsystem operates from the internal RC oscillator instead of the internal clock. The RC oscillator requires a time, t

, to stabilize before accurate conversion results can be

RCON

obtained. See 9.2.2 Reference Voltage (VREFH) for more information.

ADON — A/D Subsystem On

When the A/D subsystem is turned on (ADON = 1), it requires a time, t

, to stabilize before

ADON

accurate conversion results can be attained.

CH2–CH0 — Channel Select Bits

CH2, CH1, and CH0 form a 3-bit field which is used to select an input to the A/D converter. Channels 0–3 correspond to port C input pins PC6–PC3. Channels 4–6 are used for reference measurements. Channel 7 is reserved. If a conversion is attempted with channel 7 selected, the result will be $00.

Table 9-1 lists the inputs selected by bits CH0-CH3.

If the ADON bit is set and an input from channels 0–4 is selected, the corresponding port C pin’s DDR bit will be cleared (making that port C pin an input). If the port C data register is read while the A/D is on and one of the shared input channels is selected using bit CH0–CH2, the corresponding port C pin will read as a logic 0. The remaining port C pins will read normally. To digitally read a port C pin, the A/D subsystem must be disabled (ADON = 0), or input channels 5–7 must be selected.

Table 9-1. A/D Multiplexer Input Channel Assignments

Channel Signal

0 AD0 — port C, bit 6

1 AD1 — port C, bit 5

2 AD2 — port C, bit 4

3 AD3 — port C, bit 3

— port C, bit 7

7 Reserved for factory test

REFH

+ VSS)/2

9.6 A/D Conversion Data Register (ADC)

This register contains the output of the A/D converter. See Figure 9-2.

Address: $001D

Bit 7654321Bit 0

Read: AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

Write:

Reset: Unaffected by reset

= Unimplemented

Figure 9-2. A/D Conversion Value Data Register (ADC)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 55

Analog Subsystem

9.7 A/D Subsystem Operation during Halt/Wait Modes

The A/D subsystem continues normal operation during wait and halt modes. To decrease power consumption during wait or halt mode, the ADON and ADRC bits in the A/D status and control register should be cleared if the A/D subsystem is not being used.

9.8 A/D Subsystem Operation during Stop Mode

When stop mode is enabled, execution of the STOP instruction will terminate all A/D subsystem functions. Any pending conversion is aborted. When the oscillator resumes operation upon leaving stop mode, a finite amount of time passes before the A/D subsystem stabilizes sufficiently to provide conversions at its rated accuracy. The delays built into the MC68HC705P6A when coming out of stop mode are sufficient for this purpose. No explicit delays need to be added to the application software.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

56 Freescale Semiconductor

Chapter 10 EPROM

10.1 Introduction

The user EPROM consists of 48 bytes of user page zero EPROM from $0020 to $004F, 4608 bytes of user EPROM from $0100 to $12FF, the two MOR reset values located at $1EFF and $1F00, and 16 bytes of user vectors EPROM from $1FF0 to $1FFF. The bootloader ROM and vectors are located from $1F01 to $1FEF.

10.2 EPROM Erasing

NOTE

Only parts packaged in a windowed package may be erased. Others are one-time programmable and may not be erased by UV exposure.

The MC68HC705P6A can be erased by exposure to a high-intensity ultraviolet (UV) light with a wavelength of 2537 angstroms. The recommended dose (UV intensity multiplied by exposure time) is 15 Ws/cm positioned about one inch from the UV lamp. An erased EPROM byte will read as $00.

. UV lamps without shortwave filters should be used, and the EPROM device should be

10.3 EPROM Programming Sequence

The bootloader software goes through a complete write cycle of the EPROM including the MOR. This is followed by a verify cycle which continually branches in a loop if an error is found. A sample routine to program a byte of EPROM is shown in Table 10-1.

NOTE

To avoid damage to the MCU, V

must be applied to the MCU before VPP.

10.4 EPROM Registers

Three registers are associated with the EPROM: the EPROM programming register (EPROG) and the two mask option registers (MOR). The EPROG register controls the actual programming of the EPROM bytes and the MOR. The MOR registers control the six mask options found on the ROM version of this MCU (MC68HC05P6), the EPROM security feature, and eight additional port A interrupt options.

10.5 EPROM Programming Register (EPROG)

This register is used to program the EPROM array. Only the ELAT and EPGM bits are available.

Table 10-1 shows the location of each bit in the EPROG register and the state of these bits coming out of

reset. All the bits in the EPROG register are cleared by reset.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 57

EPROM

Address $001C

Bit 7654321Bit 0

Write:

Reset:00000000

= Unimplemented

ELAT

EPGM

Figure 10-1. EPROM Programming Register (EPROG)

EPGM — EPROM Program Control

If the EPGM bit is set, programming power is applied to the EPROM array. If the EPGM bit is cleared, programming power is removed from the EPROM array. The EPGM bit cannot be set unless the ELAT bit is set already.

Whenever the ELAT bit is cleared, the EPGM bit is cleared also. Both the EPGM and the ELAT bit cannot be set using the same write instruction. Any attempt to set both the EPGM and ELAT bit on the same write instruction cycle will result in the ELAT bit being set and the EPGM bit being cleared. The EPGM bit is a read-write bit and can be read at any time. The EPGM bit is cleared by reset.

ELAT— EPROM Latch Control

If the ELAT bit is set, the EPROM address and data bus are configured for programming to the array. If the ELAT bit is cleared, the EPROM address and data bus are configured for normal reading of data from the array. When the ELAT bit is set, the address and data bus are latched in the EPROM array when a subsequent write to the array is made. Data in the EPROM array cannot be read if the ELAT bit is set.

Whenever the ELAT bit is cleared, the EPGM bit is cleared also. Both the EPGM and the ELAT bit cannot be set using the same write instruction. Any attempt to set both the EPGM and ELAT bit on the same write instruction cycle will result in the ELAT bit being set and the EPGM bit being cleared. The ELAT bit is a read-write bit and can be read at any time. The ELAT bit is cleared by reset.

To program a byte of EPROM, manipulate the EPROG register as follows:

1. Set the ELAT bit in the EPROG register.

2. Write the desired data to the desired EPROM address.

3. Set the EPGM bit in the EPROG register for the specified programming time, t

EPGM

4. Clear the ELAT and EPGM bits in the EPROG register.

This sequence is also shown in the sample program listing in Table 10-1.

Table 10-1. EPROM Programming Routine

001C 0055 0700 0000

00D0 ORG $D0 00D0

00D2 00D4 00D6

00D9 00DB 00DD 00DF

A6 02 B7 1C A6 55

C7 07 00

10 1C AD 03 3F 1C

EPROG

DATA

EPROM

EPGM

EQU $1C EQU $55

EQU $700

EQU $00

LDA #$04

STA EPROG

LDA #DATA

STA EPROM

BSET EPGM, EPROG

BSR DELAY

CLR EPROG

RTS

PROGRAMMING REG

DATA VALUE

A SAMPLE EPROM ADX

EPGM BIT IN EPROG REG

SET LAT BIT IN EPROG

DATA BYTE

WRITE IT TO EPROM LOC

TURN ON PGM VOLTAGE

WAIT 4 ms MINIMUM

CLR LAT AND PGM BITS

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

58 Freescale Semiconductor

EPROM Bootloader

10.6 EPROM Bootloader

Three port pins are associated with bootloader control functions: PC3, PC4, and PC6. Table 10-2 summarizes their functionality.

Table 10-2. Bootloader Control Pins

PC6 PC4 PC3 Mode

111 Program/verify

110 Verify only

1 0 0 Dump MCU EPROM to port A

10.7 Programming from an External Memory Device

In this programming mode, PC5 must be connected to VSS. PC4 and PC3 are used to select the programming mode. The programming circuit shown in Figure 10-2 uses an external 12-bit counter to address the memory device containing the code to be copied. This counter requires a clock and a reset function. The 12-bit counter can address up to 4 Kbytes of memory, which means that a port pin has to be used to address the remaining 4 K of the 8-K memory space.

The following procedure explains how to use the programming circuit shown in Figure 10-2 to copy a user program from an external memory device into the MCU’s EPROM:

1. Program a 2764-type EPROM device with the desired instructions and data. Code programmed into the 2764 must appear at the same addresses desired in the MC68HC705P6A. Therefore, the page zero code must start at $0020 and end at $004F, the main body of code must start at $0100 and end at $12FF, and the user vectors must start at $1FF0 and end at $1FFF.

NOTE

The MOR data must appear at $1EFF and $1F00.

2. Install the programmed 2764 device into the programming circuit.

3. Install the MC68HC705P6A to be programmed into the programming circuit.

4. Set the PROGRAM and/or VERIFY switches for the desired operation (an open switch is the active state) and close the RESET switch to hold the MCU in reset.

5. Make sure that the V

6. Apply the V

7. Apply the V

source to the programming circuit.

source is OFF.

8. Open the RESET switch to allow the MCU to come out of reset and begin execution of the software in its internal bootloader ROM.

9. Wait for programming and/or verification to complete (about 40 seconds). The PROGRAM LED will light during programming and the VERIFY LED will light if verification was requested and was successful.

10. When complete, close the RESET switch to force the MCU into the reset state.

11. Turn off the V

12. Turn off the V

source.

13. Remove device(s).

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 59

EPROM

PROGRAM 2764 TYPE EPROM

INSTALL EPROM INTO PROGRAMMER

INSTALL MC68HC705P6A INTO PROGRAMMER

PROGRAMMING?

OPEN PROGRAM SWITCH CLOSE PROGRAM SWITCH

VERIFYING?

OPEN VERIFY SWITCH CLOSE VERIFY SWITCH

CLOSE RESET SWITCH

PROGRAMMING?

WAIT FOR PROGRAMMING LED TO

TURN ON AND OFF.

VERIFYING?

WAIT FOR 30 SECONDS

IS VERIFY

LED LIT?

MAKE SURE VPP IS OFF

TURN VDD ON

TURN V

OPEN RESET SWITCH

VERIFICATION FAILED

VERIFICATION COMPLETE

CLOSE RESET SWITCH

TURN OFF V

REMOVE DEVICES

Figure 10-2. MC68HC705P6A EPROM Programming Flowchart

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

60 Freescale Semiconductor

MC68HC705P6A

Programming from an External Memory Device

0 pF

2 MHz

10 MΩ

RESET

10 kΩ

1 µF

20 pF

IRQ

OSC1

OSC2

RESET

PC6

PD7/TCAP

PB5

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

10 kΩ

A12

2764

PGM

A11

A10

10 kΩ

MC74HC4040

Q12

Q11

Q10

RST

CLK

330 Ω

PROG

PB7

VERF

PB6

PC5

PC1

PC2

PC3

PC4

10 kΩ

PGM

VFY

Figure 10-3. MC68HC705P6A EPROM Programming Schematic Diagram

= 5.0 V

= 16.5 V

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 61

EPROM

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

62 Freescale Semiconductor

Chapter 11 Mask Option Register (MOR)

11.1 Introduction

The mask option register (MOR) contains two bytes of EPROM used to enable or disable each of the features controlled by mask options on the MC68HC05P6 (a ROM version of the MC68HC705P6A).

The seven programmable options on the MC68HC705P6A are:

1. COP watchdog timer (enable or disable)

2. IRQ

3. SIOP data bit order (most significant bit or least significant bit first)

4. SIOP clock rate (OSC divided by 8, 16, 32, or 64)

5. Stop instruction mode (stop mode or halt mode)

6. Secure EPROM from external reading

7. Keyscan interrupt/pullups on PA0–PA7

11.2 Mask Option Register

Mask options are programmed into the mask option register (MOR) by the firmware in the bootloader ROM. See Figure 11-1.

triggering (edge- or edge- and level-sensitive)

Address: $1EFF

Bit 7654321Bit 0

Read:

Write:

Erased State:00000000

Address: $1F00

Read:

Write:

Erased State:00000000

PA7PU PA6PU PA5PU PA4PU PA3PU PA2PU PA1PU PA0PU

Bit 7654321Bit 0

SECURE

= Unimplemented

SWAIT SPR1 SPR0 LSBF LEVEL COP

Figure 11-1. Mask Option Register (MOR)

COP — COP Watchdog Enable

Setting the COP bit will enable the COP watchdog timer. The COP will reset the MCU if the timeout period is reached before the COP watchdog timer is cleared by the application software and the voltage applied to the IRQ

watchdog timer regardless of the voltage applied to the IRQ

/VPP pin is between VSS and VDD. Clearing the COP bit will disable the COP

/VPP pin.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 63

Mask Option Register (MOR)

LEVEL — IRQ Edge Sensitivity

If the LEVEL bit is clear, the IRQ to the IRQ

/VPP pin. If the LEVEL bit is set, the IRQ/VPP pin will be sensitive to both the falling edge of

the input signal and the logic low level of the input signal on the IRQ

/VPP pin will only be sensitive to the falling edge of the signal applied

/VPP pin.

LSBF — SIOP Least Significant Bit First

If the LSBF bit is set, the serial data to and from the SIOP will be transferred least significant bit first. If the LSBF bit is clear, the serial data to and from the SIOP will be transferred most significant bit first.

SPR0 and SPR1 — SIOP Clock Rate

The SPR0 and SPR1 bits determine the clock rate used to transfer the serial data to and from the SIOP. The various clock rates available are given in Table 11-1.

Table 11-1. SIOP Clock Rate

SPR1 SPR0 SIOP Master Clock

÷ 64

osc

÷ 32

÷ 16

÷ 8

SWAIT — STOP Instruction Mode

Setting the SWAIT bit will prevent the STOP instruction from stopping the on-board oscillator. Clearing the SWAIT bit will permit the STOP instruction to stop the on-board oscillator and place the MCU in stop mode. Executing the STOP instruction when SWAIT is set will place the MCU in halt mode. See

3.4.1 STOP Instruction for additional information.

SECURE — Security State

(1)

If SECURE bit is set, the EPROM is locked.

PA(0:7)PU — Port A Pullups/Interrupt Enable/Disable

If any PA(0:7)PU is selected, that pullup/interrupt is enabled. The interrupt sensitivity will be selected via the LEVEL bit in the same way as the IRQ

pin.

NOTE

The port A pullup/interrupt function is NOT available on the ROM device, MC68HC05P6.

1. No security feature is absolutely secure. However, Freescale’s strategy is to make reading or copying the EPROM/OTPROM difficult for unauthorized users.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

64 Freescale Semiconductor

MOR Programming

11.3 MOR Programming

The contents of the MOR should be programmed in bootloader mode using the hardware shown in

Figure 10-2. MC68HC705P6A EPROM Programming Flowchart. In order to allow programming, all the

implemented bits in the MOR are essentially read-write bits in bootloader mode as shown in Figure 11-1.

The programming of the MOR is the same as user EPROM.

1. Set the ELAT bit in the EPROG register.

2. Write the desired data to the desired MOR address.

3. Set the EPGM bit in the EPROG.

4. Wait for the programming time (t

5. Clear the ELAT and EPGM bits in the EPROG.

6. Remove the programming voltage from the IRQ

A sample routine to program a byte of EPROM is shown in Table 11-2.

Once the MOR bits have been programmed, the options are not loaded into the MOR registers until the part is reset.

Table 11-2. MOR Programming Routine

EPGM

/VPP pin.

001C 00FF 0023 1EFF 1F00 0000

00E0 ORG $E0

00E0 00E2 00E4 00E6 00E9 00EB 00ED 00EF

A6 04 B7 1C A6 FF C7 1E FF 12 1C AD 03 3F 1C 81

EPROG DATA2 DATA1 MOR2 MOR1 EPGM

EQU $1C EQU $FF EQU #23 EQU $1EFF EQU $1F00 EQU $00

LDA #$04 STA EPROG LDA #DATA2 STA MOR2 BSET EPGM,EPROG BSR DELAY CLR EPROG RTS

PROGRAMMING REG SAMPLE MOR VALUES

MOPR ADDRESSES

EPGM BIT IN EPROG REG

SET ELAT BIT IN EPGM REG AT $1C DATA BYTE WRITE IT TO MOR LOC TURN ON PGM VOLTAGE WAIT 4 ms MINIMUM CLR EPGM REGISTER

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 65

Mask Option Register (MOR)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

66 Freescale Semiconductor

Chapter 12 Central Processor Unit (CPU) Core

12.1 Introduction

The MC68HC705P6A has an 8-K memory map. Therefore, it uses only the lower 13 bits of the address bus. In the following discussion, the upper three bits of the address bus can be ignored. Also, the STOP instruction can be modified to place the MCU in either the normal stop mode or the halt mode by means of a MOR bit. All other instructions and registers behave as described in this section.

12.2 Registers

The MCU contains five registers which are hard-wired within the CPU and are not part of the memory map. These five registers are shown in Figure 12-1 and are described in the following paragraphs.

4523

14 815 91213 1011

CONDITION CODE REGISTER I

1100000000

PROGRAM COUNTER

HALF-CARRY BIT (FROM BIT 3)

INTERRUPT MASK

NEGATIVE BIT

ZERO BIT

CARRY BIT

ACCUMULATOR

INDEX REGISTER

STACK POINTER SP

HNZC

CC111

Figure 12-1. MC68HC05 Programming Model

12.2.1 Accumulator

The accumulator is a general-purpose 8-bit register as shown in Figure 12-1. The CPU uses the accumulator to hold operands and results of arithmetic calculations or non-arithmetic operations. The accumulator is unaffected by a reset of the device.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 67

Central Processor Unit (CPU) Core

12.2.2 Index Register

The index register shown in Figure 12-1 is an 8-bit register that can perform two functions:

• Indexed addressing

• Temporary storage

In indexed addressing with no offset, the index register contains the low byte of the operand address, and the high byte is assumed to be $00. In indexed addressing with an 8-bit offset, the CPU finds the operand address by adding the index register contents to an 8-bit immediate value. In indexed addressing with a 16-bit offset, the CPU finds the operand address by adding the index register contents to a 16-bit immediate value.

The index register can also serve as an auxiliary accumulator for temporary storage. The index register is unaffected by a reset of the device.

12.2.3 Stack Pointer

The stack pointer shown in Figure 12-1 is a 16-bit register internally. In devices with memory maps less than 64 Kbytes, the unimplemented upper address lines are ignored. The stack pointer contains the address of the next free location on the stack. During a reset or the reset stack pointer (RSP) instruction, the stack pointer is set to $00FF. The stack pointer is then decremented as data is pushed onto the stack and incremented as data is pulled from the stack.

When accessing memory, the 10 most significant bits are permanently set to 0000000011. The six least significant register bits are appended to these 10 fixed bits to produce an address within the range of $00FF to $00C0. Subroutines and interrupts may use up to 64 ($40) locations. If 64 locations are exceeded, the stack pointer wraps around and writes over the previously stored information. A subroutine call occupies two locations on the stack and an interrupt uses five locations.

12.2.4 Program Counter

The program counter shown in Figure 12-1 is a 16-bit register internally. In devices with memory maps less than 64 Kbytes, the unimplemented upper address lines are ignored. The program counter contains the address of the next instruction or operand to be fetched.

Normally, the address in the program counter increments to the next sequential memory location every time an instruction or operand is fetched. Jump, branch, and interrupt operations load the program counter with an address other than that of the next sequential location.

12.2.5 Condition Code Register

The CCR shown in Figure 12-1 is a 5-bit register in which four bits are used to indicate the results of the instruction just executed. The fifth bit is the interrupt mask. These bits can be individually tested by a program, and specific actions can be taken as a result of their state. The condition code register should be thought of as having three additional upper bits that are always ones. Only the interrupt mask is affected by a reset of the device. The following paragraphs explain the functions of the lower five bits of the condition code register.

H — Half Carry Bit

When the half-carry bit is set, it means that a carry occurred between bits 3 and 4 of the accumulator during the last ADD or ADC (add with carry) operation. The half-carry bit is required for binary-coded decimal (BCD) arithmetic operations.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

68 Freescale Semiconductor

Registers

I — Interrupt Mask Bit

When the interrupt mask is set, the internal and external interrupts are disabled. Interrupts are enabled when the interrupt mask is cleared. When an interrupt occurs, the interrupt mask is automatically set after the CPU registers are saved on the stack, but before the interrupt vector is fetched. If an interrupt request occurs while the interrupt mask is set, the interrupt request is latched. Normally, the interrupt is processed as soon as the interrupt mask is cleared.

A return from interrupt (RTI) instruction pulls the CPU registers from the stack, restoring the interrupt mask to its state before the interrupt was encountered. After any reset, the interrupt mask is set and can only be cleared by the clear I bit (CLI), STOP, or WAIT instructions.

N — Negative Bit

The negative bit is set when the result of the last arithmetic operation, logical operation, or data manipulation was negative. (Bit 7 of the result was a logic one.)

The negative bit can also be used to check an often-tested flag by assigning the flag to bit 7 of a register or memory location. Loading the accumulator with the contents of that register or location then sets or clears the negative bit according to the state of the flag.

Z — Zero Bit

The zero bit is set when the result of the last arithmetic operation, logical operation, data manipulation, or data load operation was zero.

C — Carry/Borrow Bit

The carry/borrow bit is set when a carry out of bit 7 of the accumulator occurred during the last arithmetic operation, logical operation, or data manipulation. The carry/borrow bit is also set or cleared during bit test and branch instructions and during shifts and rotates. This bit is not set by an INC or DEC instruction.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 69

Central Processor Unit (CPU) Core

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

70 Freescale Semiconductor

Chapter 13 Instruction Set

13.1 Introduction

The MCU instruction set has 62 instructions and uses eight addressing modes. The instructions include all those of the M146805 CMOS Family plus one more: the unsigned multiply (MUL) instruction. The MUL instruction allows unsigned multiplication of the contents of the accumulator (A) and the index register (X). The high-order product is stored in the index register, and the low-order product is stored in the accumulator.

13.2 Addressing Modes

The CPU uses eight addressing modes for flexibility in accessing data. The addressing modes provide eight different ways for the CPU to find the data required to execute an instruction. The eight addressing modes are:

• Inherent

•Immediate

•Direct

• Extended

• Indexed, no offset

• Indexed, 8-bit offset

• Indexed, 16-bit offset

• Relative

13.2.1 Inherent

Inherent instructions are those that have no operand, such as return from interrupt (RTI) and stop (STOP). Some of the inherent instructions act on data in the CPU registers, such as set carry flag (SEC) and increment accumulator (INCA). Inherent instructions require no operand address and are one byte long.

13.2.2 Immediate

Immediate instructions are those that contain a value to be used in an operation with the value in the accumulator or index register. Immediate instructions require no operand address and are two bytes long. The opcode is the first byte, and the immediate data value is the second byte.

13.2.3 Direct

Direct instructions can access any of the first 256 memory locations with two bytes. The first byte is the opcode, and the second is the low byte of the operand address. In direct addressing, the CPU automatically uses $00 as the high byte of the operand address.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 71

Instruction Set

13.2.4 Extended

Extended instructions use three bytes and can access any address in memory. The first byte is the opcode; the second and third bytes are the high and low bytes of the operand address.

When using the Freescale assembler, the programmer does not need to specify whether an instruction is direct or extended. The assembler automatically selects the shortest form of the instruction.

13.2.5 Indexed, No Offset

Indexed instructions with no offset are 1-byte instructions that can access data with variable addresses within the first 256 memory locations. The index register contains the low byte of the effective address of the operand. The CPU automatically uses $00 as the high byte, so these instructions can address locations $0000–$00FF.

Indexed, no offset instructions are often used to move a pointer through a table or to hold the address of a frequently used RAM or I/O location.

13.2.6 Indexed, 8-Bit Offset

Indexed, 8-bit offset instructions are 2-byte instructions that can access data with variable addresses within the first 511 memory locations. The CPU adds the unsigned byte in the index register to the unsigned byte following the opcode. The sum is the effective address of the operand. These instructions can access locations $0000–$01FE.

Indexed 8-bit offset instructions are useful for selecting the kth element in an n-element table. The table can begin anywhere within the first 256 memory locations and could extend as far as location 510 ($01FE). The k value is typically in the index register, and the address of the beginning of the table is in the byte following the opcode.

13.2.7 Indexed,16-Bit Offset

Indexed, 16-bit offset instructions are 3-byte instructions that can access data with variable addresses at any location in memory. The CPU adds the unsigned byte in the index register to the two unsigned bytes following the opcode. The sum is the effective address of the operand. The first byte after the opcode is the high byte of the 16-bit offset; the second byte is the low byte of the offset.

Indexed, 16-bit offset instructions are useful for selecting the kth element in an n-element table anywhere in memory.

As with direct and extended addressing, the Freescale assembler determines the shortest form of indexed addressing.

13.2.8 Relative

Relative addressing is only for branch instructions. If the branch condition is true, the CPU finds the effective branch destination by adding the signed byte following the opcode to the contents of the program counter. If the branch condition is not true, the CPU goes to the next instruction. The offset is a signed, two’s complement byte that gives a branching range of –128 to +127 bytes from the address of the next location after the branch instruction.

When using the Freescale assembler, the programmer does not need to calculate the offset, because the assembler determines the proper offset and verifies that it is within the span of the branch.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

72 Freescale Semiconductor

Instruction Types

13.3 Instruction Types

The MCU instructions fall into the following five categories:

• Register/memory instructions

• Read-modify-write instructions

• Jump/branch instructions

• Bit manipulation instructions

• Control instructions

13.3.1 Register/Memory Instructions

These instructions operate on CPU registers and memory locations. Most of them use two operands. One operand is in either the accumulator or the index register. The CPU finds the other operand in memory.

Table 13-1. Register/Memory Instructions

Instruction Mnemonic

Add Memory Byte and Carry Bit to Accumulator ADC

Add Memory Byte to Accumulator ADD

AND Memory Byte with Accumulator AND

Bit Test Accumulator BIT

Compare Accumulator CMP

Compare Index Register with Memory Byte CPX

EXCLUSIVE OR Accumulator with Memory Byte EOR

Load Accumulator with Memory Byte LDA

Load Index Register with Memory Byte LDX

Multiply MUL

OR Accumulator with Memory Byte ORA

Subtract Memory Byte and Carry Bit from Accumulator SBC

Store Accumulator in Memory STA

Store Index Register in Memory STX

Subtract Memory Byte from Accumulator SUB

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 73

Instruction Set

13.3.2 Read-Modify-Write Instructions

These instructions read a memory location or a register, modify its contents, and write the modified value back to the memory location or to the register.

NOTE

Do not use read modify-write operations on write-only registers.

Table 13-2. Read-Modify-Write Instructions

Instruction Mnemonic

Arithmetic Shift Left (Same as LSL) ASL

Arithmetic Shift Right ASR

Bit Clear

Bit Set

Clear Register CLR

Complement (One’s Complement) COM

Decrement DEC

Increment INC

BCLR

BSET

(1)

Logical Shift Left (Same as ASL) LSL

Logical Shift Right LSR

Negate (Two’s Complement) NEG

Rotate Left through Carry Bit ROL

Rotate Right through Carry Bit ROR

Test for Negative or Zero

1. Unlike other read-modify-write instructions, BCLR and BSET use only direct addressing.

2. TST is an exception to the read-modify-write sequence because it does not write a replacement value.

TST

(2)

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

74 Freescale Semiconductor

Instruction Types

13.3.3 Jump/Branch Instructions

Jump instructions allow the CPU to interrupt the normal sequence of the program counter. The unconditional jump instruction (JMP) and the jump-to-subroutine instruction (JSR) have no register operand. Branch instructions allow the CPU to interrupt the normal sequence of the program counter when a test condition is met. If the test condition is not met, the branch is not performed.

The BRCLR and BRSET instructions cause a branch based on the state of any readable bit in the first 256 memory locations. These 3-byte instructions use a combination of direct addressing and relative addressing. The direct address of the byte to be tested is in the byte following the opcode. The third byte is the signed offset byte. The CPU finds the effective branch destination by adding the third byte to the program counter if the specified bit tests true. The bit to be tested and its condition (set or clear) is part of the opcode. The span of branching is from –128 to +127 from the address of the next location after the branch instruction. The CPU also transfers the tested bit to the carry/borrow bit of the condition code register.

Table 13-3. Jump and Branch Instructions

Instruction Mnemonic

Branch if Carry Bit Clear BCC

Branch if Carry Bit Set BCS

Branch if Equal BEQ

Branch if Half-Carry Bit Clear BHCC

Branch if Half-Carry Bit Set BHCS

Branch if Higher BHI

Branch if Higher or Same BHS

Branch if IRQ

Branch if Lower BLO

Branch if Lower or Same BLS

Branch if Interrupt Mask Clear BMC

Branch if Minus BMI

Branch if Interrupt Mask Set BMS

Branch if Not Equal BNE

Branch if Plus BPL

Branch Always BRA

Branch if Bit Clear BRCLR

Branch Never BRN

Branch if Bit Set BRSET

Branch to Subroutine BSR

Pin High BIH

Pin Low BIL

Unconditional Jump JMP

Jump to Subroutine JSR

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 75

Instruction Set

13.3.4 Bit Manipulation Instructions

The CPU can set or clear any writable bit in the first 256 bytes of memory, which includes I/O registers and on-chip RAM locations. The CPU can also test and branch based on the state of any bit in any of the first 256 memory locations.

Table 13-4. Bit Manipulation Instructions

Instruction Mnemonic

Bit Clear BCLR

Branch if Bit Clear BRCLR

Branch if Bit Set BRSET

Bit Set BSET

13.3.5 Control Instructions

These instructions act on CPU registers and control CPU operation during program execution.

Table 13-5. Control Instructions

Instruction Mnemonic

Clear Carry Bit CLC

Clear Interrupt Mask CLI

No Operation NOP

Reset Stack Pointer RSP

Return from Interrupt RTI

Return from Subroutine RTS

Set Carry Bit SEC

Set Interrupt Mask SEI

Stop Oscillator and Enable IRQ

Software Interrupt SWI

Transfer Accumulator to Index Register TAX

Transfer Index Register to Accumulator TXA

Stop CPU Clock and Enable Interrupts WAIT

Pin STOP

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

76 Freescale Semiconductor

Instruction Set Summary

13.4 Instruction Set Summary

Table 13-6 is an alphabetical list of all M68HC05 instructions and shows the effect of each instruction on

the condition code register.

Table 13-6. Instruction Set Summary (Sheet 1 of 6)

Source

Form

ADC #opr ADC opr ADC opr ADC opr,X ADC opr,X ADC ,X

ADD #opr ADD opr ADD opr ADD opr,X ADD opr,X ADD ,X

AND #opr AND opr AND opr AND opr,X AND opr,X AND ,X

ASL opr ASLA ASLX ASL opr,X ASL ,X

ASR opr ASRA ASRX ASR opr,X ASR ,X

BCC rel Branch if Carry Bit Clear PC ← (PC) + 2 + rel ? C = 0 ————— REL 24 rr 3

BCLR n opr Clear Bit n Mn ← 0 —————

BCS rel Branch if Carry Bit Set (Same as BLO) PC ← (PC) + 2 + rel ? C = 1 ————— REL 25 rr 3

BEQ rel Branch if Equal PC ← (PC) + 2 + rel ? Z = 1 ————— REL 27 rr 3

BHCC rel Branch if Half-Carry Bit Clear PC ← (PC) + 2 + rel ? H = 0 ————— REL 28 rr 3

BHCS rel Branch if Half-Carry Bit Set PC ← (PC) + 2 + rel ? H = 1 ————— REL 29 rr 3

BHI rel Branch if Higher PC ← (PC) + 2 + rel ? C ∨ Z = 0 ————— REL 22 rr 3

BHS rel Branch if Higher or Same PC ← (PC) + 2 + rel ? C = 0 ————— REL 24 rr 3

Add with Carry A ← (A) + (M) + (C)  — 

Add without Carry A ← (A) + (M)  — 

Logical AND A ← (A) ∧ (M) — — —

Arithmetic Shift Left (Same as LSL) — — 

Arithmetic Shift Right — — 

Operation Description

on CCR

HINZC

Address

IMM

DIR

EXT

IX2 IX1

IMM

DIR

EXT

IX2 IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

DIR (b0) DIR (b1) DIR (b2) DIR (b3) DIR (b4) DIR (b5) DIR (b6) DIR (b7)

Mode

A9 B9 C9 D9 E9 F9

BB CB DB EB FB

B4 C4 D4

1B 1D

Opcode

dd hh ll ee ff

Operand

2 3 4 5 4 3

5 3 3 6 5

5 5 5 5 5 5 5 5

Effect

Cycles

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 77

Instruction Set

Table 13-6. Instruction Set Summary (Sheet 2 of 6)

Source

Form

BIH rel Branch if IRQ Pin High PC ← (PC) + 2 + rel ? IRQ = 1 ————— REL 2F rr 3

BIL rel Branch if IRQ Pin Low PC ← (PC) + 2 + rel ? IRQ = 0 ————— REL 2E rr 3

BIT #opr BIT opr BIT opr BIT opr,X BIT opr,X BIT ,X

BLO rel Branch if Lower (Same as BCS) PC ← (PC) + 2 + rel ? C = 1 ————— REL 25 rr 3

BLS rel Branch if Lower or Same PC ← (PC) + 2 + rel ? C ∨ Z = 1 ————— REL 23 rr 3

BMC rel Branch if Interrupt Mask Clear PC ← (PC) + 2 + rel ? I = 0 ————— REL 2C rr 3

BMI rel Branch if Minus PC ← (PC) + 2 + rel ? N = 1 ————— REL 2B rr 3

BMS rel Branch if Interrupt Mask Set PC ← (PC) + 2 + rel ? I = 1 ————— REL 2D rr 3

BNE rel Branch if Not Equal PC ← (PC) + 2 + rel ? Z = 0 ————— REL 26 rr 3

BPL rel Branch if Plus PC ←

BRA rel Branch Always PC ← (PC) + 2 + rel ? 1 = 1 ————— REL 20 rr 3

BRCLR n opr rel Branch if Bit n Clear PC ← (PC) + 2 + rel ? Mn = 0 ———— 

BRN rel Branch Never PC ← (PC) + 2 + rel ? 1 = 0 ————— REL 21 rr 3

BRSET n opr rel Branch if Bit n Set PC ← (PC) + 2 + rel ? Mn = 1 ———— 

BSET n opr Set Bit n Mn ← 1 —————

BSR rel Branch to Subroutine

CLC Clear Carry Bit C ← 0 ———— 0 INH 98 2

CLI Clear Interrupt Mask I ← 0 — 0 ——— INH 9A 2

Bit Test Accumulator with Memory Byte (A) ∧ (M) — — —

Operation Description

(PC) + 2 + rel ? N = 0 ————— REL 2A rr 3

PC ← (PC) + 2; push (PCL)

SP ← (SP) – 1; push (PCH)

SP ← (SP) – 1

PC ← (PC) + rel

on CCR

HINZC

————— REL AD rr 6

Address

IMM

DIR

EXT

IX2 IX1

DIR (b0) DIR (b1) DIR (b2) DIR (b3) DIR (b4) DIR (b5) DIR (b6) DIR (b7)

Mode

B5 C5 D5

0B 0D

0A 0C

1A 1C

Opcode

dd hh ll ee ff

dd rr dd rr dd rr dd rr dd rr dd rr dd rr dd rr

Operand

2 3 4 5 4 3

5 5 5 5 5 5 5 5

Effect

Cycles

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

78 Freescale Semiconductor

Table 13-6. Instruction Set Summary (Sheet 3 of 6)

Instruction Set Summary

Source

Form

CLR opr CLRA CLRX CLR opr,X CLR ,X

CMP #opr CMP opr CMP opr CMP opr,X CMP opr,X CMP ,X

COM opr COMA COMX COM opr,X COM ,X

CPX #opr CPX opr CPX opr CPX opr,X CPX opr,X CPX ,X

DEC opr DECA DECX DEC opr,X DEC ,X

EOR #opr EOR opr EOR opr EOR opr,X EOR opr,X EOR ,X

INC opr INCA INCX INC opr,X INC ,X

JMP opr JMP opr JMP opr,X JMP opr,X JMP ,X

JSR opr JSR opr JSR opr,X JSR opr,X JSR ,X

Effect

Operation Description

on CCR

HINZC

M ← $00 A ← $00

Clear Byte

Compare Accumulator with Memory Byte (A) – (M) — — 

Complement Byte (One’s Complement)

Compare Index Register with Memory Byte (X) – (M) — — 

Decrement Byte

EXCLUSIVE OR Accumulator with Memory Byte

Increment Byte

Unconditional Jump PC ← Jump Address —————

PC ← (PC) + n (n = 1, 2, or 3)

Jump to Subroutine

Push (PCL); SP ← (SP) – 1 Push (PCH); SP ← (SP) – 1

X ← $00 M ← $00 M ← $00

M ← (M

) = $FF – (M)

A ← (A

) = $FF – (A)

X ← (X

) = $FF – (X)

M ← (M

) = $FF – (M)

M ← (M

) = $FF – (M)

M ← (M) – 1

A ← (A) – 1

X ← (X) – 1 M ← (M) – 1 M ← (M) – 1

A ← (A) ⊕ (M) — — —

M ← (M) + 1

A ← (A) + 1

X ← (X) + 1 M ← (M) + 1 M ← (M) + 1

PC ← Effective Address

—— 0 1 —

—— 

—— —

—————

Mode

Address

DIR INH INH IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

DIR

EXT

IX2 IX1

DIR

EXT

IX2 IX1

3F 4F 5F 6F 7F

B1 C1 D1

B3 C3 D3

B8 C8 D8

3C 4C 5C 6C 7C

BC CC DC EC FC

BD CD DD ED FD

Opcode

hh ll

ee ff

hh ll

ee ff

hh ll

ee ff

hh ll

ee ff

hh ll

ee ff

Operand

Cycles

5 3 3 6 5

2 3 4 5 4 3

5 3 3 6 5

2 3 4 5 4 3

5 3 3 6 5

2 3 4 5 4 3

5 3 3 6 5

2 3 4 3 2

5 6 7 6 5

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 79

Instruction Set

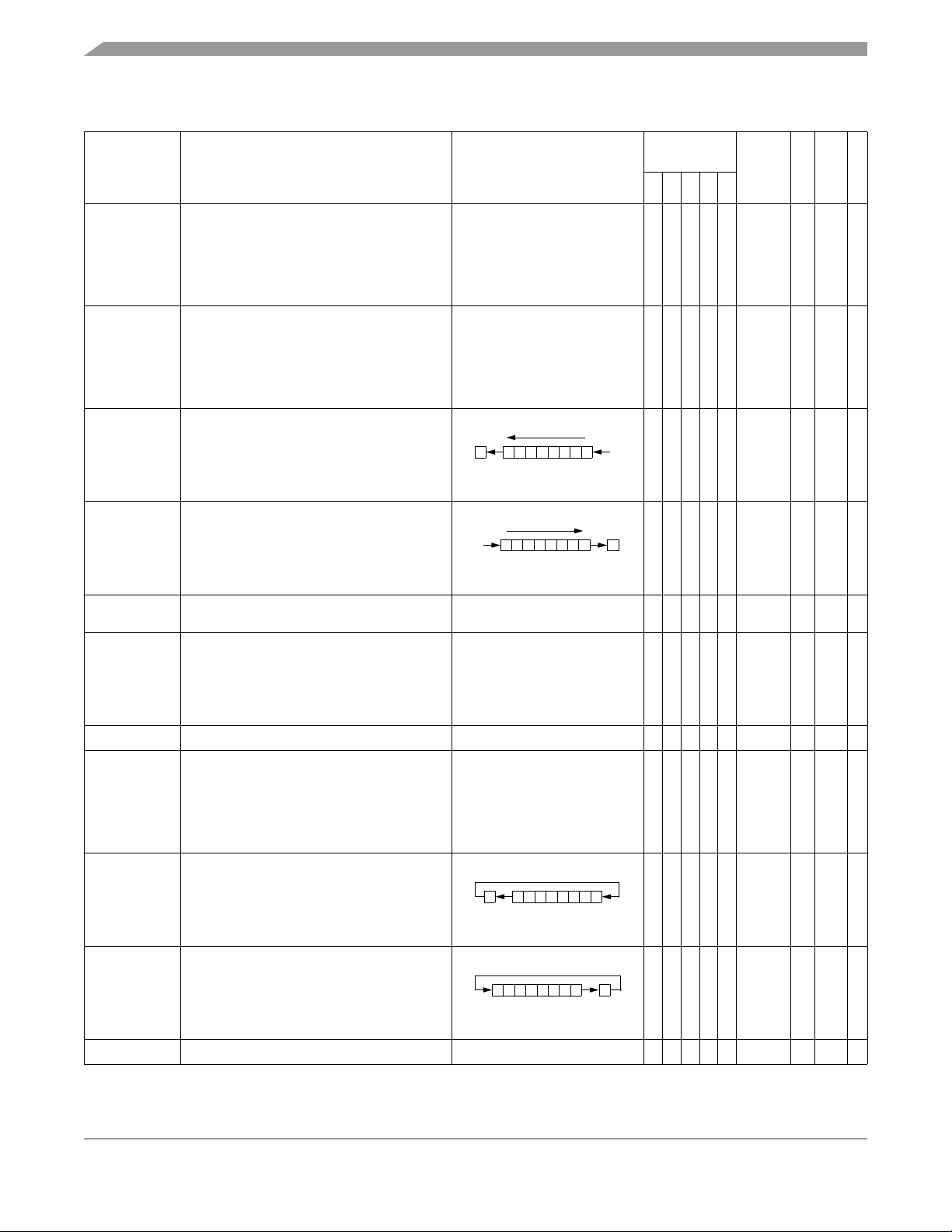

Table 13-6. Instruction Set Summary (Sheet 4 of 6)

Source

Form

LDA #opr LDA opr LDA opr LDA opr,X LDA opr,X LDA ,X

LDX #opr LDX opr LDX opr LDX opr,X LDX opr,X LDX ,X

LSL opr LSLA LSLX LSL opr,X LSL ,X

LSR opr LSRA LSRX LSR opr,X LSR ,X

MUL Unsigned Multiply X : A ← (X) × (A) 0 ——— 0 INH 42

NEG opr NEGA NEGX NEG opr,X NEG ,X

Load Accumulator with Memory Byte A ← (M) — — —

Load Index Register with Memory Byte X ← (M) — — —

Logical Shift Left (Same as ASL) — — 

Logical Shift Right — — 0 

Negate Byte (Two’s Complement)

Operation Description

M ← –(M) = $00 – (M)

A ← –(A) = $00 – (A)

X ← –(X) = $00 – (X) M ← –(M) = $00 – (M) M ← –(M) = $00 – (M)

on CCR

HINZC

—— 

Mode

Address

IMM

DIR

EXT

IX2 IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

B6 C6 D6

AE BE CE DE EE FE

Effect

Opcode

hh ll

ee ff

hh ll

ee ff

Operand

Cycles

2 3 4 5 4 3

5 3 3 6 5

1 1

5 3 3 6 5

NOP No Operation ————— INH 9D 2

ORA #opr ORA opr ORA opr ORA opr,X ORA opr,X ORA ,X

ROL opr ROLA ROLX ROL opr,X ROL ,X

ROR opr RORA RORX ROR opr,X ROR ,X

RSP Reset Stack Pointer SP ← $00FF — ———— INH 9C 2

Logical OR Accumulator with Memory A ← (A) ∨ (M) — — —

Rotate Byte Left through Carry Bit — — 

Rotate Byte Right through Carry Bit — — 

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

BA CA DA EA

hh ll

ee ff

2 3 4 5 4 3

5 3 3 6 5

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

80 Freescale Semiconductor

Table 13-6. Instruction Set Summary (Sheet 5 of 6)

Instruction Set Summary

Source

Form

RTI Return from Interrupt

RTS Return from Subroutine

SBC #opr SBC opr SBC opr SBC opr,X SBC opr,X SBC ,X

SEC Set Carry Bit C ← 1 ———— 1 INH 99 2

SEI Set Interrupt Mask I ← 1 — 1 ——— INH 9B 2

STA opr STA opr STA opr,X STA opr,X STA ,X

STOP Stop Oscillator and Enable IRQ Pin — 0 — — — INH 8E 2

STX opr STX opr STX opr,X STX opr,X STX ,X

SUB #opr SUB opr SUB opr SUB opr,X SUB opr,X SUB ,X

SWI Software Interrupt

TAX Transfer Accumulator to Index Register X ← (A) ————— INH 97 2

TST opr TSTA TSTX TST opr,X TST ,X

Subtract Memory Byte and Carry Bit from Accumulator

Store Accumulator in Memory M ← (A) — — —

Store Index Register In Memory M ← (X) — — —

Subtract Memory Byte from Accumulator A ← (A) – (M) — — 

Test Memory Byte for Negative or Zero (M) – $00 — — —

Operation Description

SP ← (SP) + 1; Pull (CCR)

SP ← (SP) + 1; Pull (A) SP ← (SP) + 1; Pull (X)

SP ← (SP) + 1; Pull (PCH)

SP ← (SP) + 1; Pull (PCL)

SP ← (SP) + 1; Pull (PCH)

SP ← (SP) + 1; Pull (PCL)

A ← (A) – (M) – (C) — — 

PC ← (PC) + 1; Push (PCL) SP ← (SP) – 1; Push (PCH)

SP ← (SP) – 1; Push (X) SP ← (SP) – 1; Push (A)

SP ← (SP) – 1; Push (CCR)

SP ← (SP) – 1; I ← 1

PCH ← Interrupt Vector High Byte

PCL ←

Interrupt Vector Low Byte

on CCR

HINZC

 INH 80 9

————— INH 81 6

— 1 ——— INH 83

Mode

Address

IMM

DIR

EXT

IX2 IX1

DIR

EXT

IX2 IX1

DIR

EXT

IX2 IX1

IMM

DIR

EXT

IX2 IX1

DIR INH INH IX1

B2 C2 D2

B7 C7 D7

BF CF DF EF

B0 C0 D0

3D 4D 5D 6D 7D

Opcode

hh ll

ee ff

hh ll

ee ff

hh ll

ee ff

hh ll

ee ff

Operand

2 3 4 5 4 3

4 5 6 5 4

2 3 4 5 4 3

1 0

4 3 3 5 4

Effect

Cycles

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 81

Instruction Set

Table 13-6. Instruction Set Summary (Sheet 6 of 6)

Source

Form

TXA Transfer Index Register to Accumulator A ← (X) ————— INH 9F 2

WAIT Stop CPU Clock and Enable Interrupts — 0 — — — INH 8F 2

A Accumulator opr Operand (one or two bytes) C Carry/borrow flag PC Program counter CCR Condition code register PCH Program counter high byte dd Direct address of operand PCL Program counter low byte dd rr Direct address of operand and relative offset of branch instruction REL Relative addressing mode DIR Direct addressing mode rel Relative program counter offset byte ee ff High and low bytes of offset in indexed, 16-bit offset addressing rr Relative program counter offset byte EXT Extended addressing mode SP Stack pointer ff Offset byte in indexed, 8-bit offset addressing X Index register H Half-carry flag Z Zero flag hh ll High and low bytes of operand address in extended addressing # Immediate value I Interrupt mask ∧ Logical AND ii Immediate operand byte ∨ Logical OR IMM Immediate addressing mode ⊕ Logical EXCLUSIVE OR INH Inherent addressing mode ( ) Contents of IX Indexed, no offset addressing mode –( ) Negation (two’s complement) IX1 Indexed, 8-bit offset addressing mode ← Loaded with IX2 Indexed, 16-bit offset addressing mode ? If M Memory location : Concatenated with N Negative flag  Set or cleared n Any bit — Not affected

Operation Description

on CCR

HINZC

Mode

Address

Opcode

Operand

Effect

Cycles

13.5 Opcode Map

See Table 13-7.

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

82 Freescale Semiconductor

Opcode Map

LSB

MSB

SUB

RTI

CMP

1IX

CMP

2IX1

CMP

3IX2

CMP

3 EXT

CMP

2DIR

CMP

2IMM

RTS

1INH

SBC

1IX

SBC

2IX1

SBC

3IX2

SBC

3 EXT

SBC

2DIR

SBC

2IMM

1INH

CPX

1IX

CPX

2IX1

CPX

3IX2

CPX

3 EXT

CPX

2DIR

CPX

2IMM

SWI

AND

1IX

AND

2IX1

AND

3IX2

AND

3 EXT

AND

2DIR

AND

2IMM

1INH

BIT

1IX

BIT

2IX1

BIT

3IX2

BIT

3 EXT

BIT

2DIR

BIT

2IMM

LDA

1IX

LDA

2IX1

LDA

3IX2

LDA

3 EXT

LDA

2DIR

LDA

2IMM

STA

1IX

STA

2IX1

STA

3IX2

STA

3 EXT

STA

2DIR

2IMM

TA X

EOR

1IX

EOR

2IX1

EOR

3IX2

EOR

3 EXT

EOR

2DIR

EOR

CLC

1INH

ADC

1IX

ADC

2IX1

ADC

3IX2

ADC

3 EXT

ADC

2DIR

ADC

2IMM

SEC

1INH

ORA

1IX

ORA

2IX1

ORA

3IX2

ORA

3 EXT

ORA

2DIR

ORA

2IMM

CLI

1INH

ADD

1IX

ADD

2IX1

ADD

3IX2

ADD

3 EXT

ADD

2DIR

ADD

2IMM

SEI

1INH

JMP

1IX

JMP

2IX1

JMP

3IX2

JMP

3 EXT

JMP

2DIR

2IMM

RSP

1INH

JSR

1IX

JSR

2IX1

JSR

3IX2

JSR

3 EXT

JSR

2DIR

BSR

NOP

1INH

LDX

1IX

LDX

2IX1

LDX

3IX2

LDX

3 EXT

LDX

2DIR

LDX

2REL

1INH

STOP

STX

1IX

STX

2IX1

STX

3IX2

STX

3 EXT

STX

2DIR

2IMM

TXA

WAIT

1INH

1IX

2IX1

3IX2

3 EXT

0 MSB of Opcode in Hexadecimal

2DIR

MSB

LSB

1INH

Number of Cycles

Opcode Mnemonic

Number of Bytes/Addressing Mode

BRSET0

3DIR

Table 13-7. Opcode Map

DIR DIR REL DIR INH INH IX1 IX INH INH IMM DIR EXT IX2 IX1 IX

Bit Manipulation Branch Read-Modify-Write Control Register/Memory

MSB

NEG

1IX

NEG

2IX1

NEGX

1INH

NEGA

1INH

NEG

2DIR

BRA

2REL

BSET0

2DIR

0123456789ABCDEF

BRSET0

3DIR

LSB

BRN

2REL

BCLR0

2DIR

BRCLR0

3DIR

MUL

1INH

BHI

2REL

BSET1

2DIR

BRSET1

3DIR

COM

1IX

COM

2IX1

COMX

1INH

COMA

1INH

COM

2DIR

BLS

2REL

BCLR1

2DIR

BRCLR1

3DIR

LSR

1IX

LSR

2IX1

LSRX

1INH

LSRA

1INH

LSR

2DIR

BCC

2REL

BSET2

2DIR

BRSET2

3DIR

BCS/BLO

2REL

BCLR2

2DIR

BRCLR2

3DIR

ROR

1IX

ROR

2IX1

RORX

1INH

RORA

1INH

ROR

2DIR

BNE

2REL

BSET3

2DIR

BRSET3

3DIR

ASR

ASRX

ASRA

ASR

BEQ

BCLR3

BRCLR3

ASL/LSL

1IX

ASL/LSL

2IX1

ASLX/LSLX

1INH

ASLA/LSLA

1INH

ASL/LSL

2DIR

BHCC

2REL

BSET4

2DIR

BRSET4

3DIR

ROL

1IX

ROL

2IX1

ROLX

1INH

ROLA

1INH

ROL

2DIR

BHCS

2REL

BCLR4

2DIR

BRCLR4

3DIR

DEC

1IX

DEC

2IX1

DECX

1INH

DECA

1INH

DEC

2DIR

BPL

2REL

BSET5

2DIR

BRSET5

3DIR

1IX

2IX1

1INH

2DIR

BMI

2REL

BCLR5

2DIR

BRCLR5

3DIR

2REL

2DIR

3DIR

INC

1IX

INC

2IX1

INCX

1INH

INCA

1INH

INC

2DIR

BMC

2REL

BSET6

2DIR

BRSET6

3DIR

TST

1IX

TST

2IX1

TSTX

1INH

TSTA

1INH

TST

2DIR

BMS

2REL

BCLR6

2DIR

BRCLR6

3DIR

BIL

2REL

BSET7

2DIR

BRSET7

3DIR

CLR

1IX

CLR

2IX1

CLRX

1INH

CLRA

1INH

CLR

2DIR

BIH

2REL

BCLR7

2DIR

BRCLR7

3DIR

LSB of Opcode in Hexadecimal 0

INH = Inherent REL = Relative

IMM = Immediate IX = Indexed, No Offset

DIR = Direct IX1 = Indexed, 8-Bit Offset

EXT = Extended IX2 = Indexed, 16-Bit Offset

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 83

Instruction Set

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

84 Freescale Semiconductor

Chapter 14 Electrical Specifications

14.1 Introduction

This section contains the electrical and timing specifications.

14.2 Maximum Ratings

Maximum ratings are the extreme limits to which the MCU can be exposed without permanently damaging it.

The MCU contains circuitry to protect the inputs against damage from high static voltages; however, do not apply voltages higher than those shown in the table below. Keep V V

≤ (VInor V

) ≤ VDD. Connect unused inputs to the appropriate voltage level, either VSS or VDD.

Out

and V

within the range

Out

(1)

Rating

Supply voltage

Input voltage

Bootloader mode (IRQ

Current drain per pin excluding V

Storage temperature range

1. Voltages are referenced to VSS.

/VPP pin only) V

and V

This device is not guaranteed to operate properly at the maximum ratings. Refer to 14.5 5.0-Volt DC Electrical Characteristics and

14.6 3.3-Volt DC Electrical Charactertistics for guaranteed operating

conditions.

14.3 Operating Temperature Range

Characteristic Symbol Value Unit

Operating temperature range

MC68HC705P6A (standard) MC68HC705P6AC (extended)

NOTE

Symbol Value Unit

I25mA

stg

–0.3 to +7.0 V

VSS –0.3 to VDD +0.3

VSS –0.3 to 2 x VDD +0.3

–65 to +150 °C

TL to T

0 to +70

–40 to +85

°C

14.4 Thermal Characteristics

Characteristic Symbol Value Unit

Thermal resistance

PDIP SOIC

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 85

60 60

°C/W

Electrical Specifications

14.5 5.0-Volt DC Electrical Characteristics

Characteristic

(1)

Output voltage

= 10.0 µA

Load

= –10.0 µA

Load

Output high voltage

= –0.8 mA) PA0:7, PB5:7, PC2:7, PD5, TCMP

Load

= –5.0 mA) PC0:1

Load

Output low voltage

= 1.6 mA) PA0:7, PB5:7, PC2:7, PD5, TCMP

Load

= 10 mA) PC0:1

Load

Input high voltage

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7, IRQ/VPP, RESET, OSC1

Input low voltage

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7, IRQ

/VPP, RESET,

OSC1

Supply current

(3), (4)

Run

(5)

Wait

(A/D converter on)

(5)

(A/D converter off)

Wait

(6)

Stop

25°C 0°C to +70°C (standard) –40°C to +85°C (extended)

I/O ports high-z leakage current

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7

A/D ports hi-z leakage current

PC3:7

Input current

, IRQ/VPP, OSC1, PD7/TCAP

RESET

Symbol Min

—

VDD –0.1

VDD –0.8

–0.8

— —

0.7 x V

— —

—

— — —

——±10.0 µA

——±1.0 µA

Typ

— —

—

4.0

2.0

1.3

— —

(2)

Max Unit

0.1

—

0.4

0.2 x V

7.0

4.0

2.0

30 50

100

mA mA mA

µA µA µA

Input pullup current

PA0:7 (with pullup enabled)

175 385 750 µA

Capaitance

Ports (as input or output)

, IRQ/V

RESET

Out

— —

1. VDD = 5.0 Vdc ± 10%, VSS = 0 Vdc, TA = –40°C to +85°C, unless otherwise noted. All values shown refelect pre-silicon estimates.

2. Typical values at midpoint of voltage range, 25°C only.

3. Run (Operating) I from rail; no dc loads, less than 50 pF on all outputs, C

4. Wait, Stop I

5. Wait I

6. Stop I

will be affected linearly by the OSC2 capacitance.

to be measured with OSC1 = VSS.

, Wait IDD: To be measured using external square wave clock source (f

: All ports configured as inputs, VIL = 0.2 V, VIH = VDD –0.2 V.

= 20 pF on OSC2.

= 4.2 MHz), all inputs 0.2 V

osc

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

86 Freescale Semiconductor

14.6 3.3-Volt DC Electrical Charactertistics

3.3-Volt DC Electrical Charactertistics

Characteristic

(1)

Output voltage

= 10.0 µA

Load

= –10.0 µA

Load

Output high voltage

= –0.2 mA) PA0:7, PB5:7, PC2:7, PD5, TCMP

Load

= –1.2 mA) PC0:1

Load

Output low voltage

= 0.4 mA) PA0:7, PB5:7, PC2:7, PD5, TCMP

Load

= 2.5 mA) PC0:1

Load

Input high voltage

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7, IRQ OSC1

Input low voltage

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7, IRQ OSC1

Supply current

(3), (4)

Run

(5)

(A/D converter on)

Wait

(5)

(A/D converter off)

Wait

(6)

Stop

25°C 0°C to +70°C (standard) –40°C to +85°C (extended)

I/O ports high-z leakage current

PA0:7, PB5:7, PC0:7, PD5, TCAP/PD7

/VPP, RESET,

Symbol Min

—

VDD –0.1

VDD –0.3

–0.3

— —

0.7 x V

— —

—

— — —

——±10.0 µA

Typ

— —

—

1.8

1.0

0.6

— —

(2)

Max Unit

0.1

—

0.3

0.2 x V

2.5

1.4

1.0

20 40 50

mA mA mA

µA µA µA

A/D ports hi-z leakage current

PC3:7

Input current

, IRQ/VPP, OSC1, PD7/TCAP

RESET

Input pullup current

PA0:7 (with pullup enabled)

——±1.0 µA

75 175 350 µA

Capaitance

Ports (as input or output) RESET, IRQ/V

Out

— —

1. VDD = 3.3 Vdc ± 0.3 Vdc, VSS = 0 Vdc, TA = –40°C to +85°C, unless otherwise noted. All values shown reflect pre-silicon estimates.

2. Typical values at midpoint of voltage range, 25°C only.

3. Run (Operating) I from rail; no dc loads, less than 50 pF on all outputs, C

4. Wait, Stop I

5. Wait I

6. Stop I

will be affected linearly by the OSC2 capacitance.

to be measured with OSC1 = VSS.

, Wait IDD: To be measured using external square wave clock source (f

: All ports configured as inputs, VIL = 0.2 V, VIH = VDD –0.2 V.

= 20 pF on OSC2.

= 4.2 MHz), all inputs 0.2 V

osc

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 87

Electrical Specifications

14.7 A/D Converter Characteristics

Characteristic

(1)

Min Max Unit Comments

Resolution 8 8 Bits

Absolute accuacy

≥ V

REFH

> 4.0)

Conversion range

REFH

— ± 1 1/2 LSB Including quanitization

REFH

A/D accuracy may decrease proportionately as V

reduced below 4.0

Input leakage

AD0, AD1, AD2, AD3 V

REFH

— —

± 1 ± 1

µA

Conversion time MCU external oscillator Internal RC oscillator

— —

32 32

cyc

Includes sampling time

µs

Monotonicity Inherent (within total error)

= 0 V

Zero input reading 00 01 Hex

Full-scale reading FE FF Hex

= V

REFH

Sample time

MCU external oscillator Internal RC oscillator

— —

12 12

cyc

µs

REFH

Input capacitance — 12 pF

Analog input voltage

REFH

A/D on current stabilization time — 100 µs

A/D ports hi-z leakage current (PC3:7) — ± 1 µA

1. VDD = 5.0 Vdc ± 10%, VSS = 0 Vdc, TA = –40°C to +85°C, unless otherwise noted.

14.8 EPROM Programming Characteristics

Characteristic Symbol Min Typ Max Unit

Programming voltage

IRQ

Programming current

IRQ

Programming time per byte

EPGM

ADON

16.25 16.5 16.75 V

—5.010mA

4——ms

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

88 Freescale Semiconductor

SIOP Timing

14.9 SIOP Timing

Number Characteristic Symbol Min Max Unit

Operating frequency Master Slave

Cycle time

Master Slave

2 SCK low time

3 SDO data valid time

4 SDO hold time

5 SDI setup time

6 SDI hold time

SCK

op(m)

op(s)

cyc(m)

cyc(s)

cyc

0.25 dc

4.0 —

0.25

4.0

932 — ns

— 200 ns

0—ns

100 — ns

cyc

SDI

SDO

BIT 0

BIT 0 BIT 1 ... 6 BIT 7

BIT 1 ... 6 BIT 7

Figure 14-1. SIOP Timing Diagram

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 89

Electrical Specifications

14.10 Control Timing

Characteristic

(1)

Symbol Min Max Unit

Frequency of operation

Crystal option

OSC

External clock option

Internal operating frequency

Crystal (f External clock (f

Cycle time

Crystal oscillator startup time

Stop mode recovery startup time (crystal oscillator)

RESET

Interrupt pulse width low (edge-triggered)

Interrupt pulse period

OSC1 pulse width

A/D On current stabilization time

÷ 2)

OSC

pulse width

OSC

÷ 2)

(2)

OXOV

ADON

CYC

ILCH

ILIH

ILIL

, t

1. VDD = 5.0 Vdc ± 10%, VSS = 0 Vdc, TA = –40°C to +125°C, unless otherwise noted

2. The minimum period, t plus 19 t

CYC

, should not be less than the number of cycle times it takes to execute the interrupt service routine

ILIL

—

4.2

2.1

MHz

476 — ns

—100ms

1.5 —

CYC

125 — ns

Note 2 —

CYC

200 — ns

Q100µs

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

90 Freescale Semiconductor

NEW PC

Control Timing

CODE

1FFE1FFE1FFE 1FFE NEW PC1FFF

NEW PC NEW PC

PCH PCL

CODEPCLPCH

NOTE 3

initiates the reset sequence.

cyc

(2)

OSC1

4064 t

INTERNAL

PROCESSOR

(1)

CLOCK

VDDR

THRESHOLD (1-2 V TYPICAL)

INTERNAL

1FFE 1FFF

(1)

ADDRESS

BUS

NEW NEW OP

INTERNAL

(1)

DATA

BUS

RESET

1. Internal timing signal and bus information are not available externally.

2. OSC1 line is not meant to represent frequency. It is only used to represent time.

3. The next rising edge of the internal clock following the rising edge of RESET

Notes:

Figure 14-2. Power-On Reset and External Reset Timing Diagram

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 91

Electrical Specifications

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

92 Freescale Semiconductor

Chapter 15 Mechanical Specifications

15.1 Introduction

The MC68HC705P6A is available in either a 28-pin plastic dual in-line (PDIP) or a 28-pin small outline integrated circuit (SOIC) package.

15.2 Plastic Dual In-Line Package (Case 710)

NOTES:

1. POSITIONAL TOLERANCE OF LEADS (D), SHALL BE WITHIN 0.25mm (0.010) AT MAXIMUM MATERIAL CONDITION, IN RELATION TO SEATING PLANE AND

1528

114

SEATING PLANE

EACH OTHER.

2. DIMENSION L TO CENTER OF LEADS WHEN FORMED PARALLEL.

3. DIMENSION B DOES NOT INCLUDE MOLD FLASH.

MILLIMETERS INCHES

MIN MINMAX MAX

DIM

36.45

37.21

13.72

3.94

0.36

1.02

2.54 BSC

1.65

0.20

2.92

K L

15.24 BSC 0°

0.51

14.22

5.08

0.56

1.52

2.16

0.38

3.43

15°

1.02

1.435

0.540

0.155

0.014

0.040

0.100 BSC

0.065

0.008

0.115

0.600 BSC 0°

0.020

1.465

0.560

0.200

0.022

0.060

0.085

0.015

0.135

15°

0.040

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 93

Mechanical Specifications

15.3 Small Outline Integrated Circuit Package (Case 751F)

-A-

1528

-B-

114

28X D

0.010 (0.25) TA B

S S

-T-

26X G

14X P

M M

X 45°

0.010 (0.25)

-T-

SEATING PLANE

NOTES:

1. DIMENSIONING AND TOLERANCING PER

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION A AND B DO NOT INCLUDE MOLD

4. MAXIMUM MOLD PROTRUSION 0.15

5. DIMENSION D DOES NOT INCLUDE

ANSI Y14.5M, 1982.

PROTRUSION.

(0.006) PER SIDE.

DAMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.13 (0.005) TOTAL IN EXCESS OF D DIMENSION AT MAXIMUM MATERIAL CONDITION.

MILLIMETERS INCHES

MIN MINMAX MAX

DIM

17.80

7.40

2.35

0.35

0.41

1.27 BSC 0.050 BSC

0.23

0.13

0°

10.05

0.25

18.05

7.60

2.65

0.49

0.90

0.32

0.29

10.55

0.75

0.701

0.292

0.093

0.014

0.016

0.009

0.005 0°

8°

0.395

0.010

0.711

0.299

0.104

0.019

0.035

0.013

0.011

0.415

0.029

8°

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

94 Freescale Semiconductor

Chapter 16 Ordering Information

16.1 Introduction

This section contains ordering information for the available package types.

16.2 MC Order Numbers

The following table shows the MC order numbers for the available package types.

MC Order Number

MC68HC705P6ACP

MC68HC705P6ACDW

1. P = Plastic dual in-line package

2. DW = Small outline integrated circuit (SOIC) package

(1)

(extended)

(2)

(extended)

Operating

Temperature Range

–40°C to 85°C

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

Freescale Semiconductor 95

Ordering Information

MC68HC705P6A Advance Information Data Sheet, Rev. 2.1

96 Freescale Semiconductor

blank

How to Reach Us:

Home Page:

www.freescale.com

E-mail:

support@freescale.com

USA/Europe or Locations Not Listed:

Freescale Semiconductor Technical Information Center, CH370 1300 N. Alma School Road Chandler, Arizona 85224 +1-800-521-6274 or +1-480-768-2130 support@freescale.com

Europe, Middle East, and Africa:
