1 INTRODUCTION
1.1 Overview
The DEMOJMSKT is a low cost development system supporting
Freescale MC9S08JM60 64LQFP microcontrollers. It consists of a
DEMOJM Base Board and a DCJMSKT daughter card which has a
64LQFP socket to accommodate Freescale JM family devices. P&E’s
Embedded Multilink circuitry on the DEMOJM board allows the processor
connected to the DEMOJM to be debugged and programmed via USB from
PC. In addition, the demo board can be powered using the USB bus.
1.2 Package Contents
The DEMOJMSKT package includes the following items:
• DEMOJM Base Board
• DCJMSKT Daughter Card with 64LQFP socket
• Pre-programmed MC9S08JM60 microcontroller in antistatic plastic
box
• DVD Breaking Bit Boundaries - Getting Started With the series of
microcontrollers
• USB A-to-B Cable
• Mini-AB USB Kit
• Vacuum pick-up pen
• Quick Start Guide
• Freescale Warranty Card
1.3 Supported Devices
DEMOJMSKT User Manual 1
The DEMOJMSKT supports the following devices:
• MC9S08JM60CLH
1.4 Recommended Materials On Breaking Bit Boundaries DVD-ROM
• Freescale MC9S08JM60 reference manual and datasheet
• DEMOJM Base Board Schematic
• DCJMSKT Daughter Card Schematic
• P&E PEMICRO Embedded Multilink Toolkit Applications
• P&E Embedded Multilink driver installation guide and resources
1.5 Handling Precautions
Take care to handle the package contents, including the DEMOJM Base
Board, DCJMSKT Daughter Card, and preprogrammed MC9S08JM60 chip,
in a manner such as to prevent electrostatic discharge.
2 HARDWARE FEATURES
The DEMOJMSKT is a demonstration and development system for
Freescale’s MC9S08JM60 microcontrollers. Application development is quick
and easy using P&E’s Embedded Multilink circuitry and the included software
tools and examples. An optional BDM port is provided to allow use of an
external BDM interface such as P&E’s Cyclone PRO automated programmer
or USB Multilink. The USB Multilink is functionally comparable to the
DEMOJM’s Embedded Multilink circuitry.
2.1 DEMOJM Base Board Features
• On-board Logic Analyzer
• On-board Virtual Serial Port
• Asymmetrically positioned 4 8x2 male connectors for interchangeable
daughter cards
• P&E’s Embedded Multilink circuitry populated on the bottom
• SCI signals connected to P&E’s Embedded Multilink through jumpers
2 DEMOJMSKT User Manual
• ON/OFF Power Switch w/ LED indicator
• A 5VDC to 12VDC power supply input barrel connector
• Power Input Selection Jumpers for selecting the input voltage source:
• Power Input from Embedded Multilink to LDO regulator
• Power Input from DC Power Jack to LDO regulator
• Power Input from Mini-AB connector
• Power Input from MCU_PORT connector
• RESET Push Button and LED indicator w/ Enable
• User Features:
• USB device mode and host mode support with Mini-AB USB
connector
• CAN Module w/Enable
• 3-axis Accelerometer w/Enable
• 8 User LED’s w/ Enable
• 4 User Push Buttons w/ Enable
• 1 Piezzo Buzzer w/ Enable
• IIC Pullups w/ Enable
• 10K Ohm POT w/ Enable
• Specifications:
• Board Size 3.5 x 4.0
• Daughter Card Size 1.4 x 1.5
• Power Input:
• USB Cable: 5VDC, 500mA max
• DC Power Jack: 2.5/5.5mm barrel connector, 5VDC to
DEMOJMSKT User Manual 3
12VDC Center Positive
Figure 2-1: DEMOJM Top Component Placement

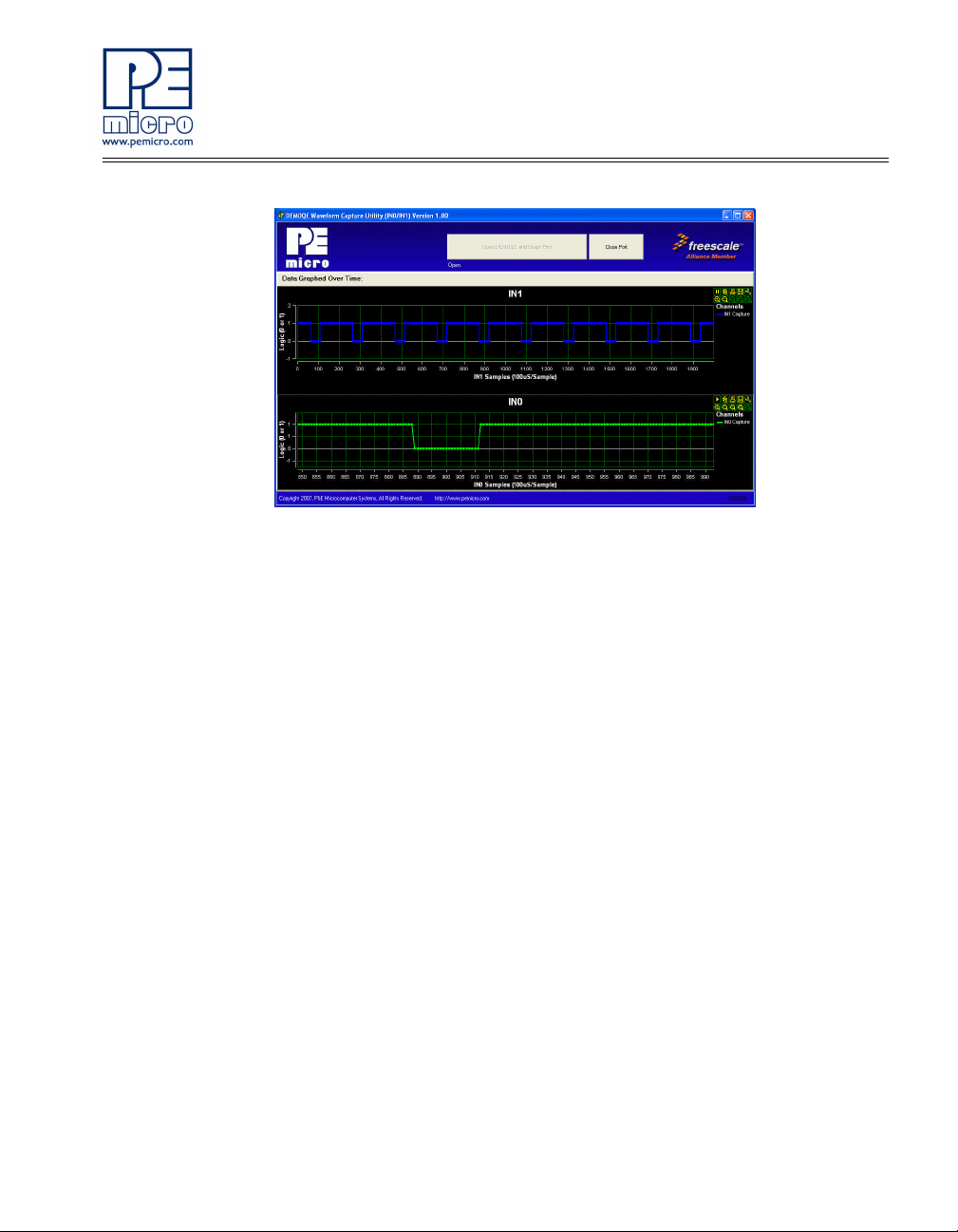

2.2 On-Board Logic Analyzer
The DEMOJM board has a built-in 2-channel logic analyzer which may be
used to display captured data in real-time on a host PC. The logic analyzer
channels (IN0/IN1) are connected to the PTE2 and PTE3 signals on the
DEMOJM board by default via the J28 jumpers. The channels may be
connected to any of the processor pins via wire jumpers (not included).
The Logic Analyzer Utility, included in the PEMICRO Embedded Multilink
Toolkit on the accompanying DVD-ROM, displays the logic analyzer signals
on a PC.
2.3 On-Board Virtual USB Port
The DEMOJM board has a built-in virtual serial port which may be connected
to the JM processor’s SCI RXD/TXD. This allows certain PC applications to
be able to connect in a serial fashion to the microcontroller without the actual
use of serial port hardware.
4 DEMOJMSKT User Manual
The Terminal Window Utility, included in the PEMICRO Embedded Multilink
Toolkit on the accompanying DVD-ROM, is a generic serial port utility which
works with the DEMOJM virtual serial port or actual serial port hardware.
2.4 DEMOJMSKT Daughter Card Features
• Four bottom-mounted asymmetrically positioned 8x2 female
connectors to mate with the DEMOJM Base Board
• A top-mounted 64LQFP socket
• 64LQFP footprint
2.5 DEMOJM Jumper/Connector Quick Reference
Default Jumper Settings
The following is a list of default jumper settings for DEMOJM board. The
settings listed indicated the “on” (or installed) position.
Default Jumper Settings
JUMPERS SETTINGS
J3 3&4, 7&8
J4 1&2, 3&4
J6 2&3
J7 1&2
J8 1&2, 3&4
J11 1&2
J12 1&2
J13 2&3
J14 2&3
J17 ALL ON
DEMOJMSKT User Manual 5
Default Jumper Settings
J18 2&3
J19 2&3
J20 2&3
J21 1&2, 3&4, 7&8
J24 1&2
J27 1&2, 3&4, 5&6, 7&8
J28 1&2, 3&4
J29 1&2, 3&4
J30 1&2
J31 1&2 3&4
J32 1&2 3&4
6 DEMOJMSKT User Manual
MCU Port Connector Pinout
The following is the pinout for the MCU Port connector on the DEMOJM
board.
Figure 2-2: MCU Port Connector Pinout
3 GETTING STARTED WITH THE DEMOJMSKT
The DEMOJMSKT is a low-cost board targeting quick microcontroller
evaluation. The board includes a plug-in daughter card with 64LQFP socket to
accommodate JM devices with 64LQFP footprint. The board also includes a
power terminal to measure the ultra-low power consumption of the JM
devices.
DEMOJMSKT User Manual 7
Please refer to the DEMOJM Quick Start Guide and Labs for installing
software, connecting DEMOJMSKT to your PC, and run quick
demonstrations.
4 SYSTEM SETUP
4.1 Overview
P&E’s Embedded Multilink driver is required to operate the DEMOJM using a
PC. The Embedded Multilink driver should be installed with the CodeWarrior
Development Studio software or from the DEMOJM Resources in the DVDROM before the PC is connected to the DEMOJM.
4.2 Operating System Requirements
The following are the resources required to run the CodeWarrior
Development Studio and the DEMOJM:
• A PC-compatible system running Windows 2000, Windows XP, or
Windows Vista
• 128MB of available system RAM, and 1GB of available hard disk
space
• A DVD-ROM drive for software installation
• A USB port
4.3 Software Setup
4.3.1 Installing CodeWarrior Development Studio
To install the CodeWarrior Development Studio, follow the instructions on the
DVD.
4.3.2 Installing P&E Resources
Use the DEMOJM Resources in the DVD-ROM to access and install P&E
resources for the DEMOJM. These materials are not required for operation.
The DEMOJM Resources in the Breaking Bit Boundaries DVD-ROM contains
the following supporting materials:
• DEMOJM Embedded Multilink hardware interface driver
8 DEMOJMSKT User Manual
• DEMOJM User Manual (this document)
• DEMOJM Quick Start Guide
• DEMOJM Quick Start Application Source Code
• DEMOJM Base Board and Daughter Cards Schematics
• DEMOJM Component Breakdown List
• PEMICRO Embedded Multilink Toolkit PC Applications
• Links to P&E Evaluation Software
• Links to Freescale documentation, P&E Discussion Forums, and
DEMOJM FAQs.
4.4 Quick Startup
Only a few steps are required to get the DEMOJM up and running. Please
reference the Quick Start Guide.
4.5 Hardware Setup
4.5.1 First-Time Connection
The DEMOJM may be connected to a PC through a USB port. Connection
steps are listed below in typical order:
1. Install the required software, as described in the previous section.
2. Make sure the jumper USB_VDD for VDD_SEL is installed.
3. Plug the USB cable A-M connector into a free USB port of the PC.
4. Plug the USB cable B-M connector into the USB connector on the
DEMOJM Base Board.
5. The operating system will recognize P&E’s Embedded Multilink cir-
cuitry and P&E’s USB to Serial circuitry. Depending on the operating
system, you may see the “Found New Hardware Wizard” dialog, helping you to install software for “PEMicro USB Multilink (i0). On Windows XP (SP2), the following dialog will appear:
DEMOJMSKT User Manual 9
Figure 4-1: Found New Hardware Wizard Dialog (1 of 4)
Select the “Install the software automatically (Recommended)” option
and click the “Next” button.
6. Windows will install the driver files to your system. At the end of the
installation, the following dialog box will appear:
10 DEMOJMSKT User Manual

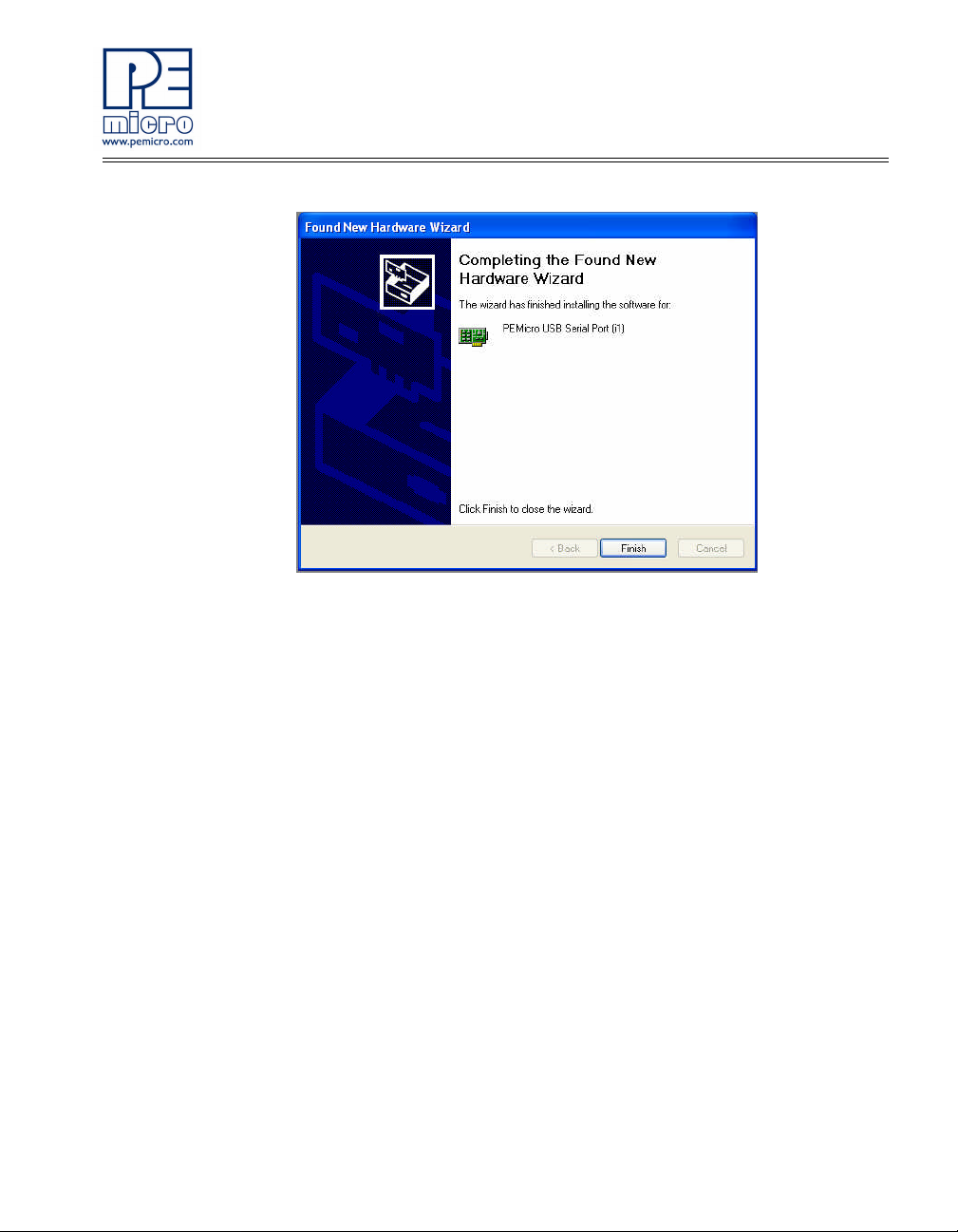

Figure 4-2: Found New Hardware Wizard Dialog (2 of 4)
Click the “Finish” button to exit the current “Found New Hardware
Wizard”.
7. Depending on the operating system, you may see the “Found New
Hardware Wizard” dialog again, helping you to install software for
“PEMicro USB Serial Port (i1). On Windows XP (SP2), the following
dialog will appear:
DEMOJMSKT User Manual 11
Loading...
