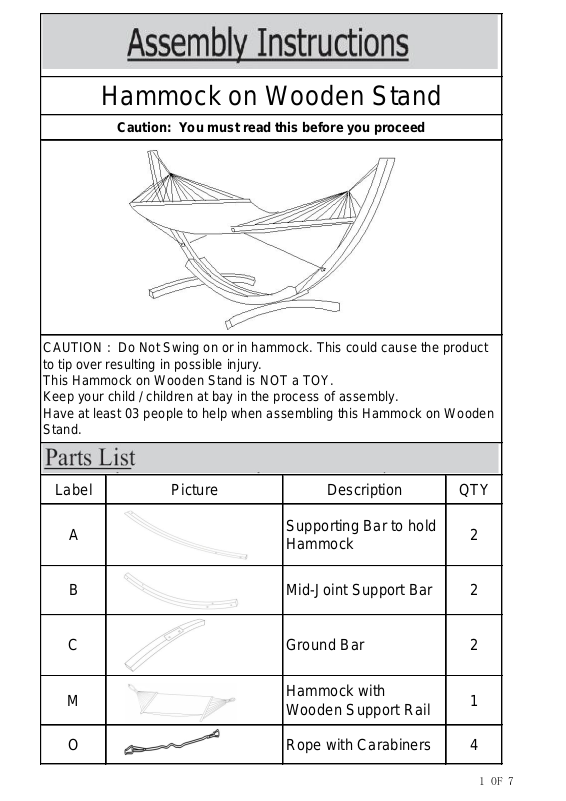

Page 1
Label Picture Description QTY
A
Supporting Bar to hold
Hammock
2
B
Mid-Joint Support Bar 2
C Ground Bar 2
M
Hammock with
Wooden Support Rail
1
O Rope with Carabiners 4
Hammock on Wooden Stand
Caution: You must read this before you proceed
CAUTION : Do Not Swing on or in hammock. This could cause the product
to tip over resulting in possible injury.
This Hammock on Wooden Stand is NOT a TOY.
Keep your child / children at bay in the process of assembly.
Have at least 03 people to help when assembling this Hammock on Wooden
Stand.
1 OF 7
Page 2
Label Picture Description QTY
D Bolt(M10X14CM) 4
E Washer 19
F Nut 10
L Bucket Wrench 2
H Bolt(M10X24CM) 4
J
Metal Chain with Iron
Carabiners
2
K Eye Bolt 2
Q Bolt and Ring Nut 4
R Allen Key 1
N Bolt and Ring Nut 2
Before Beginning Assembly:
2 OF 7
Page 3
Put Support Bar to hold Hammock(A) into Mid-Joint Supporting Bar(B).
Then attach using Bolt(H) with Hardware(E,F) using Bucket Wrench (L).
Tighten the bolts of this step securely.
Step 1
Step 2
Attach Mid-Joint Support Bar(B) to Ground Bar(C) using Bolt(D) & Washer(E), as shown
in the picture.
In this step, DO NOT tighten the bolts.
NOTE : Have a
couple of partners
/ assistants when
assembling this
step.
Note : The
COUNTERSINK
hole side of
Wooden Bar(B)
should be on
the outside.
3 OF 7
Page 4
Step 3
Step 4
Tighten the Bolts (D) from Step 1 using Hardware(E,F) with Bucket Wrench (L).
Tighten the bolts securely.
Attach the Eye Bolt(K) to the tail end of the Support Bar to hold Hammock(A) using
Hardware(E,F) with Bucket Wrench(G,L).
Tighten the bolts of this step securely.
Note: The Eye Bolts should be facing the inside of the frame assembly, as pictured.
NOTE : This
step should
be finished
with two or
more people
together.
E
4 OF 7
Page 5
Hook the Chain with Carabiners (J) through the 2 two loop holes of at then end of
Hammock with Wooden Support Bars (M).
Step 7
Step 5
Screw theBolt and Ring Nut(Q) to the four ends of the Wooden Suport Rails using allen
key (R)
Tighten the bolts of this step securely.
Step 6
Insert the Bolt and Ring Nut (N) into the Support Bar to hold Hammock(A), as shown in
the picture.
Tighten the bolts of this step completely.
N
J
J
M
Note: Tags Should Be facing Down
Note: Ring nuts must all be facing the same direction
5 OF 7
Page 6
Connect the Hammock(M) to the Support Bar(A) to hold Hammock(M) using Chain with
Carabiners(J) by threading the Chain with Carabiner (J) through the hammock loop hole
on the Hammock (M) and attaching carabiner (J) to the Chain, attaching the other end of
the Chain with Carabiner (J) to Support Bar (A).
Step 9
Connect the four pieces of Eye Bolts(K) on the Hammock(M) to the Bolt and Ring Nut (N)
on Supporting Bar to hold Hammock(A) with Rope with Carabiner(O).
Adjust the Chain with Carabiners(J) until the four Ropes are taut.
Your Hammock is ready for use.
Caution: Always be careful of your safety when getting on and off of the Hammock,
children should not be allowed on the Hammock without adult supervision.
Step 8
Note: tighting all bolts before use
Note: Chains may require adjustment after assembly,
including over time to keep the four ropes taut
6 OF 7
Page 7
Questions & Answers about Proposition 65
• What is Proposition 65?
Proposition 65 requires businesses to provide warnings to Californians about significant
exposures to chemicals that cause cancer, birth defects or other reproductive harm.
These chemicals can be in the products that Californians purchase, in their homes or
workplaces, or that are released into the environment. By requiring that this information be
provided, Proposition 65 enables Californians to make informed decisions about their
exposures to these chemicals.
Proposition 65 also prohibits California businesses from knowingly discharging significant
amounts of listed chemicals into sources of drinking water.
Proposition 65 requires California to publish a list of chemicals known to cause cancer,
birth defects or other reproductive harm. This list, which must be updated at least once a
year, has grown to include approximately 900 chemicals since it was first published in
1987.
• What types of chemicals are on the Proposition 65 list?
The list contains a wide range of naturally occurring and synthetic chemicals that include
additives or ingredients in pesticides, common household products, food, drugs, dyes, or
solvents. Listed chemicals may also be used in manufacturing and construction, or they
may be byproducts of chemical processes, such as motor vehicle exhaust.
• What does a warning mean?
If a warning is placed on a product label or posted or distributed at a workplace, a
business, or in rental housing, the business issuing the warning is aware or believes that it
is exposing individuals to one or more listed chemicals.
By law, a warning must be given for listed chemicals unless the exposure is low enough to
pose no significant risk of cancer or is significantly below levels observed to cause birth
defects or other reproductive harm.
• Where can I get more information on Proposition 65?
If you have specific questions on the administration or implementation of Proposition 65,
you can contact OEHHA's Proposition 65 program at [email protected], or by
phone at (916) 445-6900.
7 OF 7
