Model No. SFEL16011.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USER’S MANUAL
CALL TOLL-FREE:
1-866-362-4490
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
166909
218557
218556
250085
• Not for therapeutic
use.
151249
258865
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE AND TROUBLESHOOTING ....................................................27
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
FREEMOTION is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the elliptical; do not arch your back.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
FREEMOTION® 510 REAR DRIVE elliptical. The 510
REAR DRIVE elliptical provides an impressive selection of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Length: 6 ft. 7 in. (201 cm)
Width: 2 ft. 2 in. (66 cm)
Upper Body Arm
Handlebar
Accessory Tray
Ramp
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Heart Rate Monitor
Fan
Pedal
Storage Magnet
Power
Switch
Leveling Foot
Roller
Wheel
Pedal Knob
Latch Button
Latch
Power Cord
4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 19mm
Screw (125)–8
M8 x 35mm Screw
(149)–2
M8 Split Washer
(103)–14
M6 x 12mm
Screw (146)–8
M8 Washer
(95)–6
M8 x 16mm
Screw (102)–16
Wave Washer
(118)–2
M8 x 25mm
Screw (121)–2
M10 x 95mm Screw
(100)–4
5
ASSEMBLY
• To hire an authorized service technician to
assemble the elliptical, call 1-800-445-2480.
• To watch an assembly video, go to
www.freemotiontness.com/assemblyoruse
your mobile phone or
smartphone to read the
QR code at the right. A
reader application, such
as ShopSavvy, which can
be downloaded at www.
shopsavvy.mobi, must be
installed on your mobile
phone or smartphone.
• Assembly requires two persons.
1. Orient the Rear Stabilizer (4) as shown.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Screws (100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and lower the Rear
Stabilizer and the Folding Frame (2) to the floor.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
100
Handle
4
2
67
6
2. Orient the Front Stabilizer (3) so that the indicated hole is facing the pin on the Main
Frame (1).
2
While a second person lifts the front of the Main
Frame (1), attach the Front Stabilizer (3) with
two M10 x 95mm Screws (100).
3. Orient the Upright (5) and the Top Cover (27) as
shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Then, have a second person hold the Upright (5)
and the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Main Wire (60).
Next, pull the upper end of the wire tie until the
Main Wire is routed through the Upright.
3
Wire Tie
5
27
3
100
Hole
Pin
1
1
Tip: To prevent the Main Wire (60) from fall-
ing into the Upright (5), secure the Main Wire
with the wire tie.
Wire Tie
60
7
4. Tip: Avoid pinching the Main Wire (60). Insert
the Upright (5) into the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103);
do not tighten the Screws yet. You will
tighten the Screws at the end of step 11.
4
Avoid pinching the
Main Wire (60)
5
102
103
103
102
1
102
103
102
5. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave
Washers (118).
Insert the Upright Axle (48) through the Upright
(5) and center it. Then, slide a Wave Washer
(118) onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the Upright Axle (48).
Then, tighten an M8 x 16mm Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
5
102
95
118
5
7
Grease
48
118
95
102
6
8
6. Identify the Right Pedal (14), the Right Pedal
Insert (117), and the Right Pedal Arm (12), which
are marked with “Right” stickers, and orient them
as shown.
Attach the Right Pedal (14) and the Right Pedal
Insert (117) to the Right Pedal Plate (80) with
four M6 x 12mm Screws (146). Tip: It may be
helpful to lift the Right Pedal Plate.
Attach the Left Pedal (not shown) and the
Left Pedal Insert (not shown) to the Left
Pedal Plate (not shown) in the same way.
6
117
12
14
80
146
7. Apply grease to the axle on the right Crank
Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm (39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Screw (121), a Large Axle Cover (113),
and an M8 Washer (95). Tip: Avoid damaging
the Large Axle Cover when tightening the
Screw.
Repeat this step on the other side of the
elliptical.
7
Grease
39
46
95
113
Flat
Side
121
9
8. See drawing 8a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12).
Set the Pedal Arm Roller (32) on the right side of
the Ramp (130).
See drawing 8b. Pull upward on the Latch (50)
on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
8a
8b
12
32
130
46
12
50
10
9. Orient the Ramp Cover (131) around the Upright
(5) as shown.
Press the Mounts (not shown) on the underside
of the Ramp Cover (131) into the Ramp (130).
9
5
131
130
10. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Screw
(149) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Screw (149), a Small Axle Cover (56),
and an M8 Washer (95) into the other end of the
Link Arm Axle (114). Tip: Avoid damaging the
Small Axle Cover when tightening the Screw.
Repeat this step on the other side of the
elliptical.
10
149
Grease
114
6
43
95
56
149
11
11. Identify the Right Upper Body Arm (8), which
is marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102) and three M8 Split Washers (103).
11
9
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 4 on page 8. Tighten the M8 x
16mm Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
12. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
12
21, 22
7
27
6
Avoid pinching the
Pulse Wires (105)
8
103
102
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Screws (102) and two
M8 Split Washers (103).
Attach the Left Handlebar (11) in the
same way.
105
5
11
105
10
103
102
12
13. Note: If you purchase the optional chest
heart rate monitor (see page 24), see
step 17 on page 14 to install the receiver
included with the heart rate monitor.
Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the Upright
(5) with four M4 x 19mm Screws (125).
13
125
25
5
14. Untie and discard the wire tie attached to the
Main Wire (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Main Wire (60), to the Receiver
Extension Wire (155), and to the Pulse
Wires (105).
Insert the excess wire downward into the Upright
(5) or upward into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
19mm Screws (125).
14
33
60
105
Avoid pinching
the wires
155
5
125
13

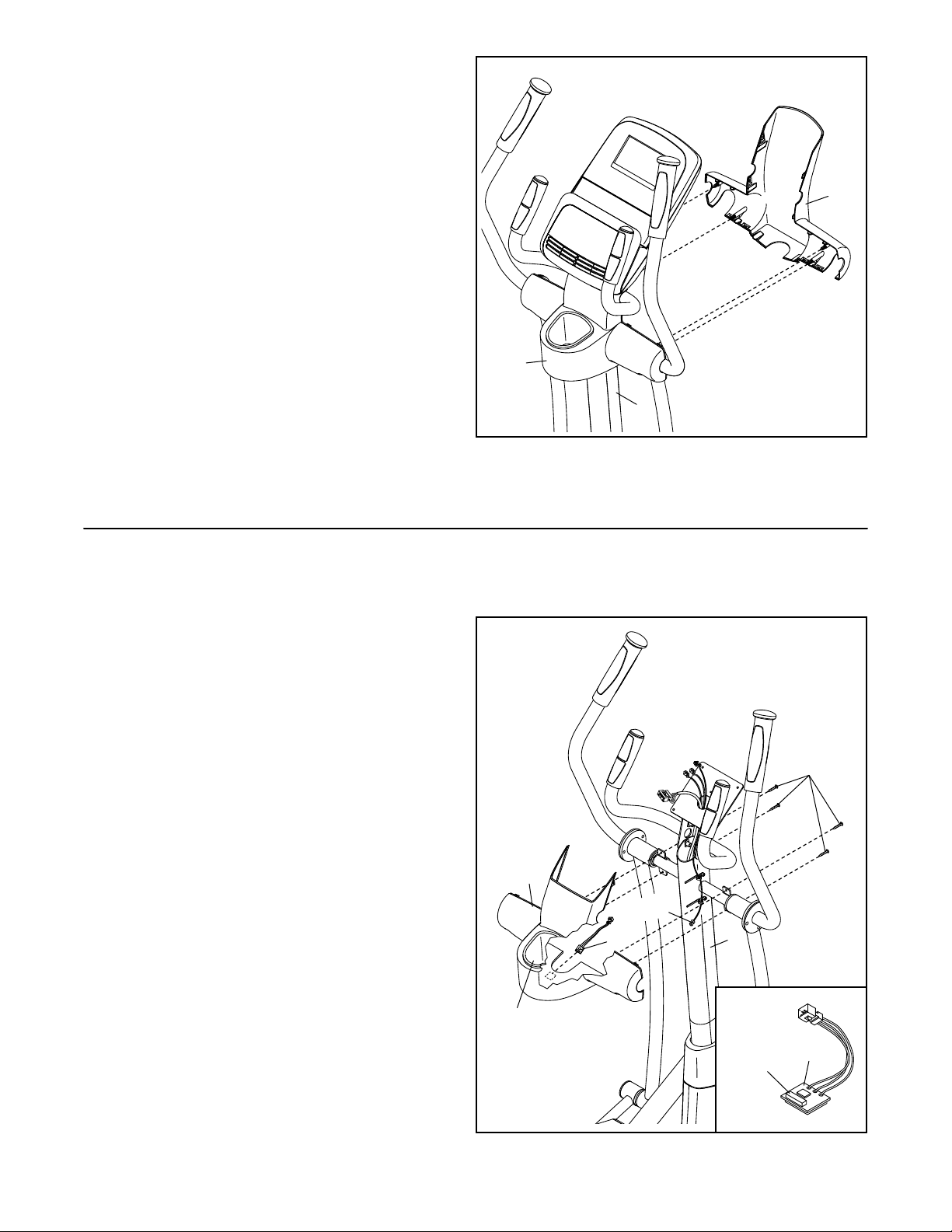

15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
16. Make sure that all parts are properly tightened before you use the elliptical. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the elliptical to protect the floor.
15
24
25
5
If you purchase the optional heart rate monitor (see page 24), follow the additional step below to install
the receiver included with the heart rate monitor.
17. See steps 15, 14, and 13. Remove the Front
Upright Cover (24), the Console (33), and the
Rear Upright Cover (25) if necessary.
Remove the paper from the adhesive pad on
the back of the Receiver (A). Press the Receiver
onto the indicated location on the inside of the
Rear Upright Cover (25) below the Accessory
Tray (26).
See the inset drawing. Make sure that the
antenna on the Receiver (A) is oriented so
that it is in a horizontal position parallel to
the floor.
Connect the wire on the Receiver (A) to the
Receiver Extension Wire (155).
Next, attach the Rear Upright Cover (25) to the
Upright (5) with four M4 x 19mm Screws (125).
Then, see steps 14 and 15 and attach the
Console (33) and the Front Upright Cover (24).
Note: Discard any other wires that are included
with the heart rate monitor.
17
26
25
125
155
A
5
Antenna
A
14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. The power cord has a plug with a grounding
pin.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all
local codes
and ordinances. The outlet must be on a nominal
120-volt circuit. IMPORTANT: This product is not
compatible with GFCI-equipped outlets and may
not be compatible with AFCI-equipped outlets.
Grounded Outlet
Grounding Pin
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the outlet box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the sleeves on
the crank arms.
2-pole Receptacle
Adapter
Lug
Metal Screw
15
Sleeve
Pedal Arm
Latch
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
Magnet
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described on page
15. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to the
floor.
Pedal
Handle
Latch
Button
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the handlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
Arm
Pull on the
upright
Place
your foot
here
16
HOW TO LEVEL THE ELLIPTICAL
HOW TO EXERCISE ON THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the leveling feet beneath
the rear stabilizer until the
rocking motion is
eliminated.
If the frame of
the elliptical
flexes during
use, turn the
center leveling
foot until the
flexing motion is
eliminated.
HOW TO ADJUST THE POSITIONS OF THE PEDALS
Each pedal can
be adjusted to
several positions.
To adjust each
pedal, simply lift
the pedal and
turn the pedal
knob beneath
the pedal. Make
sure to adjust
both pedals
to the same
position.
Leveling
Feet
Leveling
Foot
Pedal Knob
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
Upper Body Arms
Handlebars
Pedals
Disc
Note: The discs can turn in either direction. It is
recommended that you turn the discs in the direction shown by the arrow; however, for variety you
can turn the discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the
lower pedal.
17

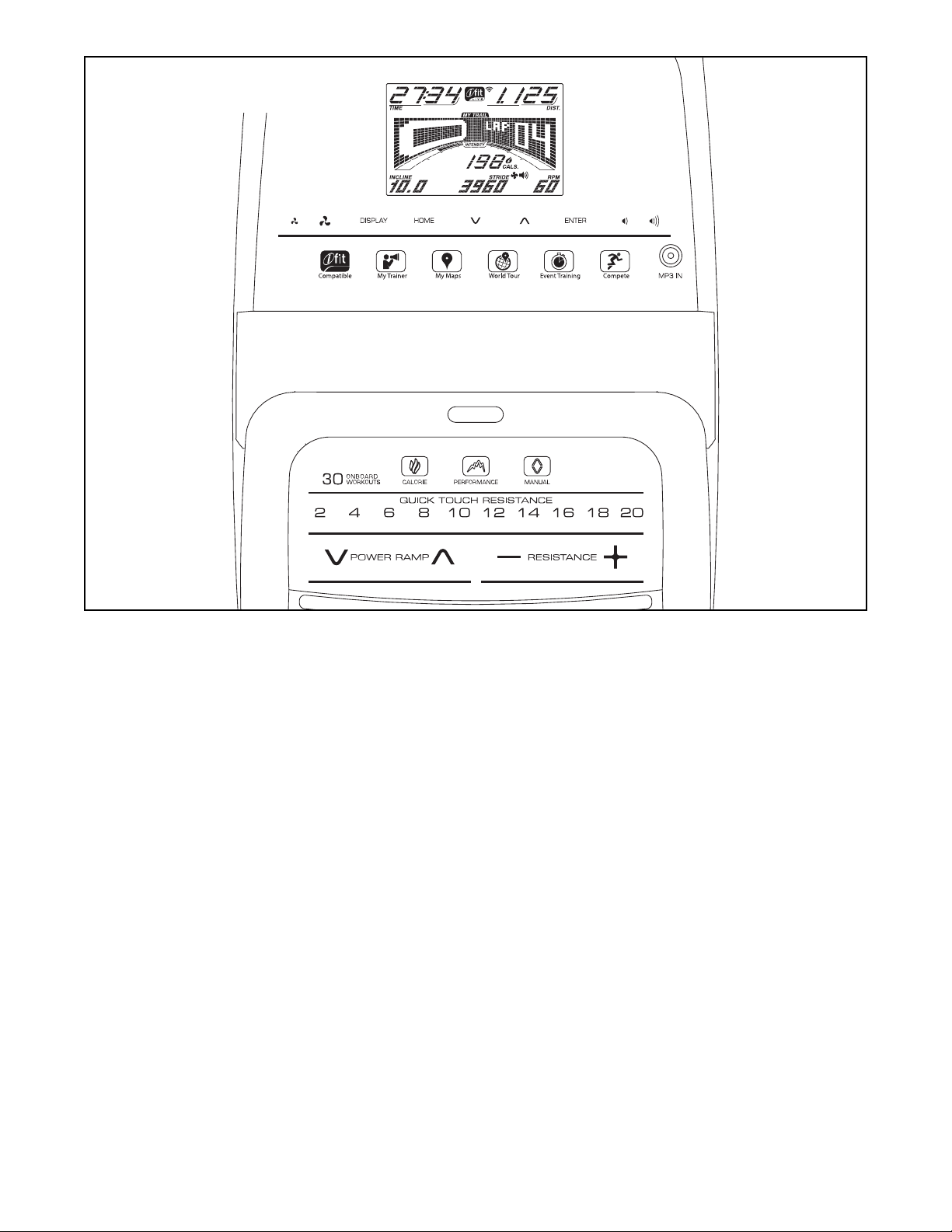

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button. While you
exercise, the console will display continuous exercise
feedback. You can also measure your heart rate using
the handgrip heart rate monitor or an optional chest
heart rate monitor.
In addition, the console offers thirty onboard work-
outs—fteencalorieworkoutsandfteenperformance
workouts. Each workout automatically changes the
resistance of the pedals and the incline of the ramp
and prompts you to vary your pedaling pace as it
guides you through an effective workout.
The console also features revolutionary iFit Live
technology that enables the console to communicate
with your wireless network through an optional iFit Live
module. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, race against other iFit Live
users, and access many other features. To purchase
an iFit Live module at any time, go to www.iFit.com
or call the telephone number on the front cover of
this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 19. To use the
manual mode, see page 19. To use an onboard
workout, see page 22. To use an iFit Live workout, see page 23. To use the sound system, see
page 24. To change console settings, see
page 25.
Note: If there is a sheet of plastic on the display,
remove the plastic.
18
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
15). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the rst time,
the ramp may calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate automatically, see HOW TO CALIBRATE THE RAMP on
page 27 and manually calibrate the ramp.
Reset
Position
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual button on the console to select
the manual mode.
If a wireless iFit Live module is not inserted into
the console and connected to iFit Live, the manual
mode will be selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons or by pressing one of the numbered Quick
Touch Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the Power Ramp increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the ramp to reach the selected
incline level.
19

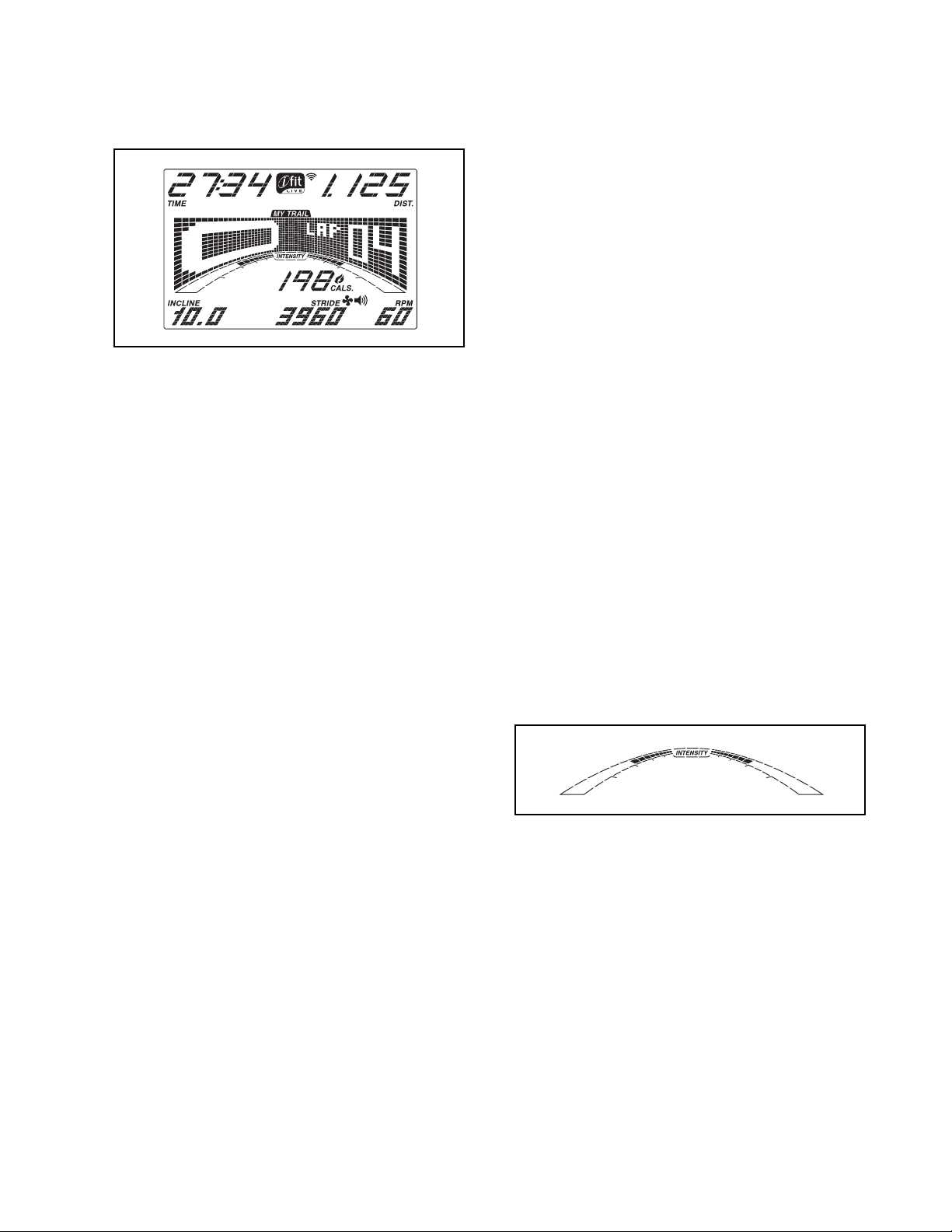

4. Follow your progress with the display.
The display can show the following workout
information:
Stride—This display mode will show the total num-
ber of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Incline—Thistabwillshowaproleoftheincline
settings of the workout. A new segment will appear
at the end of each minute.
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor or
an optional chest heart rate monitor (see step 5 on
page 21).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Speed—Thistabwillshowaproleofthespeed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that rep-
resents1/4mile(400m).Asyouexercise,the
flashing rectangle will show your progress. The
My Trail tab will also show the number of laps you
complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 25 to set the default menu).
If necessary, press the Home button again.
20
When a wireless iFit
Live module is connected, the wireless
symbol at the top
of the display will
show the strength of
your wireless signal. Four arcs indicate full signal
strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume
level of the console by
pressing the volume
increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip heart rate monitor or the optional chest
heart rate monitor (see page 24 for information
about the optional chest heart rate monitor).
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor, remove the
plastic. To mea-
sure your heart
rate, hold the
handgrip heart rate
monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
Contacts
When your pulse is detected, a heart symbol will
flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has low and
high speed settings.
Press the fan increase
and decrease buttons
repeatedly to select a
fan speed or to turn off
the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
21
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 19.
2. Select an onboard workout.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tancelevel,rampinclinelevel,and/ortargetrpmis
programmed for the next segment, the resistance
level,rampinclinelevel,and/ortargetrpmwill
appear in the display for a few seconds to alert
you. The resistance of the pedals and the incline
level of the ramp will then change.
To select a target toning workout, press the Calorie
button or the Performance button repeatedly until
the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of the
workout will appear in the matrix.
The display will also show the maximum pedaling
speed (rpm), the maximum resistance level, and
the maximum ramp level.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level, one ramp incline level, and
one target rpm (speed) are programmed for each
segment. Note: The same resistance level, ramp
inclinelevel,and/ortargetrpmmaybeprogrammed for consecutive segments.
The resistance level, the ramp incline level, and the
target rpm for the first segment will appear in the
matrix.
During the
workout,
the profiles on
the speed
and incline
tabs will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed or the
incline level for the current segment.
Profile
As you exercise, you will be prompted to keep your
pedaling speed near the target rpm for the current
segment. When an upward-pointing arrow appears
in the display, increase your pace. When a downward-pointing arrow appears, decrease your pace.
When no arrow appears, maintain your current
pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level or incline level for the current
segment is too high or too low, you can manually
override the setting by pressing the Resistance
buttons or the Power Ramp buttons. IMPORTANT:
When the current segment of the workout ends,
the pedals will automatically adjust to the resistance level programmed for the next segment
and the ramp will automatically adjust to the
incline level programmed for the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 20.
5. Measure your heart rate if desired.
See step 5 on page 21.
6. Turn on the fan if desired.
See step 6 on page 21.
7. When you are nished exercising, unplug the
power cord.
See step 7 on page 21.
22
HOW TO USE AN IFIT LIVE WORKOUT
5. Select an iFit Live workout.
You must have an iFit Live module to use an iFit Live
workout.
To purchase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
Note: To use an iFit Live module, you must have
access to a computer with an internet connection and a
USB port. You will also need an iFit.com membership.
To use a wireless iFit Live module, you must also have
your own wireless network including an 802.11b router
with SSID broadcast enabled (hidden networks are not
supported).
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit Live module must be at least 8 in. (20 cm) from
all persons and must not be near or connected to
any other antenna or transmitter.
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 19.
2. Make sure that the iFit Live module is inserted
in the console.
To use an iFit Live workout, make sure that the iFit
Live module is inserted in the console.
3. Select the iFit Live mode.
To select the iFit Live mode, press the iFit Live
button.
To select an iFit Live workout, press one of the
iFit Live buttons. Note: Before some workouts will
download, you must go to www.iFit.com and add
them to your schedule.
Press the iFit Live button to download the next
workout in your schedule. Press the My Trainer
button, the My Maps button, the World Tour button, or the Event Training button to download the
next workout of that type in your schedule. Press
the Compete button to compete in a race that you
have previously scheduled. For more information
about the iFit Live workouts, please see
www.iFit.com.
When you select an iFit Live workout, the dis-
play will show the duration of the workout and the
approximate number of calories you will burn. The
display may also show the name of the workout. If
you select a competition workout, the display may
count down to the beginning of the race.
6. Start the workout.
See step 3 on page 22.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see HOW TO CHANGE CONSOLE SETTINGS on
page 25).
To stop the workout at any time, stop pedaling. The
time will flash in the display. To resume the workout, simply resume pedaling.
4. Select a user.
If more than one user is registered with your
iFit.com membership, you can switch users in
the iFit Live main screen. Press the increase and
decrease buttons next to the Enter button to select
a user.
23
7. Follow your progress with the display.
HOW TO USE THE SOUND SYSTEM
See step 4 on page 20.
The My Trail tab will show a map of the trail you are
walking or running or it will show a track and the
number of laps you complete.
During a competition workout, the Competition tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
other competitors. The end of the matrix represents
the end of the race.
8. Measure your heart rate if desired.
See step 5 on page 21.
9. Turn on the fan if desired.
See step 6 on page 21.
10. When you are nished exercising, unplug the
power cord.
See step 7 on page 21.
For more information about the iFit Live mode, go
to www.iFit.com.
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a jack
on your MP3 player or CD player; make sure that the
audio cable is fully plugged in.
Next, press the play button
on your MP3 player or CD
player. Adjust the volume
level using the volume
increase and decrease
buttons on the console or
the volume control on your MP3 player or CD player.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
24
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
view usage information, select a unit of measurement,
and adjust the contrast level of the display.
When an iFit Live module is connected to the console,
you can also use the information mode to choose an
audio setting for the voice of the personal trainer, set a
default menu, check the status of the iFit Live module,
and check for downloads.
If no module is connected, the display will show
the words NO IFIT MODULE. If no module is connected, go to step 10.
6. Select an audio setting for the voice of the
personal trainer if desired.
Press the decrease button to view the audio setting
for the voice of the personal trainer. The currently
selected audio setting for the voice of the personal
trainer will appear in the display.
1. Select the information mode.
To select the information mode, press and hold
down the Display button for a few seconds until the
information mode appears in the display.
2. View usage information.
The display will show the total number of hours that
the elliptical has been used. The display will also
show the total distance (in miles or kilometers) that
has been pedaled on the elliptical.
3. Select a unit of measurement if desired.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display to indicate the currently selected unit of
measurement.
To change the unit of measurement, press the
Enter button repeatedly to select the desired unit of
measurement.
4. Adjust the contrast level of the display if
desired.
To change the audio setting, press the Enter button
repeatedly to turn the voice of the personal trainer
ON or OFF.
7. Set the default menu if desired.
Press the decrease button to view the default menu
setting. The default menu is the menu that will
appear when you turn on the console. Press the
Enter button repeatedly to select the manual mode
main menu or the iFit Live menu as the default
menu.
8 Check the status of the iFit Live module if
desired.
Press the decrease button to view the iFit Live
status display. The words CHECK WIFI STATUS or
CHECK USB STATUS will appear in the display.
Then, press the Enter button. After a few seconds,
the status of the iFit Live module will appear in the
display. To exit this display, press and hold down
the Display button for a few seconds.
9. Check for downloads if desired.
Press the decrease button to view the contrast
level. The currently selected contrast level will
appear in the display. Press the Power Ramp
increase and decrease buttons to adjust the contrast level.
5. Determine if an iFit Live module is connected to
the console.
If an iFit Live module is connected to the console,
the display will show the words WIFI MODULE or
USB MODULE.
Press the decrease button to view the downloads
display.ThewordsSEND/RECEIVEDATAwill
appear in the display.
Then, press the Enter button. The console will
then check for iFit Live workouts and firmware
downloads.
10. Exit the information mode.
Press the Display button to exit the information
mode.
25
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandthereceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
26
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 21.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press and
hold the Calorie button for several seconds until the
test mode appears in the display.
Press the Calorie button again. Then, press the Power
Ramp increase or decrease button to calibrate the
ramp. The ramp will move upward and downward as it
calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the Calorie button repeatedly to exit the
calibration mode.

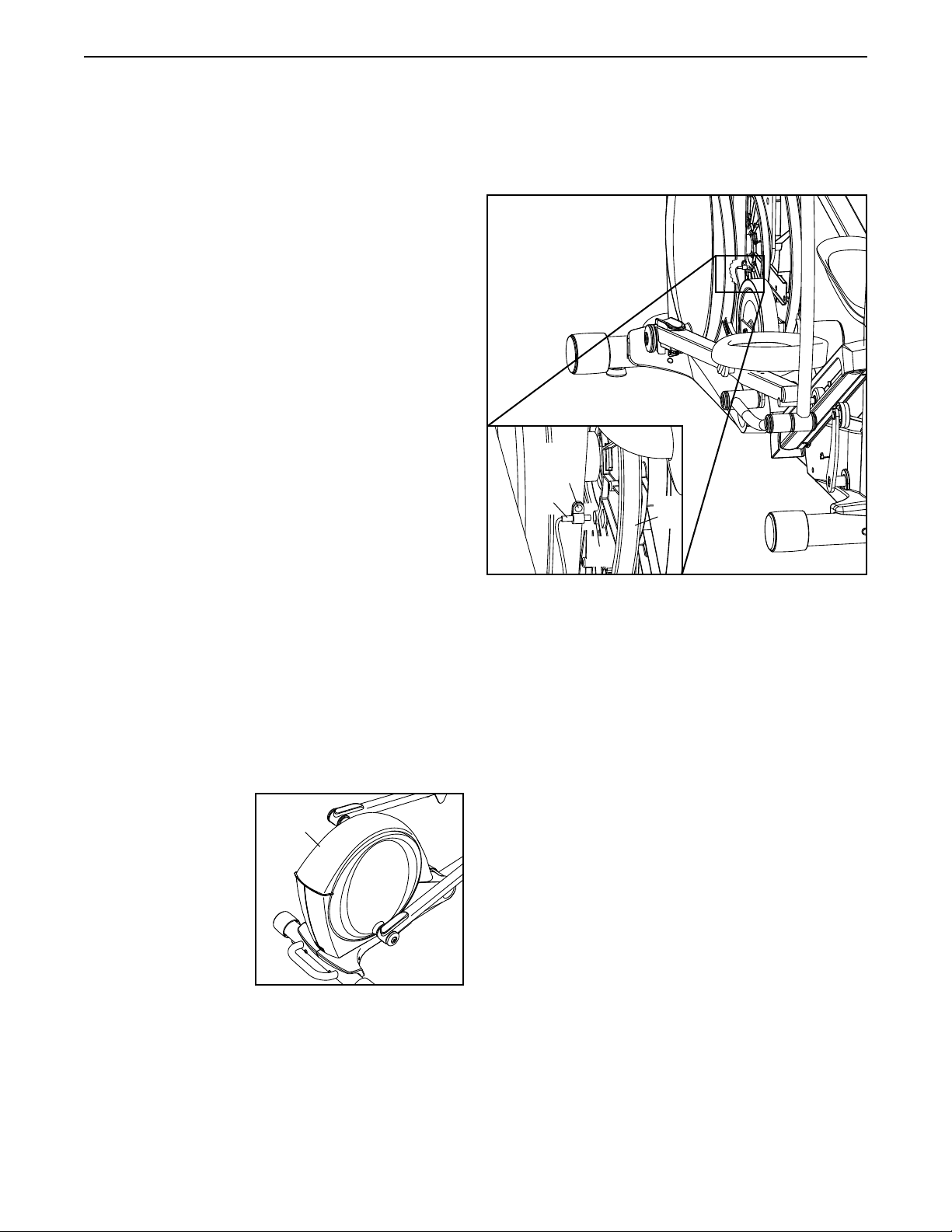

Next, look into the access opening and locate the Reed
Switch (69). Rotate the Large Pulley (74) until a Pulley
Magnet (75) is aligned with the Reed Switch.
106
69
74
75
Next, loosen, but do not remove, the indicated M4 x
16mm Screw (106). Slide the Reed Switch (69) slightly
toward or away from the Pulley Magnet (75). Then,
retighten the Screw.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed
switch, first unplug
the power cord.
Using a flat screwdriver, release the
tabs on the Access
Cover (20) and pry
the Access Cover
upward off the
elliptical.
20
Plug in the power cord and rotate the large pulley for
a moment. Repeat these actions until the console
displays correct feedback. When the reed switch is correctly adjusted, reattach the access cover.
27
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, first unplug the power cord.
Using a flat screwdriver, release the tabs on the
Access Cover (20) and pry the Access Cover upward
off the elliptical.
Loosen the Pivot Screw (97). Tighten the Belt
Adjustment Screw (85) until the Drive Belt (38) is tight.
When the Drive Belt is tight, tighten the Pivot Screw.
38
38
97
97
20
13
18, 19
112
88
50
Next, lift the Latch (50) on the underside of the Left
Pedal Arm (13), and then lift the Left Pedal Arm off the
left Pedal Arm Sleeve (46).
Then, remove the M4 x 16mm Round Head Screws
(112) and the M4 x 42mm Screws (88) from the Right
and Left Shields (18, 19). (Note: Not all Screws are
shown. Be sure to note which size Screws come from
which holes.) Then, carefully remove the Left Shield.
46
88
85
When you are finished, reattach the left shield, replace
the left pedal arm, and reattach the access cover.
Then, plug in the power cord.
85
28
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise —never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
29
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
30
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. SFEL16011.1 R0112B
1 1 Main Frame
2 1 Folding Frame
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Upright
6 1 Right Upper Body Leg
7 1 Left Upper Body Leg
8 1 Right Upper Body Arm
9 1 Left Upper Body Arm
10 1 Right Handlebar
11 1 Left Handlebar
12 1 Right Pedal Arm
13 1 Left Pedal Arm
14 1 Right Pedal
15 1 Left Pedal
16 2 Wheel Cap
17 2 Disc
18 1 Right Shield
19 1 Left Shield
20 1 Access Cover
21 1 Right Frame Cover
22 1 Left Frame Cover
23 6 Double Tree Fastener
24 1 Front Upright Cover
25 1 Rear Upright Cover
26 1 Accessory Tray
27 1 Top Cover
28 2 Pedal Arm Cap
29 18 Mountw/Screw
30 2 Magnet Cover
31 4 Pedal Arm Magnet
32 2 Pedal Arm Roller
33 1 Console
34 2 PulseSensor/Wire
35 2 Handgrip
36 2 Wheel
37 2 Stabilizer Cap
38 1 Drive Belt
39 2 Crank Arm
40 2 Hairpin Cotter Pin
41 3 Leveling Foot
42 1 Latch Bracket
43 1 Right Link Arm
44 2 Lift Bracket
45 2 Lift Axle Bushing
46 2 Pedal Arm Sleeve
47 2 Inner Sleeve Bushing
48 1 Upright Axle
49 2 Latch Housing
50 2 Latch
51 2 Large Latch Spring
52 2 Latch Insert
53 4 Long Latch Spring
54 16 Arm/LegBushing
55 4 M4 x 16mm Flat Head Screw
56 6 Small Axle Cover
57 2 Upright Bushing
58 2 Outer Sleeve Bushing
59 1 Audio Cable
60 1 Main Wire
61 1 Flywheel/Mechanism
62 1 M10 x 14mm Washer
63 1 Frame Axle
64 4 Main Frame Bushing
65 1 Latch Bracket Axle
66 1 Latch Bracket Spring
67 1 Latch Button
68 1 Button Housing
69 1 ReedSwitch/Wire
70 1 Clamp
71 1 Crank Hub
72 1 Crank
73 1 Crank Spacer
74 1 Large Pulley
75 2 Pulley Magnet
76 2 Folding Frame Bearing
77 1 Idler
78 1 Resistance Motor
79 1 Left Pedal Plate
80 1 Right Pedal Plate
81 2 Knob Screw
82 2 Pedal Knob
83 2 Pedal Cam
84 1 Flywheel Axle
85 1 Belt Adjustment Screw
86 8 M8 x 28mm Screw
87 2 Crank Snap Ring
88 4 M4 x 42mm Screw
89 4 Motor Screw
90 4 Pedal Arm Bushing
91 2 Cam Plate
92 4 M4 x 8mm Screw
93 1 Lift Arm Axle
94 2 M10 x 118mm Screw
95 12 M8 Washer
96 1 M6 Washer
97 1 Pivot Screw
98 2 Pedal Spring
99 1 Idler Bolt
100 4 M10 x 95mm Screw
31
Key No. Qty. Description Key No. Qty. Description
101 2 Small Pedal Arm Snap Ring
102 18 M8 x 16mm Screw
103 14 M8 Split Washer
104 2 Lift Arm Snap Ring
105 2 Pulse Wire
106 13 M4 x 16mm Screw
107 4 M10 x 20mm Screw
108 6 M10 Washer
109 8 M8 x 16mm Screw
110 2 M8 x 1mm Washer
111 1 Left Pedal Insert
112 12 M4 x 16mm Round Head Screw
113 2 Large Axle Cover
114 2 Link Arm Axle
115 1 Power Switch
116 1 Power Cord Grommet
117 1 Right Pedal Insert
118 2 Wave Washer
119 1 Power Cord
120 1 Control Board
121 2 M8 x 25mm Screw
122 1 3/8"x1"FlangeScrew
123 4 Nylon Standoff
124 1 Control Board Bracket
125 8 M4 x 19mm Screw
126 4 M10 Locknut
127 2 Long C-pin
128 2 Short C-pin
129 2 Large Pedal Arm Snap Ring
130 1 Ramp
131 1 Ramp Cover
132 4 Ramp Bushing
133 1 Ramp Axle
134 1 Lift Motor
135 1 Lift Motor Wire
136 2 Ramp Roller
137 1 Long Motor Axle
138 1 Short Motor Axle
139 2 Lift Axle Washer
140 2 Motor Spacer
141 2 Lift Axle Screw
142 1 Left Lift Arm
143 1 Right Lift Arm
144 1 Left Link Arm
145 1 Motor Power Wire
146 8 M6 x 12mm Screw
147 1 Frame Wire
148 1 Ground Wire
149 4 M8 x 35mm Screw
150 4 M8 x 38mm Screw
151 2 M8 Locknut
152 2 Pedal Bumper
153 2 Wire Clip
154 1 Resistance Motor Wire
155 1 Receiver Extension Wire
* – Blue Wire
* – White Wire
* – User’s Manual
* – Assembly Tool
* – Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
32
EXPLODED DRAWING A
35
8
24
102
103
54
118
57
155
125
23
34
103
10
125
125
Model No. SFEL16011.1 R0112B
103
102
95
54
27
5
102
103
6
56
149
105
95
114
54
54
95
28
56
54
149
153
106
43
109
56
95
54
54
129
34
35
102
102
103
95
9
48
54
95
53
128
90
50
94
91
30
52
50
51
128
31
127
51
12
49
83
52
82
81
92
31
106
127
106
49
90
30
32
101
98
126
90
28
101
32
126
102
95
90
91
53
13
31
92
31
54
56
95
23
54
114
129
54
59
25
149
56
95
98
94
83
54
81
82
57
118
103
102
11
26
33
54
7
144
54
103
149
102
109
33
EXPLODED DRAWING B
Model No. SFEL16011.1 R0112B
136
141
104
139
142
131
45
93
138
140
102
130
29
40
102
109
103
103
29
29
44
102
109
63
16
139
108
108
109
39
141
107
65
110
3
126
110
100
66
109
36
41
47
86
46
58
95
86
36
113
16
126
108
121
42
67
136
104
1
143
44
107
108
64
132
64
108
107
134
29
29
137
45
40
64
132
132
86
113
121
135
148
39
95
145
72
38
58
46
47
151
74
73
61
84
62
107
75
108
151
150
60
76
87
150
75
133
154
106
70
77
99
147
97
69
89
96
124
106
123
85
2
78
120
68
123
37
76
116
87
115
71
55
122
119
37
41
4
100
41
34
EXPLODED DRAWING C
112
Model No. SFEL16011.1 R0112B
112
17
112
18
21
112
112
20
22
112
112
112
19
88
29
88
29
29
88
112
23
17
29
152
112
29
15
88
111
14
152
79
146
146
117
80
35
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)
•thenameoftheproduct(seethefrontcoverofthismanual)
•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor
are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to
state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 326842 R0112B Printed in China © 2012 ICON IP, Inc.
Loading...
