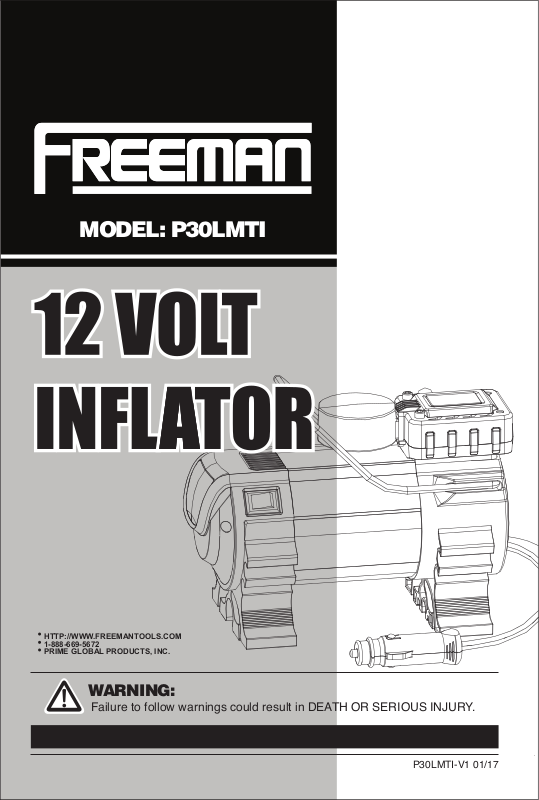

Freeman P30LMTI, P45LMTI User Manual
MODEL: P30LMTI
HTTP://WWW.FREEMANTOOLS.COM
1-888-669-5672
PRIME GLOBAL PRODUCTS, INC.
WARNING:
Failure to follow warnings could result in DEATH OR SERIOUS INJURY.
P30LMTI-V1 01/17
MODEL: P30LMTI
MODEL: P30LMTI
SYMBOLS
GENERAL SAFETY INSTRUCTIONS
UNPACKING
SPECIFICATIONS
FEATURES
OPERATION
INFLATING TIRES
INFLATING OTHER OBJECTS
MAINTENANCE
TROUBLESHOOTING
WARRANTIES
3
3 - 4
4
4
4
5 - 6
5
6
6 - 7
8
9
WARNING
The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. Please be aware of the potential hazards, and take all necessary precautions to avoid risk of injuries.
SAVE THIS MANUAL
To avoid serious personal injury, do not attempt to use this product until you read the manual
thoroughly and understand it completely. Save this manual and review frequently for safe operation
and instructing others who may use this tool. Keep this manual for the safety warnings, precautions,
operations, inspections and maintenance information. Store this manual and the receipt in a safe and
dry place for future reference.
SYMBOLS
In this manual, on the labels, packages and all other information provided with this tool, the following signal
words and meanings are intended to explain the levels of risk associated with this tool.
SYMBOLS
GENERAL SAFETY
INSTRUCTIONS
CALIFORNIA PROPOSITION 65
WARNING:
The product contains chemicals known
to the State of California to cause cancer
and birth defects or other reproductive
harm. The dust created while using this
tool could also contain chemicals known
to the State of California to cause cancer,
birth defects or other reproductive harm.
Wash hands after handling.
WORK AREA
Keep the work area clean and well lit. Cluttered
benches and dark areas increase the risk of
accidents.
Do not operate the tool in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. The tool could
create a spark which may ignite flammable liquids,
gases or dust.
Keep bystanders, children, and others away
while operating the tool. Distractions could result
in improper use and cause injury.
Keep proper footing and balance at all times.
Proper footing and balance enables better control
of the tool in unexpected situations.
PERSONAL SAFETY
Stay alert. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A
moment of inattention while operating the tool may
cause serious injury.
Wash hands after handling this product or its
power cord. They may contain chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
SIGNAL MEANING
WARNING:
CAUTION:
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
(Without symbol) Indicates a situation that may result in
property damage.
ELECTRICAL SAFETY
The power plug must match the outlet. Never
modify the plug or plug the tool into outlets that do
not match the plug.
When operating the tool keep tool away from
wet conditions. Wet tools can cause electrical
shock.
Always inspect electrical cord for damage
before and after use. A damaged cord can cause
electrical shock.
TOOL USE AND CARE
Know this tool. Read this manual carefully, learn
its applications and limitations, as well as the
specific potential hazards related to this tool.
Practice safe working practices and ensure all
relevant legal requirements are being followed
when using this tool.
The tool should not be forced, use the correct
tool for your application. The correct tool will do
the job better and safer at the rate for which the tool
is being used.
This inflator can only operate under 12V DC. Do
not attempt to use this tool with any other power
source or voltage. Do not modify the inflator from its
original design, this could lead to serious bodily
injury.
The inflator only works with a power port that
supports 15 Amps. Check your vehicle owner
manual to make sure it supports 15 Amps,
otherwise it might blow the vehicle fuse.
Refer to the vehicle owner manual for recommended tire pressure. Never exceed
recommended pressure. Doing so may cause
articles to burst which will cause serious bodily
injury.
Never leave the tire inflator running while
unattended. This might cause articles to burst
resulting in serious bodily injury.
Always make sure the inflator’s power cord is
uncoiled and fully extended while in use to
avoid overheating the power cord.
02
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672
03
MODEL: P30LMTI
MODEL: P30LMTI
Allow the inflator to cool down for 10 min after
each 20 min of continuous operation. This will
help to prevent the tool from overheating.
The vehicle’s engine should be turned on and
running while inflating the tire. This will help the
vehicle’s battery to maintain a fully charged
condition which can maximize the power and
efficiency of the inflator.
To check and verify the actual tire pressure, the
inflator must be in OFF (O) position.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the tool’s operation. If
damaged, have the tool serviced before using.
Many accidents are caused by poorly maintained
tools.
Maintain the tool with care. A properly maintained
tool will function more smoothly and prevent
binding, making it easier to use.
Store the tool away from children or untrained
persons when not in use. The tool can be
dangerous when used by untrained persons.
Do not use the tool for anything other than its
intended use.
Do not use the tool if the power switch does not
actuate properly. Any tool that cannot be
controlled with the power switch is dangerous and
must be repaired.
Keep the tool dry, clean and free of oil and
grease. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your tool.
Never use gasoline or other flammable liquids
to clean the tool. Never use the tool in the
presence of flammable liquids or gases. Vapors
could ignite by a spark and cause an explosion
which will result in death or serious injury.
Do not drop or throw the tool. Dropping or
throwing the tool can result in damage that will
make the tool unusable or unsafe. If the tool has
been dropped or thrown, examine the tool closely
for bent, cracked or broken parts. STOP and repair
before using or serious injury could occur.
Do not operate the tool if it does not contain a
legible warning label.
TOOL SERVICE
Only use accessories that are identified by the
manufacturer for the specific tool model.
Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of
injury.
Tool service must only be performed by a
qualified repair personnel.
UNPACKING
This tool has been shipped completely assembled.
Carefully remove the tool and any accessories from
the box.
Inspect the tool carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
tool.
If any parts are damaged or missing, please call
1-888-669-5672.
WARNING:
If any parts are missing do not operate
this tool until the missing parts are
replaced. Failure to do so could result in
serious personal injury.
WARNING:
Do not attempt to modify this tool or
create accessories not recommended
for use with this tool. Any such alteration
or modification is misuse and could
result in hazardous conditions leading to
possible serious personal injury.
SPECIFICATIONS
POWER REQUIREMENT:
MAX POWER
SCFM
MAX PRESSURE
12 V DC
140 W
1.06
100 PSI
FEATURES
BUILT-IN 100 PSI ANALOG METAL GAUGE
LED WORKING LIGHT
3 INFLATION TIPS
BRAIDED AIR HOSE WITH SOLID TWIST-ON
AIR CHUCK
10 FT POWER CORD WITH CIGARETTE PLUG
AND REPLACEABLE FUSE
BATTERY CLIP-ON CAR CIGARETTE SOCKET
ADAPTER
CARRYING BAG
OPERATION
INFLATING TIRES
Make sure the vehicle engine is running and the
1.
inflator’s power switch is at the OFF (O) position.
2.
Remove tire dust cap and twist the air chuck onto
the valve stem tightly.
3.
Plug the power cord into the vehicle 12V cigarette
socket.
4.
Switch the tire inflator to ON (-) position to inflate
the tire. Keep the engine running during the entire
inflating time.
5.
When the pressure gauge indicates the desired
pressure, turn off the inflator by switching to OFF
(O) position.
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-567204
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672 05
6.
Unscrew the inflator chuck from the tire valve
stem. Put back the dust cap and unplug the power
cord from the socket.
INFLATING OTHER OBJECTS
1.
Select the appropriate inflation tip and twist onto
the inflator air chuck.
MODEL: P30LMTI
3.
Switch the inflator to ON (-) position and begin
inflating the object.
4.
When the pressure gauge indicts the desired
pressure, turn off the inflator by switching to OFF
(O) position. Do not over inflate.
MODEL: P30LMTI
REPLACING THE FUSE
1.
Unscrew the tip of the power cord plug.
2.
Remove the blown fuse and replace with a new
15A fuse.
3.
Screw back the tip of the power cord plug.
CLEANING
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and maybe damaged
by their use. Use clean cloths to remove dirt, dust , oil,
grease, etc.
2.
Make sure the inflator is OFF (O), and then
connect the power cord with a 12V DC power
outlet.
06
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672
MAINTENANCE
WARNING:
Any time inspection, maintenance, and
cleaning are done be sure to remove the
tool from the power source.
HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672
07
