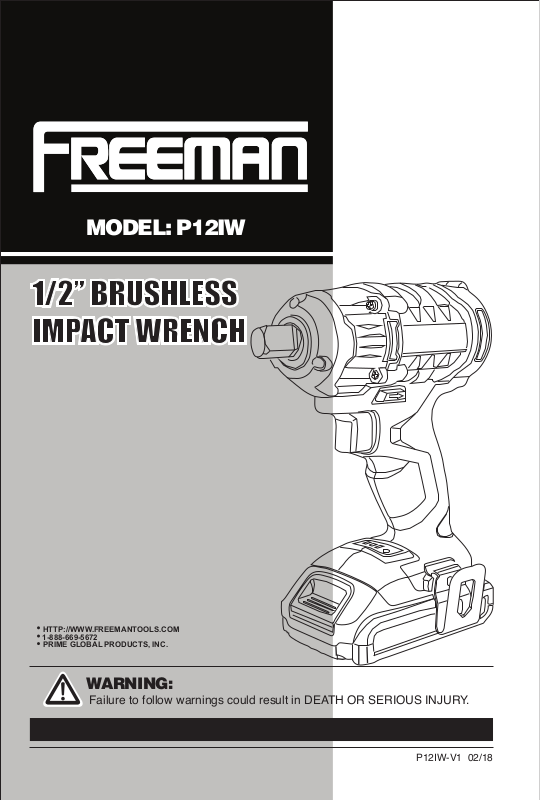

Freeman P12IW User Manual

MODEL: P12IW

HTTP://WWW.FREEMANTOOLS.COM
1-888-669-5672

PRIME GLOBAL PRODUCTS, INC.

WARNING:

Failure to follow warnings could result in DEATH OR SERIOUS INJURY.

P12IW-V1 02/18

MODEL: P12IW

MODEL: P12IW

SYMBOLS
GENERAL SAFETY INSTRUCTIONS
UNPACKING
PACKING LIST
SPECIFICATIONS

FEATURES

OPERATION

INSTALLING/REMOVING BATTERY PACK
VARIABLE SPEED SWITCH TRIGGER
THREE-SPEED SELECTOR

DIRECTION OF ROTATION SWITCH
TRI-BEAM LED LIGHTS
CHARGING THE BATTERY

BATTERY

MAINTENANCE

WARRANTIES

3

3 - 5

5
5
5
5

6
6

6
6

6
6
6

6
6

7

WARNING

The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. Please be aware of the potential hazards, and take all necessary precau­tions to avoid risk of injuries.

SAVE THIS MANUAL

To avoid serious personal injury, do not attempt to use this product until you read the manual
thoroughly and understand it completely. Save this manual and review frequently for safe operation
and instructing others who may use this tool. Keep this manual for the safety warnings, precautions,
operations, inspections and maintenance information. Store this manual and the receipt in a safe and
dry place for future reference.

SYMBOLS

In this manual, on the labels, packages and all other information provided with this tool, the following signal
words and meanings are intended to explain the levels of risk associated with this tool.

SYMBOLS

GENERAL SAFETY
INSTRUCTIONS

CALIFORNIA PROPOSITION 65

WARNING:

This product can expose you to chemi­cals including lead, which is known to
the State of California to cause cancer
and birth defects or other reproductive
harm. For more information go to
www.P65Warnings.ca.gov.

WORK AREA

Keep the work area clean and well lit. Cluttered

benches and dark areas increase the risk of
accidents.

Do not operate the tool in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. The tool could

create a spark which may ignite flammable liquids,
gases or dust.

Keep bystanders, children, and others away
while operating the tool. Distractions could result

in improper use and cause injury.

Keep proper footing and balance at all times.

Proper footing and balance enables better control
of the tool in unexpected situations.

Do not use on a ladder or unstable supports.

Stable footing on a solid surface enables better
control of the tool in unexpected situations.

PERSONAL SAFETY

Always wear eye protection. Operator and others

in the work area should always wear ANSI-Z87.1
approved safety goggles with side shields. Eye
protection is used to guard against flying debris,
which may cause severe eye injury.

SIGNAL MEANING

WARNING:

CAUTION:

CAUTION:

Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.

(Without symbol) Indicates a situation that may result in
property damage.

Always hearing protection when using the tool.

Prolonged exposure to high intensity noise may
cause hearing loss.

Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing, and gloves away

from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Stay alert. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A
moment of inattention while operating the tool may
cause serious injury.

Avoid prolonged use. The tool’s repetitive motion

and vibration can cause harm to your hands or
arms. The user can use gloves for extra cushion,
take frequent breaks and limit daily use to prevent
this issue.
This tool vibrates with use. Continuous operation
can be harmful to your hands and arms. Stop using
the tool if you feel tingling or pain. Resume work
after recovery. Seek medical advice if serious
symptoms occur.

Make sure there are no hidden electrical cables,
gas pipes, etc. while working on the work piece.

These hazards could harm the user if damaged
while using this tool.

Wash hands after handling this product or its
power cord. They may contain chemicals known

to the State of California to cause cancer and birth
defects or other reproductive harm.

ELECTRICAL SAFETY

The chargers power plug must match the
outlet. Never modify the plug or plug the tool into

outlets that do not match the plug.

Avoid contact with grounded elements such as
metal tables, pipes, ranges or refrigerators.

Contact with these elements can put you at risk of
electrical shock.

When operating the tool keep tool away from
wet conditions. Wet tools can cause electrical

shock.

02

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672

03

MODEL: P12IW

MODEL: P12IW

Always inspect electrical cord for damage
before and after use. A damaged cord can cause

electrical shock.

TOOL USE AND CARE

Know this tool. Read this manual carefully, learn

its applications and limitations, as well as the
specific potential hazards related to this tool.

Always have a firm footing and grip on the tool
to counteract any force that may be enacted
during the operation of the tool.
Practice safe working practices and ensure all
relevant legal requirements are being followed
when using this tool.
The tool should not be forced, use the correct
tool for your application. The correct tool will do

the job better and safer at the rate for which the tool
is being used.

Before adjustments, changing accessories, or
storing the tool disconnect the tool from the
battery. This will reduce the risk of injury from the

power tool.

Check for misalignment or binding of moving
parts, breakage of parts and any other

condition that may affect the tool’s operation. If
damaged, have the tool serviced before using.

Many accidents are caused by poorly
maintained tools. Maintain tool with care. A

properly maintained tool will function more smooth­ly and prevent binding, making it easier to use.

Do not use the tool for anything other than its
intended use.
Do not use the tool if the trigger does not
actuate properly. Any tool that cannot be

controlled with the trigger is dangerous and must
be repaired.

Keep the tool and its handle dry, clean and free
of oil and grease. Always use a clean cloth when

cleaning. Never use brake fluids, gasoline,
petroleum-based products, or any strong solvents
to clean your tool.

Never use gasoline or other flammable liquids
to clean the tool. Never use the tool in the

presence of flammable liquids or gases. Vapors
could ignite by a spark and cause an explosion
which will result in death or serious injury.

Do not use the tool as a hammer.
Never press the trigger of the tool when it is not
intended to be used.
Do not drop or throw the tool. Dropping or

throwing the tool can result in damage that will
make the tool unusable or unsafe. If the tool has
been dropped or thrown, examine the tool closely
for bent, cracked or broken parts. STOP and repair
before using or serious injury could occur.

BATTERY AND CHARGER USE AND
CARE

Only use batteries that are recommended for
this tool by the manufacturer. Use of any other

battery may cause risk of injury or fire.

When the battery is not in use, keep it away
from metal objects that could connect one
terminal to another. If the terminals are connect-

ed the battery could cause fire or burns.

Keep the battery free of abusive situations, if a
battery is damaged it can eject battery liquid. If

you come in contact with the battery liquid flush the
contact area with water. If your eye comes in
contact with the battery liquid flush with water and
seek medical help. Battery liquid can cause
irritation or burns.

Do not store batteries in areas that can reach or
exceed 105°F. (Such as outside sheds or metal

buildings in the summer).

Only charge the battery with a charger recom­mended by the manufacturer. Use of any other

charger may cause risk of injury or fire.

Do not use chargers for anything other than
charging manufacturer recommended
batteries, otherwise electric shock could occur.
Do not expose the charger to rain or snow.

Make sure the charger’s cord is located in an

area where it will not be damaged.
Extension cords should not be used unless
absolutely necessary. Improper use of an

extension cord can result in electric shock.
Do not place an object on top of the charger.
This could block ventilation slots and cause
excessive internal heat.

Do not use the charger if it has been subjected
to a hard blow, has been dropped, or damaged
otherwise. Take the charger to an authorized

repair center.
Do not disassemble the charger. If the charger
needs to be repaired take it to an authorized repair
center.

Before cleaning the charger make sure to
unplug it from any power source. This will

reduce the risk of an electrical shock.

WARNING:

Do not open the battery for any reason. If
the battery is damaged or cracked do not
insert it into the charger. Electric shock
can be caused by a damaged battery. Be
sure to dispose of all batteries at a
service center for recycling.

WARNING:

Do not burn batteries or expose them to
extreme heat. This could cause the
battery to explode.

WARNING:

Do not allow liquid to get into the
charger, electric shock could result.

WARNING:

Electrocution hazard. Do not touch or
allow conductive objects to touch the
charging terminals. Electric shock or
electrocution could occur.

TOOL SERVICE

Only use accessories that are identified by the
manufacturer for the specific tool model.
Use of unauthorizeVd parts or failure to follow
maintenance instructions may create a risk of
injury.
Tool service must only be performed by a
qualified repair personnel.

UNPACKING

This tool has been shipped completely assembled.
Carefully remove the tool and any accessories from
the box.
Inspect the tool carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
tool.
If any parts are damaged or missing, please call
1-888-669-5672.

WARNING:

If any parts are missing do not operate
this tool until the missing parts are
replaced. Failure to do so could result in
serious personal injury.

PACKING LIST

½” Brushless Impact Wrench
Two 2.0Ah Lithium-ion Batteries
Rapid Charger
Instruction Manual

SPECIFICATIONS

INPUT

BATTERY

NO-LOAD SPEED

TORQUE

CHARGING TIME

100-240V, 50/60Hz

20V MAX., 2.0 Ah, 36Wh

1,300/2,000/2,500 RPM

110/160/230 ft-lb

45 min

FEATURES

BRUSHLESS MOTOR

Delivers up to 230 ft-lbs of torque and a free
speed up to 2,500 RPM.

VARIABLE SPEED

Adjustable 3-speed plus reverse provides
precise control for a wide range of applications.

LITHIUM-ION BATTERIES

Two high-capacity 2.0Ah lithium-ion batteries
feature enhanced battery life.

COMPACT DESIGN

Ergonomic design allows access to tight areas
and reduces fatigue.

LED LIGHT

Three LED lights illuminate dimly lit work areas.

QUICK CHARGER

Fully charge batteries in under 45 minutes for
less downtime.

ACCESSORIES

Belt clip and storage case included.

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-567204

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672 05

MODEL: P12IW

MODEL: P12IW

OPERATION

INSTALLING/REMOVING BATTERY PACK

To install, simply insert the battery pack and make
sure the latch on the battery snaps in place and
battery pack is secured to the tool.
To remove, depress the latch and pull out the
battery pack.

VARIABLE SPEED SWITCH TRIGGER

The variable speed switch trigger delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
To turn on the tool, depress the switch trigger. To
turn it off, release the switch trigger and allow the
anvil to come to a complete stop.

THREE-SPEED SELECTOR

The speed of the impact wrench can be changed for
various applications. Press the selector button to
change to the desired speed.

LOW SPEED (0-1,300 RPM)
MEDIUM SPEED (0-2,000 RPM)
HIGH SPEED (0-2,500 RPM)

WARNING:

Never change the speed while the tool is
running. Doing so may result in serious
damage to the tool.

DIRECTION OF ROTATION SWITCH
(FORWARD/REVERSE/CENTER LOCK)

Set the rotation direction switch in the OFF
(Center lock) position to lock the trigger and help
prevent accidental starting when not in use.
Push the direction of rotation switch to the left of
the trigger for forward operation. Push the switch
to the right to reverse the direction.
The tool will not run unless the direction of
rotation selector is pushed fully to the left or right.

BRUSHLESS
MOTOR

BRUSHLESS
MOTOR

TRI-BEAM LED LIGHTS

The tri-beam LED lights around the anvil illuminate
when the trigger is depressed. The time-out feature
will automatically shut off the lights when the tool is
not in use.

CHARGING THE BATTERY

1.

To charge the battery, line up the slot of the battery
with the slot of the charger and slide into place.

2.

The battery indicator light should turn from green
to red when the battery is charging.
When the indicator light has turned green the

3.
battery should be fully charged.

WARNING:

Allow battery to cool down before
charging if the battery is hot after contin­uous use.

BATTERY

All batteries wear out over time due to normal wear
and tear. Do not attempt to disassemble and repair
the battery, as this could cause serious burns
especially when wearing rings and jewelry. For the
longest possible battery life, we suggest the
following:

Remove the battery from the charger once
fully charged.
Store the battery away from moisture and at
a temperature below 80°F.
Store the battery with at least a 30% – 50%
charge.
If a battery has been stored for six months
or more, charge the battery as normal.

MAINTENANCE

Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and maybe damaged
by their use. Use clean cloth to remove dirt, dust, oil,
grease, etc.

WARNING:

Remove the battery from the tool for any
inspection, maintenance, and cleaning.

PGP INC. PRODUCT WARRANTIES

Professional 1-Year Limited Warranty

The Freeman Tool limited warranty extends exclusively to the original purchaser of the Freeman Product,
begins on the date of purchase. During the warranty period Prime Global Products, Inc. (PGP) expressly
warrants that the Freeman Product is free from defect in materials and workmanship subject to the exceptions
and limitations contained herein. PGP shall at its option, repair, replace, or offer a full refund for a Freeman
Product that has a defect in materials or workmanship.

A DATED SALES RECEIPT OR PROOF OF PURCHASE FROM THE ORIGINAL RETAIL PURCHASER IS
REQUIRED TO MAKE A WARRANTY CLAIM. Warranty registration is also required and can be accomplished
through On-Line Product Registration at www.primeglobalproducts.com, select SUPPORT, select PRODUCT
REGISTRATION. To make a warranty claim, the original purchaser must return the Freeman Tool, postage
prepaid and insured, with proof of purchase to PGP or any of its authorized service centers. For questions
please call 1-888-669-5672. Other than the postage and insurance requirement, no charge will be made for
repairs covered by this warranty.

Warranty Exclusions

These Warranties do not apply where:

Repairs or alterations have been made, or attempted, by others, and/or the unauthorized use of
non-conforming parts or accessories.
Repairs are required due to normal wear and tear.
The Tool has been abused, misused, improperly maintained or operated, including: the failure to use
clean, dry, regulated compressed air at the recommended pressure; accidents caused by use of the
Freeman Product after partial failure.
The Freeman Product is used commercially in assembly lines or production lines. The Freeman
Product is intended for use by individuals and these warranties do not extend to such commercial
uses.

NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRAN­TIES IS MADE WITH REGARD TO THIS FREEMAN PRODUCT. ANY IMPLIED WARRANTIES WILL BE
LIMITED IN DURATION TO THE APPLICABLE WARRANTY PERIOD SPECIFIED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY
NOT APPLY TO YOU. YOUR REMEDIES ARE SOLELY AND EXCLUSIVELY AS STATED ABOVE. PGP
SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, OR SPECIAL
DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. IN
NO EVENT, WHETHER AS A RESULT OF A BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING

NEGLIGENCE) OR OTHERWISE, SHALL PGP’S LIABILITY EXCEED THE PRICE OF THE PRODUCT

WHICH HAS GIVEN RISE TO THE CLAIM OR LIABILITY. ANY LIABILITY CONNECTED WITH THE USE OF
THIS PRODUCT SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD SPECIFIED
ABOVE. NO EMPLOYEE OR REPRESENTATION OF PGP, OR ANY DISTRIBUTOR OR DEALER IS
AUTHORIZED TO MAKE ANY CHANGE OR MODIFICATION OF THIS WARRANTY.

These warranties give you specific legal rights. You may also have other rights which vary from state to state.

OFF(CENTER LOCK) FORWARD/REVERSE

06

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672

HTTP://WWW.FREEMANTOOLS.COM 1-888-669-5672

07
