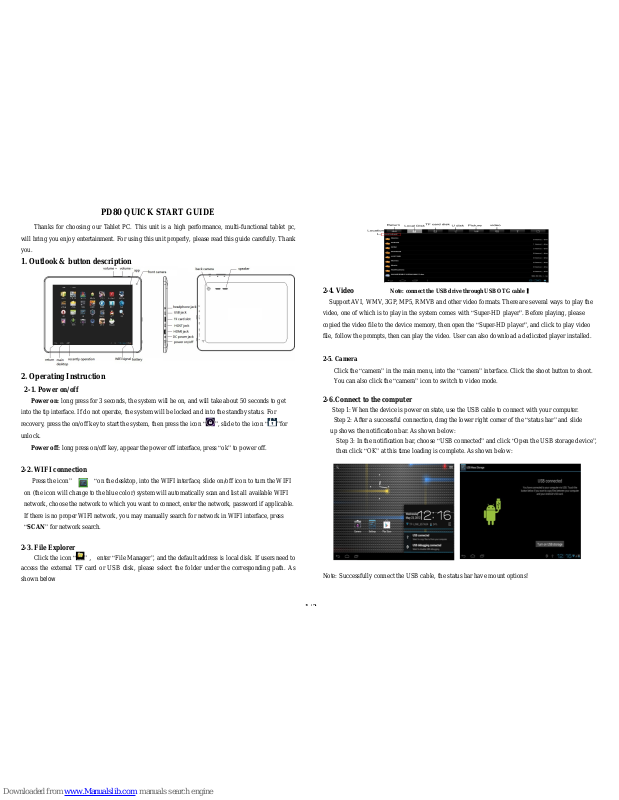

PD80 QUICK START GUIDE

Thanks for choosing our Tablet PC. This unit is a high performance, multi-functional tablet pc,
will bring you enjoy entertainment. For using this unit properly, please read this guide carefully. Thank
you.

1. Outlook & button description

2. Operating Instruction

2-1. Power on/off

Power on: long press for 3 seconds, the system will be on, and will take about 50 seconds to get

into the tip interface. If do not operate, the system will be locked and into the standby status. For
recovery, press the on/off key to start the system, then press the icon “ ”, slide to the icon “ ”for
unlock.

Power off: long press on/off key, appear the power off interface, press “ok” to power off.

2-2. WIFI connection

Press the icon” “on the desktop, into the WIFI interface, slide on/off icon to turn the WIFI
on (the icon will change to the blue color) system will automatically scan and list all available WIFI
network, choose the network to which you want to connect, enter the network, password if applicable.
If there is no proper WIFI network, you may manually search for network in WIFI interface, press

“SCAN” for network search.

2-3. File Explorer

Click the icon “ ”， enter “File Manager”, and the default address is local disk. If users need to

access the external TF card or USB disk, please select the folder under the corresponding path. As
shown below

2-4. Video

Support AVI, WMV, 3GP, MP5, RMVB and other video formats. There are several ways to play the
video, one of which is to play in the system comes with “Super-HD player”. Before playing, please
copied the video file to the device memory, then open the “Super-HD player”, and click to play video
file, follow the prompts, then can play the video. User can also download a dedicated player installed.

2-5. Camera

Click the “camera” in the main menu, into the “camera” interface. Click the shoot button to shoot.
You can also click the “camera” icon to switch to video mode.

2-6.Connect to the computer

Step 1: When the device is power on state, use the USB cable to connect with your computer.

Step 2: After a successful connection, drag the lower right corner of the “status bar” and slide

up shows the notification bar. As shown below:

Step 3: In the notification bar, choose “USB connected” and click “Open the USB storage device”,
then click “OK” at this time loading is complete. As shown below:

Note: Successfully connect the USB cable, the status bar have mount options!

Note: connect the USB drive through USB OTG cable！

2-7. Charging

Use the power adaptor to connect to the dc jack for charging. During the period of charging, when

the unit is off, will appear the icon ‘charging”, when the unit is on, the battery icon will flicker.

2-8. Bluetooth connection

Step1: Choose the setting application in the main menu
interface.

Step2: choose the Bluetooth, and slide on/off icon to

turn the Bluetooth on (the icon will change to the blue
color) system will automatically scan and list all
available Bluetooth devices. As shown below:

Step3: choose an available Bluetooth device, tablet
PCs and Bluetooth devices paired and pop-up pairing
request dialog.
Step4: Input device pairing PIN code. Such as type
1234, click OK, the Tablet PC to a matching request. As
shown below:
Step5: Bluetooth devices will receive a pairing request to the Tablet PC, input the same pairing PIN
code: 1234, and then click pair.
Step6: Successfully paired the Bluetooth devices will appear in the "Paired devices".
Step7: After a successful pairing, the data transfer between the Tablet PC and Bluetooth devices.

2-9. Download, Installation & Uninstallation for Apps

Download

Connect the WIFI, press “Market” for download the APK.

Installation

First, copy the APK to the file on the system, press the “File Manager”, press the APK file for

installation. When complete the installation, the icon will appear on the main desktop.

Note: the first time installation, the message “install blocked” may pop-up, in this case, press
“setting”, then into “security”, tick the unknown sources, and then go back to “File manager” to

continue for installation.

Uninstallation

Press “setting” and into “Apps”, choose the one you wish to uninstallation.

3. Frequently asked questions

3-1. The device cannot boot.

The device power is low or abnormal operation caused by not boot after shutdown. Please
connect to power adaptor for some time and then try to boot again.

3-2. When the device crashes in the use process.

1） During the operation of environmental impact or improper operation caused the crash, or

touch screen failure. You can long press the power button to force shutdown, and then boot.
The device will function properly.

2） Installation of the software is not compatible with the device cause the device to instability,

please uninstall the software or try to “restore factory settings”.

3-3. WIFI connection cannot access the network.

1） The unit do not search WIFI signal, please press “SCAN”, and make sure that have any

wireless router opened within 10 meters.

2） when the device search the WIFI signal, but still cannot connected , please reboot the device

or reboot the wireless router.

3-4. No sound from speaker

The volume setting is too low, please increase the volume or cancel the mute mode. Click the

“settings” and choose “Sound”, then click the “volume”, you can adjust the volume

4. Specification

PD80

CPU RK3066/ Cortex A9 dual-core

Touch panel G+G capacitive multi-touch

WIFI/Bluetooth WIFI802.11b/g/n, support Bluetooth

Nand-Flash Nand-Flash 16GB
Screen size 9.7 inch IPS

Memory DDR3 1GB
Front camera 0.3M
Back camera 2.0M

Graphics Mali400 GPU 3D graphics acceleration

OTG Support external USB keyboard, plug-in 3G

OS Android 4.0
