Freeform F2000 Operating Instructions Manual
1

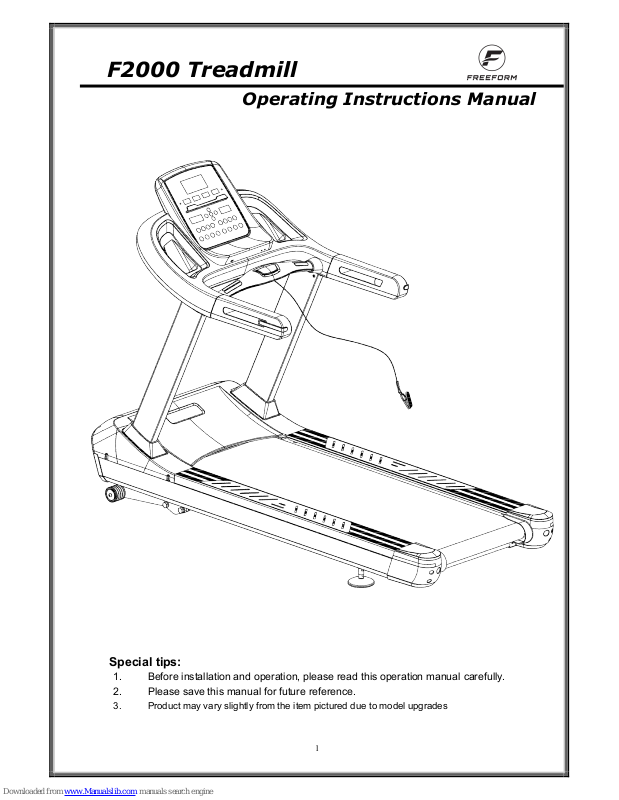

F2000 Treadmill
Operating Instructions Manual
Special tips:
1. Before installation and operation, please read this operation manual carefully.
2. Please save this manual for future reference.
3. Product may vary slightly from the item pictured due to model upgrades
2
IMPORTANT SAFETY INSTRUCTIONS
Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical outlet
prior to cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED
PLUG BY USING IMPORPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
1) Install the treadmill on a flat level surface with access to correct voltage and frequency,
grounded outlet.
2) Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both
carpet and treadmill may result.
3) Do not block the rear of the treadmill. Provide a minimum of 1 meter clearance between
the rear of the treadmill and any fixed object.
4) Place your unit on a solid, level surface when in use.
5) Never allow children on or near the treadmill.
6) When running, make sure the plastic clip is fastened on your clothing. It is for your
safety, should you fall or move too far back on the treadmill.
7) Keep hands away from all moving parts.
8) Never operate the treadmill if it has a damaged cord or plug.
9) Keep the cord away from heated surfaces.
10) Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly flammable environment.
11) Never drop or insert any object into any openings.
12) To disconnect, turn all controls to the off position, remove the safety key, and then
remove the plug from the outlet.
13) The pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are
intended only as exercise aids in determining heart rate trends in general.
14) Use handrails provided; they are for your safety.
15) Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for
use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
16) Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
IMPORTANT ELECTRICAL INFORMATION
WARNING!
1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route
the power cord away from any moving part of the treadmill including the elevation
mechanism and transport wheels.
WARNING - Read all instructions before using this treadmill. It is important your
treadmill receives regular maintenance to prolong its useful life. Failing to regularly
maintain your treadmill may void your warranty.
3
2) NEVER operate treadmill on Generator or UPS power supply.
3) NEVER remove any cover without first disconnecting AC power.
4) NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use
outdoors, near a pool, or in any other high humidity environment.
IMPORTANT OPERATION INSTRUCTIONS
1) Insert the power plug into the socket directly.
2) The constant running time is less than 2 hours. Be sure to read the entire manual before
operating your machine.
3) Understand that changes in speed and incline do not occur immediately. Set your
desired speed on the computer console and release the adjustment key. The computer
will obey the command gradually.
4) Use caution while participating in other activities while walking on your treadmill; such
as watching television, reading, etc. These distractions may cause you to lose balance
or stray from walking in the Centre of the belt; which may result in serious injury.
5) In order to prevent losing balance and suffering unexpected injury, NEVER mount or
dismount the treadmill while the belt is moving. This unit starts with a very low speed.
Simply standing on the belt during slow acceleration is proper after you have learned to
operate this machine.
6) Always hold on to handrail while making control changes.
7) A safety key is provided with this machine. Remove the safety key will stop the walking
belt immediately; the treadmill will shut off automatically. Insert the safety key will reset
the display.
8) Do not use excessive pressure on console control keys. They are precision set to
function properly with little finger pressure.
9) This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety, Children should be supervised to ensure that they do
not play with the appliance.
10) Please consult your doctor at first before running, if you have one of the following
diseases:
a. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and
other chronic diseases, complication disease.
b. If you are over 35 years old and heavier than common weight.
c. Women in pregnant or in breasting period.
11) Please stop exercising immediately and consult your doctor when you feel giddy, surfeit,
thorax ache or other symptoms.
12) Please drink adequate water after taking exercises on our treadmill for more than 20
minutes.
Warning: Now here we suggest that you should consult with your physician or health professional
before starting your workout, especially for the age up to 35 old or once-health problem people. We
take no responsible for any troubles or hurts if you don’t following our specification. Treadmill will be
carefully assembled and covered the motor shield, then connect to the power.
4
ASSEMBLY INSTRUCTIONS
When you open the carton, you will find the below spare parts:
Parts List:
Assembly tools:
5#Allen wrench 5mm 1pc、8#Allen wrench 8mm 1pc、T shape Allen wrench
6mm 1pc、Open wrench 1pc、Phillips screwdriver 1pc
NO. DES. Specification
Nos
.
NO. DES. Specification Nos.
1
Main Frame 1
E Left handle bar 1
C
Left upright tube 1 F Right handle bar
1
D
Right upright tube 1 133
Bolt M8*15
8
106
Bolt M10*20 16
124
Washer
8 8
126
Spring washer
10
16
138
Bolt
M5*16 4
120
Flat Washer 10 16
77
T shape Allen wrench 6mm 1
A
Console top cover 1 78
Open wrench 19mm 1
B
Console panel 1 79
8#Allen wrench 8 1
96
Screw
ST4.2*12 11
80
5#Allen wrench 5 1
15
Left upright tube cover 1 81
Phillips screwdriver 1
16 Right upright tube cover 1
5
Notice: Do not get through power before complete assembly
Step 1:
Step 2:
Step 3:
1. Open the carton, get out the above
spare parts, and put the Main Frame
on the level ground.
2.Use the Phillips screwdriver (81) to
remove the screw ST4.2*20（116）；
3.Use the 8#Allen wrench (79) to
remove the bolt M10*20 (106) and the
spring washer (126)，and remove the L
shape board （ G ）， fasten the bolt
M10*20 (106) and spring washer (126)
by using the 8#Allen wrench (79)。
Notice：After you finish above steps,
the machine will look like step 2.
1.Lift up the left and right motor side
covers (13 、 14) by using Phillips
screwdriver (81) and ST4.2*12 screw
(96).
put the Main Frame on the level
ground.
6
Step 4:
Step 5:
Step 6：
1. Fix the console panel (B) to the
console top cover (A) with screw
ST4.2*12 (96) by using the
Phillips screwdriver (81).
Notice: Make sure the wire of
console panel (B) and the wire of
console top cover (A) are well
connected as per the color
before assemble.
1. Disassemble bolt M6*12 (113) by
using 5#Allen wrench (80), remove
the motor top cover (11).
1.Fix the left and right upright tubes
(C, D) to the main frame (1) with bolt
M10*20 (106),spring washer (126)
and flat washer (120) by using
8#Allen wrench (79).
Notice: Make sure the middle signal
wire (47) and lower signal wire (48)
are well connected before assemble.
7
Step 7:
Step 8:
Step 9:
1. Insert left and right upright tube
covers (15, 16) into left and right
upright tubes (C, D).
2. Fix the console (A) to the left and
right upright tubes (C, D) with bolt
M10*20 (106), spring washer (126) and
flat washer (120) by using 8#Allen
wrench (79).
Notice: Make sure the top signal wire
(46) and middle signal wire(47) are well
connect before assemble.
1. Fix motor top cover (11) to the main
frame (1) with bolt M6*12 (113) by using
5#Allen wrench (80).
2. Fix motor top cover (11) to the main
frame (1) with screw ST4.2*12 (96)by
using Phillips screwdriver (81).
1. Fix the left and right motor side covers
(13、14) to the motor top cover (11) with
screw ST4.2*12 (96) by using Phillips
screwdriver (81).
8
Step10:
Step11:
Step12:
1. Fix the Left and right upright tube
covers (15、16) to the motor top cover
(11) .
1. Fix the left and right handle bar (E、
F) to the console (A) with bolt M8*15(133)
and washer (124) by using 5# Allen
Wrench (80).
1. Assemble the left and right handle bar
(69、70) to the console (A) .
2. Fix the Left and right handle bar(69、
70) to the console(A) with Bolt M5*16
(138) by using the Phillips screwdriver
(81).
